NetWeaver Gateway- Service Builder
- 1. How To Build OData Services from any
Business Suite Data – Fast!
Jeff Gebo, Chris Whealy
September 2012

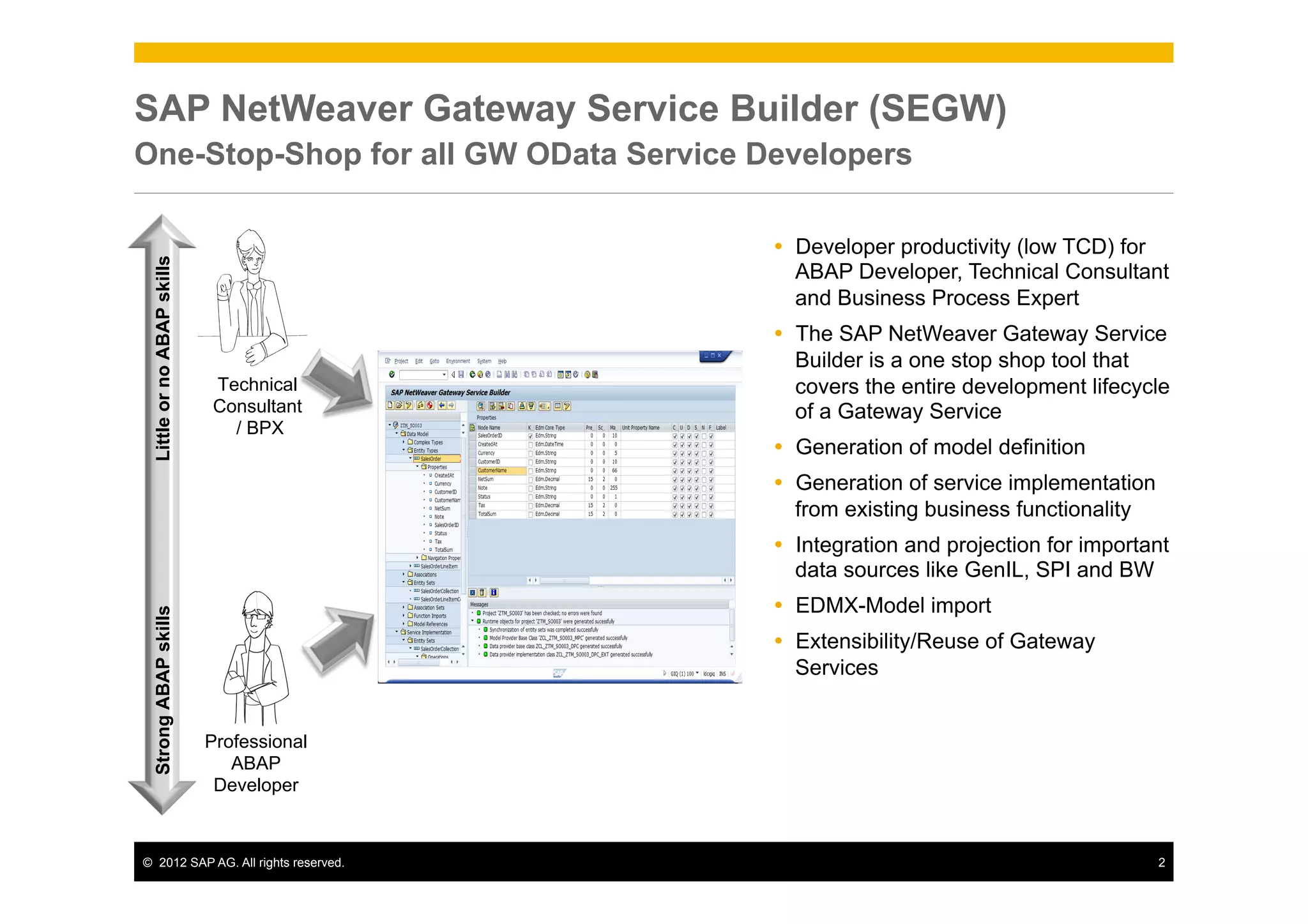

- 2. SAP NetWeaver Gateway Service Builder (SEGW)
One-Stop-Shop for all GW OData Service Developers
Ÿ Developer productivity (low TCD) for
Little or no ABAP skills
ABAP Developer, Technical Consultant
and Business Process Expert
Ÿ The SAP NetWeaver Gateway Service
Builder is a one stop shop tool that
Technical covers the entire development lifecycle
Consultant of a Gateway Service
/ BPX
Ÿ Generation of model definition
Ÿ Generation of service implementation
from existing business functionality
Ÿ Integration and projection for important
data sources like GenIL, SPI and BW
Ÿ EDMX-Model import
Strong ABAP skills
Ÿ Extensibility/Reuse of Gateway
Services
Professional
ABAP
Developer
© 2012 SAP AG. All rights reserved. 2
- 3. SAP NetWeaver Gateway
Service Builder
Gateway’s Design-Time Environment
Build and manage services from one location
OData modelling environment
Ÿ Define entity types, entity sets, associations etc.
Project-based Service Development
Ÿ Consolidates all service design and runtime
objects
For both experienced and less-experienced
developers
Ÿ Take advantage of existing data sources and
automatic content generation or…
Ÿ Define a new service completely from scratch
© 2012 SAP AG. All rights reserved. 3
- 4. Gateway Service Builder – Development Flow in Detail
OData
Service
Defini.on
in
SEGW
Data Model
Declara.ve
Import
Import
DDIC/
Definition
(MPC)
Data
Model
Defini.on
Model
Data
Model
RFC/BOR
Redefine
Defini.on*
(EDMX)
Interface*
Data
Source
Service
Include
(GenIL,
BOL,
enera.on
Service
G Gateway
SPI,
BW
Service*
Service Easy
Query,
Implementation Service
Implementa.on
FC/BOR
Code-‐Based
Implementa.on*
Map
R MDX)
Code-‐Based
Extensions*
mapping)
Opera.on*
(DPC) (Code
based
or
Service * Repeatable
Maintenance within
Service
Registra.on
one service
and
Hub
Ac.va.on
© 2012 SAP AG. All rights reserved. 4
- 5. Gateway Service Builder – Development Flow in Detail
OData
Service
Defini.on
in
SEGW
Data Model
Declara.ve
Import
Import
DDIC/
Definition Model
Data
Model
RFC/BOR
(MPC) Redefine
Defini.on*
(EDMX)
Interface*
Data
Source
Service
Include
(GenIL,
BOL,
Gateway
SPI,
BW
Service*
Service Easy
Query,
Code-‐Based
Implementa.on*
Map
RFC/BOR
MDX)
Implementation
(DPC) Code-‐Based
Extensions*
Opera.on*
Service * Repeatable
Maintenance within
Service
Registra.on
one service
and
Hub
Ac.va.on
© 2012 SAP AG. All rights reserved. 5
- 6. Service Builder
File Import
Import a Data Model
Jumpstart service modelling
Ÿ EDMX Modelling Tool
(e.g. OData Visualizer in MS Visual Studio)
Ÿ Modify properties as needed
Ÿ Generate model provider class and
stubs for data provider class
© 2012 SAP AG. All rights reserved. 6
- 7. Service Builder
Import Existing BOR/RFC Data Structure for Use in an OData Service
Import a Data Source
Re-use Existing BOR/RFC Interfaces
Ÿ Wizard walks you through it
Ÿ Modify properties as needed
© 2012 SAP AG. All rights reserved. 7
- 8. Service Builder
Generate an OData Service from an Existing BOR/RFC Object
Implementation Without Code
Map to Data Source
Ÿ Add constants
Ÿ Modify properties
Ÿ Drag-and-drop
© 2012 SAP AG. All rights reserved. 8
- 9. Service Builder
Associations
Relationships Between Entity Types
Use Service Builder to maintain associations
Enable navigation from one entity to another based
on association
Automatic generation of associations in model
provide class (MPC) and metadata
© 2012 SAP AG. All rights reserved. 9
- 10. Service Builder – Runtime Artefacts
NetWeaver System containing IW_BEP
Registered Service Registered Model
Name Name
Data Provider Model Provider
Base Class Base Class
External Service
Name Data Provider Model Provider
Class Class
Gateway Service
© 2012 SAP AG. All rights reserved. 10
- 12. Use Case 1: RFC/BOR Generator
Import from data source:
1. Create an entity “Account” from BOR Object
Account
BP ID*
BP Role
Email
Phone
…
2. Service Implementation for Account
© 2012 SAP AG. All rights reserved. 12
- 13. Use Case 2: Composition
Import from data source: Existing SalesOrder Service:
1. Create an entity “Account” from BOR Object
SalesOrderHeader
0..N
SO ID *
Account Buyer ID
BP ID* …
1
BP Role
Email 1
Phone
…
SalesOrderItem
SO ID*
Item Position*
2. Service Implementation for Account 1..N Product ID
3. Composition with existing “Sales Order” service …
© 2012 SAP AG. All rights reserved. 13
- 14. Use Case 3: Redefine a Service
1. Create an OData Service from SPI PLM_MAT
2. Redefine interface/metadata
• Select only relevant nodes
• Change labels
• Change External Names
3. Overwrite/ Generate new service for adjusted interface
© 2012 SAP AG. All rights reserved. 14
- 15. Thank you
What’s new in Gateway SP5?
http://help.sap.com/saphelp_gateway20sp05/helpdata/en/10/2b9c8a863a451ebe6bd4358d9d6adb/
frameset.htm
