The SAP NetWeaver Gateway Service Builder provides a tool for centrally defining and creating OData services. It allows modeling of entity sets, types and properties from various data sources. Services can be generated based on existing models from SAP applications like ERP, CRM, BW, HANA or custom models. The service builder supports code-based and declarative implementation approaches and registration of the services with the Gateway server.

1. Service Generation

2. Introduction

3. © 2012 SAP AG. All rights reserved. 3

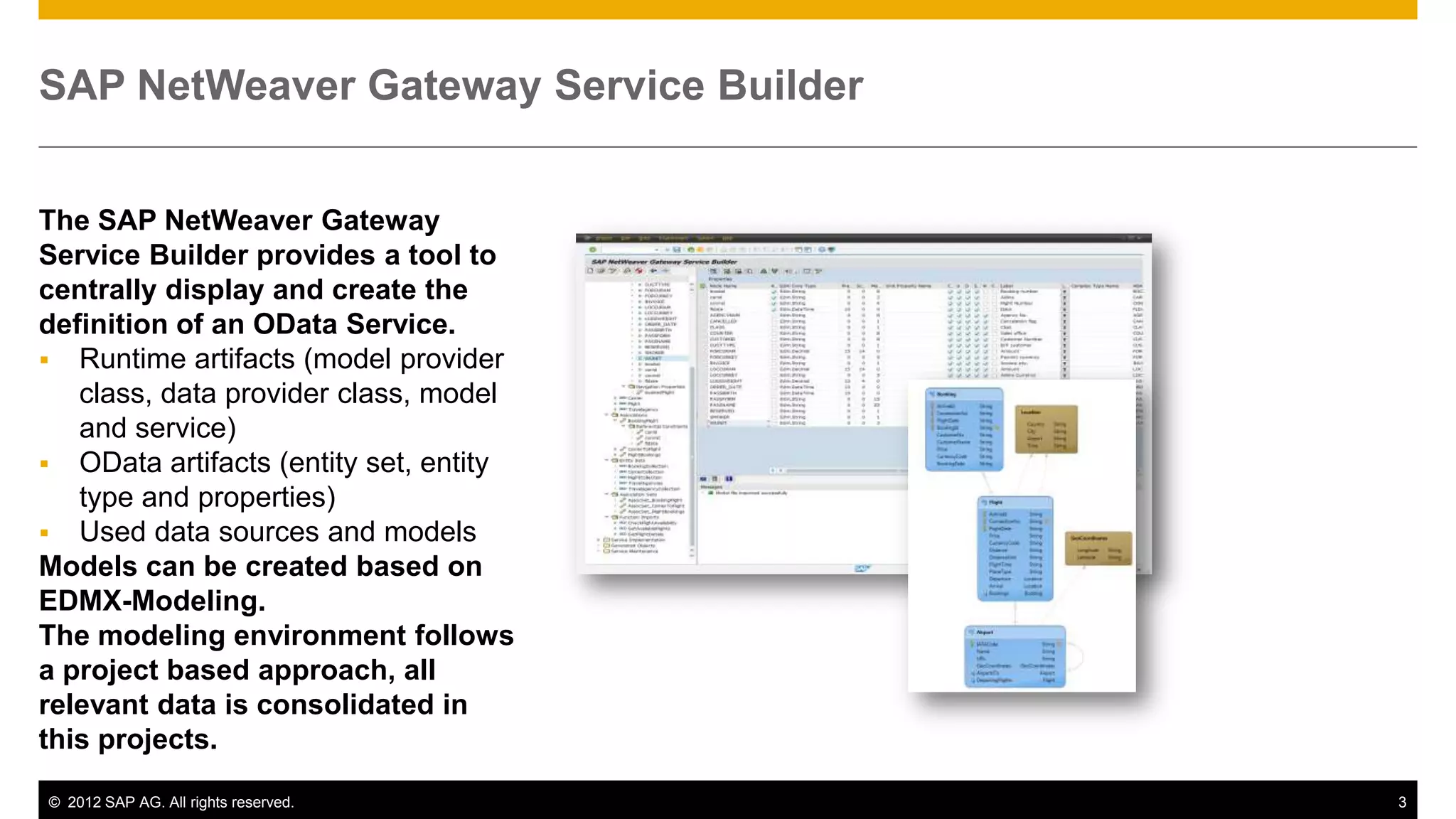

SAP NetWeaver Gateway Service Builder
The SAP NetWeaver Gateway
Service Builder provides a tool to
centrally display and create the
definition of an OData Service.
 Runtime artifacts (model provider
class, data provider class, model
and service)
 OData artifacts (entity set, entity
type and properties)
 Used data sources and models
Models can be created based on
EDMX-Modeling.
The modeling environment follows
a project based approach, all
relevant data is consolidated in
this projects.

4. © 2012 SAP AG. All rights reserved. 4
Service Generation

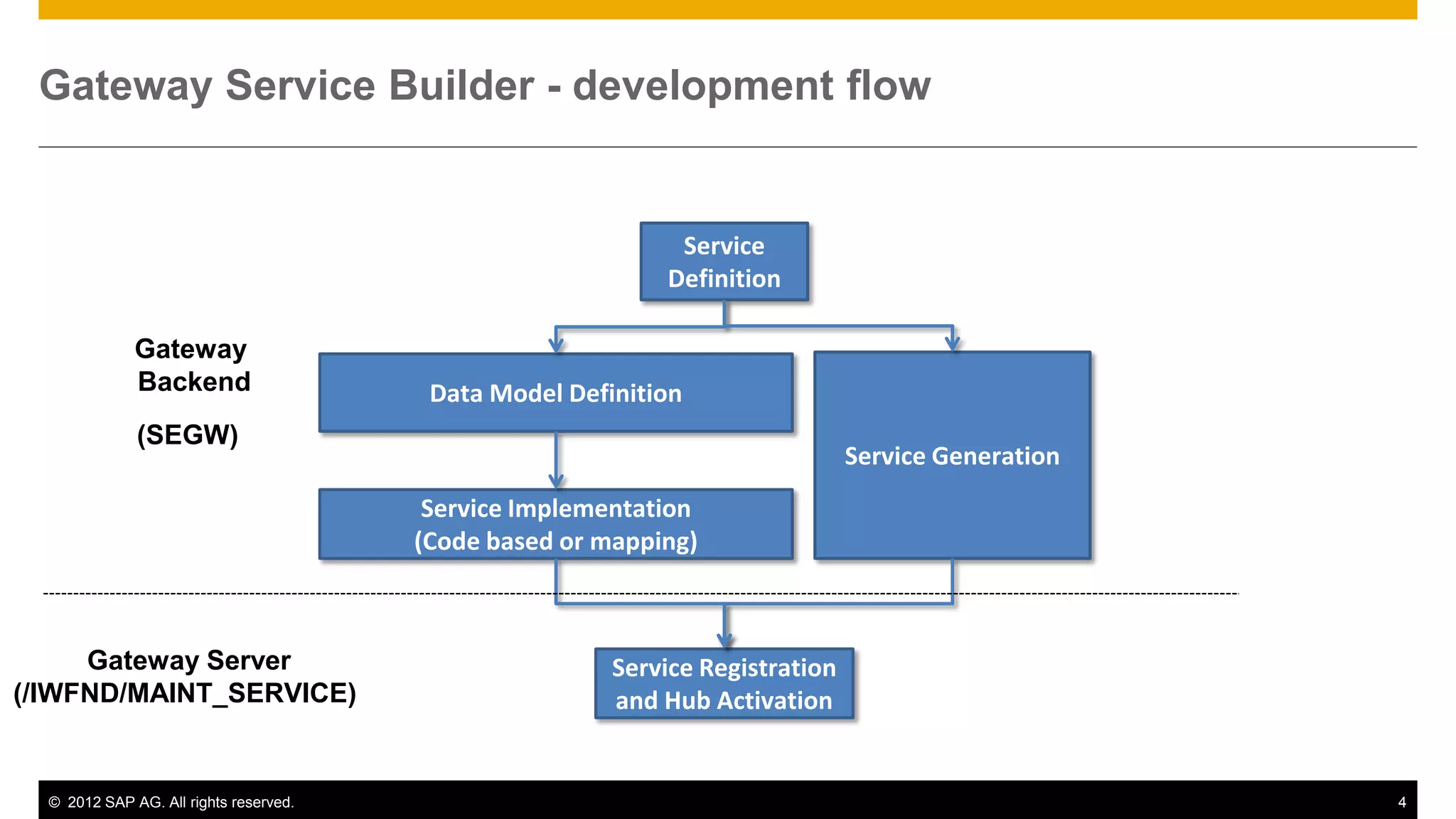

Gateway Service Builder - development flow
Service
Definition
Data Model Definition
Service Implementation
(Code based or mapping)
Gateway
Backend
(SEGW)
Service Registration
and Hub Activation
Gateway Server
(/IWFND/MAINT_SERVICE)

5. © 2012 SAP AG. All rights reserved. 5

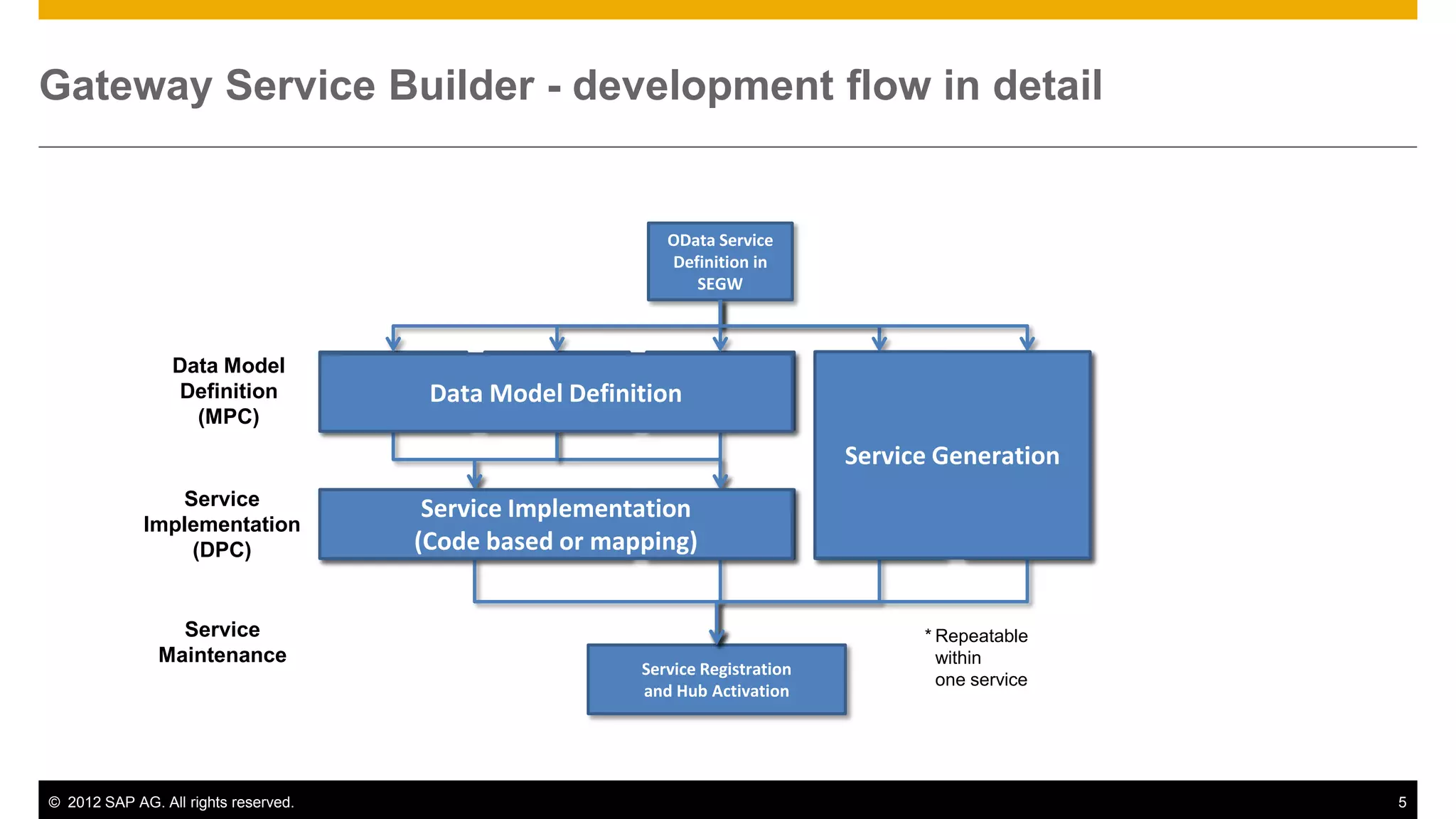

Gateway Service Builder - development flow in detail
OData Service
Definition in
SEGW
Declarative
Model
Definition*
Import
Data Model
(EDMX)
Import DDIC/
RFC/BOR
Interface*
Redefine
Data Source
Service
(GenIL, SPI,
BW Easy
Query, MDX)Code-Based Implementation*
Code-Based Extensions*
Data Model
Definition
(MPC)
Service
Implementation
(DPC)
Map RFC/BOR
Operation*
Service Registration
and Hub Activation
Service
Maintenance
Include
Gateway
Service*
* Repeatable
within
one service
Service Generation
Data Model Definition
Service Implementation
(Code based or mapping)

6. © 2012 SAP AG. All rights reserved. 6

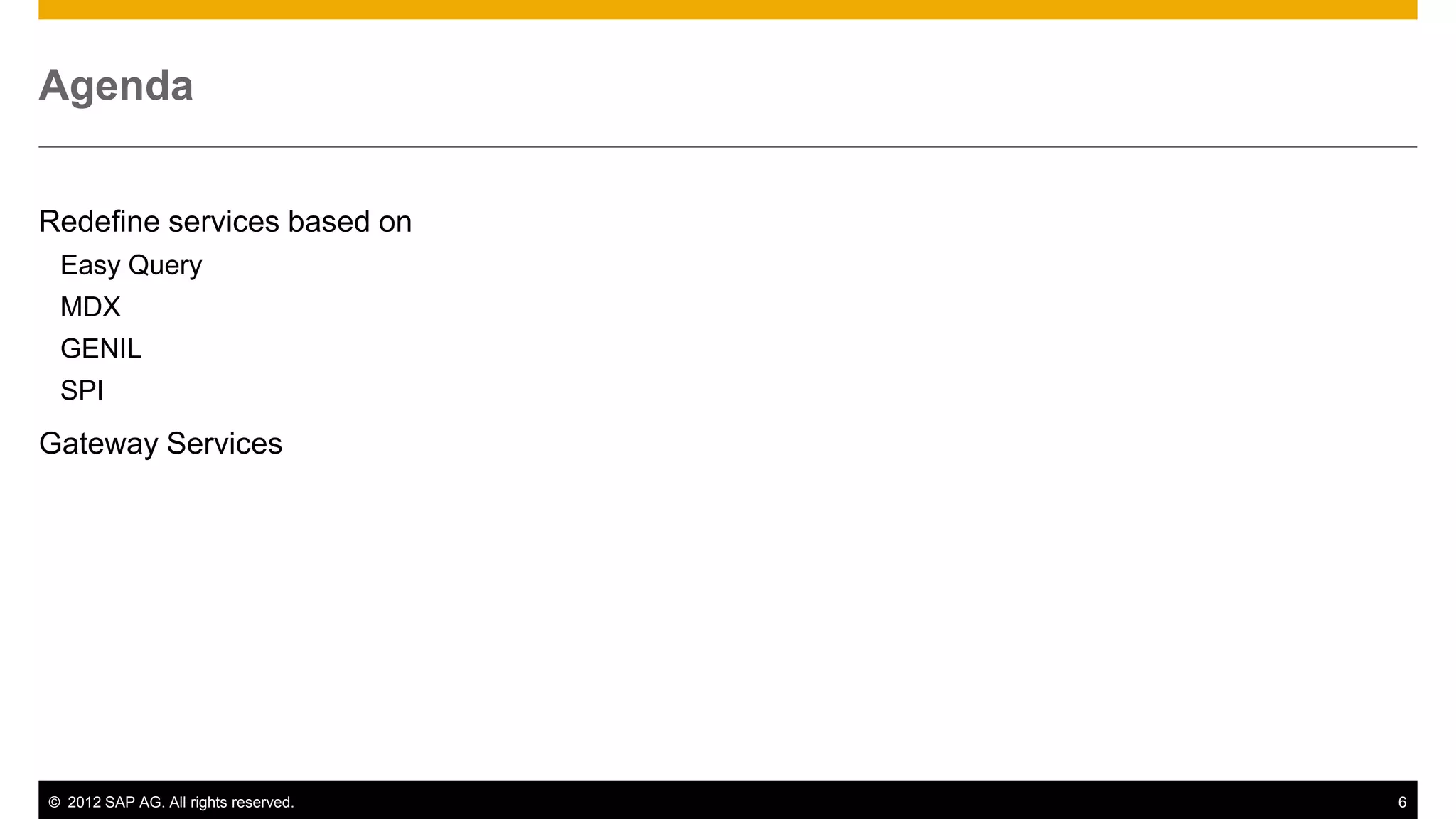

Agenda
Redefine services based on
Easy Query
MDX
GENIL
SPI
Gateway Services

7. Service Generation

8. © 2012 SAP AG. All rights reserved. 8

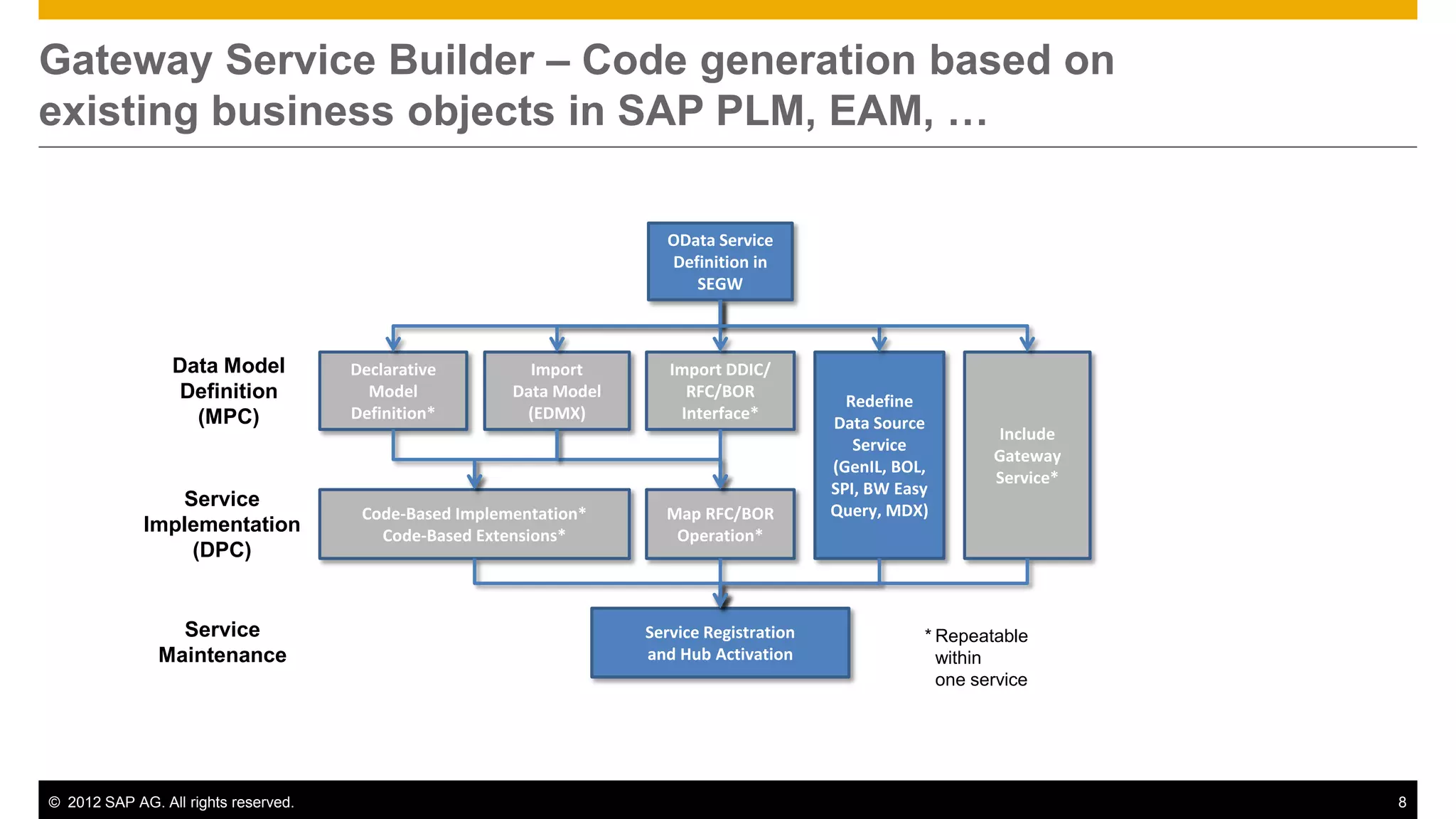

Gateway Service Builder – Code generation based on
existing business objects in SAP PLM, EAM, …
OData Service
Definition in
SEGW
Declarative
Model
Definition*
Import
Data Model
(EDMX)
Import DDIC/
RFC/BOR
Interface*
Redefine
Data Source
Service
(GenIL, BOL,
SPI, BW Easy
Query, MDX)Code-Based Implementation*
Code-Based Extensions*
Data Model
Definition
(MPC)
Service
Implementation
(DPC)
Map RFC/BOR
Operation*
Service Registration
and Hub Activation
Service
Maintenance
Include
Gateway
Service*
* Repeatable
within
one service

9. © 2012 SAP AG. All rights reserved. 9

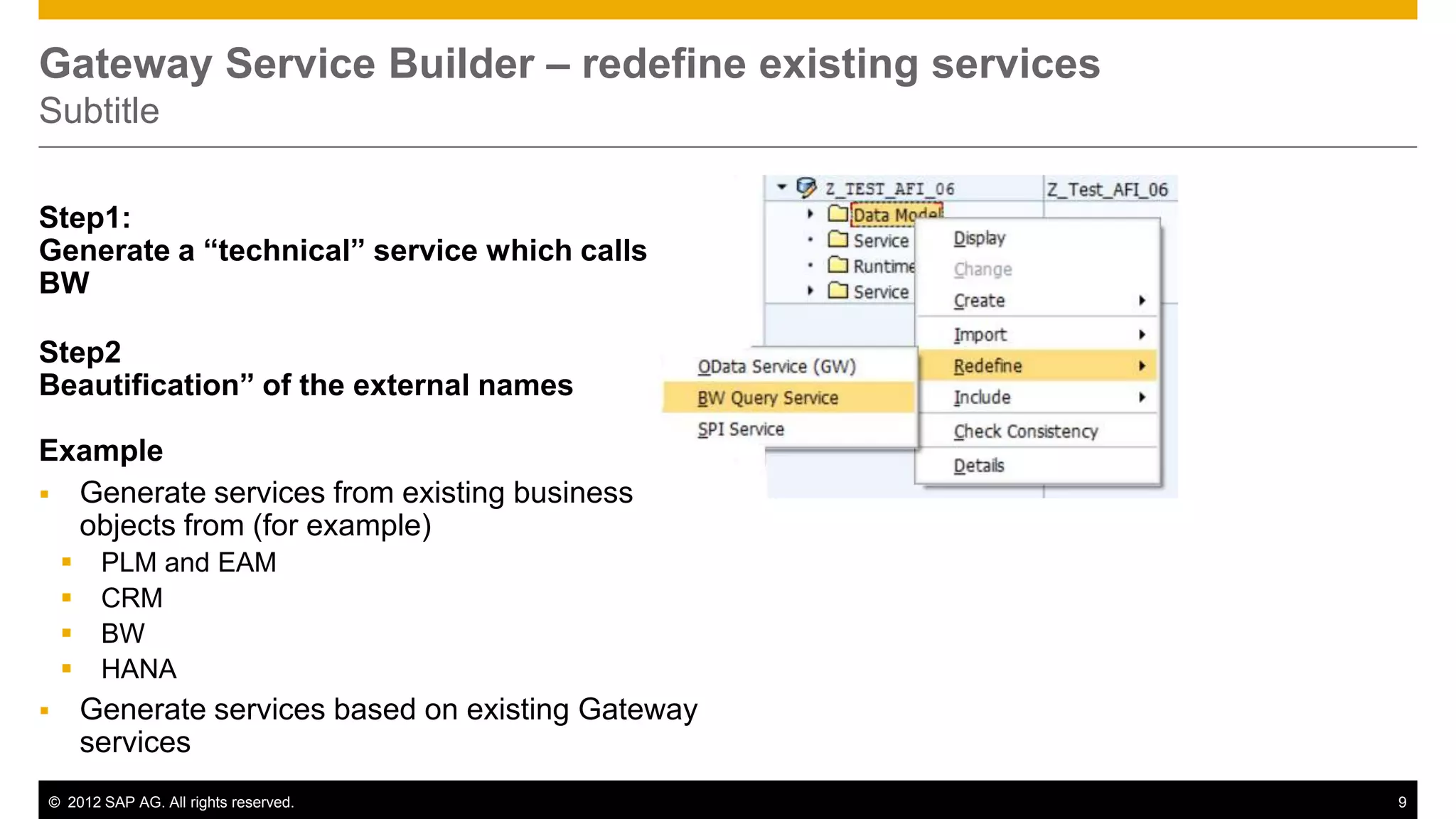

Gateway Service Builder – redefine existing services
Subtitle
Step1:
Generate a “technical” service which calls the
BW
Step2
Beautification” of the external names
Example
 Generate services from existing business
objects from (for example)
 PLM and EAM
 CRM
 BW
 HANA
 Generate services based on existing Gateway
services

10. © 2012 SAP AG. All rights reserved. 10

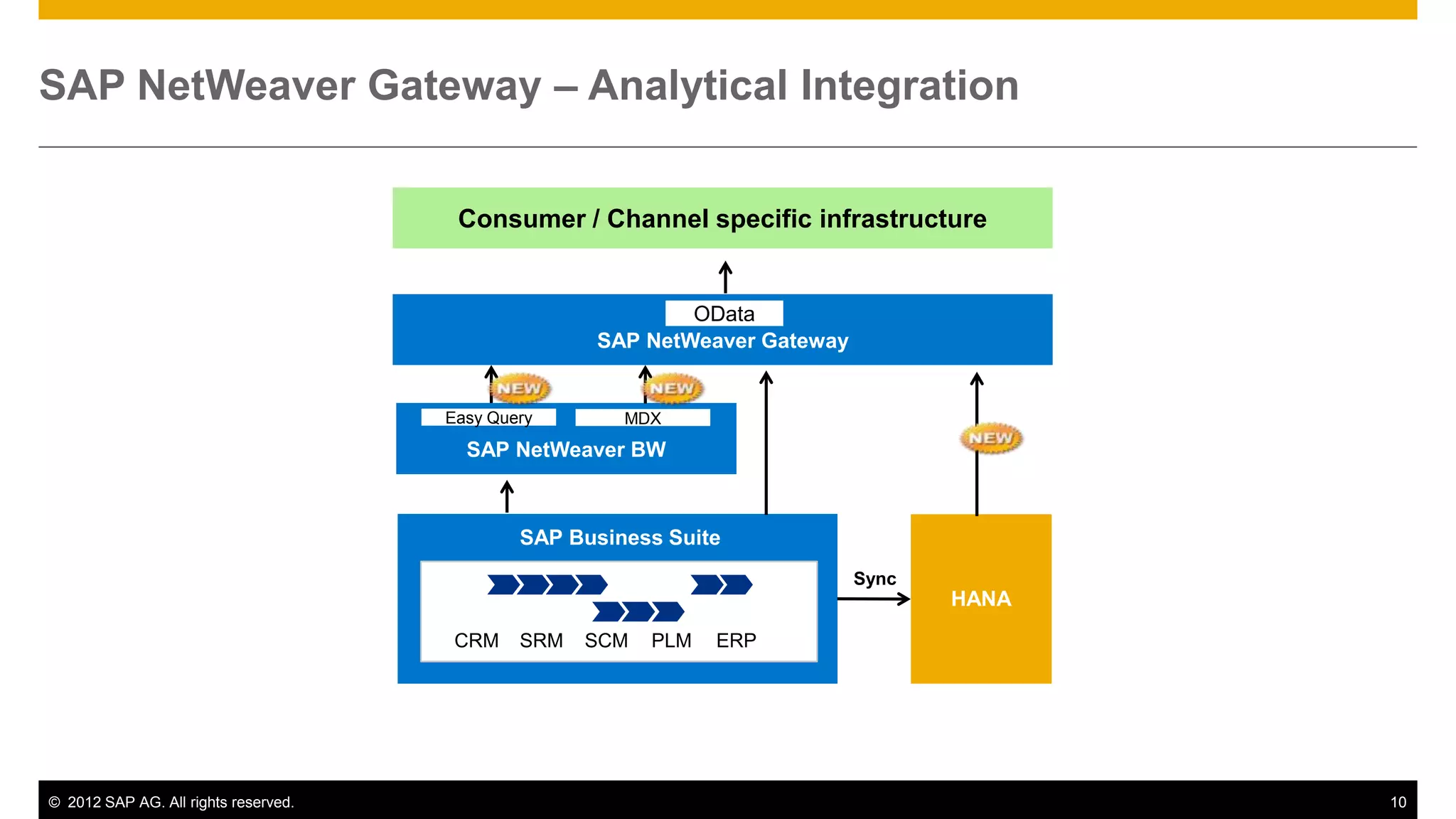

SAP NetWeaver Gateway – Analytical Integration
SRM SCM ERPPLMCRM
SAP Business Suite
SAP NetWeaver Gateway
HANA
Consumer / Channel specific infrastructure
OData
Sync
SAP NetWeaver BW
Easy Query MDX

11. © 2012 SAP AG. All rights reserved. 11

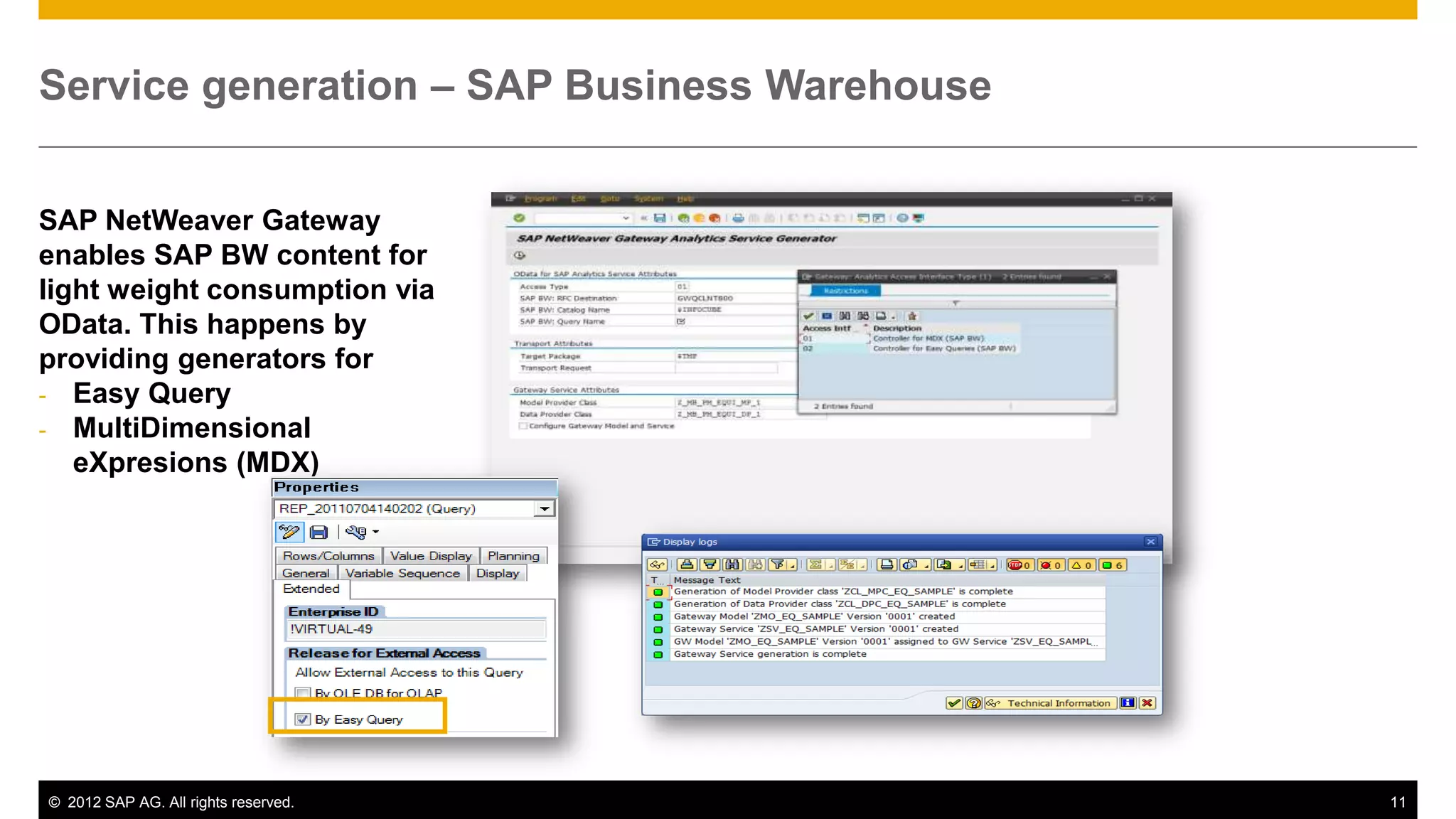

Service generation – SAP Business Warehouse
SAP NetWeaver Gateway
enables SAP BW content for
light weight consumption via
OData. This happens by
providing generators for
- Easy Query
- MultiDimensional
eXpresions (MDX)

12. © 2012 SAP AG. All rights reserved. 12

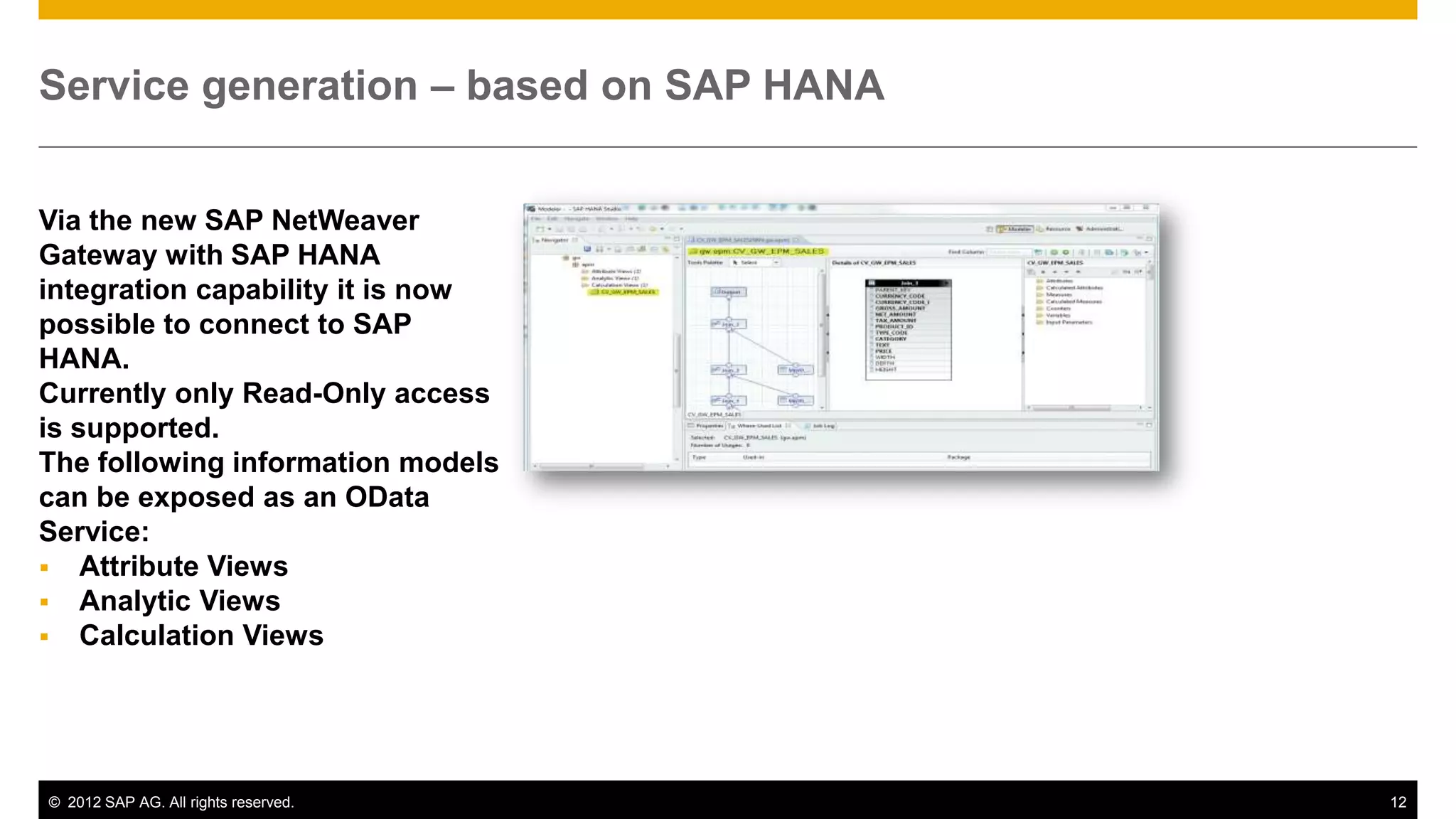

Service generation – based on SAP HANA
Via the new SAP NetWeaver
Gateway with SAP HANA
integration capability it is now
possible to connect to SAP
HANA.
Currently only Read-Only access
is supported.
The following information models
can be exposed as an OData
Service:
 Attribute Views
 Analytic Views
 Calculation Views

13. © 2012 SAP AG. All rights reserved. 13

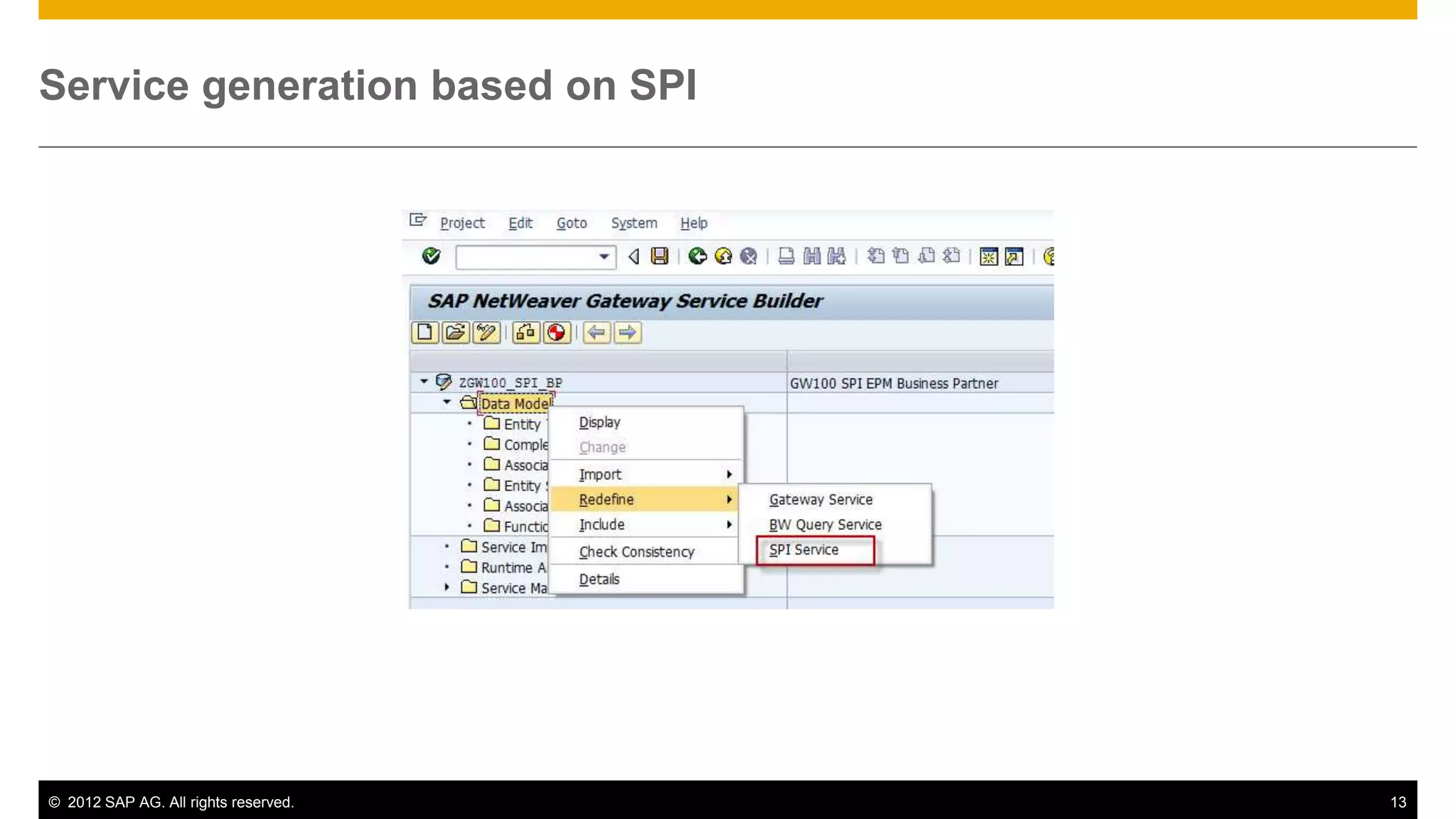

Service generation based on SPI

14. © 2012 SAP AG. All rights reserved. 14

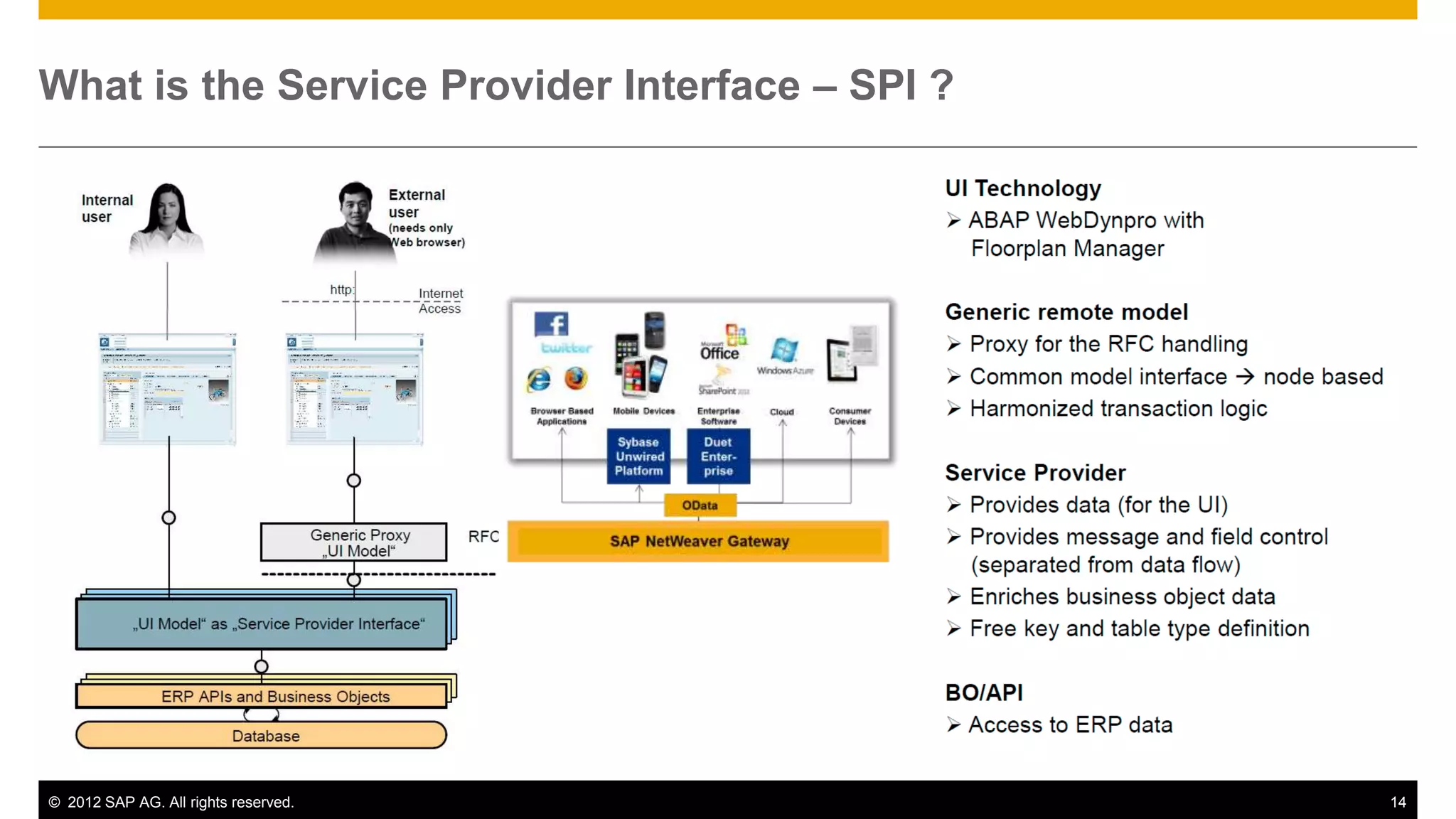

What is the Service Provider Interface – SPI ?

15. © 2012 SAP AG. All rights reserved. 15

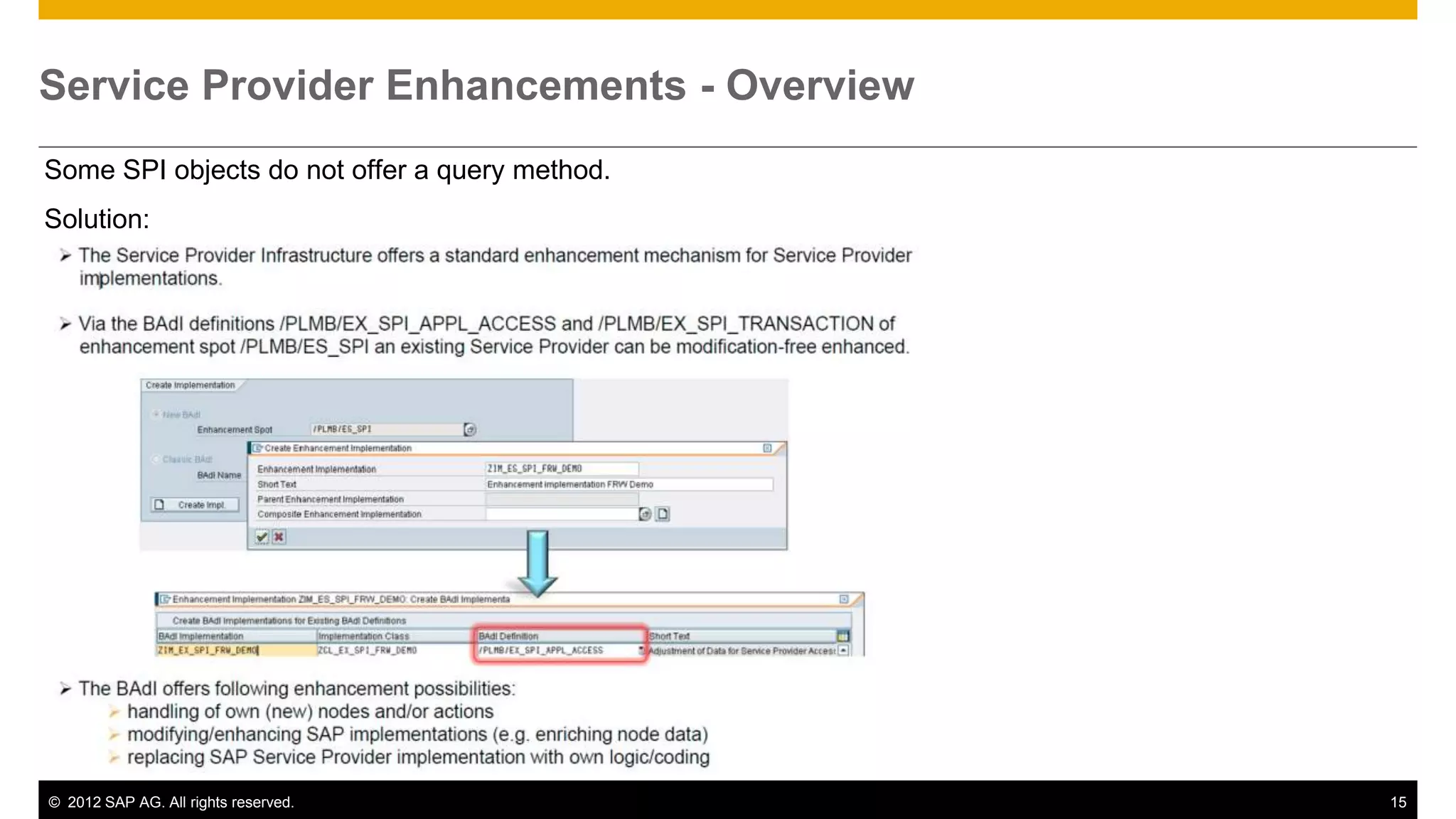

Service Provider Enhancements - Overview
Some SPI objects do not offer a query method.
Solution:

16. © 2012 SAP AG. All rights reserved. 16

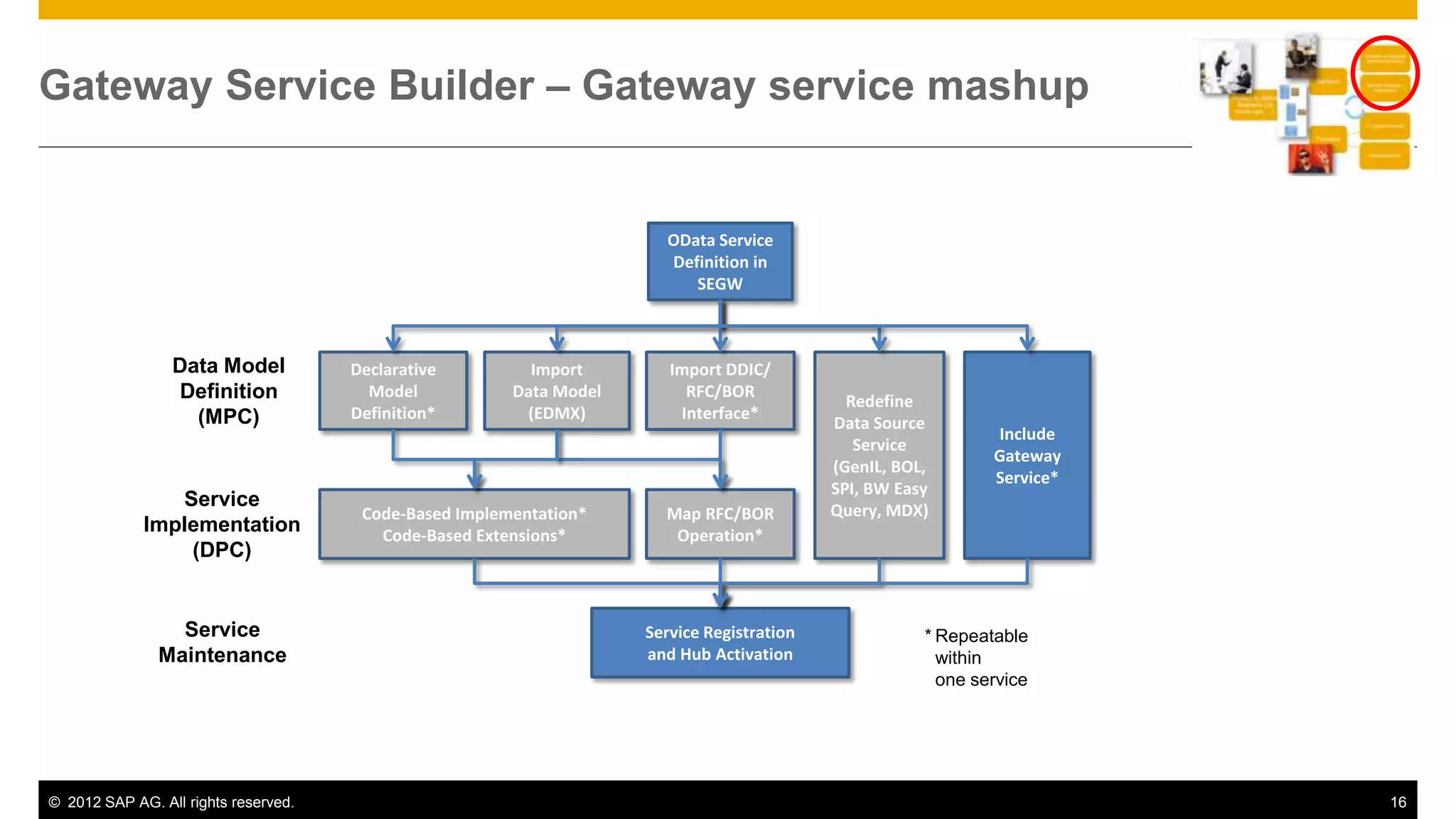

Gateway Service Builder – Gateway service mashup
OData Service
Definition in
SEGW
Declarative
Model
Definition*
Import
Data Model
(EDMX)
Import DDIC/
RFC/BOR
Interface*
Redefine
Data Source
Service
(GenIL, BOL,
SPI, BW Easy
Query, MDX)Code-Based Implementation*
Code-Based Extensions*
Data Model
Definition
(MPC)
Service
Implementation
(DPC)
Map RFC/BOR
Operation*
Service Registration
and Hub Activation
Service
Maintenance
Include
Gateway
Service*
* Repeatable
within
one service

17. © 2012 SAP AG. All rights reserved. 17

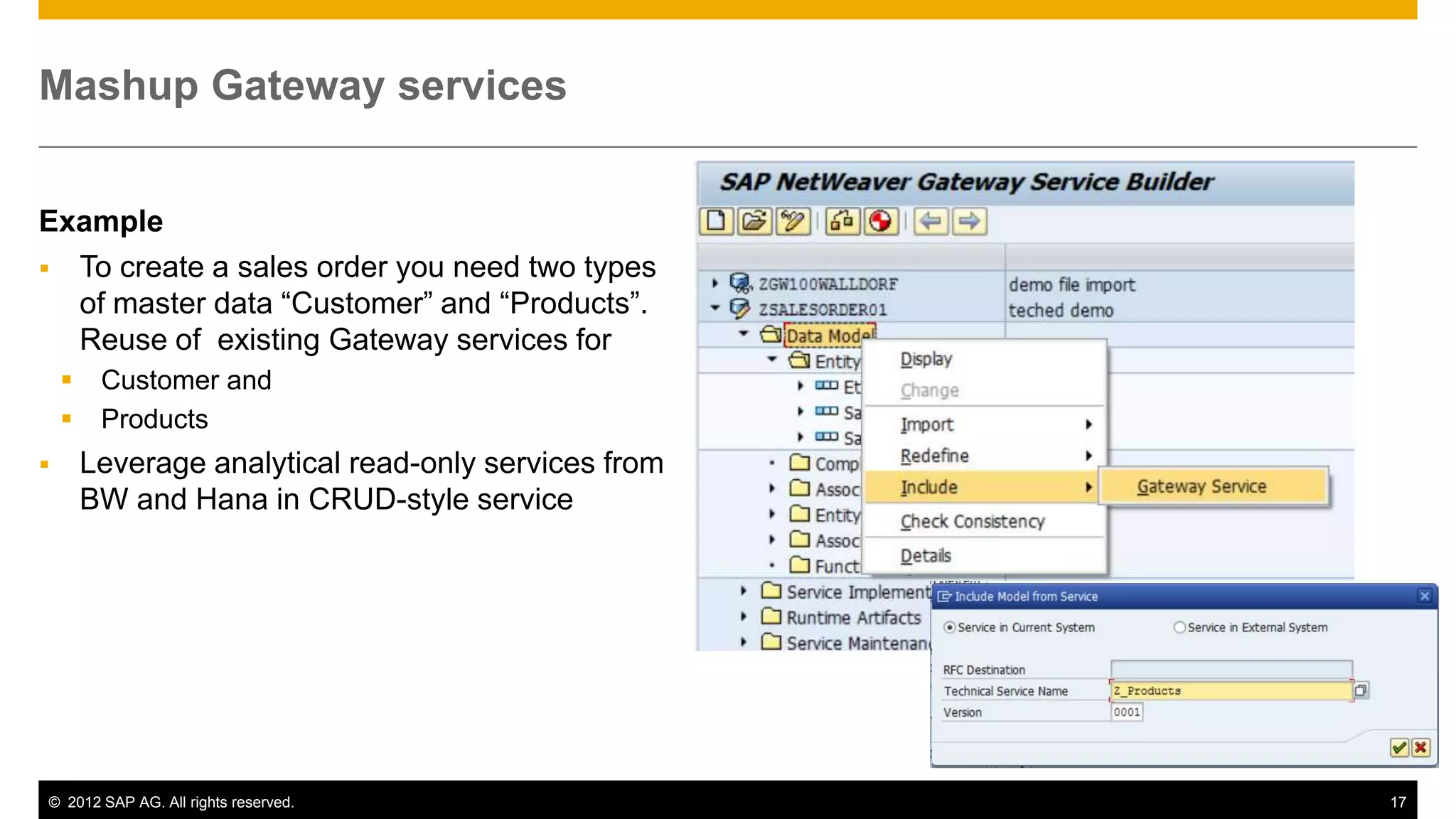

Mashup Gateway services
Example
 To create a sales order you need two types
of master data “Customer” and “Products”.
Reuse of existing Gateway services for
 Customer and
 Products
 Leverage analytical read-only services from
BW and Hana in CRUD-style service
