Wanderu - Lessons from Building a Travel Site with Neo4j
The document discusses the experiences of Wanderu in building a travel site using MongoDB and Neo4j, highlighting the challenges of integrating a graph model with document storage. Key lessons include the necessity of maintaining a centralized database, optimizing data storage for query performance, and implementing a hybrid solution for geo functionalities. The final approach, termed 'docugraph', utilizes both databases efficiently to enhance search capabilities for intercity travel information.
More Related Content
Similar to Wanderu - Lessons from Building a Travel Site with Neo4j
Wanderu - Lessons from Building a Travel Site with Neo4j
- 1. Wanderu: Lessons Learned Lessons Learnedand Unlearned from Building a Travel Site with Graphs and Neo4j Eddy Wong CTO, Wanderu.com @eddywongch

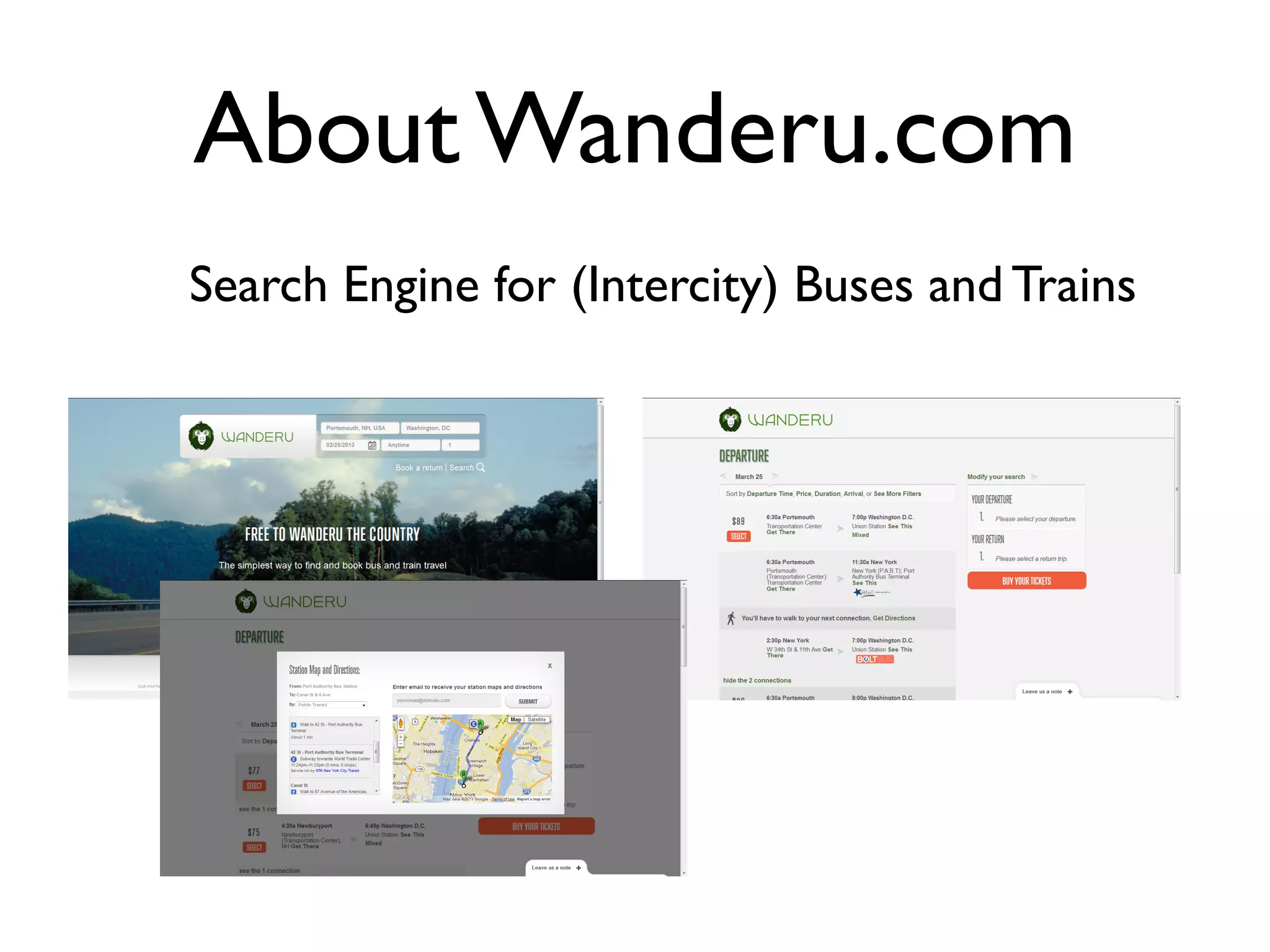

- 2. About Wanderu.com Search Enginefor (Intercity) Buses and Trains
- 3.

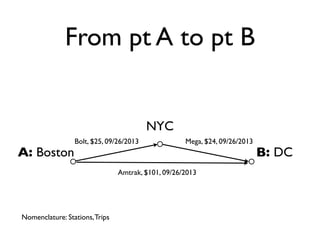

- 4. From pt Ato pt B A: Boston B: DC NYC Nomenclature: Stations,Trips Amtrak, $101, 09/26/2013 Bolt, $25, 09/26/2013 Mega, $24, 09/26/2013

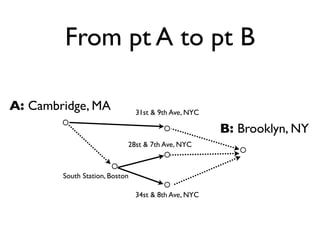

- 5. From pt Ato pt B B: Brooklyn, NY A: Cambridge, MA 31st & 9th Ave, NYC South Station, Boston 28st & 7th Ave, NYC 34st & 8th Ave, NYC
- 6. Our Story • TechStarted about 1+ yr ago • Beta in Mar, Launch in Aug • Knew nothing about Neo4j when we started (Jun 2012) • Did not like the relational model: wanted schema-less and no self-joins • Wanted a graph model
- 7.
- 8.
- 9.

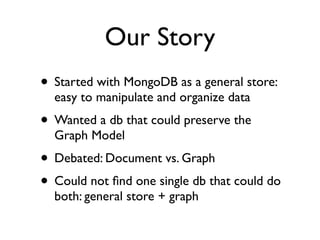

- 10. Our Story • Startedwith MongoDB as a general store: easy to manipulate and organize data • Wanted a db that could preserve the Graph Model • Debated: Document vs. Graph • Could not find one single db that could do both: general store + graph

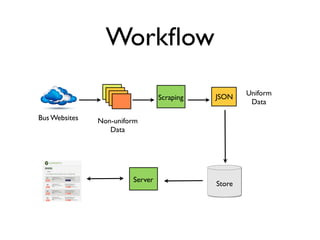

- 11. Workflow Store Scraping JSON Bus WebsitesNon-uniform Data Uniform Data Server

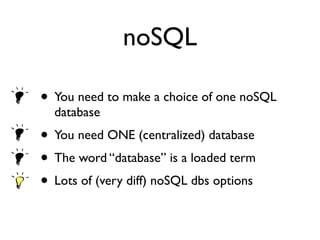

- 12. noSQL • You needto make a choice of one noSQL database • You need ONE (centralized) database • The word “database” is a loaded term • Lots of (very diff) noSQL dbs options

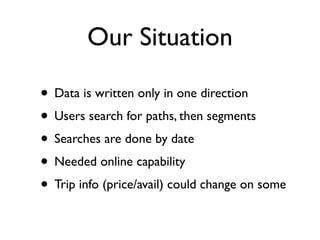

- 13. Our Situation • Datais written only in one direction • Users search for paths, then segments • Searches are done by date • Needed online capability • Trip info (price/avail) could change on some

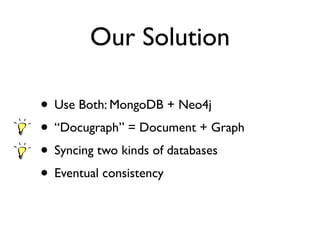

- 14. Our Solution • UseBoth: MongoDB + Neo4j • “Docugraph” = Document + Graph • Syncing two kinds of databases • Eventual consistency
- 15. Pipeline Scraping JSON Bus WebsitesNon-uniform Data Uniform Data MongoDBNeo4j Mongo Conn Nodes & Edges Replica Mechanism

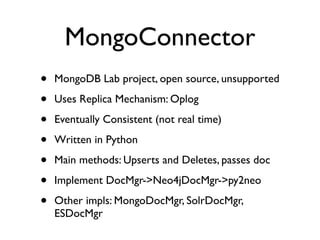

- 16. MongoConnector • MongoDB Labproject, open source, unsupported • Uses Replica Mechanism: Oplog • Eventually Consistent (not real time) • Written in Python • Main methods: Upserts and Deletes, passes doc • Implement DocMgr->Neo4jDocMgr->py2neo • Other impls: MongoDocMgr, SolrDocMgr, ESDocMgr

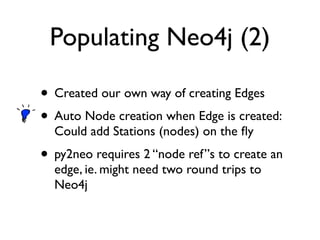

- 17. Populating Neo4j (2) •Created our own way of creating Edges • Auto Node creation when Edge is created: Could add Stations (nodes) on the fly • py2neo requires 2 “node ref”s to create an edge, ie. might need two round trips to Neo4j

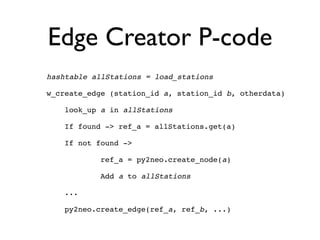

- 18. Edge Creator P-code hashtableallStations = load_stations w_create_edge (station_id a, station_id b, otherdata) look_up a in allStations If found -> ref_a = allStations.get(a) If not found -> ref_a = py2neo.create_node(a) Add a to allStations ... py2neo.create_edge(ref_a, ref_b, ...)

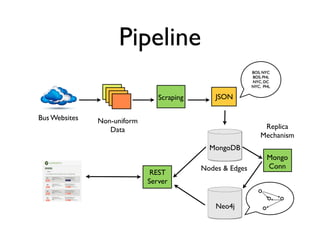

- 19. Pipeline Scraping JSON Bus WebsitesNon-uniform Data MongoDB Neo4j Mongo ConnNodes & Edges Replica Mechanism REST Server BOS, NYC BOS, PHL NYC, DC NYC, PHL
- 20.

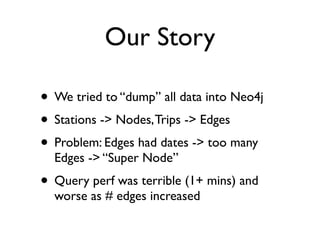

- 21. Our Story • Wetried to “dump” all data into Neo4j • Stations -> Nodes,Trips -> Edges • Problem: Edges had dates -> too many Edges -> “Super Node” • Query perf was terrible (1+ mins) and worse as # edges increased
- 22. Our Story (2) •Went from Cypher to Gremlin, thinking that would have improve performance • Needed range queries on Edges
- 23. Our Solution • Don’tstore everything in the Neo4j, only metadata • Use Neo4j as an index • Don’t store entities in Nodes, only keys • Don’t store heavy properties in Edges

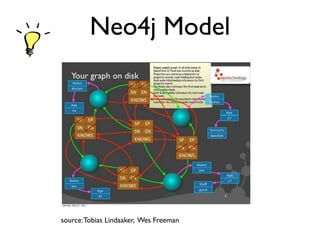

- 24. Neo4j Model source:Tobias Lindaaker,Wes Freeman

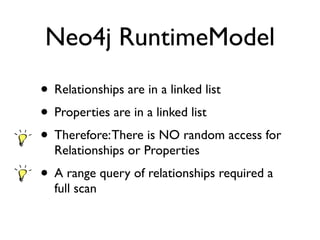

- 25. Neo4j RuntimeModel • Relationshipsare in a linked list • Properties are in a linked list • Therefore:There is NO random access for Relationships or Properties • A range query of relationships required a full scan

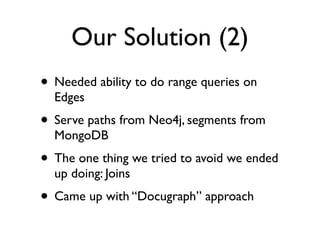

- 26. Our Solution (2) •Needed ability to do range queries on Edges • Serve paths from Neo4j, segments from MongoDB • The one thing we tried to avoid we ended up doing: Joins • Came up with “Docugraph” approach

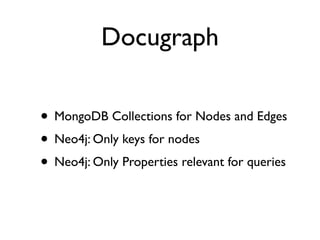

- 27. Docugraph • MongoDB Collectionsfor Nodes and Edges • Neo4j: Only keys for nodes • Neo4j: Only Properties relevant for queries

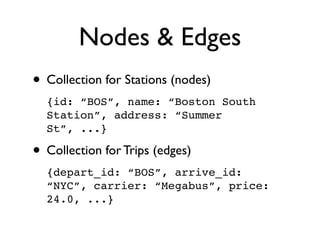

- 28. Nodes & Edges •Collection for Stations (nodes) {id: “BOS”, name: “Boston South Station”, address: “Summer St”, ...} • Collection for Trips (edges) {depart_id: “BOS”, arrive_id: “NYC”, carrier: “Megabus”, price: 24.0, ...}
- 29. Modeling • Storing infoin two or more dbs • Doing a “join” across multiple dbs
- 30. Joins across DBs MongoDB:Stations Neo4j: Nodes BOS BOS NYC NYC DC DC ... ... MongoDB: Trips Neo4j: Edges BOS-NYC BOS-NYC BOS-DC BOS-DC NYC-DC NYC-DC ... ... • Forget seq id generated by dbs • Use a human-created long string for id • Convert pair into id: depart-arrive • For example: BOS- NYC
- 31. Indexing Technique • IndexTrips by {origin-dest, datetime}

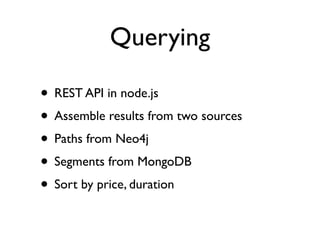

- 32. Querying • REST APIin node.js • Assemble results from two sources • Paths from Neo4j • Segments from MongoDB • Sort by price, duration
- 33. Geo Lessons Art: MCEscher

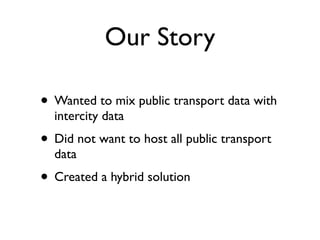

- 34. Our Story • Wantedto mix public transport data with intercity data • Did not want to host all public transport data • Created a hybrid solution

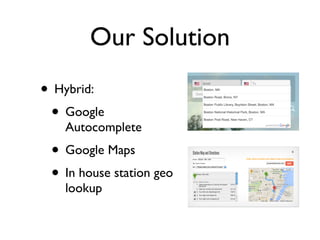

- 35. Our Solution • Hybrid: •Google Autocomplete • Google Maps • In house station geo lookup
- 36. Geo • Neo4j geofunc was not out of the box • Requires jar install • Run a Java program to index • Needed better doc • Ended up using MongoDB geo instead • Make geo func out of the box

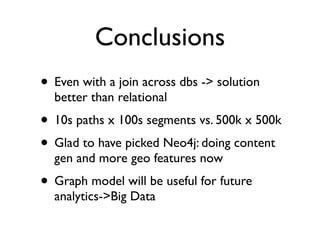

- 37. Conclusions • Even witha join across dbs -> solution better than relational • 10s paths x 100s segments vs. 500k x 500k • Glad to have picked Neo4j: doing content gen and more geo features now • Graph model will be useful for future analytics->Big Data

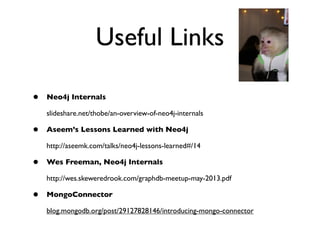

- 38. Useful Links • Neo4jInternals slideshare.net/thobe/an-overview-of-neo4j-internals • Aseem’s Lessons Learned with Neo4j http://aseemk.com/talks/neo4j-lessons-learned#/14 • Wes Freeman, Neo4j Internals http://wes.skeweredrook.com/graphdb-meetup-may-2013.pdf • MongoConnector blog.mongodb.org/post/29127828146/introducing-mongo-connector
