Neo4 jv2 english
The document discusses NoSQL databases, graph databases, and the graph database Neo4j. It defines NoSQL as "Not Only SQL" and explains that graph databases use nodes and relationships to represent data in a way that is more natural for graph-based queries than relational databases. The document then provides examples of how to create nodes and relationships and traverse the graph in Neo4j. It highlights Neo4j's abilities to scale to billions of nodes and relationships and be robust for production environments.
Neo4 jv2 english
- 1. Neo4j NOSQL , Graph Databases and Neo4j Thiago Oliveira http://about.me/thiagooliveira @tjsoliveira

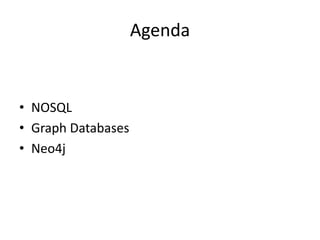

- 2. Agenda • NOSQL • GraphDatabases • Neo4j

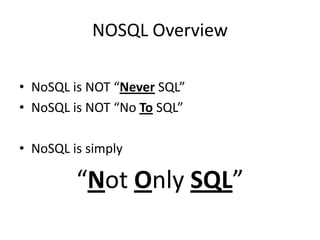

- 3. NOSQL Overview • NoSQLis NOT “Never SQL” • NoSQL is NOT “No To SQL” • NoSQL is simply “Not Only SQL”
- 4. Graph Database • Inspiredby Graph Theory; • Data model: Nodes, relationships, properties on both; • Relational Databases have a very heavy language to represent a graph in the Database. NOSQL makes it more easy! • Neo4j

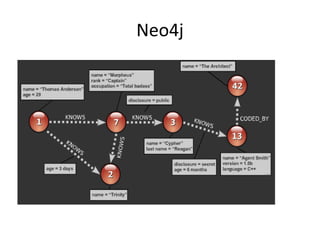

- 5.

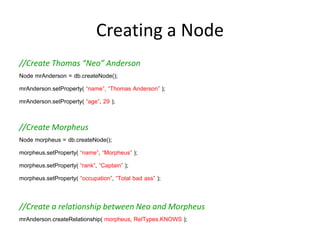

- 6. Creating a Node //CreateThomas “Neo” Anderson Node mrAnderson = db.createNode(); mrAnderson.setProperty( “name”, “Thomas Anderson” ); mrAnderson.setProperty( “age”, 29 ); //Create Morpheus Node morpheus = db.createNode(); morpheus.setProperty( “name”, “Morpheus” ); morpheus.setProperty( “rank”, “Captain” ); morpheus.setProperty( “occupation”, “Total bad ass” ); //Create a relationship between Neo and Morpheus mrAnderson.createRelationship( morpheus, RelTypes.KNOWS );

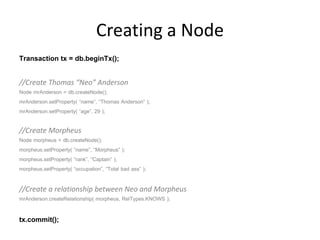

- 7. Creating a Node Transactiontx = db.beginTx(); //Create Thomas “Neo” Anderson Node mrAnderson = db.createNode(); mrAnderson.setProperty( “name”, “Thomas Anderson” ); mrAnderson.setProperty( “age”, 29 ); //Create Morpheus Node morpheus = db.createNode(); morpheus.setProperty( “name”, “Morpheus” ); morpheus.setProperty( “rank”, “Captain” ); morpheus.setProperty( “occupation”, “Total bad ass” ); //Create a relationship between Neo and Morpheus mrAnderson.createRelationship( morpheus, RelTypes.KNOWS ); tx.commit();

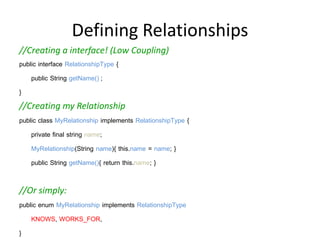

- 8. Defining Relationships //Creating ainterface! (Low Coupling) public interface RelationshipType { public String getName();; } //Creating my Relationship public class MyRelationship implements RelationshipType { private final string name; MyRelationship(String name){ this.name = name; } public String getName(){ return this.name; } } //Or simply: public enum MyRelationship implements RelationshipType { KNOWS, WORKS_FOR, }

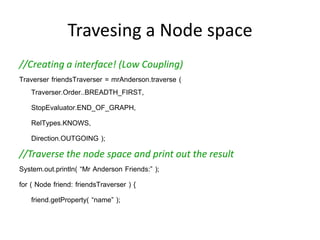

- 9. Travesing a Nodespace //Creating a interface! (Low Coupling) Traverser friendsTraverser = mrAnderson.traverse ( Traverser.Order..BREADTH_FIRST, StopEvaluator.END_OF_GRAPH, RelTypes.KNOWS, Direction.OUTGOING ); //Traverse the node space and print out the result System.out.println( “Mr Anderson Friends:” ); for ( Node friend: friendsTraverser ) { friend.getProperty( “name” ); }

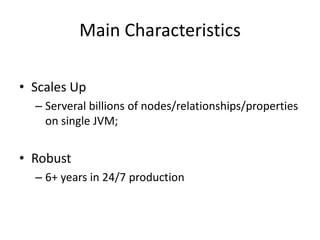

- 10. Main Characteristics • ScalesUp – Serveral billions of nodes/relationships/properties on single JVM; • Robust – 6+ years in 24/7 production
- 11. Conclusions • Why NoSQLand Neo4j? – Massive data stores; – Scalability; – Some services simpler to implement than using Relational Databases; • Why NOT NoSQL and Neo4j? – Relational Databases are mature; – Data consistency, transactions – “Don’t scale until you need it”
- 12.

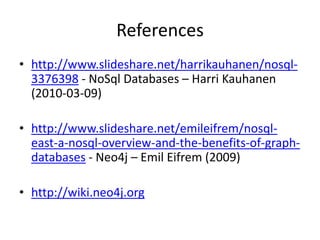

- 13. References • http://www.slideshare.net/harrikauhanen/nosql- 3376398 - NoSql Databases – Harri Kauhanen (2010-03-09) • http://www.slideshare.net/emileifrem/nosql- east-a-nosql-overview-and-the-benefits-of-graph- databases - Neo4j – Emil Eifrem (2009) • http://wiki.neo4j.org
