In his presentation, Sebastian Verheughe discusses Telenor's implementation of graph databases to efficiently solve resource authorization issues. By using Neo4j, the process of calculating accessible resources was optimized from minutes to seconds, significantly improving performance and scalability. The approach simplified business rule expressions and addressed the complexities associated with traditional SQL-based methods.

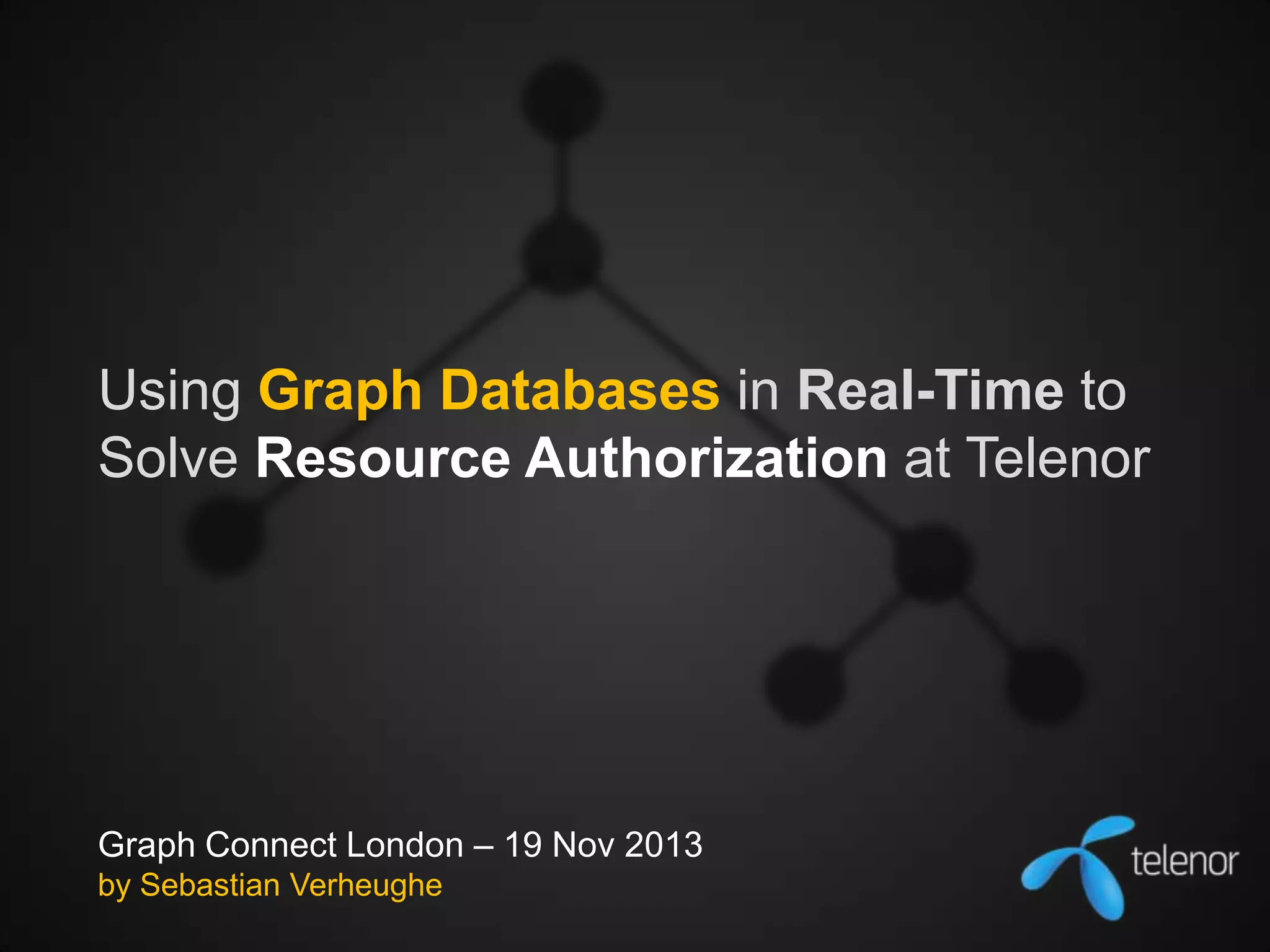

1. Using Graph Databases in Real-Time to
Solve Resource Authorization at Telenor
Graph Connect London – 19 Nov 2013
by Sebastian Verheughe

2. Telenor Norway
Subsidiary of the Telenor Group
~1 billion GBP in mobile revenues 2012
Sebastian Verheughe
Lead Developer for Neo4j solution
Coding Architect

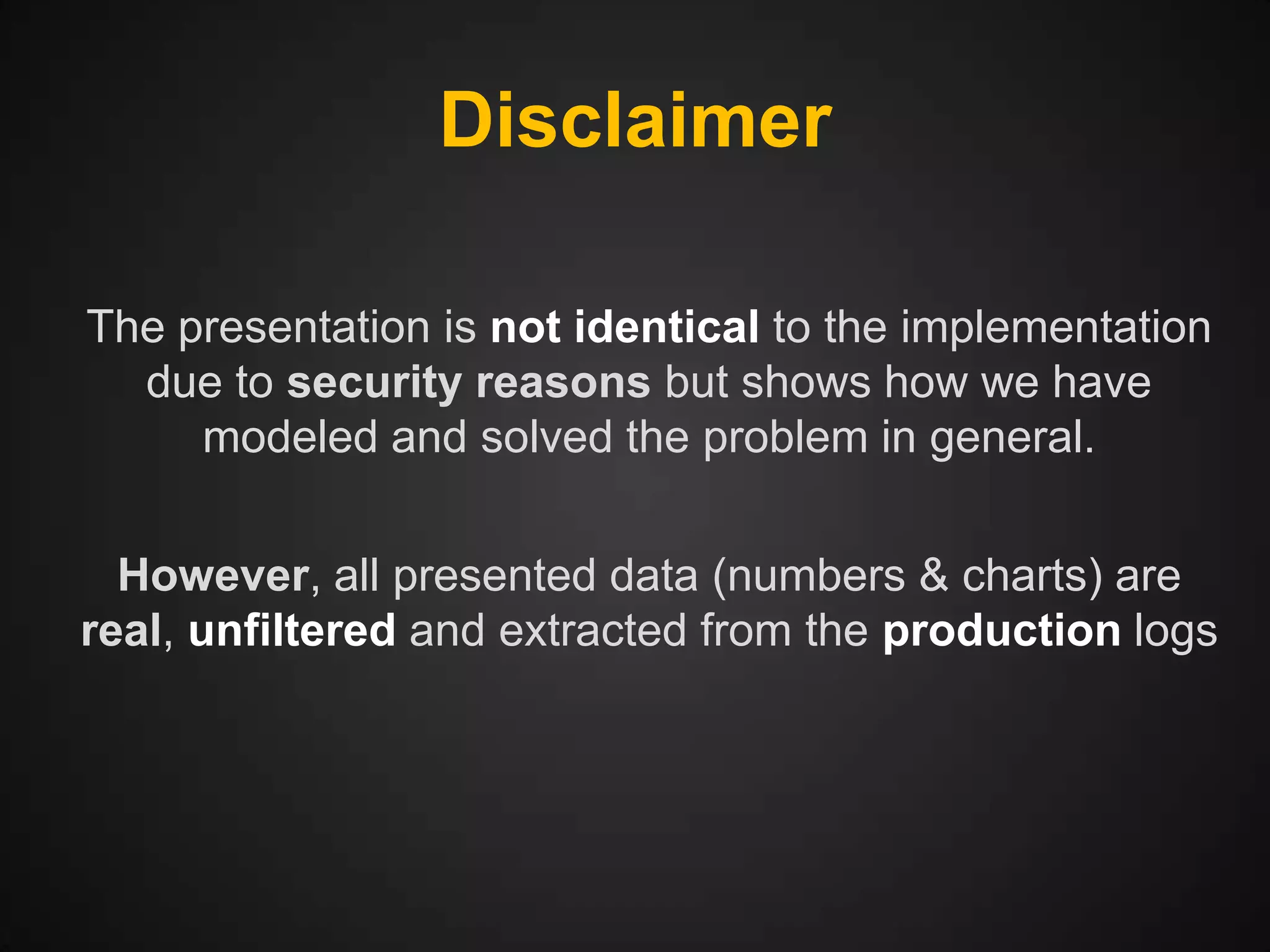

3. Disclaimer
The presentation is not identical to the implementation
due to security reasons but shows how we have
modeled and solved the problem in general.
However, all presented data (numbers & charts) are
real, unfiltered and extracted from the production logs

4. A very
aspect of
our business

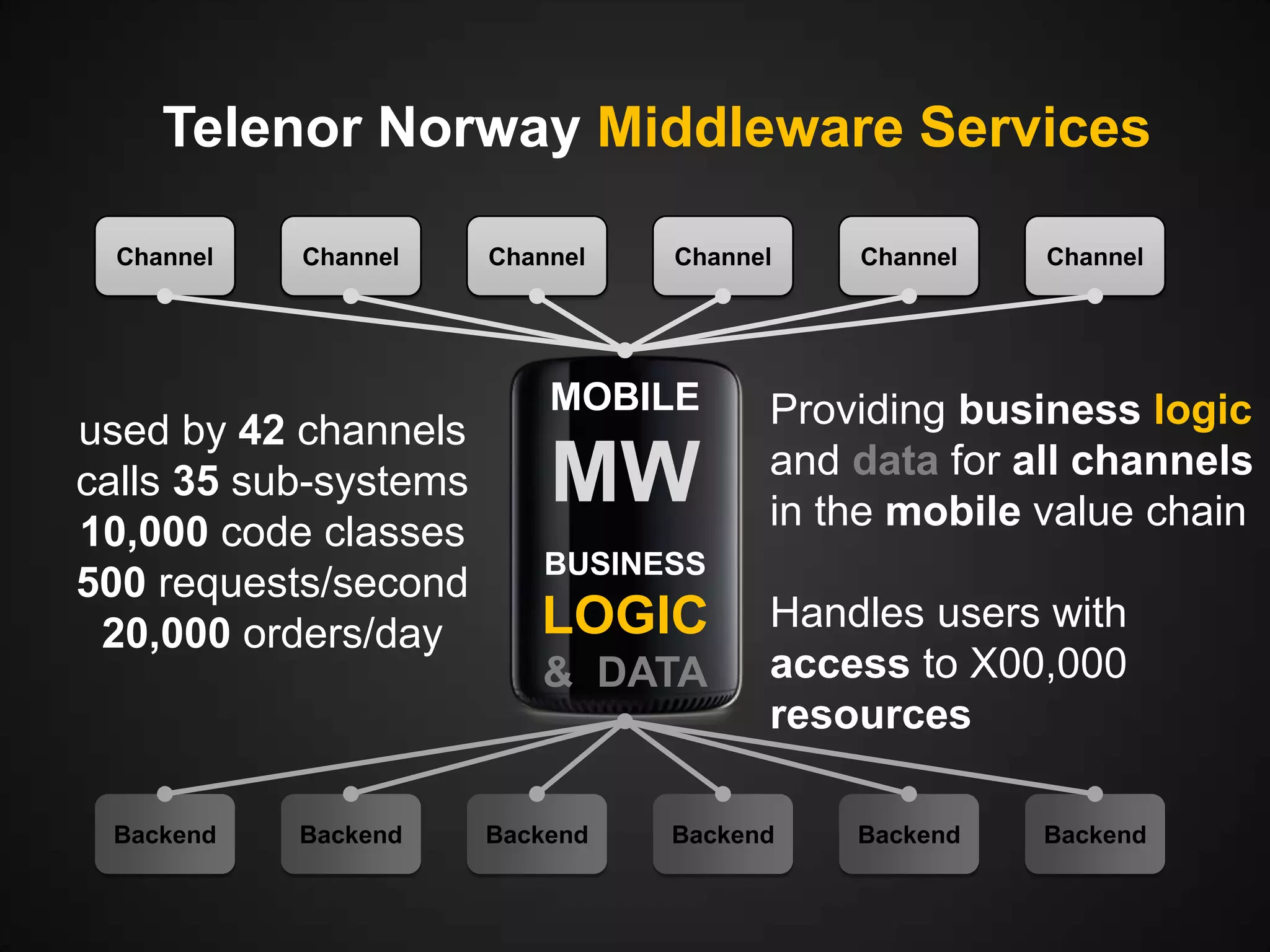

5. Telenor Norway Middleware Services
Channel
Channel
used by 42 channels
calls 35 sub-systems
10,000 code classes
500 requests/second
20,000 orders/day
Backend
Backend
Channel
Channel
MOBILE
MW
Channel
Channel
Providing business logic
and data for all channels
in the mobile value chain
BUSINESS
LOGIC
& DATA
Backend
Handles users with
access to X00,000
resources
Backend
Backend
Backend

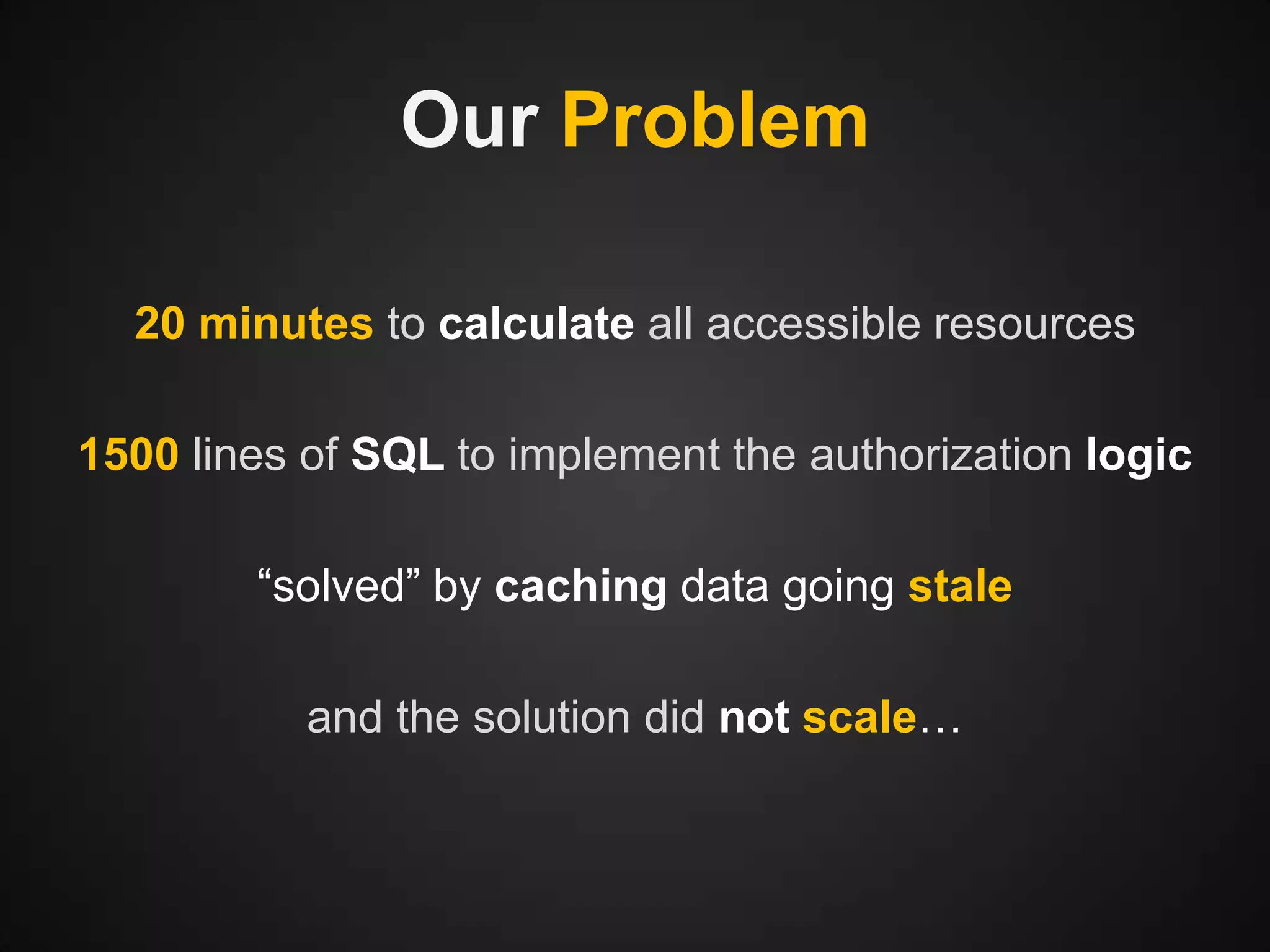

6. Our Problem
20 minutes to calculate all accessible resources
1500 lines of SQL to implement the authorization logic
“solved” by caching data going stale
and the solution did not scale…

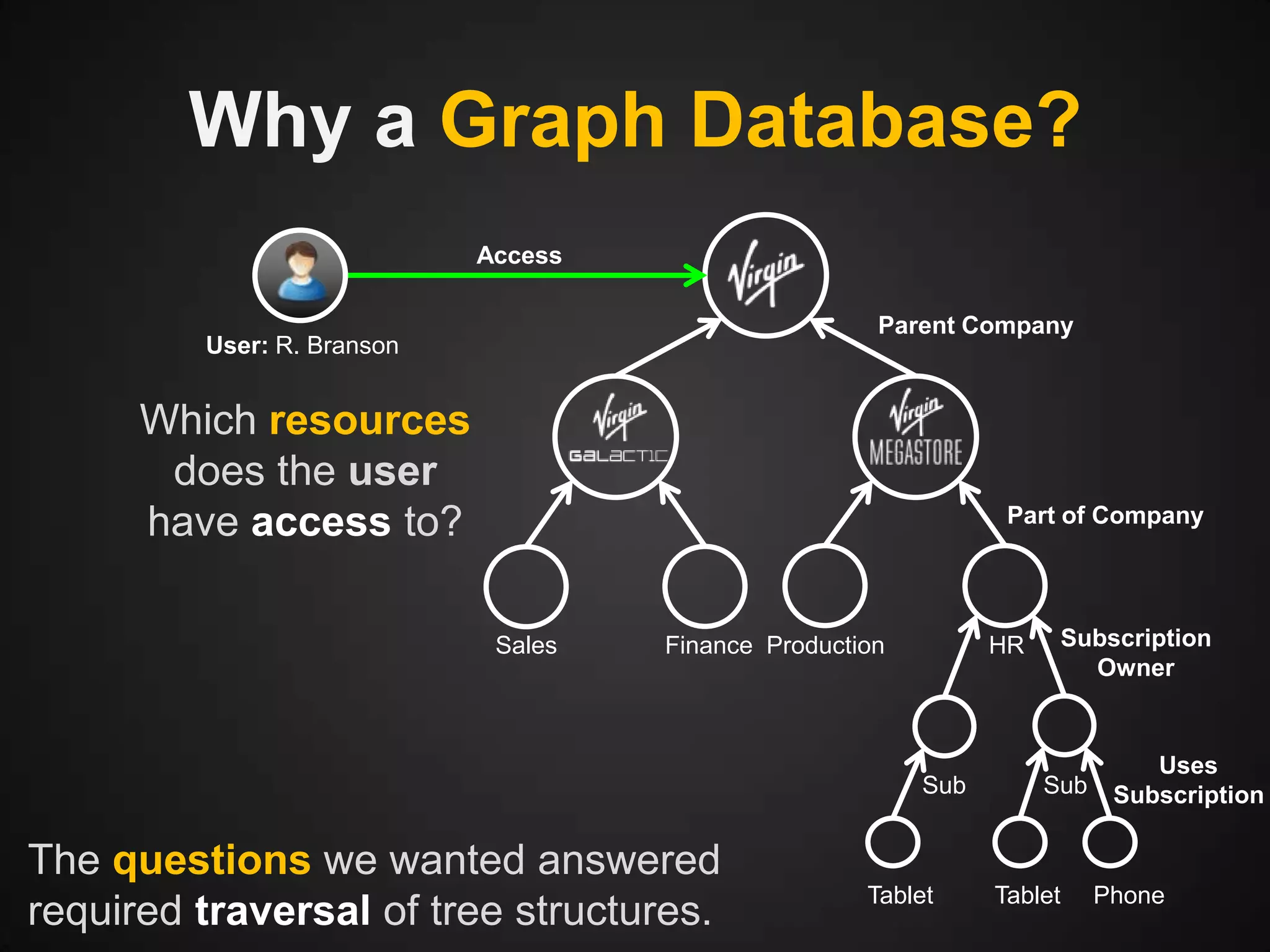

7. Why a Graph Database?
Access
Parent Company
User: R. Branson
Which resources
does the user
have access to?
Part of Company
Sales
Finance Production
HR
Sub
The questions we wanted answered
required traversal of tree structures.
Tablet
Subscription
Owner
Sub
Tablet
Uses
Subscription
Phone

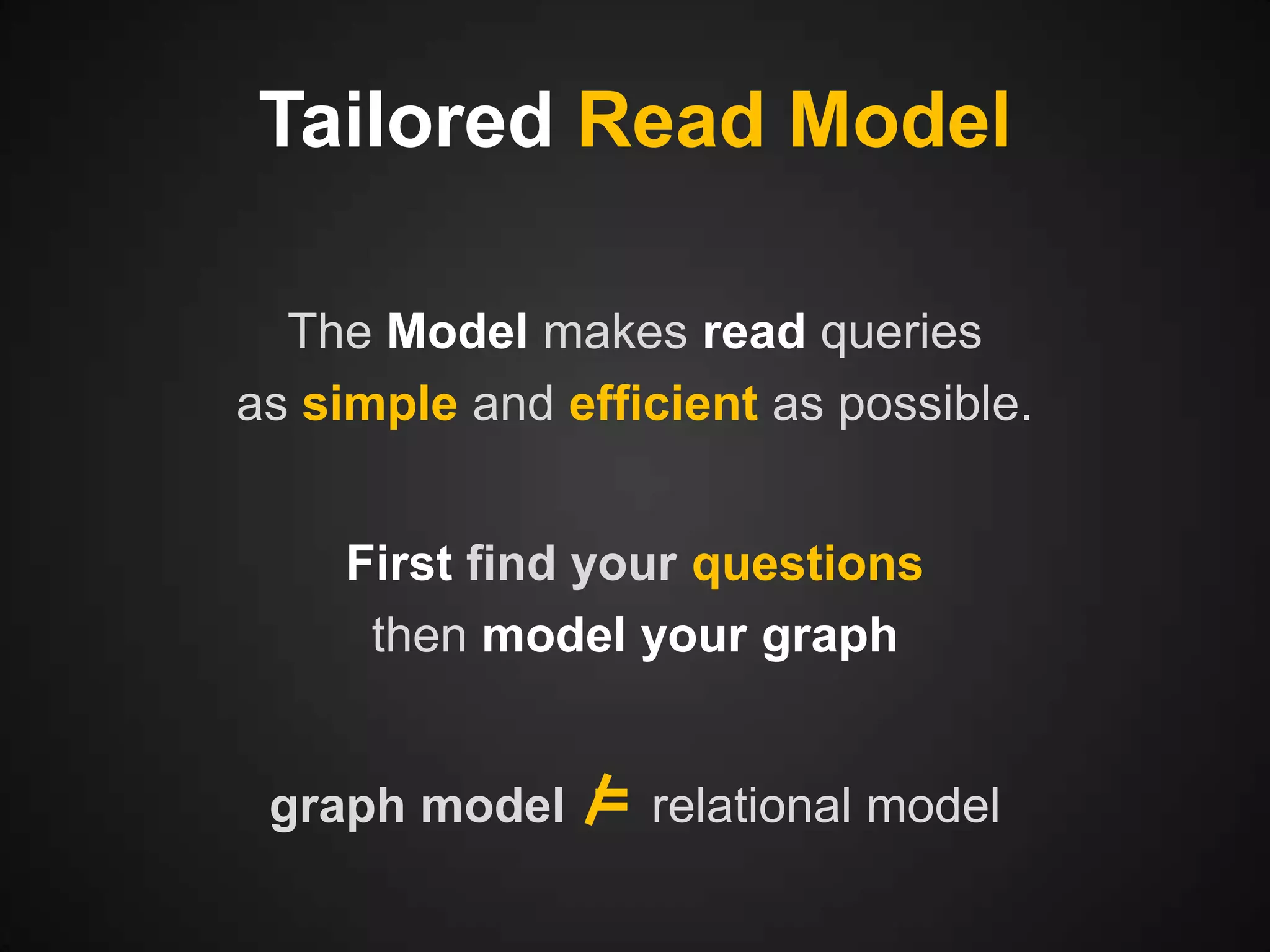

8. Tailored Read Model
The Model makes read queries
as simple and efficient as possible.
First find your questions
then model your graph
graph model
=
relational model

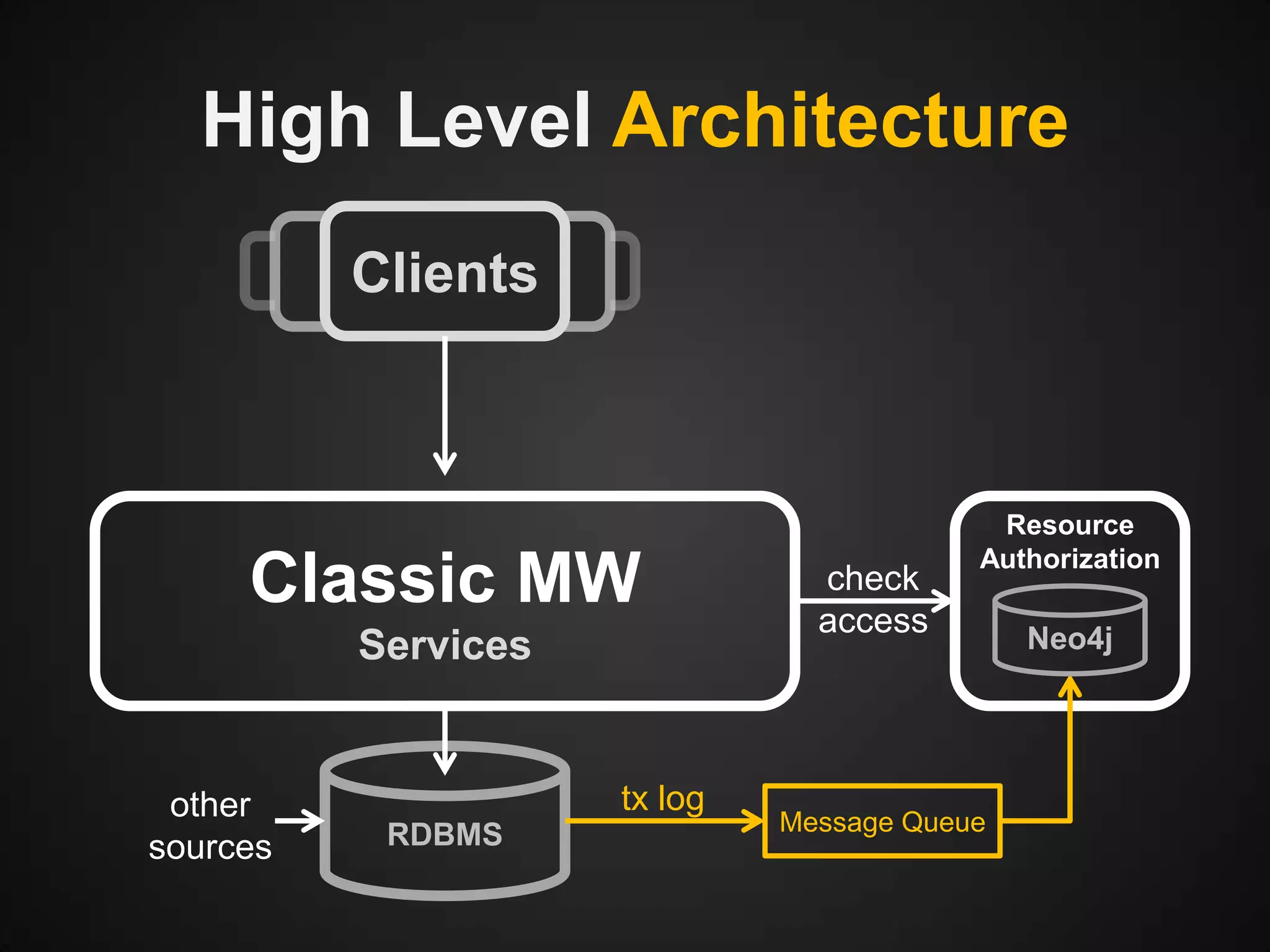

9. High Level Architecture
Clients
Classic MW
Services
other
sources
tx log
RDBMS
check
access
Resource
Authorization
Message Queue
Neo4j

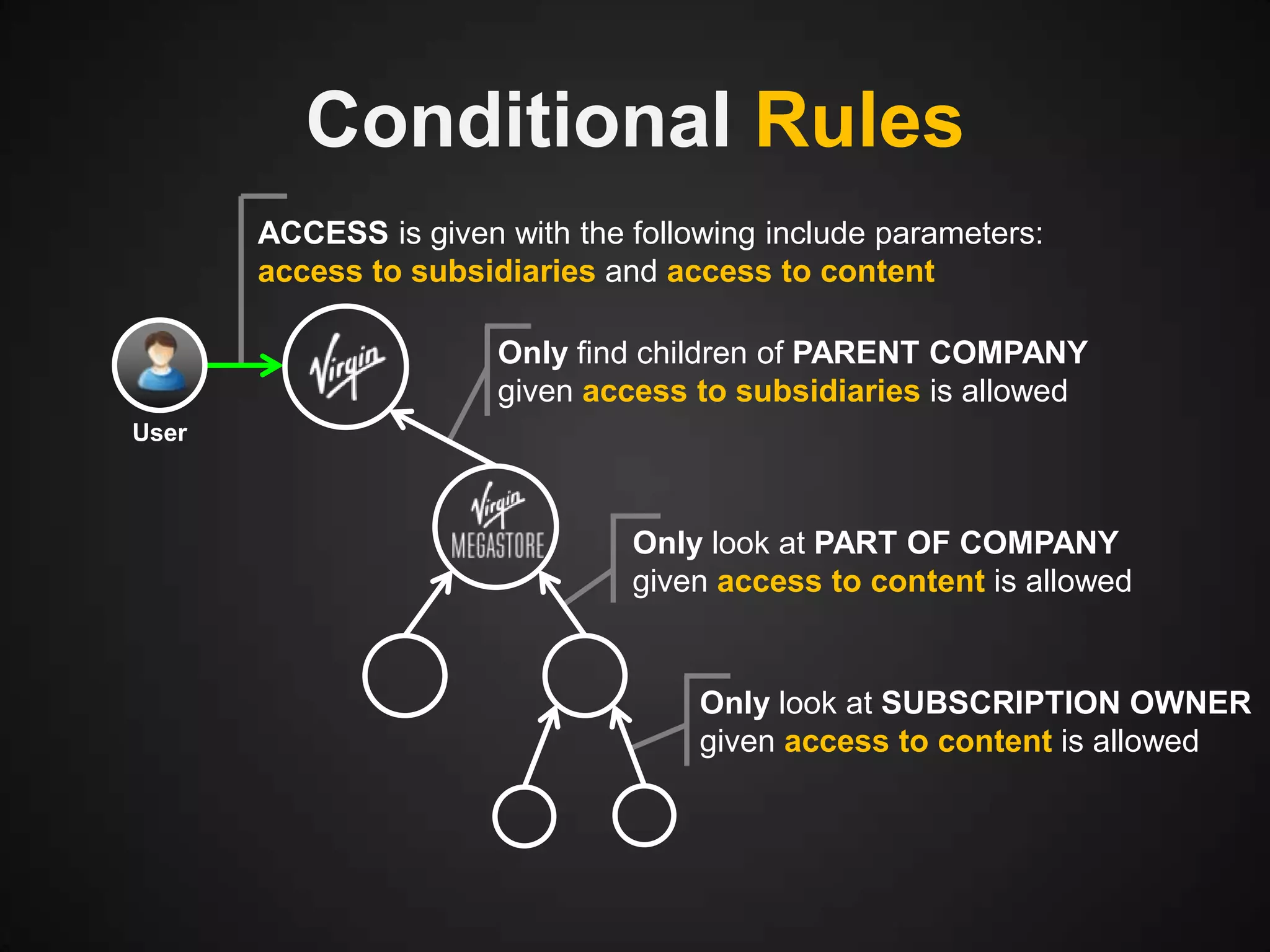

10. Conditional Rules
ACCESS is given with the following include parameters:
access to subsidiaries and access to content
Only find children of PARENT COMPANY
given access to subsidiaries is allowed
User
Only look at PART OF COMPANY
given access to content is allowed
Only look at SUBSCRIPTION OWNER
given access to content is allowed

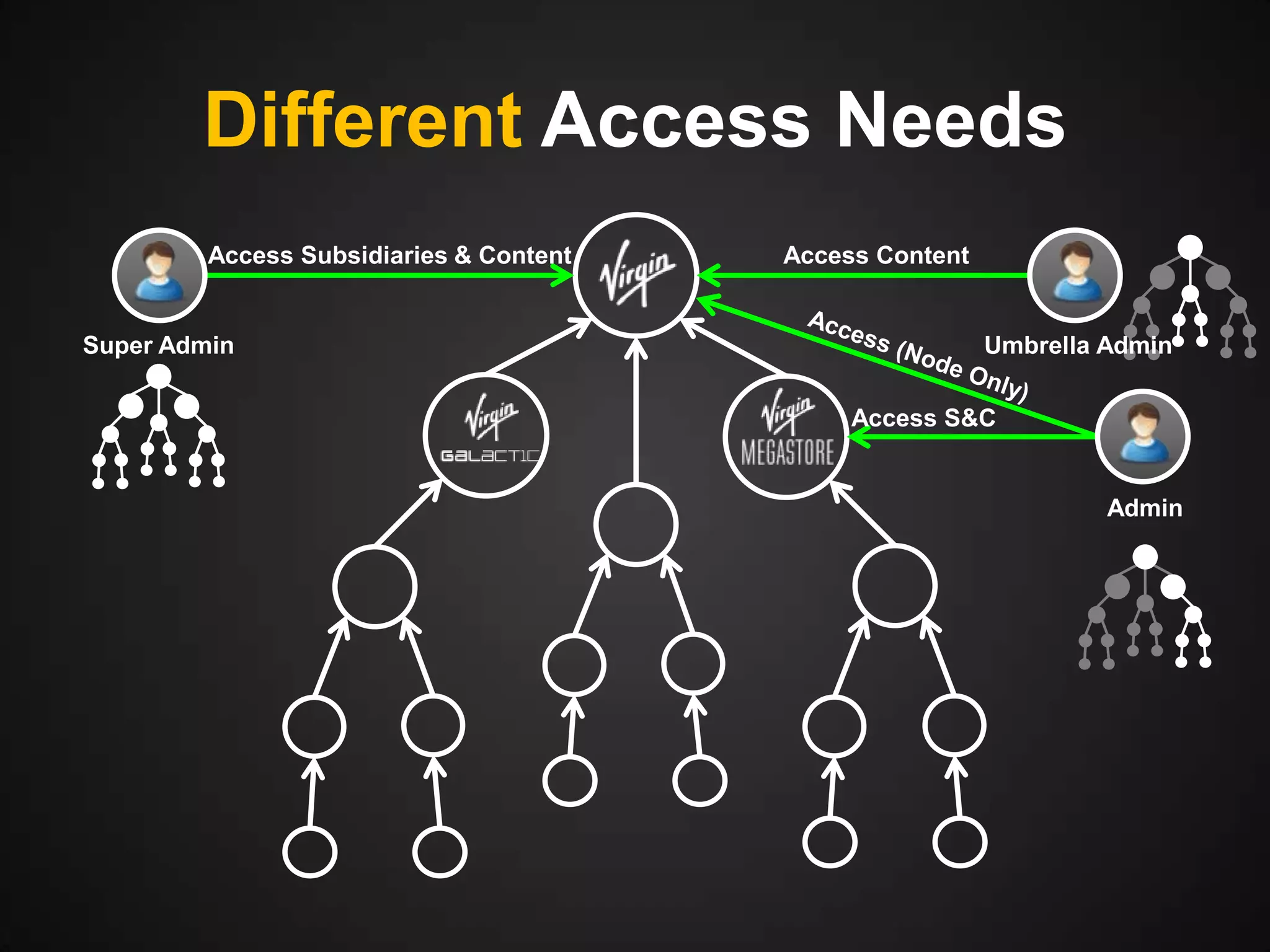

11. Different Access Needs
Access Subsidiaries & Content
Super Admin
Access Content
Umbrella Admin
Access S&C
Admin

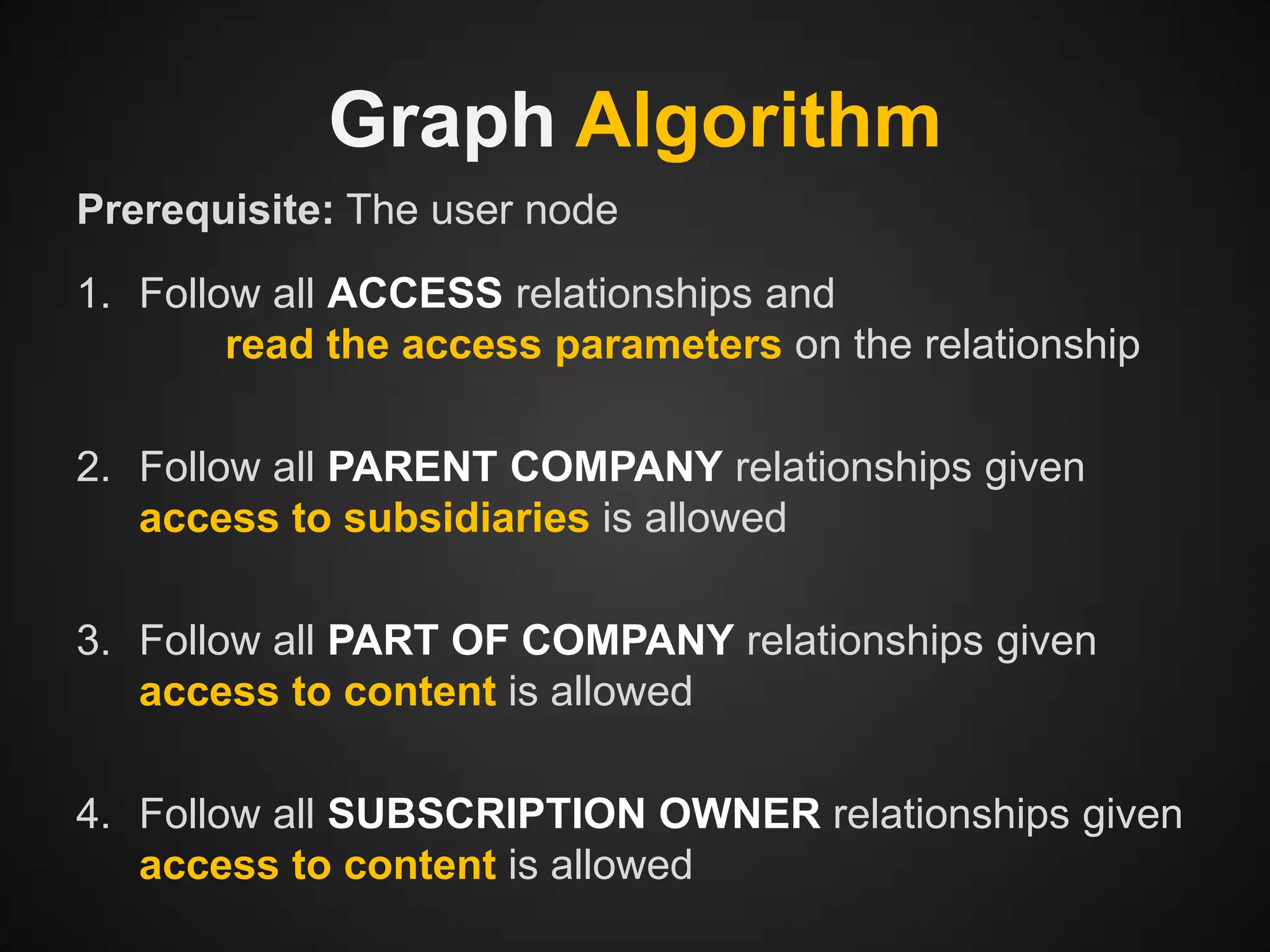

12. Graph Algorithm
Prerequisite: The user node
1. Follow all ACCESS relationships and
read the access parameters on the relationship
2. Follow all PARENT COMPANY relationships given
access to subsidiaries is allowed
3. Follow all PART OF COMPANY relationships given
access to content is allowed
4. Follow all SUBSCRIPTION OWNER relationships given
access to content is allowed

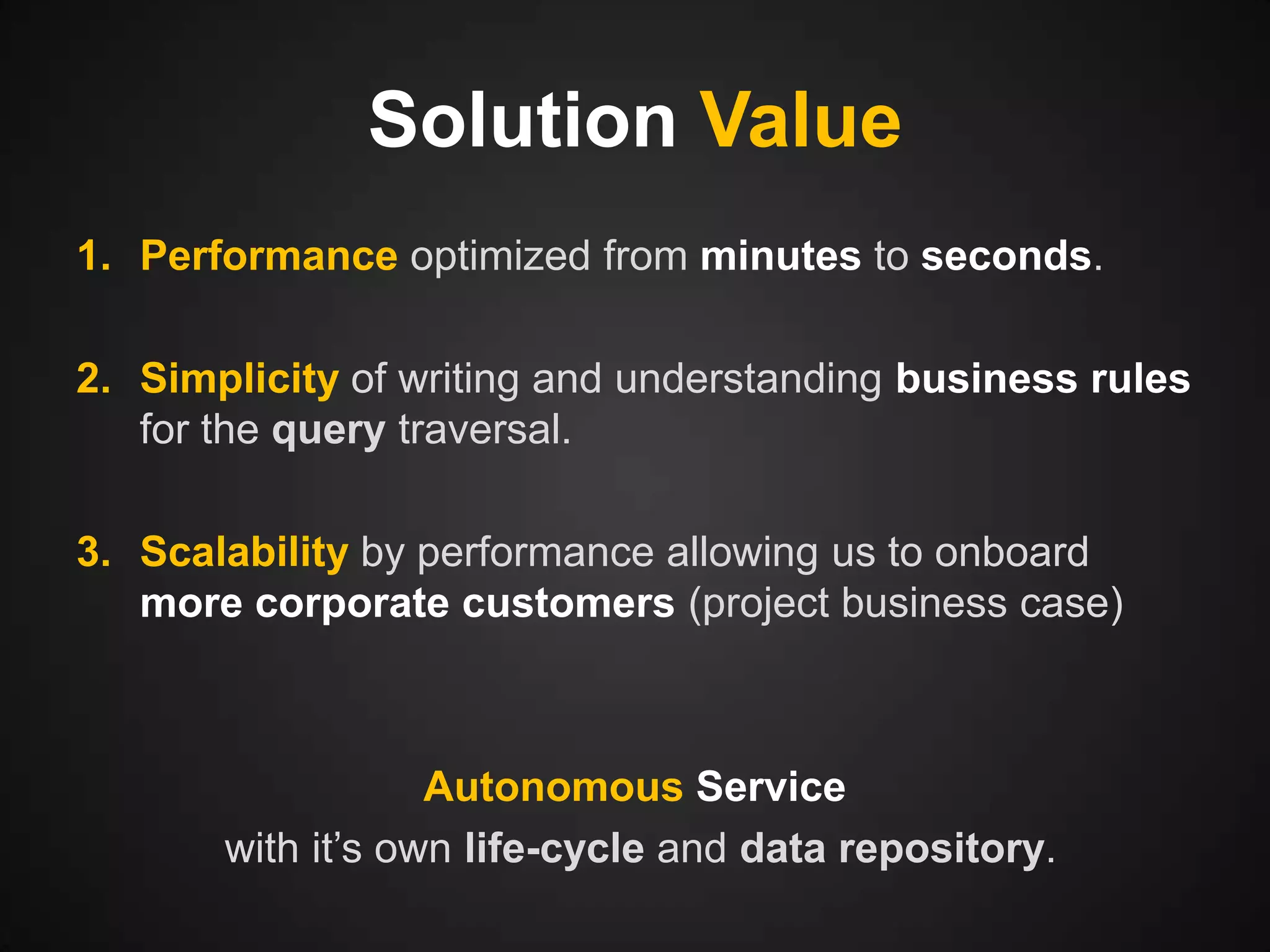

13. Solution Value
1. Performance optimized from minutes to seconds.
2. Simplicity of writing and understanding business rules
for the query traversal.
3. Scalability by performance allowing us to onboard
more corporate customers (project business case)
Autonomous Service
with it’s own life-cycle and data repository.

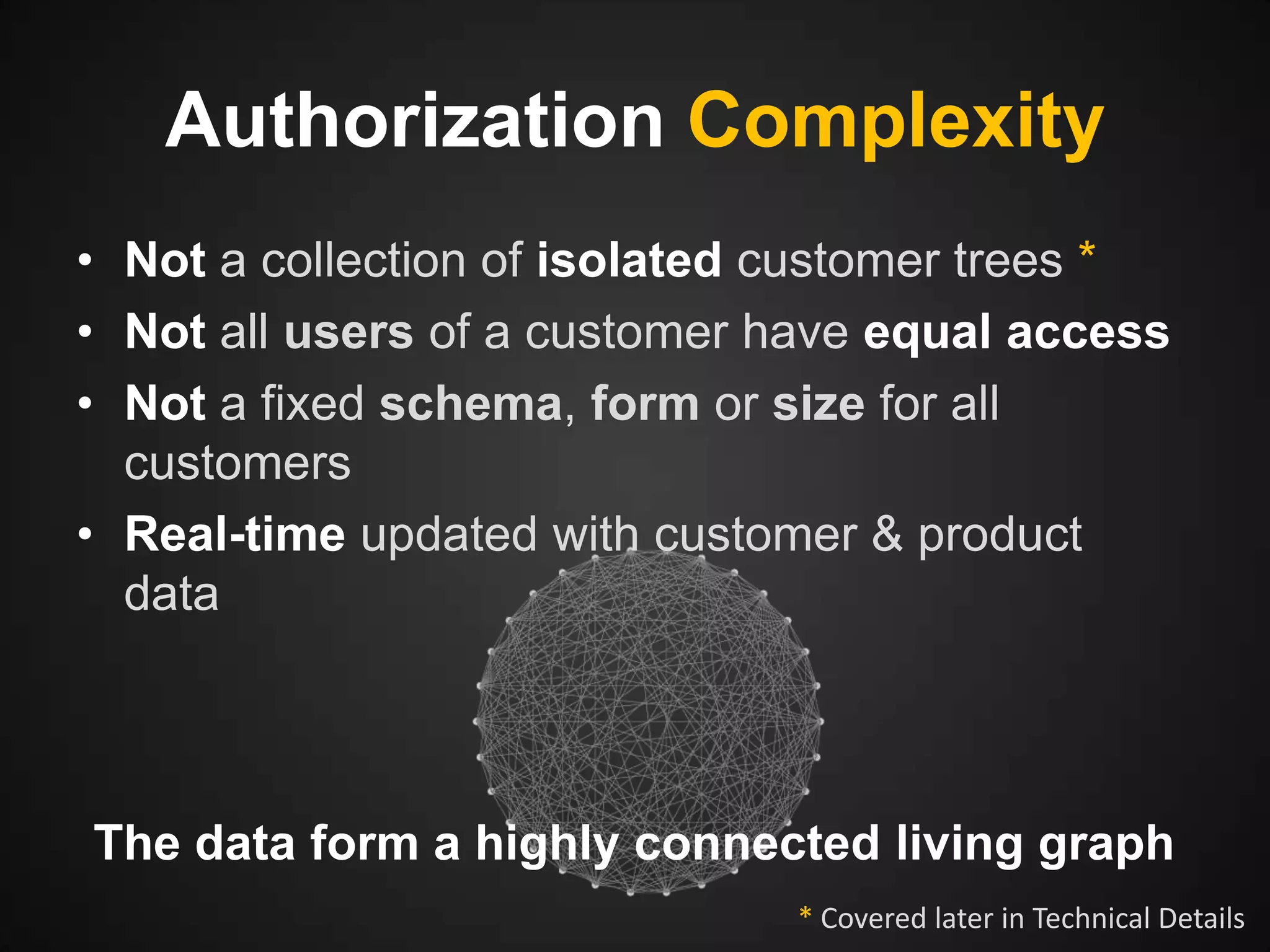

14. Authorization Complexity
• Not a collection of isolated customer trees *
• Not all users of a customer have equal access
• Not a fixed schema, form or size for all
customers
• Real-time updated with customer & product
data
The data form a highly connected living graph
* Covered later in Technical Details

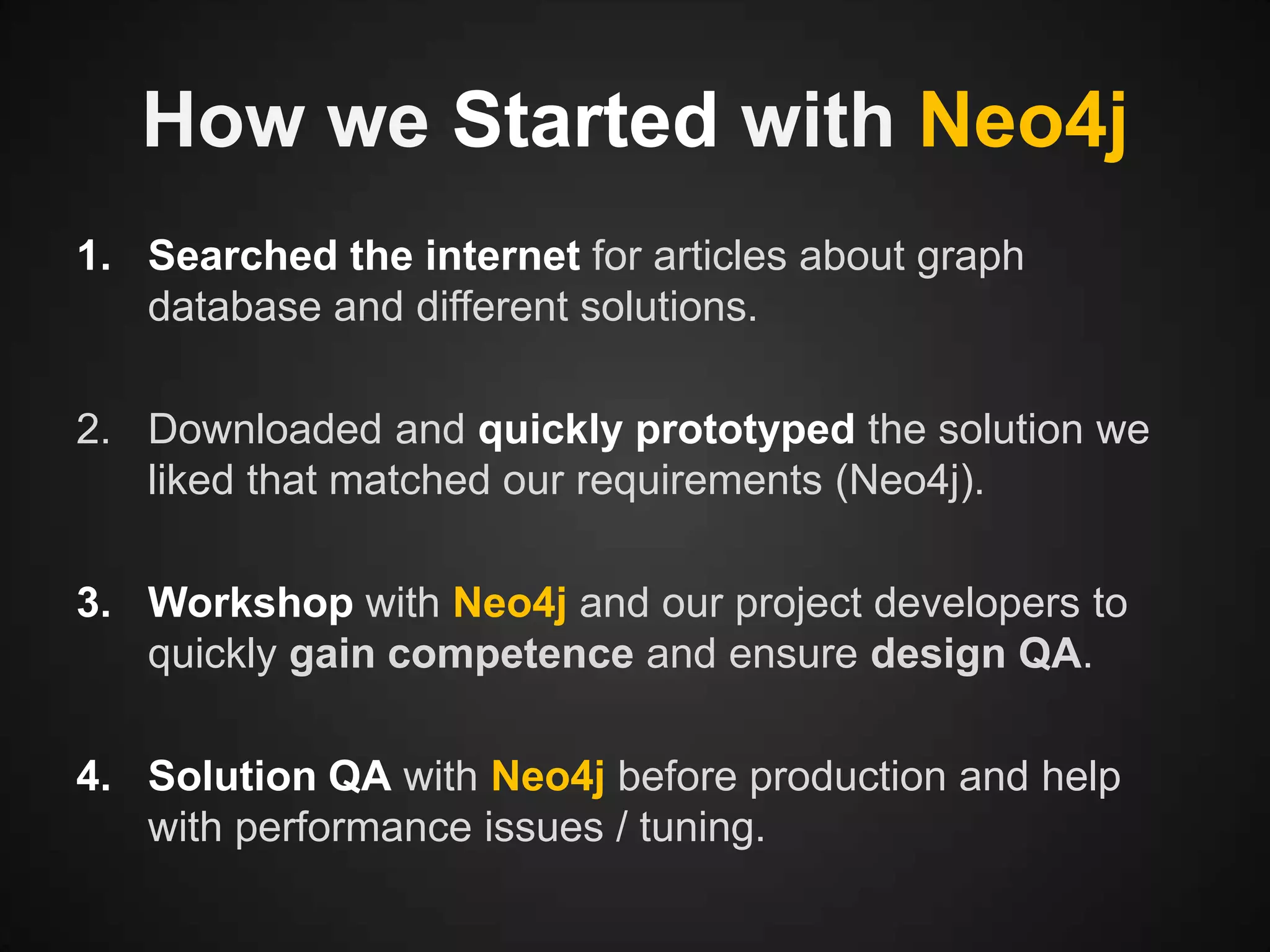

15. How we Started with Neo4j
1. Searched the internet for articles about graph
database and different solutions.
2. Downloaded and quickly prototyped the solution we
liked that matched our requirements (Neo4j).
3. Workshop with Neo4j and our project developers to
quickly gain competence and ensure design QA.
4. Solution QA with Neo4j before production and help
with performance issues / tuning.

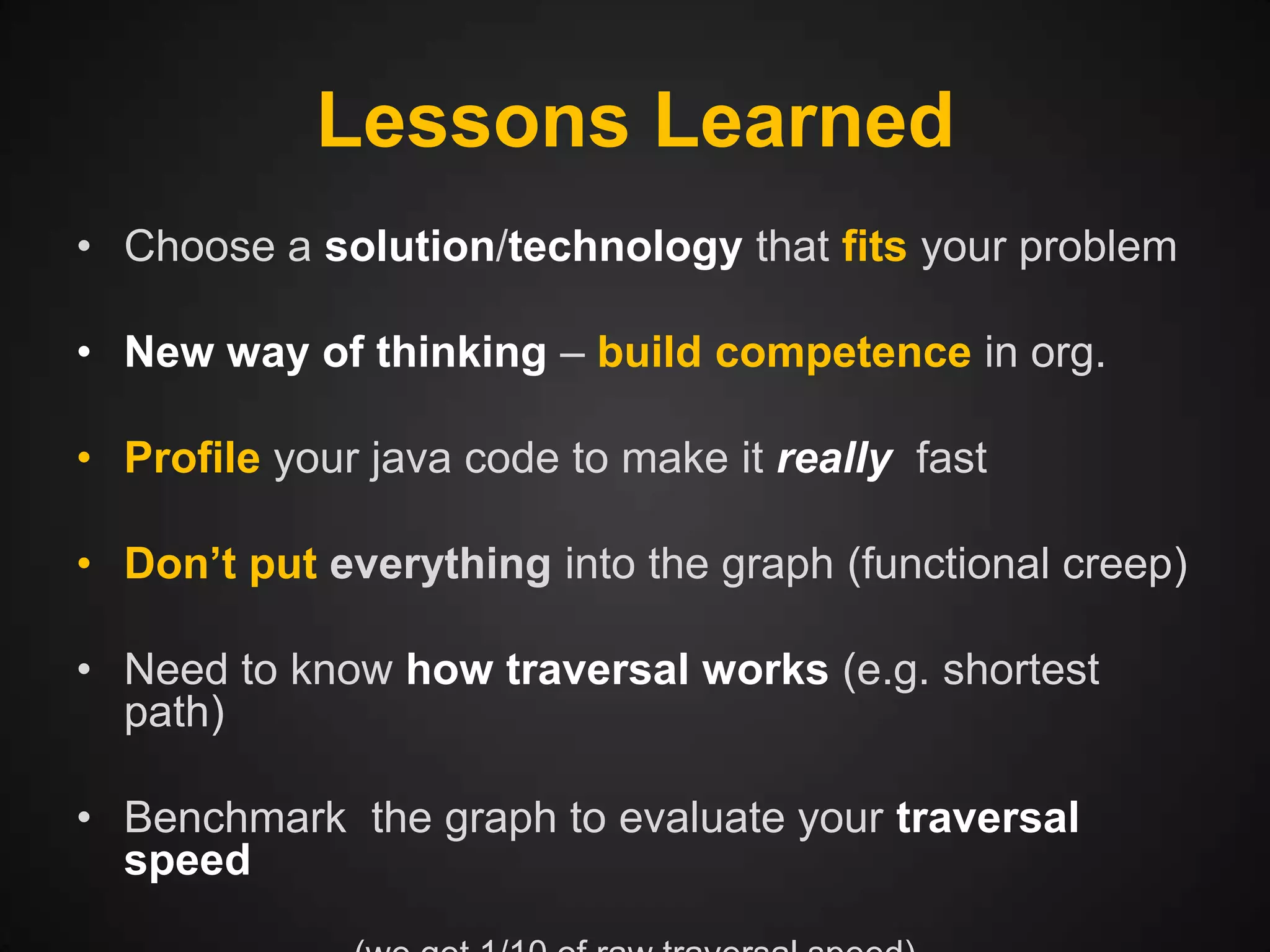

16. Lessons Learned
• Choose a solution/technology that fits your problem
• New way of thinking – build competence in org.
• Profile your java code to make it really fast
• Don’t put everything into the graph (functional creep)
• Need to know how traversal works (e.g. shortest
path)
• Benchmark the graph to evaluate your traversal
speed

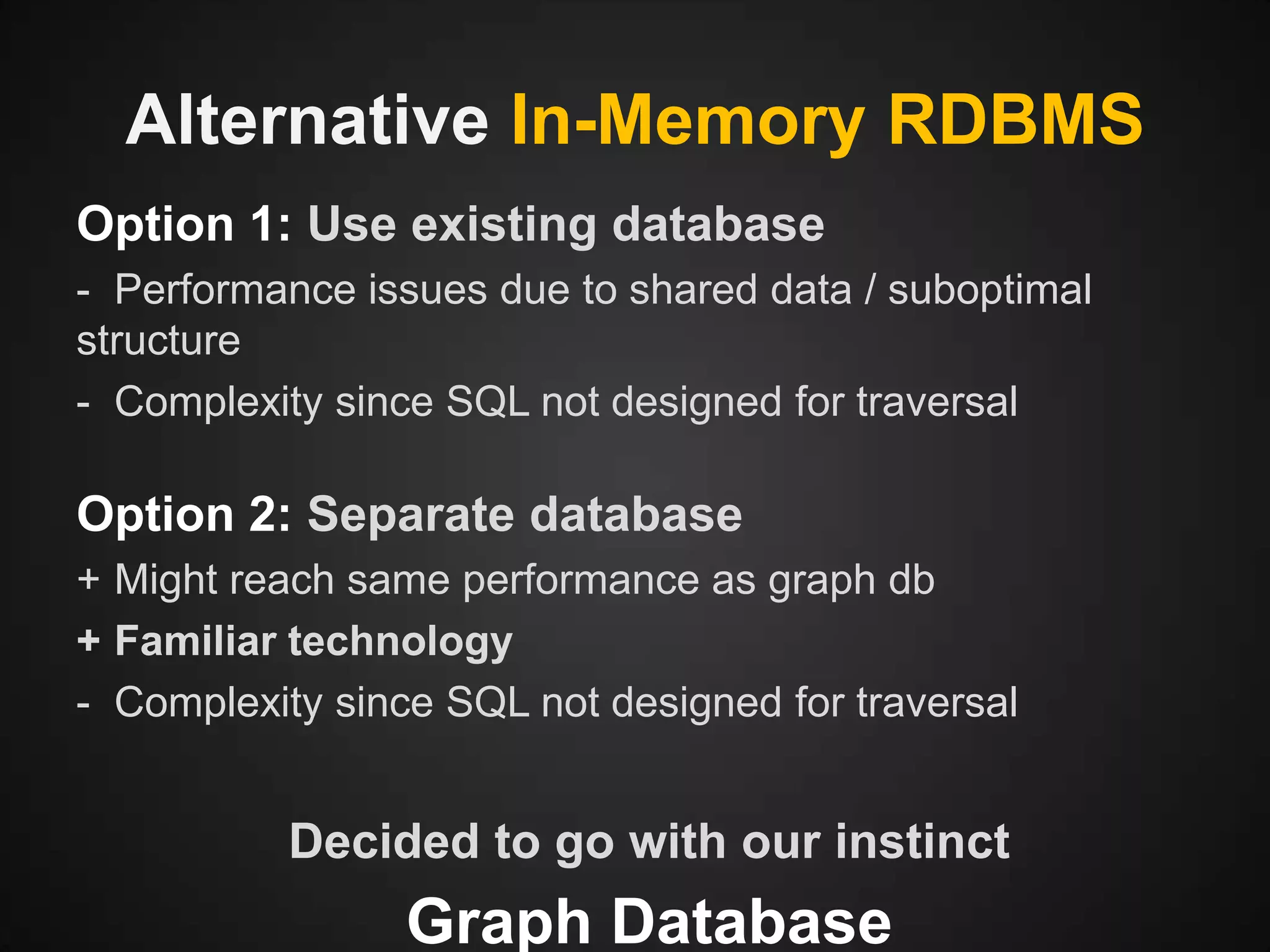

17. Alternative In-Memory RDBMS
Option 1: Use existing database
- Performance issues due to shared data / suboptimal
structure
- Complexity since SQL not designed for traversal
Option 2: Separate database
+ Might reach same performance as graph db
+ Familiar technology
- Complexity since SQL not designed for traversal
Decided to go with our instinct
Graph Database

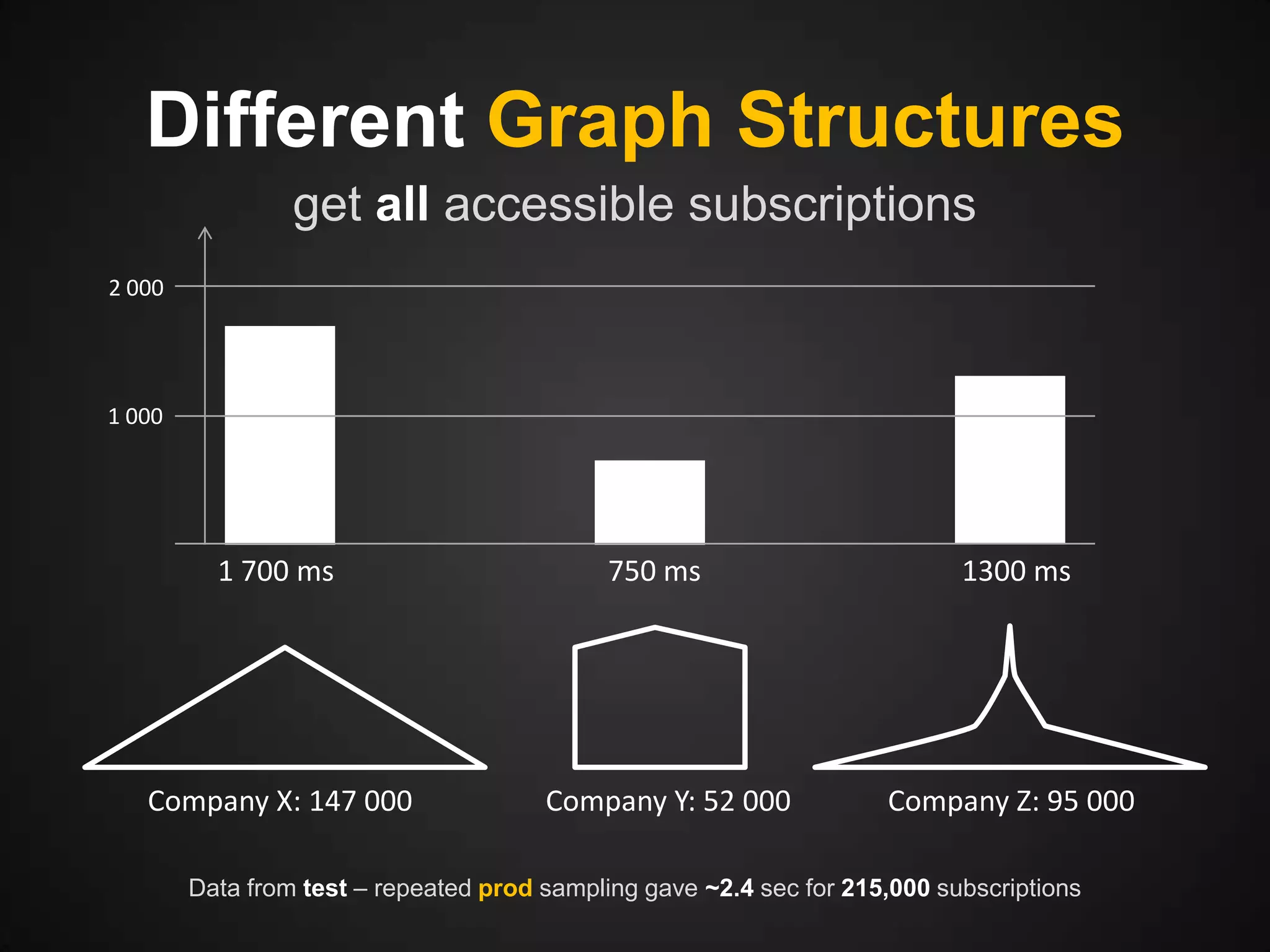

18. Different Graph Structures
get all accessible subscriptions
2 000
1 000
1 700 ms
Company X: 147 000
750 ms
Company Y: 52 000
1300 ms
Company Z: 95 000
Data from test – repeated prod sampling gave ~2.4 sec for 215,000 subscriptions

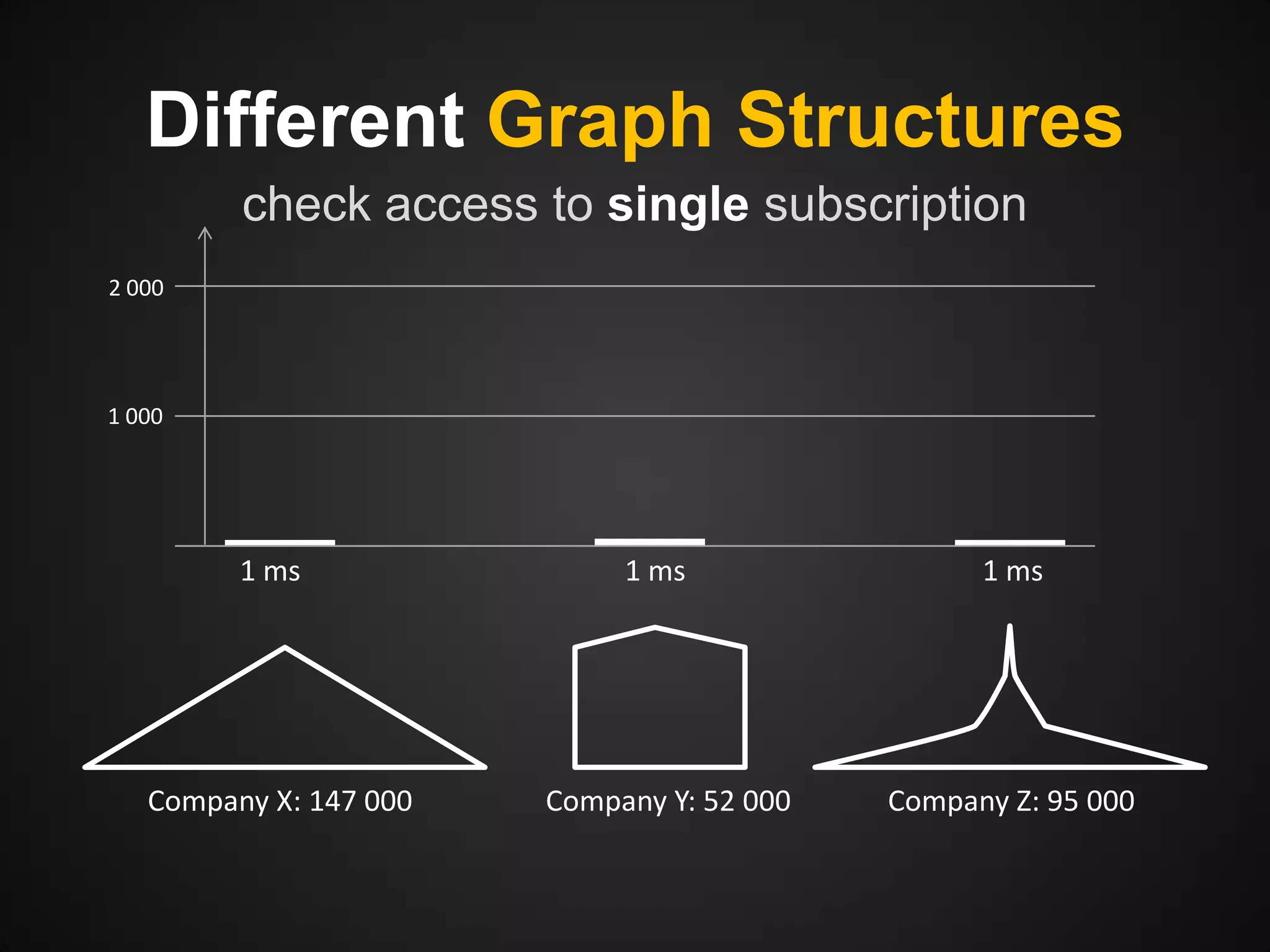

19. Different Graph Structures
check access to single subscription
2 000
1 000
1 ms
Company X: 147 000
1 ms
Company Y: 52 000
1 ms
Company Z: 95 000

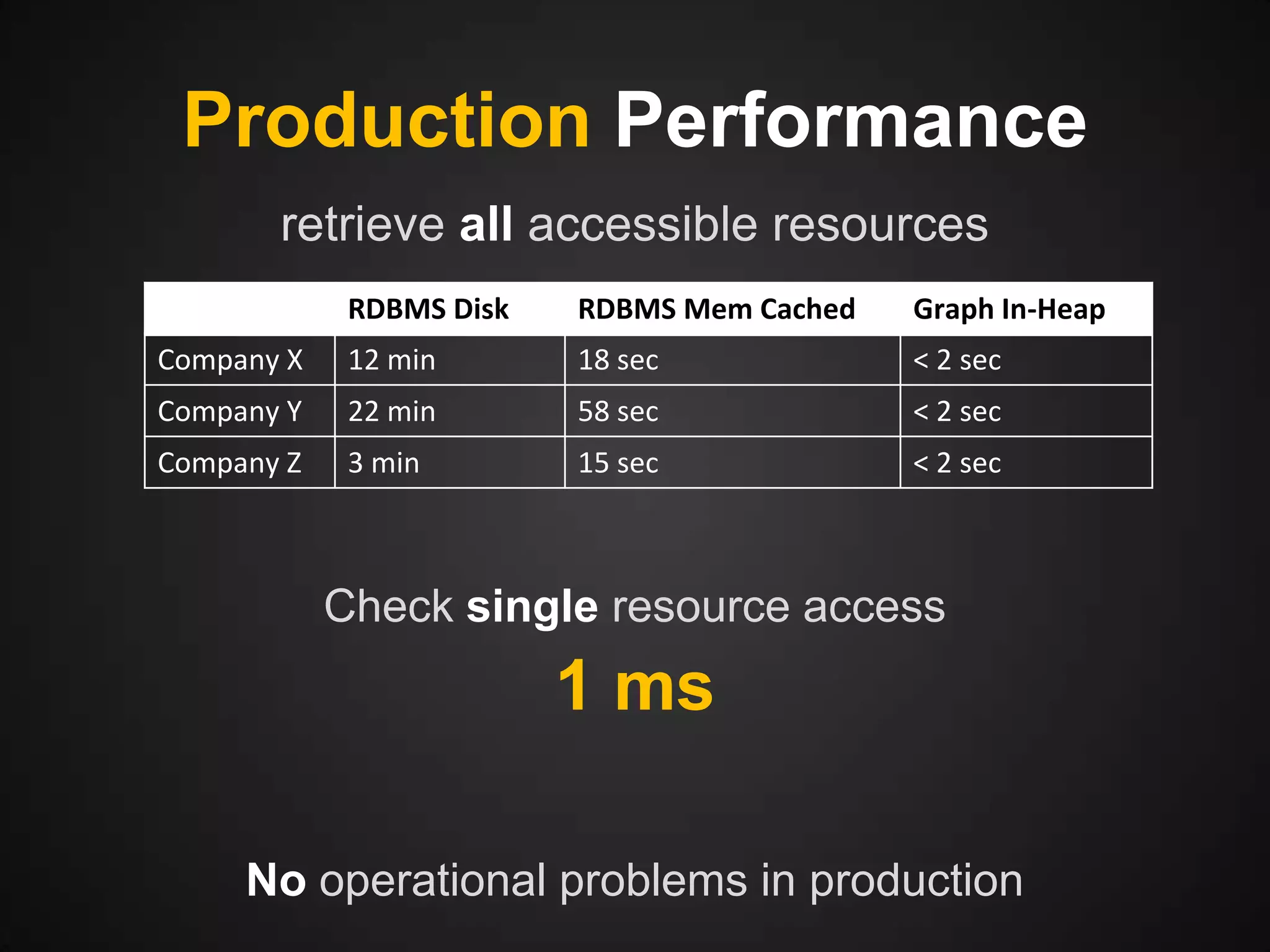

20. Production Performance
retrieve all accessible resources
RDBMS Disk
RDBMS Mem Cached
Graph In-Heap
Company X
12 min
18 sec
< 2 sec
Company Y
22 min
58 sec
< 2 sec
Company Z
3 min
15 sec
< 2 sec
Check single resource access
1 ms
No operational problems in production

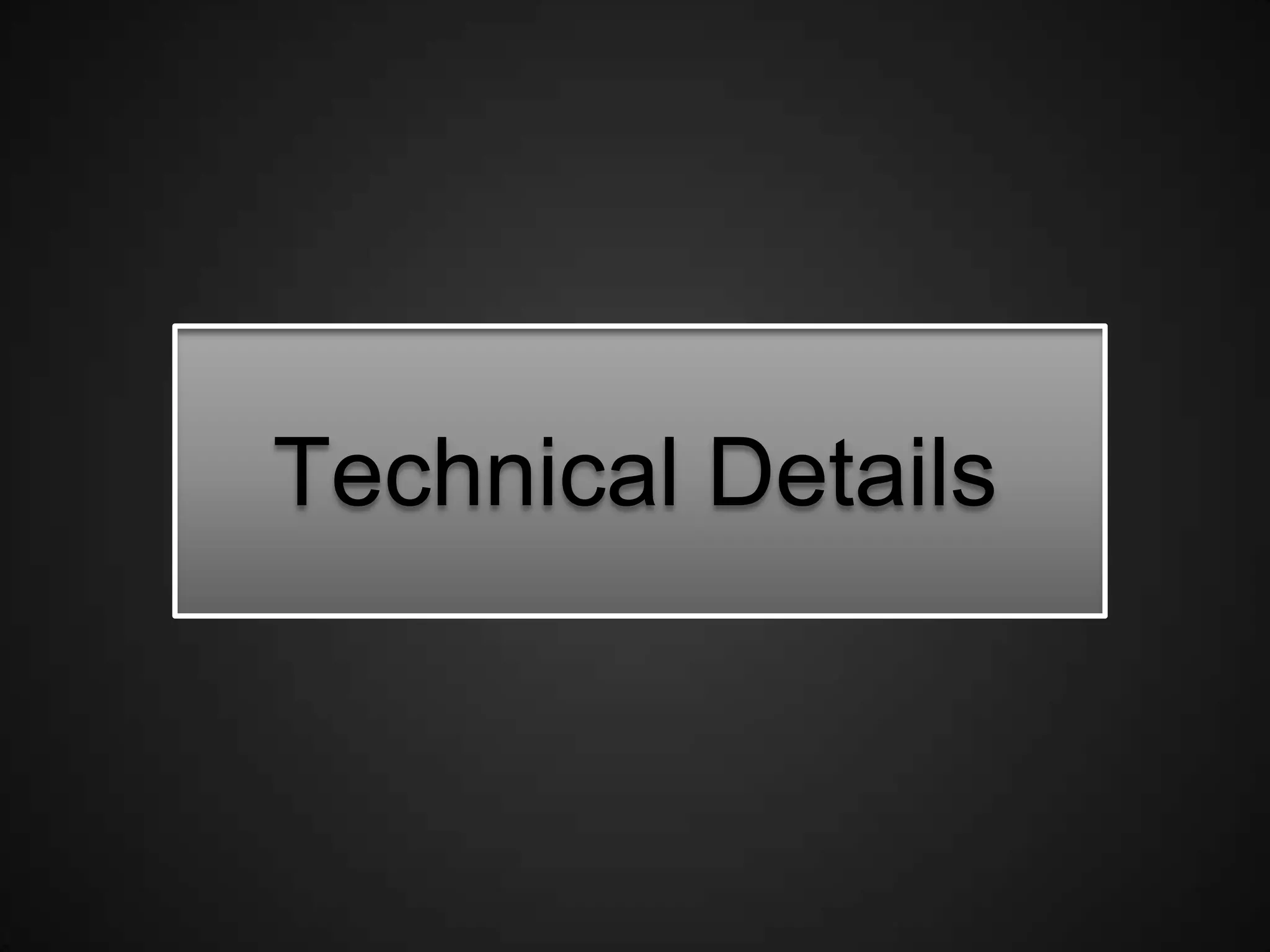

21. Technical Details

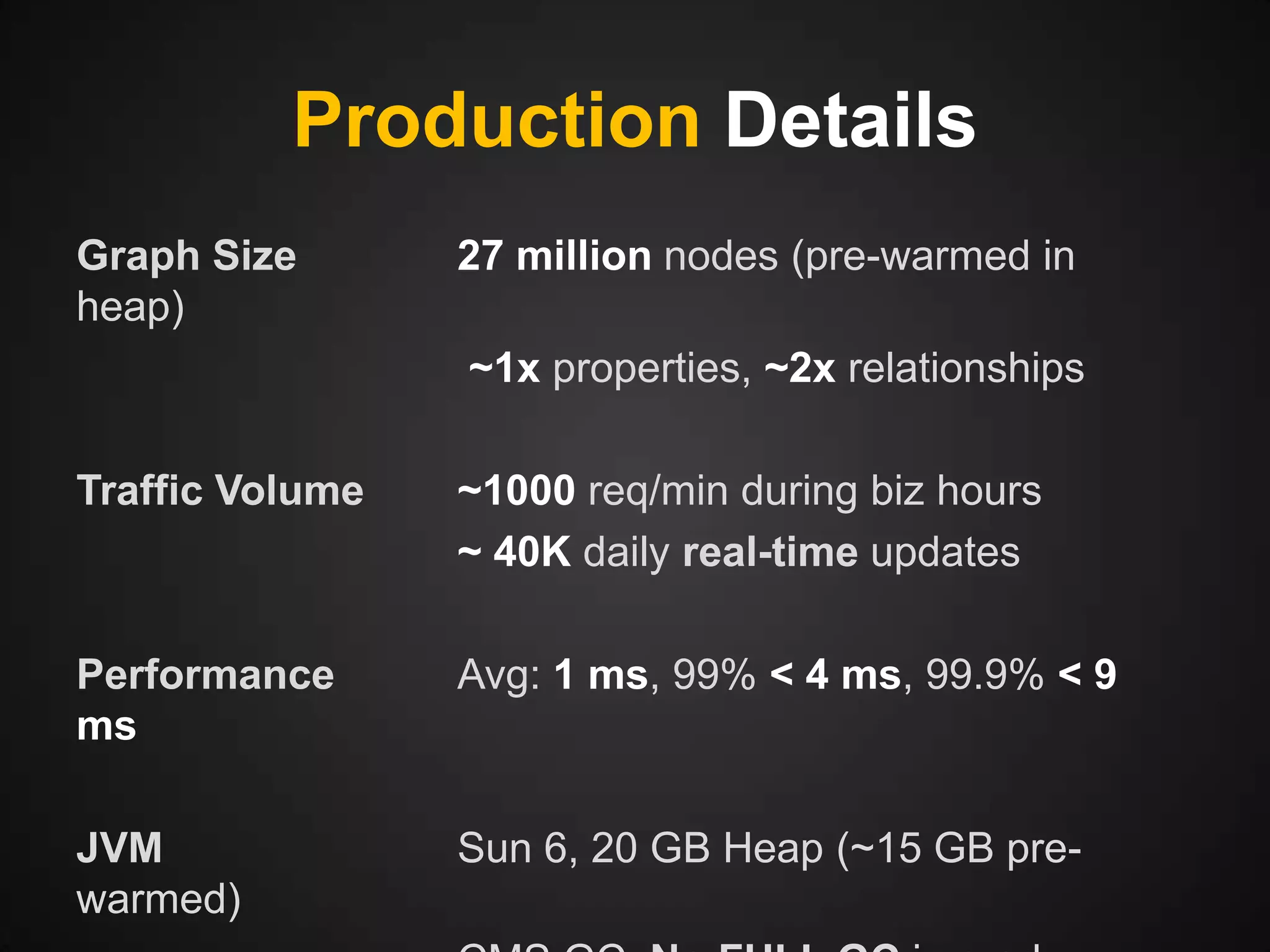

22. Production Details
Graph Size
heap)
27 million nodes (pre-warmed in
~1x properties, ~2x relationships
Traffic Volume
~1000 req/min during biz hours
~ 40K daily real-time updates
Performance
ms
Avg: 1 ms, 99% < 4 ms, 99.9% < 9
JVM
warmed)
Sun 6, 20 GB Heap (~15 GB pre-

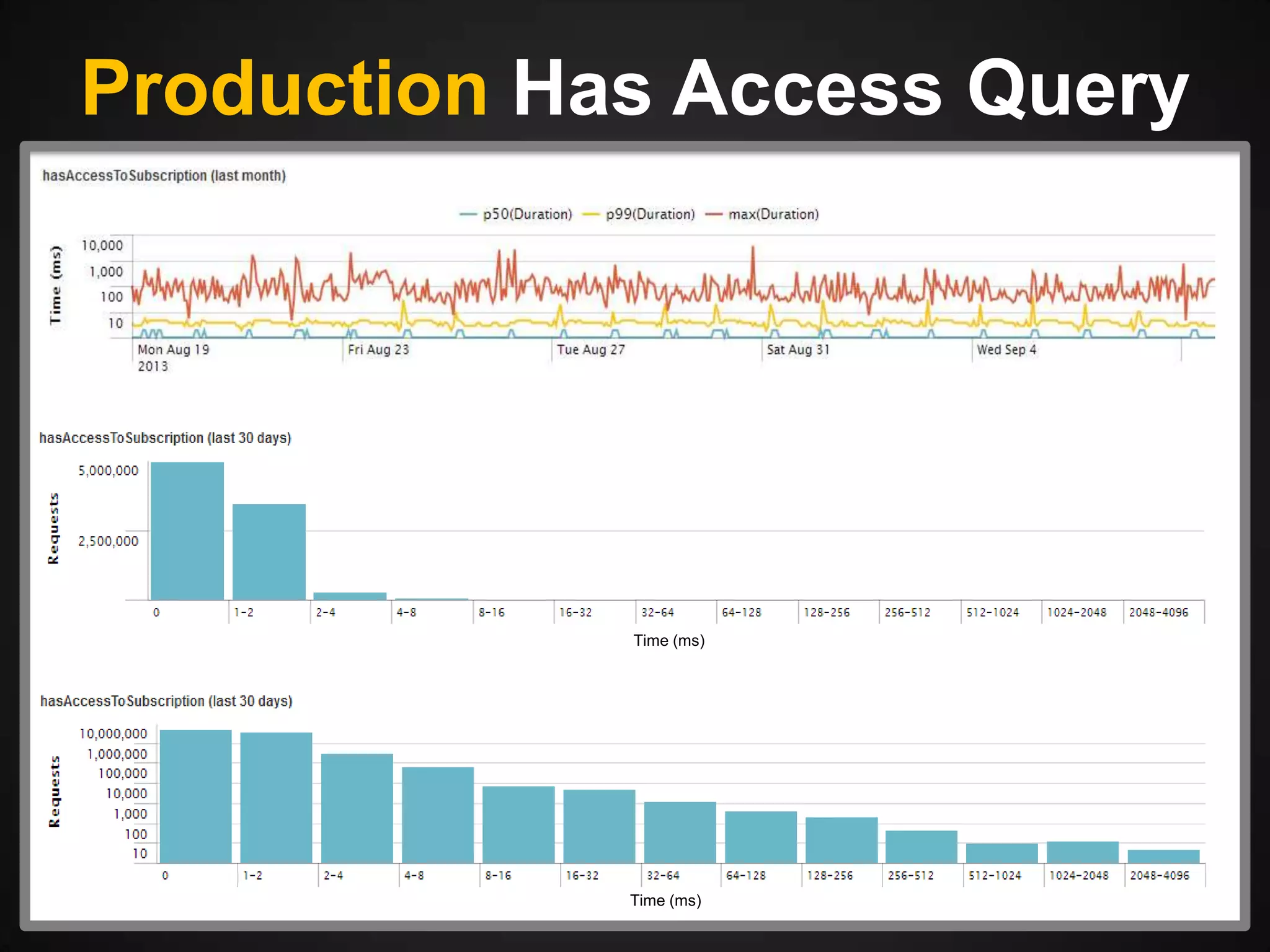

23. Production Has Access Query
Time (ms)
Time (ms)

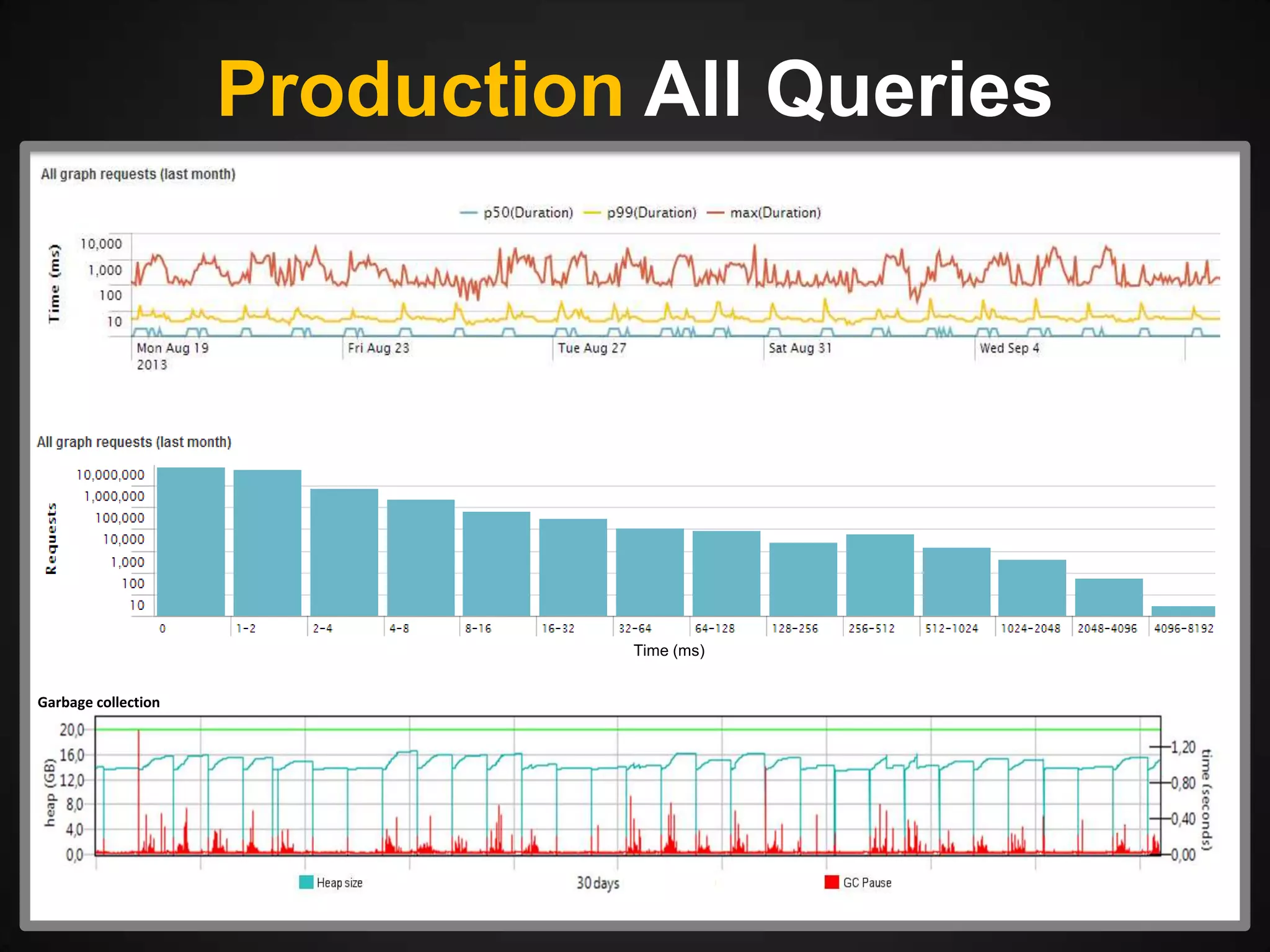

24. Production All Queries
Time (ms)
Garbage collection

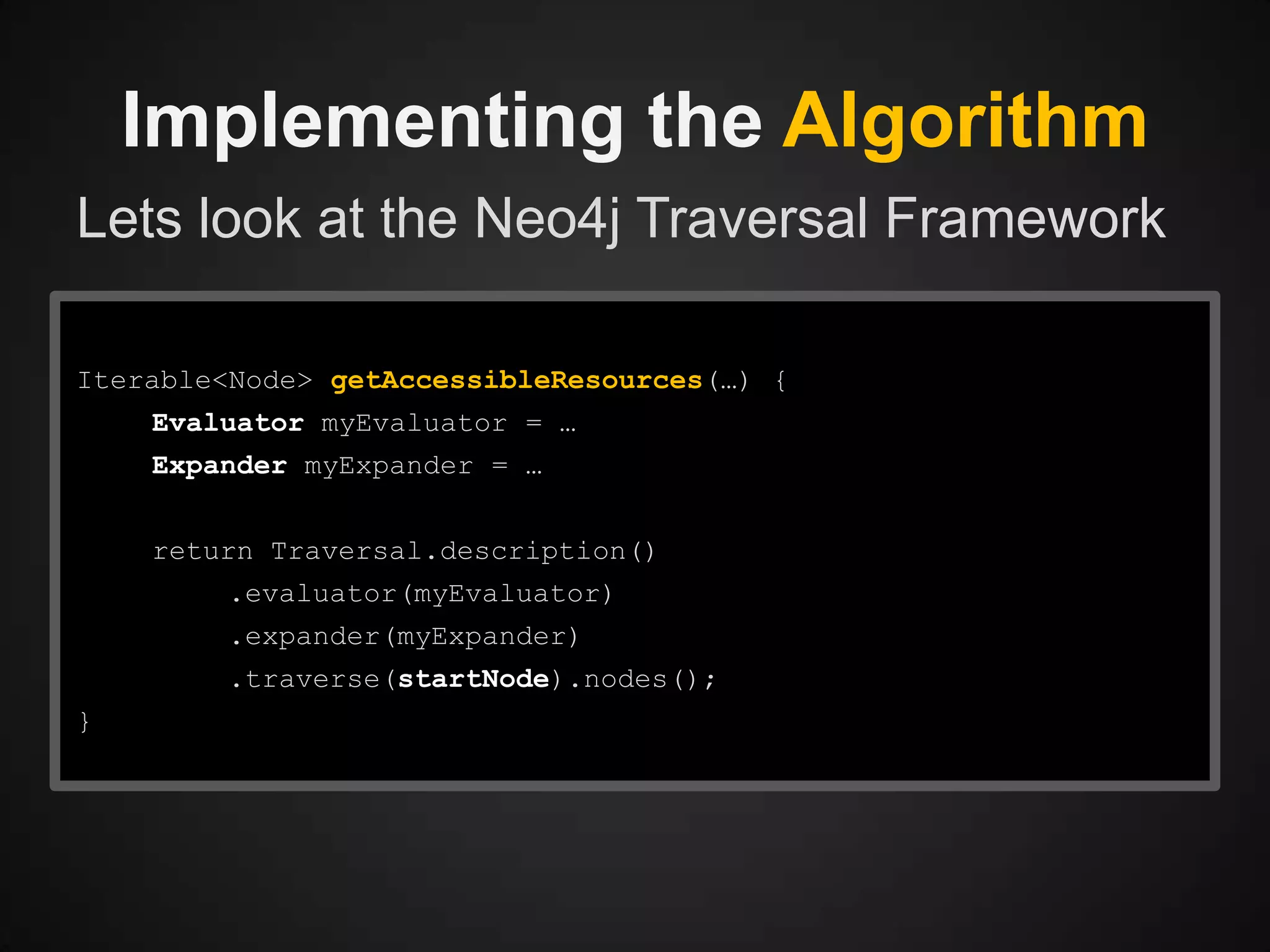

25. Implementing the Algorithm
Lets look at the Neo4j Traversal Framework
Iterable<Node> getAccessibleResources(…) {
Evaluator myEvaluator = …
Expander myExpander = …
return Traversal.description()
.evaluator(myEvaluator)
.expander(myExpander)
.traverse(startNode).nodes();
}

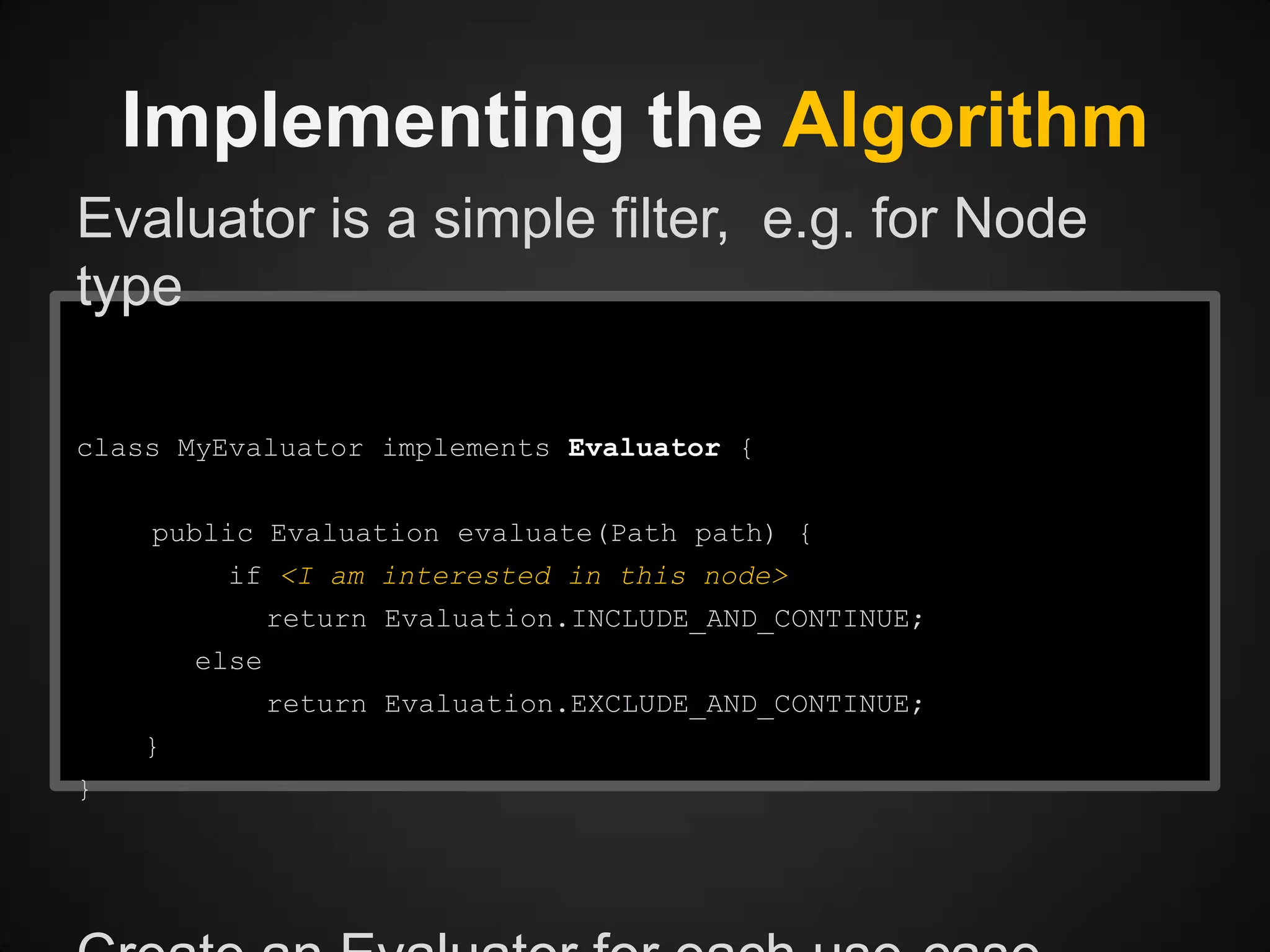

26. Implementing the Algorithm
Evaluator is a simple filter, e.g. for Node
type
class MyEvaluator implements Evaluator {
public Evaluation evaluate(Path path) {
if <I am interested in this node>
return Evaluation.INCLUDE_AND_CONTINUE;
else
return Evaluation.EXCLUDE_AND_CONTINUE;
}
}

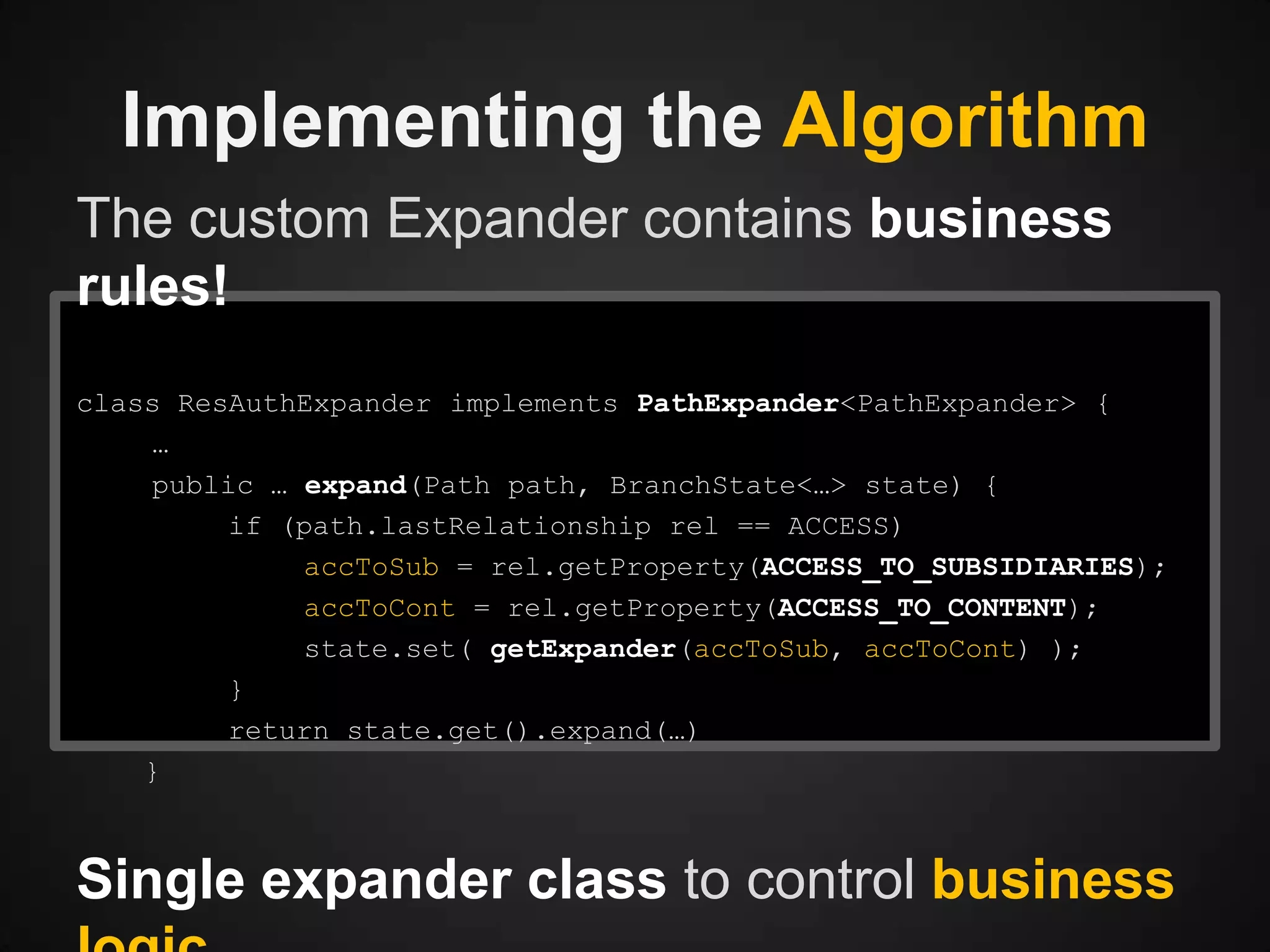

27. Implementing the Algorithm
The custom Expander contains business
rules!
class ResAuthExpander implements PathExpander<PathExpander> {
…
public … expand(Path path, BranchState<…> state) {
if (path.lastRelationship rel == ACCESS)
accToSub = rel.getProperty(ACCESS_TO_SUBSIDIARIES);
accToCont = rel.getProperty(ACCESS_TO_CONTENT);
state.set( getExpander(accToSub, accToCont) );
}
return state.get().expand(…)
}
Single expander class to control business

28. Implementing the Algorithm

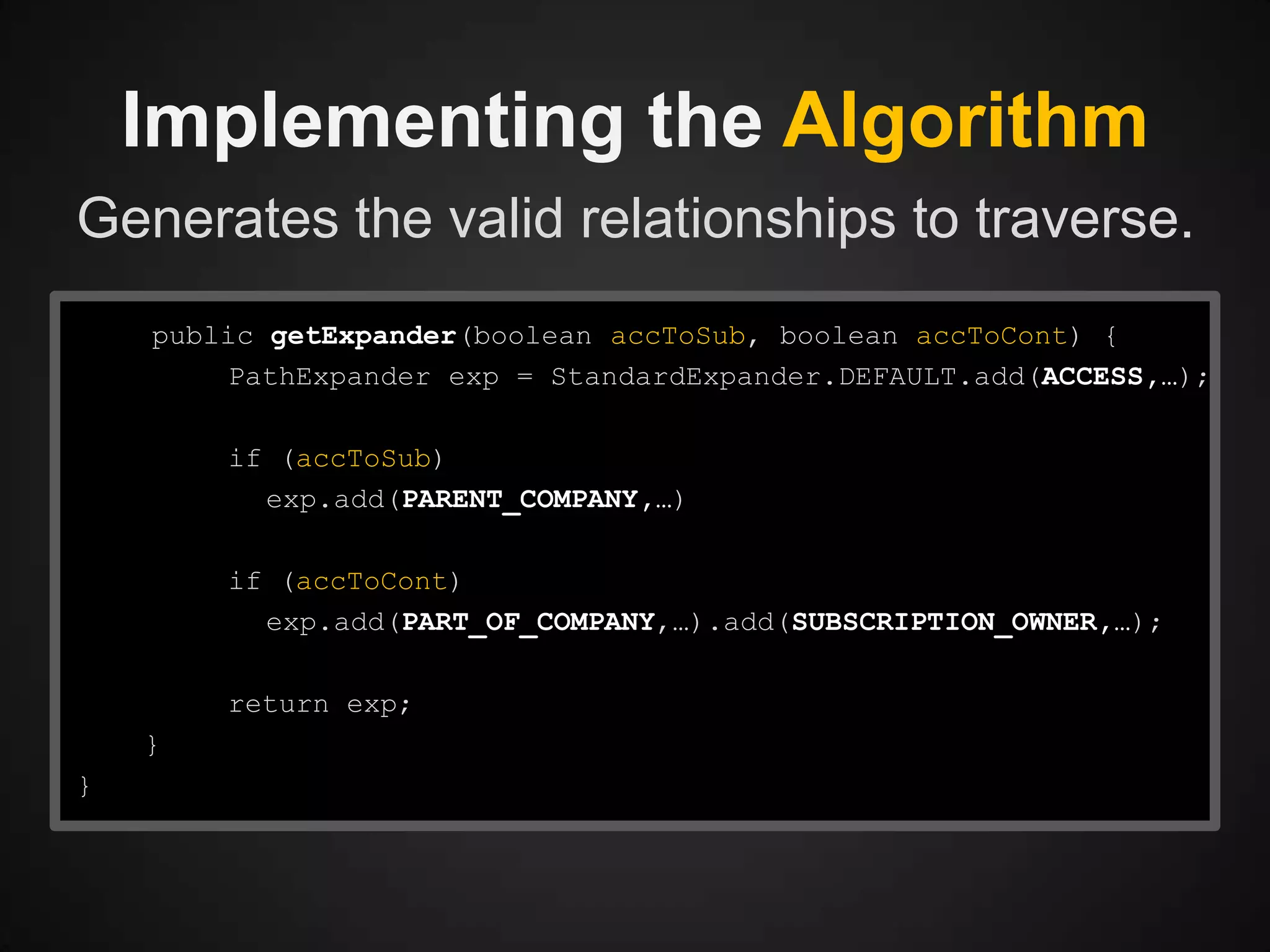

Generates the valid relationships to traverse.
public getExpander(boolean accToSub, boolean accToCont) {
PathExpander exp = StandardExpander.DEFAULT.add(ACCESS,…);
if (accToSub)
exp.add(PARENT_COMPANY,…)
if (accToCont)
exp.add(PART_OF_COMPANY,…).add(SUBSCRIPTION_OWNER,…);
return exp;
}
}

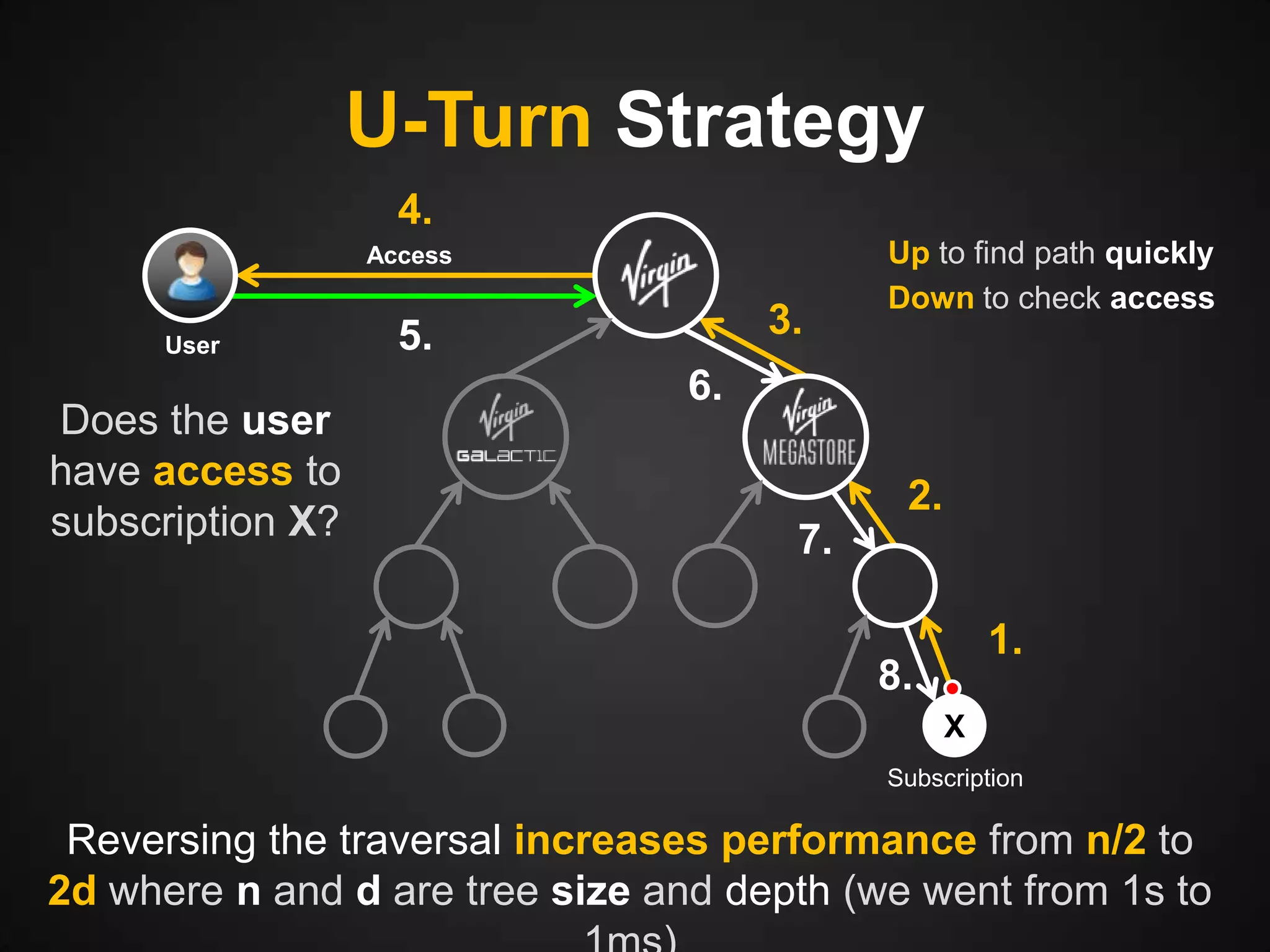

29. U-Turn Strategy
4.
Access
User
Does the user
have access to
subscription X?
3.
5.
Up to find path quickly
Down to check access
6.
2.
7.
1.
8.
X
Subscription
Reversing the traversal increases performance from n/2 to
2d where n and d are tree size and depth (we went from 1s to

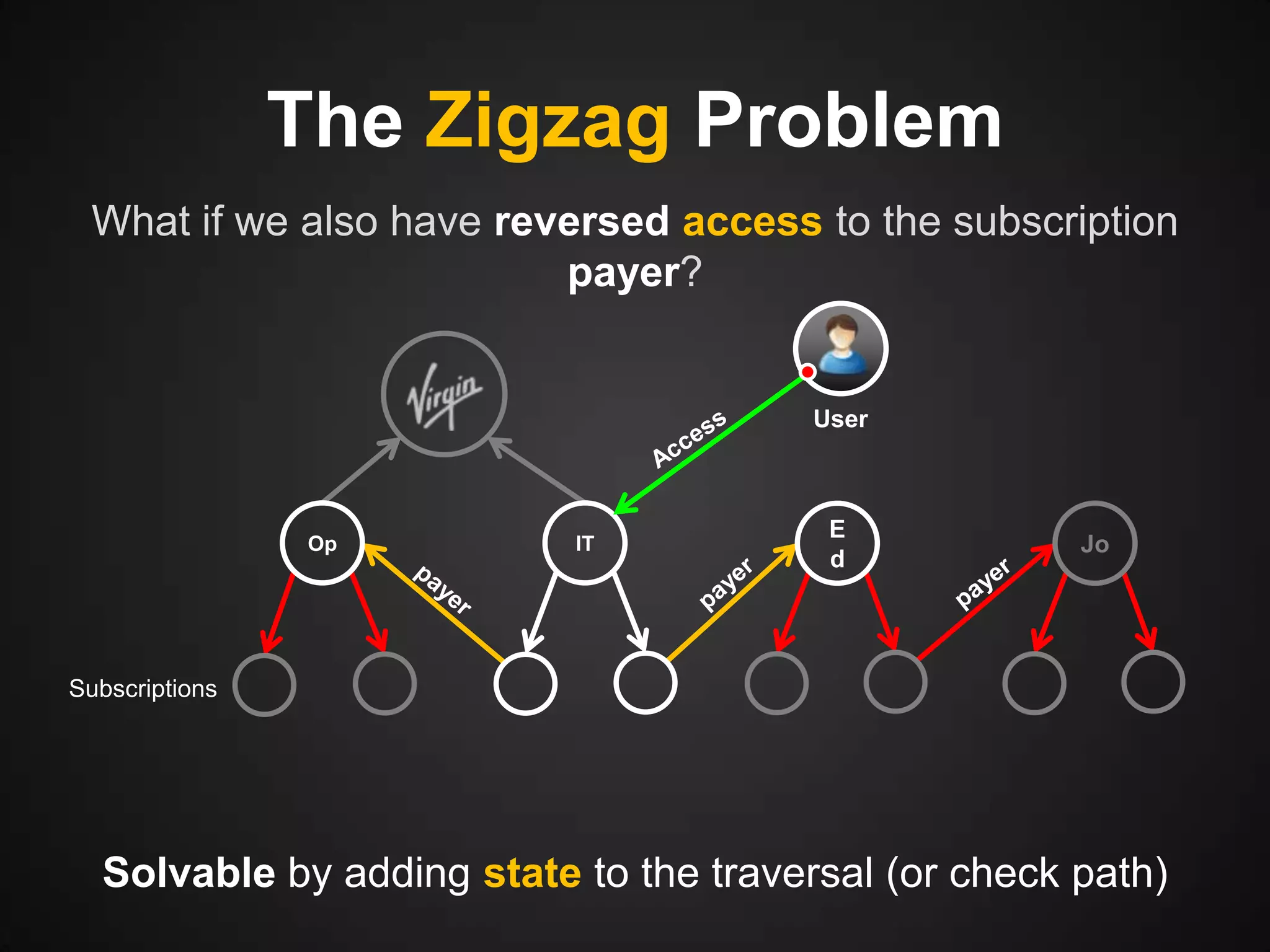

30. The Zigzag Problem
What if we also have reversed access to the subscription
payer?
User
Op
IT
E
d
Jo
Subscriptions
Solvable by adding state to the traversal (or check path)

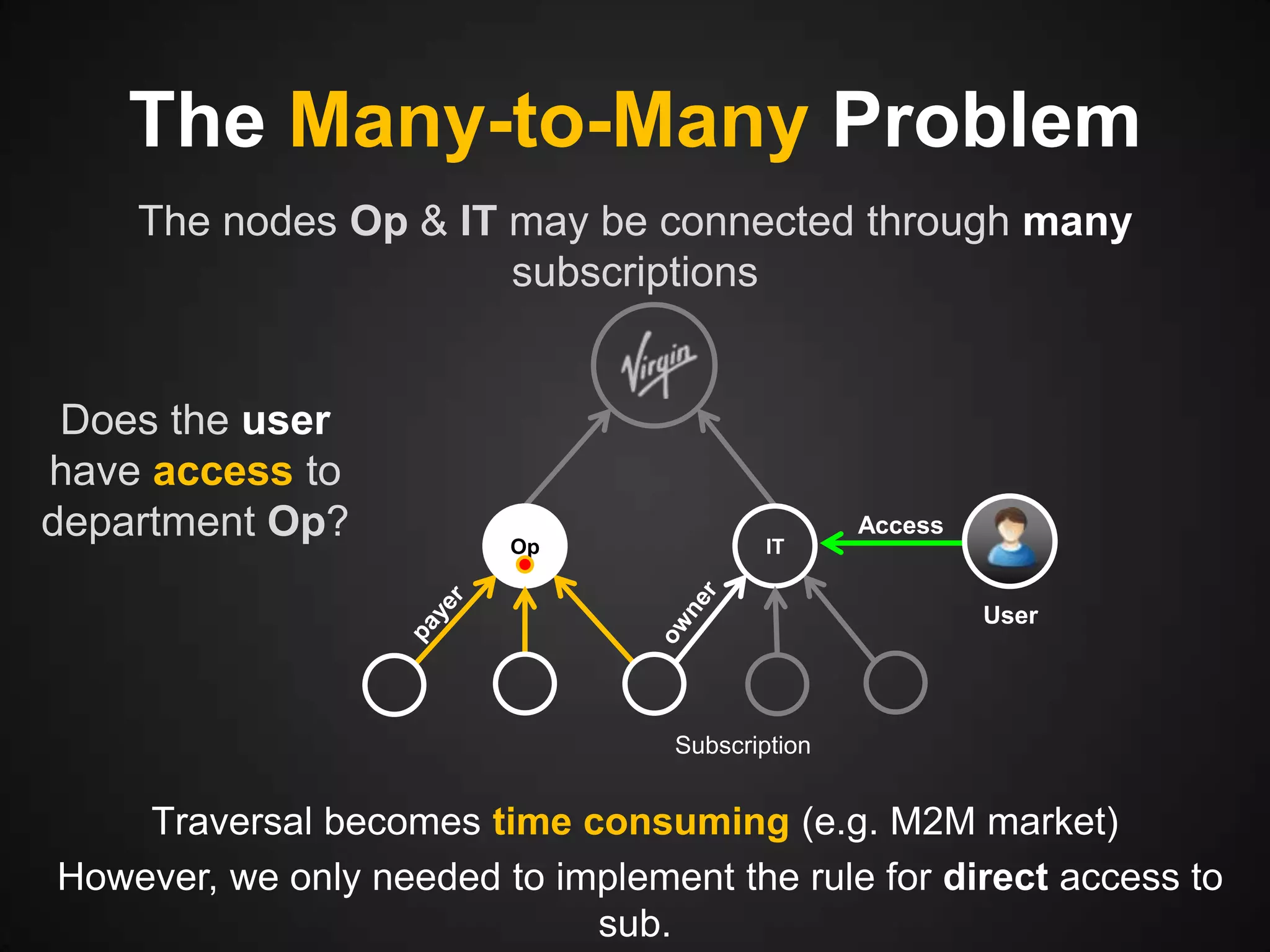

31. The Many-to-Many Problem
The nodes Op & IT may be connected through many
subscriptions
Does the user
have access to
department Op?
Op
IT
Access
User
Subscription
Traversal becomes time consuming (e.g. M2M market)
However, we only needed to implement the rule for direct access to
sub.

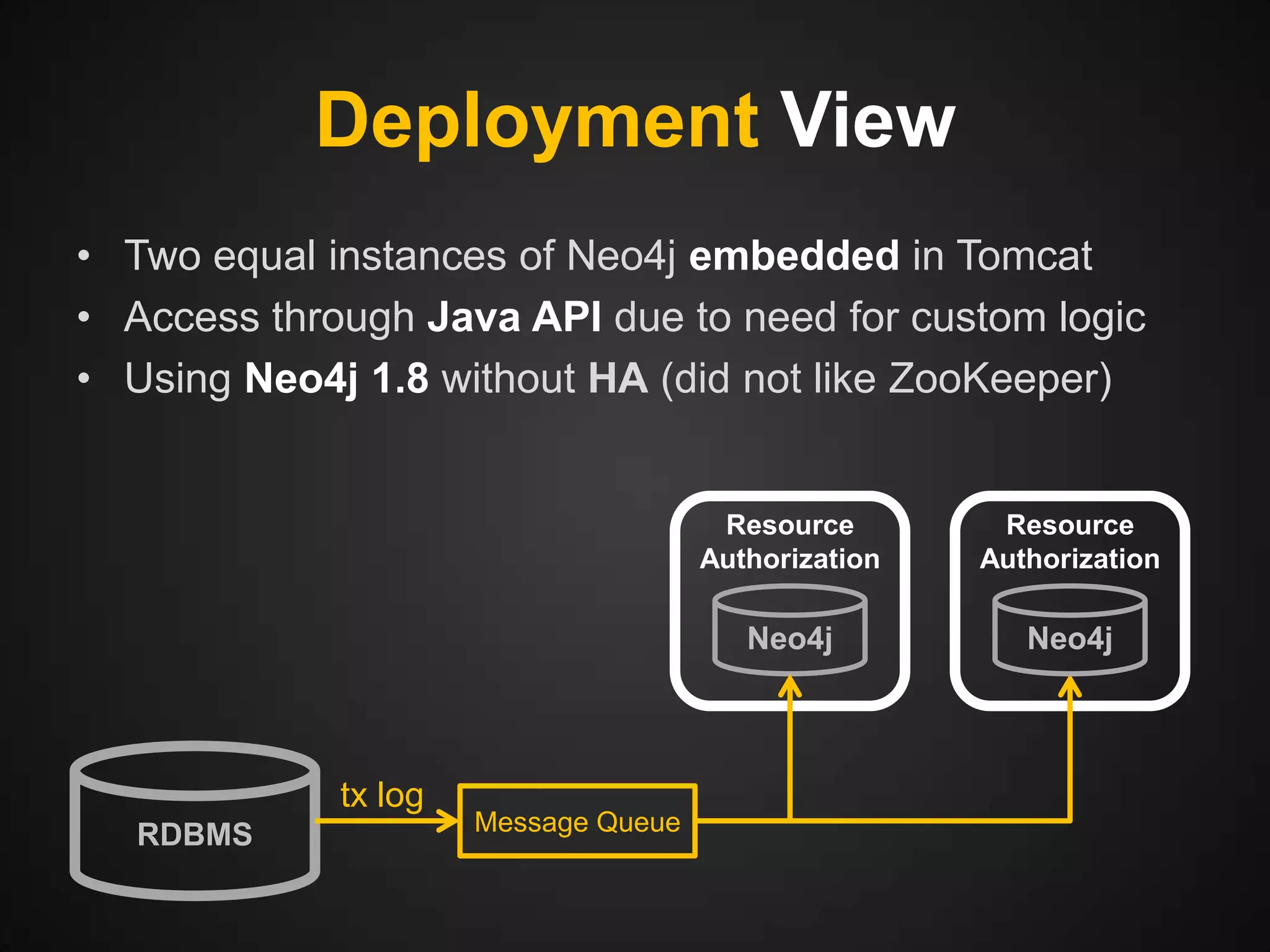

32. Deployment View
• Two equal instances of Neo4j embedded in Tomcat
• Access through Java API due to need for custom logic
• Using Neo4j 1.8 without HA (did not like ZooKeeper)
Resource
Authorization
Neo4j
tx log
RDBMS
Message Queue
Resource
Authorization
Neo4j

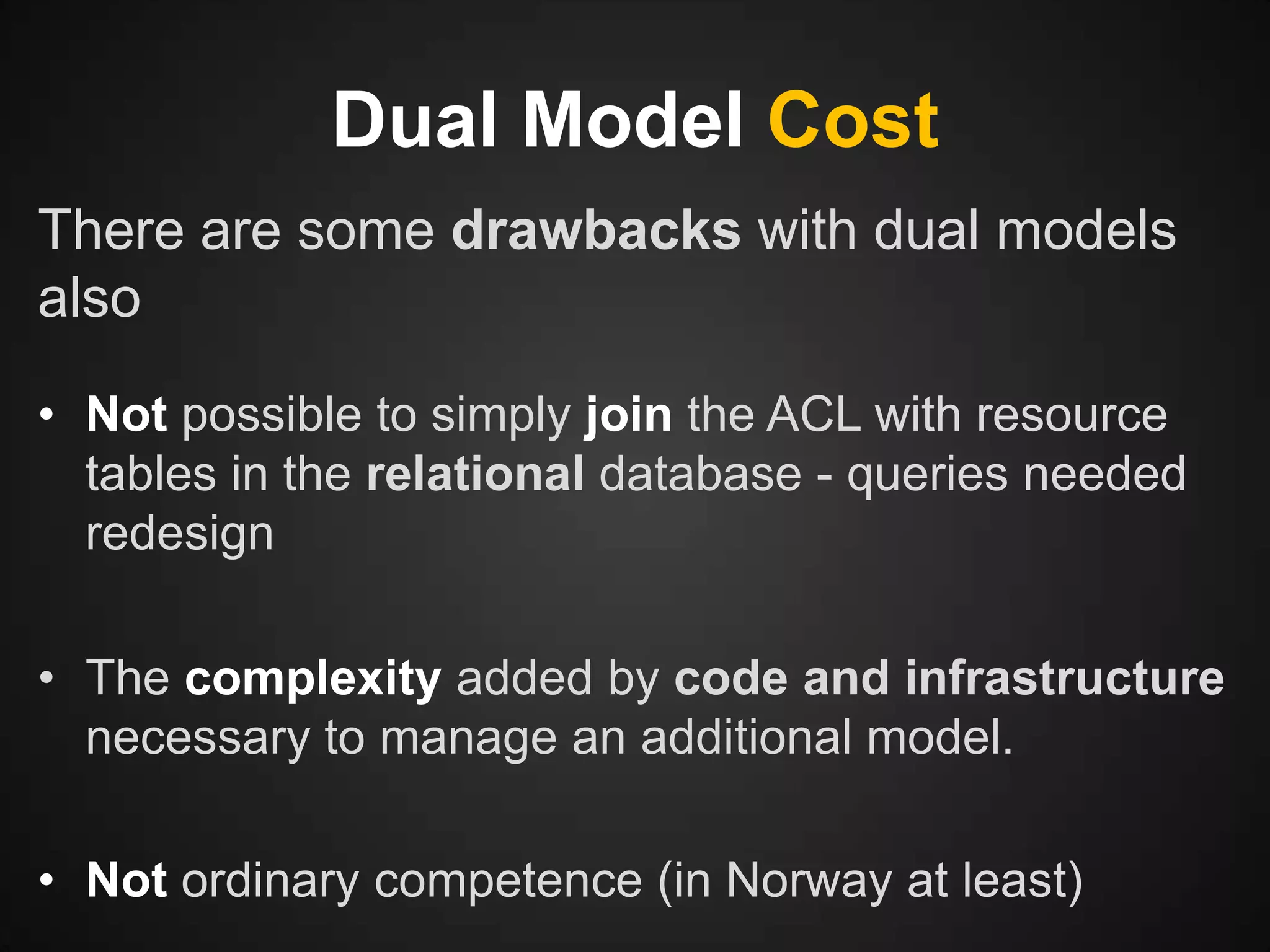

33. Dual Model Cost
There are some drawbacks with dual models
also
• Not possible to simply join the ACL with resource
tables in the relational database - queries needed
redesign
• The complexity added by code and infrastructure
necessary to manage an additional model.
• Not ordinary competence (in Norway at least)

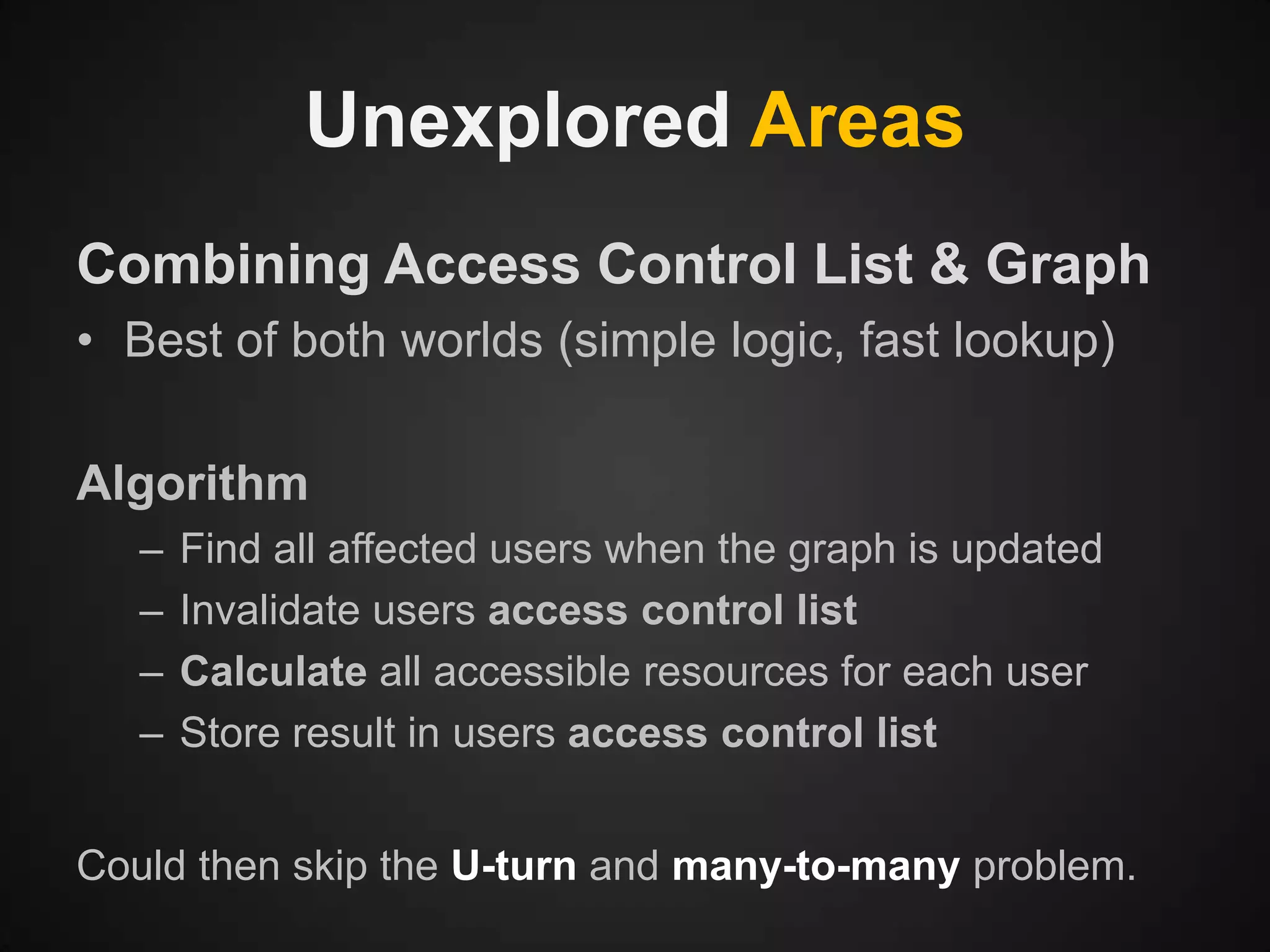

34. Unexplored Areas
Combining Access Control List & Graph
• Best of both worlds (simple logic, fast lookup)
Algorithm
–
–
–
–
Find all affected users when the graph is updated
Invalidate users access control list
Calculate all accessible resources for each user
Store result in users access control list
Could then skip the U-turn and many-to-many problem.

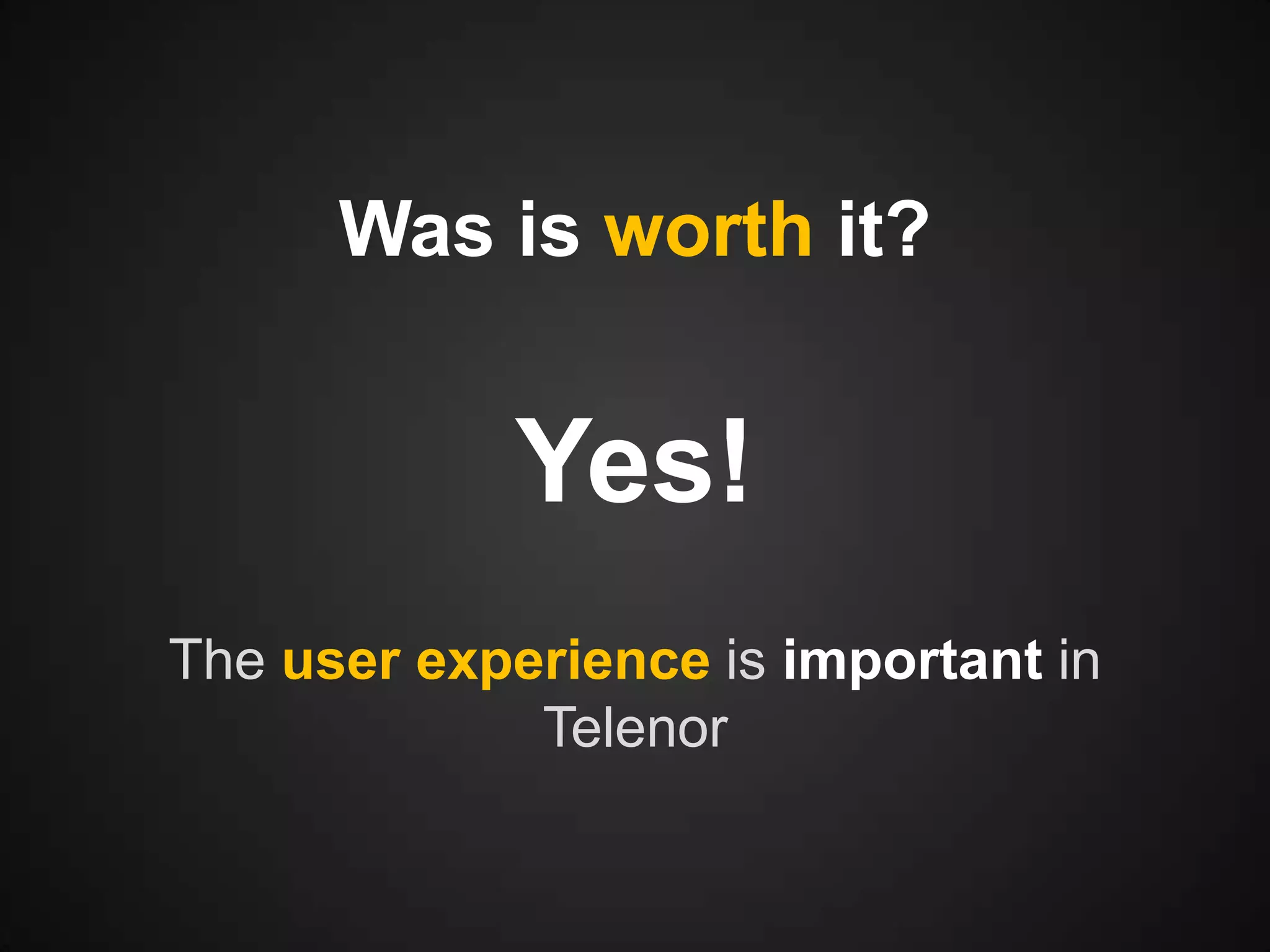

35. Was is worth it?
Yes!
The user experience is important in
Telenor

36. Questions?
