1. NATS: A Cloud Native
Messaging System
Shiju Varghese
https://medium.com/@shijuvar
DevConf.IN
05 August 2018
Bengaluru

2. About Me
• Solutions Architect and Go Developer
• Consulting Architect and Trainer on Go and Cloud-Native architectures
• Published Author of two books on Go
• Awarded Microsoft MVP seven times
• Speaker at numerous conferences
• medium.com/@shijuvar | github.com/shijuvar | linkedin.com/in/shijuvar

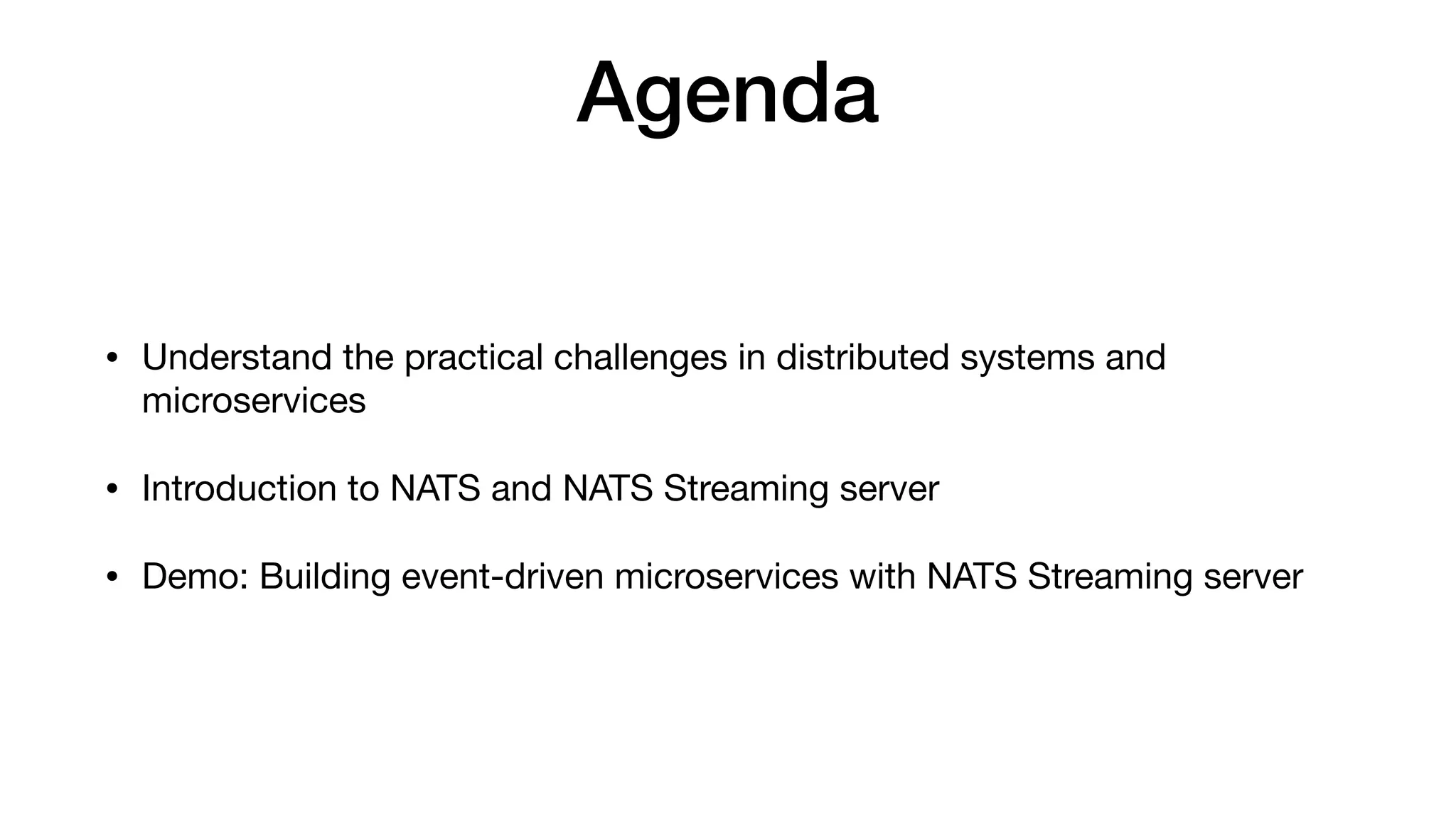

3. Agenda
• Understand the practical challenges in distributed systems and
microservices
• Introduction to NATS and NATS Streaming server
• Demo: Building event-driven microservices with NATS Streaming server

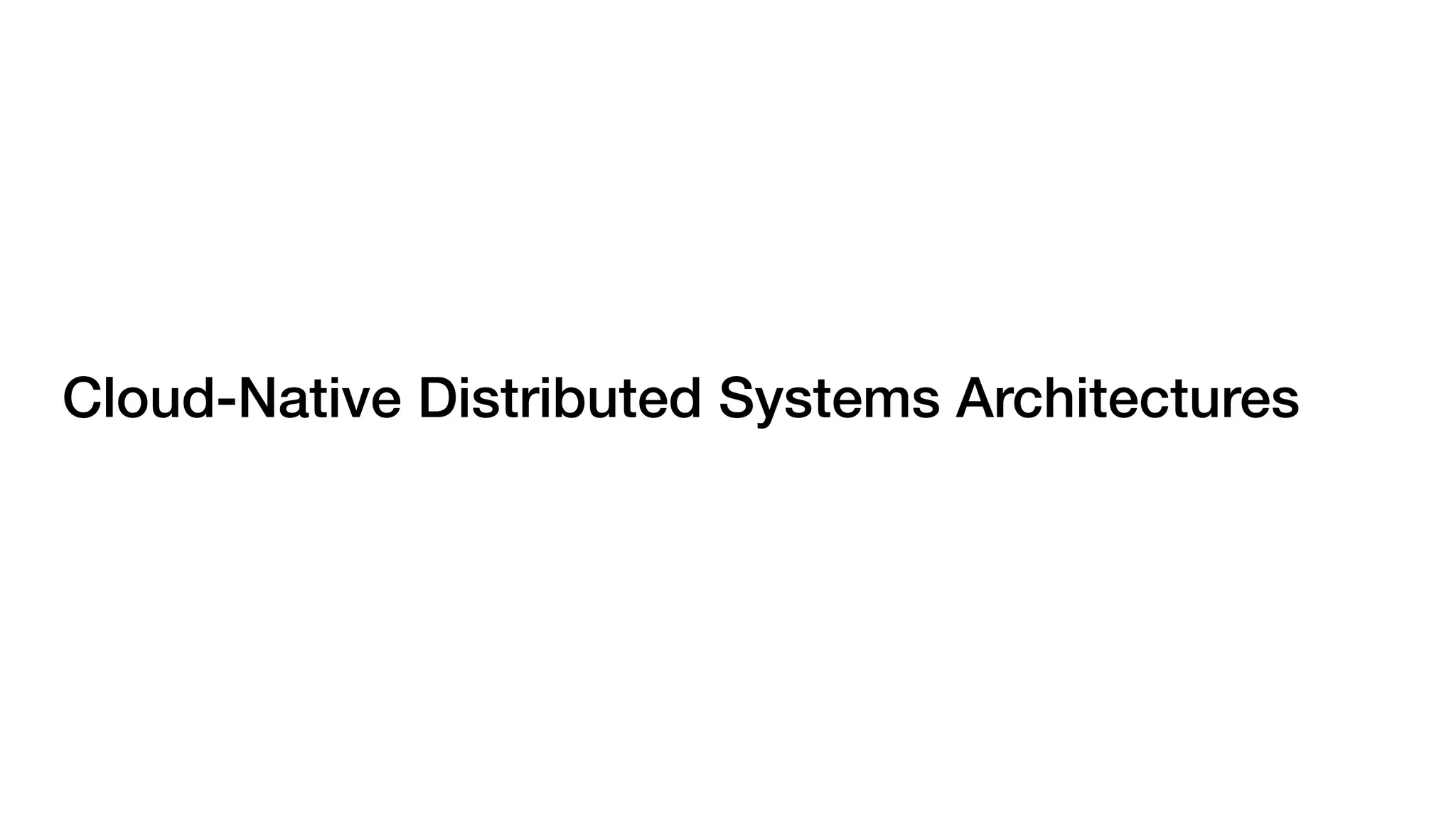

4. Cloud-Native Distributed Systems Architectures

5. Microservices Architecture
• Composed of a suite of small services
• Each service runs in its own process
• Greater flexibility for scalability

6. Microservices Architecture
Product
Catalog
Service
Customer
Service
Order
Service
Payment
Service
Product
Catalog
Database
Customer
Database
Order
Database
Payment
Database
API
Gateway
Browser
Client
Mobile
Client
REST
REST

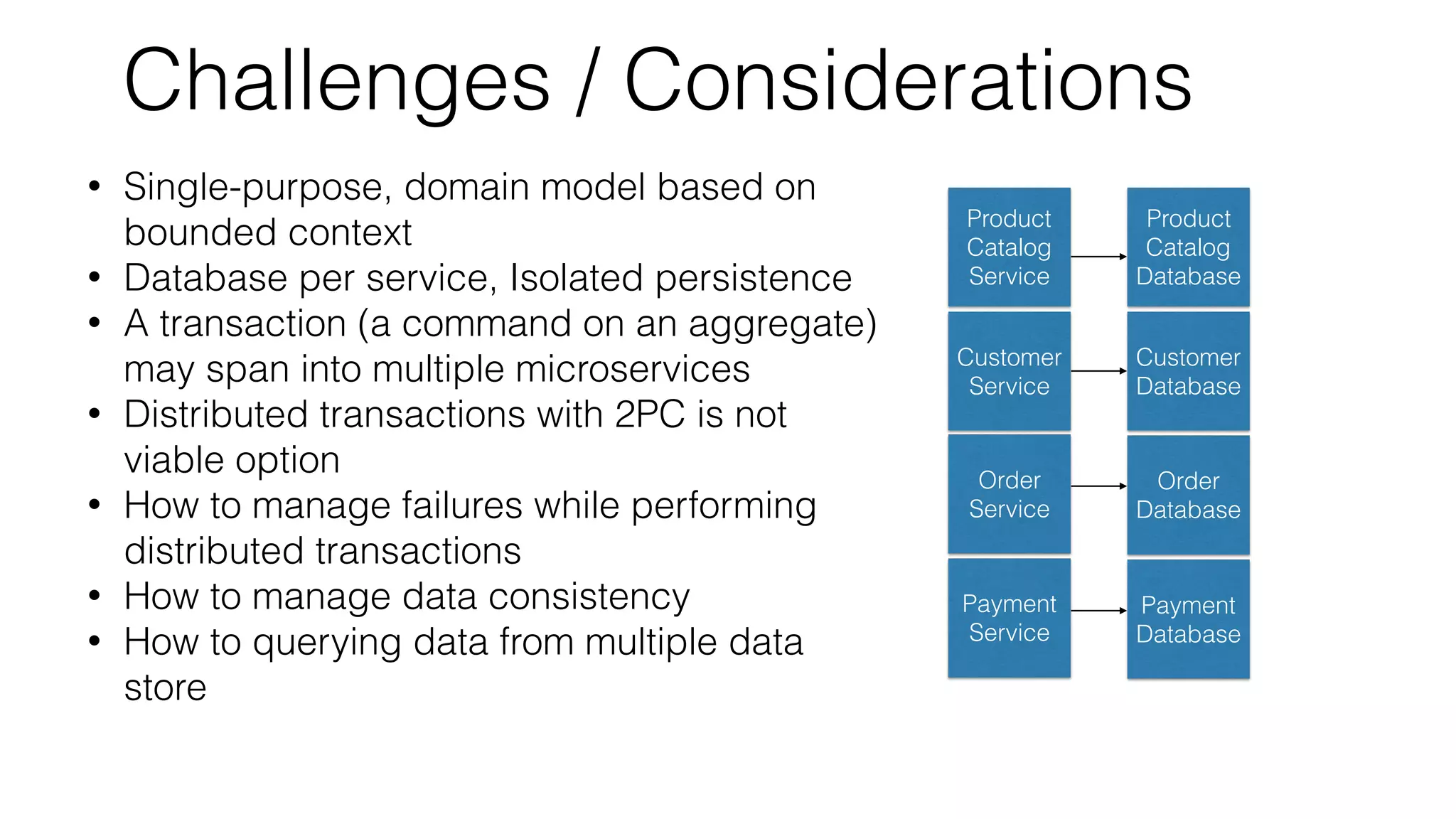

7. Product
Catalog
Service
Customer
Service
Order
Service
Payment
Service
Product
Catalog
Database
Customer
Database
Order
Database
Payment
Database
• Single-purpose, domain model based on
bounded context
• Database per service, Isolated persistence
• A transaction (a command on an aggregate)
may span into multiple microservices
• Distributed transactions with 2PC is not
viable option
• How to manage failures while performing
distributed transactions
• How to manage data consistency
• How to querying data from multiple data
store
Challenges / Considerations

8. Event-Driven Approach
Payment
Service
Order
Service
Order
Database
Publish Events
Message
Broker
Publish Events
Subscribe Events
Subscribe Events
Event: OrderCreated
Restaurant
Service
Publish Events
Subscribe Events
Event: PaymentDebitedEvent: OrderApproved

9. Cloud-Native Messaging with NATS

10. • A Cloud Native Computing Foundation (CNCF) hosted incubation project
• NATS is an open-source, high performant cloud-native messaging system
• Available in two modules: NATS server (gnatsd) and NATS Streaming (nats-
streaming-server)
• The basic NATS server is capable of sending 18 million messages per second
• Both NATS and NSTS Streaming Server are written in Go
• NATS was created by Derek Collison, and supported and maintained by his
team at Synadia Communications
A Nervous System for Microservices and Distributed Systems

11. NATS In Production

12. Messaging Architecture
• Messages: The unit of data exchange
• Subject: Specify the destination of the message
• Producers: Send messages to the server under a specific subject
• Consumers: Subscribe to receive messages matching a
subscription
• Messaging Server: Distributes messages from producers to
consumers

13. NATS Server
• Highly performant, extremely light-weight
• Clustered servers/cluster-aware clients
• Built-in resiliency and high availability
• Text-based protocol (payload is an array of bytes)
• Monitorable on a dedicated port - returning JSON data describing
the state of the server

14. Chart source: http://bravenewgeek.com/dissecting-message-queues/

15. Client APIs

16. Messaging Patterns
• Publish-Subscribe
• Queueing
• Request-Replay

17. Publish-Subscribe
• Basic messaging pattern
• A producer publishes a message with a specific subject
• All active consumers with subscriptions matching the subject receive it

18. Pub Sub

19. Queueing
• It’s a publish-subscribe operation
• Consumers subscribe using a shared queue group name
• A publisher sends a message
• The messaging server forwards to single subscriber
• Non members of the queue group will get message as standard pub-sub
• Multiple queue group names subscribers on the same subject are possible

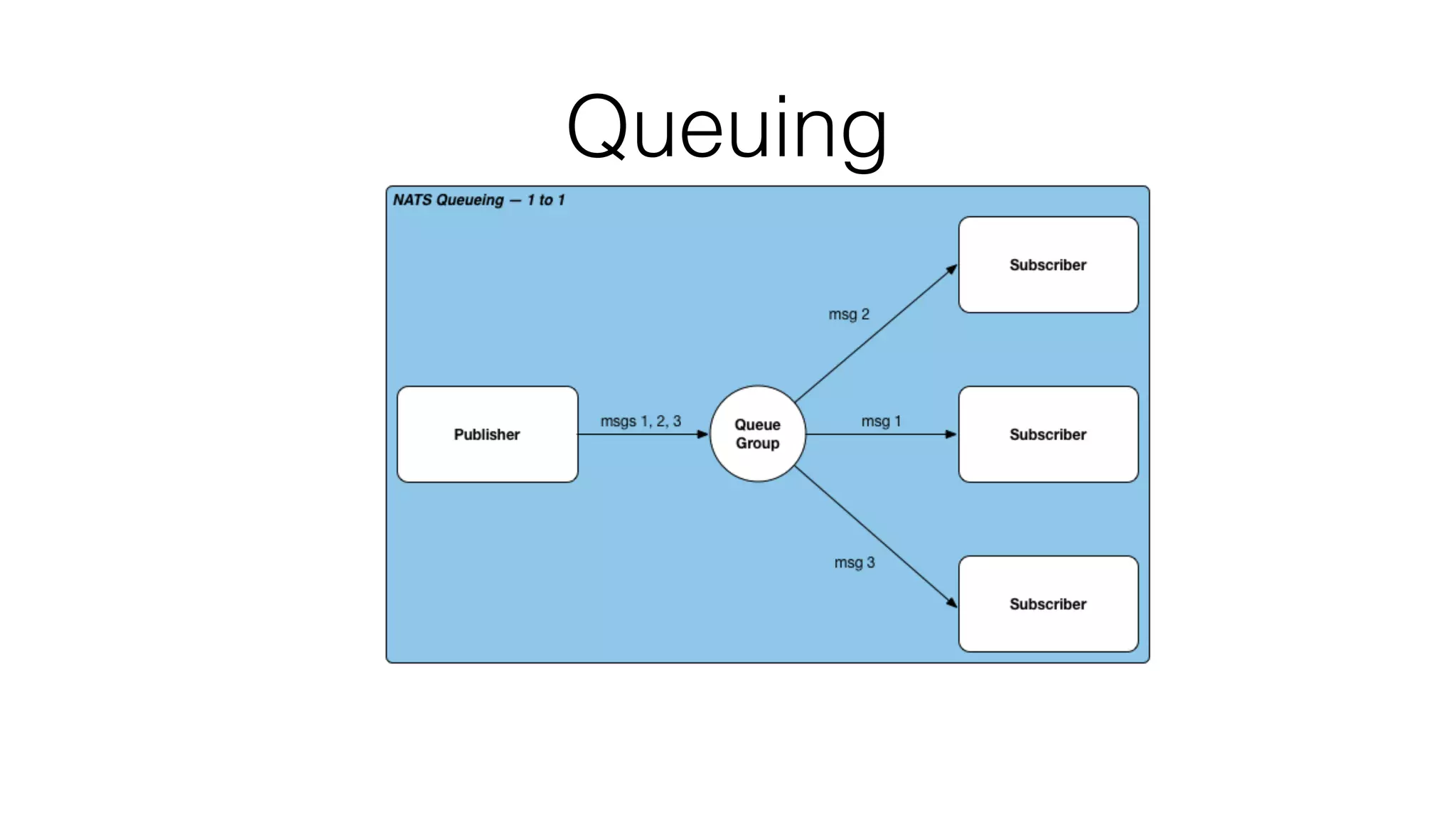

20. Queuing

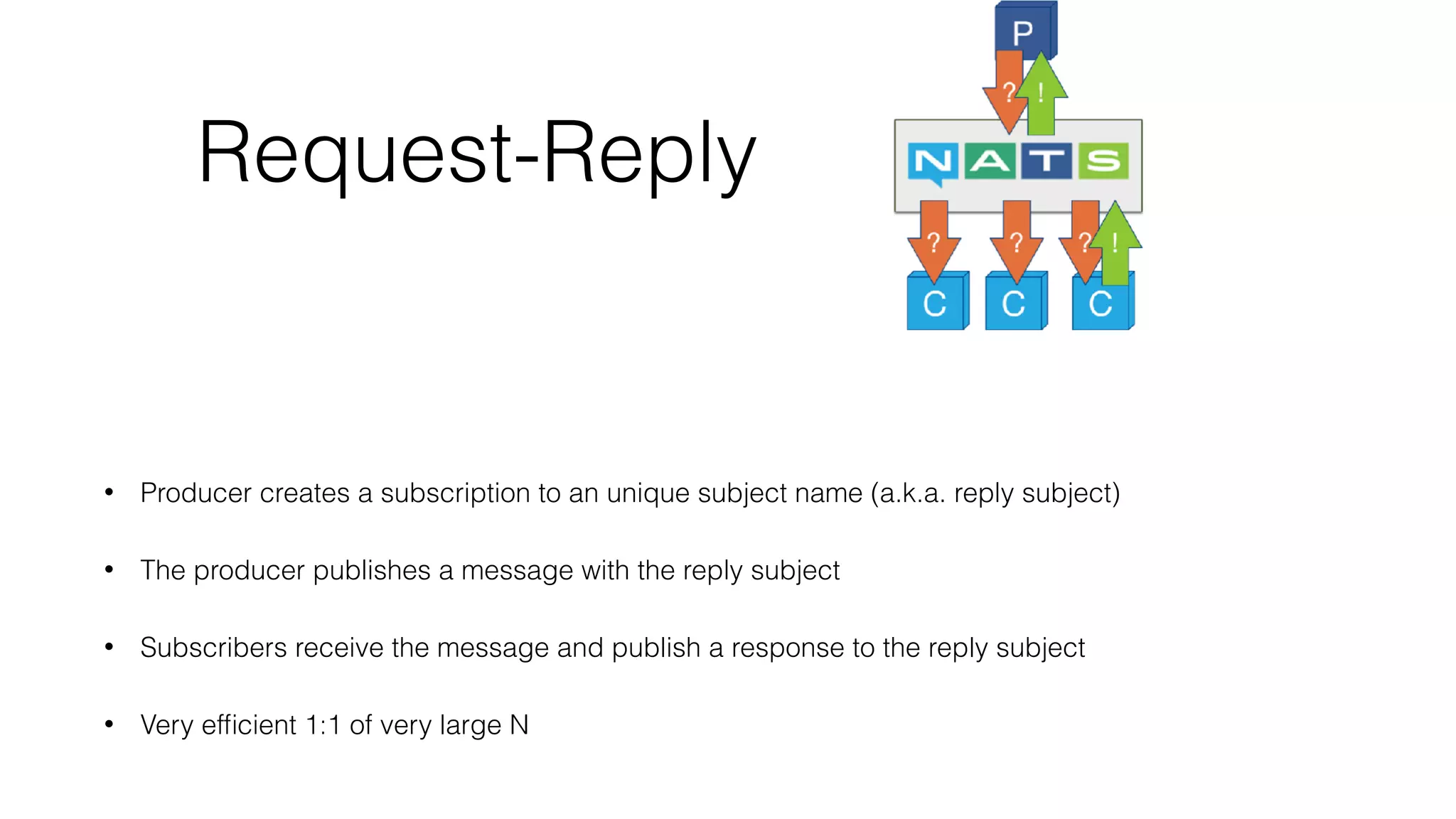

21. Request-Reply
• Producer creates a subscription to an unique subject name (a.k.a. reply subject)
• The producer publishes a message with the reply subject
• Subscribers receive the message and publish a response to the reply subject
• Very efficient 1:1 of very large N

22. Request Reply

23. Pub/Sub Demo

24. NATS Streaming Server

25. NATS Streaming is an extremely performant,
lightweight reliable streaming platform built on NATS
that provides an API for persistent logs.

26. NATS Streaming Server

27. • Message/event persistence: Memory, File, SQL Databases
• At-least-once-delivery
• Publisher rate limiting
• Rate matching/limiting per subscriber
• Historical message replay by subject
• Durable subscriptions

28. Channels
• Channels are subject clients that send data to and consume from
• It does not support wildcard for channels
• Messages published to a channel are stored in a message log
inside the channel

29. Message Log
• Messages that published to a channel are appended to the end of
the log in the persistent store
• By default, NATS Streaming uses an in-memory store for the
messages
• FILE and SQL can be used for persistent store by configuring the --
store option.
•

30. Running NATS Streaming Server
nats-streaming-server
--store file
--dir ./data
--max_msgs 0
--max_bytes 0
--store <string> Store type: MEMORY|FILE|SQL (default: MEMORY)
--dir <string> For FILE store type, this is the root directory
--max_msgs <int> Max number of messages per channel (0 for unlimited)
--max_bytes <size> Max messages total size per channel (0 for unlimited)

31. NATS Streaming Subscriptions
• Regular
• Durable
• Queue Group
• Redelivery

32. Demo: Building Event-Driven Microservices with
NATS Streaming Server

33. Query Model Sync with NATS QueueGroup
Client App
Order Service
REST API
Event Store
gRPC Server
NATS ProducerProtoBuf
Command -CockroachDB
Cluster
Node 1 Node 2 Node N
Events
NATS Streaming
Server
Message Logs
Restaurant
Service
NATS Consumer
Query Store -1
NATS Consumer
Query Store -2
NATS Consumer
Query -CockroachDB
Cluster
Node 1 Node 2 Node N
Technology:
• Go
• gRPC
• NATS Streaming
• CockroachDB
Example Events:
• OrderCreated
• PaymentDebited
• OrderApproved
• OrderRejected
• OrderShipped
• OrderDelivered
Payment Service
NATS Consumer
https://github.com/shijuvar/go-distributed-sys

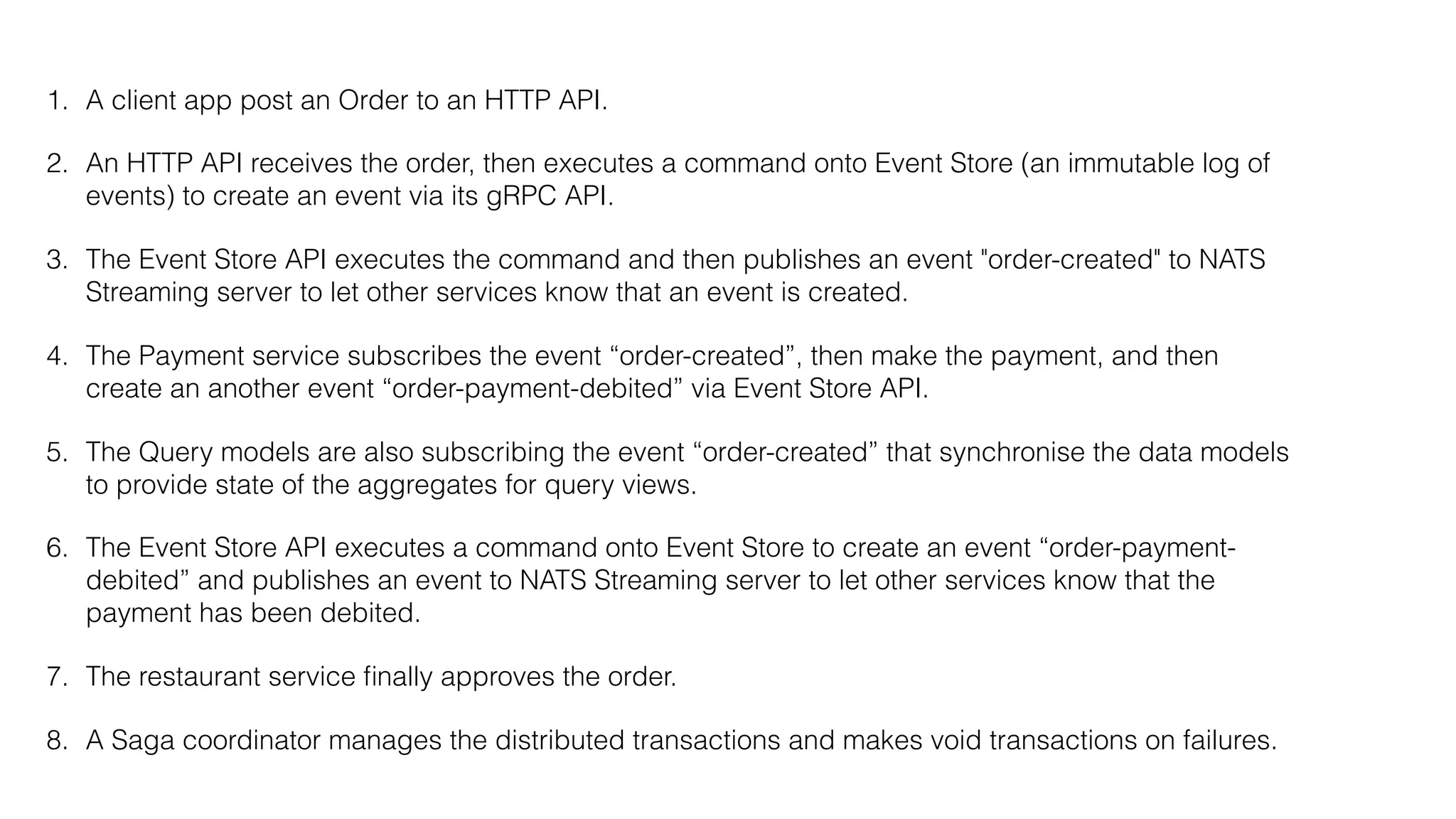

34. 1. A client app post an Order to an HTTP API.
2. An HTTP API receives the order, then executes a command onto Event Store (an immutable log of
events) to create an event via its gRPC API.
3. The Event Store API executes the command and then publishes an event "order-created" to NATS
Streaming server to let other services know that an event is created.
4. The Payment service subscribes the event “order-created”, then make the payment, and then
create an another event “order-payment-debited” via Event Store API.
5. The Query models are also subscribing the event “order-created” that synchronise the data models
to provide state of the aggregates for query views.
6. The Event Store API executes a command onto Event Store to create an event “order-payment-
debited” and publishes an event to NATS Streaming server to let other services know that the
payment has been debited.
7. The restaurant service finally approves the order.
8. A Saga coordinator manages the distributed transactions and makes void transactions on failures.
