Simple and Scalable Microservices: Using NATS with Docker Compose and Swarm

Simple and Scalable
Microservices
NATS and the Docker tooling
+
Waldemar Quevedo / @wallyqs
Docker SF Meetup, Oct 2016

1 . 1
2 . 1

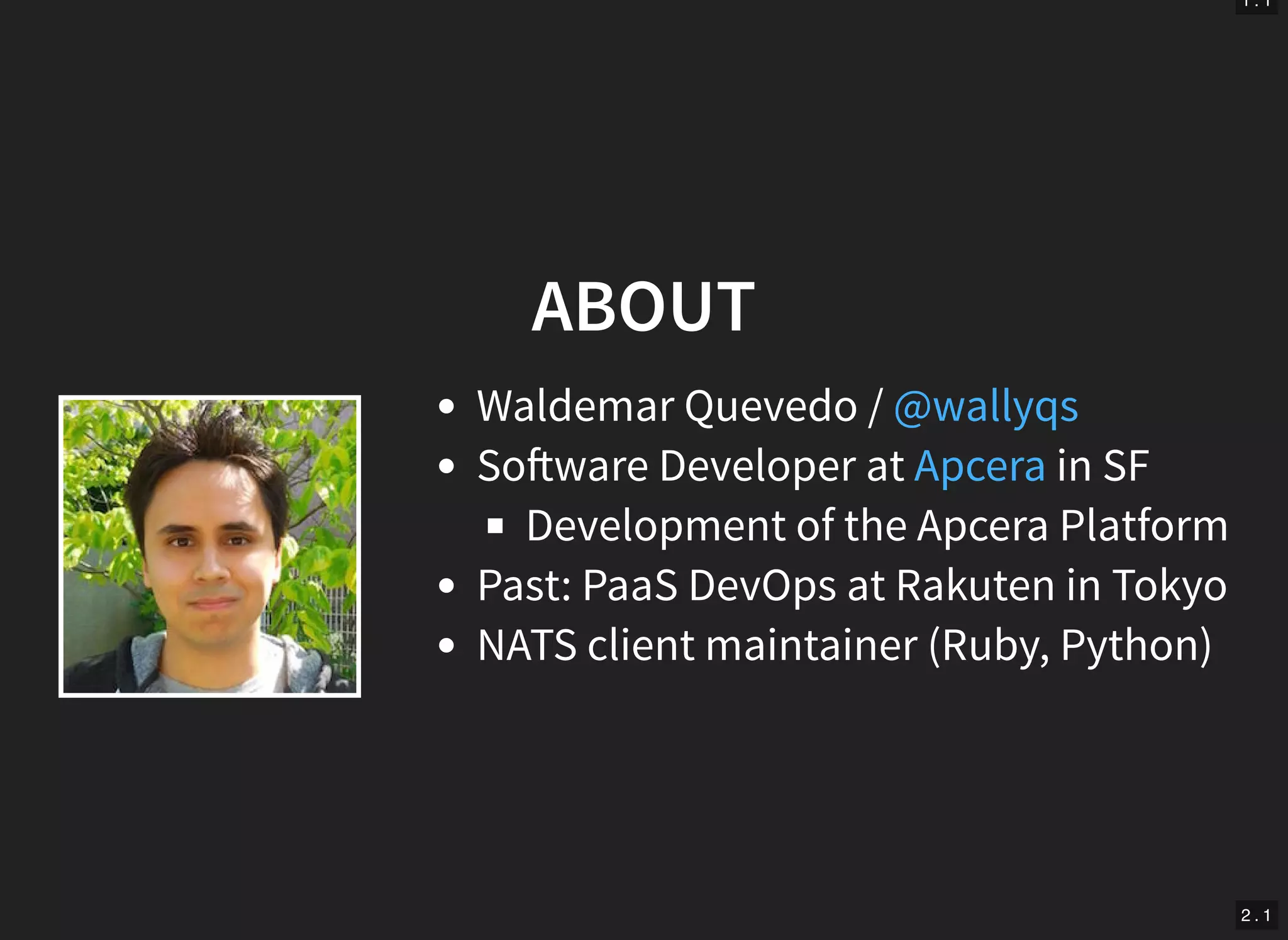

ABOUT
Waldemar Quevedo /
So ware Developer at in SF
Development of the Apcera Platform
Past: PaaS DevOps at Rakuten in Tokyo
NATS client maintainer (Ruby, Python)
@wallyqs
Apcera

3 . 1

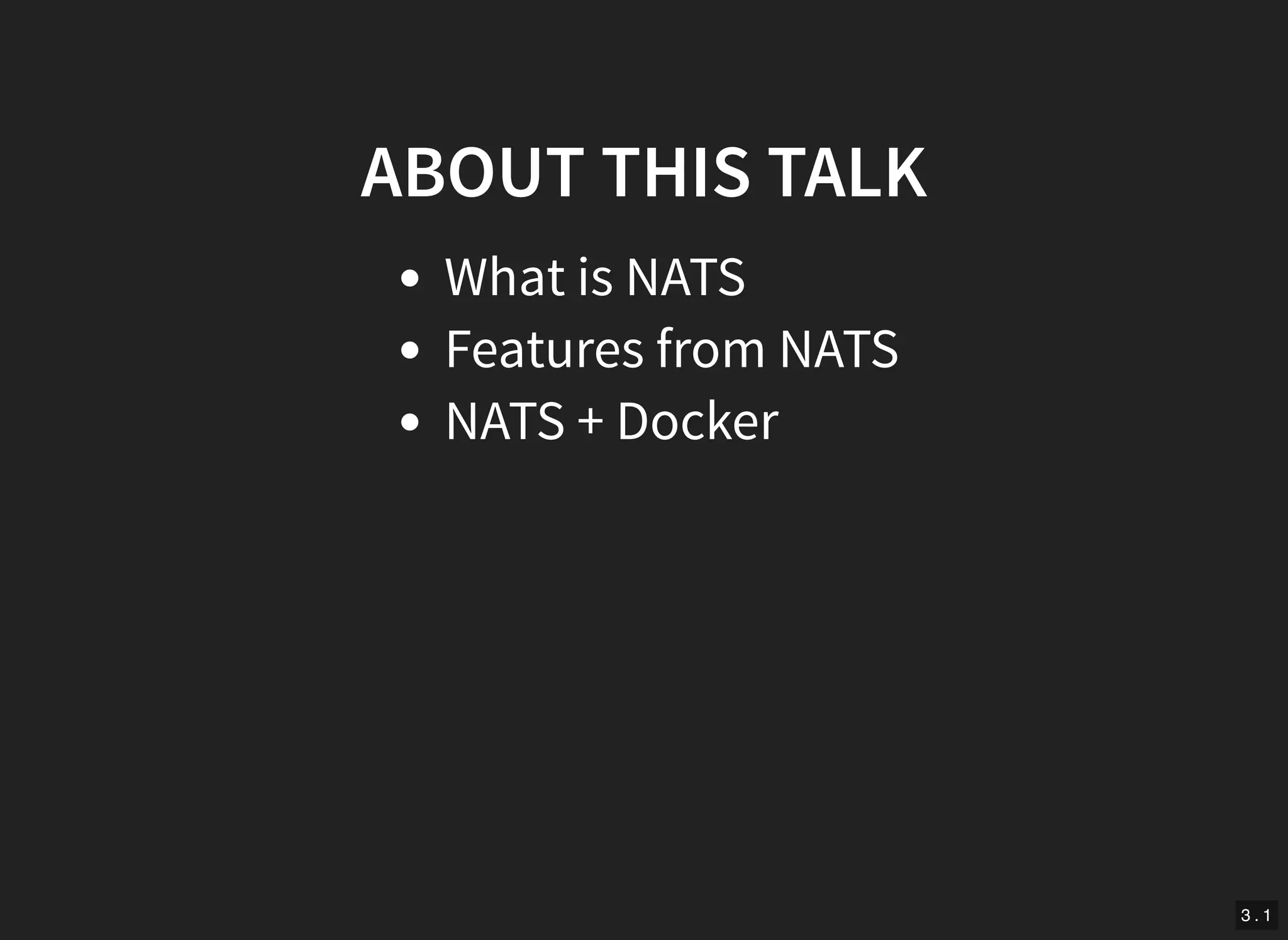

ABOUT THIS TALK

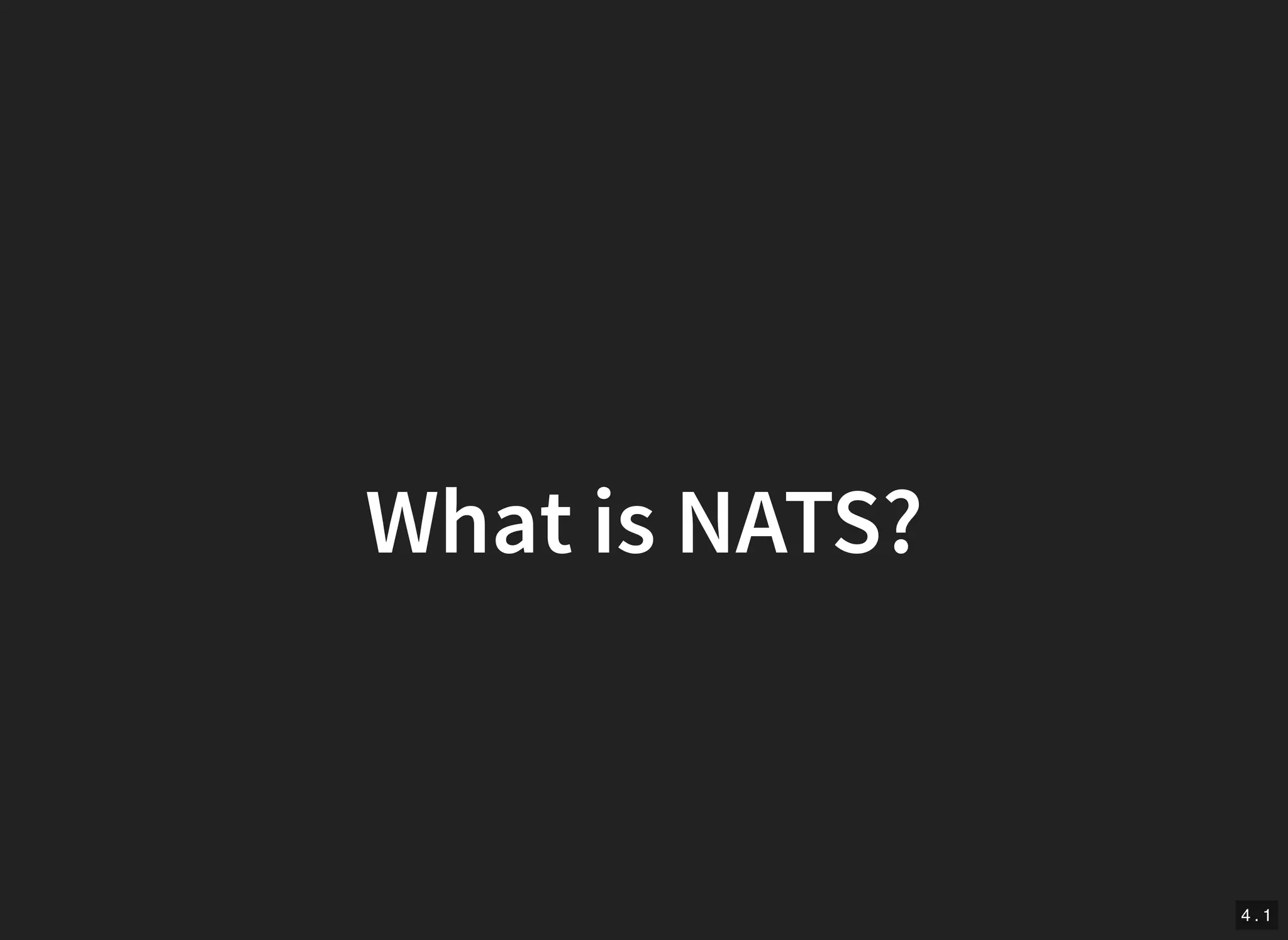

What is NATS
Features from NATS
NATS + Docker

4 . 3

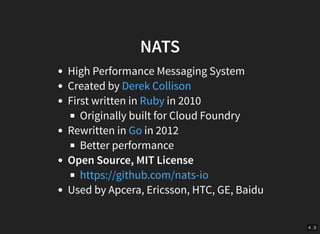

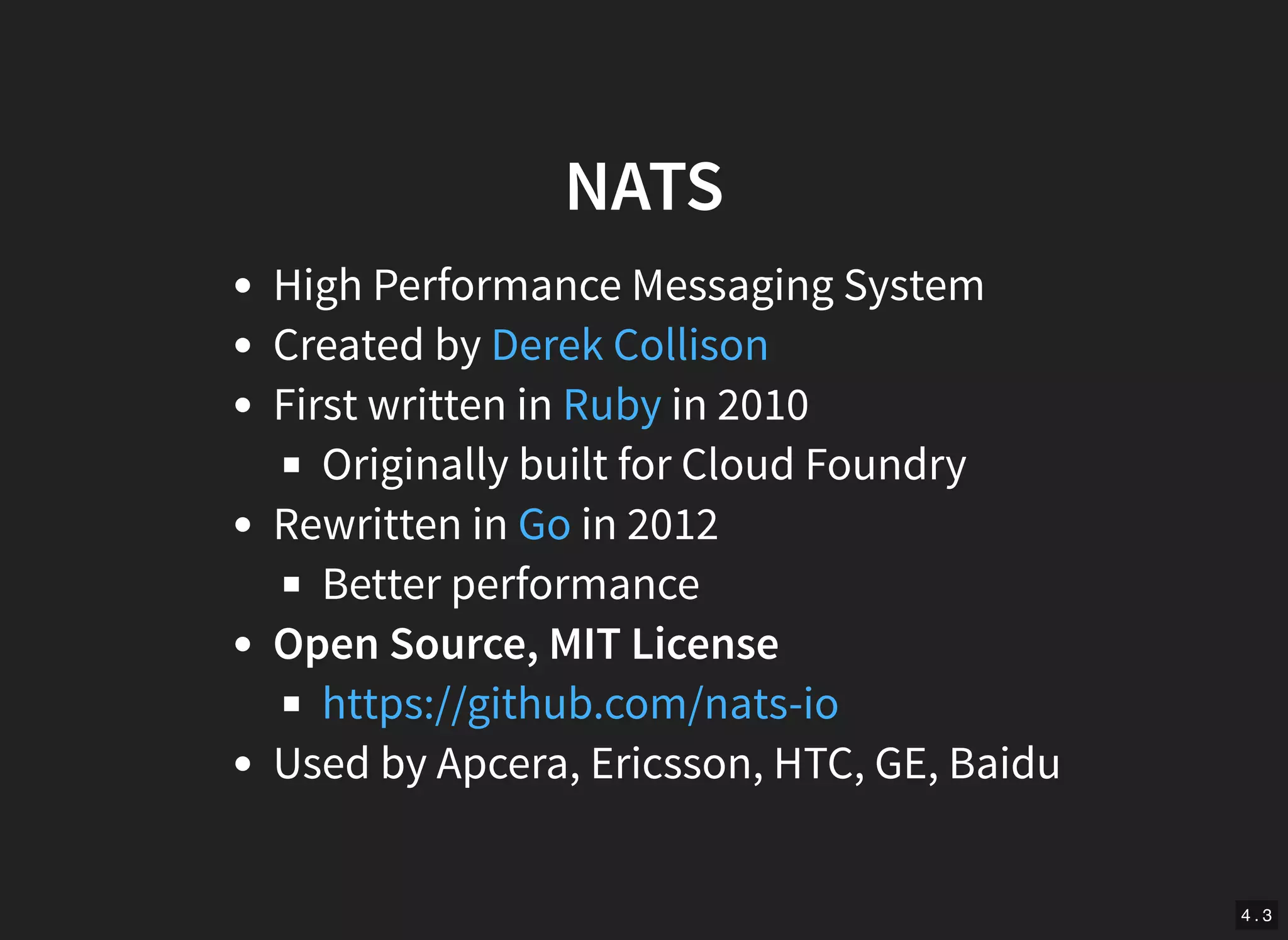

NATS
High Performance Messaging System
Created by
First written in in 2010
Originally built for Cloud Foundry
Rewritten in in 2012
Better performance
Open Source, MIT License
Used by Apcera, Ericsson, HTC, GE, Baidu
Derek Collison
Ruby
Go
https://github.com/nats-io

4 . 4

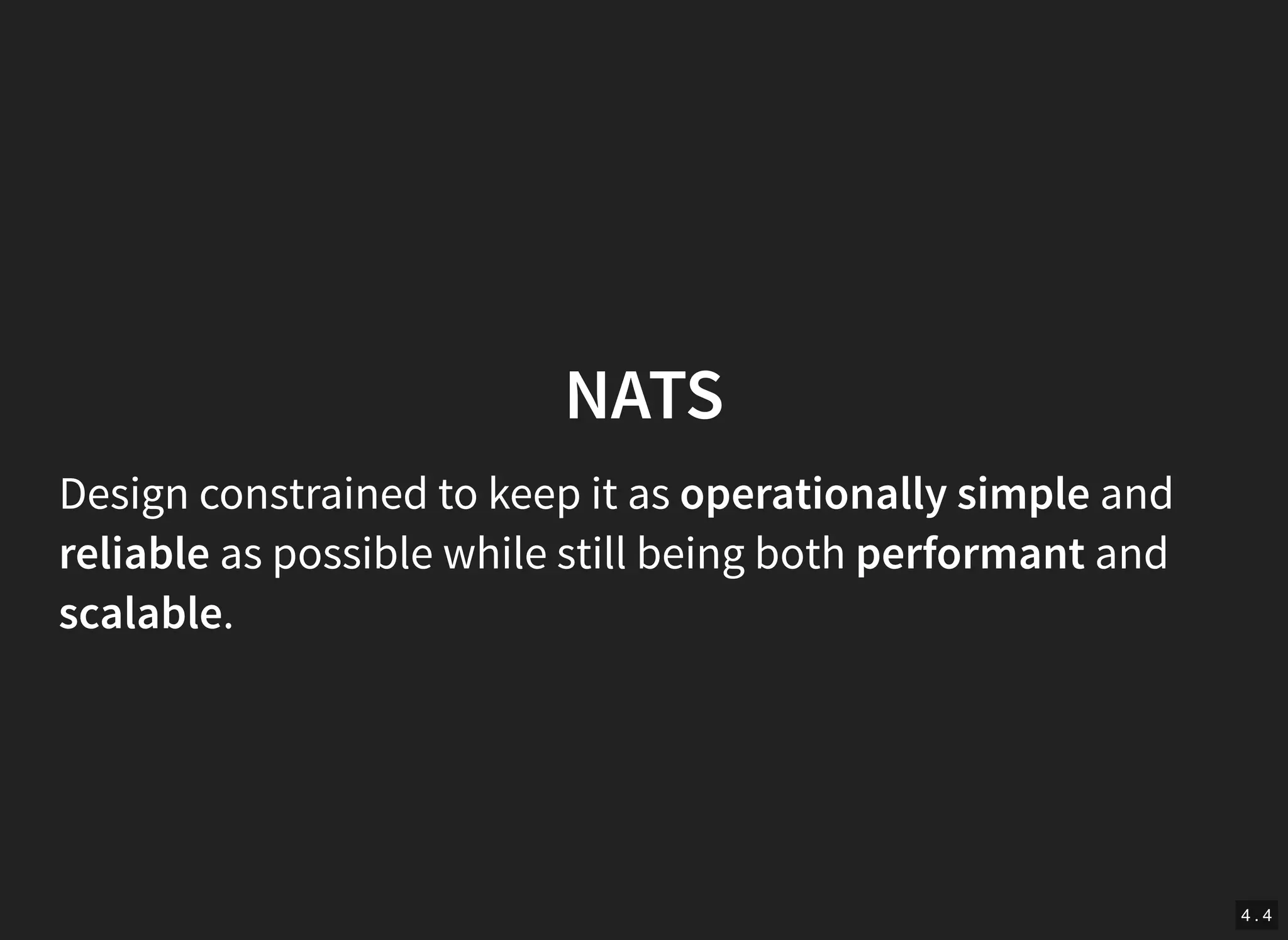

NATS
Design constrained to keep it as operationally simple and
reliable as possible while still being both performant and
scalable.

4 . 5

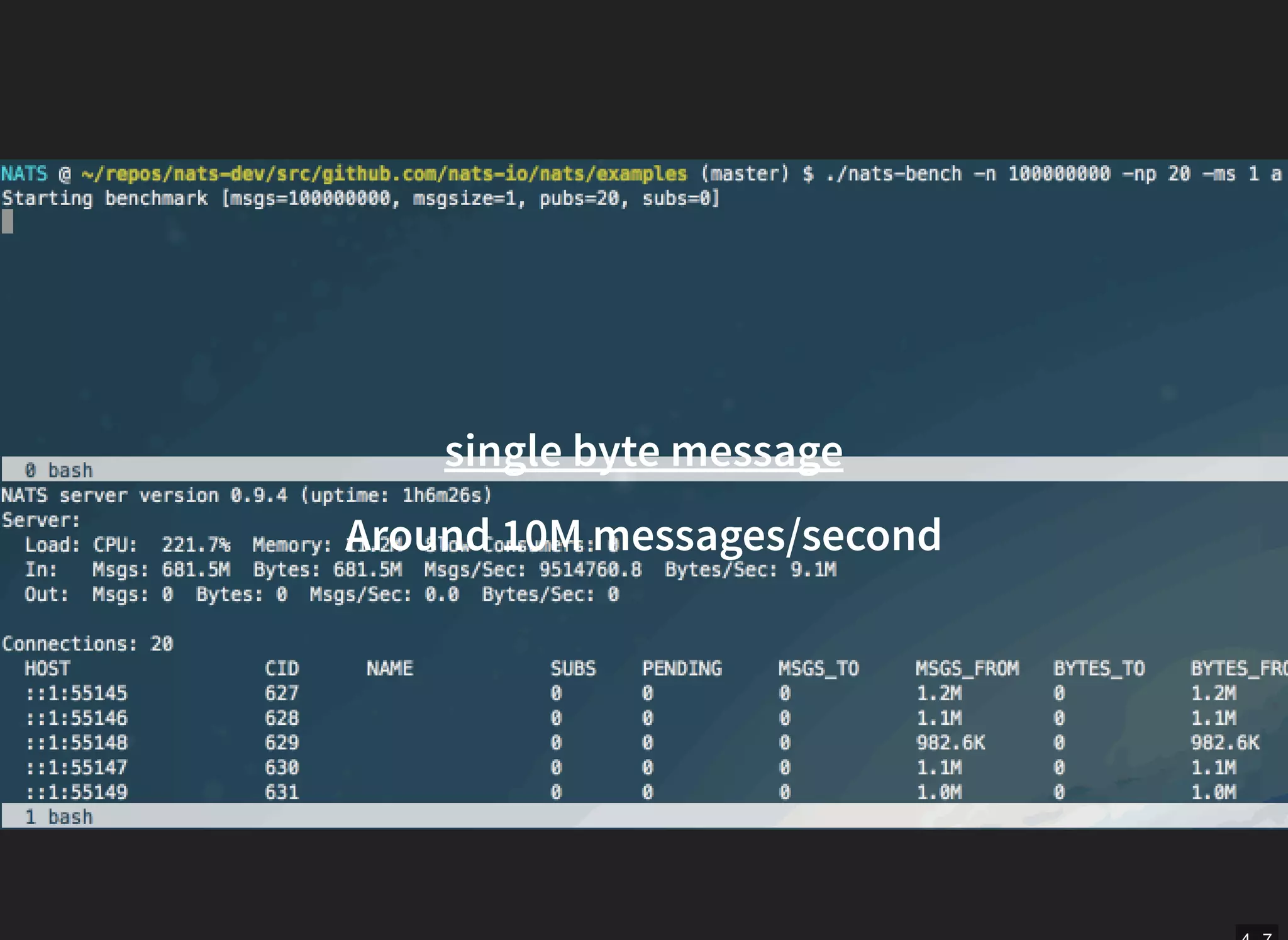

Acts as an always available dial-tone

single byte message
Around 10M messages/second

4 . 9

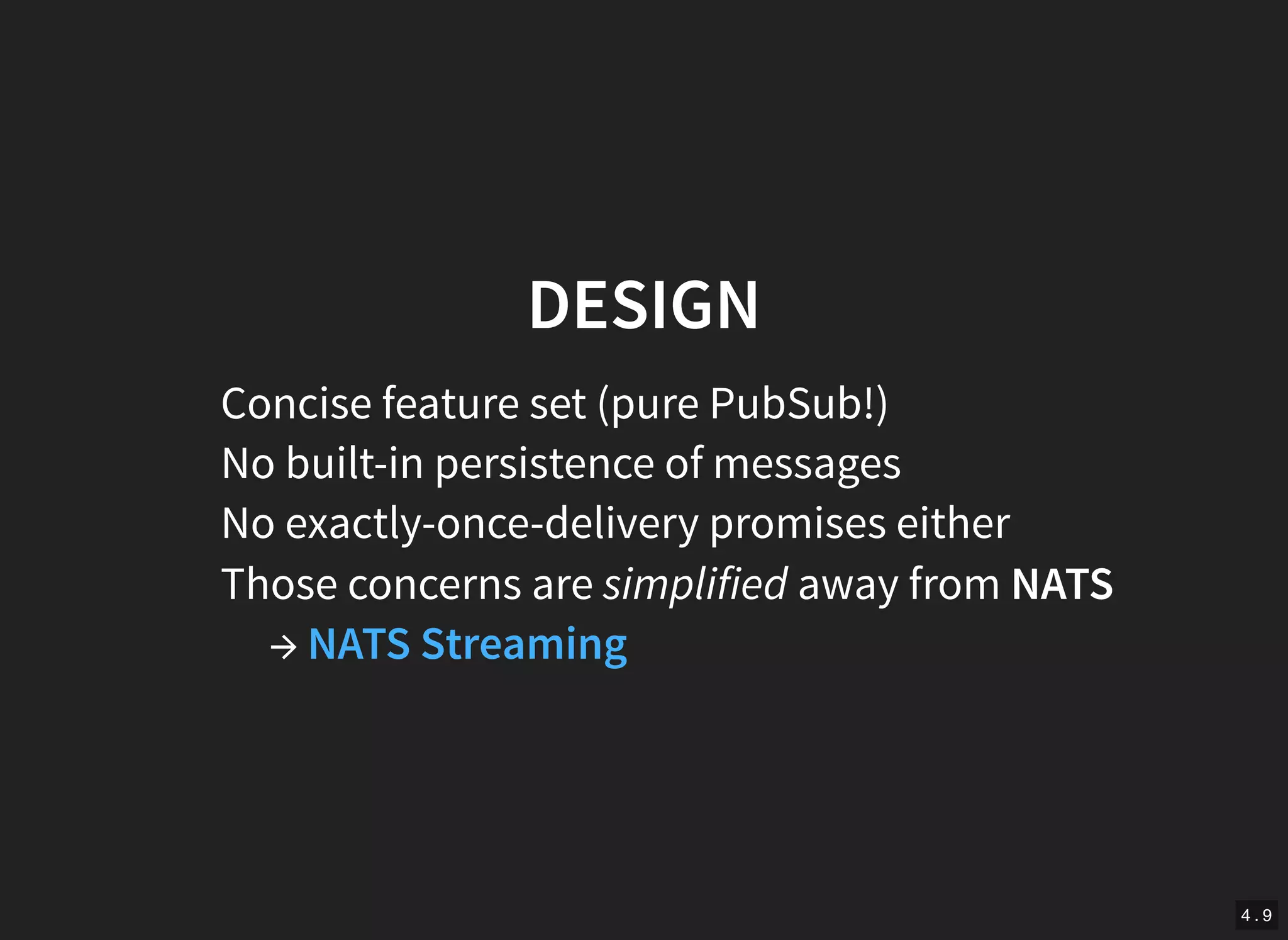

DESIGN
Concise feature set (pure PubSub!)
No built-in persistence of messages
No exactly-once-delivery promises either
Those concerns are simplified away from NATS
→ NATS Streaming

4 . 10

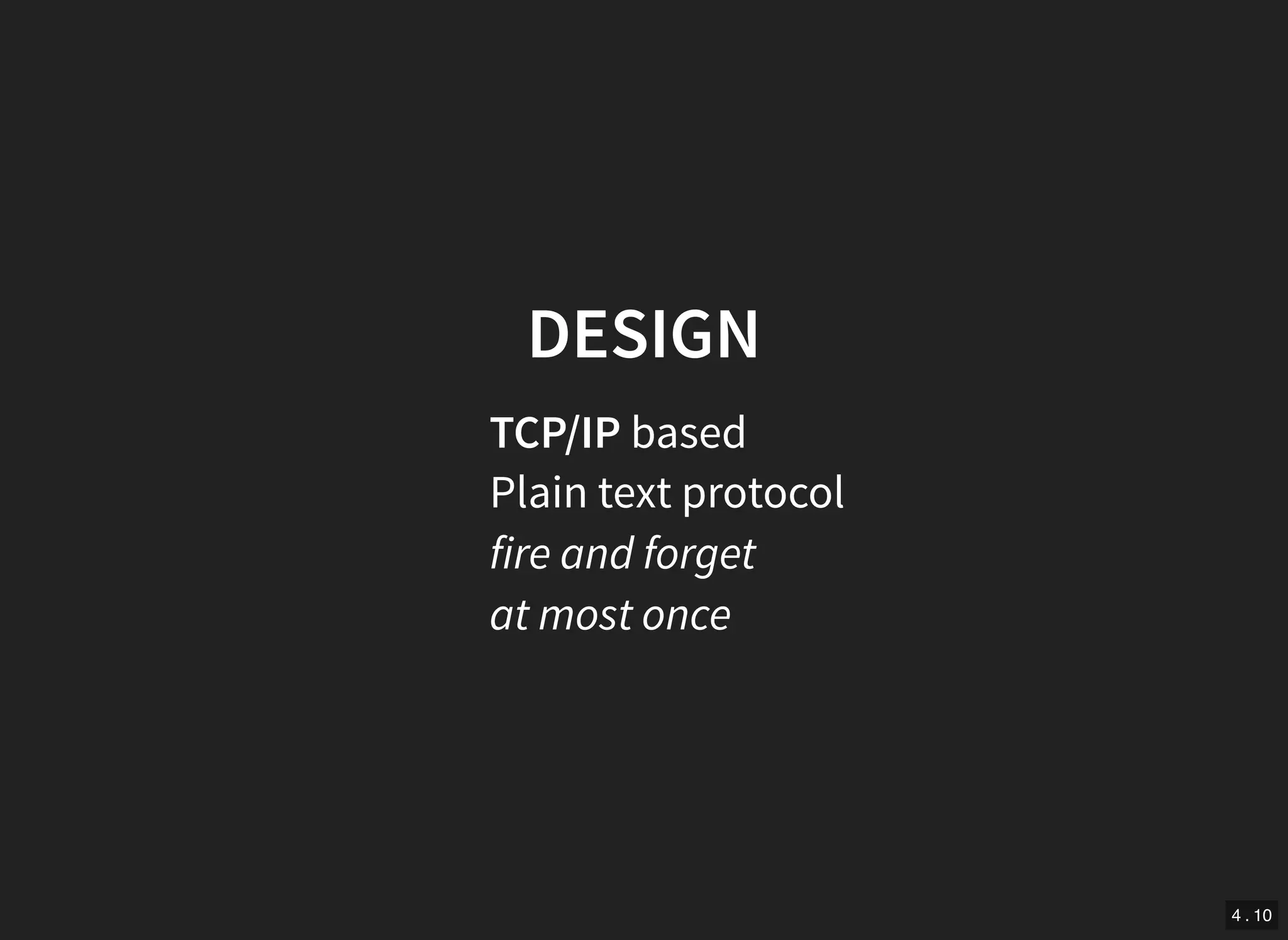

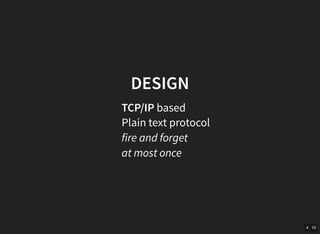

DESIGN
TCP/IP based
Plain text protocol
fire and forget
at most once

4 . 11

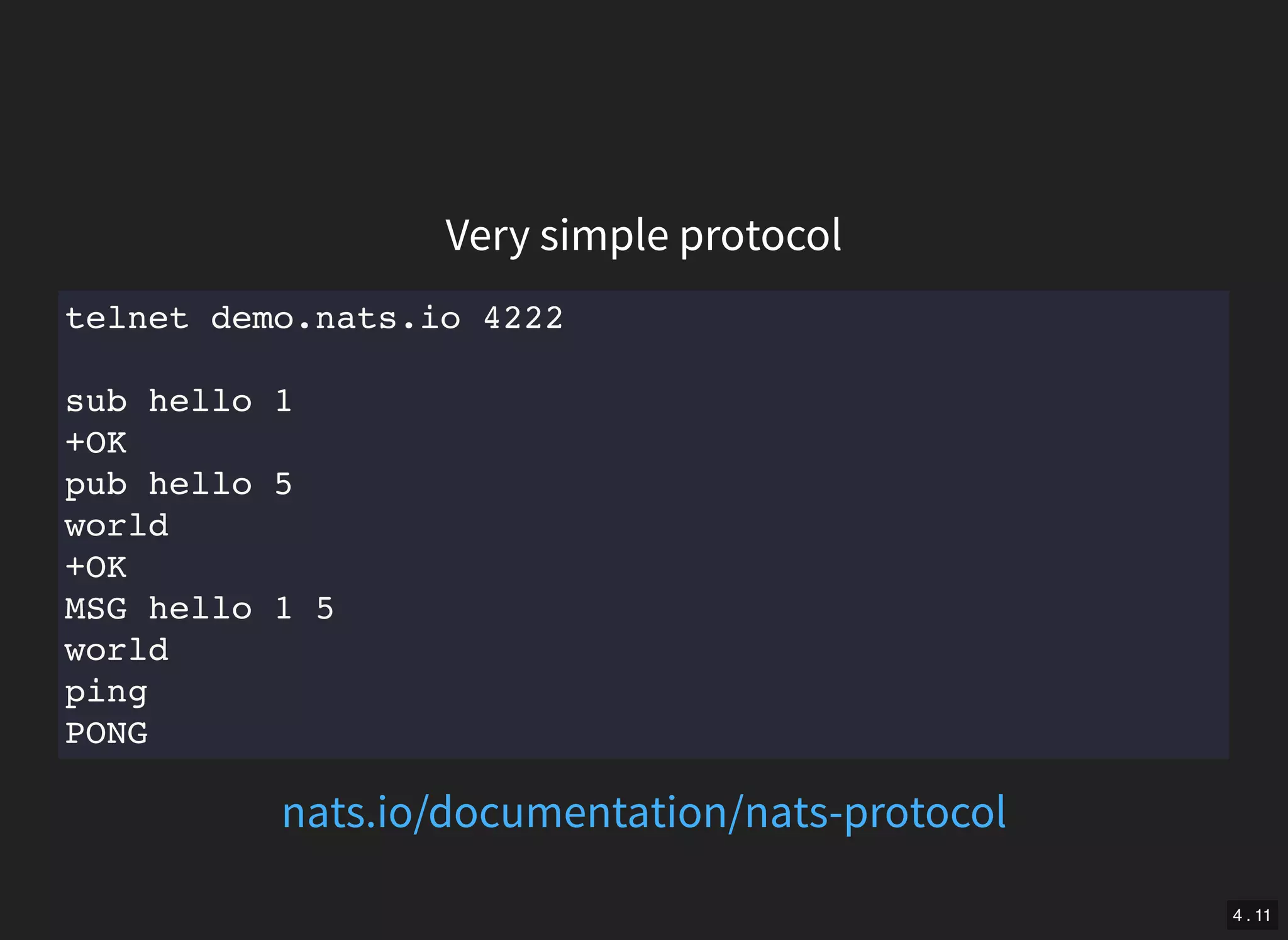

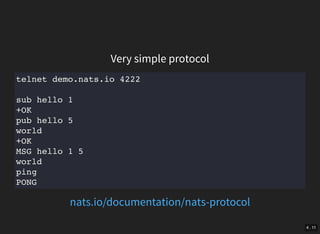

Very simple protocol
telnet demo.nats.io 4222
sub hello 1
+OK
pub hello 5
world
+OK
MSG hello 1 5
world
ping
PONG
nats.io/documentation/nats-protocol

4 . 14

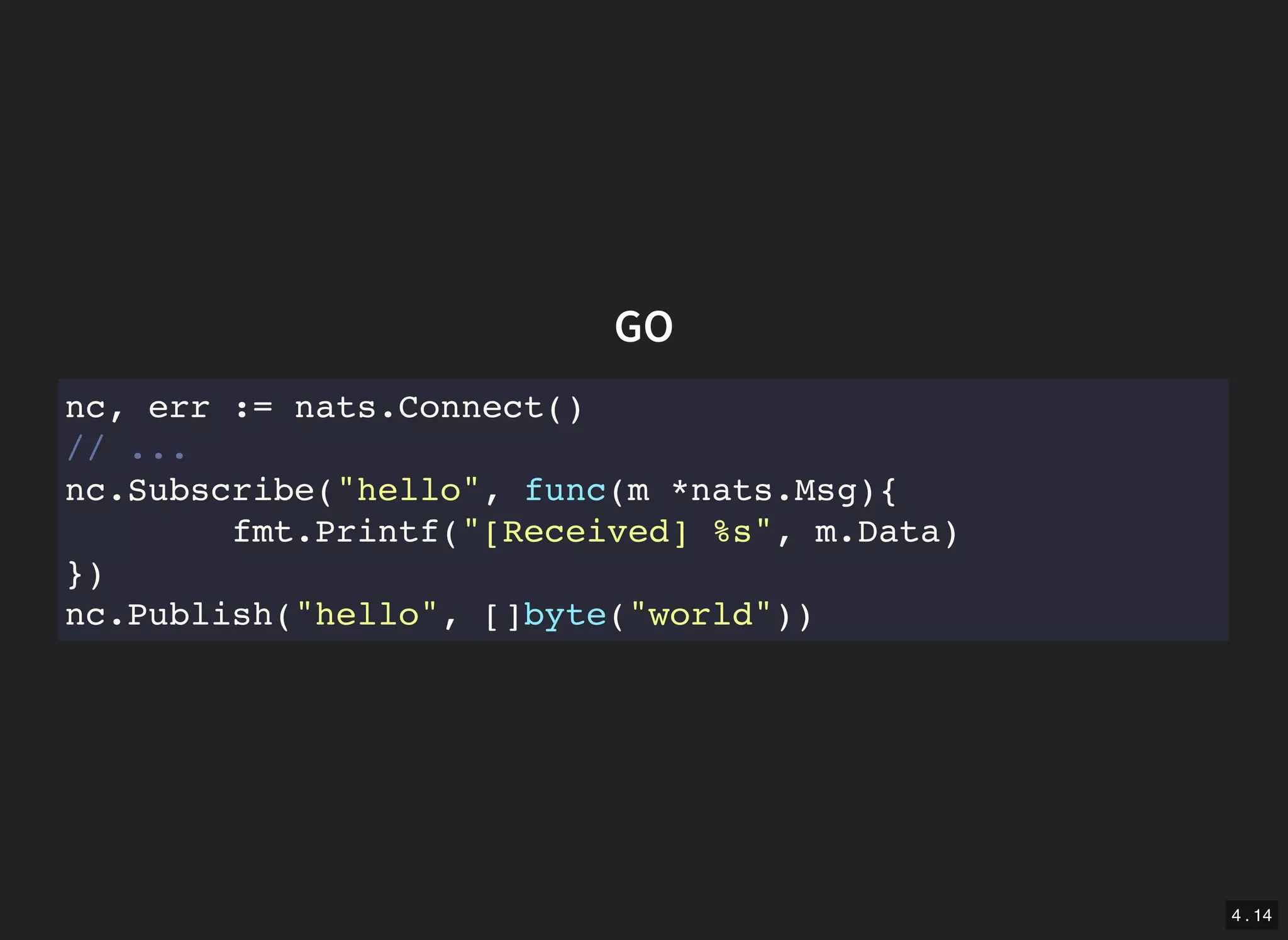

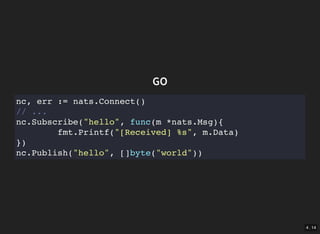

GO
nc, err := nats.Connect()
// ...
nc.Subscribe("hello", func(m *nats.Msg){
fmt.Printf("[Received] %s", m.Data)
})
nc.Publish("hello", []byte("world"))

4 . 15

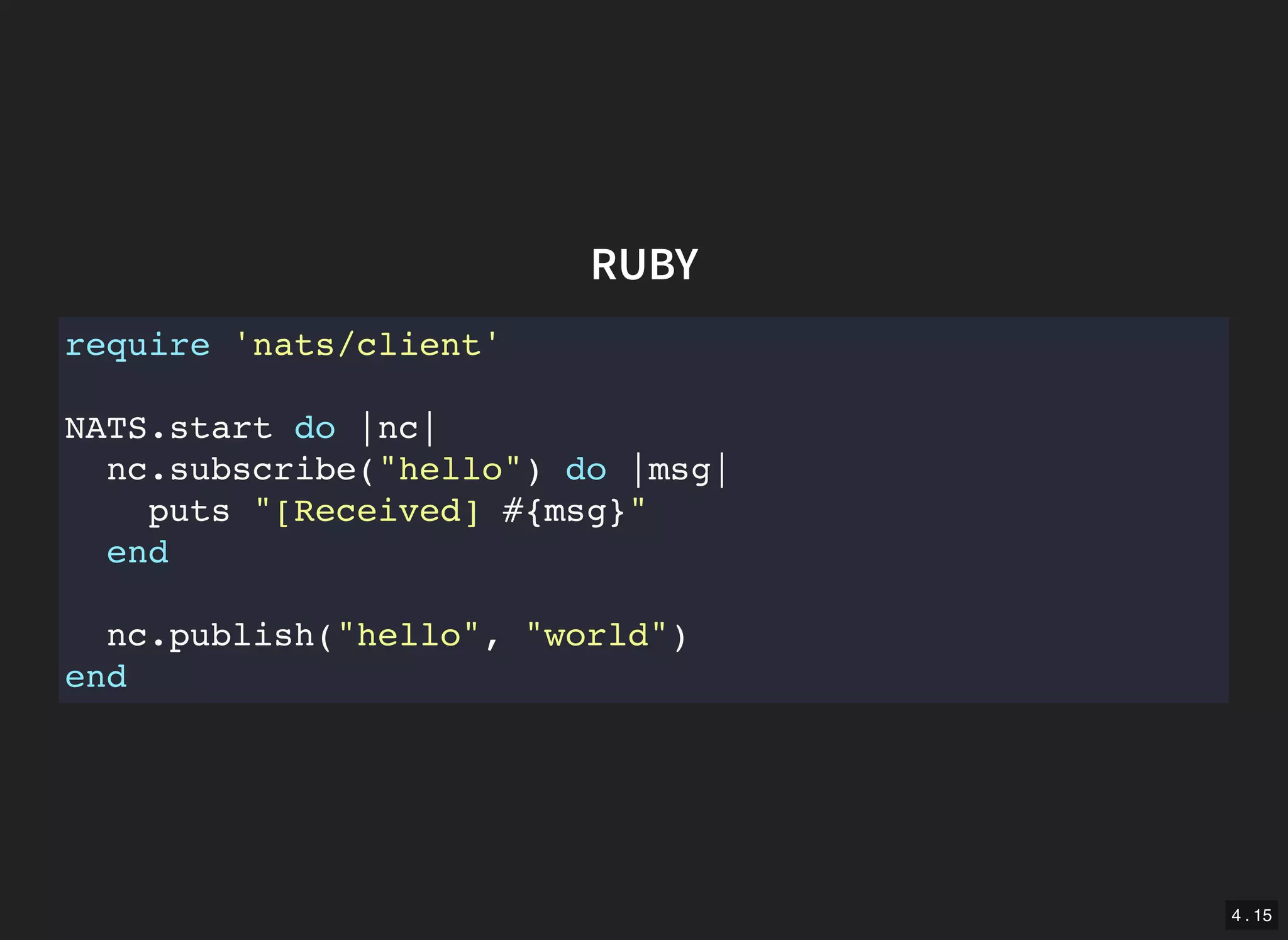

RUBY
require 'nats/client'
NATS.start do |nc|
nc.subscribe("hello") do |msg|
puts "[Received] #{msg}"
end
nc.publish("hello", "world")
end

4 . 16

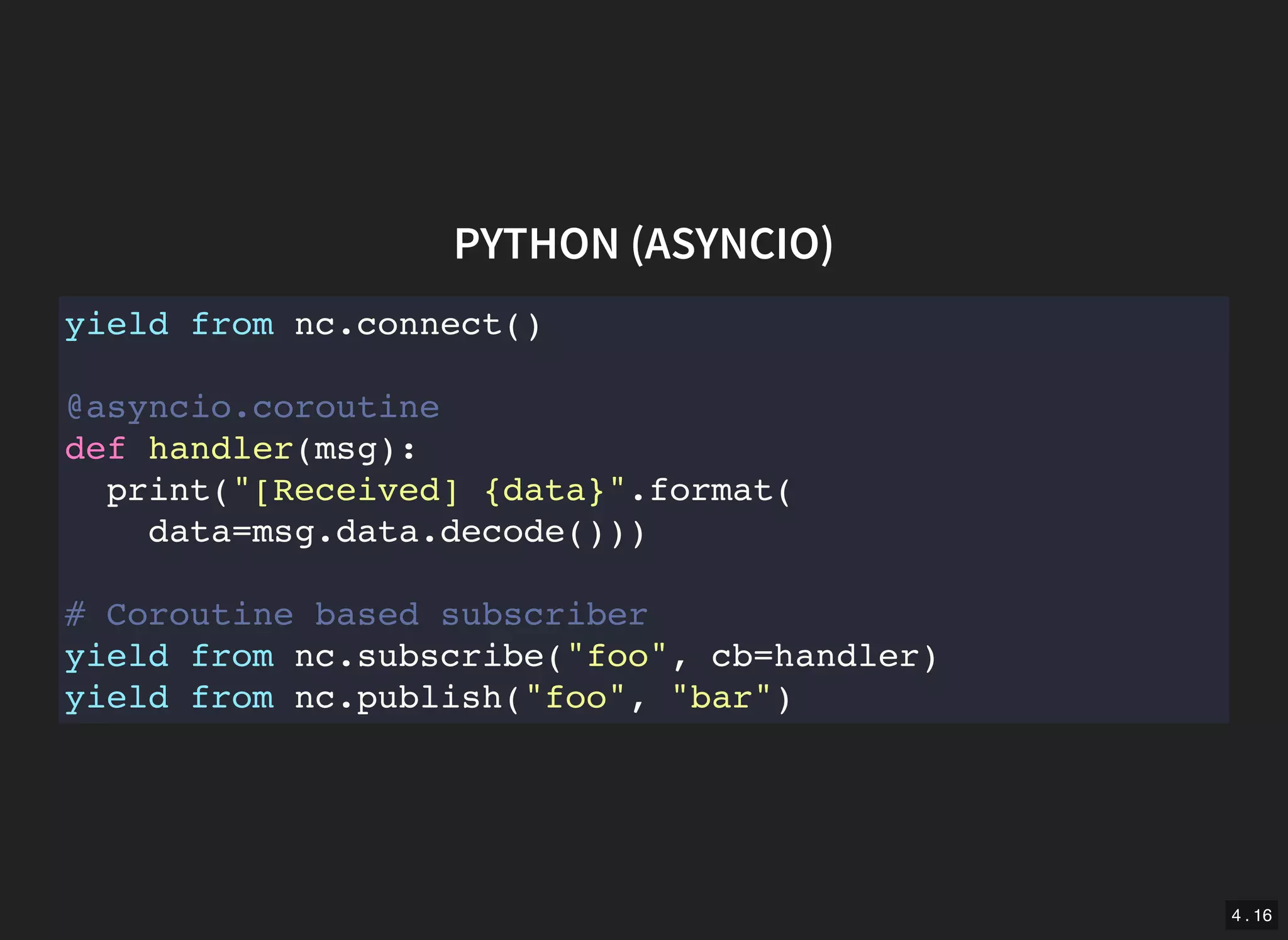

PYTHON (ASYNCIO)
yield from nc.connect()
@asyncio.coroutine
def handler(msg):
print("[Received] {data}".format(
data=msg.data.decode()))
# Coroutine based subscriber
yield from nc.subscribe("foo", cb=handler)
yield from nc.publish("foo", "bar")

4 . 17

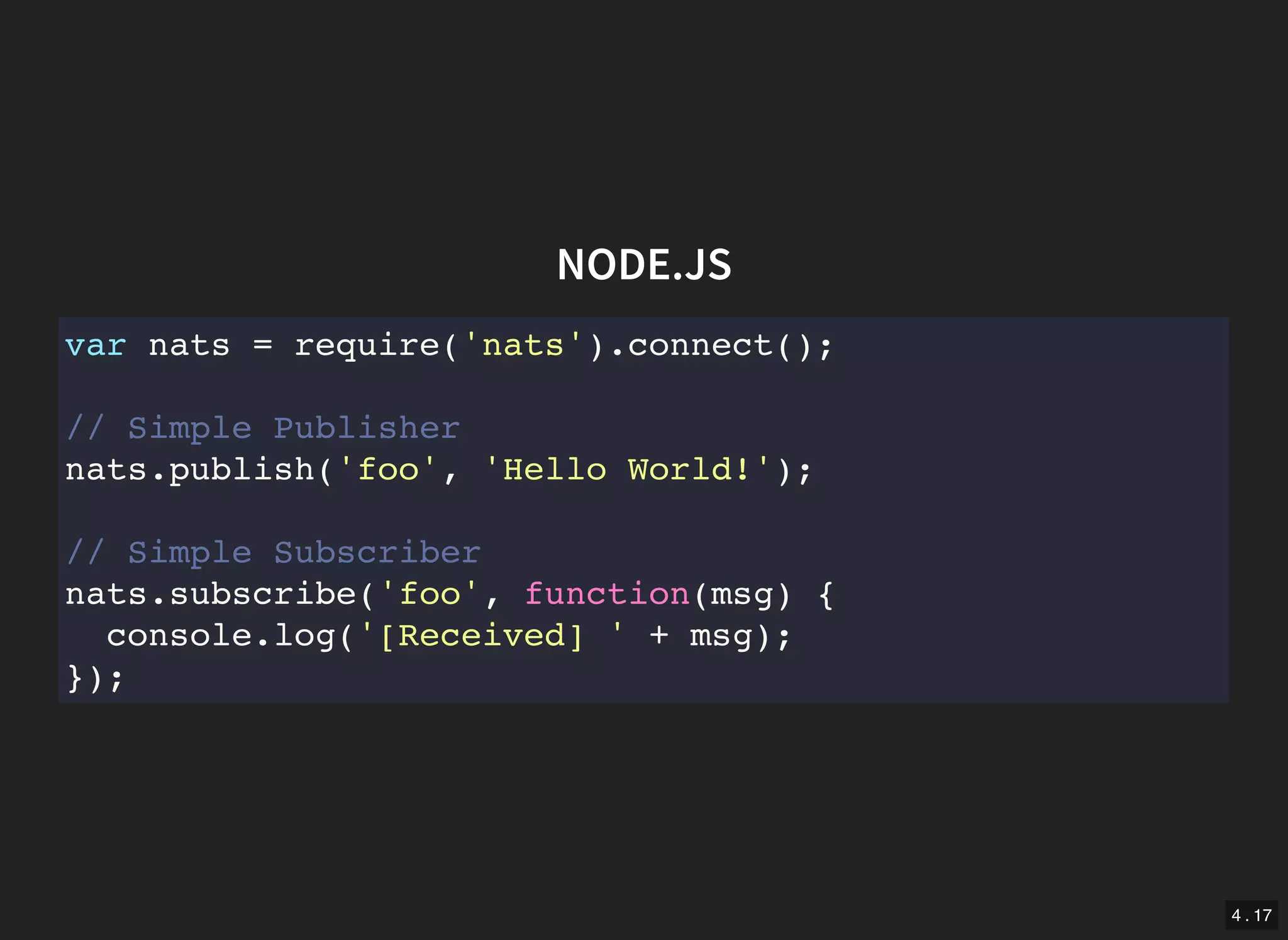

NODE.JS
var nats = require('nats').connect();
// Simple Publisher
nats.publish('foo', 'Hello World!');
// Simple Subscriber
nats.subscribe('foo', function(msg) {
console.log('[Received] ' + msg);
});

4 . 18

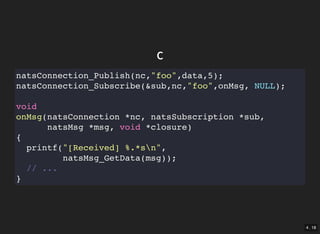

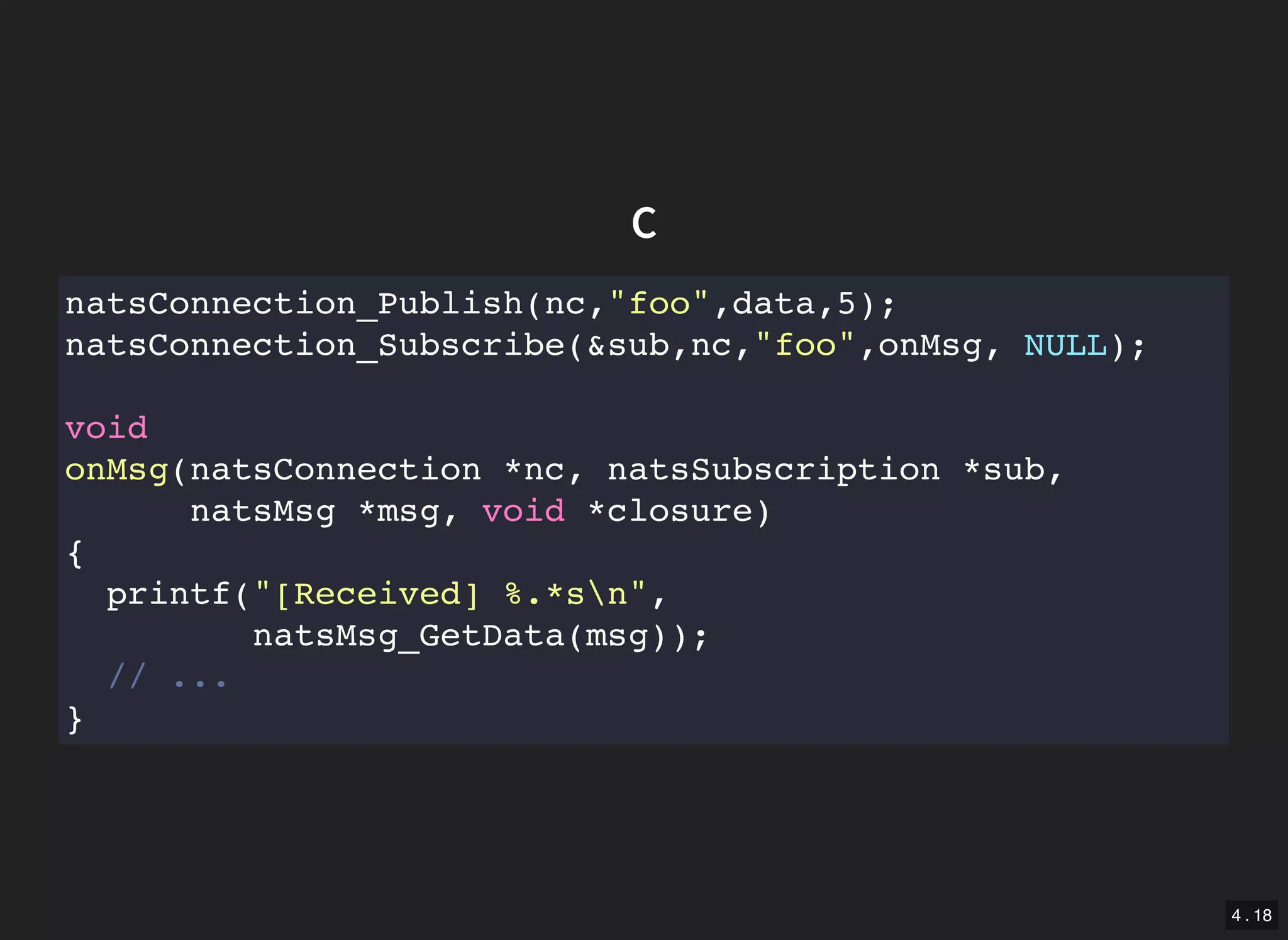

C
natsConnection_Publish(nc,"foo",data,5);
natsConnection_Subscribe(&sub,nc,"foo",onMsg, NULL);
void
onMsg(natsConnection *nc, natsSubscription *sub,
natsMsg *msg, void *closure)
{
printf("[Received] %.*sn",
natsMsg_GetData(msg));
// ...
}

4 . 19

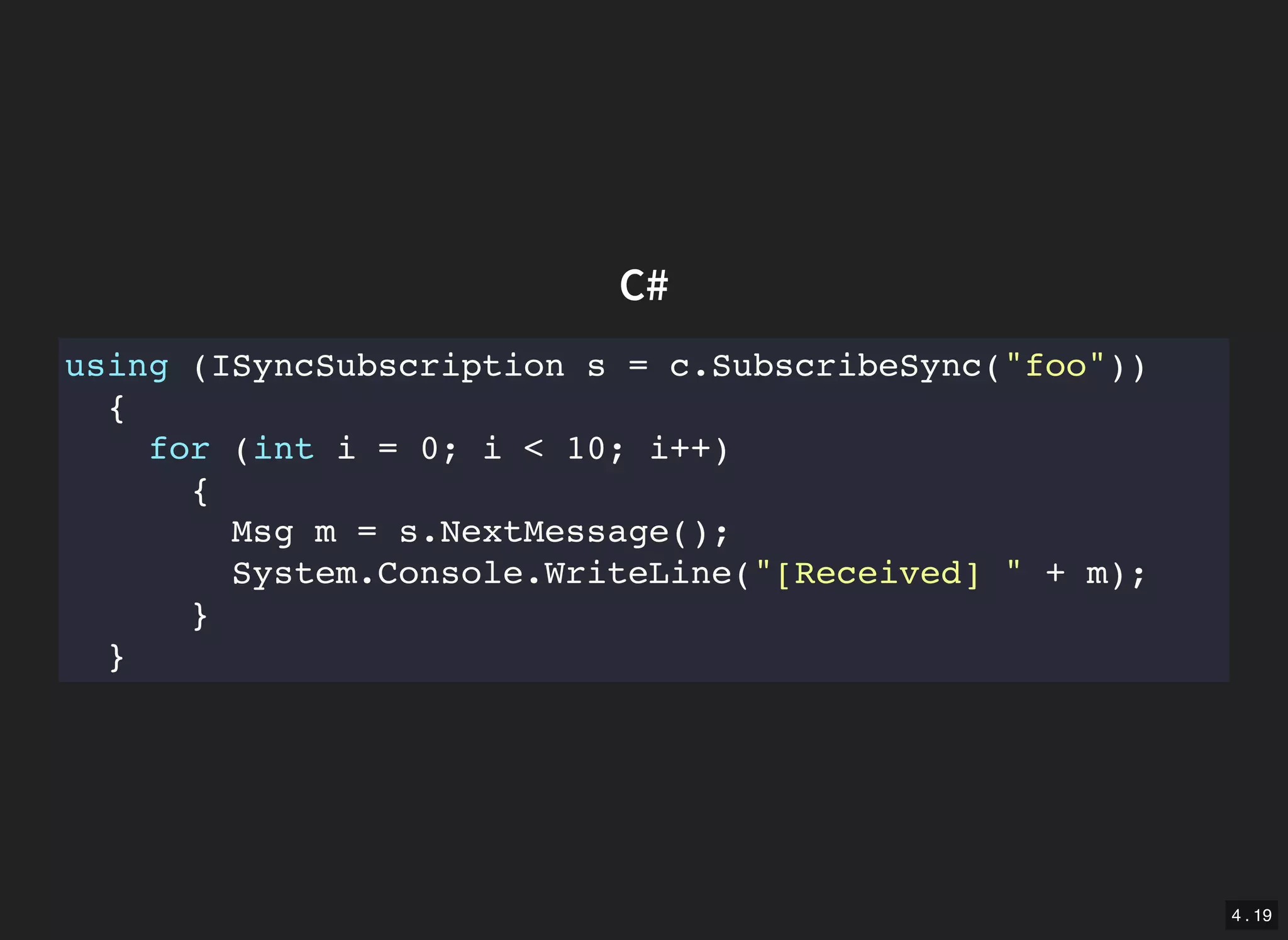

C#
using (ISyncSubscription s = c.SubscribeSync("foo"))
{
for (int i = 0; i < 10; i++)
{
Msg m = s.NextMessage();
System.Console.WriteLine("[Received] " + m);
}
}

4 . 20

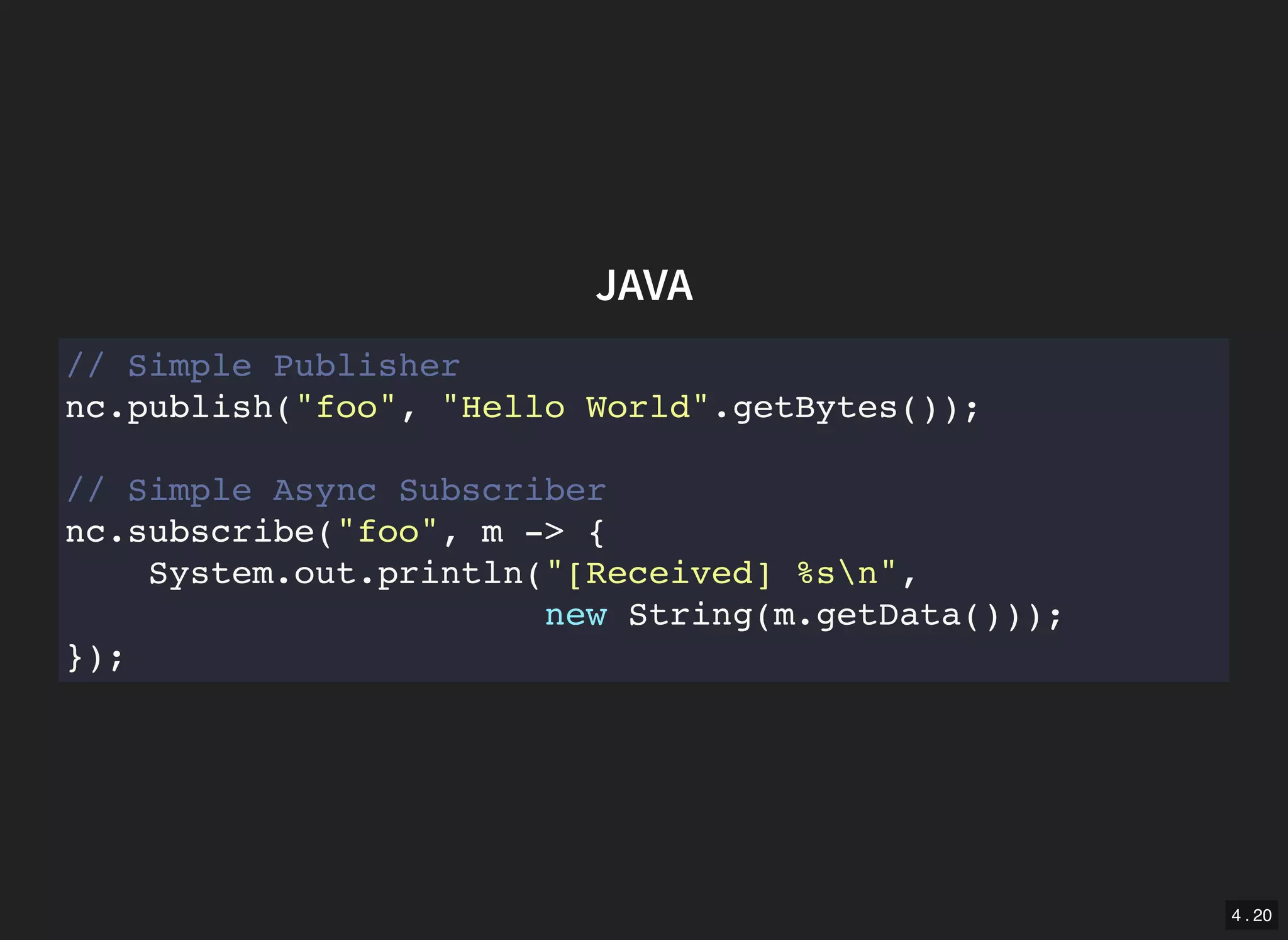

JAVA
// Simple Publisher
nc.publish("foo", "Hello World".getBytes());
// Simple Async Subscriber
nc.subscribe("foo", m -> {
System.out.println("[Received] %sn",
new String(m.getData()));
});

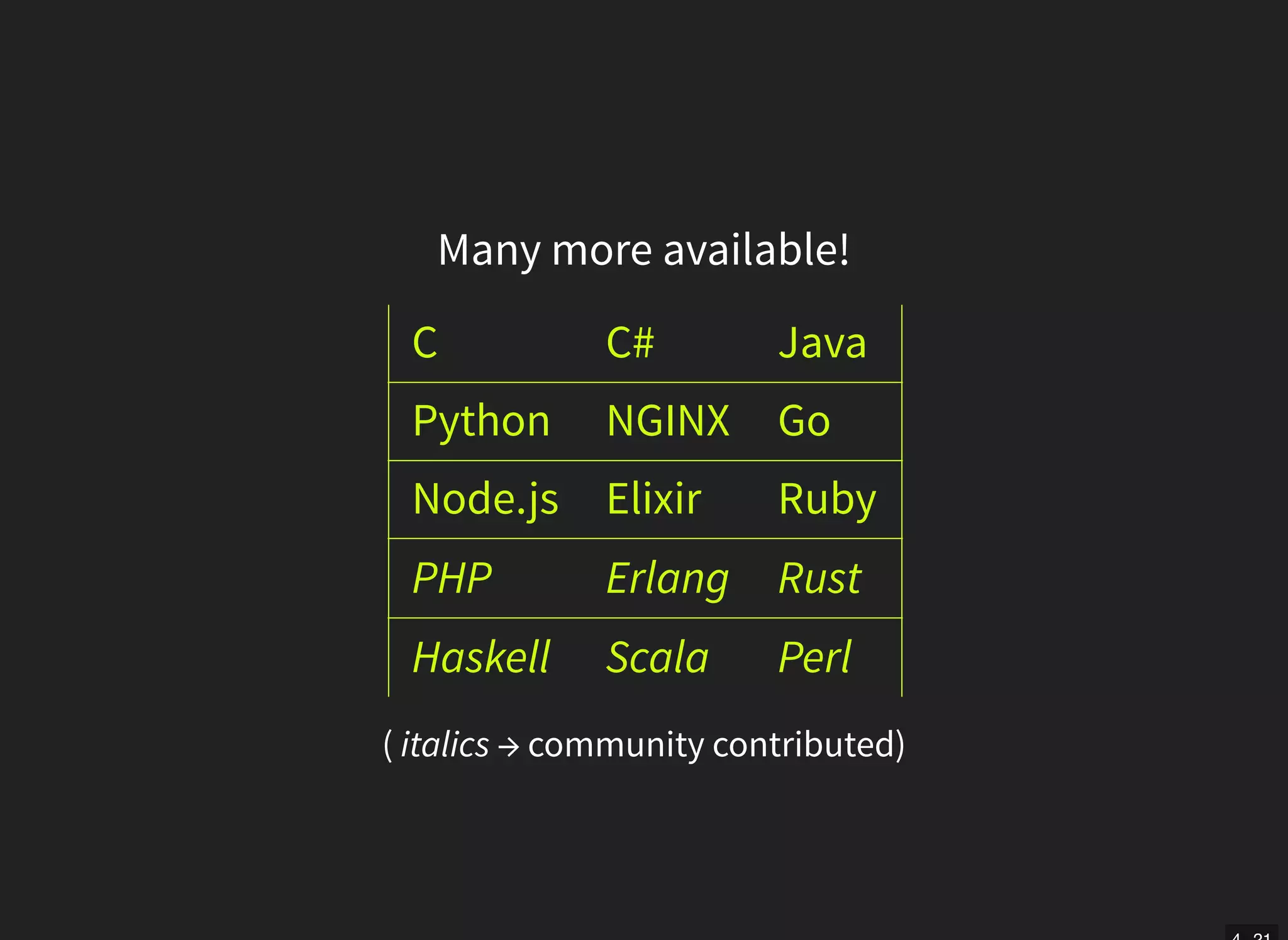

Many more available!
C C# Java
Python NGINX Go
Node.js Elixir Ruby
PHP Erlang Rust
Haskell Scala Perl
( italics → community contributed)

4 . 21
4 . 22

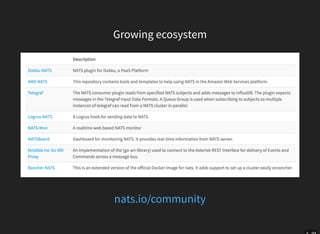

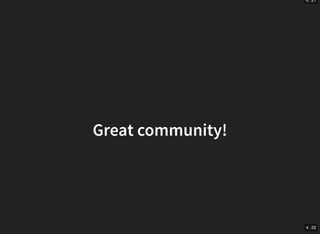

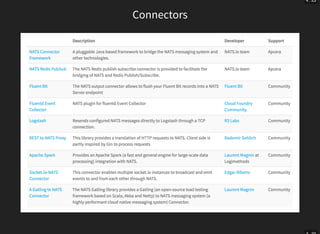

Great community!

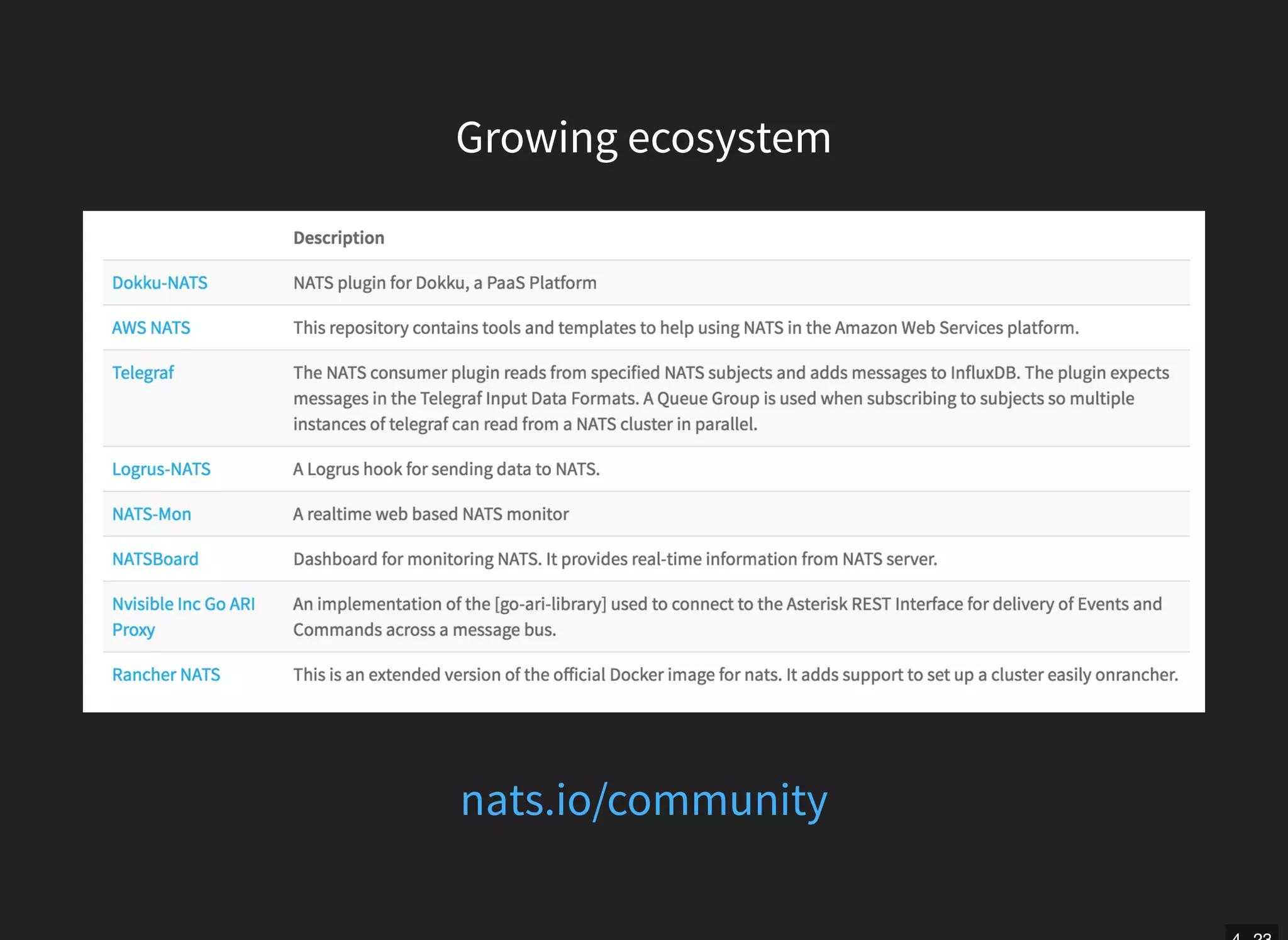

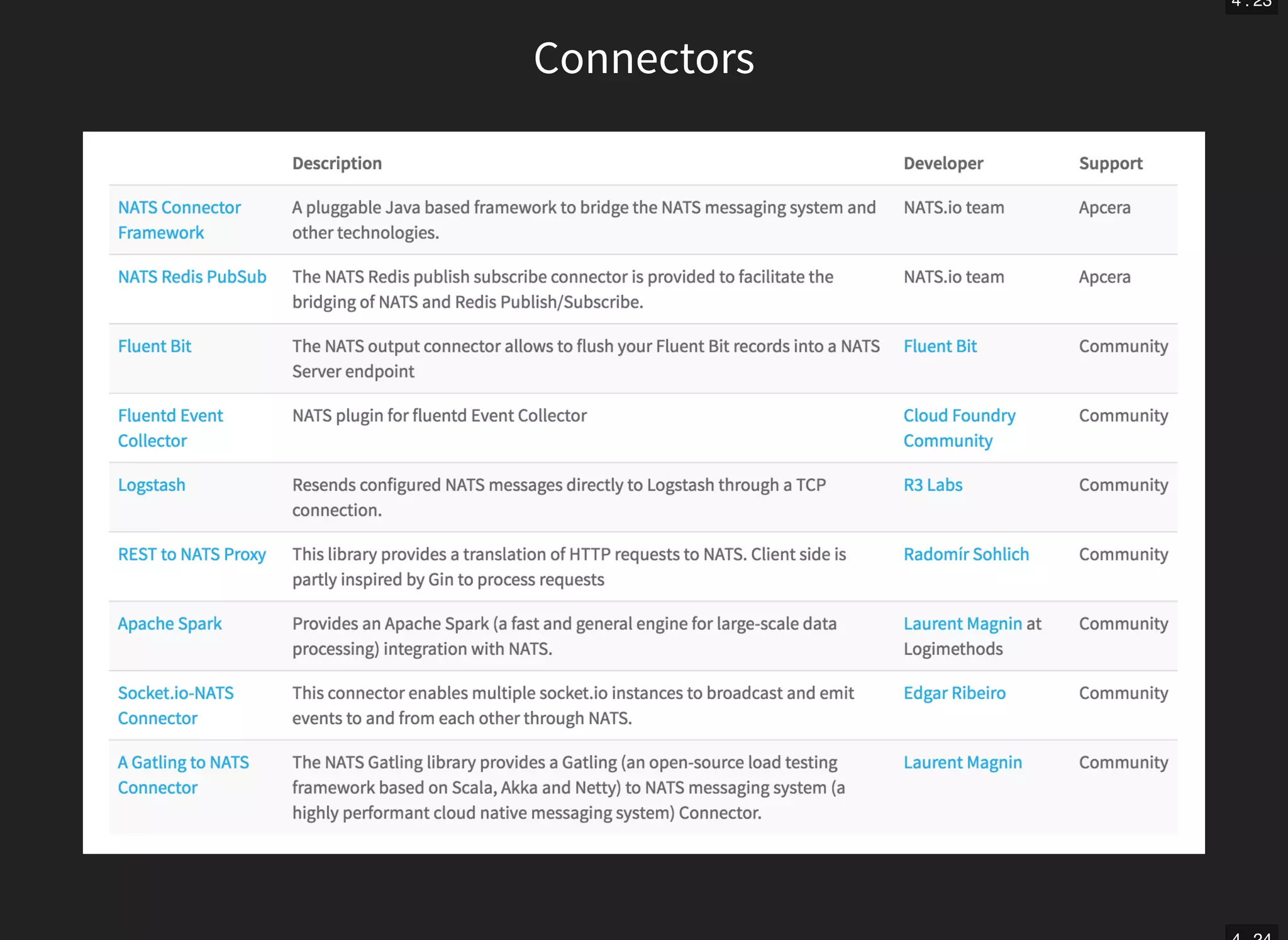

Growing ecosystem
nats.io/community

4 . 24

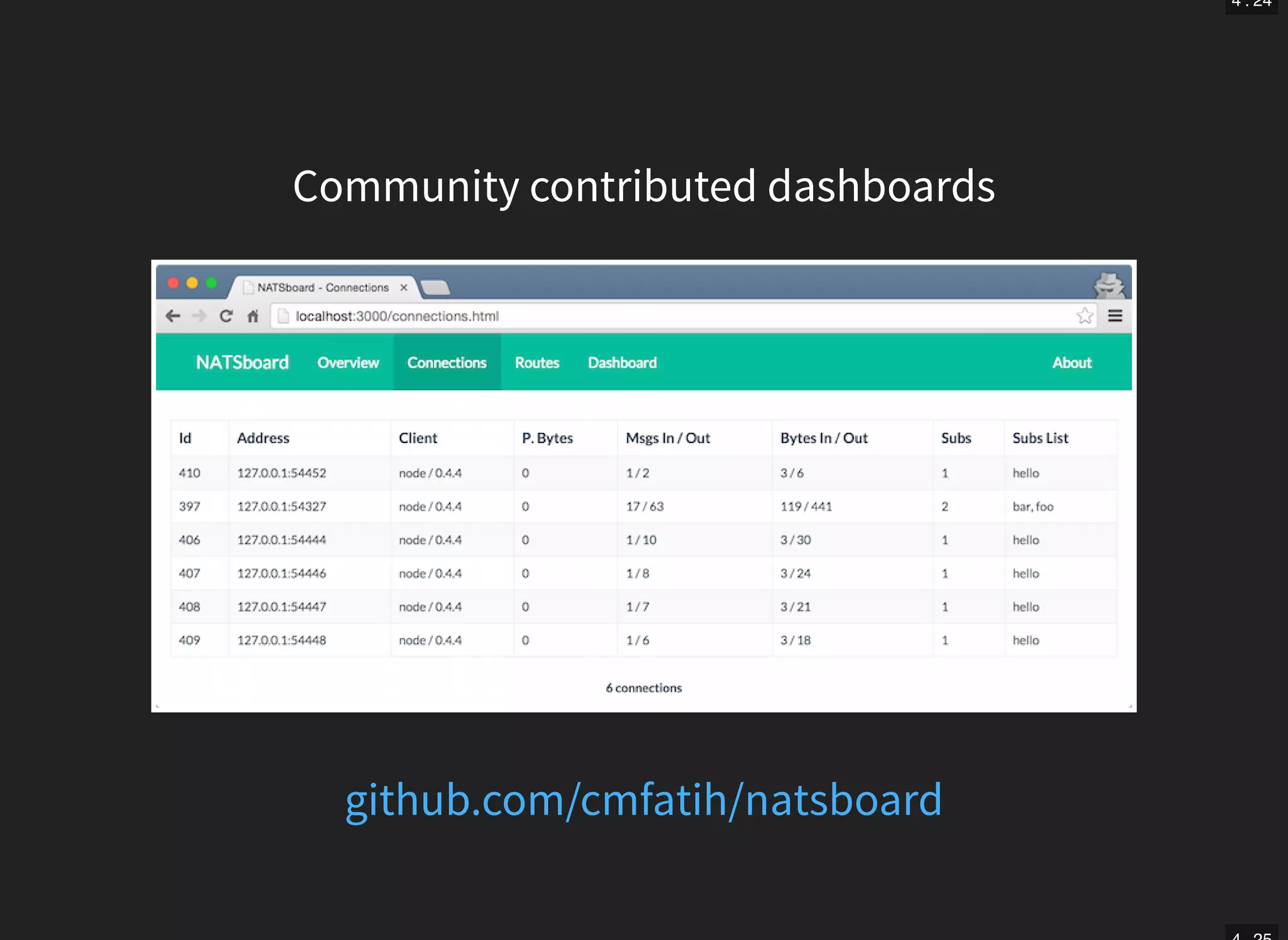

Community contributed dashboards
github.com/cmfatih/natsboard

4 . 25

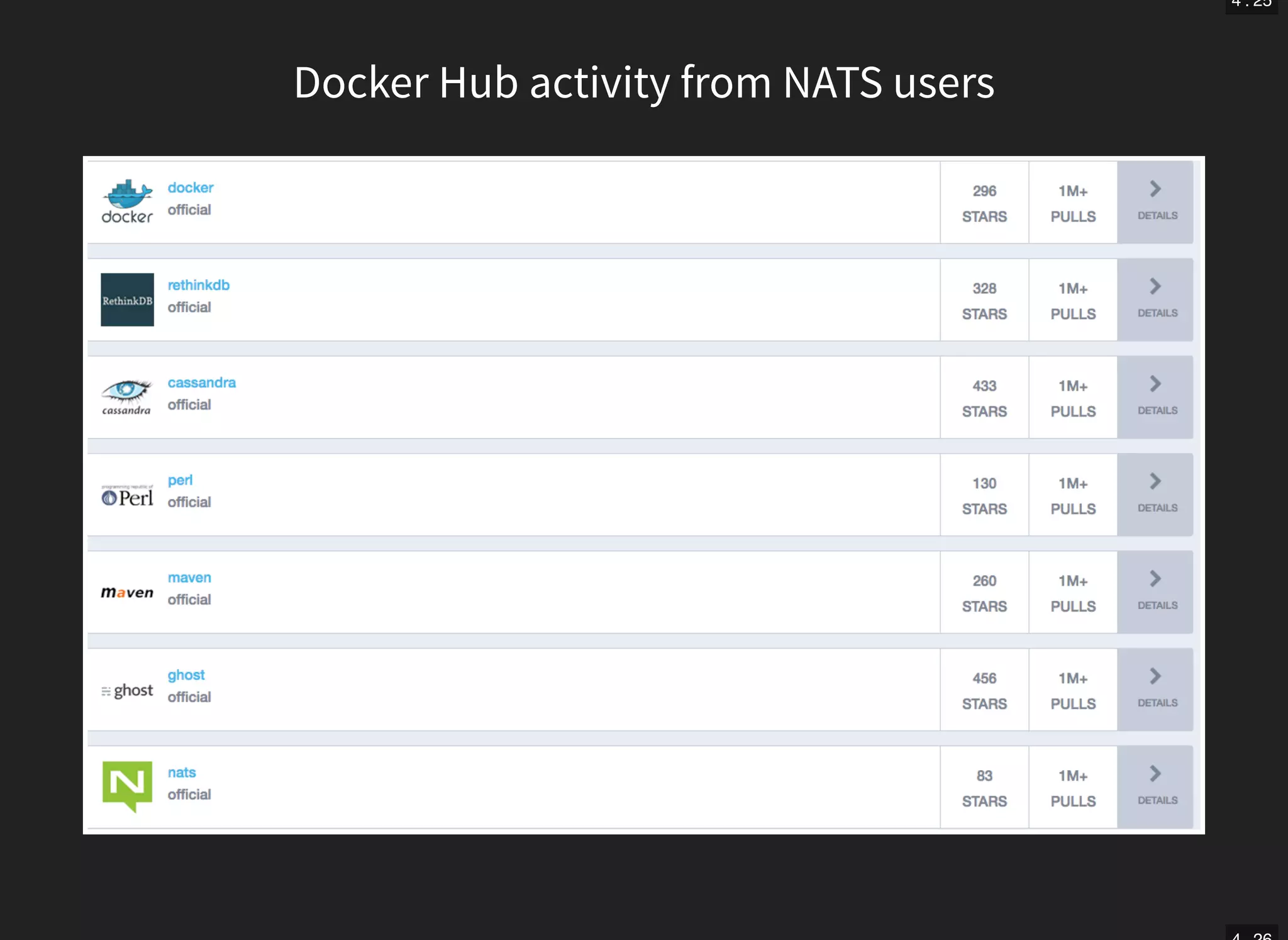

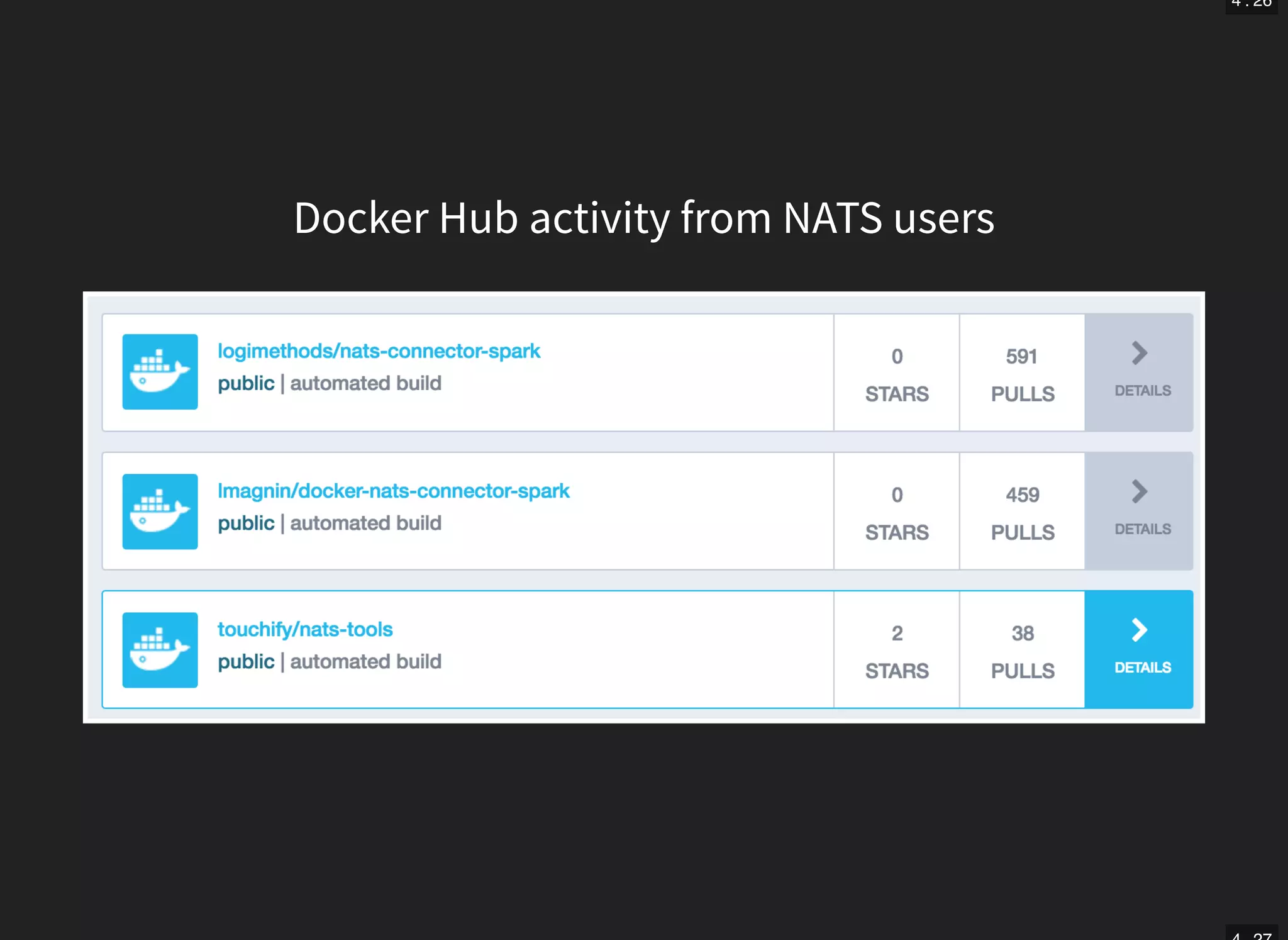

Docker Hub activity from NATS users

4 . 26

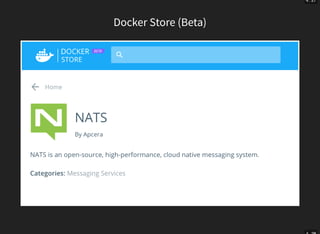

Docker Hub activity from NATS users

5 . 2

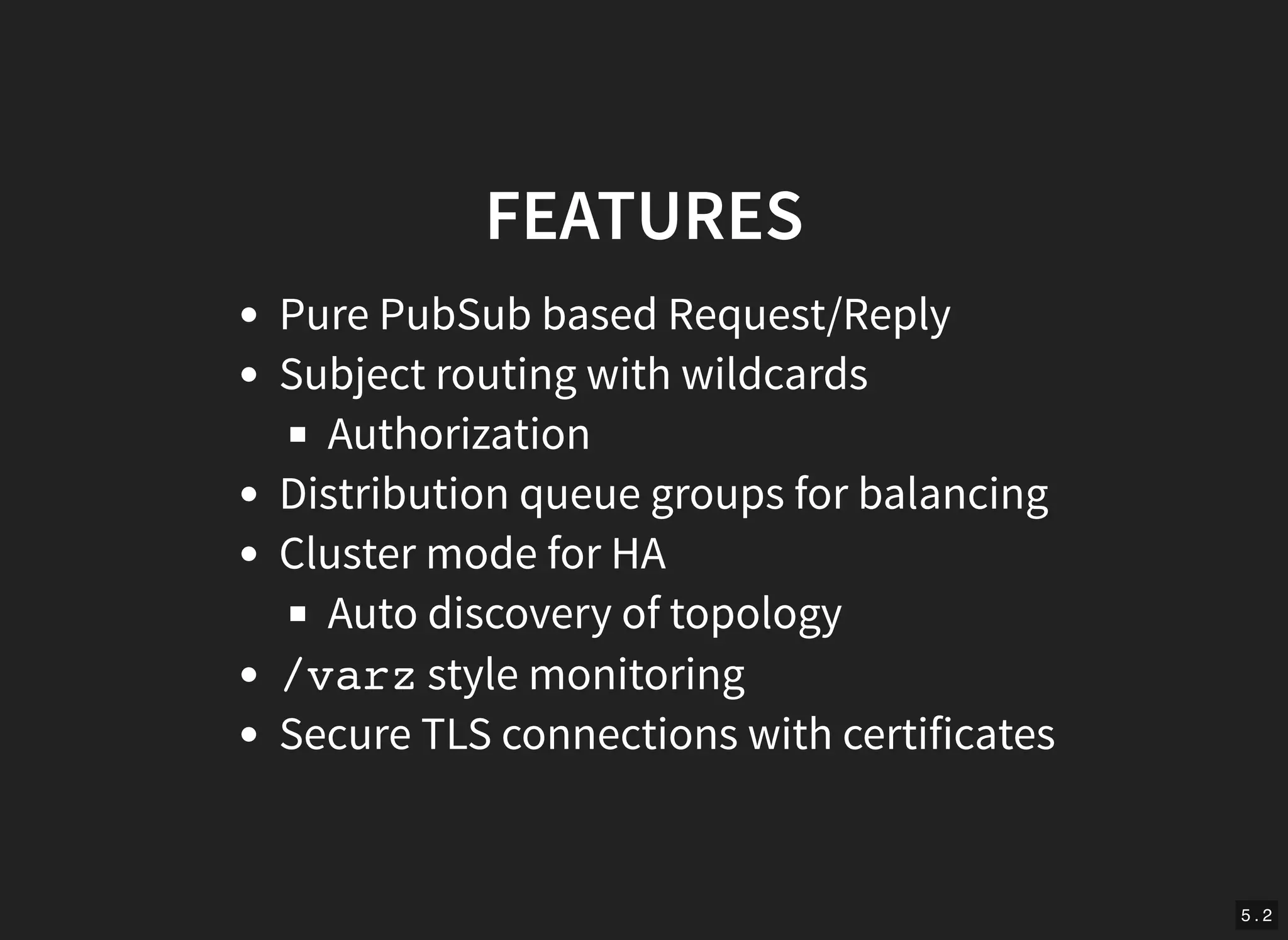

FEATURES
Pure PubSub based Request/Reply
Subject routing with wildcards
Authorization
Distribution queue groups for balancing
Cluster mode for HA
Auto discovery of topology
/varzstyle monitoring
Secure TLS connections with certificates

5 . 3

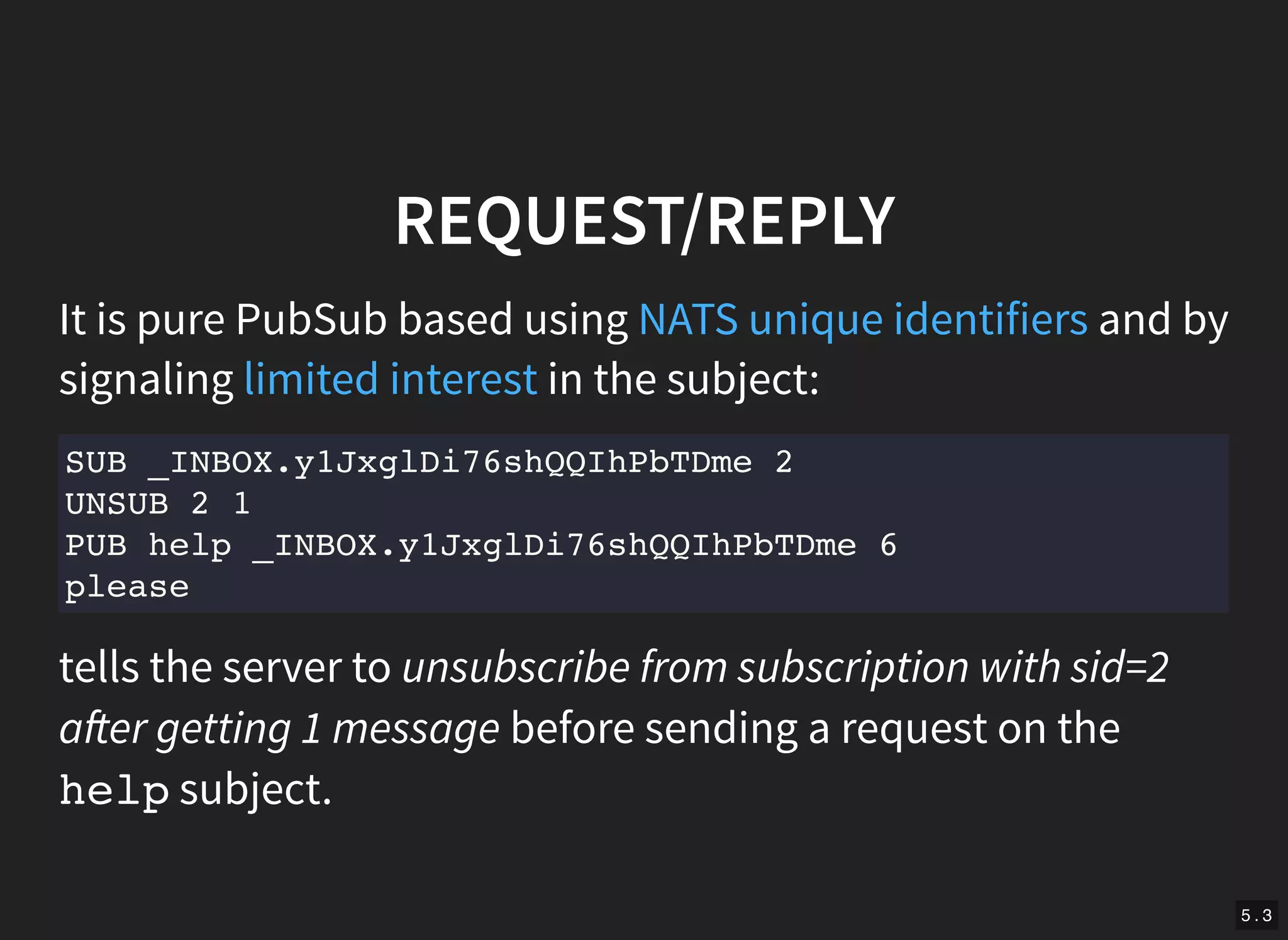

REQUEST/REPLY
It is pure PubSub based using and by
signaling in the subject:
NATS unique identifiers
limited interest
SUB _INBOX.y1JxglDi76shQQIhPbTDme 2
UNSUB 2 1
PUB help _INBOX.y1JxglDi76shQQIhPbTDme 6
please
tells the server to unsubscribe from subscription with sid=2
a er getting 1 message before sending a request on the
helpsubject.

5 . 4

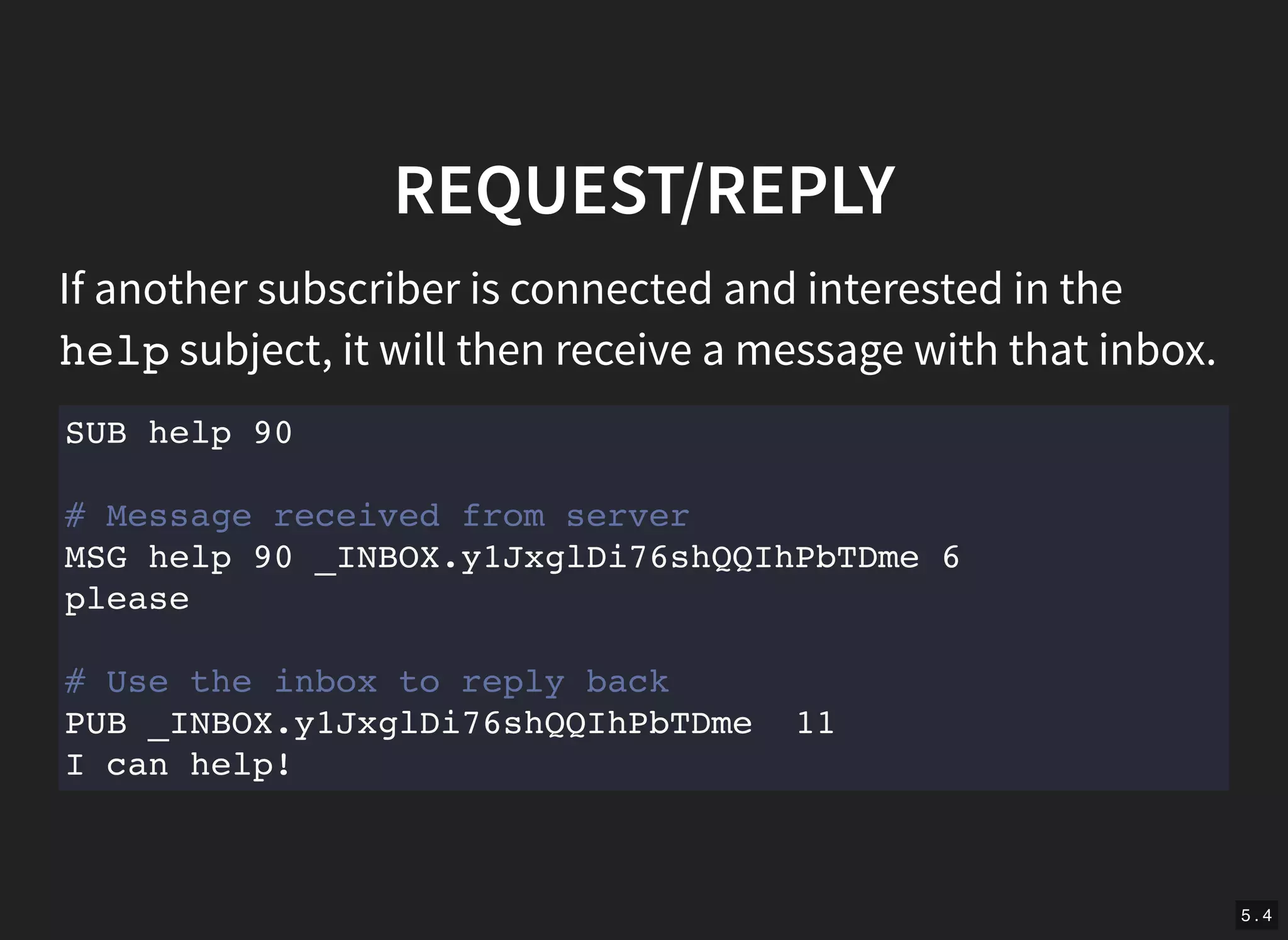

REQUEST/REPLY
If another subscriber is connected and interested in the
helpsubject, it will then receive a message with that inbox.
SUB help 90
# Message received from server
MSG help 90 _INBOX.y1JxglDi76shQQIhPbTDme 6
please
# Use the inbox to reply back
PUB _INBOX.y1JxglDi76shQQIhPbTDme 11
I can help!

5 . 5

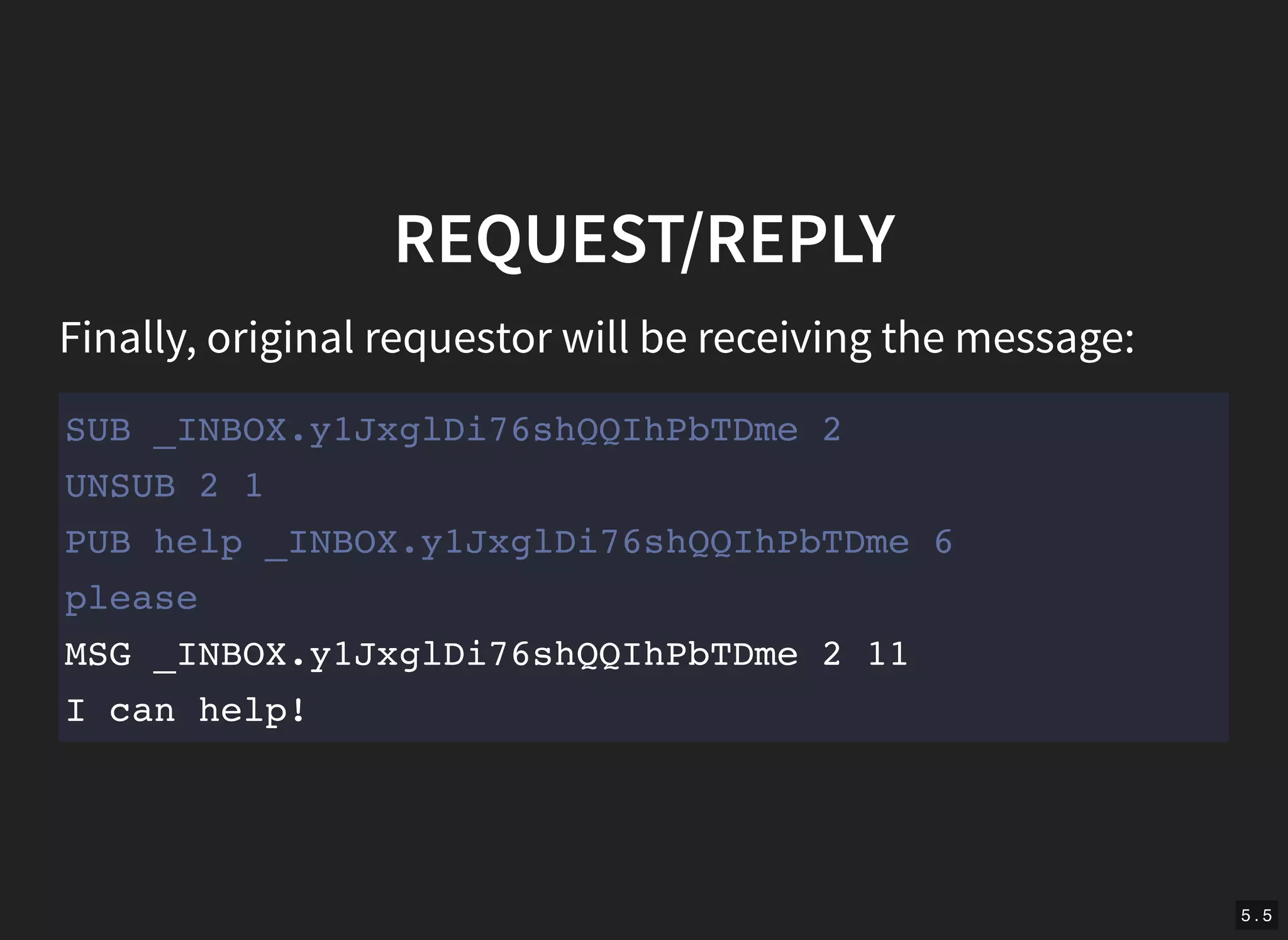

REQUEST/REPLY
Finally, original requestor will be receiving the message:
SUB _INBOX.y1JxglDi76shQQIhPbTDme 2
UNSUB 2 1
PUB help _INBOX.y1JxglDi76shQQIhPbTDme 6
please
MSG _INBOX.y1JxglDi76shQQIhPbTDme 2 11
I can help!

5 . 6

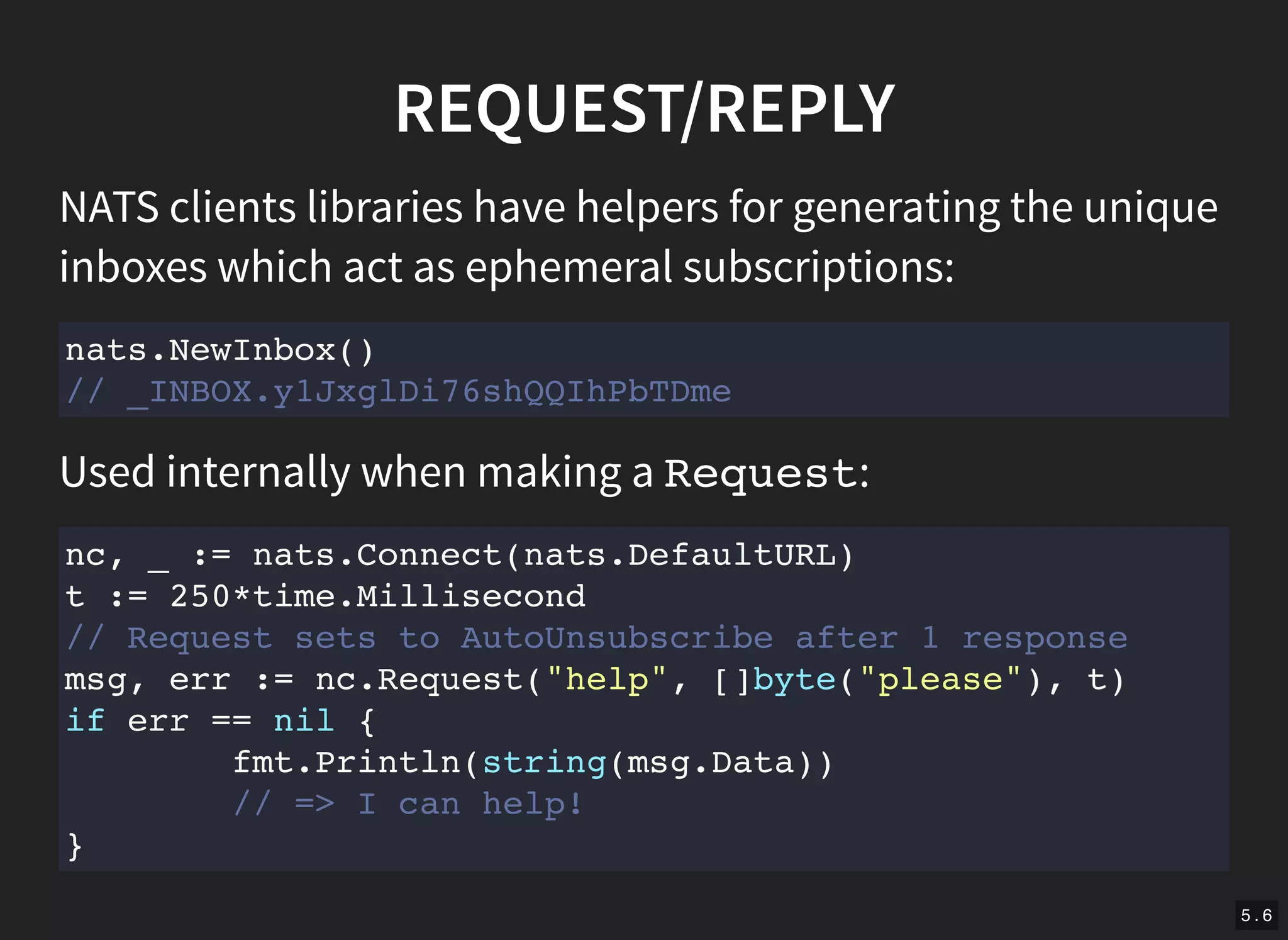

REQUEST/REPLY
NATS clients libraries have helpers for generating the unique
inboxes which act as ephemeral subscriptions:
nats.NewInbox()
// _INBOX.y1JxglDi76shQQIhPbTDme
Used internally when making a Request:
nc, _ := nats.Connect(nats.DefaultURL)
t := 250*time.Millisecond
// Request sets to AutoUnsubscribe after 1 response
msg, err := nc.Request("help", []byte("please"), t)
if err == nil {
fmt.Println(string(msg.Data))
// => I can help!
}

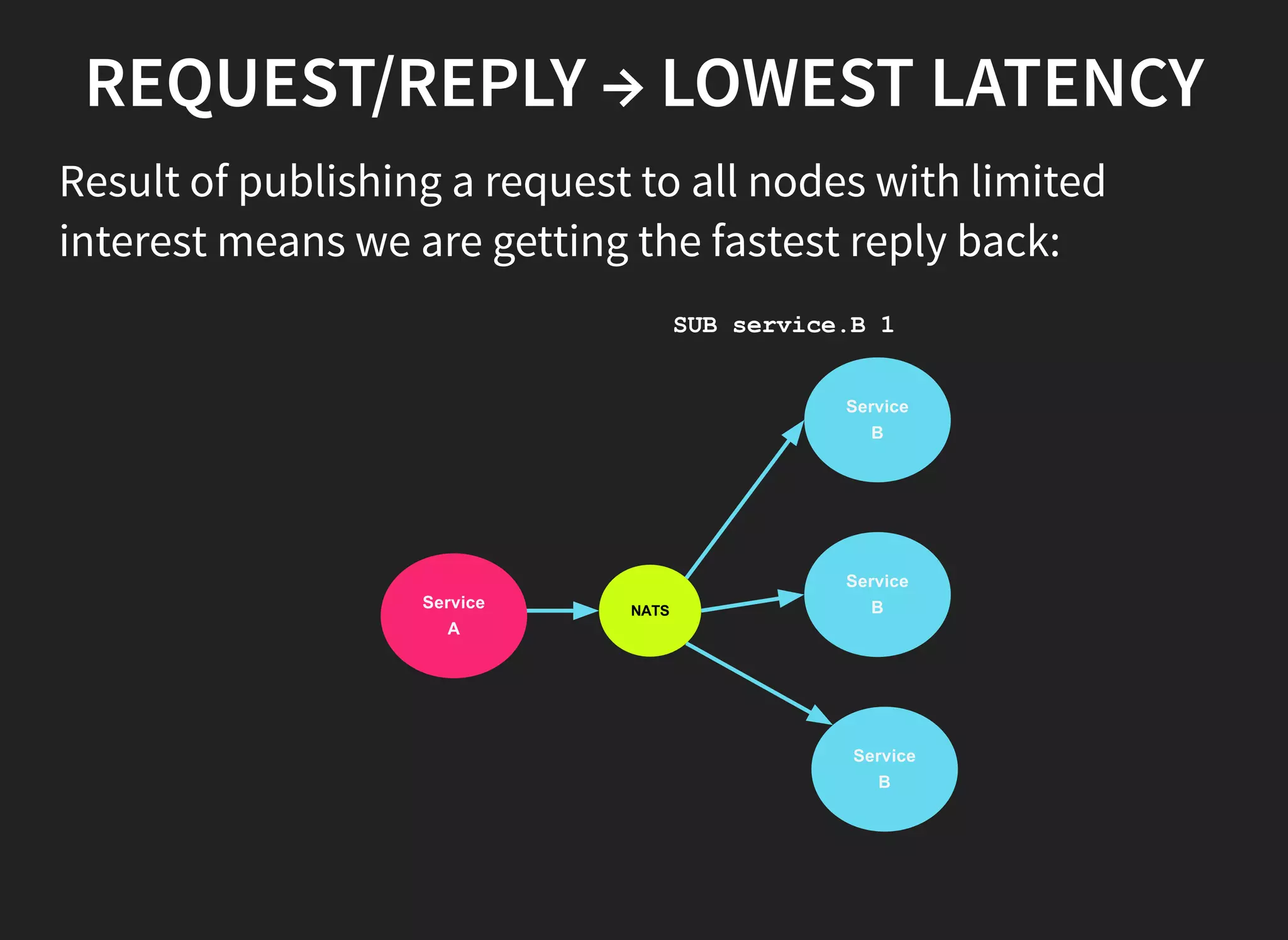

REQUEST/REPLY → LOWEST LATENCY
Result of publishing a request to all nodes with limited
interest means we are getting the fastest reply back:

5 . 7

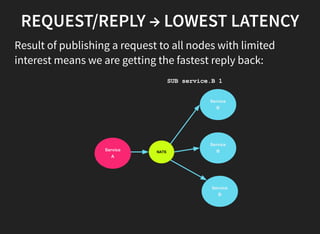

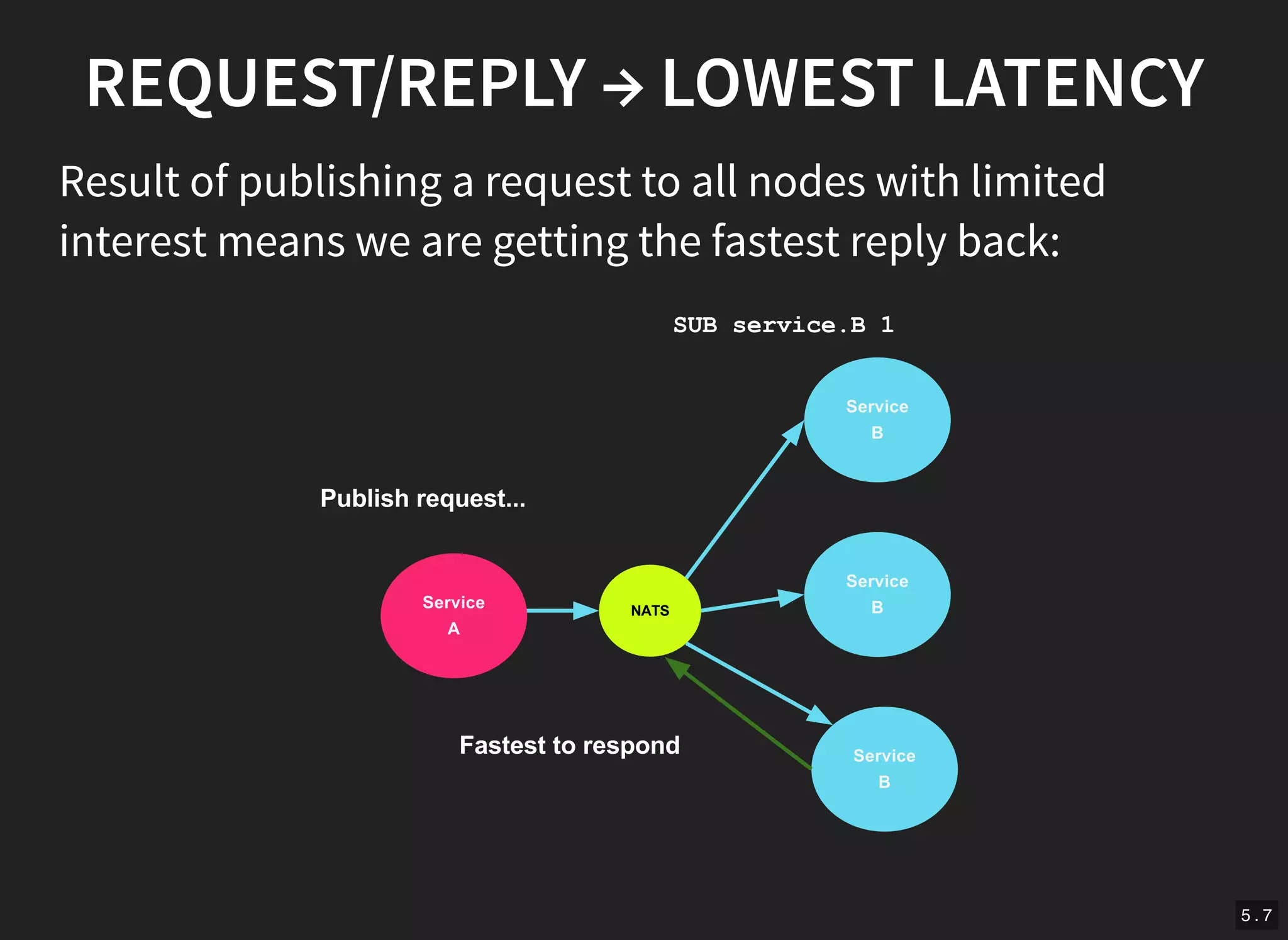

REQUEST/REPLY → LOWEST LATENCY
Result of publishing a request to all nodes with limited
interest means we are getting the fastest reply back:

5 . 85 . 9

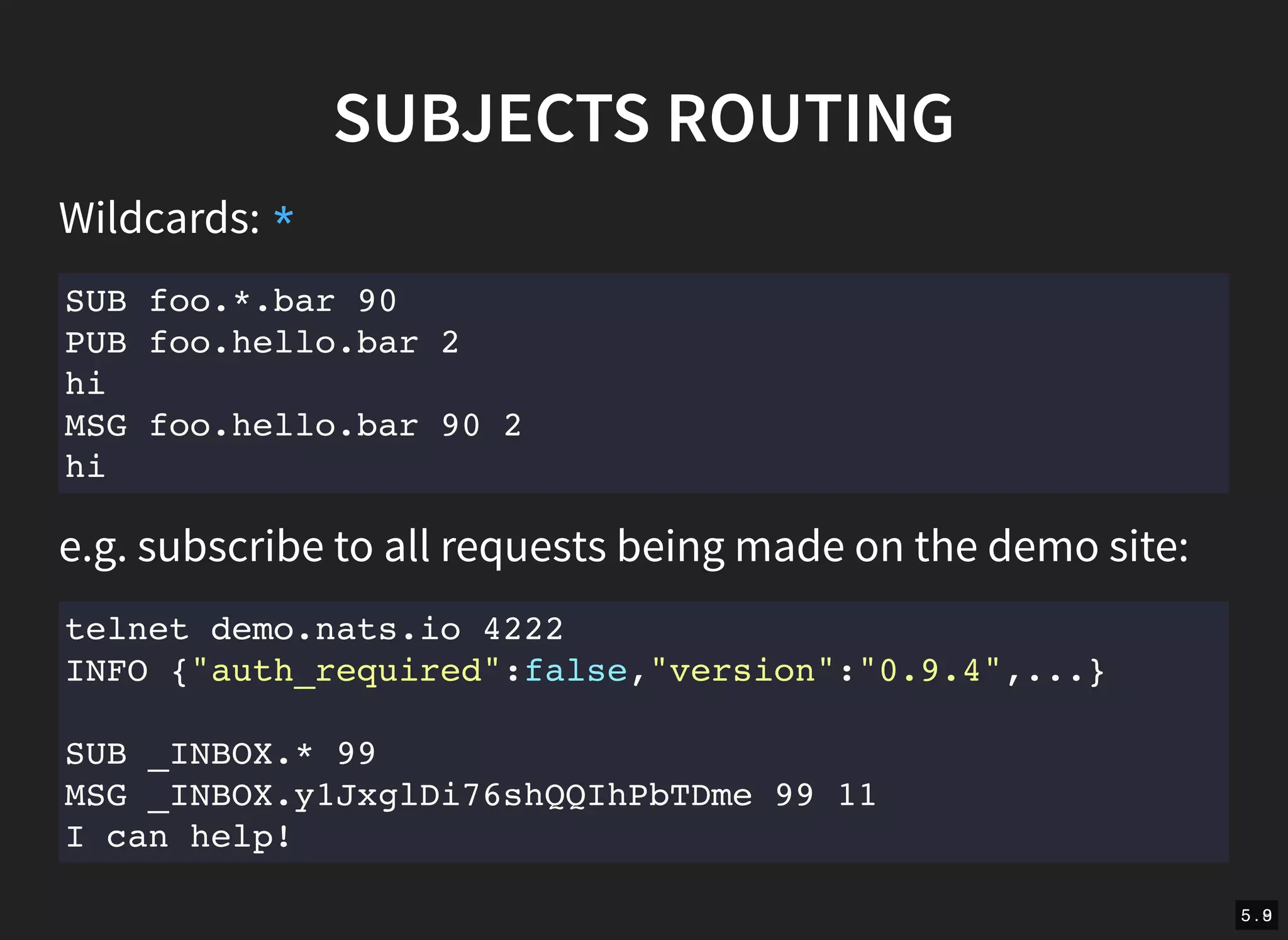

SUBJECTS ROUTING
Wildcards: *
SUB foo.*.bar 90
PUB foo.hello.bar 2
hi
MSG foo.hello.bar 90 2
hi
e.g. subscribe to all requests being made on the demo site:
INFO {"auth_required":false,"version":"0.9.4",...}
SUB _INBOX.* 99
MSG _INBOX.y1JxglDi76shQQIhPbTDme 99 11
I can help!

5 . 10
SUBJECTS ROUTING

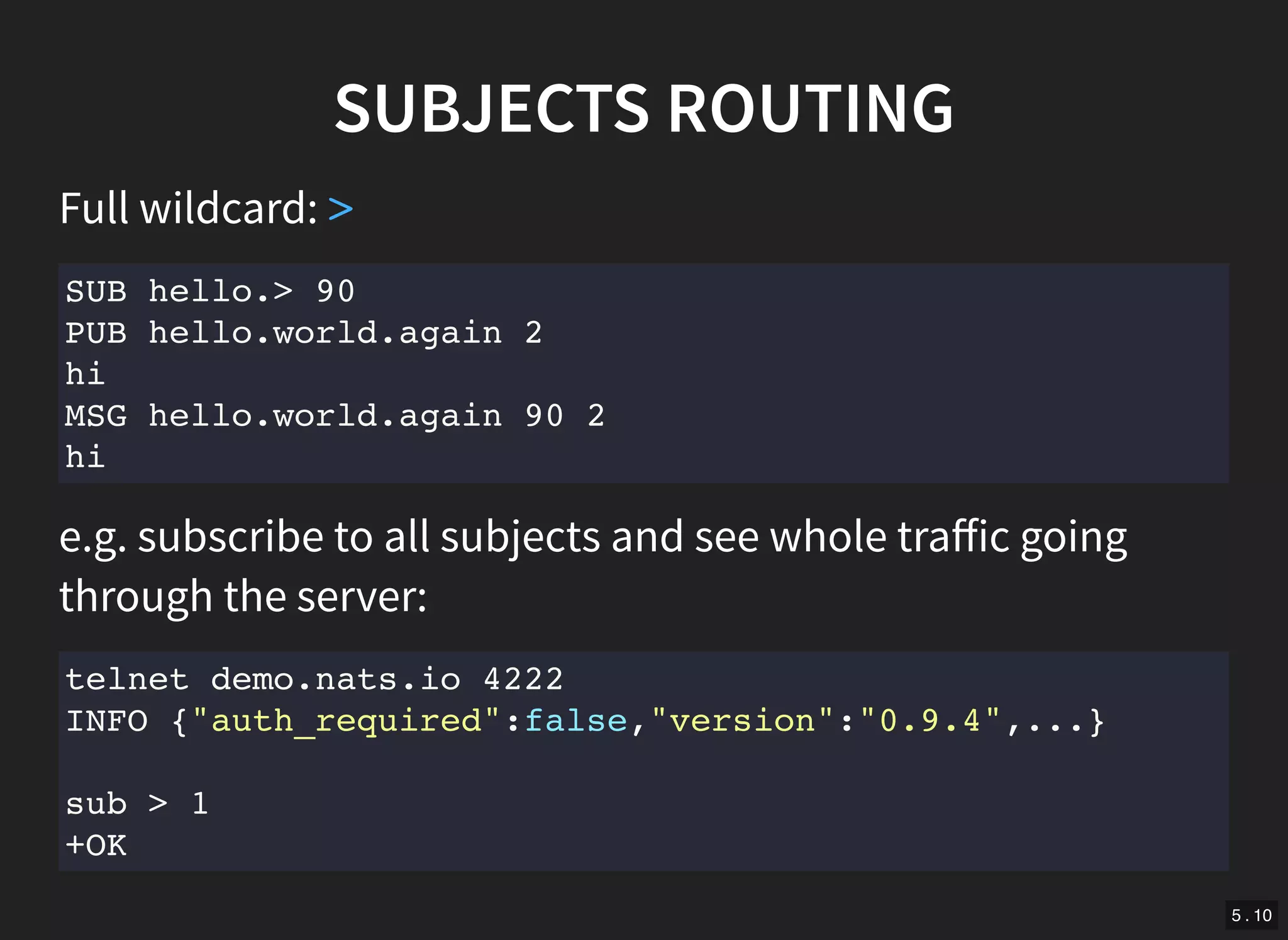

Full wildcard: >
SUB hello.> 90
PUB hello.world.again 2
hi
MSG hello.world.again 90 2
hi
e.g. subscribe to all subjects and see whole traﬀic going
through the server:
INFO {"auth_required":false,"version":"0.9.4",...}
sub > 1
+OK

5 . 11

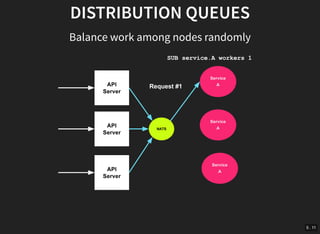

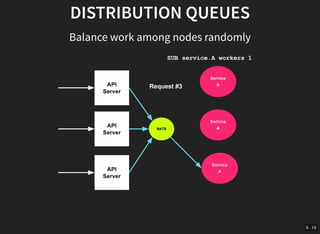

DISTRIBUTION QUEUES

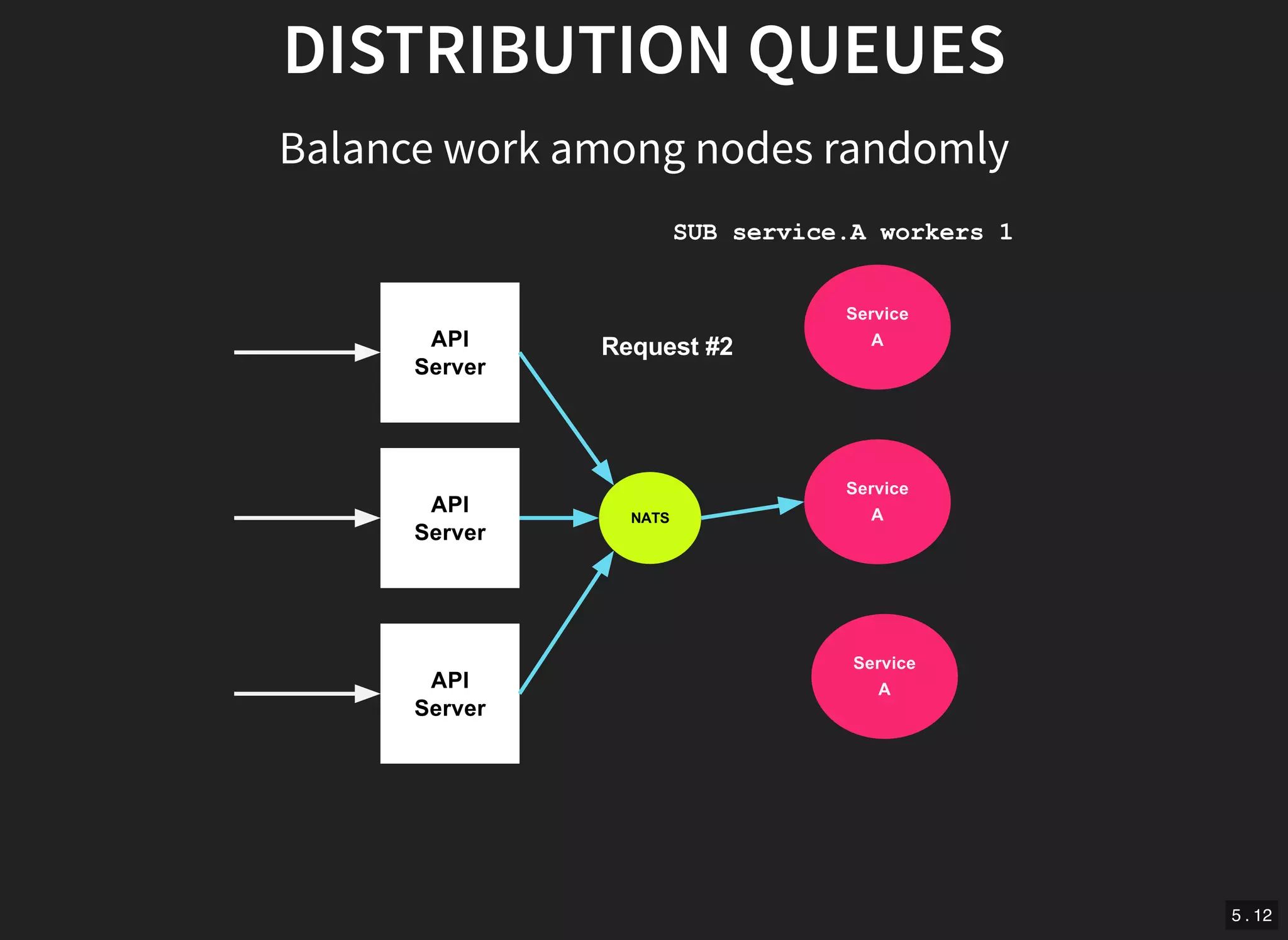

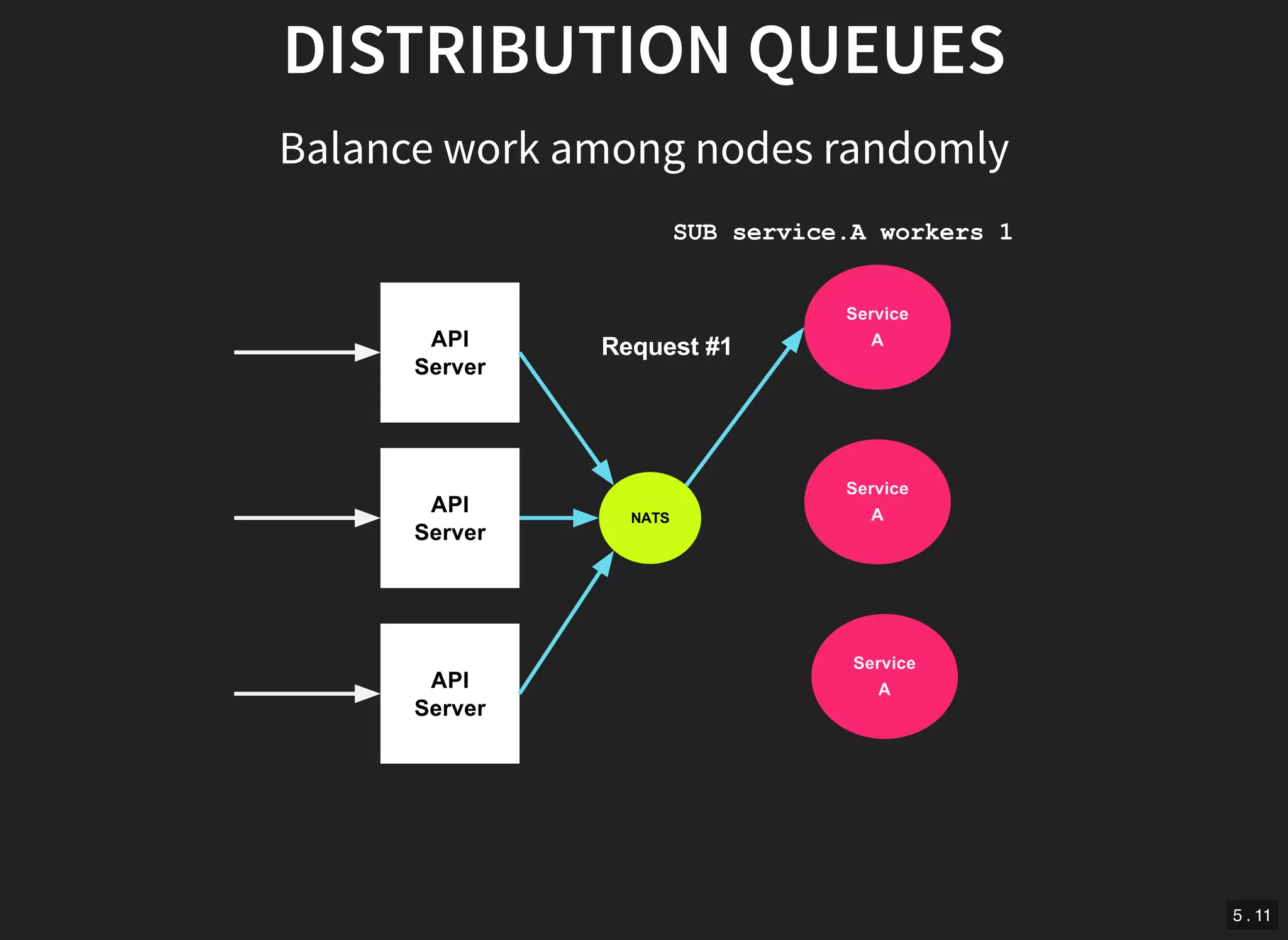

Balance work among nodes randomly

5 . 12

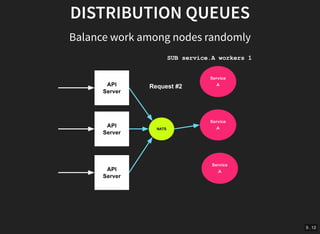

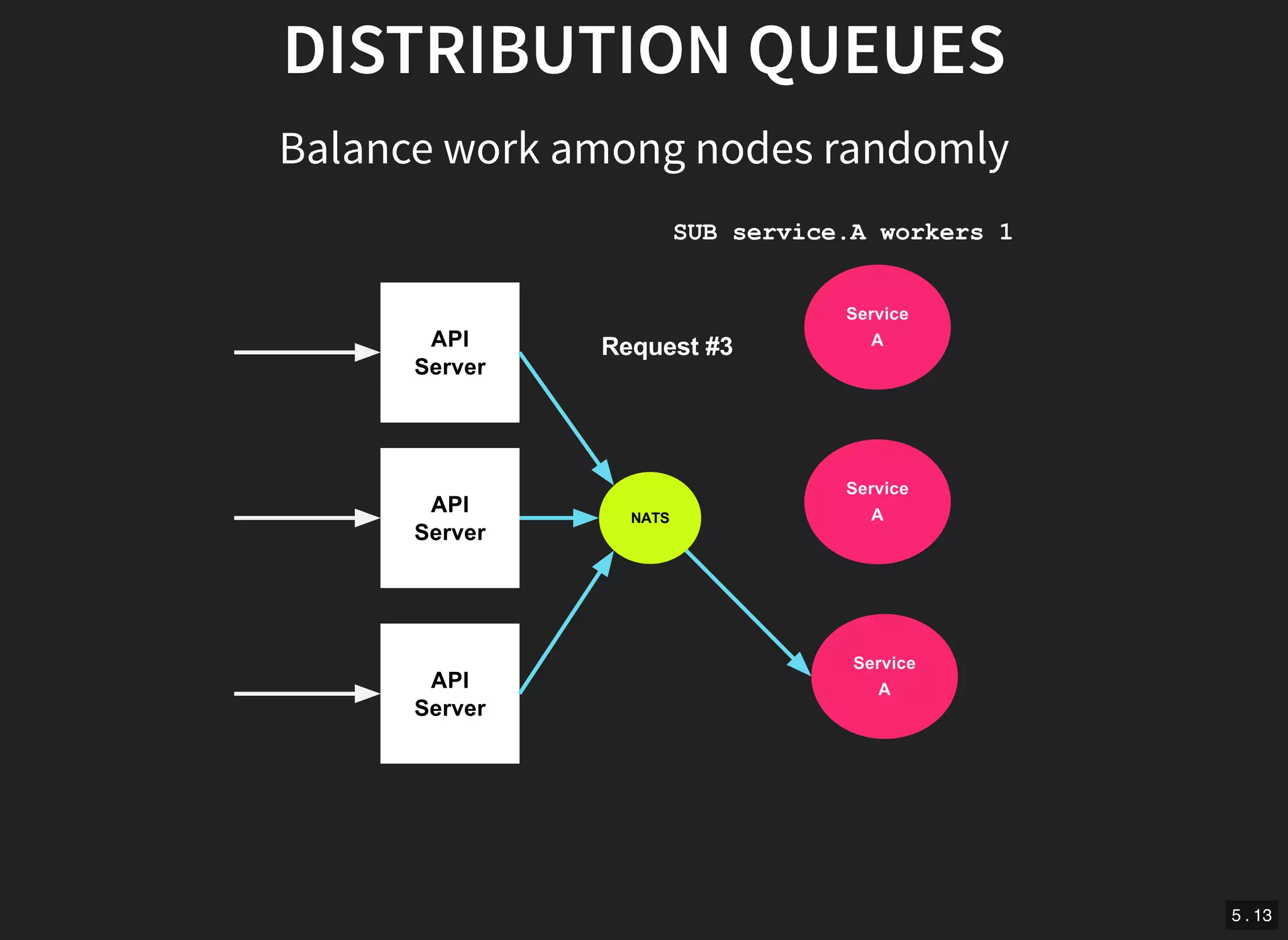

DISTRIBUTION QUEUES

5 . 13
DISTRIBUTION QUEUES

5 . 14

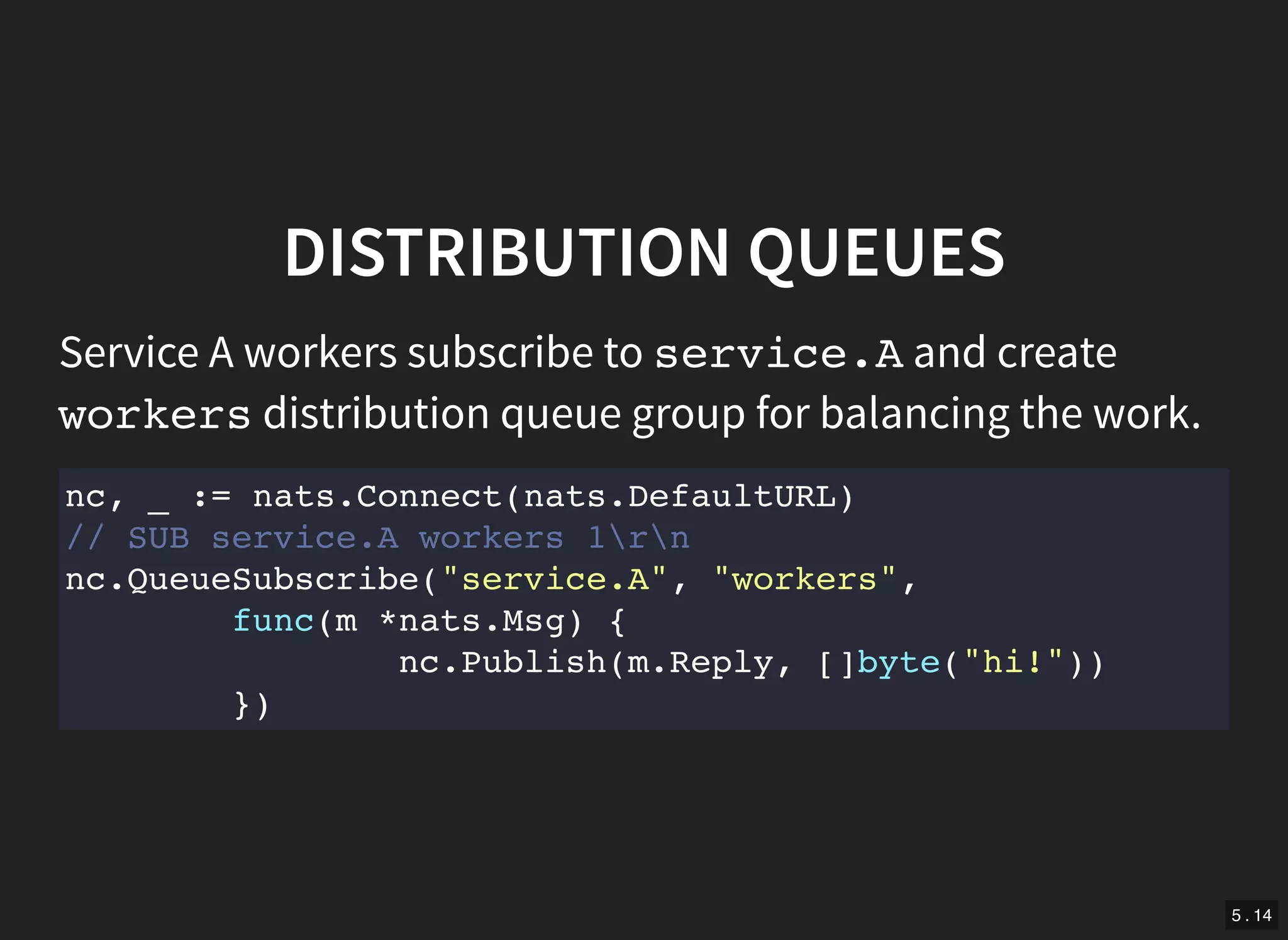

DISTRIBUTION QUEUES
Service A workers subscribe to service.Aand create
workersdistribution queue group for balancing the work.
nc, _ := nats.Connect(nats.DefaultURL)
// SUB service.A workers 1rn
nc.QueueSubscribe("service.A", "workers",
func(m *nats.Msg) {
nc.Publish(m.Reply, []byte("hi!"))
})

5 . 15
DISTRIBUTION QUEUES
Note: NATS does not assume the audience!

5 . 16

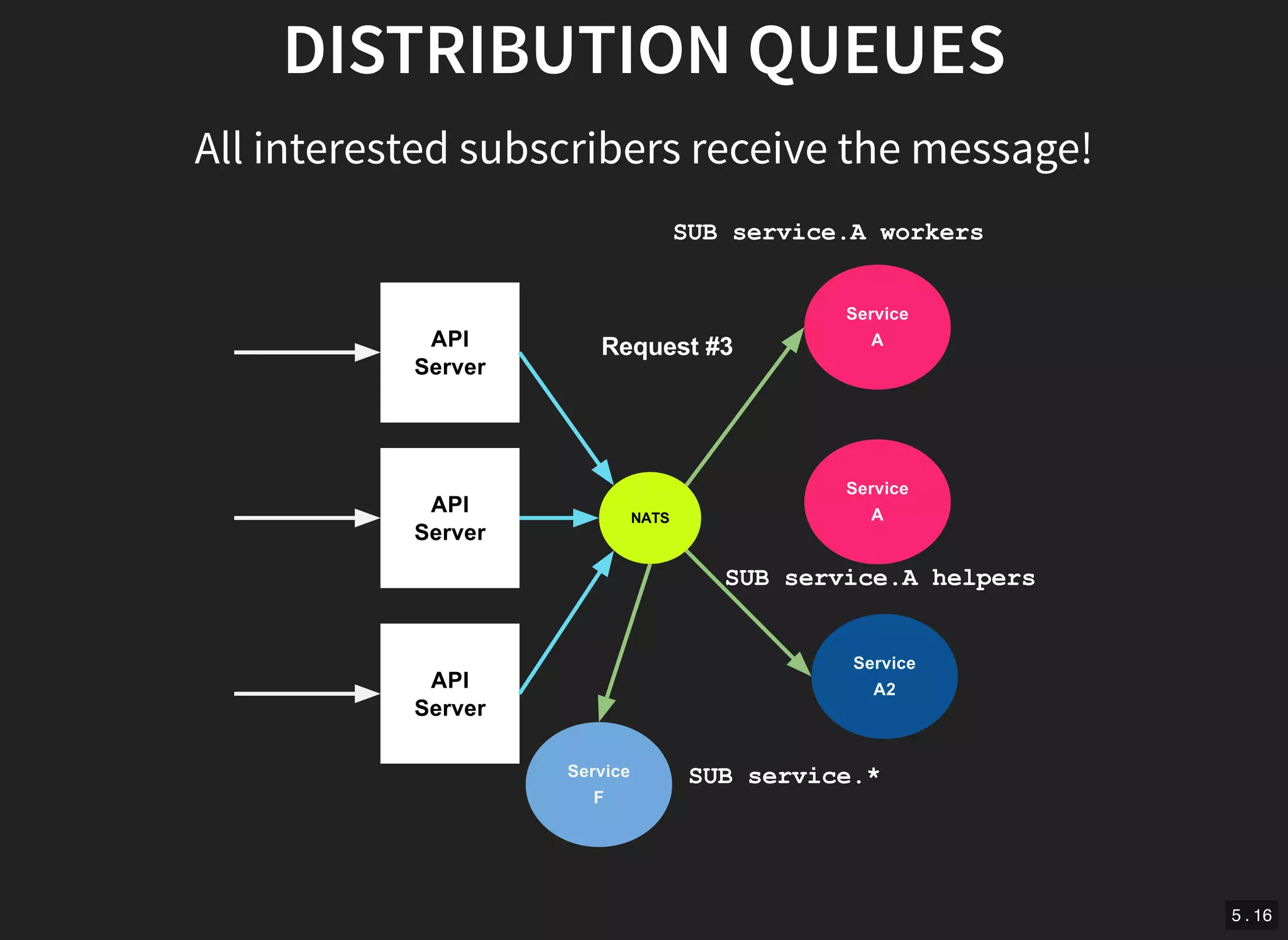

DISTRIBUTION QUEUES
All interested subscribers receive the message!

5 . 17

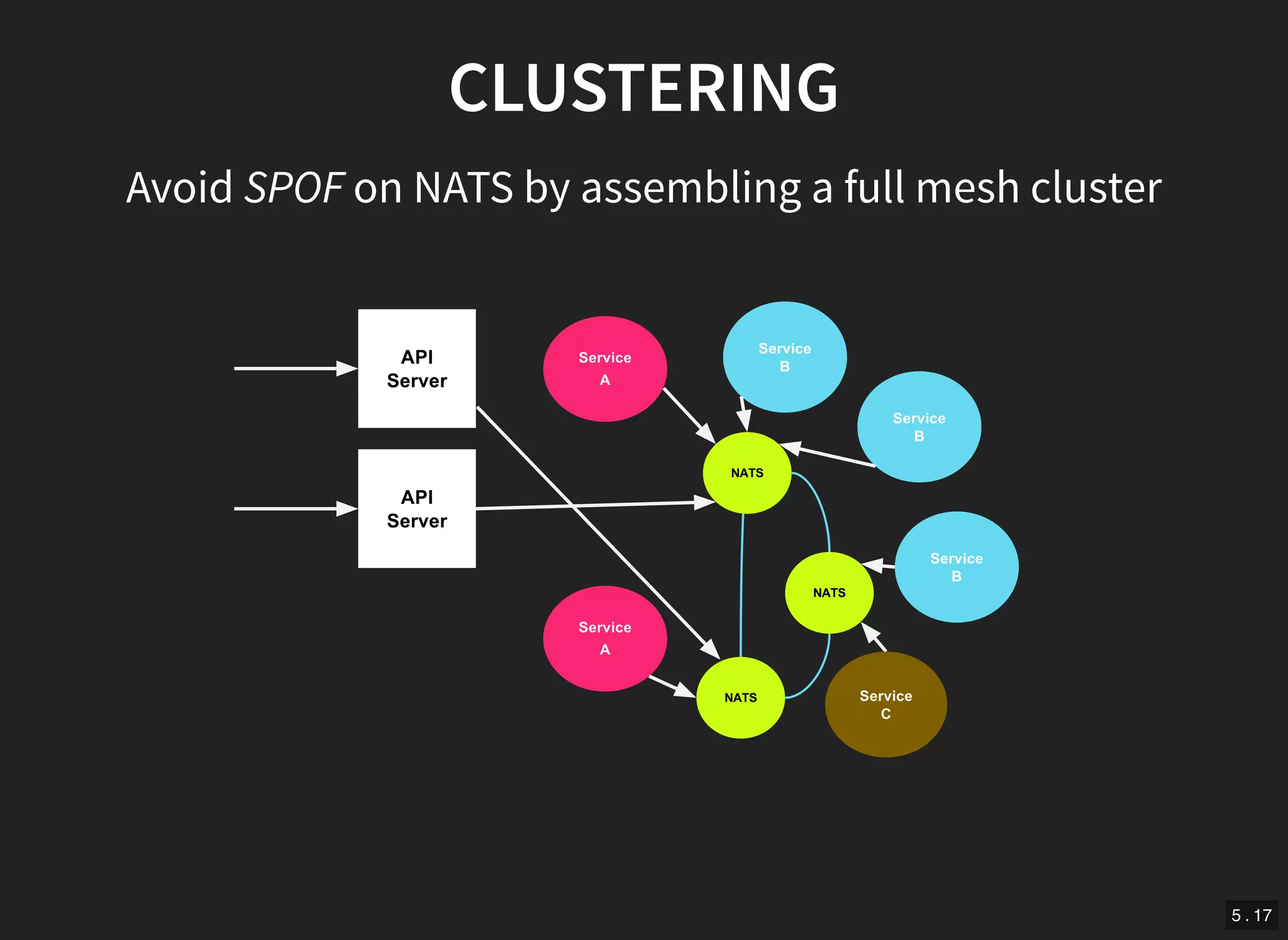

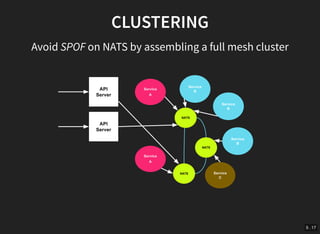

CLUSTERING
Avoid SPOF on NATS by assembling a full mesh cluster

5 . 18

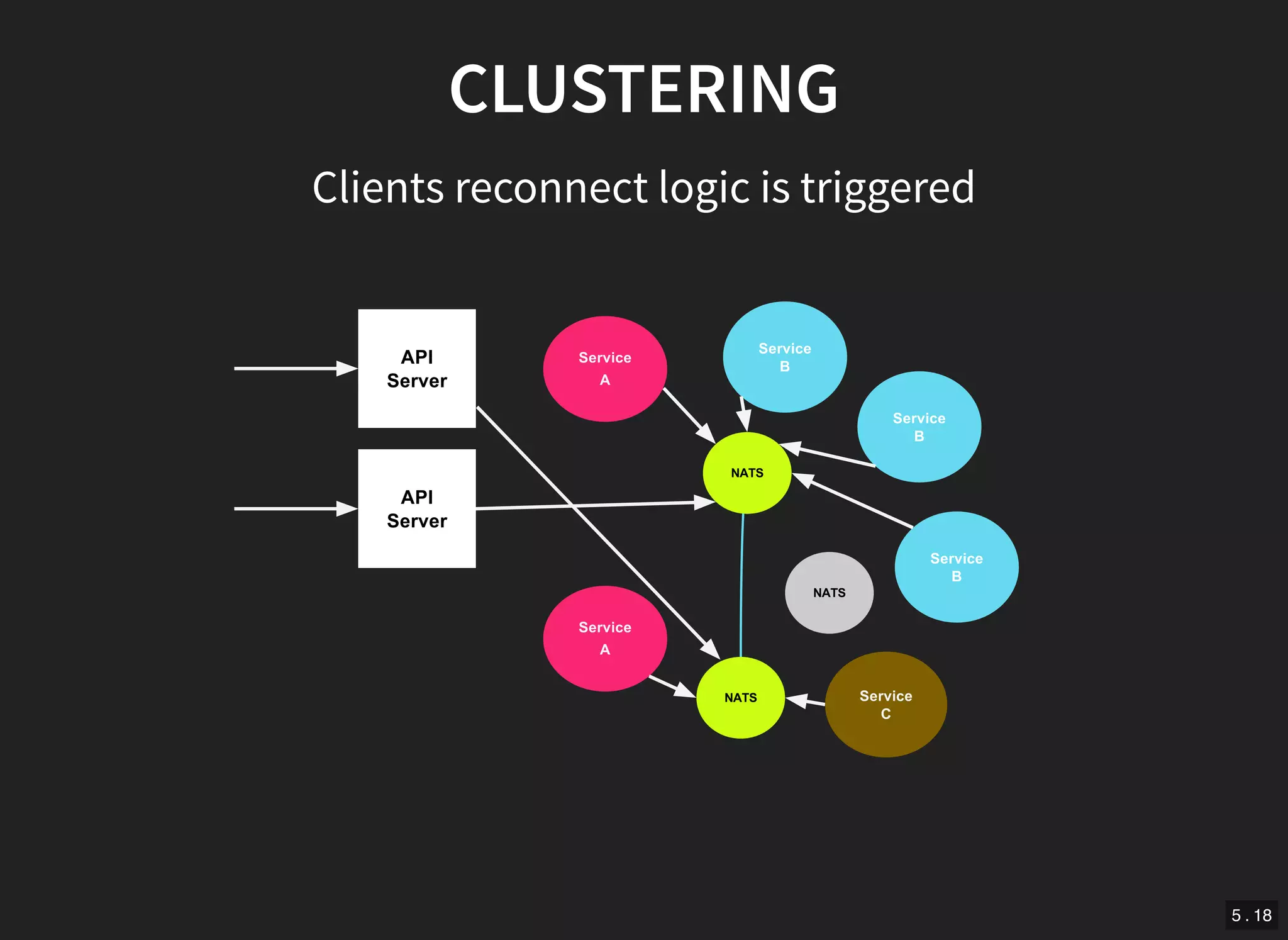

CLUSTERING
Clients reconnect logic is triggered

5 . 19
CLUSTERING

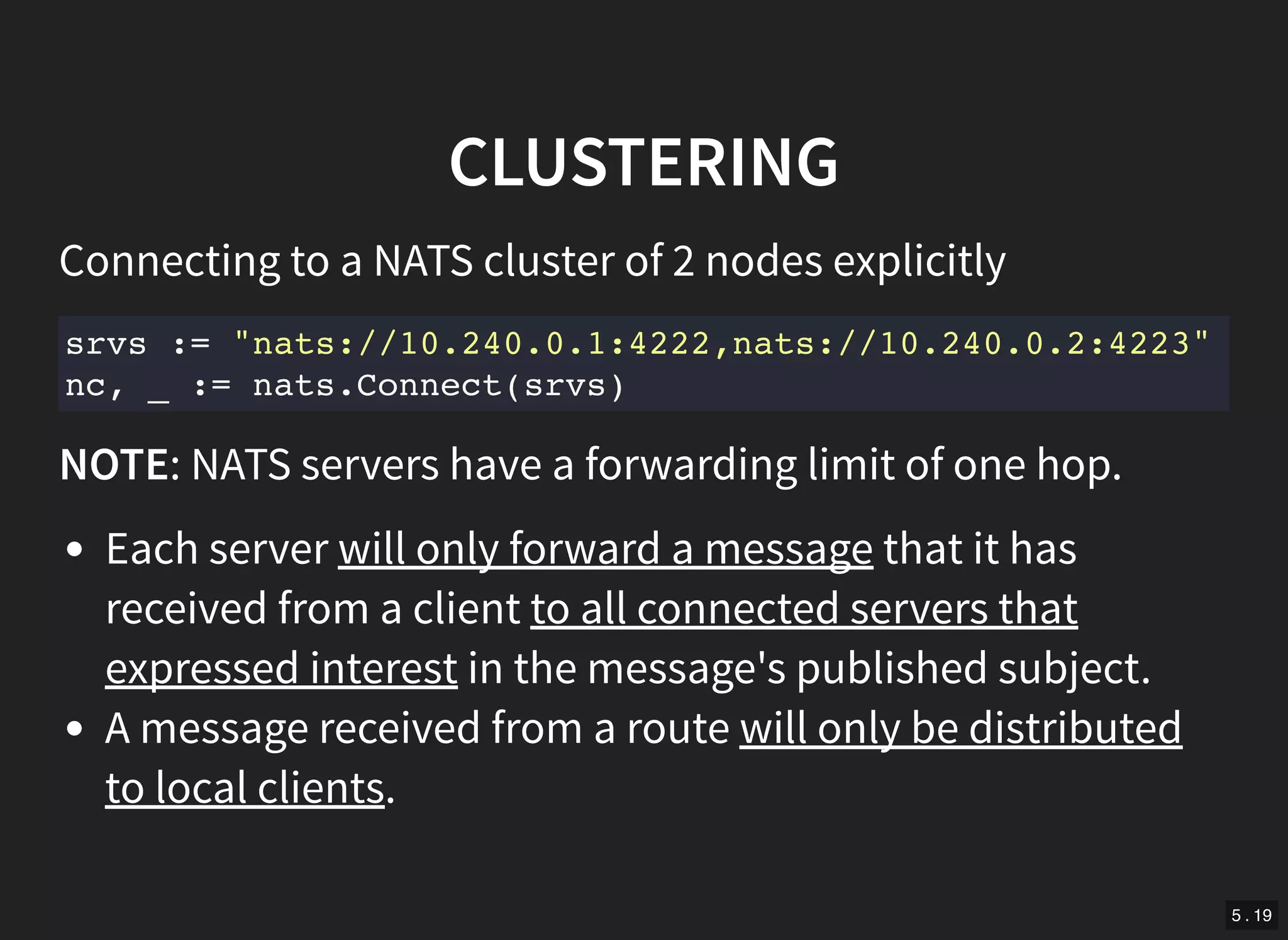

Connecting to a NATS cluster of 2 nodes explicitly
srvs := "nats://10.240.0.1:4222,nats://10.240.0.2:4223"
nc, _ := nats.Connect(srvs)
NOTE: NATS servers have a forwarding limit of one hop.
Each server will only forward a message that it has
received from a client to all connected servers that
expressed interest in the message's published subject.
A message received from a route will only be distributed
to local clients.

5 . 20
CLUSTERING

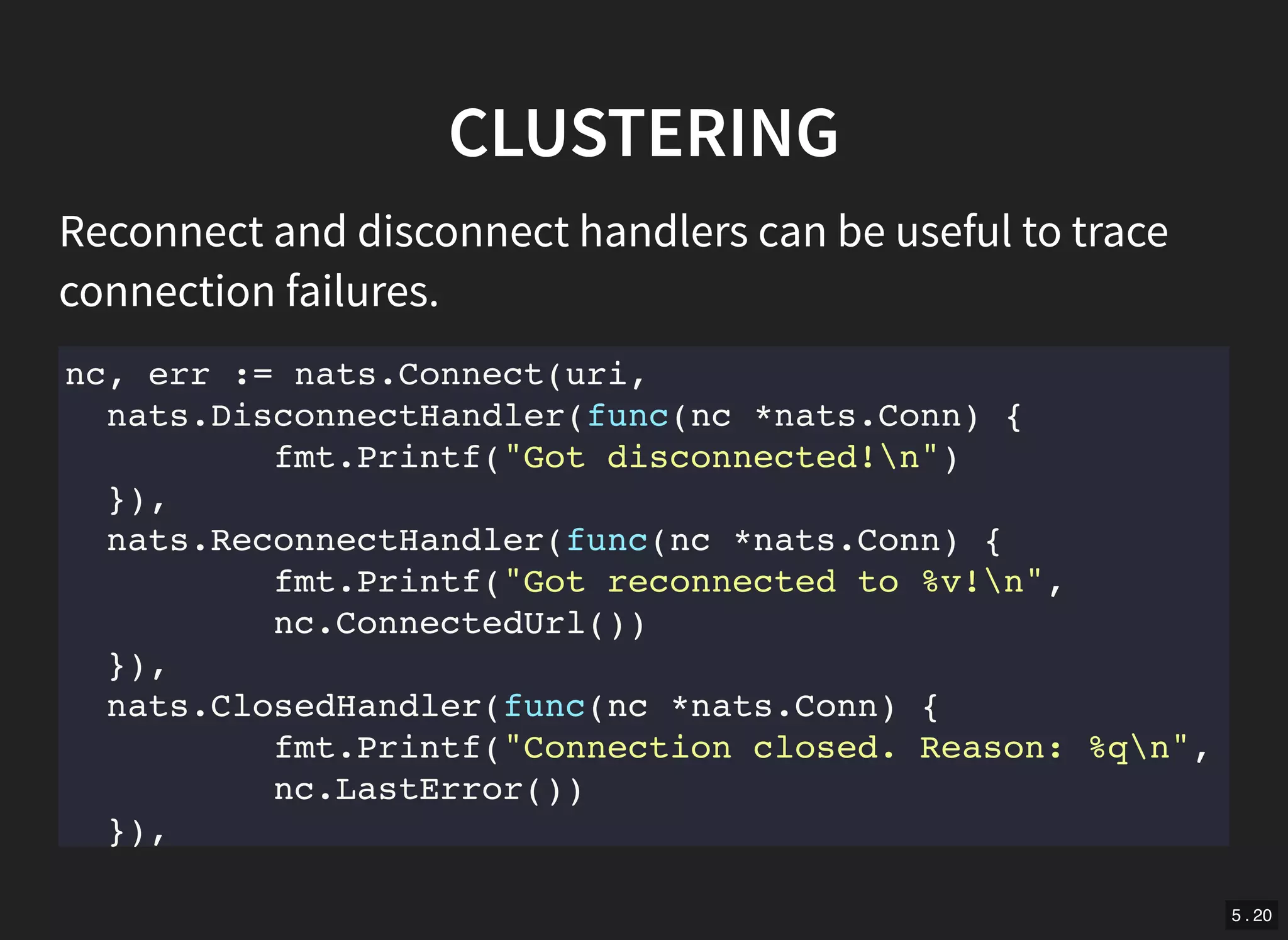

Reconnect and disconnect handlers can be useful to trace
connection failures.
nc, err := nats.Connect(uri,
nats.DisconnectHandler(func(nc *nats.Conn) {
fmt.Printf("Got disconnected!n")
}),
nats.ReconnectHandler(func(nc *nats.Conn) {
fmt.Printf("Got reconnected to %v!n",
nc.ConnectedUrl())
}),
nats.ClosedHandler(func(nc *nats.Conn) {
fmt.Printf("Connection closed. Reason: %qn",
nc.LastError())
}),
)

5 . 21

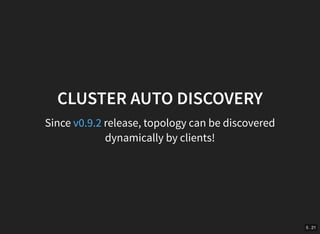

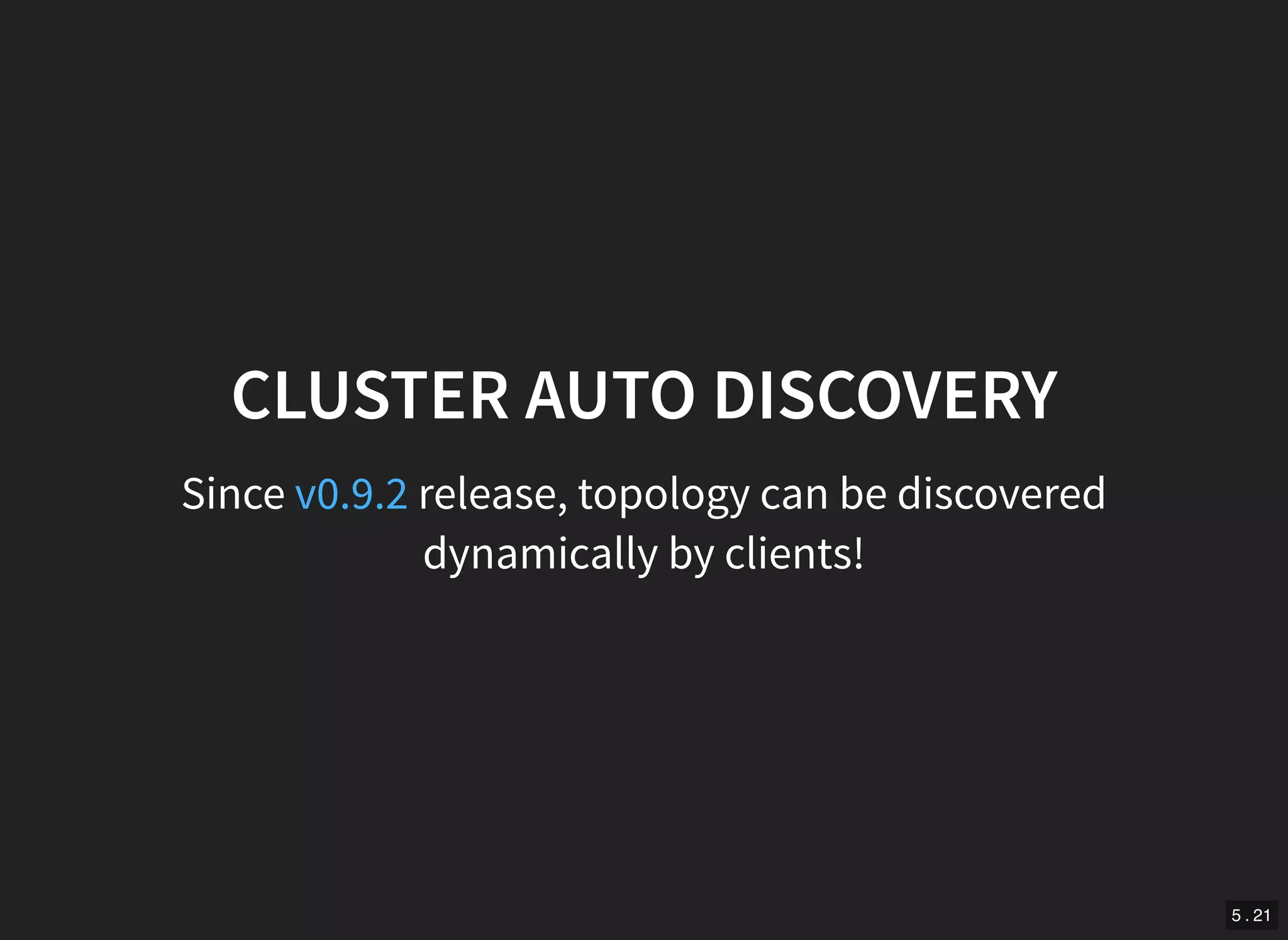

CLUSTER AUTO DISCOVERY
Since release, topology can be discovered
dynamically by clients!
v0.9.2

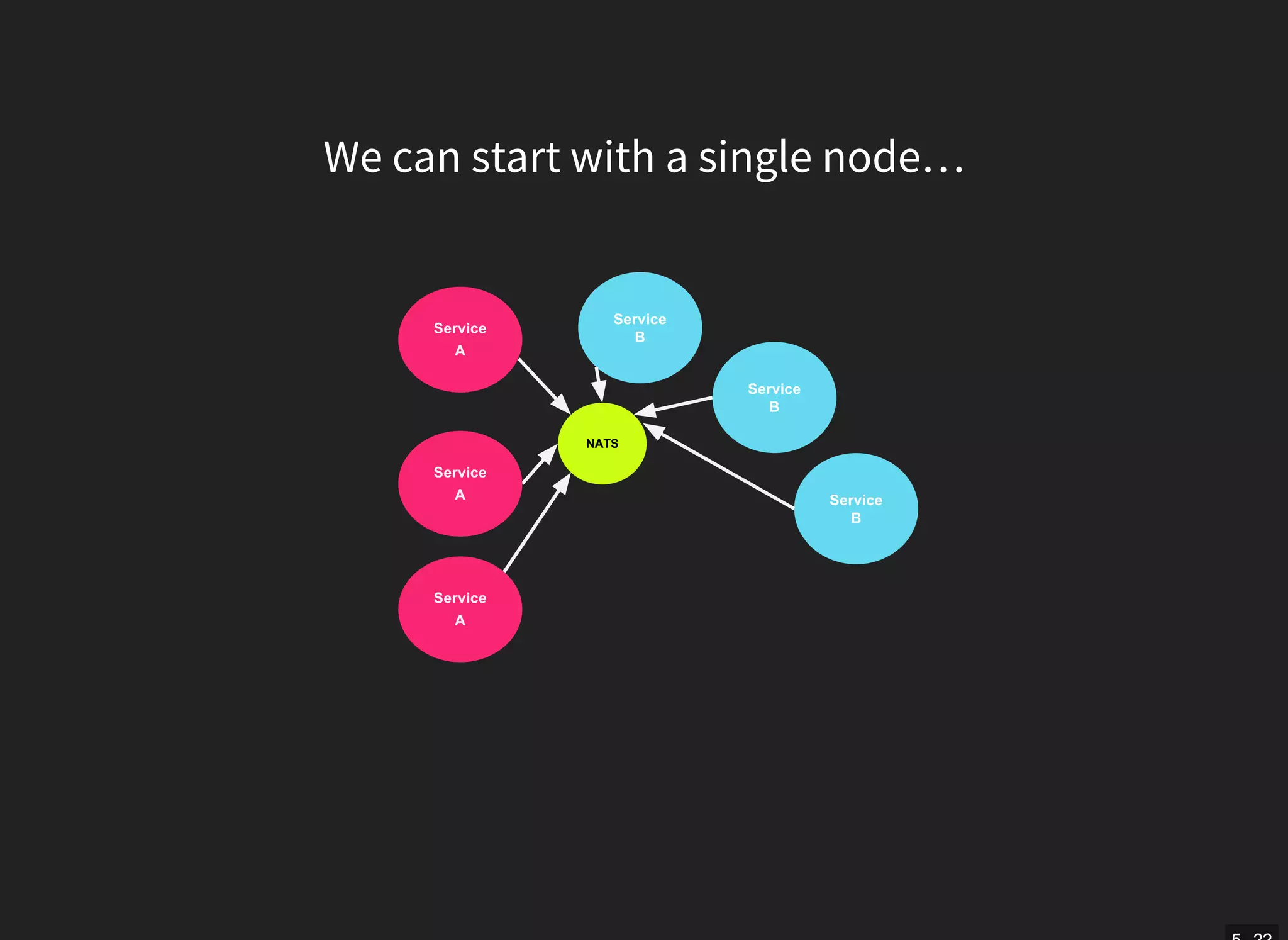

We can start with a single node…

5 . 22

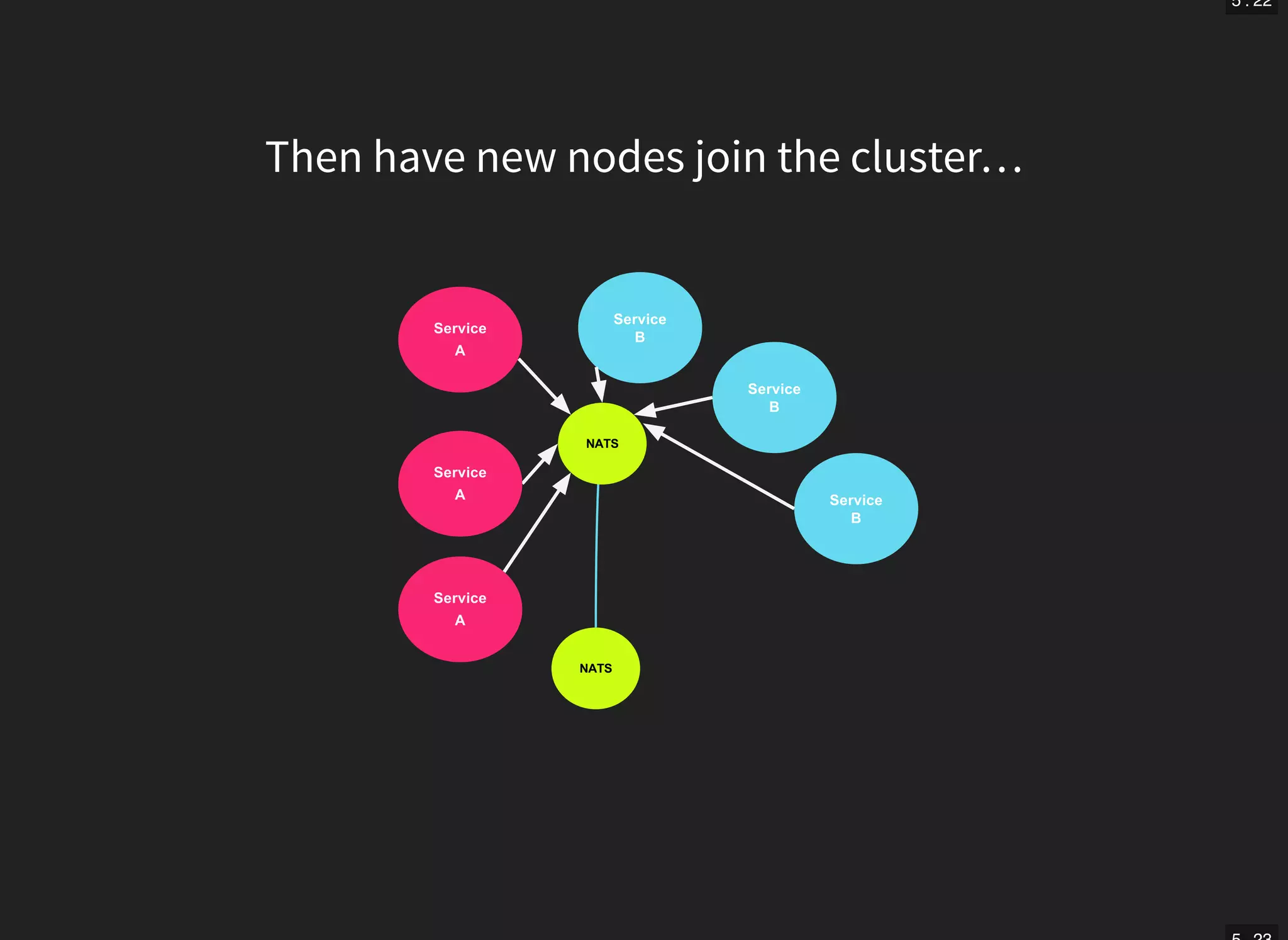

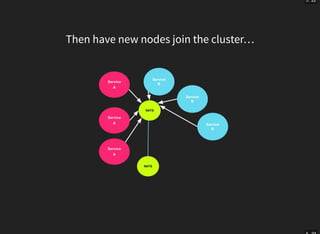

Then have new nodes join the cluster…

5 . 23
As new nodes join, server announces INFOto clients.

5 . 24

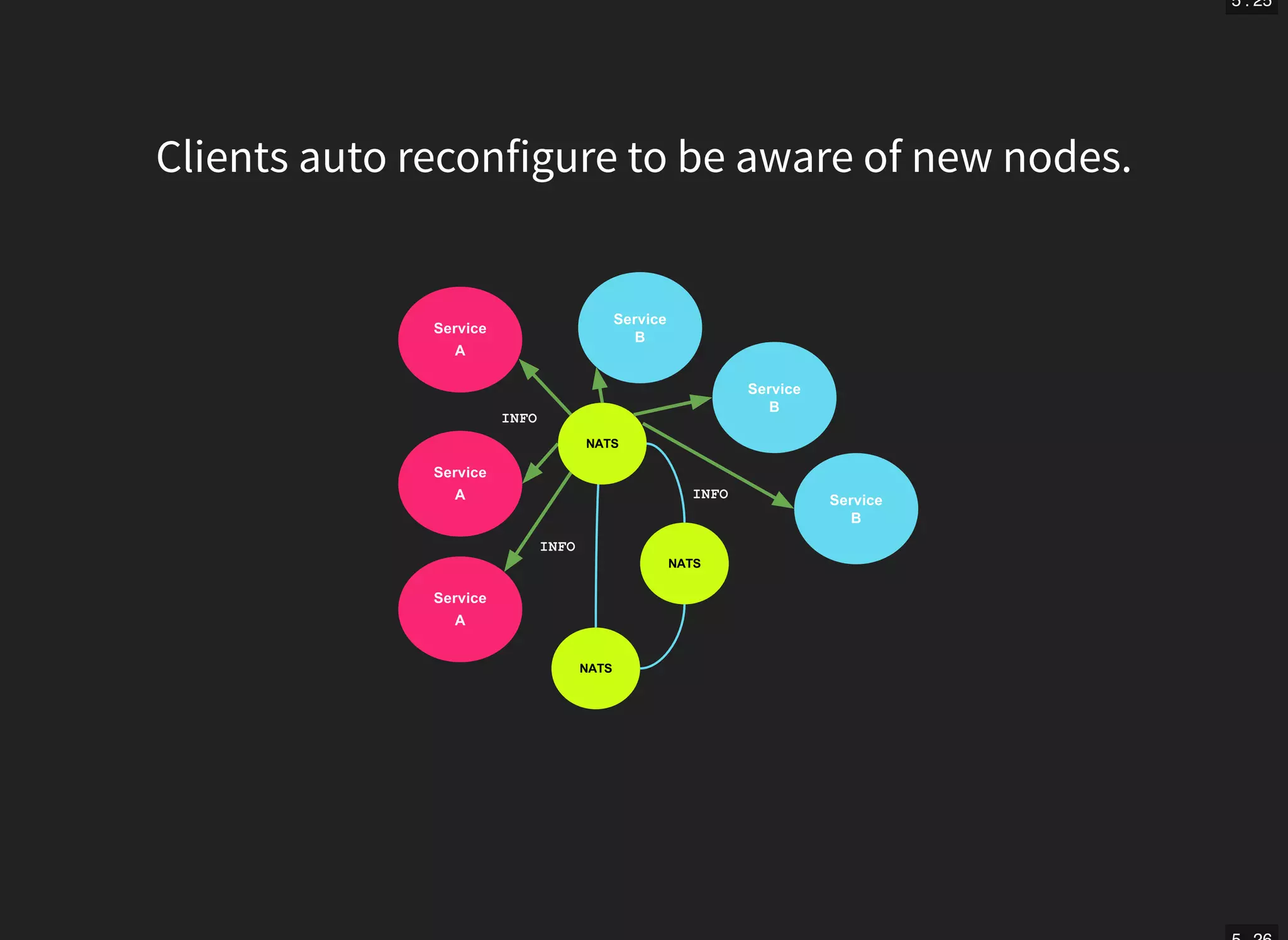

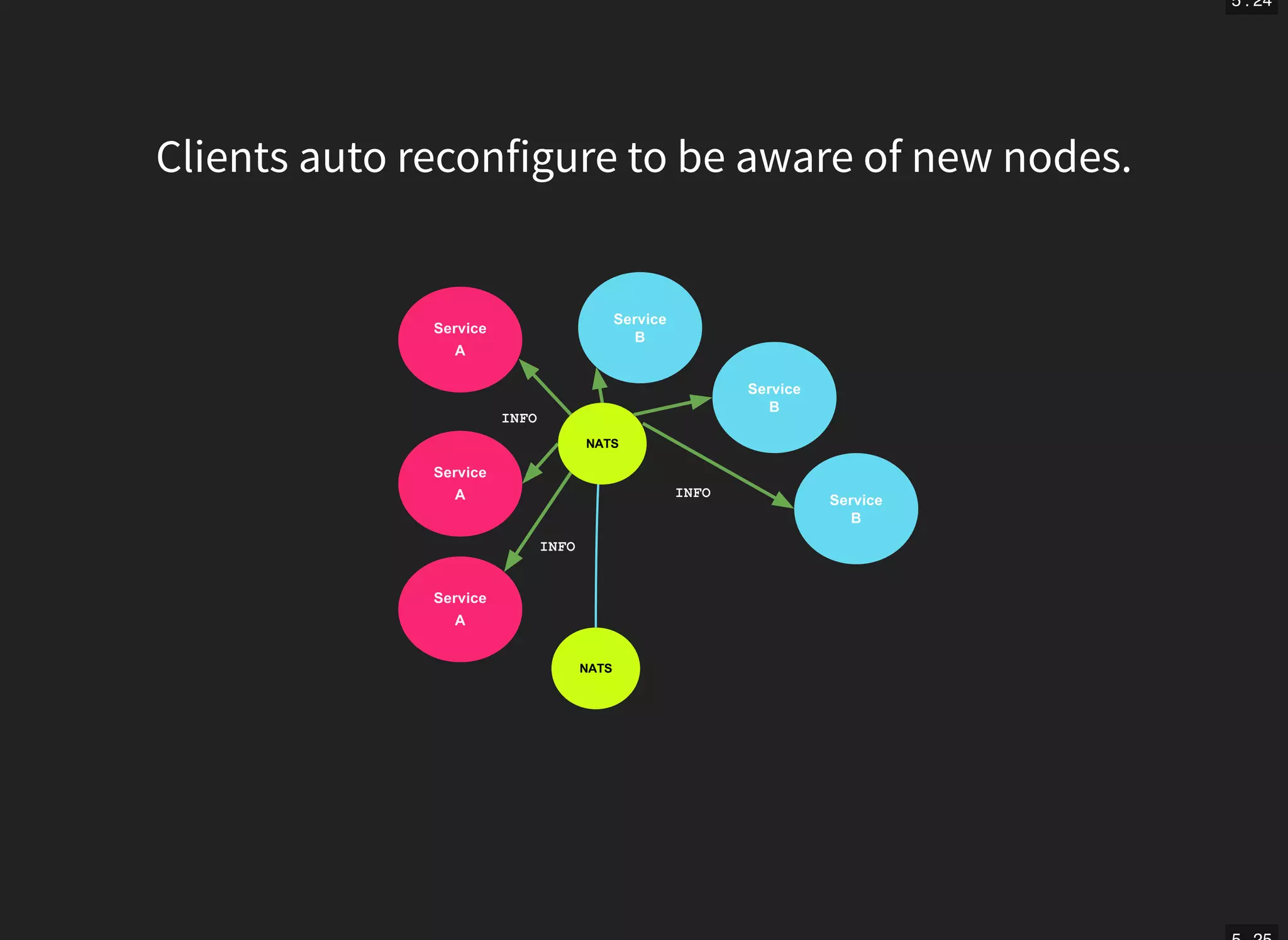

Clients auto reconfigure to be aware of new nodes.

5 . 25

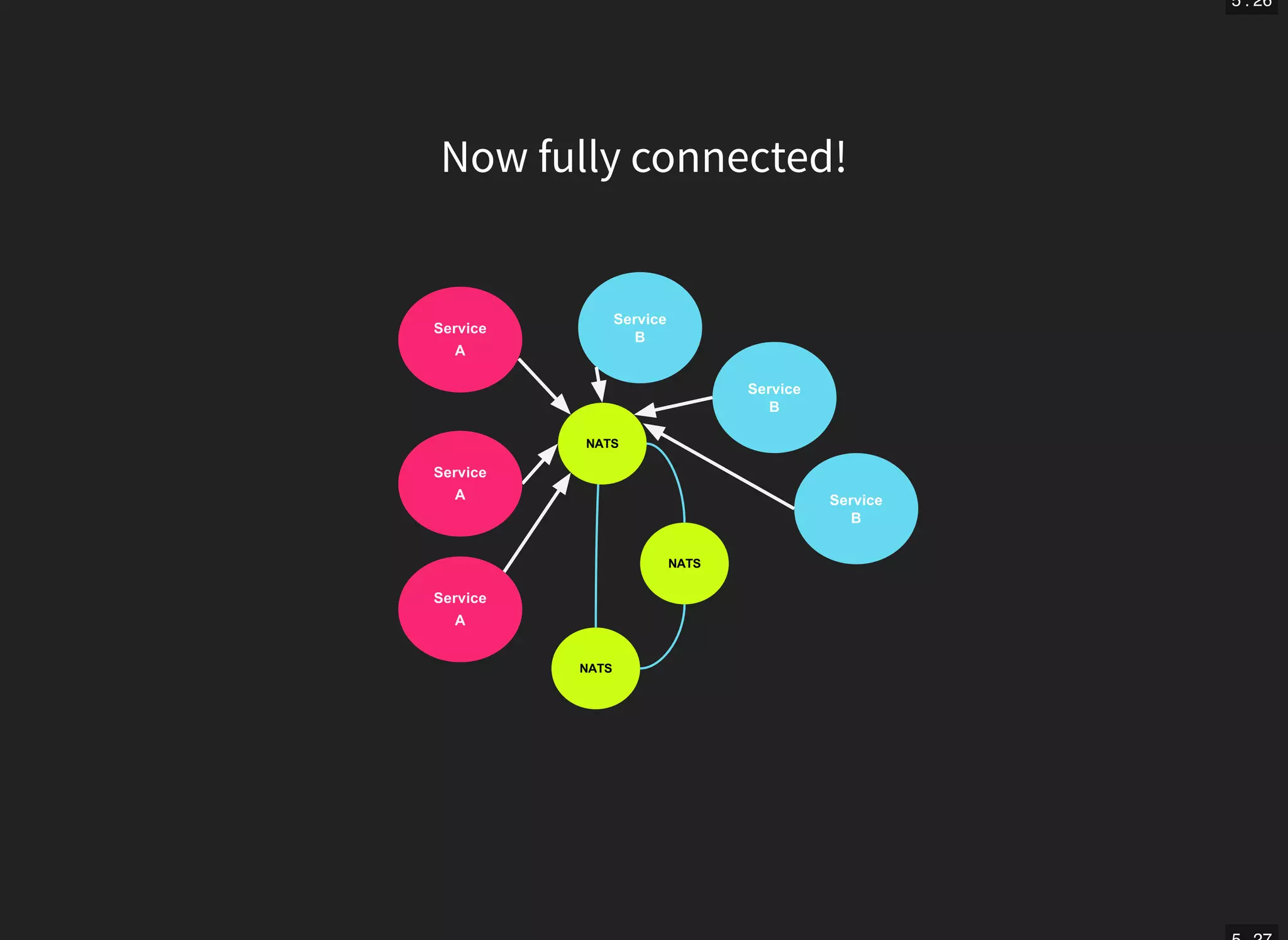

Clients auto reconfigure to be aware of new nodes.

5 . 27

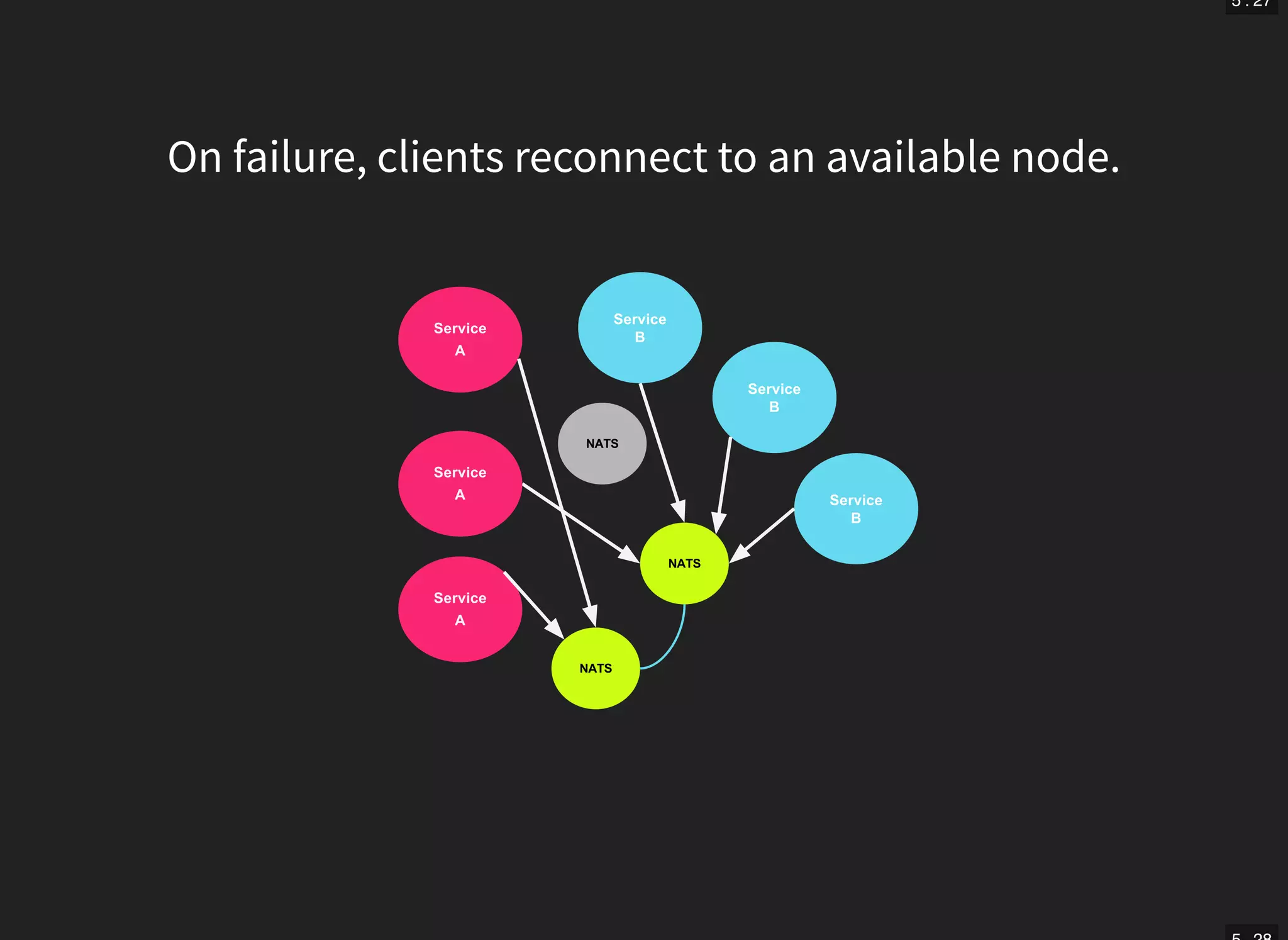

On failure, clients reconnect to an available node.

5 . 28
5 . 29

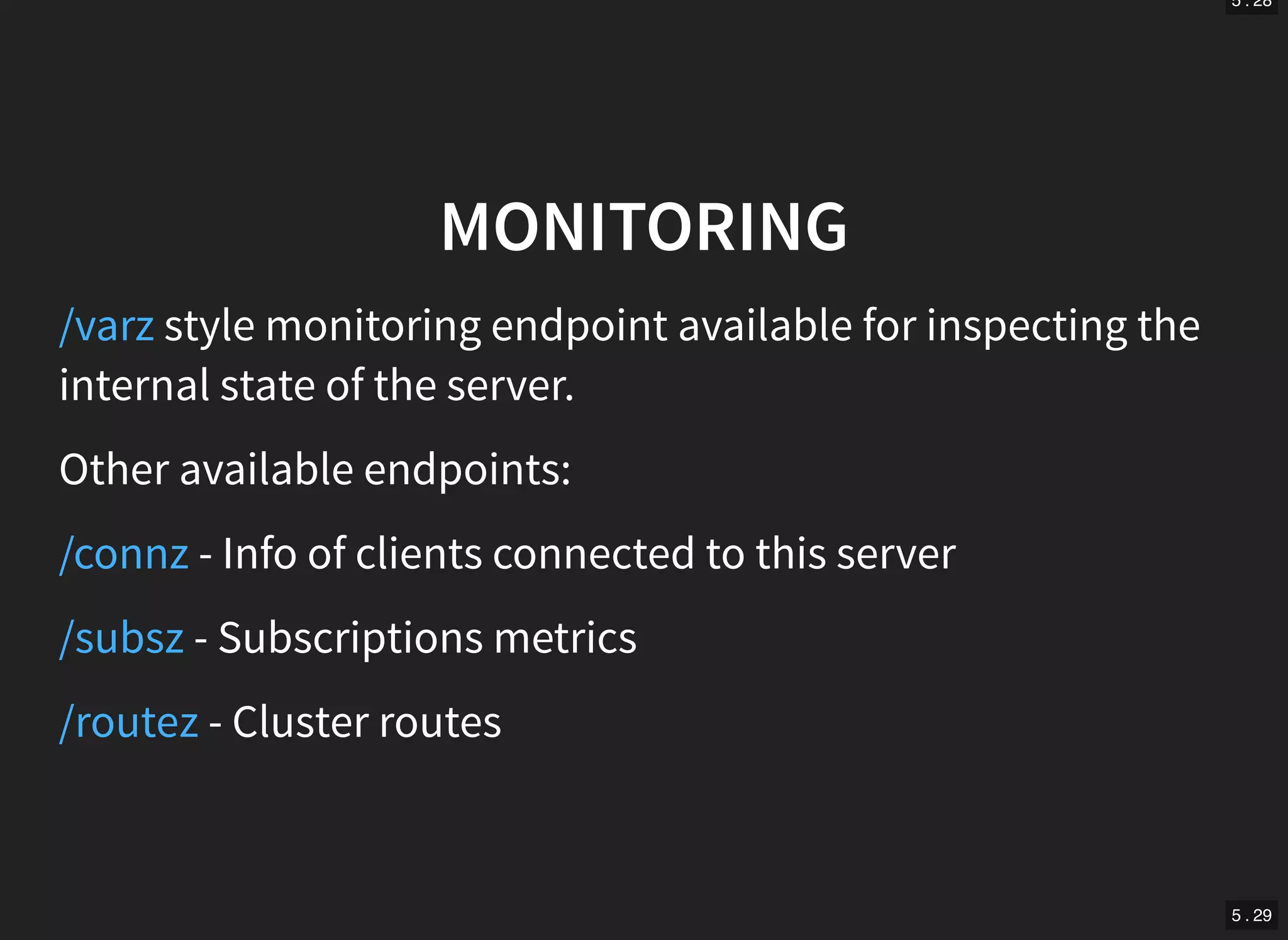

MONITORING
style monitoring endpoint available for inspecting the
internal state of the server.
/varz
Other available endpoints:
- Info of clients connected to this server/connz
- Subscriptions metrics/subsz
- Cluster routes/routez

5 . 30

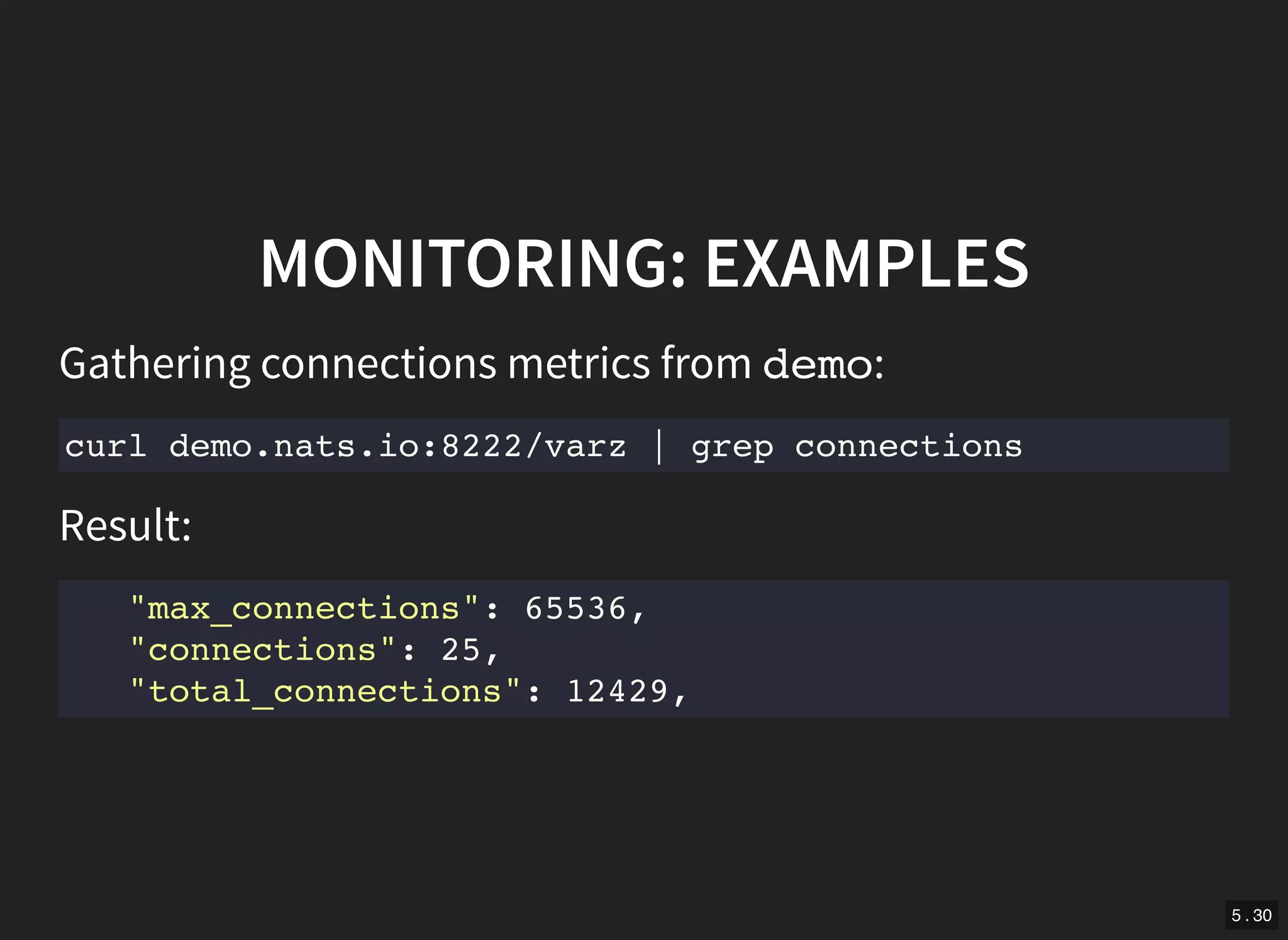

MONITORING: EXAMPLES
Gathering connections metrics from demo:
curl demo.nats.io:8222/varz | grep connections
Result:
"max_connections": 65536,
"connections": 25,
"total_connections": 12429,

5 . 31
MONITORING: EXAMPLES

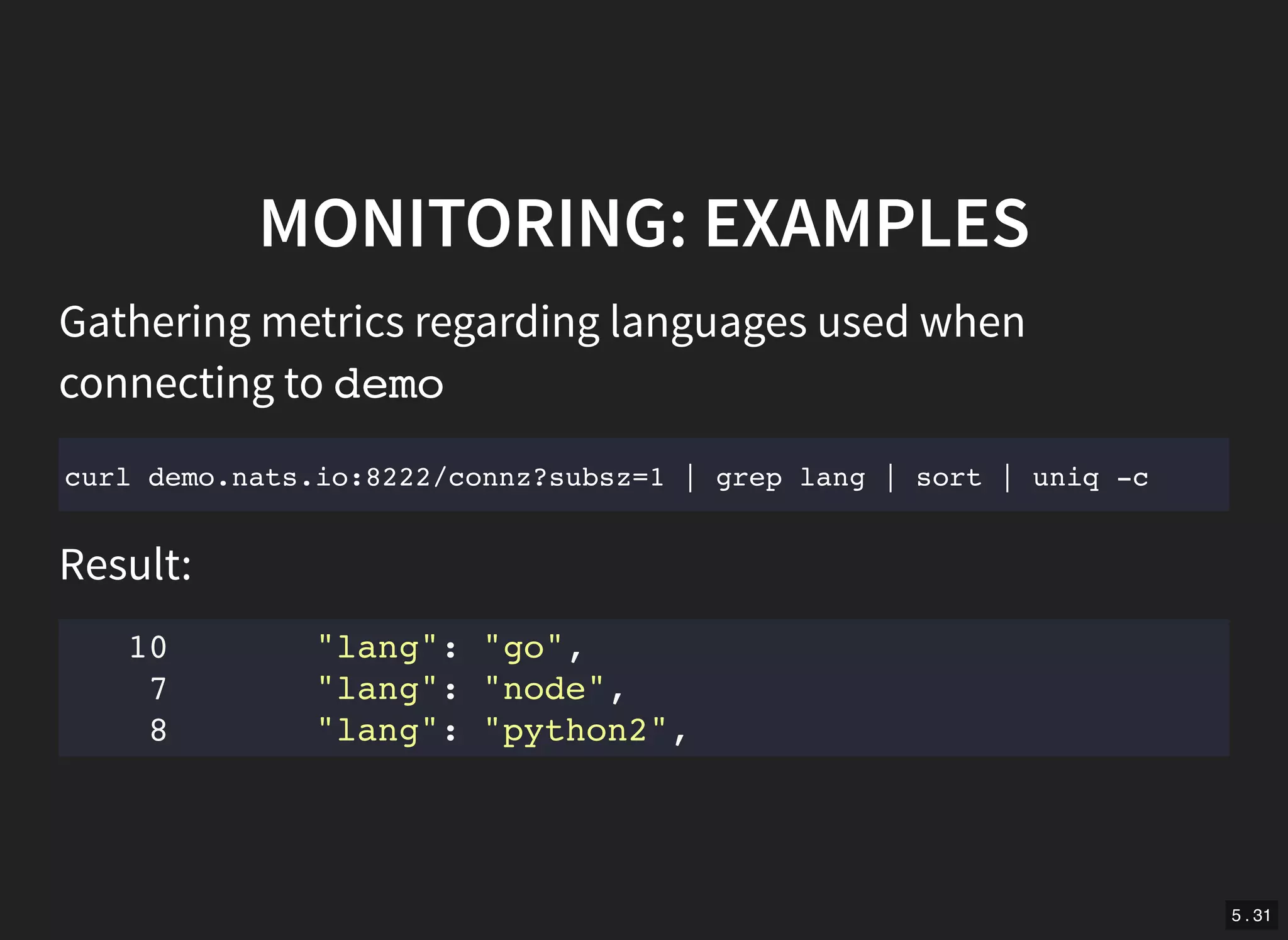

Gathering metrics regarding languages used when
connecting to demo
curl demo.nats.io:8222/connz?subsz=1 | grep lang | sort | uniq -c
Result:
10 "lang": "go",
7 "lang": "node",
8 "lang": "python2",

5 . 32
MONITORING

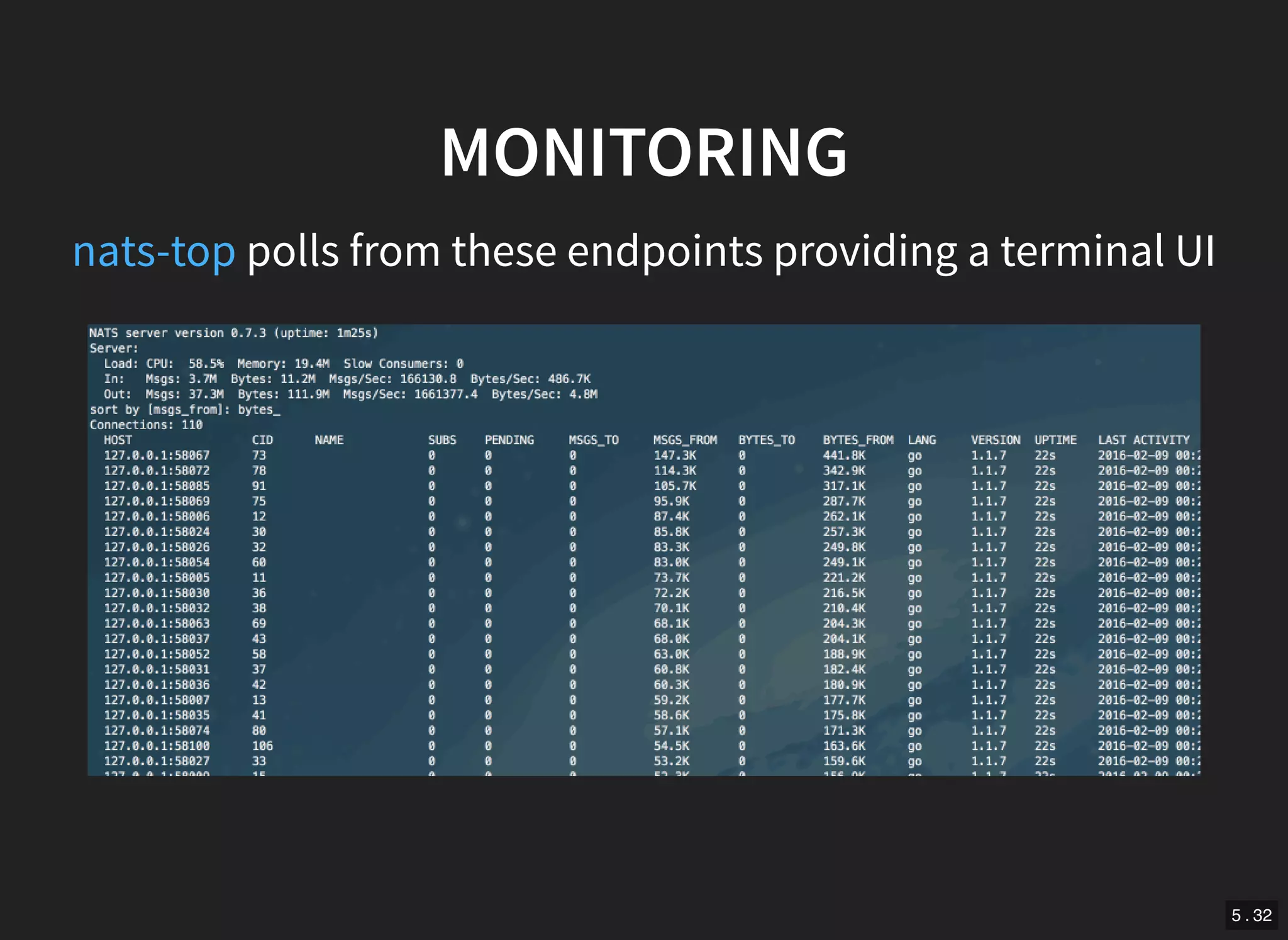

polls from these endpoints providing a terminal UInats-top

5 . 33

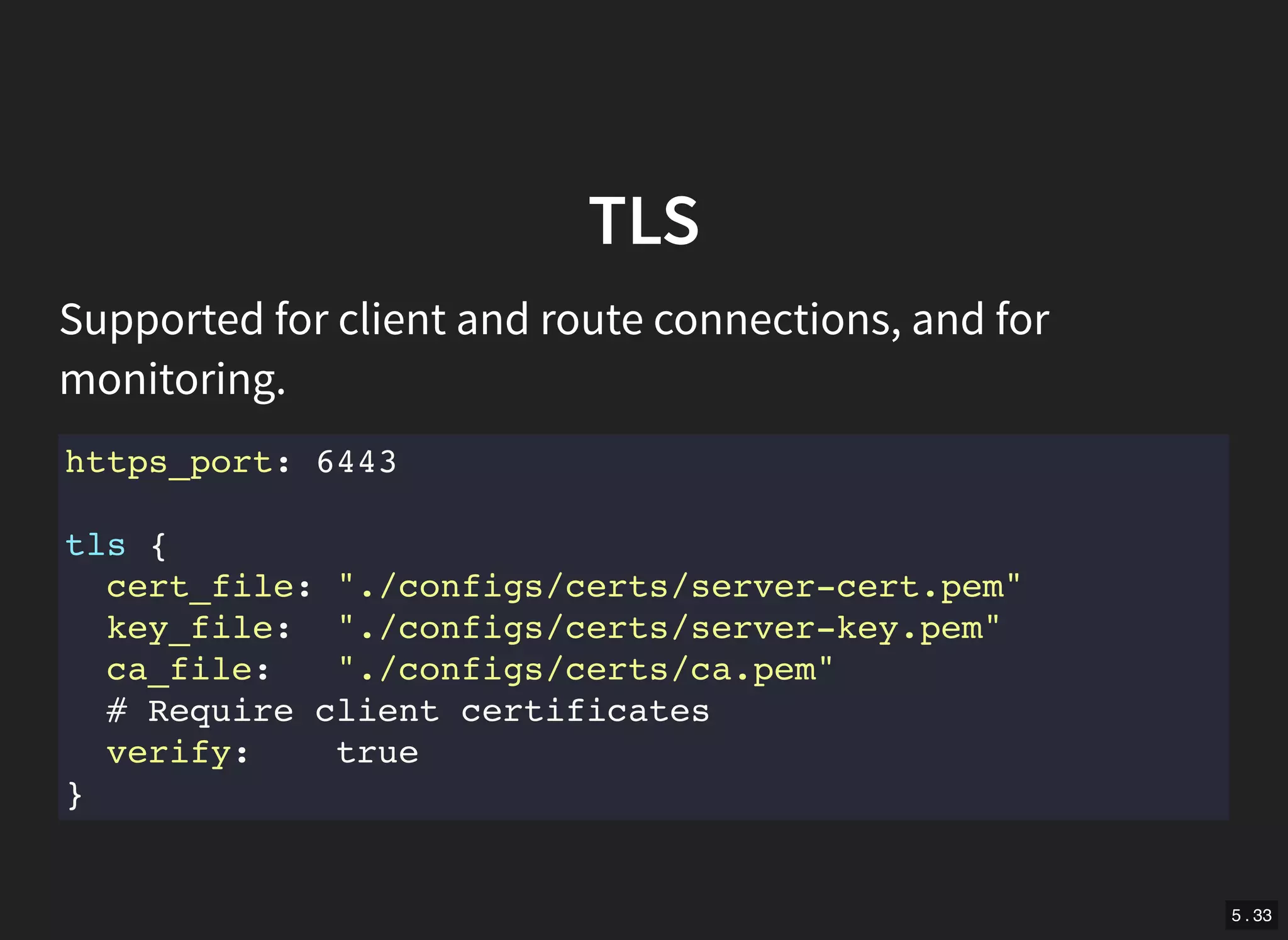

TLS
Supported for client and route connections, and for
monitoring.
https_port: 6443
tls {
cert_file: "./configs/certs/server-cert.pem"
key_file: "./configs/certs/server-key.pem"
ca_file: "./configs/certs/ca.pem"
# Require client certificates
verify: true
}

5 . 34

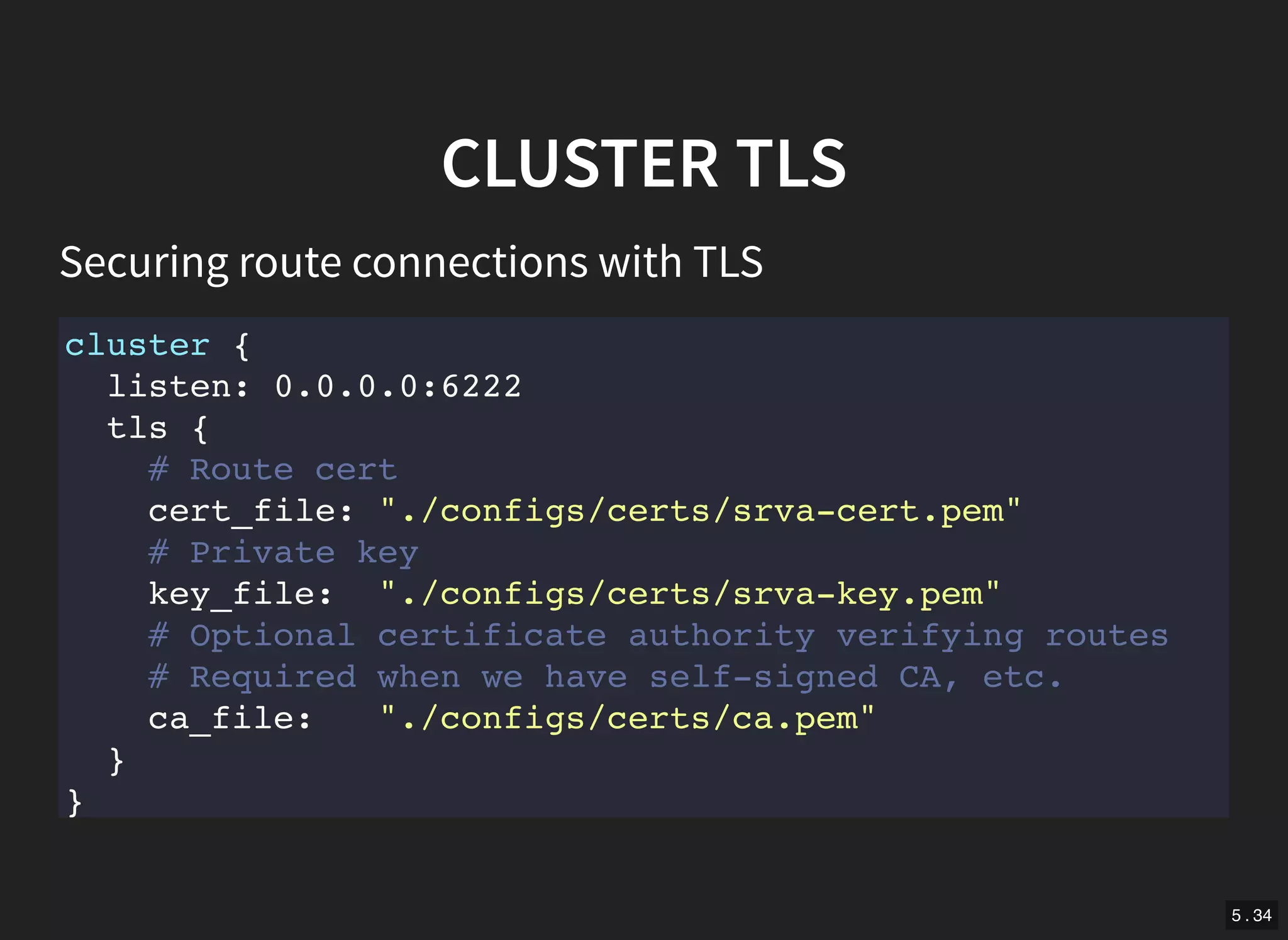

CLUSTER TLS
Securing route connections with TLS
cluster {
listen: 0.0.0.0:6222
tls {
# Route cert
cert_file: "./configs/certs/srva-cert.pem"
# Private key
key_file: "./configs/certs/srva-key.pem"
# Optional certificate authority verifying routes
# Required when we have self-signed CA, etc.
ca_file: "./configs/certs/ca.pem"
}
}

5 . 35

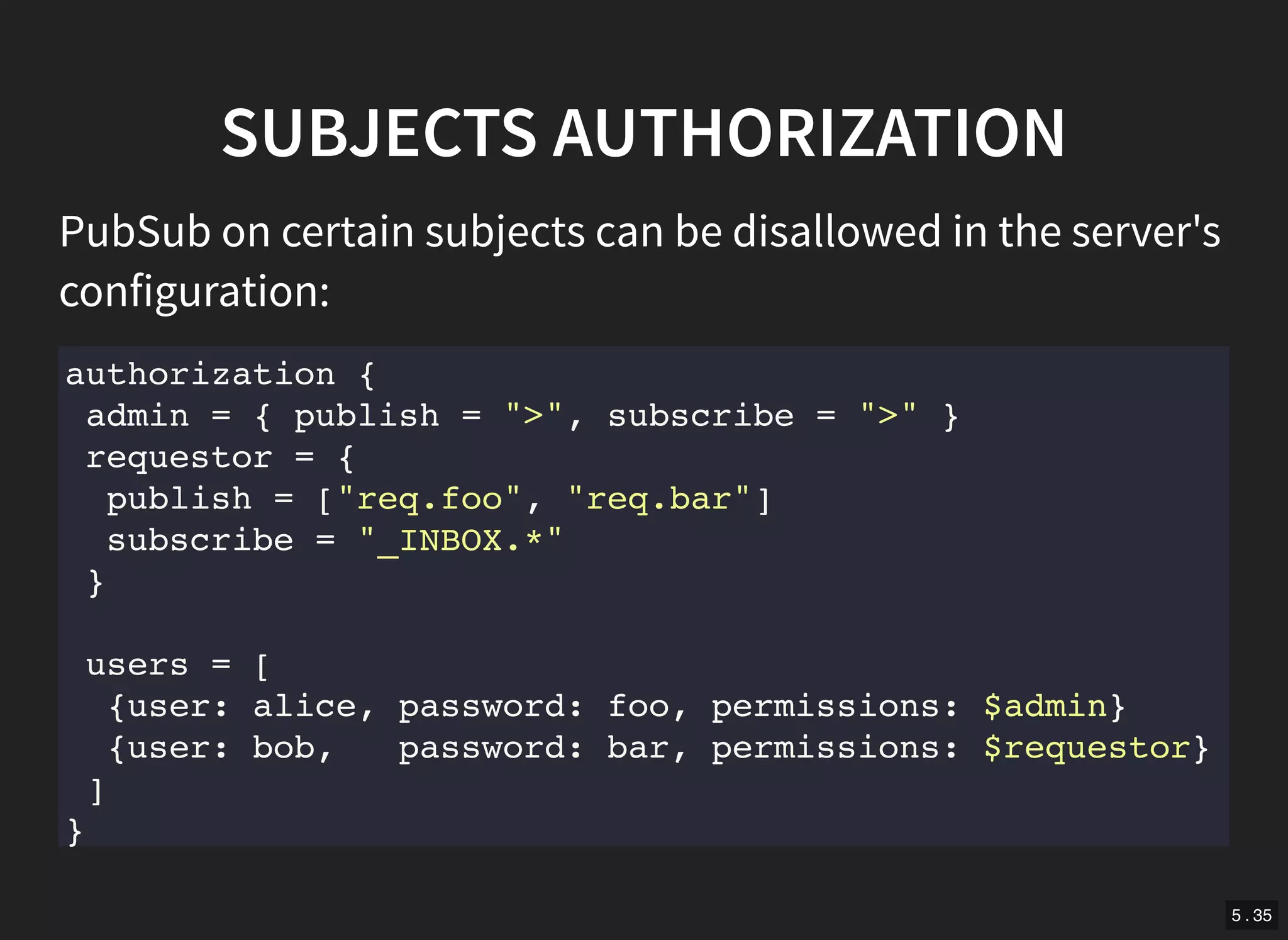

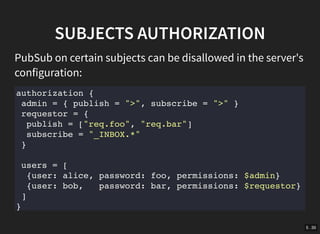

SUBJECTS AUTHORIZATION
PubSub on certain subjects can be disallowed in the server's
configuration:
authorization {
admin = { publish = ">", subscribe = ">" }
requestor = {
publish = ["req.foo", "req.bar"]
subscribe = "_INBOX.*"
}
users = [
{user: alice, password: foo, permissions: $admin}
{user: bob, password: bar, permissions: $requestor}
]
}

5 . 36

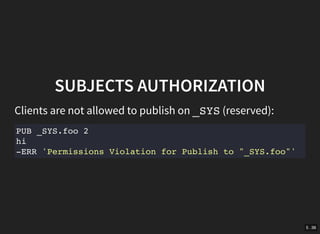

SUBJECTS AUTHORIZATION

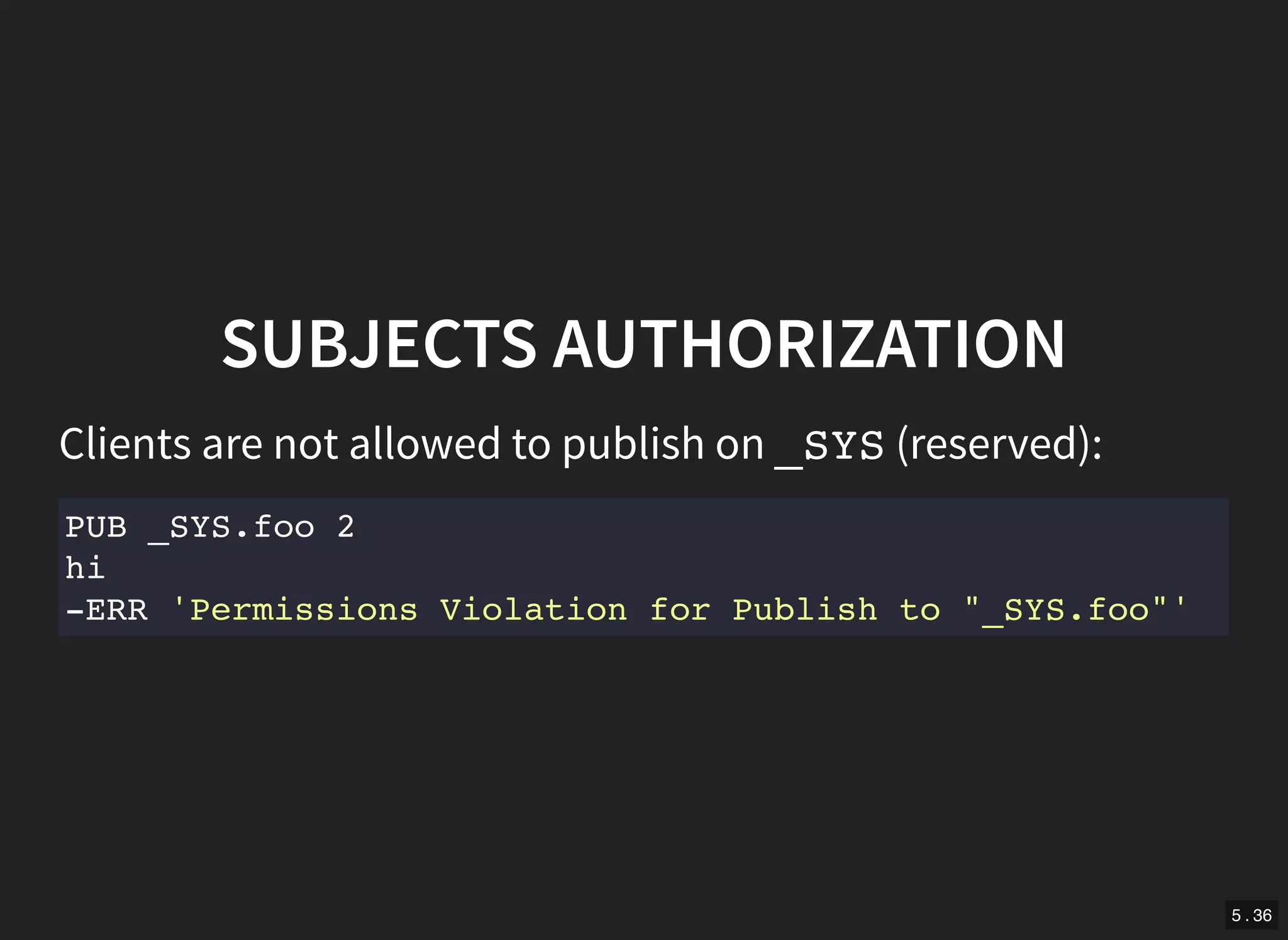

Clients are not allowed to publish on _SYS(reserved):
PUB _SYS.foo 2
hi
-ERR 'Permissions Violation for Publish to "_SYS.foo"'

6 . 1
NATS and the Docker tooling

6 . 2

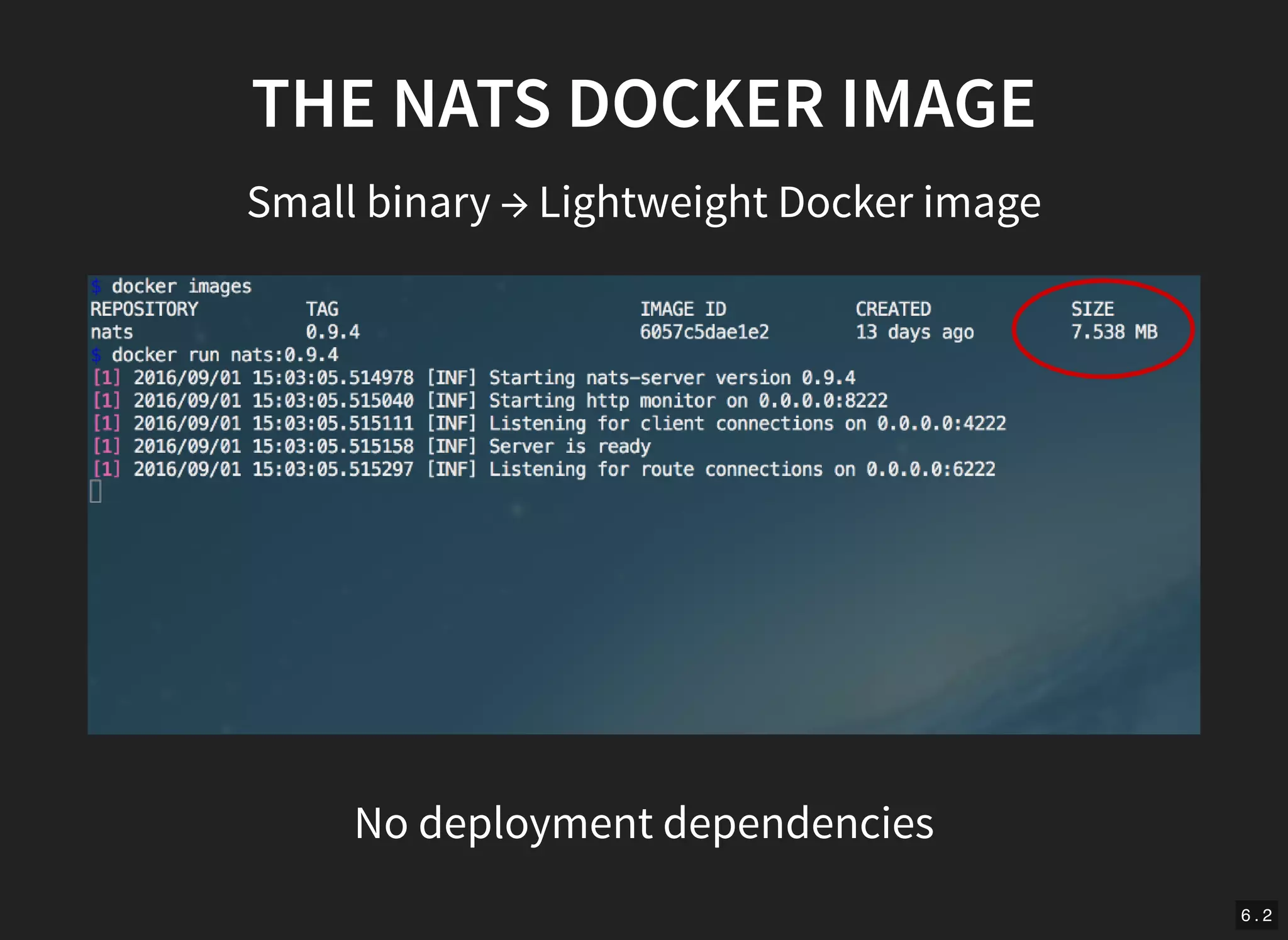

THE NATS DOCKER IMAGE
Small binary → Lightweight Docker image
No deployment dependencies

6 . 4

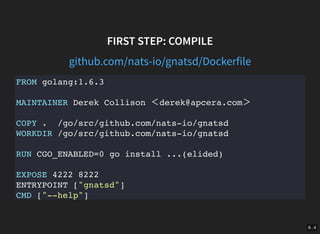

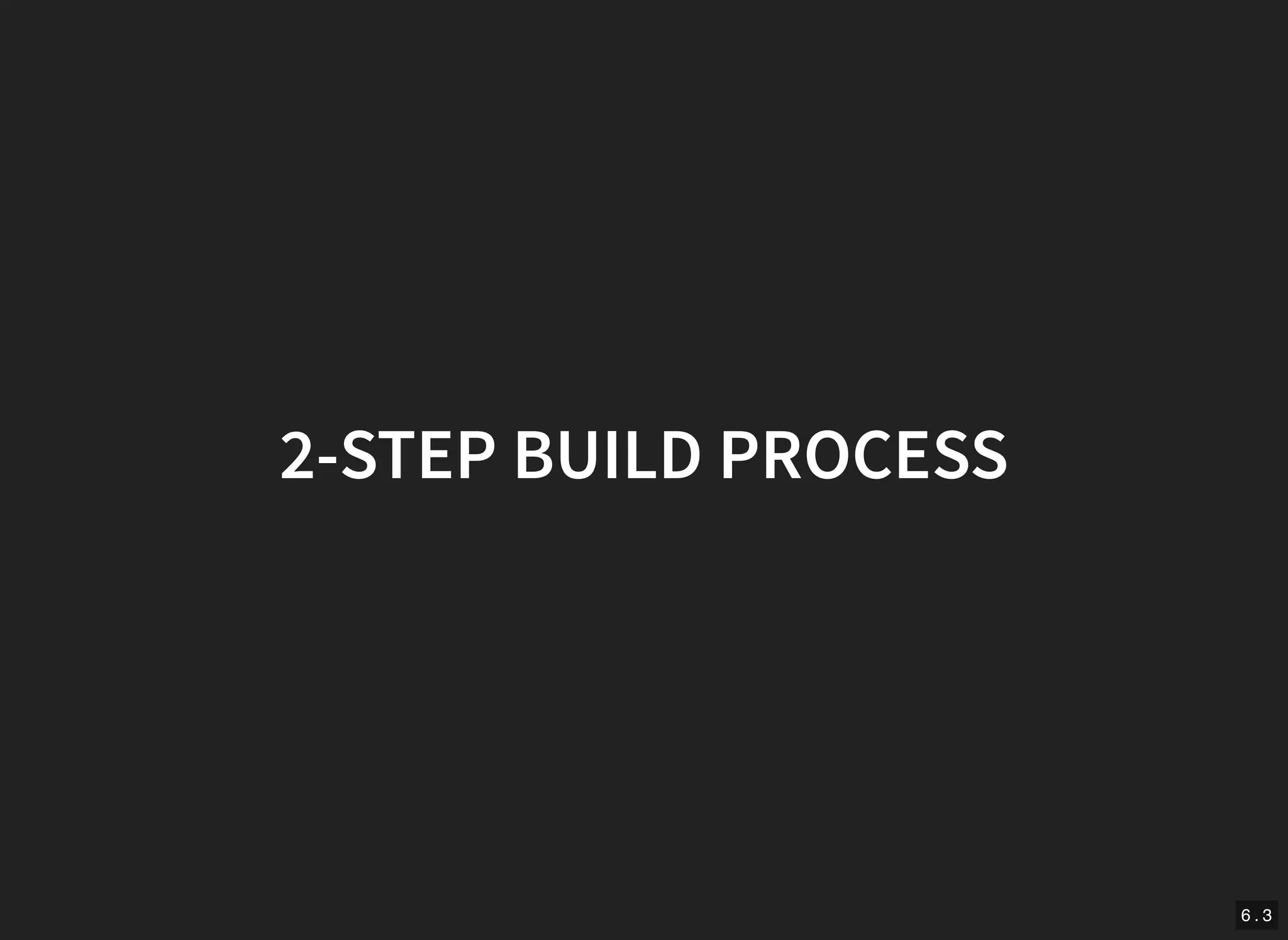

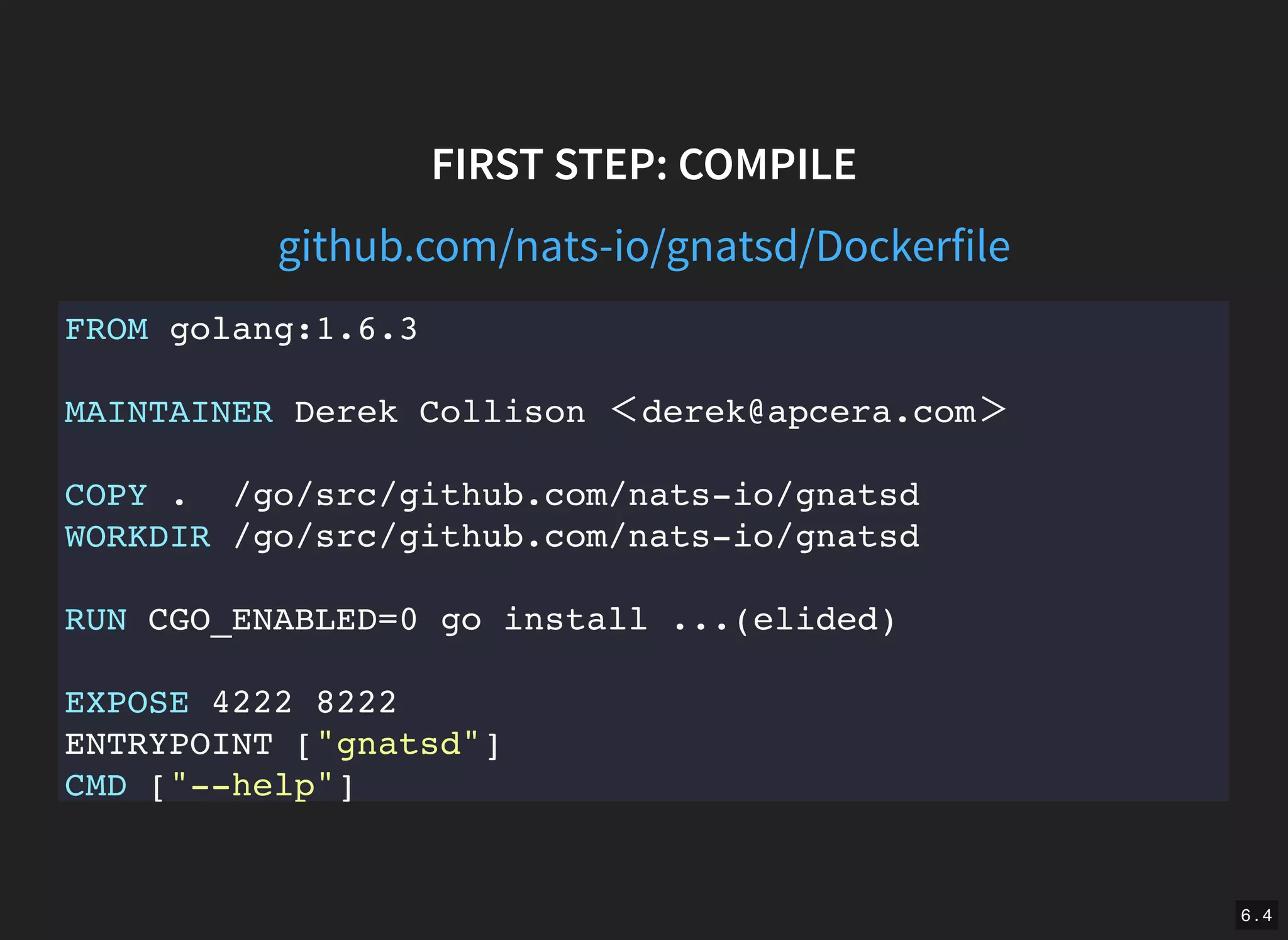

FIRST STEP: COMPILE
github.com/nats-io/gnatsd/Dockerfile
FROM golang:1.6.3
MAINTAINER Derek Collison ＜derek@apcera.com＞
COPY . /go/src/github.com/nats-io/gnatsd
WORKDIR /go/src/github.com/nats-io/gnatsd
RUN CGO_ENABLED=0 go install ...(elided)
EXPOSE 4222 8222
ENTRYPOINT ["gnatsd"]
CMD ["--help"]

6 . 5

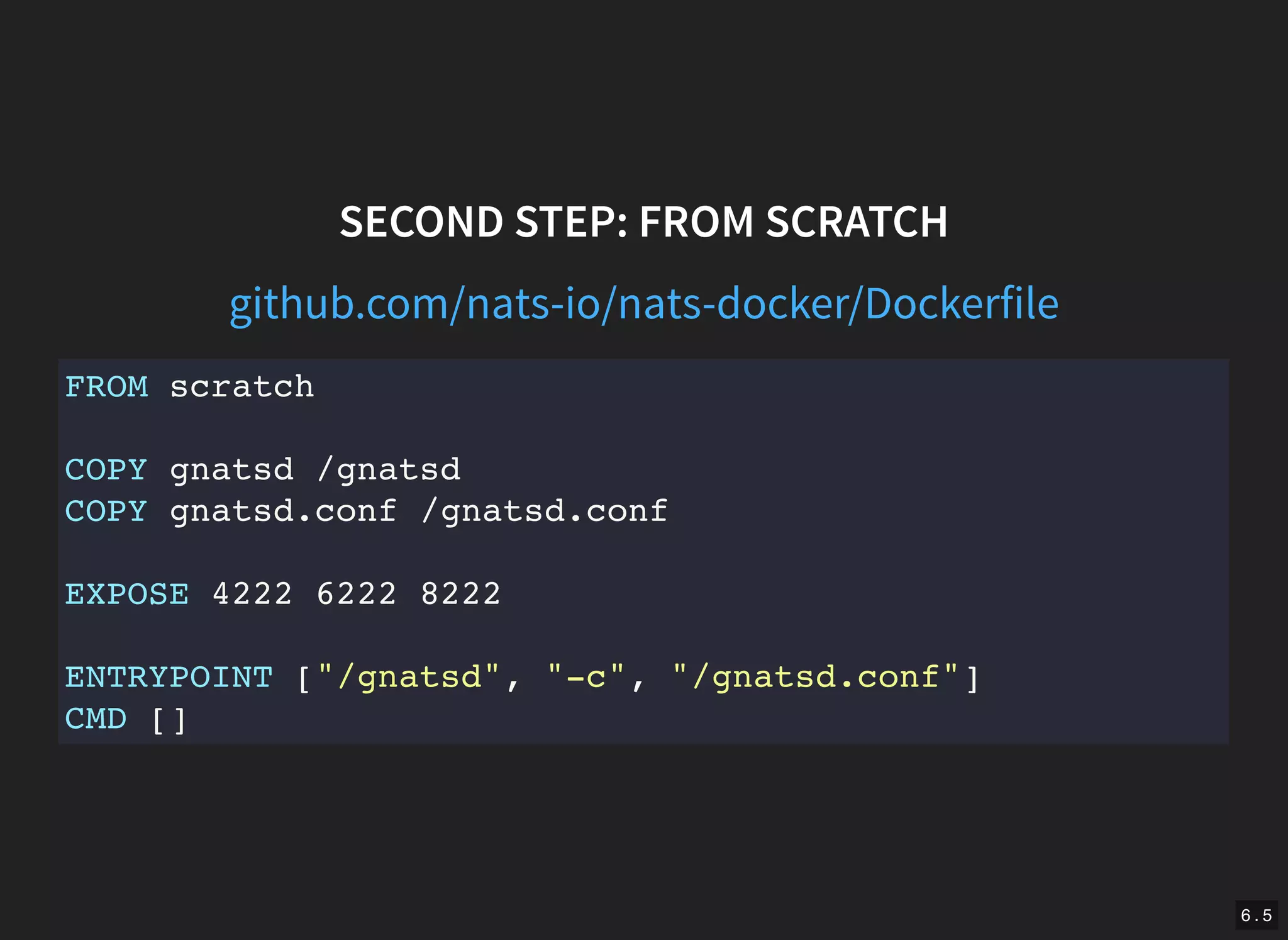

SECOND STEP: FROM SCRATCH
github.com/nats-io/nats-docker/Dockerfile
FROM scratch
COPY gnatsd /gnatsd
COPY gnatsd.conf /gnatsd.conf
EXPOSE 4222 6222 8222
ENTRYPOINT ["/gnatsd", "-c", "/gnatsd.conf"]
CMD []

6 . 6

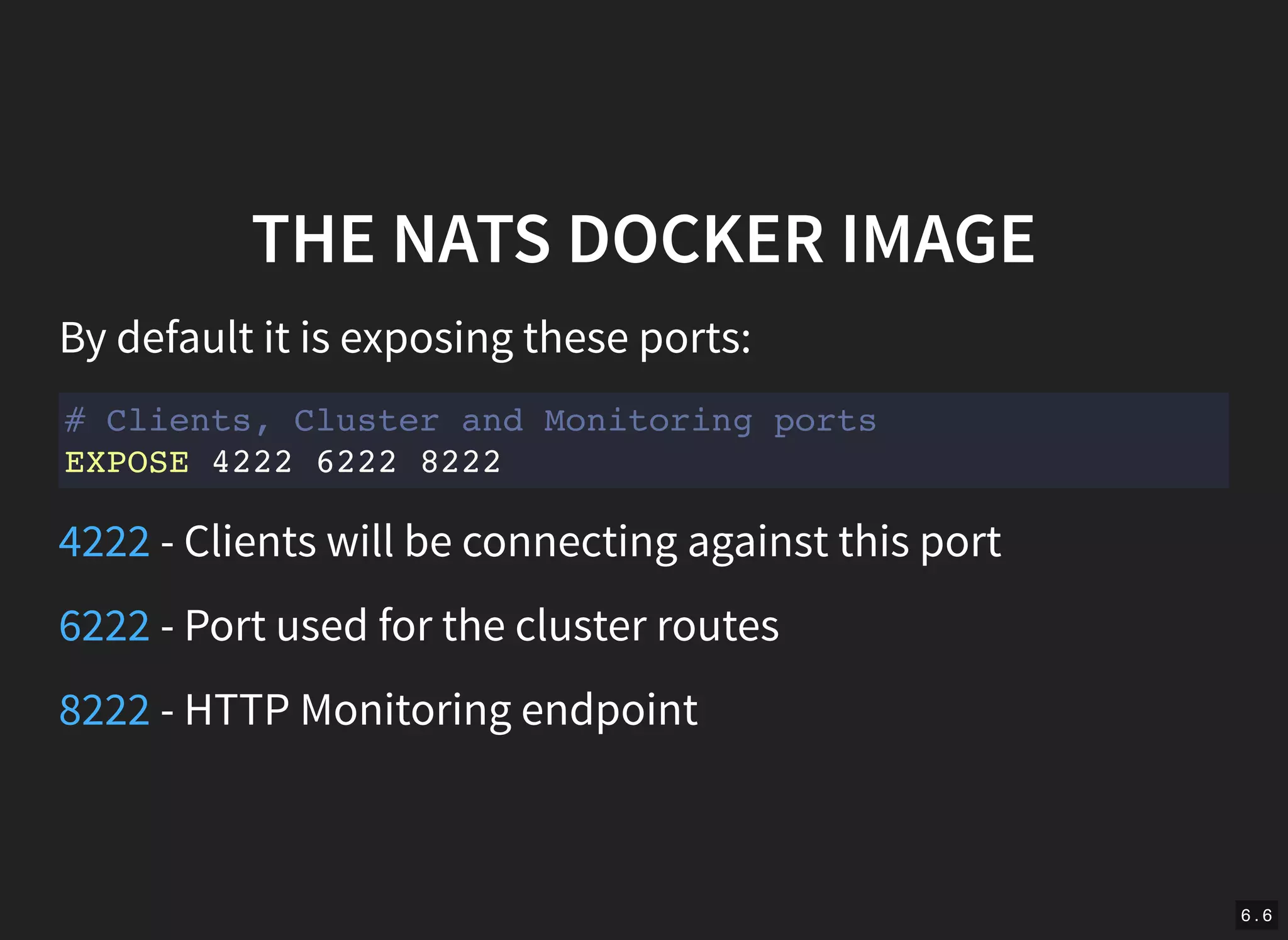

THE NATS DOCKER IMAGE
By default it is exposing these ports:
# Clients, Cluster and Monitoring ports
EXPOSE 4222 6222 8222
- Clients will be connecting against this port4222
- Port used for the cluster routes6222
- HTTP Monitoring endpoint8222

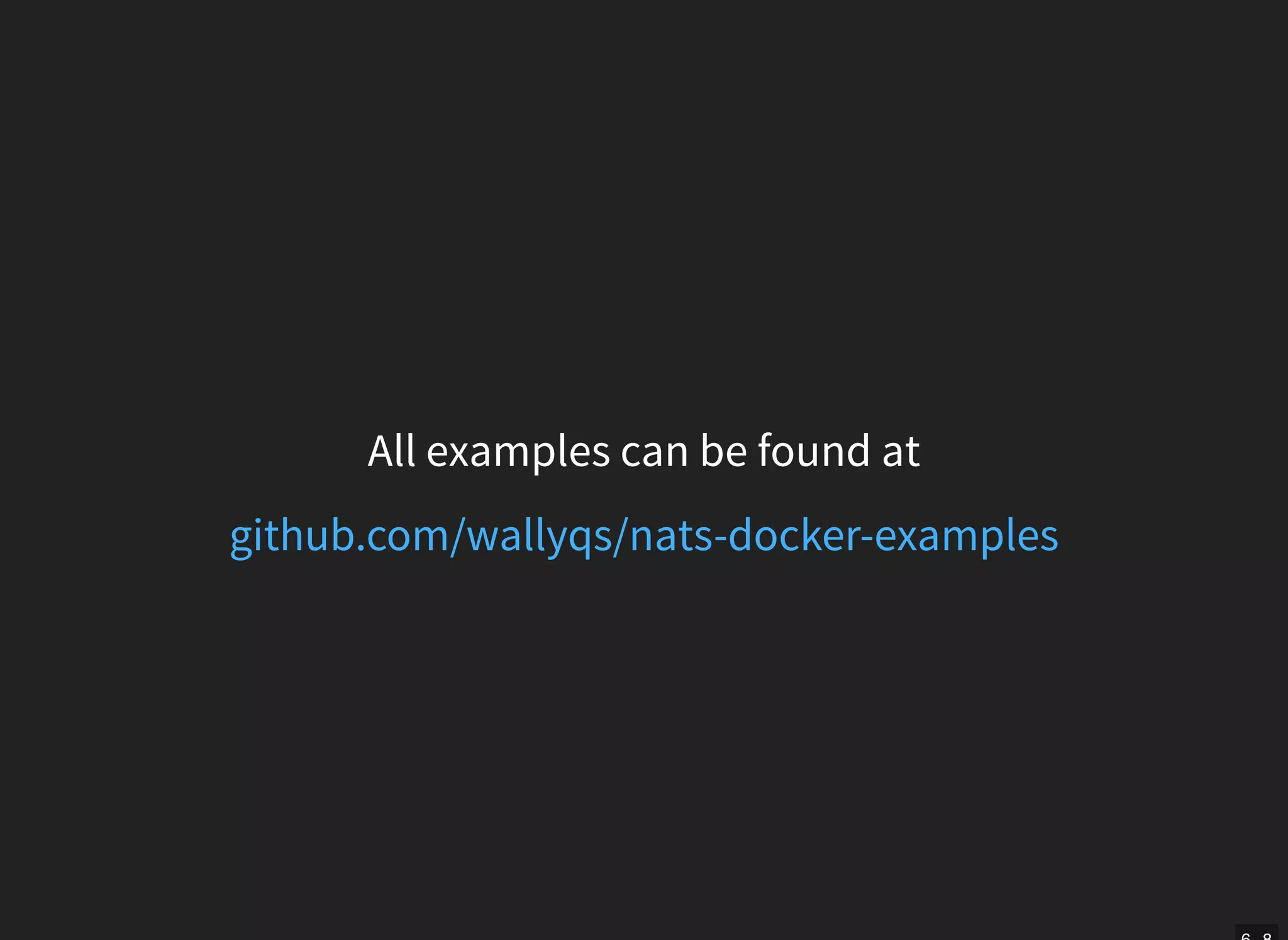

All examples can be found at
github.com/wallyqs/nats-docker-examples

6 . 8
EXAMPLE: SINGLE NODE

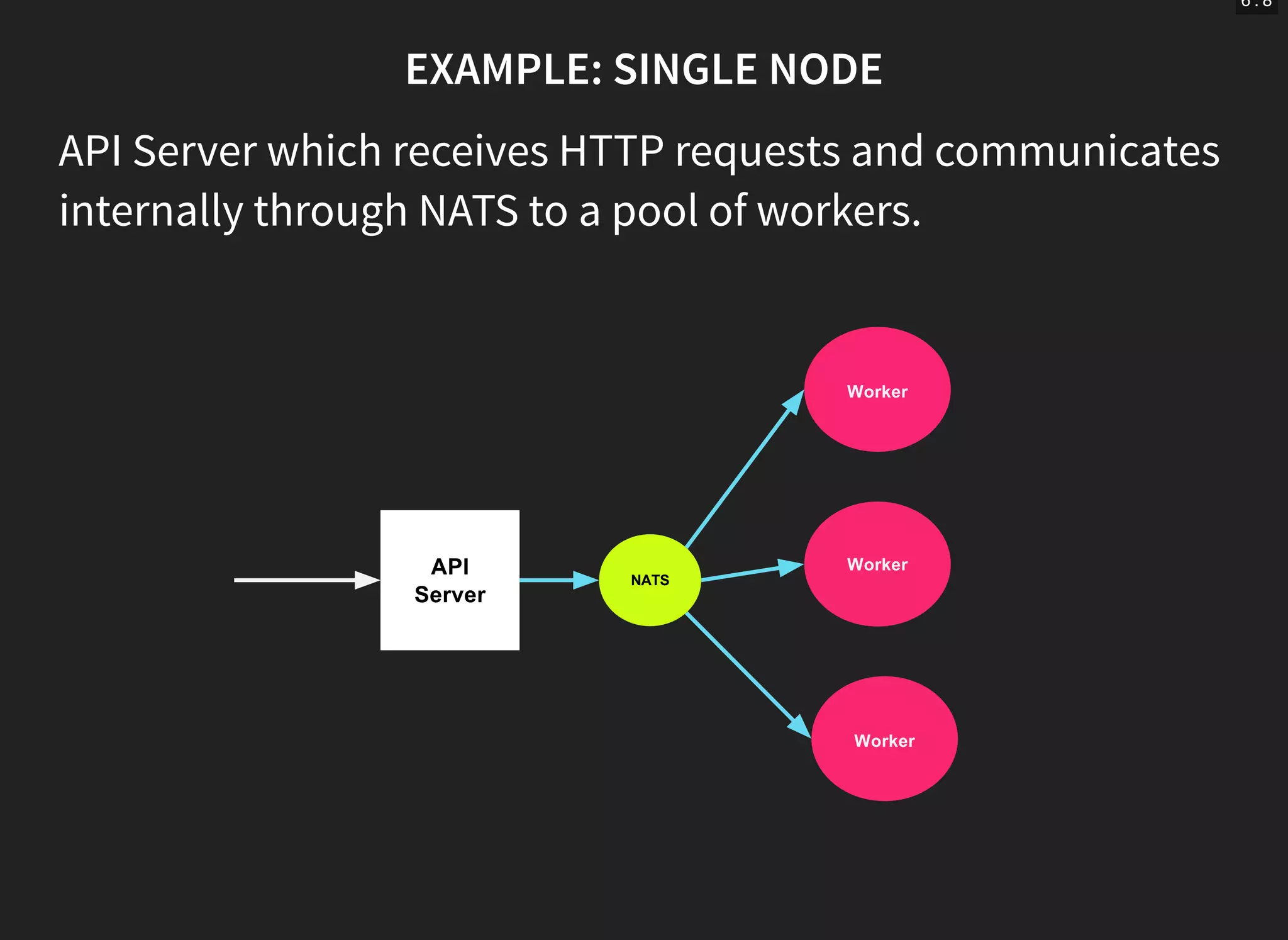

API Server which receives HTTP requests and communicates
internally through NATS to a pool of workers.

6 . 96 . 10

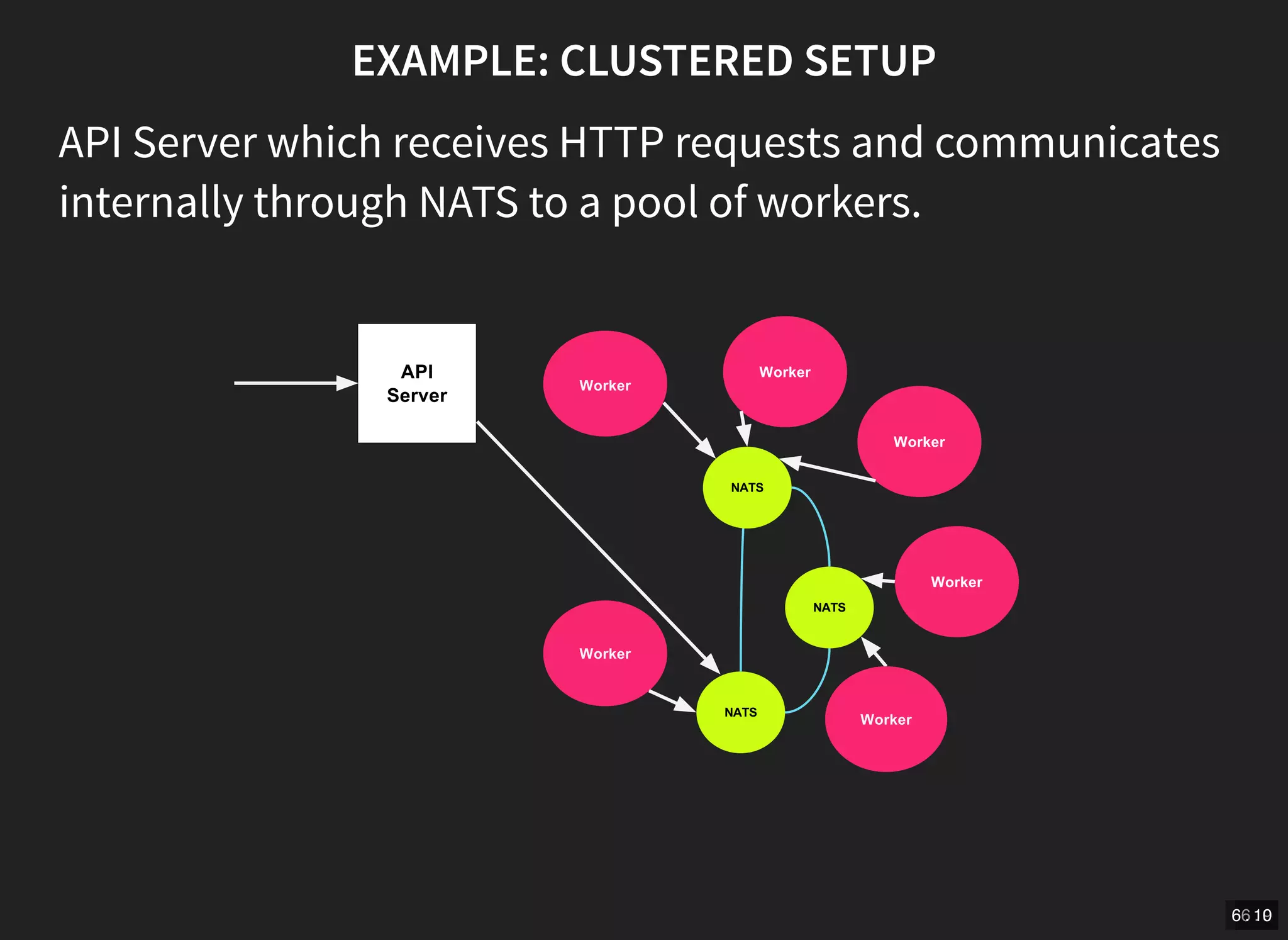

EXAMPLE: CLUSTERED SETUP
API Server which receives HTTP requests and communicates
internally through NATS to a pool of workers.

6 . 11

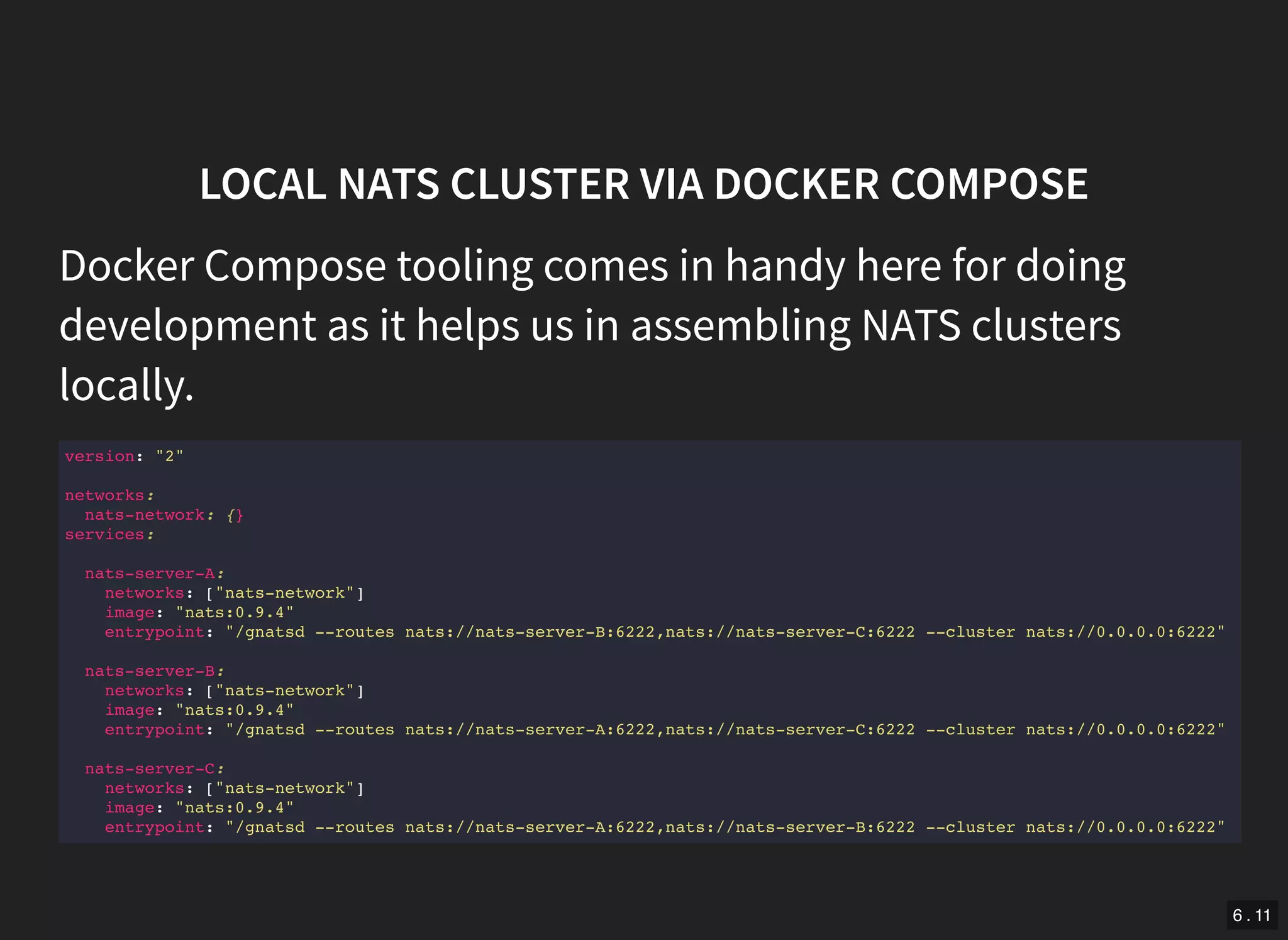

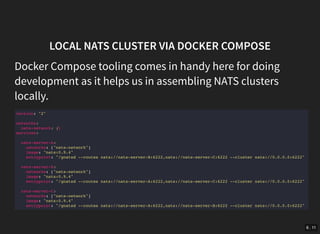

LOCAL NATS CLUSTER VIA DOCKER COMPOSE
Docker Compose tooling comes in handy here for doing
development as it helps us in assembling NATS clusters
locally.
version: "2"
networks:
nats-network: {}
services:
nats-server-A:
networks: ["nats-network"]
image: "nats:0.9.4"
entrypoint: "/gnatsd --routes nats://nats-server-B:6222,nats://nats-server-C:6222 --cluster nats://0.0.0.0:6222"
nats-server-B:
image: "nats:0.9.4"
entrypoint: "/gnatsd --routes nats://nats-server-A:6222,nats://nats-server-C:6222 --cluster nats://0.0.0.0:6222"
nats-server-C:
image: "nats:0.9.4"
entrypoint: "/gnatsd --routes nats://nats-server-A:6222,nats://nats-server-B:6222 --cluster nats://0.0.0.0:6222"

6 . 12
6 . 13

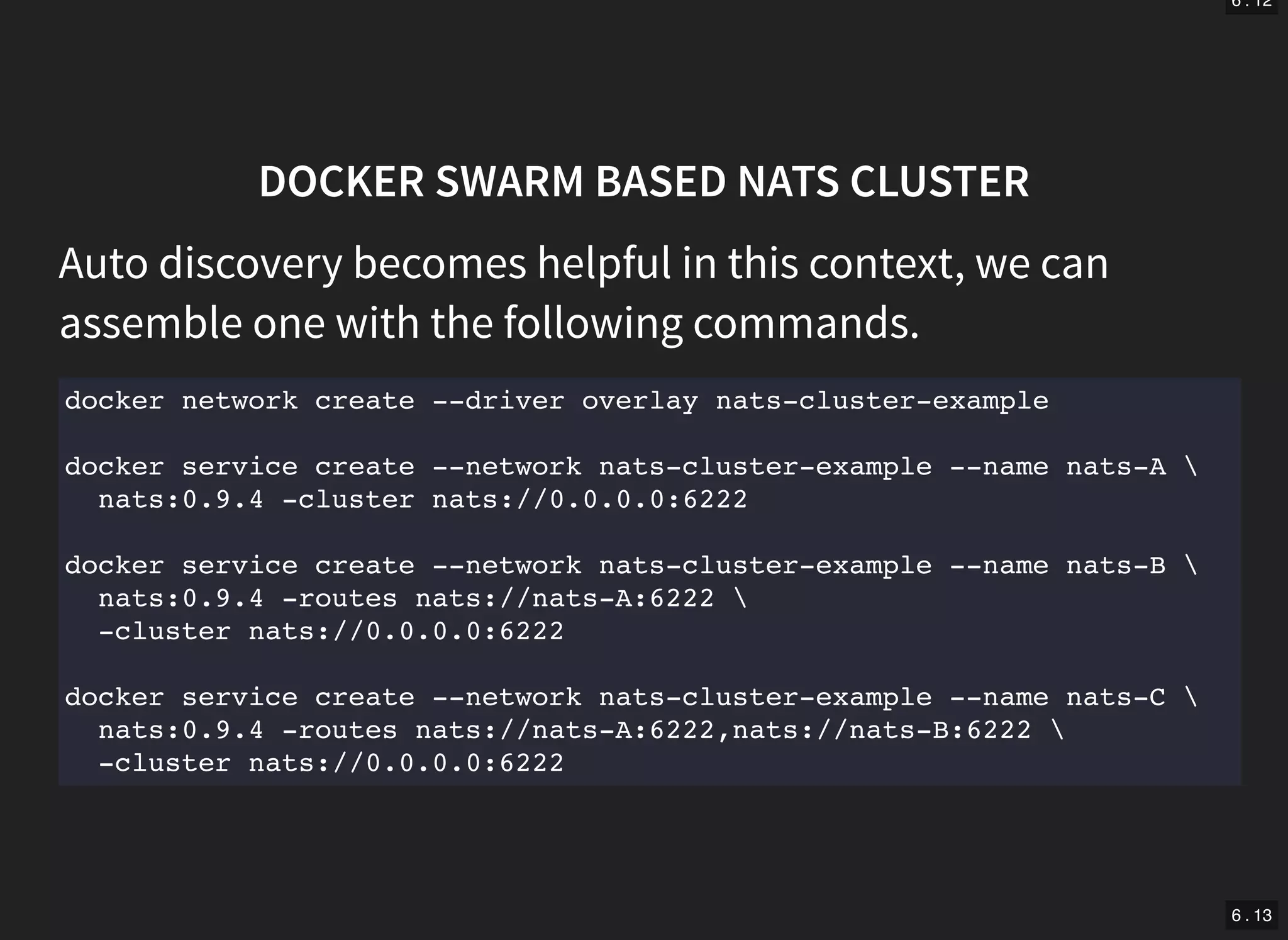

DOCKER SWARM BASED NATS CLUSTER
Auto discovery becomes helpful in this context, we can
assemble one with the following commands.
docker network create --driver overlay nats-cluster-example
docker service create --network nats-cluster-example --name nats-A
nats:0.9.4 -cluster nats://0.0.0.0:6222
docker service create --network nats-cluster-example --name nats-B
nats:0.9.4 -routes nats://nats-A:6222
-cluster nats://0.0.0.0:6222
docker service create --network nats-cluster-example --name nats-C
nats:0.9.4 -routes nats://nats-A:6222,nats://nats-B:6222
-cluster nats://0.0.0.0:6222

6 . 14

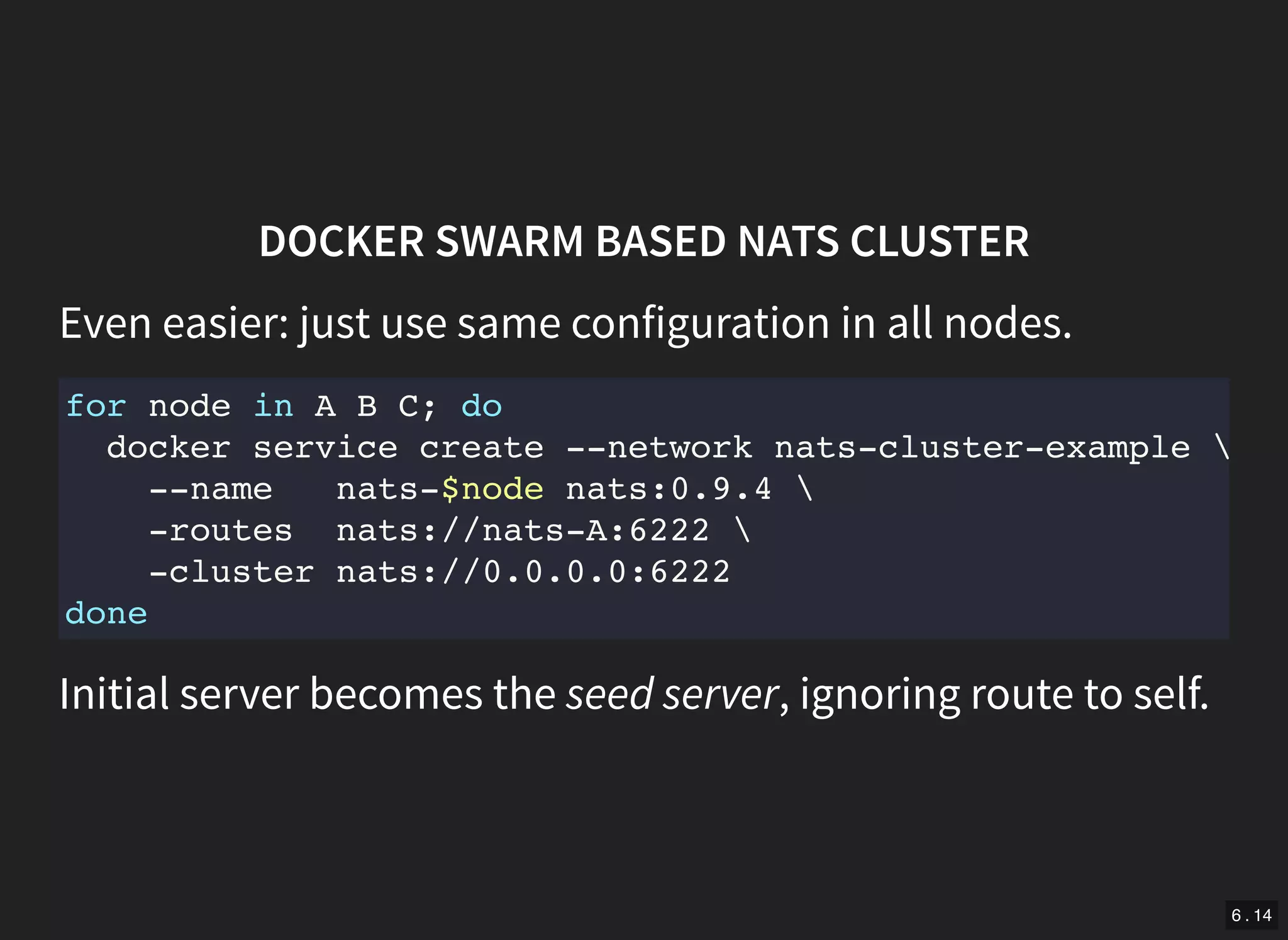

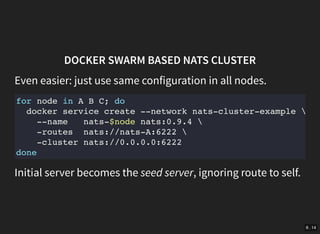

DOCKER SWARM BASED NATS CLUSTER
Even easier: just use same configuration in all nodes.
for node in A B C; do
docker service create --network nats-cluster-example
--name nats-$node nats:0.9.4
-routes nats://nats-A:6222
-cluster nats://0.0.0.0:6222
done
Initial server becomes the seed server, ignoring route to self.

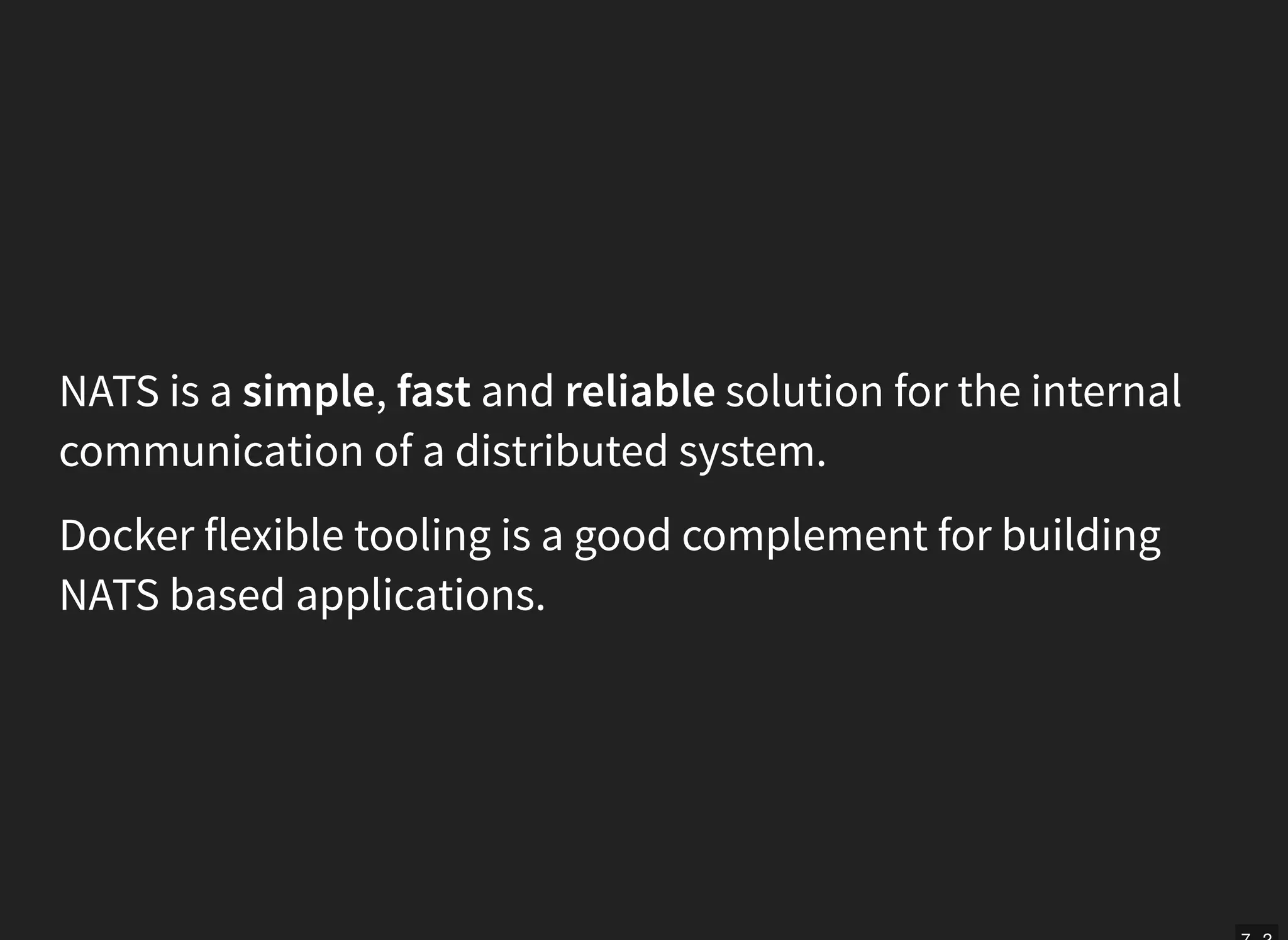

NATS is a simple, fast and reliable solution for the internal
communication of a distributed system.
Docker flexible tooling is a good complement for building
NATS based applications.

7 . 2
7 . 3

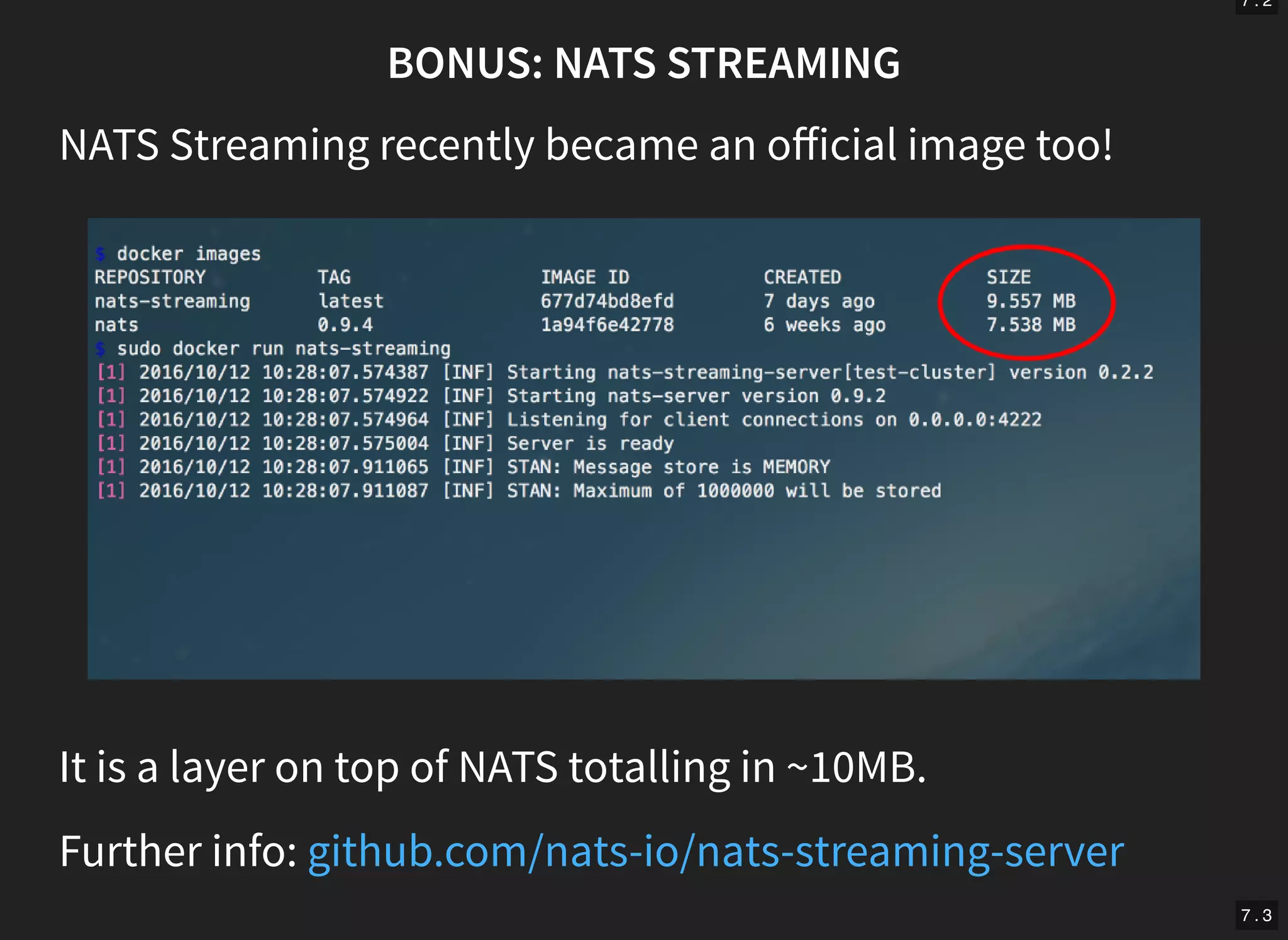

BONUS: NATS STREAMING
NATS Streaming recently became an oﬀicial image too!
It is a layer on top of NATS totalling in ~10MB.
Further info: github.com/nats-io/nats-streaming-server

8 . 1
THANKS!
/github.com/nats-io @nats_io
Play with the demo site!

Simple and Scalable Microservices: Using NATS with Docker Compose and Swarm

Recommended

Recommended

More Related Content

What's hot

What's hot (16)

Viewers also liked

Viewers also liked (20)

Similar to Simple and Scalable Microservices: Using NATS with Docker Compose and Swarm

Similar to Simple and Scalable Microservices: Using NATS with Docker Compose and Swarm (20)

More from Apcera

More from Apcera (13)

Recently uploaded

Recently uploaded (20)

Simple and Scalable Microservices: Using NATS with Docker Compose and Swarm
