MySQL Shell: The DevOps Tool for MySQL

Copyright © 2018, Oracle and/or its affiliates. All rights reserved. |
Copyright © 2018, Oracle and/or its affiliates. All rights reserved.
Miguel Araújo
Senior Software Developer
Alfredo Kojima
Senior Software Development Manager
MySQL Middleware and Clients
October 24, 2018
MySQL Shell
The DevOps Tool for MySQL

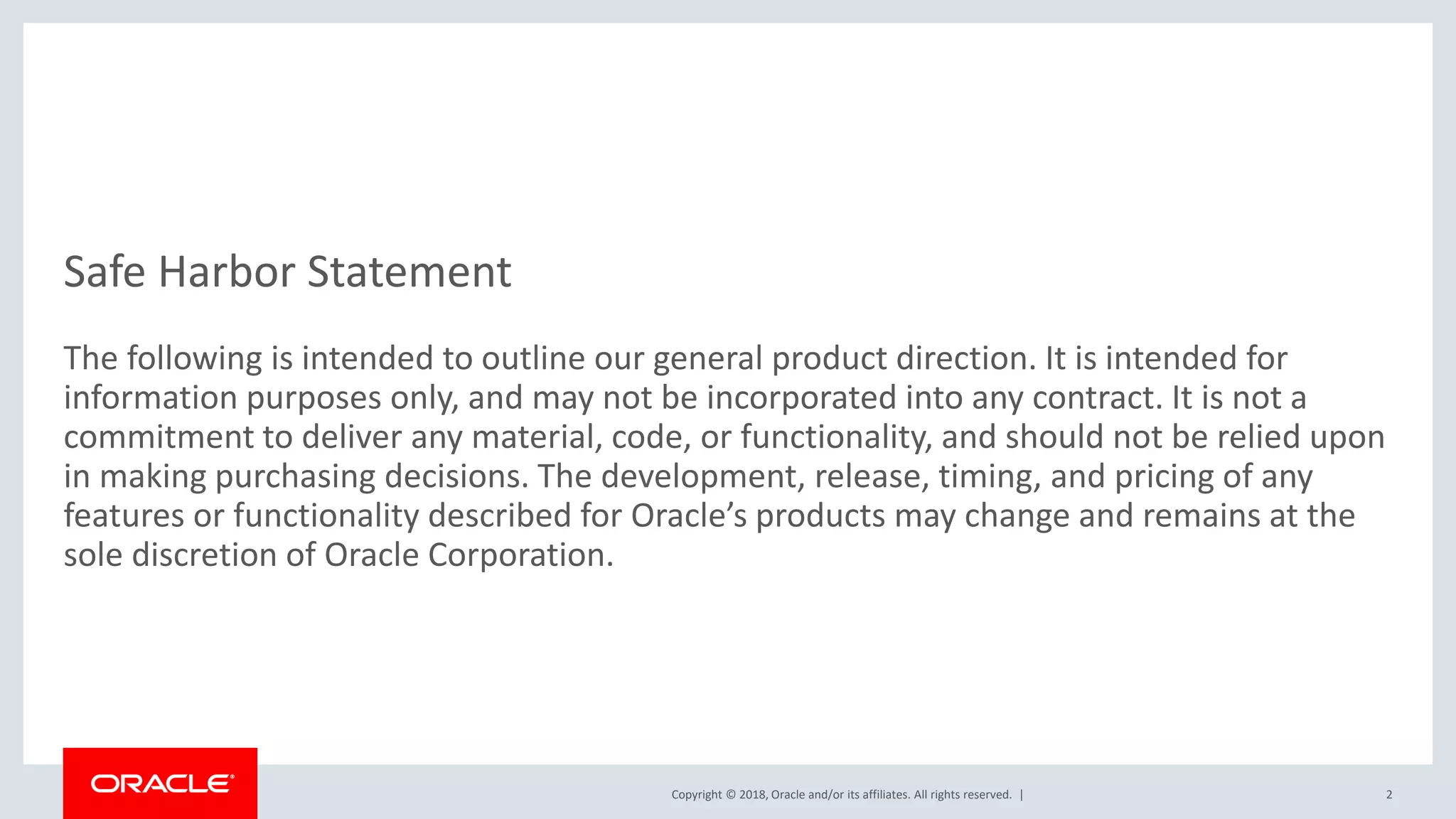

Safe Harbor Statement
The following is intended to outline our general product direction. It is intended for
information purposes only, and may not be incorporated into any contract. It is not a
commitment to deliver any material, code, or functionality, and should not be relied upon
in making purchasing decisions. The development, release, timing, and pricing of any
features or functionality described for Oracle’s products may change and remains at the
sole discretion of Oracle Corporation.
2

Program Agenda
introduction to DevOps
MySQL Shell
Development with the Shell - Live demo!
Shell meets continuous automation
MySQL InnoDB Cluster
Shell as the operations frontend of IDC - Live demo!
Summary
1
2
3
4
5
3
6
7

Copyright © 2018, Oracle and/or its affiliates. All rights reserved. | 4
Who are we?

whoami
Miguel Araújo
• MySQL Senior Software Developer
• Lead developer for the AdminAPI at the
MySQL Shell team
• MySQL InnoDB Cluster evangelist
• Living in Portugal
• http://about.me/miguel-araujo
5

whoami
Alfredo Kojima
• MySQL Senior Software Development Manager
• Technical lead for MySQL Clients team: X Plugin,
Router, Shell, C Connectors
• MySQL InnoDB Cluster evangelist
• Living in the USA
6

Program Agenda
Introduction to DevOps
MySQL Shell
Summary
1
3
4
5
7
6
7
2

DevOps: What is it?
DEVOPS
Software OperationsSoftware Development

DevOps: What is it?
As simple as:
 Engineers (developers) and operations working together to:
 Get things done faster
 Automate processes
 Share knowledge

DevOps: Goals
• Continuous, faster development
• Faster time to deliver
• Lower the failure rate
• Reduce dependency of staff that owns all the knowledge by sharing the
competences to all the team
10

Program Agenda
MySQL Shell
Summary
1
3
4
5
11
6
7
2

MySQL Shell: Introduction
• Interactive multi-language console interface that supports development
and administration for the MySQL Server
• Can be used to perform data queries or updates, and administration
operations:
 Scriptable “DevOps” APIs
Unified Interface for MySQL Developers and DBAs: one tool!
• Intuitive and easy to use
12

1.0
• Supports MySQL Server 5.7
8.0
Supports MySQL Server 5.7 and 8.0
Higly recommended version!
Note: Upgrade to 8.0 right away if
you’re still using 1.0
13
MySQL Shell: Versions

MySQL Shell: Goal
• One tool for MySQL development and administrative tasks
• Natural interface for all MySQL related ”DevOps”!
– Unified Interface for Developers and DBAs
• Intuitive, flexible and powerful
• Provides scripting with development and administrative APIs
14

MySQL Shell: Features (Dev)
• Multi-language support
– JavaScript, Python and SQL
– Both interactive and batch operations
15
MySQL
Development

• Document and Relational models
– Supports the classic relational model
– Modern fluent API for the MySQL Document Store
• CRUD and Relational
– Supports the traditional Table results, as well
as JSON or Tab separated output
16
MySQL
Development

• Support for scripting in Python and JavaScript
• APIs for MySQL DBs, Document Store, InnoDB cluster, Shell and more
• Import any installed module (in Python)
• Execute scripts from
– Interactive REPL interface (interactive interpreter)
– Directly from the command line
• mysqlsh --py –e "print 'Hello world'"
– From Python, JS, SQL script files
Scripting
17

• session
– Assigned to the DB session when the shell connects to MySQL
– The MySQL session used by the Shell in SQL mode
– Execute queries
Scripting – Globals
18
mysql-js> session.query(“show status”);

Scripting – Examples
19
• Connect to myserver.foo.com
• Execute create_account.js with any extra arguments forwarded to the
script (sys.argv[])
• The script can use the session global variable to execute SQL in the target
server
$ mysqlsh root@myserver.foo.com –f create_account.js appuser@’192.168.%.%’

Scripting – Non interactive execution
20
$ mysqlsh -–no-wizards
• Disables interactive features
– Passwords, confirmations, prompts, etc., disabled
• Implicit when stdout is not a tty

Document Store – X DevAPI
21
• Support for MySQL Document Store API
• Create collections
• Import JSON dumps
• Try out queries and write simple scripts interactively
• X DevAPI CRUD operations
• SQL

Other development APIs
22
• mysql
– mysql.getSession(), etc.
– Connects to MySQL server using classic MySQL protocol
– run SQL queries
– mysqlx for X protocol sessions and X Dev API

Other development APIs
23
• shell
– Programmatic access to most shell features
– Configuration options (option)
– Password Manager API
– Pager API (pager)
– logging
– URI parsing
– Prompting for user input
– Establish connections: shell.connect(‘user@host:port’)

MySQL Shell: Features (Ops)
• Administration API: AdminAPI
– Creation and Management of InnoDB Clusters
– Hides the complexity of:
• Configuration
• Provisioning
• Orchestration
– Simple and straight-forward
– Doesn’t require MySQL expertise
– Flexible, powerful and secure
– Available in both JavaScript and Python
24
MySQL
Administration

• Deploy and manage MySQL sandboxes:
– dba.deploySandboxInstance()
– dba.stopSandboxInstance()
– dba.startSandboxInstance()
– dba.deleteSandboxInstance()
– dba.killSandboxInstance()
Important: Sandbox instances are only suitable for testing purposes!
AdminAPI - Sandboxes
25

• Shell Utilities: util object
– Upgrade checker
• Verify whether instances are ready for upgrading to MySQL 8
– Import JSON documents
• From a file or standard input to a MySQL Server
• Supports importing to a collection or relational table
26
mysql-js> util.checkForServerUpgrade(“root@localhost:3306”);
MySQL
Administration

• API Command line integration
– New cmdline syntax to invoke built-in Shell commands
– Requires minimal extra typing, quoting and escaping
– Supported objects: dba, cluster, shell, shell.options
and util
Syntax: mysqlsh [OPTIONS] [URI] -- <object_name> <method_name> [argument_list]
27
$ mysqlsh root@myserver:33060 –- util import-json
~/Downloads/myData/data.json --collections=‘zip codes’ --schema=‘json_test’
MySQL
Administration

• Display context information
• Custom/dynamic tags that react to context
– export PRODUCTION_SERVERS=192.168.42.16
MySQL Shell: Features (DBA toolbox)
Customizable Prompts
28

• Sample prompt file:
– mysql-shell/share/mysqlsh/prompt/
• Customization instructions:
– mysql-shell/share/mysqlsh/prompt/README
Customizable Prompts
29

Secure Credential Manager
• MySQL server passwords can be queried from a secure password store
• Uses existing OS native password storage APIs
– Keychain (macOS)
– Credential Manager (Windows)
– MySQL login-path encrypted files (all)
• Optionally auto-save typed passwords (default will prompt)
• Or use API to store programmatically
– shell.storeCredential("root@192.168.1.32", "s3cr37!");
• Write your own password store backend
30

History
• Typed command history
• Persisting disabled by default, enable with
– option history.autoSave=true
• Filter SQL statements that may contain sensitive info
– e.g. SET PASSWORD='my password'
– option history.sql.ignorePattern
31

Pager
• Pass SQL results through an external screen paging program
– pager less
– show status;
32

Built-in Help
• Documentation for included APIs, shell commands, SQL, etc.
• help keyword
– (wildcards allowed)
33

--cluster
• Prepares the Shell for managing the InnoDB cluster the target server belongs to
• Automatically assigns the cluster global variable
--redirect-primary
• Connects the shell to the primary of the InnoDB cluster group, in case the one we
connect to is a secondary
--redirect-secondary
• Connects the shell to a secondary member of the InnoDB cluster group
AdminAPI - options
34

MySQL Shell
Development with the Shell
Live Demo!

Program Agenda
MySQL Shell
Summary
1
3
4
5
36
6
7
2

37
• Continuous automation frameworks provide mechanisms for setup,
configuration and management of MySQL Server
• DBA can automate operations by using modules.
• Classic example:
 Ensure MySQL Server deployments use the latest available version

38
• Let’s use as an example:
service { ‘mysql’:
ensure => latest,
enable => true,
require => Package[‘mysql-server-community’],
}

39
What if current is 5.7 and latest is 8.0? Will it break everything?
ensure => latest,
enable => true,
}
!
• Let’s use as an example:

40
ensure => latest,
enable => true,
before => Exec [‘upgrade checker’]
}
exec { “upgrade checker”:
command => “mysqlsh -- util check-for-server-upgrade { --user=root --
host=localhost --port=3306} --password=‘myPwd’”
require => Service[“mysqlsh”]
}
• Use MySQL Shell upgrade checker

Program Agenda
MySQL Shell
Summary
1
3
4
5
41
6
7
2

100%
Virtually all organization require their
most critical systems to be highly
available
42

• High Availability: critical factor
• Replication as a common
solution
• MySQL has support for:
– Classic master-slave replication
– DRBDS
– Other OS or VM solutions…
MySQL InnoDB Cluster: Background

44
• High Availability: critical factor
• Replication as a common
solution
• MySQL has support for:
– Classic master-slave replication
– DRBDS
– Other OS or VM solutions…
Group Replication !
• Update-everywhere (m-m)
• Virtually synchronous replication
• Automatic server fail-over
– Distributed recovery
– Group reconfiguration
• Powered by a GCS:
Implementation of Paxos

• Challenging task
– Not easy to setup and maintain
– Technical knowledge needed
– How to configure the applications?
– How to integrate all the components?
45
? ?

MySQL InnoDB Cluster: Vision
46
– Engineering Team
“A single product — MySQL — with high availability and scaling
features baked in; providing an integrated end-to-end solution
that is easy to use.”

MySQL Group Replication
InnoDB cluster

InnoDB cluster
App Servers with
MySQL Router

InnoDB cluster
App Servers with
MySQL Router
MySQL Shell
Setup, Manage,
Orchestrate

InnoDB cluster
App Servers with
MySQL Router
MySQL Shell
Setup, Manage,
Orchestrate Clients

One Product
Full Stack HA
Solution
Easy to use!
InnoDB cluster

MySQL Shell
Shell as the operations frontend
of InnoDB Cluster
Live Demo!

Summary
• MySQL Shell brings together developers and DBAs
• Unified interface: one tool!
• Development and Administration APIs and features
• MySQL InnoDB Cluster is THE built-in HA solution for MySQL:
• Full-stack: High Availability out-of-the-box
• Easy to use: usability as a top concern
54

Resources
• MySQL Shell Userguide:
– https://dev.mysql.com/doc/refman/en/mysql-shell.html
• MySQL InnoDB Cluster Userguide:
– http://dev.mysql.com/doc/refman/en/mysql-innodb-cluster-userguide.html
• APIs Reference manuals
– JavaScript: https://dev.mysql.com/doc/dev/mysqlsh-api-javascript/
– Python: https://dev.mysql.com/doc/dev/mysqlsh-api-python/
• Blogging
– http://mysqlserverteam.com/category/high-availability
55

MySQL Shell: The DevOps Tool for MySQL

MySQL Shell: The DevOps Tool for MySQL

Recommended

Recommended

More Related Content

What's hot

What's hot (20)

Similar to MySQL Shell: The DevOps Tool for MySQL

Similar to MySQL Shell: The DevOps Tool for MySQL (20)

More from Miguel Araújo

More from Miguel Araújo (12)

Recently uploaded

Recently uploaded (20)

MySQL Shell: The DevOps Tool for MySQL
