Deep Dive into MySQL InnoDB Cluster
Read Scale-out Capabilities
MySQL Webinar Series
Miguel Araújo
Senior Principal Software Engineer
MySQL, Oracle
October 26, 2023

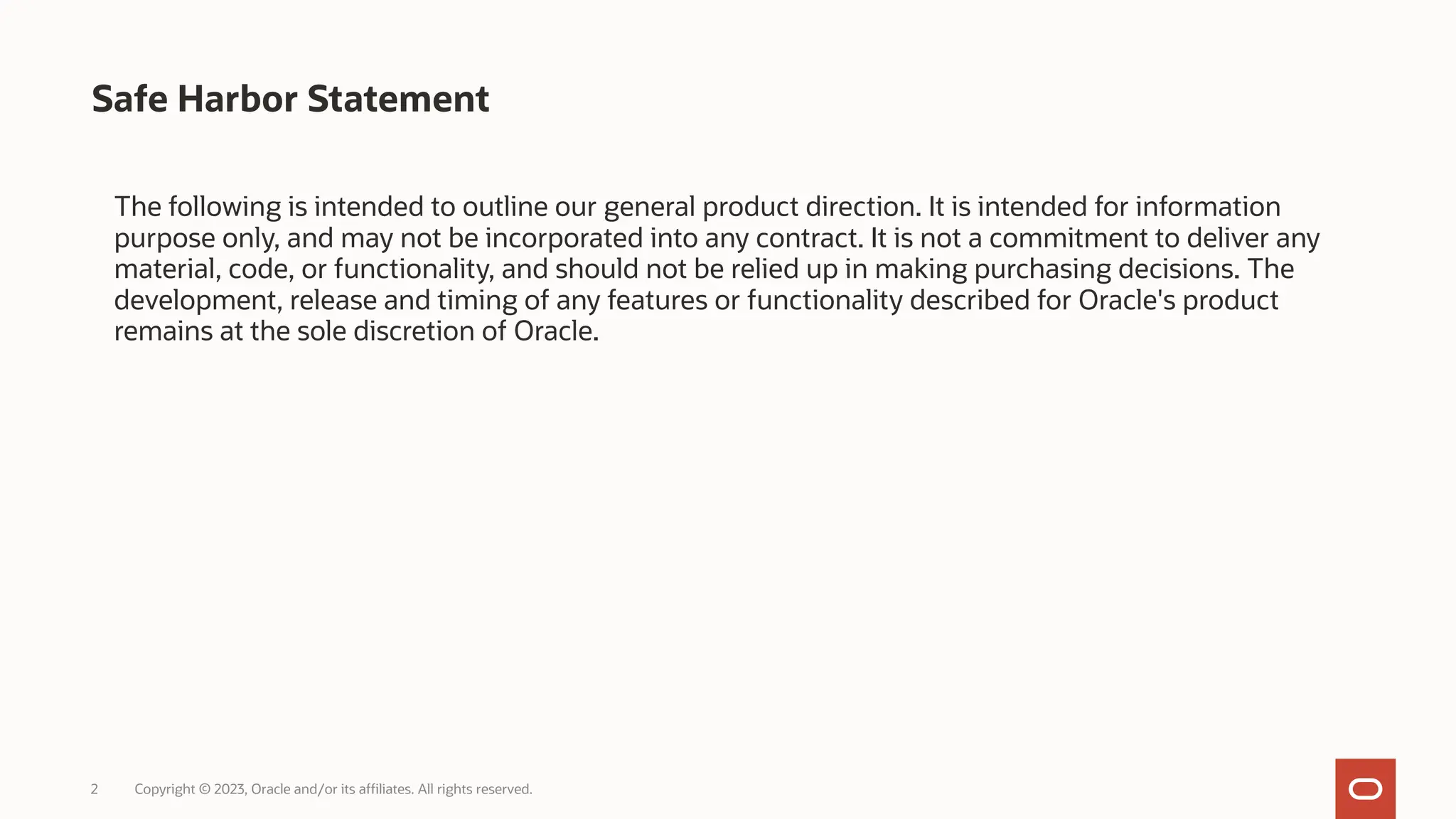

The following is intended to outline our general product direction. It is intended for information
purpose only, and may not be incorporated into any contract. It is not a commitment to deliver any
material, code, or functionality, and should not be relied up in making purchasing decisions. The
development, release and timing of any features or functionality described for Oracle's product
remains at the sole discretion of Oracle.
Safe Harbor Statement
Copyright © 2023, Oracle and/or its affiliates. All rights reserved.
2

1. Business requirements
2. High Availability & Disaster Recovery Architectures
3. What architecture fits my requirements?
4. MySQL InnoDB Cluster Read Replicas
5. Live Demo
Agenda
3

4
It Disasters & Outages

Primary Causes
5 Copyright © 2023, Oracle and/or its affiliates. All rights reserved.
IT Disasters & Outages
On-site power failure is the biggest cause of significant outages

Costs are Rising
IT Disasters & Outages
Over half had experienced an outage costing more than $100,000

7

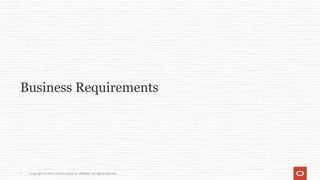

Business Requirements

Concepts – RTO & RPO
• RTO: Recovery Time Objective
• How long does it take to recover from a single
failure
• RPO: Recovery Point Objective
• How much data can be lost when a failure occurs
Types of Failures
• High Availability:
• Single Server Failure, Network Partition
• Disaster Recovery:
• Full Region / Network failure
• Human Error:
• Little Bobby Tables
Business Requirements

9
High Availability & Disaster Recovery
Architectures

Manual
• Setting up Replication topology was usually
done manually, taking many steps
Including user management, restoring backups,
configuring replication...
• MySQL only offered the technical pieces,
leaving it up to the user to setup an (always
customized) architecture
• Even required other software ... bringing lots
of work for DBA's and experts, who spent their
time automating and integrating their
customized architecture
Past

MySQL Solutions
One Product: MySQL
• All components developed and integrated
together
• MySQL Server
• Async Replication
• Group Replication
• MySQL Shell
• MySQL Router
• Full stack testing
Easy to use!
• One client: MySQL Shell
• Powerful interface to automate and integrate all
components
• Integrated orchestration and provisioning
• InnoDB Clone
• Configures the topologies in a standarized best
practice, preventing mistakes
• Transparent Access to Database
Architecture: MySQL Router
• Load balancing
• Application connection failover
• Stateless

'classic', 'asynchronous' Replication based
Solution, fully integrated
• MySQL Shell
• MySQL Router
• MySQL Server
MySQL InnoDB ReplicaSet
RPO != 0
RTO = minutes or more (manual failover)

High Availability solution based on Group
Replication, fully integrated
• MySQL Shell
• MySQL Router
• MySQL Server
• Group Replication providing:
• Automatic Failover / Fault Tolerance
• Automatic membership changes
• Network partition handling
• Consistency
• …
MySQL InnoDB Cluster
RPO = 0
RTO = seconds (automatic failover)

Disaster Tolerance Solution for InnoDB
Clusters deployments in alternate
locations, fully integrated
• High Availability (Failure within a Region)
• RPO = 0
• RTO = seconds (automatic failover)
• Disaster Recovery (Region Failure)
• RPO != 0
• RTO = minutes or more (manual failover)
• No write performance impact
• Easy to use: MySQL Shell
• Full integration of MySQL Router
MySQL InnoDB ClusterSet

15
What architecture fits my requirements?

Single Region
MySQL InnoDB Cluster
• RPO = 0
• RTO = Seconds
MySQL InnoDB ReplicaSet
• RPO != 0
• RTO = Minutes or more (Manual failover)
High Availability
Best write performance
Manual Failover
🔴
🟢
Automatic failover
🟢

Multi Region

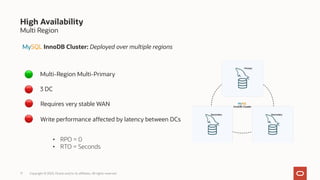

High Availability
MySQL InnoDB Cluster: Deployed over multiple regions
Multi-Region Multi-Primary
3 DC
Requires very stable WAN
Write performance affected by latency between DCs
• RPO = 0
• RTO = Seconds
🟢
🔴
🔴
🔴

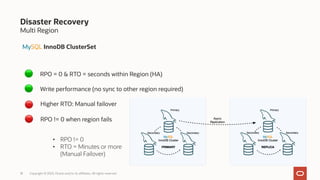

Multi Region
Disaster Recovery
MySQL InnoDB ClusterSet
RPO = 0 & RTO = seconds within Region (HA)
Write performance (no sync to other region required)
Higher RTO: Manual failover
RPO != 0 when region fails
• RPO != 0
• RTO = Minutes or more
(Manual Failover)
🔴
🔴
🟢
🟢

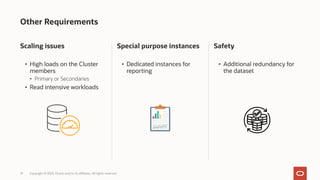

Scaling issues
• High loads on the Cluster
members
• Primary or Secondaries
• Read intensive workloads
Special purpose instances
• Dedicated instances for
reporting
Safety
• Additional redundancy for
the dataset
Other Requirements

20

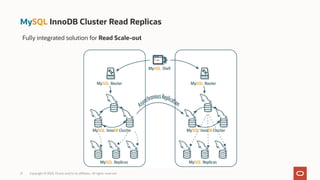

MySQL InnoDB Cluster Read Replicas

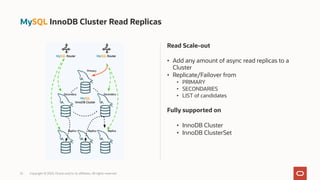

Fully integrated solution for Read Scale-out

Read Scale-out
• Add any amount of async read replicas to a
Cluster
• Replicate/Failover from
• PRIMARY
• SECONDARIES
• LIST of candidates
Fully supported on
• InnoDB Cluster
• InnoDB ClusterSet

23
• MySQL Shell
• Familiar interface and great usability
• Support for CLONE
• Add/remove Read Replicas online
• Configure Read Replicas and Router behavior
• MySQL Router
• No application changes needed if the topology
changes
• Chose where to send traffic
• MySQL Server Replication
• Automatic connection failover
• Automatic list of potential sources populated by
Group Replication

• Asynchronous replication connection failover ensures automatic failover of the replica’s source
• The list is automatic populated by Group Replication
• Group membership info is fetched to keep the list up-to-date
• The priority can be configured:
• Prefer to replicate from the PRIMARY
• Prefer replication from one of the SECONDARIES
• Have a LIST of possible candidates
MySQL InnoDB Cluster Read Replicas: Under the Hood
Follow the Source

• R/O traffic is routed to the Cluster’s SECONDARY members, by default
• But it can be configured, at any moment and dynamically:
• secondaries: Use only SECONDARY members
• read_replicas: Use only Read Replicas
• all: Use Read Replicas and SECONDARY members
Router’s Destination Pool

• Read Replicas do not belong to the group membership info of Group Replication
• To avoid connection failures to unreachable/unavailable members, Router implements a built-in
quarantine mechanism.
• Quarantine is configurable:
• Threshold: how many failed connections attempts are accepted until a server is put in quarantine
• How frequently should the quarantine servers be checked for health
• By default, both are set to 1.
Router’s Health Checking and Quarantine

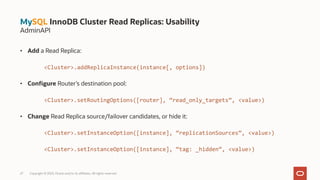

• Add a Read Replica:
<Cluster>.addReplicaInstance(instance[, options])
• Configure Router’s destination pool:
<Cluster>.setRoutingOptions([router], “read_only_targets”, <value>)
• Change Read Replica source/failover candidates, or hide it:
<Cluster>.setInstanceOption([instance], “replicationSources”, <value>)
<Cluster>.setInstanceOption([instance], “tag: _hidden”, <value>)
MySQL InnoDB Cluster Read Replicas: Usability
AdminAPI

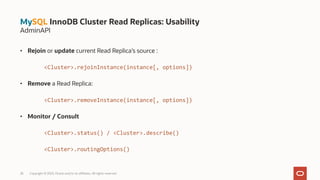

• Rejoin or update current Read Replica’s source :
<Cluster>.rejoinInstance(instance[, options])
• Remove a Read Replica:
<Cluster>.removeInstance(instance[, options])
• Monitor / Consult
<Cluster>.status() / <Cluster>.describe()
<Cluster>.routingOptions()
MySQL InnoDB Cluster Read Replicas: Usability
AdminAPI

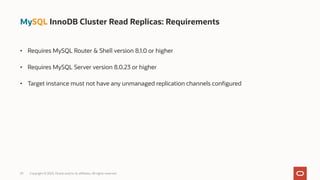

• Requires MySQL Router & Shell version 8.1.0 or higher
• Requires MySQL Server version 8.0.23 or higher
• Target instance must not have any unmanaged replication channels configured
MySQL InnoDB Cluster Read Replicas: Requirements

30
Live Demo

Environment
3 Regions
rome:
• 6 instances
• rome:30001, rome:30002, rome:30003, rome:30004, rome:30005, rome:30006
brussels:
• 6 instances
• brussels:30011, brussels:30012, brussels:30013, brussels:30014, brussels: 30015, brussels:30016
lisbon:
• 6 instances
• lisbon:30021, lisbon:30022, lisbon:30023, lisbon:30024, lisbon:30025, lisbon:30026
Demo
Commands used in demo available on
https://github.com/miguelaraujo/Read-Replicas-Demo

32

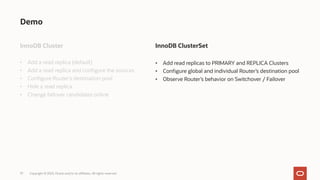

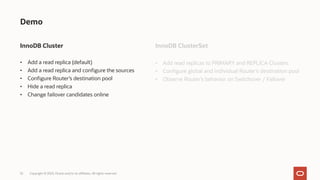

Demo
InnoDB Cluster
• Add a read replica (default)
• Add a read replica and configure the sources
• Configure Router’s destination pool
• Hide a read replica
• Change failover candidates online
InnoDB ClusterSet
• Add read replicas to PRIMARY and REPLICA Clusters
• Configure global and individual Router’s destination pool
• Observe Router’s behavior on Switchover / Failover

Adding a Read Replica
• Familiar interface: .addInstance() vs .addReplicaInstance()
• Automatic provisioning available: Clone or Incremental
• By default, the read replica will always replicate from the PRIMARY member of the Cluster
• replicationSources allows selecting the source:
• PRIMARY
• SECONDARY
• LIST
// Add a new Read Replica to the Cluster
mysqlsh-js> cluster.addReplicaInstance("lisbon:30024")
(...)
<Cluster>.addReplicaInstance(instance[, options])

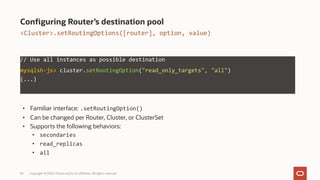

Configuring Router’s destination pool
• Familiar interface: .setRoutingOption()
• Can be changed per Router, Cluster, or ClusterSet
• Supports the following behaviors:
• secondaries
• read_replicas
• all
// Use all instances as possible destination
mysqlsh-js> cluster.setRoutingOption("read_only_targets", "all")
(...)
<Cluster>.setRoutingOptions([router], option, value)

Hiding a Read Replica
• Familiar interface: .setInstanceOption()
• Can be used to hide Read Replicas or Secondary members
// Hide a Read Replica from Router’s available destinations
mysqlsh-js> cluster.setInstanceOption("lisbon:30024", "tag:_hidden", true)
(...)
<Cluster>.setInstanceOption([instance], option, value)

Changing failover candidates
• Familiar interface: .setInstanceOption() and .rejoinInstance()
• Can be changed at any time
• .rejoinInstance() can be used to apply the changes immediately instead of only at failover time
// Change Read Replica failover candidates to use SECONDARIES
mysqlsh-js> cluster.setInstanceOption("lisbon:30024", "replicationSources",
"secondary")
// Apply the changes now
mysqlsh-js> cluster.rejoinInstance("lisbon:30024")
(...)
<Cluster>.setInstanceOption([instance], option, value)

37
Demo
InnoDB Cluster
• Add a read replica (default)
• Add a read replica and configure the sources
• Configure Router’s destination pool
• Hide a read replica
• Change failover candidates online
InnoDB ClusterSet
• Add read replicas to PRIMARY and REPLICA Clusters
• Configure global and individual Router’s destination pool
• Observe Router’s behavior on Switchover / Failover

38

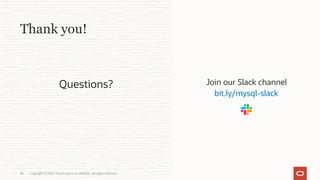

Thank you!
