This document describes the architecture and scaling challenges faced by myYearbook.com, a social networking site for teenagers. It details how the site grew from handling 100 million pageviews per month in 2007 with one database and web server, to 2.5 billion pageviews per month in 2008 using 30 database and 120 web application servers. Key lessons learned include migrating to a services-oriented architecture, horizontal and vertical scaling of PostgreSQL databases, implementing memcache, and developing internal tools like Staplr for trend analysis and an operations portal.

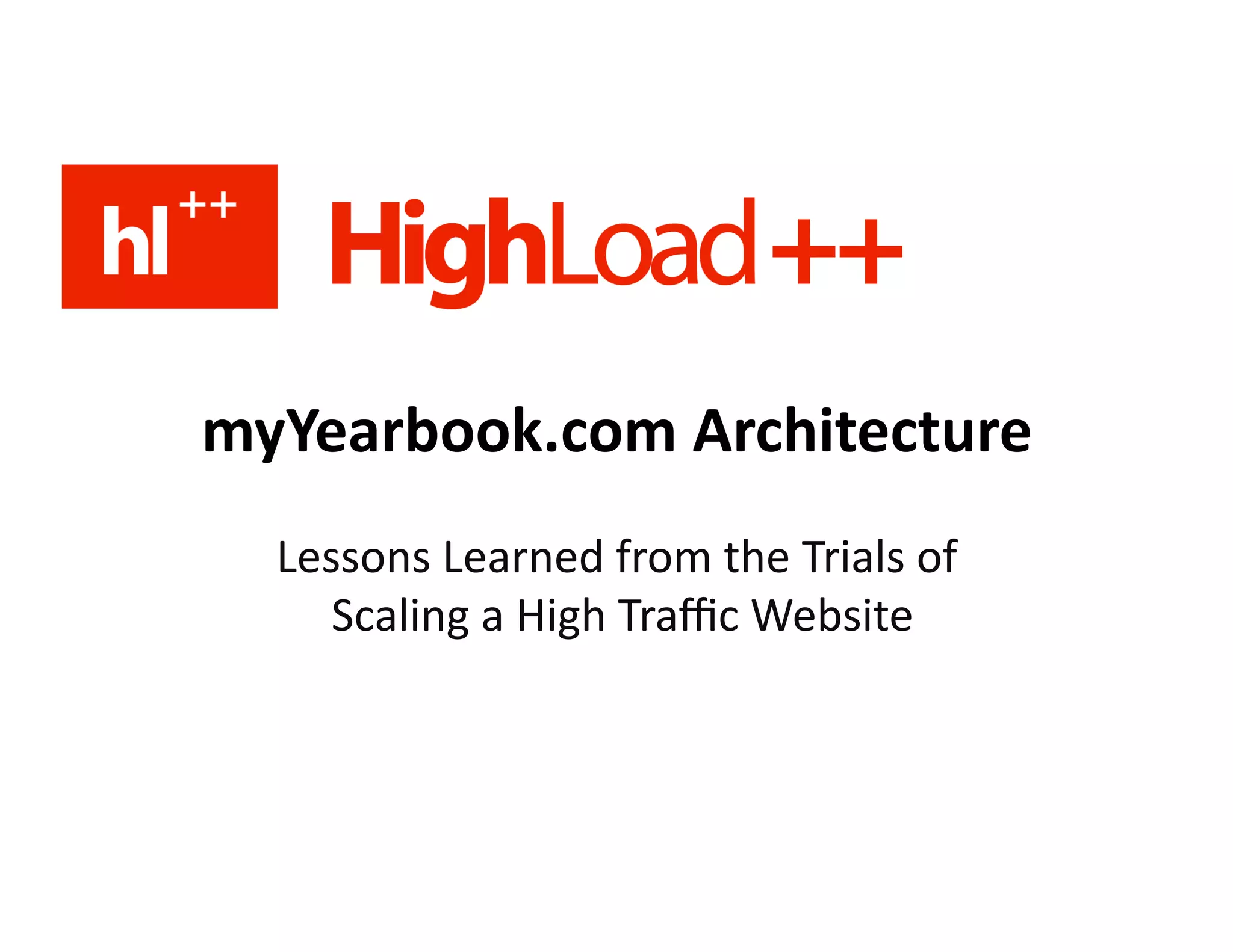

1. myYearbook.com Architecture
Lessons Learned from the Trials of
Scaling a High Traffic Website

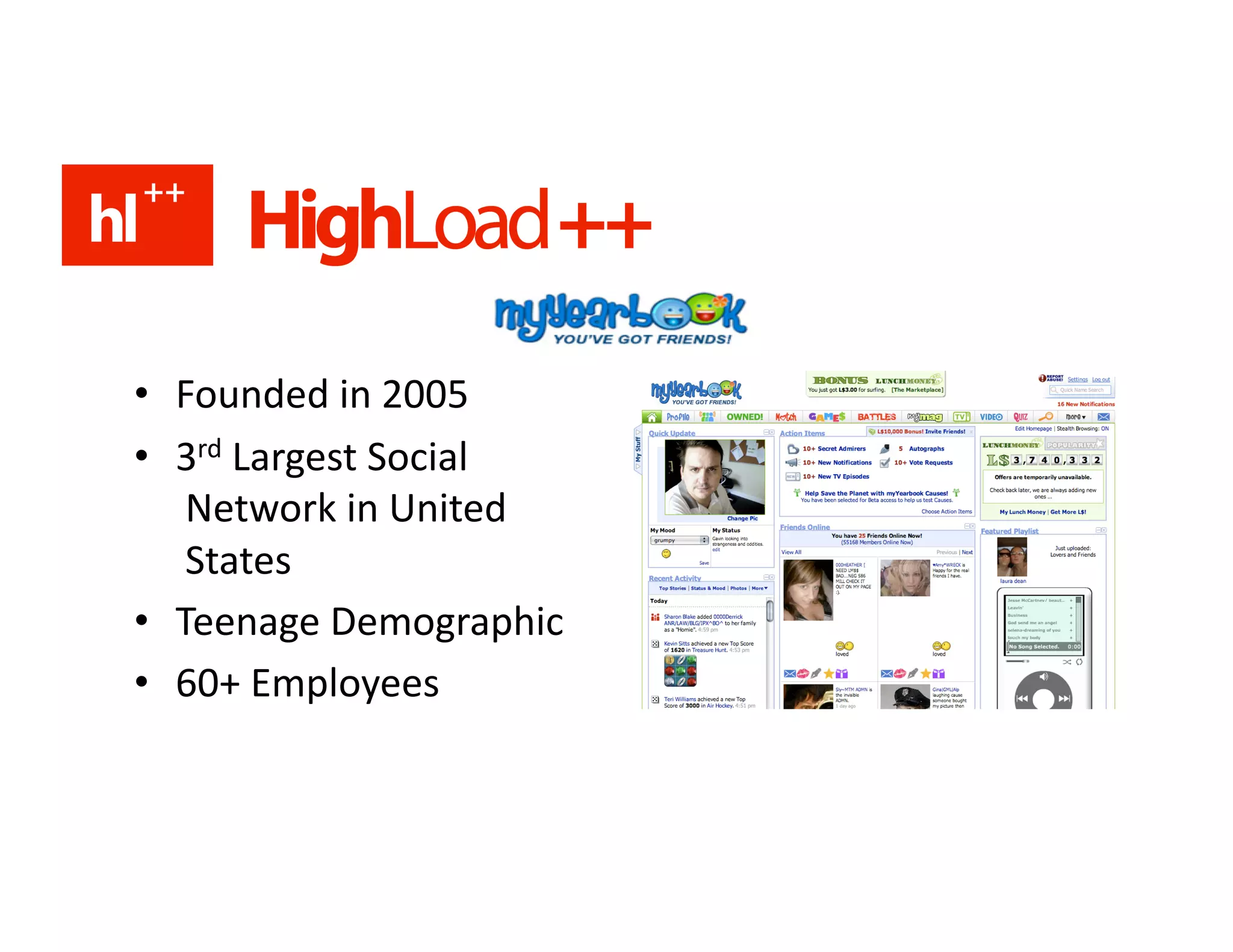

2. • Founded in 2005
• 3rd Largest Social
Network in United
States
• Teenage Demographic
• 60+ Employees

3. January 2007
• 100M Pageviews
• 1 Database Server
• 1 Web ApplicaOon Server
• Daily issues with load and site availability

4. September 2008
• 2.5B Pageviews
• 30 Database Servers
• 120 Web ApplicaOon Servers
• 99.94% UpOme as measured by pingdom.com

5. Key Architecture Components
• PHP5, APC • LighYpd
• Apache hYpd • Isilon IQ Clustered NAS
• PostgreSQL • Message Systems
• Memcached eCelerity
• Apache AcOveMQ • Subversion

6. Web ApplicaOon Architecture
• 2005‐2007: Monolithic Code Base
• 2008: MigraOng to a Services Oriented
Architecture
– ApplicaOons get own resources
– Loosely Coupled architecture
• MVC ApplicaOon using XSLT

7. Web ApplicaOon Architecture
• Why SOA?
– Monolithic app wastes
hardware
– Cross Data‐Center
OperaOons
– SelecOve Maintenance

8. Scaling Postgres
Rules for Scaling
1. Plan for Growth
2. Know the internals
3. Bigger Hardware is
BeYer

9. Our Postgres Scaling History
• Quarter 1, 2007
– Monolithic database with one schema, many
complex joins and poor opOmizaOon
– No plan for growth
– No DBA

10. Our Postgres Scaling History
• Quarter 3, 2008
– Horizontal “Sharded” Data
– VerOcal ParOOoning
– 5000 ConnecOons/sec Avg

11. Scaling Postgres: Lessons Learned
• Scaling web servers means many database
connecOons, needed pooling
– Started with pgPool moved to pgBouncer
• Started with Slony replicaOng read‐only slaves
– High IO/CPU Overhead

12. Scaling Postgres: Lessons Learned
• Began scaling verOcally by separaOng
applicaOon data by database servers and
removed read only slaves
• Needed few small tables replicated that could
be slightly inaccurate and eventually
consistent (BASE)

13. Scaling Postgres: Lessons Learned
• Enter plProxy
– Database parOOoning language by Skype uOlizing
PostgreSQL funcOons
– Trigger based plProxy funcOons replicate needed
tables without the Queue overhead
– NOT TRANSACTION SAFE

14. Scaling Postgres: Lessons Learned
• Standard Use of plProxy
– Horizontal parOOoning of data by ID across
mulOple servers
– Example: Messaging System
• 8 Servers store actual parOOoned message data
• Rule #1 – Plan for Growth

15. Scaling Postgres: Lessons Learned
• Knowing internals
– pg_catalog
• pg_stat_user_tables
• pg_stat_user_indexes

16. Scaling Postgres: Knowing Internals

17. Scaling Postgres: Lessons Learned
• Database Ecosystem
– Performance Factors
• Index bloat
• Usage changes
– Abuse
• Cache uOlizaOon
contenOon

18. Scaling Postgres: Lessons Learned
• Bigger is BeYer
– More RAM
– More Disks
– Faster and More CPU

19. Scaling Postgres: Lessons Learned
Scaling Across CPU Cores Before and A=er Upgade
• PostgreSQL Scales to 32
Cores
• Extensive Benchmarking @
MYB

20. Scaling Postgres: Future Plans
• More ParOOoning
• SOA Data DistribuOon
– Golconde
• Python Based
• Apache AcOveMQ

21. Apache AcOveMQ
• Java based Message
Broker soqware
• Client language neutral
• Implements JMS 1.1,
Stomp, XMPP, REST and
Others

22. AcOveMQ @ myYearbook.com
Out‐of‐band Processing Targeted Workload
• Uploaded content processing • Message Queues allow for the
– Image Resize
– Content analysis (R&D)
right server for the job
– AnO‐Virus Scans • BeYer distribuOon of CPU
• Comment and Message processing intensive tasks without
– Spam Processing negaOvely impacOng the user
• Email spooling from web experience
applicaOon
• Anywhere we can that makes sense • Clusterable, Scalable

23. Memcached: Key for Success
• Valuable Scaling Tool
– Over 250k get requests second during peak
– Over 750GB of cached data
– Easy to Deploy
– The more distributed the cache becomes the less
impacOng cache failures become ‐ more boxes are
beYer than fewer

24. Memcached: PotenOal Problems
• Large scale implementaOons can have some hidden
problems
– Lots of network traffic
– Non‐parOOon or evenly distributed data
• What to do for data that is not evenly distributed?
– Implemented a round‐robin cluster of memcache servers
that contain the same data

25. Research and Development
• Copyr
– Copy‐on‐Write Filesystem ReplicaOon
• Framewerk
– PHP5 OO Development Framework
• Golconde
– Queue Based Data DistribuOon for PostgreSQL
• Lightr
– PHP5 XMPP Class Library
• mod_xsltd
– LighYpd XSL TransformaOon module
• Playr
– PostgreSQL Log Replay
• Staplr
– STAOsical Package Logically engineered Right

26. Tools for Success
• OperaOons Portal
– ExecuOve Level Overview of OperaOonal Status
and ProducOon Change Log
• Staplr
– Trending & AnalyOs System

27. OperaOons Portal

28. Trending and Analysis: Staplr
• Version 0.6
– PHP Based
– Process forking
– Shelled RRD Commands
• Version 2.0
– Python Based
– Threaded
– Python wrappers to librrd

29. Trending and Analysis: Staplr
• Polls for:
– Apache hYpd
– Apache AcOveMQ
– lighYpd
– memcached
– MySQL
– pgBouncer
– PostgreSQL
– SNMP Data
• APC, Isilon, F5, Xiotech, Others
– SysStat

30. QuesOons?
