1. MySQL vs MariaDB
HighLoad++ 2019
Alkin Tezuysal

2. Who am I?
@ask_dba - Alkin Tezuysal
Born to Sail, Forced to Work
❖ Open Source Database Evangelist
❖ Global Database Operations Expert
❖ Cloud Infrastructure Architect AWS
❖ Inspiring Technical and Strategic Leader
❖ Creative Team Builder
❖ Speaker, Mentor, and Coach

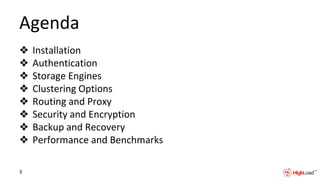

3. Agenda
❖ Installation
❖ Authentication
❖ Storage Engines
❖ Clustering Options
❖ Routing and Proxy
❖ Security and Encryption
❖ Backup and Recovery
❖ Performance and Benchmarks
3

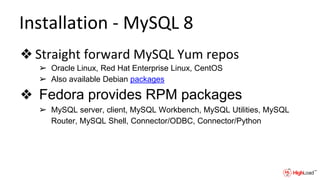

4. Installation - MySQL 8
❖ Straight forward MySQL Yum repos
➢ Oracle Linux, Red Hat Enterprise Linux, CentOS
➢ Also available Debian packages
❖ Fedora provides RPM packages
➢ MySQL server, client, MySQL Workbench, MySQL Utilities, MySQL
Router, MySQL Shell, Connector/ODBC, Connector/Python

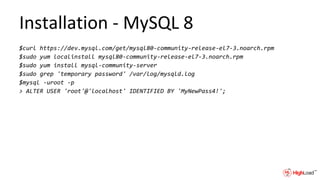

5. Installation - MySQL 8
$curl https://dev.mysql.com/get/mysql80-community-release-el7-3.noarch.rpm
$sudo yum localinstall mysql80-community-release-el7-3.noarch.rpm
$sudo yum install mysql-community-server
$sudo grep 'temporary password' /var/log/mysqld.log
$mysql -uroot -p
> ALTER USER 'root'@'localhost' IDENTIFIED BY 'MyNewPass4!';

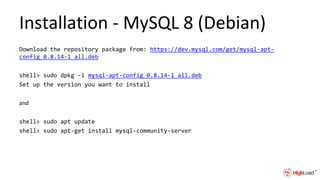

6. Installation - MySQL 8 (Debian)
Download the repository package from: https://dev.mysql.com/get/mysql-apt-
config_0.8.14-1_all.deb
shell> sudo dpkg -i mysql-apt-config_0.8.14-1_all.deb
Set up the version you want to install
and
shell> sudo apt update
shell> sudo apt-get install mysql-community-server

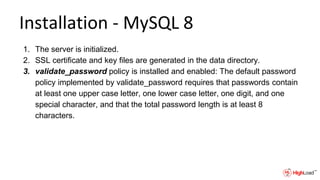

7. Installation - MySQL 8
1. The server is initialized.
2. SSL certificate and key files are generated in the data directory.
3. validate_password policy is installed and enabled: The default password
policy implemented by validate_password requires that passwords contain
at least one upper case letter, one lower case letter, one digit, and one
special character, and that the total password length is at least 8
characters.

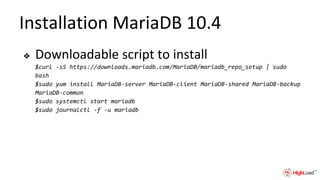

8. Installation MariaDB 10.4
❖ Downloadable script to install
$curl -sS https://downloads.mariadb.com/MariaDB/mariadb_repo_setup | sudo
bash
$sudo yum install MariaDB-server MariaDB-client MariaDB-shared MariaDB-backup
MariaDB-common
$sudo systemctl start mariadb
$sudo journalctl -f -u mariadb

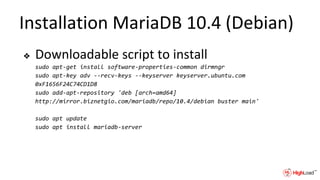

9. Installation MariaDB 10.4 (Debian)
❖ Downloadable script to install
sudo apt-get install software-properties-common dirmngr
sudo apt-key adv --recv-keys --keyserver keyserver.ubuntu.com
0xF1656F24C74CD1D8
sudo add-apt-repository 'deb [arch=amd64]
http://mirror.biznetgio.com/mariadb/repo/10.4/debian buster main'
sudo apt update
sudo apt install mariadb-server

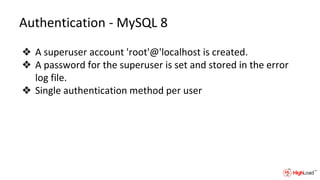

10. Authentication - MySQL 8
❖ A superuser account 'root'@'localhost is created.
❖ A password for the superuser is set and stored in the error
log file.
❖ Single authentication method per user

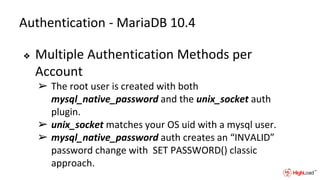

11. Authentication - MariaDB 10.4
❖ Multiple Authentication Methods per
Account
➢ The root user is created with both
mysql_native_password and the unix_socket auth
plugin.
➢ unix_socket matches your OS uid with a mysql user.
➢ mysql_native_password auth creates an “INVALID”
password change with SET PASSWORD() classic
approach.

12. Storage Engines - MySQL 8
❖ FEDERATED
❖ MEMORY
❖ InnoDB
❖ Performance_Schema
❖ MyISAM
❖ MRG_MYISAM
❖ BLACKHOLE
❖ CSV
❖ ARCHIVE

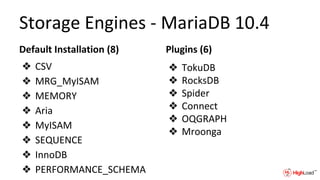

13. Storage Engines - MariaDB 10.4
Default Installation (8)
❖ CSV
❖ MRG_MyISAM
❖ MEMORY
❖ Aria
❖ MyISAM
❖ SEQUENCE
❖ InnoDB
❖ PERFORMANCE_SCHEMA
Plugins (6)
❖ TokuDB
❖ RocksDB
❖ Spider
❖ Connect
❖ OQGRAPH
❖ Mroonga

14. Clustering Options
MySQL 8
❖ InnoDB Cluster which
consists of:
➢ Group Replication (available
as a plugin)
➢ MySQL Shell
➢ MySQL Router
MariaDB 10.4
❖ MariaDB Galera Cluster:
➢ Galera 4 (available in a
separate package)

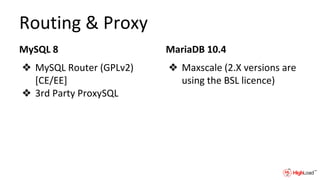

15. Routing & Proxy
MySQL 8
❖ MySQL Router (GPLv2)
[CE/EE]
❖ 3rd Party ProxySQL
MariaDB 10.4
❖ Maxscale (2.X versions are
using the BSL licence)

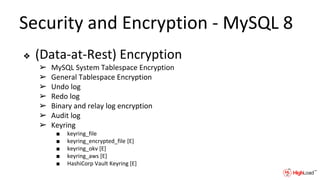

16. Security and Encryption - MySQL 8
❖ (Data-at-Rest) Encryption
➢ MySQL System Tablespace Encryption
➢ General Tablespace Encryption
➢ Undo log
➢ Redo log
➢ Binary and relay log encryption
➢ Audit log
➢ Keyring
■ keyring_file
■ keyring_encrypted_file [E]
■ keyring_okv [E]
■ keyring_aws [E]
■ HashiCorp Vault Keyring [E]

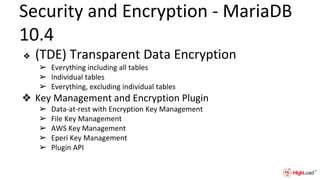

17. Security and Encryption - MariaDB
10.4
❖ (TDE) Transparent Data Encryption
➢ Everything including all tables
➢ Individual tables
➢ Everything, excluding individual tables
❖ Key Management and Encryption Plugin
➢ Data-at-rest with Encryption Key Management
➢ File Key Management
➢ AWS Key Management
➢ Eperi Key Management
➢ Plugin API

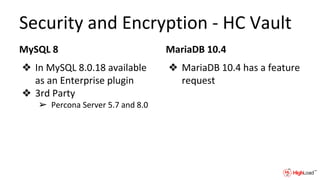

18. Security and Encryption - HC Vault
MySQL 8
❖ In MySQL 8.0.18 available
as an Enterprise plugin
❖ 3rd Party
➢ Percona Server 5.7 and 8.0
MariaDB 10.4
❖ MariaDB 10.4 has a feature
request

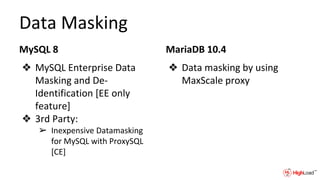

19. Data Masking
MySQL 8
❖ MySQL Enterprise Data
Masking and De-
Identification [EE only
feature]
❖ 3rd Party:
➢ Inexpensive Datamasking
for MySQL with ProxySQL
[CE]
MariaDB 10.4
❖ Data masking by using
MaxScale proxy

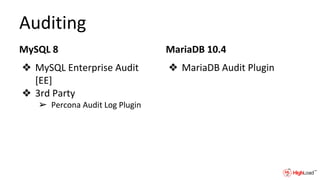

20. Auditing
MySQL 8
❖ MySQL Enterprise Audit
[EE]
❖ 3rd Party
➢ Percona Audit Log Plugin
MariaDB 10.4
❖ MariaDB Audit Plugin

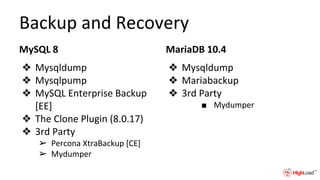

21. Backup and Recovery
MySQL 8
❖ Mysqldump
❖ Mysqlpump
❖ MySQL Enterprise Backup
[EE]
❖ The Clone Plugin (8.0.17)
❖ 3rd Party
➢ Percona XtraBackup [CE]
➢ Mydumper
MariaDB 10.4
❖ Mysqldump
❖ Mariabackup
❖ 3rd Party
■ Mydumper

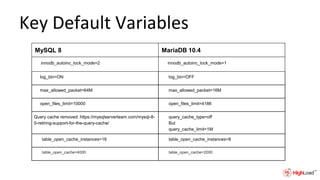

22. Key Default Variables
MySQL 8 MariaDB 10.4
innodb_autoinc_lock_mode=2 innodb_autoinc_lock_mode=1
log_bin=ON log_bin=OFF
max_allowed_packet=64M max_allowed_packet=16M
open_files_limit=10000 open_files_limit=4186
Query cache removed: https://mysqlserverteam.com/mysql-8-
0-retiring-support-for-the-query-cache/
query_cache_type=off
But
query_cache_limit=1M
table_open_cache_instances=16 table_open_cache_instances=8
table_open_cache=4000 table_open_cache=2000

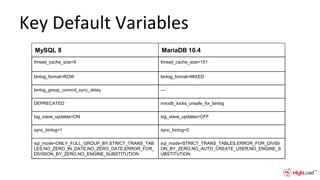

23. Key Default Variables
MySQL 8 MariaDB 10.4
thread_cache_size=9 thread_cache_size=151
binlog_format=ROW binlog_format=MIXED
binlog_group_commit_sync_delay ---
DEPRECATED innodb_locks_unsafe_for_binlog
log_slave_updates=ON log_slave_updates=OFF
sync_binlog=1 sync_binlog=0
sql_mode=ONLY_FULL_GROUP_BY,STRICT_TRANS_TAB
LES,NO_ZERO_IN_DATE,NO_ZERO_DATE,ERROR_FOR_
DIVISION_BY_ZERO,NO_ENGINE_SUBSTITUTION
sql_mode=STRICT_TRANS_TABLES,ERROR_FOR_DIVISI
ON_BY_ZERO,NO_AUTO_CREATE_USER,NO_ENGINE_S
UBSTITUTION

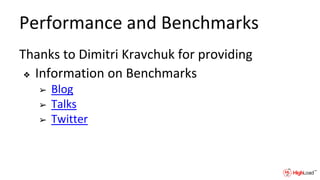

24. Performance and Benchmarks
Thanks to Dimitri Kravchuk for providing
❖ Information on Benchmarks
➢ Blog
➢ Talks
➢ Twitter

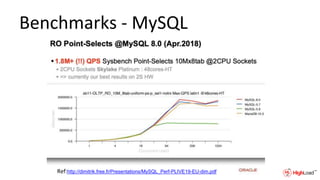

25. Benchmarks - MySQL
Ref:http://dimitrik.free.fr/Presentations/MySQL_Perf-PLIVE19-EU-dim.pdf

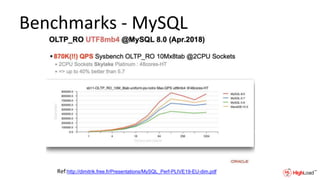

26. Benchmarks - MySQL
Ref:http://dimitrik.free.fr/Presentations/MySQL_Perf-PLIVE19-EU-dim.pdf

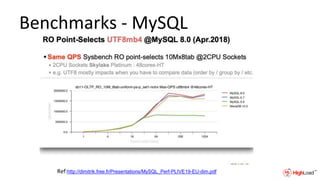

27. Benchmarks - MySQL
Ref:http://dimitrik.free.fr/Presentations/MySQL_Perf-PLIVE19-EU-dim.pdf

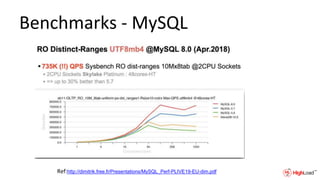

28. Benchmarks - MySQL
Ref:http://dimitrik.free.fr/Presentations/MySQL_Perf-PLIVE19-EU-dim.pdf

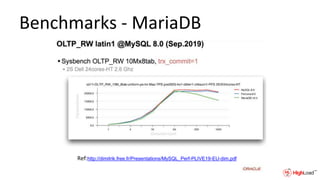

29. Benchmarks - MariaDB
Ref:http://dimitrik.free.fr/Presentations/MySQL_Perf-PLIVE19-EU-dim.pdf

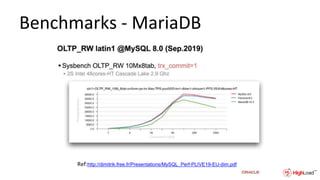

30. Benchmarks - MariaDB
Ref:http://dimitrik.free.fr/Presentations/MySQL_Perf-PLIVE19-EU-dim.pdf

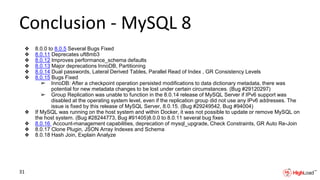

31. Conclusion - MySQL 8
❖ 8.0.0 to 8.0.5 Several Bugs Fixed
❖ 8.0.11 Deprecates uft8mb3
❖ 8.0.12 Improves performance_schema defaults
❖ 8.0.13 Major deprecations InnoDB, Partitioning
❖ 8.0.14 Dual passwords, Lateral Derived Tables, Parallel Read of Index , GR Consistency Levels
❖ 8.0.15 Bugs Fixed
➢ InnoDB: After a checkpoint operation persisted modifications to data dictionary metadata, there was
potential for new metadata changes to be lost under certain circumstances. (Bug #29120297)
➢ Group Replication was unable to function in the 8.0.14 release of MySQL Server if IPv6 support was
disabled at the operating system level, even if the replication group did not use any IPv6 addresses. The
issue is fixed by this release of MySQL Server, 8.0.15. (Bug #29249542, Bug #94004)
❖ If MySQL was running on the host system and within Docker, it was not possible to update or remove MySQL on
the host system. (Bug #28244773, Bug #91405)8.0.0 to 8.0.11 several bug fixes
❖ 8.0.16 Account-management capabilities, deprecation of mysql_upgrade, Check Constraints, GR Auto Re-Join
❖ 8.0.17 Clone Plugin, JSON Array Indexes and Schema
❖ 8.0.18 Hash Join, Explain Analyze
31

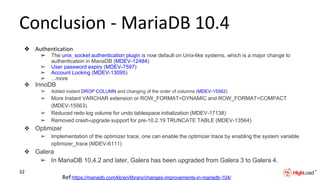

32. Conclusion - MariaDB 10.4
❖ Authentication
➢ The unix_socket authentication plugin is now default on Unix-like systems, which is a major change to
authentication in MariaDB (MDEV-12484)
➢ User password expiry (MDEV-7597)
➢ Account Locking (MDEV-13095)
➢ ...more
❖ InnoDB
➢ Added instant DROP COLUMN and changing of the order of columns (MDEV-15562)
➢ More Instant VARCHAR extension or ROW_FORMAT=DYNAMIC and ROW_FORMAT=COMPACT
(MDEV-15563)
➢ Reduced redo log volume for undo tablespace initialization (MDEV-17138)
➢ Removed crash-upgrade support for pre-10.2.19 TRUNCATE TABLE (MDEV-13564)
❖ Optimizer
➢ Implementation of the optimizer trace, one can enable the optimizer trace by enabling the system variable
optimizer_trace (MDEV-6111)
❖ Galera
➢ In MariaDB 10.4.2 and later, Galera has been upgraded from Galera 3 to Galera 4.
32
Ref:https://mariadb.com/kb/en/library/changes-improvements-in-mariadb-104/

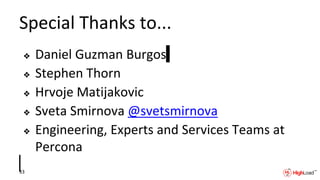

33. Special Thanks to...
❖ Daniel Guzman Burgos
❖ Stephen Thorn
❖ Hrvoje Matijakovic
❖ Sveta Smirnova @svetsmirnova
❖ Engineering, Experts and Services Teams at
Percona
33

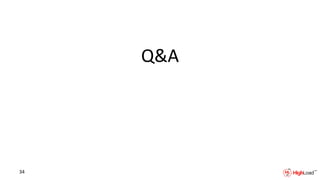

34. Q&A
34

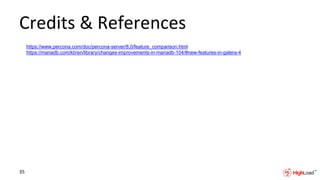

35. Credits & References
https://www.percona.com/doc/percona-server/8.0/feature_comparison.html
https://mariadb.com/kb/en/library/changes-improvements-in-mariadb-104/#new-features-in-galera-4
35
