Automating Software Development Life Cycle - A DevOps Approach
The document discusses DevOps and provides an overview of the key concepts. It describes how DevOps aims to bring development, operations, and business teams together through automating processes, continuous monitoring, and breaking down silos between teams. The document then covers various DevOps tools and technologies like version control systems, build tools, configuration management, virtualization, and continuous integration/deployment practices.
More Related Content
Similar to Automating Software Development Life Cycle - A DevOps Approach
Automating Software Development Life Cycle - A DevOps Approach
- 1.

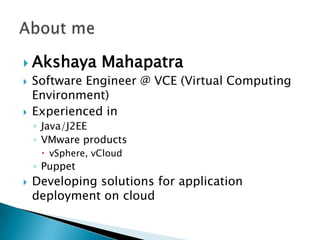

- 2. Akshaya Mahapatra Software Engineer @ VCE (Virtual Computing Environment) Experienced in ◦ Java/J2EE ◦ VMware products vSphere, vCloud ◦ Puppet Developing solutions for application deployment on cloud
- 3.

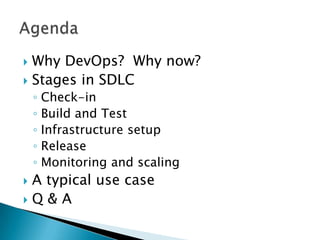

- 4. Why DevOps?Why now? Stages in SDLC ◦ Check-in ◦ Build and Test ◦ Infrastructure setup ◦ Release ◦ Monitoring and scaling A typical use case Q & A

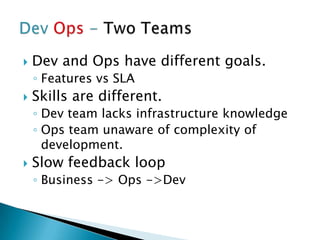

- 5. Dev andOps have different goals. ◦ Features vs SLA Skills are different. ◦ Dev team lacks infrastructure knowledge ◦ Ops team unaware of complexity of development. Slow feedback loop ◦ Business -> Ops ->Dev

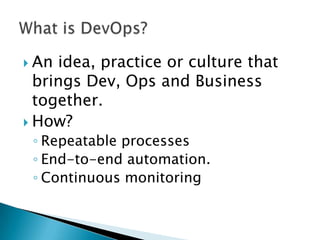

- 6. An idea,practice or culture that brings Dev, Ops and Business together. How? ◦ Repeatable processes ◦ End-to-end automation. ◦ Continuous monitoring

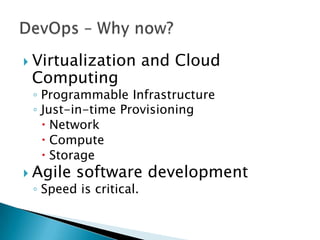

- 7. Virtualization andCloud Computing ◦ Programmable Infrastructure ◦ Just-in-time Provisioning Network Compute Storage Agile software development ◦ Speed is critical.

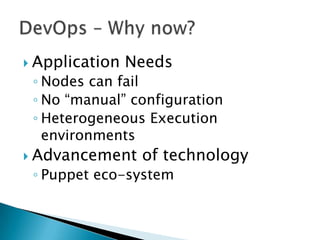

- 8. Application Needs ◦Nodes can fail ◦ No “manual” configuration ◦ Heterogeneous Execution environments Advancement of technology ◦ Puppet eco-system
- 9.
- 10.
- 11.
- 12.

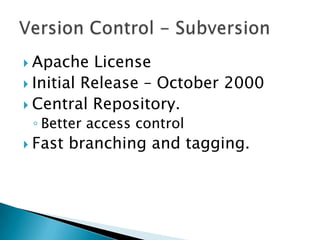

- 13. Apache License Initial Release – October 2000 Central Repository. ◦ Better access control Fast branching and tagging.

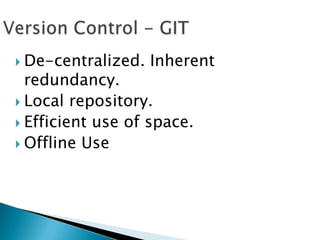

- 14. De-centralized. Inherent redundancy. Local repository. Efficient use of space. Offline Use

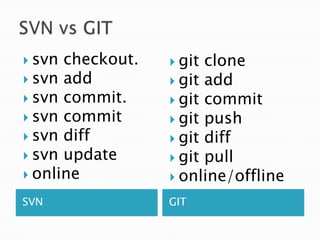

- 15. SVN GIT svncheckout. svn add svn commit. svn commit svn diff svn update online git clone git add git commit git push git diff git pull online/offline

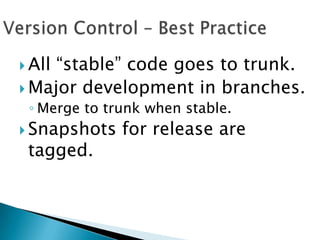

- 16. All “stable”code goes to trunk. Major development in branches. ◦ Merge to trunk when stable. Snapshots for release are tagged.

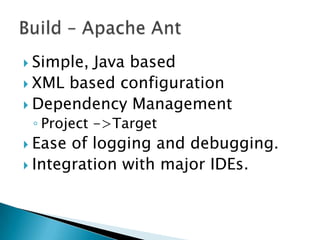

- 17. Simple, Javabased XML based configuration Dependency Management ◦ Project ->Target Ease of logging and debugging. Integration with major IDEs.

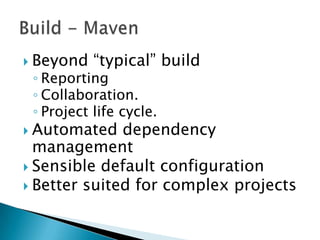

- 18. Beyond “typical”build ◦ Reporting ◦ Collaboration. ◦ Project life cycle. Automated dependency management Sensible default configuration Better suited for complex projects
- 19.

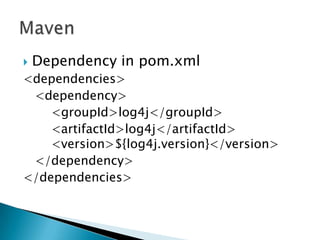

- 20. Dependency inpom.xml <dependencies> <dependency> <groupId>log4j</groupId> <artifactId>log4j</artifactId> <version>${log4j.version}</version> </dependency> </dependencies>

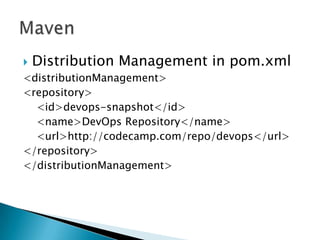

- 21. Distribution Managementin pom.xml <distributionManagement> <repository> <id>devops-snapshot</id> <name>DevOps Repository</name> <url>http://codecamp.com/repo/devops</url> </repository> </distributionManagement>

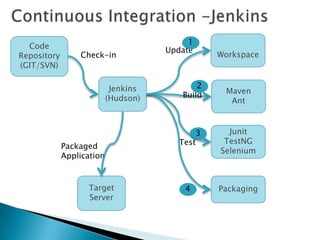

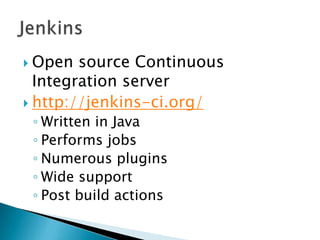

- 22. Open sourceContinuous Integration server http://jenkins-ci.org/ ◦ Written in Java ◦ Performs jobs ◦ Numerous plugins ◦ Wide support ◦ Post build actions
- 23.

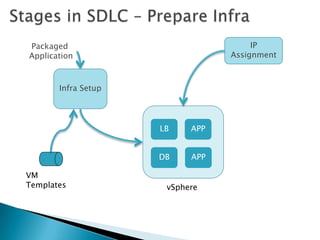

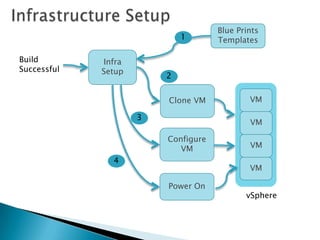

- 24. Clone VM Configure VM Blue Prints Templates Infra Setup 3 1 2 PowerOn Build Successful 4 VM VM VM VM vSphere
- 25. Cloning Specification: ◦Networking Info ◦ DNS ◦ Domain Host/Cluster Information OS Customization ◦ Sysprep in windows ◦ IP configuration in Linux

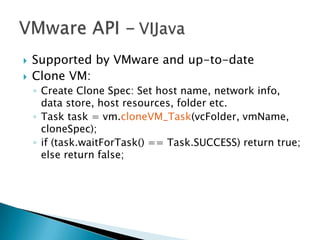

- 26. Supported byVMware and up-to-date Clone VM: ◦ Create Clone Spec: Set host name, network info, data store, host resources, folder etc. ◦ Task task = vm.cloneVM_Task(vcFolder, vmName, cloneSpec); ◦ if (task.waitForTask() == Task.SUCCESS) return true; else return false;

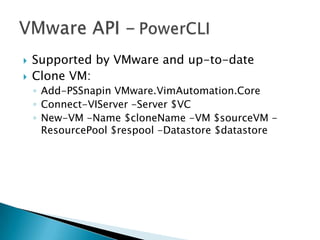

- 27. Supported byVMware and up-to-date Clone VM: ◦ Add-PSSnapin VMware.VimAutomation.Core ◦ Connect-VIServer -Server $VC ◦ New-VM -Name $cloneName -VM $sourceVM - ResourcePool $respool -Datastore $datastore
- 28. Powershell New-NetIPAddress –InterfaceAlias“Local Area Connection” –IPv4Address “192.168.1.100” – PrefixLength 24 -DefaultGateway 192.168.1.1 Set-DnsClientServerAddress -InterfaceAlias “Local Area Connection” -ServerAddresses 192.168.1.254, 192.168.1.253
- 29.

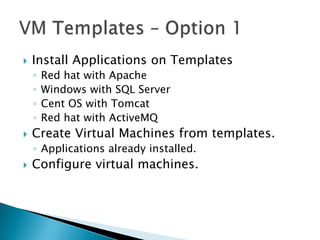

- 30. Install Applicationson Templates ◦ Red hat with Apache ◦ Windows with SQL Server ◦ Cent OS with Tomcat ◦ Red hat with ActiveMQ Create Virtual Machines from templates. ◦ Applications already installed. Configure virtual machines.
- 31. Templates withBase OS ◦ Red hat ◦ Windows ◦ Cent OS Create Virtual Machines from templates. Install required components on virtual machines on demand using Puppet.

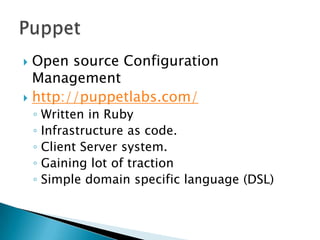

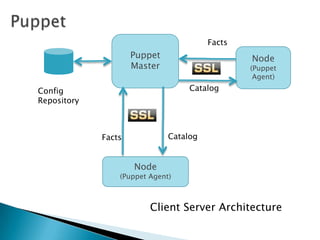

- 32. Open sourceConfiguration Management http://puppetlabs.com/ ◦ Written in Ruby ◦ Infrastructure as code. ◦ Client Server system. ◦ Gaining lot of traction ◦ Simple domain specific language (DSL)
- 33.

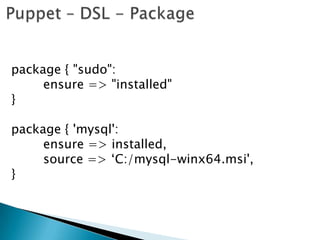

- 34. package { "sudo": ensure=> "installed" } package { 'mysql': ensure => installed, source => „C:/mysql-winx64.msi', }
- 35. User { “codecamp": ensure=> "present", uid => "1001", gid => "1001", comment => “Code Camp Developer", home => "/home/codecamp ", shell => "/bin/bash" }

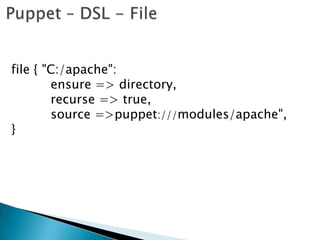

- 36. file { "C:/apache": ensure=> directory, recurse => true, source =>puppet:///modules/apache", }

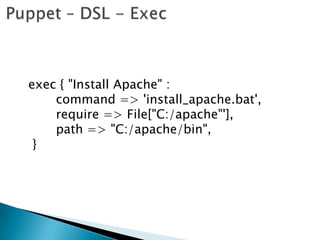

- 37. exec { "InstallApache" : command => 'install_apache.bat', require => File["C:/apache"'], path => "C:/apache/bin", }

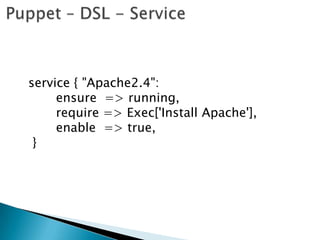

- 38. service { "Apache2.4": ensure=> running, require => Exec['Install Apache'], enable => true, }

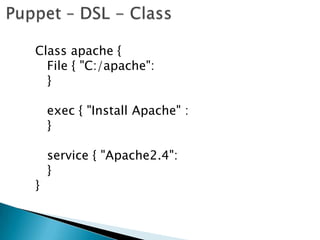

- 39. Class apache { File{ "C:/apache": } exec { "Install Apache" : } service { "Apache2.4": } }

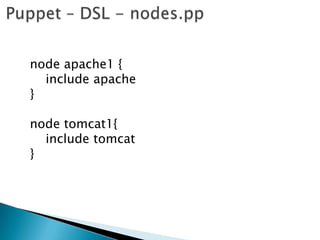

- 40. node apache1 { includeapache } node tomcat1{ include tomcat }

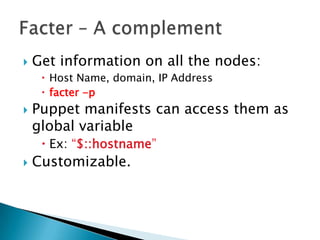

- 41. Get informationon all the nodes: Host Name, domain, IP Address facter -p Puppet manifests can access them as global variable Ex: “$::hostname” Customizable.

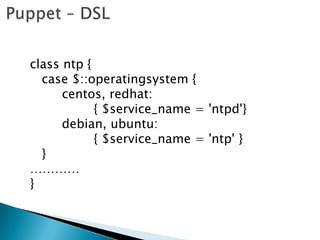

- 42. class ntp { case$::operatingsystem { centos, redhat: { $service_name = 'ntpd'} debian, ubuntu: { $service_name = 'ntp' } } ………… }

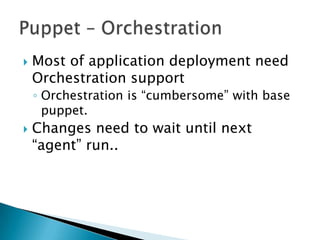

- 43. Most ofapplication deployment need Orchestration support ◦ Orchestration is “cumbersome” with base puppet. Changes need to wait until next “agent” run..

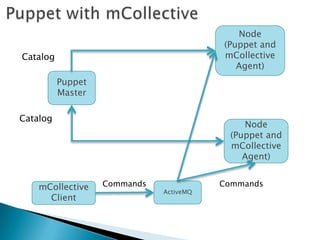

- 44. Open source Asynchronous Orchestration ◦ Can manage puppet runs. Scalable ◦ Parallel execution
- 45.

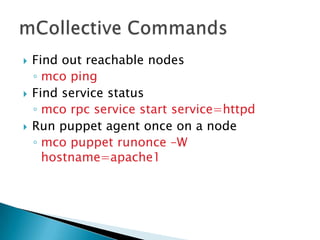

- 46. Find outreachable nodes ◦ mco ping Find service status ◦ mco rpc service start service=httpd Run puppet agent once on a node ◦ mco puppet runonce –W hostname=apache1

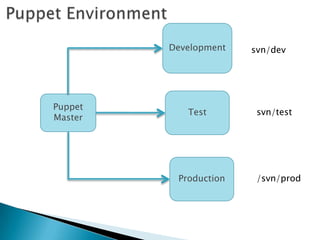

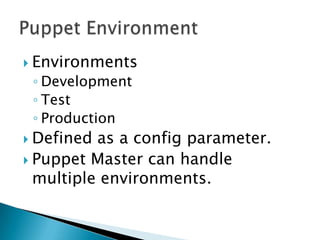

- 47. Environments ◦ Development ◦Test ◦ Production Defined as a config parameter. Puppet Master can handle multiple environments.
- 48.

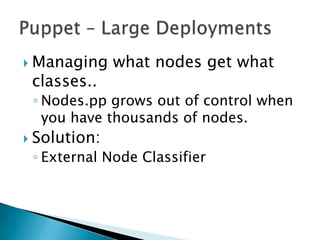

- 49. Managing whatnodes get what classes.. ◦ Nodes.pp grows out of control when you have thousands of nodes. Solution: ◦ External Node Classifier

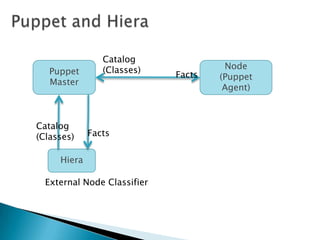

- 50. Key/Value pairlookup tool Provides environment hierarchy ◦ Default ◦ Node Name ◦ Environment ◦ Domain
- 51.
- 52.

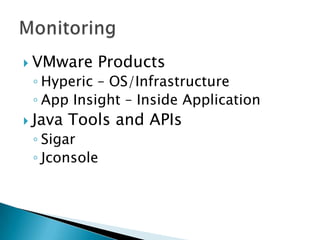

- 53. VMware Products ◦Hyperic – OS/Infrastructure ◦ App Insight – Inside Application Java Tools and APIs ◦ Sigar ◦ Jconsole

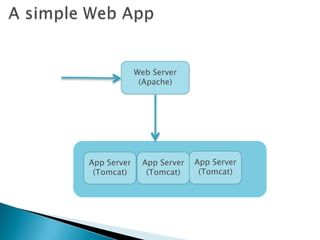

- 55. Web Server (Apache) App Server (Tomcat) AppServer (Tomcat) App Server (Tomcat)

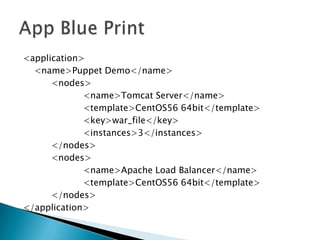

- 56. <application> <name>Puppet Demo</name> <nodes> <name>Tomcat Server</name> <template>CentOS5664bit</template> <key>war_file</key> <instances>3</instances> </nodes> <nodes> <name>Apache Load Balancer</name> <template>CentOS56 64bit</template> </nodes> </application>

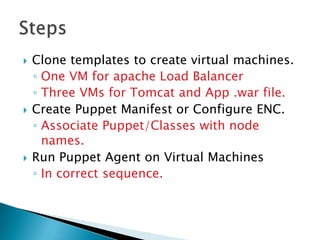

- 57. Clone templatesto create virtual machines. ◦ One VM for apache Load Balancer ◦ Three VMs for Tomcat and App .war file. Create Puppet Manifest or Configure ENC. ◦ Associate Puppet/Classes with node names. Run Puppet Agent on Virtual Machines ◦ In correct sequence.
- 58. Install Apache ◦mco puppet -W hostname=apache1 runonce Install Tomcat ◦ mco puppet -W role=apserver runonce Configure Apache ◦ mco puppet -W hostname=apache1 runonce

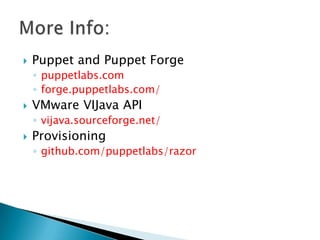

- 59. Puppet andPuppet Forge ◦ puppetlabs.com ◦ forge.puppetlabs.com/ VMware VIJava API ◦ vijava.sourceforge.net/ Provisioning ◦ github.com/puppetlabs/razor
