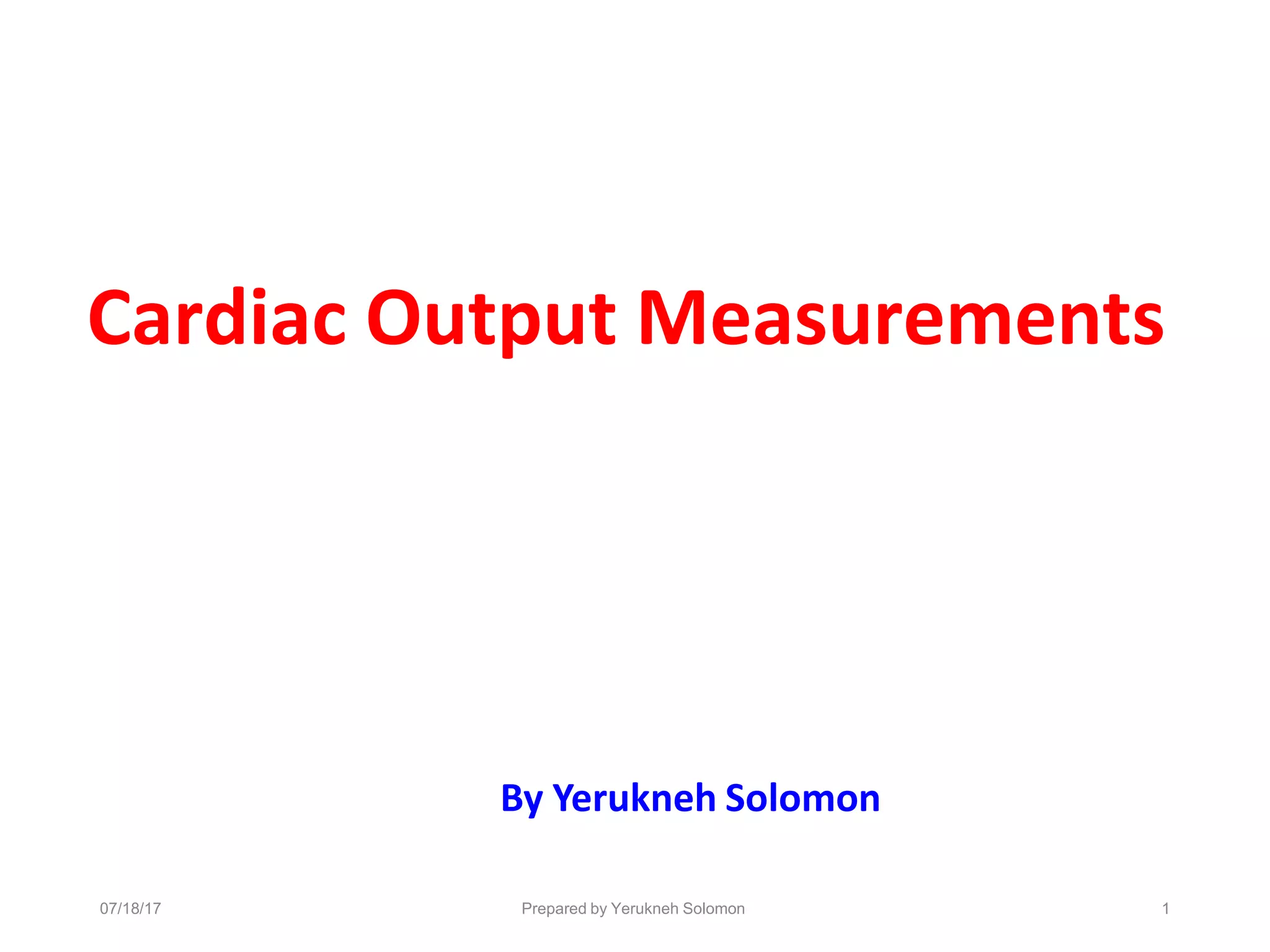

1. Cardiac Output Measurements
By Yerukneh Solomon
07/18/17 Prepared by Yerukneh Solomon 1

2. 07/18/17 Prepared by Yerukneh Solomon 2

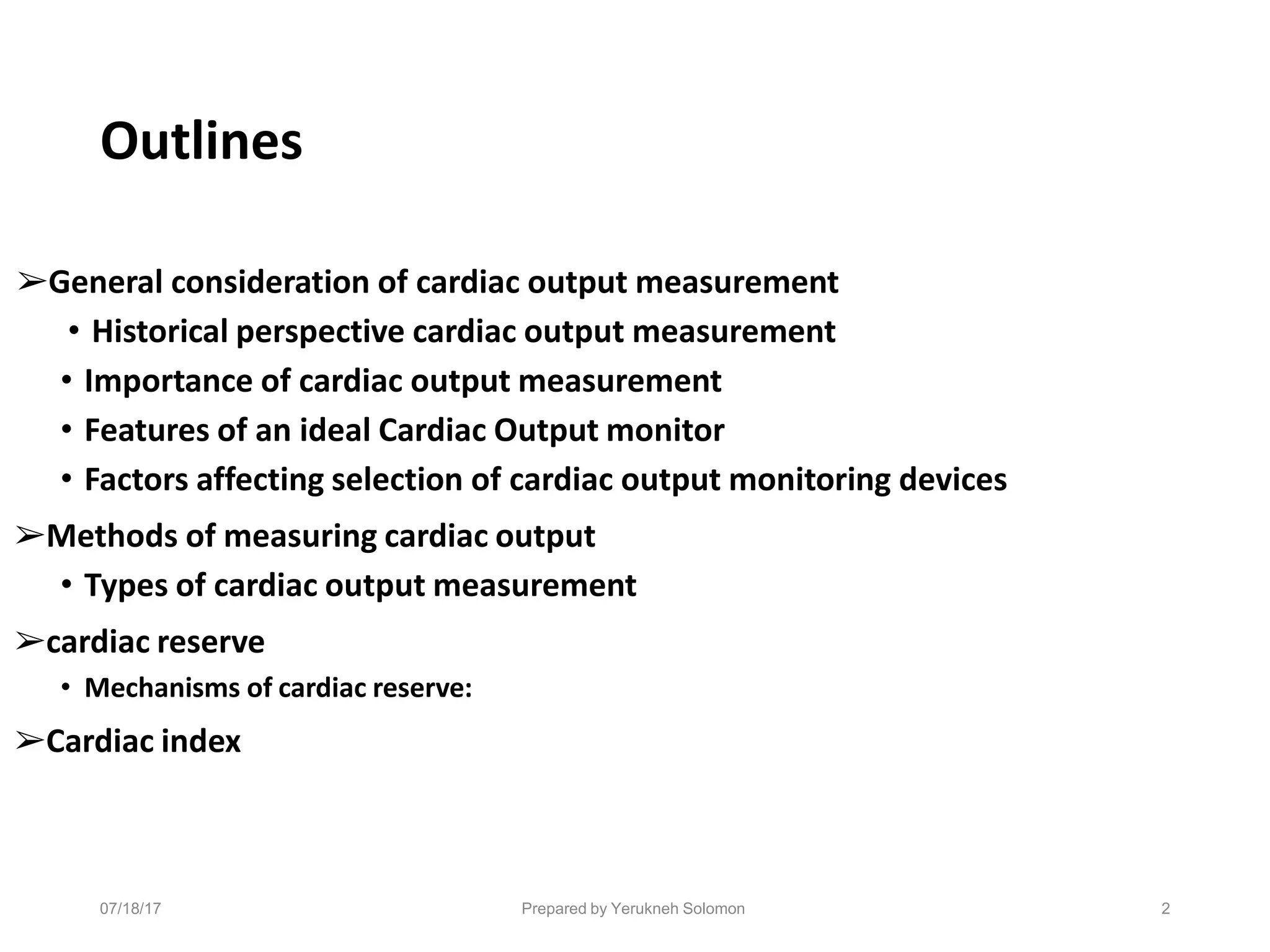

Outlines
➢General consideration of cardiac output measurement
• Historical perspective cardiac output measurement
• Importance of cardiac output measurement
• Features of an ideal Cardiac Output monitor
• Factors affecting selection of cardiac output monitoring devices
➢Methods of measuring cardiac output
• Types of cardiac output measurement
➢cardiac reserve
• Mechanisms of cardiac reserve:
➢Cardiac index

3. Adolf Eugen Fick ( 1829 – 1901)
•1855- Introduced a law
of diffusion called Fick’s
law of diffusion
•1870- Was the first one
to develop a technique
for measuring cardiac
output
07/18/17 Prepared by Yerukneh Solomon 3

4. 07/18/17 Prepared by Yerukneh Solomon 4

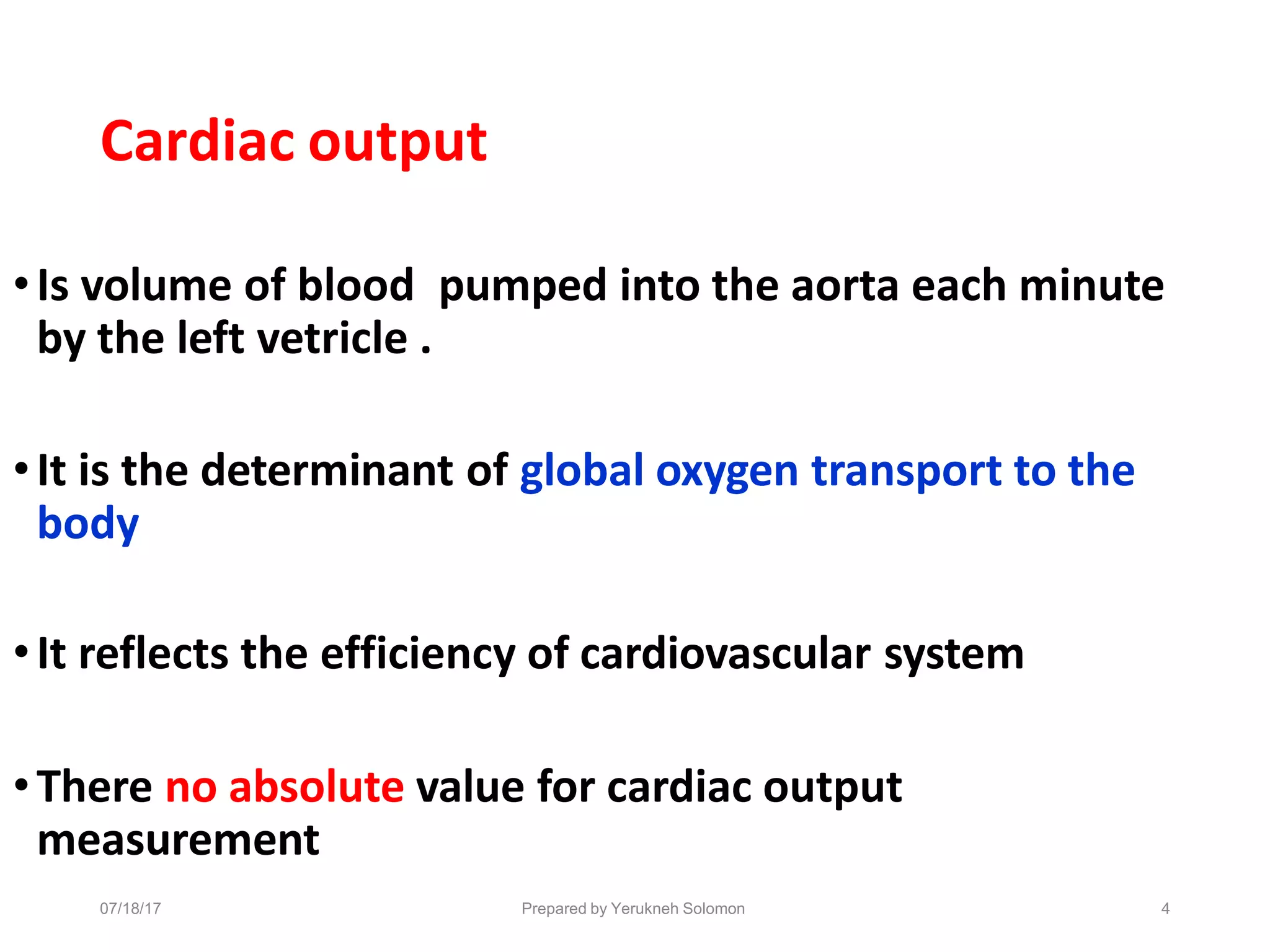

Cardiac output
•Is volume of blood pumped into the aorta each minute
by the left vetricle .
•It is the determinant of global oxygen transport to the
body
•It reflects the efficiency of cardiovascular system
•There no absolute value for cardiac output
measurement

5. 07/18/17 Prepared by Yerukneh Solomon 5

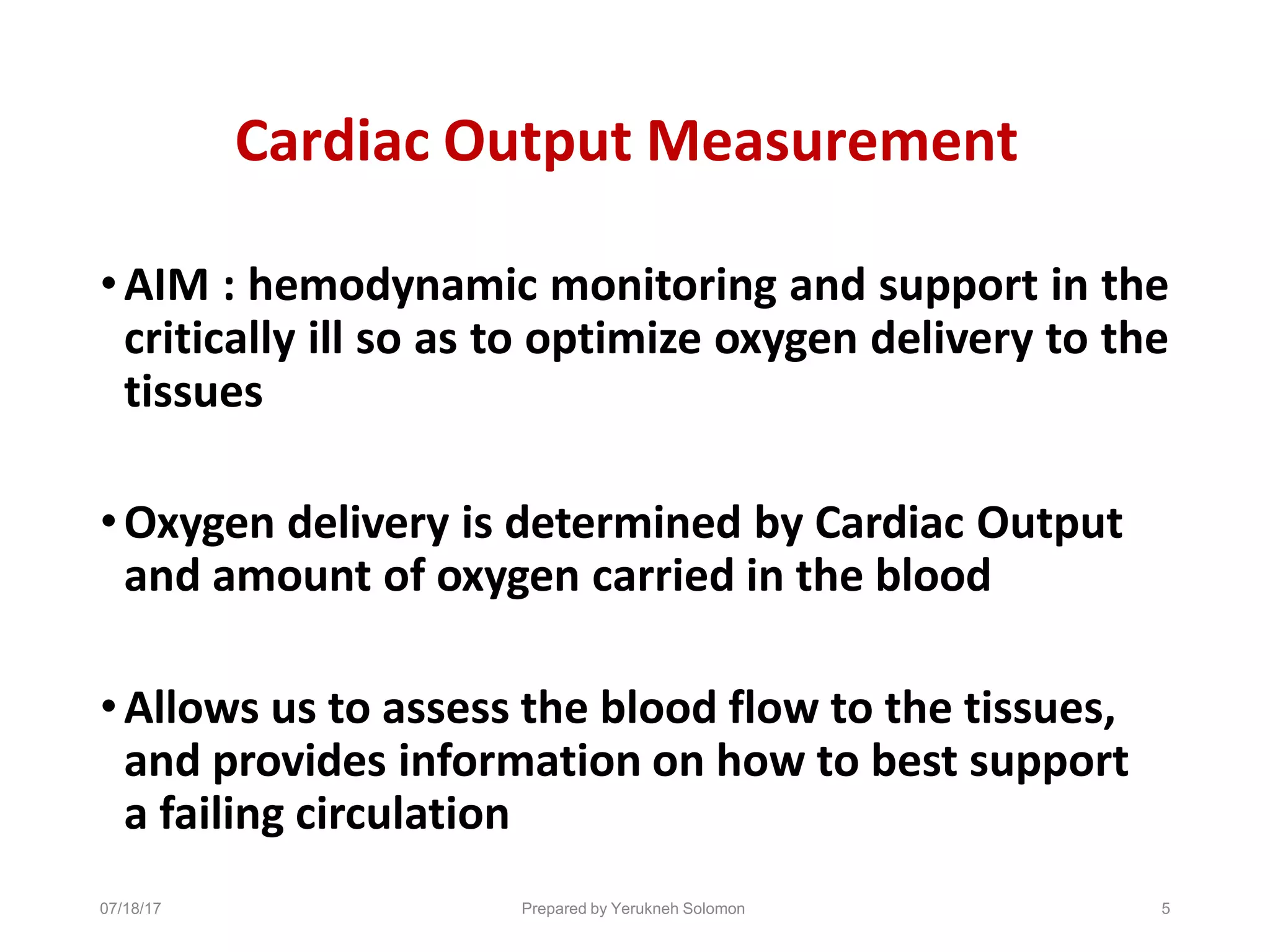

Cardiac Output Measurement
•AIM : hemodynamic monitoring and support in the
critically ill so as to optimize oxygen delivery to the
tissues
•Oxygen delivery is determined by Cardiac Output
and amount of oxygen carried in the blood
•Allows us to assess the blood flow to the tissues,
and provides information on how to best support
a failing circulation

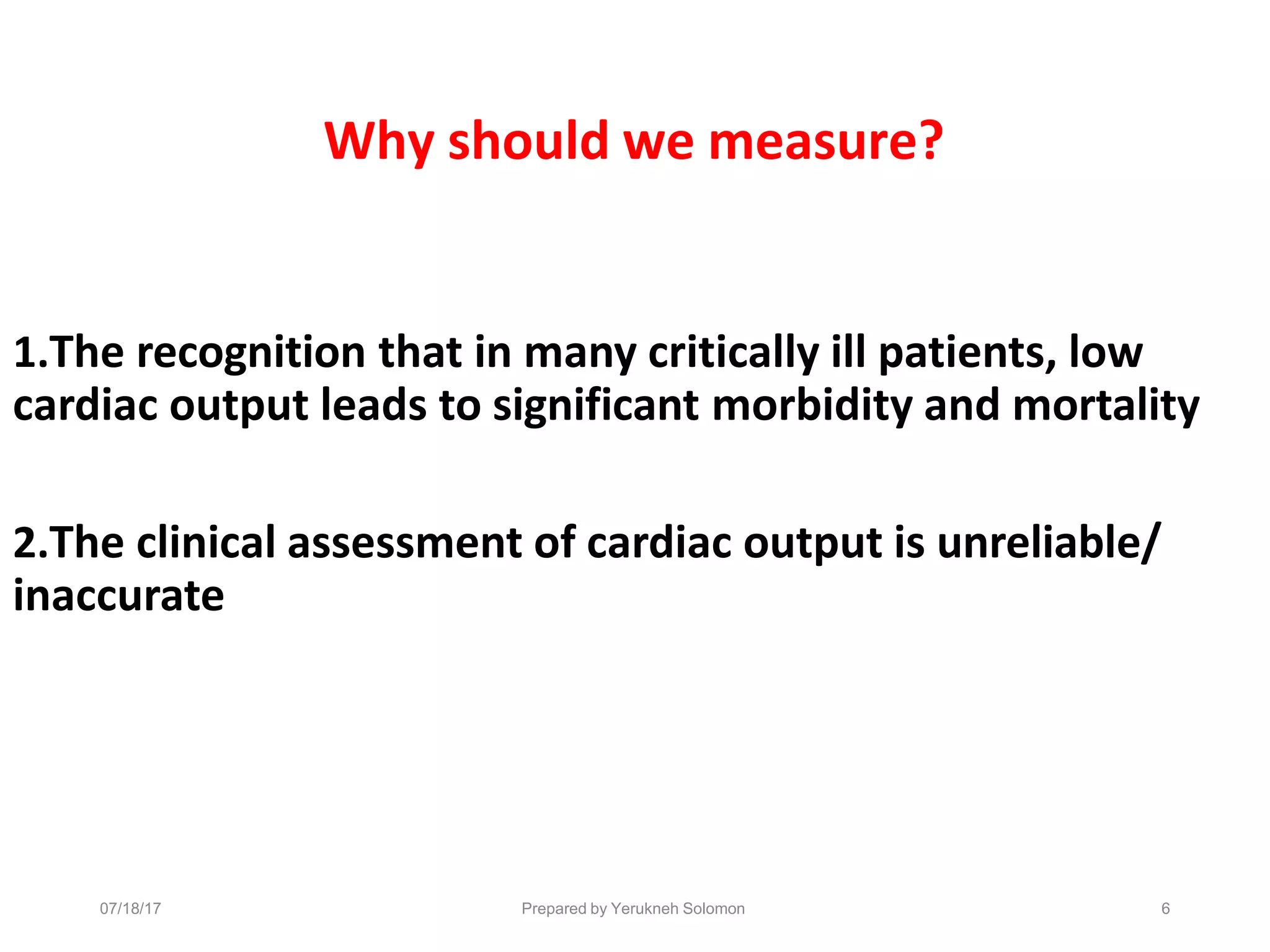

6. 07/18/17 Prepared by Yerukneh Solomon 6
Why should we measure?
1.The recognition that in many critically ill patients, low
cardiac output leads to significant morbidity and mortality
2.The clinical assessment of cardiac output is unreliable/
inaccurate

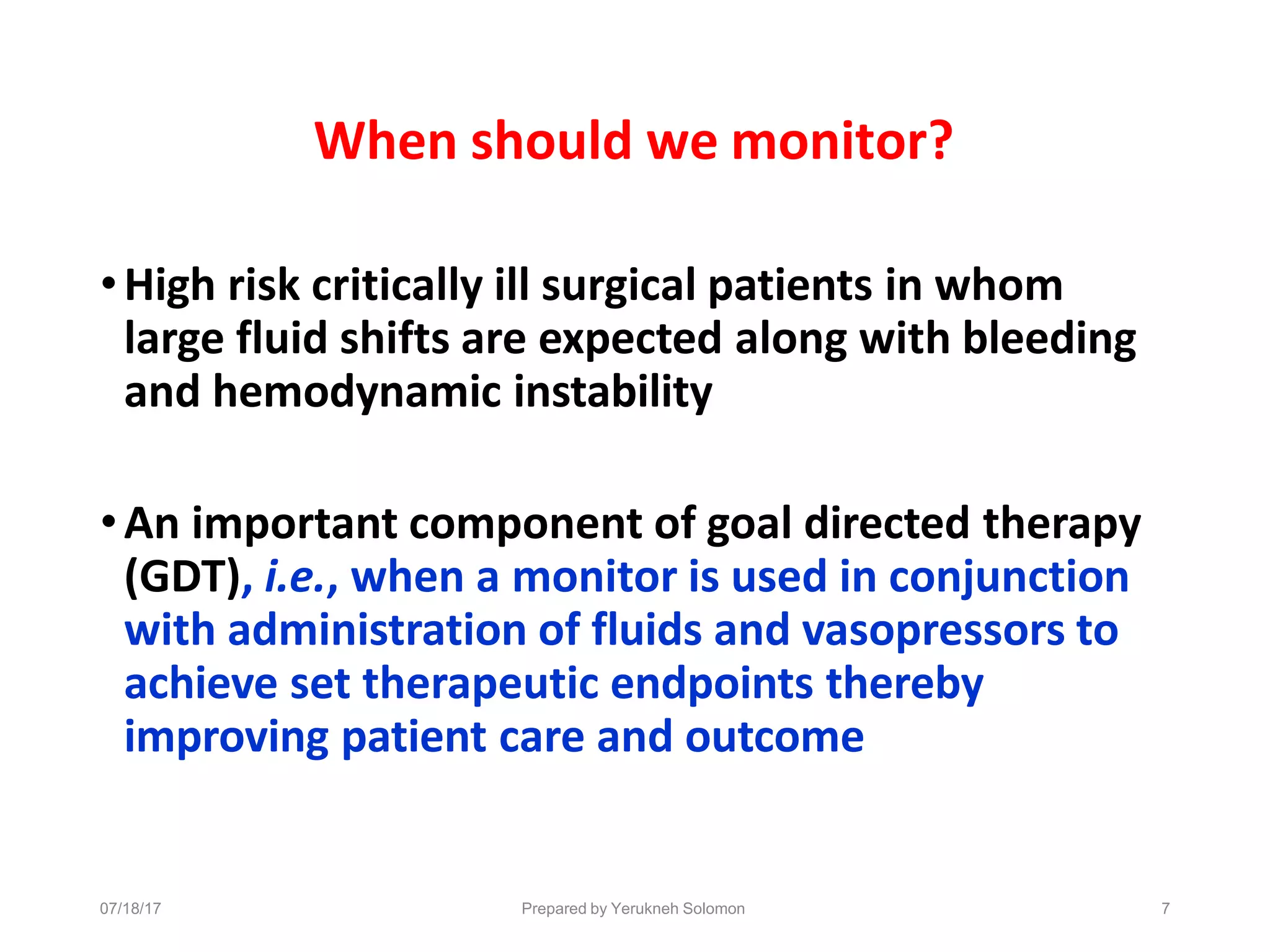

7. 07/18/17 Prepared by Yerukneh Solomon 7
When should we monitor?
•High risk critically ill surgical patients in whom
large fluid shifts are expected along with bleeding
and hemodynamic instability
•An important component of goal directed therapy
(GDT), i.e., when a monitor is used in conjunction
with administration of fluids and vasopressors to
achieve set therapeutic endpoints thereby
improving patient care and outcome

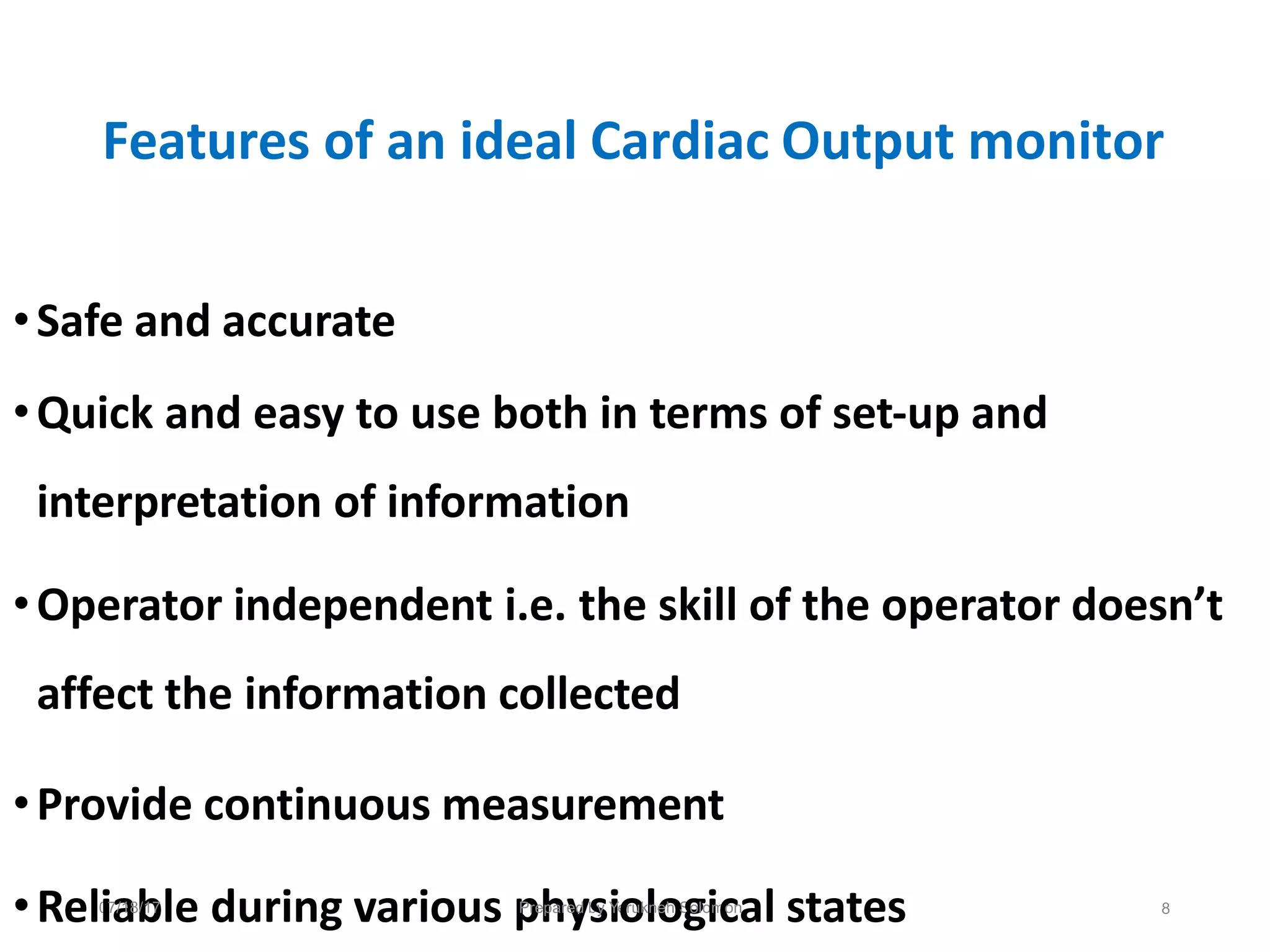

8. Features of an ideal Cardiac Output monitor
•Safe and accurate
•Quick and easy to use both in terms of set-up and
interpretation of information
•Operator independent i.e. the skill of the operator doesn’t
affect the information collected
•Provide continuous measurement
•Rel0
i7
a
/18
b
/17
le during various p
Pre
h
par
y
ed b
s
y
i
Ye
o
ruk
ln
o
eh S
g
olo
im
c
on
al states 8

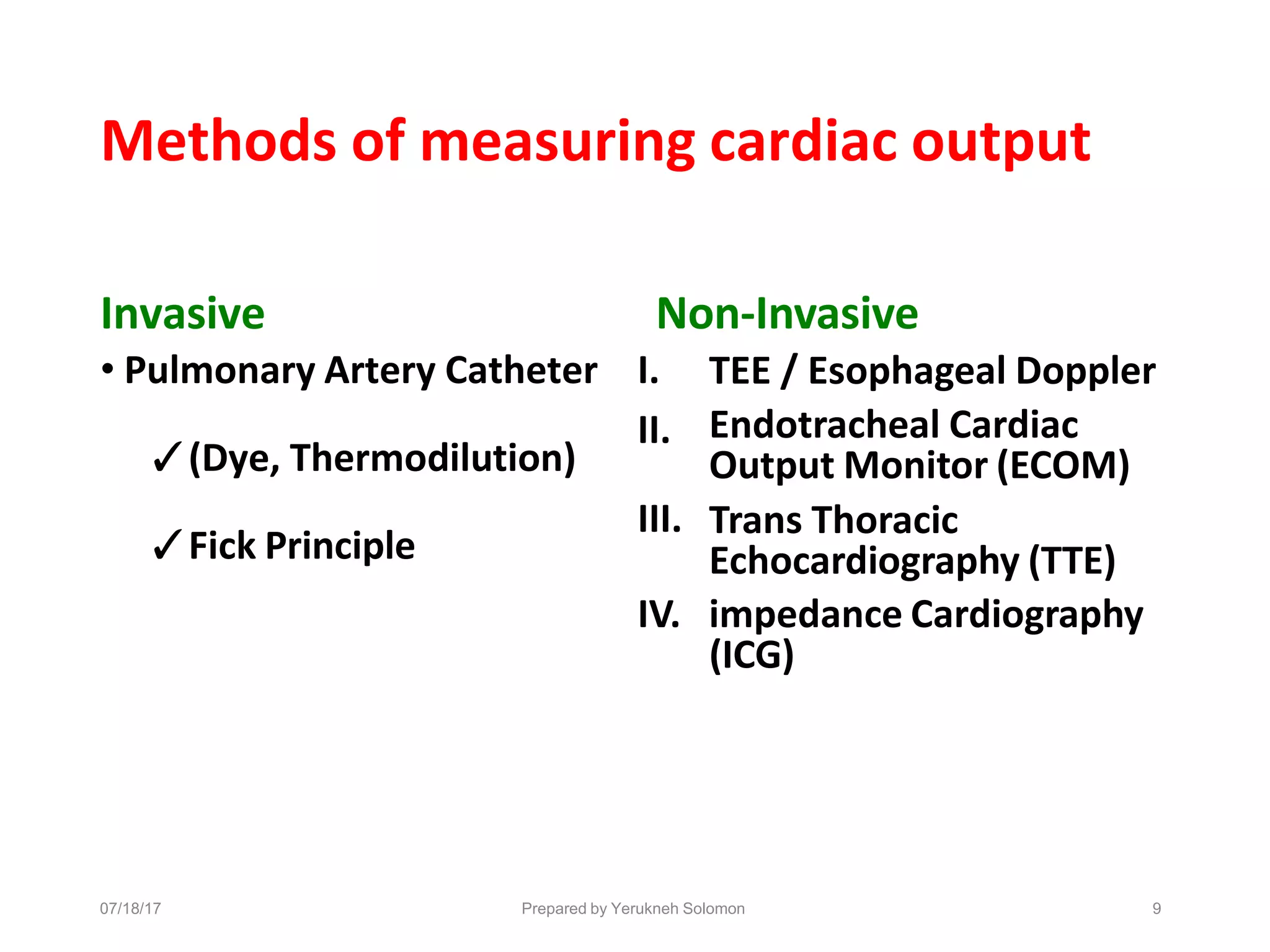

9. 07/18/17 Prepared by Yerukneh Solomon 9
Methods of measuring cardiac output
Non-Invasive
Invasive
• Pulmonary Artery Catheter I.
✓(Dye, Thermodilution)
II.
✓Fick Principle
III.
TEE / Esophageal Doppler
Endotracheal Cardiac
Output Monitor (ECOM)
Trans Thoracic
Echocardiography (TTE)
IV. impedance Cardiography
(ICG)

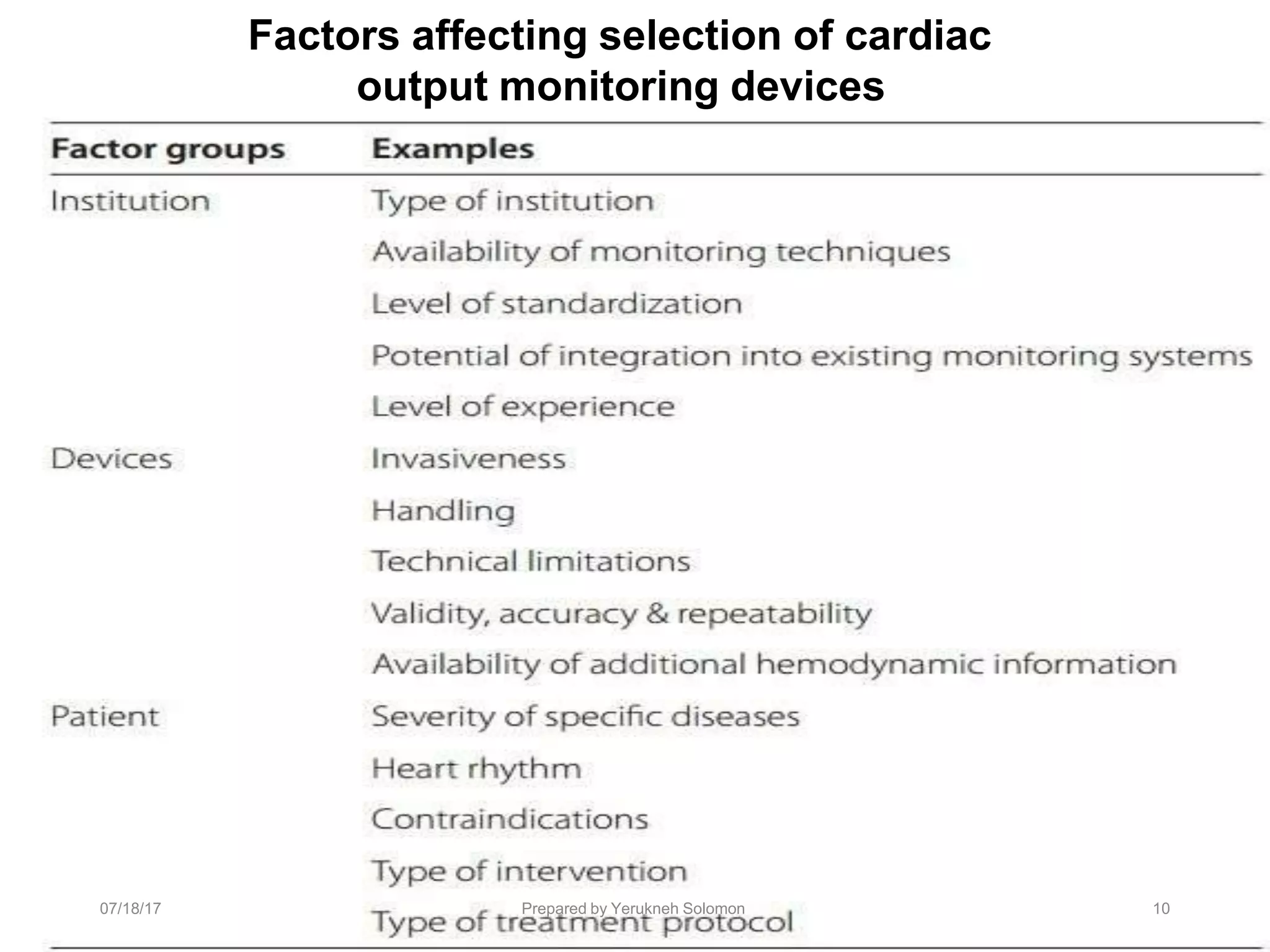

10. Factors affecting selection of cardiac
output monitoring devices
07/18/17 Prepared by Yerukneh Solomon 10

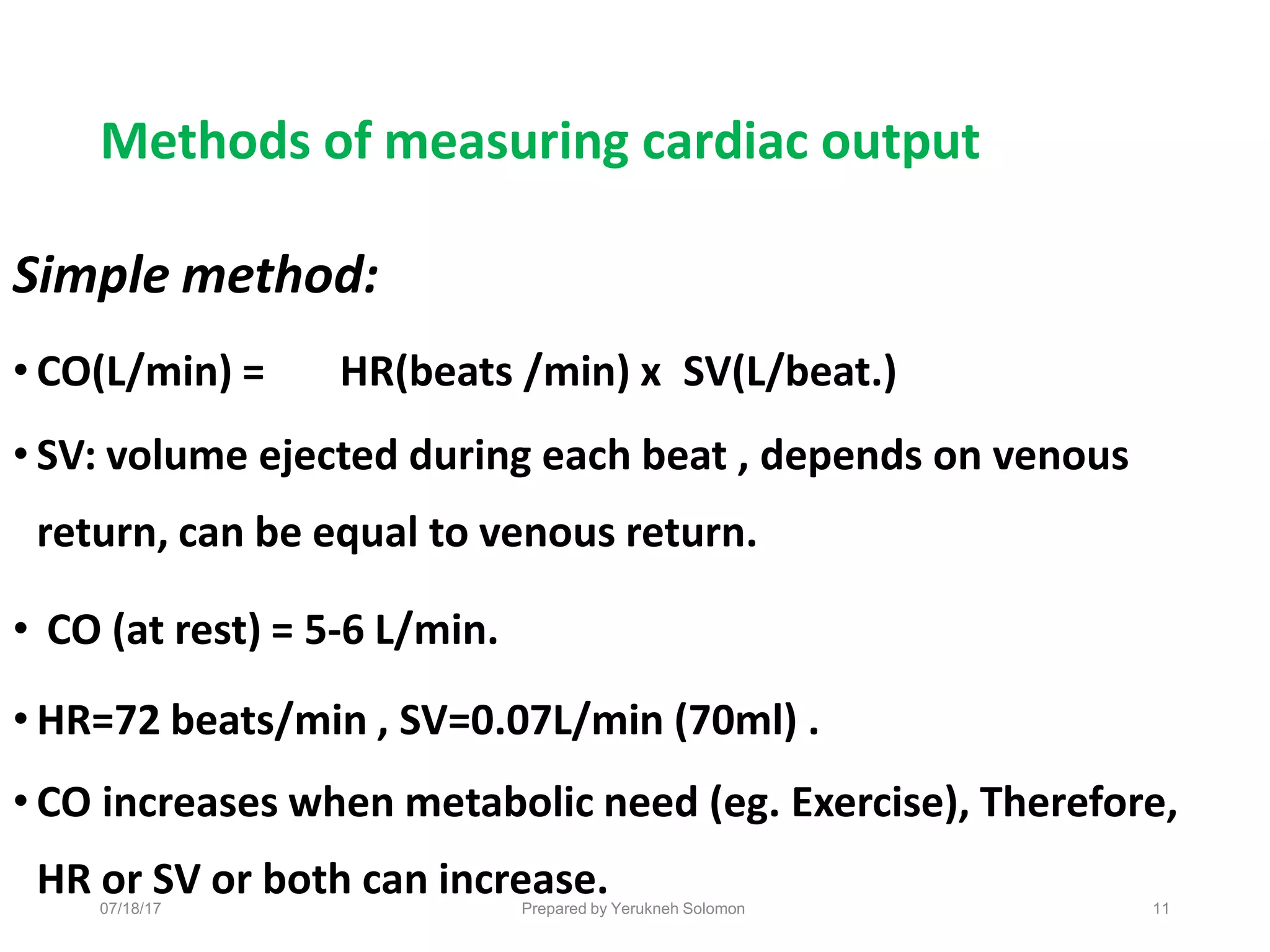

11. 07/18/17 Prepared by Yerukneh Solomon 11
Methods of measuring cardiac output
Simple method:
• CO(L/min) = HR(beats /min) x SV(L/beat.)
• SV: volume ejected during each beat , depends on venous
return, can be equal to venous return.
• CO (at rest) = 5-6 L/min.
• HR=72 beats/min , SV=0.07L/min (70ml) .
• CO increases when metabolic need (eg. Exercise), Therefore,
HR or SV or both can increase.

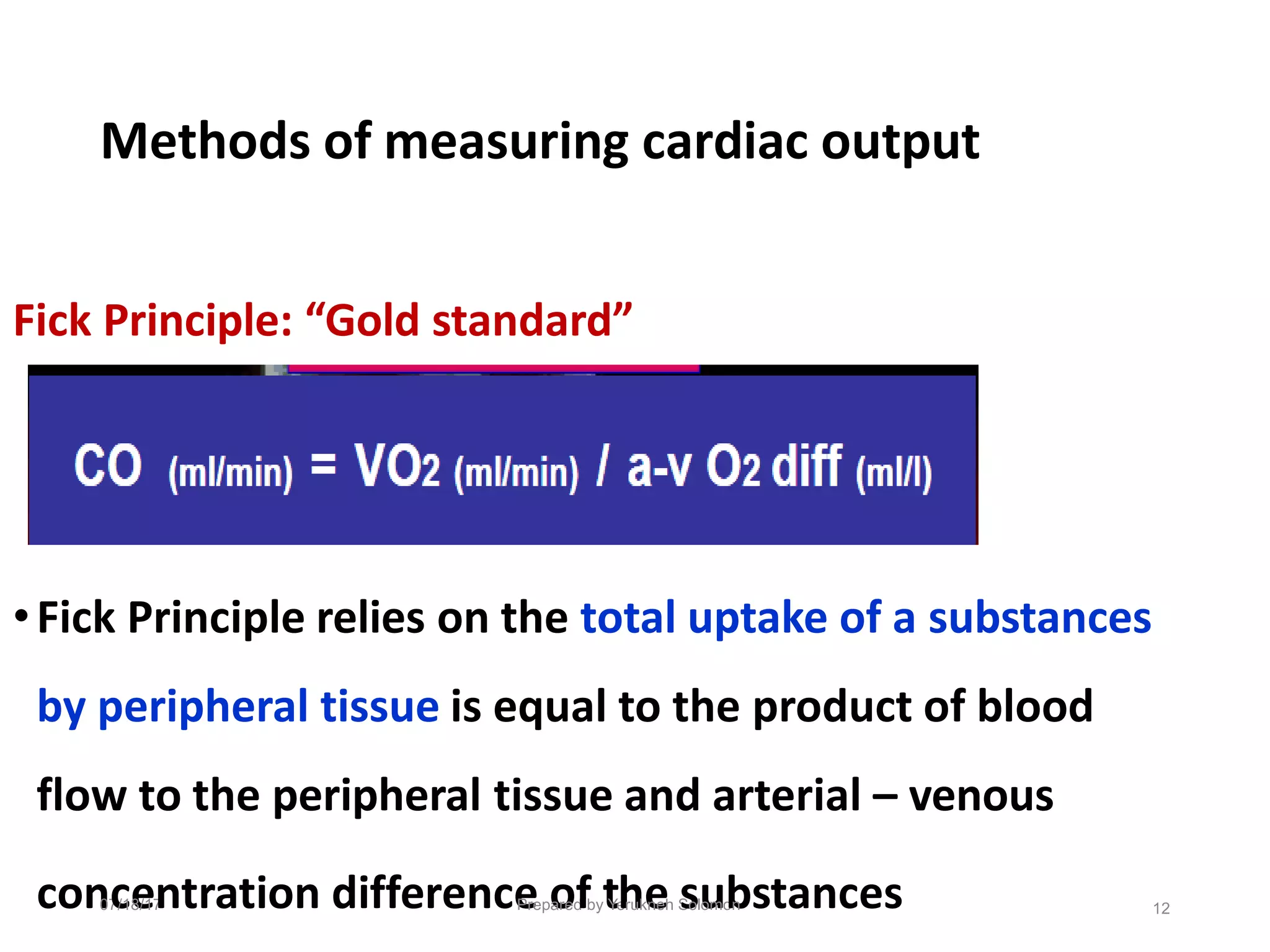

12. Methods of measuring cardiac output

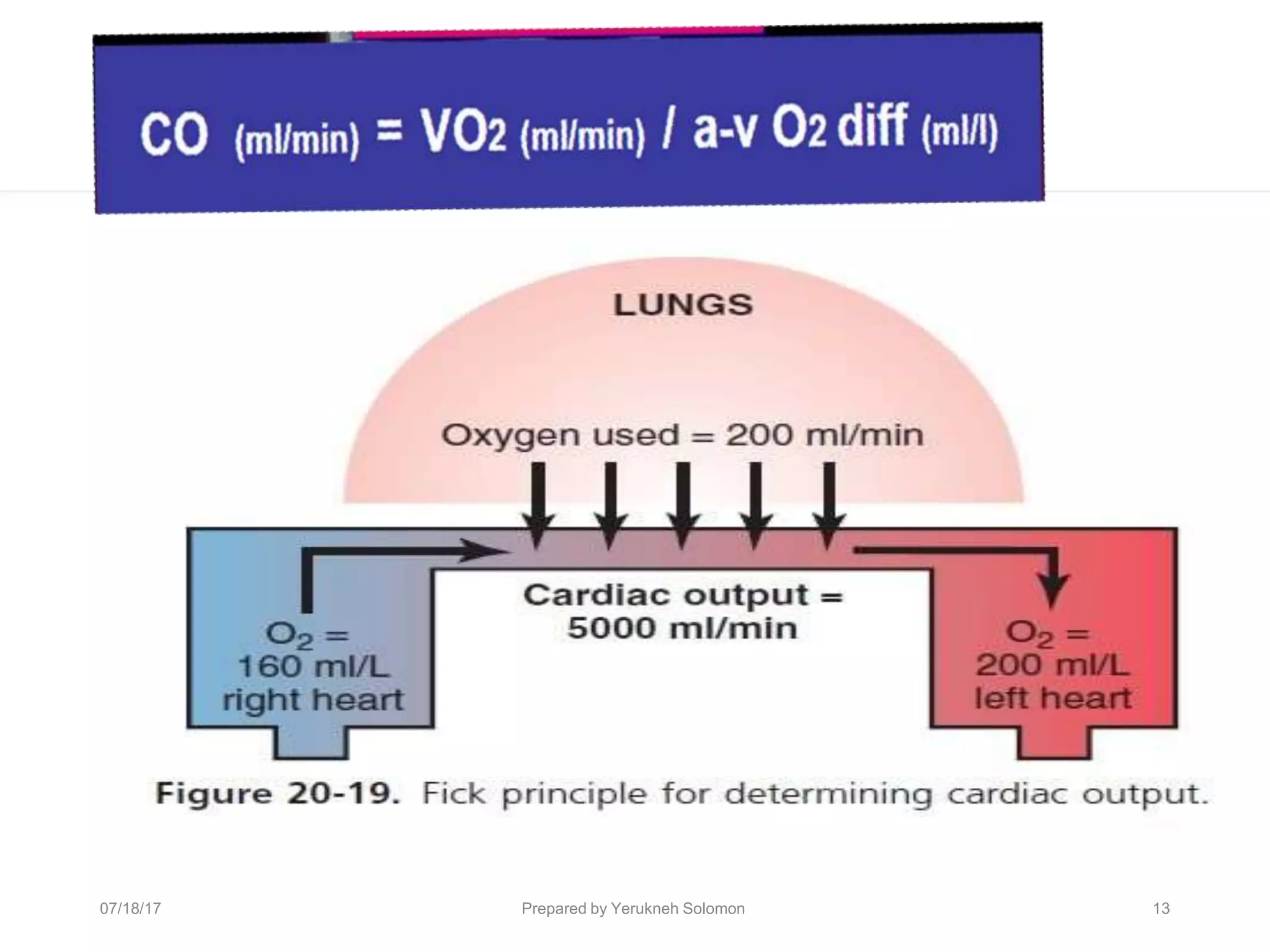

Fick Principle: “Gold standard”
•Fick Principle relies on the total uptake of a substances
by peripheral tissue is equal to the product of blood
flow to the peripheral tissue and arterial – venous
con
07
c
/1e
8/17
ntration difference
Prepo
ared
fbyt
Ye
h
ruke
neh S
s
olu
omo
b
n stances 12

13. 13
Prepared by Yerukneh Solomon
07/18/17

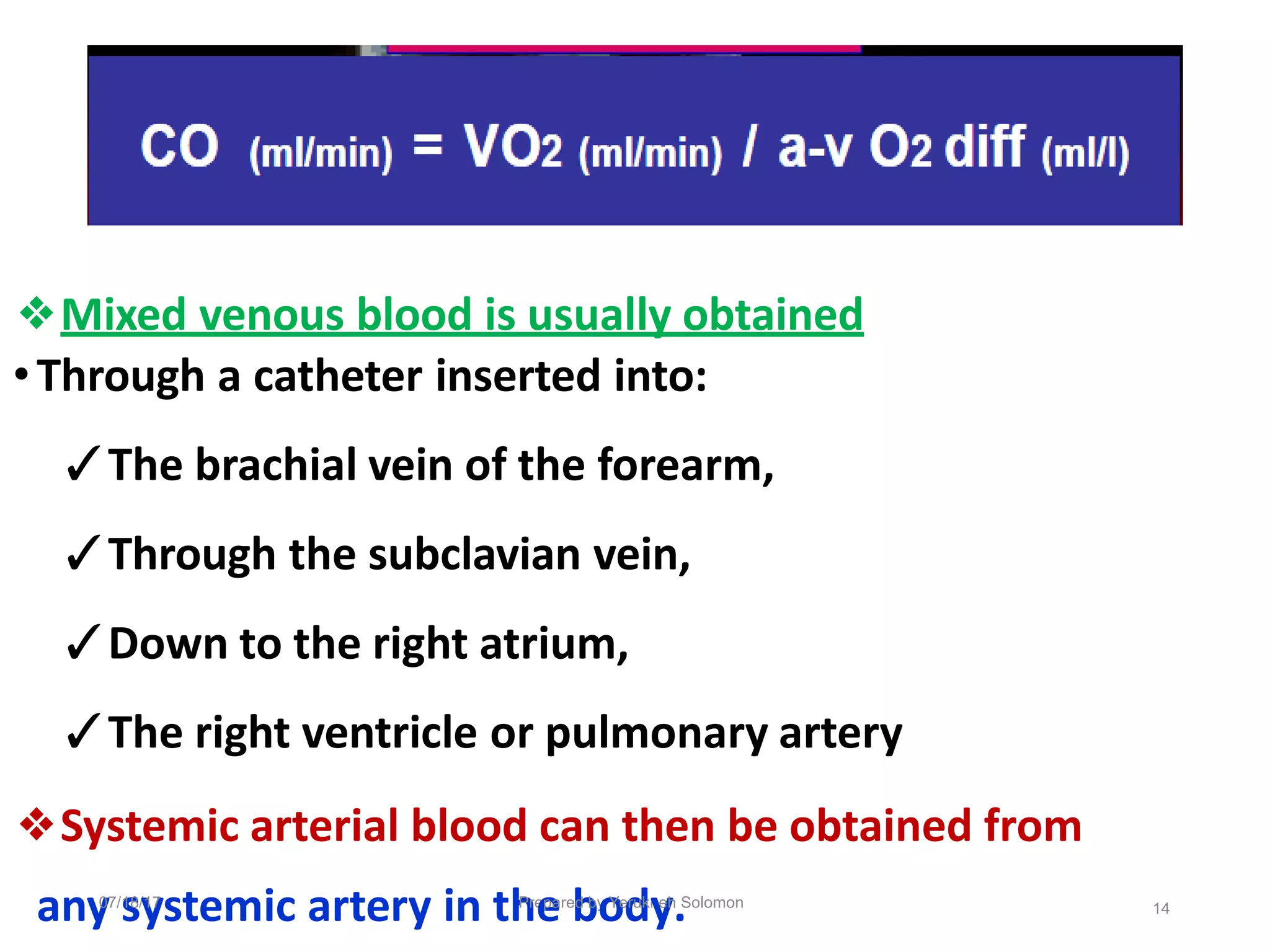

14. ❖Mixed venous blood is usually obtained
•Through a catheter inserted into:
✓The brachial vein of the forearm,
✓Through the subclavian vein,
✓Down to the right atrium,
✓The right ventricle or pulmonary artery
❖Systemic arterial blood can then be obtained from
any
07/
s
18/
y
17
stemic artery in th
Pre
e
pare
b
d by
o
Ye
d
rukn
y
eh
.Solomon 14

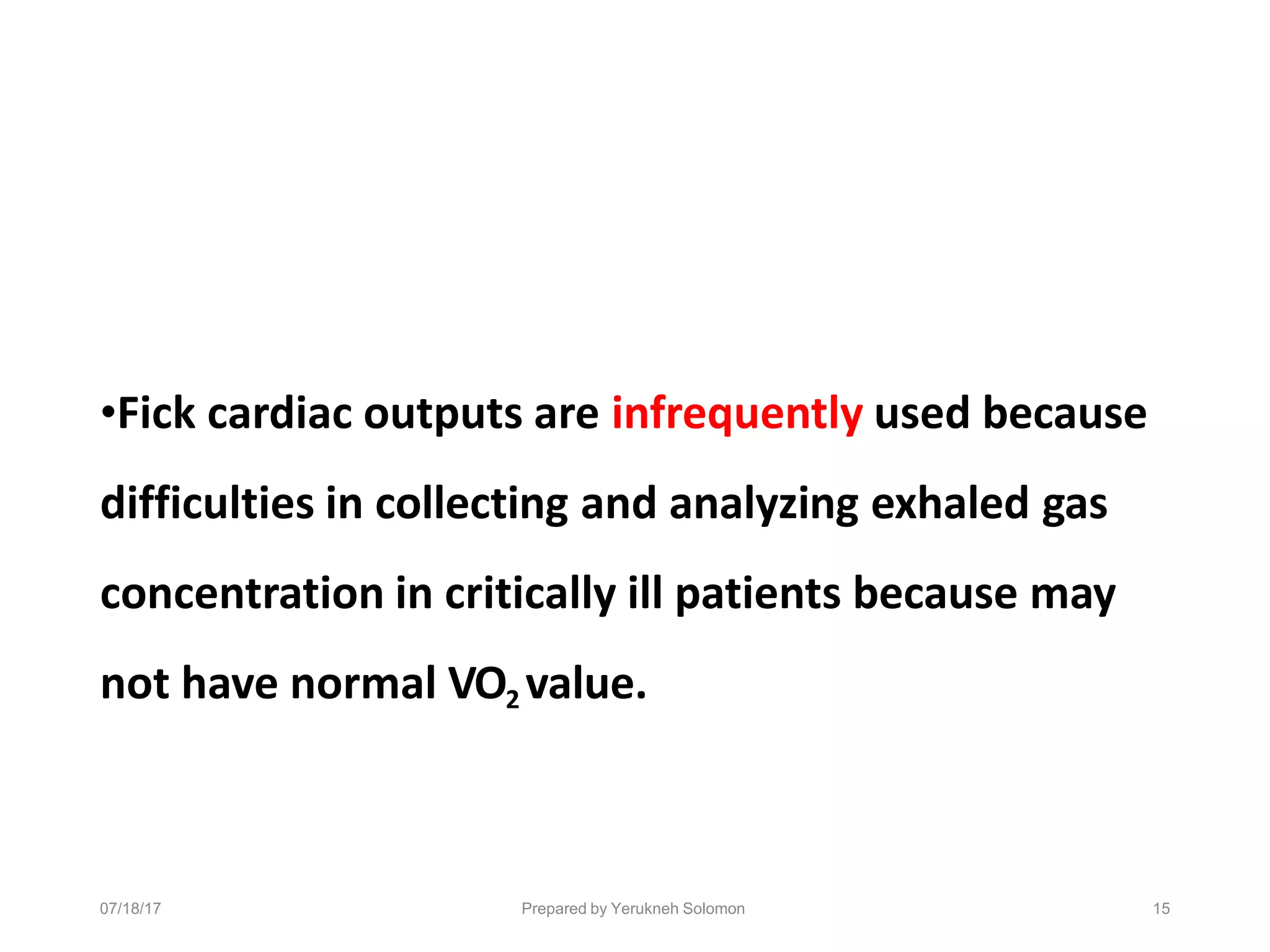

15. 07/18/17 Prepared by Yerukneh Solomon 15
•Fick cardiac outputs are infrequently used because
difficulties in collecting and analyzing exhaled gas
concentration in critically ill patients because may
not have normal VO2 value.

16. 07/18/17 Prepared by Yerukneh Solomon 16

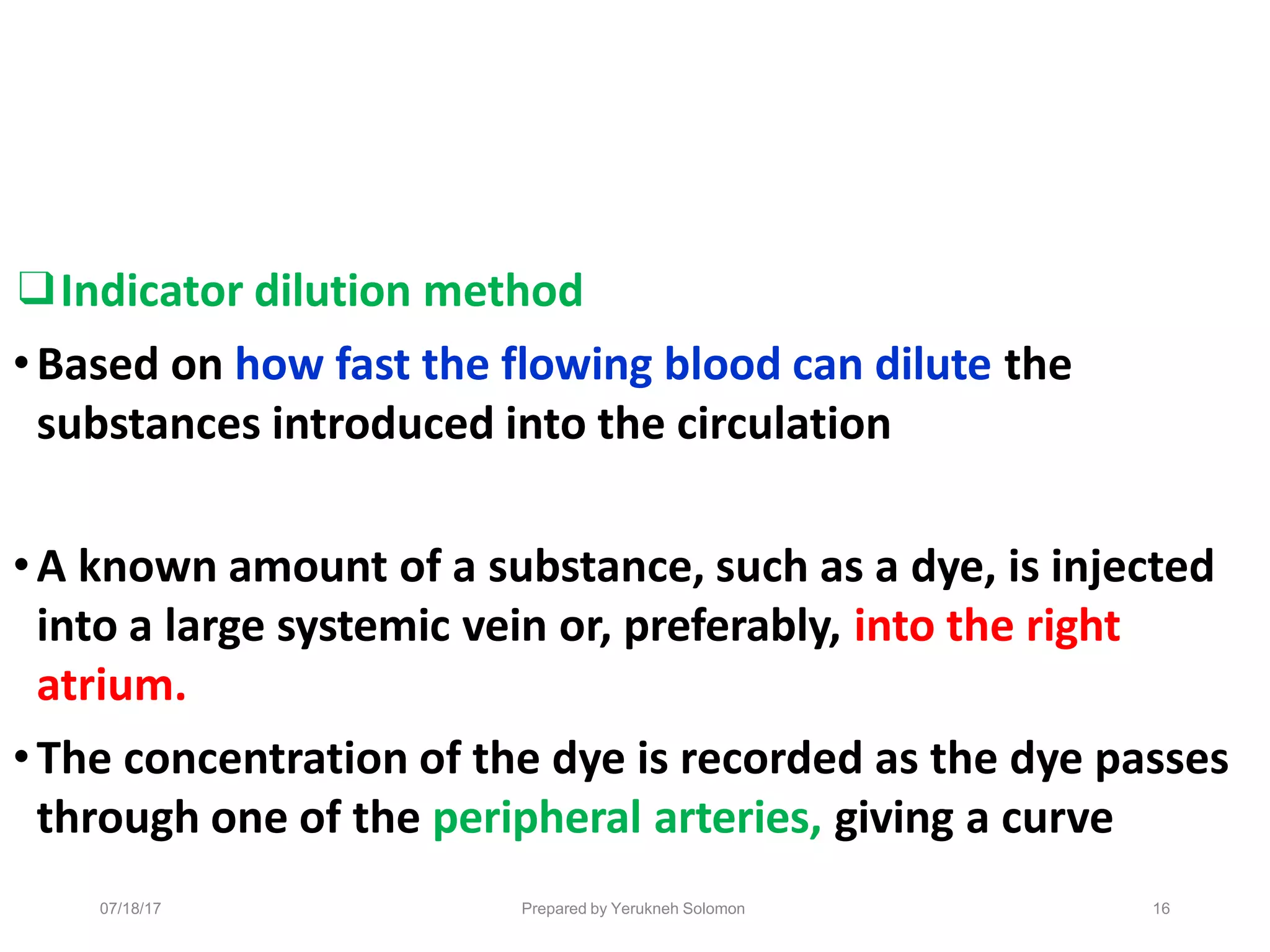

❑Indicator dilution method
•Based on how fast the flowing blood can dilute the
substances introduced into the circulation
•A known amount of a substance, such as a dye, is injected
into a large systemic vein or, preferably, into the right
atrium.
•The concentration of the dye is recorded as the dye passes
through one of the peripheral arteries, giving a curve

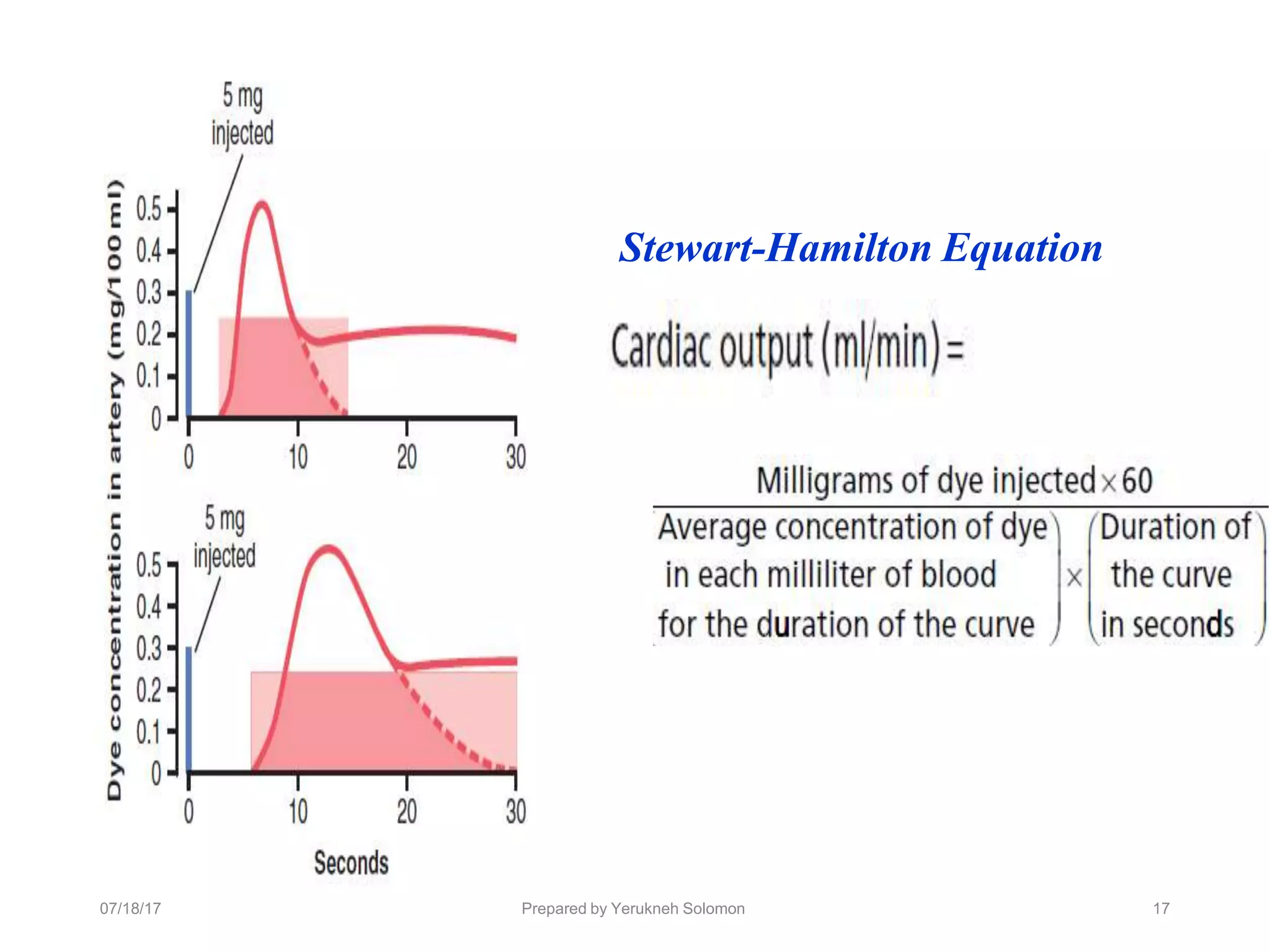

17. Stewart-Hamilton Equation
07/18/17 Prepared by Yerukneh Solomon 17

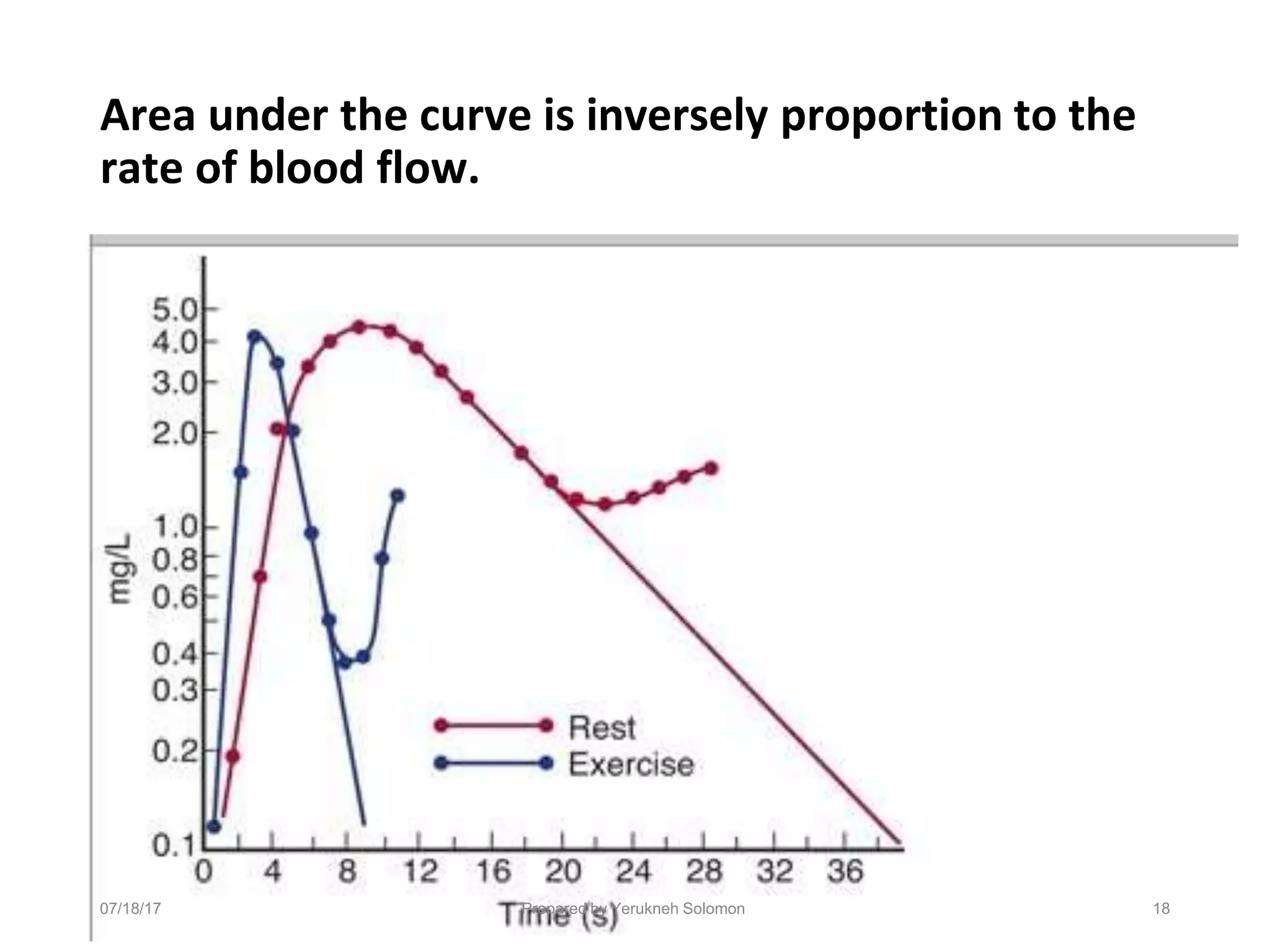

18. Area under the curve is inversely proportion to the
rate of blood flow.
07/18/17 Prepared by Yerukneh Solomon 18

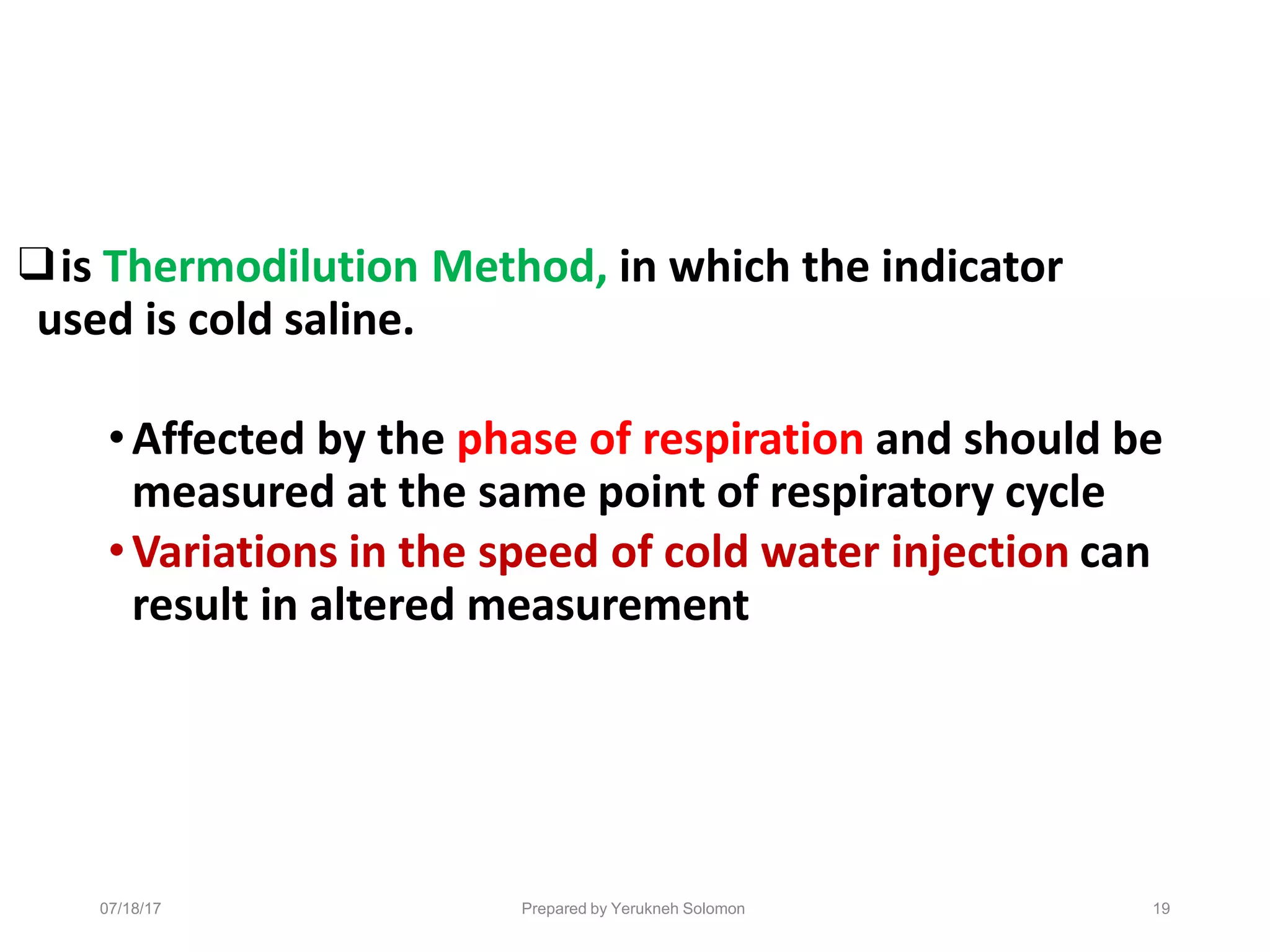

19. 07/18/17 Prepared by Yerukneh Solomon 19
❑is Thermodilution Method, in which the indicator
used is cold saline.
•Affected by the phase of respiration and should be
measured at the same point of respiratory cycle
•Variations in the speed of cold water injection can
result in altered measurement

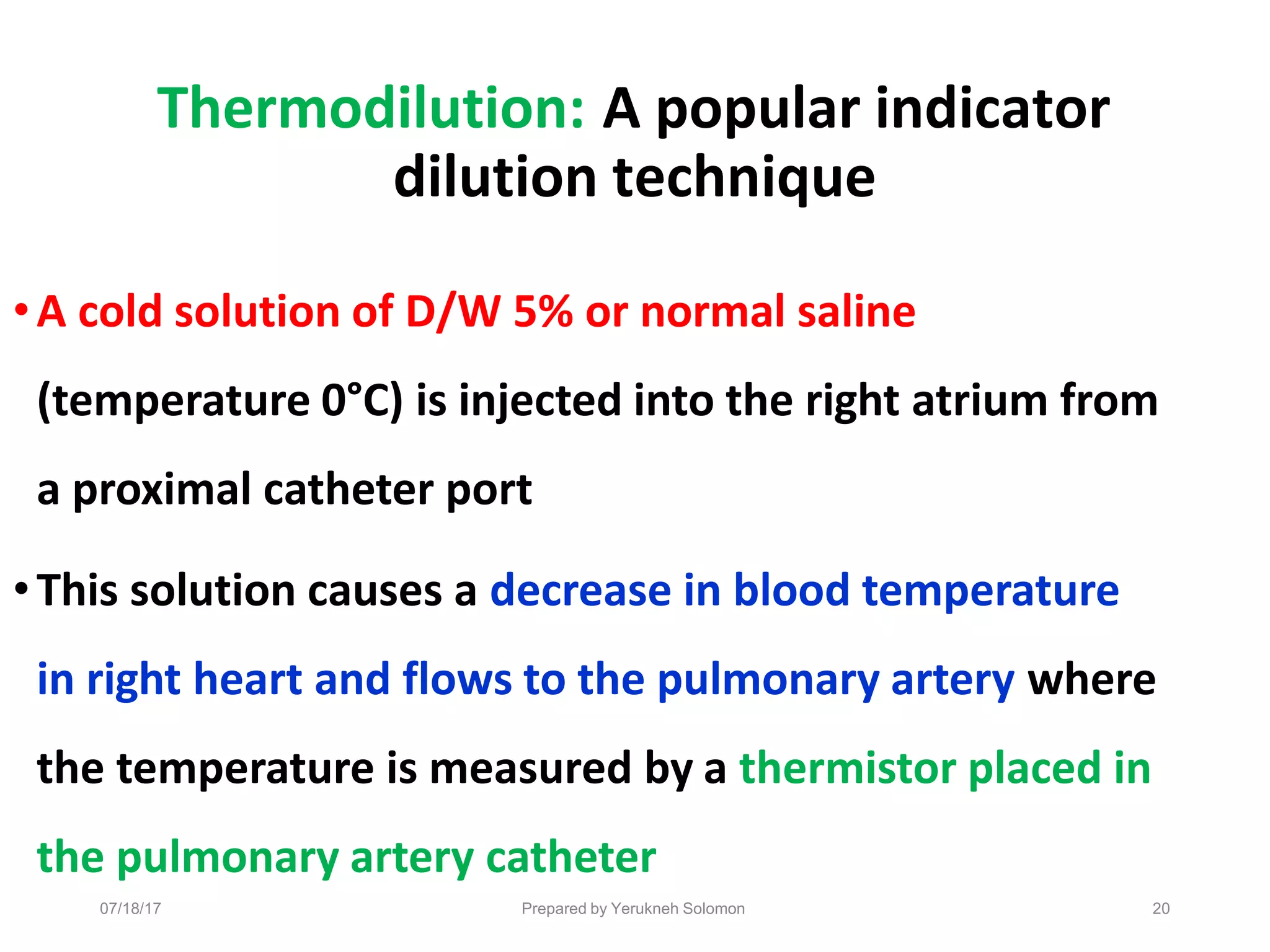

20. 07/18/17 Prepared by Yerukneh Solomon 20

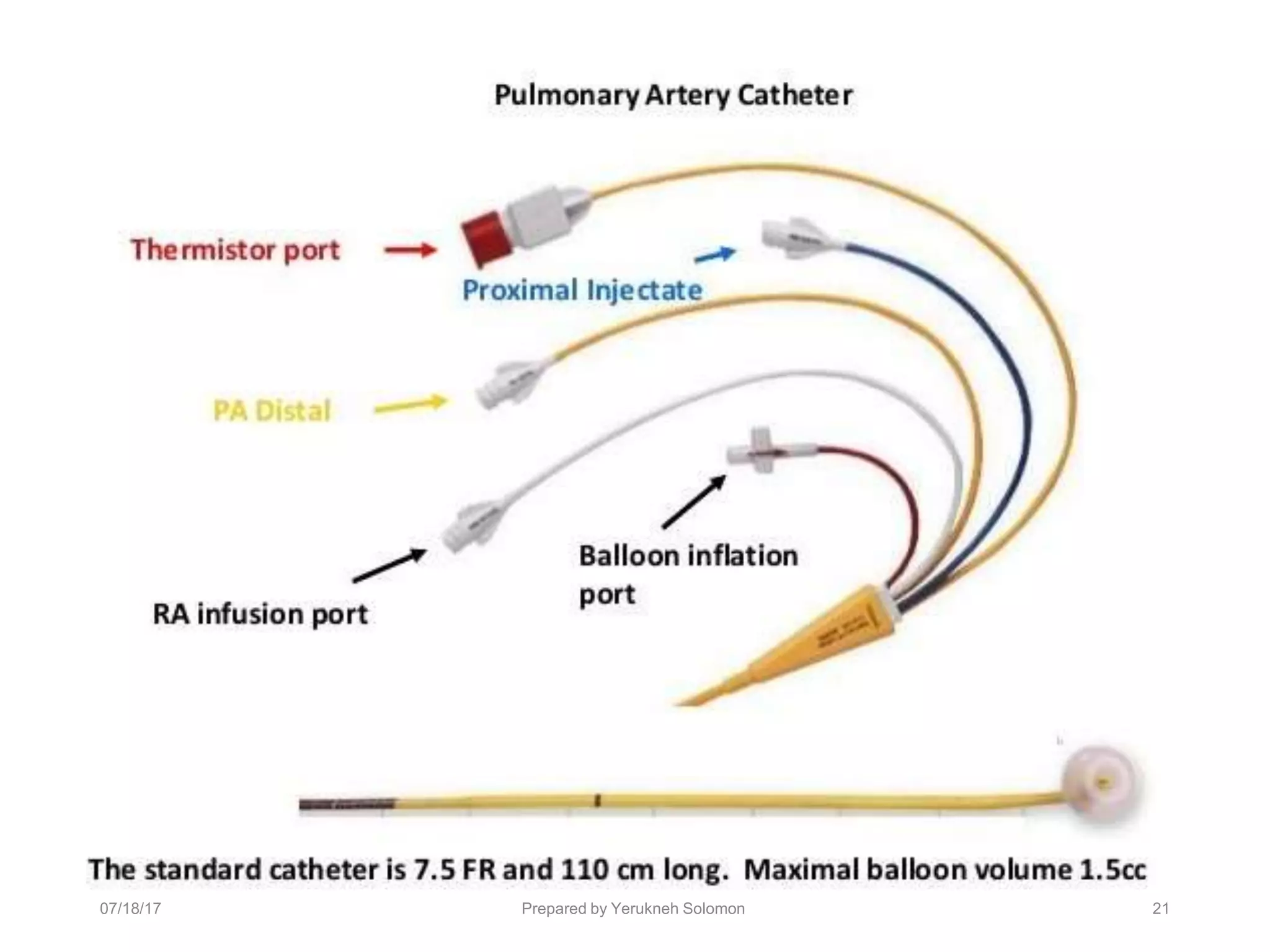

Thermodilution: A popular indicator
dilution technique
•A cold solution of D/W 5% or normal saline
(temperature 0°C) is injected into the right atrium from
a proximal catheter port
•This solution causes a decrease in blood temperature
in right heart and flows to the pulmonary artery where
the temperature is measured by a thermistor placed in
the pulmonary artery catheter

21. 07/18/17 Prepared by Yerukneh Solomon 21

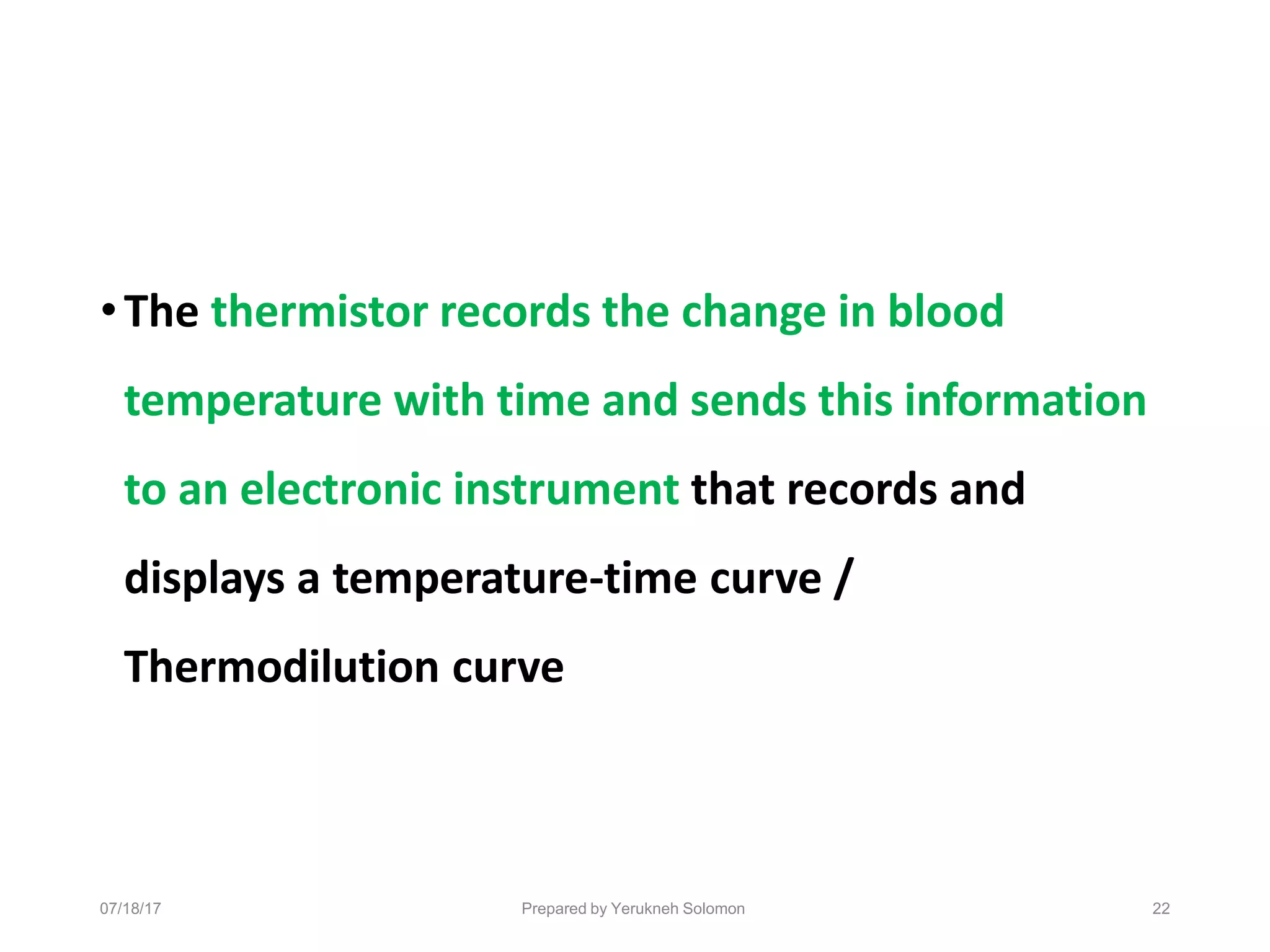

22. 07/18/17 Prepared by Yerukneh Solomon 22

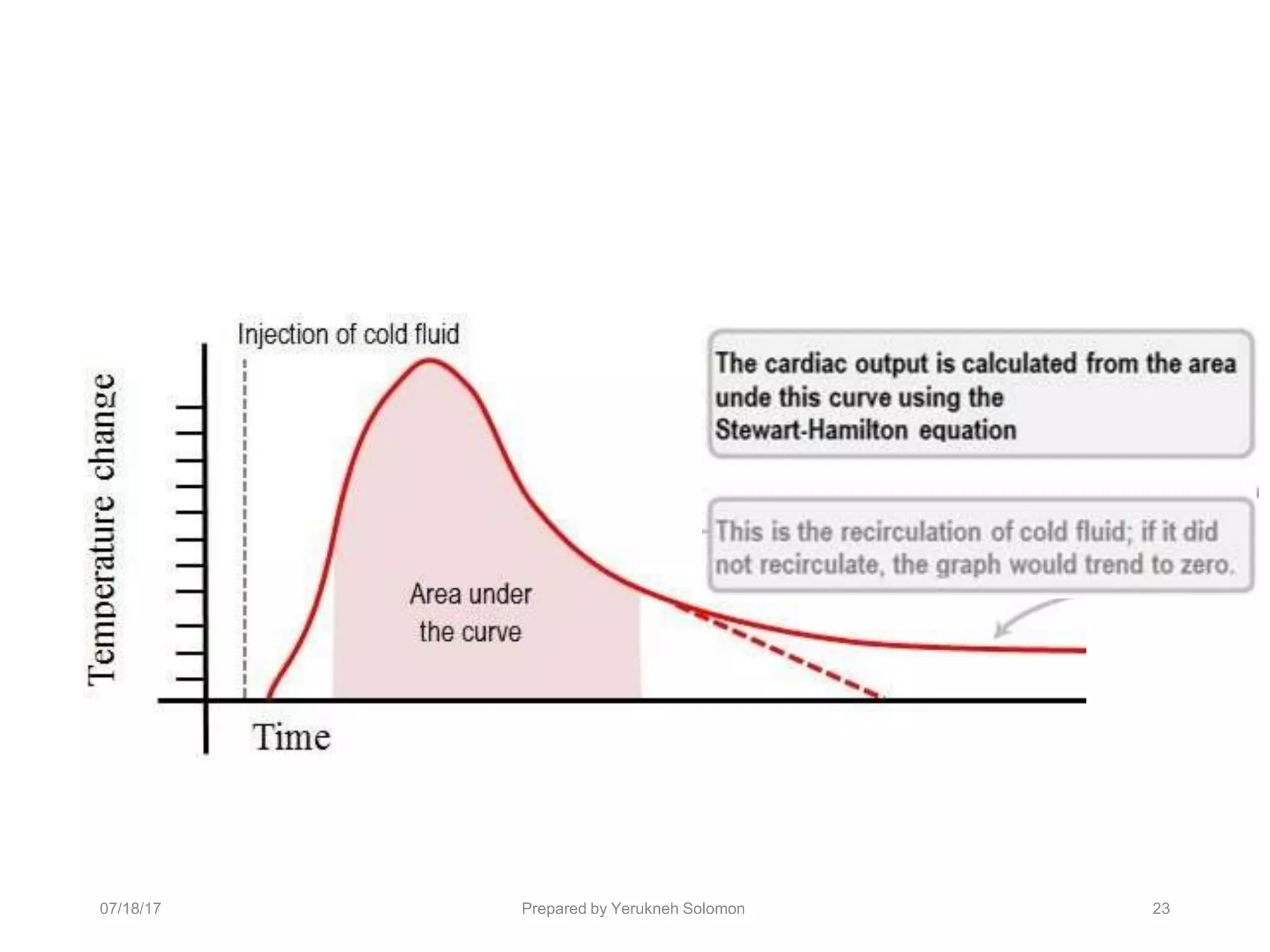

•The thermistor records the change in blood
temperature with time and sends this information
to an electronic instrument that records and
displays a temperature-time curve /
Thermodilution curve

23. 07/18/17 Prepared by Yerukneh Solomon 23

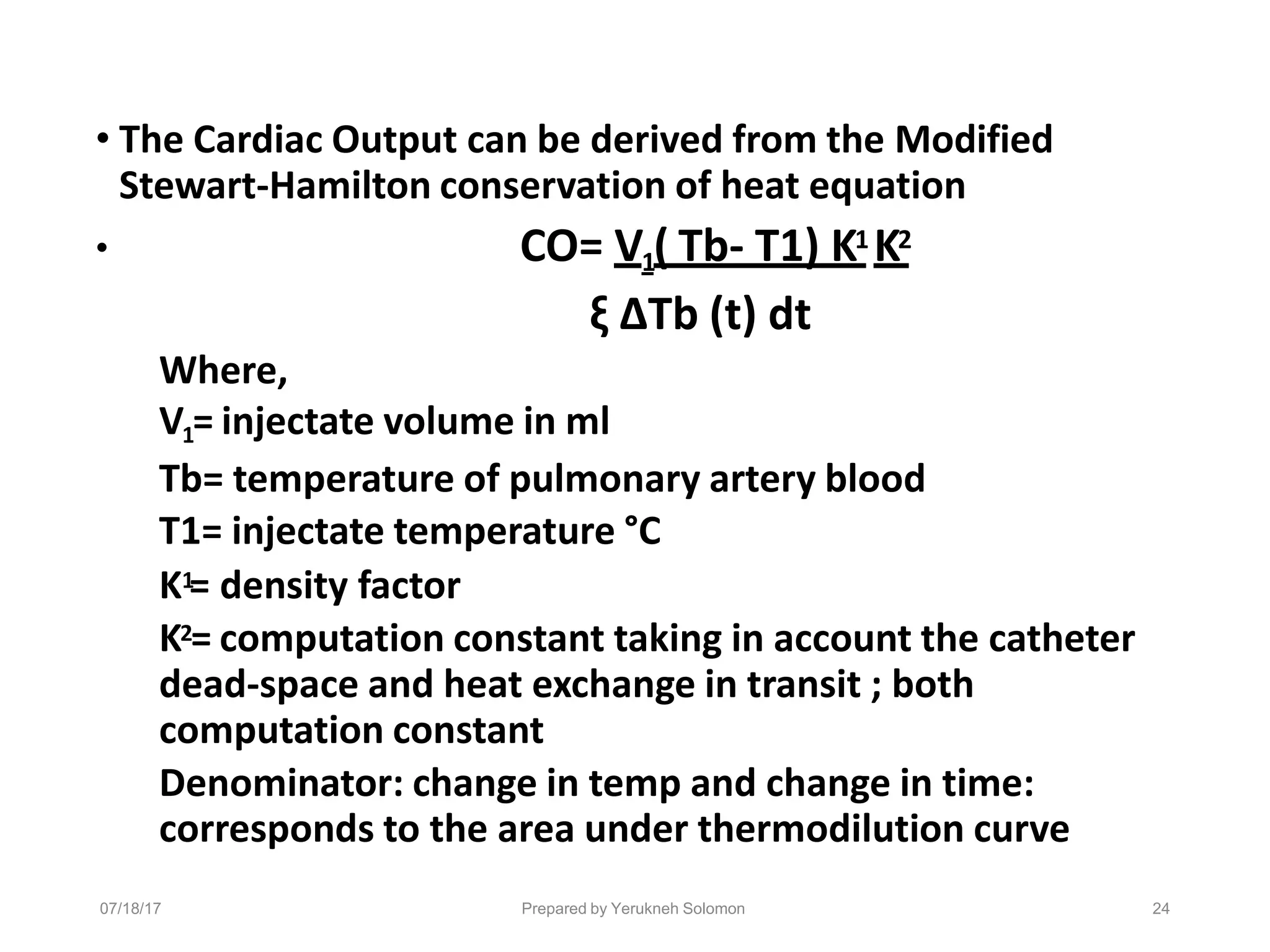

24. 07/18/17 Prepared by Yerukneh Solomon 24
• The Cardiac Output can be derived from the Modified
Stewart-Hamilton conservation of heat equation
• CO= V1( Tb- T1) K1 K2
ξ ΔTb (t) dt
Where,
V1= injectate volume in ml
Tb= temperature of pulmonary artery blood
T1= injectate temperature °C
K1
= density factor
K2= computation constant taking in account the catheter
dead-space and heat exchange in transit ; both
computation constant
Denominator: change in temp and change in time:
corresponds to the area under thermodilution curve

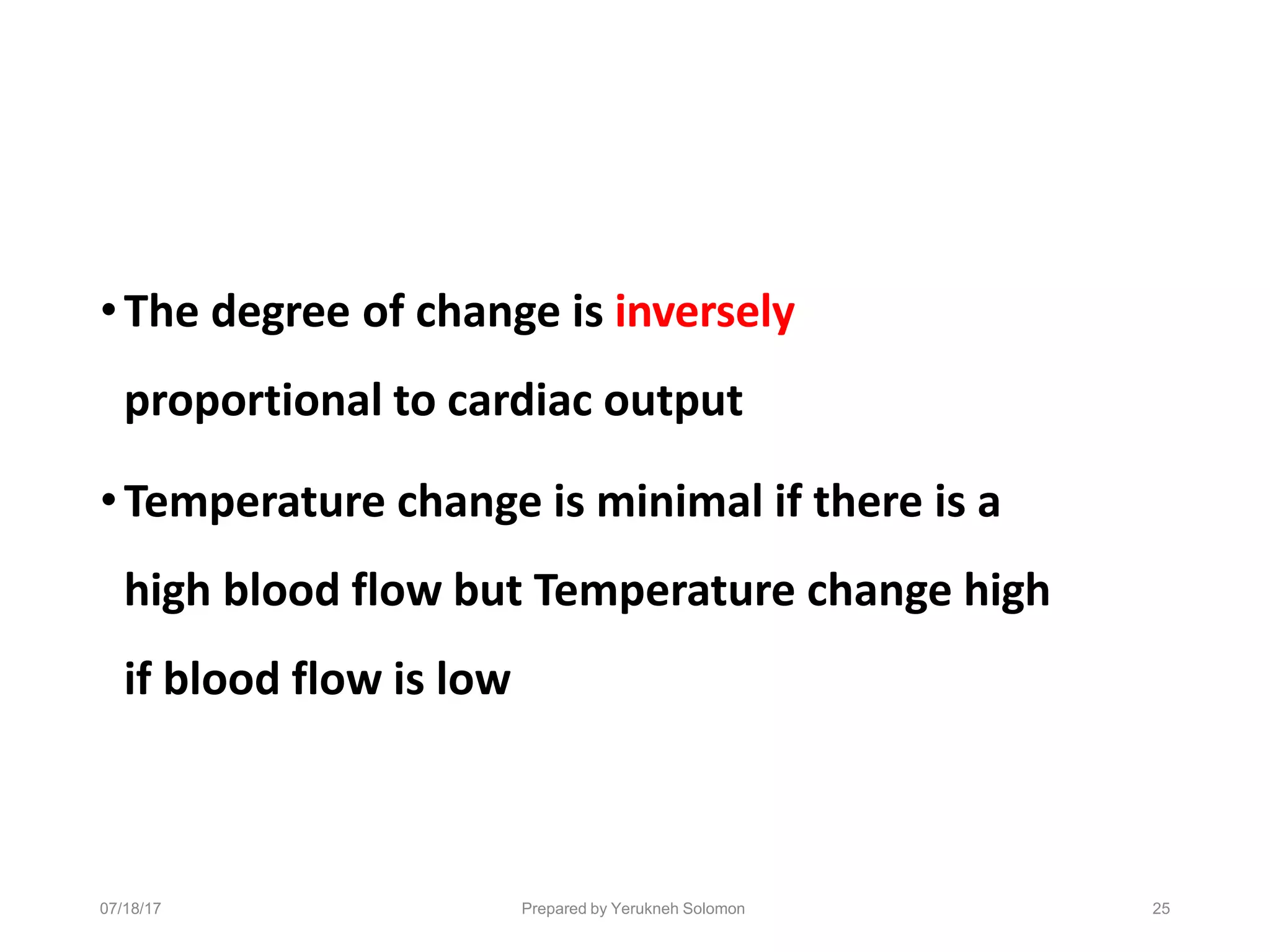

25. 07/18/17 Prepared by Yerukneh Solomon 25
•The degree of change is inversely
proportional to cardiac output
•Temperature change is minimal if there is a
high blood flow but Temperature change high
if blood flow is low

26. 07/18/17 Prepared by Yerukneh Solomon 26

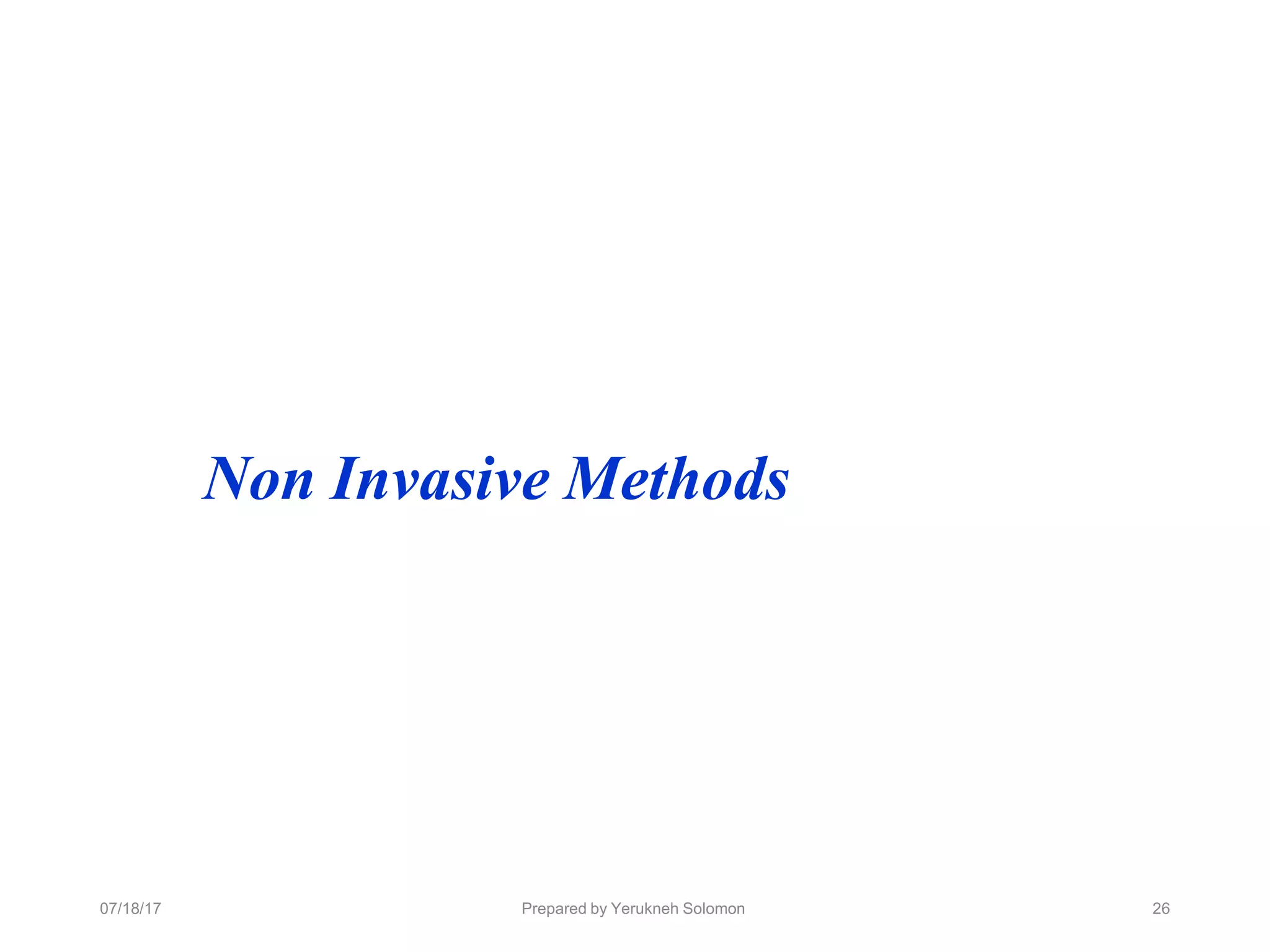

Non Invasive Methods

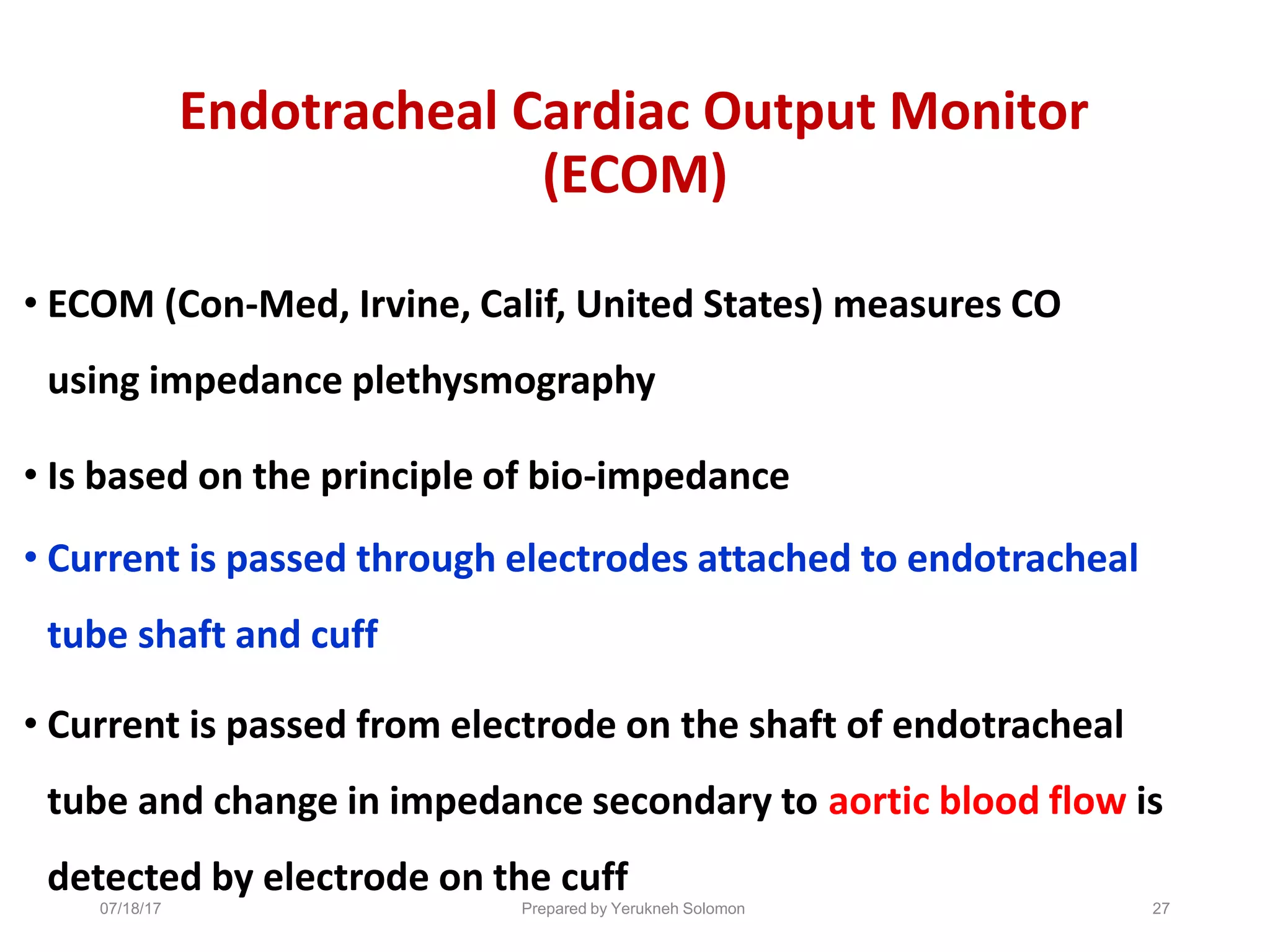

27. 07/18/17 Prepared by Yerukneh Solomon 27
Endotracheal Cardiac Output Monitor
(ECOM)
• ECOM (Con-Med, Irvine, Calif, United States) measures CO
using impedance plethysmography
• Is based on the principle of bio-impedance
• Current is passed through electrodes attached to endotracheal
tube shaft and cuff
• Current is passed from electrode on the shaft of endotracheal
tube and change in impedance secondary to aortic blood flow is
detected by electrode on the cuff

28. 07/18/17 Prepared by Yerukneh Solomon 28

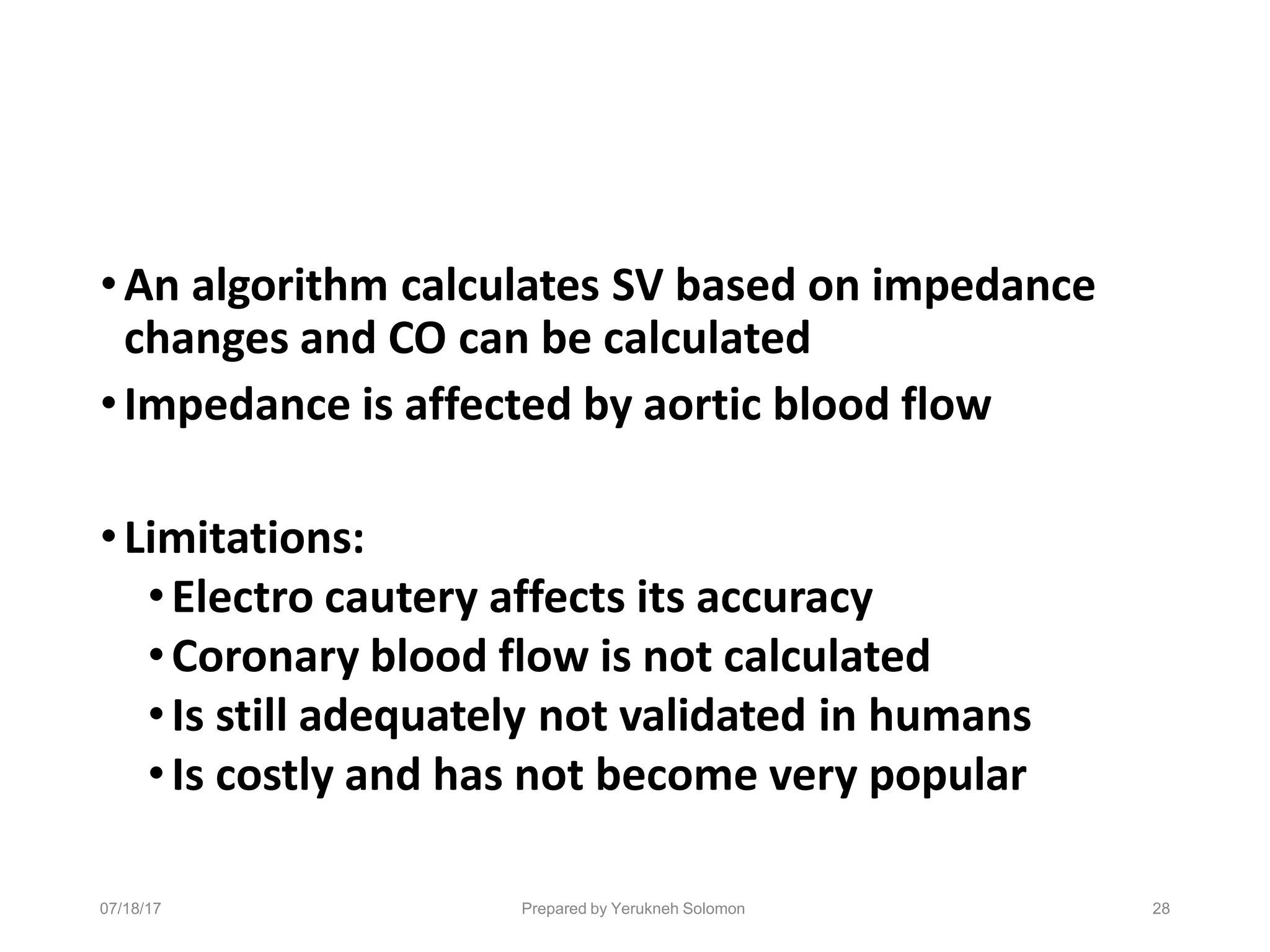

•An algorithm calculates SV based on impedance
changes and CO can be calculated
•Impedance is affected by aortic blood flow
•Limitations:
•Electro cautery affects its accuracy
•Coronary blood flow is not calculated
•Is still adequately not validated in humans
•Is costly and has not become very popular

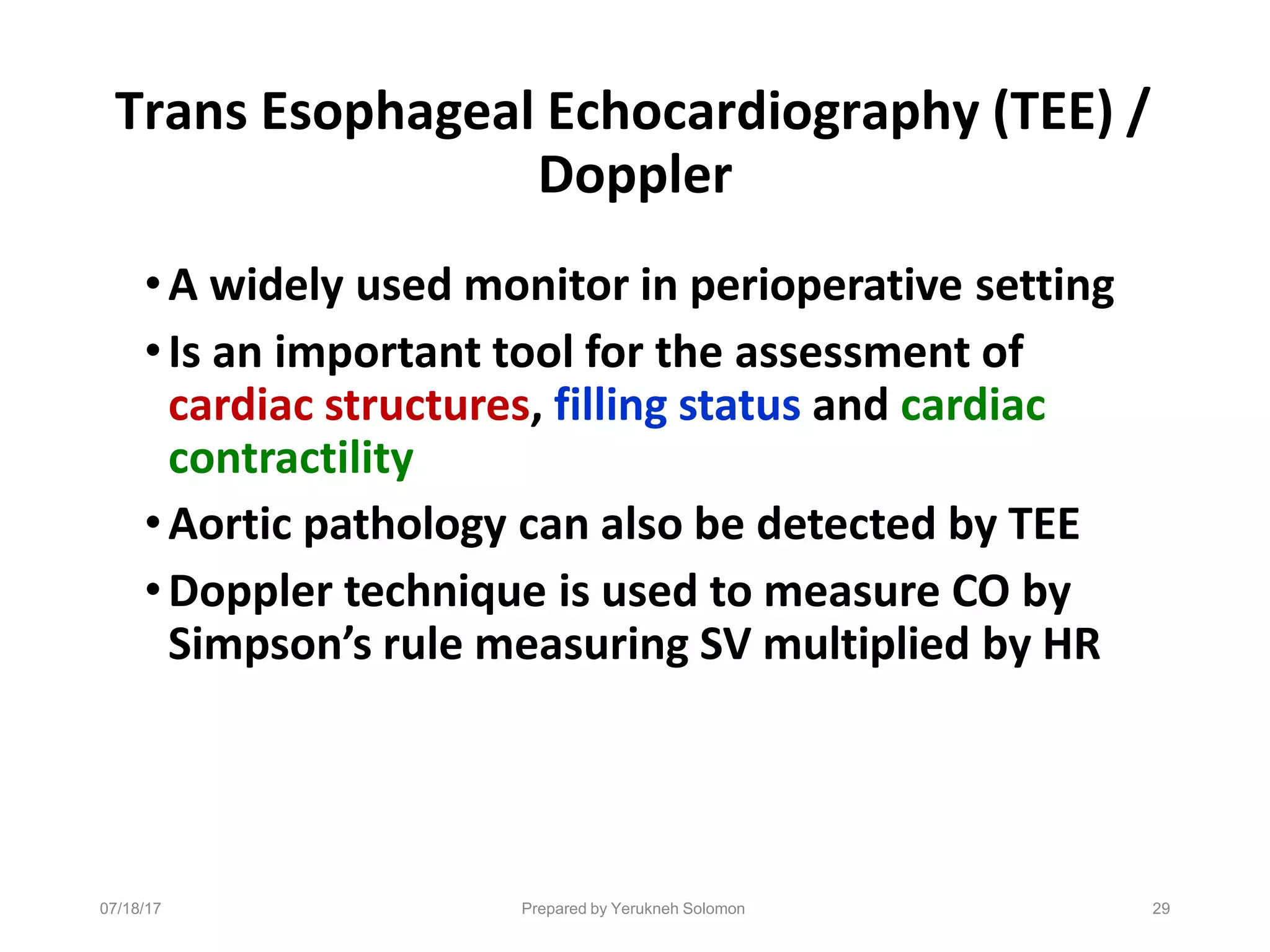

29. 07/18/17 Prepared by Yerukneh Solomon 29
Trans Esophageal Echocardiography (TEE) /
Doppler
•A widely used monitor in perioperative setting
•Is an important tool for the assessment of
cardiac structures, filling status and cardiac
contractility
•Aortic pathology can also be detected by TEE
•Doppler technique is used to measure CO by
Simpson’s rule measuring SV multiplied by HR

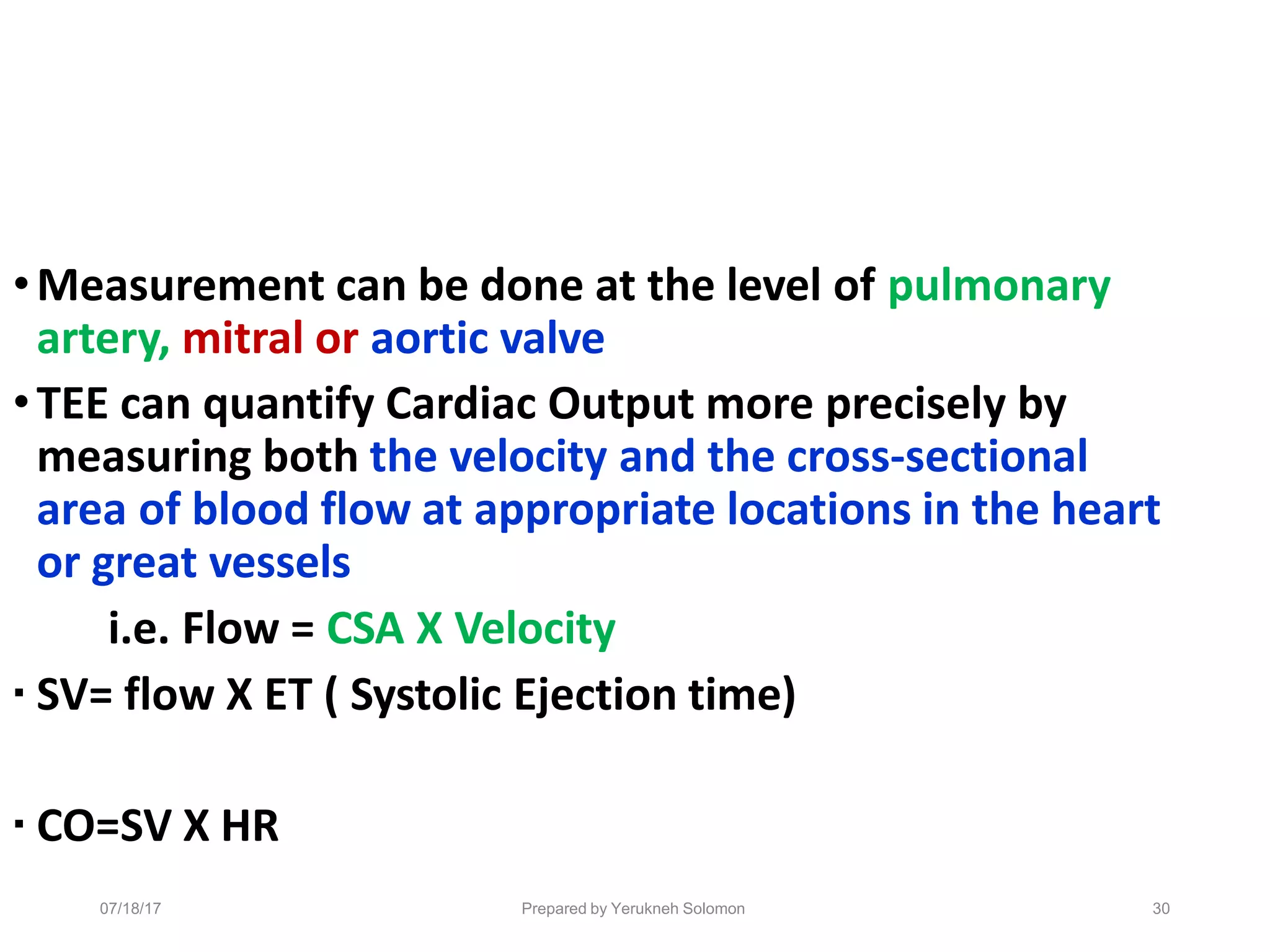

30. 07/18/17 Prepared by Yerukneh Solomon 30
•Measurement can be done at the level of pulmonary
artery, mitral or aortic valve
•TEE can quantify Cardiac Output more precisely by
measuring both the velocity and the cross-sectional
area of blood flow at appropriate locations in the heart
or great vessels
i.e. Flow = CSA X Velocity
▪ SV= flow X ET ( Systolic Ejection time)
▪ CO=SV X HR

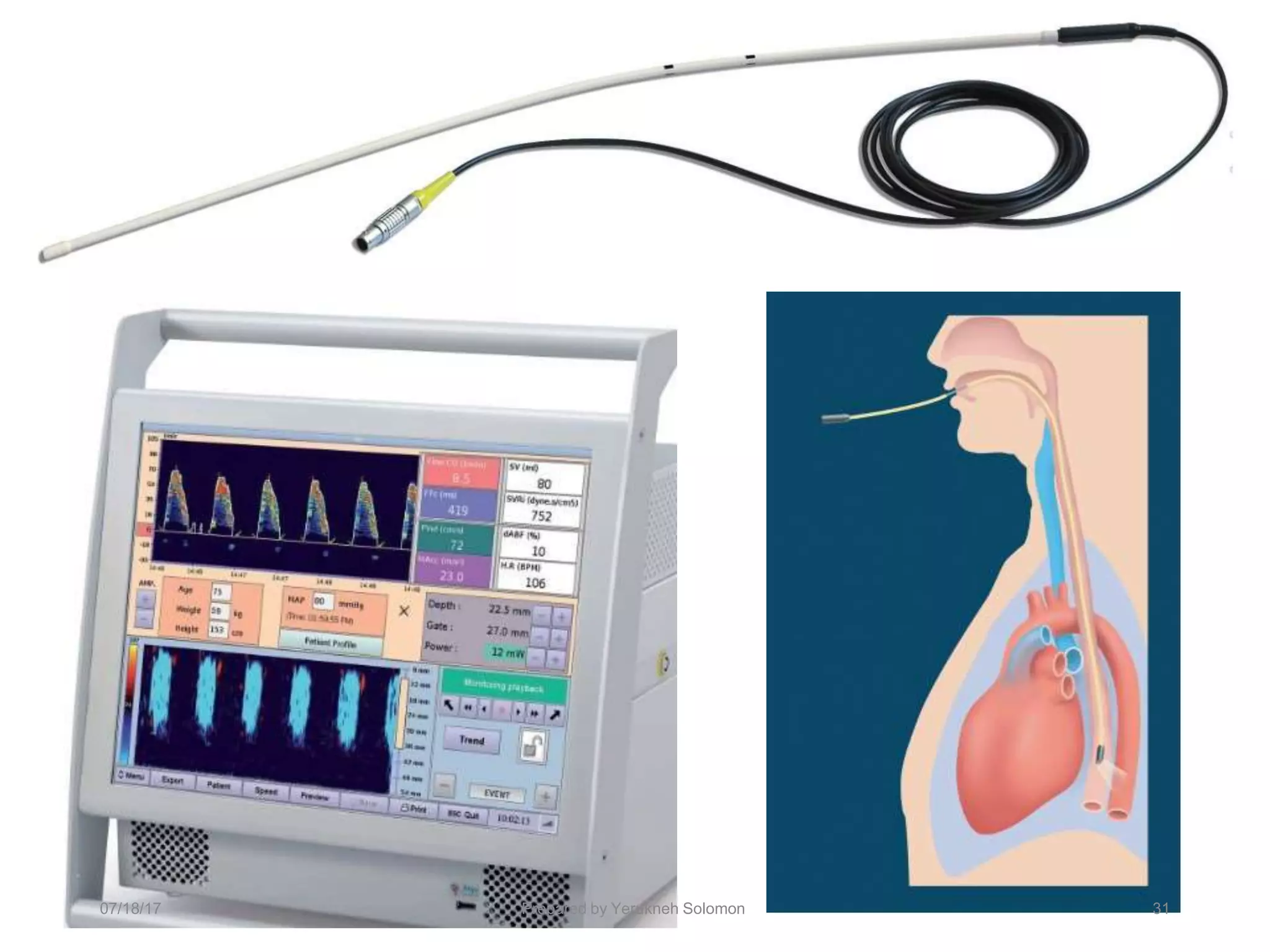

31. 07/18/17 Prepared by Yerukneh Solomon 31

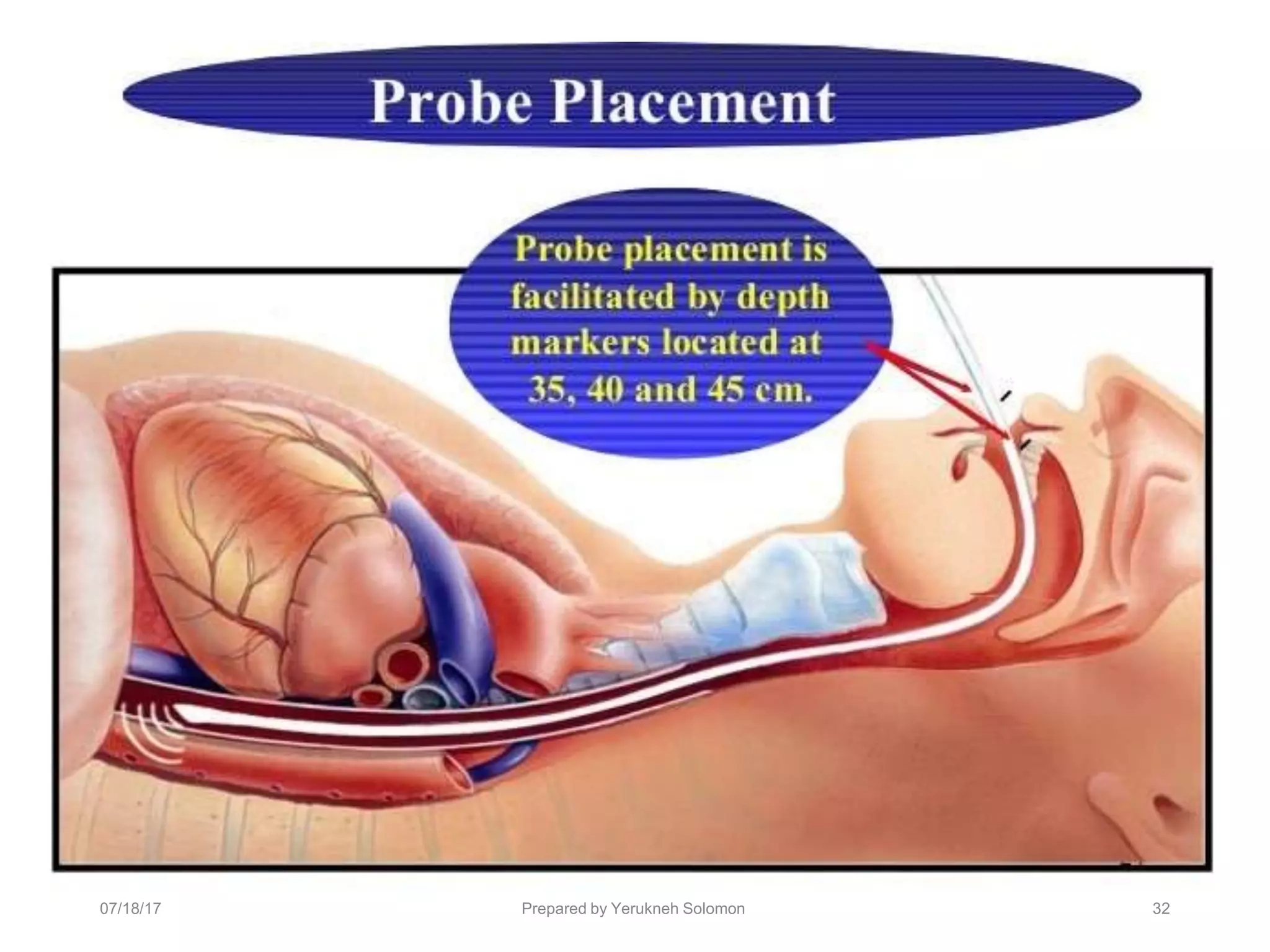

32. 07/18/17 Prepared by Yerukneh Solomon 32

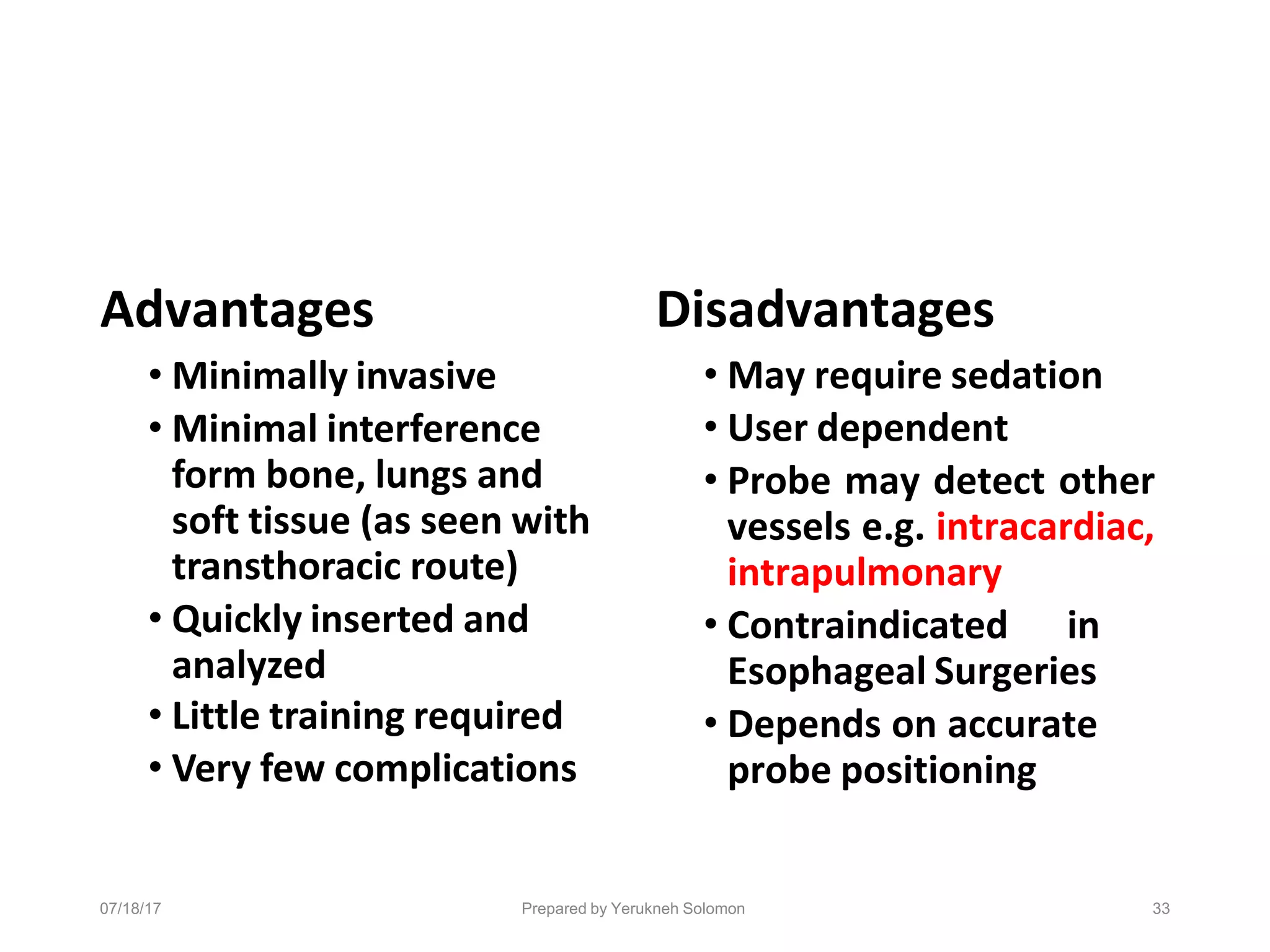

33. 07/18/17 Prepared by Yerukneh Solomon 33
Advantages
• Minimally invasive
• Minimal interference
form bone, lungs and
soft tissue (as seen with
transthoracic route)
• Quickly inserted and
analyzed
• Little training required
• Very few complications
Disadvantages
• May require sedation
• User dependent
• Probe may detect other
vessels e.g. intracardiac,
intrapulmonary
• Contraindicated in
Esophageal Surgeries
• Depends on accurate
probe positioning

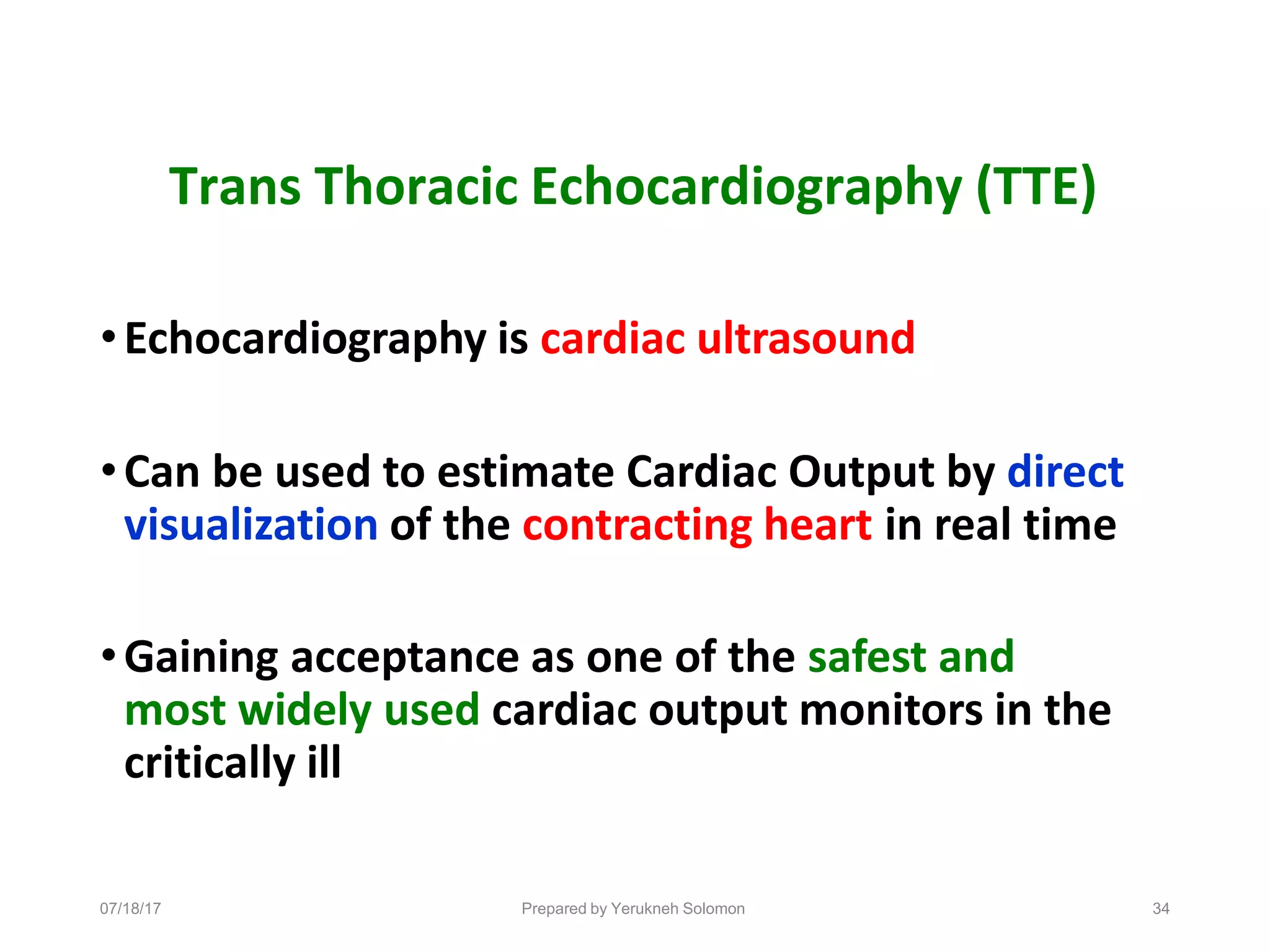

34. 07/18/17 Prepared by Yerukneh Solomon 34
Trans Thoracic Echocardiography (TTE)
•Echocardiography is cardiac ultrasound
•Can be used to estimate Cardiac Output by direct
visualization of the contracting heart in real time
•Gaining acceptance as one of the safest and
most widely used cardiac output monitors in the
critically ill

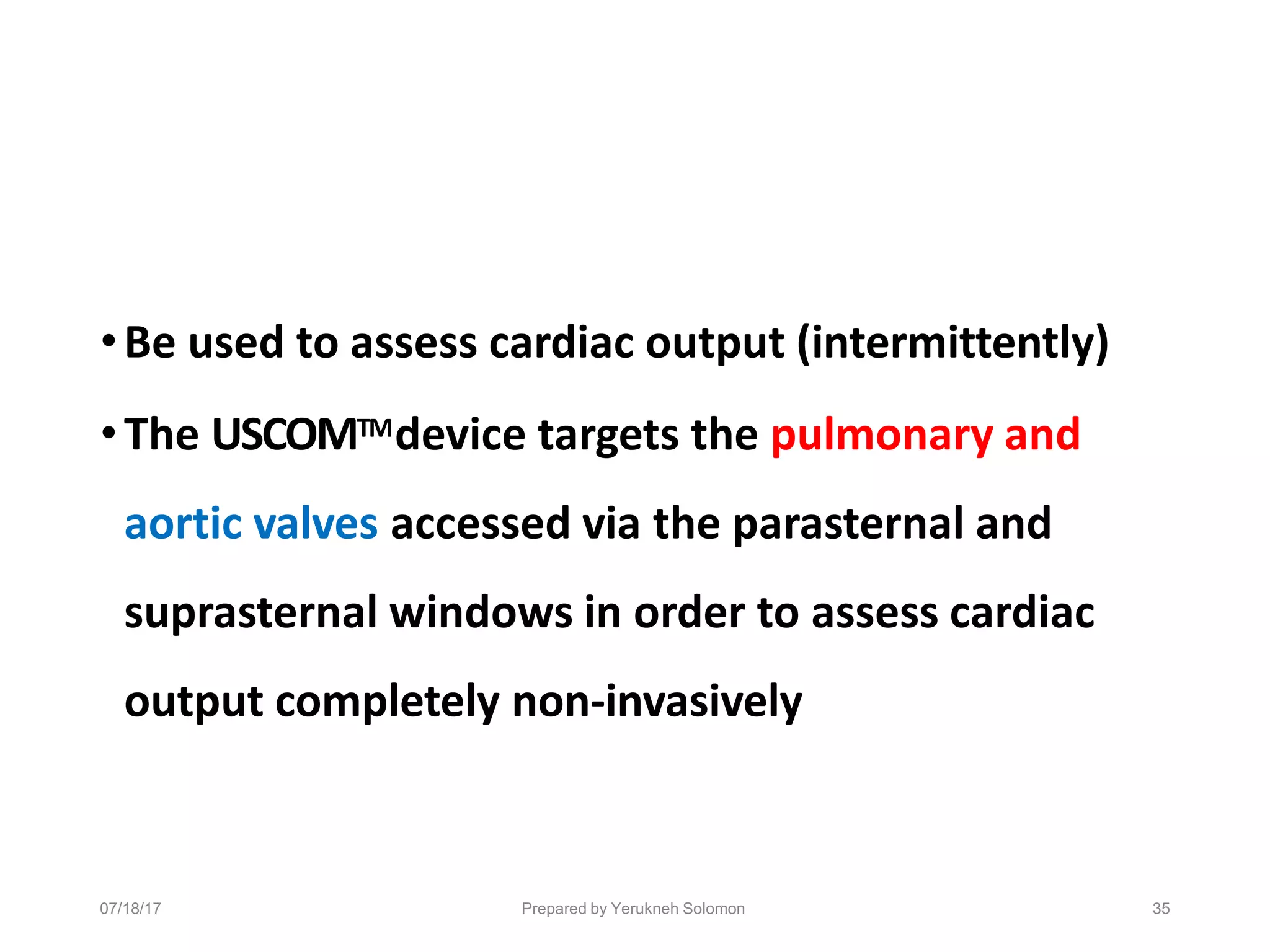

35. 07/18/17 Prepared by Yerukneh Solomon 35
•Be used to assess cardiac output (intermittently)
•The USCOMTMdevice targets the pulmonary and
aortic valves accessed via the parasternal and
suprasternal windows in order to assess cardiac
output completely non-invasively

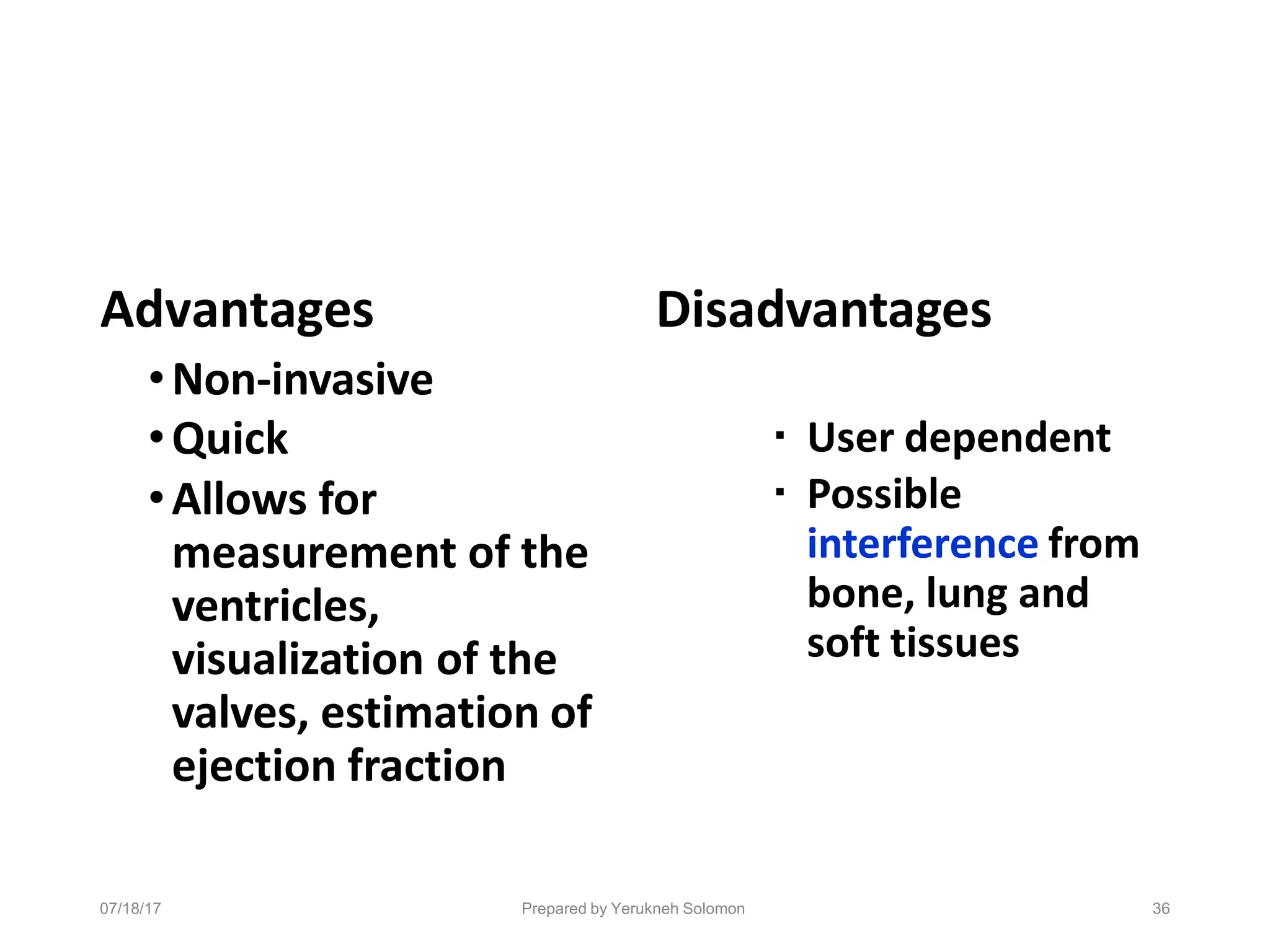

36. 07/18/17 Prepared by Yerukneh Solomon 36
Advantages
•Non-invasive
•Quick
•Allows for
measurement of the
ventricles,
visualization of the
valves, estimation of
ejection fraction
Disadvantages
▪ User dependent
▪ Possible
interference from
bone, lung and
soft tissues

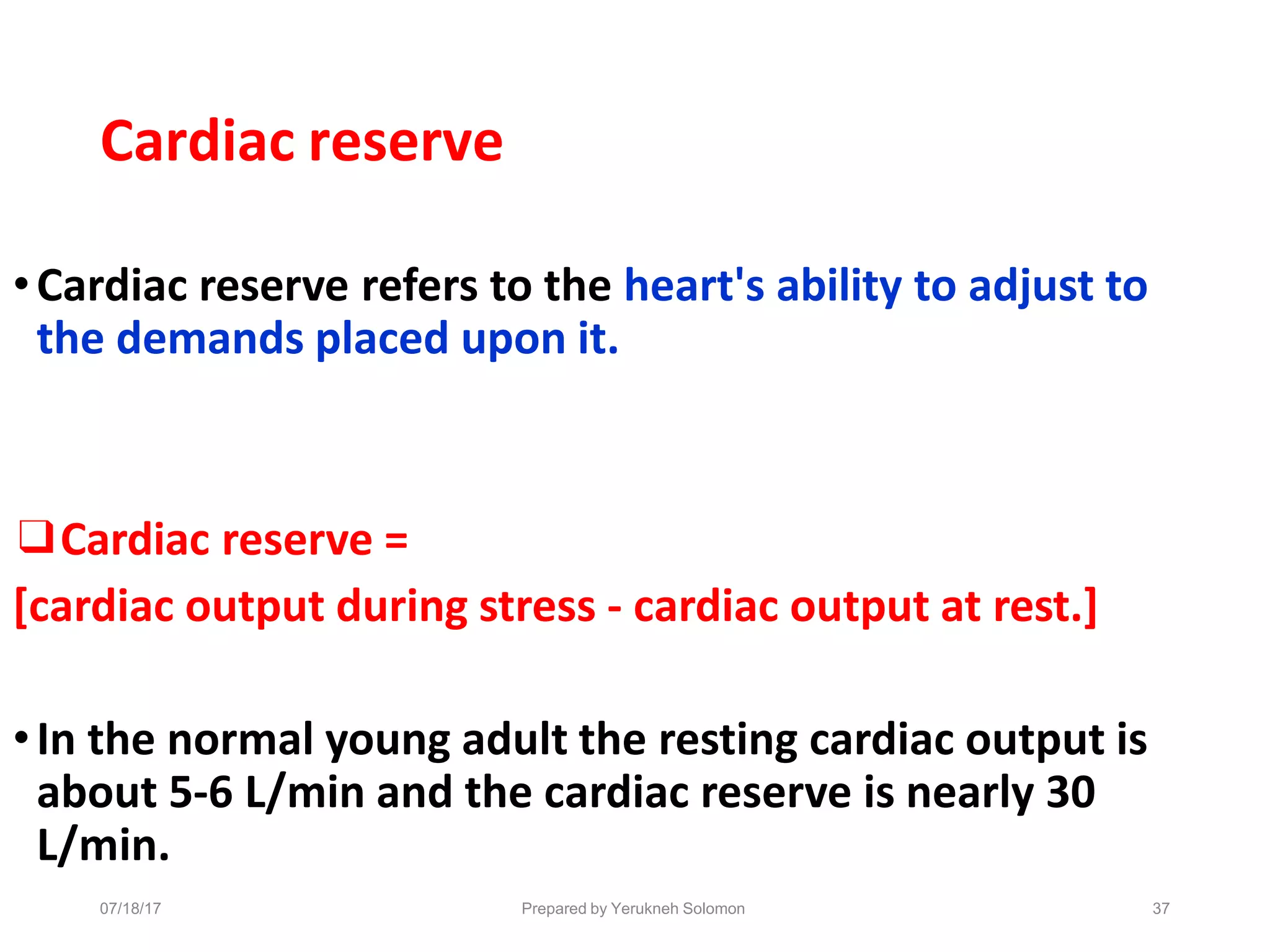

37. 07/18/17 Prepared by Yerukneh Solomon 37
Cardiac reserve
•Cardiac reserve refers to the heart's ability to adjust to
the demands placed upon it.
❑Cardiac reserve =
[cardiac output during stress - cardiac output at rest.]
•In the normal young adult the resting cardiac output is
about 5-6 L/min and the cardiac reserve is nearly 30
L/min.

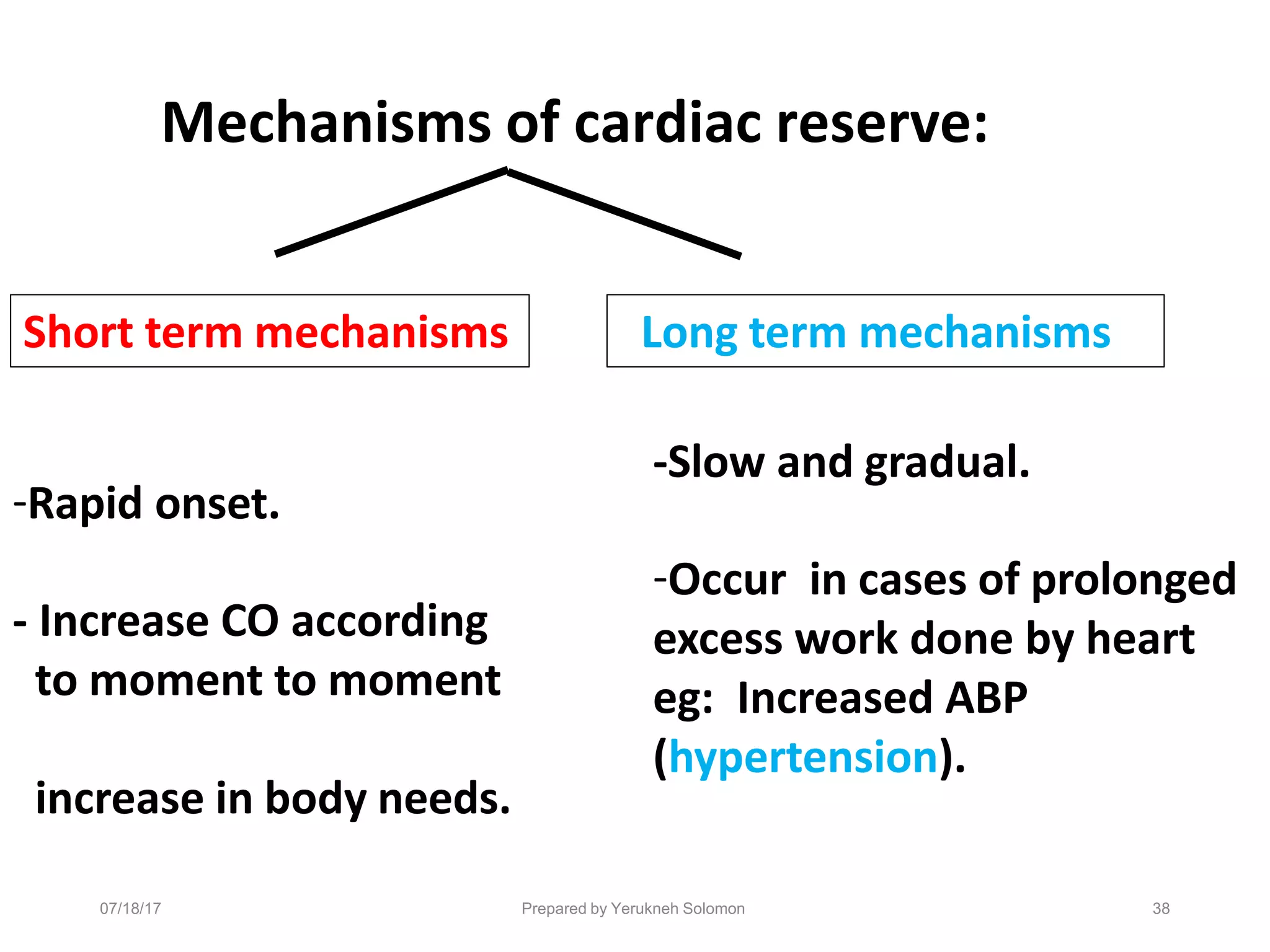

38. Short term mechanisms Long term mechanisms
Mechanisms of cardiac reserve:
-Rapid onset.
- Increase CO according
to moment to moment
increase in body needs.
07/18/17 Prepared by Yerukneh Solomon 38
-Slow and gradual.
-Occur in cases of prolonged
excess work done by heart
eg: Increased ABP
(hypertension).

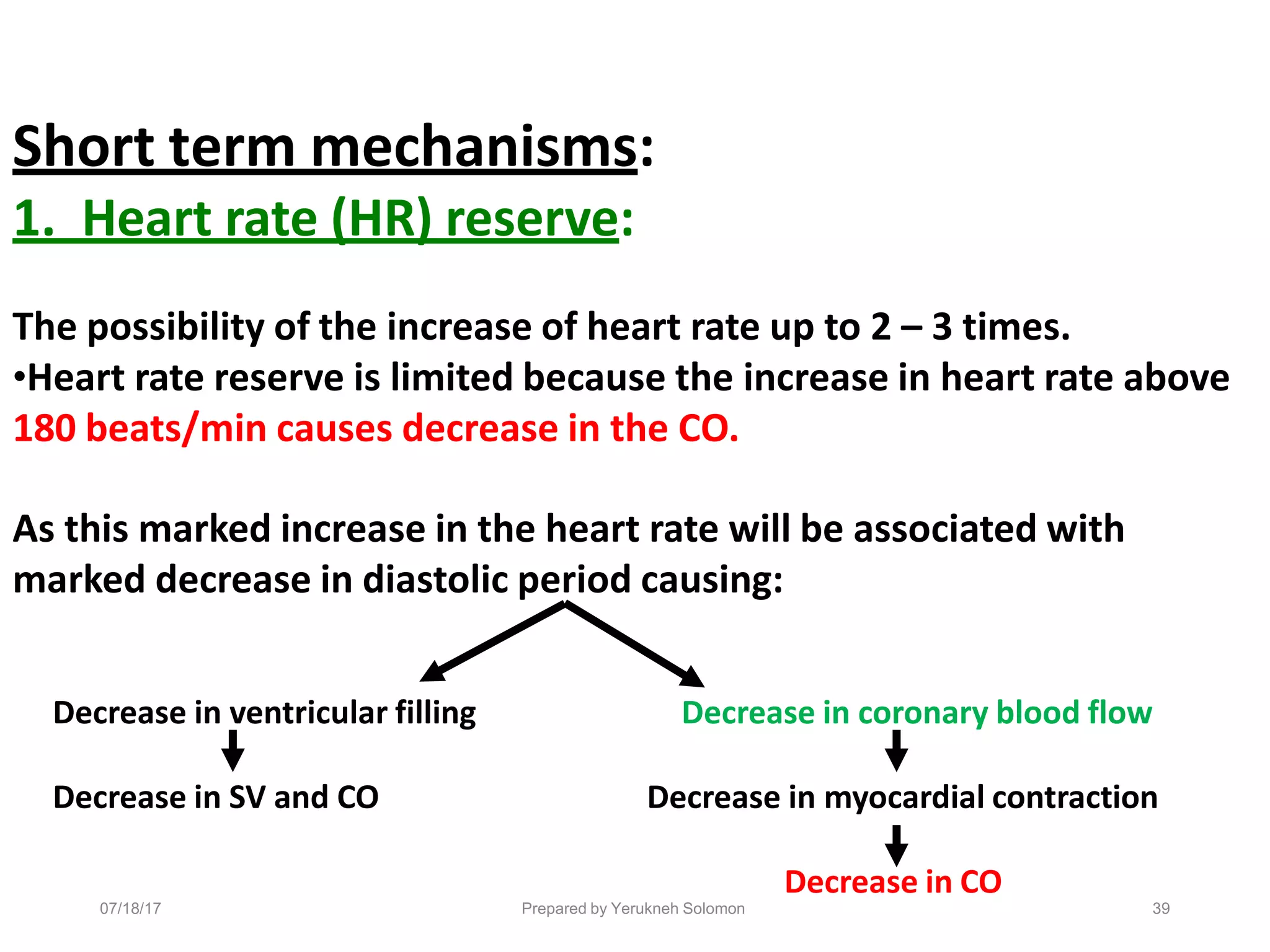

39. Prepared by Yerukneh Solomon
Short term mechanisms:
1. Heart rate (HR) reserve:
The possibility of the increase of heart rate up to 2 – 3 times.
•Heart rate reserve is limited because the increase in heart rate above
180 beats/min causes decrease in the CO.
As this marked increase in the heart rate will be associated with
marked decrease in diastolic period causing:
Decrease in ventricular filling Decrease in coronary blood flow
Decrease in SV and CO Decrease in myocardial contraction
Decrease in CO
39
07/18/17

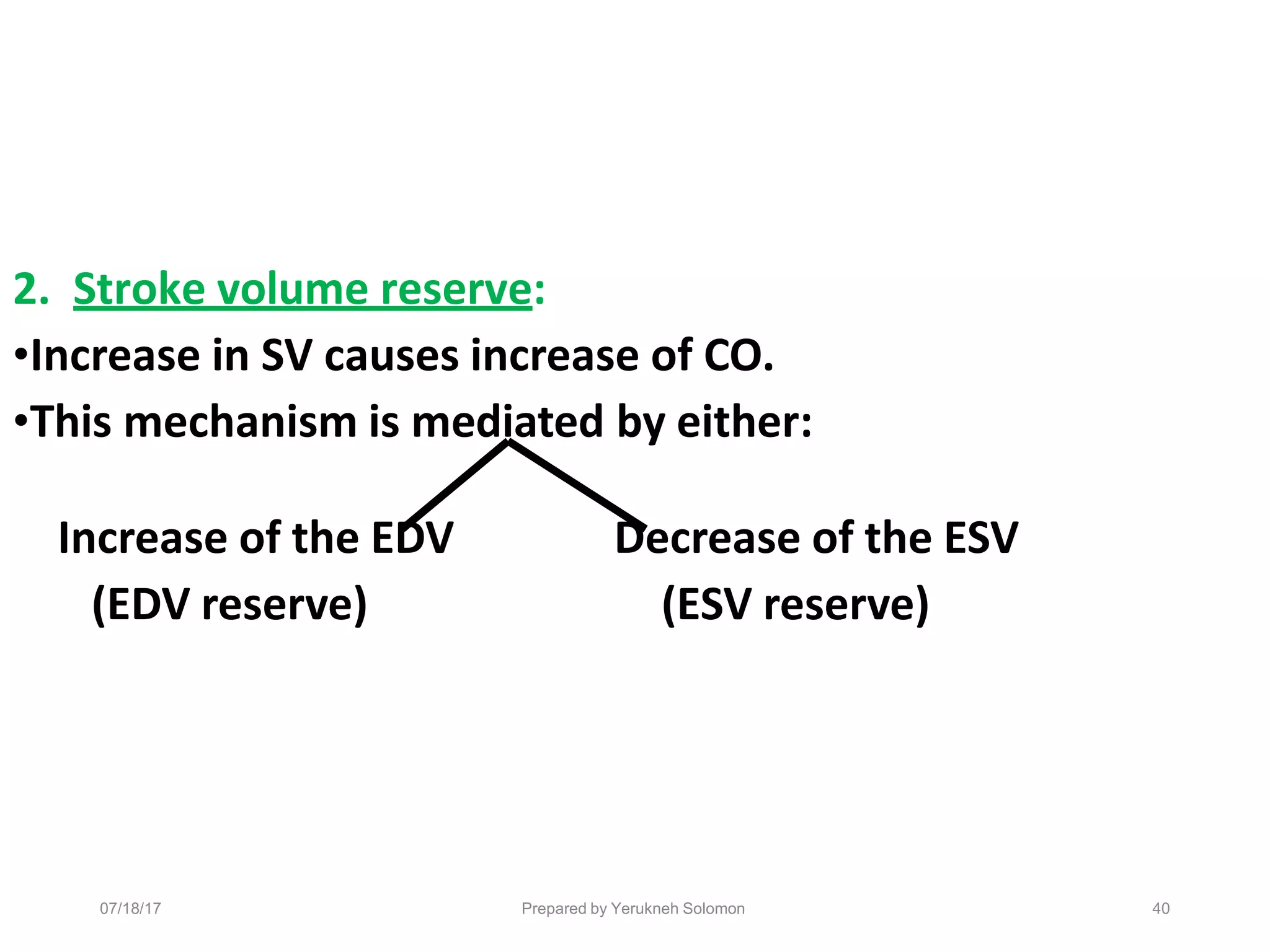

40. 2. Stroke volume reserve:
•Increase in SV causes increase of CO.
•This mechanism is mediated by either:
Increase of the EDV
(EDV reserve)
Decrease of the ESV
(ESV reserve)
40
Prepared by Yerukneh Solomon
07/18/17

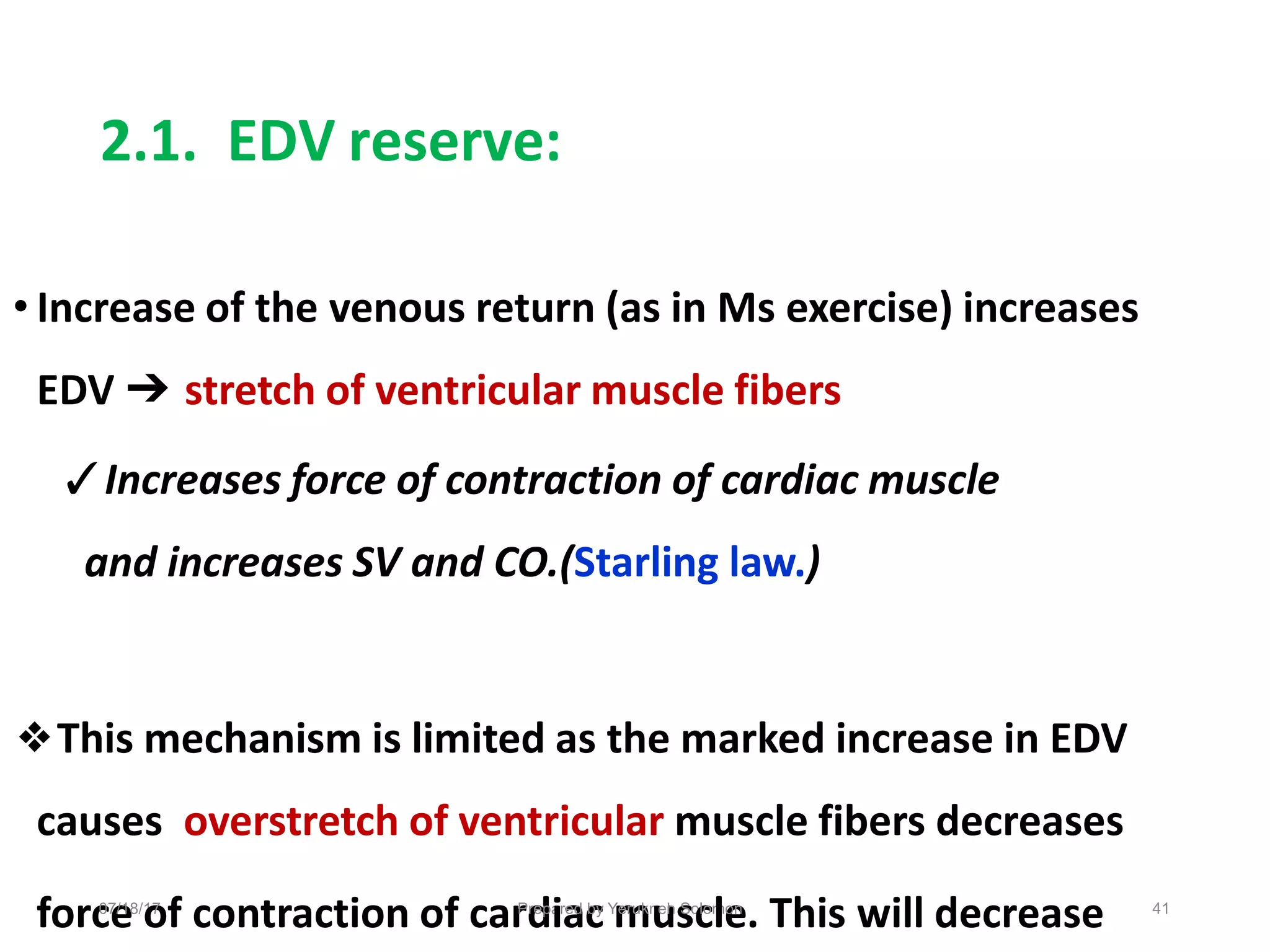

41. 2.1. EDV reserve:
• Increase of the venous return (as in Ms exercise) increases
EDV ➔ stretch of ventricular muscle fibers
✓Increases force of contraction of cardiac muscle
and increases SV and CO.(Starling law.)
❖This mechanism is limited as the marked increase in EDV
causes overstretch of ventricular muscle fibers decreases
forc
07
e
/18/1
o
7
f contraction of car
P
d
repa
ir
a
ed
c
by Y
m
erukn
u
eh
s
So
c
lom
le
on
. This will decrease 41

42. Prepared by Yerukneh Solomon

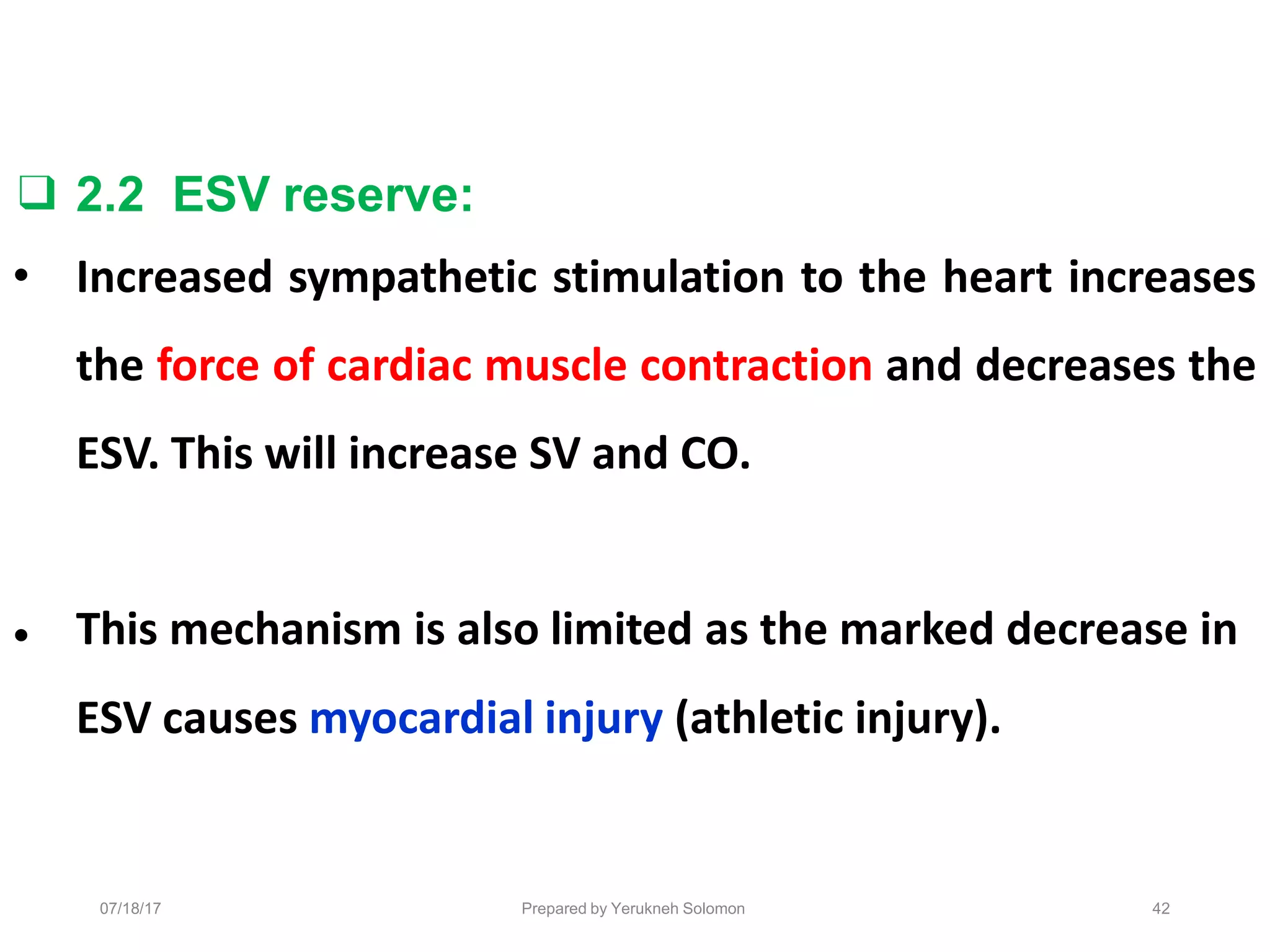

❑ 2.2 ESV reserve:
• Increased sympathetic stimulation to the heart increases
the force of cardiac muscle contraction and decreases the
ESV. This will increase SV and CO.
• This mechanism is also limited as the marked decrease in
ESV causes myocardial injury (athletic injury).
42
07/18/17

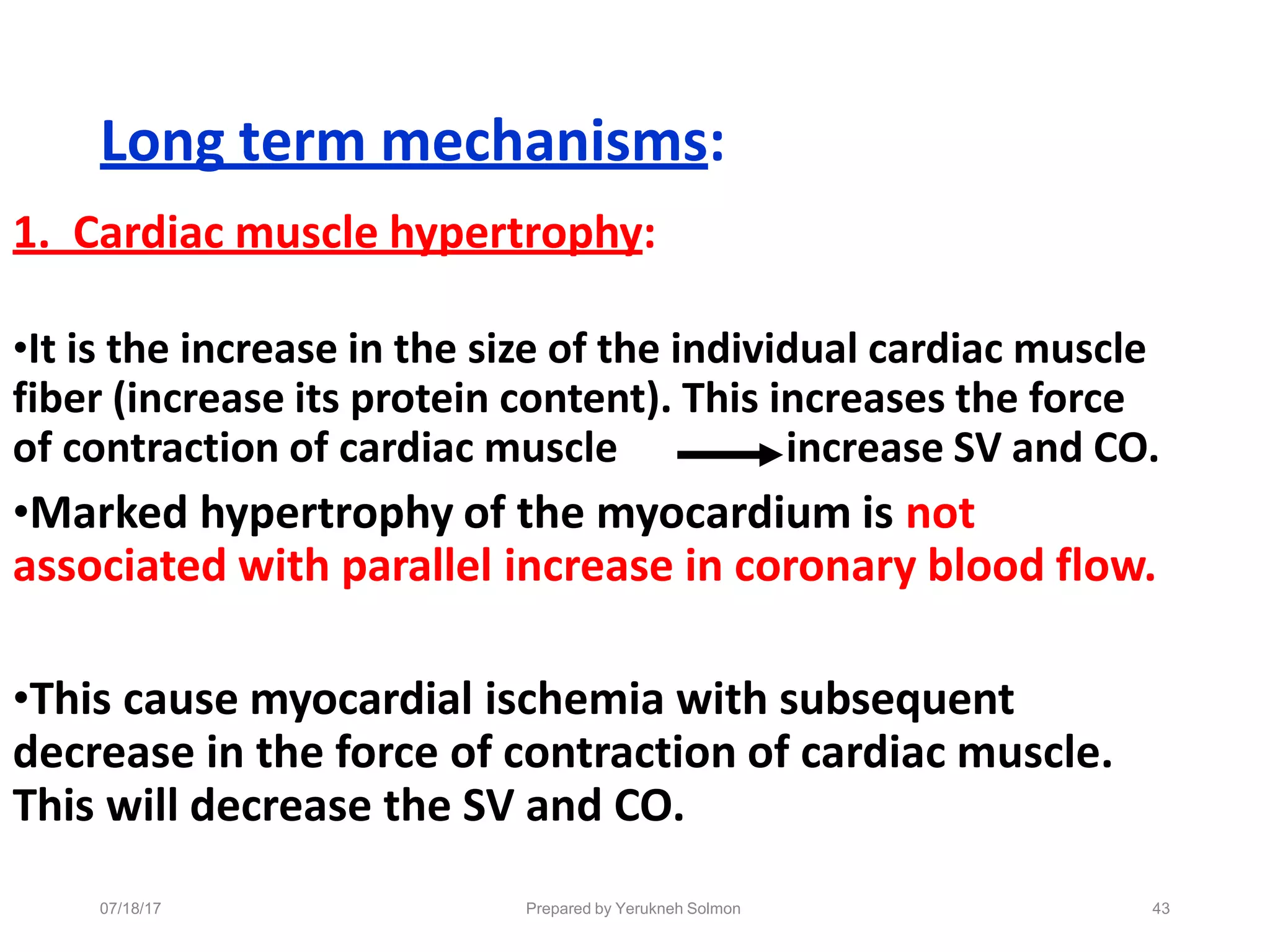

43. Long term mechanisms:
1. Cardiac muscle hypertrophy:
•It is the increase in the size of the individual cardiac muscle
fiber (increase its protein content). This increases the force
of contraction of cardiac muscle increase SV and CO.
•Marked hypertrophy of the myocardium is not
associated with parallel increase in coronary blood flow.
•This cause myocardial ischemia with subsequent
decrease in the force of contraction of cardiac muscle.
This will decrease the SV and CO.
Prepared by Yerukneh Solmon 43
07/18/17

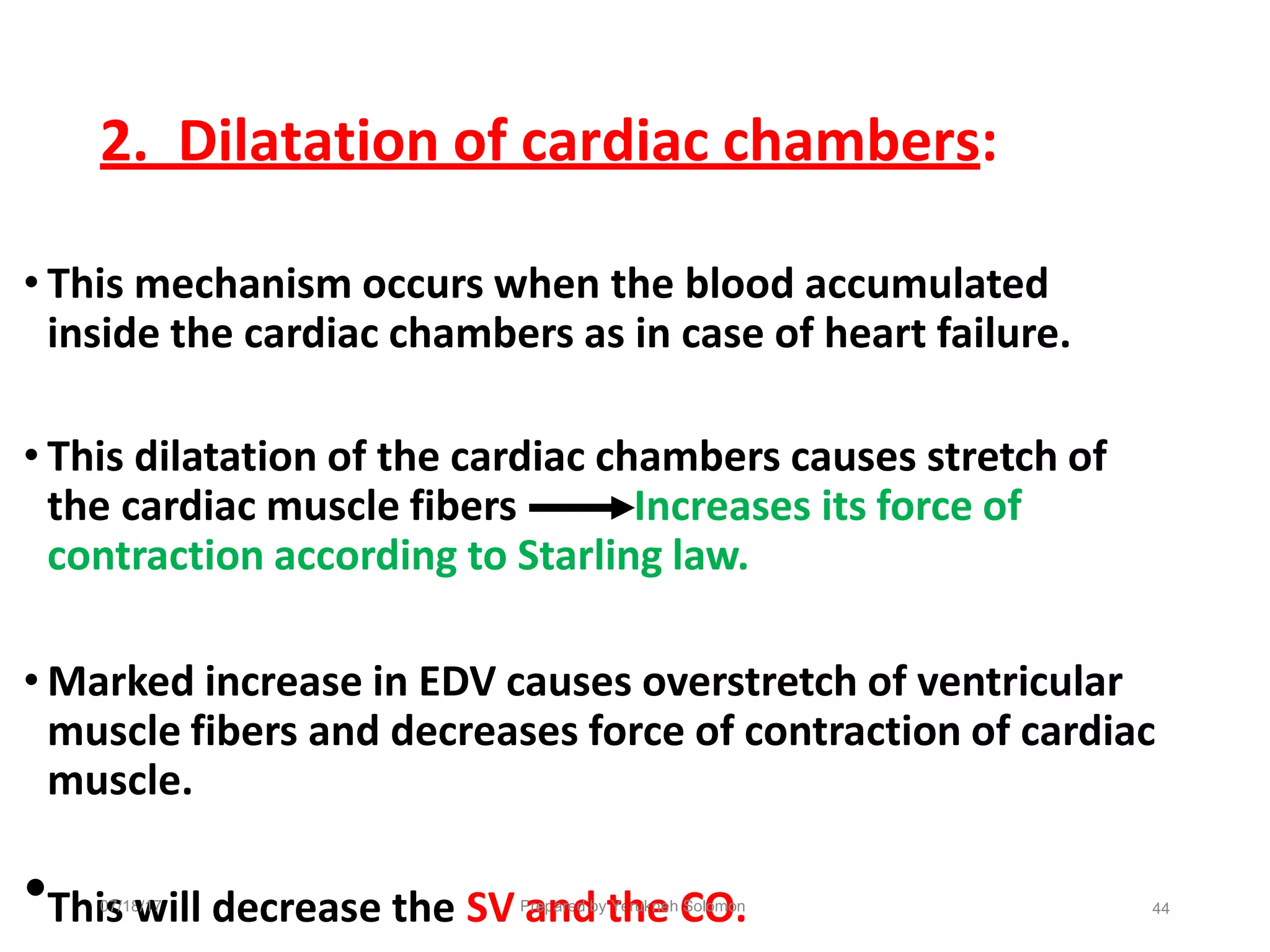

44. 2. Dilatation of cardiac chambers:
• This mechanism occurs when the blood accumulated
inside the cardiac chambers as in case of heart failure.
• This dilatation of the cardiac chambers causes stretch of
the cardiac muscle fibers Increases its force of
contraction according to Starling law.
• Marked increase in EDV causes overstretch of ventricular
muscle fibers and decreases force of contraction of cardiac
muscle.
•Thi0
s
7/18
w
/17
ill decrease the SVP
a
rep
n
are
d
d by
t
Ye
h
ruk
e
neh
C
Sol
O
omo
.
n 44

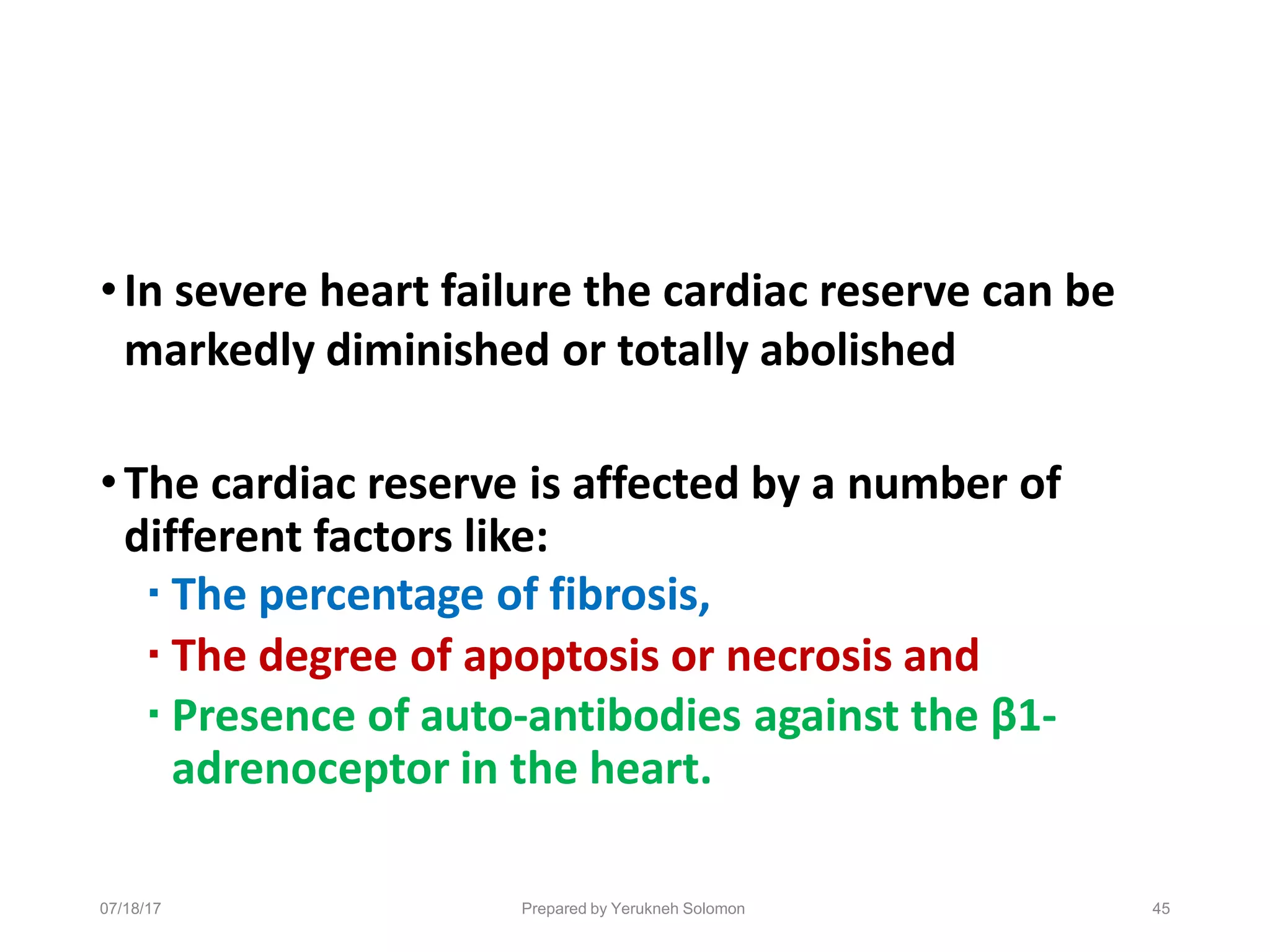

45. 07/18/17 Prepared by Yerukneh Solomon 45
•In severe heart failure the cardiac reserve can be
markedly diminished or totally abolished
•The cardiac reserve is affected by a number of
different factors like:
▪ The percentage of fibrosis,
▪ The degree of apoptosis or necrosis and
▪ Presence of auto-antibodies against the β1-
adrenoceptor in the heart.

46. Cardiac Index
•Both of these people’s
hearts pump 3 liters of
blood per minute.
•Who feels better?
•The smaller one!
•Why ?
•Less body surface area.
07/18/17 Prepared by Yerukneh Solomon 46

47. 07/18/17 Prepared by Yerukneh Solomon 47

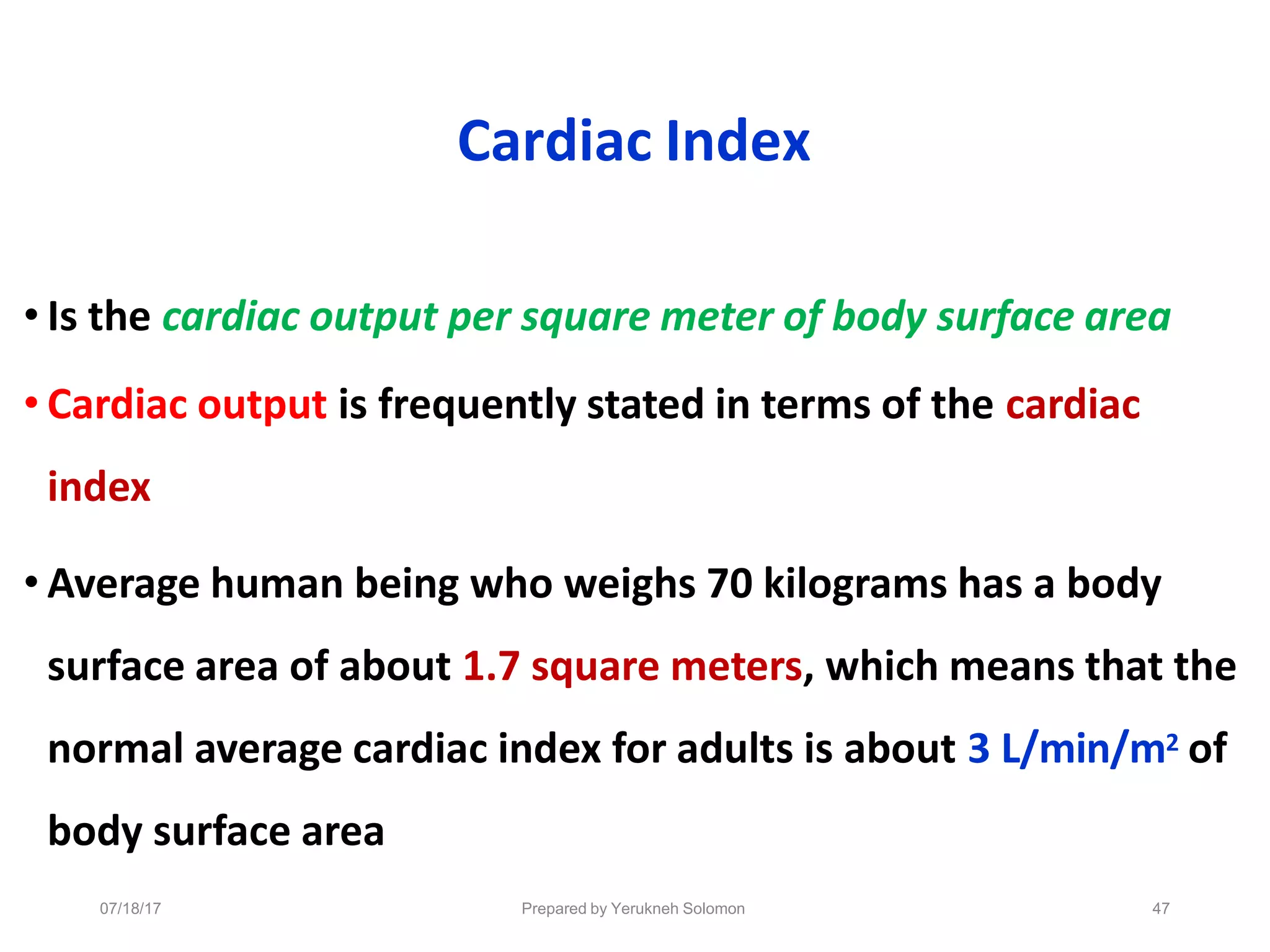

Cardiac Index
• Is the cardiac output per square meter of body surface area
• Cardiac output is frequently stated in terms of the cardiac
index
• Average human being who weighs 70 kilograms has a body
surface area of about 1.7 square meters, which means that the
normal average cardiac index for adults is about 3 L/min/m2 of
body surface area

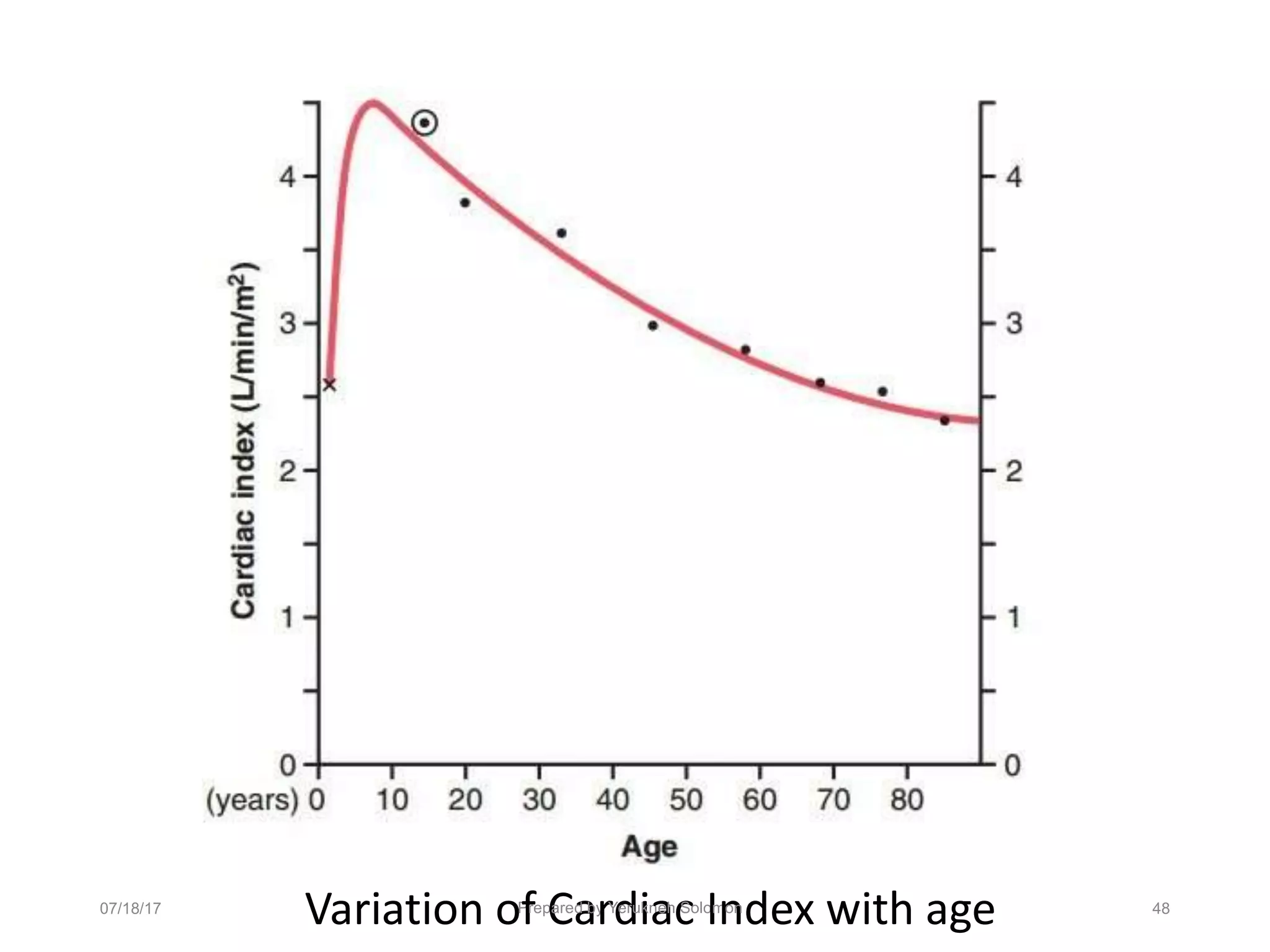

48. Variation oP
frep
C
are
a
d by
rY
d
eru
ikn
a
eh
c
Solo
Im
n
on
dex with age
07/18/17 48

49. 07/18/17 Prepared by Yerukneh Solomon 49
THANK YOU!!!

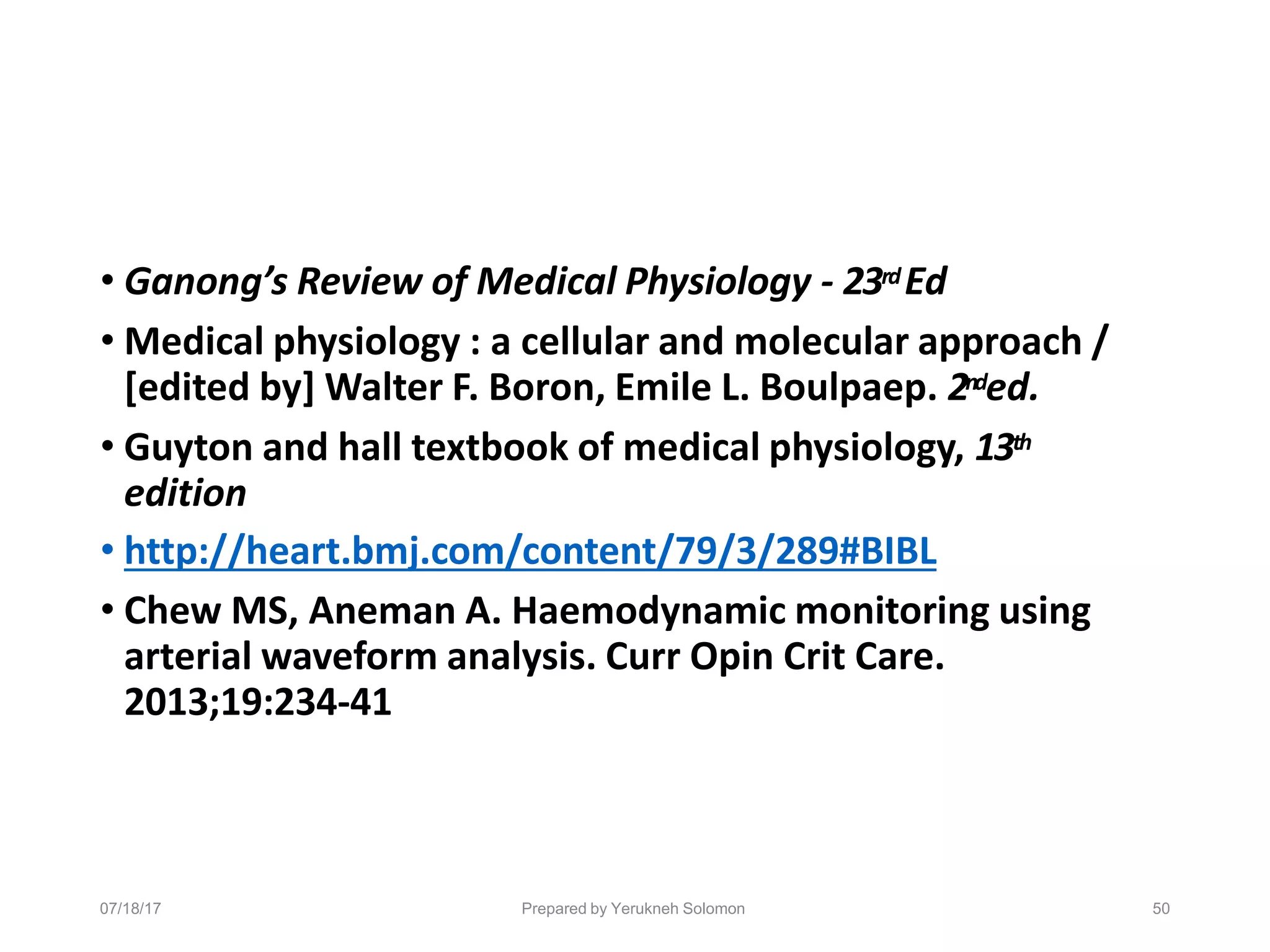

50. 07/18/17 Prepared by Yerukneh Solomon 50
• Ganong’s Review of Medical Physiology - 23rdEd
• Medical physiology : a cellular and molecular approach /
[edited by] Walter F. Boron, Emile L. Boulpaep. 2nded.
• Guyton and hall textbook of medical physiology, 13th
edition
• http://heart.bmj.com/content/79/3/289#BIBL
• Chew MS, Aneman A. Haemodynamic monitoring using
arterial waveform analysis. Curr Opin Crit Care.
2013;19:234-41
