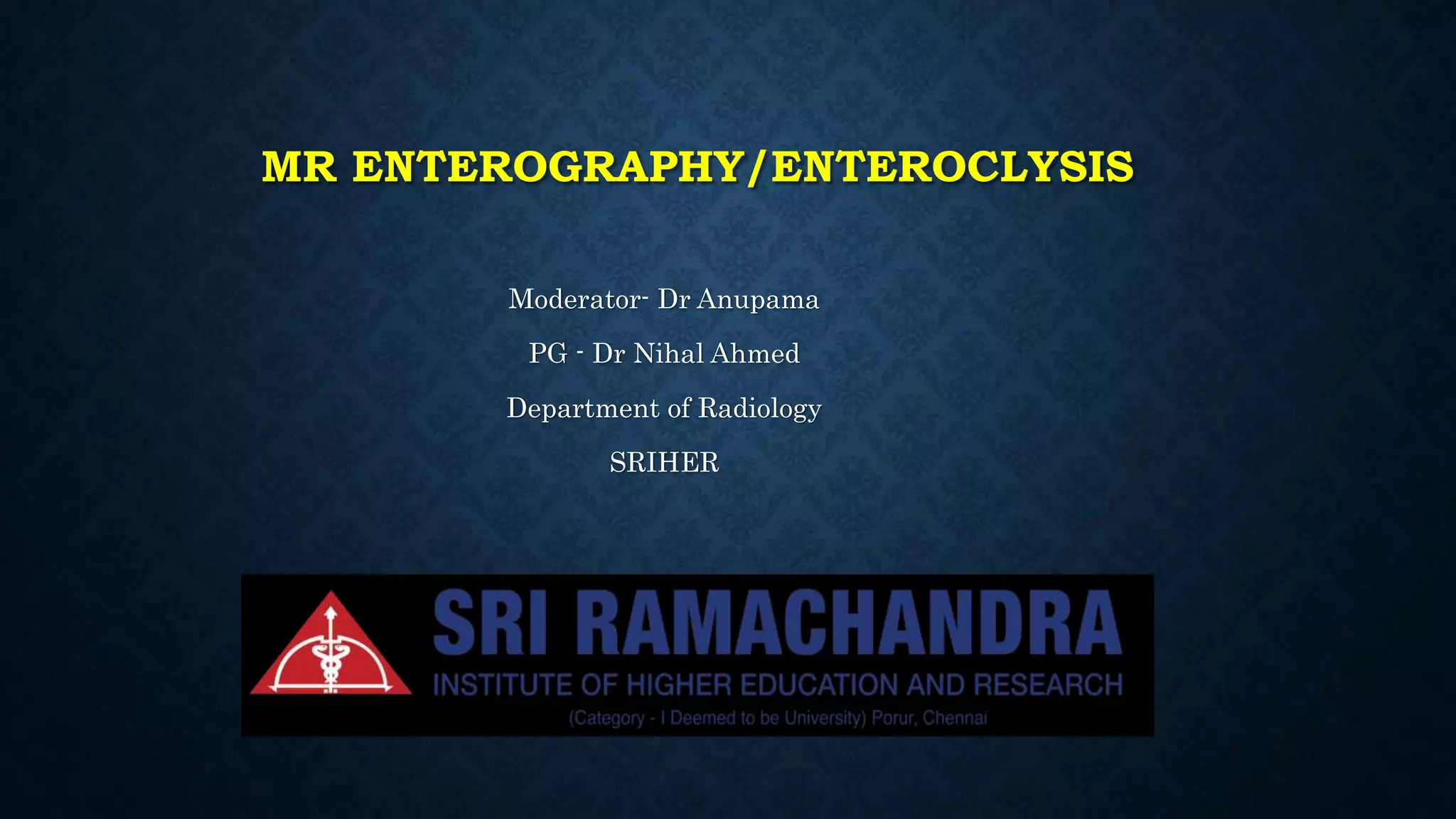

MR enterography/enteroclysis is a non-invasive technique used to diagnose small bowel disorders. Enterography involves oral contrast, while enteroclysis uses a nasoenteric tube. MR enterography offers multiplanar imaging and functional data without radiation. It is superior to CT for assessing peri-anal disease and bowel peristalsis. Indications include Crohn's disease, tuberculosis, and neoplasms. Contrast agents improve luminal visualization. Techniques involve prone positioning, antiperistaltic drugs, and pre- and post-contrast sequences. Findings are used to characterize inflammation, activity, complications and differentiate conditions like tuberculosis from Crohn's disease. Scoring systems like MaRIA objectively assess

1. MR ENTEROGRAPHY/ENTEROCLYSIS
Moderator- Dr Anupama
PG - Dr Nihal Ahmed
Department of Radiology
SRIHER

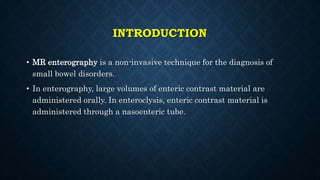

2. INTRODUCTION
• MR enterography is a non-invasive technique for the diagnosis of
small bowel disorders.
• In enterography, large volumes of enteric contrast material are
administered orally. In enteroclysis, enteric contrast material is
administered through a nasoenteric tube.

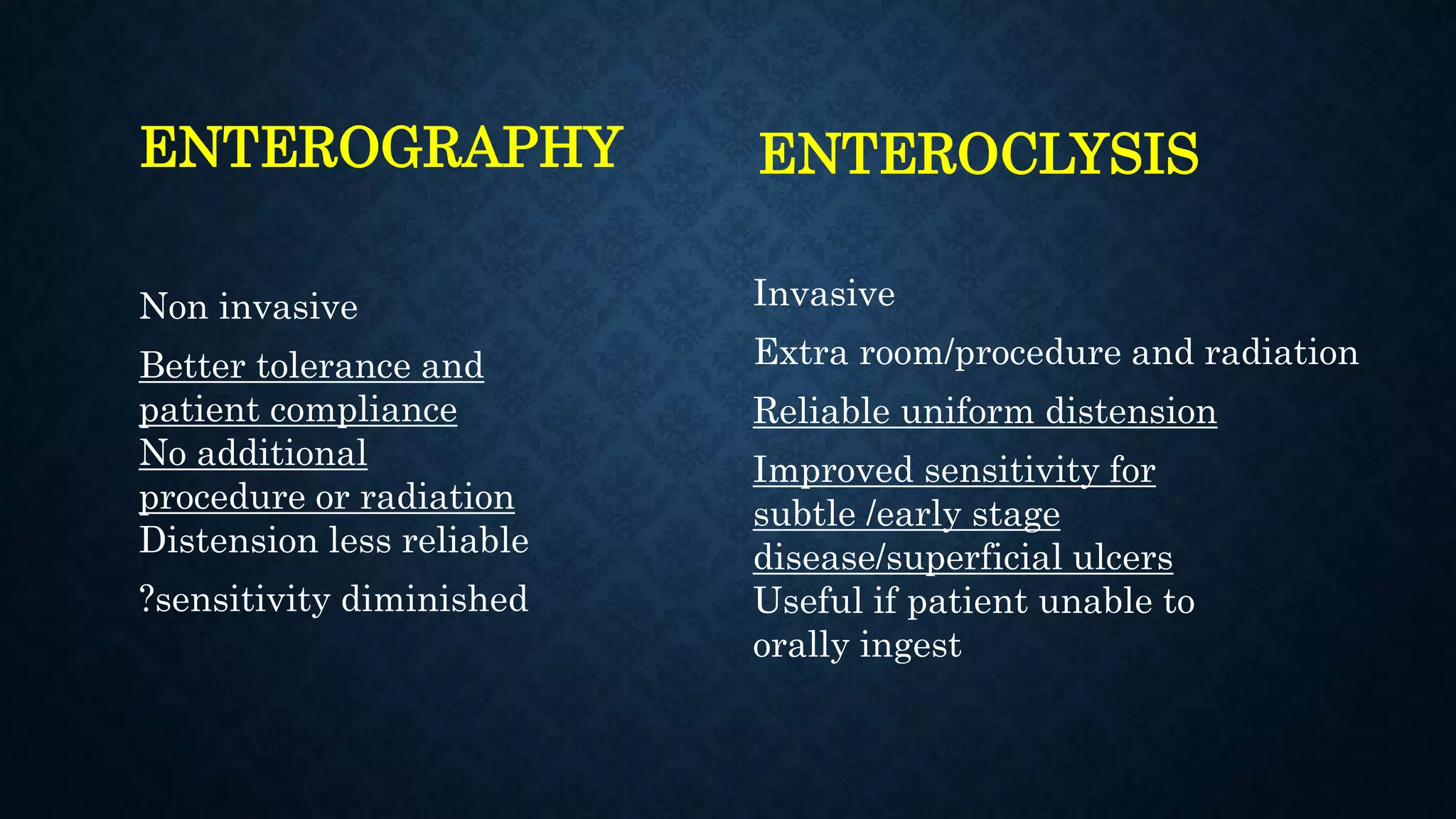

3. ENTEROGRAPHY
Non invasive
Better tolerance and
patient compliance
No additional
procedure or radiation
Distension less reliable
?sensitivity diminished
ENTEROCLYSIS
Invasive
Extra room/procedure and radiation
Reliable uniform distension
Improved sensitivity for
subtle /early stage
disease/superficial ulcers
Useful if patient unable to
orally ingest

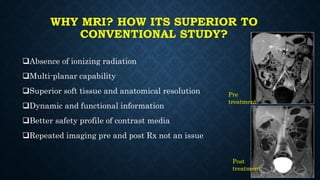

4. WHY MRI? HOW ITS SUPERIOR TO
CONVENTIONAL STUDY?
Absence of ionizing radiation
Multi-planar capability
Superior soft tissue and anatomical resolution
Dynamic and functional information
Better safety profile of contrast media
Repeated imaging pre and post Rx not an issue
Pre
treatment
Post
treatment

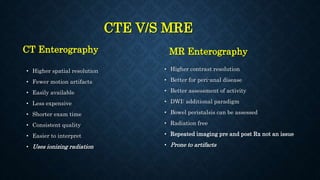

5. CTE V/S MRE
CT Enterography
• Higher spatial resolution
• Fewer motion artifacts
• Easily available
• Less expensive
• Shorter exam time
• Consistent quality
• Easier to interpret
• Uses ionizing radiation
MR Enterography
• Higher contrast resolution
• Better for peri-anal disease
• Better assessment of activity
• DWI: additional paradigm
• Bowel peristalsis can be assessed
• Radiation free
• Repeated imaging pre and post Rx not an issue
• Prone to artifacts

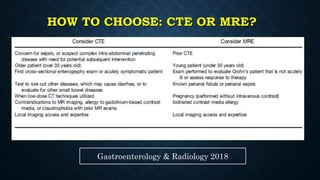

6. HOW TO CHOOSE: CTE OR MRE?
Gastroenterology & Radiology 2018

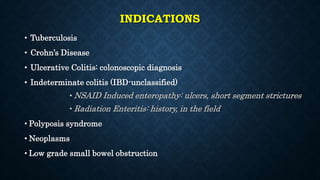

7. INDICATIONS
• Tuberculosis
• Crohn’s Disease
• Ulcerative Colitis: colonoscopic diagnosis
• Indeterminate colitis (IBD-unclassified)
• NSAID Induced enteropathy: ulcers, short segment strictures
• Radiation Enteritis: history, in the field
• Polyposis syndrome
• Neoplasms
• Low grade small bowel obstruction

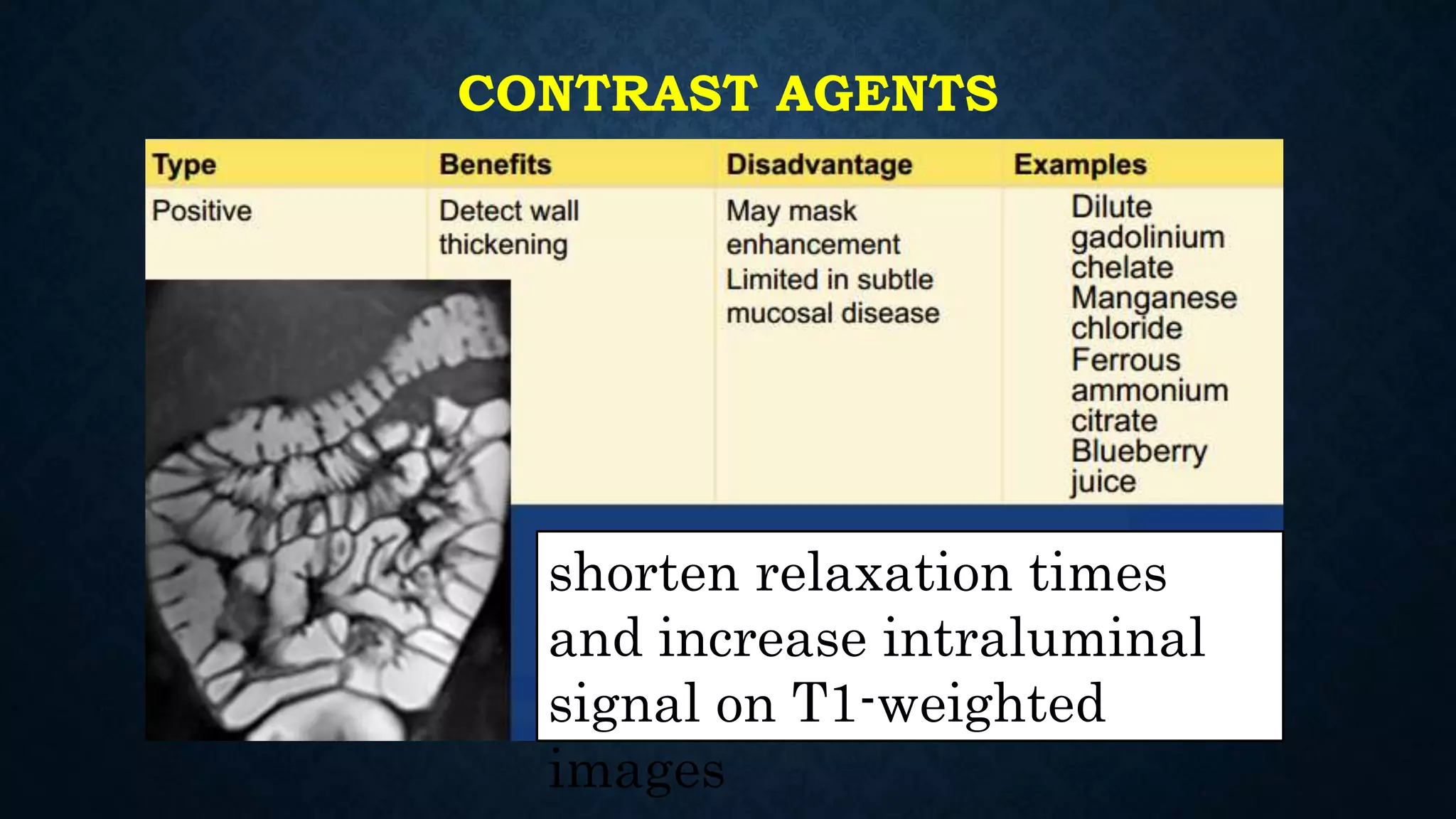

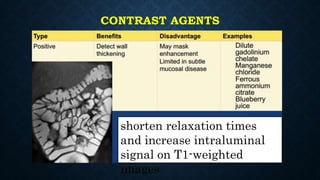

8. CONTRAST AGENTS
shorten relaxation times
and increase intraluminal
signal on T1-weighted
images

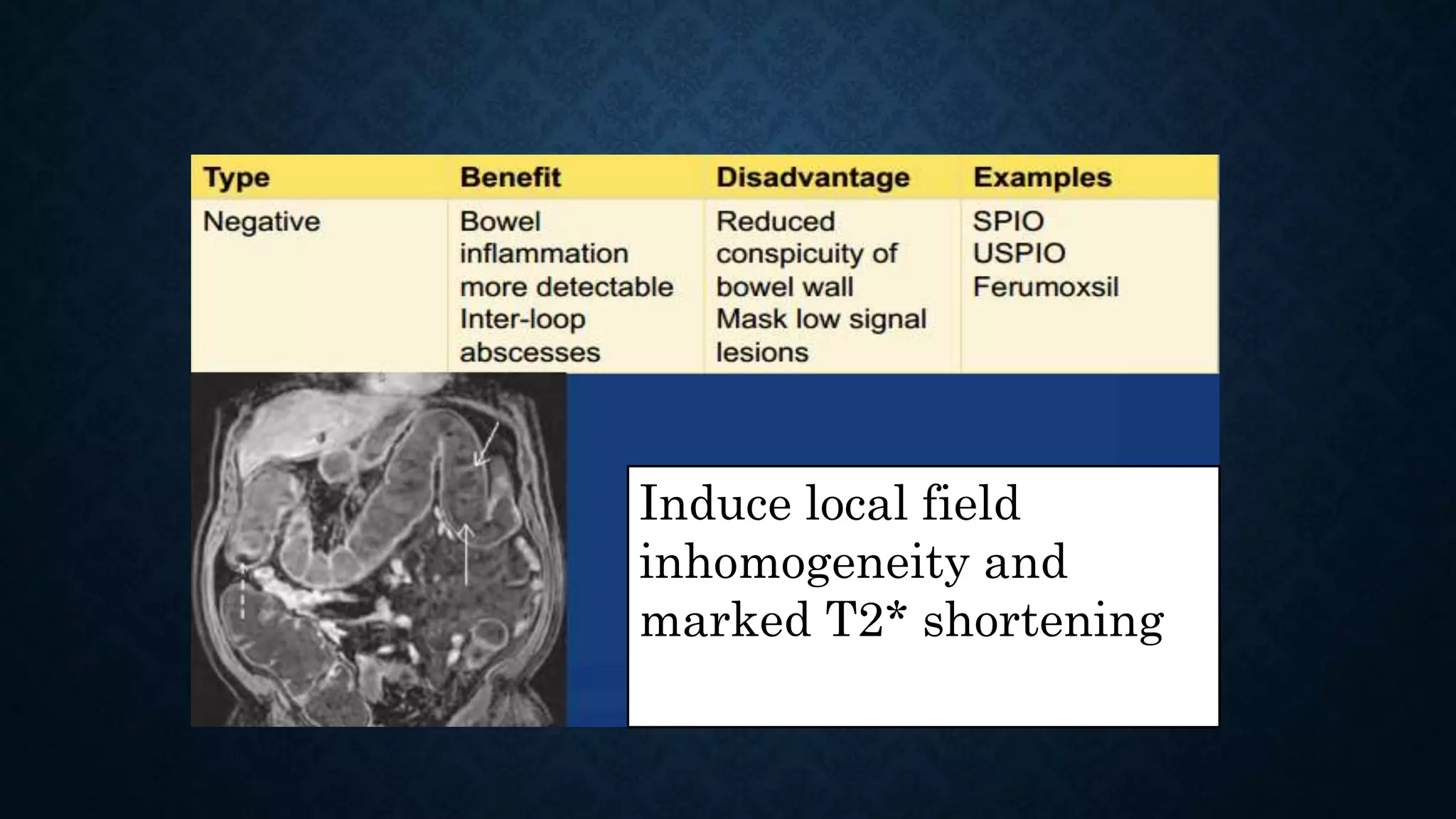

9. Induce local field
inhomogeneity and
marked T2* shortening

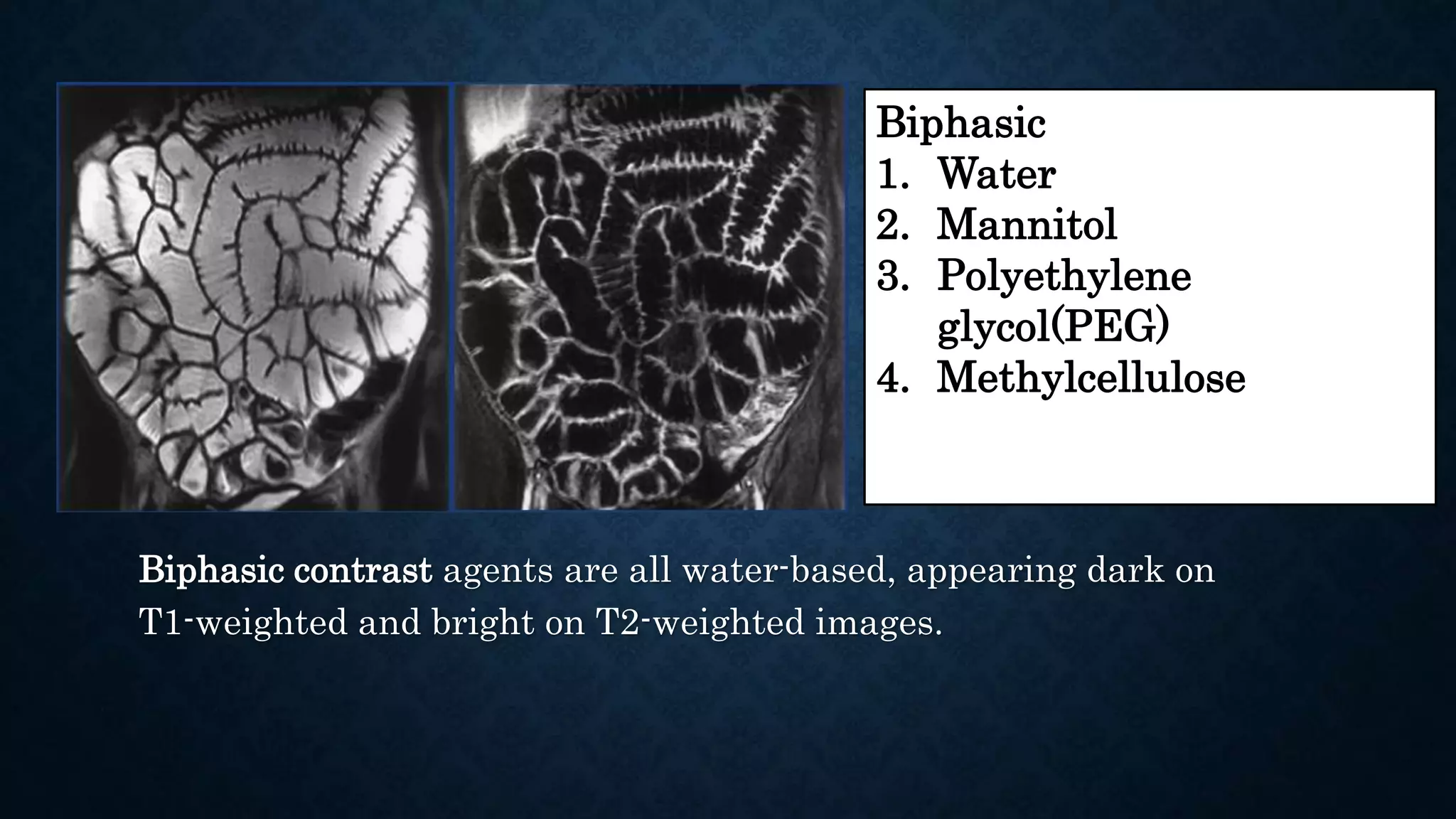

10. Biphasic contrast agents are all water-based, appearing dark on
T1-weighted and bright on T2-weighted images.
Biphasic
1. Water
2. Mannitol
3. Polyethylene
glycol(PEG)
4. Methylcellulose

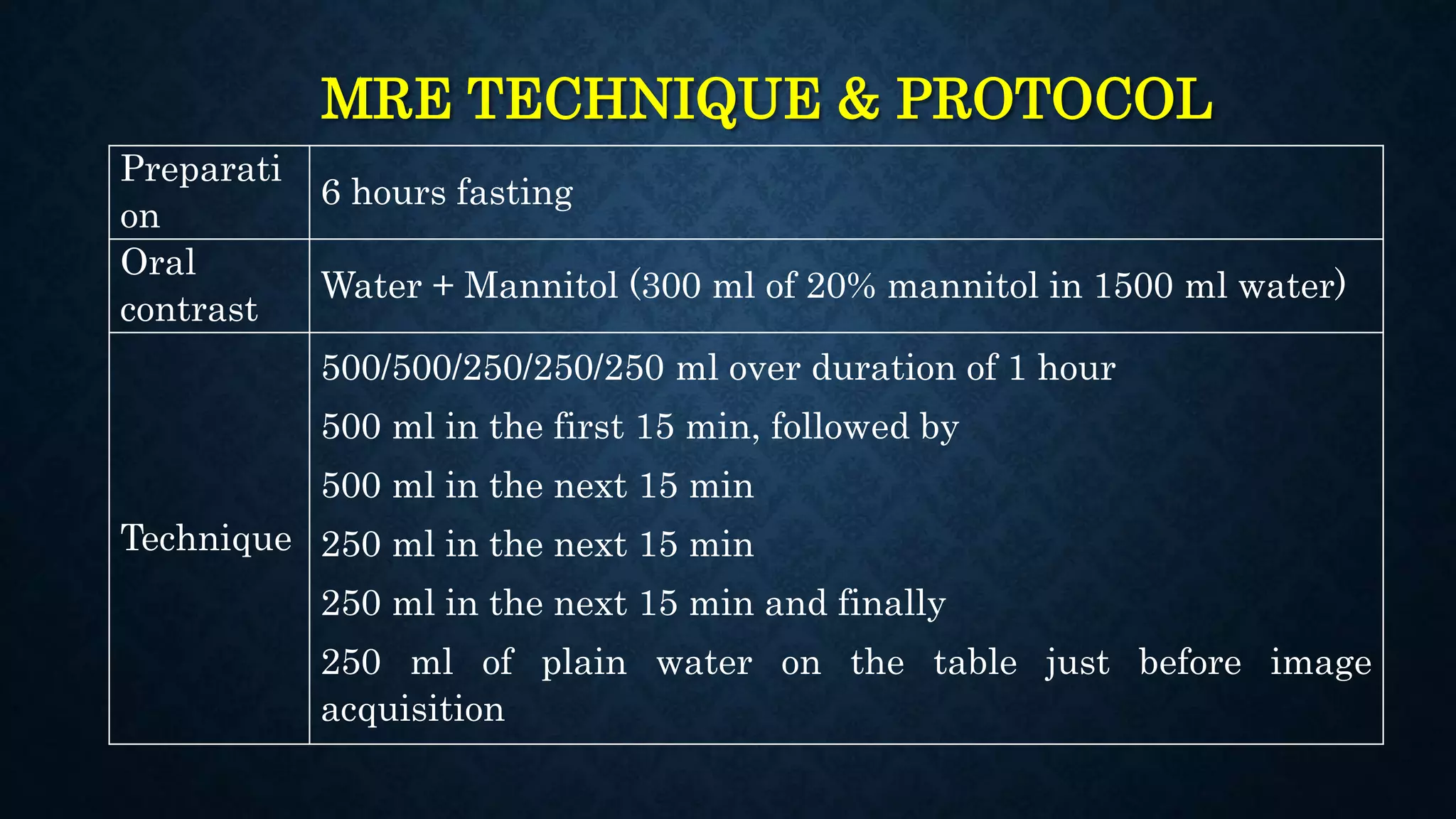

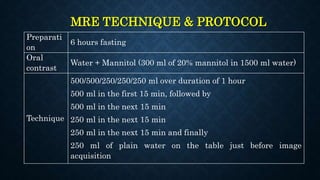

11. MRE TECHNIQUE & PROTOCOL
Preparati
on
6 hours fasting
Oral
contrast
Water + Mannitol (300 ml of 20% mannitol in 1500 ml water)
Technique
500/500/250/250/250 ml over duration of 1 hour
500 ml in the first 15 min, followed by
500 ml in the next 15 min
250 ml in the next 15 min
250 ml in the next 15 min and finally
250 ml of plain water on the table just before image
acquisition

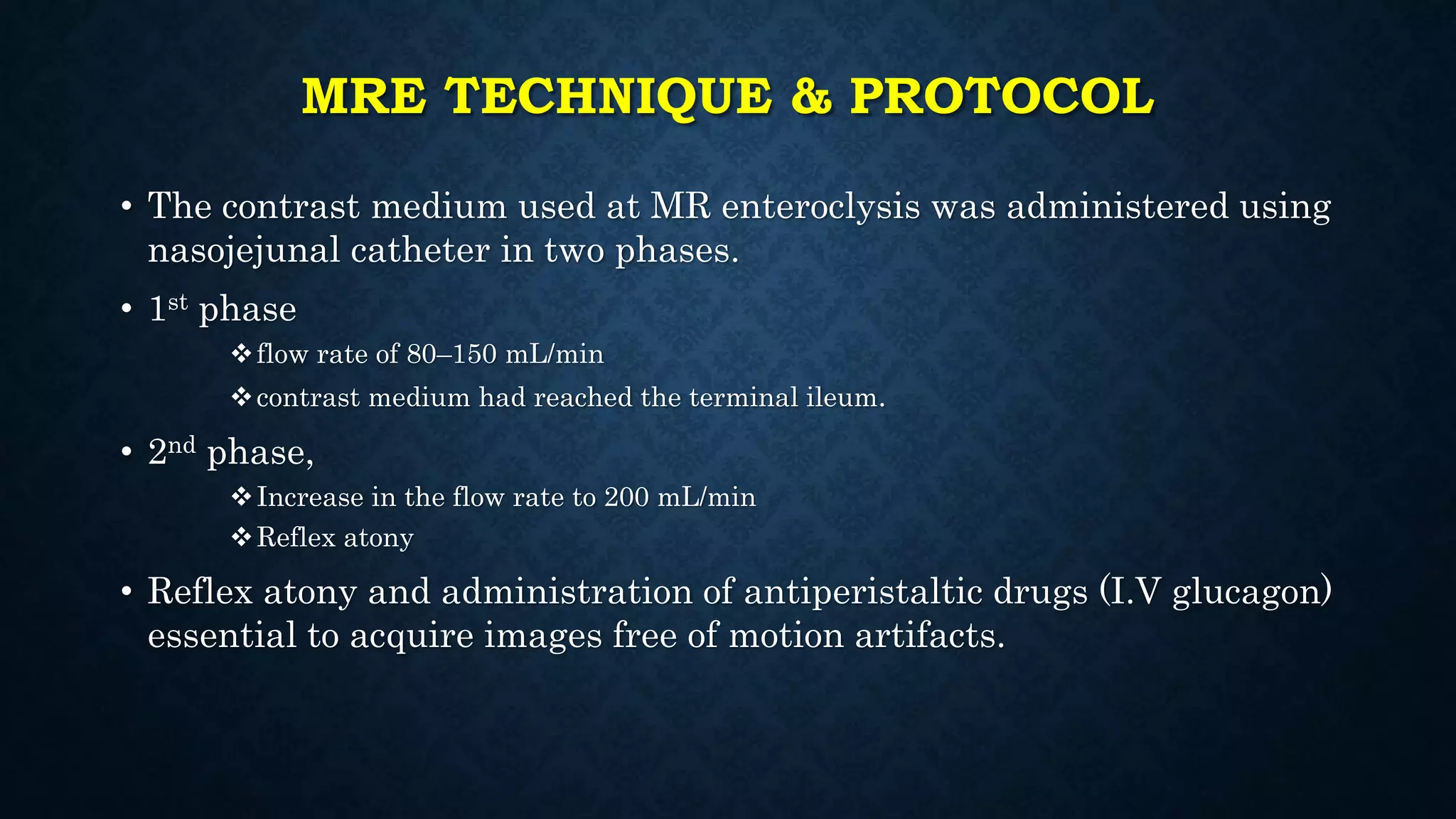

12. MRE TECHNIQUE & PROTOCOL
• The contrast medium used at MR enteroclysis was administered using
nasojejunal catheter in two phases.
• 1st phase
flow rate of 80–150 mL/min
contrast medium had reached the terminal ileum.
• 2nd phase,
Increase in the flow rate to 200 mL/min
Reflex atony
• Reflex atony and administration of antiperistaltic drugs (I.V glucagon)
essential to acquire images free of motion artifacts.

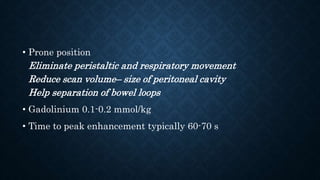

13. • Prone position
Eliminate peristaltic and respiratory movement
Reduce scan volume– size of peritoneal cavity
Help separation of bowel loops
• Gadolinium 0.1-0.2 mmol/kg
• Time to peak enhancement typically 60-70 s

14. SEQUENCES COMMENTS
Coronal single shot fast spin echo –
HASTE/TSE
Check for adequate distension, terminal ileum
well distended, proceed to next sequence
Administer iv
antiperistaltic
Insensitive to bowel motion, anatomic
overview
Wall thickening and bowel obstruction seen
Low spatial resolution, flow void artifacts
Balanced gradient echo sequences T2 weighed
– TrueFISP/FIESTA
Fat suppression +/-
High signal to noise ratio, sharp contrast
Fat suppressed images to distinguish bowel
wall edema and mural fat
Assess bowel motility – determine narrowing
fixed/transient
Susceptibility artifacts, black boundary
artifacts

15. SEQUENCES COMMENTS
Pre and post contrast T1 weighed thin section
gradient echo sequences -VIBE
0.1mmol/kg body weight iv gadolinium
Assess enhancement pattern of wall
thickening, fistulas
Important to obtain subtraction images to
distinguish from preexisting artifactual
hyperintensity

16. CINE MR IMAGING
• MR cine imaging: supplement to routine MR for
evaluation of peristalsis & fixed narrowing/strictures
• Gradient echo i.e. balanced steady state sequence
• Coronal plane, 8 mm slices covering bowel, 25 phase
images per slice, cine loop 15 frames/sec

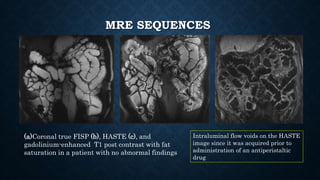

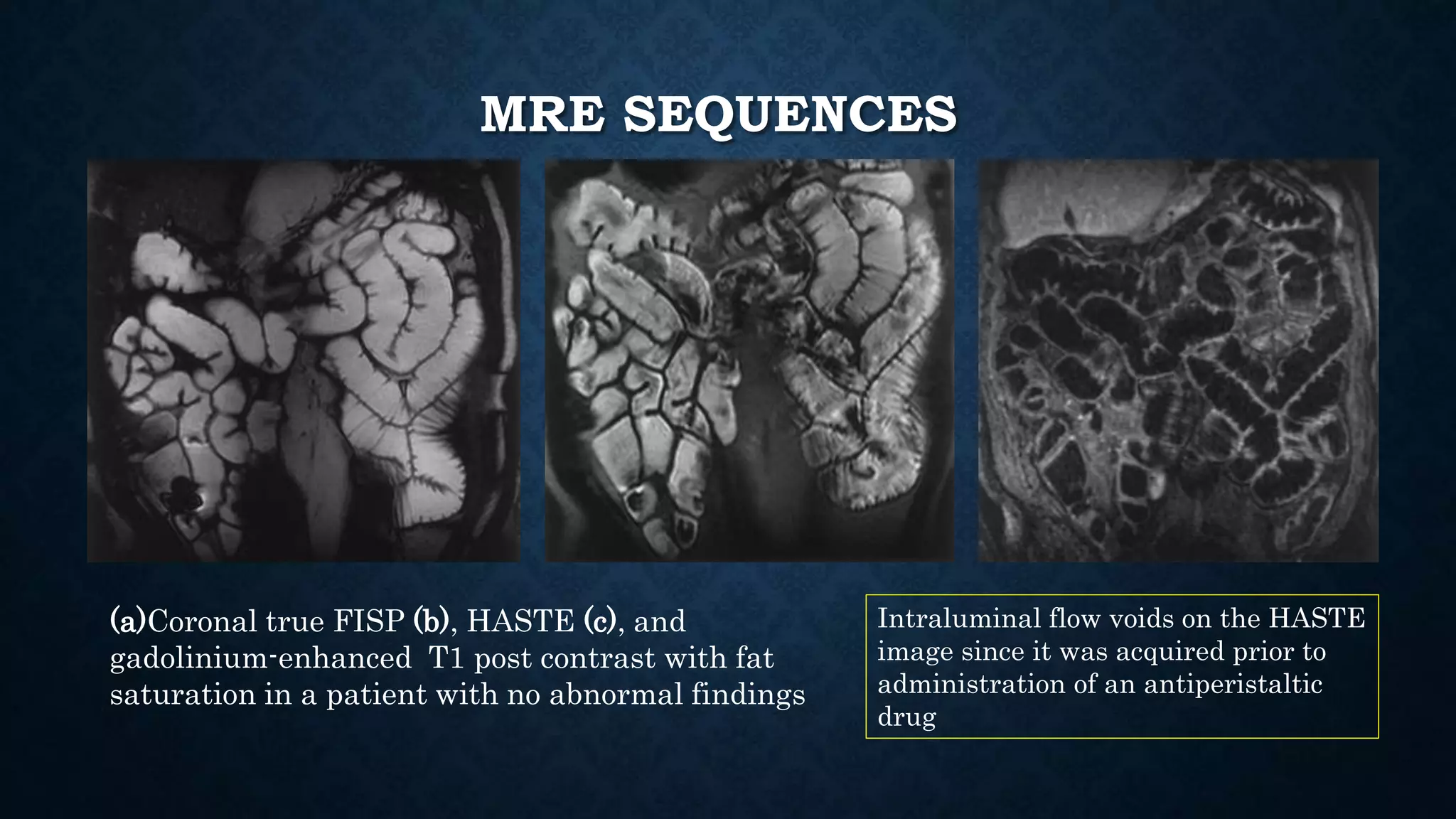

17. MRE SEQUENCES
(a)Coronal true FISP (b), HASTE (c), and
gadolinium-enhanced T1 post contrast with fat
saturation in a patient with no abnormal findings
Intraluminal flow voids on the HASTE
image since it was acquired prior to
administration of an antiperistaltic
drug

18. susceptibility artifact
Black
boundary
artifact

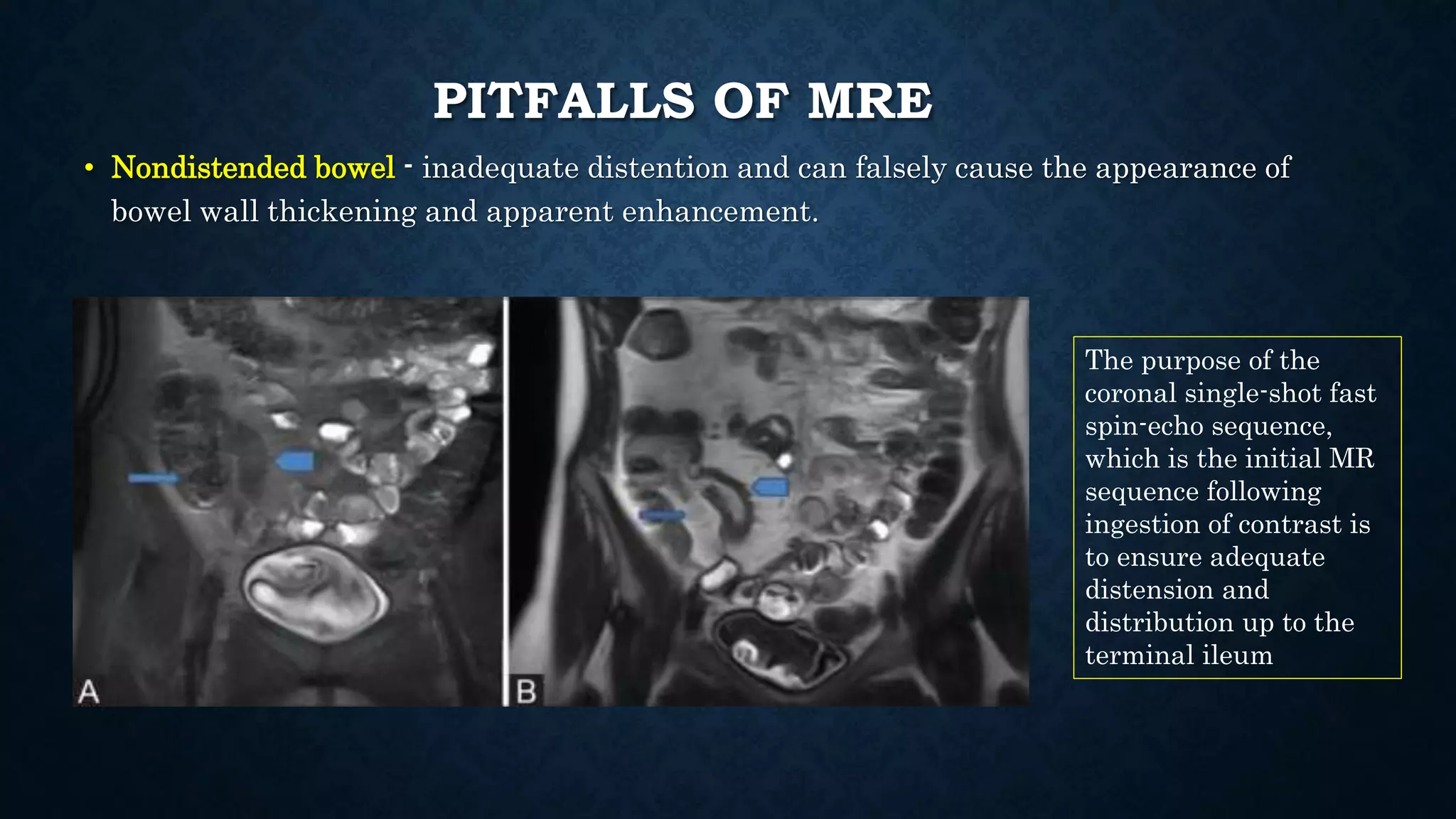

19. PITFALLS OF MRE
• Nondistended bowel - inadequate distention and can falsely cause the appearance of
bowel wall thickening and apparent enhancement.
The purpose of the
coronal single-shot fast
spin-echo sequence,
which is the initial MR
sequence following
ingestion of contrast is
to ensure adequate
distension and
distribution up to the
terminal ileum

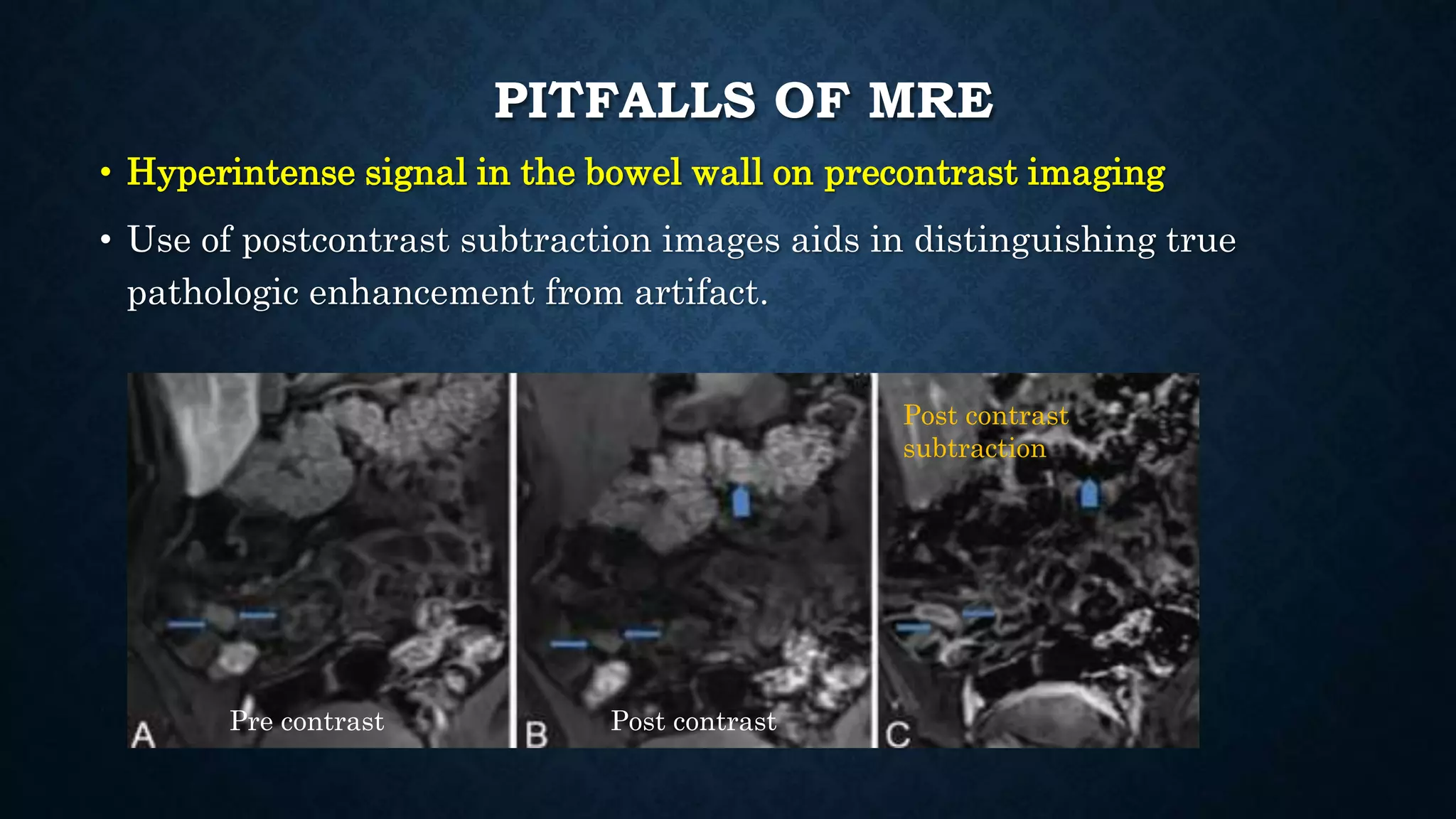

20. PITFALLS OF MRE
• Hyperintense signal in the bowel wall on precontrast imaging
• Use of postcontrast subtraction images aids in distinguishing true
pathologic enhancement from artifact.
Pre contrast Post contrast
Post contrast
subtraction

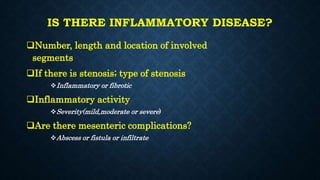

22. IS THERE INFLAMMATORY DISEASE?
Number, length and location of involved
segments
If there is stenosis; type of stenosis
Inflammatory or fibrotic
Inflammatory activity
Severity(mild,moderate or severe)
Are there mesenteric complications?
Abscess or fistula or infiltrate

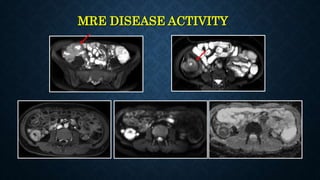

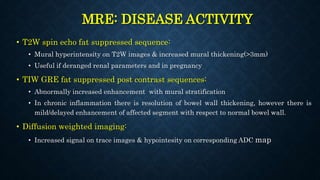

23. MRE: DISEASE ACTIVITY
• T2W spin echo fat suppressed sequence:
• Mural hyperintensity on T2W images & increased mural thickening(>3mm)
• Useful if deranged renal parameters and in pregnancy
• TIW GRE fat suppressed post contrast sequences:
• Abnormally increased enhancement with mural stratification
• In chronic inflammation there is resolution of bowel wall thickening, however there is
mild/delayed enhancement of affected segment with respect to normal bowel wall.
• Diffusion weighted imaging:
• Increased signal on trace images & hypointesity on corresponding ADC map

24. MRE DISEASE ACTIVITY

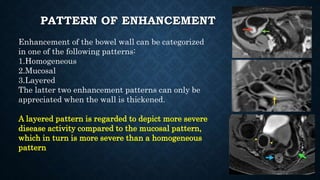

25. PATTERN OF ENHANCEMENT
Enhancement of the bowel wall can be categorized
in one of the following patterns:
1.Homogeneous
2.Mucosal
3.Layered
The latter two enhancement patterns can only be
appreciated when the wall is thickened.
A layered pattern is regarded to depict more severe
disease activity compared to the mucosal pattern,
which in turn is more severe than a homogeneous
pattern

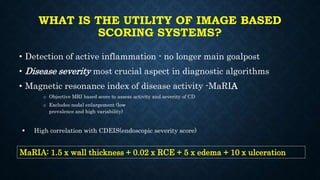

26. WHAT IS THE UTILITY OF IMAGE BASED
SCORING SYSTEMS?
• Detection of active inflammation - no longer main goalpost
• Disease severity most crucial aspect in diagnostic algorithms
• Magnetic resonance index of disease activity -MaRIA
o Objective MRI based score to assess activity and severity of CD
o Excludes nodal enlargement (low
prevalence and high variability)
 High correlation with CDEIS(endoscopic severity score)
MaRIA: 1.5 x wall thickness + 0.02 x RCE + 5 x edema + 10 x ulceration

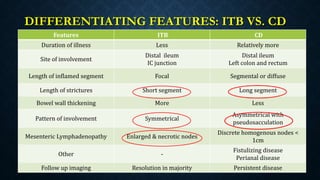

27. DIFFERENTIATING FEATURES: ITB VS. CD
Features ITB CD
Duration of illness Less Relatively more
Site of involvement
Distal ileum
IC junction
Distal ileum
Left colon and rectum
Length of inflamed segment Focal Segmental or diffuse
Length of strictures Short segment Long segment
Bowel wall thickening More Less
Pattern of involvement Symmetrical
Asymmetrical with
pseudosacculation
Mesenteric Lymphadenopathy Enlarged & necrotic nodes
Discrete homogenous nodes <
1cm
Other -
Fistulizing disease
Perianal disease
Follow up imaging Resolution in majority Persistent disease

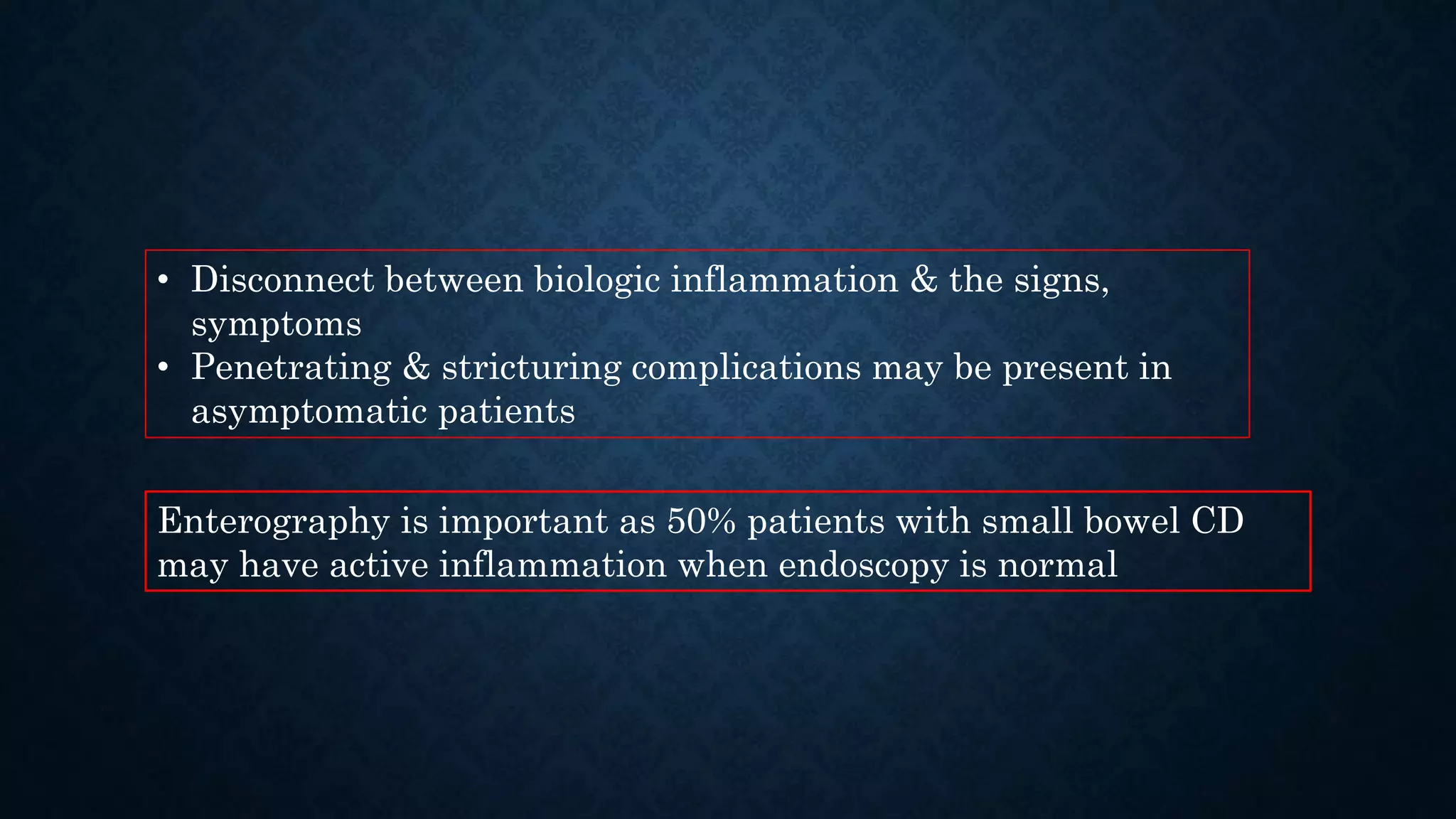

28. • Disconnect between biologic inflammation & the signs,
symptoms
• Penetrating & stricturing complications may be present in
asymptomatic patients
Enterography is important as 50% patients with small bowel CD
may have active inflammation when endoscopy is normal

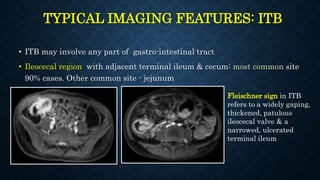

29. TYPICAL IMAGING FEATURES: ITB
• ITB may involve any part of gastro-intestinal tract
• Ileocecal region with adjacent terminal ileum & cecum: most common site
90% cases. Other common site - jejunum
Fleischner sign in ITB
refers to a widely gaping,
thickened, patulous
ileocecal valve & a
narrowed, ulcerated
terminal ileum

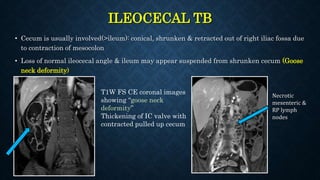

30. ILEOCECAL TB
• Cecum is usually involved(>ileum): conical, shrunken & retracted out of right iliac fossa due
to contraction of mesocolon
• Loss of normal ileocecal angle & ileum may appear suspended from shrunken cecum (Goose
neck deformity)
T1W FS CE coronal images
showing “goose neck
deformity”
Thickening of IC valve with
contracted pulled up cecum
Necrotic
mesenteric &
RP lymph
nodes

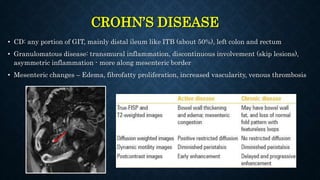

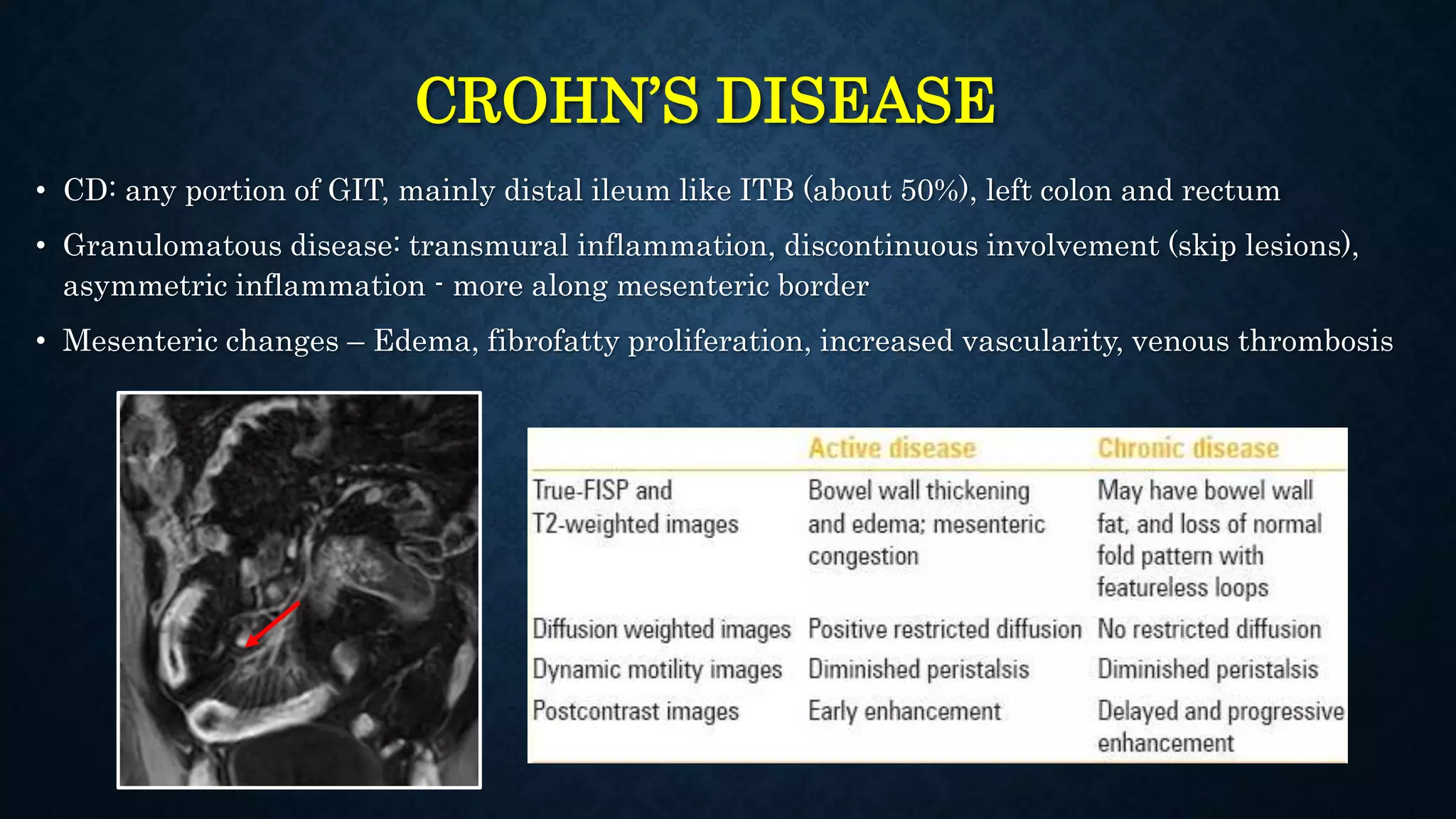

31. CROHN’S DISEASE
• CD: any portion of GIT, mainly distal ileum like ITB (about 50%), left colon and rectum
• Granulomatous disease: transmural inflammation, discontinuous involvement (skip lesions),
asymmetric inflammation - more along mesenteric border
• Mesenteric changes – Edema, fibrofatty proliferation, increased vascularity, venous thrombosis

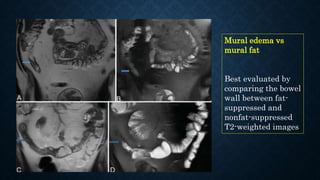

32. Mural edema vs
mural fat
Best evaluated by
comparing the bowel
wall between fat-
suppressed and
nonfat-suppressed
T2-weighted images

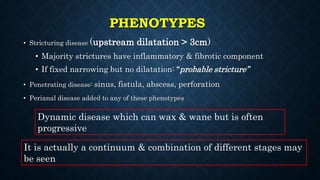

33. PHENOTYPES
• Stricturing disease (upstream dilatation > 3cm)
• Majority strictures have inflammatory & fibrotic component
• If fixed narrowing but no dilatation: “probable stricture”
• Penetrating disease: sinus, fistula, abscess, perforation
• Perianal disease added to any of these phenotypes
Dynamic disease which can wax & wane but is often
progressive
It is actually a continuum & combination of different stages may
be seen

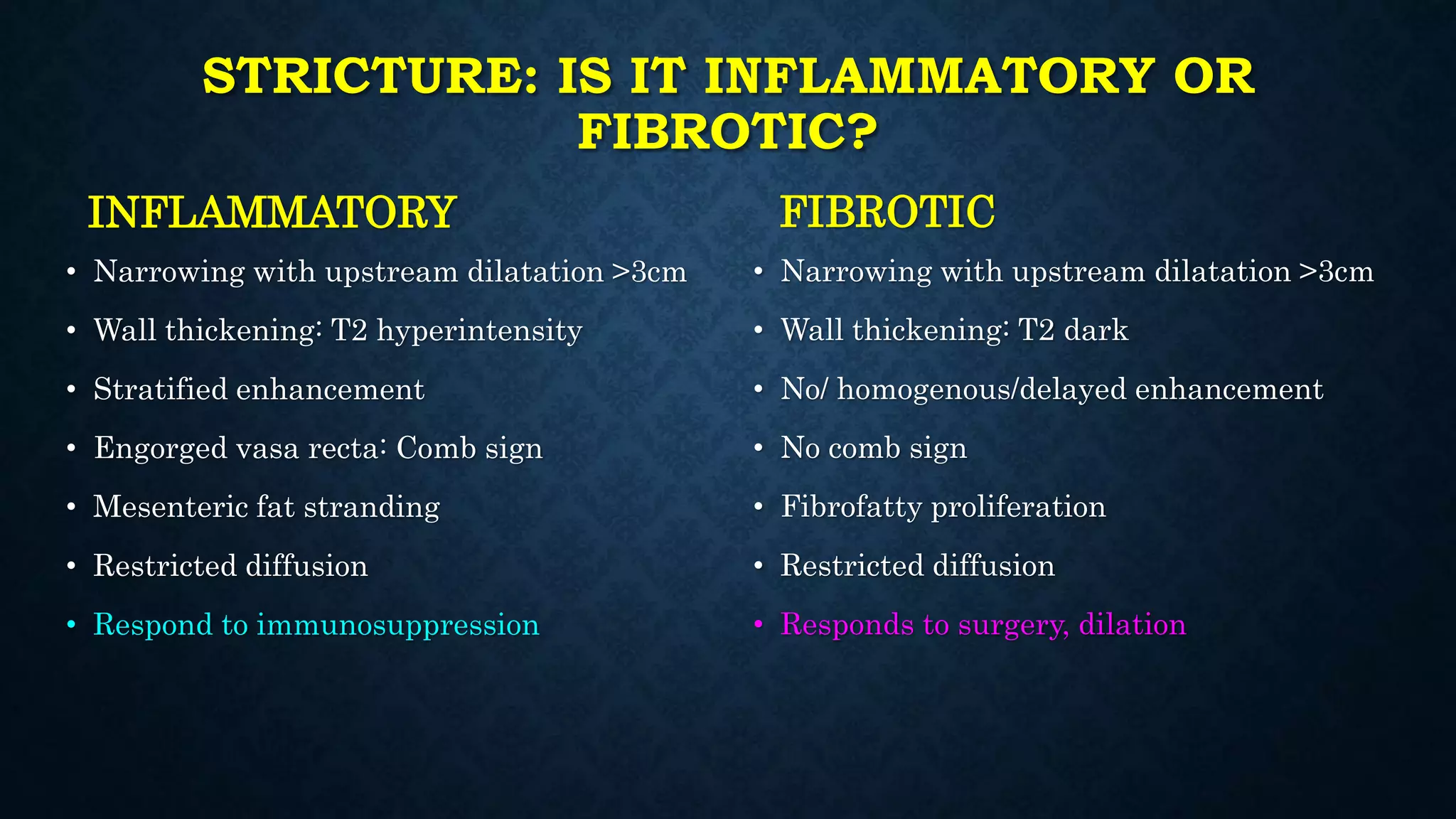

34. STRICTURE: IS IT INFLAMMATORY OR
FIBROTIC?
INFLAMMATORY
• Narrowing with upstream dilatation >3cm
• Wall thickening: T2 hyperintensity
• Stratified enhancement

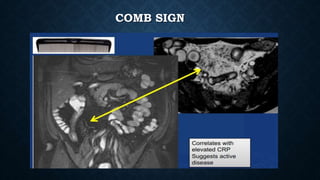

• Engorged vasa recta: Comb sign
• Mesenteric fat stranding
• Restricted diffusion
• Respond to immunosuppression
FIBROTIC
• Narrowing with upstream dilatation >3cm
• Wall thickening: T2 dark
• No/ homogenous/delayed enhancement
• No comb sign
• Fibrofatty proliferation
• Restricted diffusion
• Responds to surgery, dilation

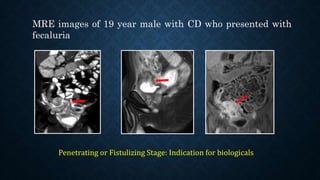

35. MRE images of 19 year male with CD who presented with
fecaluria
Penetrating or Fistulizing Stage: Indication for biologicals

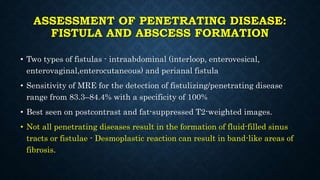

36. ASSESSMENT OF PENETRATING DISEASE:
FISTULA AND ABSCESS FORMATION
• Two types of fistulas - intraabdominal (interloop, enterovesical,
enterovaginal,enterocutaneous) and perianal fistula
• Sensitivity of MRE for the detection of fistulizing/penetrating disease
range from 83.3–84.4% with a specificity of 100%
• Best seen on postcontrast and fat-suppressed T2-weighted images.
• Not all penetrating diseases result in the formation of fluid-filled sinus
tracts or fistulae - Desmoplastic reaction can result in band-like areas of
fibrosis.

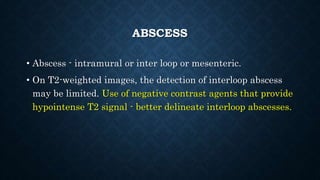

37. ABSCESS
• Abscess - intramural or inter loop or mesenteric.
• On T2-weighted images, the detection of interloop abscess
may be limited. Use of negative contrast agents that provide
hypointense T2 signal - better delineate interloop abscesses.

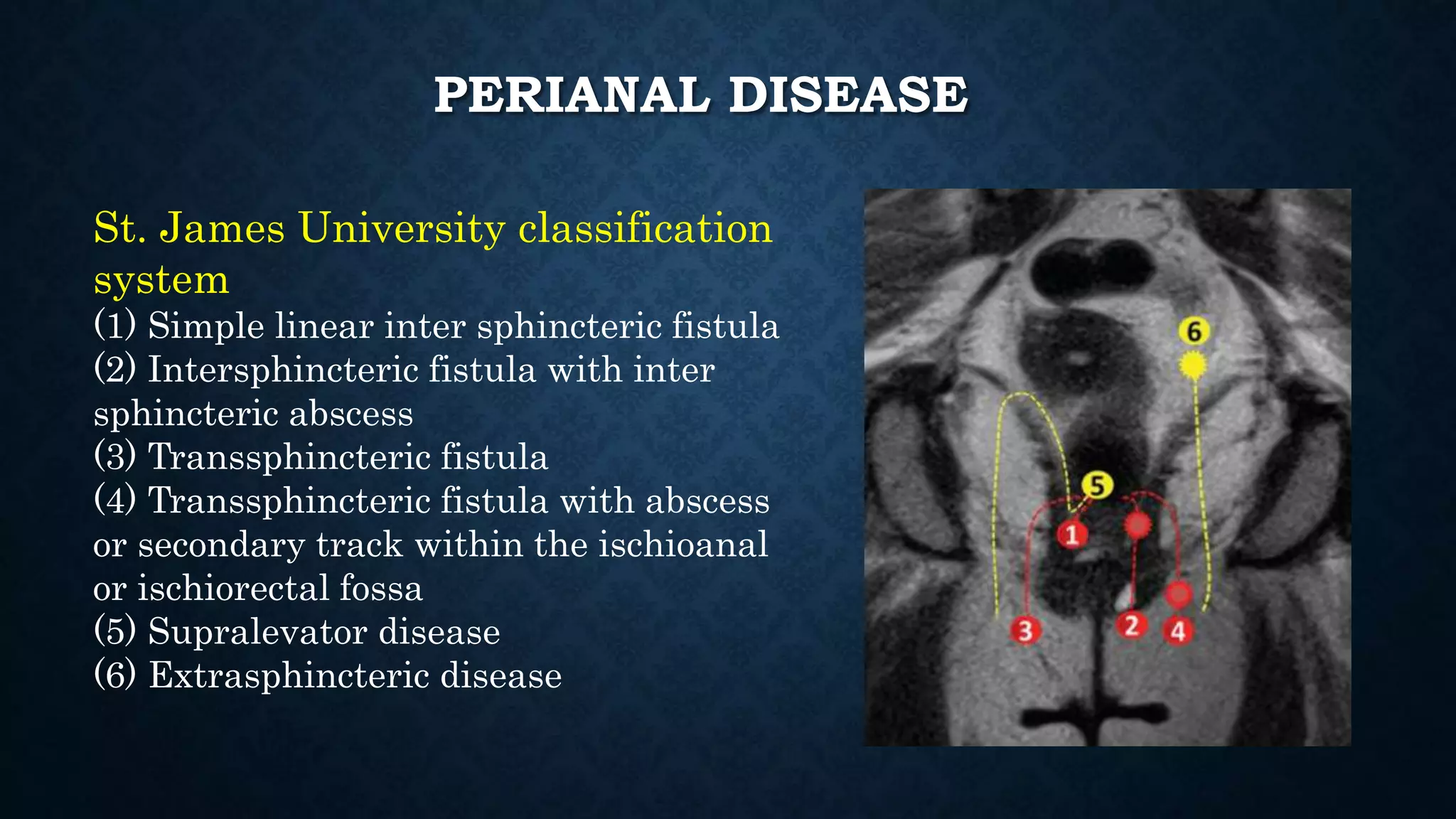

38. PERIANAL DISEASE
St. James University classification
system
(1) Simple linear inter sphincteric fistula
(2) Intersphincteric fistula with inter
sphincteric abscess
(3) Transsphincteric fistula
(4) Transsphincteric fistula with abscess
or secondary track within the ischioanal
or ischiorectal fossa
(5) Supralevator disease
(6) Extrasphincteric disease

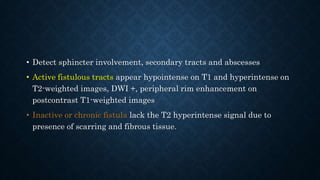

39. • Detect sphincter involvement, secondary tracts and abscesses
• Active fistulous tracts appear hypointense on T1 and hyperintense on
T2-weighted images, DWI +, peripheral rim enhancement on
postcontrast T1-weighted images
• Inactive or chronic fistula lack the T2 hyperintense signal due to
presence of scarring and fibrous tissue.

40. COMB SIGN

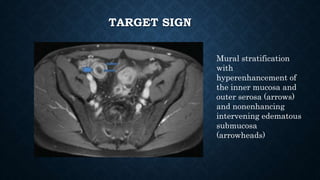

41. TARGET SIGN
Mural stratification
with
hyperenhancement of
the inner mucosa and
outer serosa (arrows)
and nonenhancing
intervening edematous
submucosa
(arrowheads)

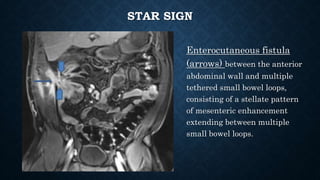

42. STAR SIGN
Enterocutaneous fistula
(arrows) between the anterior
abdominal wall and multiple
tethered small bowel loops,
consisting of a stellate pattern
of mesenteric enhancement
extending between multiple
small bowel loops.

43. CREEPING FAT SIGN
Creeping fat/fibrofatty
proliferation/fat wrapping-
hypertrophy of the
subserosal fat.
It is a common finding in
longstanding Crohn's
disease.

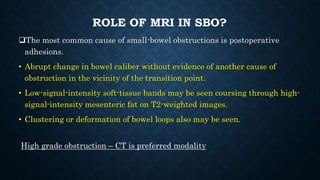

44. ROLE OF MRI IN SBO?
The most common cause of small-bowel obstructions is postoperative
adhesions.
• Abrupt change in bowel caliber without evidence of another cause of
obstruction in the vicinity of the transition point.
• Low-signal-intensity soft-tissue bands may be seen coursing through high-
signal-intensity mesenteric fat on T2-weighted images.
• Clustering or deformation of bowel loops also may be seen.
High grade obstruction – CT is preferred modality

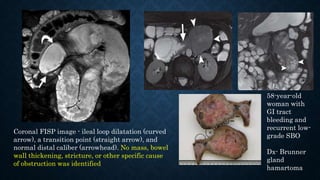

45. Coronal FISP image - ileal loop dilatation (curved
arrow), a transition point (straight arrow), and
normal distal caliber (arrowhead). No mass, bowel
wall thickening, stricture, or other specific cause
of obstruction was identified
58-year-old
woman with
GI tract
bleeding and
recurrent low-
grade SBO
Dx- Brunner
gland
hamartoma

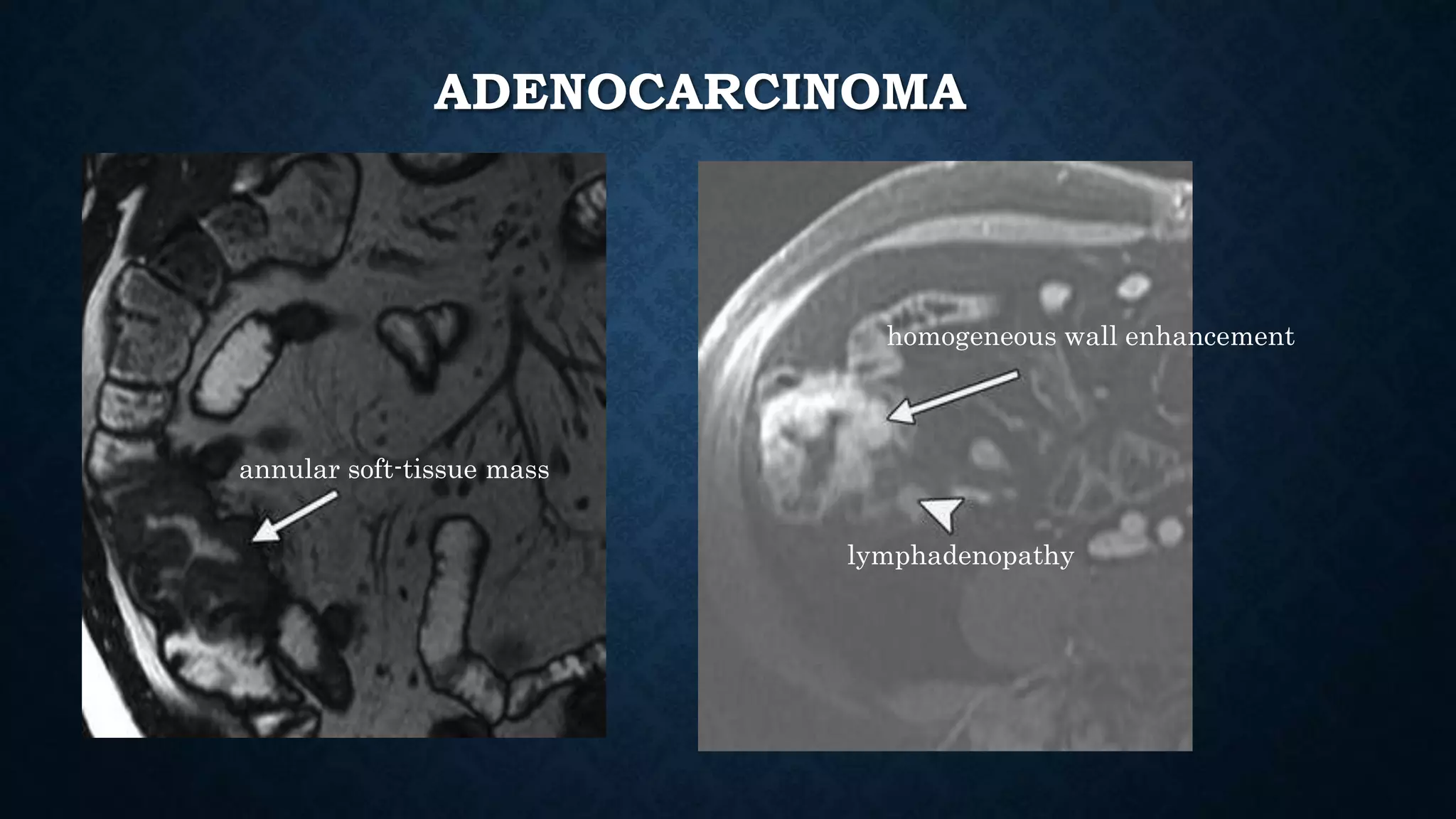

46. ADENOCARCINOMA
annular soft-tissue mass
homogeneous wall enhancement
lymphadenopathy

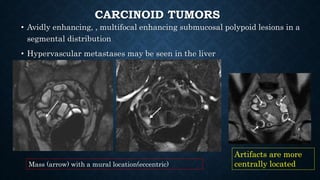

47. CARCINOID TUMORS
• Avidly enhancing, , multifocal enhancing submucosal polypoid lesions in a
segmental distribution
• Hypervascular metastases may be seen in the liver
Mass (arrow) with a mural location(eccentric)
Artifacts are more
centrally located

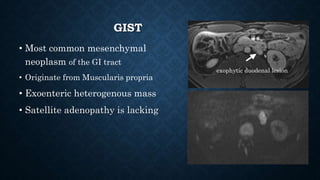

48. GIST
• Most common mesenchymal
neoplasm of the GI tract
• Originate from Muscularis propria
• Exoenteric heterogenous mass
• Satellite adenopathy is lacking
exophytic duodenal lesion

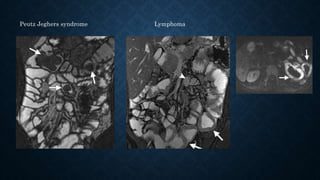

49. Peutz Jeghers syndrome Lymphoma

50. Metastases

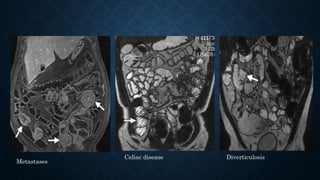

Celiac disease Diverticulosis

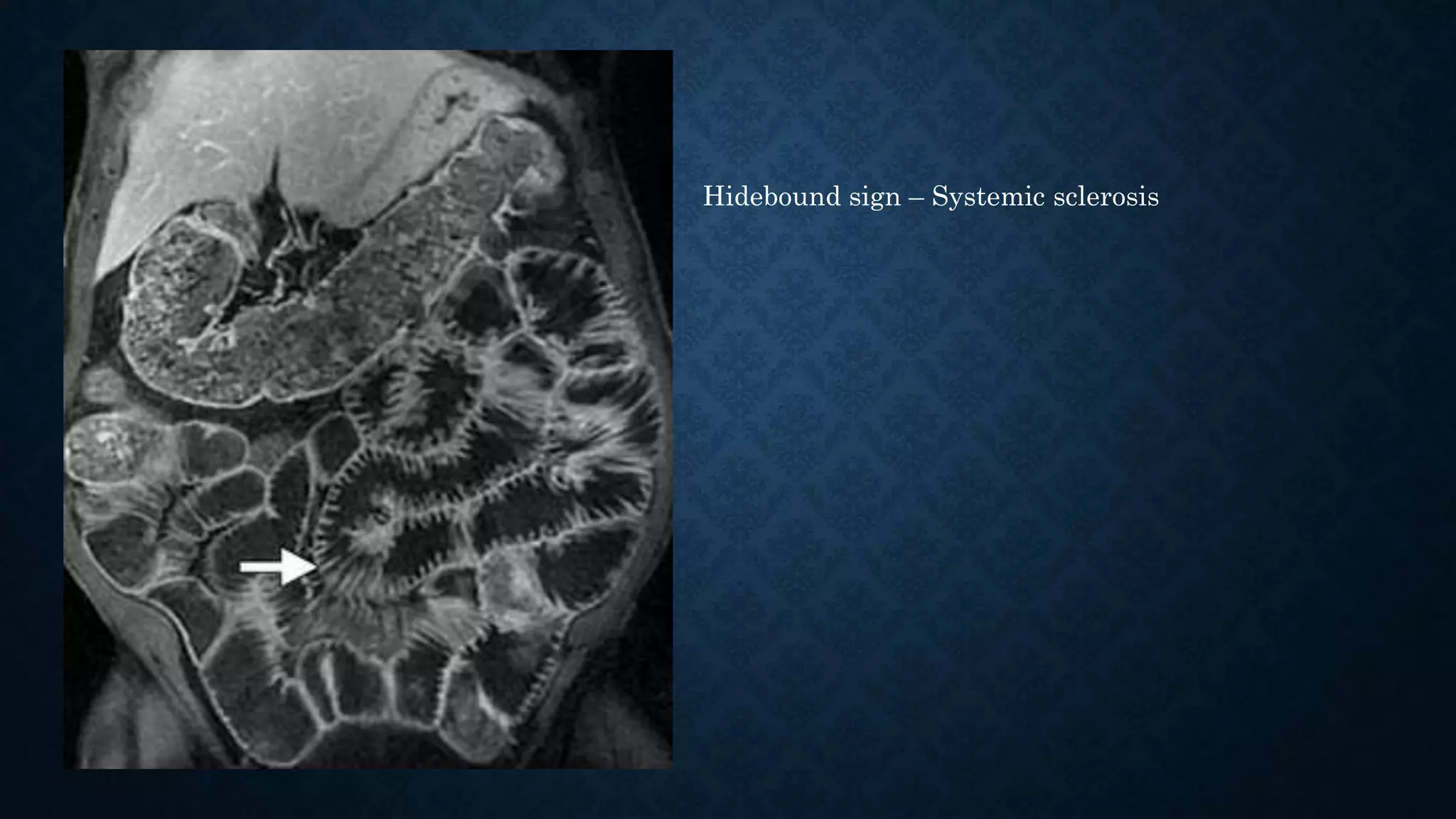

51. Hidebound sign – Systemic sclerosis

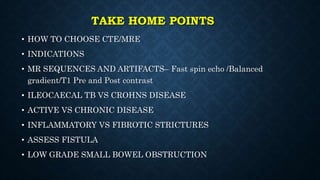

52. TAKE HOME POINTS
• HOW TO CHOOSE CTE/MRE
• INDICATIONS
• MR SEQUENCES AND ARTIFACTS– Fast spin echo /Balanced
gradient/T1 Pre and Post contrast
• ILEOCAECAL TB VS CROHNS DISEASE
• ACTIVE VS CHRONIC DISEASE
• INFLAMMATORY VS FIBROTIC STRICTURES
• ASSESS FISTULA
• LOW GRADE SMALL BOWEL OBSTRUCTION

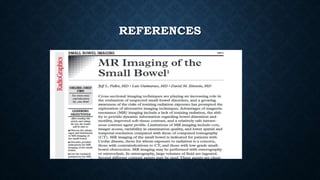

53. REFERENCES

56. Thank You For Your Attention
