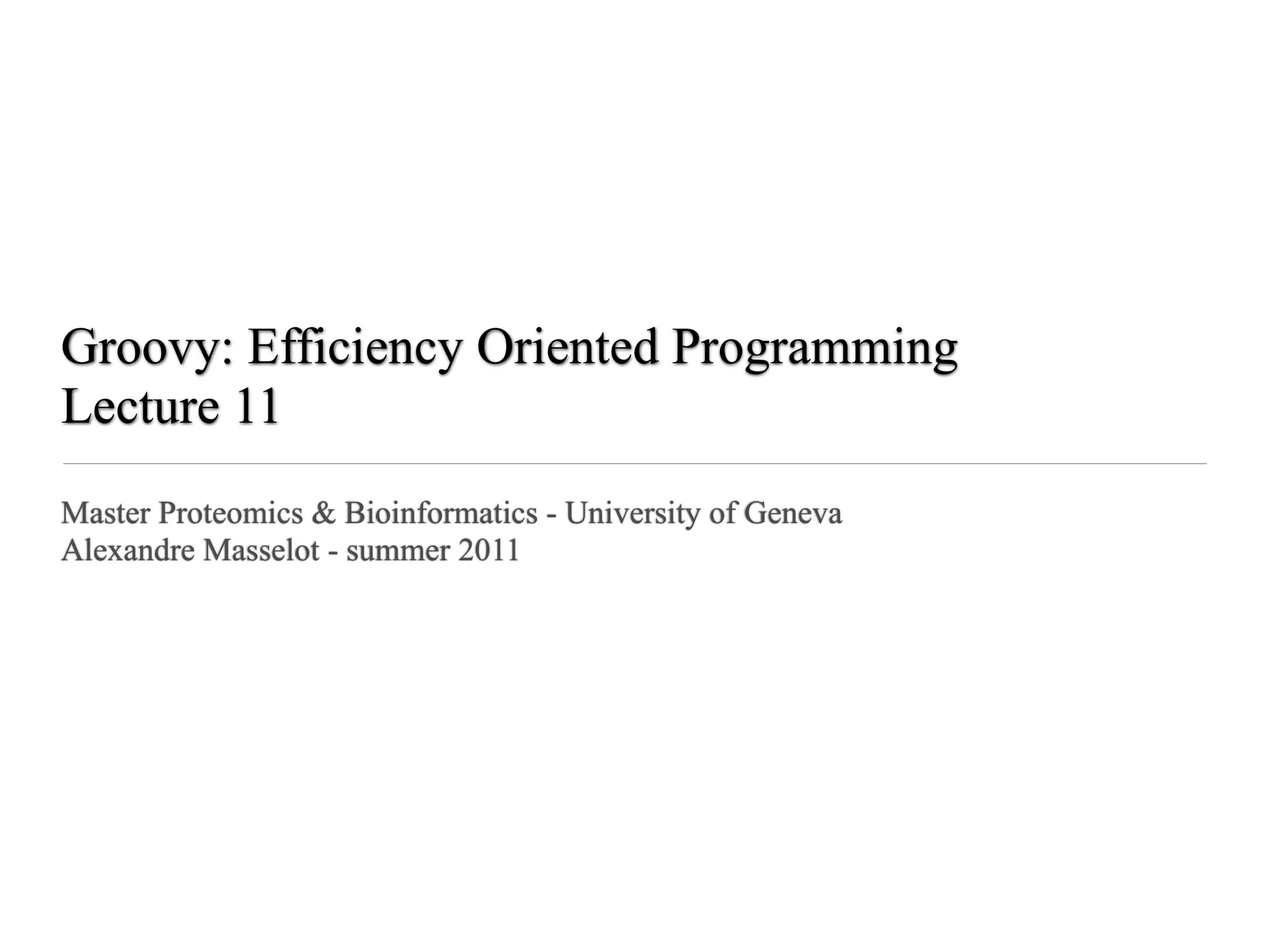

1. Groovy: Efficiency Oriented Programming
Lecture 11
Master Proteomics & Bioinformatics - University of Geneva
Alexandre Masselot - summer 2011

2. Agenda
‣ CRUD
‣ Integration tests
‣ Domain relationships
‣ Application configuration

4. One domain based app ↔ one database

5. One domain class ↔ one table

6. One domain bean ↔ one table entry

7. One bean operations: CRUD

8. One bean operations: CRUD
Action
Create
Read
Update
Delete

9. One bean operations: CRUD
Action
Create
Read
Update
Delete

10. One bean operations: CRUD
Action
Create
Read
Update
Delete

11. One bean operations: CRUD
Action
Create
Read
Update
Delete

12. One bean operations: CRUD
Action SQL Grails url
Create INSERT create
Read SELECT show
Update UPDATE update
Delete DELETE delete

13. One bean operations: CRUD
Action SQL Grails url
Create INSERT create
Read SELECT show
Update UPDATE update
Delete DELETE delete

14. One bean operations: CRUD
Action SQL Grails url
Create INSERT create
Read SELECT show
Update UPDATE update
Delete DELETE delete

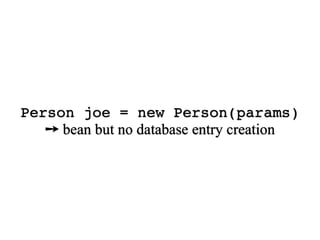

15. Person joe = new Person(params)
➙ bean but no database entry creation

16. joe.save()
➙ insertion into table
(only if valid bean - constraints)

17. Validation
‣ Create only a valid bean
‣ 3 validation ways

18. Validation
‣ Create only a valid bean
‣ 3 validation ways
‣ Check explicitly for validation
joe.validate()

19. Validation
‣ Create only a valid bean
‣ 3 validation ways
‣ Check explicitly for validation
joe.validate()
‣ Save a catch exception
joe.save(failOnError:true)

20. Validation
‣ Create only a valid bean
‣ 3 validation ways
‣ Check explicitly for validation
joe.validate()
‣ Save a catch exception
joe.save(failOnError:true)
‣ Save a check for non-null return
assert joe.save()

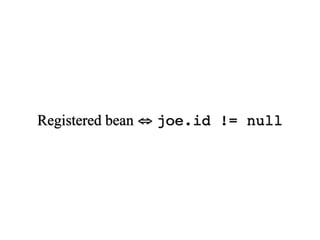

21. Registered bean ⇔ joe.id != null

22. Reading a bean from the database

23. joe = Person.get(beanId)

24. Dynamic finders: retrieve from constraints

25. Dynamic finders (for single return)
‣ Domain class definition generate static methods
def p = Person.findByUsername(‘lucky_luke’)
def p = Person.findByFirstName(‘Lucky’)
def p = Person.findByFirstNameAndLastName(‘Joe’, ‘Dalton’)

26. Dynamic finders (for single return)
‣ Domain class definition generate static methods
def p = Person.findByUsername(‘lucky_luke’)
def p = Person.findByFirstName(‘Lucky’)
def p = Person.findByFirstNameAndLastName(‘Joe’, ‘Dalton’)
‣ Multiple results => returns first (sorted on id)
def p = Person.findByLastName(‘Dalton’)

27. Dynamic finders (for single return)
‣ Domain class definition generate static methods
def p = Person.findByUsername(‘lucky_luke’)
def p = Person.findByFirstName(‘Lucky’)
def p = Person.findByFirstNameAndLastName(‘Joe’, ‘Dalton’)
‣ Multiple results => returns first (sorted on id)
def p = Person.findByLastName(‘Dalton’)
‣ findByXxxx efficient with unique:true fields

28. Update
‣ Update: change fields values and save into database

29. Update
‣ Update: change fields values and save into database
1. modify bean as usual

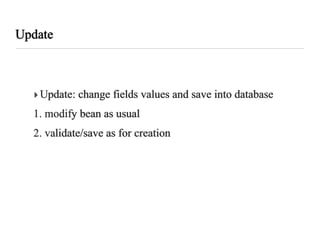

30. Update
‣ Update: change fields values and save into database
1. modify bean as usual
2. validate/save as for creation

31. joe.delete() removes entry from table

32. Scaffolded controller hides CRUD operations

33. Explicit controller
‣ It is possible to generate scaffold controller code
generate-controller eop.lec11.twitter.Person

34. Explicit controller
‣ It is possible to generate scaffold controller code
generate-controller eop.lec11.twitter.Person
‣ PersonController.groovy write operation & test

35. Explicit controller
‣ It is possible to generate scaffold controller code
generate-controller eop.lec11.twitter.Person
‣ PersonController.groovy write operation & test
‣ For example, read:
def show = {
def personInstance = Person.get(params.id)
if (!personInstance) {
flash.message = "${message(code:
'default.not.found.message', .....)}"
redirect(action: "list")
}
else {
[personInstance: personInstance]
}
}

36. Time to go back to test!

37. Unit testing ↔ no dependency

38. Integration testing ↔ more complex biotope

39. Integration tests
‣ Resides under test/integration/
PersonIntegrationTests.groovy

40. Integration tests
‣ Resides under test/integration/
PersonIntegrationTests.groovy
‣ Launched with
test-app -integration

41. Integration tests
‣ Resides under test/integration/
PersonIntegrationTests.groovy
‣ Launched with
test-app -integration
‣ Results:
- summary on the console output (count success/failures)
- html files under target/tests-reports/html
- plain text files under target/tests-reports/html
- failure summary available
- stdout/stderr accessible for each test case

42. Faster grails command
‣ Launch command (<alt><ctrl>G) interactive

43. Faster grails command
‣ Launch command (<alt><ctrl>G) interactive
‣ On the console, enter command
test-app -integration

44. Faster grails command
‣ Launch command (<alt><ctrl>G) interactive
‣ On the console, enter command
test-app -integration
‣ Hit enter to relaunch last command

45. Faster grails command
‣ Launch command (<alt><ctrl>G) interactive
‣ On the console, enter command
test-app -integration
‣ Hit enter to relaunch last command
‣ After several commands, PermGenException can occur
- terminate
- relaunch interactive

46. Grails integration testing cons
‣ Slower to execute than unit

47. Grails integration testing cons
‣ Slower to execute than unit
‣ Test report is not integrated into eclipse

48. Grails integration testing cons
‣ Slower to execute than unit
‣ Test report is not integrated into eclipse
‣ Use only when unit test not possible

49. mockDomain: unit testing with domain class

50. mockDomain
‣ It is possible to make some unit testing with domain

51. mockDomain
‣ It is possible to make some unit testing with domain
‣ No real database is connected, but a fake layer

52. mockDomain
‣ It is possible to make some unit testing with domain
‣ No real database is connected, but a fake layer
‣ In each method (not setup())
mockDomain(Person)
mockDomain(Person, initialBeanList)

53. mockDomain
‣ It is possible to make some unit testing with domain
‣ No real database is connected, but a fake layer
‣ In each method (not setup())
mockDomain(Person)
mockDomain(Person, initialBeanList)
‣ All single domain CRUD (and more) operations possible

54. mockDomain example
void testDelete(){
//buildDaltonFamily() return a list of 4 Person
mockDomain(Person, buildDaltonFamily())
assert Person.count() == 4
Person p=Person.findByUsername('joe_dalton')
assertNotNull p
p.delete()
// we should only have 3 members left
assert Person.count() == 3
p=Person.findByUsername('joe_dalton')
assertNull p
}

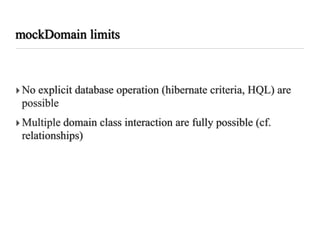

55. mockDomain limits
‣ No explicit database operation (hibernate criteria, HQL) are
possible

56. mockDomain limits
‣ No explicit database operation (hibernate criteria, HQL) are
possible
‣ Multiple domain class interaction are fully possible (cf.
relationships)

57. mockDomain limits
‣ No explicit database operation (hibernate criteria, HQL) are
possible
‣ Multiple domain class interaction are fully possible (cf.
relationships)
‣ Connection with data already entered in a database

58. Hermit domain not very useful

59. Need for relationships
Twitter: Person ↔ Message

60. Message domain
create-domain-class Domain

61. Message domain
create-domain-class Domain
‣ Just a text (String) and a commiter (Person)
class Message {
String text
Person commiter
static constraints = {
text(size:1..140, blank:false)
commiter(nullable:false)
}
}

62. Message + Person
‣ Attach two messages to a user
Person joe=Person.findByUsername('joe_dalton')
new Message(text:'hello', commiter:joe).save()
new Message(text:'world', commiter:joe).save()

63. Message + Person
‣ Attach two messages to a user
Person joe=Person.findByUsername('joe_dalton')
new Message(text:'hello', commiter:joe).save()
new Message(text:'world', commiter:joe).save()
‣ Look for message from joe
Message.findAllByCommiter(joe)

64. Message + Person
‣ Attach two messages to a user
Person joe=Person.findByUsername('joe_dalton')
new Message(text:'hello', commiter:joe).save()
new Message(text:'world', commiter:joe).save()
‣ Look for message from joe
Message.findAllByCommiter(joe)
‣ Not possible to access to message directly from joe bean
- one solution: explicitly declare setCommiter(Person p) in
Message.groovy that would add the message to a list in joe;
- problem for deletion, save inconsistency...

65. Define a one-to-many relationship

66. One-to-many relationship
‣Message.groovy
//Person commiter
static belongsTo = [commiter:Person]

67. One-to-many relationship
‣Message.groovy
//Person commiter
static belongsTo = [commiter:Person]
‣Person.groovy
static hasMany = [messages: Message]

68. One-to-many relationship (cont’d)
‣ Add a message:
joe.addToMessages(new Message(text:‘hello world’)).save()

69. One-to-many relationship (cont’d)
‣ Add a message:
joe.addToMessages(new Message(text:‘hello world’)).save()
‣ Will execute the following actions
- create a message with joe as commiter
- save the message
- add the message to joe’s list

70. One-to-many relationship (cont’d)
‣ Access to the list
joe.messages

71. One-to-many relationship (cont’d)
‣ Access to the list
joe.messages
‣ Deleting will cascade
joe.delete()
- all messages with joe as commiter will also be deleted

72. Testing
‣ Test database consistency with two domain: integration testing
// taken from MessageIntegrationTests.groovy
// 4 Person are added in the setup() method
public void testListMessagesUserDeletion(){
Person joe=Person.findByUsername('joe_dalton')
Person averell=Person.findByUsername('averell_dalton')
joe.addToMessages(new Message(text:'hello world')).save()
joe.addToMessages(new Message(text:'i'm running')).save()
averell.addToMessages(new Message(text:'i'm eating')).save()
assert Message.count() == 3
assert Person.count() == 4
joe.delete()
assert Person.count() == 3
//having deleted joe should delete all message related to joe
assert Message.count() == 1
}

73. Back to the web: 2 scaffolded controllers
