The document discusses GORM (Grails Object Relational Mapping), which allows mapping of Groovy domain classes to relational databases using Hibernate. It describes how to define domain classes and their relationships, and perform common CRUD (create, read, update, delete) operations. While GORM is typically used within Grails applications, the document shows how to set up GORM in a plain Spring application by configuring Hibernate and defining domain classes and mappings. This provides some of GORM's benefits like simplified data access outside of the full Grails framework.

1. Inside GORM
Relational Data Mapping, Groovy-Style
by Ken Rimple

2. Goals
• Learn GORM basics
• Understand GORM within Grails
• Exploring GORM in a Spring MVC
Application

3. What is GORM?
• Grails Object Relational Mapping
• Wraps Hibernate 3.x using a Domain
Centered Architecture
• GORM Objects written in Groovy
• GORM Objects placed within convention-
based directory structure
• GORM enables dynamic method calls to load
data

4. A Simple GORM Class
• Lives in grails-app/domains
• Created with grails create-domain-class
class Person {
String firstName
String lastName
}

5. Using the Class
• Get all Person objects in the database:
def people = Person.findAll()
• Get a Person Object by Last Name:
def smiths = Person.findByLastName("Smith")
• Modify a Person
person.lastName = "Fred"
person.save()
• Delete the person
Person.delete(person)

6. Benefits (so far)
• You do not need a Repository/DAO
• GORM Dynamic Syntax for Queries:
Person.findByLastNameLikeAndZipCode("R%", "19073")
• But this could get complex.
• Alternative… Using the GORM DSL

7. GORM Criteria Builder DSL
• A Closure-based DSL for forming queries
• More Query/SQL-like
• Wraps the Hibernate Criteria API:
def c = Account.createCriteria()
def results = c {
like("holderFirstName", "Fred%")
and {
between("balance", 500, 1000)
eq("branch", "London")
}
maxResults(10)
order("holderLastName", "desc")
}

8. Relating Data Elements
• GORM manages relationships
– One to Many
– Many to One
– Many to Many
– Inheritance Hierarchies
• GORM uses attributes and directives in
closures to manage relationships

9. One To Many
• Employee has Many Reviews:
class Employee {
String empSSN
…
static hasMany = [reviews:Review]
}
class Review {
Date reviewDate
String result
Employee employee
}

10. Using the One To Many Relationship
• Add a Review to the Employee:
def emp = new Employee(firstName:"Joe", lastName:"Smith").save()
emp.reviews = [new Review(employee:emp,comments:"Plays bad
piano",reviewDate: new Date("01/15/2001"))]
emp.save()
emp.reviews += new Review(employee:emp, comments:"Plays bad
piano", reviewDate: new Date("01/15/2001"))
emp.save()

11. Many to Many Relationships
• Two hasMany mappings & one belongsTo
class Employee {
String firstName
String lastName
static hasMany = [reviews:Review,
departmentAssignments:Department]
static belongsTo = Department
}
class Department {
String name
static hasMany = [employees:Employee]
}

12. Using the Many to Many Relationship
Department dSales = new Department(name:"Sales").save()
Department dConsulting = new Department(name:"Consulting").save()
Employee smith = new Employee(firstName:"Will", lastName:"Smith").save()
Employee jones = new Employee(firstName:"Joe", lastName:"Jones").save()
smith.departmentAssignments = [dSales, dConsulting]
jones.departmentAssignments = [dSales]
smith.save()
jones.save()
dSales.employees = [smith, jones]
dConsulting.employees = [smith]
dSales.save()
dConsulting.save()

13. One to One Relationship
• Just use a reference to the other class
class SkillSet {
int research
int development
int qa
int projectmanagement
}
class Employee {
String firstName
String lastName
SkillSet skillSet
…
}
def skillSet = new SkillSet(research:5, development:2, qa:0,
projectmanagement:1).save()
def e = new Employee(firstName: "Smith", lastName: "Jones",
skillSet: skillSet).save()
print e

14. Inheritance Hierarchies
• Create one class, extend with another…

15. Testing GORM
• Interactive testing with the grails console
• Within Grails, you can create integration
test cases

16. GORM Outside of GRAILS
• GORM can be executed in a Spring
application
– Add necessary JARs (maven repo, ivy)
– Mount a GORM factory in Spring
• Wire to datasource
• Define the package structure
• Annotate all Groovy Domain Objects with the
grails.persistence.Entity annotation

17. Setting up the Factory
<gorm:sessionFactory base-package="spring.kickstart.domain"
data-source-ref="dataSource"
message-source-ref="messageSource">
<property name="hibernateProperties">
<util:map>
<entry key="hibernate.hbm2ddl.auto"
value="update"/>
</util:map>
</property>
</gorm:sessionFactory>

18. Necessary Pre-requisites
• Hibernate 3.x dependencies
• A mounted Data Source
• A ResourceBundleMessageSource
– To store validation errors

19. Agile Web MVC – Groovy Controllers
• Go all the way… Almost
• Spring MVC is simplified in 2.x and 3
– Use annotations for controllers
– Follow conventions
– Write them in Groovy
– Create "open session in view"
• Almost Grails – so why not use it??

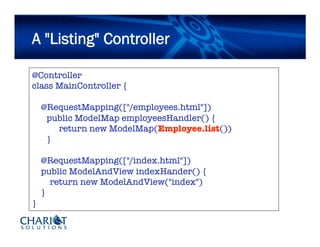

20. A "Listing" Controller
@Controller
class MainController {
@RequestMapping(["/employees.html"])
public ModelMap employeesHandler() {
return new ModelMap(Employee.list())
}
@RequestMapping(["/index.html"])
public ModelAndView indexHander() {
return new ModelAndView("index")
}
}

21. SimpleFormController Redux…
@Controller
@RequestMapping(["/addEmployee.html"])
@SessionAttributes(types = [Employee.class])
class EditEmployeeForm {
@InitBinder
void setAllowedFields(WebDataBinder dataBinder) {
dataBinder.disallowedFields = [ 'id'] as String[]
}
…

22. SimpleFormController – Edit Form…
@RequestMapping(method = [RequestMethod.GET])
String setupForm(Model model) {
Employee employee = new Employee()
model.addAttribute(employee)
return "employeeForm"
}

23. SimpleFormController – Persist
@RequestMapping(method = [RequestMethod.POST])
String processSubmit(@ModelAttribute Employee employee,
BindingResult result, SessionStatus status) {
if (!employee.validate()) {
employee.errors.allErrors.each { result.addError it }
return "employeeForm";
} else {
employee.save()
status.setComplete();
return "redirect:employees.html?employeeId=" +
employee.id
}
}
}

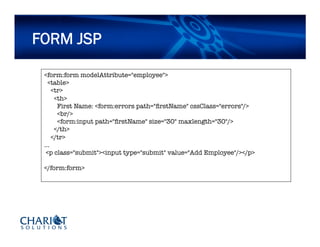

24. FORM JSP
<form:form modelAttribute="employee">
<table>
<tr>
<th>
First Name: <form:errors path="firstName" cssClass="errors"/>
<br/>
<form:input path="firstName" size="30" maxlength="30"/>
</th>
</tr>
…
<p class="submit"><input type="submit" value="Add Employee"/></p>
</form:form>

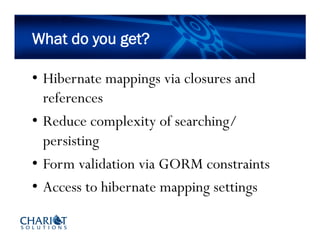

25. What do you get?
• Hibernate mappings via closures and
references
• Reduce complexity of searching/
persisting
• Form validation via GORM constraints
• Access to hibernate mapping settings

26. What don't you get?
• GRAILS
– Dynamic, automatic scaffolding
– An integrated test environment
– A Groovy console that can test your domains
– Plugins for just about anything
– Decent tooling support
– You manage your own build process

27. Summary
• Grails is powerful, due to Groovy and
GORM (and other things)
• If you want the flexibility of Spring
MVC/WebFlow but need agility of
GORM, you now have options
• I still suggest weighing using GORM –vs-
all-in Grails carefully
