This document discusses how Sebastian Damm's company monitors their VoIP systems including Asterisk, Kamailio, Yate, and RTP proxies. They use Icinga for system monitoring with over 1,000 hosts and 5,000 services checked. Custom scripts monitor SIP connectivity and extract data from Asterisk via its manager interface and from Kamailio via XMLRPC. Monitoring checks various metrics like uptime, memory usage, call volume and answer seizure ratio (ASR).

1. Monitoring VoIP Systems
Sebastian Damm
damm@sipgate.de

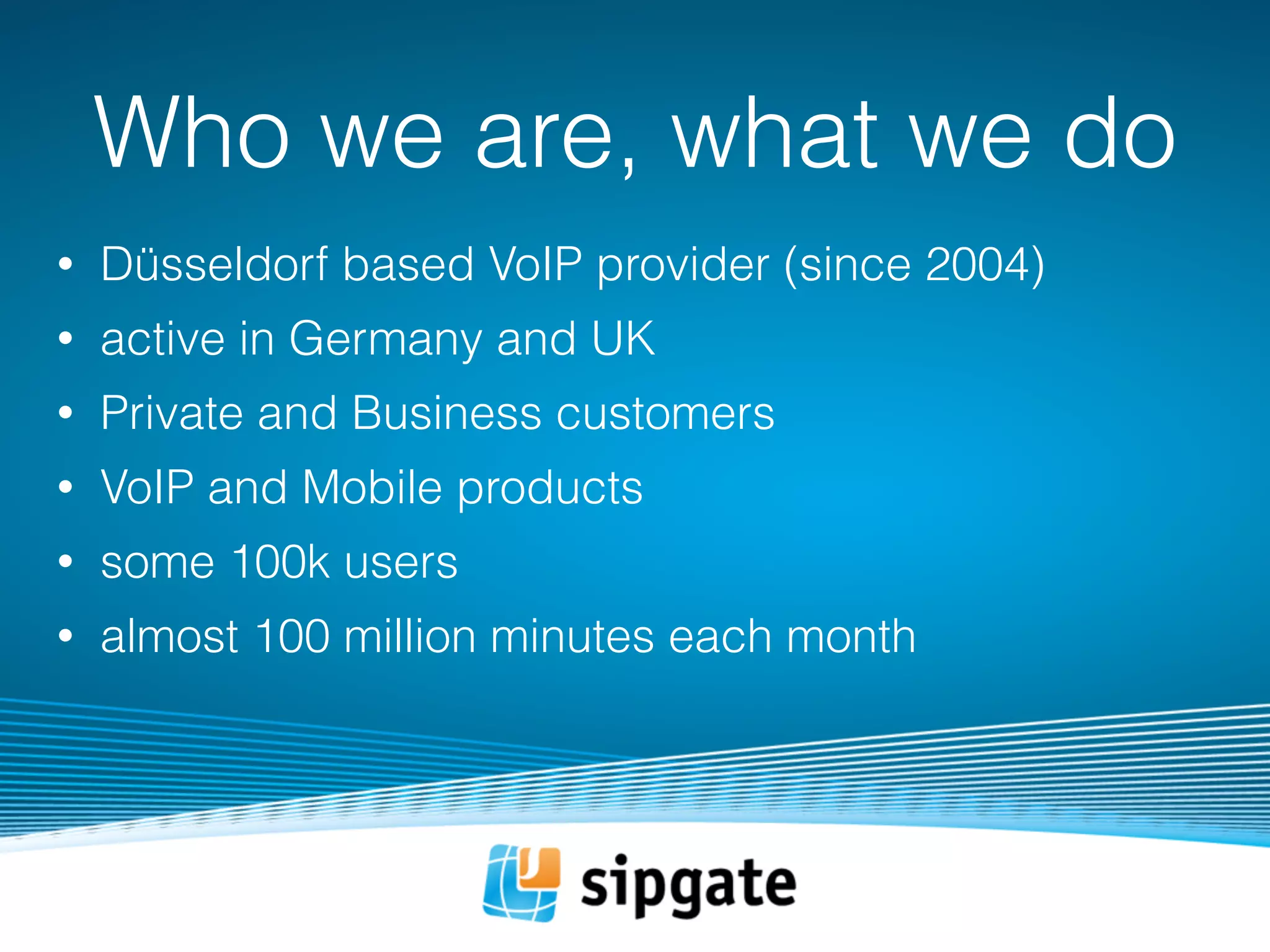

2. Who we are, what we do
• Düsseldorf based VoIP provider (since 2004)
• active in Germany and UK
• Private and Business customers
• VoIP and Mobile products
• some 100k users
• almost 100 million minutes each month

3. VoIP systems monitored
• Asterisk (~100 servers)
• Kamailio (12 servers)
• Yate (12 servers)
• RTP Proxy (12 servers)
• ASR (http://en.wikipedia.org/wiki/Answer-seizure_ratio)

4. Our Monitoring systems
• 2 Icinga servers
• almost 1k hosts
• more than 5k services
• Cacti
• Observium for network monitoring

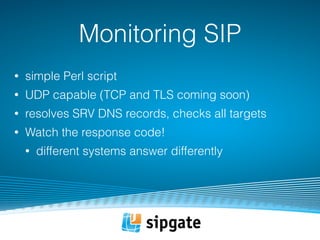

5. Monitoring SIP
• simple Perl script
• UDP capable (TCP and TLS coming soon)
• resolves SRV DNS records, checks all targets
• Watch the response code!
• different systems answer differently

6. Monitoring Asterisk
• Base monitoring (disk, memory, load)
• SIP
• Remote Manager
• Asterisk Version, Config version, G729 status,
Channels, Uptime
• Open Files (SNMP extension)
• IPtables status (SNMP extension)

7. Monitoring Asterisk

8. check_manager.pl
• first we called it separately for each service
• high load on the monitoring system
• now: one script fills all services
• only the MANAGER service is active, all others are
passive (with fallback command)
• can be called as active check for each service

9. check_manager.pl
sub push_passive {
my ($service,$state,$msg) = @_;
my $timestamp = time;
eval {
open CMD, ">>", $cmdfile or die $!;
};
if ($@) {
print "Could not open Command file!n" if (defined($opts_verbose));
return;
}
my $cmdmsg = sprintf("[%s] PROCESS_SERVICE_CHECK_RESULT;%s;%s;%s;%sn",
$timestamp,$opts_host,$service,$ERRORS{$state},$msg);
print $cmdmsg if (defined($opts_verbose));
print CMD $cmdmsg;
close CMD;
}

10. Integrating into Icinga
• Service Definition
Active Check Passive Check
define service {
service_description MANAGER
hostgroup_name sipgw
use local-service
check_command check_manager
}
define service {
service_description AST_UPTIME
hostgroup_name sipgw
use local-service
check_command check_manager_active!uptime
is_volatile 1
active_checks_enabled 0
passive_checks_enabled 1
check_freshness 1
max_check_attempts 1
freshness_threshold 600
}

11. Integrating into Icinga
• Command Definition
Active Check Passive Check (Fallback)
define command{
command_name check_manager
command_line $USER32$/check_manager
-H $HOSTNAME$ -I $HOSTADDRESS$
-u $USER7$ -p $USER8$
-m 127.0.0.1:11211
-s SIPCHAN --g729
}
define command{
command_name check_manager_active
command_line $USER32$/check_manager
-H $HOSTNAME$ -I $HOSTADDRESS$
-u $USER7$ -p $USER8$
-m 127.0.0.1:11211
-a $ARG1$
}

12. Check Open Files
• consists of two scripts on the monitored system
• one script run by cron every minute
• other script triggered by SNMPd to read those files

13. Monitoring Kamailio
• SIP
• some variables through XMLRPC calls
• Memory
• TCP Connections
• Version

14. Monitoring Kamailio

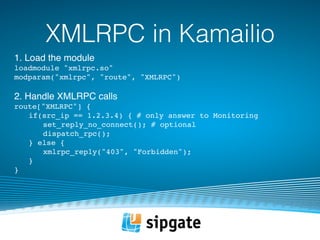

15. XMLRPC in Kamailio
1. Load the module
loadmodule "xmlrpc.so"
modparam("xmlrpc", "route", "XMLRPC")
2. Handle XMLRPC calls
route["XMLRPC"] {
if(src_ip == 1.2.3.4) { # only answer to Monitoring
set_reply_no_connect(); # optional
dispatch_rpc();
} else {
xmlrpc_reply("403", "Forbidden");
}
}

16. Querying Kamailio
sub call_rpc {
my ($method,@rpc_params) = @_;
my (%r,$k);
my($rpc_call) = XMLRPC::Lite
-> proxy("http://$opts_host:$opts_port") -> call($method, @rpc_params);
my $res= $rpc_call->result;
if (!defined $res){
print "Error querying Kamailion";
$res=$rpc_call->fault;
%r=%{$res};
foreach $k (sort keys %r) {
print("t$k: $r{$k}n");
}
exit $ERRORS{'UNKNOWN'};
} else {
return($res);
}
}

17. Monitoring Yate
• SIP
• everything else through SNMP
• SIGTRAN links (beware: element order can change!)
• Uptime
• Version
• Channels
• …

18. Monitoring Yate

19. Monitoring ASR
• percentage of answered calls / total calls
• additionally: length of answered calls
• per Gateway, Carrier, Destination, Product
• in Yate: configurable and readable via SNMP

20. Monitoring the rest
• SIP connectivity to partners
• Function tests (emergency calls, features)
• ENUM
• User Location
• RTP Proxies
• STUN
• iptables Connection Tracking

21. That’s it
Downloads available at: http://sipg.at/osmc2014
And: We hire, too!
http://www.sipgate.de/jobs/
