AppSphere 15 - Monitoring Cloud Native Apps on Pivotal Cloud Foundry with AppDynamics

Monitoring Cloud Native Apps
Nima Badiey, Head of Business Development, Pivotal

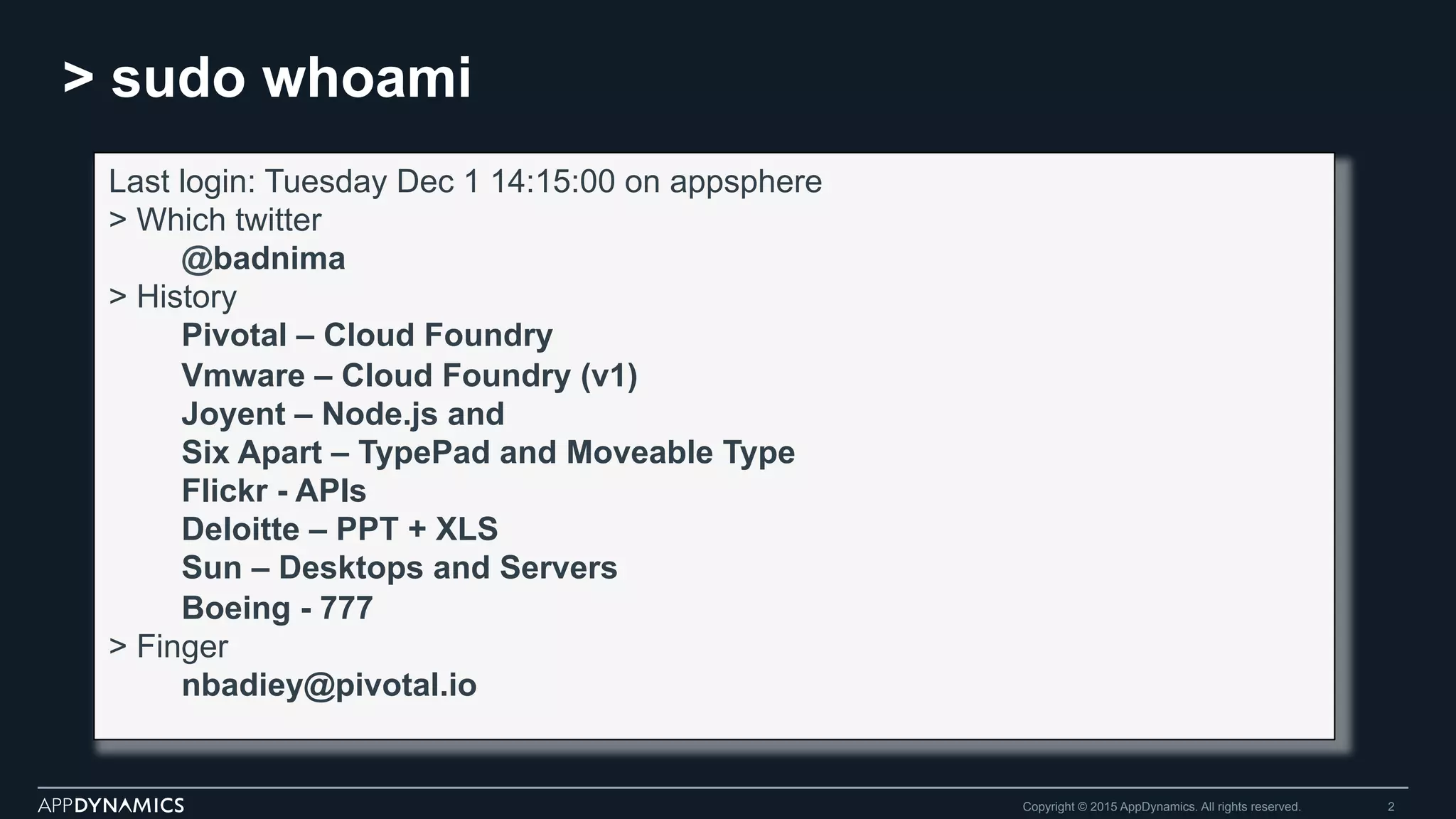

> sudo whoami
Copyright © 2015 AppDynamics. All rights reserved. 2
Last login: Tuesday Dec 1 14:15:00 on appsphere
> Which twitter
@badnima
> History
Pivotal – Cloud Foundry
Vmware – Cloud Foundry (v1)
Joyent – Node.js and
Six Apart – TypePad and Moveable Type
Flickr - APIs
Deloitte – PPT + XLS
Sun – Desktops and Servers
Boeing - 777
> Finger
nbadiey@pivotal.io

3
Agile
Methods
Tools
12 Factor
+ App
Frameworks
DevOps
Automation
Microservices Continuous
Delivery
Cloud
Agnostic

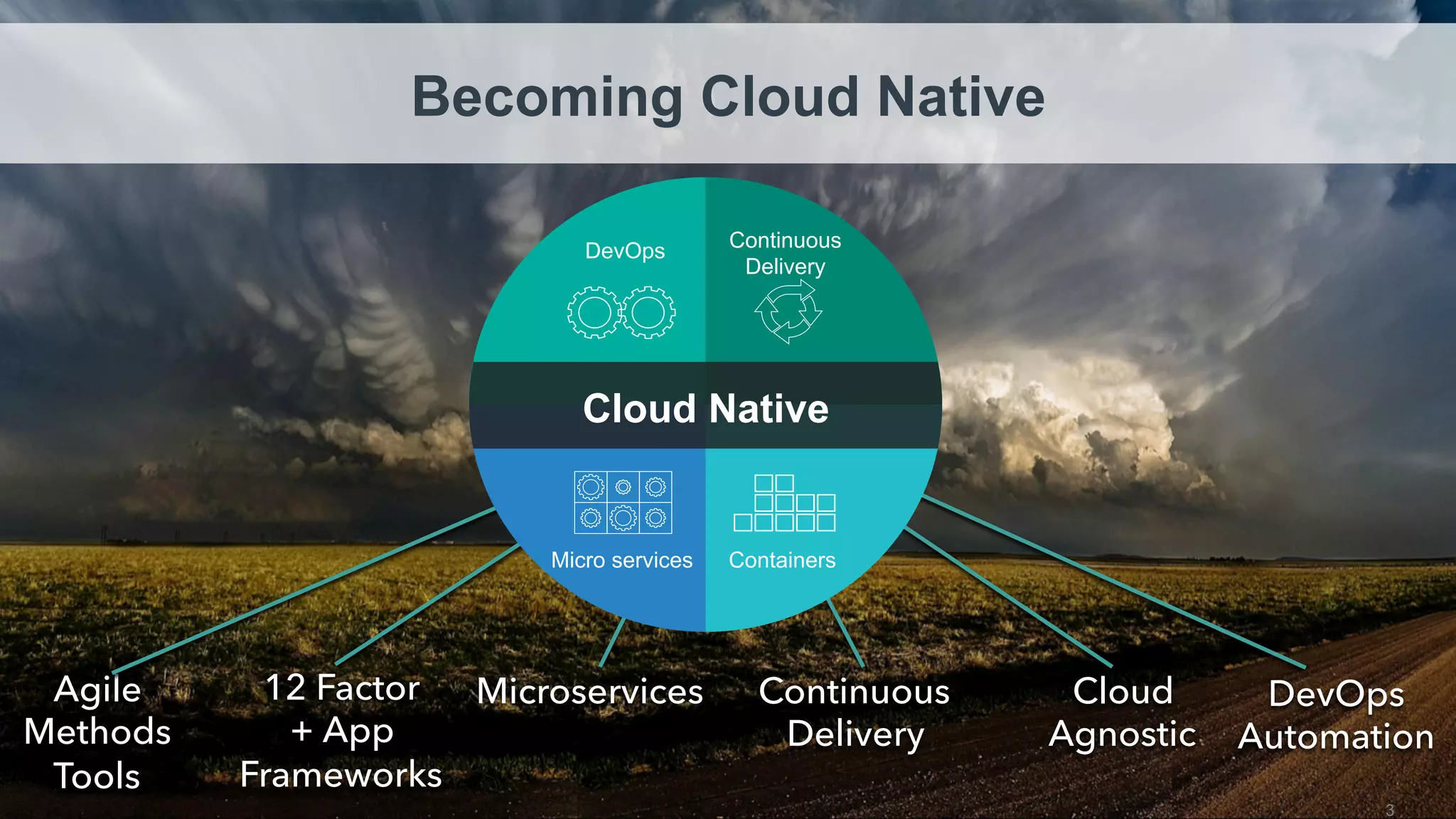

Becoming Cloud Native
Cloud Native
DevOps Continuous
Delivery
ContainersMicro services

Why is Cloud Native Important?

…high performing organizations ship code 30
times faster (and complete these deployments
8,000 times faster), have 50% fewer failed
deployments, and restore service 12 times
faster than their peers.
Time is Money

Easy as…
Source: Seth Godin

Extreme
Programming
Scrum
Kanban
Codebase
Dependencies
Configuration
Backing
Services
Build/Release/
Run
Processes
Port Binding
Concurrency
Disposability
Dev/Prod Parity
Logs
Admin
Processes
Eureka
Hystrix
Turbine
Ribbon
Zuul
Spinnaker

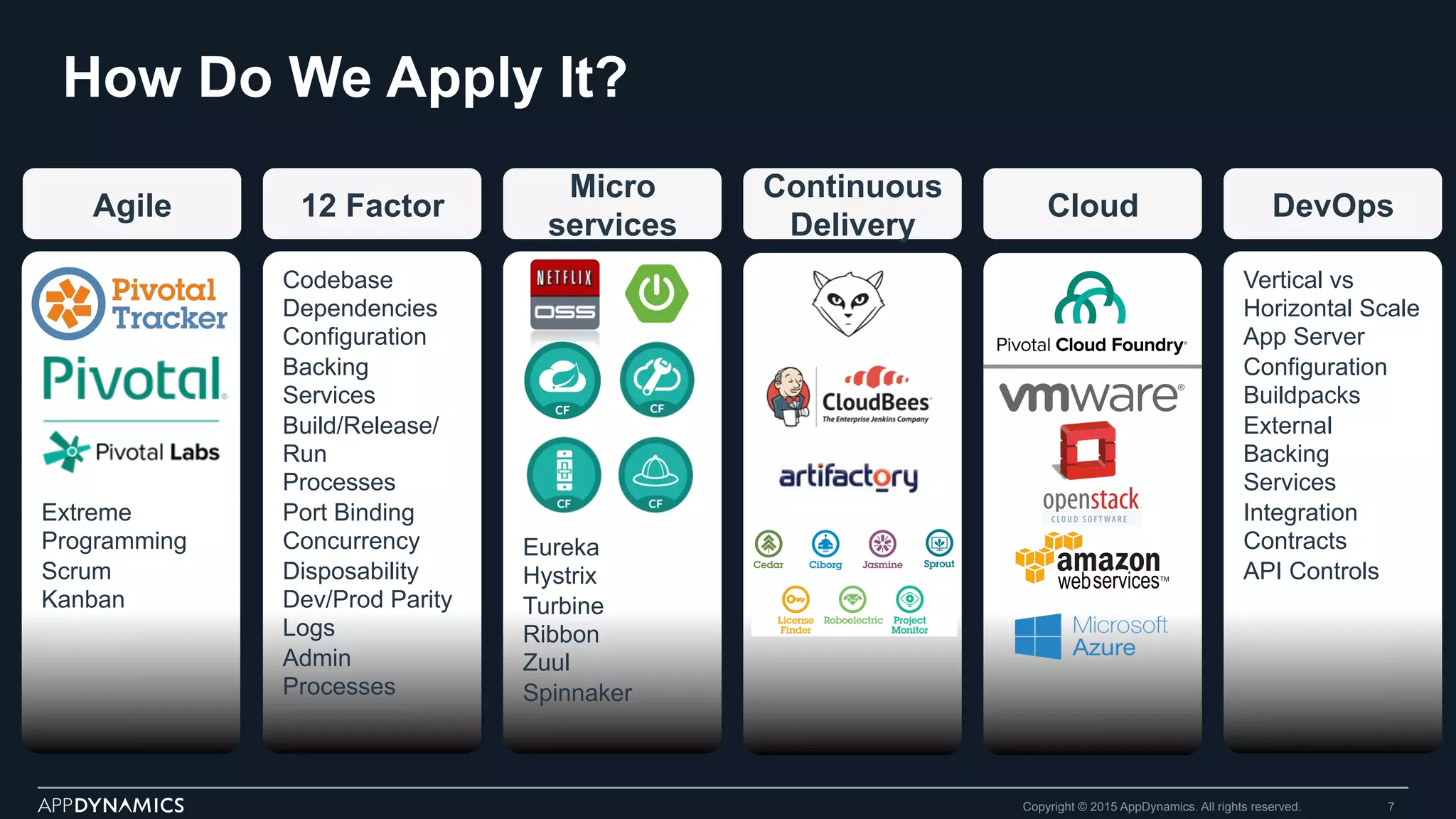

How Do We Apply It?
Agile 12 Factor
Micro
services
Continuous
Delivery
Cloud DevOps
Vertical vs
Horizontal Scale
App Server
Configuration
Buildpacks
External
Backing
Services
Integration
Contracts
API Controls

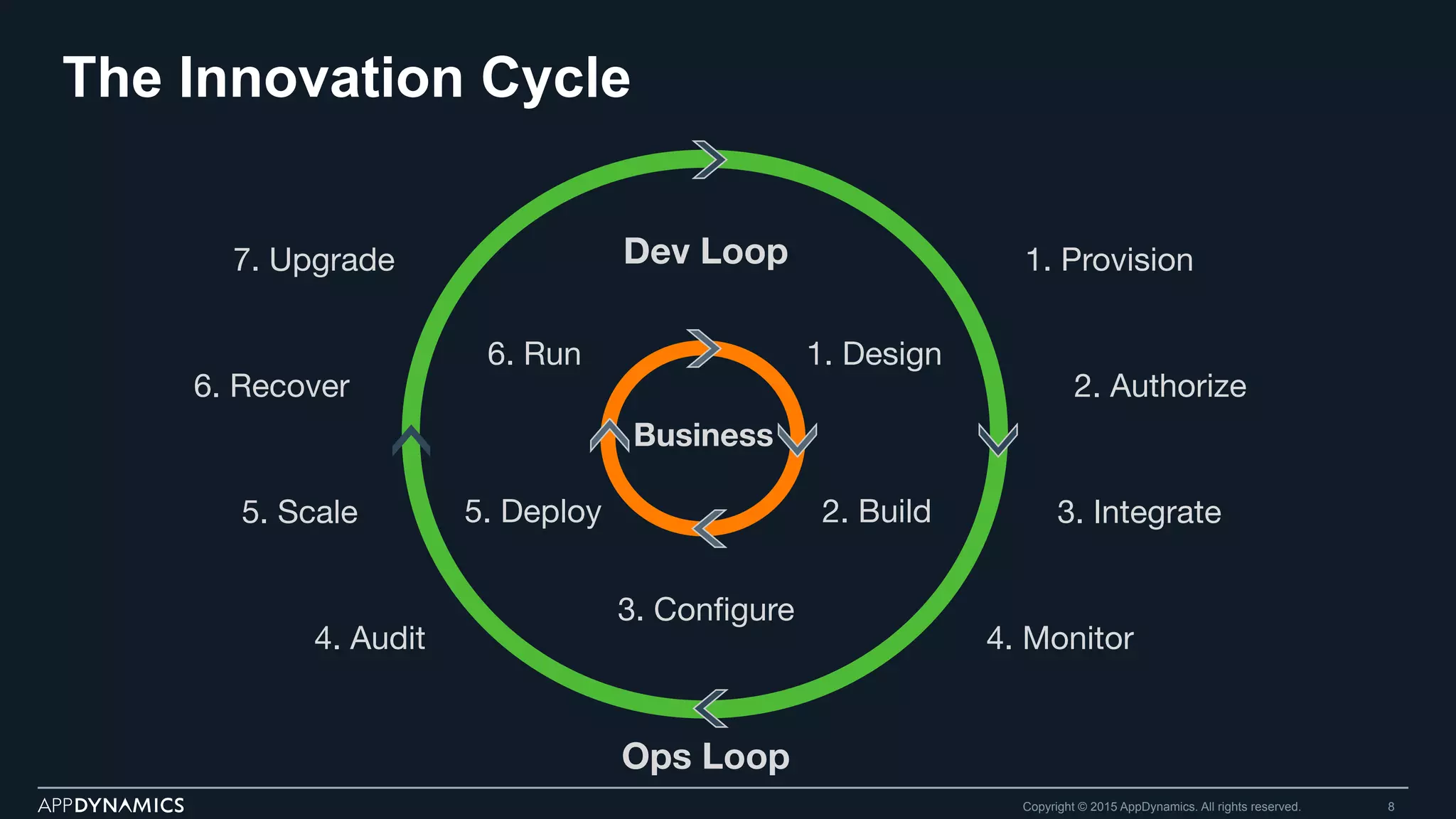

The Innovation Cycle
1. Design
2. Build
3. Conﬁgure
5. Deploy
6. Run
1. Provision
2. Authorize
3. Integrate
4. Monitor
4. Audit
5. Scale
6. Recover
7. Upgrade
Dev Loop
Business
Ops Loop

PIVOTAL CLOUD FOUNDRY
Cloud Native at Your Service

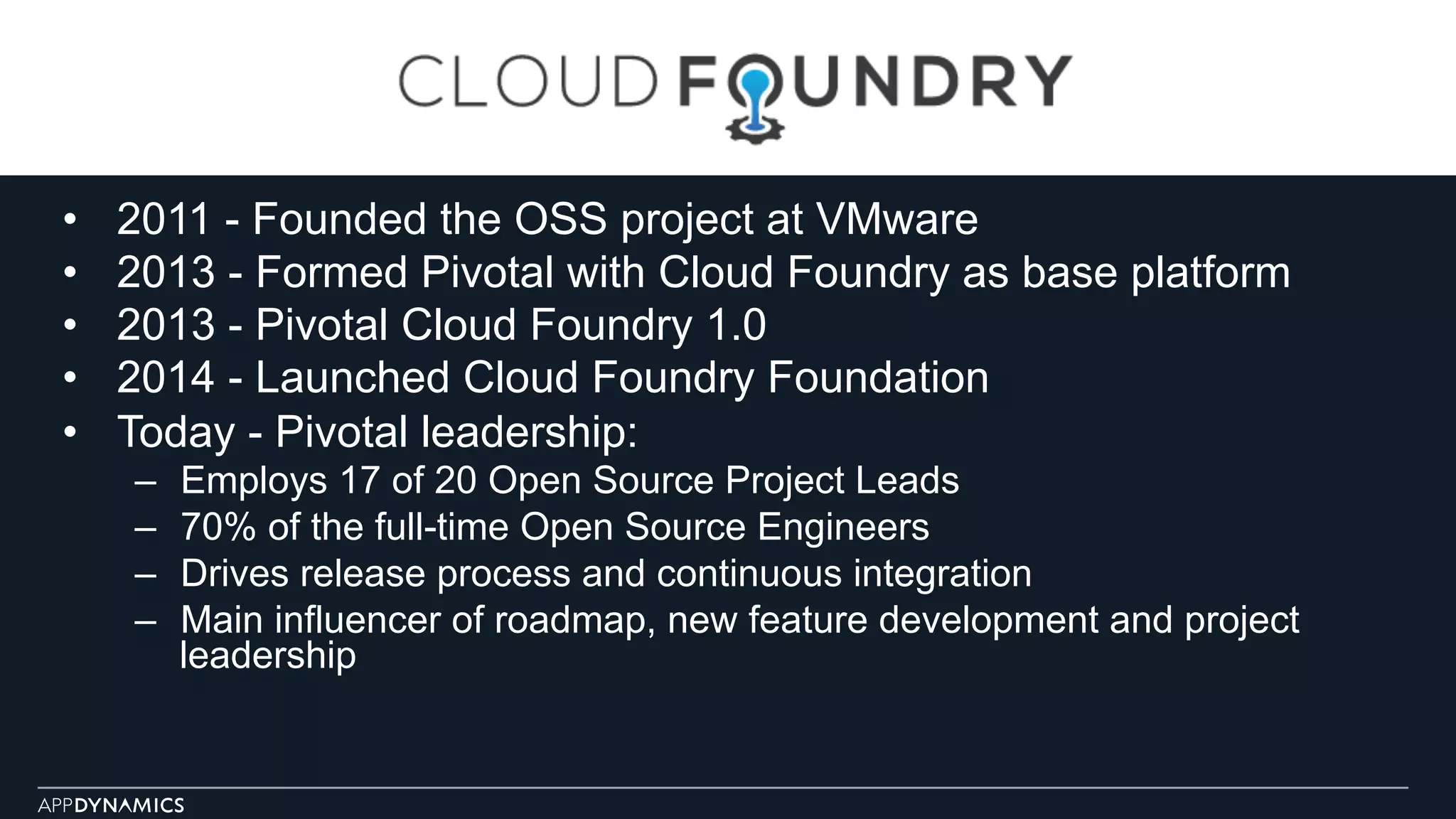

•  2011 - Founded the OSS project at VMware
•  2013 - Formed Pivotal with Cloud Foundry as base platform
•  2013 - Pivotal Cloud Foundry 1.0
•  2014 - Launched Cloud Foundry Foundation
•  Today - Pivotal leadership:
–  Employs 17 of 20 Open Source Project Leads
–  70% of the full-time Open Source Engineers
–  Drives release process and continuous integration
–  Main influencer of roadmap, new feature development and project
leadership

Cloud Foundry Foundation
PLATINUM
GOLD
SILVER

Cloud Foundry Powers Multiple Clouds

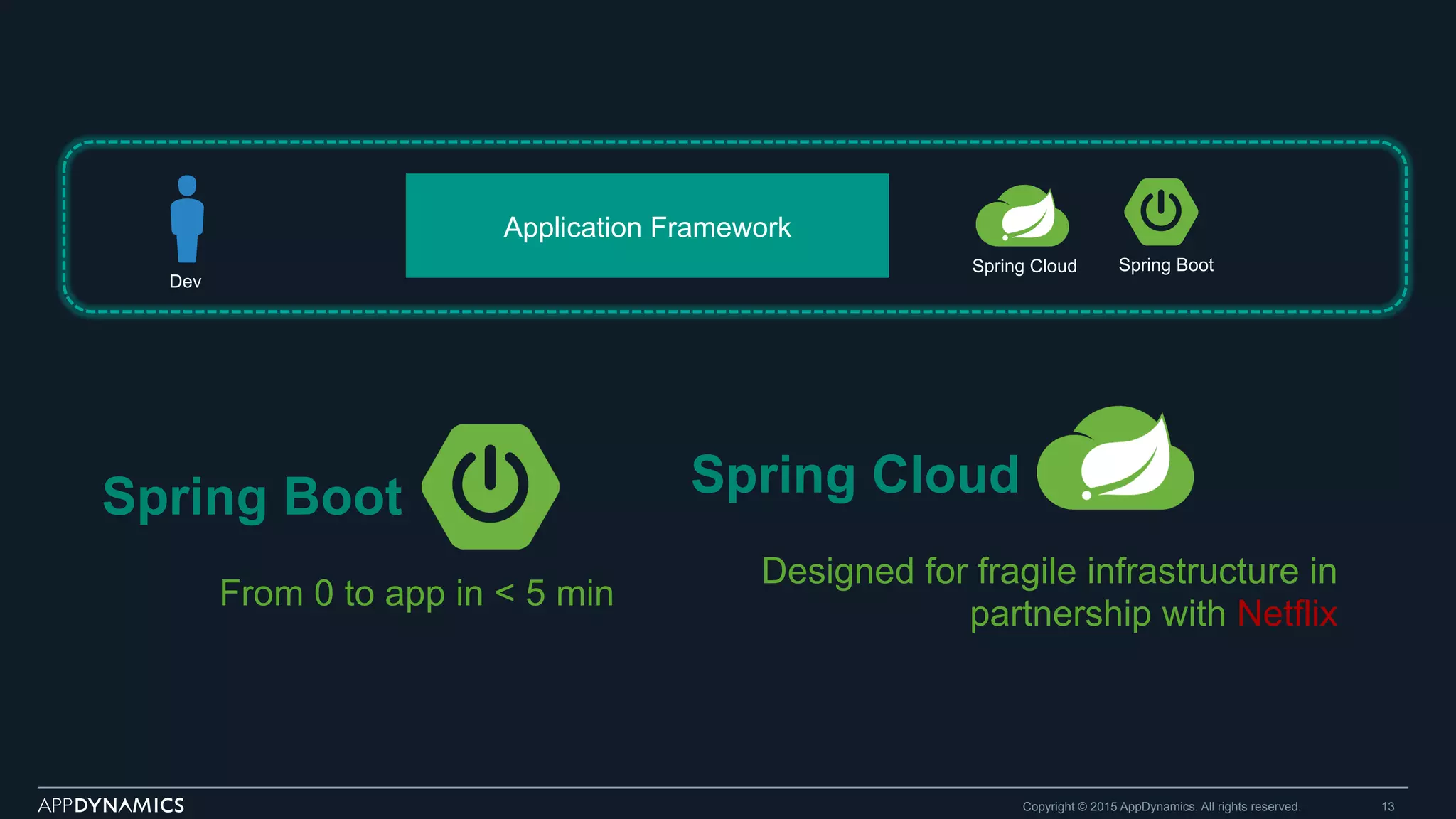

Spring Cloud Spring Boot
Dev
Spring Boot
From 0 to app in < 5 min
Spring Cloud
Designed for fragile infrastructure in
partnership with Netflix
Application Framework

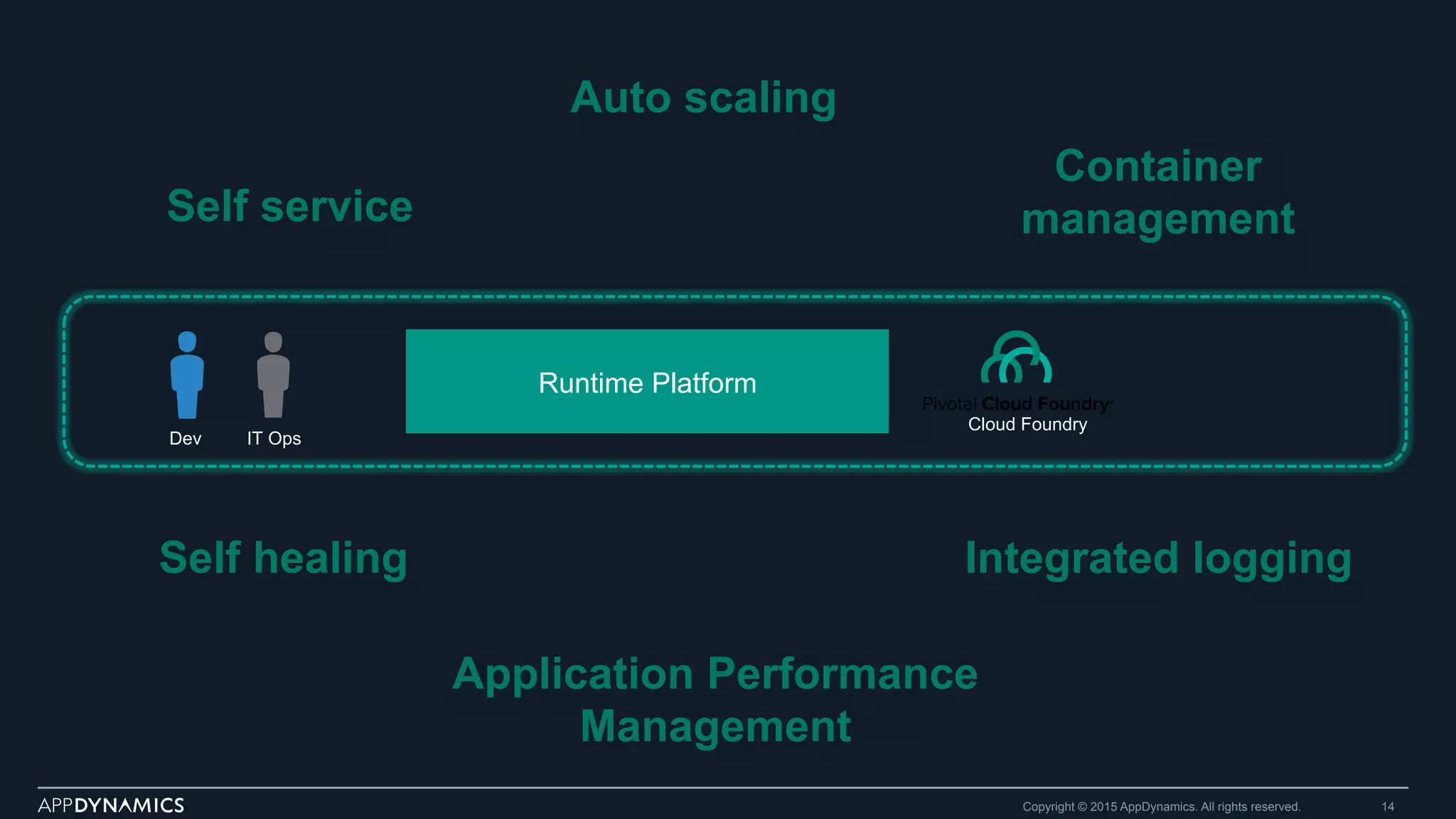

Cloud Foundry
Dev IT Ops
Self healing
Container
management
Integrated logging

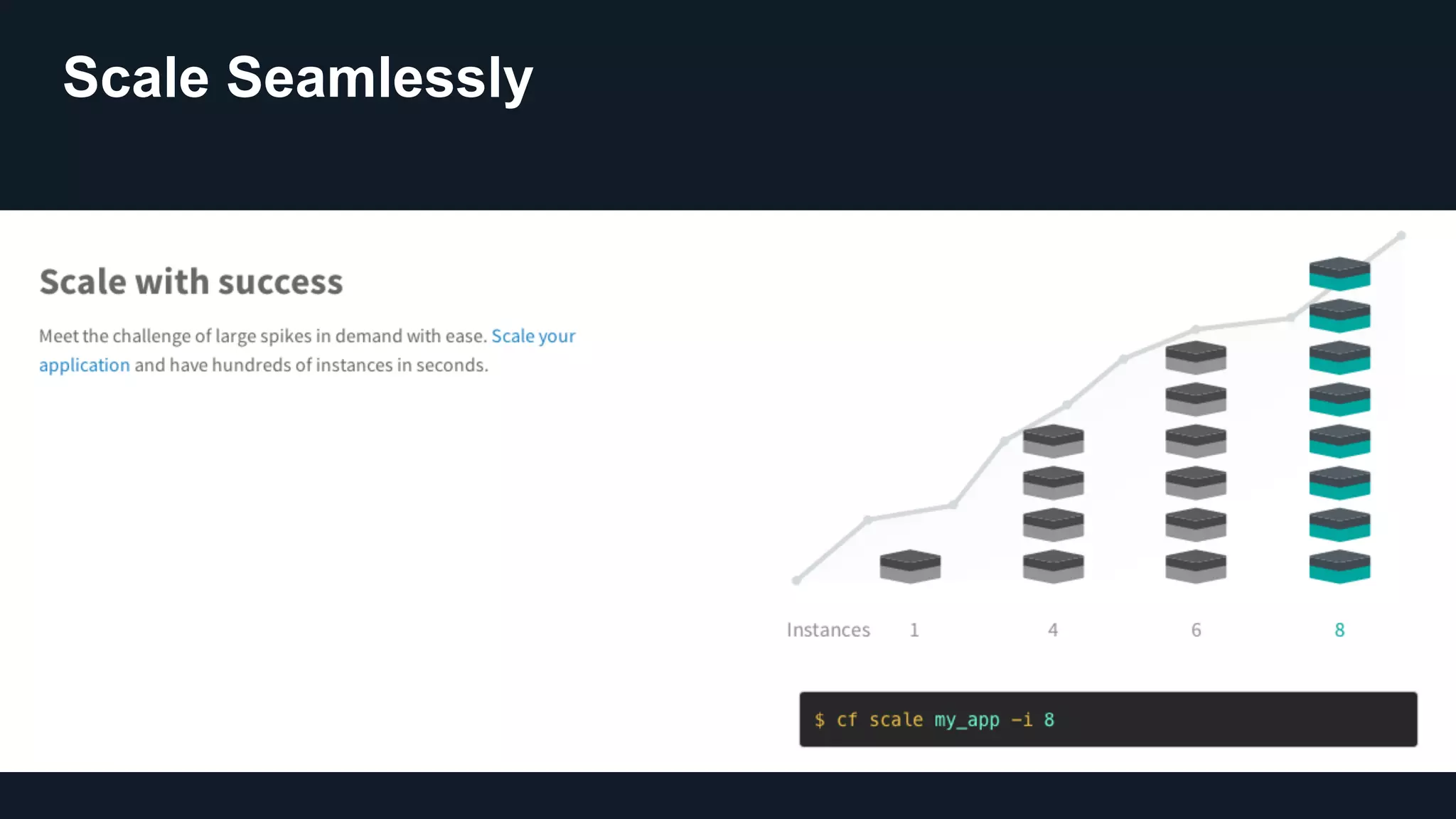

Auto scaling
Application Performance
Management
Runtime Platform
Self service

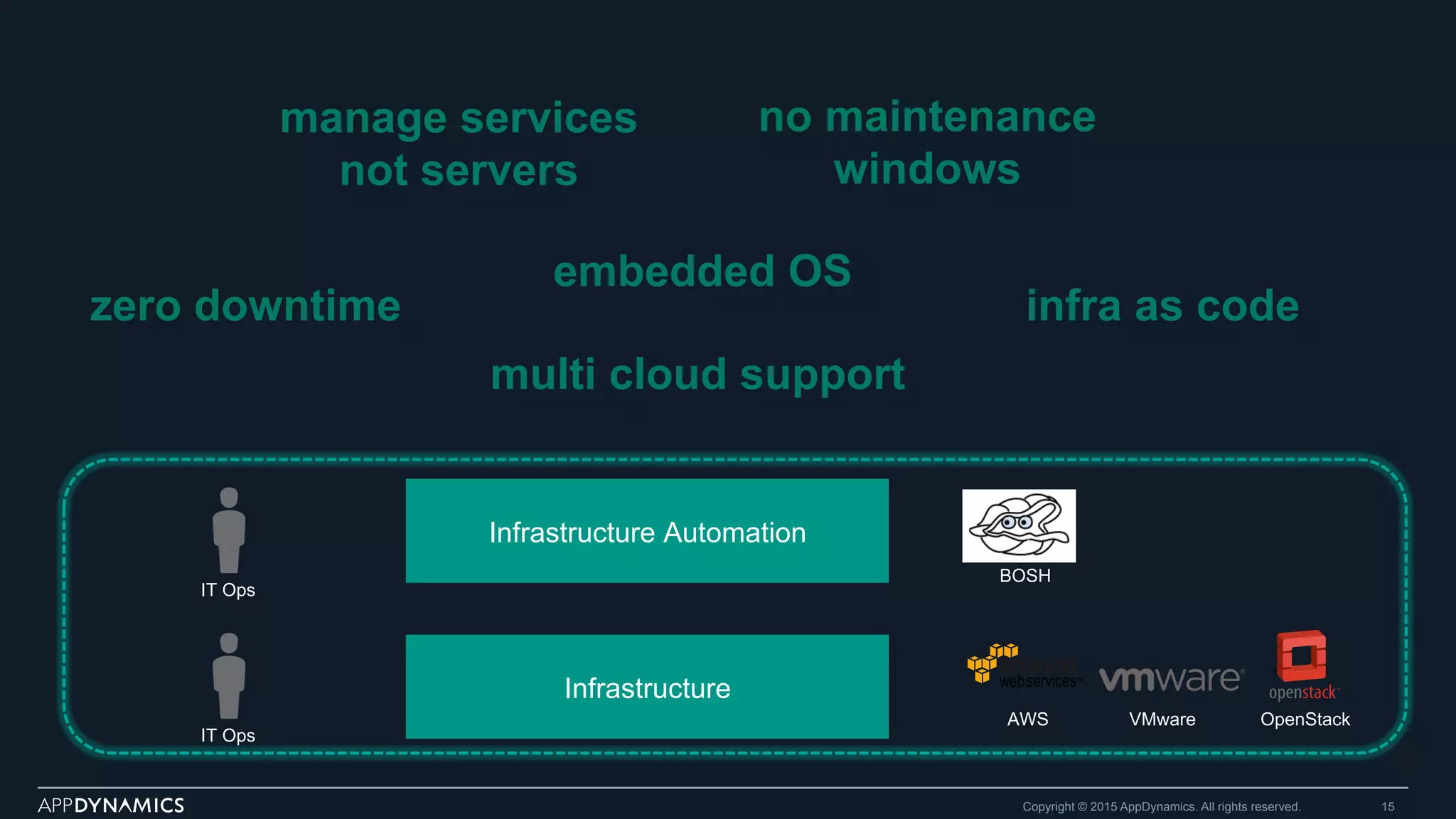

Infrastructure Automation
Infrastructure
BOSH
AWS VMware OpenStack
manage services
not servers
zero downtime
no maintenance
windows
infra as code
multi cloud support
IT Ops
IT Ops
embedded OS

1

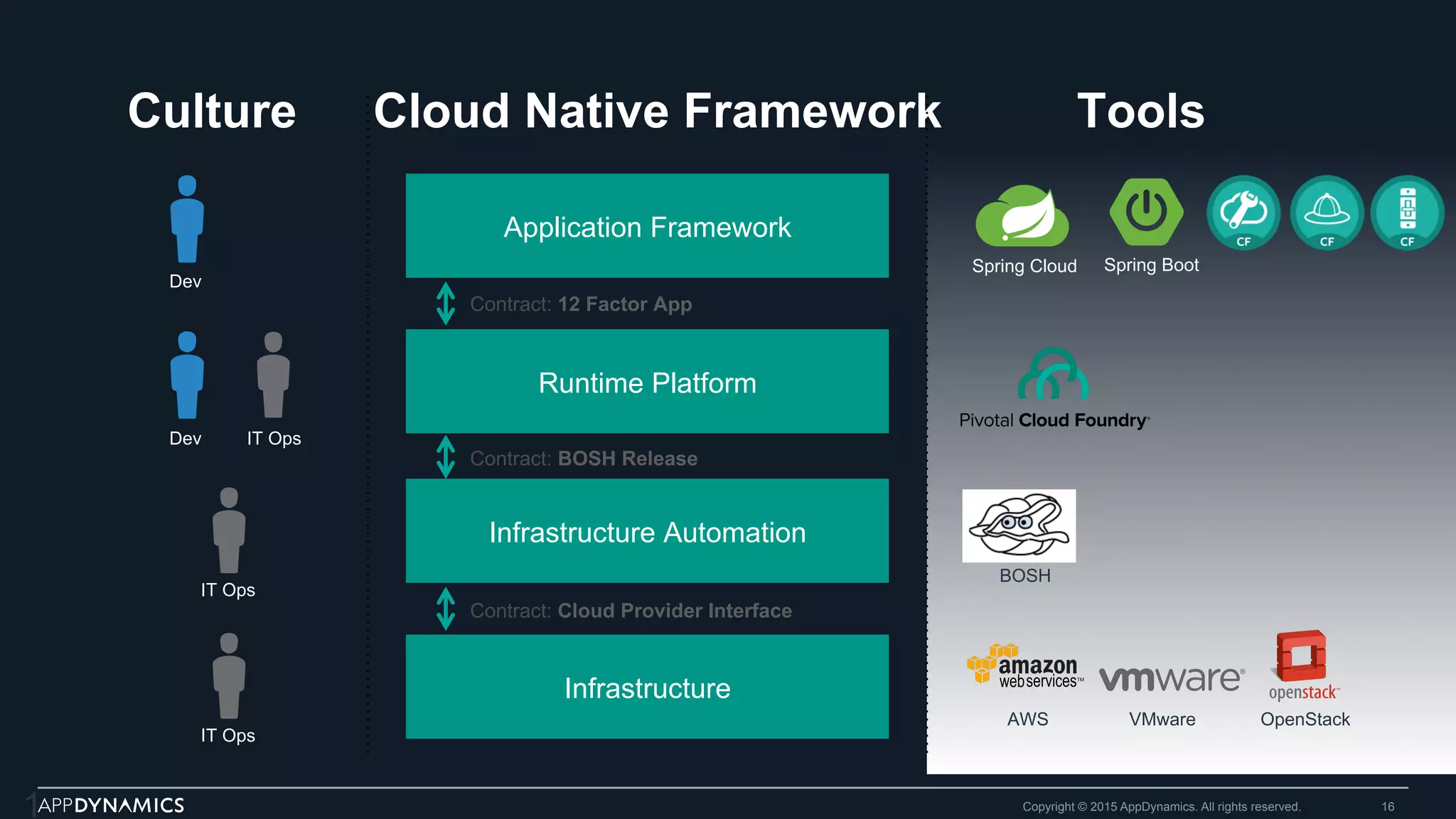

Cloud Native Framework
Contract: 12 Factor App
Contract: BOSH Release
Contract: Cloud Provider Interface
Culture
Dev
Dev IT Ops
Tools
Spring Cloud Spring Boot
BOSH
AWS VMware OpenStack
Runtime Platform
Infrastructure
IT Ops
IT Ops

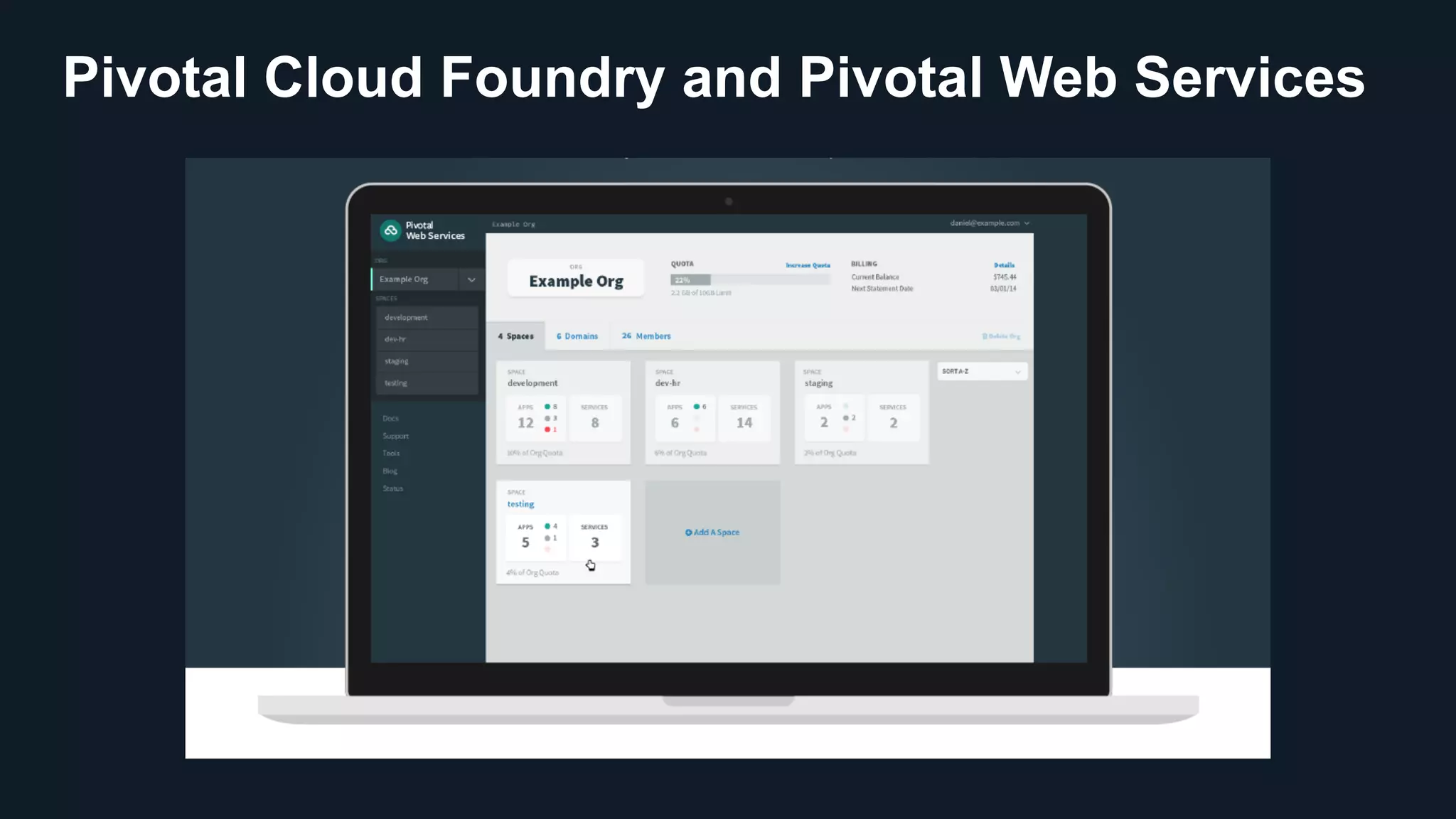

Pivotal Cloud Foundry and Pivotal Web Services

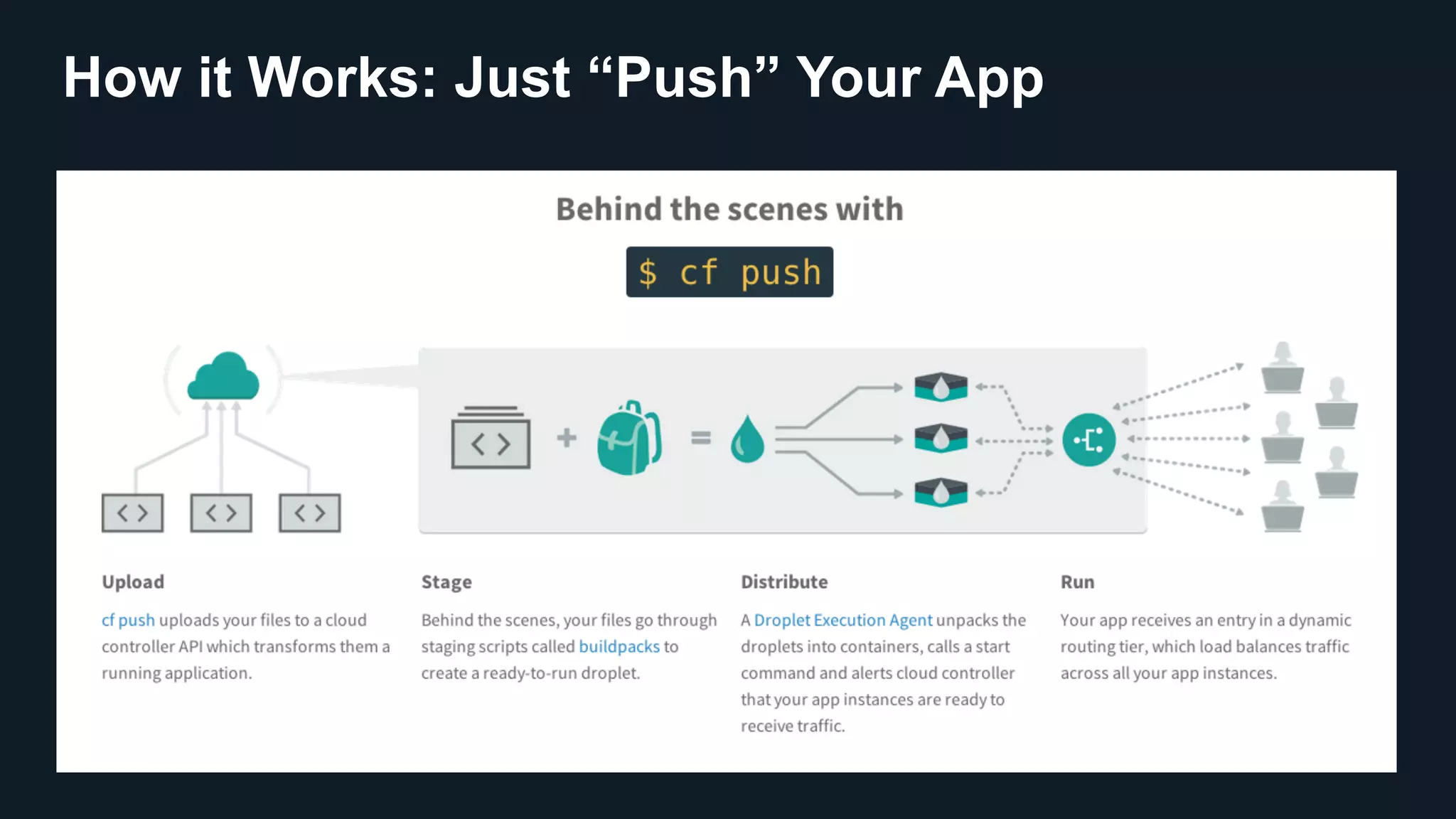

How it Works: Just “Push” Your App

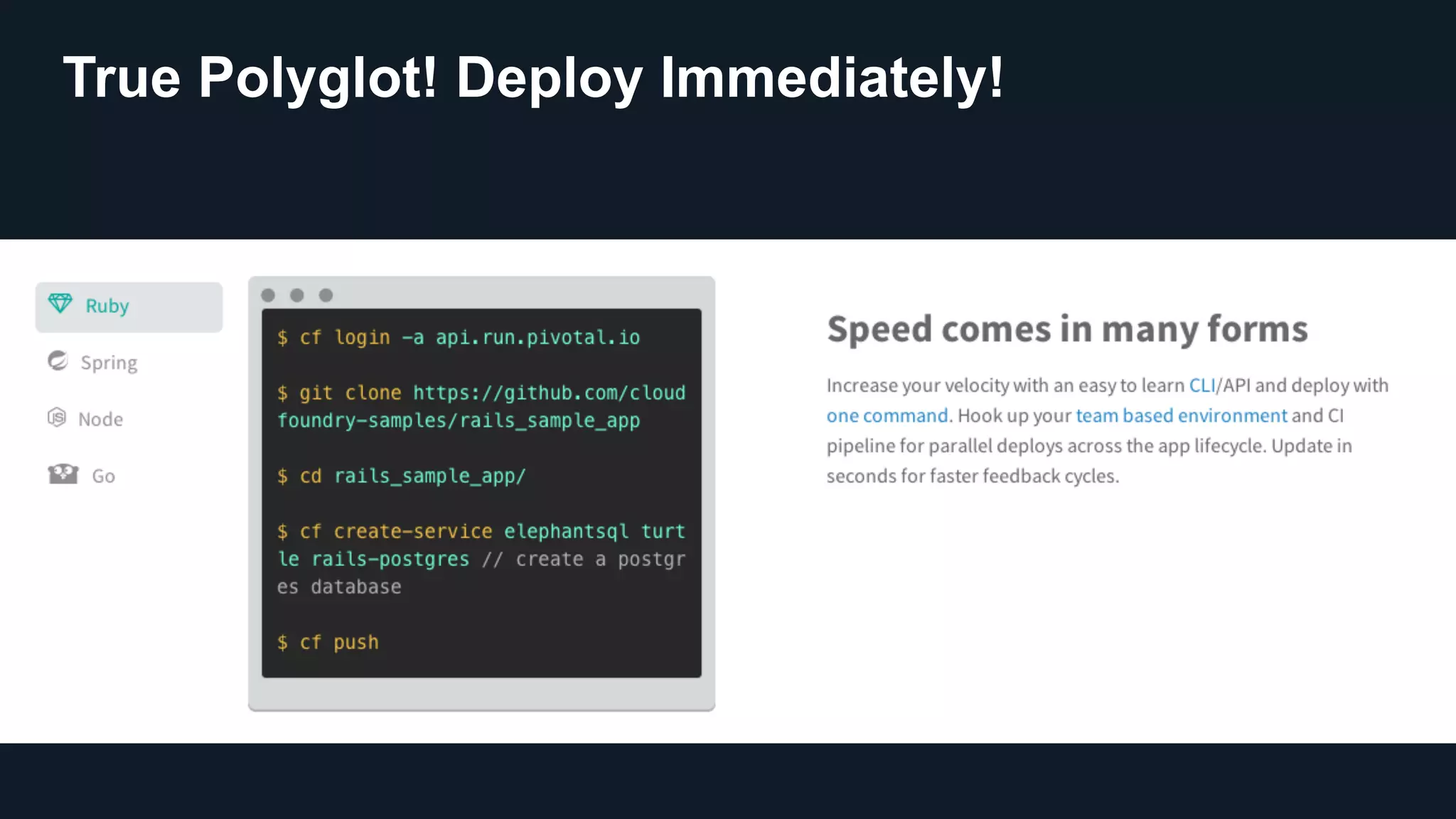

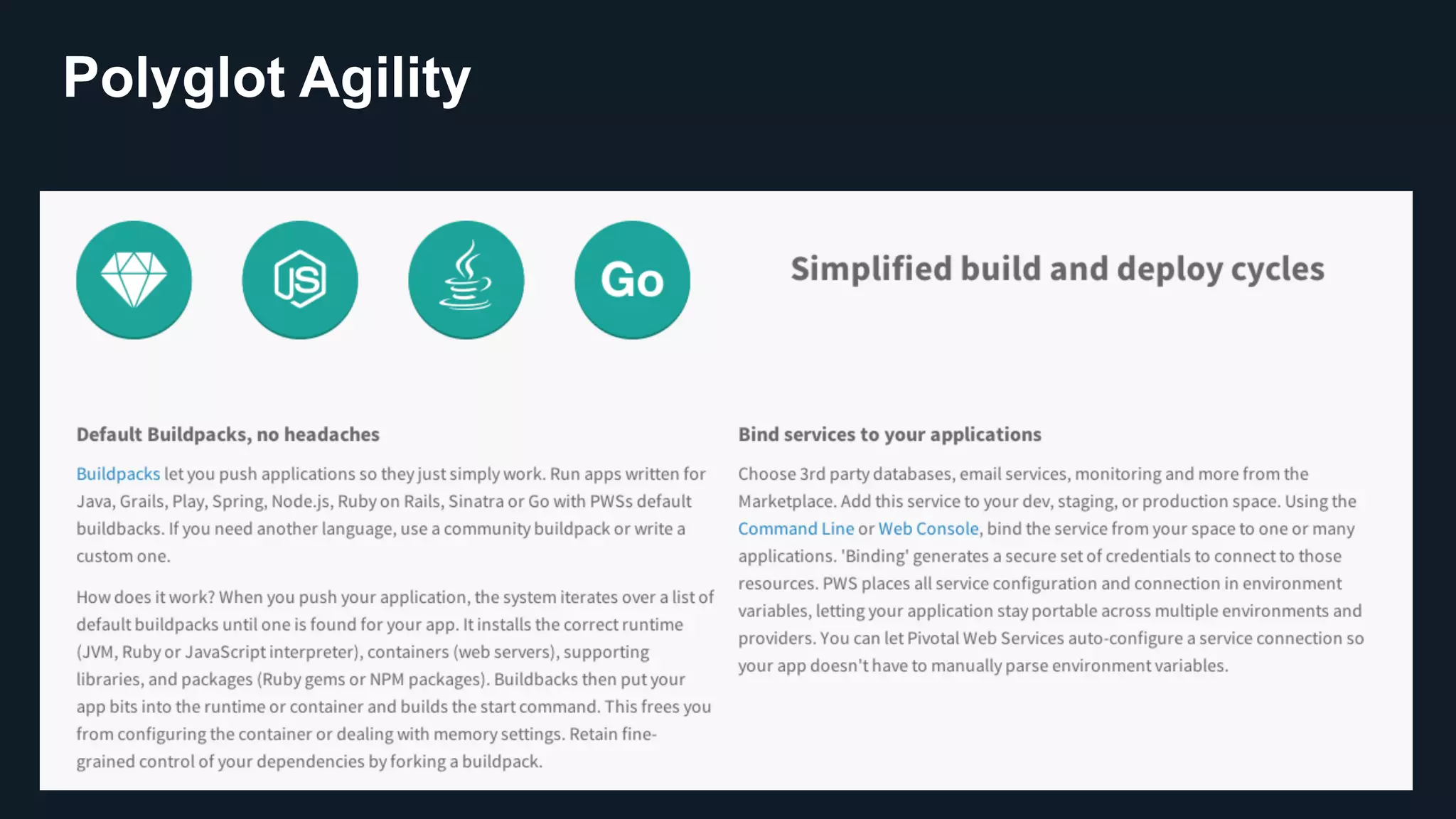

True Polyglot! Deploy Immediately!

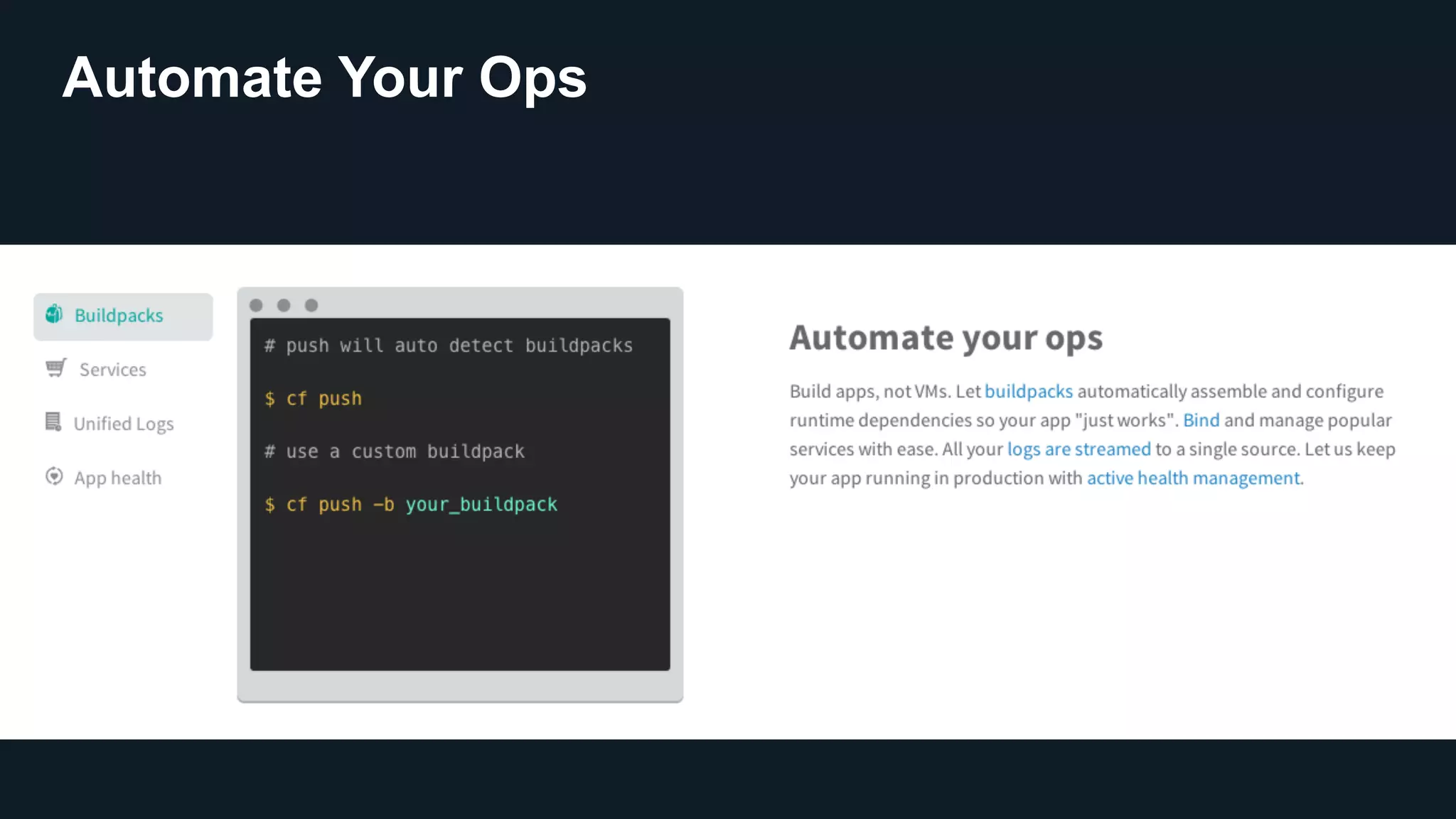

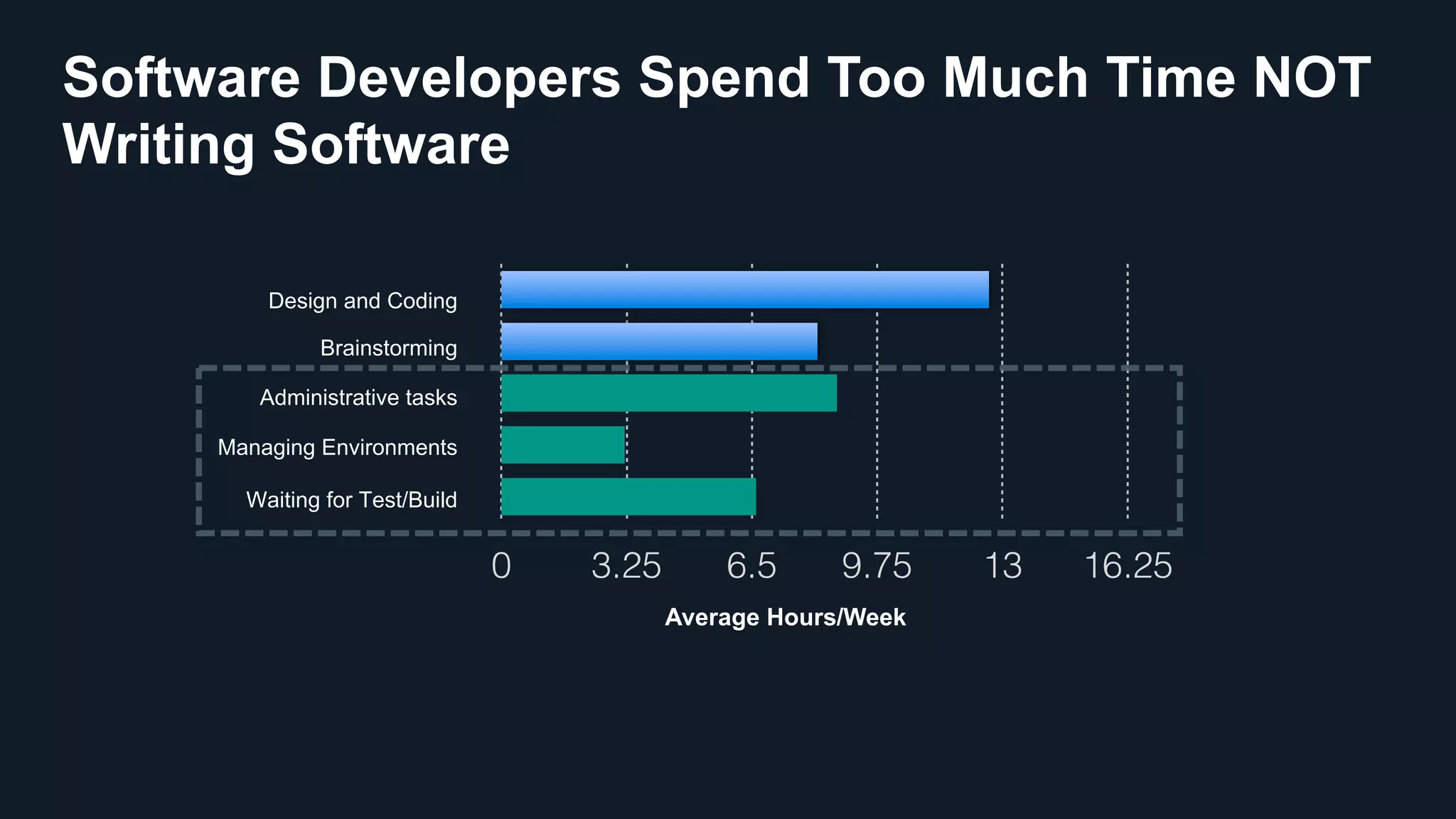

Software Developers Spend Too Much Time NOT
Writing Software
0! 3.25! 6.5! 9.75! 13! 16.25!
Administrative tasks
Design and Coding
Brainstorming
Waiting for Test/Build
Managing Environments
Average Hours/Week

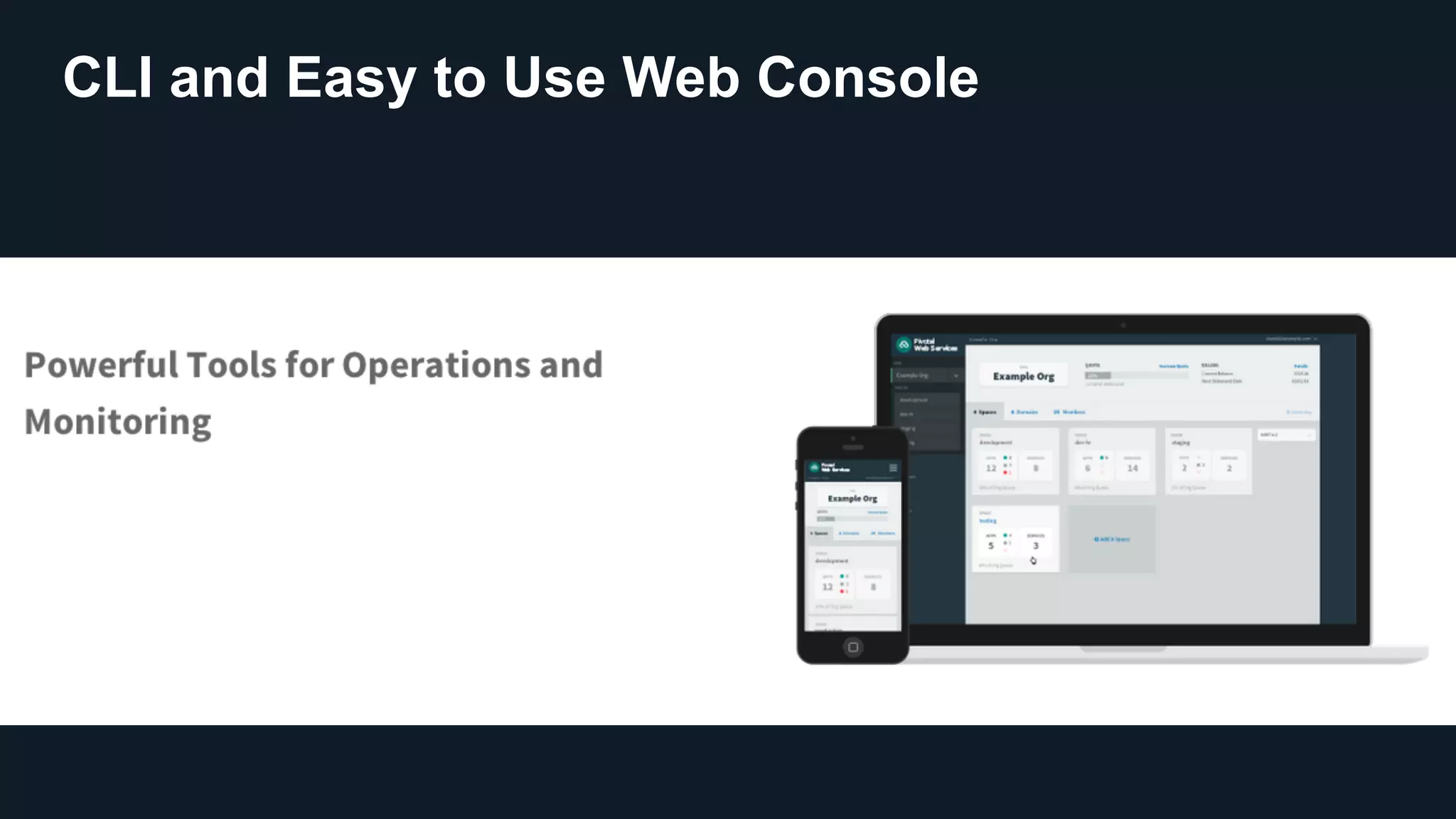

CLI and Easy to Use Web Console

Vibrant Marketplace and User Created Services

Let’s Test This Out: Developer Haiku
Here is my source code
Run it in the cloud for me
I do not care how

And
many
more...
Pivotal Cloud Foundry:
Worldwide Cross Industry Adoption

Mercedes-Benz (Daimler AG)
Driving Digital Differentiation
“With Pivotal we have minimized our
innovation cycles and can now respond to
changing market demands faster than ever
before, both of which allowed us to develop
a profound software culture in our
transformational journey into a digital
company… ”
Christoph Hartung
Head of Connected Cars
Mercedes-Benz

AllState
Enabling IT Transformation
“The growing variety of programming languages
and frameworks supported by Pivotal Cloud
Foundry offers developers at Allstate the choice
they require. The platform takes care of the details
of application container scheduling, cluster
management, and scaling, greatly reducing the
operational burden to reliably run Cloud Native
applications.”
Matt Curry
Director of Platform Engineering
Allstate Insurance

APPDYNAMICS INTEGRATION
How We Built It

PLATFORM
HOST

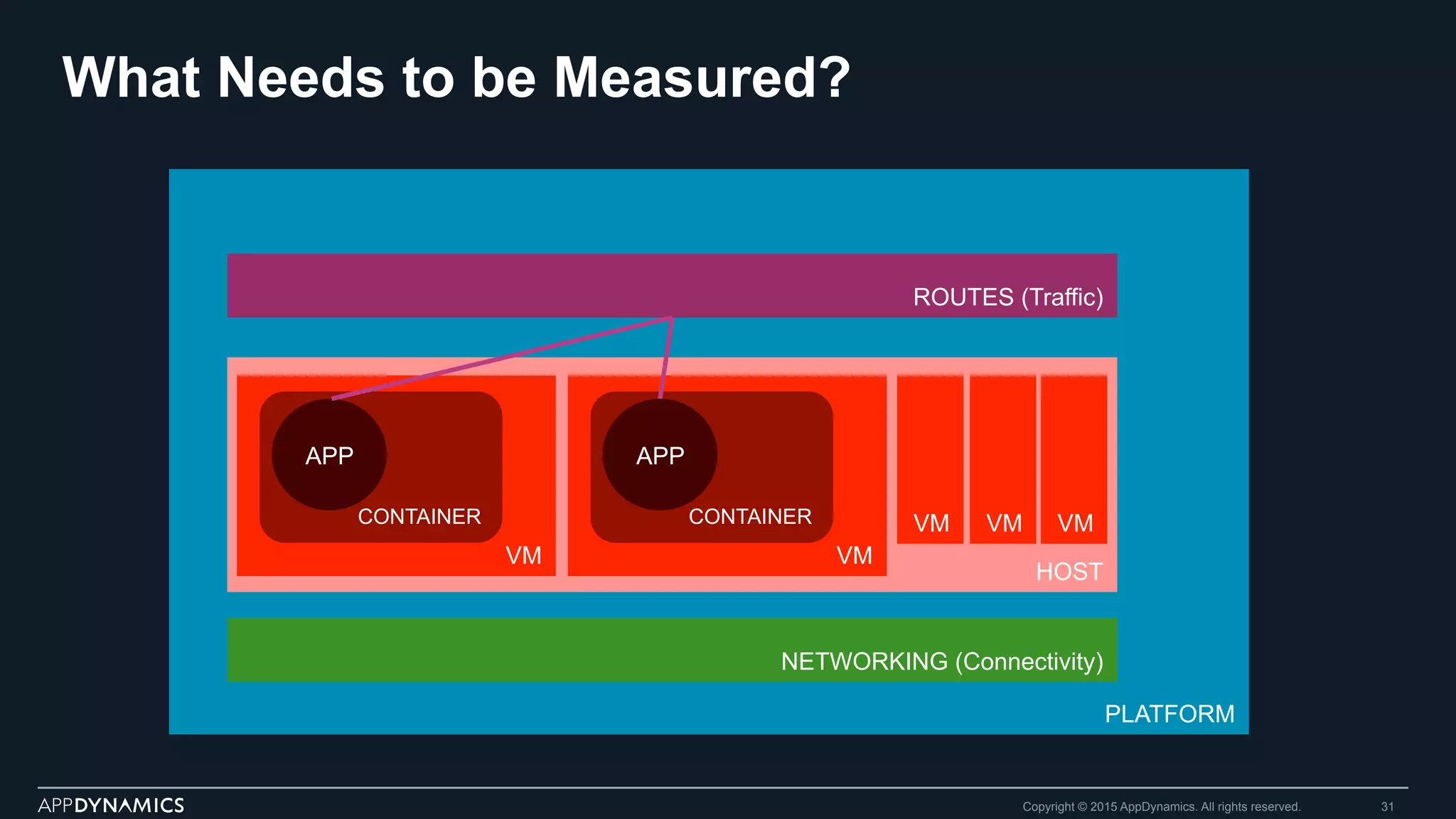

What Needs to be Measured?
NETWORKING (Connectivity)
VM VM
VMVMVMCONTAINER CONTAINER
APPAPP
ROUTES (Traffic)

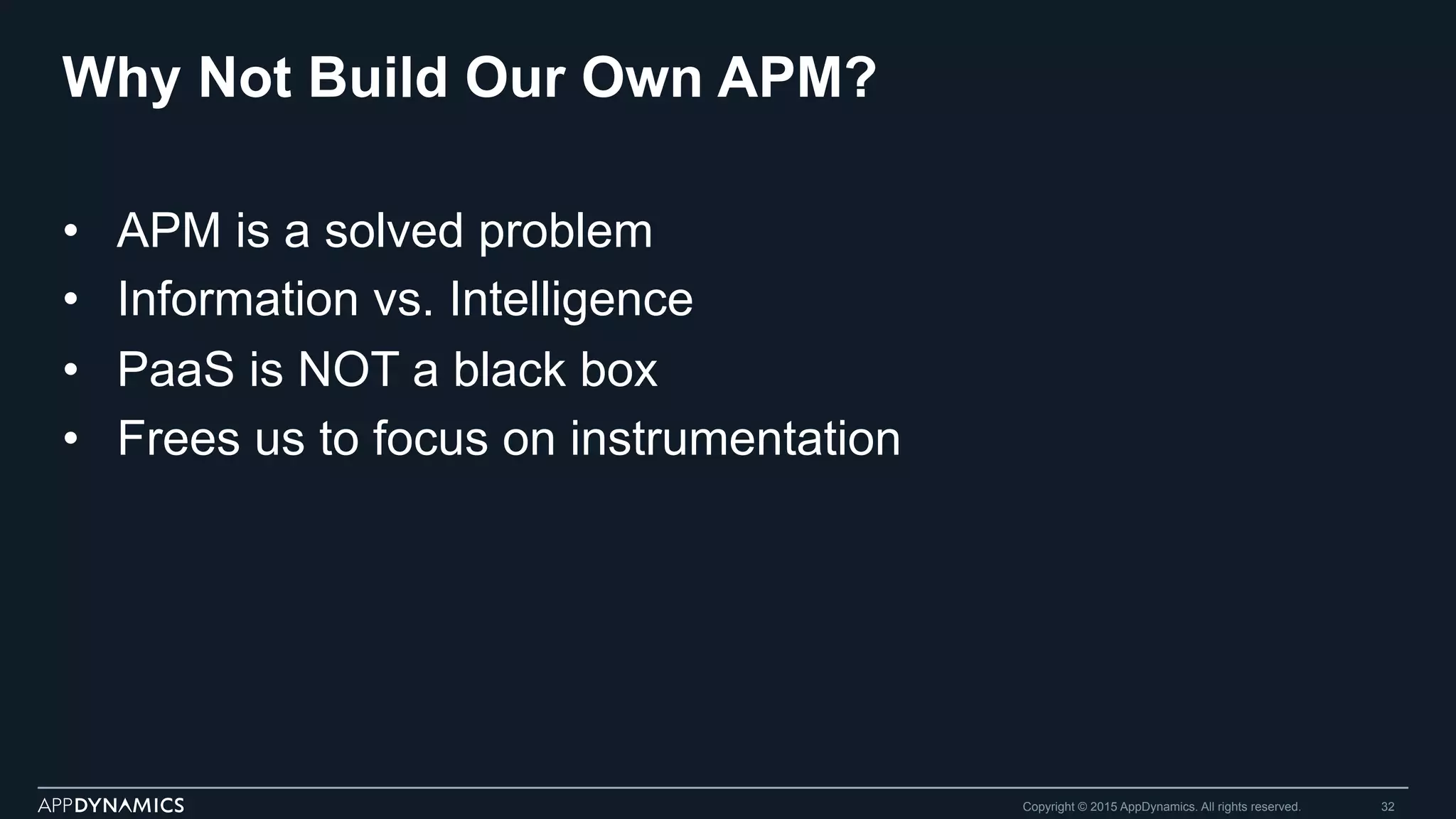

Why Not Build Our Own APM?
•  APM is a solved problem
•  Information vs. Intelligence
•  PaaS is NOT a black box
•  Frees us to focus on instrumentation

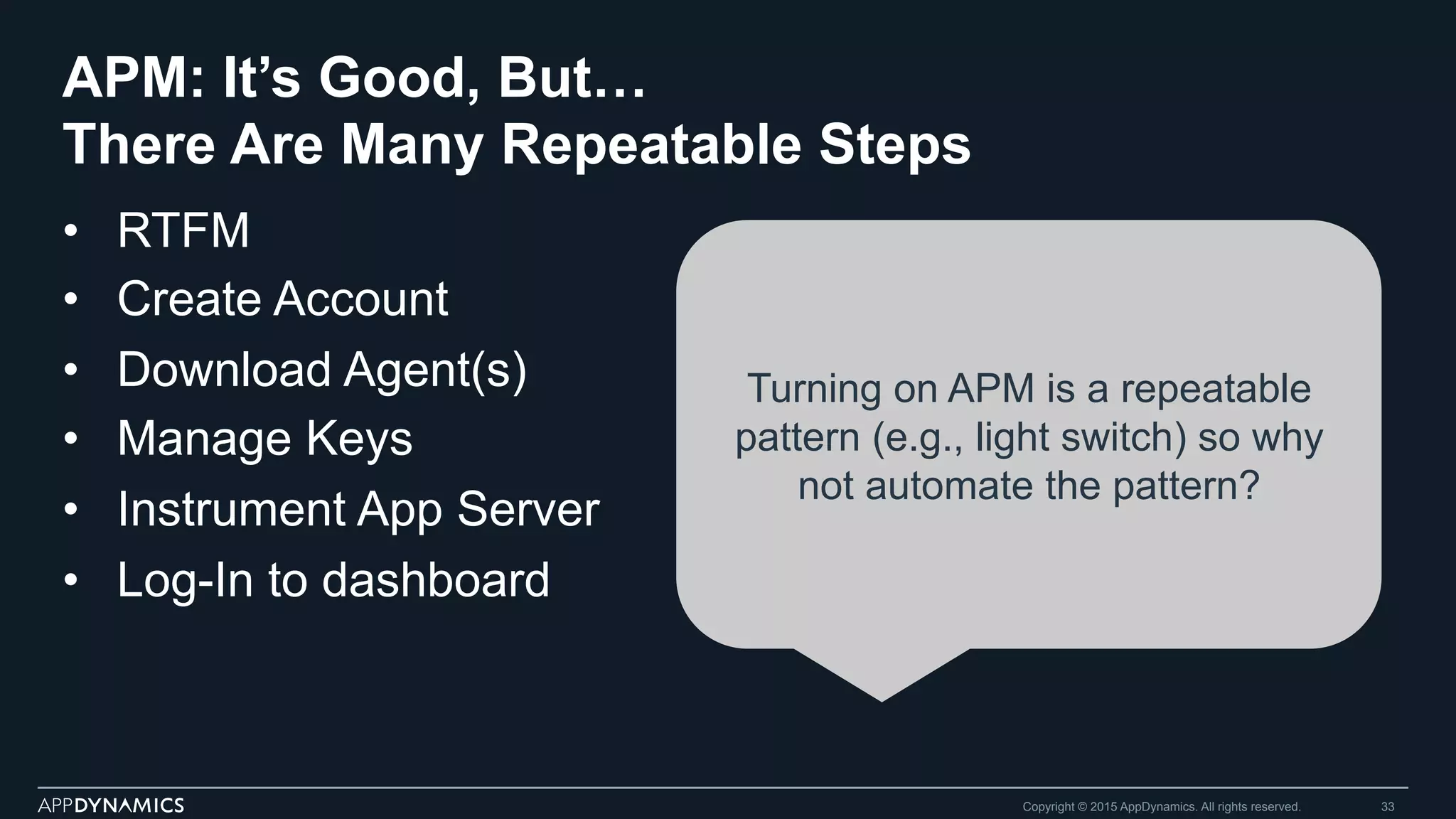

APM: It’s Good, But…
There Are Many Repeatable Steps
•  RTFM
•  Create Account
•  Download Agent(s)
•  Manage Keys
•  Instrument App Server
•  Log-In to dashboard
Turning on APM is a repeatable
pattern (e.g., light switch) so why
not automate the pattern?

The Key Components
Machine Agent
Service Broker

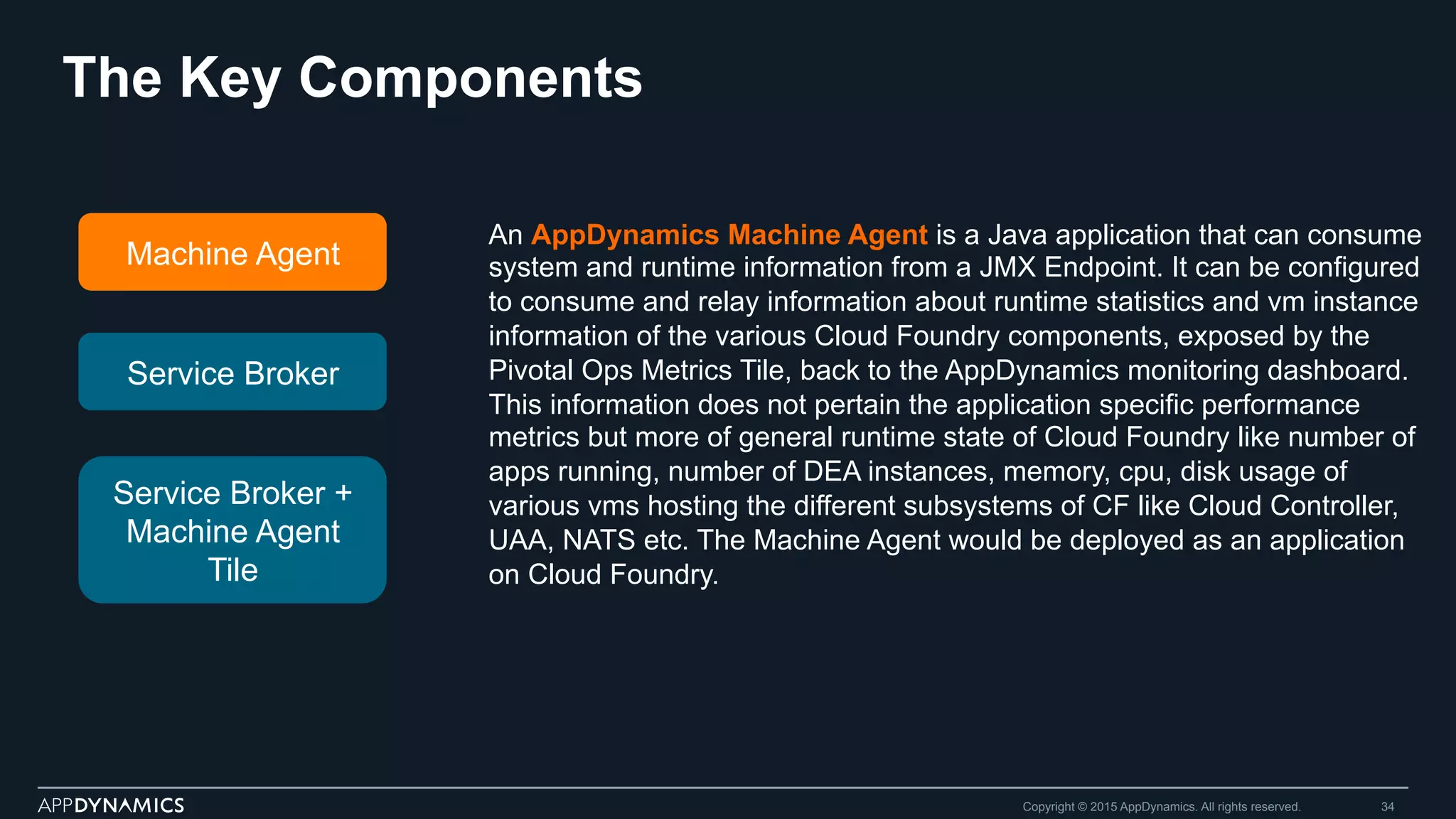

An AppDynamics Machine Agent is a Java application that can consume
system and runtime information from a JMX Endpoint. It can be configured
to consume and relay information about runtime statistics and vm instance
information of the various Cloud Foundry components, exposed by the
Pivotal Ops Metrics Tile, back to the AppDynamics monitoring dashboard.
This information does not pertain the application specific performance
metrics but more of general runtime state of Cloud Foundry like number of
apps running, number of DEA instances, memory, cpu, disk usage of
various vms hosting the different subsystems of CF like Cloud Controller,
UAA, NATS etc. The Machine Agent would be deployed as an application
on Cloud Foundry.
Service Broker +
Machine Agent
Tile

The Key Components
Machine Agent
Service Broker

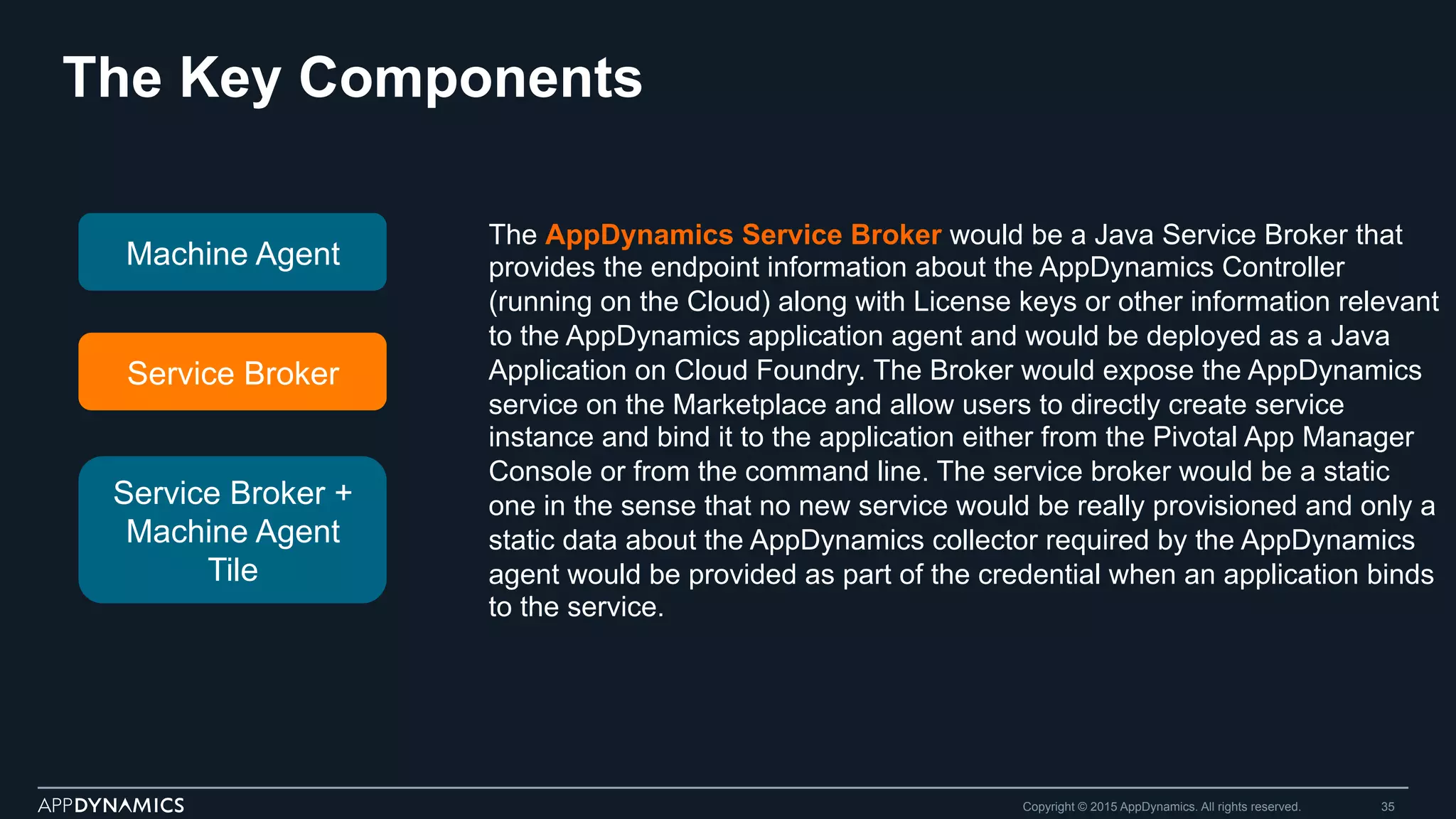

The AppDynamics Service Broker would be a Java Service Broker that
provides the endpoint information about the AppDynamics Controller
(running on the Cloud) along with License keys or other information relevant
to the AppDynamics application agent and would be deployed as a Java
Application on Cloud Foundry. The Broker would expose the AppDynamics
service on the Marketplace and allow users to directly create service
instance and bind it to the application either from the Pivotal App Manager
Console or from the command line. The service broker would be a static
one in the sense that no new service would be really provisioned and only a
static data about the AppDynamics collector required by the AppDynamics
agent would be provided as part of the credential when an application binds
to the service.
Service Broker +
Machine Agent
Tile

The Key Components
Machine Agent
Service Broker

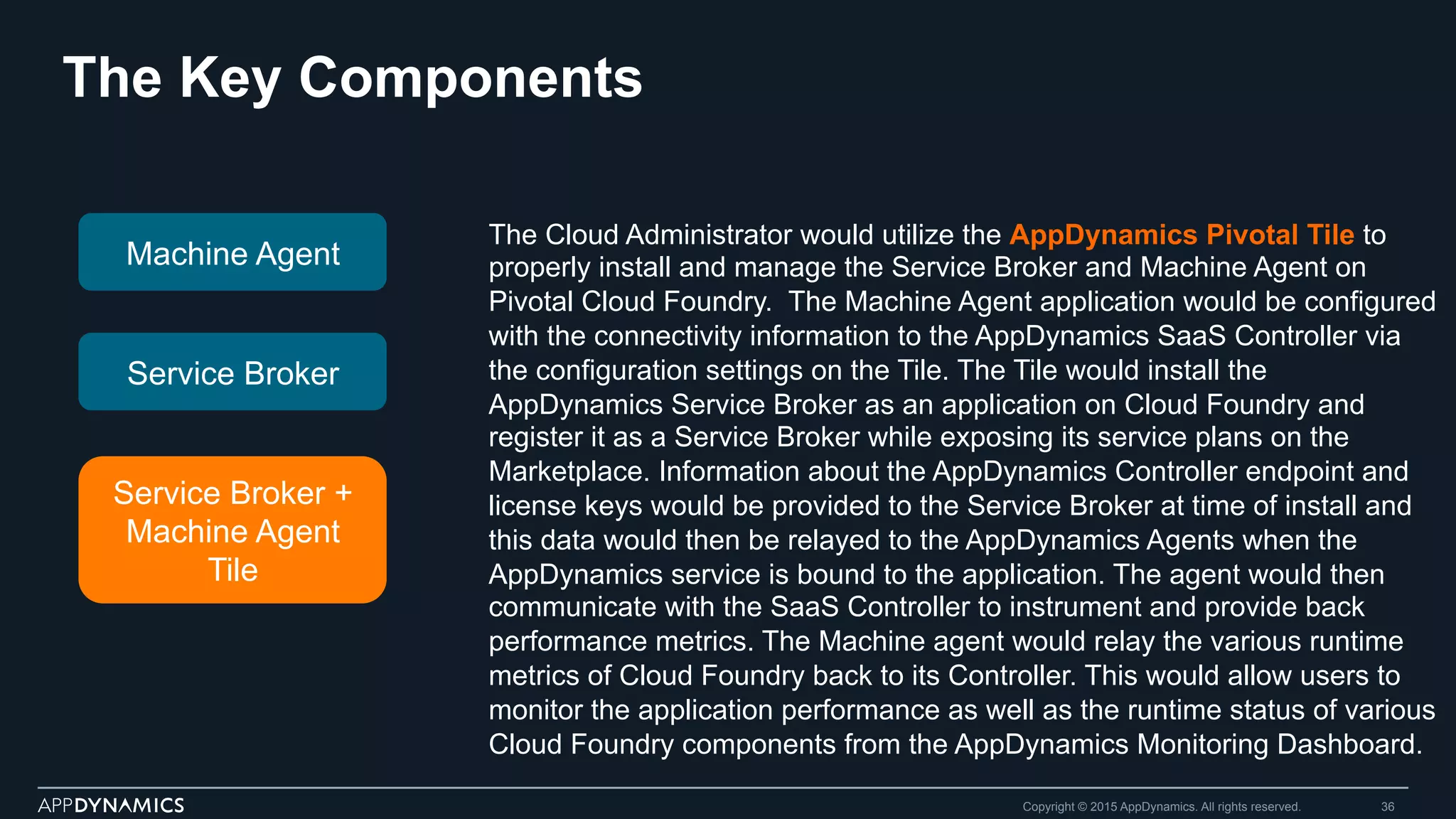

The Cloud Administrator would utilize the AppDynamics Pivotal Tile to
properly install and manage the Service Broker and Machine Agent on
Pivotal Cloud Foundry. The Machine Agent application would be configured
with the connectivity information to the AppDynamics SaaS Controller via
the configuration settings on the Tile. The Tile would install the
AppDynamics Service Broker as an application on Cloud Foundry and
register it as a Service Broker while exposing its service plans on the
Marketplace. Information about the AppDynamics Controller endpoint and
license keys would be provided to the Service Broker at time of install and
this data would then be relayed to the AppDynamics Agents when the
AppDynamics service is bound to the application. The agent would then
communicate with the SaaS Controller to instrument and provide back
performance metrics. The Machine agent would relay the various runtime
metrics of Cloud Foundry back to its Controller. This would allow users to
monitor the application performance as well as the runtime status of various
Cloud Foundry components from the AppDynamics Monitoring Dashboard.
Service Broker +
Machine Agent
Tile

HOST
VM

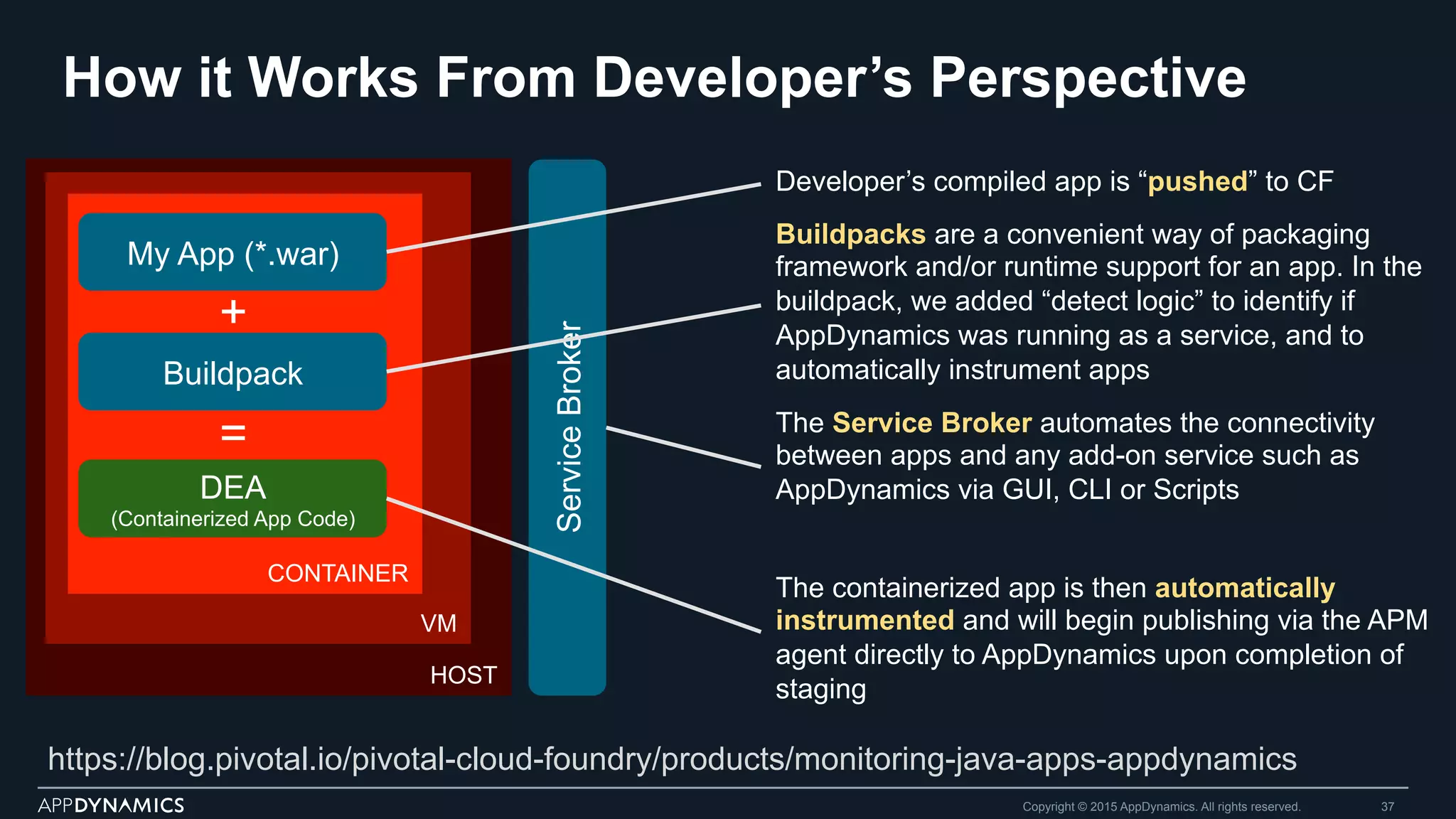

How it Works From Developer’s Perspective
CONTAINER
My App (*.war)
Buildpack
+
=
DEA
(Containerized App Code)
Developer’s compiled app is “pushed” to CF
https://blog.pivotal.io/pivotal-cloud-foundry/products/monitoring-java-apps-appdynamics
ServiceBroker
The containerized app is then automatically
instrumented and will begin publishing via the APM
agent directly to AppDynamics upon completion of
staging
Buildpacks are a convenient way of packaging
framework and/or runtime support for an app. In the
buildpack, we added “detect logic” to identify if
AppDynamics was running as a service, and to
automatically instrument apps
The Service Broker automates the connectivity
between apps and any add-on service such as
AppDynamics via GUI, CLI or Scripts

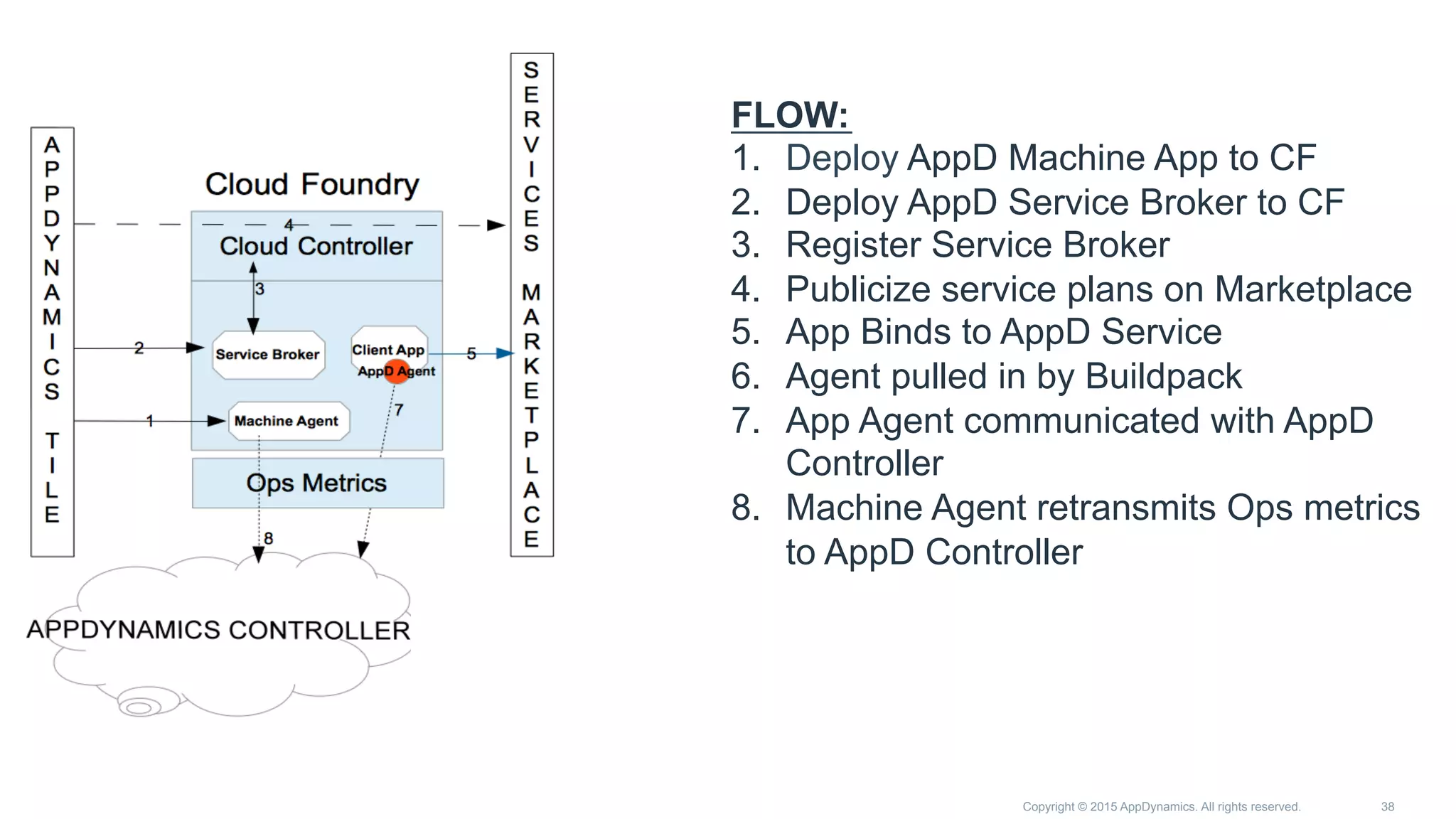

FLOW:
1.  Deploy AppD Machine App to CF
2.  Deploy AppD Service Broker to CF
3.  Register Service Broker
4.  Publicize service plans on Marketplace
5.  App Binds to AppD Service
6.  Agent pulled in by Buildpack
7.  App Agent communicated with AppD
Controller
8.  Machine Agent retransmits Ops metrics
to AppD Controller

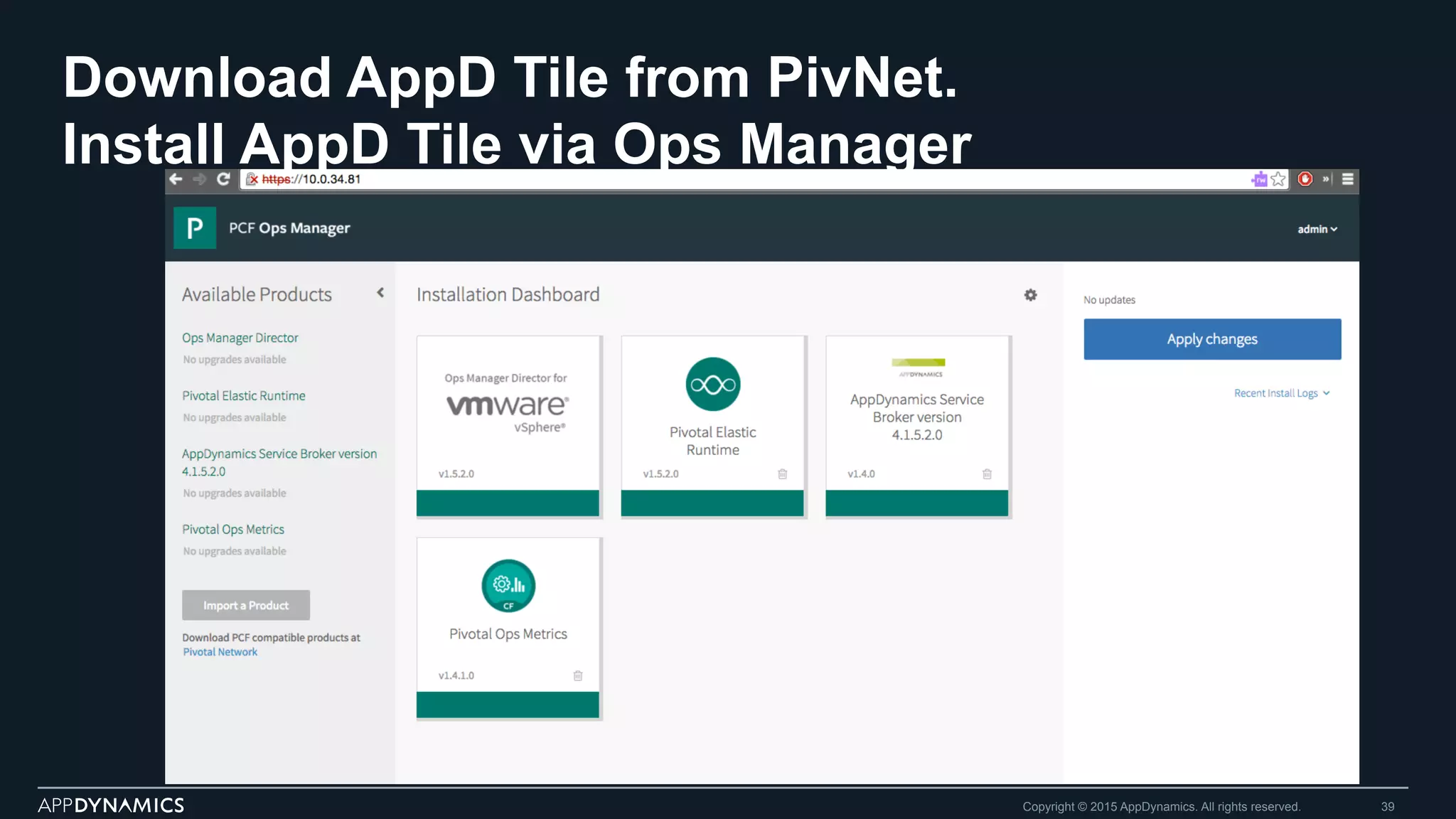

Download AppD Tile from PivNet.
Install AppD Tile via Ops Manager

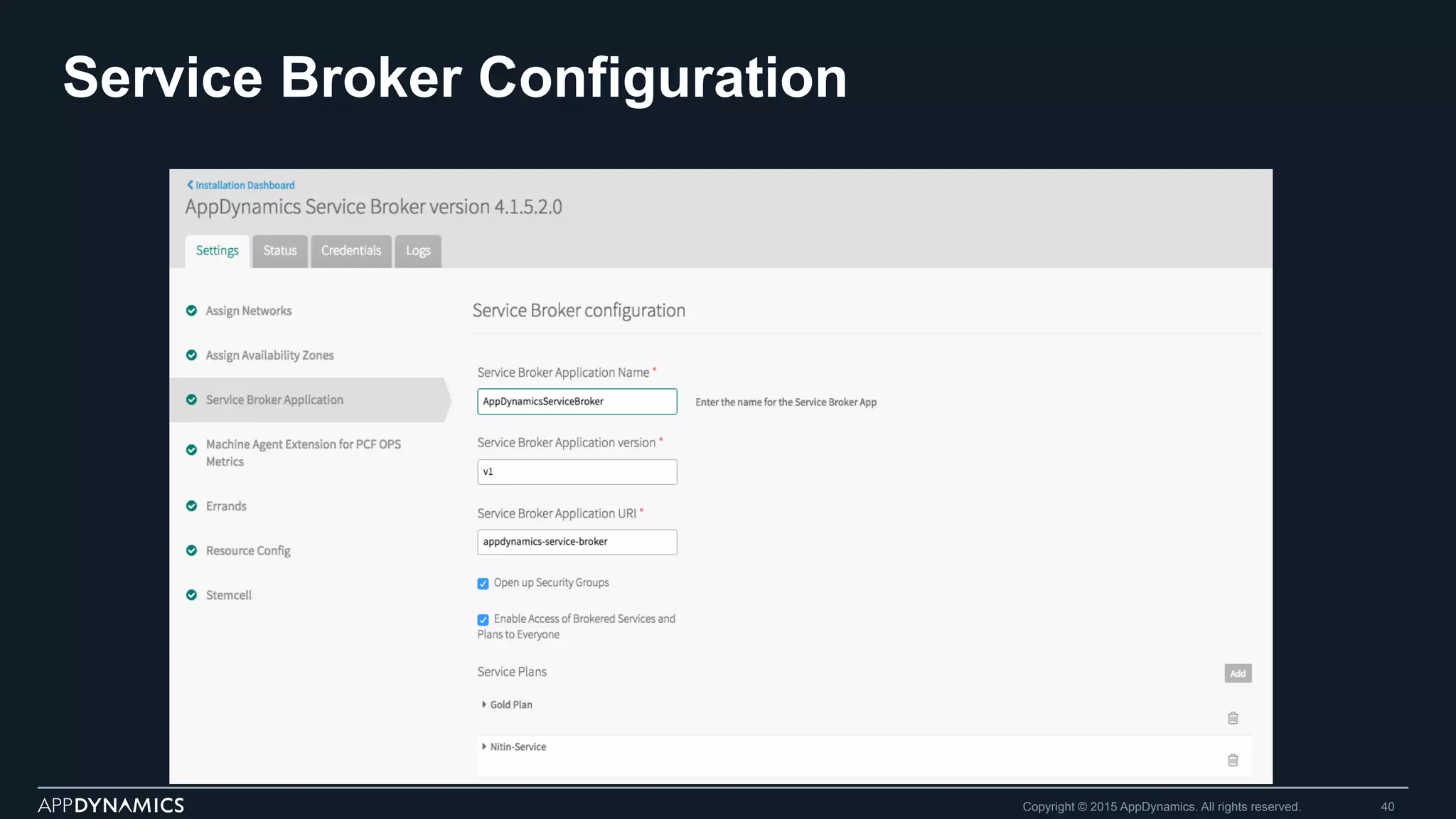

Service Broker Configuration

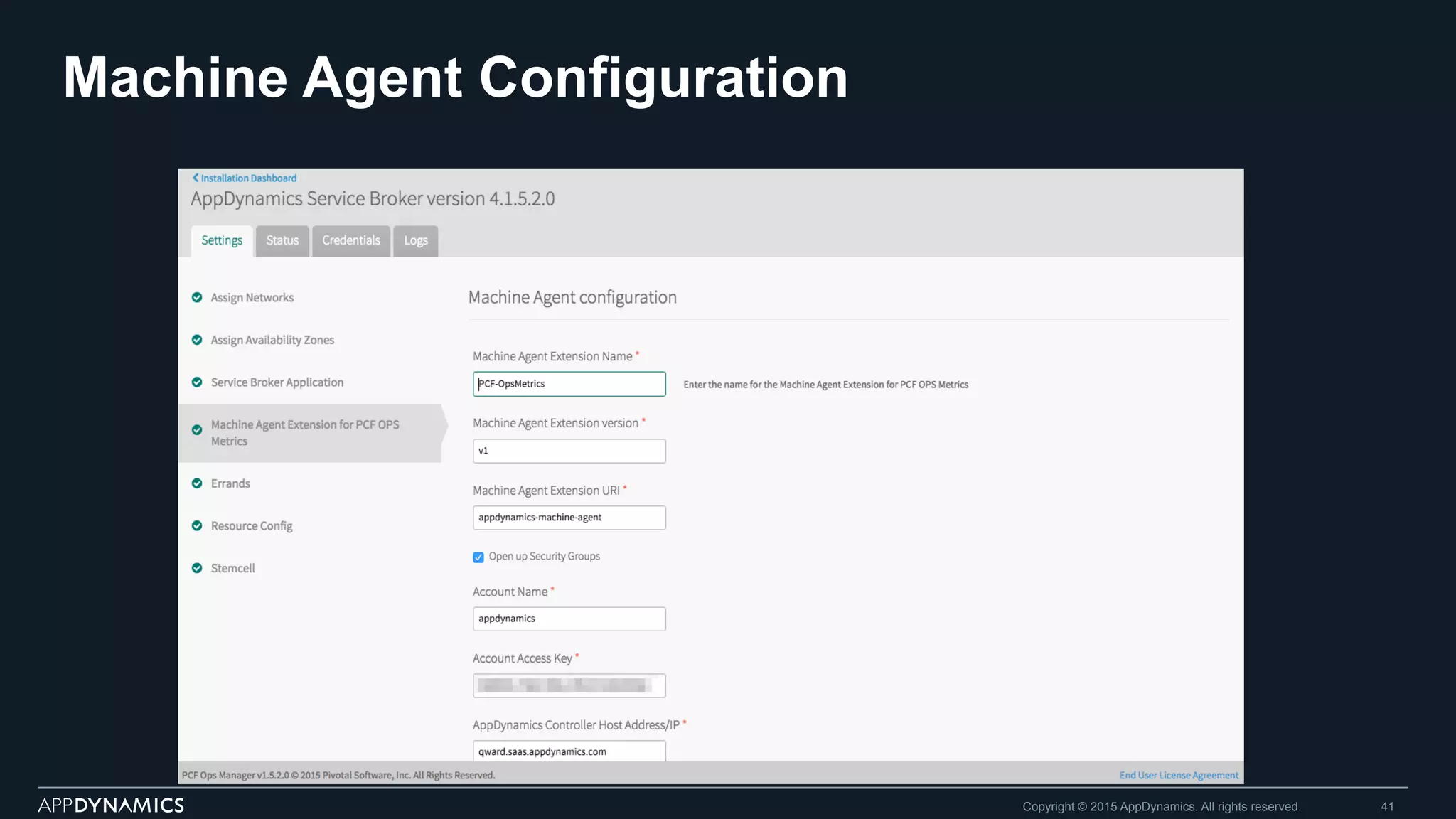

Machine Agent Configuration

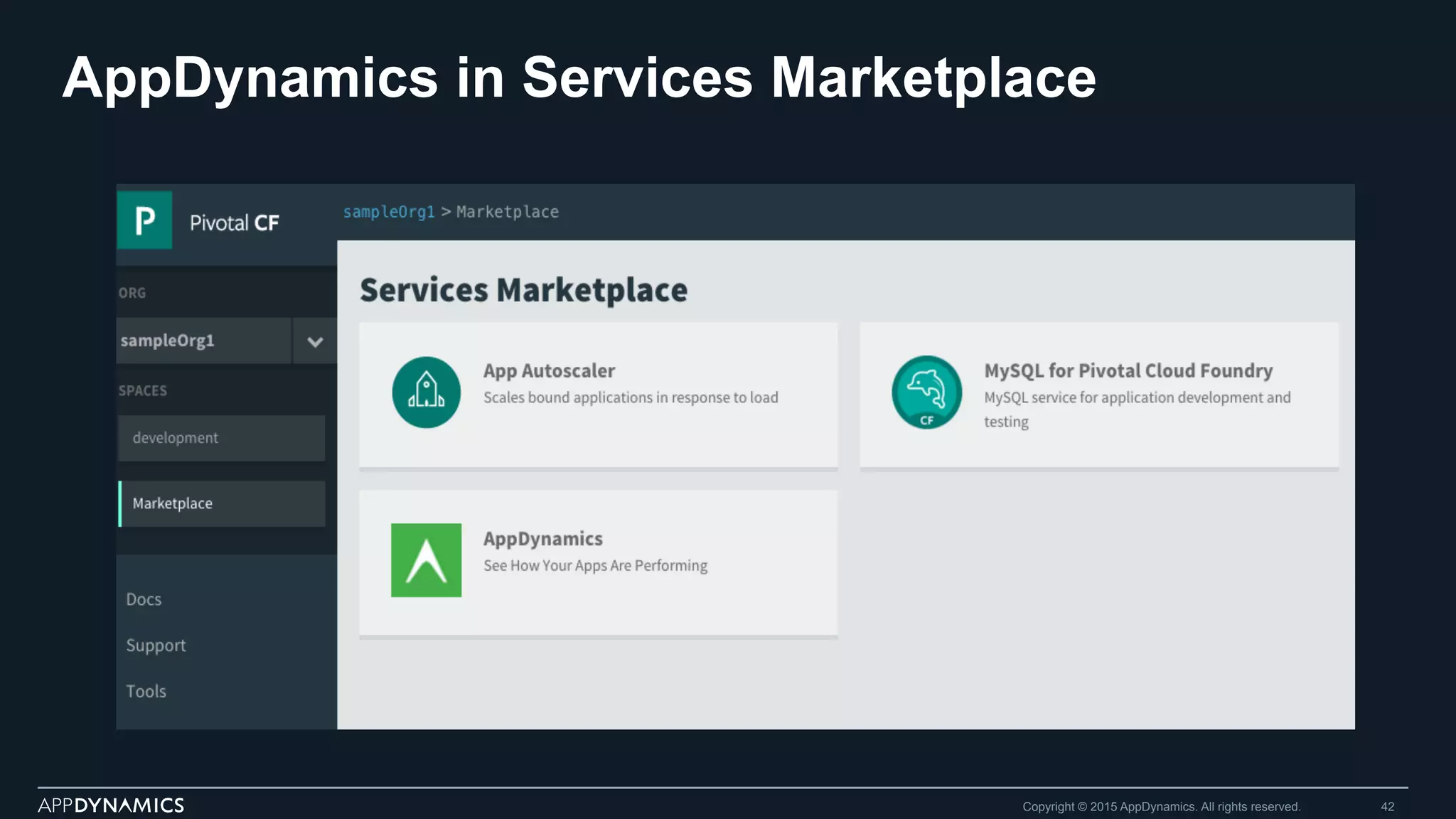

AppDynamics in Services Marketplace

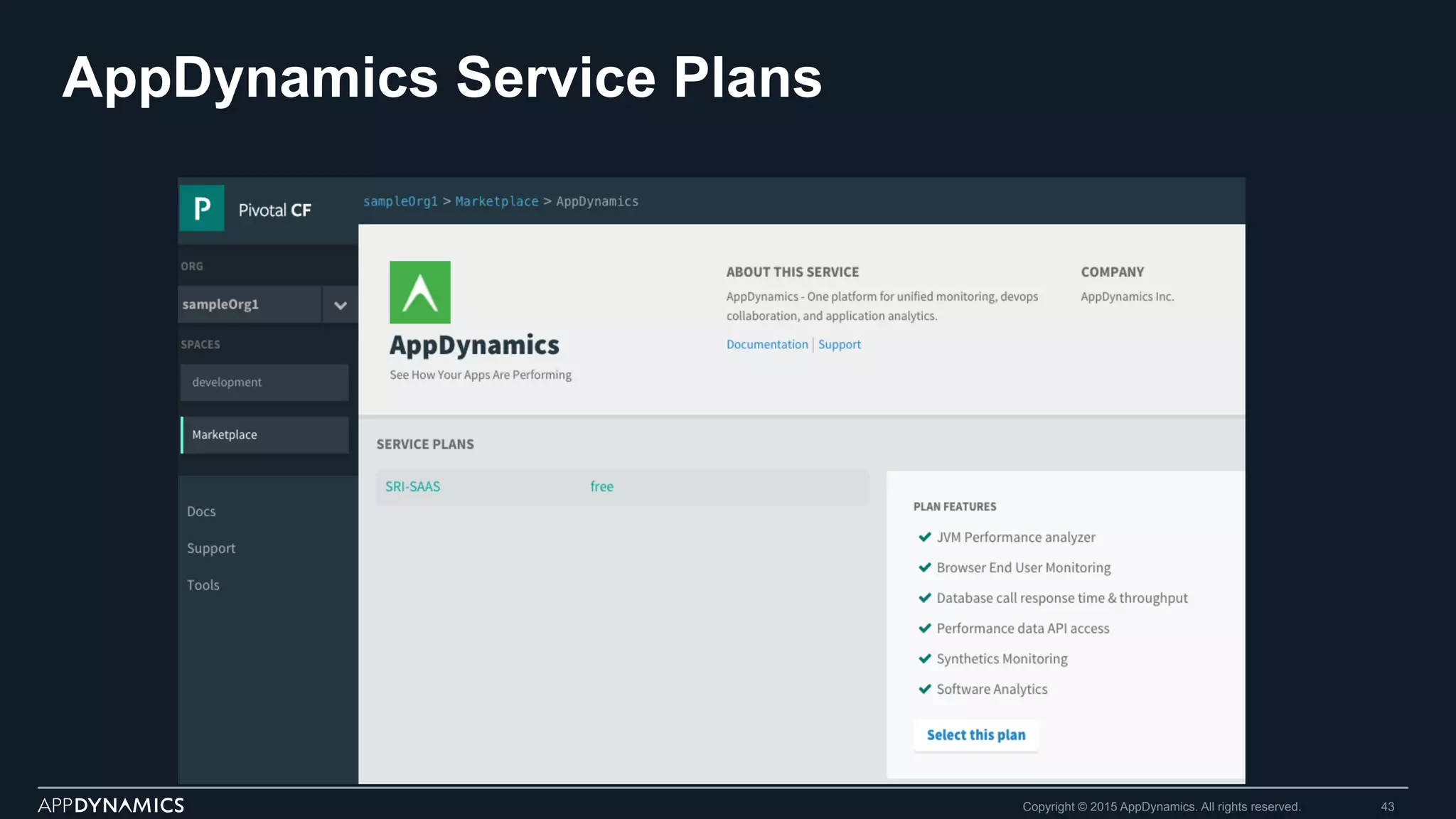

AppDynamics Service Plans

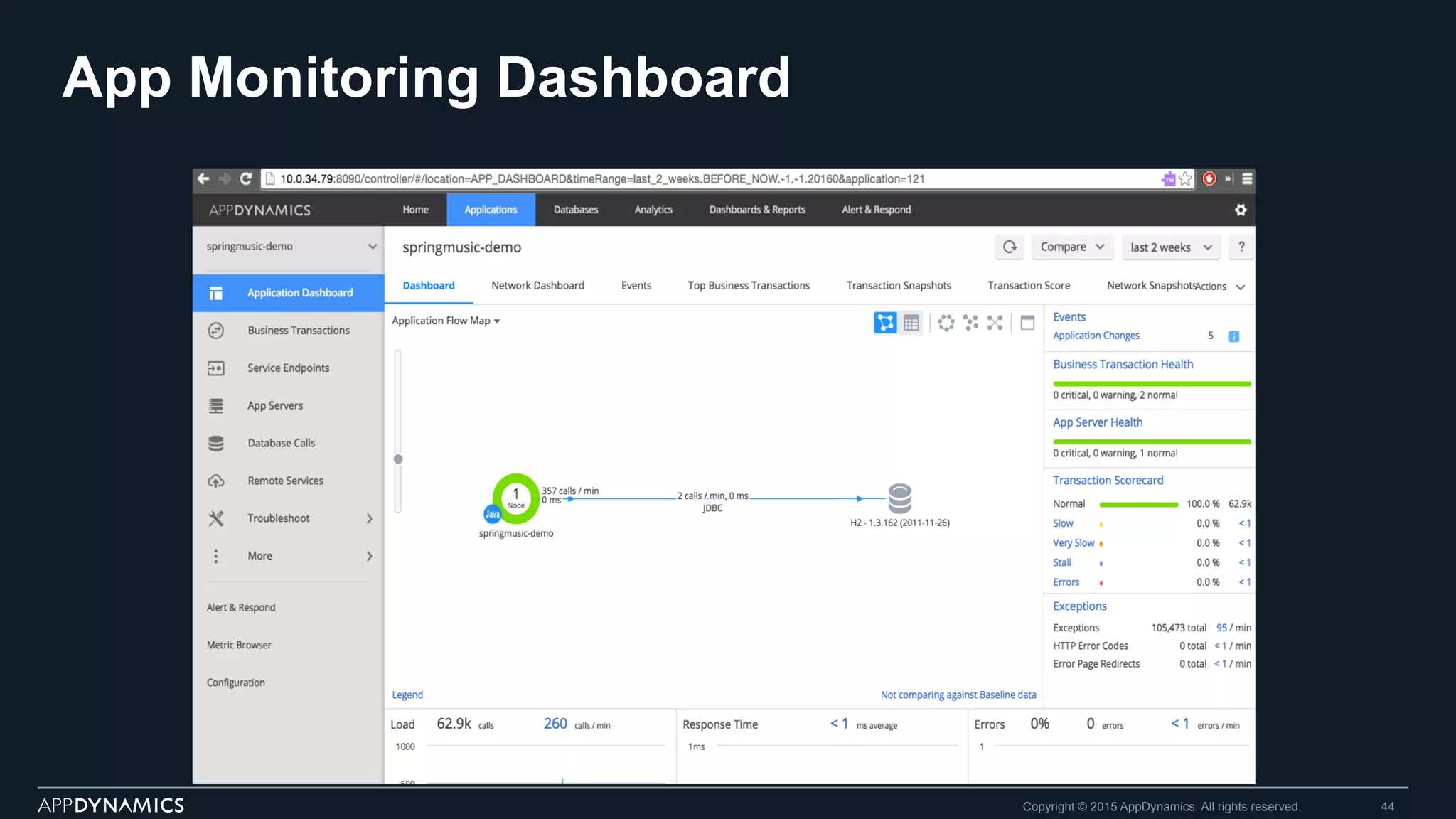

App Monitoring Dashboard

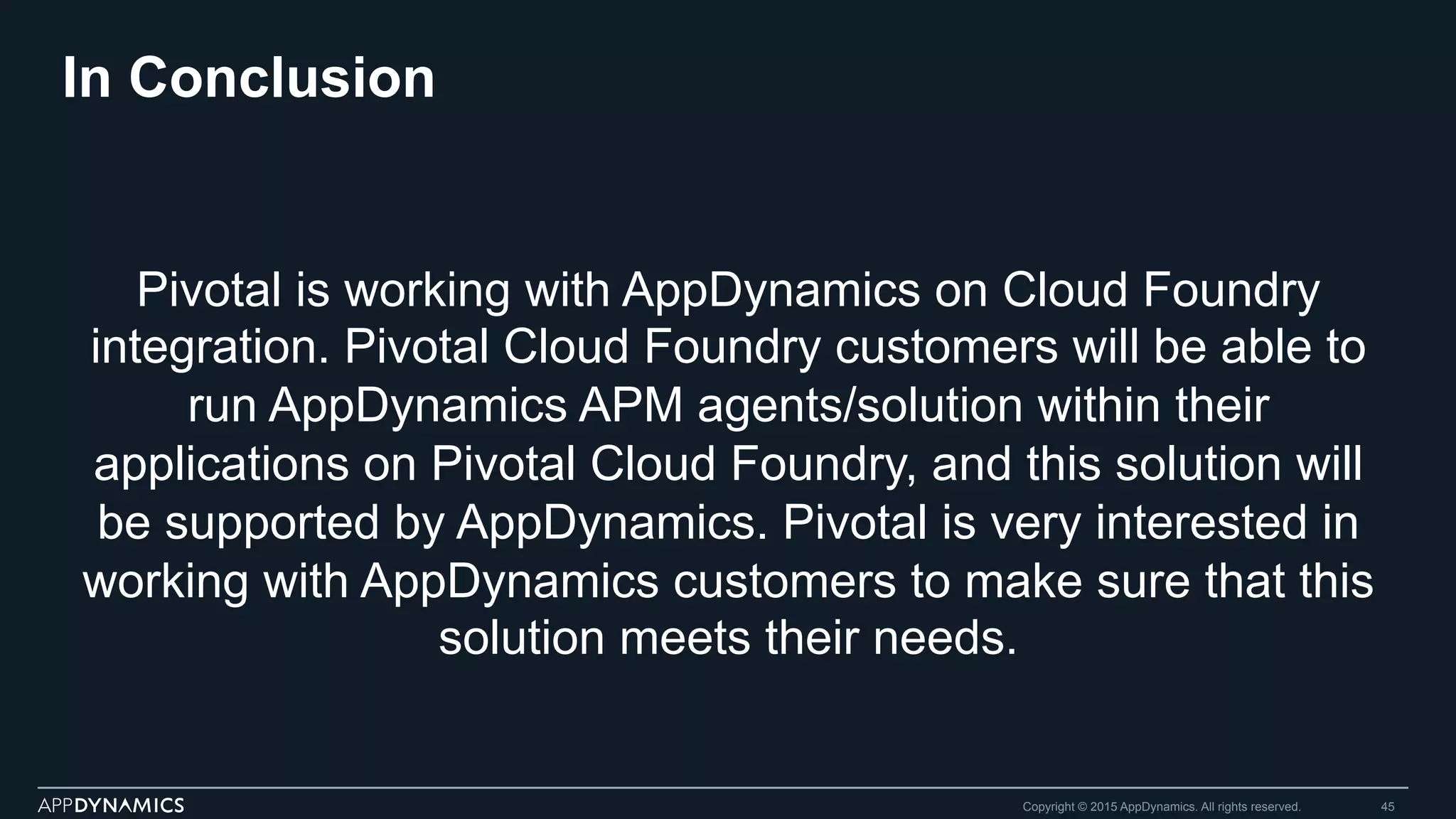

In Conclusion
Pivotal is working with AppDynamics on Cloud Foundry
integration. Pivotal Cloud Foundry customers will be able to
run AppDynamics APM agents/solution within their
applications on Pivotal Cloud Foundry, and this solution will
be supported by AppDynamics. Pivotal is very interested in
working with AppDynamics customers to make sure that this
solution meets their needs.

LEARN MORE
Free e-book from O’Reilly
http://bit.ly/cloud-native-book
+
Platform Runtime
+

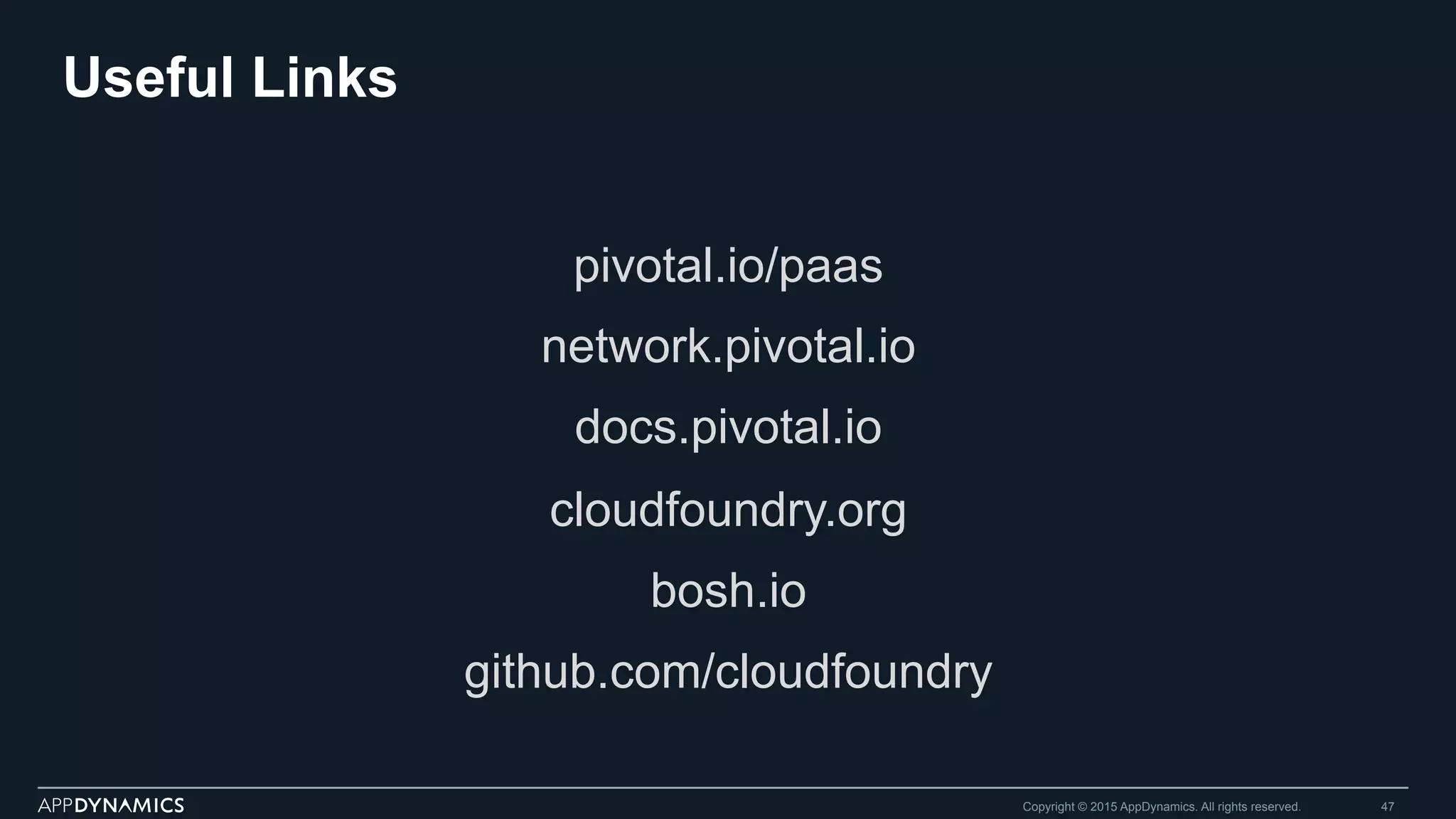

Useful Links
pivotal.io/paas
network.pivotal.io
docs.pivotal.io
cloudfoundry.org
bosh.io
github.com/cloudfoundry

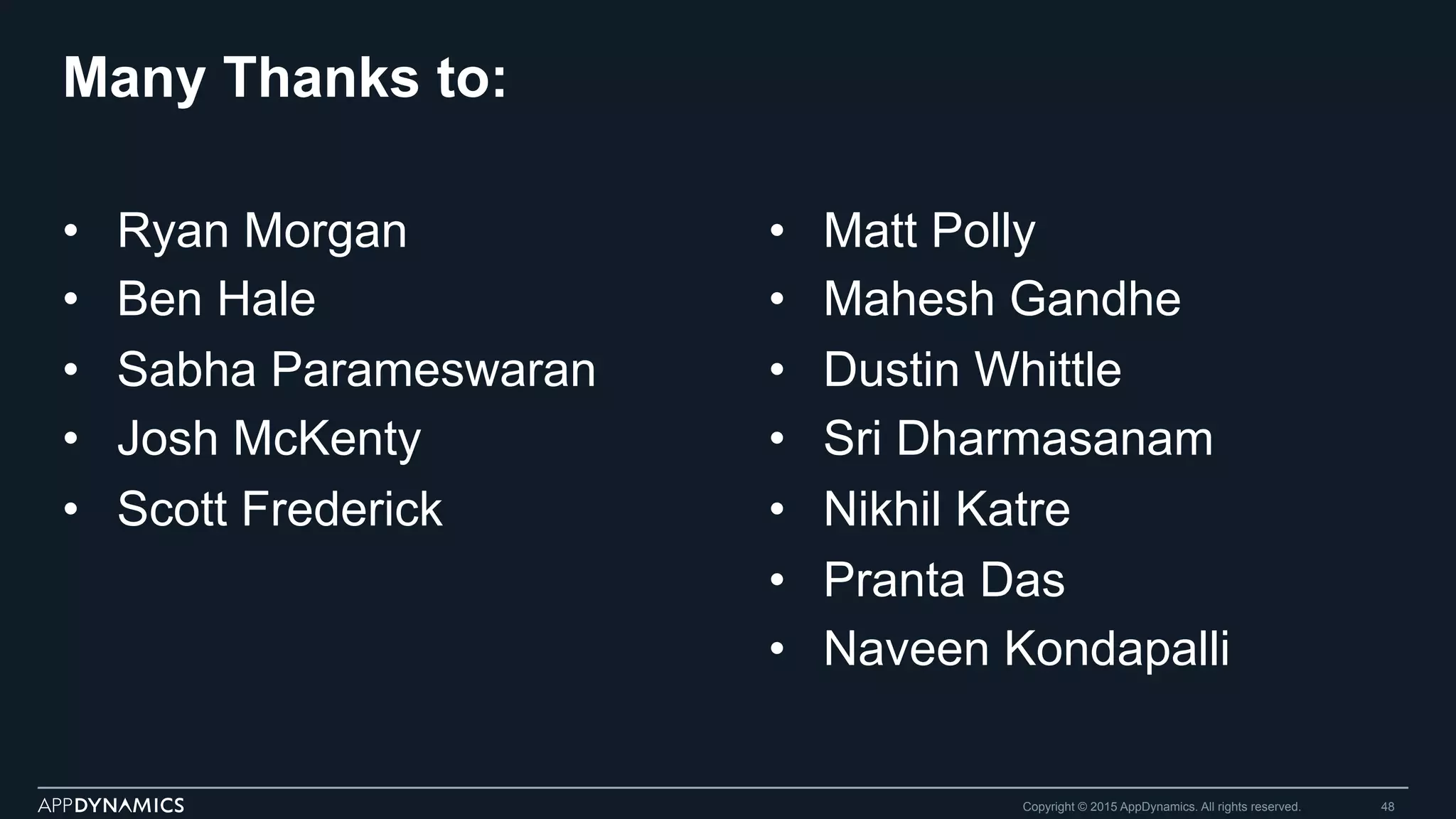

Many Thanks to:
•  Ryan Morgan
•  Ben Hale
•  Sabha Parameswaran
•  Josh McKenty
•  Scott Frederick
•  Matt Polly
•  Mahesh Gandhe
•  Dustin Whittle
•  Sri Dharmasanam
•  Nikhil Katre
•  Pranta Das
•  Naveen Kondapalli

Q&A
