Monitoring a cloud native platform feature
This document discusses making application monitoring a native feature of cloud platforms. It describes integrating the Dynatrace application monitoring agent into buildpacks used by Cloud Foundry so it is automatically injected into applications. This would provide full-stack visibility from code to services to infrastructure for Cloud Foundry applications and clusters. The document also discusses deploying the Dynatrace agent to all VMs managed by BOSH to monitor all components of Cloud Foundry deployments.
More Related Content
Similar to Monitoring a cloud native platform feature
Monitoring a cloud native platform feature
- 1.
- 2. confidential about:me § Linz, Austria § Software Engineering background §Software Quality Models § Shift to “Ops” topics, Cloud & Containers

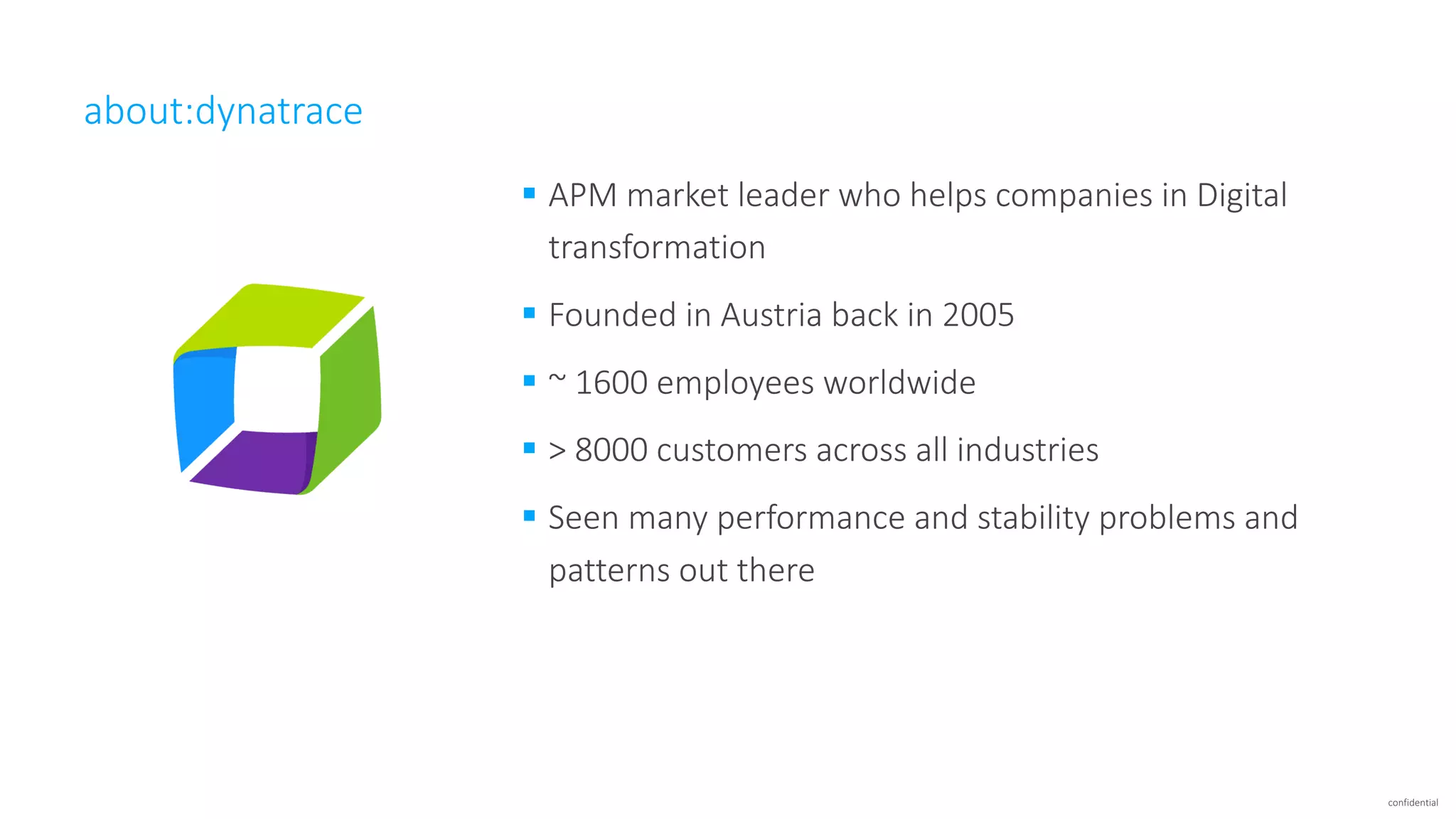

- 3. confidential about:dynatrace § APM market leader who helps companies in Digital transformation § Founded in Austria back in 2005 §~ 1600 employees worldwide § > 8000 customers across all industries § Seen many performance and stability problems and patterns out there
- 4.
- 5.
- 6.

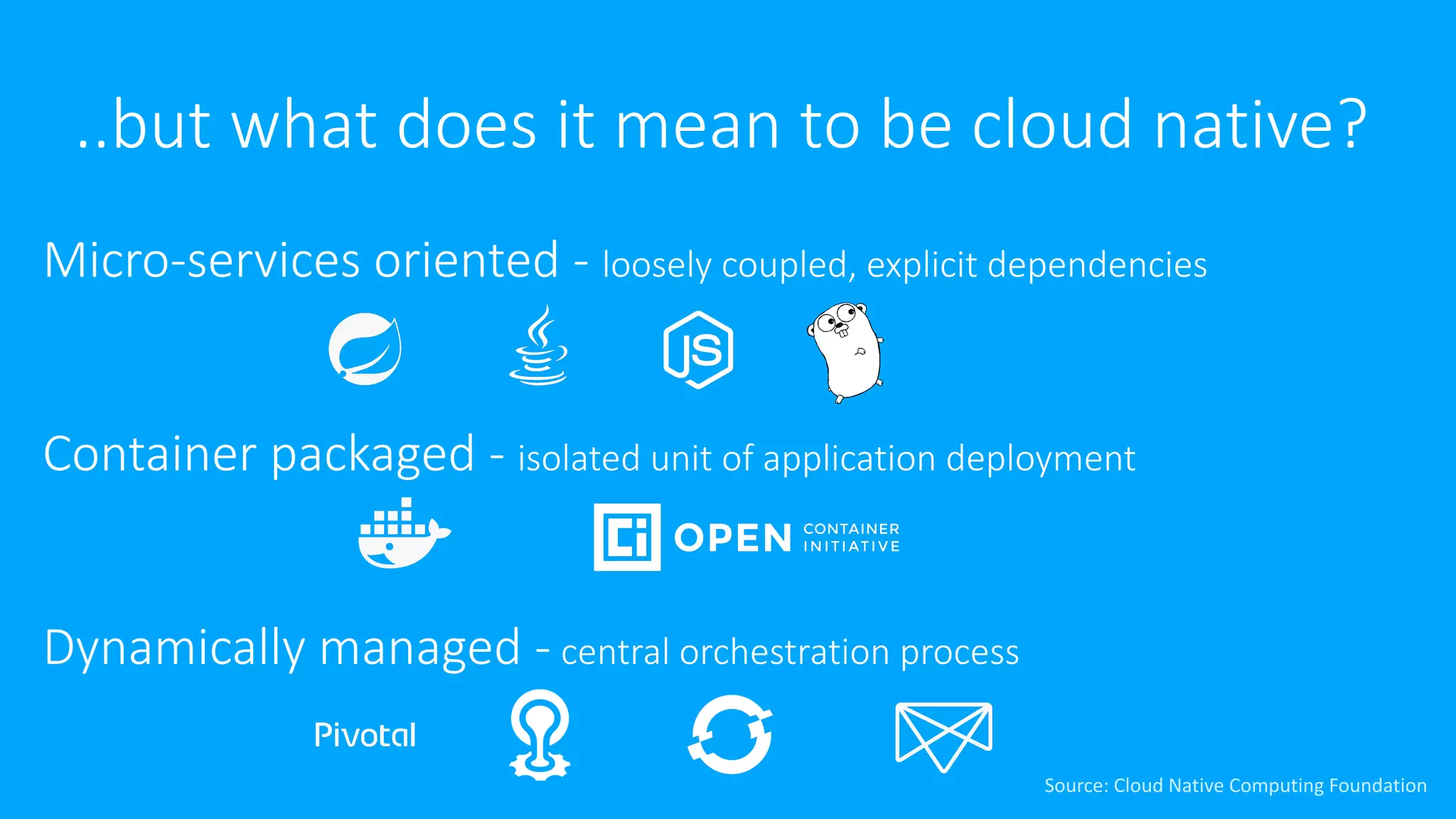

- 7. ..but what does it mean to be cloud native? Micro-services oriented - loosely coupled, explicit dependencies Container packaged - isolated unit of application deployment Dynamically managed -central orchestration process Source: Cloud Native Computing Foundation

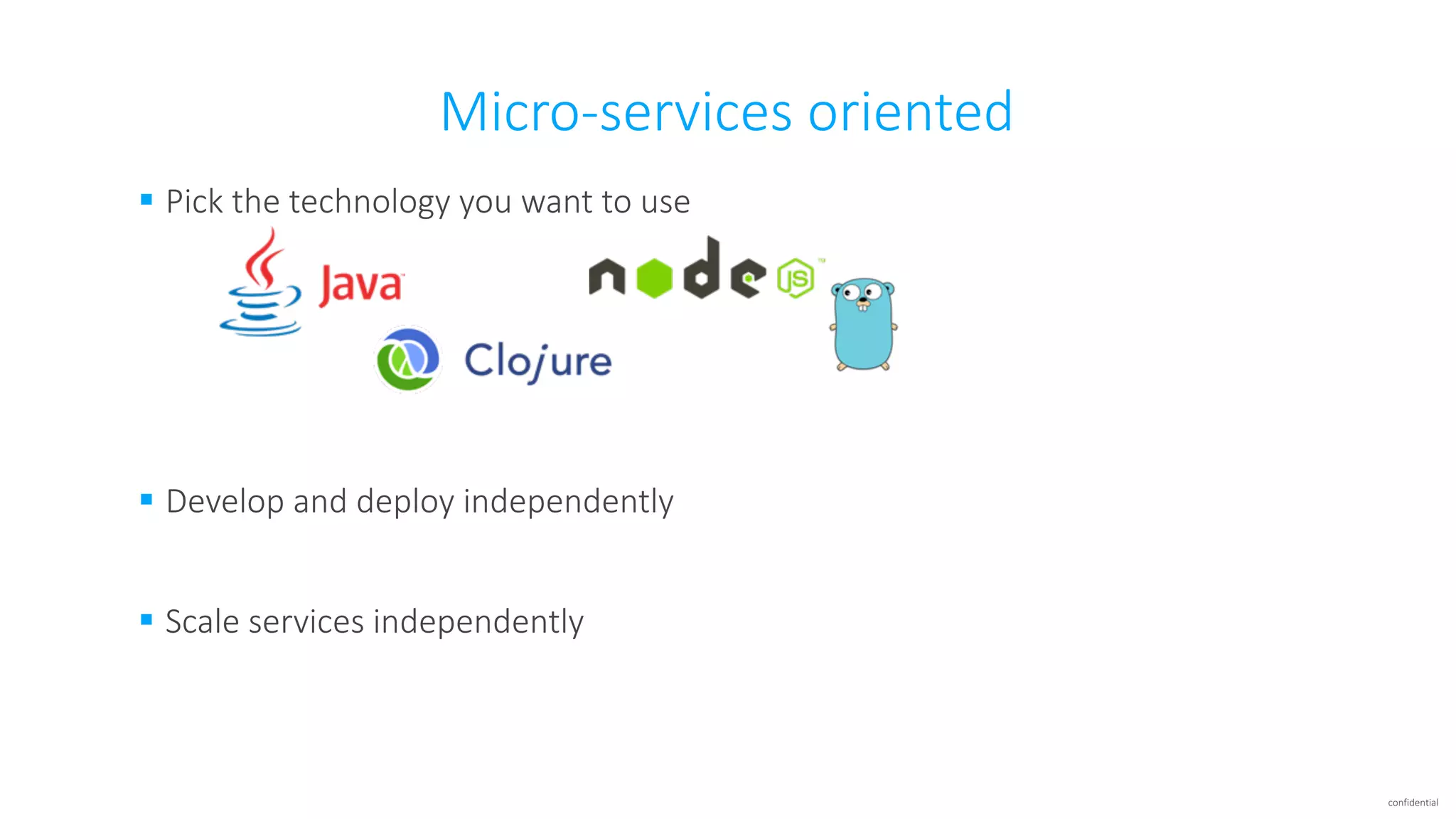

- 8. confidential Micro-services oriented § Pick the technology you want to use § Develop and deploy independently §Scale services independently

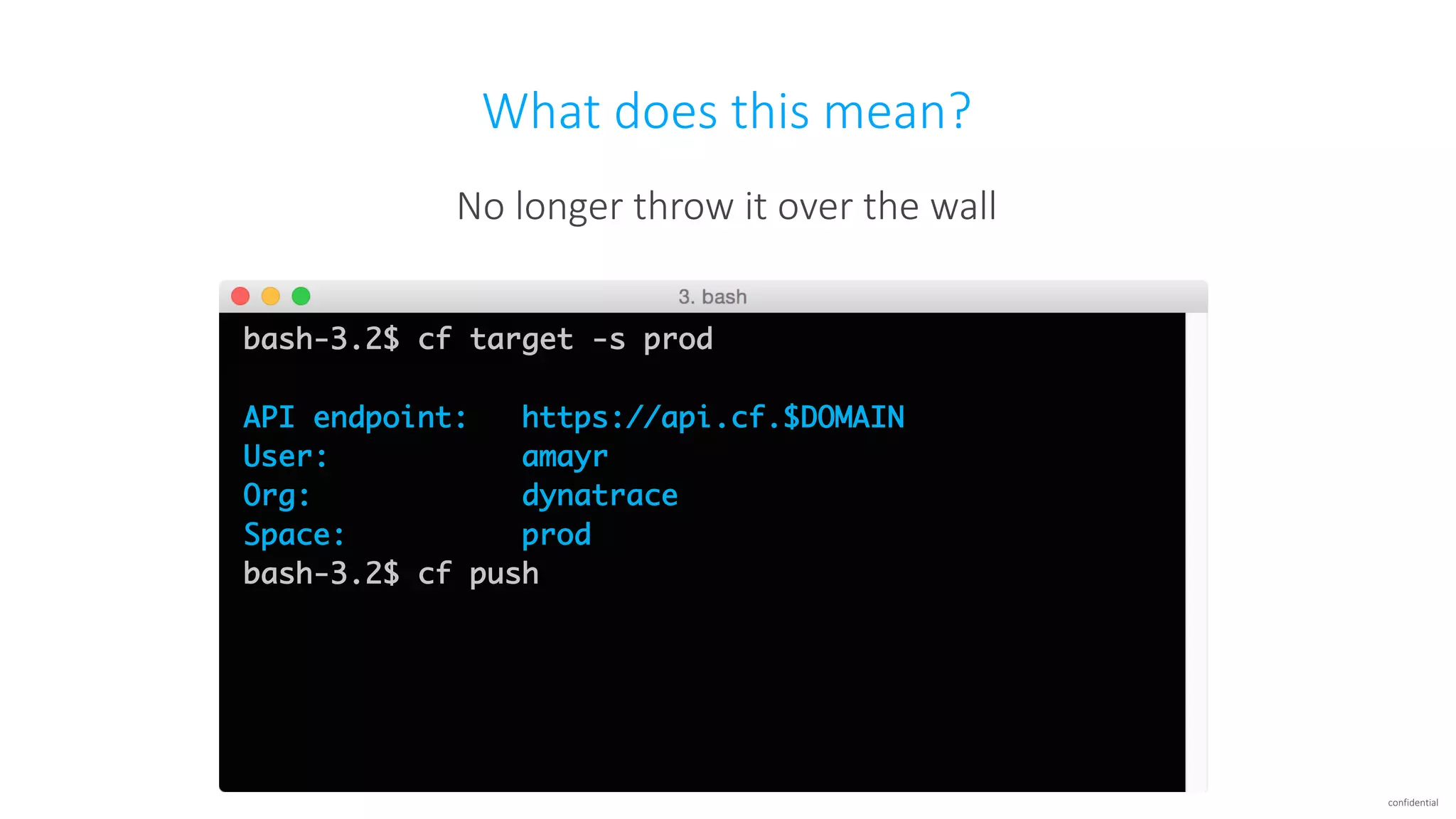

- 9. confidential What does this mean? No longer throw it over the wall bash-3.2$ cf target-s prod API endpoint: https://api.cf.$DOMAIN User: amayr Org: dynatrace Space: prod bash-3.2$ cf push

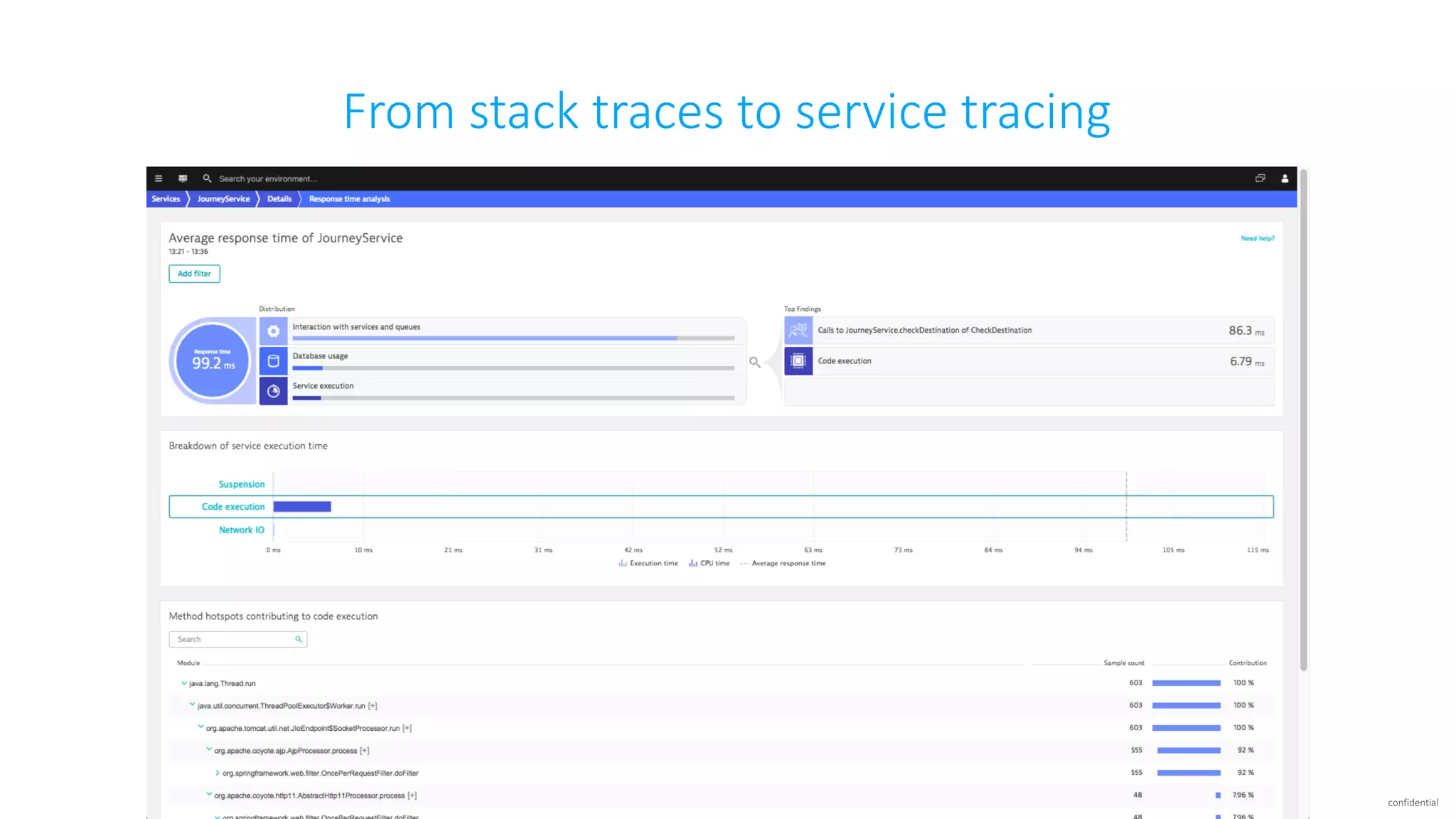

- 10.
- 11.
- 13.
- 14.
- 15.
- 16.

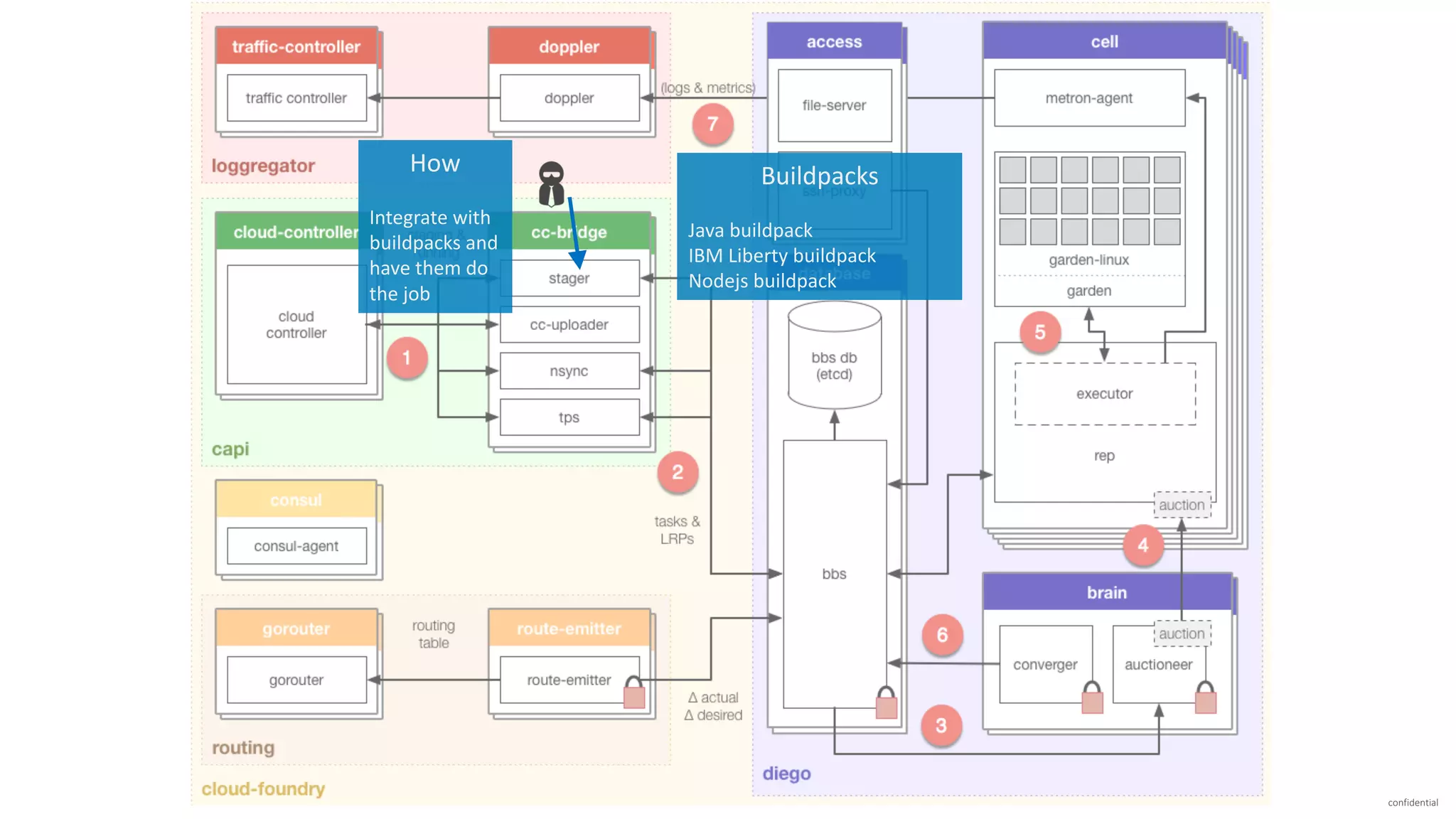

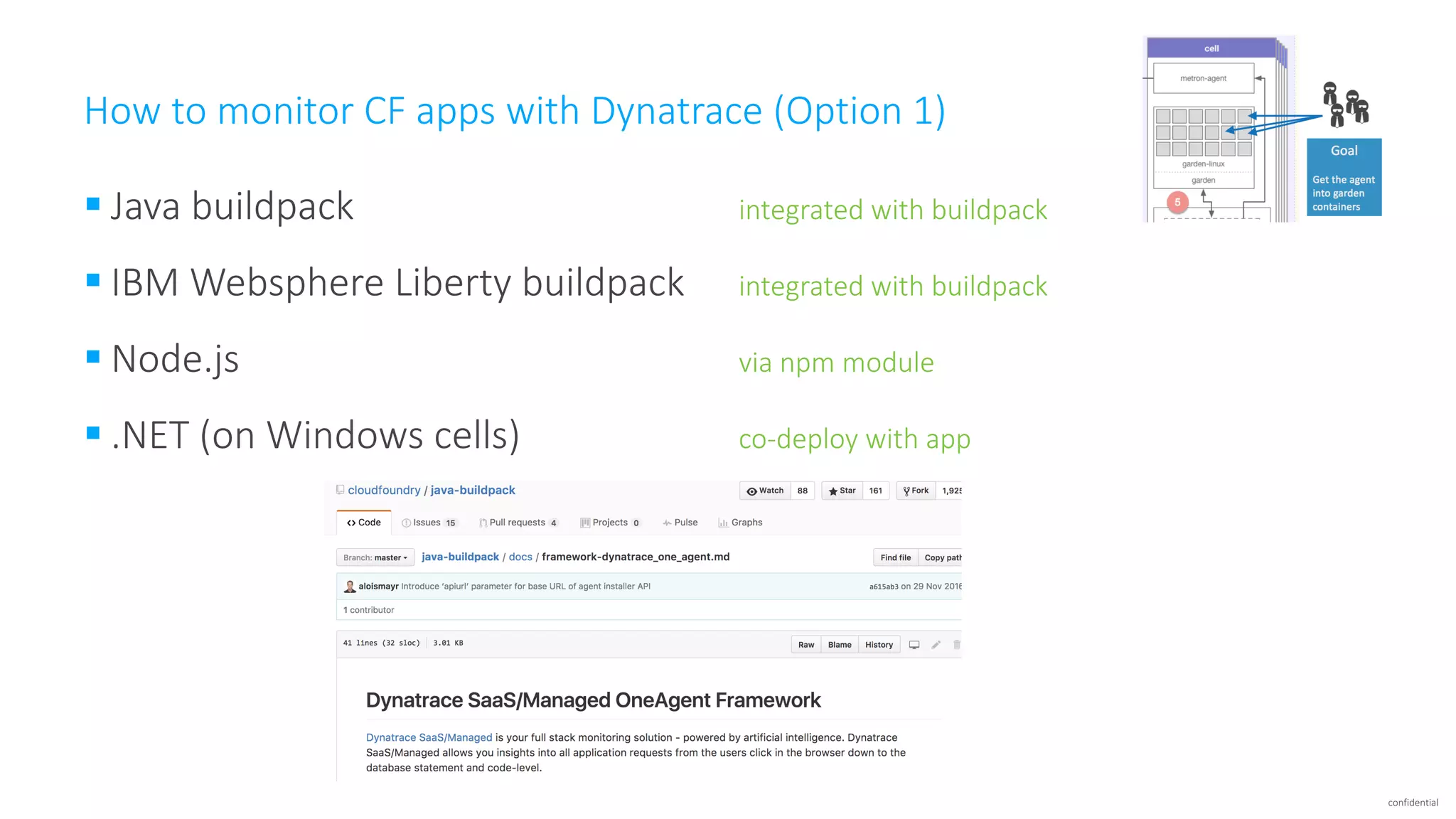

- 17. confidential How to monitor CF apps with Dynatrace (Option 1) § Java buildpack integrated with buildpack §IBM Websphere Liberty buildpack integrated with buildpack § Node.js via npm module § .NET (on Windows cells) co-deploy with app

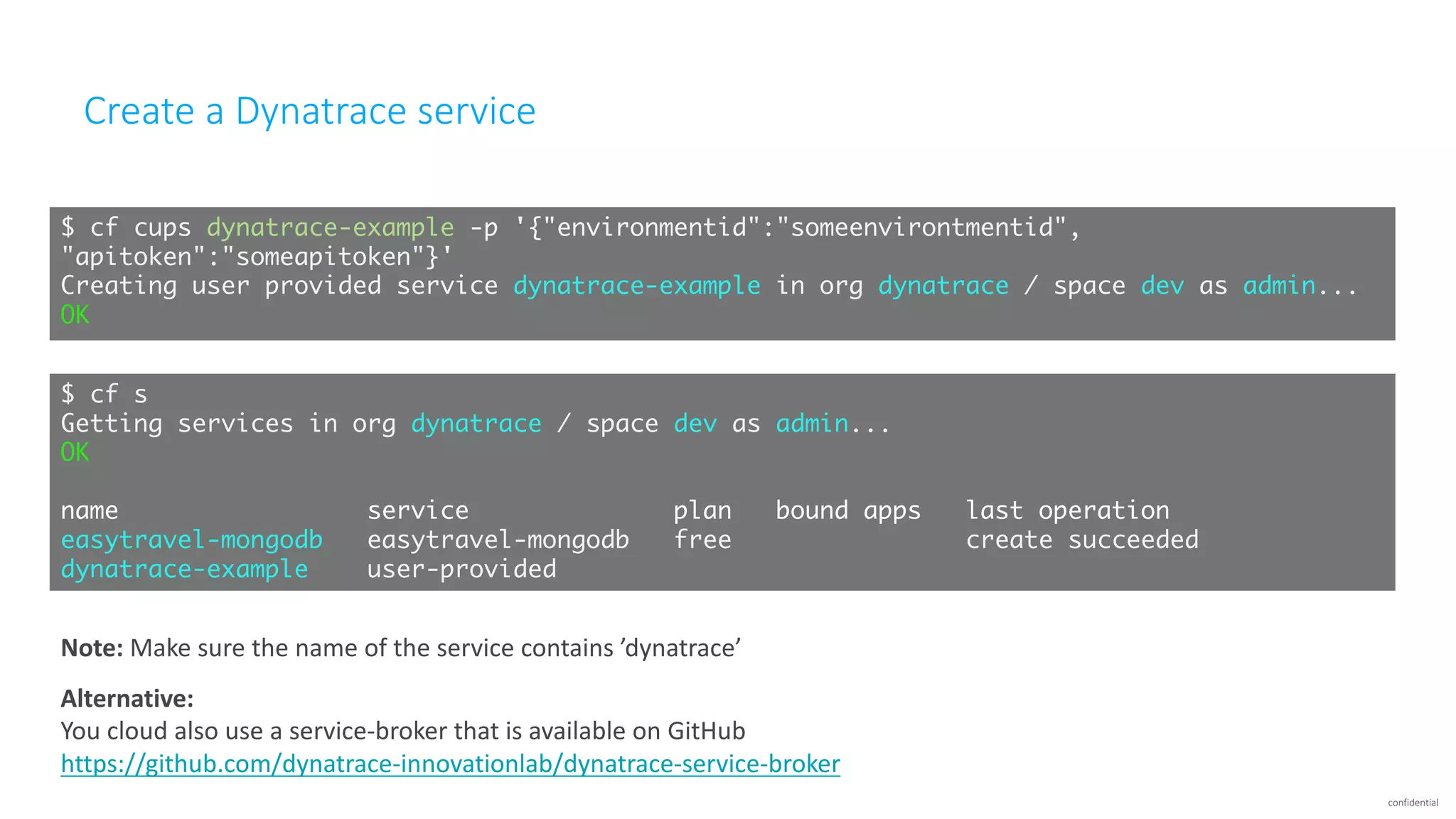

- 18. confidential Create a Dynatrace service $ cf cupsdynatrace-example -p '{"environmentid":"someenvirontmentid", "apitoken":"someapitoken"}' Creating user provided service dynatrace-example in org dynatrace / space dev as admin... OK $ cf s Getting services in org dynatrace / space dev as admin... OK name service plan bound apps last operation easytravel-mongodb easytravel-mongodb free create succeeded dynatrace-example user-provided Alternative: You cloud also use a service-broker that is available on GitHub https://github.com/dynatrace-innovationlab/dynatrace-service-broker Note: Make sure the name of the service contains ’dynatrace’
- 19.

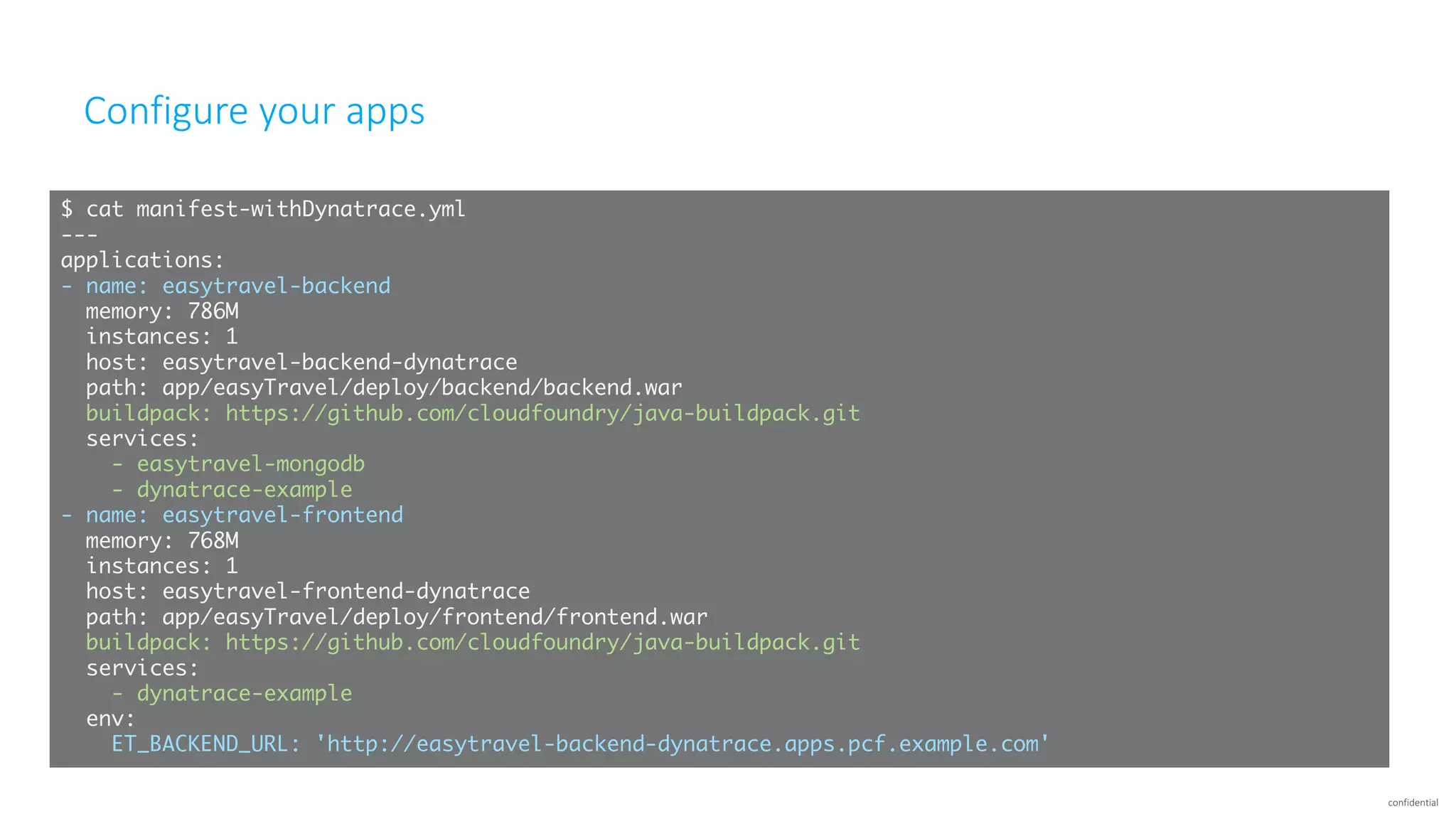

- 20. confidential Configure your apps $ cat manifest-withDynatrace.yml --- applications: -name: easytravel-backend memory: 786M instances: 1 host: easytravel-backend-dynatrace path: app/easyTravel/deploy/backend/backend.war buildpack: https://github.com/cloudfoundry/java-buildpack.git services: - easytravel-mongodb - dynatrace-example - name: easytravel-frontend memory: 768M instances: 1 host: easytravel-frontend-dynatrace path: app/easyTravel/deploy/frontend/frontend.war buildpack: https://github.com/cloudfoundry/java-buildpack.git services: - dynatrace-example env: ET_BACKEND_URL: 'http://easytravel-backend-dynatrace.apps.pcf.example.com'

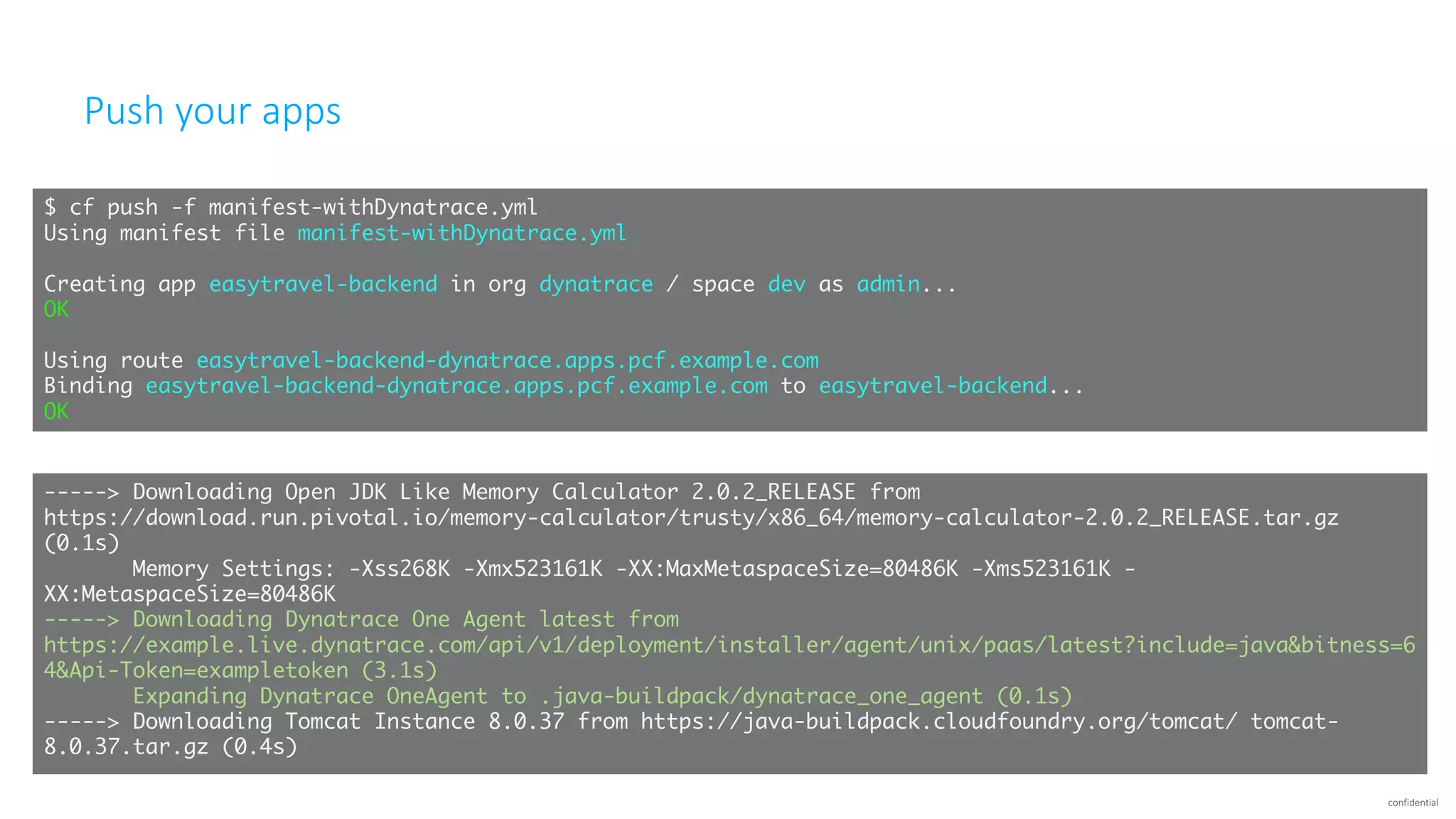

- 21. confidential Push your apps $ cf push-f manifest-withDynatrace.yml Using manifest file manifest-withDynatrace.yml Creating app easytravel-backend in org dynatrace / space dev as admin... OK Using route easytravel-backend-dynatrace.apps.pcf.example.com Binding easytravel-backend-dynatrace.apps.pcf.example.com to easytravel-backend... OK -----> Downloading Open JDK Like Memory Calculator 2.0.2_RELEASE from https://download.run.pivotal.io/memory-calculator/trusty/x86_64/memory-calculator-2.0.2_RELEASE.tar.gz (0.1s) Memory Settings: -Xss268K -Xmx523161K -XX:MaxMetaspaceSize=80486K -Xms523161K - XX:MetaspaceSize=80486K -----> Downloading Dynatrace One Agent latest from https://example.live.dynatrace.com/api/v1/deployment/installer/agent/unix/paas/latest?include=java&bitness=6 4&Api-Token=exampletoken (3.1s) Expanding Dynatrace OneAgent to .java-buildpack/dynatrace_one_agent (0.1s) -----> Downloading Tomcat Instance 8.0.37 from https://java-buildpack.cloudfoundry.org/tomcat/ tomcat- 8.0.37.tar.gz (0.4s)
- 22.
- 23.
- 24.
- 25.

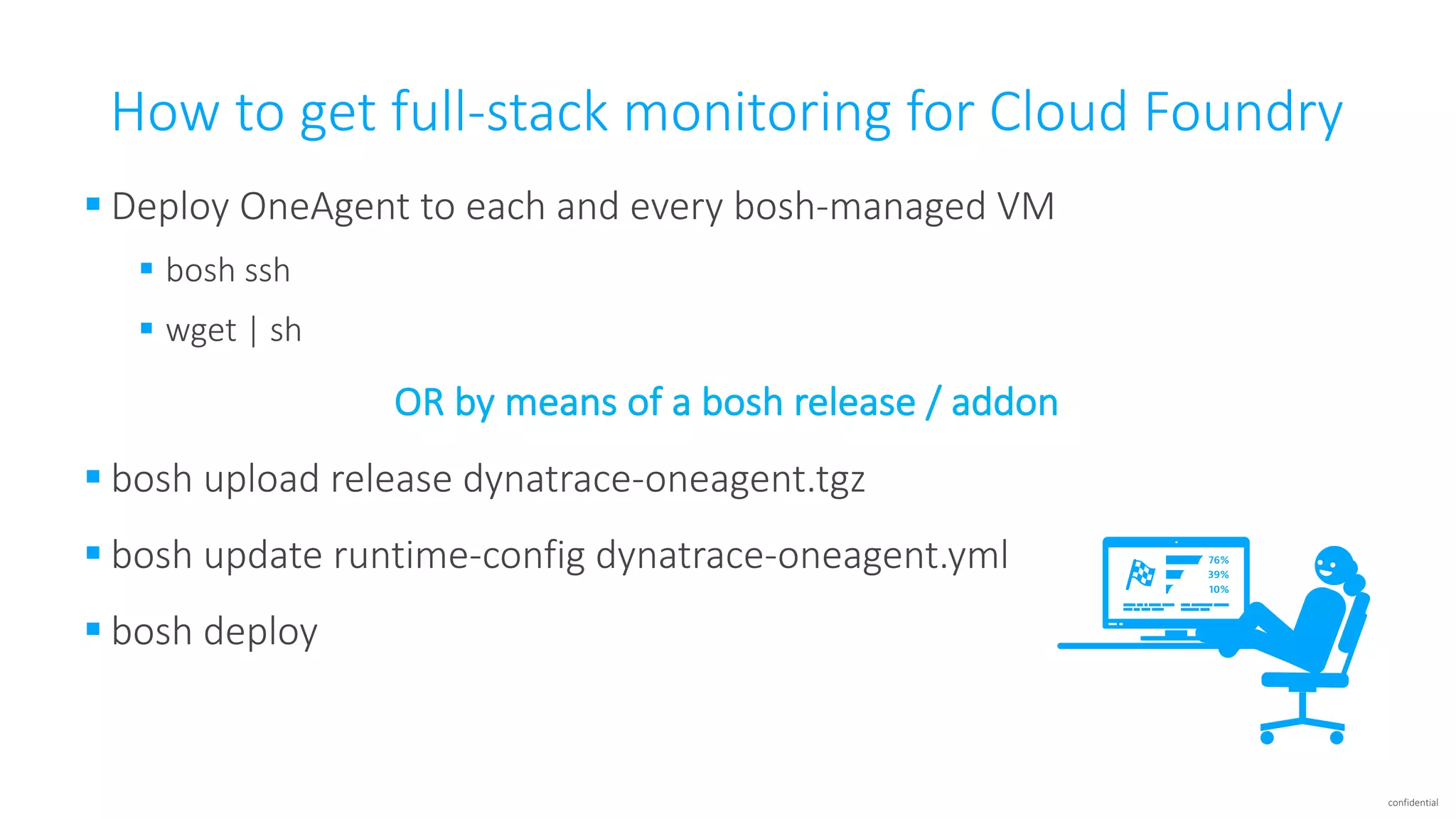

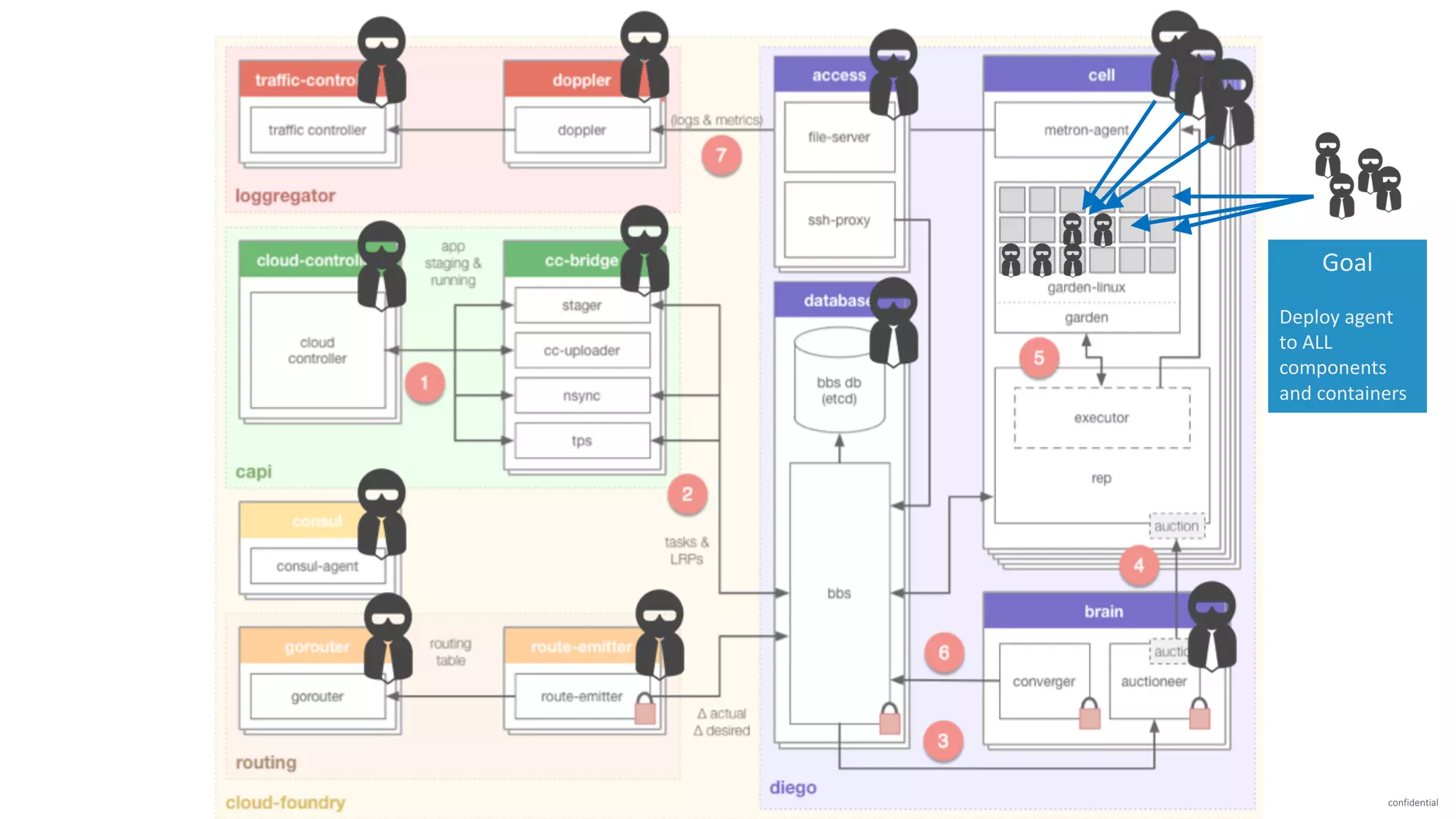

- 26. confidential How to get full-stack monitoring for Cloud Foundry § Deploy OneAgent to each and every bosh-managed VM § bosh ssh §wget | sh OR by means of a bosh release / addon § bosh upload release dynatrace-oneagent.tgz § bosh update runtime-config dynatrace-oneagent.yml § bosh deploy

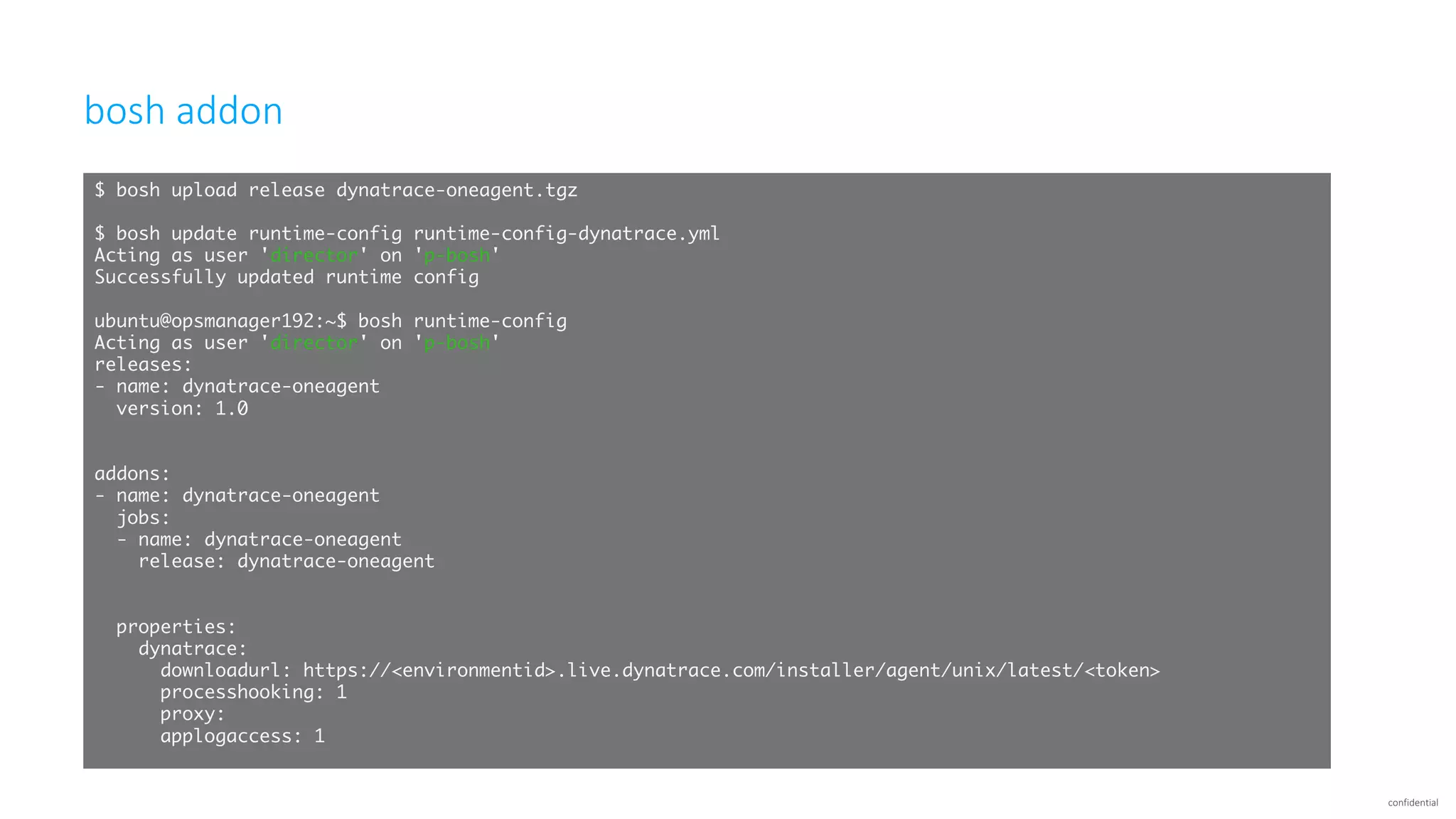

- 27. confidential bosh addon $ bosh uploadrelease dynatrace-oneagent.tgz $ bosh update runtime-config runtime-config-dynatrace.yml Acting as user 'director' on 'p-bosh' Successfully updated runtime config ubuntu@opsmanager192:~$ bosh runtime-config Acting as user 'director' on 'p-bosh' releases: - name: dynatrace-oneagent version: 1.0 addons: - name: dynatrace-oneagent jobs: - name: dynatrace-oneagent release: dynatrace-oneagent properties: dynatrace: downloadurl: https://<environmentid>.live.dynatrace.com/installer/agent/unix/latest/<token> processhooking: 1 proxy: applogaccess: 1
- 28.
- 29.
- 30.
- 31.
- 32.
- 33.
- 34.
