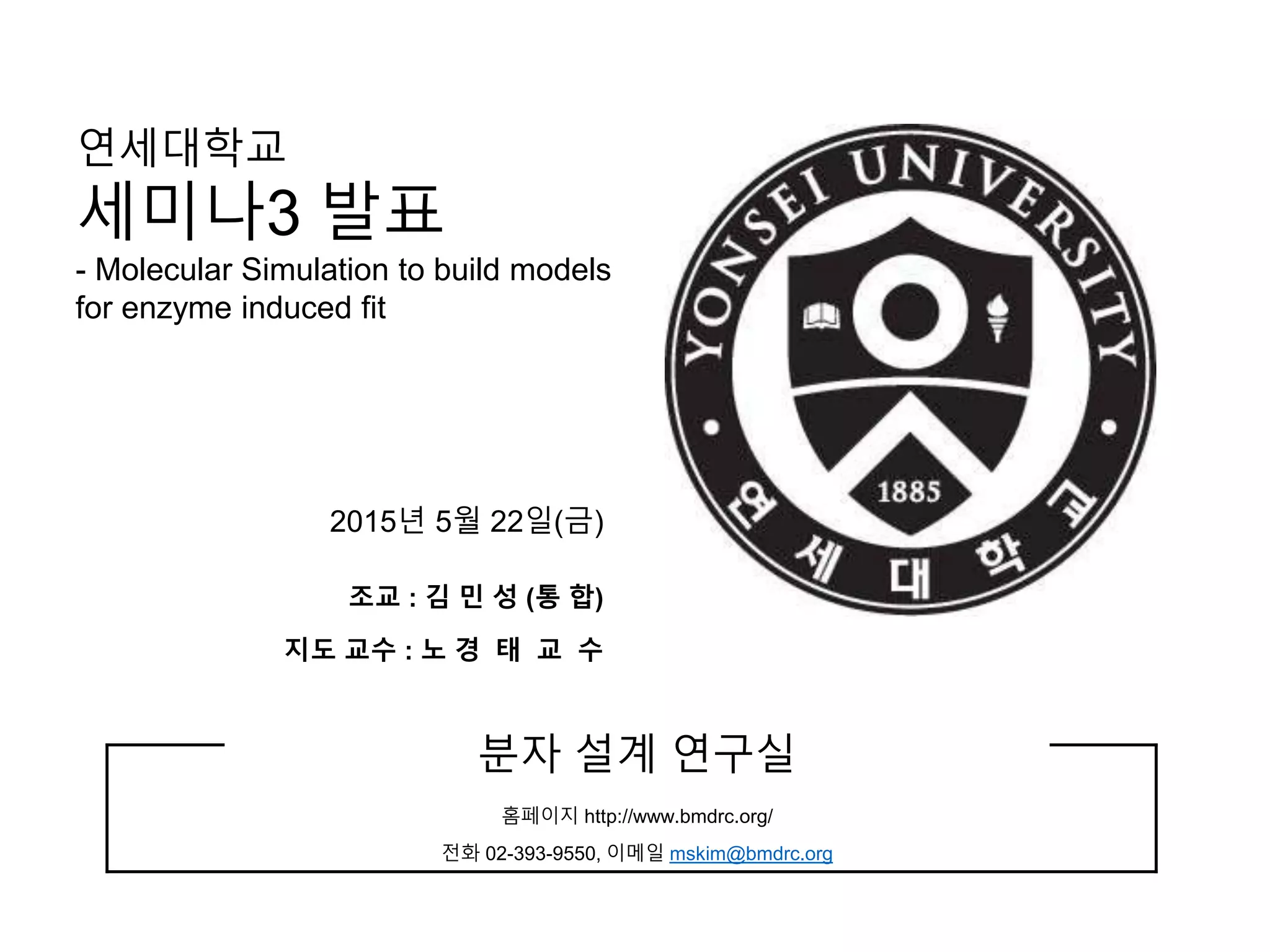

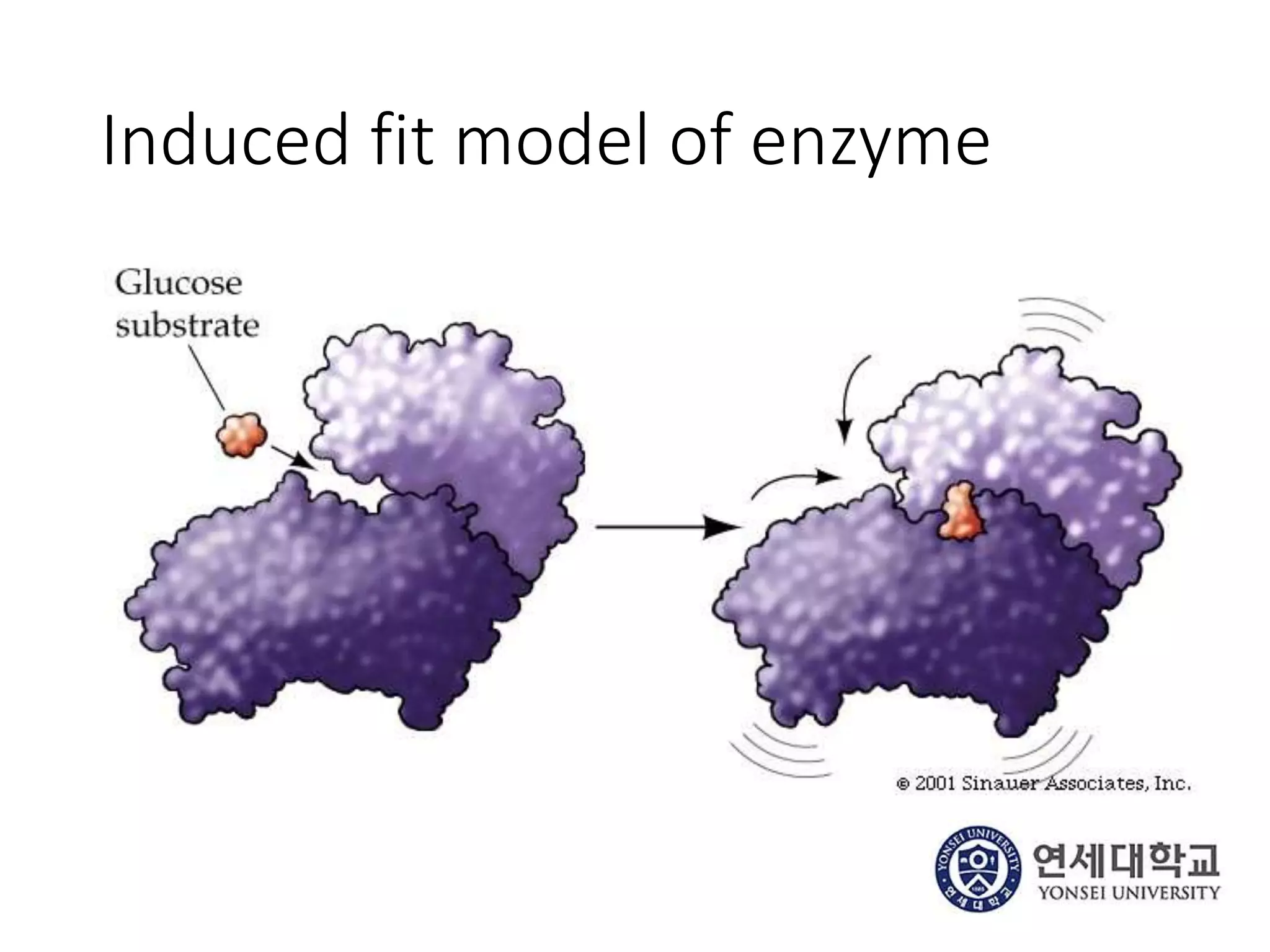

Molecular Simulation to build models for enzyme induced fit

분자 설계 연구실
홈페이지 http://www.bmdrc.org/
전화 02-393-9550, 이메일 mskim@bmdrc.org
연세대학교
세미나3 발표
- Molecular Simulation to build models
for enzyme induced fit
2015년 5월 22일(금)
조교 : 김 민 성 (통 합)
지도 교수 : 노 경 태 교 수

Lab : 공학관B408
Phone : 02-2123-7739
Mail : ktno@yonsei.ac.kr
Homepage : http://www.csblab.or.kr

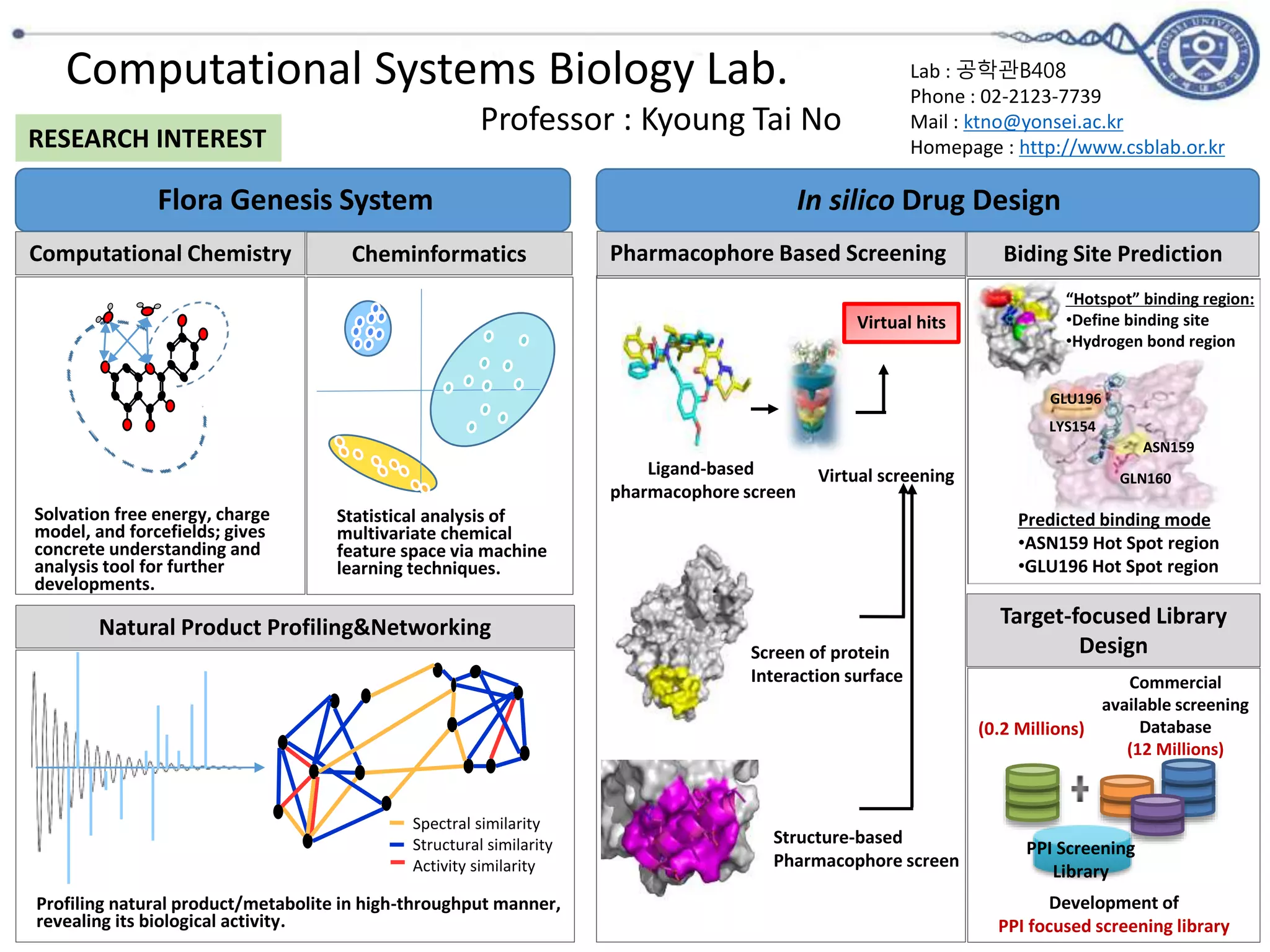

Computational Systems Biology Lab.
Professor : Kyoung Tai No
Computational Chemistry Cheminformatics
Solvation free energy, charge
model, and forcefields; gives
concrete understanding and
analysis tool for further
developments.
Statistical analysis of
multivariate chemical
feature space via machine
learning techniques.
Spectral similarity
Structural similarity
Activity similarity
Natural Product Profiling&Networking
Profiling natural product/metabolite in high-throughput manner,
revealing its biological activity.
Commercial
available screening
Database
(12 Millions)
PPI Screening
Library
Development of
PPI focused screening library
(0.2 Millions)
Target-focused Library
Design
Pharmacophore Based Screening
Structure-based
Pharmacophore screen
Screen of protein
Interaction surface
Ligand-based
pharmacophore screen
Virtual screening
Virtual hits
Predicted binding mode
•ASN159 Hot Spot region
•GLU196 Hot Spot region
ASN159
GLN160
LYS154
GLU196

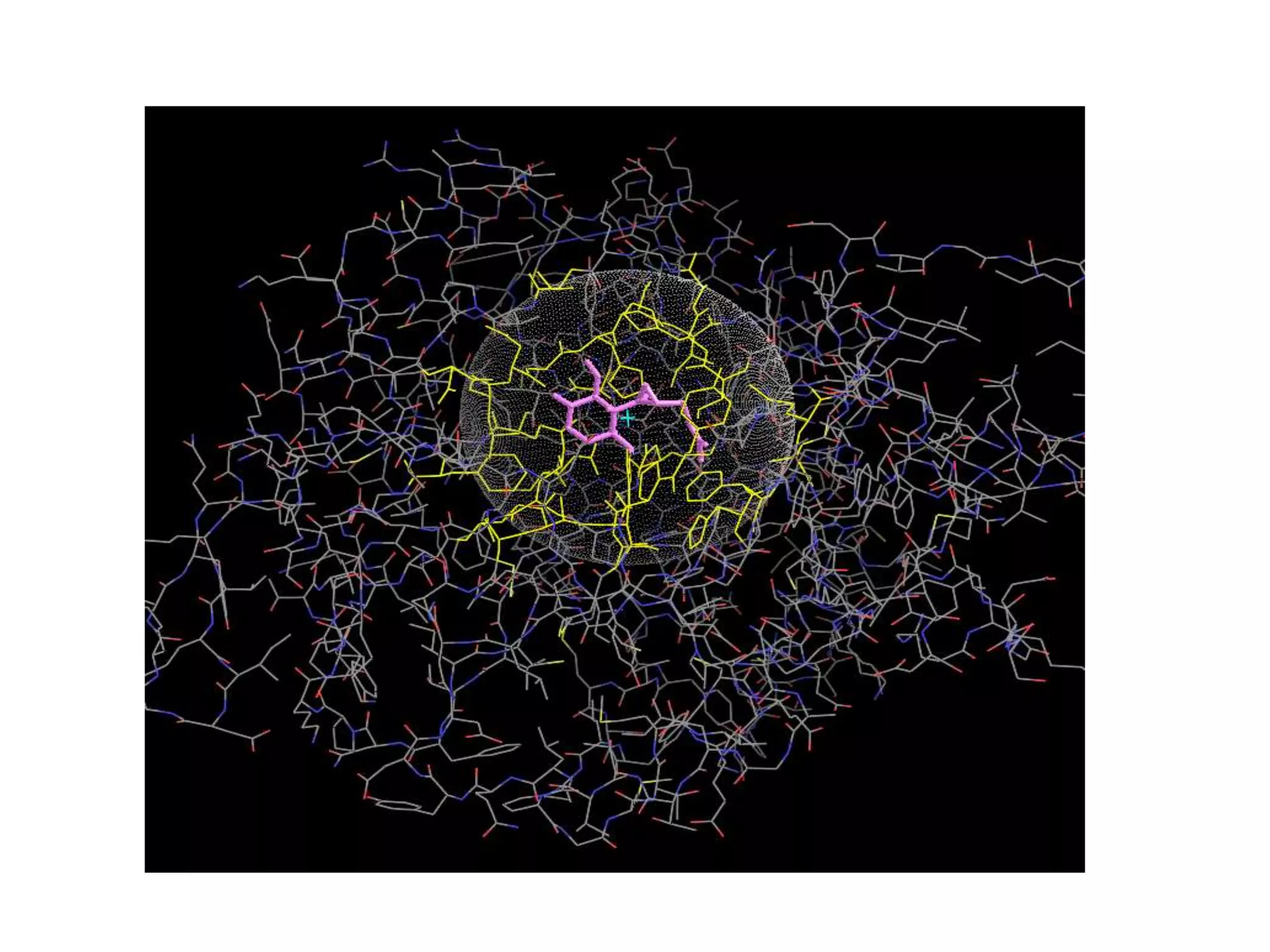

“Hotspot” binding region:
•Define binding site
•Hydrogen bond region
Biding Site Prediction
Flora Genesis System In silico Drug Design
RESEARCH INTEREST

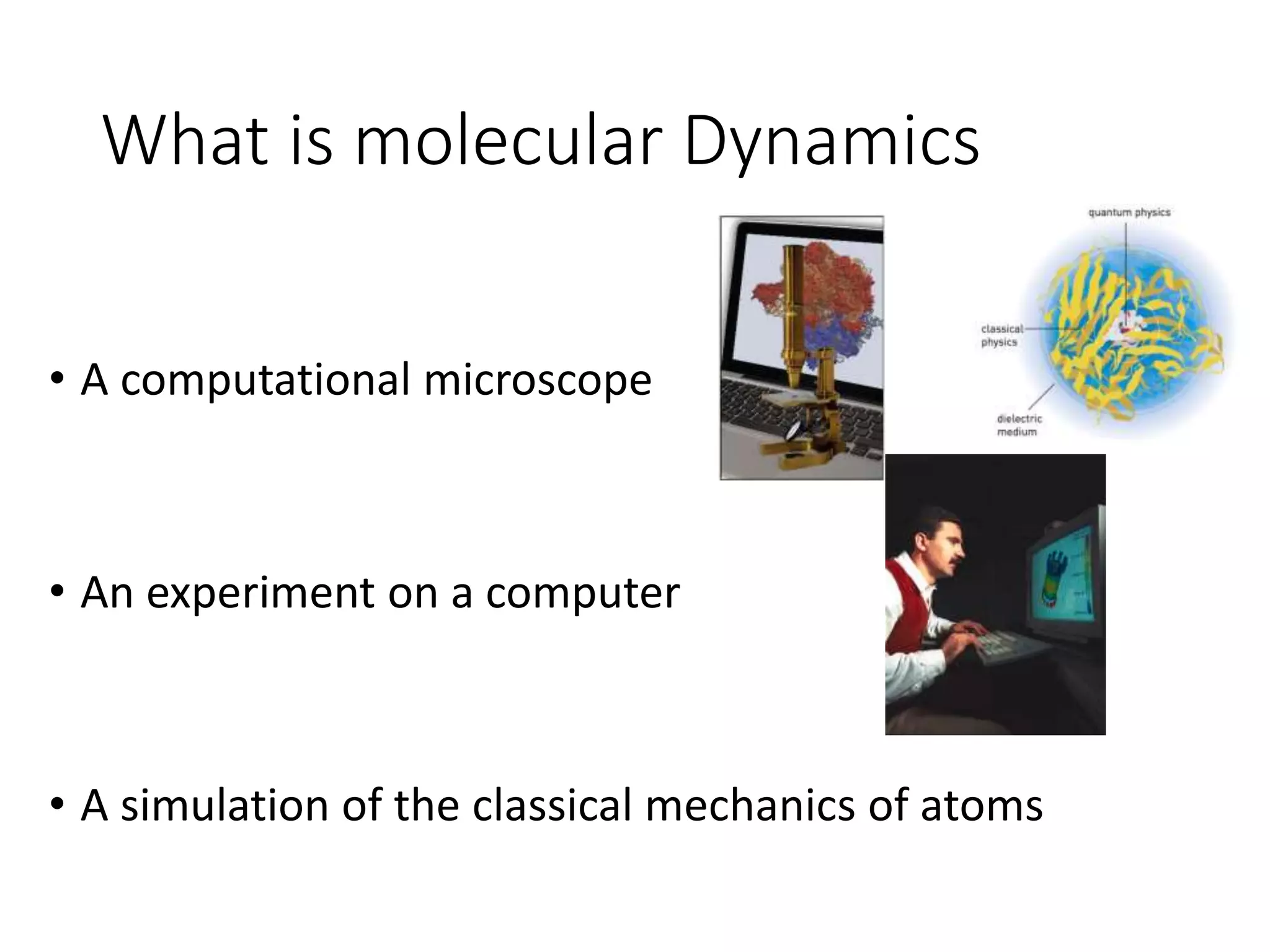

What is molecular Dynamics
• A computational microscope
• An experiment on a computer
• A simulation of the classical mechanics of atoms

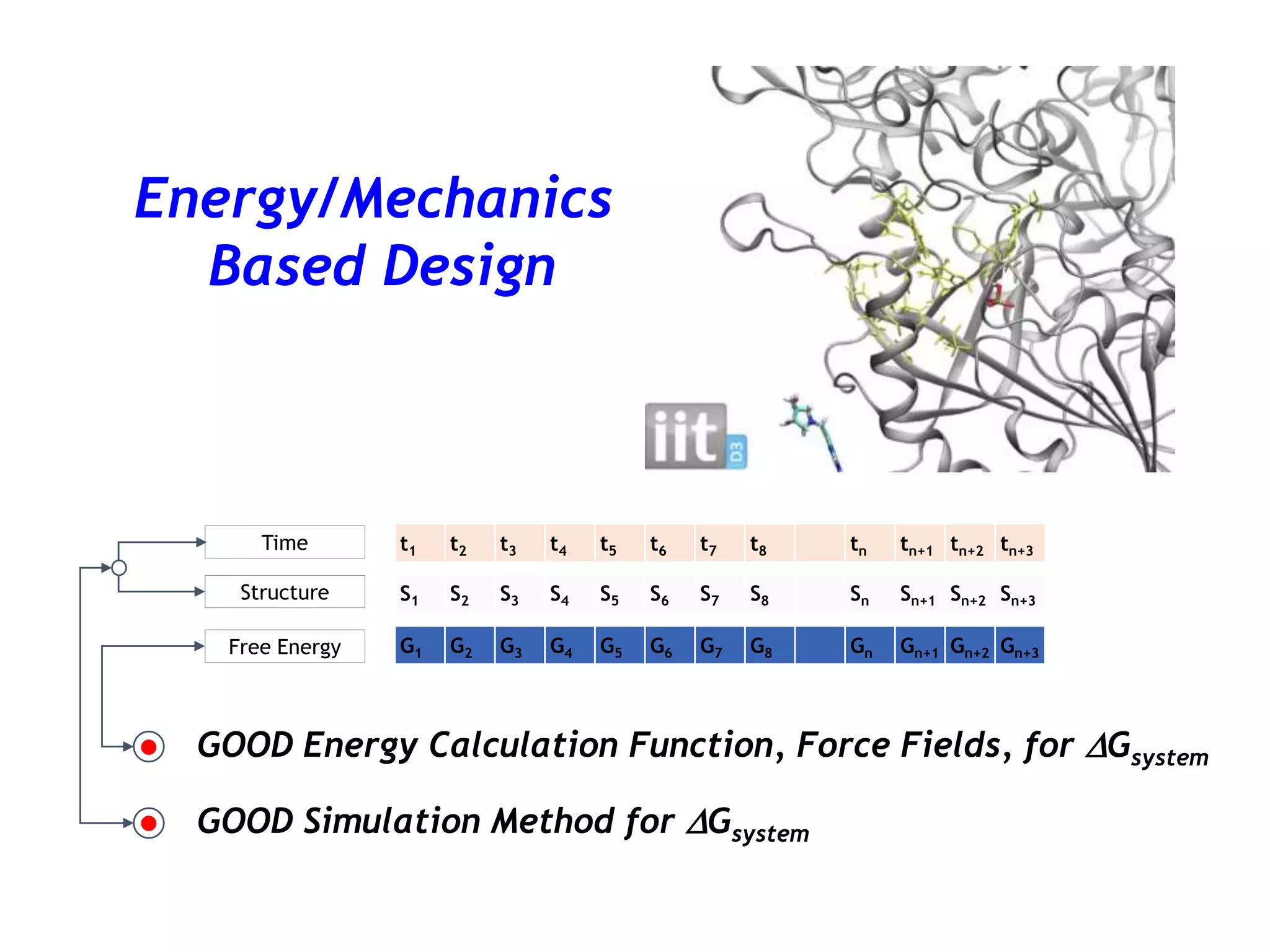

 GOOD Energy Calculation Function, Force Fields, for DGsystem
 GOOD Simulation Method for DGsystem
t1 t2 t3 t4 t5 t6 t7 t8 tn tn+1 tn+2 tn+3
S1 S2 S3 S4 S5 S6 S7 S8 Sn Sn+1 Sn+2 Sn+3
G1 G2 G3 G4 G5 G6 G7 G8 Gn Gn+1 Gn+2 Gn+3
Energy/Mechanics
Based Design
Time
Structure
Free Energy

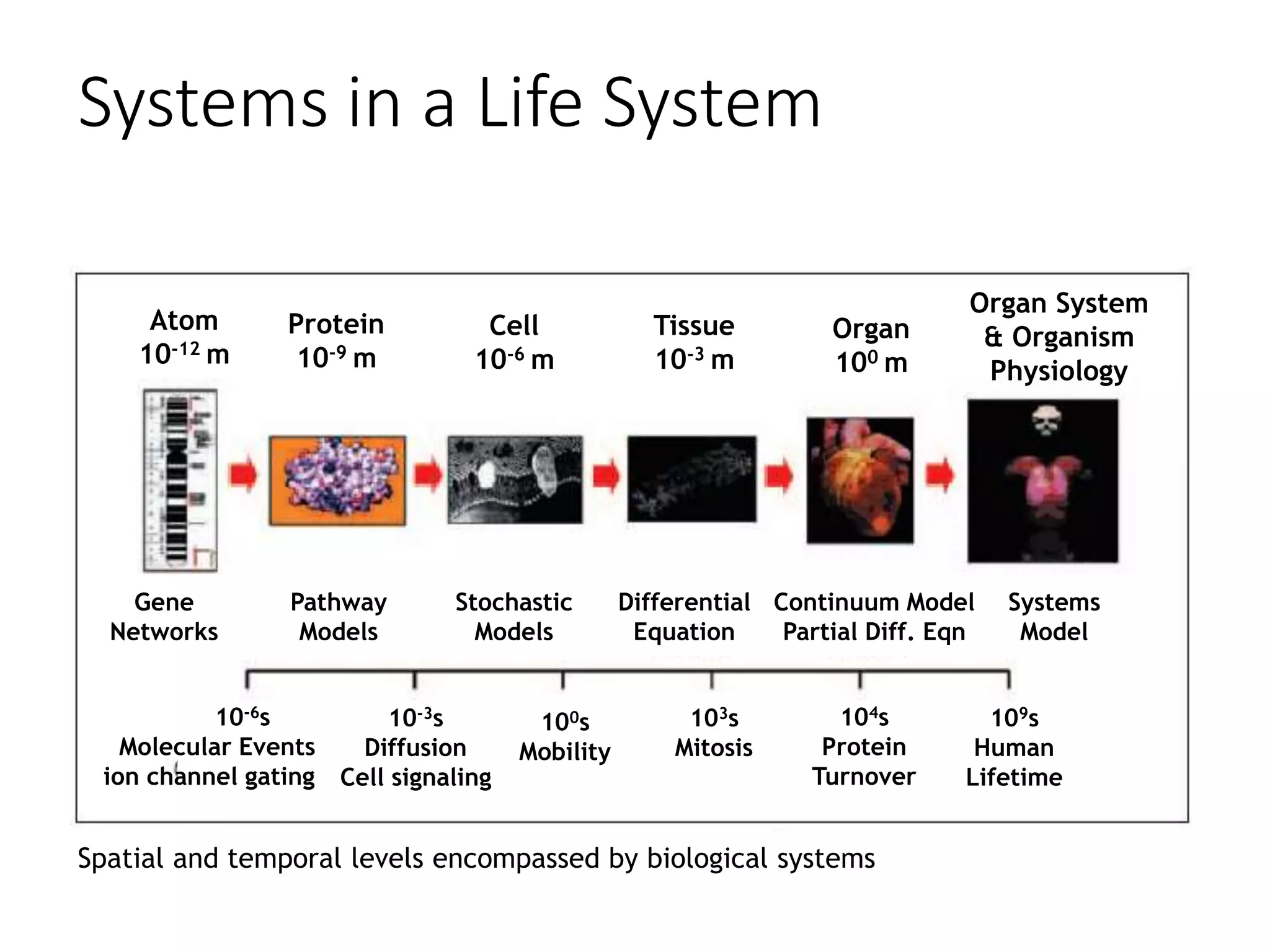

Systems in a Life System
Atom
10-12 m
Protein
10-9 m
Cell
10-6 m
Tissue
10-3 m
Organ
100 m
Organ System
& Organism
Physiology
Gene
Networks
Pathway
Models
Stochastic
Models
Differential
Equation
Continuum Model
Partial Diff. Eqn
Systems
Model
10-6s
Molecular Events
ion channel gating
10-3s
Diffusion
Cell signaling
100s
Mobility
103s
Mitosis
104s
Protein
Turnover
109s
Human
Lifetime
Spatial and temporal levels encompassed by biological systems

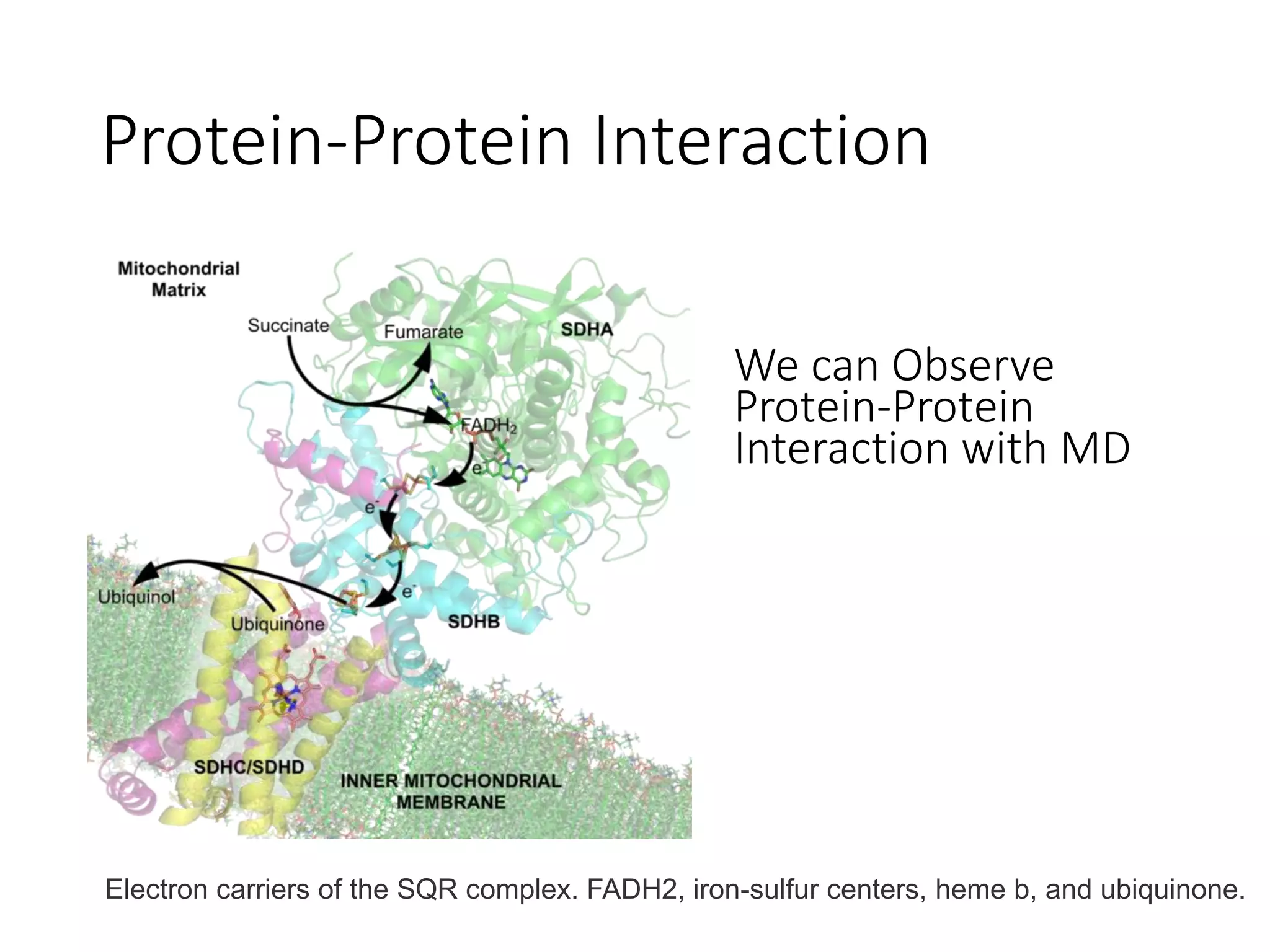

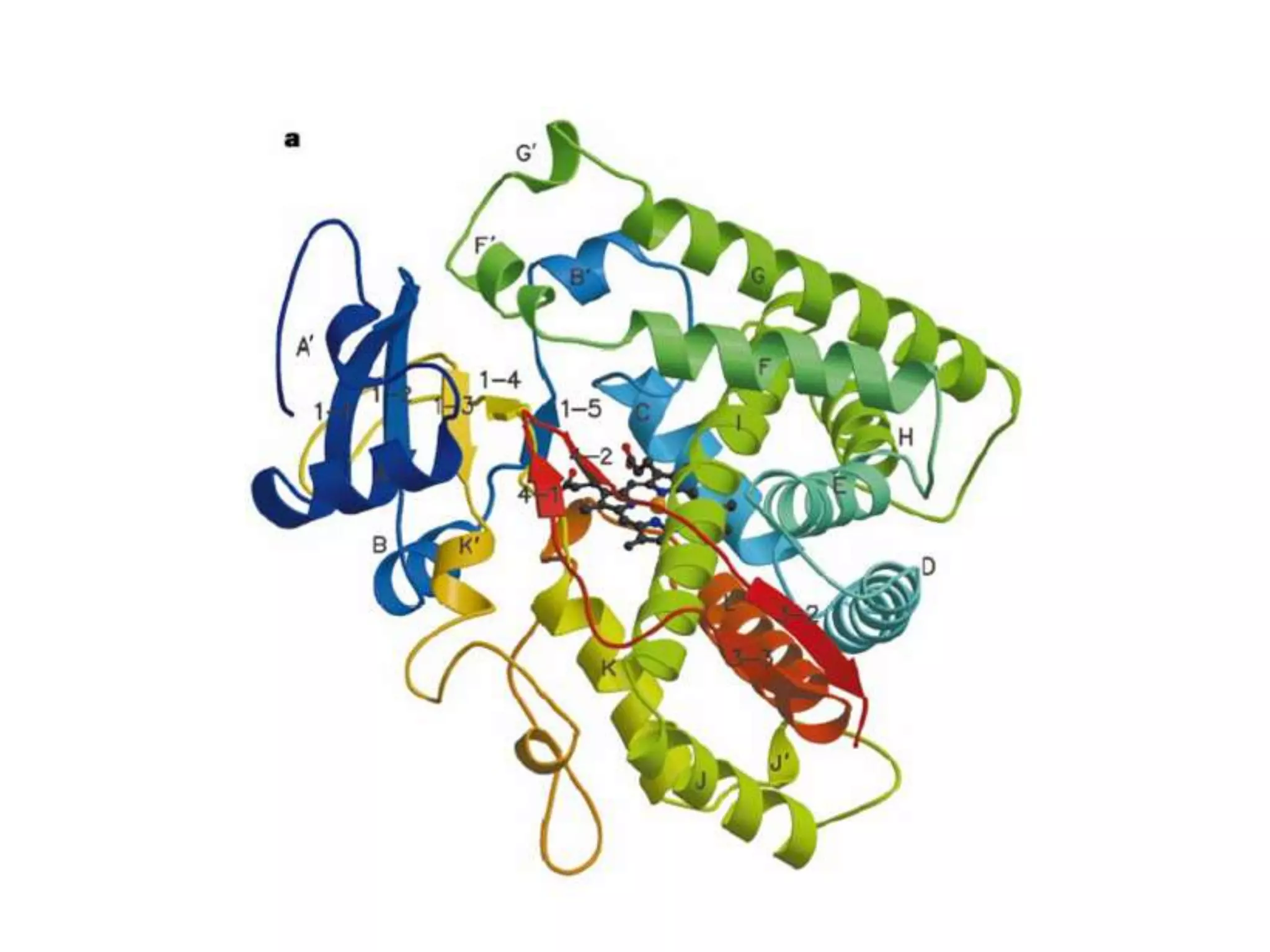

Protein-Protein Interaction
Electron carriers of the SQR complex. FADH2, iron-sulfur centers, heme b, and ubiquinone.
We can Observe
Protein-Protein
Interaction with MD

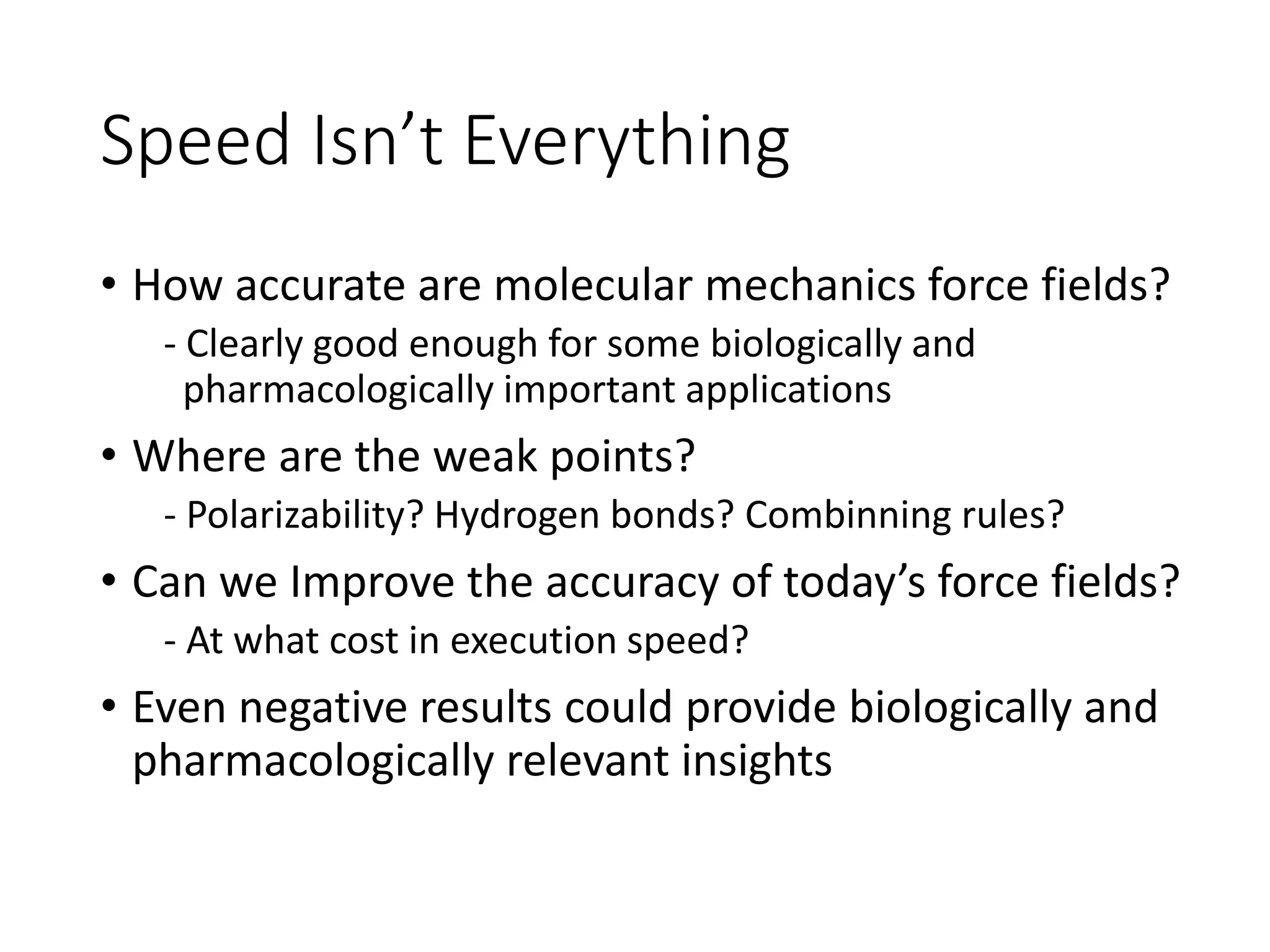

Speed Isn’t Everything
• How accurate are molecular mechanics force fields?
- Clearly good enough for some biologically and
pharmacologically important applications
• Where are the weak points?
- Polarizability? Hydrogen bonds? Combinning rules?
• Can we Improve the accuracy of today’s force fields?
- At what cost in execution speed?
• Even negative results could provide biologically and
pharmacologically relevant insights

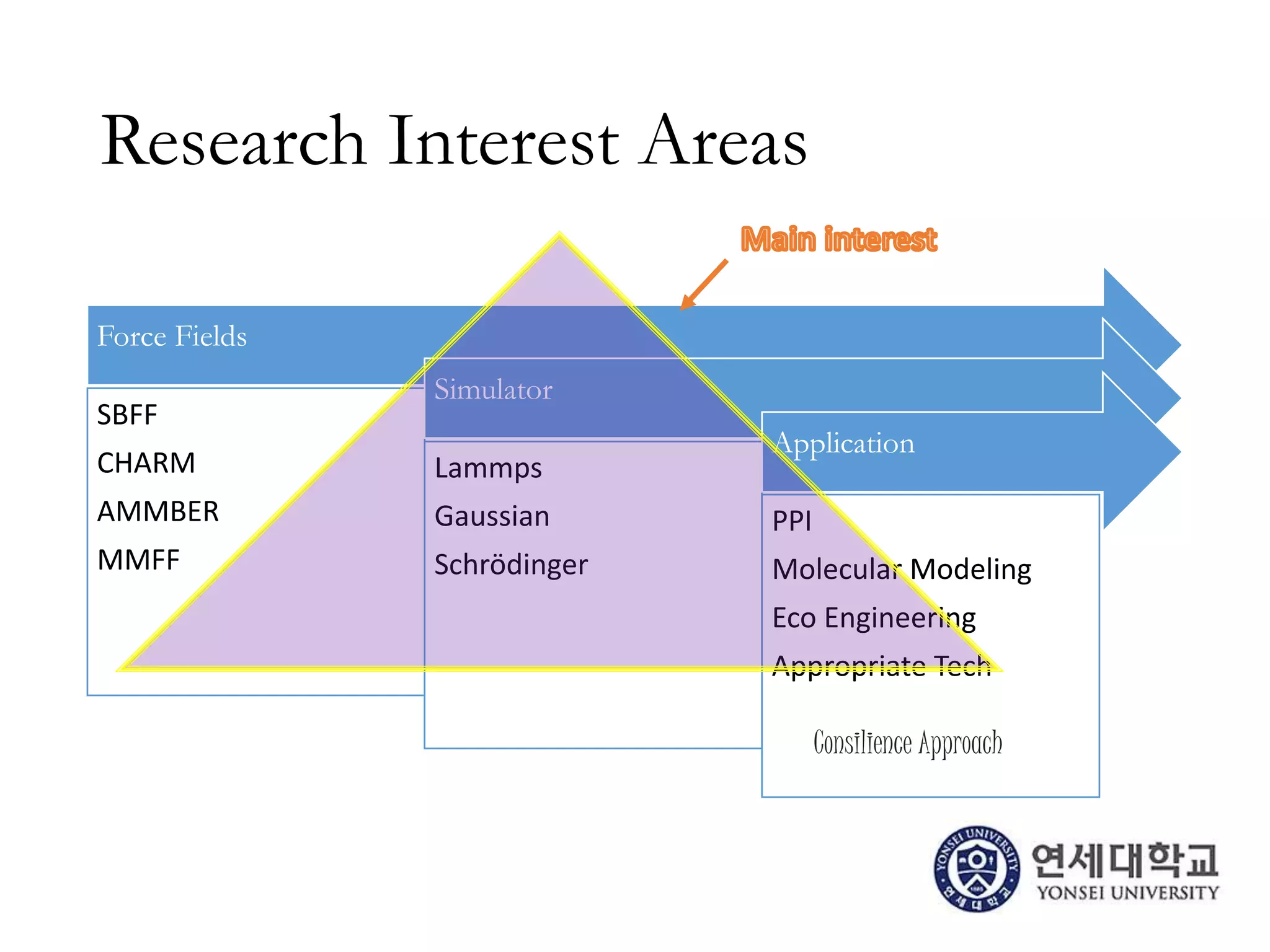

Research Interest Areas
Force Fields
SBFF
CHARM
AMMBER
MMFF
Simulator
Lammps
Gaussian
Schrödinger
Application
PPI
Molecular Modeling
Eco Engineering
Appropriate Tech

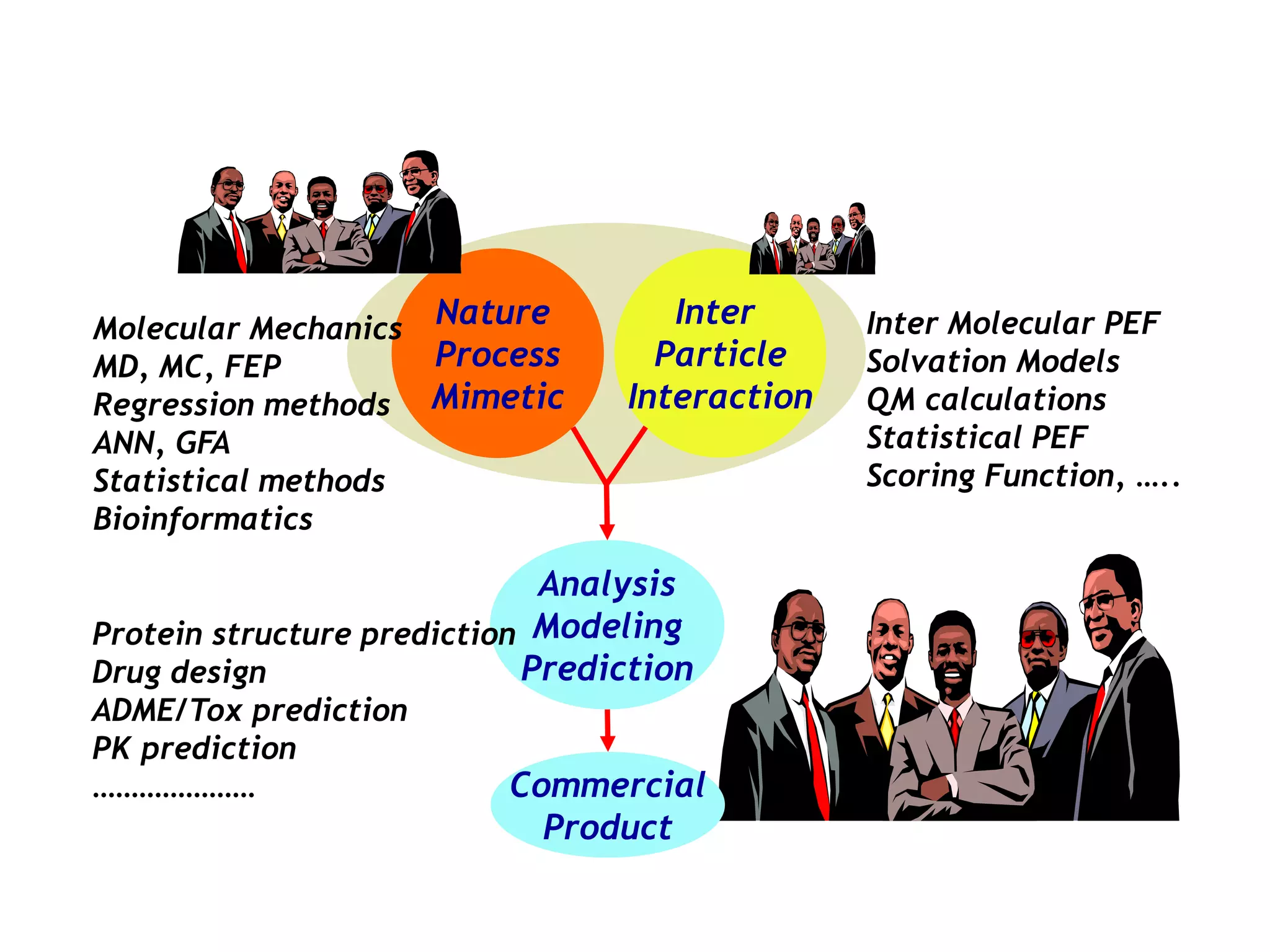

Consilience Approach

Nature
Process
Mimetic
Inter
Particle
Interaction
Analysis
Modeling
Prediction
Commercial
Product
Inter Molecular PEF
Solvation Models
QM calculations
Statistical PEF
Scoring Function, …..
Molecular Mechanics
MD, MC, FEP
Regression methods
ANN, GFA
Statistical methods
Bioinformatics
Protein structure prediction
Drug design
ADME/Tox prediction
PK prediction
…………………

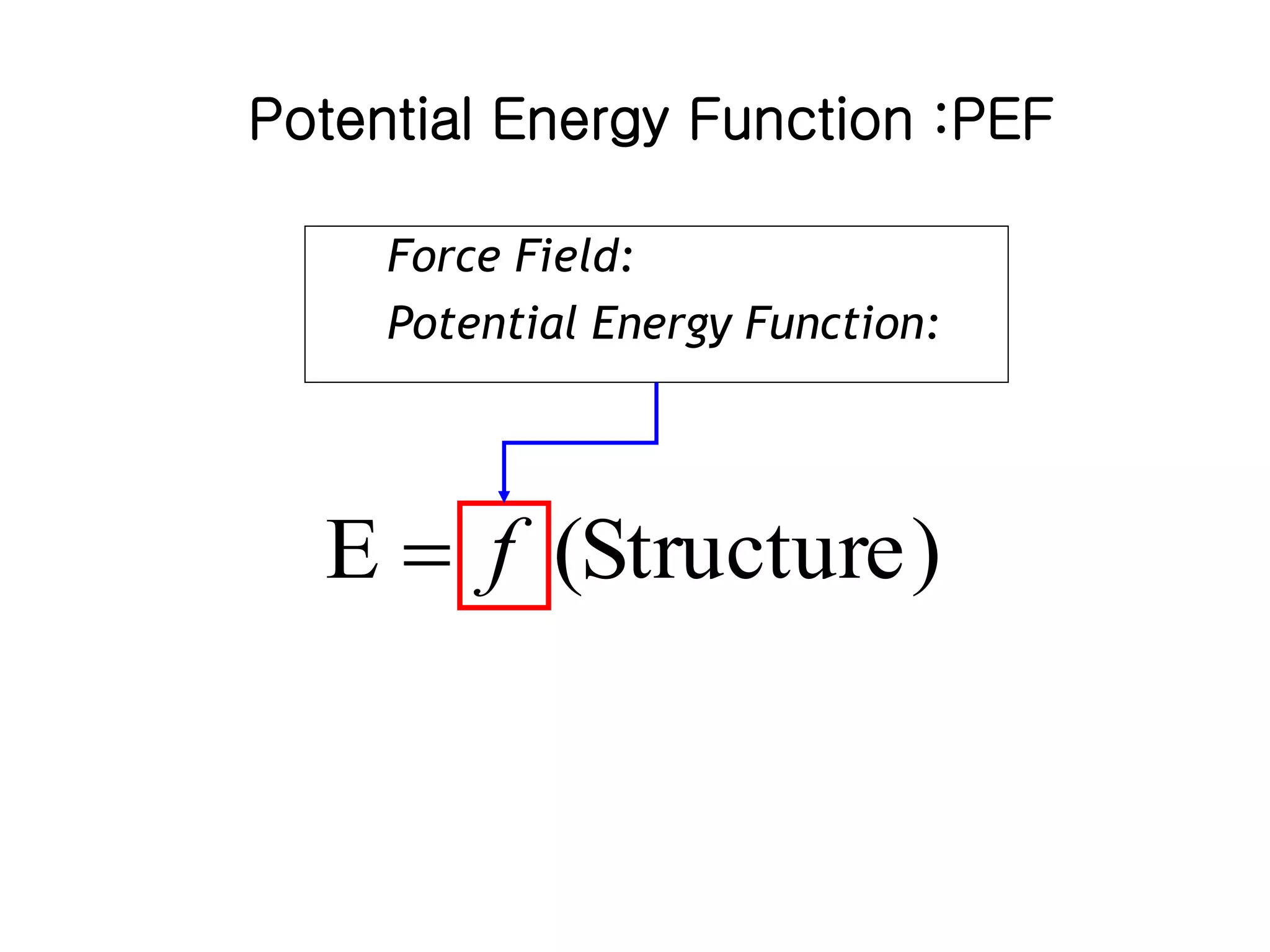

Force Field:
Potential Energy Function:
)(StructureE f
Potential Energy Function :PEF

  2
0 )( ddkEstretch
  
 )( 0
1 dd
estretch eDE 
  2
0 )( kEbend
 





 )cos(1 S
S
S
kEtorsion

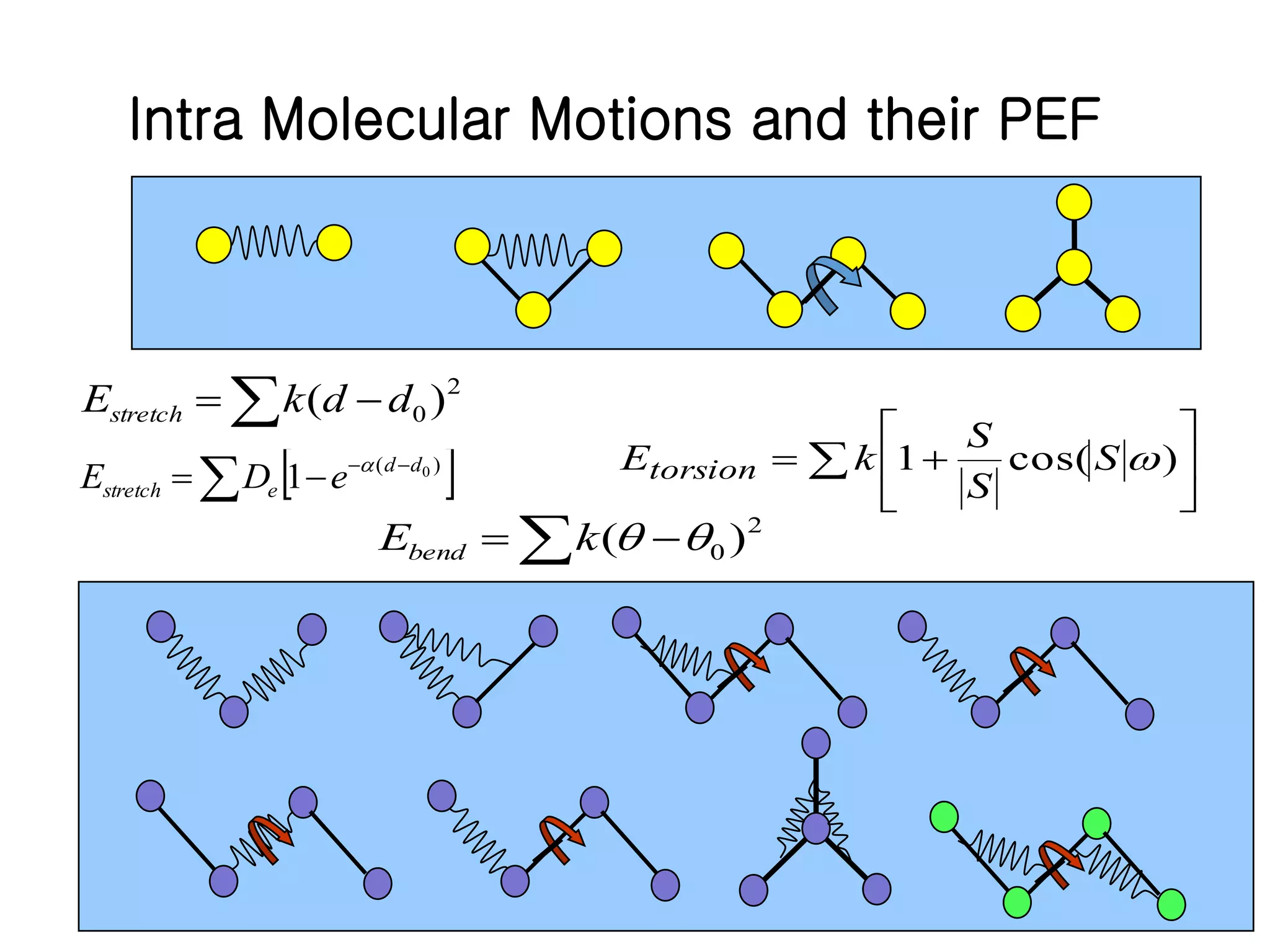

Intra Molecular Motions and their PEF

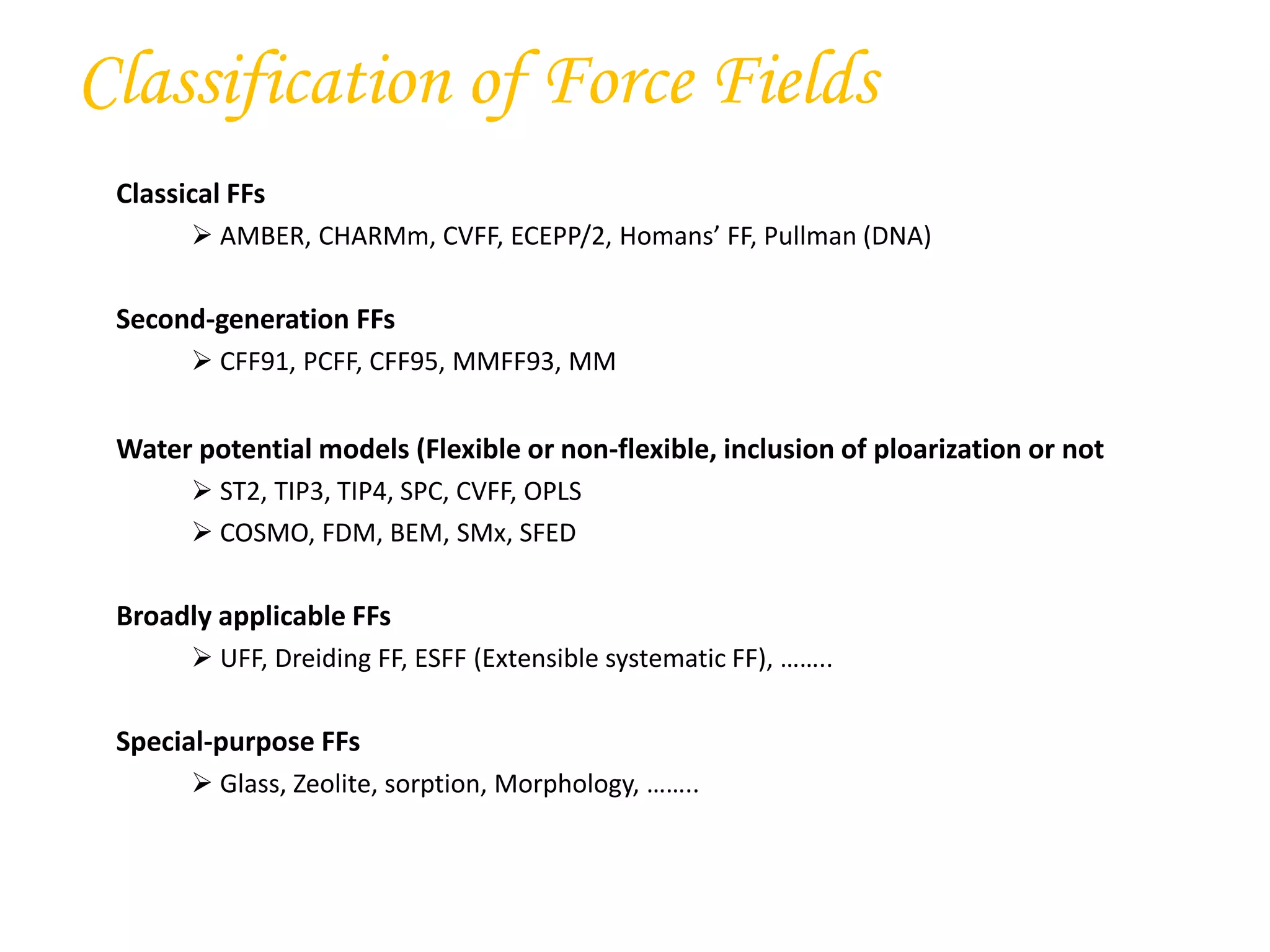

Classification of Force Fields
Classical FFs
 AMBER, CHARMm, CVFF, ECEPP/2, Homans’ FF, Pullman (DNA)
Second-generation FFs
 CFF91, PCFF, CFF95, MMFF93, MM
Water potential models (Flexible or non-flexible, inclusion of ploarization or not
 ST2, TIP3, TIP4, SPC, CVFF, OPLS
 COSMO, FDM, BEM, SMx, SFED
Broadly applicable FFs
 UFF, Dreiding FF, ESFF (Extensible systematic FF), ……..
Special-purpose FFs
 Glass, Zeolite, sorption, Morphology, ……..

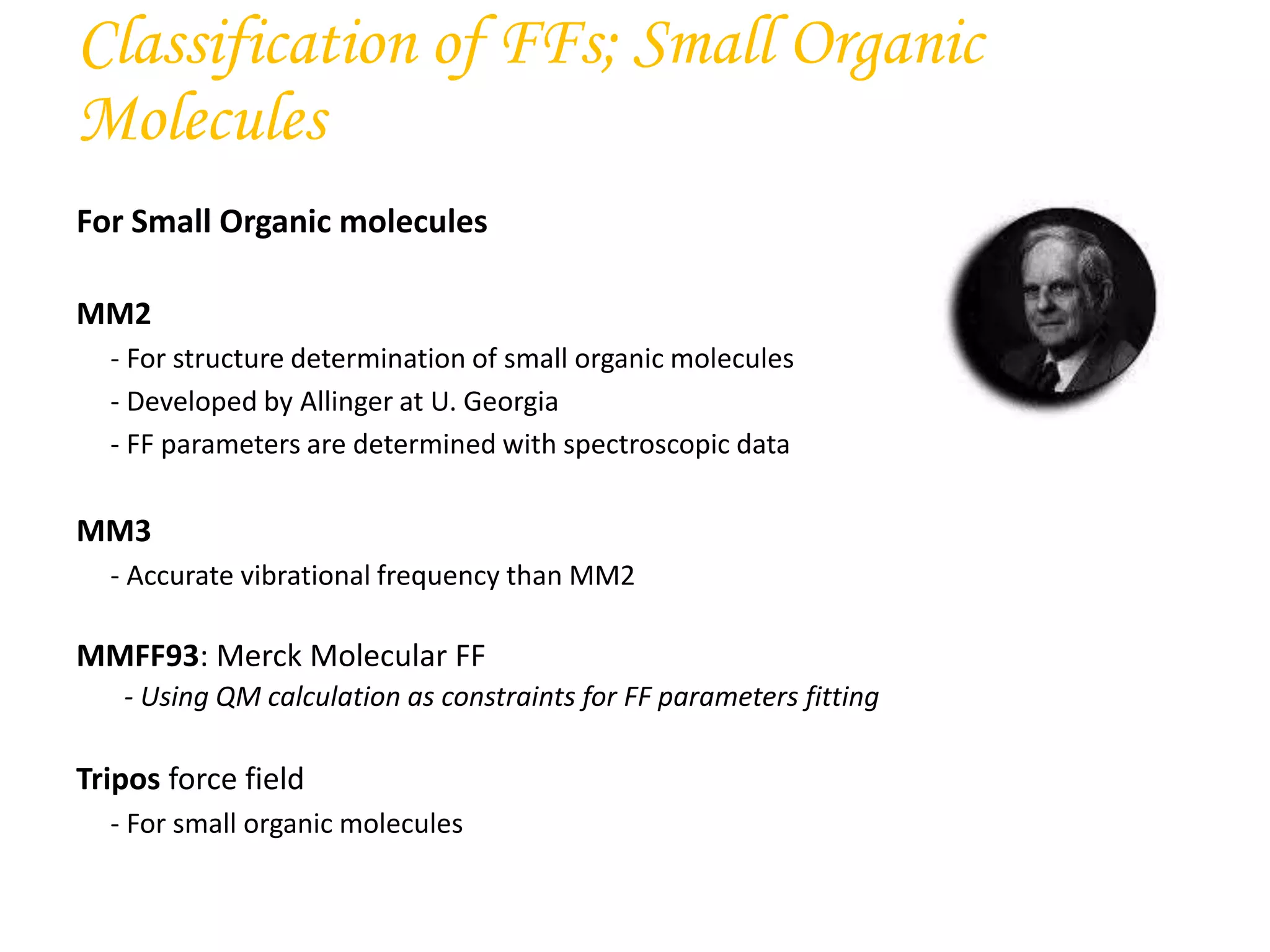

For Small Organic molecules
MM2
- For structure determination of small organic molecules
- Developed by Allinger at U. Georgia
- FF parameters are determined with spectroscopic data
MM3
- Accurate vibrational frequency than MM2
MMFF93: Merck Molecular FF
- Using QM calculation as constraints for FF parameters fitting
Tripos force field
- For small organic molecules
Classification of FFs; Small Organic
Molecules

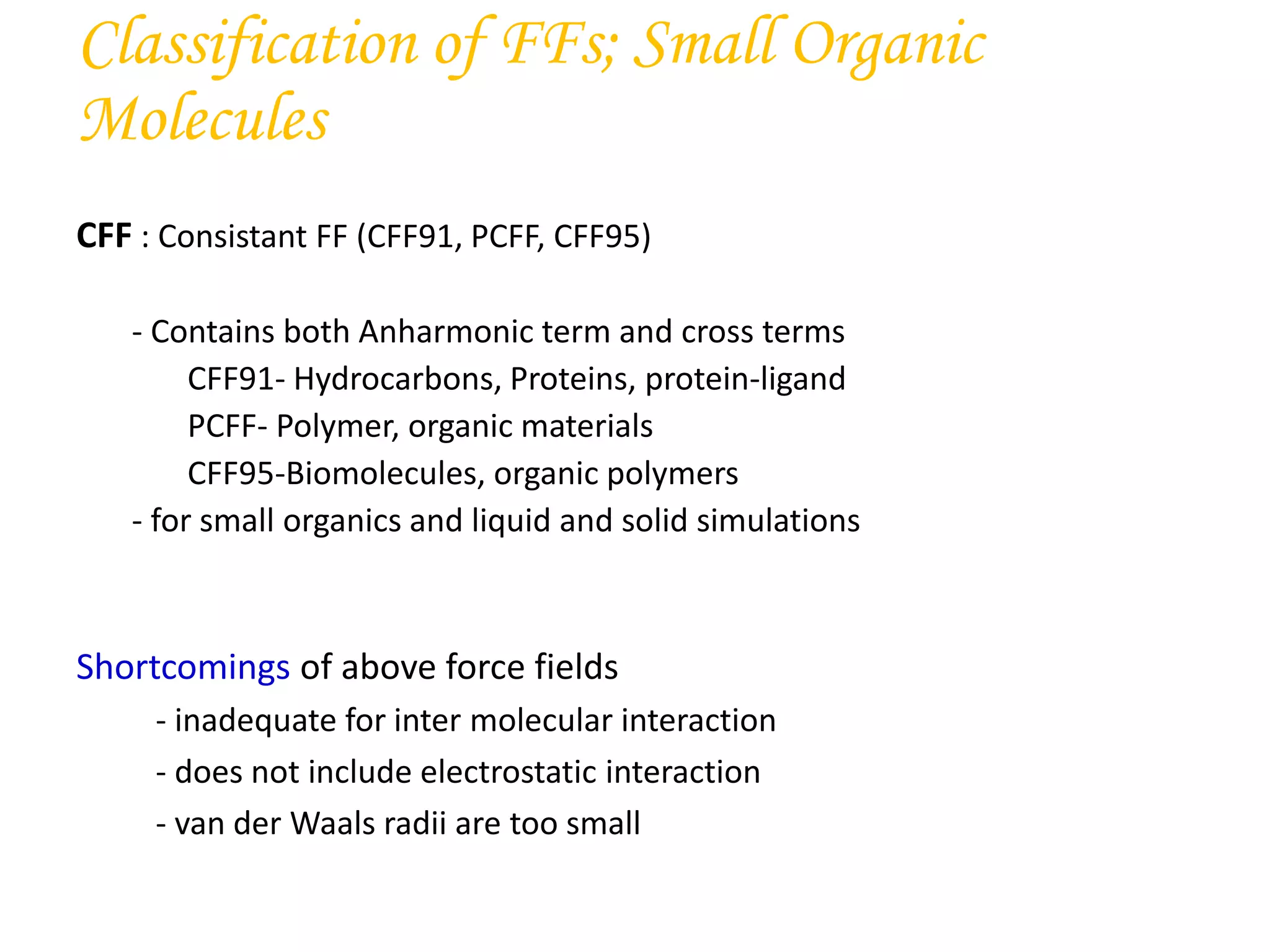

CFF : Consistant FF (CFF91, PCFF, CFF95)
- Contains both Anharmonic term and cross terms
CFF91- Hydrocarbons, Proteins, protein-ligand
PCFF- Polymer, organic materials
CFF95-Biomolecules, organic polymers
- for small organics and liquid and solid simulations
Shortcomings of above force fields
- inadequate for inter molecular interaction
- does not include electrostatic interaction
- van der Waals radii are too small
Classification of FFs; Small Organic
Molecules

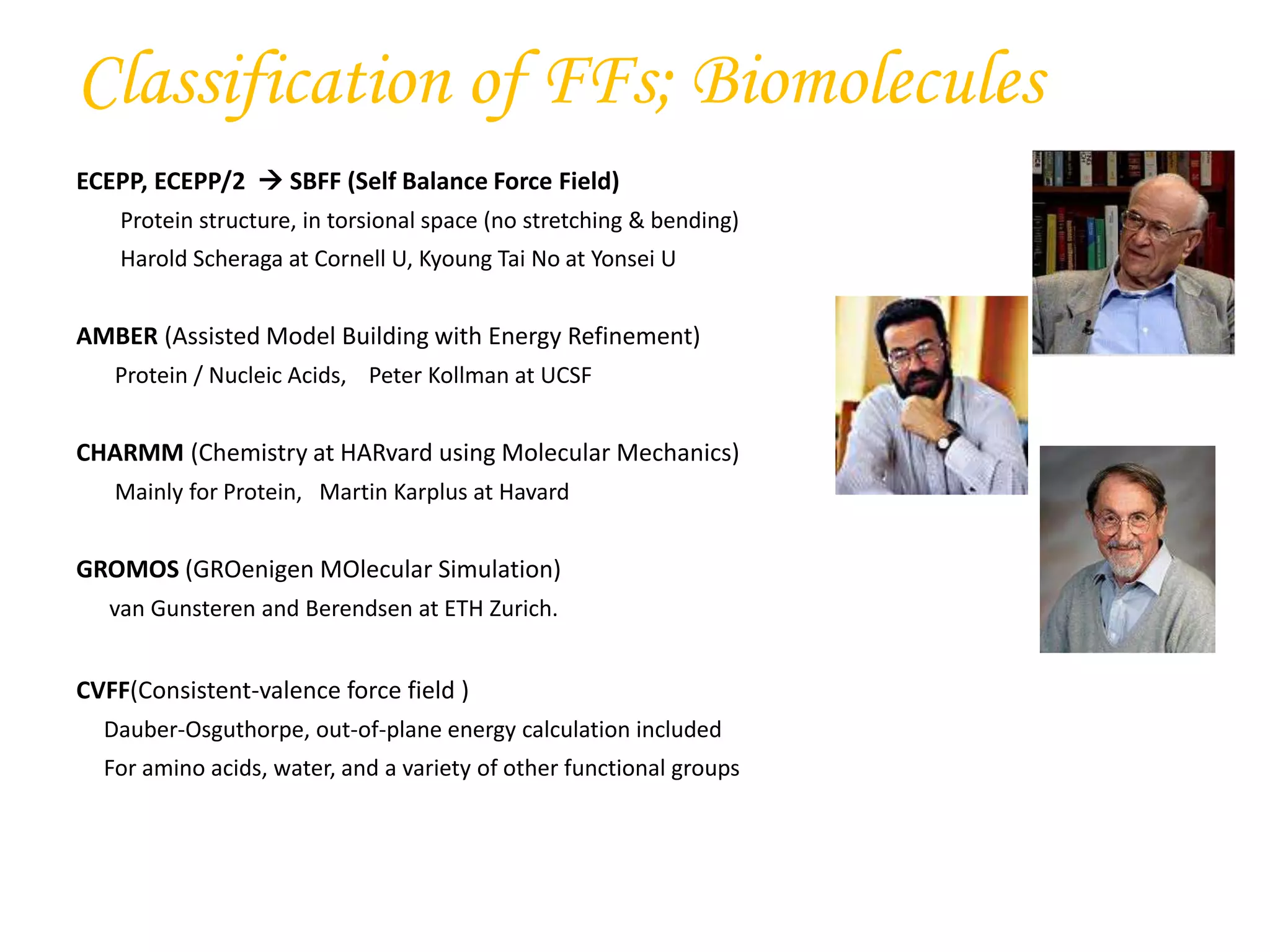

ECEPP, ECEPP/2  SBFF (Self Balance Force Field)
Protein structure, in torsional space (no stretching & bending)
Harold Scheraga at Cornell U, Kyoung Tai No at Yonsei U
AMBER (Assisted Model Building with Energy Refinement)
Protein / Nucleic Acids, Peter Kollman at UCSF
CHARMM (Chemistry at HARvard using Molecular Mechanics)
Mainly for Protein, Martin Karplus at Havard
GROMOS (GROenigen MOlecular Simulation)
van Gunsteren and Berendsen at ETH Zurich.
CVFF(Consistent-valence force field )
Dauber-Osguthorpe, out-of-plane energy calculation included
For amino acids, water, and a variety of other functional groups
Classification of FFs; Biomolecules

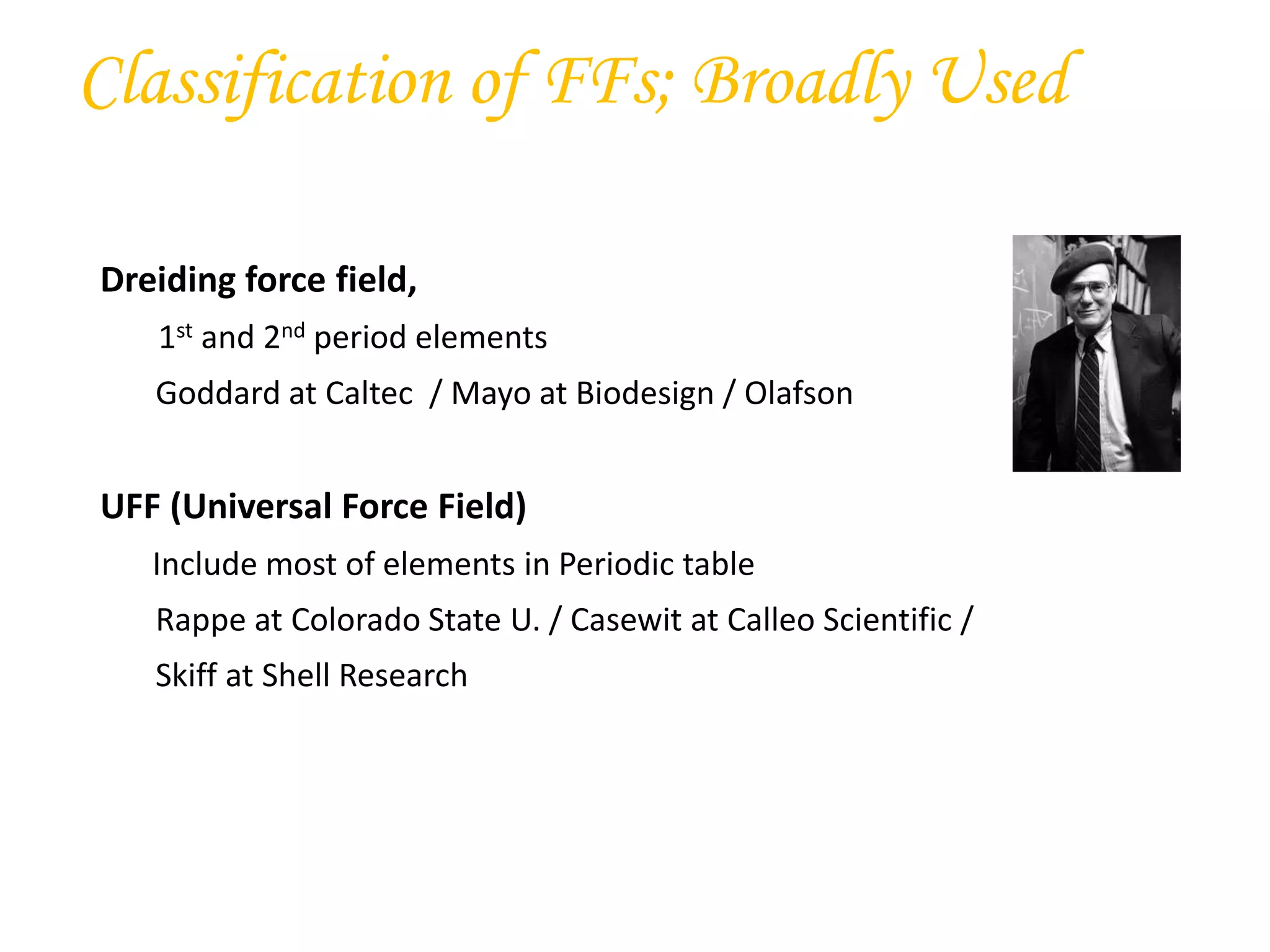

Dreiding force field,
1st and 2nd period elements
Goddard at Caltec / Mayo at Biodesign / Olafson
UFF (Universal Force Field)
Include most of elements in Periodic table
Rappe at Colorado State U. / Casewit at Calleo Scientific /
Skiff at Shell Research
Classification of FFs; Broadly Used

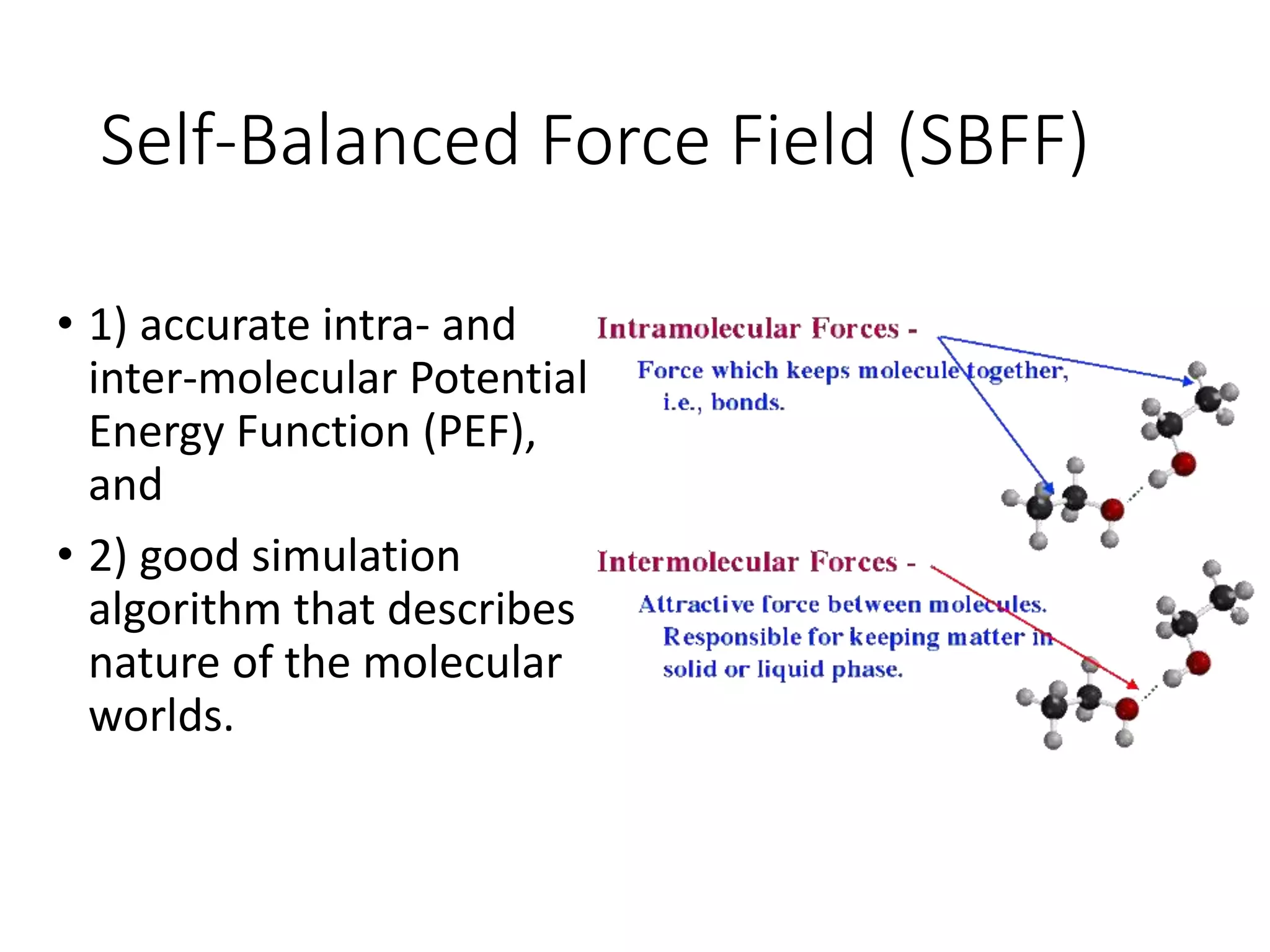

Self-Balanced Force Field (SBFF)
• 1) accurate intra- and
inter-molecular Potential
Energy Function (PEF),
and
• 2) good simulation
algorithm that describes
nature of the molecular
worlds.

Bioinformatics & Molecular Design Research Center
(사) 분자설계연구소

23

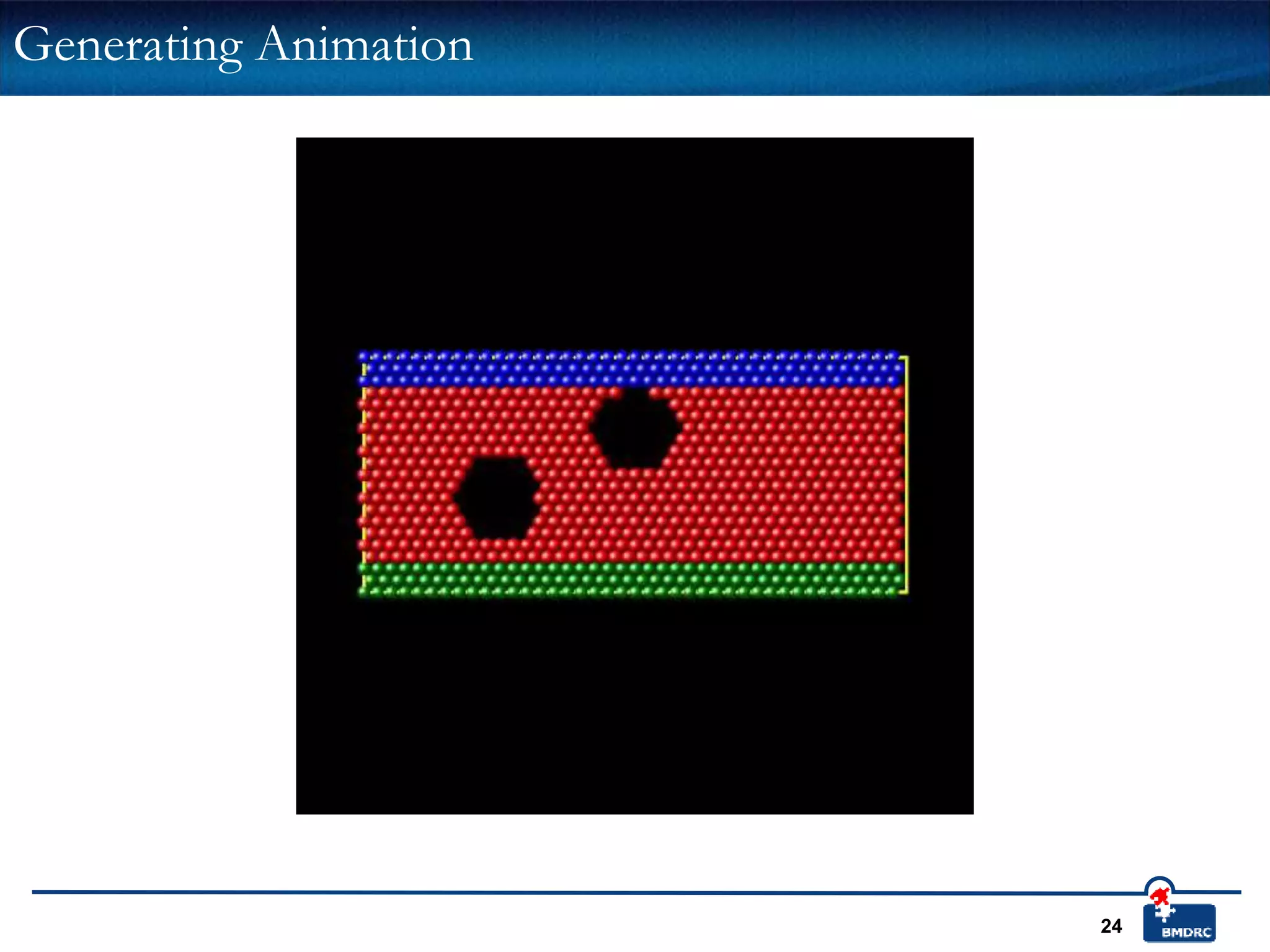

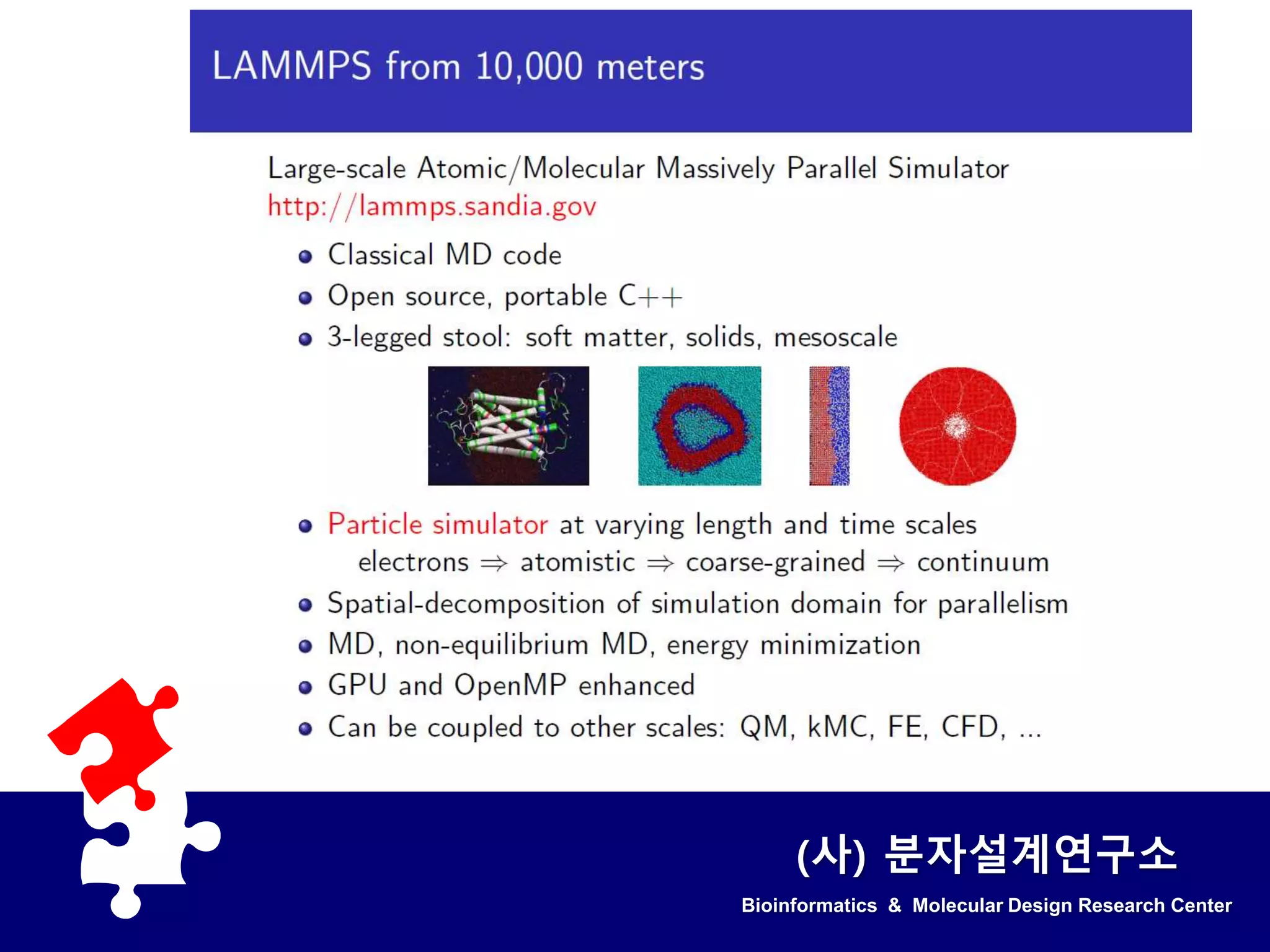

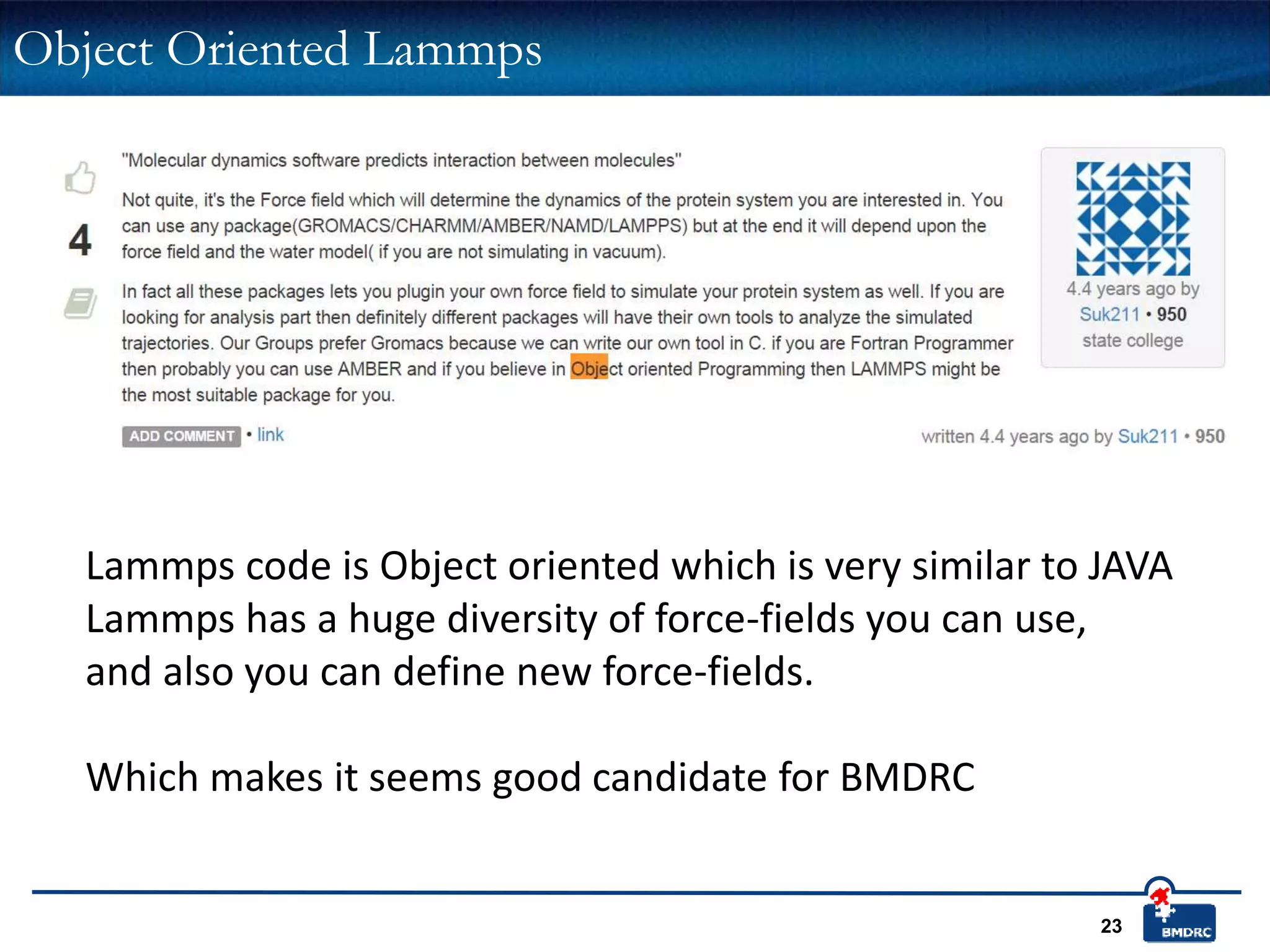

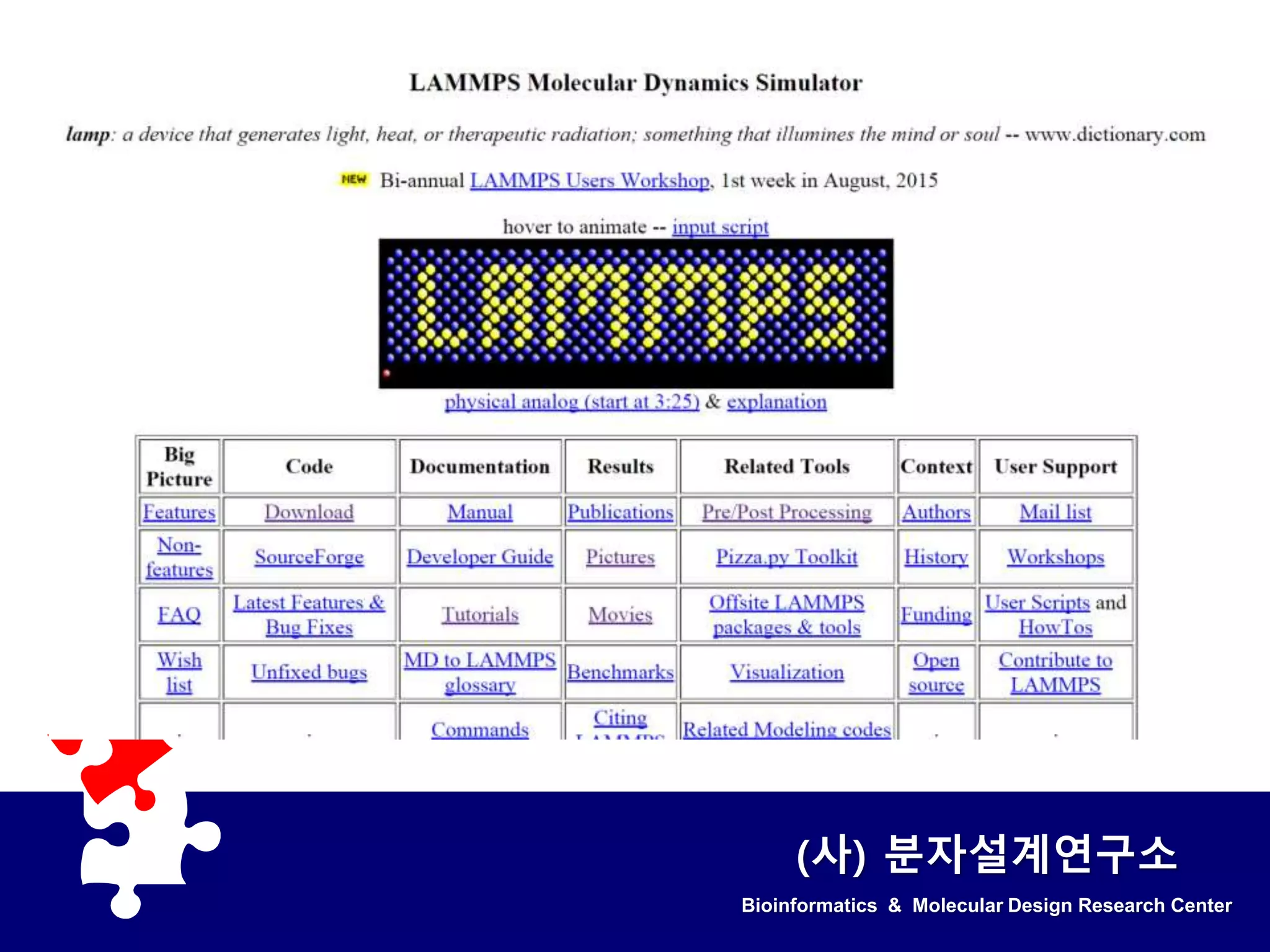

Lammps code is Object oriented which is very similar to JAVA
Lammps has a huge diversity of force-fields you can use,
and also you can define new force-fields.
Which makes it seems good candidate for BMDRC
Object Oriented Lammps

25

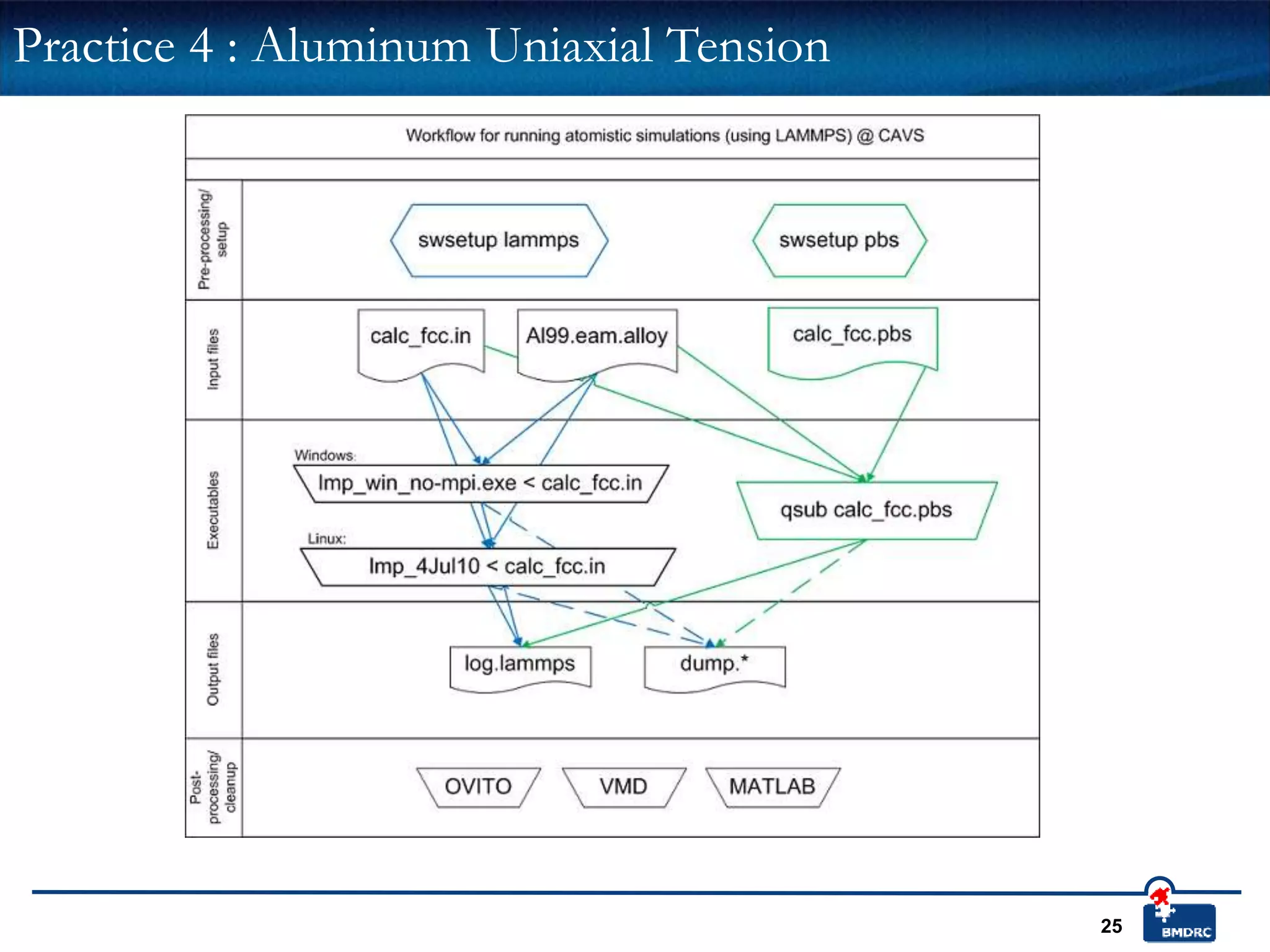

Practice 4 : Aluminum Uniaxial Tension

26

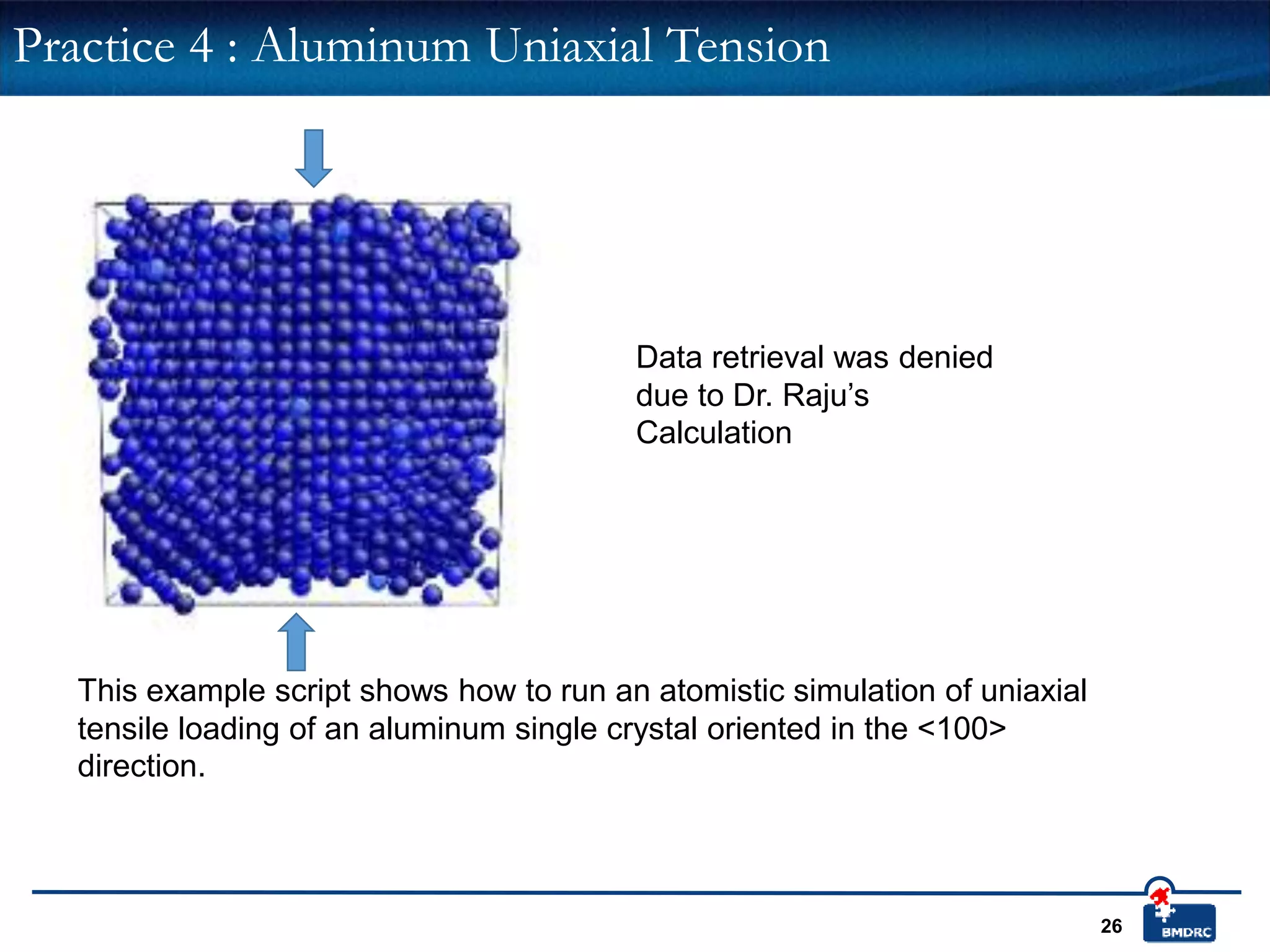

This example script shows how to run an atomistic simulation of uniaxial
tensile loading of an aluminum single crystal oriented in the <100>
direction.
Practice 4 : Aluminum Uniaxial Tension
Data retrieval was denied
due to Dr. Raju’s
Calculation

28

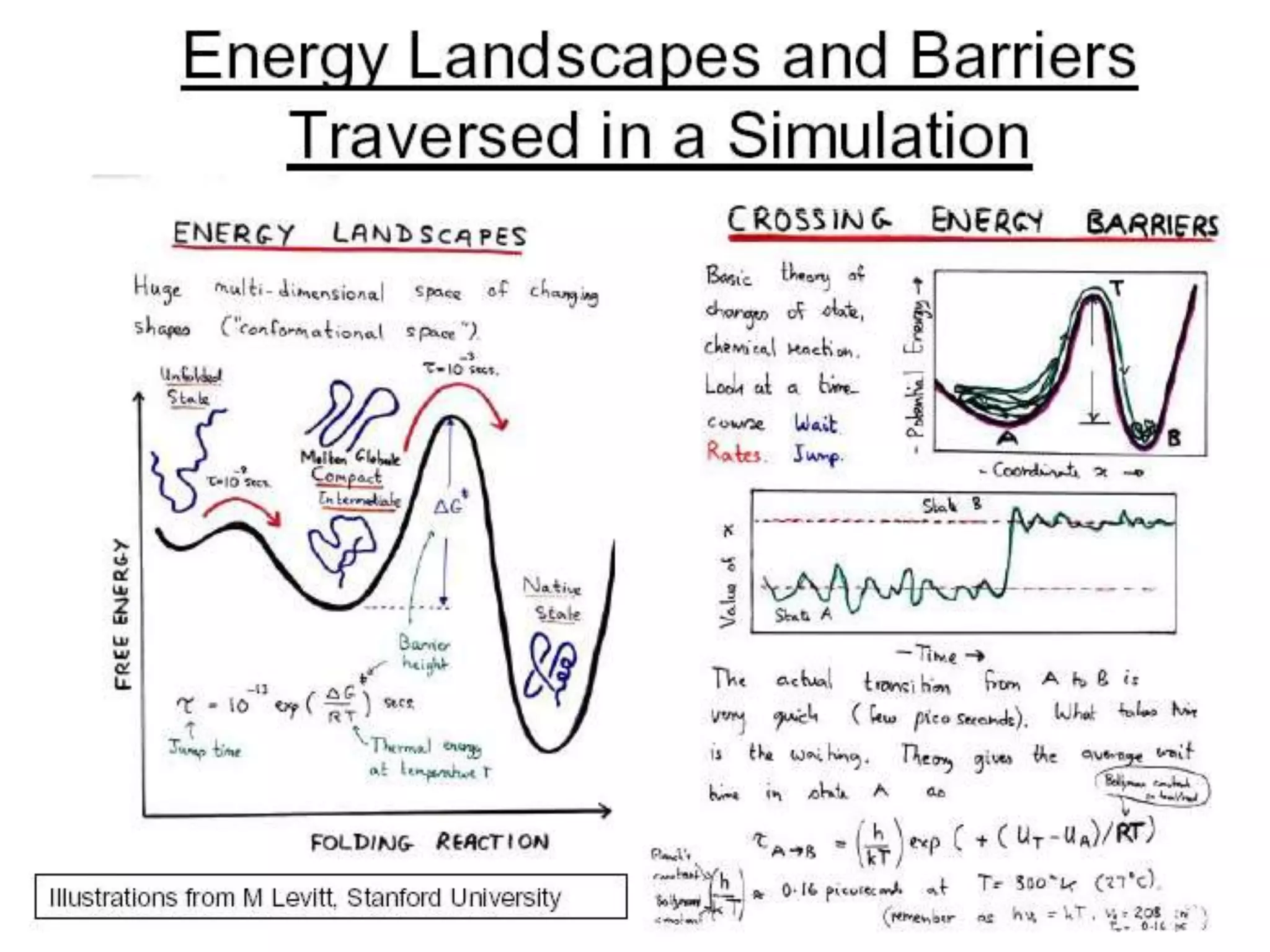

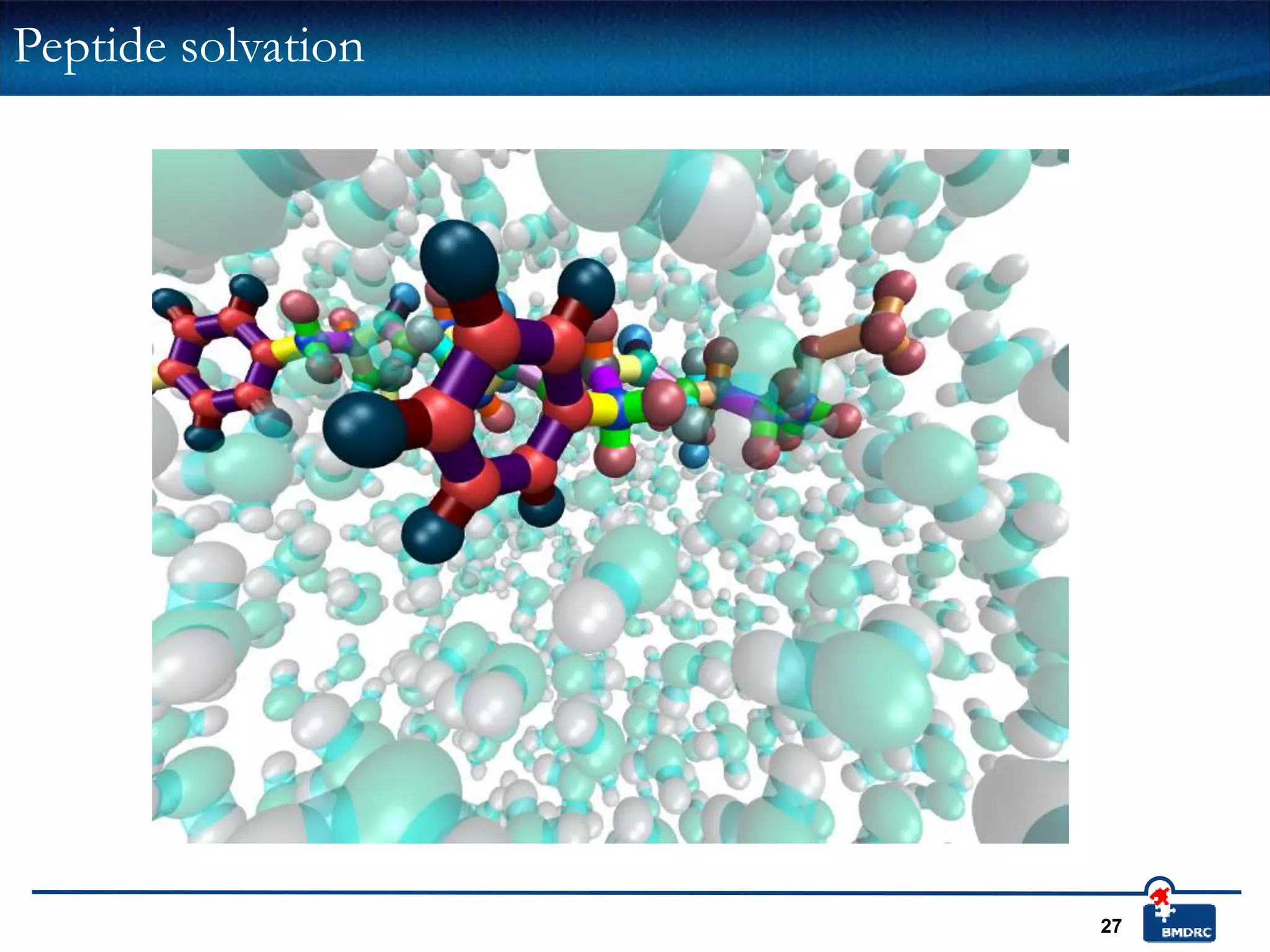

Result - Peptide solvation

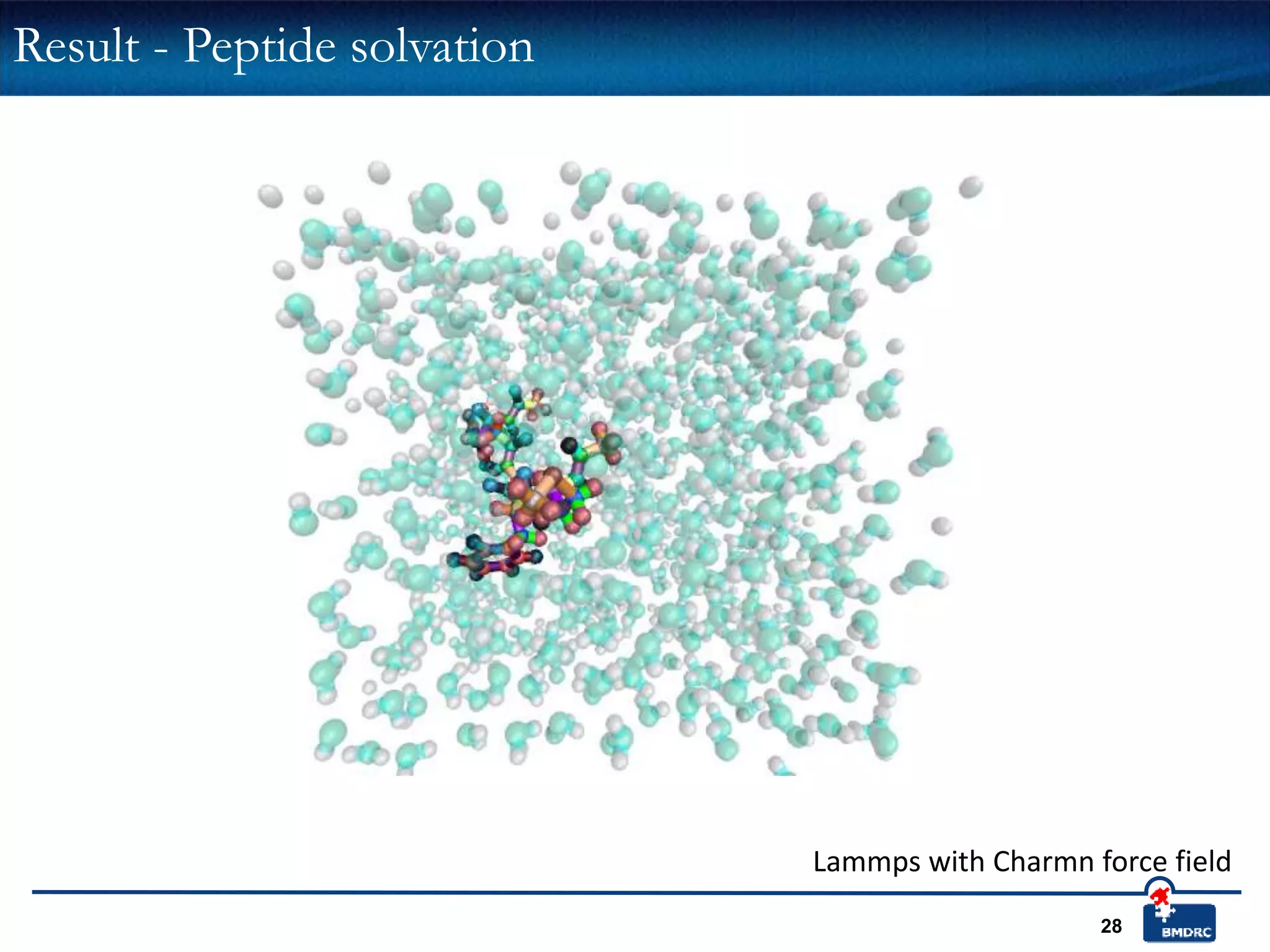

Lammps with Charmn force field

PotentialE
Conformational Space
PotentialE
PotentialE
PotentialE

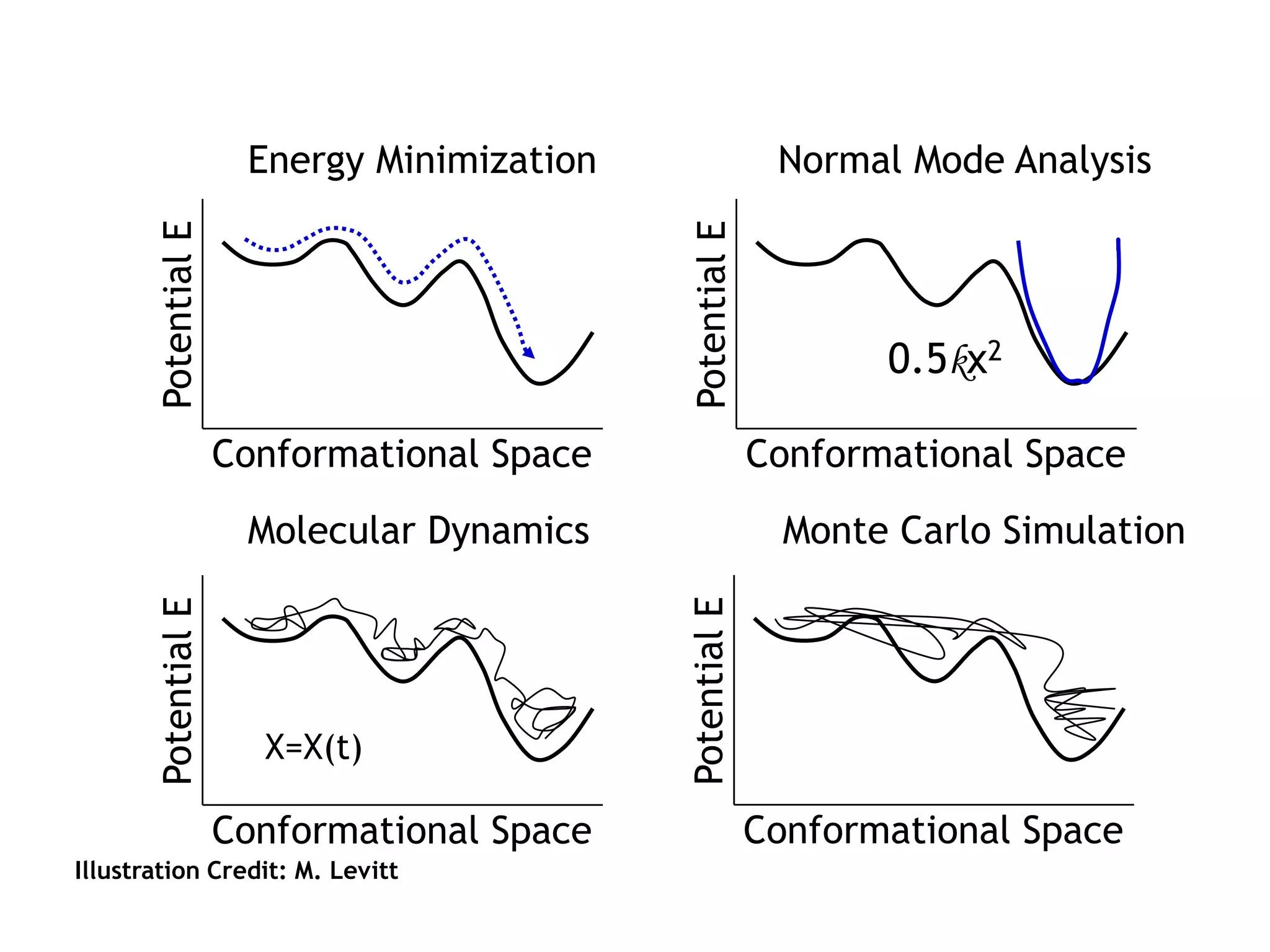

Energy Minimization Normal Mode Analysis
Molecular Dynamics Monte Carlo Simulation
Illustration Credit: M. Levitt
0.5kx2
X=X(t)

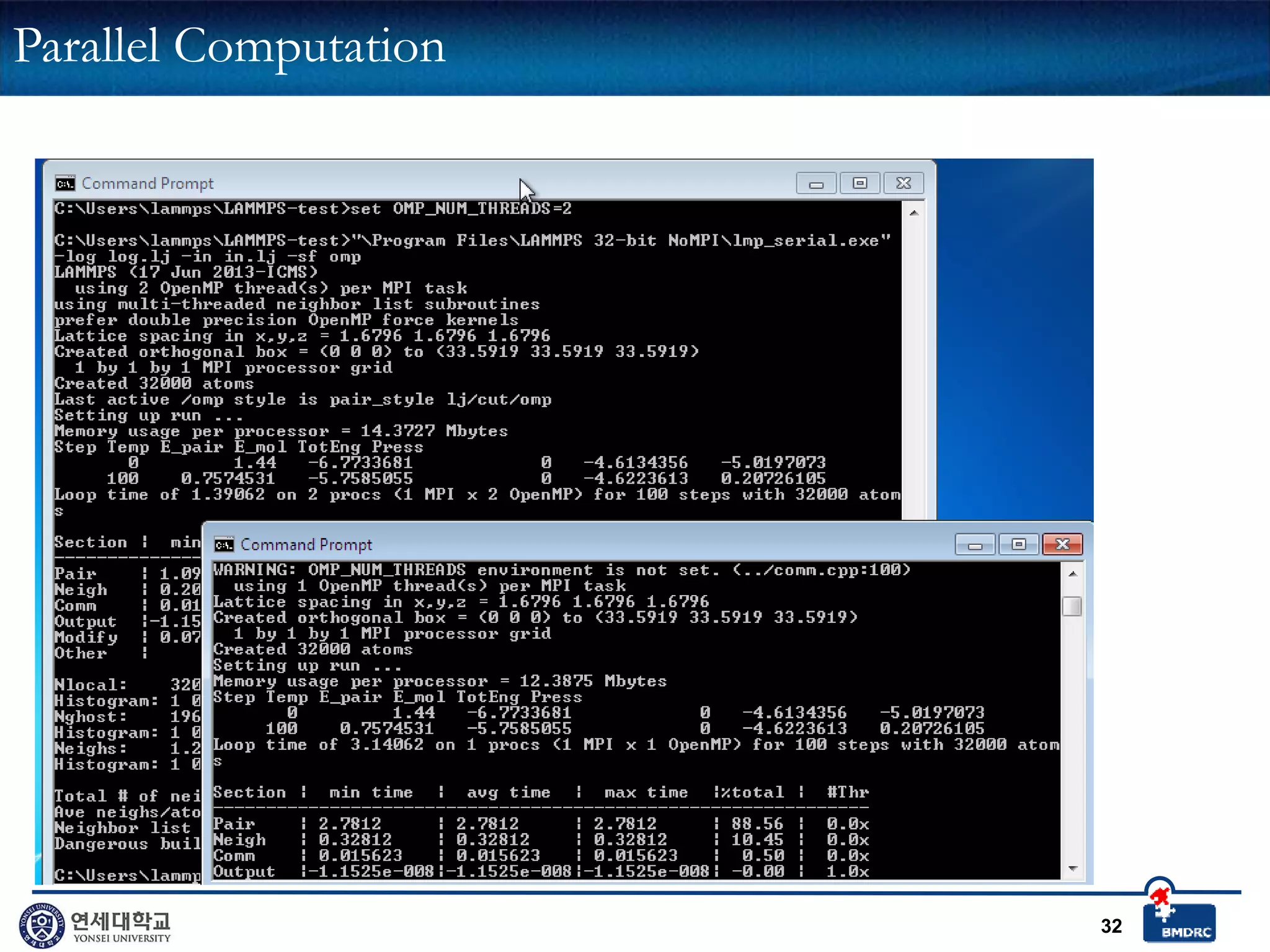

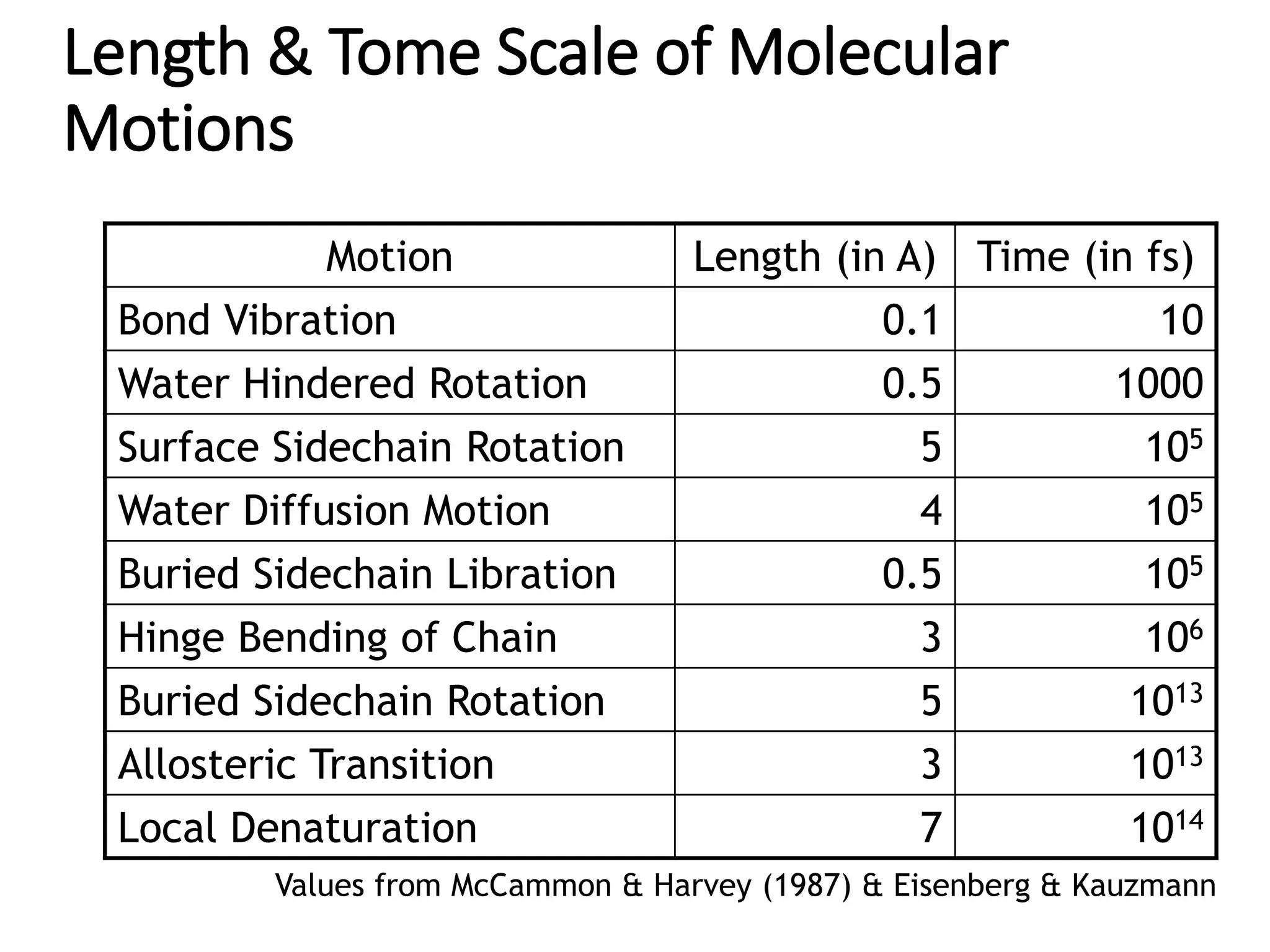

Length & Tome Scale of Molecular
Motions
Motion Length (in A) Time (in fs)
Bond Vibration 0.1 10
Water Hindered Rotation 0.5 1000
Surface Sidechain Rotation 5 105
Water Diffusion Motion 4 105
Buried Sidechain Libration 0.5 105
Hinge Bending of Chain 3 106
Buried Sidechain Rotation 5 1013
Allosteric Transition 3 1013
Local Denaturation 7 1014
Values from McCammon & Harvey (1987) & Eisenberg & Kauzmann

33

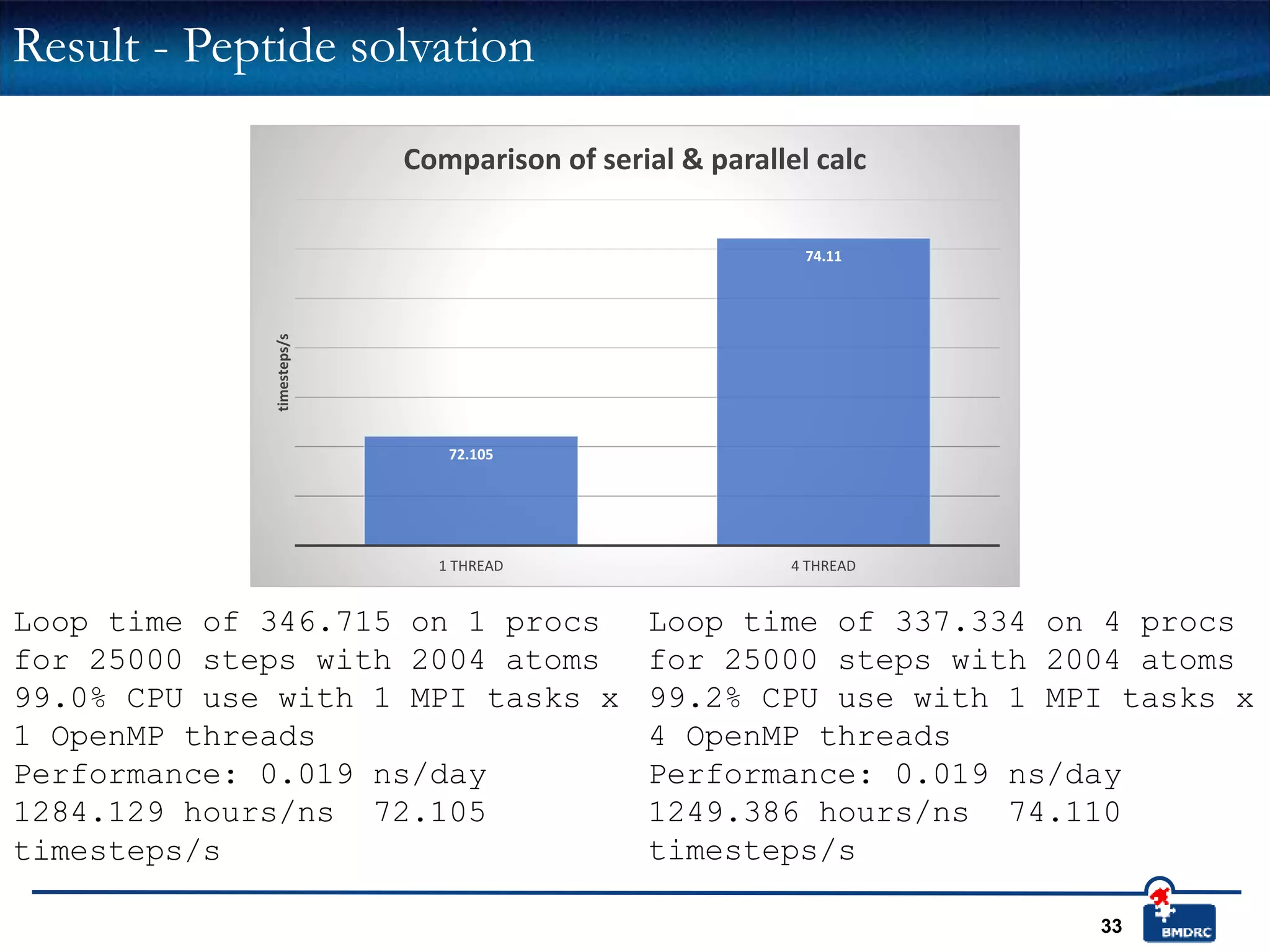

Result - Peptide solvation
72.105
74.11
1 THREAD 4 THREAD
timesteps/s
Comparison of serial & parallel calc
Loop time of 346.715 on 1 procs
for 25000 steps with 2004 atoms
99.0% CPU use with 1 MPI tasks x
1 OpenMP threads
Performance: 0.019 ns/day
1284.129 hours/ns 72.105
timesteps/s
Loop time of 337.334 on 4 procs
for 25000 steps with 2004 atoms
99.2% CPU use with 1 MPI tasks x
4 OpenMP threads
Performance: 0.019 ns/day
1249.386 hours/ns 74.110
timesteps/s

34

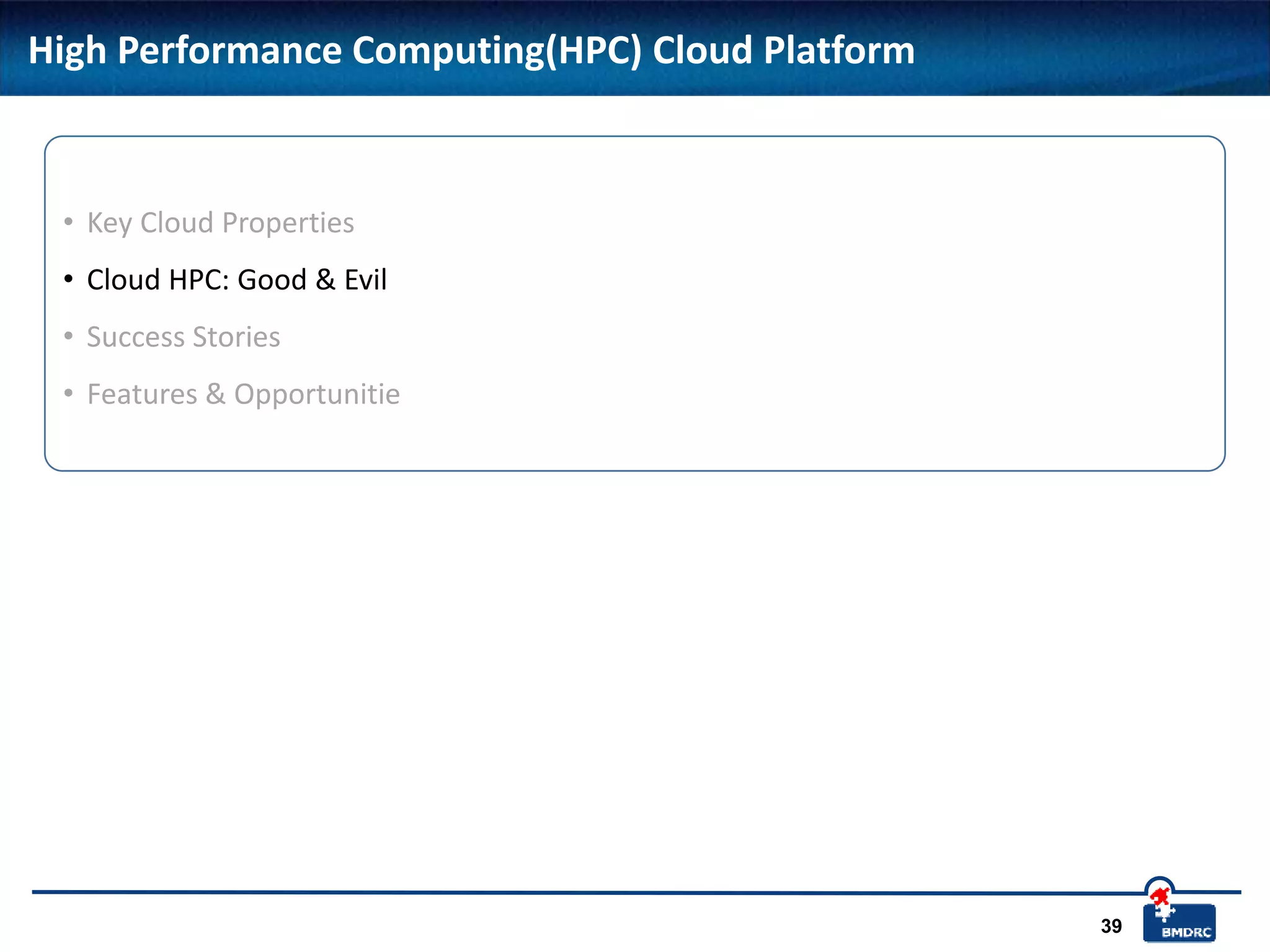

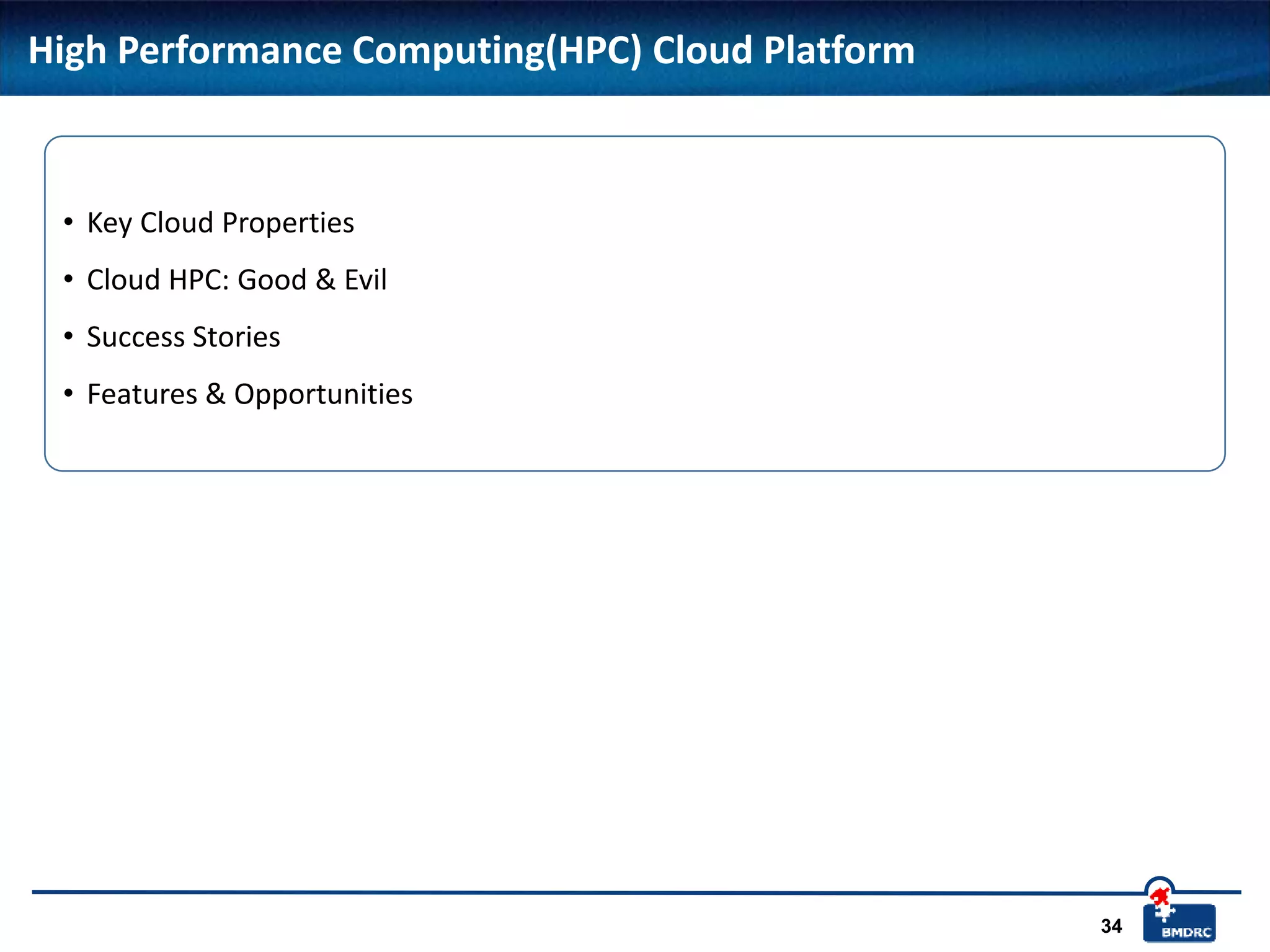

High Performance Computing(HPC) Cloud Platform
• Key Cloud Properties
• Cloud HPC: Good & Evil
• Success Stories
• Features & Opportunities

35

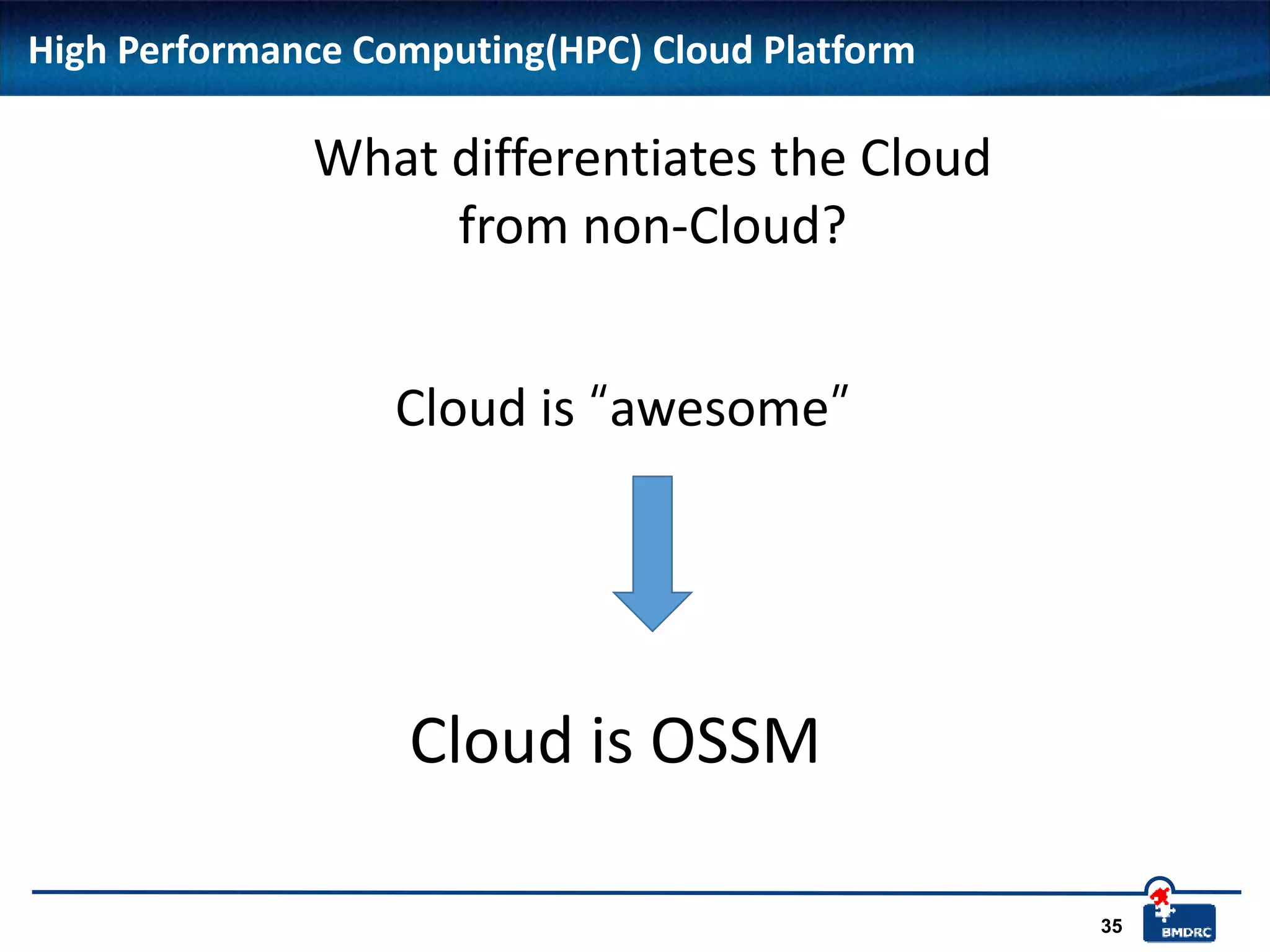

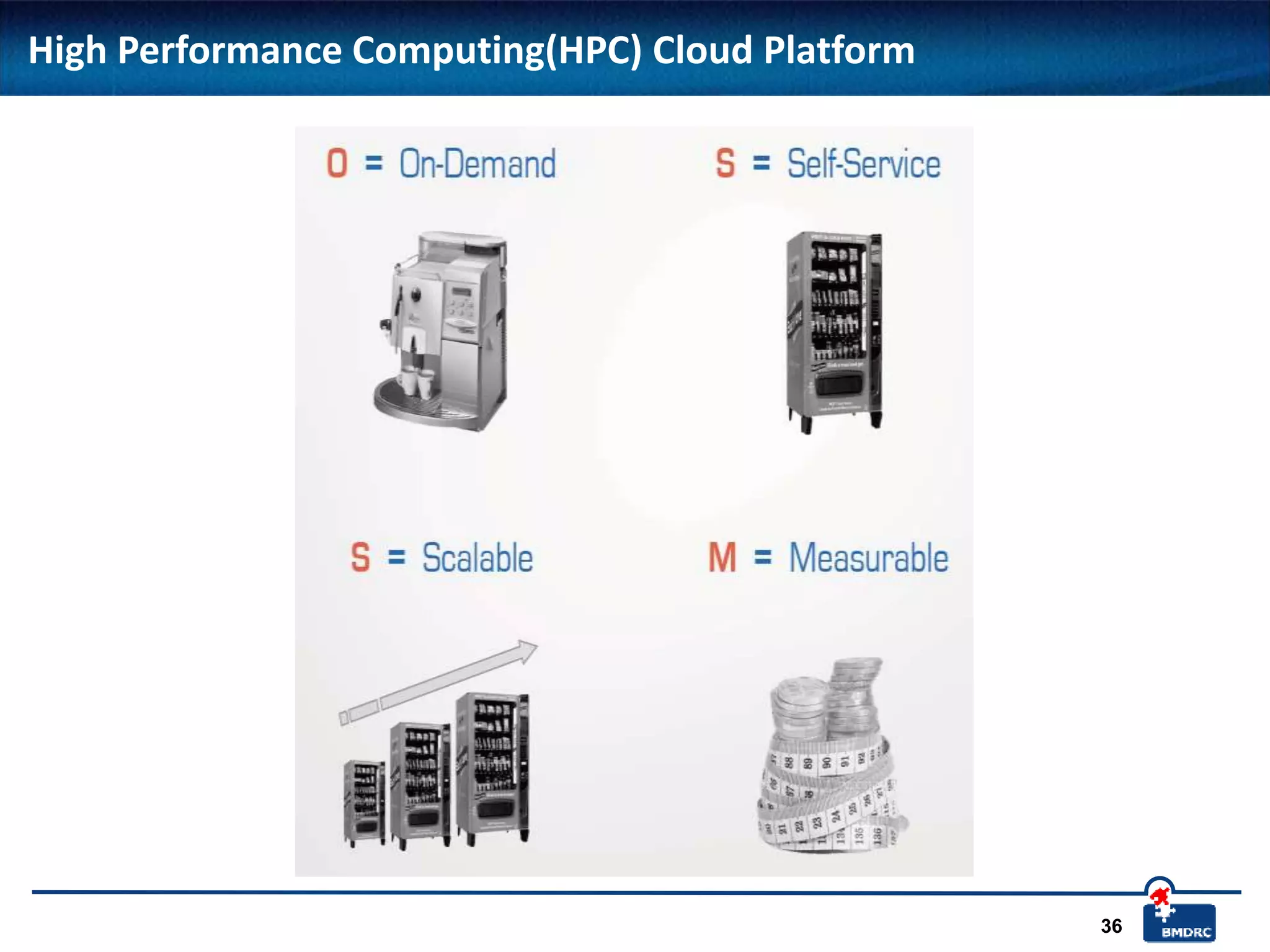

What differentiates the Cloud
from non-Cloud?
Cloud is “awesome”
Cloud is OSSM

36

37

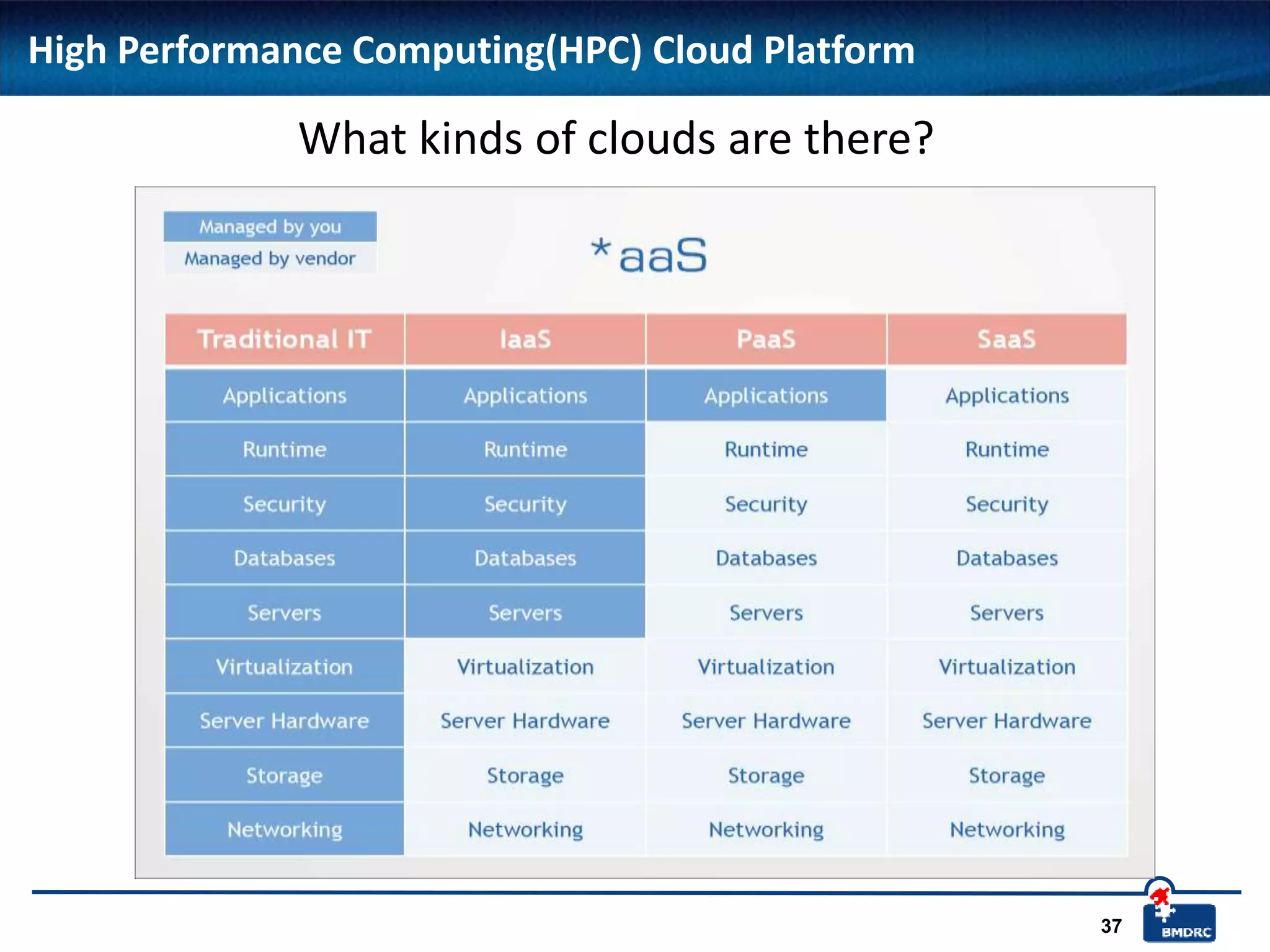

What kinds of clouds are there?

38

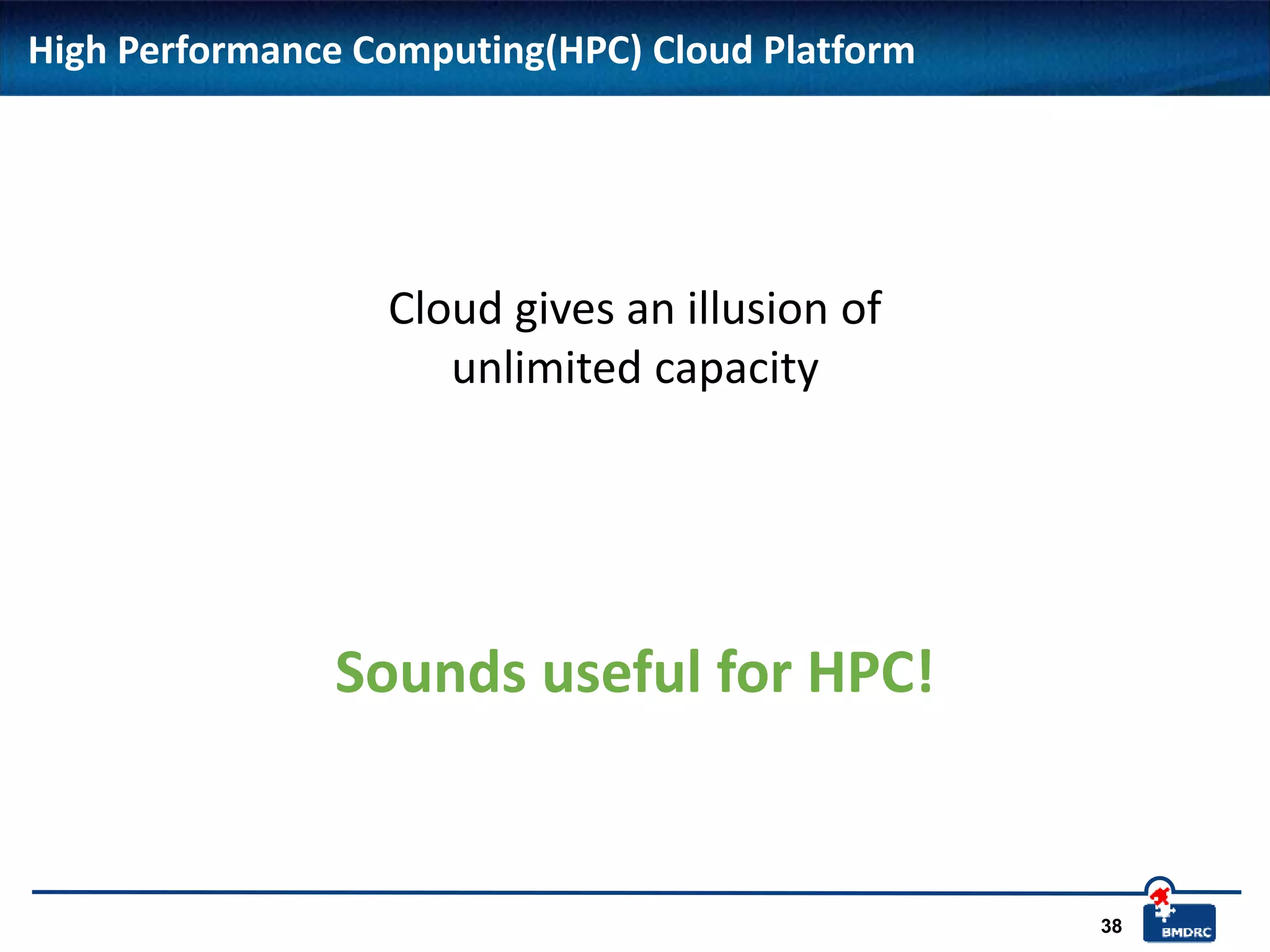

Cloud gives an illusion of
unlimited capacity
Sounds useful for HPC!

39
• Success Stories
• Features & Opportunitie

40

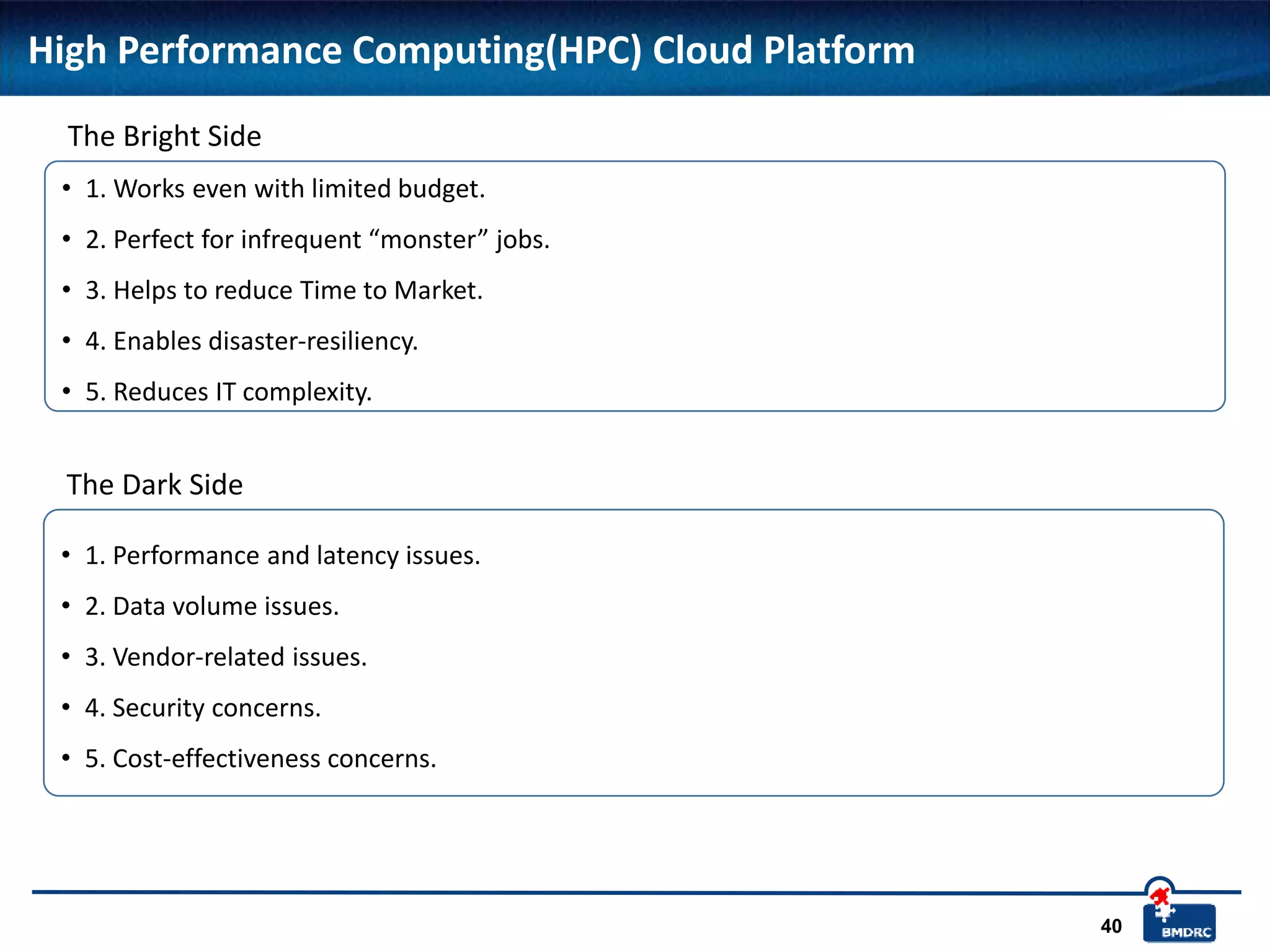

• 1. Works even with limited budget.
• 2. Perfect for infrequent “monster” jobs.
• 3. Helps to reduce Time to Market.
• 4. Enables disaster-resiliency.
• 5. Reduces IT complexity.
The Bright Side
• 1. Performance and latency issues.
• 2. Data volume issues.
• 3. Vendor-related issues.
• 4. Security concerns.
• 5. Cost-effectiveness concerns.
The Dark Side

41

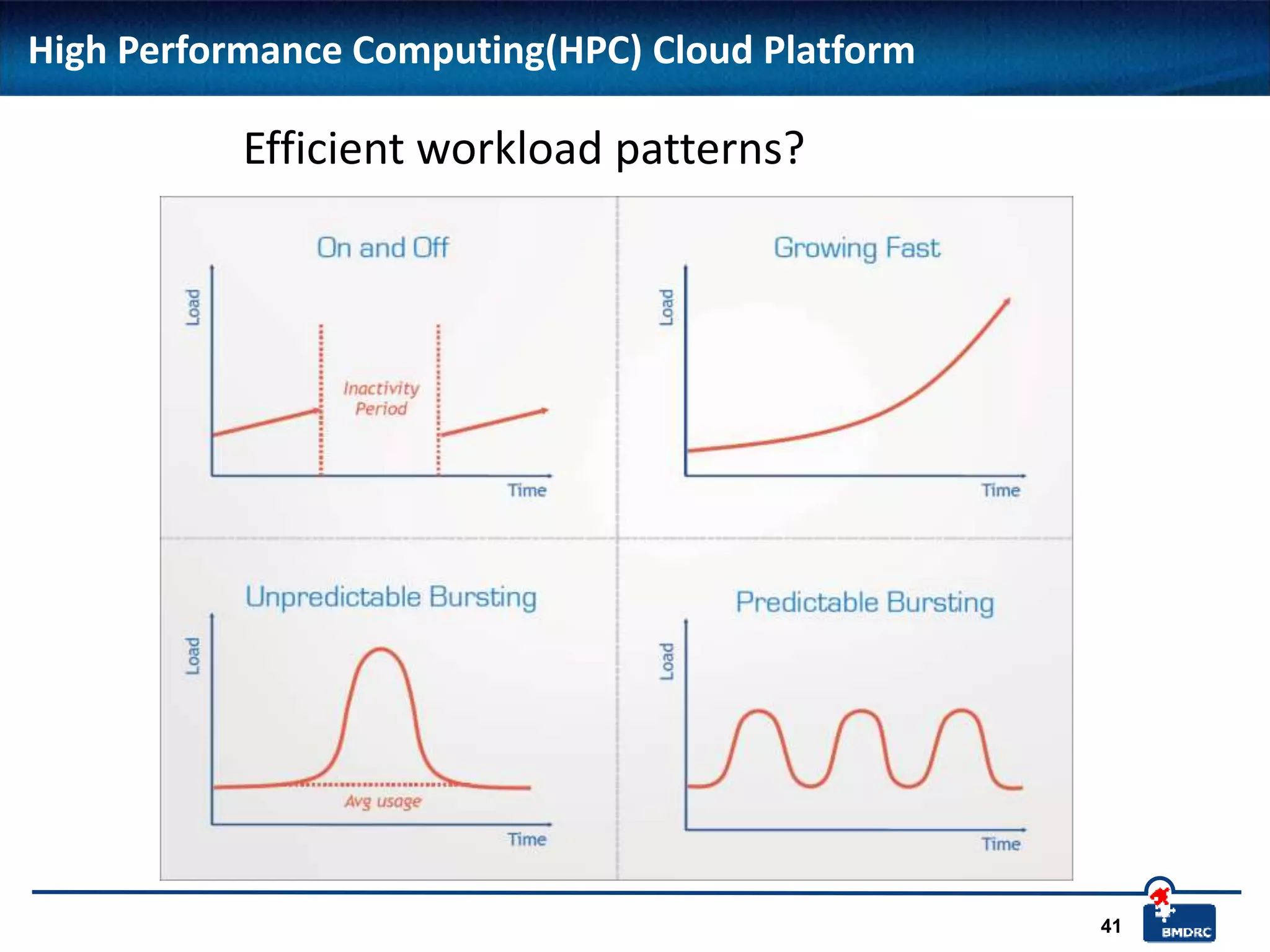

Efficient workload patterns?

42

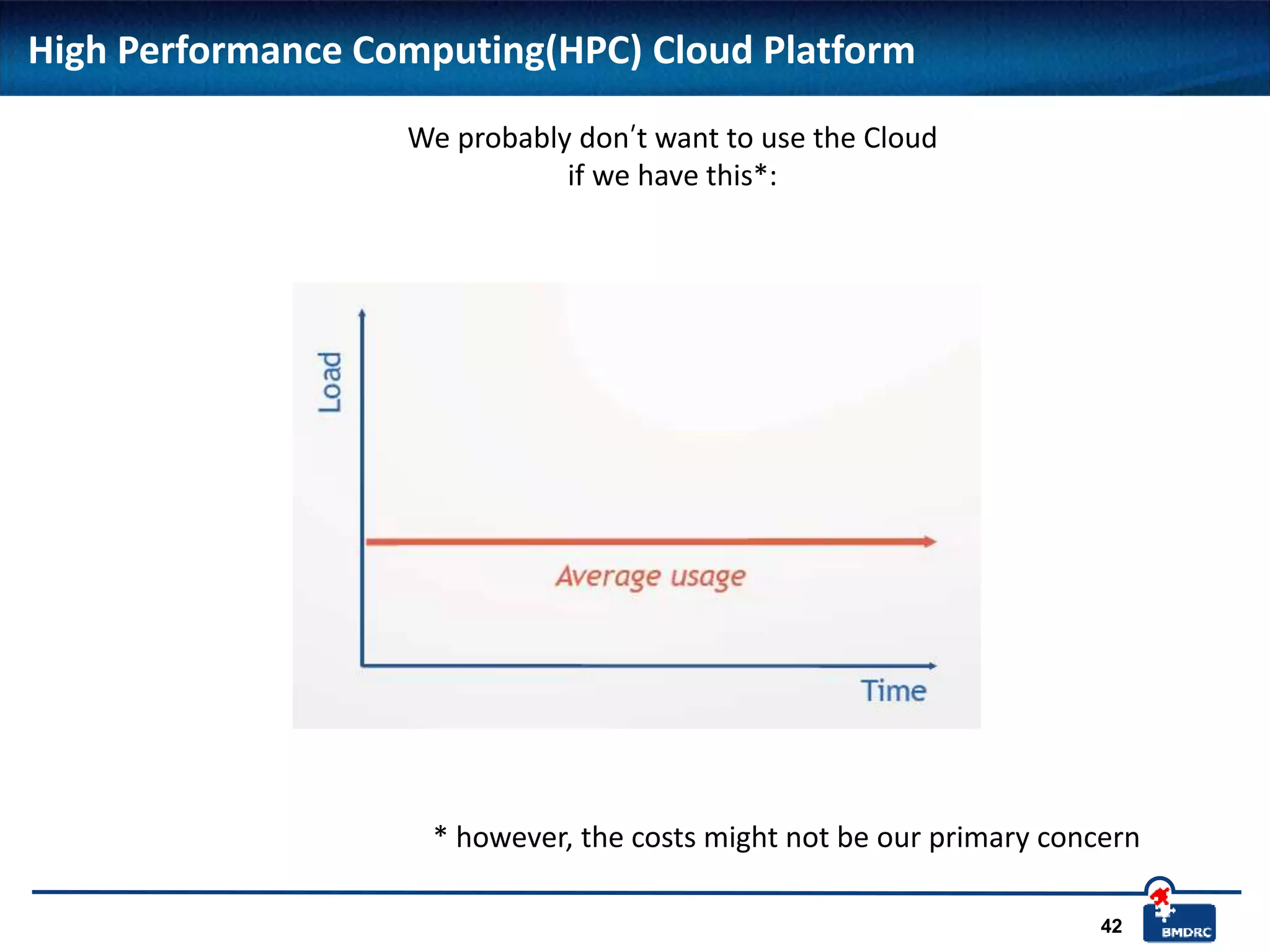

We probably don’t want to use the Cloud
if we have this*:
* however, the costs might not be our primary concern

43
• Success Stories
• Features & Opportunitie

44

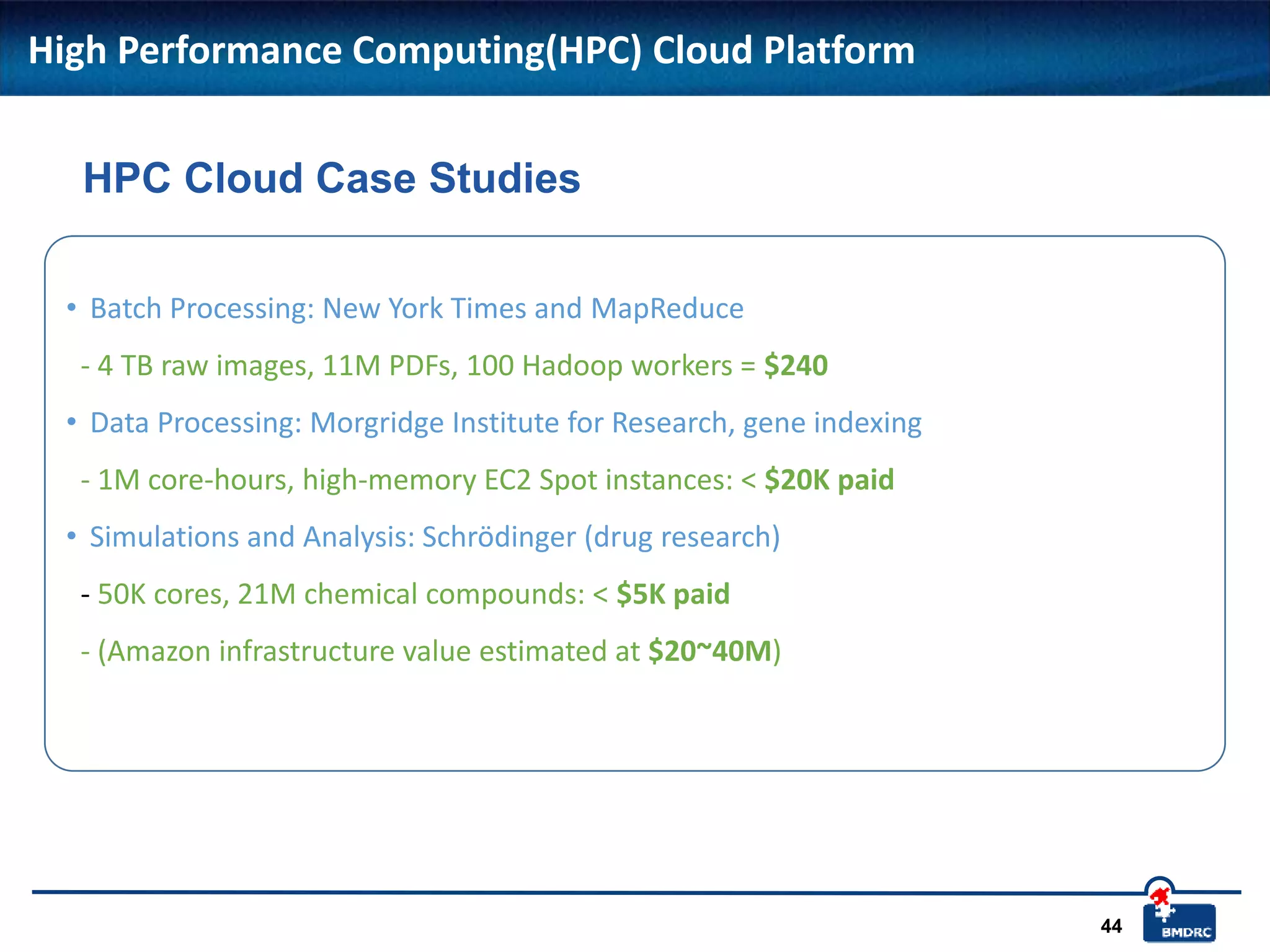

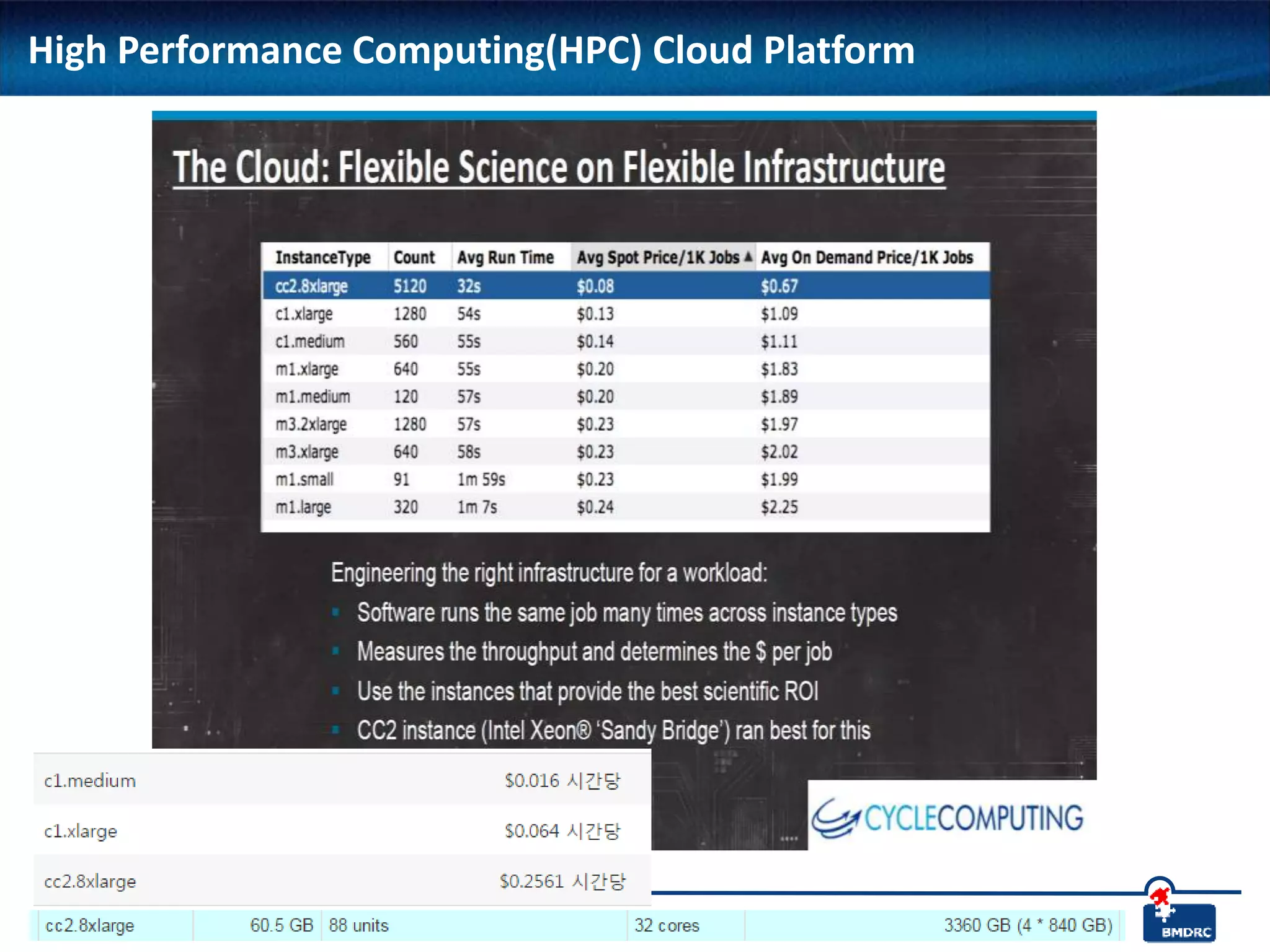

• Batch Processing: New York Times and MapReduce
- 4 TB raw images, 11M PDFs, 100 Hadoop workers = $240
• Data Processing: Morgridge Institute for Research, gene indexing
- 1M core-hours, high-memory EC2 Spot instances: < $20K paid

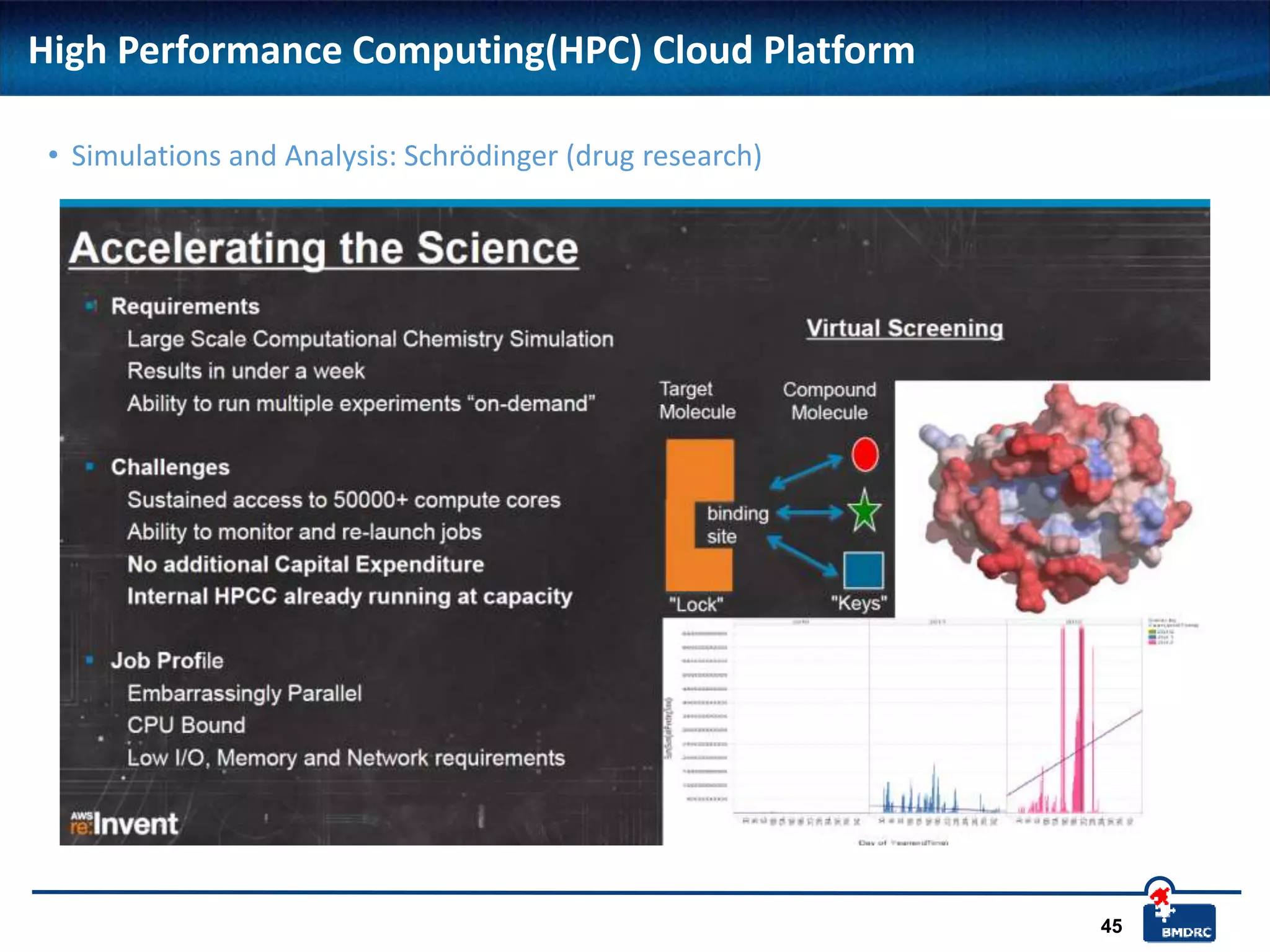

• Simulations and Analysis: Schrödinger (drug research)
- 50K cores, 21M chemical compounds: < $5K paid
- (Amazon infrastructure value estimated at $20~40M)
HPC Cloud Case Studies

45
• Simulations and Analysis: Schrödinger (drug research)

46

47

48

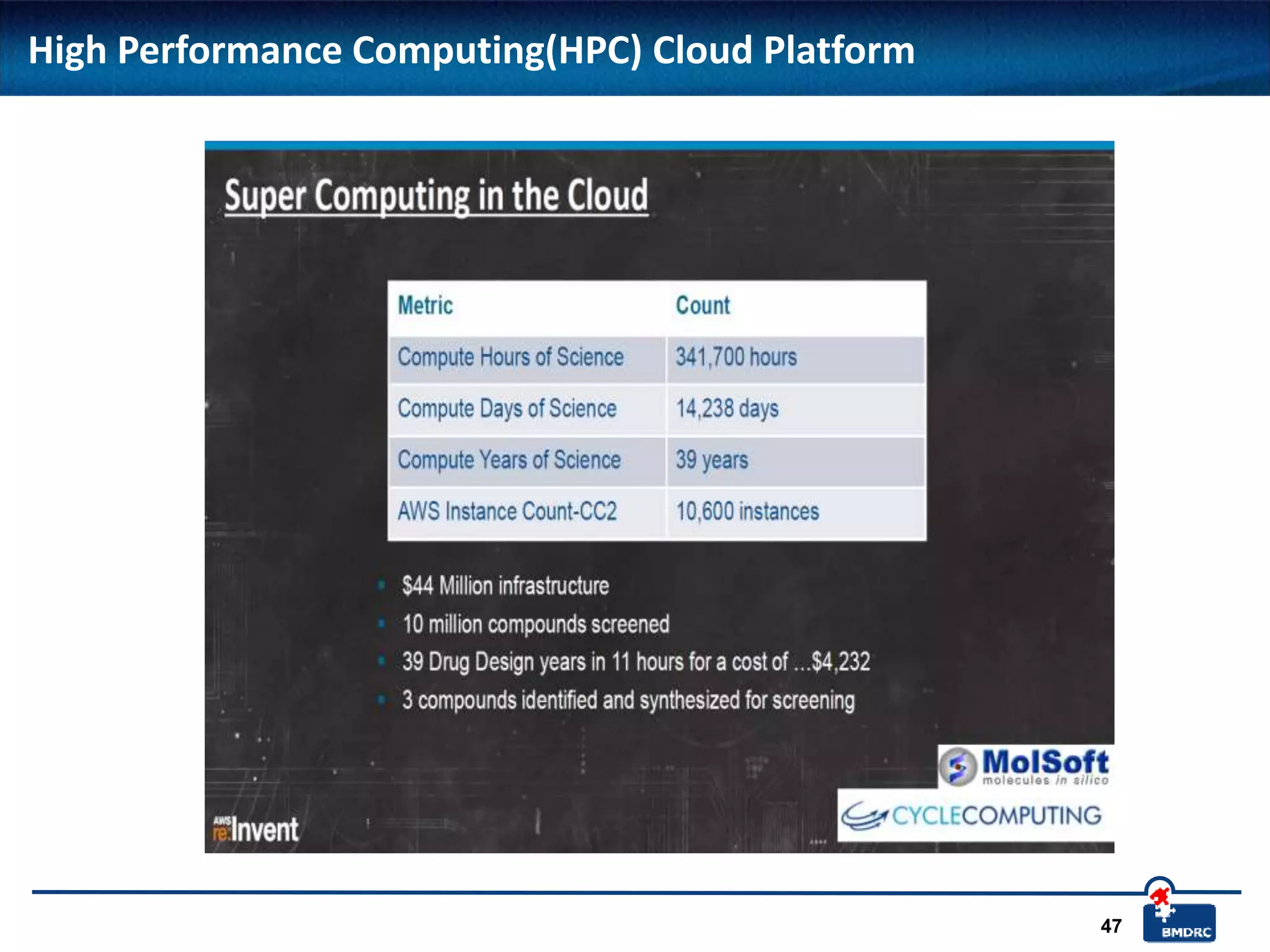

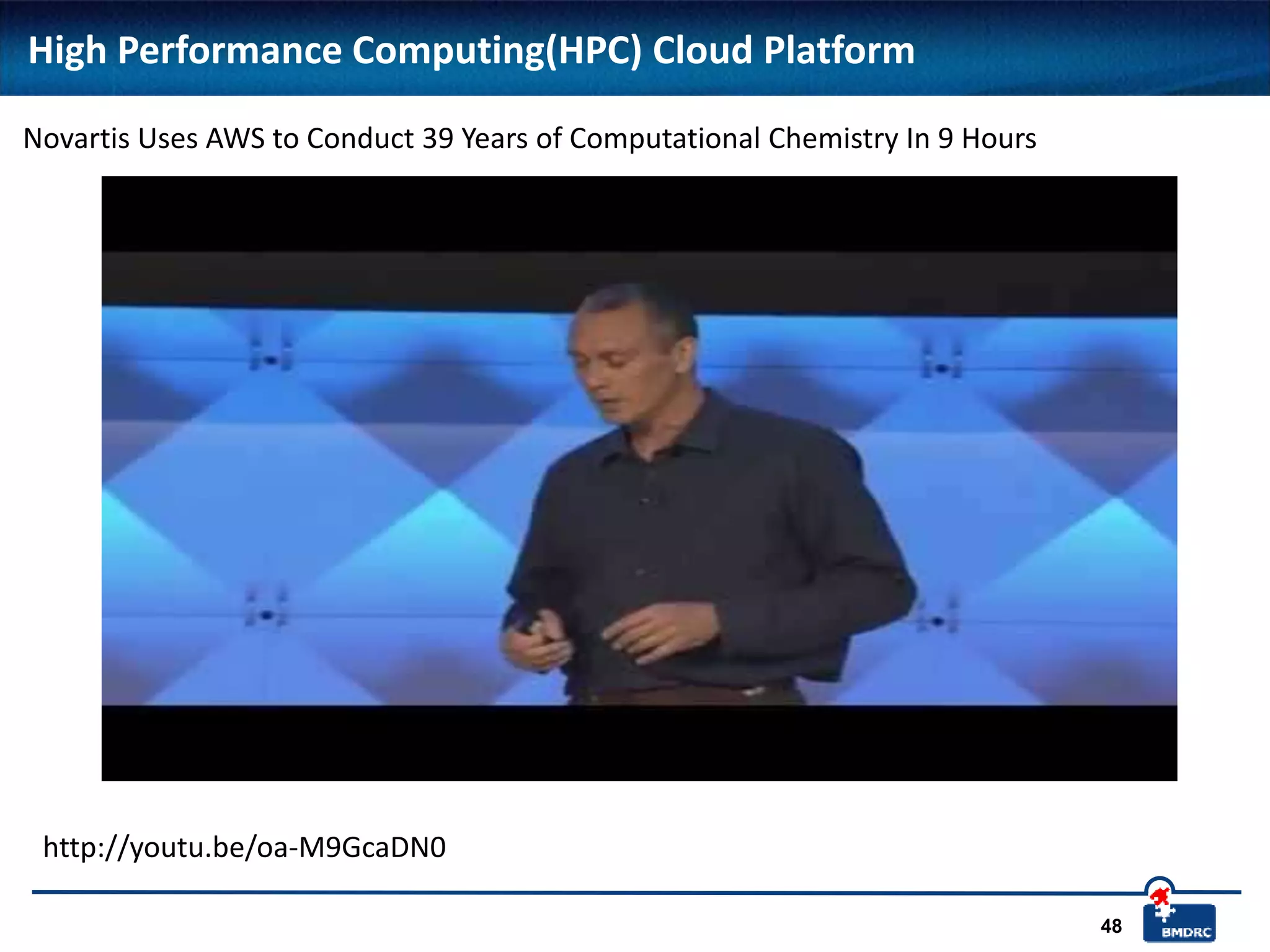

Novartis Uses AWS to Conduct 39 Years of Computational Chemistry In 9 Hours
http://youtu.be/oa-M9GcaDN0

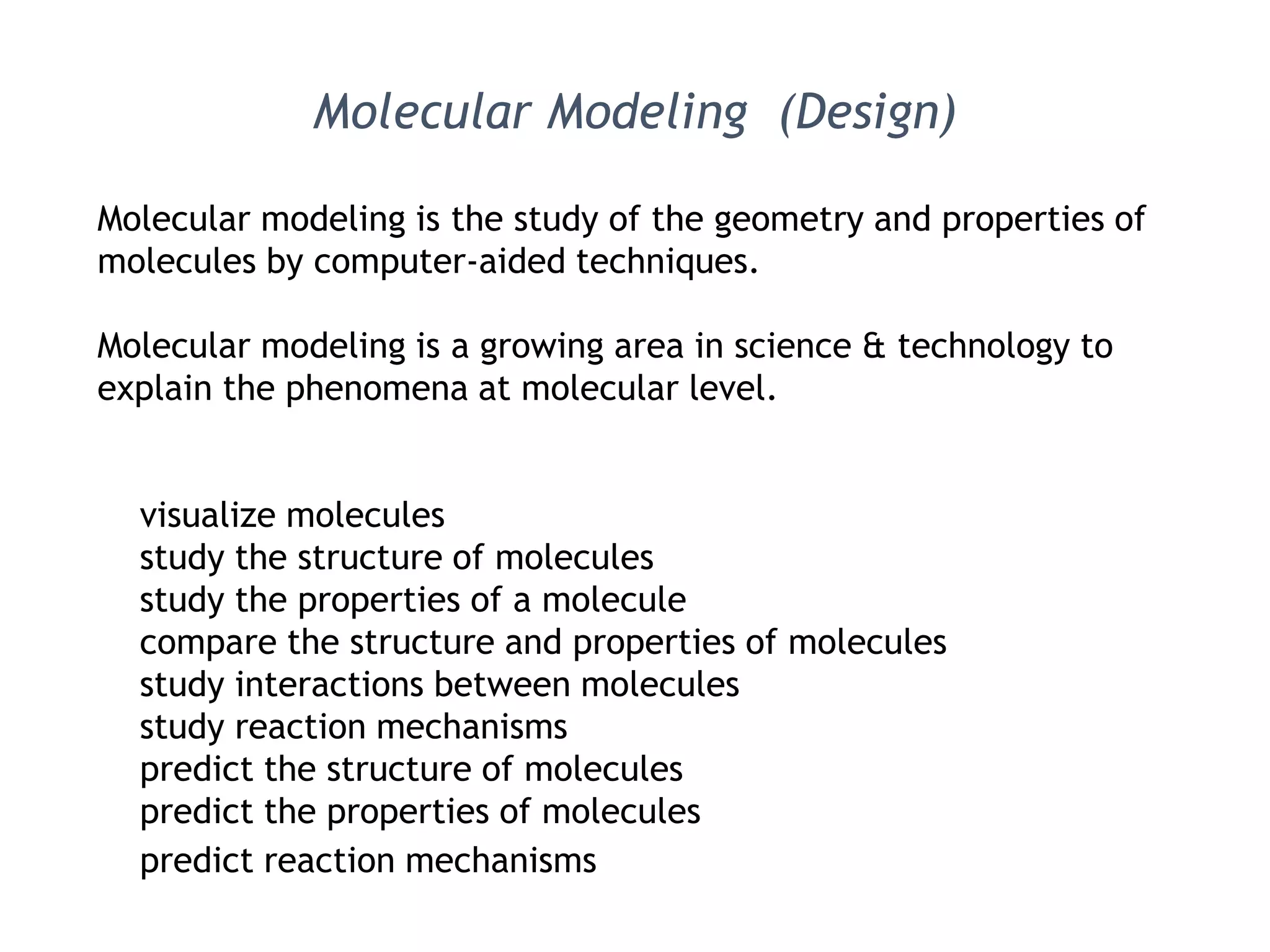

Molecular modeling is the study of the geometry and properties of
molecules by computer-aided techniques.
Molecular modeling is a growing area in science & technology to
explain the phenomena at molecular level.
visualize molecules
study the structure of molecules
study the properties of a molecule
compare the structure and properties of molecules
study interactions between molecules
study reaction mechanisms
predict the structure of molecules
predict the properties of molecules
predict reaction mechanisms
Molecular Modeling (Design)

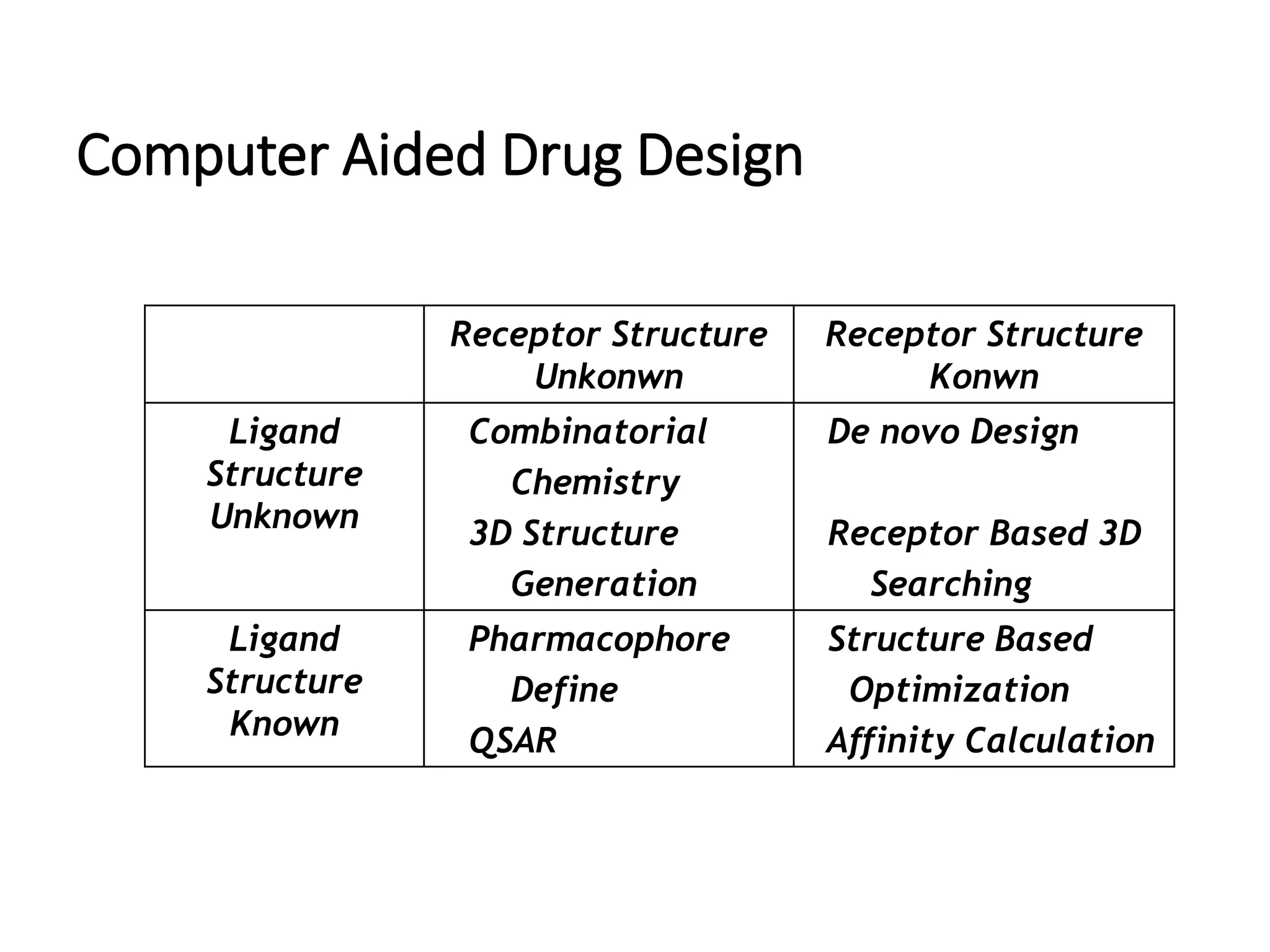

Computer Aided Drug Design
Receptor Structure
Unkonwn
Receptor Structure
Konwn
Ligand
Structure
Unknown
Combinatorial
Chemistry
3D Structure
Generation
De novo Design
Receptor Based 3D
Searching
Ligand
Structure
Known
Pharmacophore
Define
QSAR
Structure Based
Optimization
Affinity Calculation

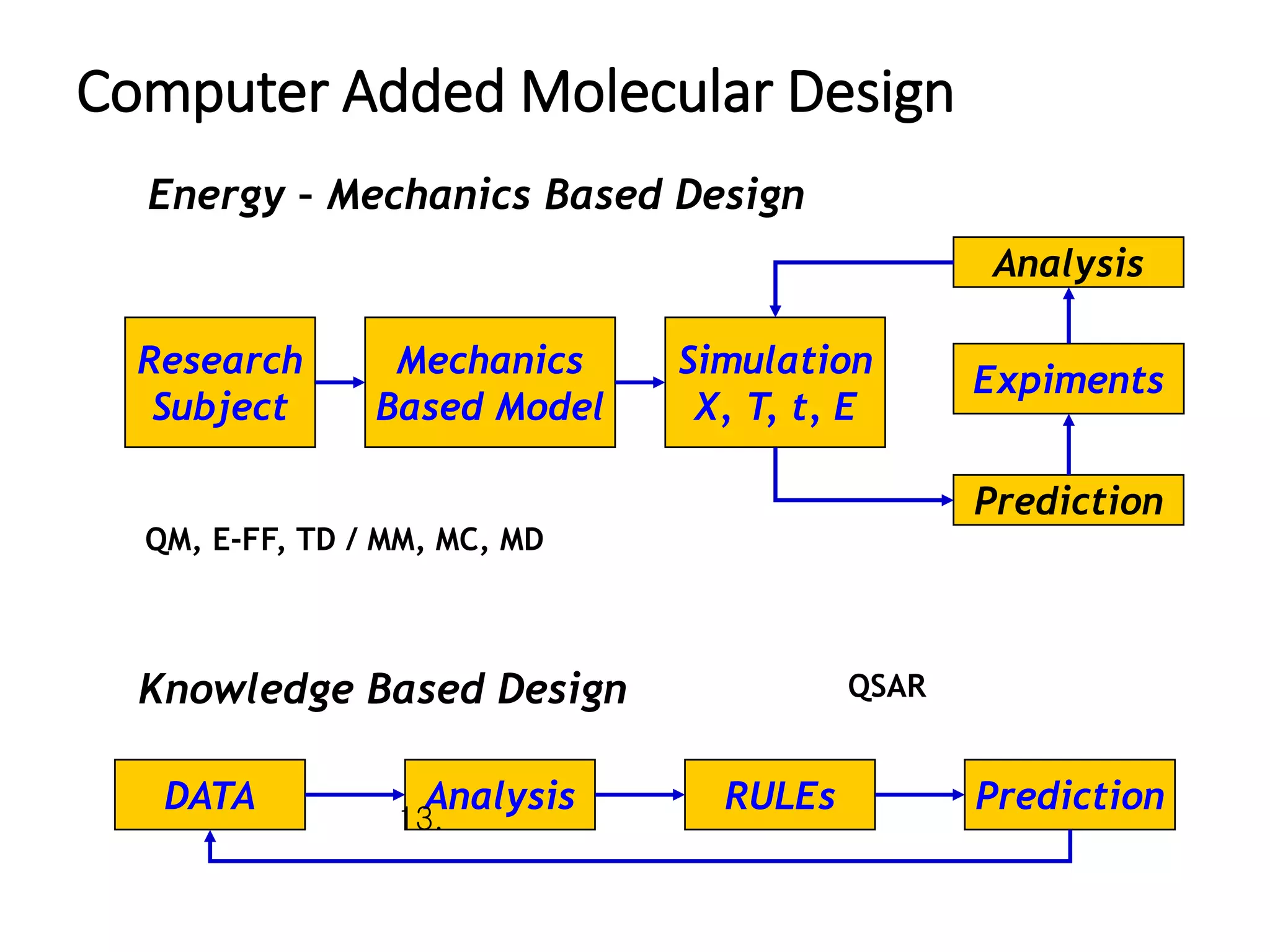

Computer Added Molecular Design
Energy – Mechanics Based Design
Research
Subject
Mechanics
Based Model
Simulation
X, T, t, E
Expiments
Analysis
Prediction
QM, E-FF, TD / MM, MC, MD
Knowledge Based Design
DATA Analysis RULEs Prediction
QSAR
13.

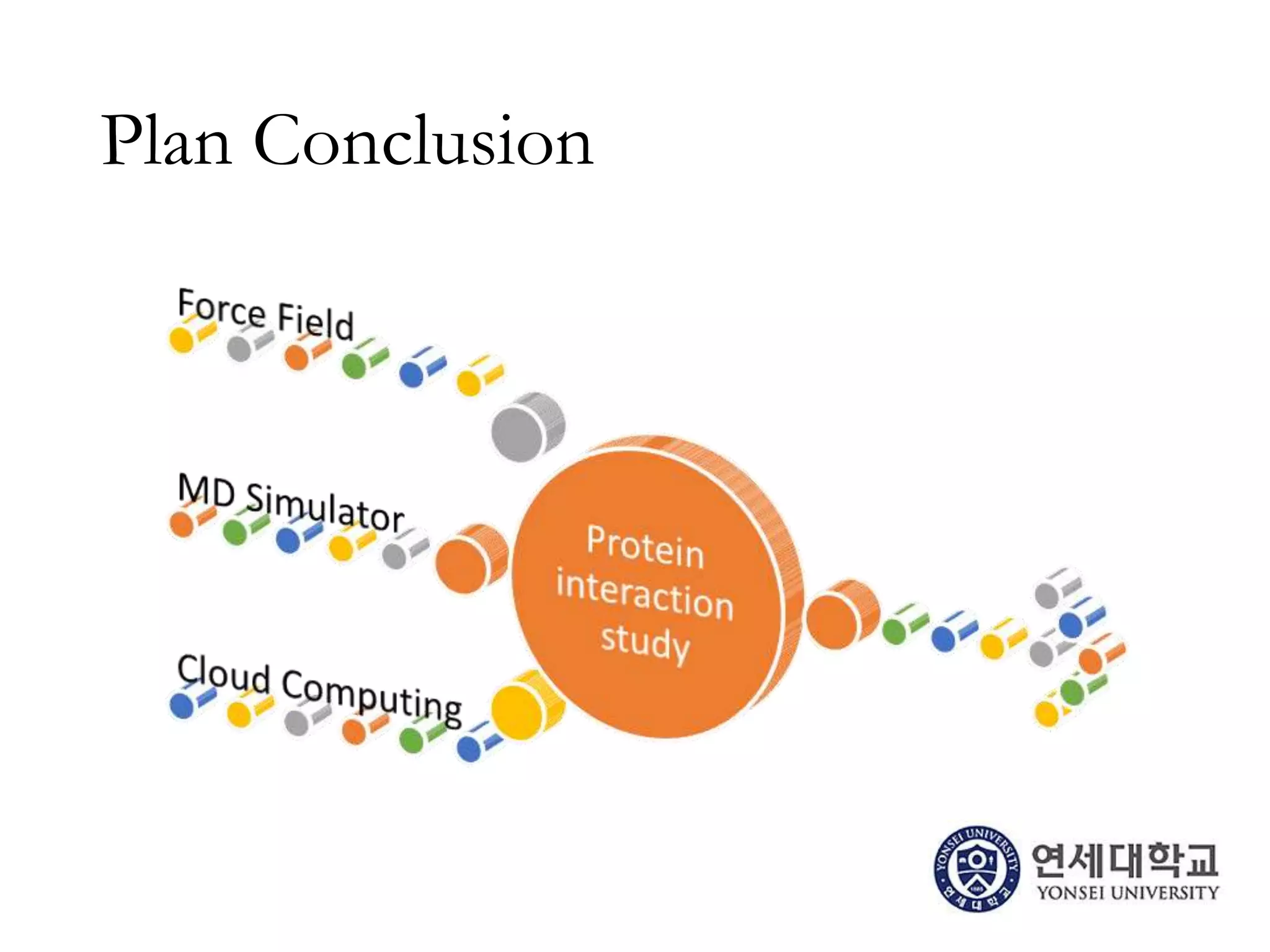

Molecular Simulation to build models for enzyme induced fit

Recommended

Recommended

More Related Content

What's hot

What's hot (10)

Similar to Molecular Simulation to build models for enzyme induced fit

Similar to Molecular Simulation to build models for enzyme induced fit (20)

Recently uploaded

Recently uploaded (20)

Molecular Simulation to build models for enzyme induced fit

Editor's Notes
