Pepperl + Fuchs' Emerson Global User Exchange highlights!
- 1.
- 2. Pepperl+Fuchs is theundisputed market leader in intrinsically safe explosion protection components We offers a complete range of customized solutions for hazardous areas and critical application

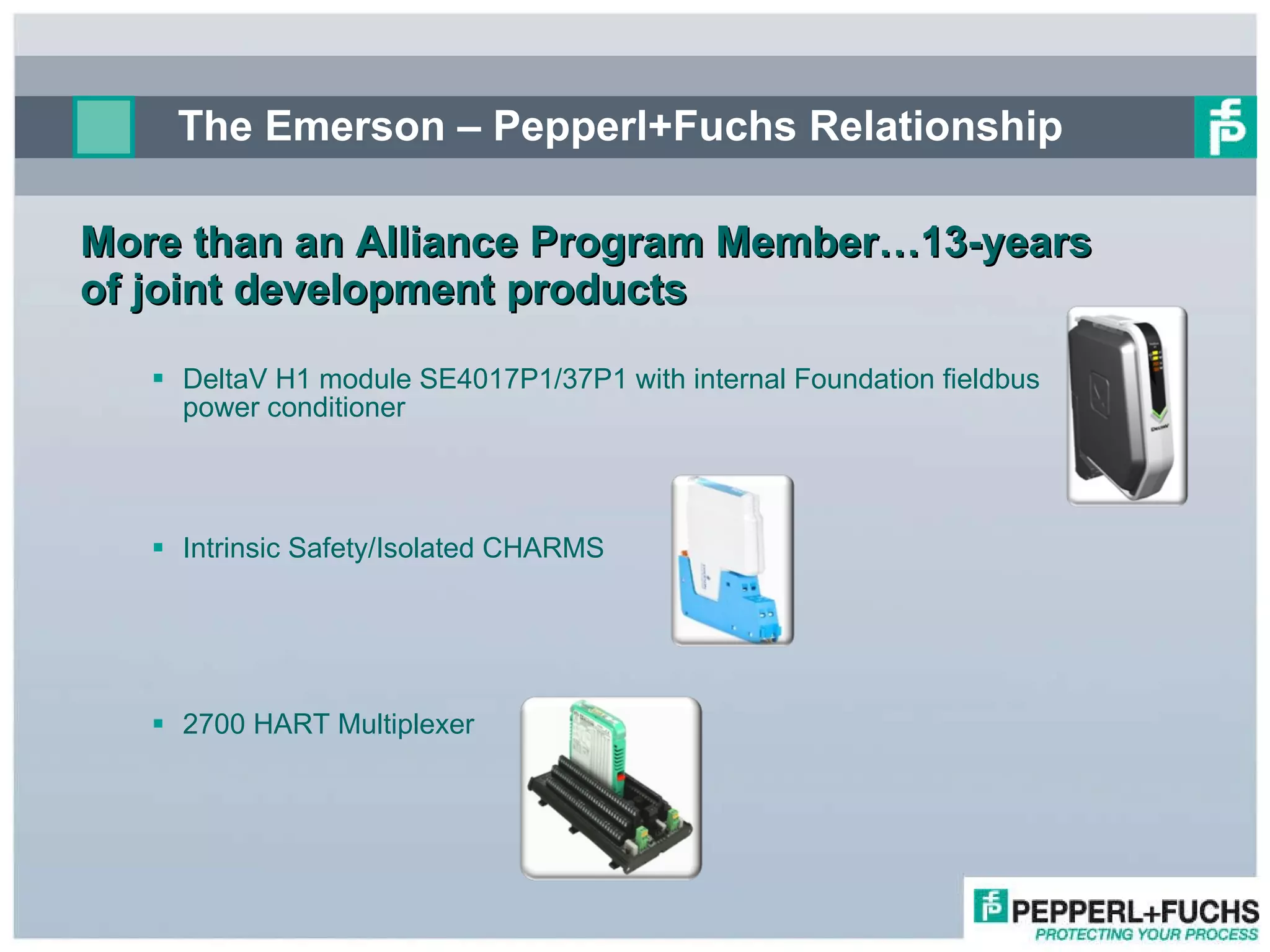

- 3. The Emerson –Pepperl+Fuchs Relationship More than an Alliance Program Member…13-years of joint development products DeltaV H1 module SE4017P1/37P1 with internal Foundation fieldbus power conditioner Intrinsic Safety/Isolated CHARMS 2700 HART Multiplexer

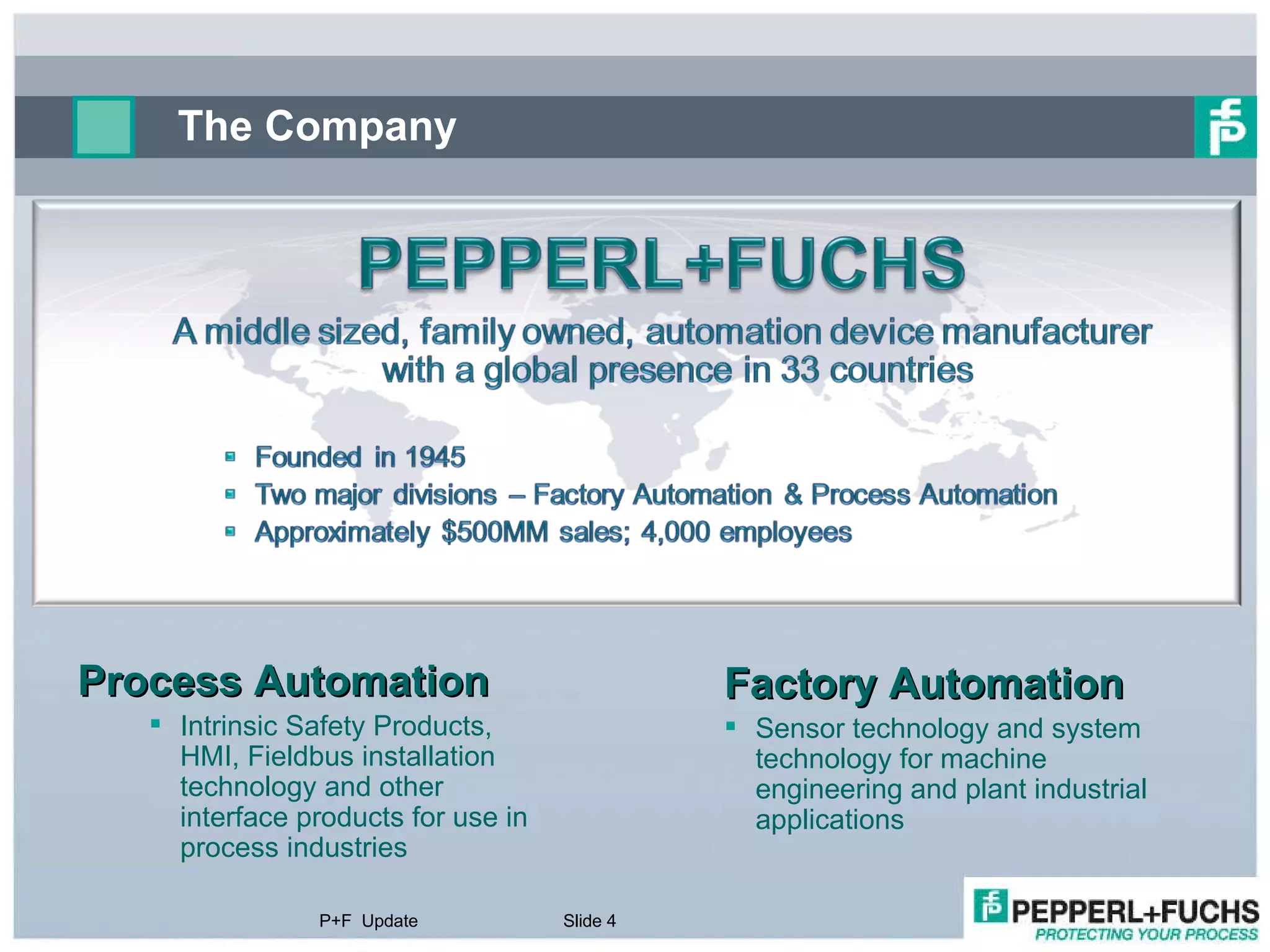

- 4. The Company P+F Update Slide Factory Automation Sensor technology and system technology for machine engineering and plant industrial applications Process Automation Intrinsic Safety Products, HMI, Fieldbus installation technology and other interface products for use in process industries

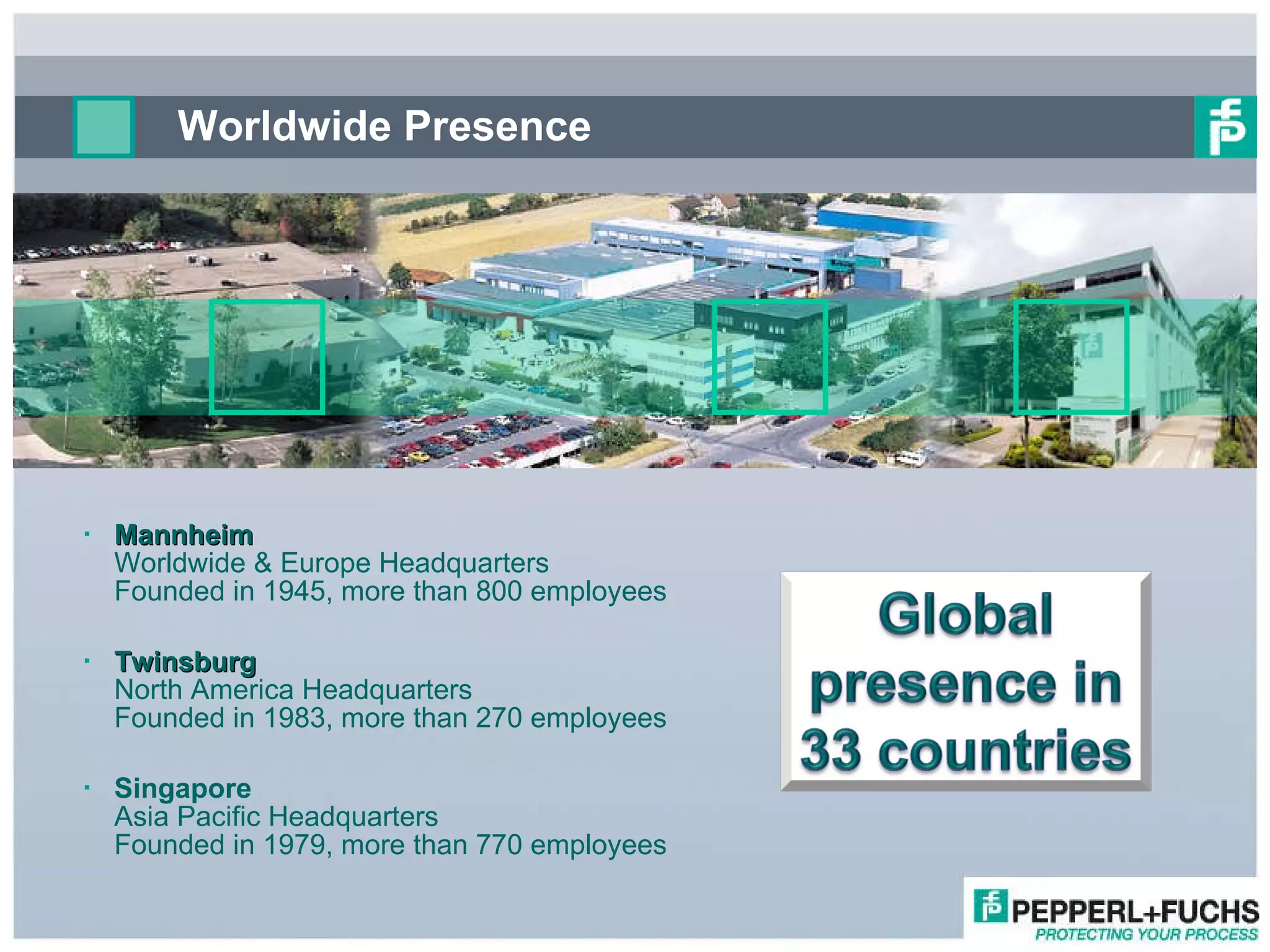

- 5. Worldwide Presence Mannheim Worldwide & Europe Headquarters Founded in 1945, more than 800 employees Twinsburg North America Headquarters Founded in 1983, more than 270 employees Singapore Asia Pacific Headquarters Founded in 1979, more than 770 employees
- 6. Gary Tapperson –Global Account Manager Global Account Manager – Emerson 33 years with Emerson Process Management / Fisher Controls Leadership positions in : Operations Sales Management Technology Product Marketing

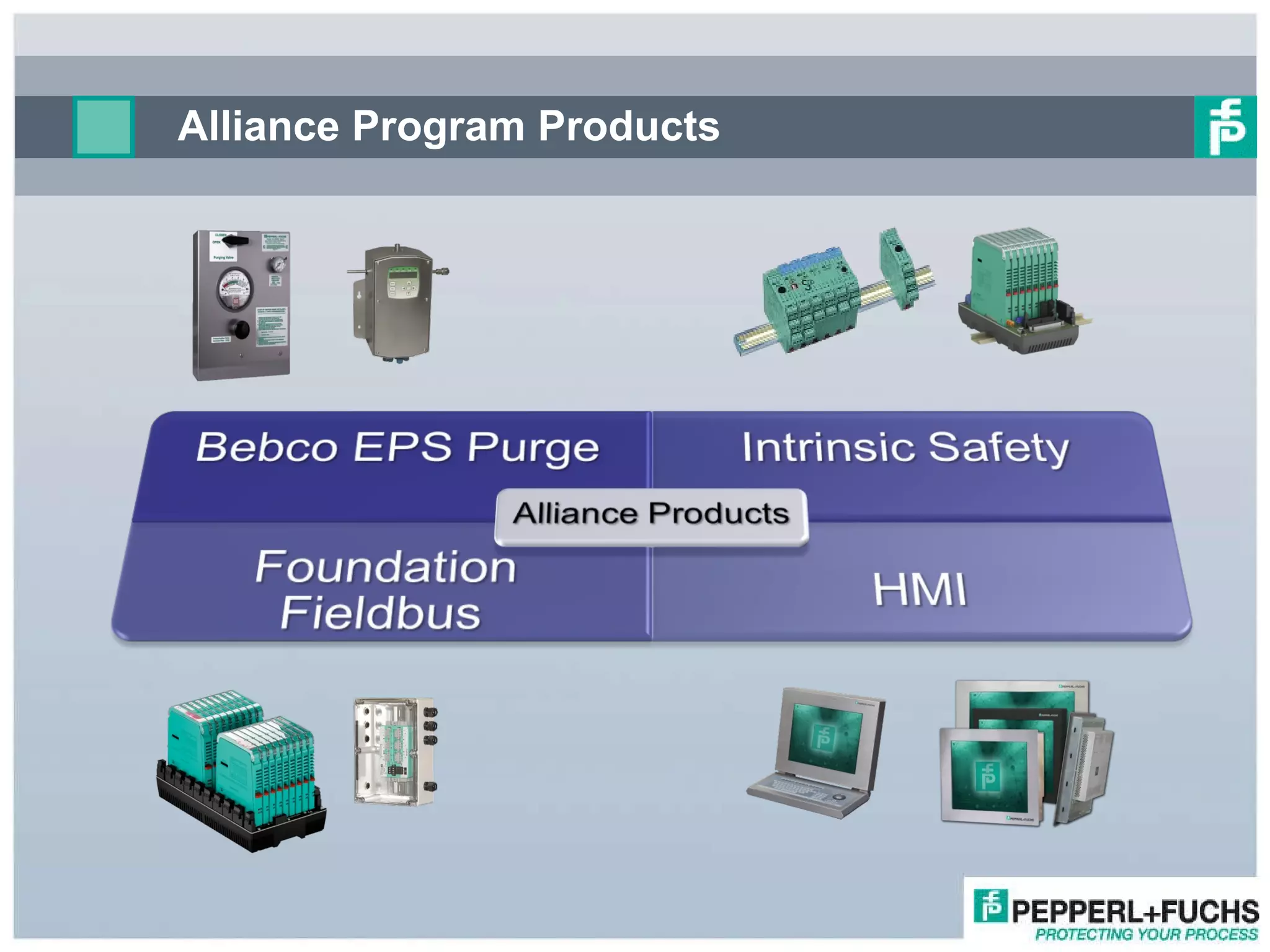

- 7.

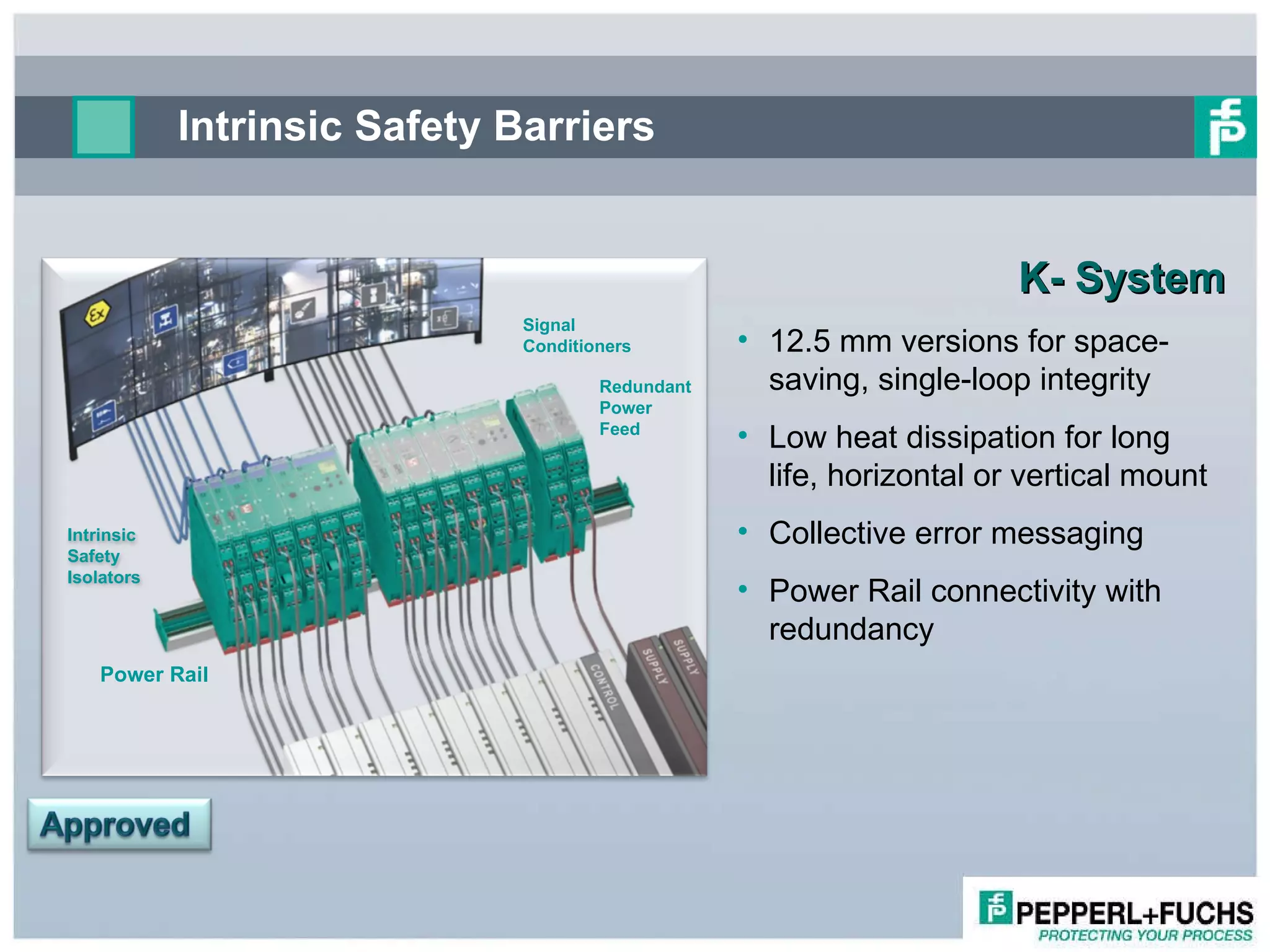

- 8. Intrinsic Safety BarriersK- System 12.5 mm versions for space-saving, single-loop integrity Low heat dissipation for long life, horizontal or vertical mount Collective error messaging Power Rail connectivity with redundancy Signal Conditioners Redundant Power Feed Intrinsic Safety Isolators Power Rail

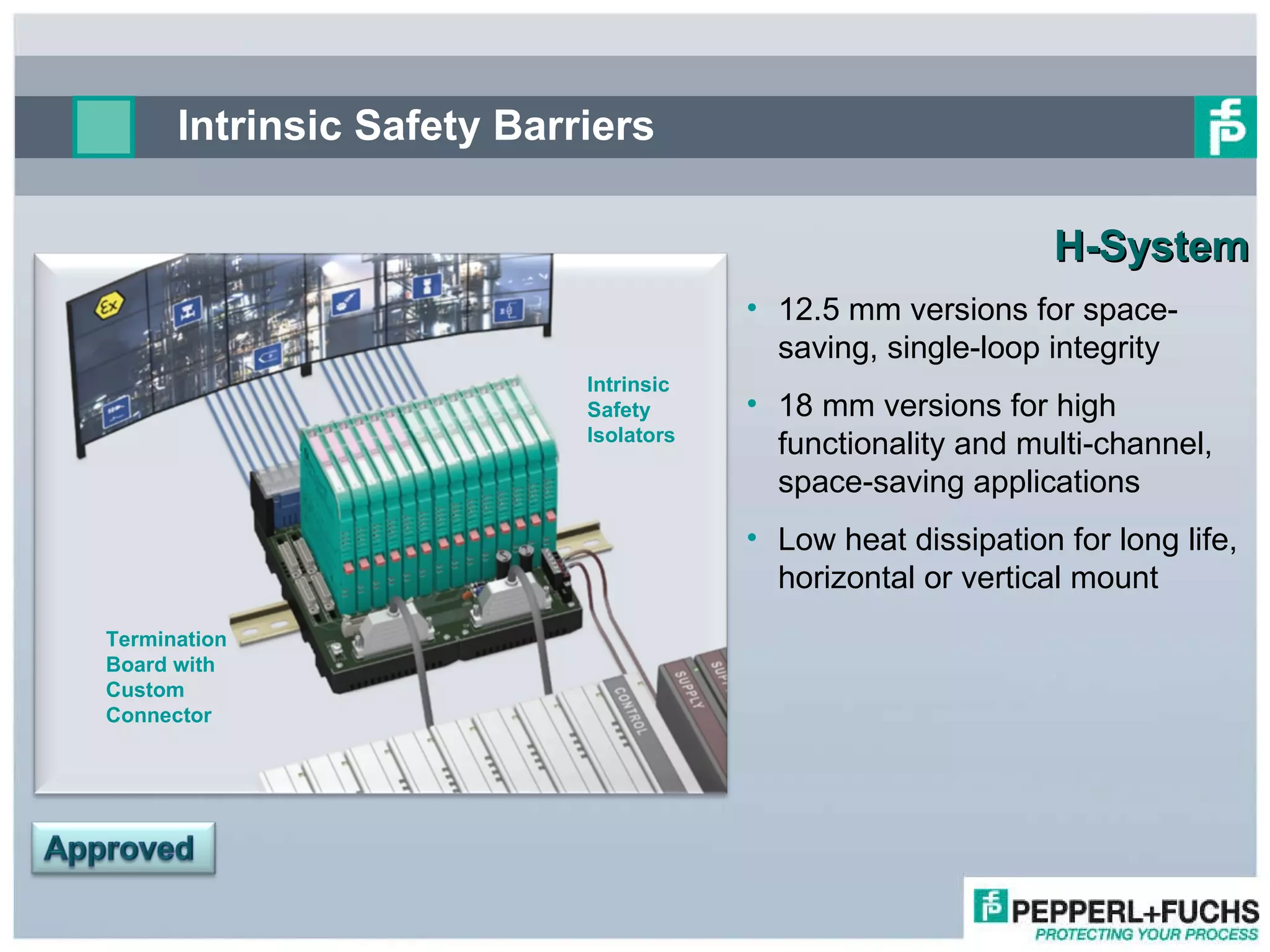

- 9. H-System 12.5 mmversions for space-saving, single-loop integrity 18 mm versions for high functionality and multi-channel, space-saving applications Low heat dissipation for long life, horizontal or vertical mount Intrinsic Safety Barriers Intrinsic Safety Isolators Termination Board with Custom Connector

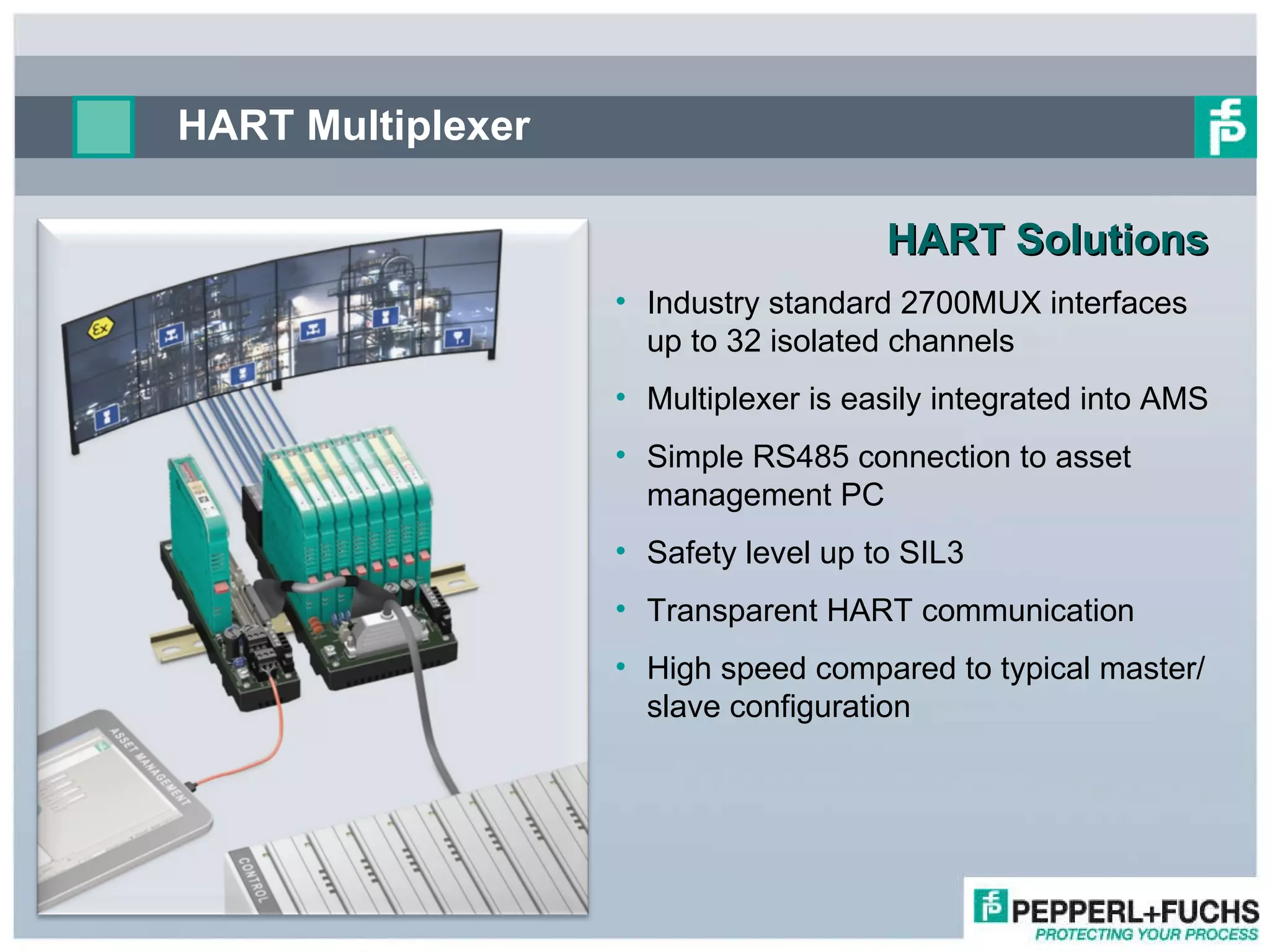

- 10. HART Solutions Industry standard 2700MUX interfaces up to 32 isolated channels Multiplexer is easily integrated into AMS Simple RS485 connection to asset management PC Safety level up to SIL3 Transparent HART communication High speed compared to typical master/slave configuration HART Multiplexer

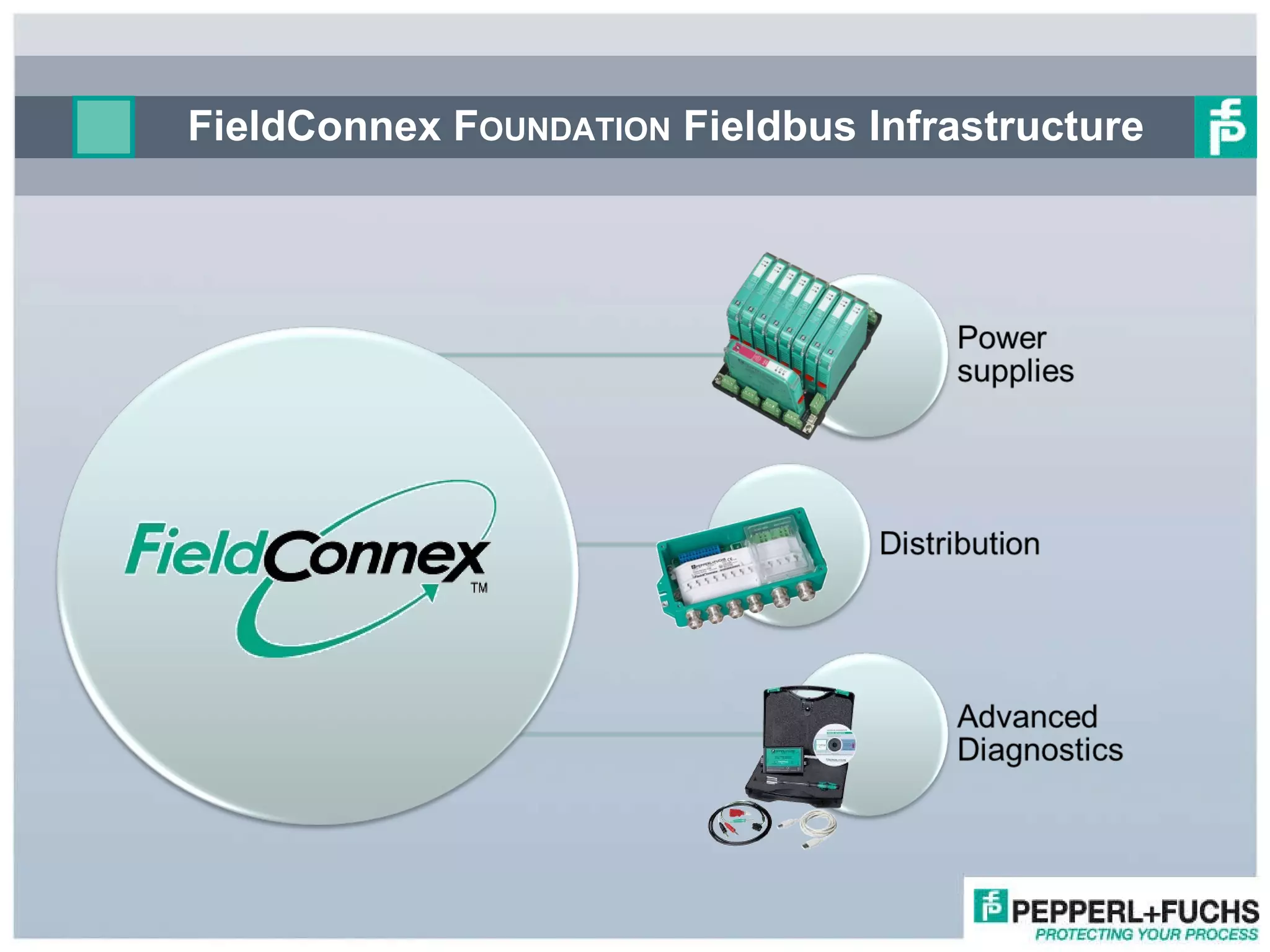

- 11. FieldConnex F OUNDATION Fieldbus Infrastructure

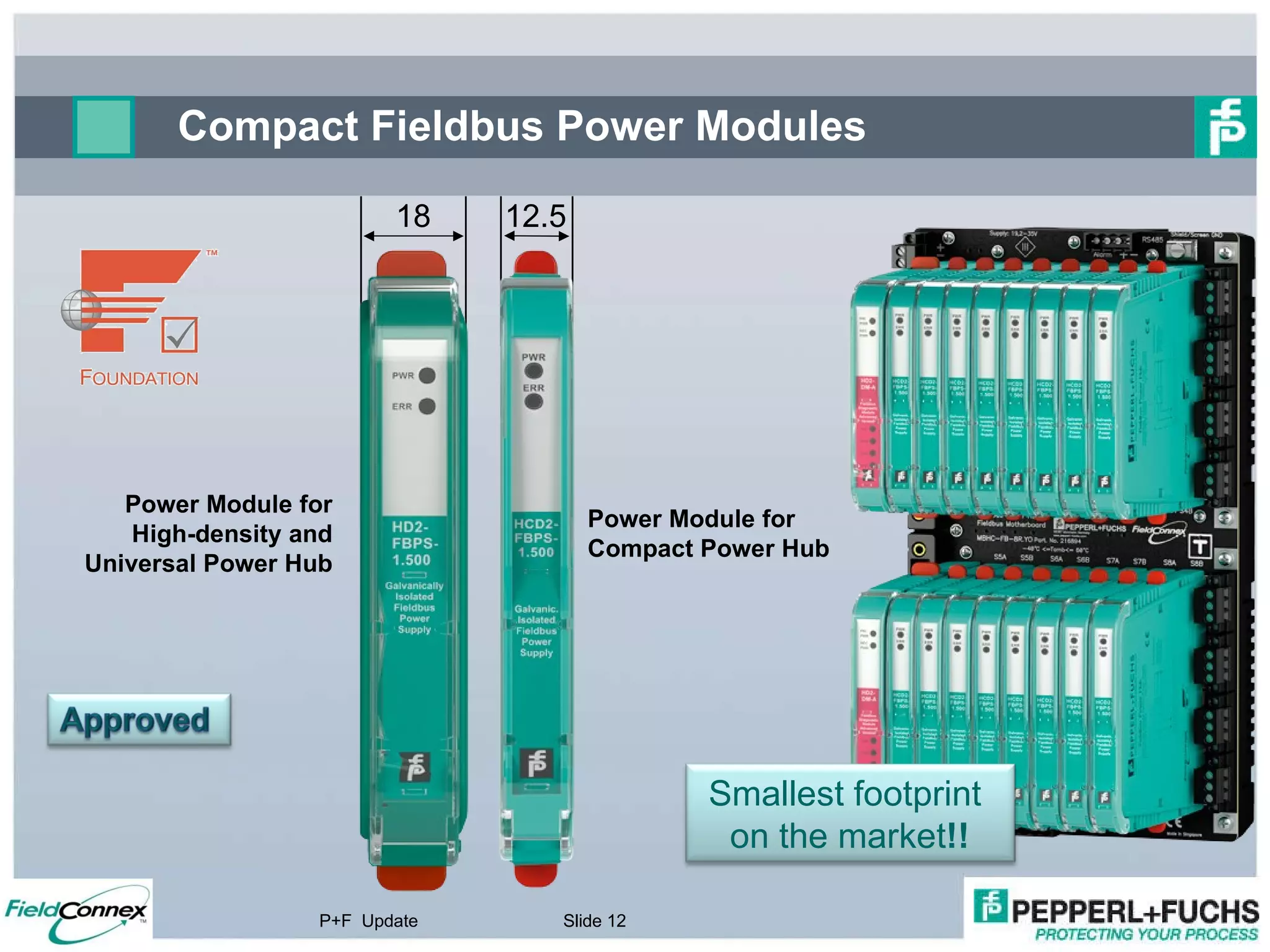

- 12. Compact Fieldbus PowerModules P+F Update Slide 18 12.5 Power Module for High-density and Universal Power Hub Power Module for Compact Power Hub Smallest footprint on the market !!

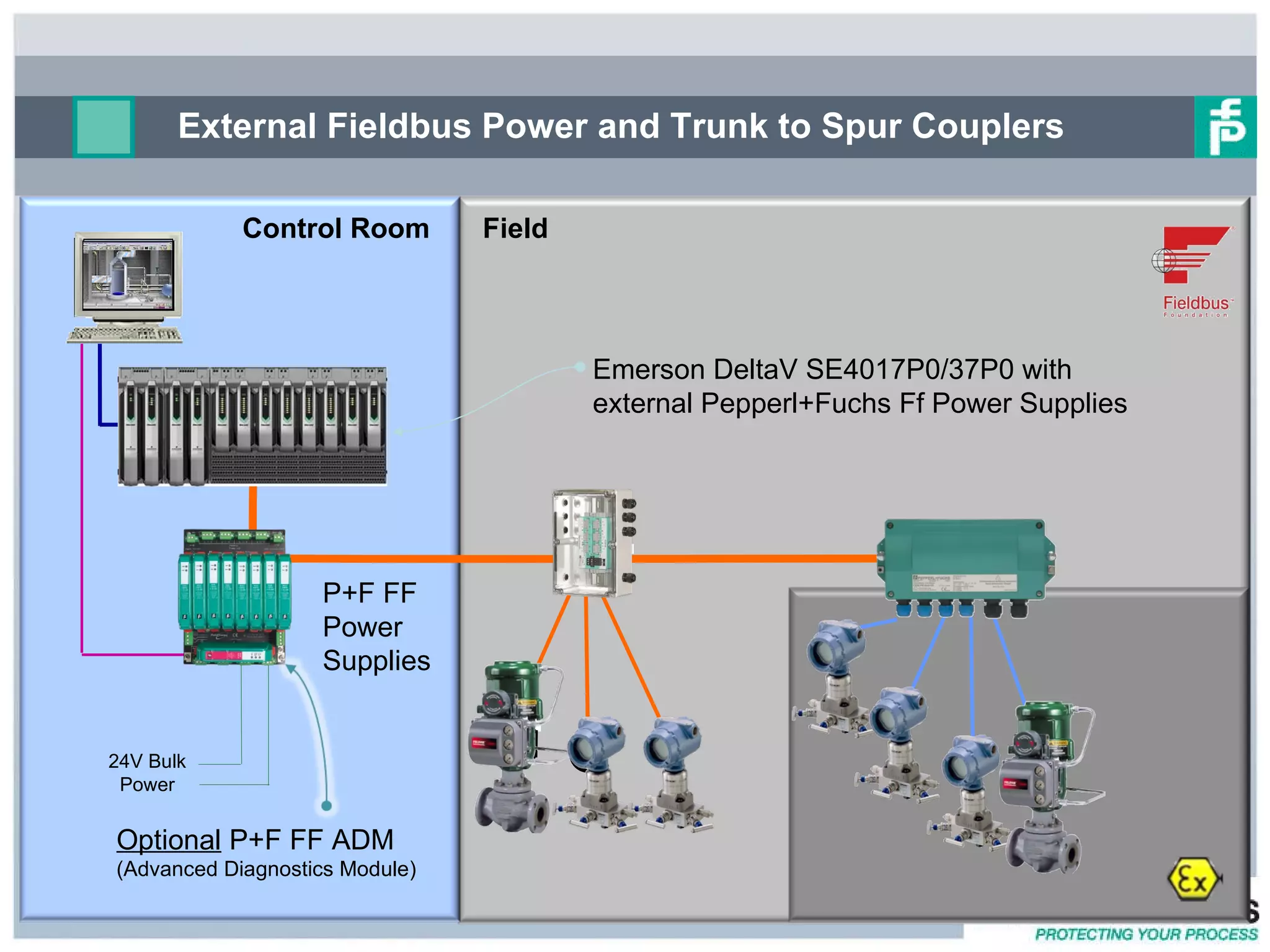

- 13. External Fieldbus Powerand Trunk to Spur Couplers Control Room Field Optional P+F FF ADM (Advanced Diagnostics Module) 24V Bulk Power Emerson DeltaV SE4017P0/37P0 with external Pepperl+Fuchs Ff Power Supplies P+F FF Power Supplies

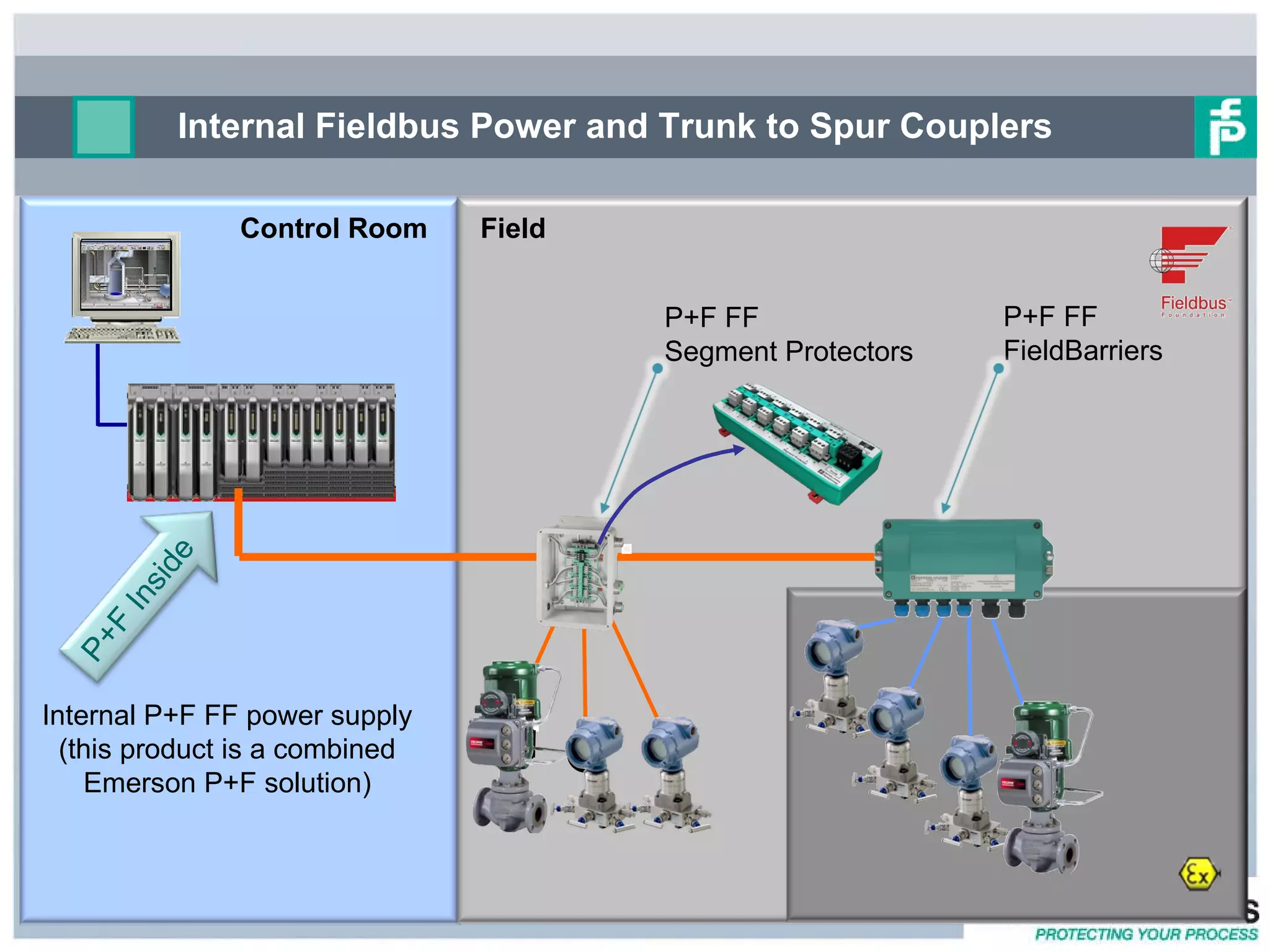

- 14. Internal Fieldbus Powerand Trunk to Spur Couplers Control Room Field Internal P+F FF power supply (this product is a combined Emerson P+F solution) P+F FF Segment Protectors P+F FF FieldBarriers P+F Inside

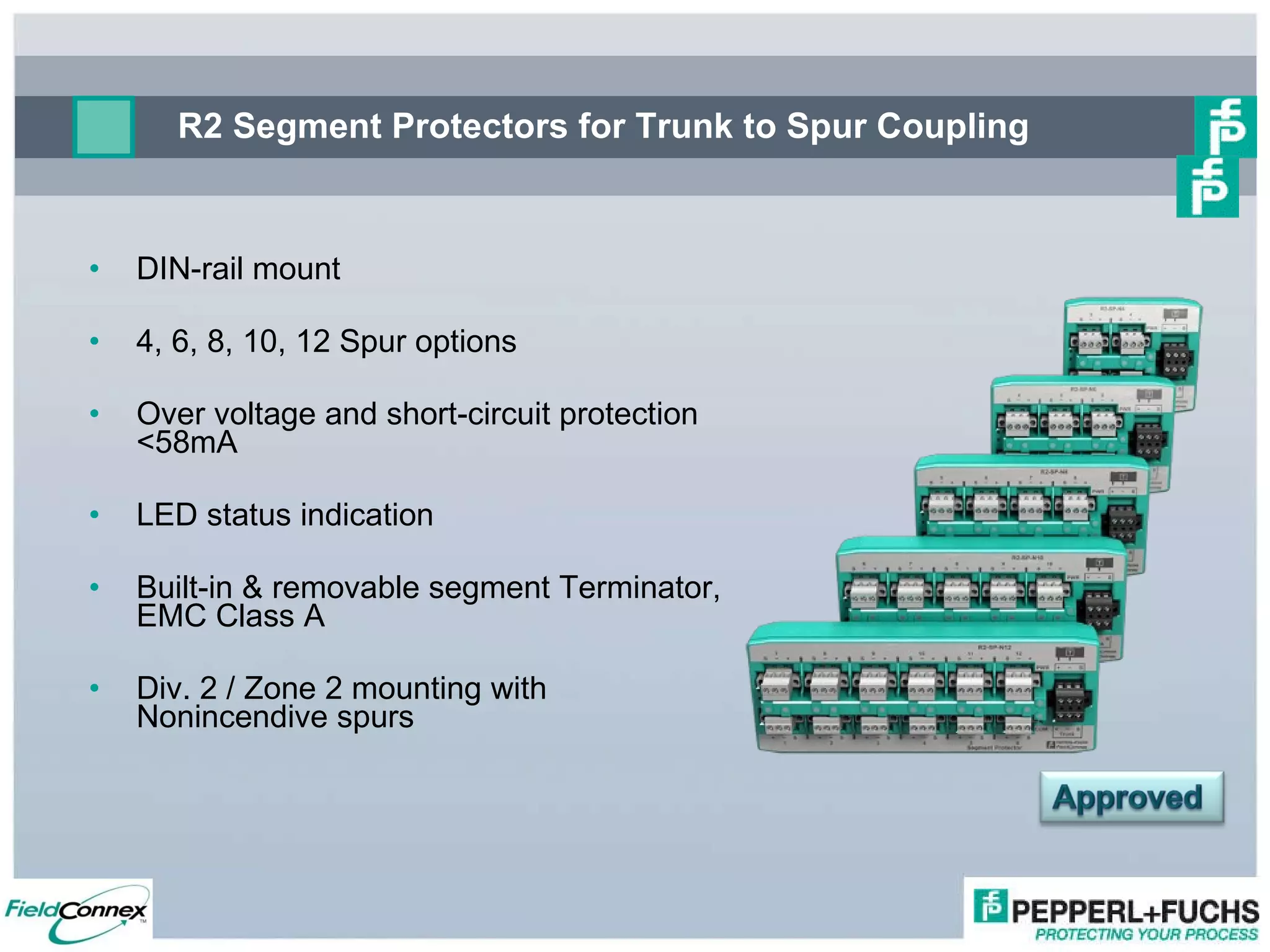

- 15. R2 Segment Protectorsfor Trunk to Spur Coupling DIN-rail mount 4, 6, 8, 10, 12 Spur options Over voltage and short-circuit protection <58mA LED status indication Built-in & removable segment Terminator, EMC Class A Div. 2 / Zone 2 mounting with Nonincendive spurs

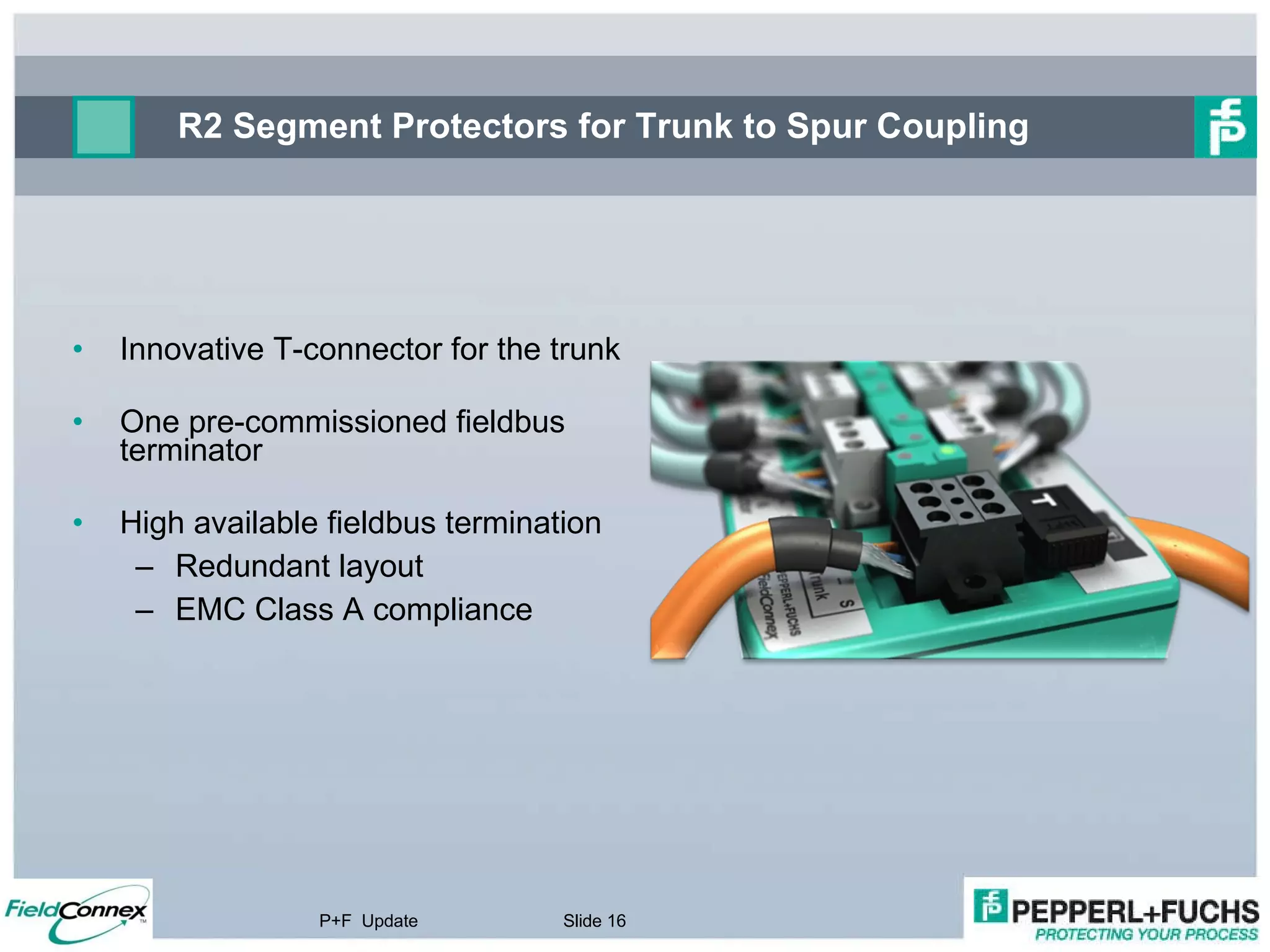

- 16. R2 Segment Protectorsfor Trunk to Spur Coupling Innovative T-connector for the trunk One pre-commissioned fieldbus terminator High available fieldbus termination Redundant layout EMC Class A compliance P+F Update Slide

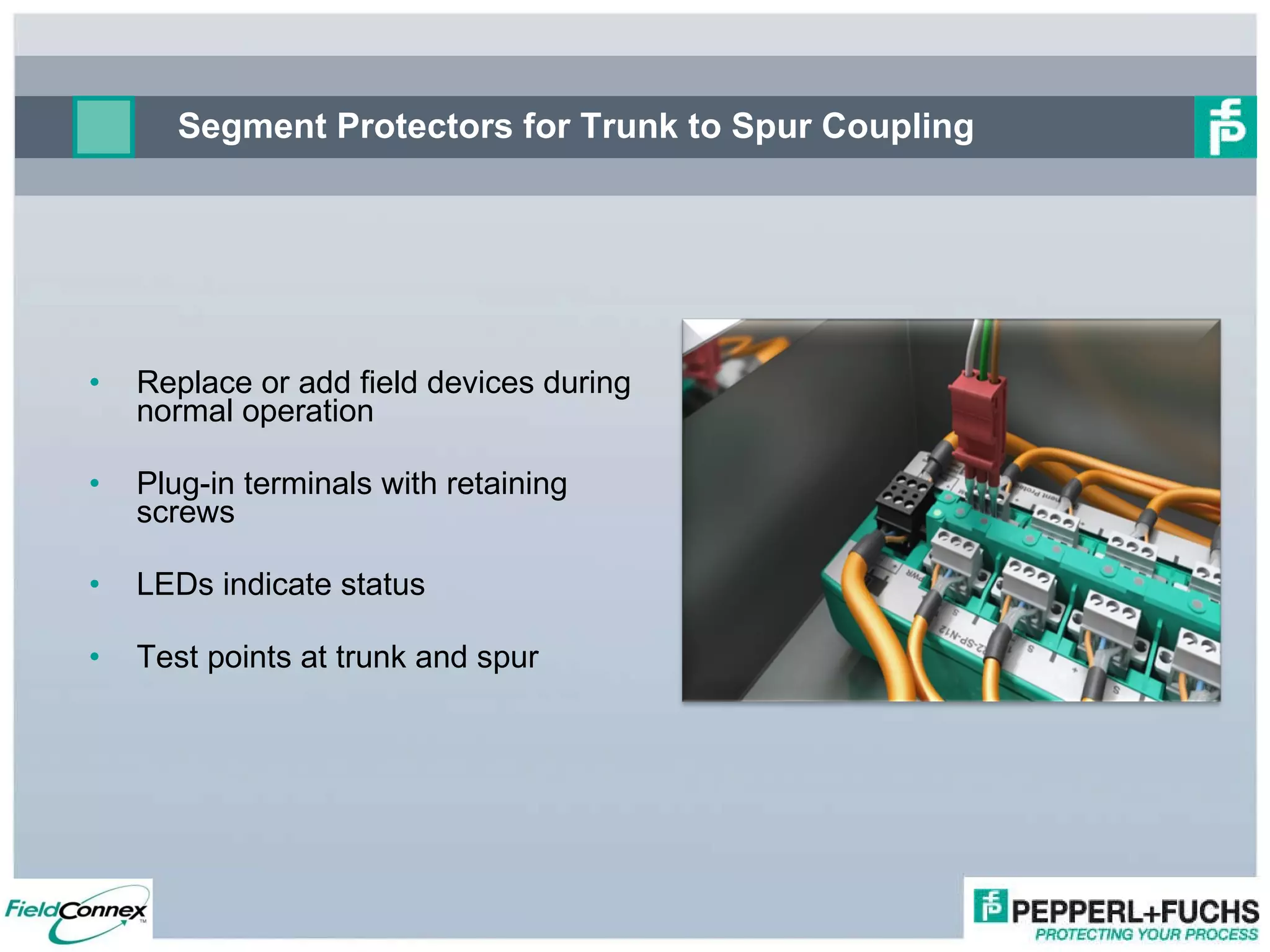

- 17. Segment Protectors forTrunk to Spur Coupling Replace or add field devices during normal operation Plug-in terminals with retaining screws LEDs indicate status Test points at trunk and spur

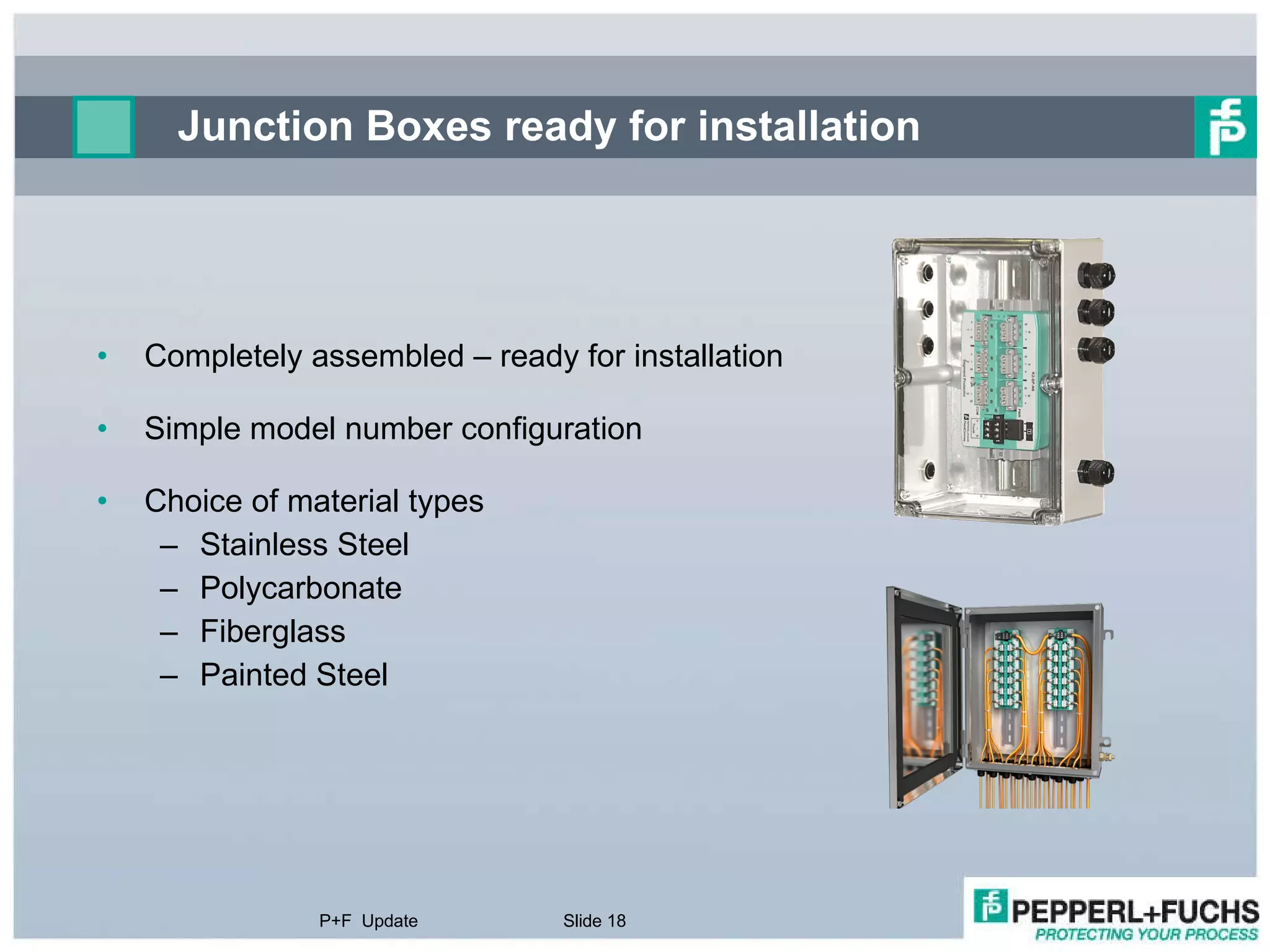

- 18. Junction Boxes readyfor installation Completely assembled – ready for installation Simple model number configuration Choice of material types Stainless Steel Polycarbonate Fiberglass Painted Steel P+F Update Slide

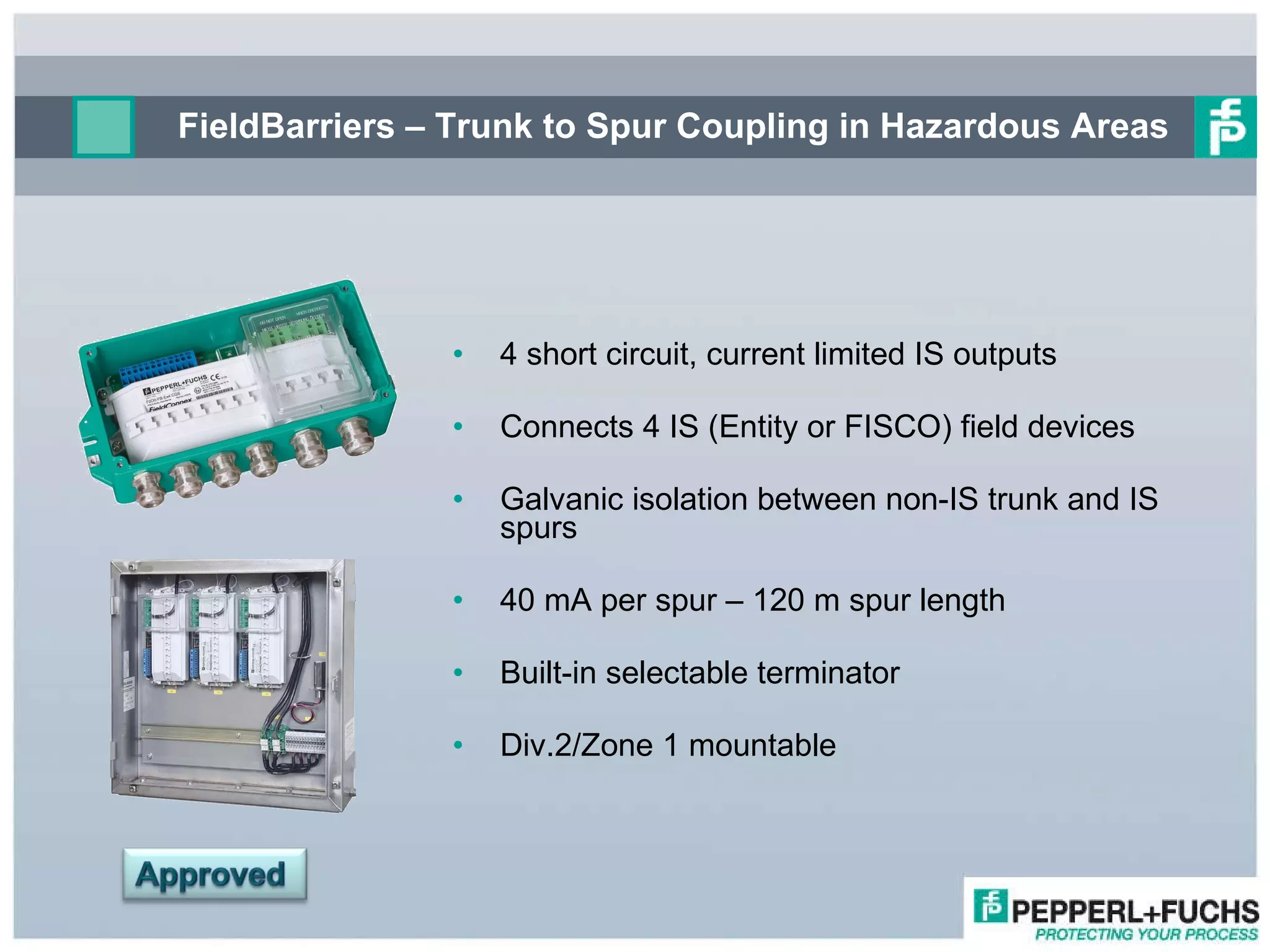

- 19. FieldBarriers – Trunkto Spur Coupling in Hazardous Areas 4 short circuit, current limited IS outputs Connects 4 IS (Entity or FISCO) field devices Galvanic isolation between non-IS trunk and IS spurs 40 mA per spur – 120 m spur length Built-in selectable terminator Div.2/Zone 1 mountable

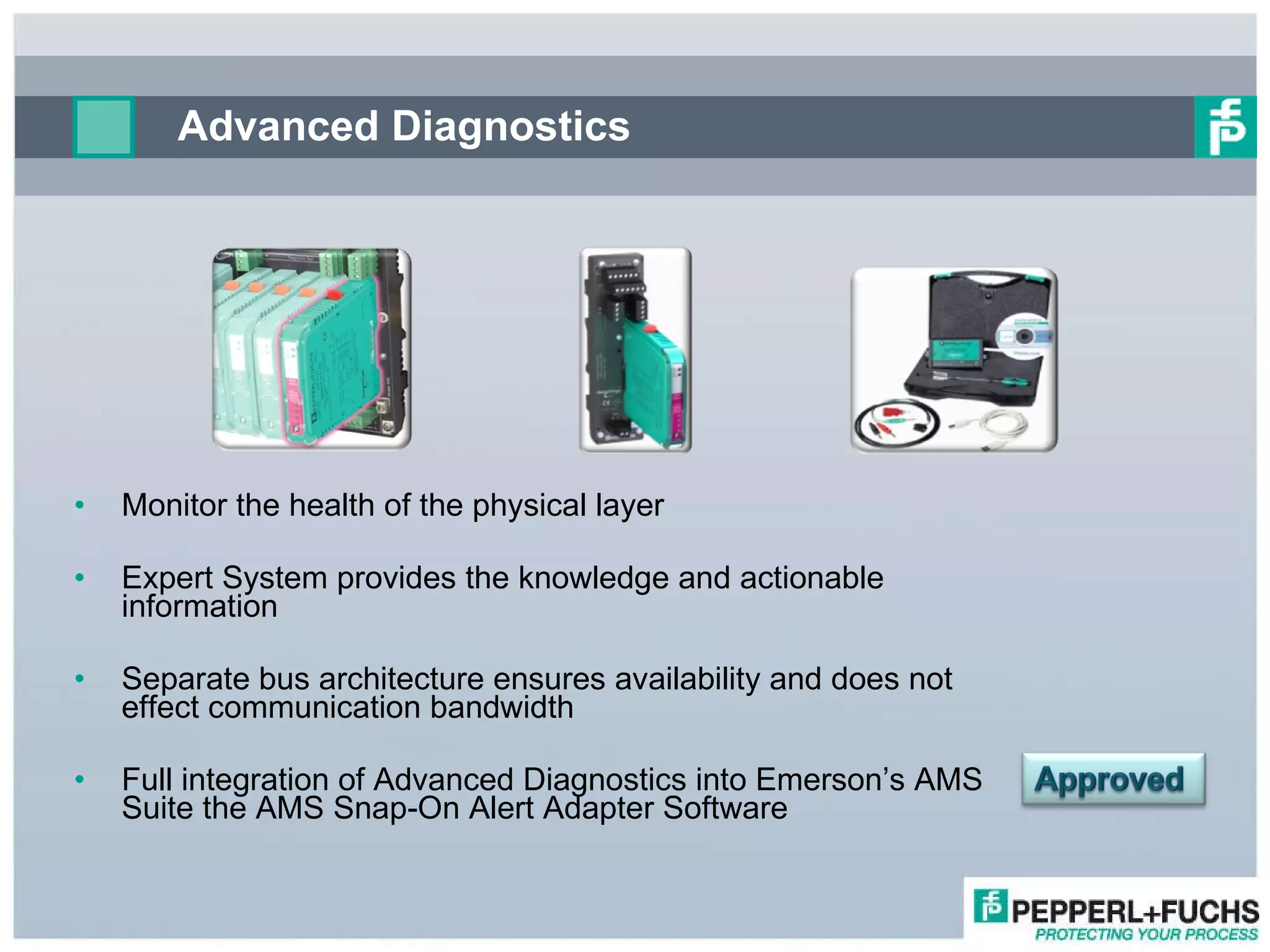

- 20. Monitor the healthof the physical layer Expert System provides the knowledge and actionable information Separate bus architecture ensures availability and does not effect communication bandwidth Full integration of Advanced Diagnostics into Emerson’s AMS Suite the AMS Snap-On Alert Adapter Software Advanced Diagnostics

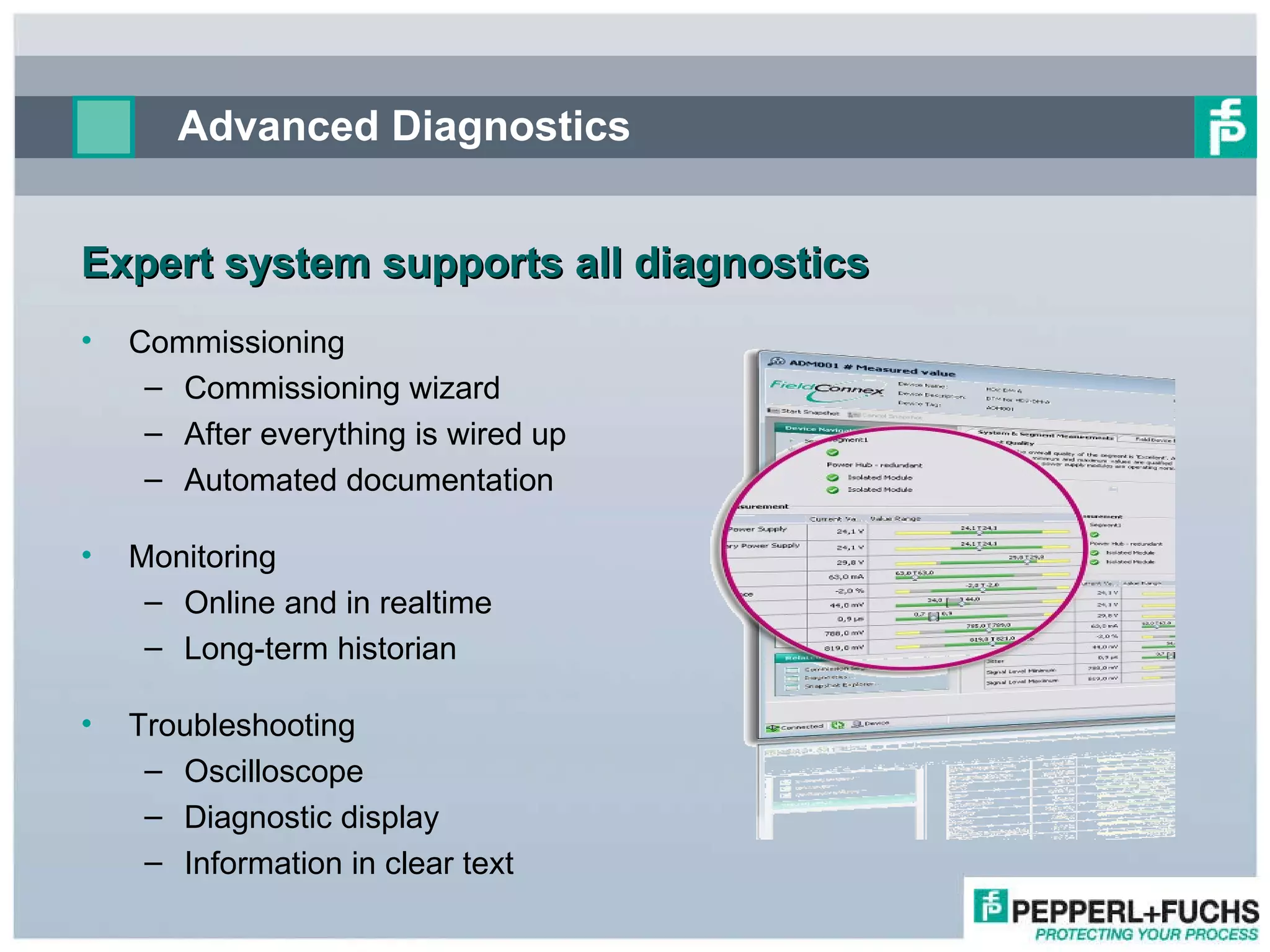

- 21. Advanced Diagnostics CommissioningCommissioning wizard After everything is wired up Automated documentation Monitoring Online and in realtime Long-term historian Troubleshooting Oscilloscope Diagnostic display Information in clear text Expert system supports all diagnostics

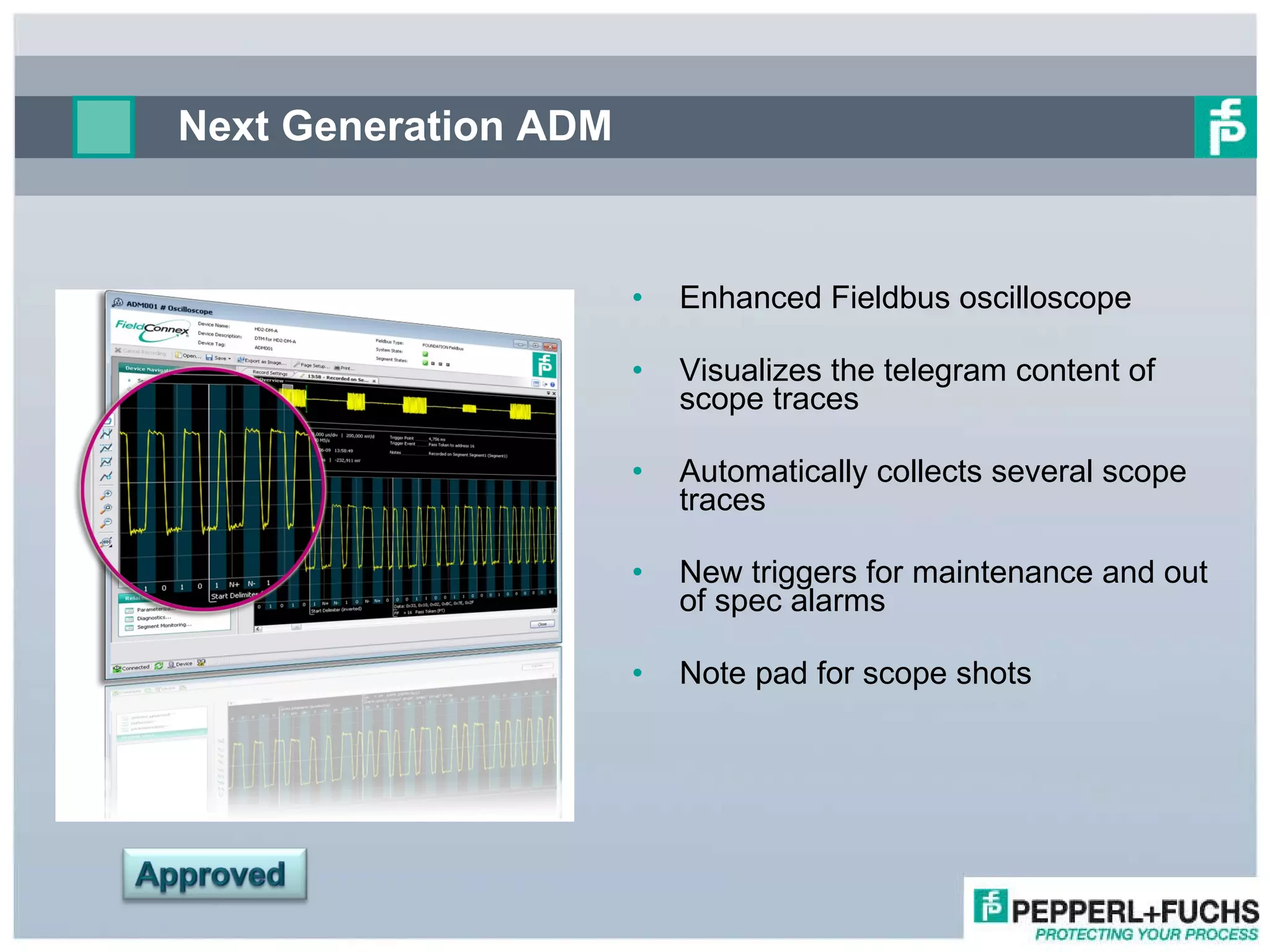

- 22. Next Generation ADMEnhanced Fieldbus oscilloscope Visualizes the telegram content of scope traces Automatically collects several scope traces New triggers for maintenance and out of spec alarms Note pad for scope shots

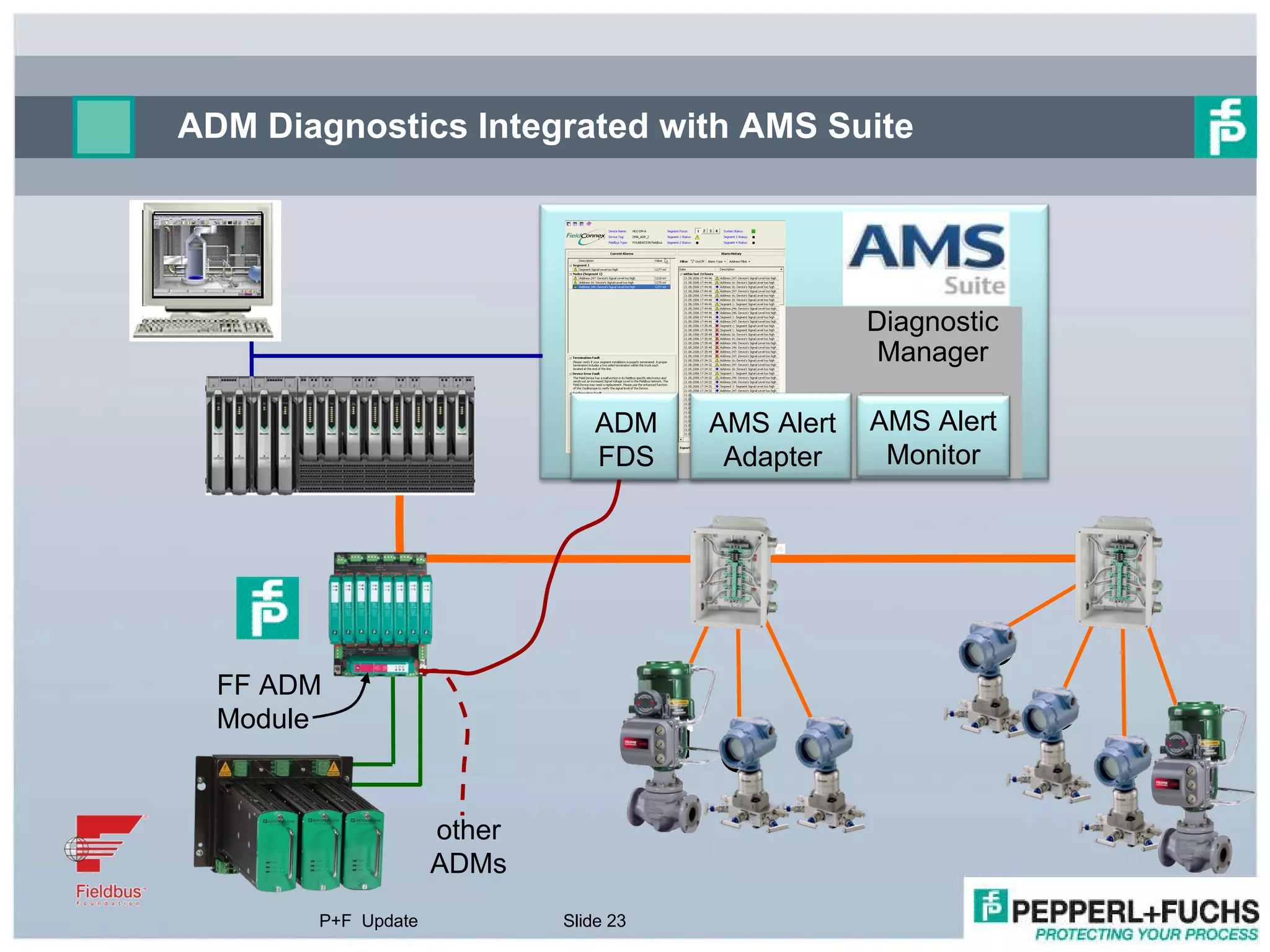

- 23. ADM Diagnostics Integratedwith AMS Suite P+F Update Slide FF ADM Module Diagnostic Manager other ADMs ADM FDS AMS Alert Adapter AMS Alert Monitor

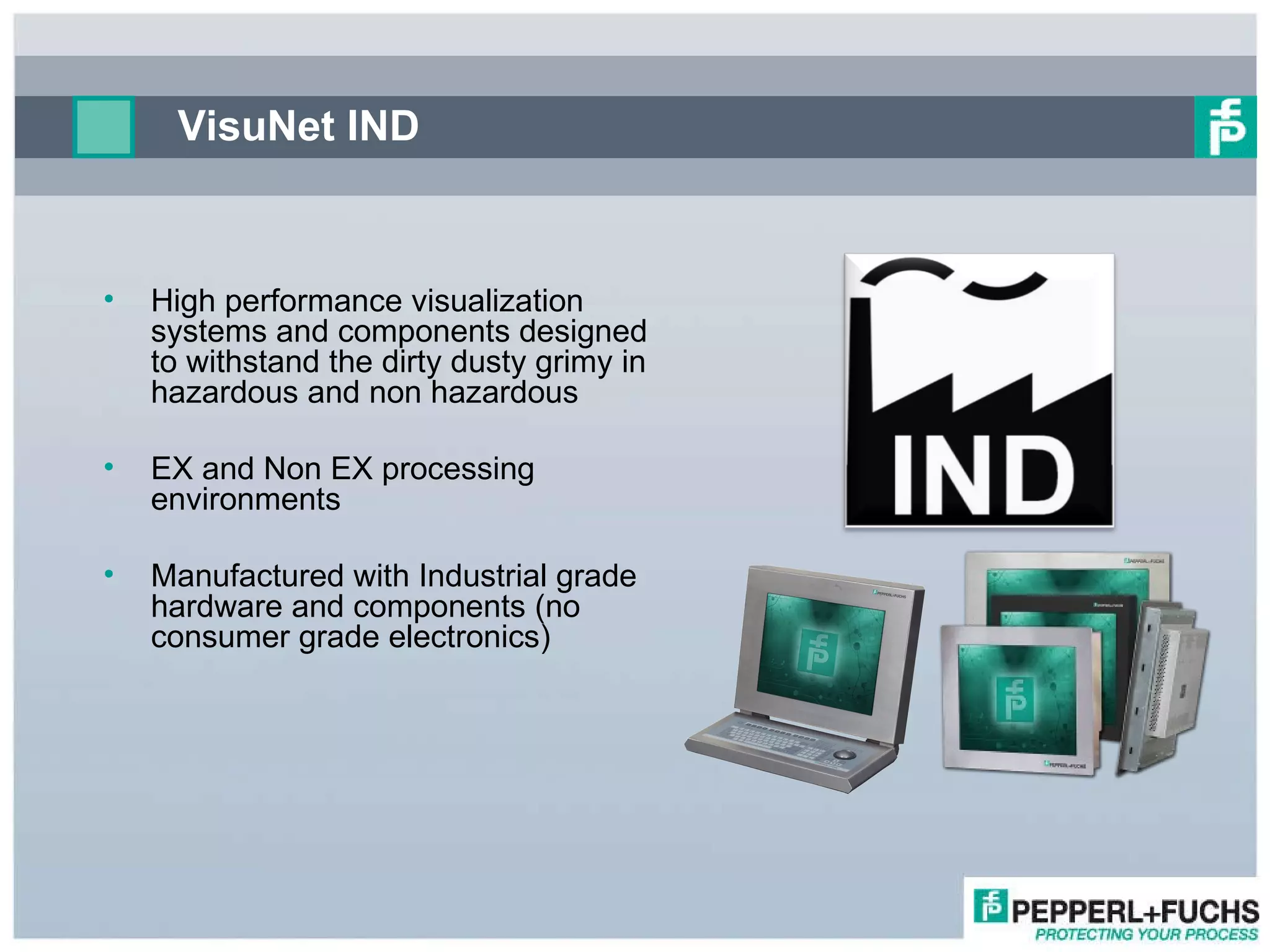

- 24. VisuNet IND High performance visualization systems and components designed to withstand the dirty dusty grimy in hazardous and non hazardous EX and Non EX processing environments Manufactured with Industrial grade hardware and components (no consumer grade electronics)

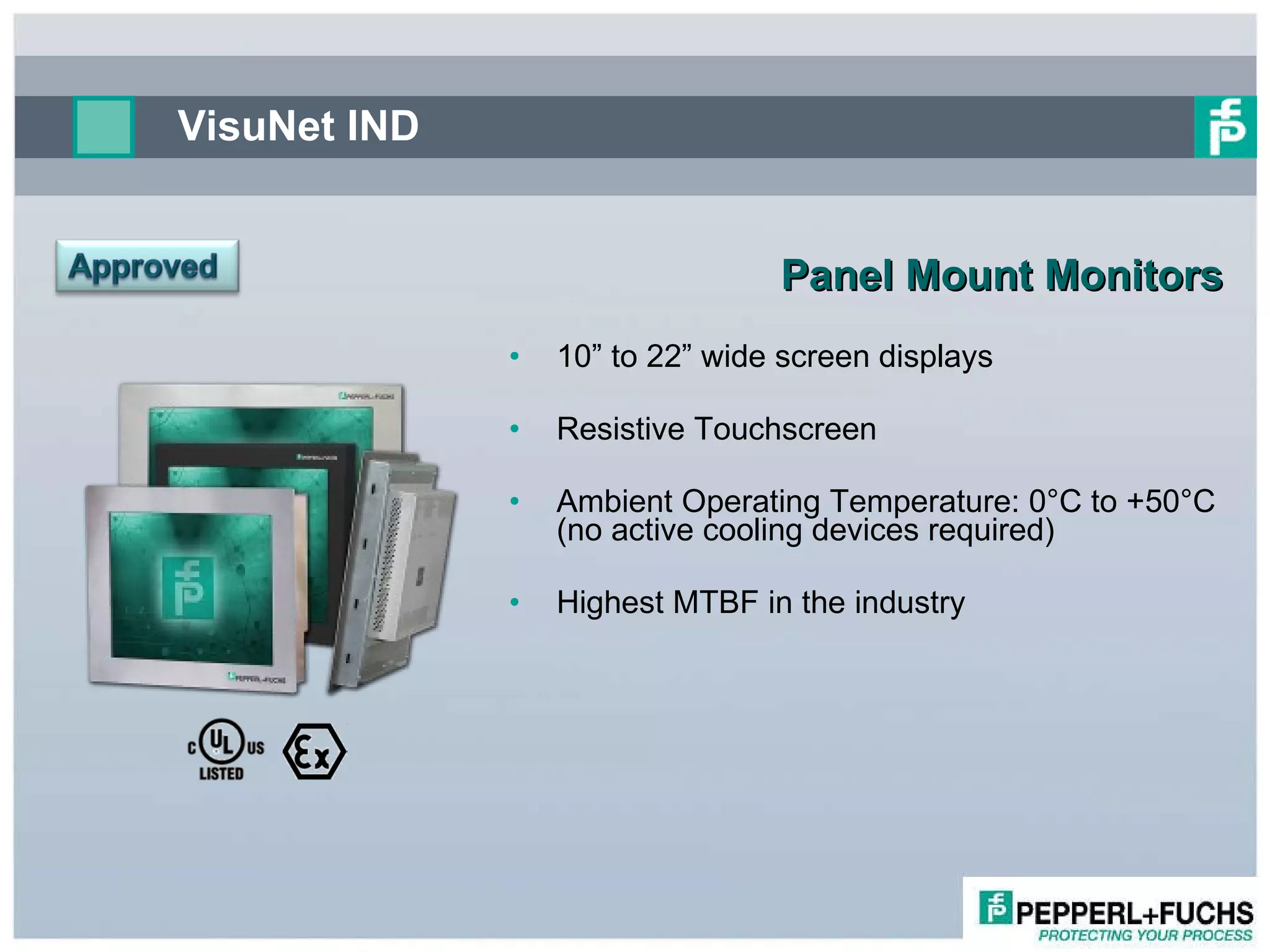

- 25. VisuNet IND PanelMount Monitors 10” to 22” wide screen displays Resistive Touchscreen Ambient Operating Temperature: 0°C to +50°C (no active cooling devices required) Highest MTBF in the industry

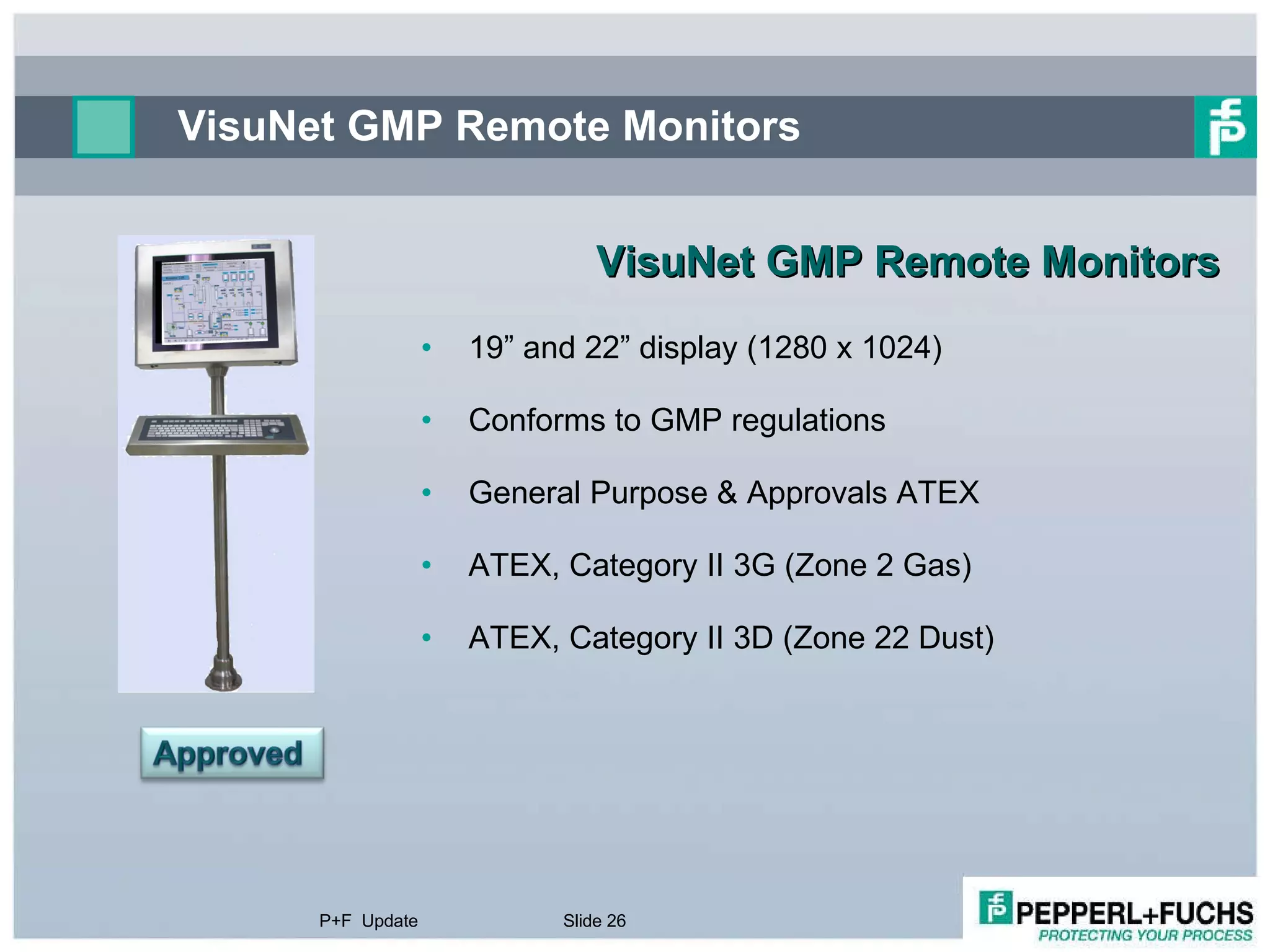

- 26. VisuNet GMP RemoteMonitors VisuNet GMP Remote Monitors 19” and 22” display (1280 x 1024) Conforms to GMP regulations General Purpose & Approvals ATEX ATEX, Category II 3G (Zone 2 Gas) ATEX, Category II 3D (Zone 22 Dust) P+F Update Slide

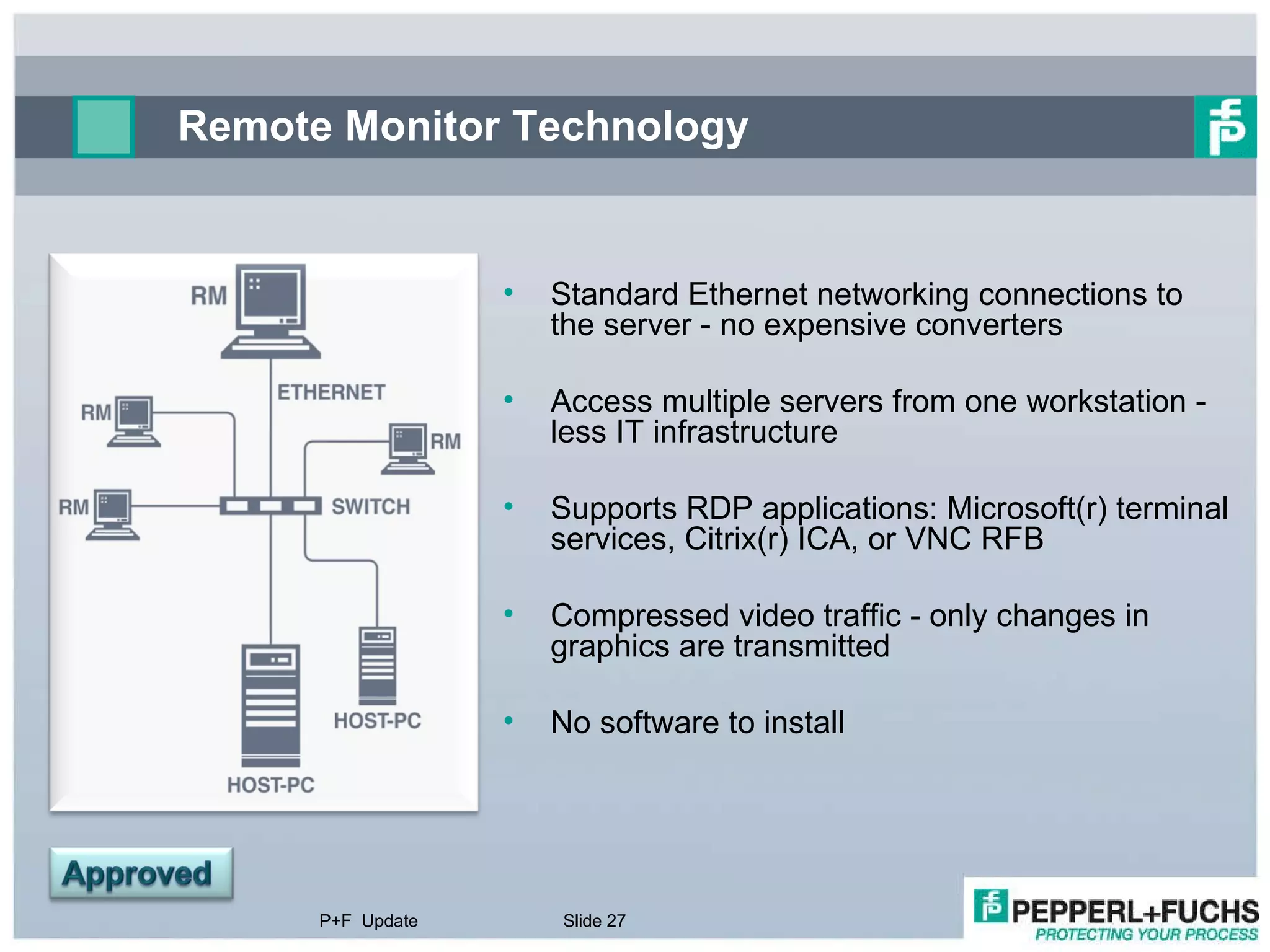

- 27. Remote Monitor TechnologyP+F Update Slide Standard Ethernet networking connections to the server - no expensive converters Access multiple servers from one workstation - less IT infrastructure Supports RDP applications: Microsoft(r) terminal services, Citrix(r) ICA, or VNC RFB Compressed video traffic - only changes in graphics are transmitted No software to install

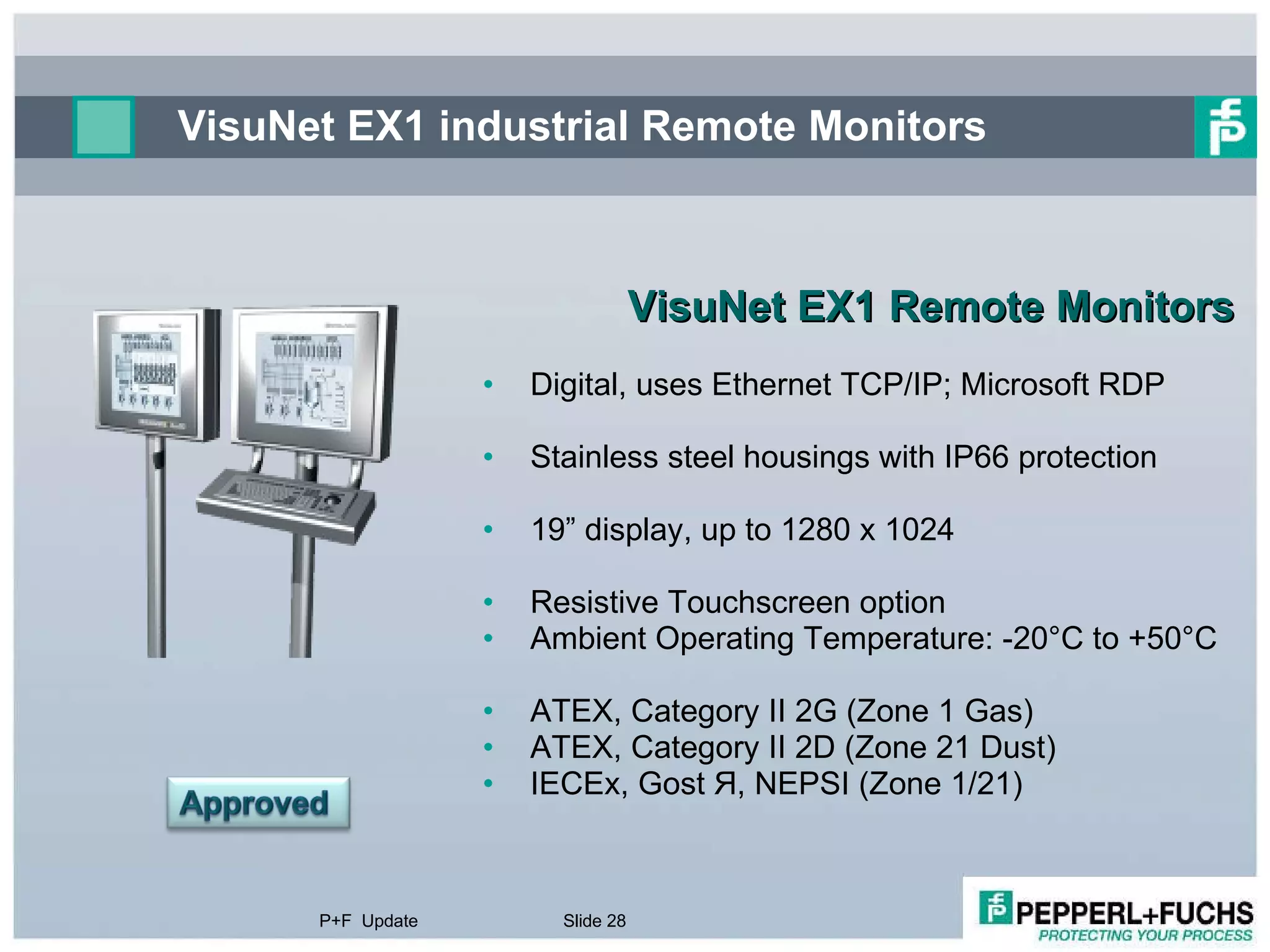

- 28. VisuNet EX1 industrialRemote Monitors VisuNet EX1 Remote Monitors Digital, uses Ethernet TCP/IP; Microsoft RDP Stainless steel housings with IP66 protection 19” display, up to 1280 x 1024 Resistive Touchscreen option Ambient Operating Temperature: -20°C to +50°C ATEX, Category II 2G (Zone 1 Gas) ATEX, Category II 2D (Zone 21 Dust) IECEx, Gost Я , NEPSI (Zone 1/21) P+F Update Slide
- 29. Pepperl+Fuchs’ New ProductDevelopments for Emerson The Partnership is Strong P+F Update Slide

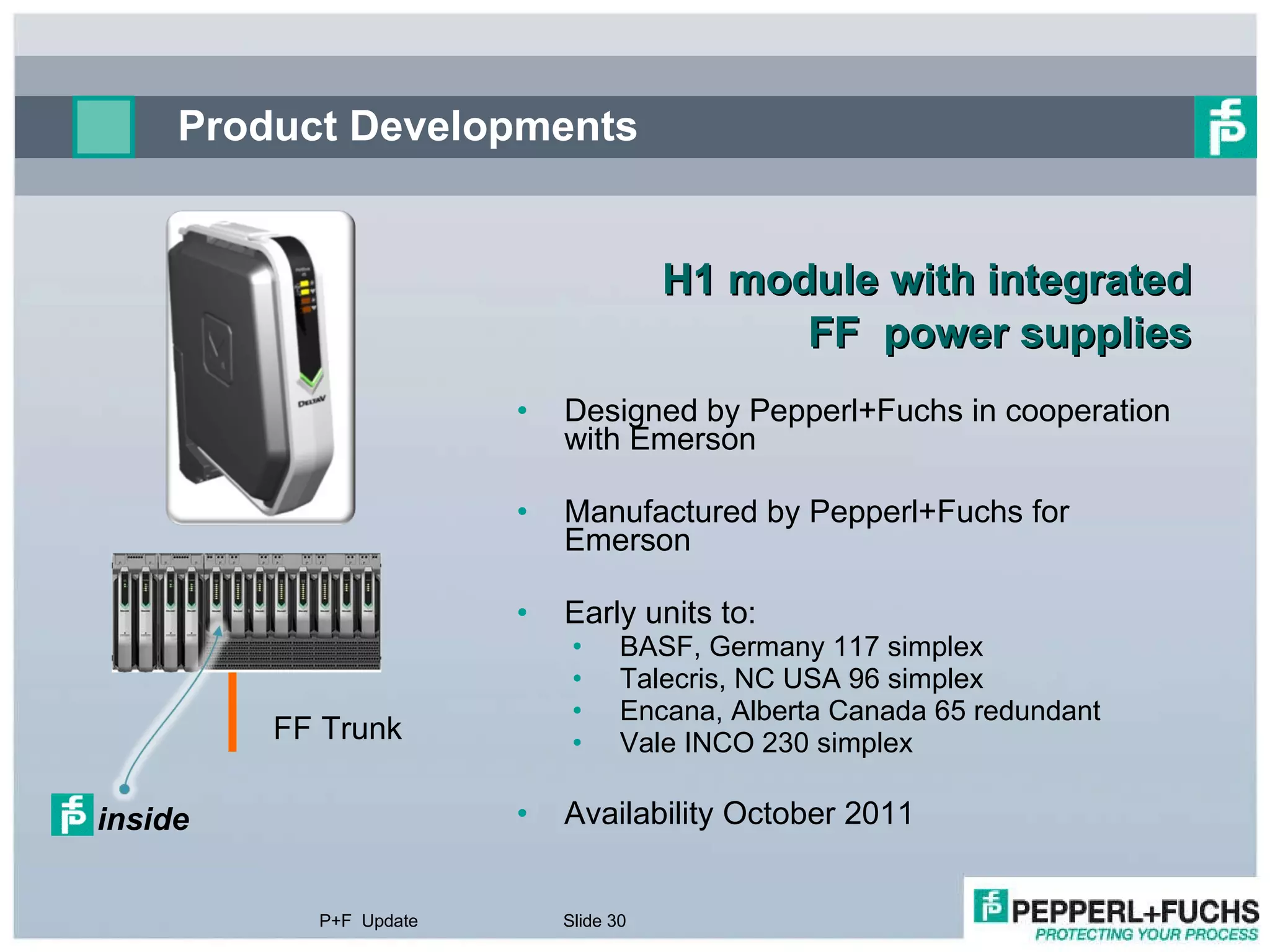

- 30. Product Developments H1module with integrated FF power supplies Designed by Pepperl+Fuchs in cooperation with Emerson Manufactured by Pepperl+Fuchs for Emerson Early units to: BASF, Germany 117 simplex Talecris, NC USA 96 simplex Encana, Alberta Canada 65 redundant Vale INCO 230 simplex Availability October 2011 P+F Update Slide FF Trunk inside

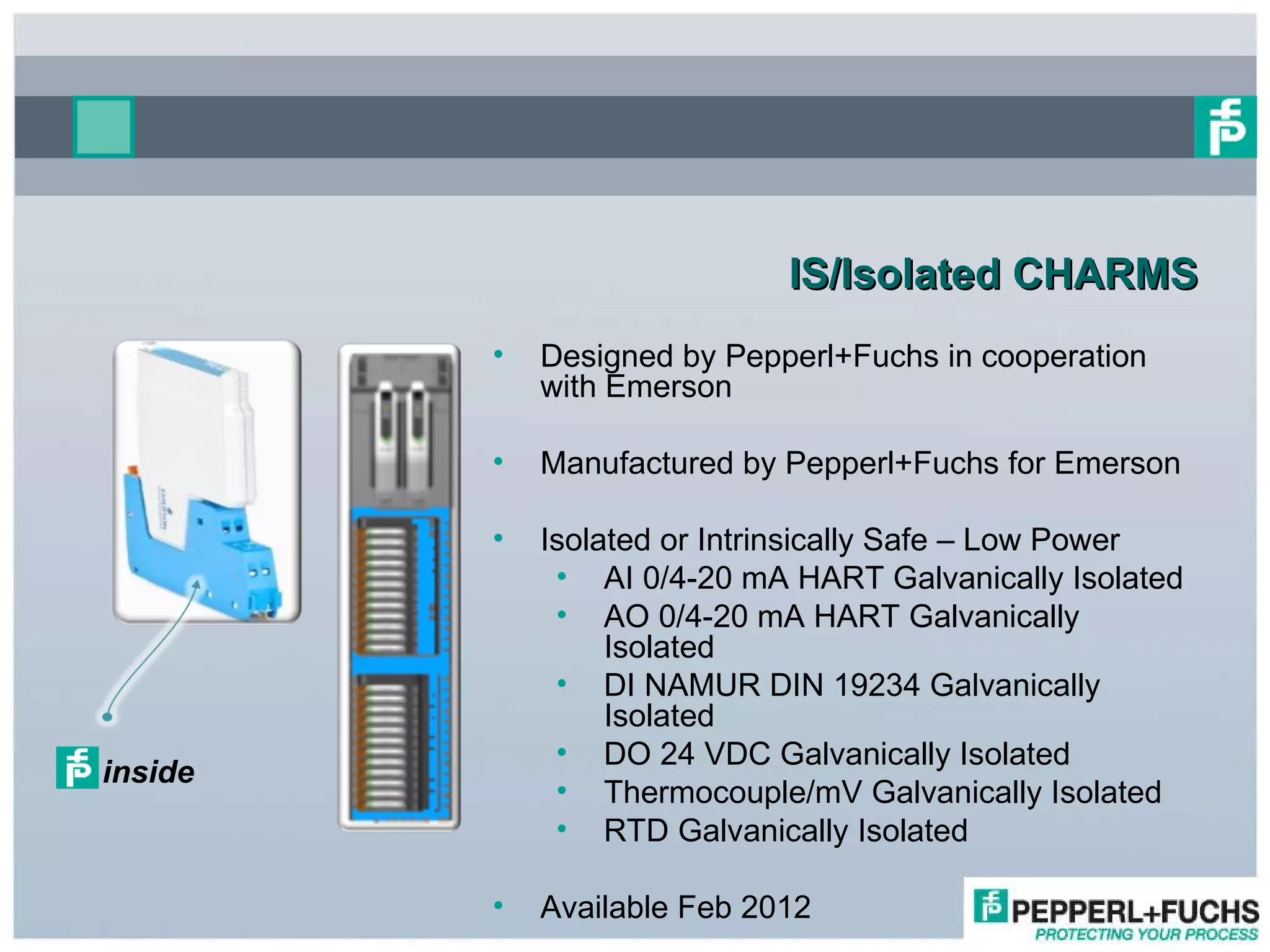

- 31. IS/Isolated CHARMS Designedby Pepperl+Fuchs in cooperation with Emerson Manufactured by Pepperl+Fuchs for Emerson Isolated or Intrinsically Safe – Low Power AI 0/4-20 mA HART Galvanically Isolated AO 0/4-20 mA HART Galvanically Isolated DI NAMUR DIN 19234 Galvanically Isolated DO 24 VDC Galvanically Isolated Thermocouple/mV Galvanically Isolated RTD Galvanically Isolated Available Feb 2012 inside

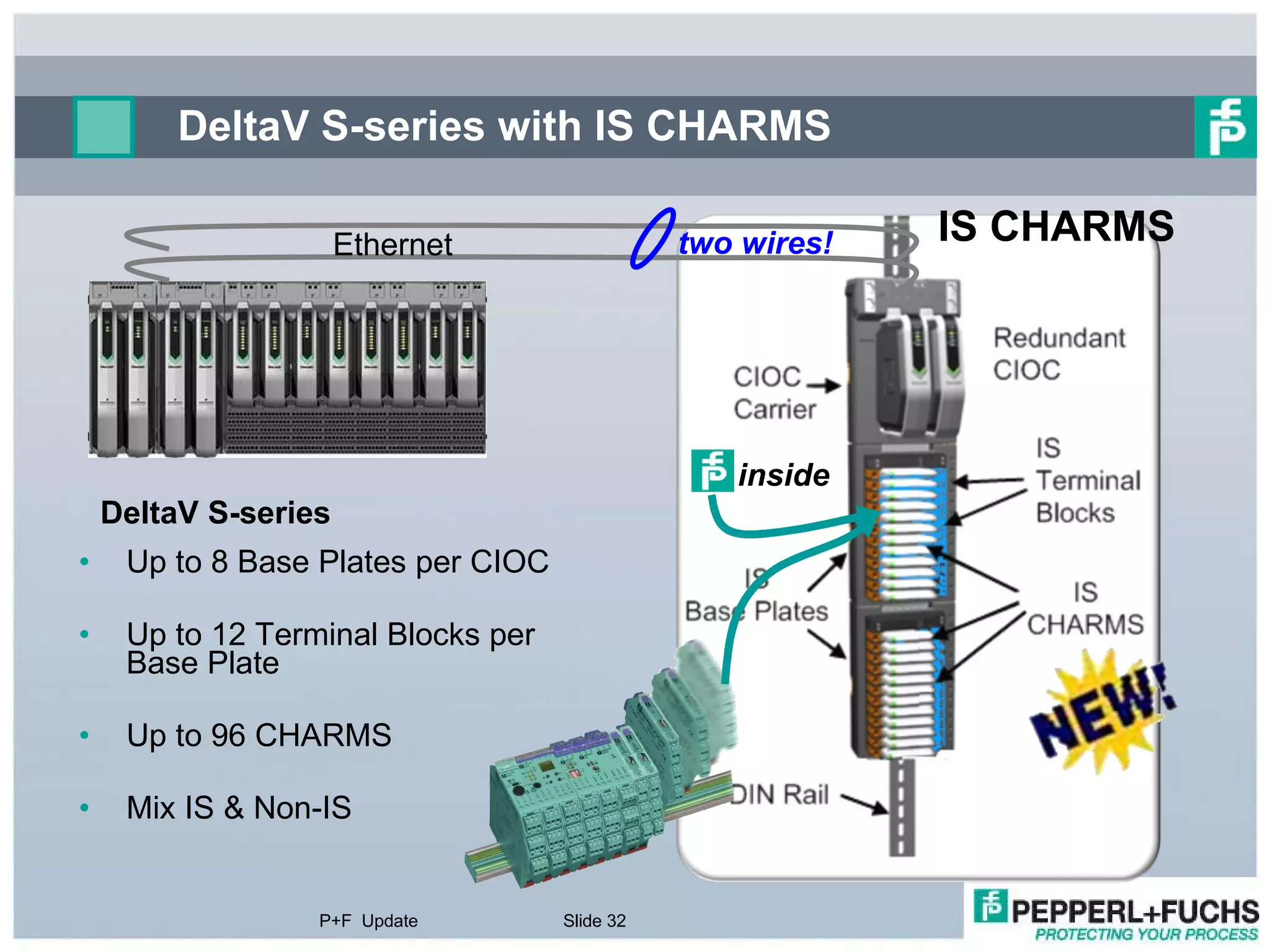

- 32. DeltaV S-series withIS CHARMS Up to 8 Base Plates per CIOC Up to 12 Terminal Blocks per Base Plate Up to 96 CHARMS Mix IS & Non-IS P+F Update Slide DeltaV S-series IS CHARMS Ethernet two wires! inside

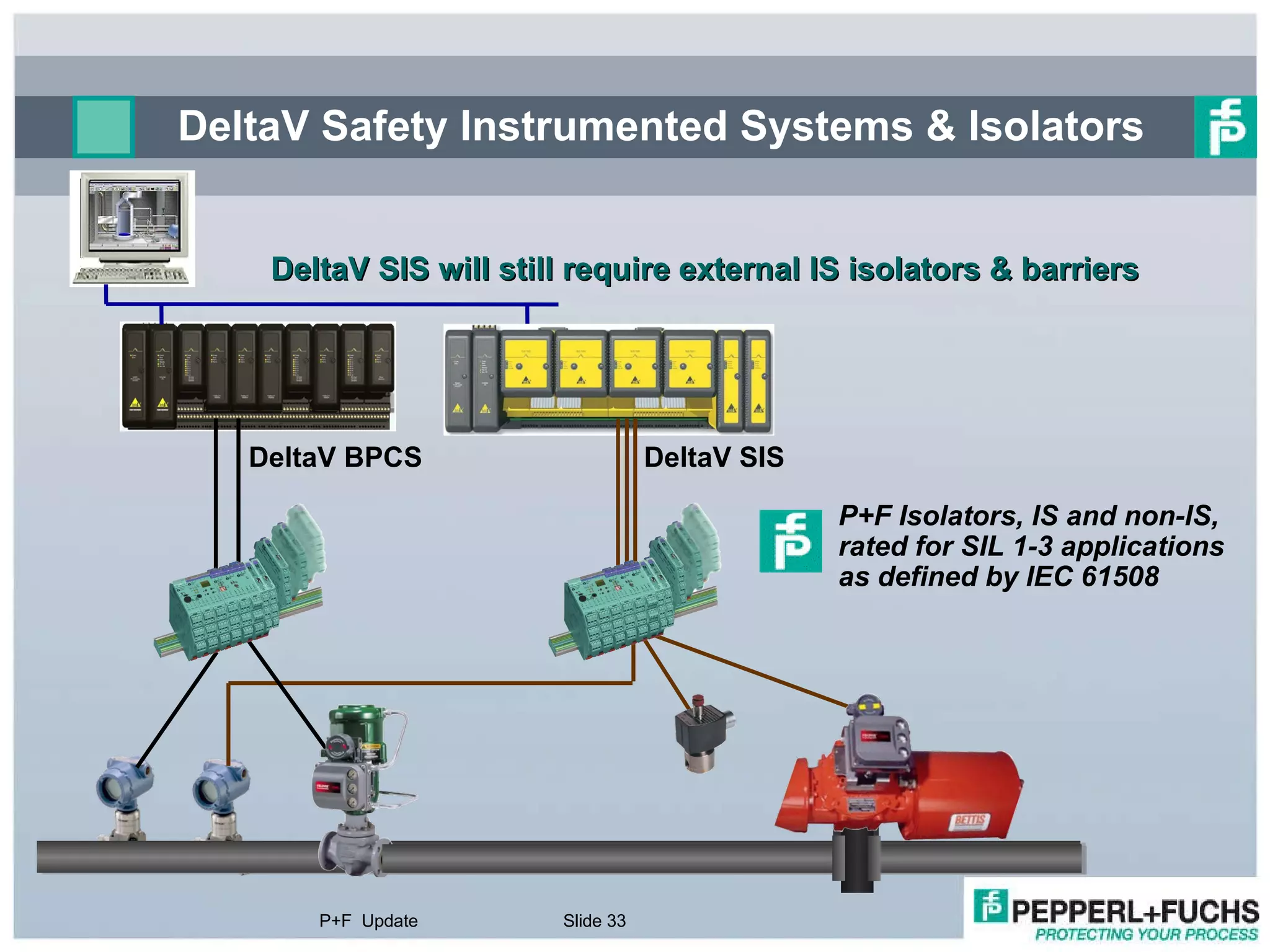

- 33. DeltaV Safety InstrumentedSystems & Isolators P+F Update Slide P+F Isolators, IS and non-IS, rated for SIL 1-3 applications as defined by IEC 61508 DeltaV BPCS DeltaV SIS DeltaV SIS will still require external IS isolators & barriers

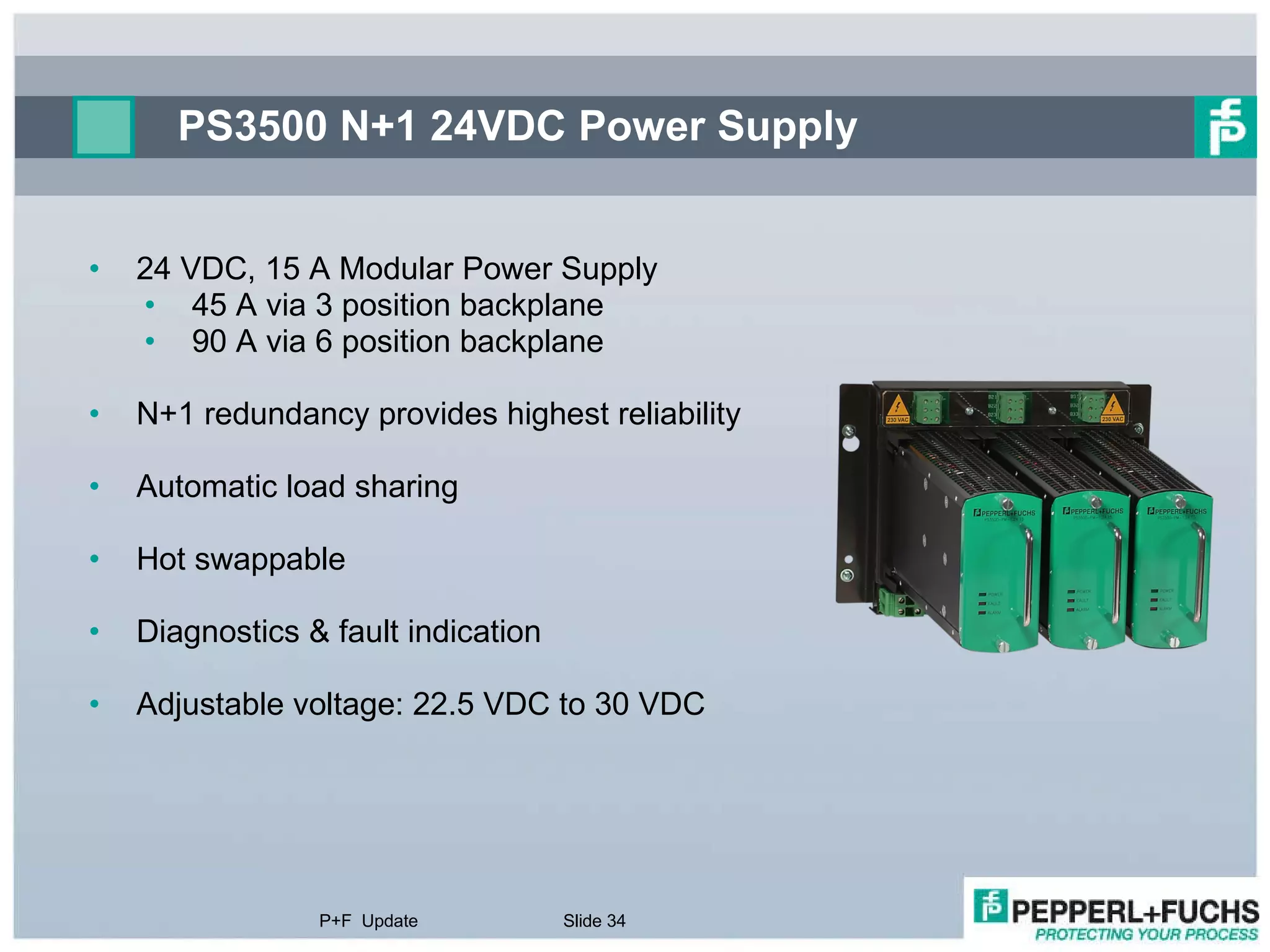

- 34. PS3500 N+1 24VDCPower Supply 24 VDC, 15 A Modular Power Supply 45 A via 3 position backplane 90 A via 6 position backplane N+1 redundancy provides highest reliability Automatic load sharing Hot swappable Diagnostics & fault indication Adjustable voltage: 22.5 VDC to 30 VDC P+F Update Slide

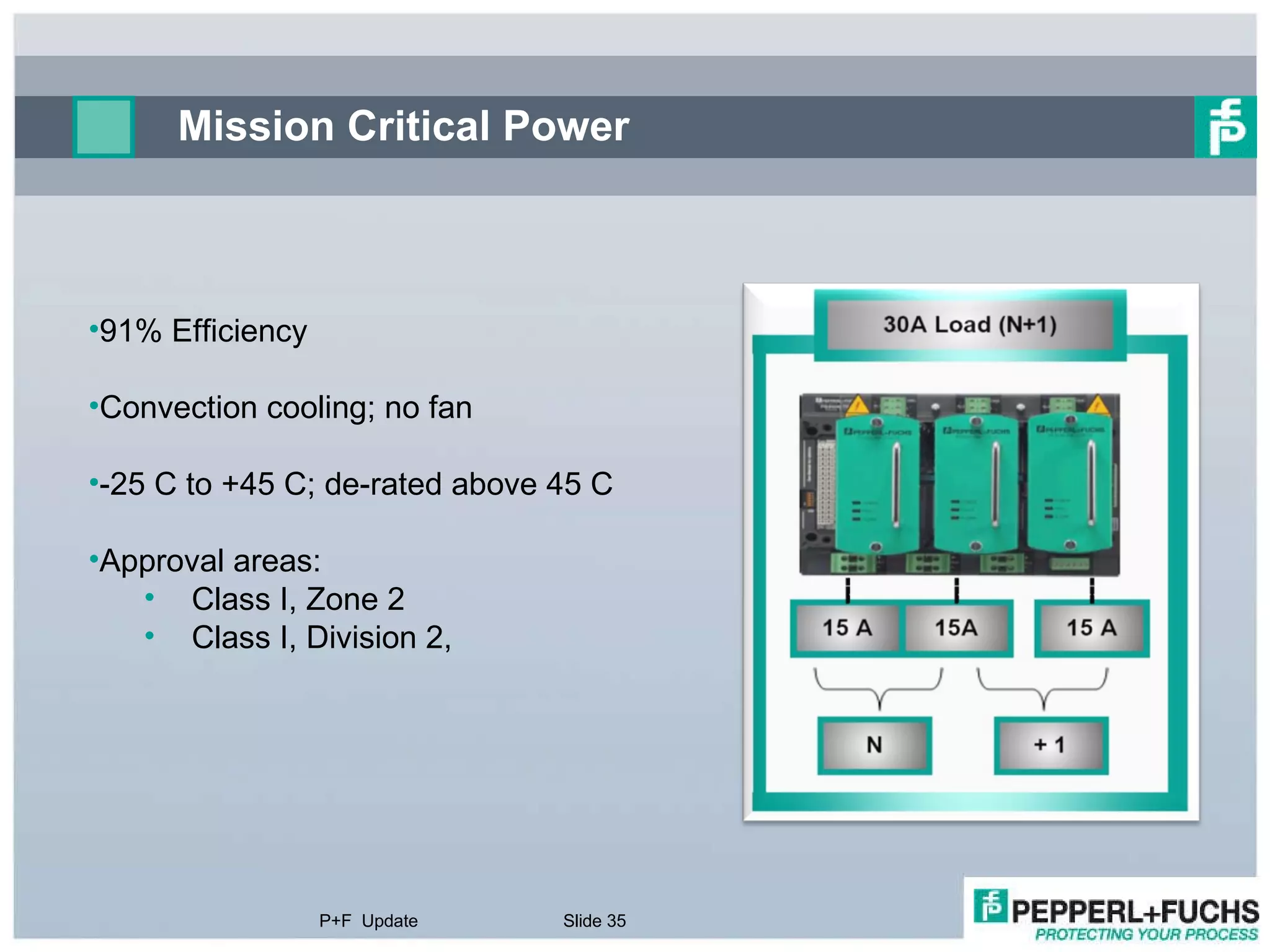

- 35. Mission Critical PowerP+F Update Slide 91% Efficiency Convection cooling; no fan -25 C to +45 C; de-rated above 45 C Approval areas: Class I, Zone 2 Class I, Division 2,

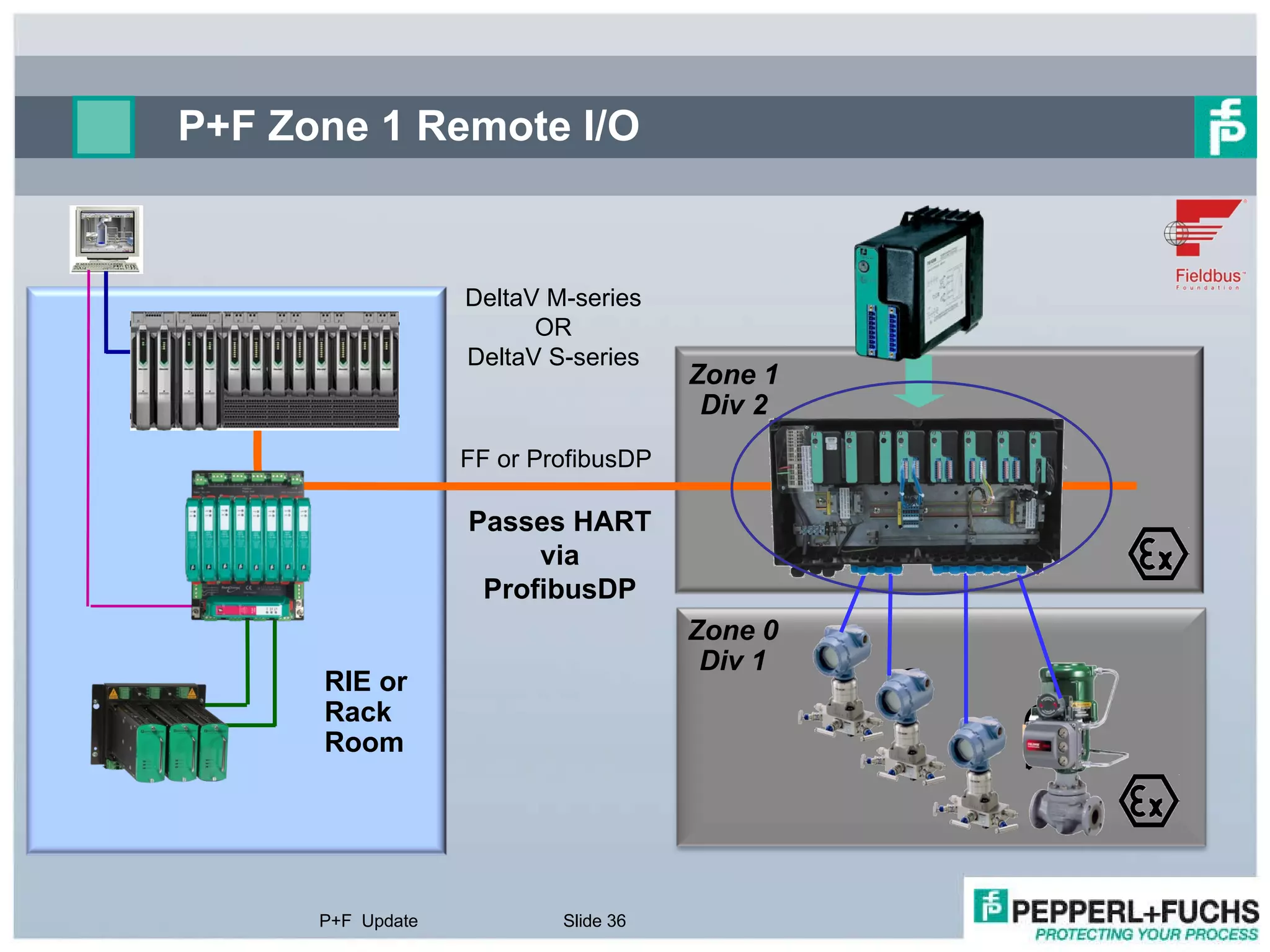

- 36. P+F Zone 1Remote I/O P+F Update Slide RIE or Rack Room Zone 1 Div 2 Zone 0 Div 1 Passes HART via ProfibusDP FF or ProfibusDP DeltaV M-series OR DeltaV S-series

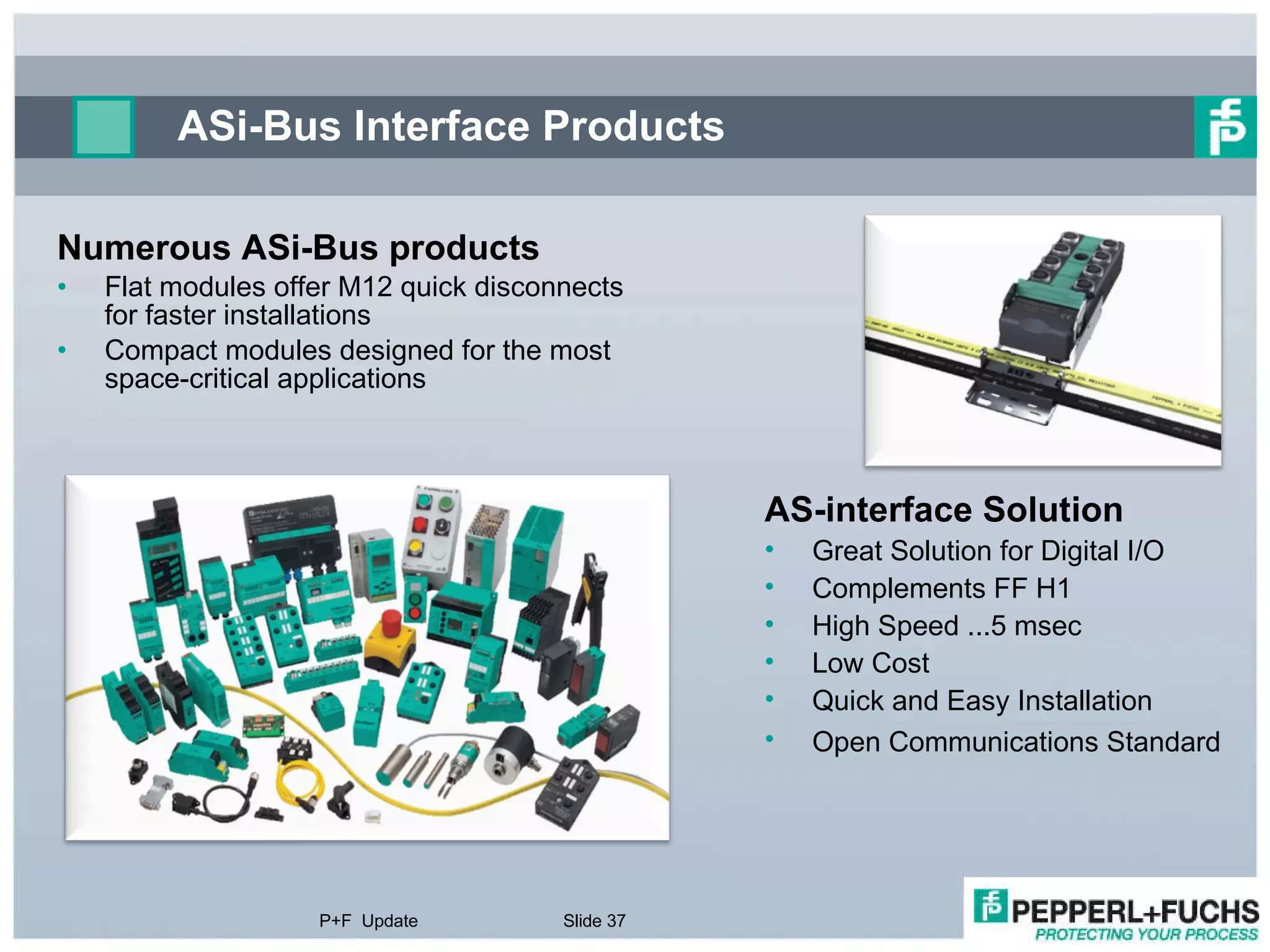

- 37. ASi-Bus Interface ProductsNumerous ASi-Bus products Flat modules offer M12 quick disconnects for faster installations Compact modules designed for the most space-critical applications P+F Update Slide AS-interface Solution Great Solution for Digital I/O Complements FF H1 High Speed ...5 msec Low Cost Quick and Easy Installation Open Communications Standard

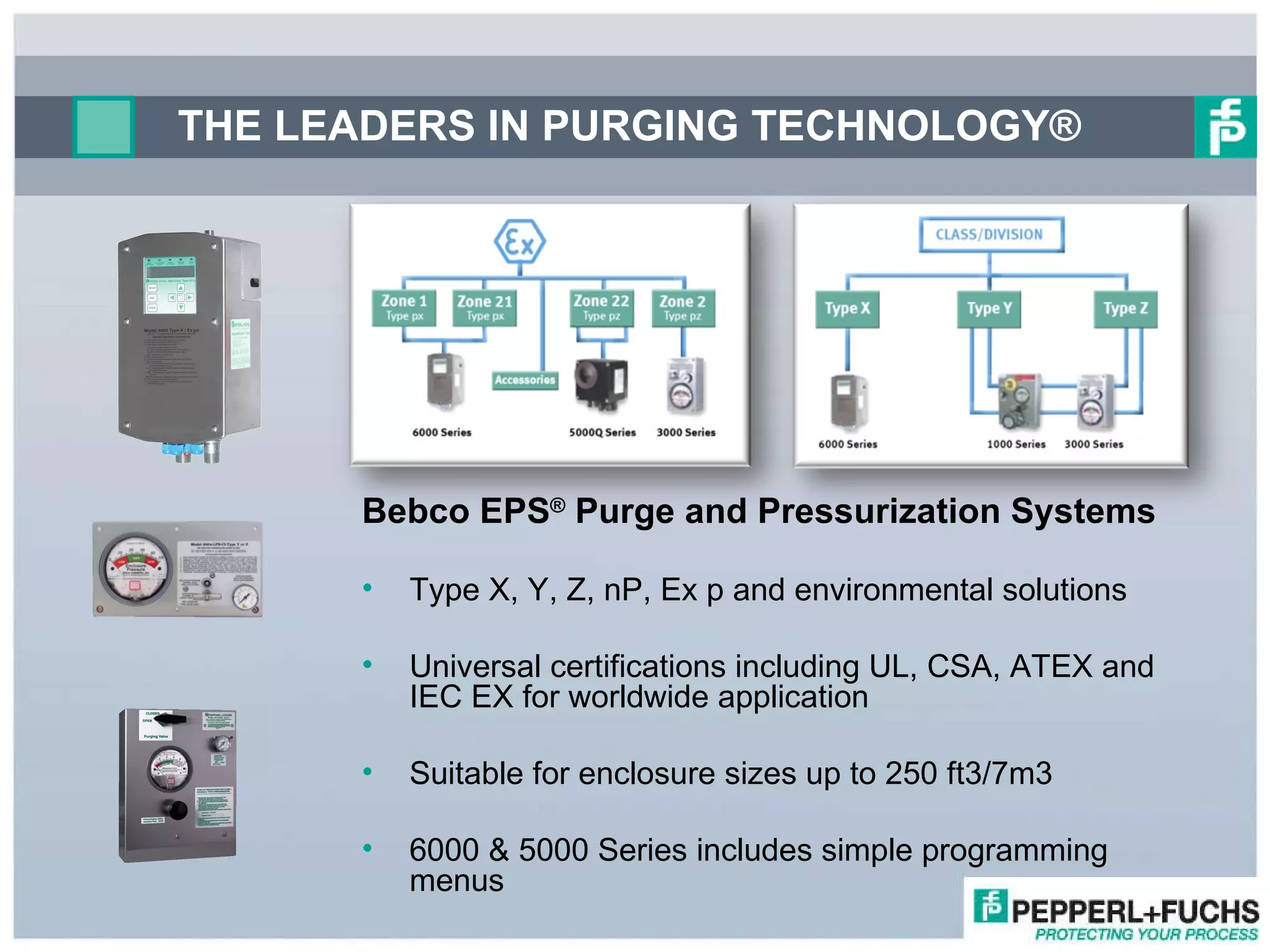

- 38. THE LEADERS INPURGING TECHNOLOGY® Bebco EPS ® Purge and Pressurization Systems Type X, Y, Z, nP, Ex p and environmental solutions Universal certifications including UL, CSA, ATEX and IEC EX for worldwide application Suitable for enclosure sizes up to 250 ft3/7m3 6000 & 5000 Series includes simple programming menus

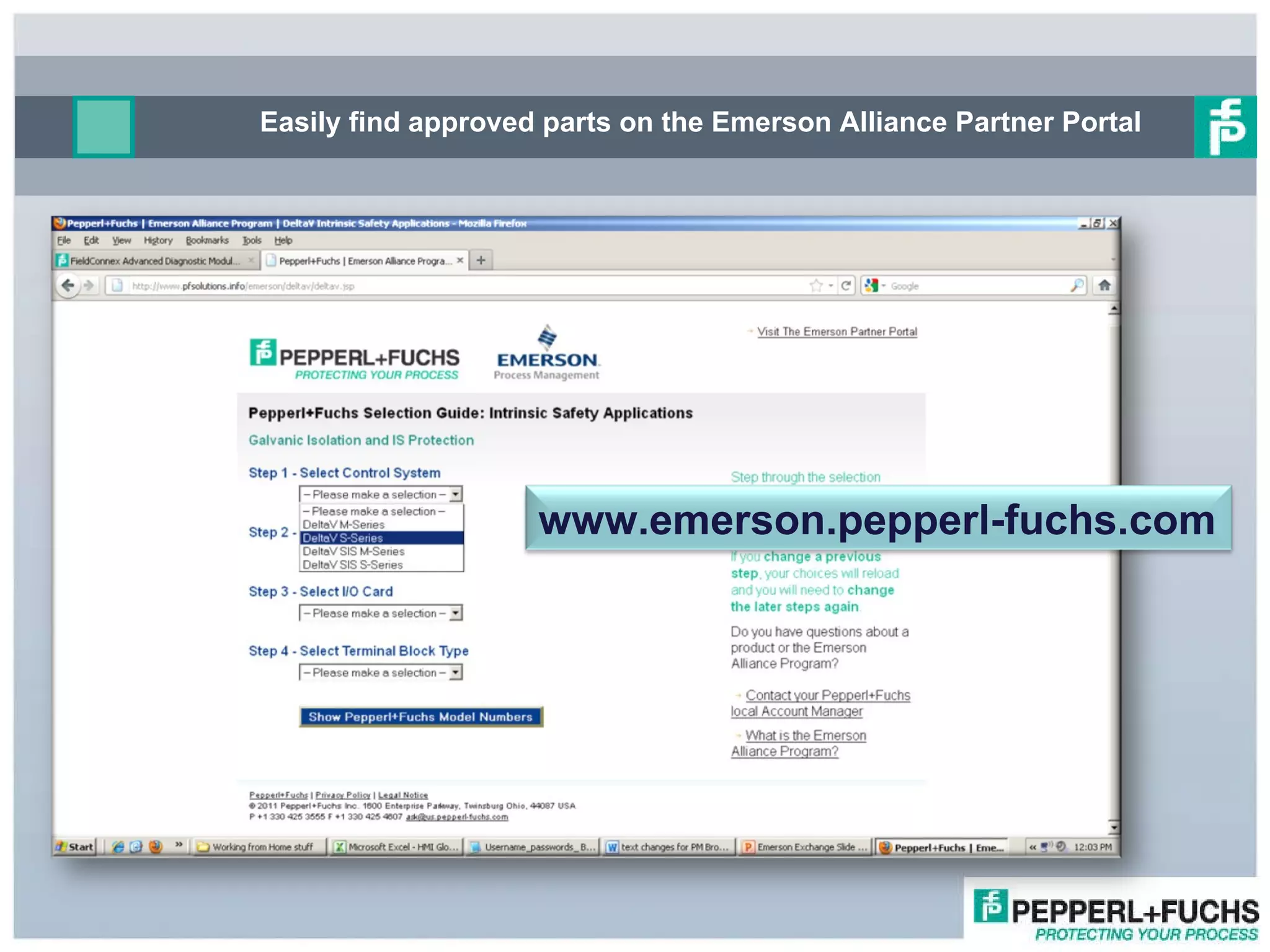

- 39. Easily find approvedparts on the Emerson Alliance Partner Portal www.emerson.pepperl-fuchs.com
Editor's Notes
- #12 Pepperl + Fuchs is a TOTAL SOLUTION provider for Foundation fieldbus applications. We have all of the physical layer needs for your customer to connect the PLC/DCS to the field devices.
- #17 The new designed T-Connector has multiple benefits: * Easier handling of fieldbus termination. This simplifies work processes for the customer. * A Segment Protector can be disconnected from the trunk with minimal to no disturbance of traffic. NB: Of course: devices are not available during that time. IMPORTANT: Even when the trunk is certified non-arcong, a hot work permit is required for disconnecting the trunk. The fieldbus termination uses a high-availability circuitry with four capacitance. A fault of one will change the impedance of the terminator, but not disable it. This change in impedance can be detected using the online Advanced Diagnostic Module.
- #18 This is the most important aspect of the Segment Protector (SP): Live work on field devices is permitted. Connect and disconnect does not disturb the fieldbus. The SP is enabling technology for fieldbus with multiple devices connected to one fieldbus cable. Terminals with retaining screws are now used throughout. This further improves operational availability = reliability. All terminals feature test points to which diagnostic tools can be attached without disturbing the wiring. It cannot be said enough: This technology has the greatest potential of overcoming customers‘ fear of fieldbus.
- #21 Models: Power Hub mounted HD2-DM-A Standalone KT-MB-DMA Mobile DM-AM-KIT FOUNDATION Fieldbus has fast updates for good process control and electrically the FOUNDATION Fieldbus communication signal is robust (FOUNDATION Fieldbus uses a differential signal equal to the current draw of the device (typically 15 mA peak-to-peak, at a frequency of 31.25 Kbps). In addition to its robustness, Fieldbus provides an excellent degree of fault tolerance by having the ability to retry lost messages during the same communications cycle as the original message. That way, even if individual messages are lost, communications take place on schedule. Since any instruments connect to a single backbone (trunk) and communicate a wealth of information about the state of the plant, it’s important that the electrical physics of all interconnectivity equipment be according to specification (IEC 61158-2) to ensure segment availability. Many components can affect the communication media such as wiring type/conductor size, power supplies, temperature, etc… The primary goal of the diagnostics is to monitor and announce small changes during the shift from normal to abnormal operations. This allows the customer to move from a reactive maintenance schedule to a predictive maintenance schedule and reduces plant downtime.
- #22 The ADM provides an “extra set of eyes” on the communication signal making you aware, when needed, that a problem is about occur. It can be viewed as a “Plant Lifecycle Management Tool” designed to optimize plant uptime. 1.) Commissioning : Primary goal is shortened and simplified plant start-up time (CAPEX $). Examples include, Cable Checkout, wiring errors (grounding, shorts, EMI, etc.), check for proper termination. 2.) Online Monitoring: Primary Goal is improved system availability and reduced maintenance costs (OPEX) through proactive maintenance. 3.) Troubleshooting : Primary goal is to i dentify complex error conditions where expert knowledge is necessary. This is done with Trending of the signal parameters, remote access capabilities, and Oscilloscope with FF specific triggers.
