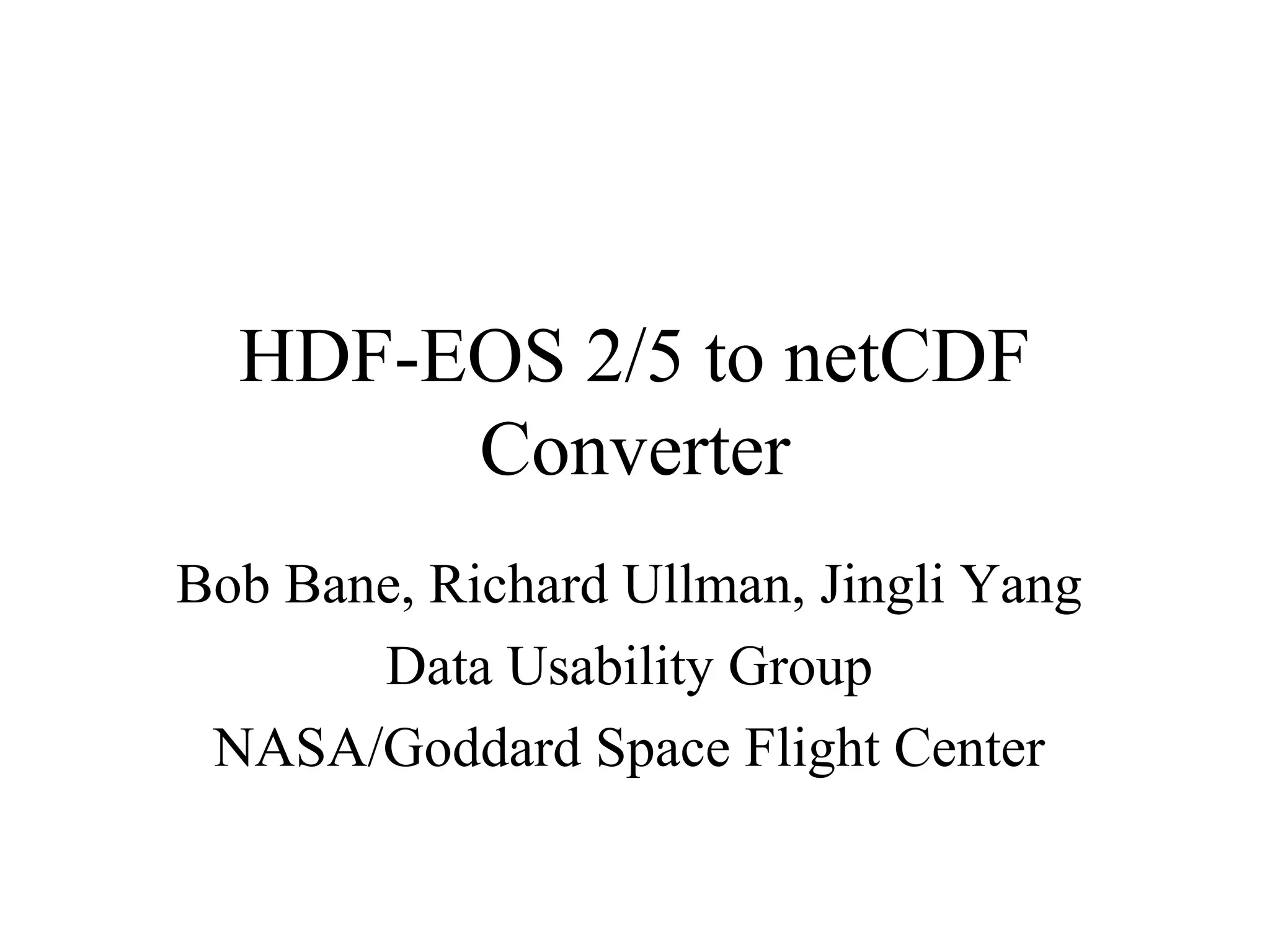

1. HDF-EOS 2/5 to netCDF
Converter
Bob Bane, Richard Ullman, Jingli Yang
Data Usability Group
NASA/Goddard Space Flight Center

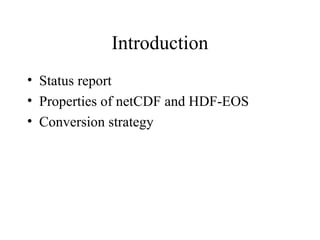

2. Introduction
• Status report
• Properties of netCDF and HDF-EOS
• Conversion strategy

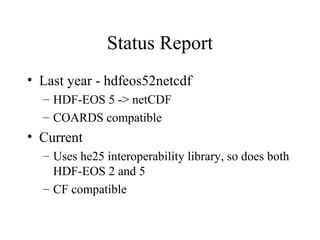

3. Status Report
• Last year - hdfeos52netcdf
– HDF-EOS 5 -> netCDF
– COARDS compatible
• Current
– Uses he25 interoperability library, so does both
HDF-EOS 2 and 5
– CF compatible

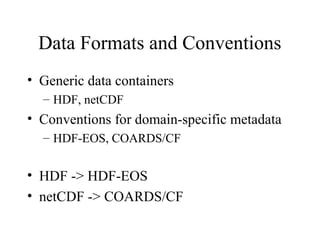

4. Data Formats and Conventions
• Generic data containers
– HDF, netCDF
• Conventions for domain-specific metadata
– HDF-EOS, COARDS/CF
• HDF -> HDF-EOS
• netCDF -> COARDS/CF

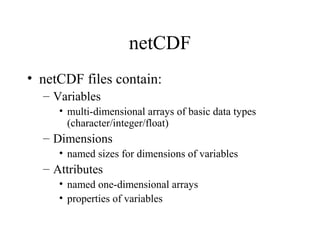

5. netCDF
• netCDF files contain:
– Variables
• multi-dimensional arrays of basic data types
(character/integer/float)
– Dimensions
• named sizes for dimensions of variables
– Attributes
• named one-dimensional arrays
• properties of variables

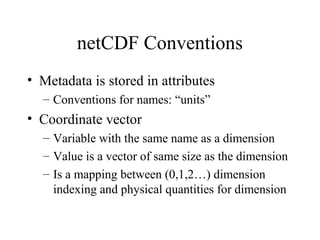

6. netCDF Conventions
• Metadata is stored in attributes
– Conventions for names: “units”
• Coordinate vector
– Variable with the same name as a dimension
– Value is a vector of same size as the dimension
– Is a mapping between (0,1,2…) dimension
indexing and physical quantities for dimension

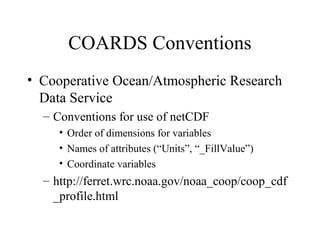

7. COARDS Conventions
• Cooperative Ocean/Atmospheric Research
Data Service
– Conventions for use of netCDF
• Order of dimensions for variables
• Names of attributes (“Units”, “_FillValue”)
• Coordinate variables
– http://ferret.wrc.noaa.gov/noaa_coop/coop_cdf
_profile.html

8. CF Conventions
• Climate and Forecast
– Follow-on to COARDS
– Tighter
• Many attributes optional in COARDS are required in CF
– More capable
• Multi-dimensional geolocation support
– http://www.cgd.ucar.edu/cms/eaton/cfmetadata/

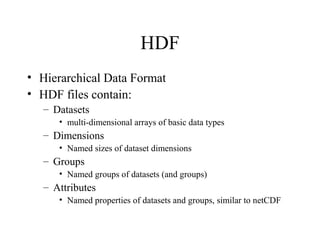

9. HDF
• Hierarchical Data Format
• HDF files contain:
– Datasets
• multi-dimensional arrays of basic data types
– Dimensions
• Named sizes of dataset dimensions
– Groups
• Named groups of datasets (and groups)
– Attributes
• Named properties of datasets and groups, similar to netCDF

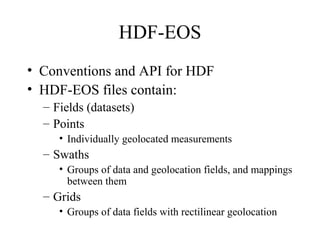

10. HDF-EOS
• Conventions and API for HDF
• HDF-EOS files contain:
– Fields (datasets)
– Points
• Individually geolocated measurements
– Swaths
• Groups of data and geolocation fields, and mappings
between them
– Grids
• Groups of data fields with rectilinear geolocation

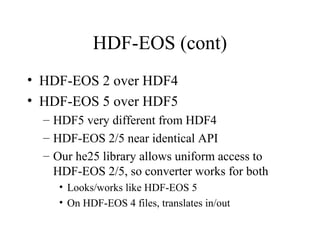

11. HDF-EOS (cont)
• HDF-EOS 2 over HDF4
• HDF-EOS 5 over HDF5
– HDF5 very different from HDF4
– HDF-EOS 2/5 near identical API
– Our he25 library allows uniform access to
HDF-EOS 2/5, so converter works for both
• Looks/works like HDF-EOS 5
• On HDF-EOS 4 files, translates in/out

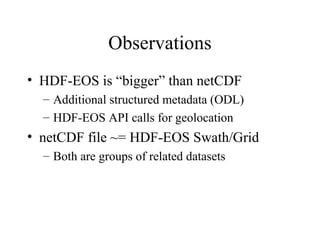

12. Observations
• HDF-EOS is “bigger” than netCDF
– Additional structured metadata (ODL)
– HDF-EOS API calls for geolocation
• netCDF file ~= HDF-EOS Swath/Grid
– Both are groups of related datasets

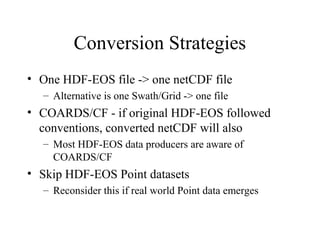

13. Conversion Strategies
• One HDF-EOS file -> one netCDF file
– Alternative is one Swath/Grid -> one file
• COARDS/CF - if original HDF-EOS followed
conventions, converted netCDF will also
– Most HDF-EOS data producers are aware of
COARDS/CF
• Skip HDF-EOS Point datasets
– Reconsider this if real world Point data emerges

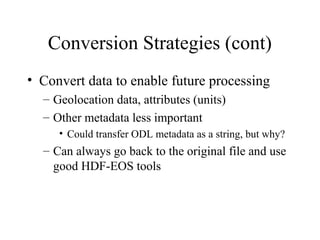

14. Conversion Strategies (cont)
• Convert data to enable future processing
– Geolocation data, attributes (units)
– Other metadata less important
• Could transfer ODL metadata as a string, but why?
– Can always go back to the original file and use
good HDF-EOS tools

15. Conversion in General
HDF-EOS
Swath s1
Dimensions(lat,lon,time)
Datafield f1(lat,lon,time)
Geofield f2(lat,lon,time)
Swath s2
Dimensions(lat,lon,time)
Datafield f3(lat,lon,time)
Geofield f4(lat,lon.time)
netCDF
Dimensions(lat,lon,time,s2_time)
Variable s1_f1(lat,lon,time)
Variable s1_GEO_f2(lat,lon,time)
Variable s2_f3(lat,lon,s2_time)
Variable s2_GEO_f4(lat,lon,s2_time)
• Flatten HDF-EOS hierarchy
• Encode names, types in variable names

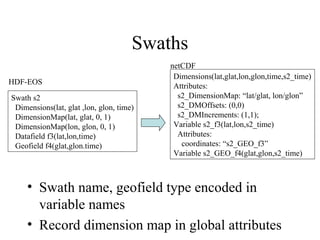

16. Swaths
HDF-EOS
Swath s2
Dimensions(lat, glat ,lon, glon, time)
DimensionMap(lat, glat, 0, 1)
DimensionMap(lon, glon, 0, 1)
Datafield f3(lat,lon,time)
Geofield f4(glat,glon.time)
netCDF
Dimensions(lat,glat,lon,glon,time,s2_time)
Attributes:
s2_DimensionMap: “lat/glat, lon/glon”
s2_DMOffsets: (0,0)
s2_DMIncrements: (1,1);
Variable s2_f3(lat,lon,s2_time)
Attributes:
coordinates: “s2_GEO_f3”
Variable s2_GEO_f4(glat,glon,s2_time)
• Swath name, geofield type encoded in
variable names
• Record dimension map in global attributes

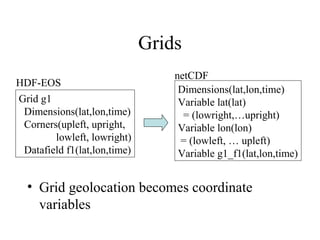

17. Grids
HDF-EOS
Grid g1
Dimensions(lat,lon,time)
Corners(upleft, upright,
lowleft, lowright)
Datafield f1(lat,lon,time)
netCDF
Dimensions(lat,lon,time)
Variable lat(lat)
= (lowright,…upright)
Variable lon(lon)
= (lowleft, … upleft)
Variable g1_f1(lat,lon,time)
• Grid geolocation becomes coordinate
variables

18. Converter
• C command-line application
– hdfeos2netcdf HDF_file netCDF_file
• Should be portable to all HDFEOS5/netCDF platforms
– Naturally uses all libraries

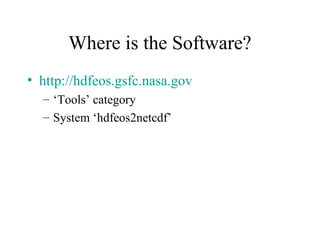

19. Where is the Software?
• http://hdfeos.gsfc.nasa.gov
– ‘Tools’ category
– System ‘hdfeos2netcdf’

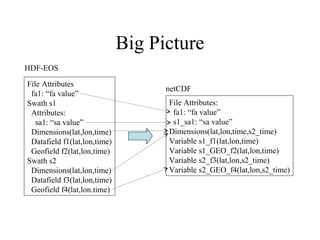

20. Big Picture
HDF-EOS
File Attributes
fa1: “fa value”
Swath s1
Attributes:
sa1: “sa value”
Dimensions(lat,lon,time)
Datafield f1(lat,lon,time)
Geofield f2(lat,lon,time)
Swath s2
Dimensions(lat,lon,time)
Datafield f3(lat,lon,time)
Geofield f4(lat,lon.time)
netCDF
File Attributes:
fa1: “fa value”
s1_sa1: “sa value”
Dimensions(lat,lon,time,s2_time)
Variable s1_f1(lat,lon,time)
Variable s1_GEO_f2(lat,lon,time)
Variable s2_f3(lat,lon,s2_time)
Variable s2_GEO_f4(lat,lon,s2_time)
