1. w w w . j a d e g l o b a l . c o m
A Jade Global White Paper
Migrating Data Warehouse Solutions
from Oracle to non-Oracle Databases
A step-by-step How-To Guide
By Manoj Machiwal, Consulting Manager

2. 1
w w w . j a d e g l o b a l . c o m

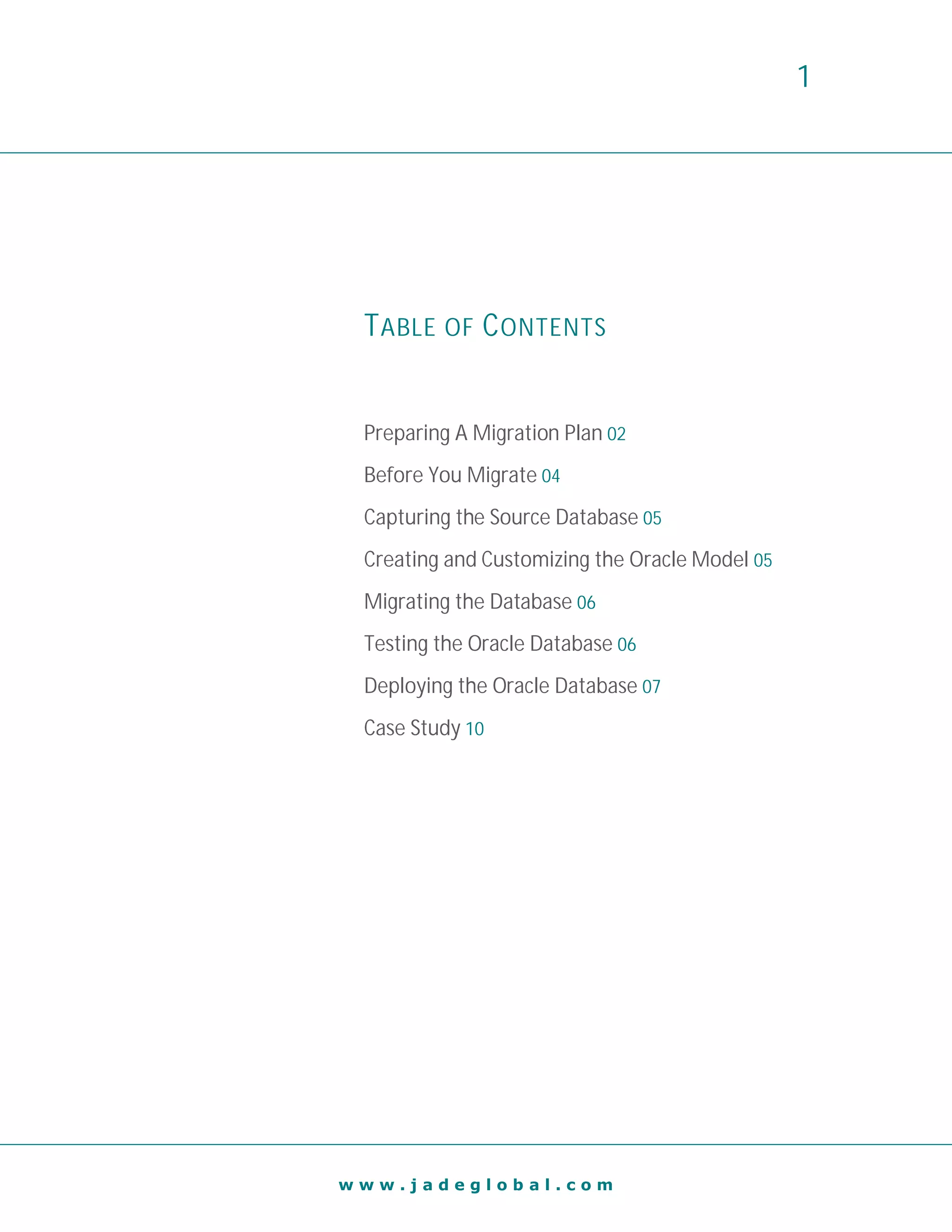

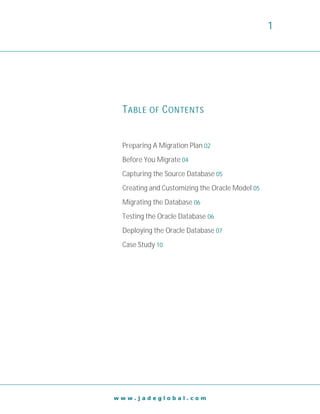

TABLE OF CONTENTS
Preparing A Migration Plan 02
Before You Migrate 04
Capturing the Source Database 05
Creating and Customizing the Oracle Model 05
Migrating the Database 06
Testing the Oracle Database 06
Deploying the Oracle Database 07
Case Study 10

3. 2
w w w . j a d e g l o b a l . c o m

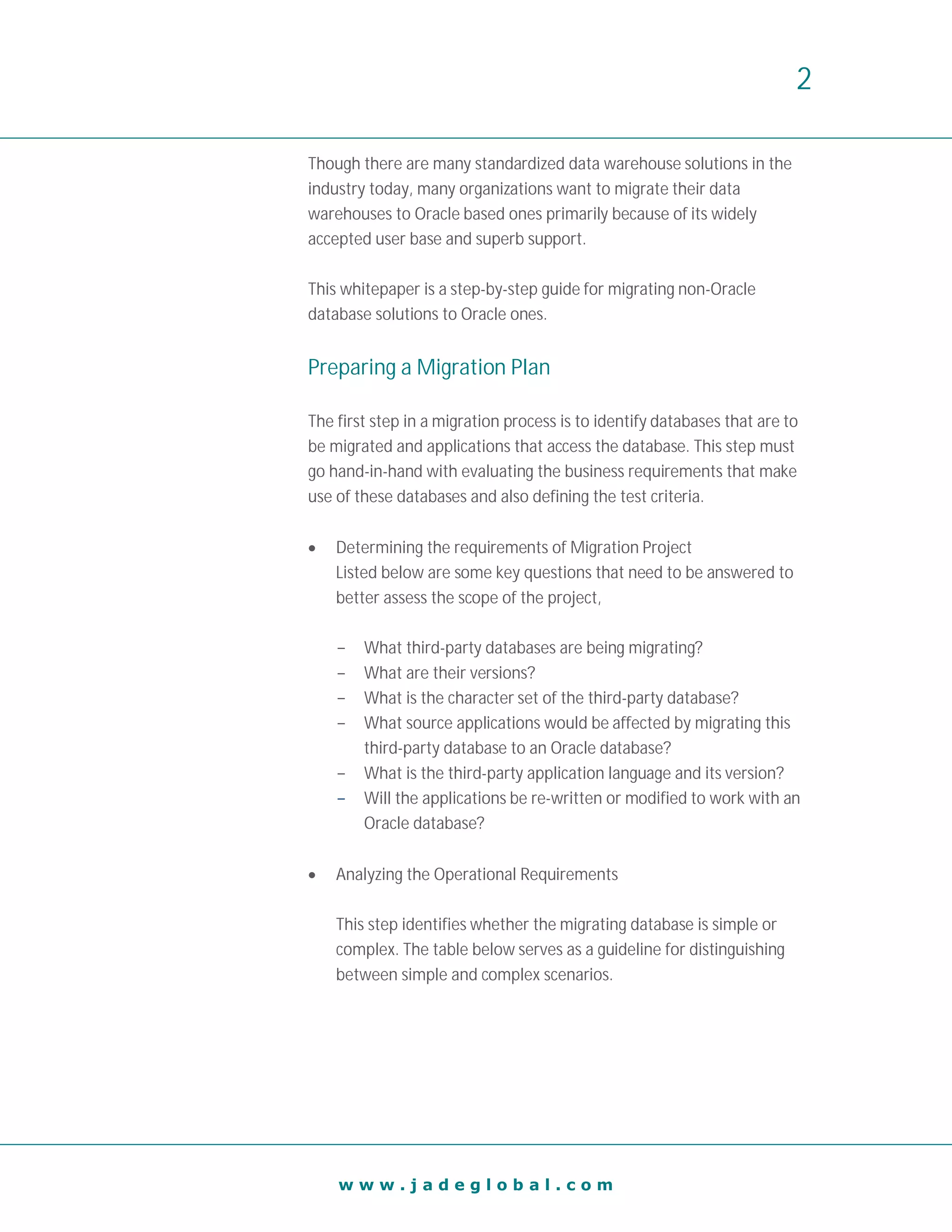

Though there are many standardized data warehouse solutions in the
industry today, many organizations want to migrate their data
warehouses to Oracle based ones primarily because of its widely
accepted user base and superb support.
This whitepaper is a step-by-step guide for migrating non-Oracle
database solutions to Oracle ones.
Preparing a Migration Plan
The first step in a migration process is to identify databases that are to
be migrated and applications that access the database. This step must
go hand-in-hand with evaluating the business requirements that make
use of these databases and also defining the test criteria.
 Determining the requirements of Migration Project
Listed below are some key questions that need to be answered to
better assess the scope of the project,
- What third-party databases are being migrating?
- What are their versions?
- What is the character set of the third-party database?
- What source applications would be affected by migrating this
third-party database to an Oracle database?
- What is the third-party application language and its version?
- Will the applications be re-written or modified to work with an
Oracle database?
 Analyzing the Operational Requirements
This step identifies whether the migrating database is simple or
complex. The table below serves as a guideline for distinguishing
between simple and complex scenarios.

4. 3
w w w . j a d e g l o b a l . c o m

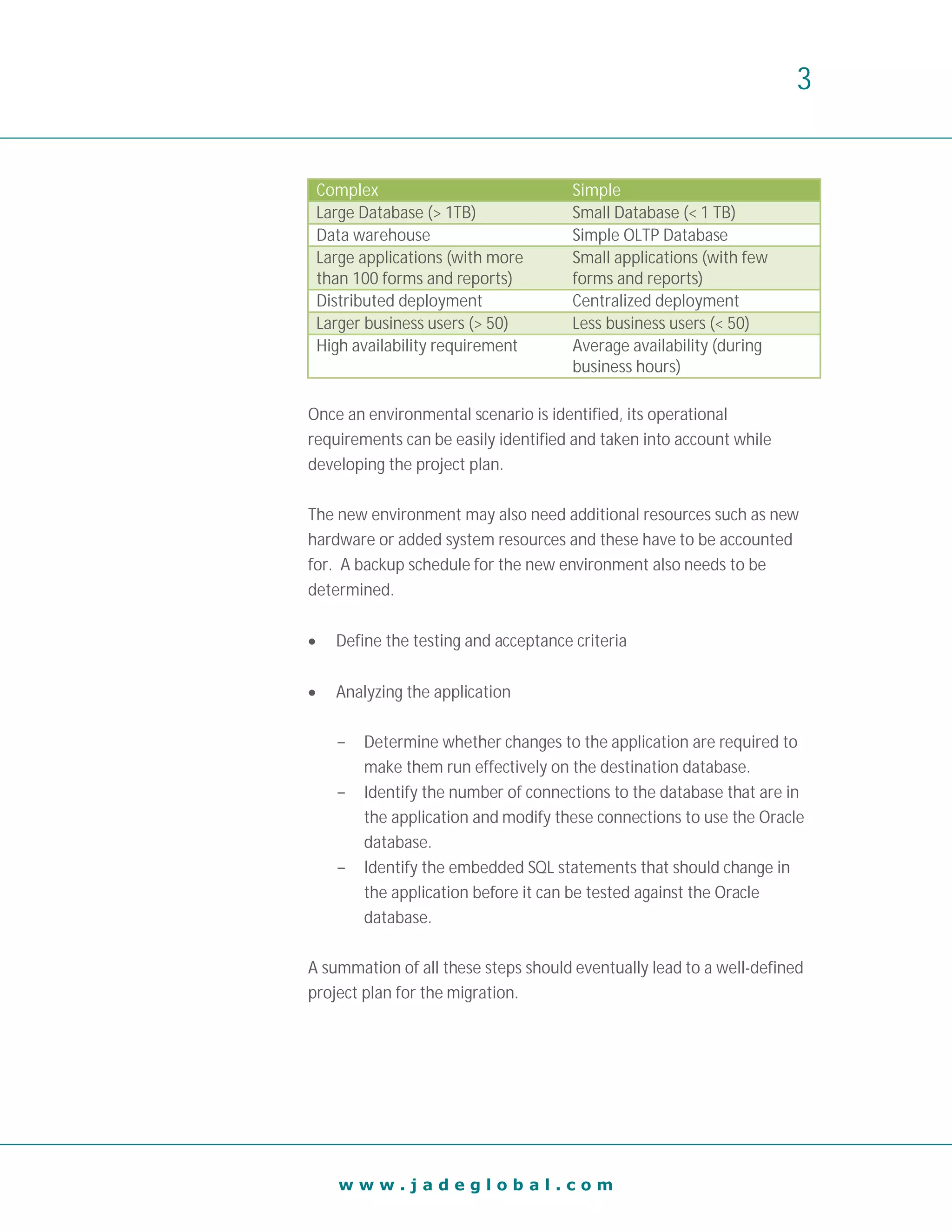

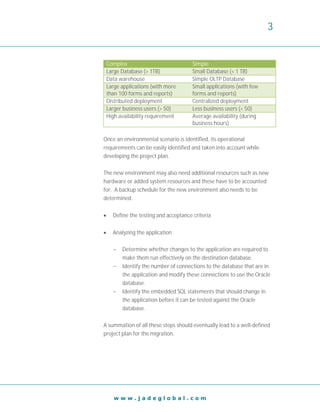

Complex Simple
Large Database (> 1TB) Small Database (< 1 TB)
Data warehouse Simple OLTP Database
Large applications (with more
than 100 forms and reports)
Small applications (with few
forms and reports)
Distributed deployment Centralized deployment
Larger business users (> 50) Less business users (< 50)
High availability requirement Average availability (during
business hours)
Once an environmental scenario is identified, its operational
requirements can be easily identified and taken into account while
developing the project plan.
The new environment may also need additional resources such as new
hardware or added system resources and these have to be accounted
for. A backup schedule for the new environment also needs to be
determined.
 Define the testing and acceptance criteria
 Analyzing the application
- Determine whether changes to the application are required to
make them run effectively on the destination database.
- Identify the number of connections to the database that are in
the application and modify these connections to use the Oracle
database.
- Identify the embedded SQL statements that should change in
the application before it can be tested against the Oracle
database.
A summation of all these steps should eventually lead to a well-defined
project plan for the migration.

5. 4
w w w . j a d e g l o b a l . c o m

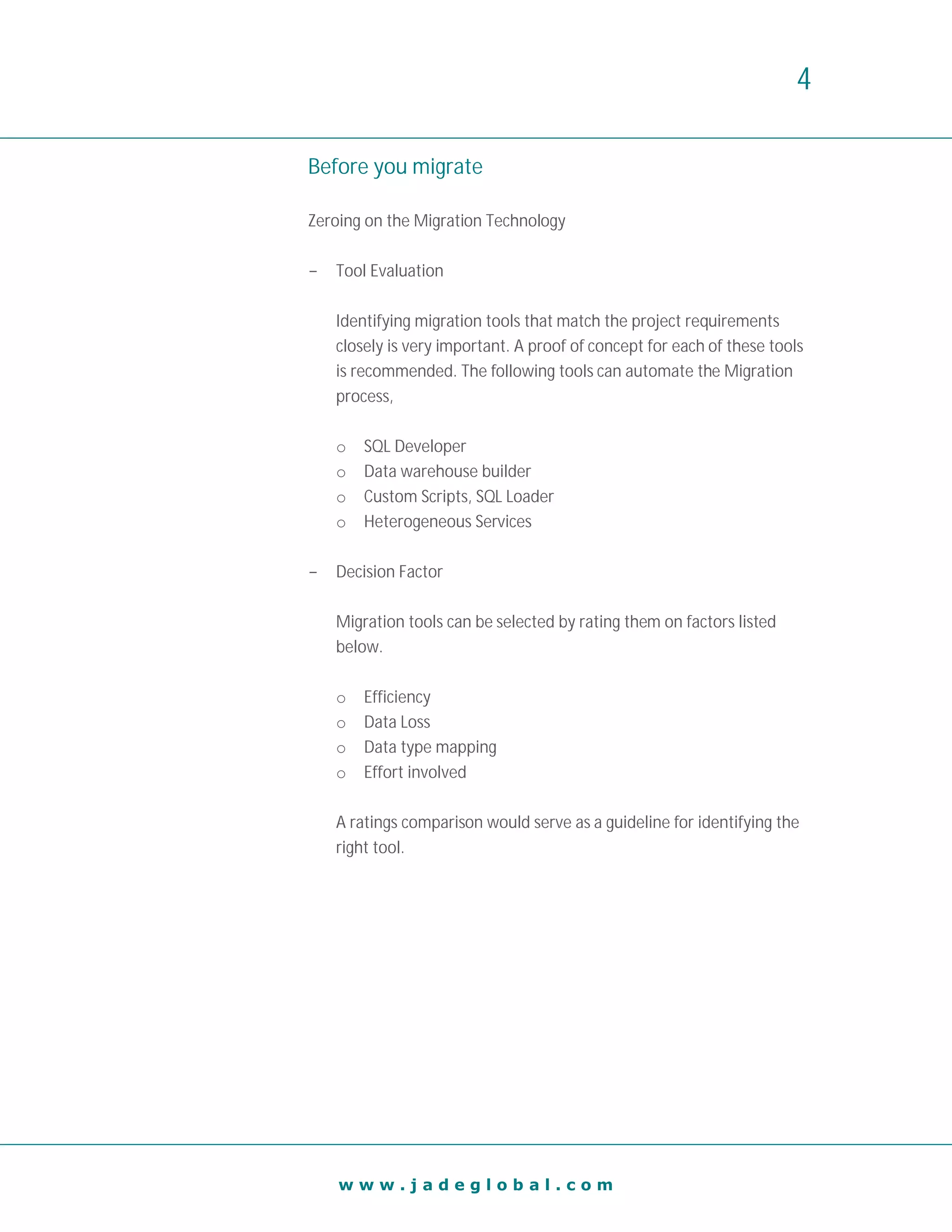

Before you migrate
Zeroing on the Migration Technology
- Tool Evaluation
Identifying migration tools that match the project requirements
closely is very important. A proof of concept for each of these tools
is recommended. The following tools can automate the Migration
process,
o SQL Developer
o Data warehouse builder
o Custom Scripts, SQL Loader
o Heterogeneous Services
- Decision Factor
Migration tools can be selected by rating them on factors listed
below.
o Efficiency
o Data Loss
o Data type mapping
o Effort involved
A ratings comparison would serve as a guideline for identifying the
right tool.

6. 5
w w w . j a d e g l o b a l . c o m

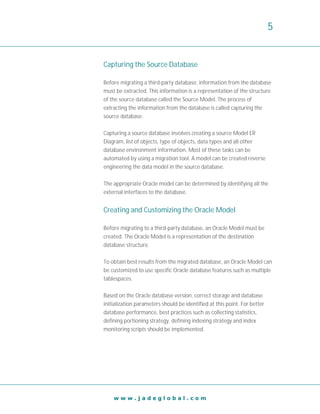

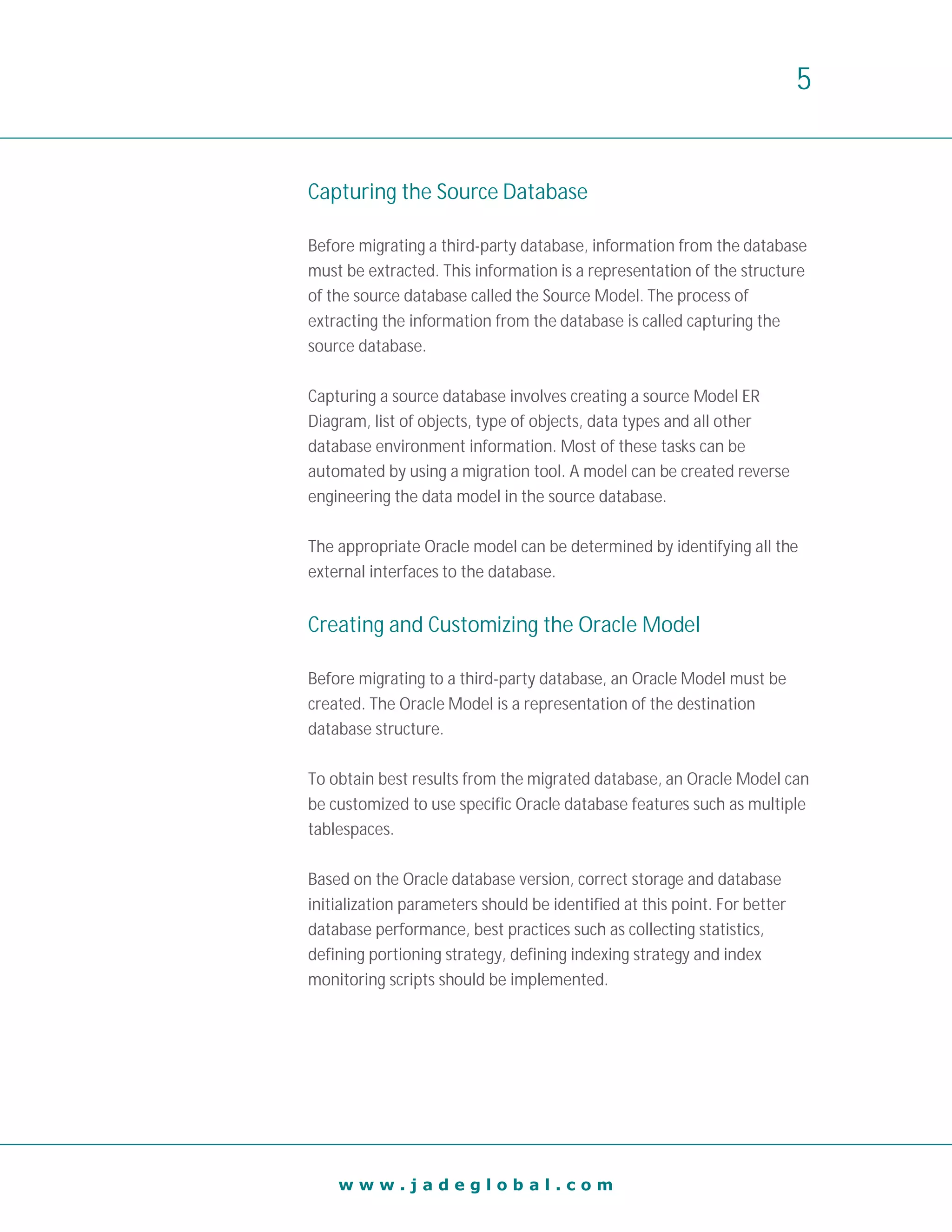

Capturing the Source Database
Before migrating a third-party database, information from the database
must be extracted. This information is a representation of the structure
of the source database called the Source Model. The process of
extracting the information from the database is called capturing the
source database.
Capturing a source database involves creating a source Model ER
Diagram, list of objects, type of objects, data types and all other
database environment information. Most of these tasks can be
automated by using a migration tool. A model can be created reverse
engineering the data model in the source database.
The appropriate Oracle model can be determined by identifying all the
external interfaces to the database.
Creating and Customizing the Oracle Model
Before migrating to a third-party database, an Oracle Model must be
created. The Oracle Model is a representation of the destination
database structure.
To obtain best results from the migrated database, an Oracle Model can
be customized to use specific Oracle database features such as multiple
tablespaces.
Based on the Oracle database version, correct storage and database
initialization parameters should be identified at this point. For better
database performance, best practices such as collecting statistics,
defining portioning strategy, defining indexing strategy and index
monitoring scripts should be implemented.

7. 6
w w w . j a d e g l o b a l . c o m

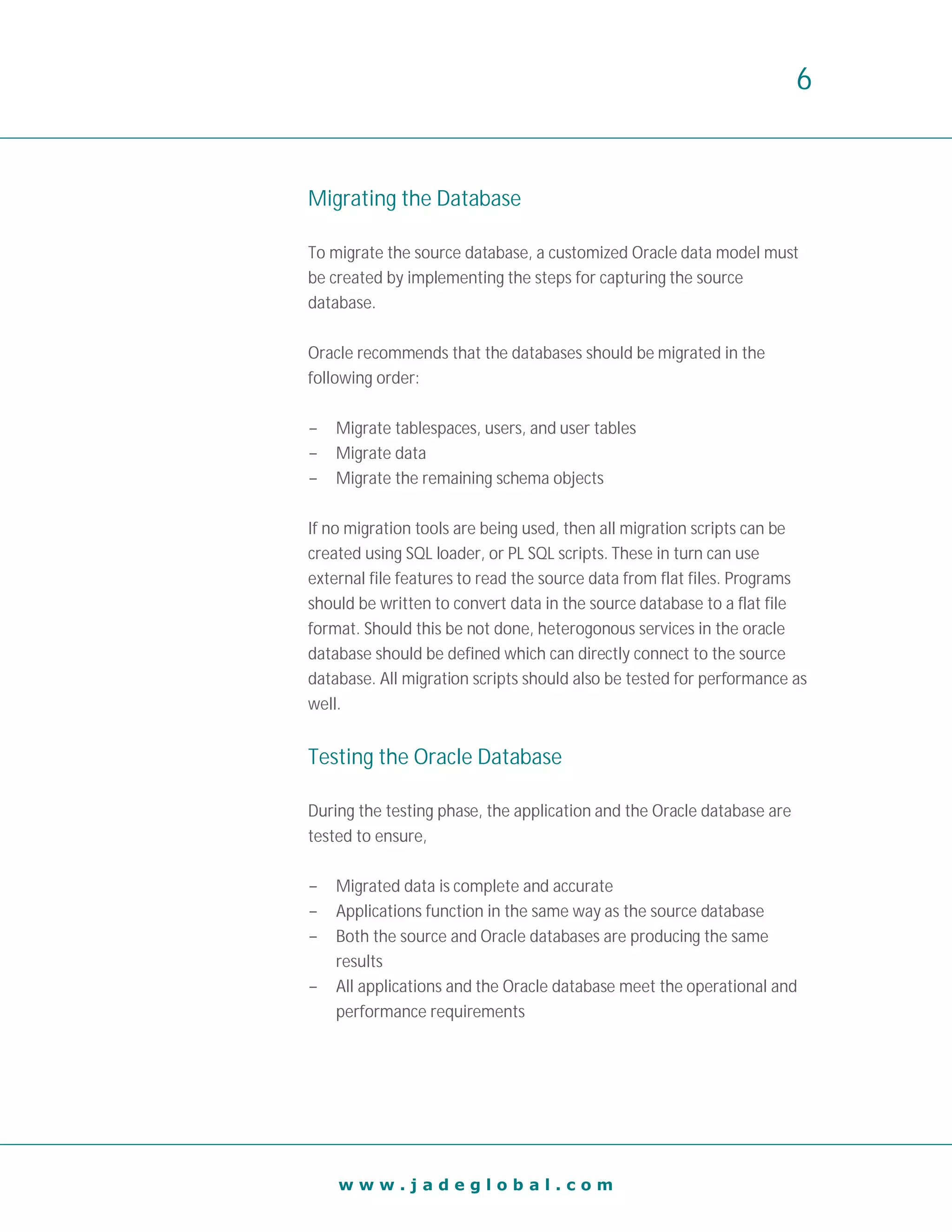

Migrating the Database
To migrate the source database, a customized Oracle data model must
be created by implementing the steps for capturing the source
database.
Oracle recommends that the databases should be migrated in the
following order:
- Migrate tablespaces, users, and user tables
- Migrate data
- Migrate the remaining schema objects
If no migration tools are being used, then all migration scripts can be
created using SQL loader, or PL SQL scripts. These in turn can use
external file features to read the source data from flat files. Programs
should be written to convert data in the source database to a flat file
format. Should this be not done, heterogonous services in the oracle
database should be defined which can directly connect to the source
database. All migration scripts should also be tested for performance as
well.
Testing the Oracle Database
During the testing phase, the application and the Oracle database are
tested to ensure,
- Migrated data is complete and accurate
- Applications function in the same way as the source database
- Both the source and Oracle databases are producing the same
results
- All applications and the Oracle database meet the operational and
performance requirements

8. 7
w w w . j a d e g l o b a l . c o m

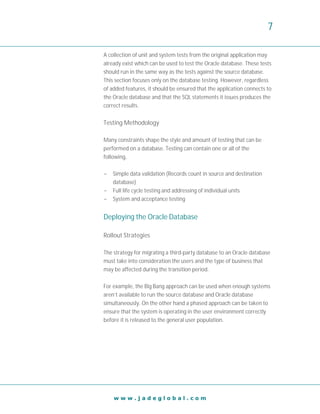

A collection of unit and system tests from the original application may
already exist which can be used to test the Oracle database. These tests
should run in the same way as the tests against the source database.
This section focuses only on the database testing. However, regardless
of added features, it should be ensured that the application connects to
the Oracle database and that the SQL statements it issues produces the
correct results.
Testing Methodology
Many constraints shape the style and amount of testing that can be
performed on a database. Testing can contain one or all of the
following,
- Simple data validation (Records count in source and destination
database)
- Full life cycle testing and addressing of individual units
- System and acceptance testing
Deploying the Oracle Database
Rollout Strategies
The strategy for migrating a third-party database to an Oracle database
must take into consideration the users and the type of business that
may be affected during the transition period.
For example, the Big Bang approach can be used when enough systems
aren’t available to run the source database and Oracle database
simultaneously. On the other hand a phased approach can be taken to
ensure that the system is operating in the user environment correctly
before it is released to the general user population.

9. 8
w w w . j a d e g l o b a l . c o m

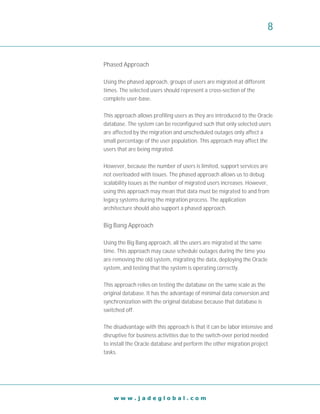

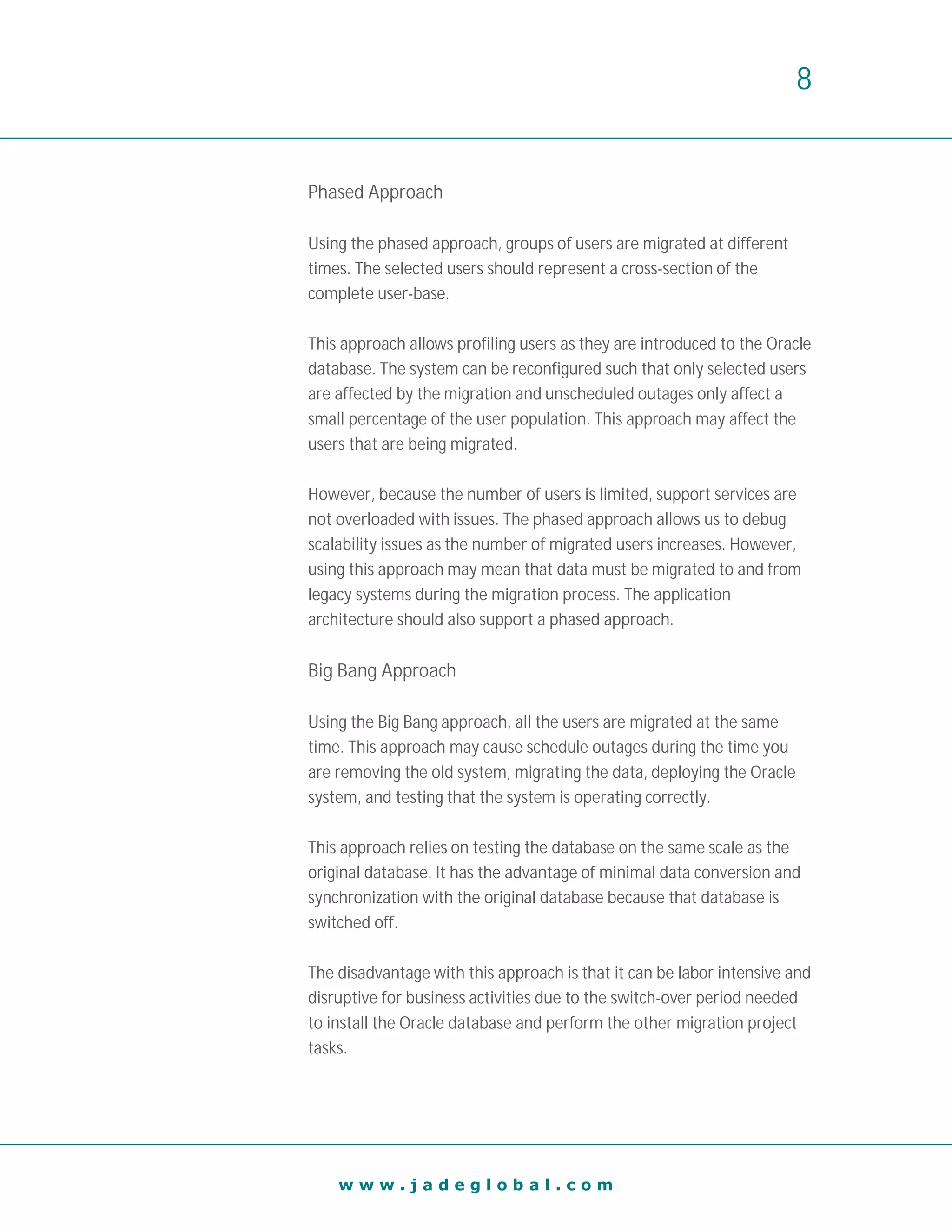

Phased Approach
Using the phased approach, groups of users are migrated at different
times. The selected users should represent a cross-section of the
complete user-base.
This approach allows profiling users as they are introduced to the Oracle
database. The system can be reconfigured such that only selected users
are affected by the migration and unscheduled outages only affect a
small percentage of the user population. This approach may affect the
users that are being migrated.
However, because the number of users is limited, support services are
not overloaded with issues. The phased approach allows us to debug
scalability issues as the number of migrated users increases. However,
using this approach may mean that data must be migrated to and from
legacy systems during the migration process. The application
architecture should also support a phased approach.
Big Bang Approach
Using the Big Bang approach, all the users are migrated at the same
time. This approach may cause schedule outages during the time you
are removing the old system, migrating the data, deploying the Oracle
system, and testing that the system is operating correctly.
This approach relies on testing the database on the same scale as the
original database. It has the advantage of minimal data conversion and
synchronization with the original database because that database is
switched off.
The disadvantage with this approach is that it can be labor intensive and
disruptive for business activities due to the switch-over period needed
to install the Oracle database and perform the other migration project
tasks.

10. 9
w w w . j a d e g l o b a l . c o m

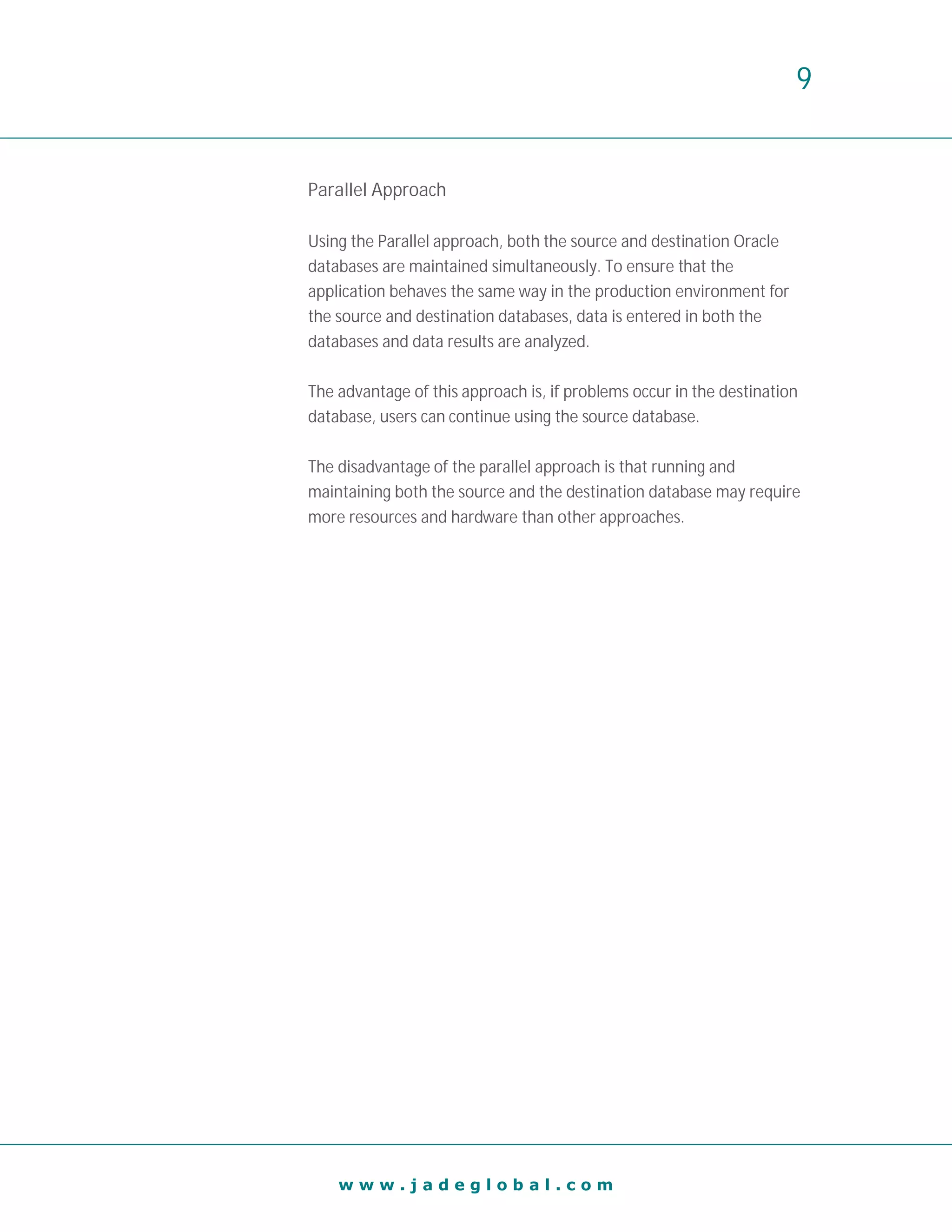

Parallel Approach
Using the Parallel approach, both the source and destination Oracle
databases are maintained simultaneously. To ensure that the
application behaves the same way in the production environment for
the source and destination databases, data is entered in both the
databases and data results are analyzed.
The advantage of this approach is, if problems occur in the destination
database, users can continue using the source database.
The disadvantage of the parallel approach is that running and
maintaining both the source and the destination database may require
more resources and hardware than other approaches.

11. 10
w w w . j a d e g l o b a l . c o m

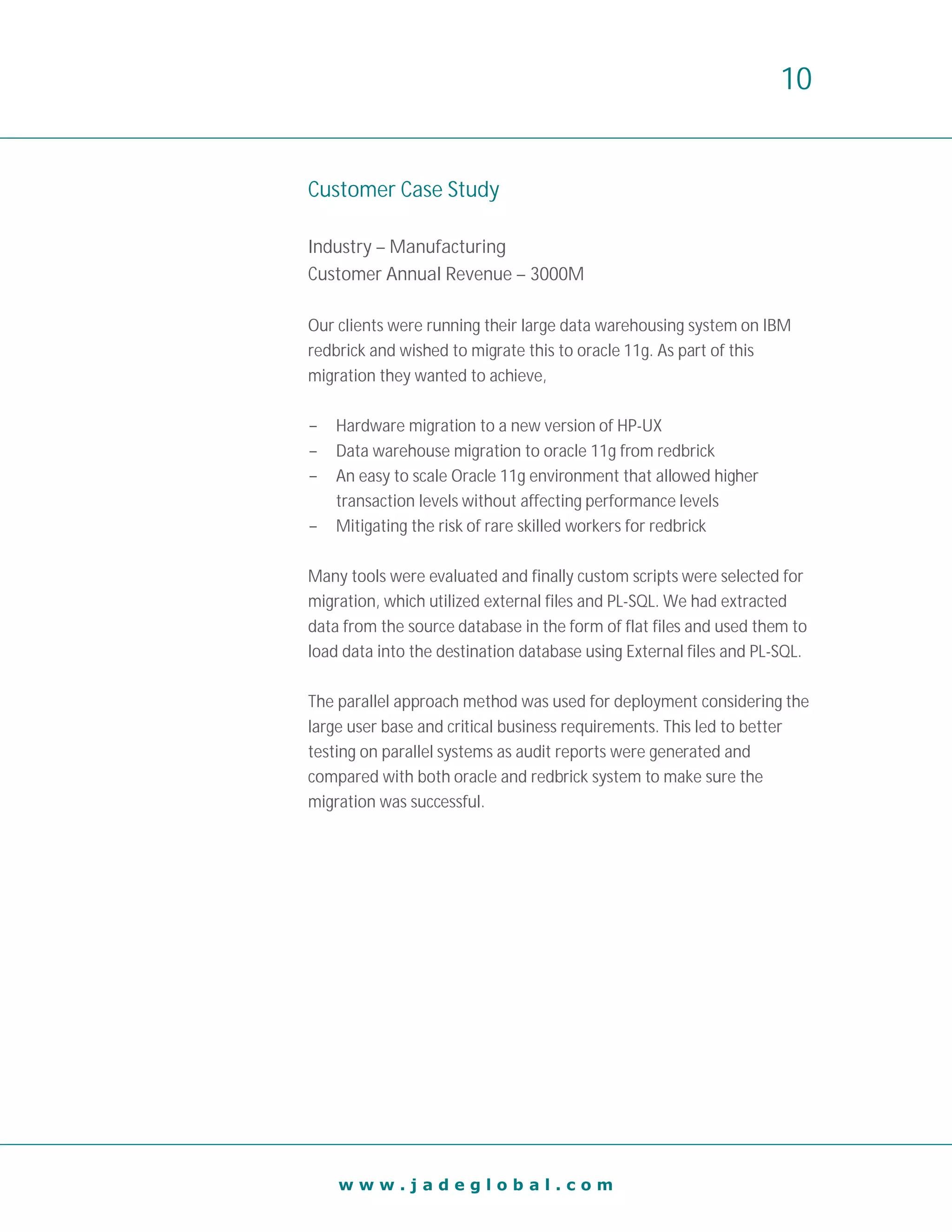

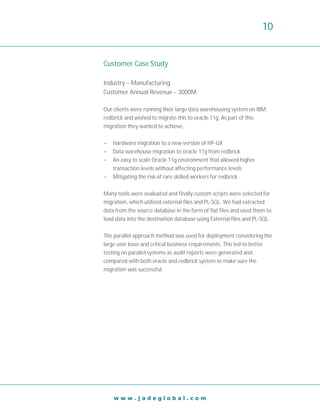

Customer Case Study
Industry – Manufacturing
Customer Annual Revenue – 3000M
Our clients were running their large data warehousing system on IBM
redbrick and wished to migrate this to oracle 11g. As part of this
migration they wanted to achieve,
- Hardware migration to a new version of HP-UX
- Data warehouse migration to oracle 11g from redbrick
- An easy to scale Oracle 11g environment that allowed higher
transaction levels without affecting performance levels
- Mitigating the risk of rare skilled workers for redbrick
Many tools were evaluated and finally custom scripts were selected for
migration, which utilized external files and PL-SQL. We had extracted
data from the source database in the form of flat files and used them to
load data into the destination database using External files and PL-SQL.
The parallel approach method was used for deployment considering the
large user base and critical business requirements. This led to better
testing on parallel systems as audit reports were generated and
compared with both oracle and redbrick system to make sure the
migration was successful.

12. 11
w w w . j a d e g l o b a l . c o m

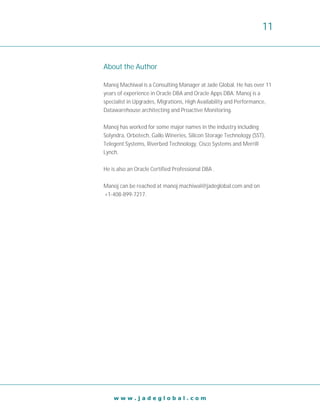

About the Author
Manoj Machiwal is a Consulting Manager at Jade Global. He has over 11
years of experience in Oracle DBA and Oracle Apps DBA. Manoj is a
specialist in Upgrades, Migrations, High Availability and Performance,
Datawarehouse architecting and Proactive Monitoring.
Manoj has worked for some major names in the industry including
Solyndra, Orbotech, Gallo Wineries, Silicon Storage Technology (SST),
Telegent Systems, Riverbed Technology, Cisco Systems and Merrill
Lynch.
He is also an Oracle Certified Professional DBA .
Manoj can be reached at manoj.machiwal@jadeglobal.com and on
+1-408-899-7217.

13. 12
w w w . j a d e g l o b a l . c o m

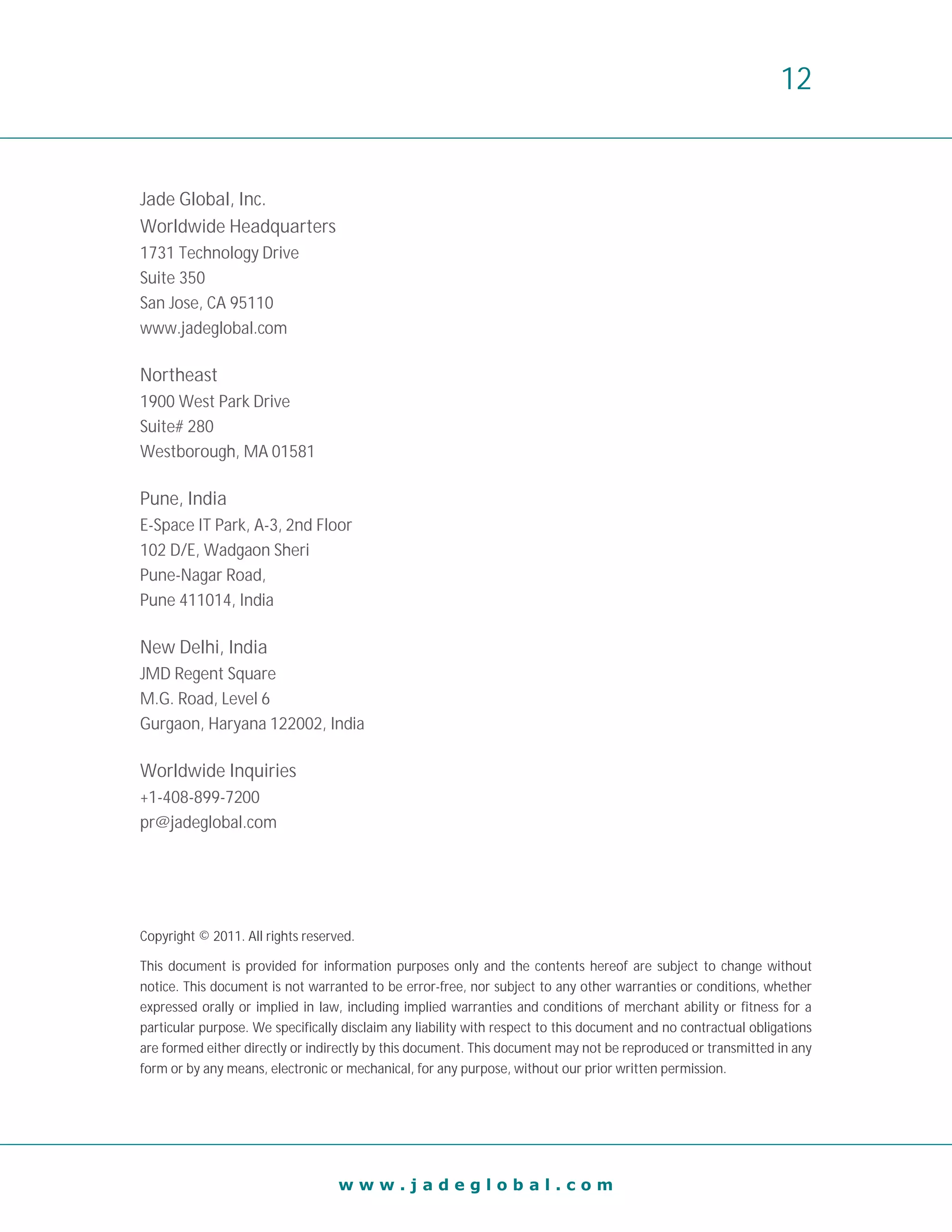

Jade Global, Inc.
Worldwide Headquarters
1731 Technology Drive
Suite 350
San Jose, CA 95110
www.jadeglobal.com
Northeast
1900 West Park Drive
Suite# 280
Westborough, MA 01581
Pune, India
E-Space IT Park, A-3, 2nd Floor
102 D/E, Wadgaon Sheri
Pune-Nagar Road,
Pune 411014, India
New Delhi, India
JMD Regent Square
M.G. Road, Level 6
Gurgaon, Haryana 122002, India
Worldwide Inquiries
+1-408-899-7200
pr@jadeglobal.com
Copyright © 2011. All rights reserved.
This document is provided for information purposes only and the contents hereof are subject to change without
notice. This document is not warranted to be error-free, nor subject to any other warranties or conditions, whether
expressed orally or implied in law, including implied warranties and conditions of merchant ability or fitness for a
particular purpose. We specifically disclaim any liability with respect to this document and no contractual obligations
are formed either directly or indirectly by this document. This document may not be reproduced or transmitted in any
form or by any means, electronic or mechanical, for any purpose, without our prior written permission.
