Windows Azure AppFabric is a platform that provides middleware services for developing and managing cloud applications at scale. It includes services for messaging, caching, identity management, and integrating applications. It also allows building and managing composite applications composed of distributed application components hosted on Windows Azure. The AppFabric platform aims to simplify cloud development by providing these services and capabilities through a consistent programming model.

1. Windows Azure AppFabricDavid Chouarchitectmicrosoft

2. Windows Azure PlatformApplicationMarketplaceInformation MarketplaceMarketplaceWorkflow HostingDistributed CacheServices HostingFrameworksClaims-Based IdentityFederated IdentitiesSecure Token ServiceDeclarative PoliciesSecurityMessagingRegistryService BusIntegrationReportingData SynchronizationRelational DatabaseADO.NET, ODBC, PHPDataComputeC / C++Win32VHDDynamic Tabular DataBlobsMessage QueuesDistributed File SystemContent DistributionStorageOn-Premises BridgingNetworking

3. Windows Azure PlatformApplicationsDataMarketMarketplaceComposite AppCachingFrameworksAccess ControlSecurityIntegrationConnect(BizTalk)Service BusIntegrationRelational DatabaseReportingDataSyncDataVM RoleWeb RoleWorker RoleComputeTable StorageBlob StorageQueueDriveContent Delivery NetworkStorageConnectNetworking

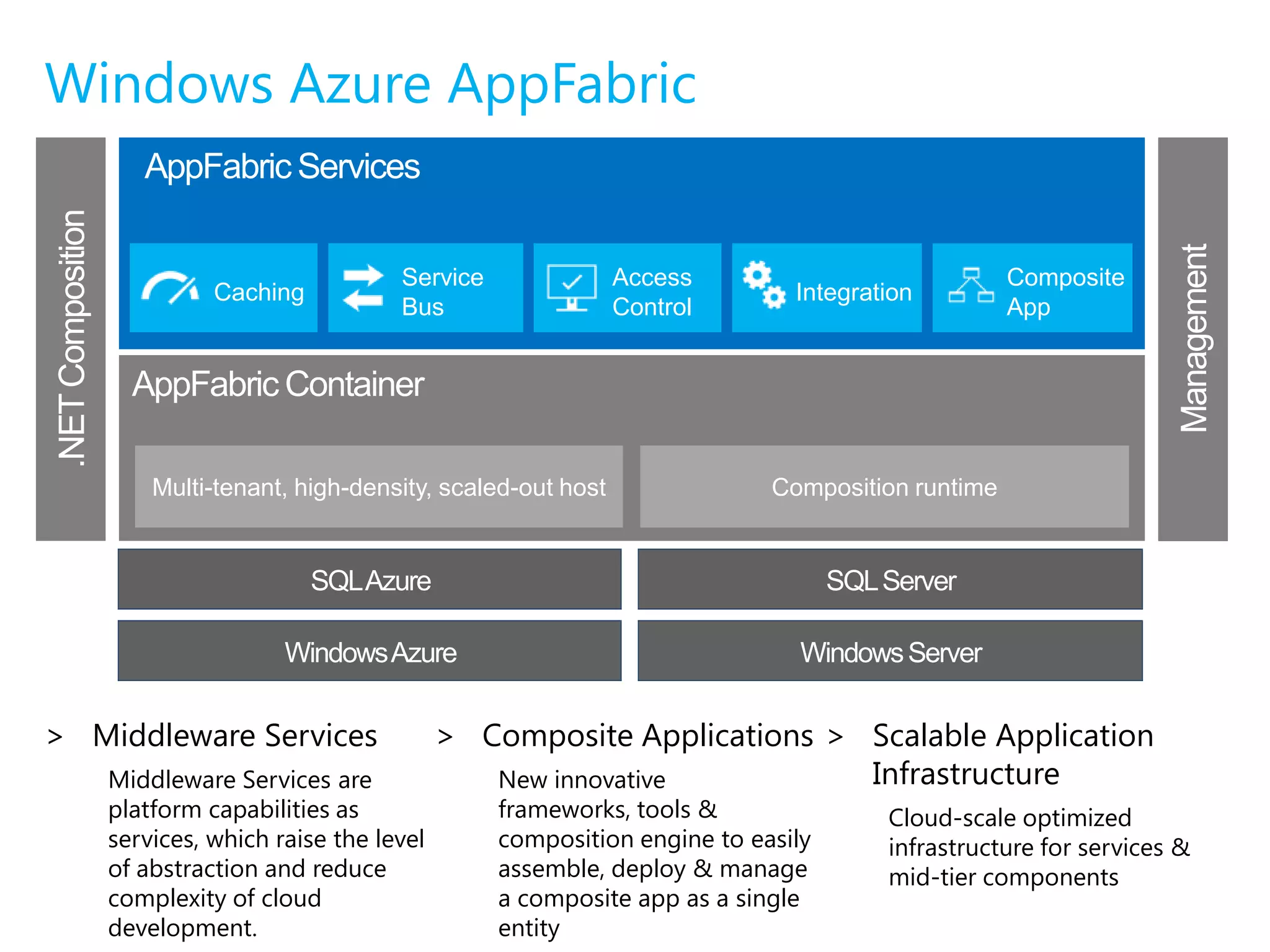

4. Windows Azure AppFabricAppFabric ServicesServiceBusAccessControlCompositeAppCachingIntegration.NET CompositionManagementAppFabric ContainerMulti-tenant, high-density, scaled-out hostComposition runtimeMiddleware ServicesMiddleware Services are platform capabilities as services, which raise the level of abstraction and reduce complexity of cloud development.Composite ApplicationsNew innovative frameworks, tools & composition engine to easily assemble, deploy & manage a composite app as a single entityScalable Application InfrastructureCloud-scale optimized infrastructure for services & mid-tier componentsSQL ServerSQL AzureWindows AzureWindows Server

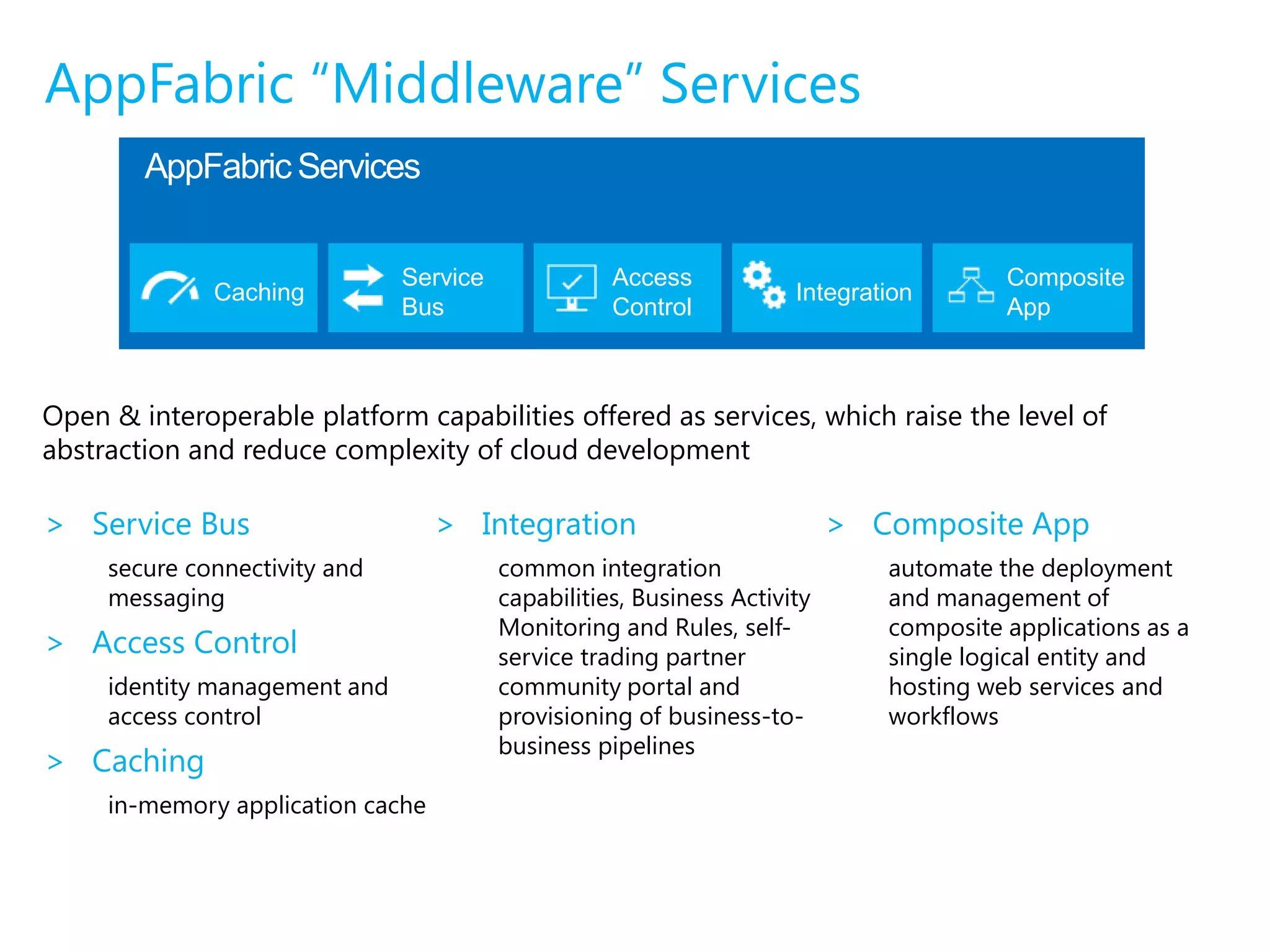

5. AppFabric “Middleware” ServicesAppFabric ServicesServiceBusAccessControlCompositeAppCachingIntegrationOpen & interoperable platform capabilities offered as services, which raise the level of abstraction and reduce complexity of cloud developmentService Bussecure connectivity and messagingAccess Controlidentity management and access controlCachingin-memory application cacheIntegrationcommon integration capabilities, Business Activity Monitoring and Rules, self-service trading partner community portal and provisioning of business-to-business pipelinesComposite Appautomate the deployment and management of composite applications as a single logical entity and hosting web services and workflows

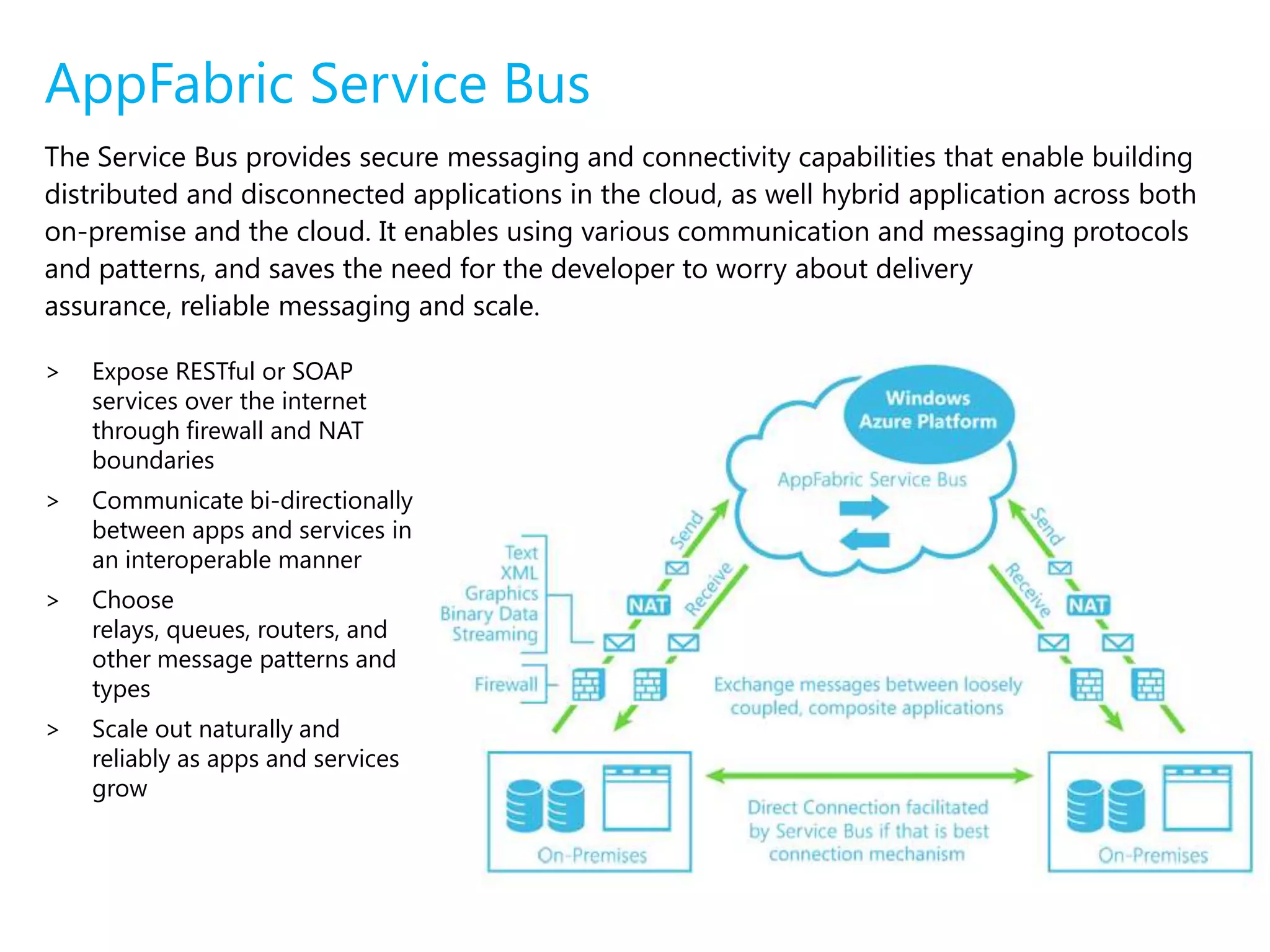

6. AppFabric Service BusThe Service Bus provides secure messaging and connectivity capabilities that enable building distributed and disconnected applications in the cloud, as well hybrid application across both on-premise and the cloud. It enables using various communication and messaging protocols and patterns, and saves the need for the developer to worry about delivery assurance, reliable messaging and scale.Expose RESTful or SOAP services over the internet through firewall and NAT boundariesCommunicate bi-directionally between apps and services in an interoperable mannerChoose relays, queues, routers, and other message patterns and typesScale out naturally and reliably as apps and services grow

7. AppFabric Service BusCore CapabilitiesService location and discoverySimple registryAccess via lightweight ATOM protocols from any platformEndpoint naming and discoveryCloud based messaging relayAllows bridging across NATs and FirewallsConnect apps without altering the network topologyNetwork Listen/Send from any Internet-connected deviceStandards based HTTP or High Performance TCPDirect connection functionality using NAT probing

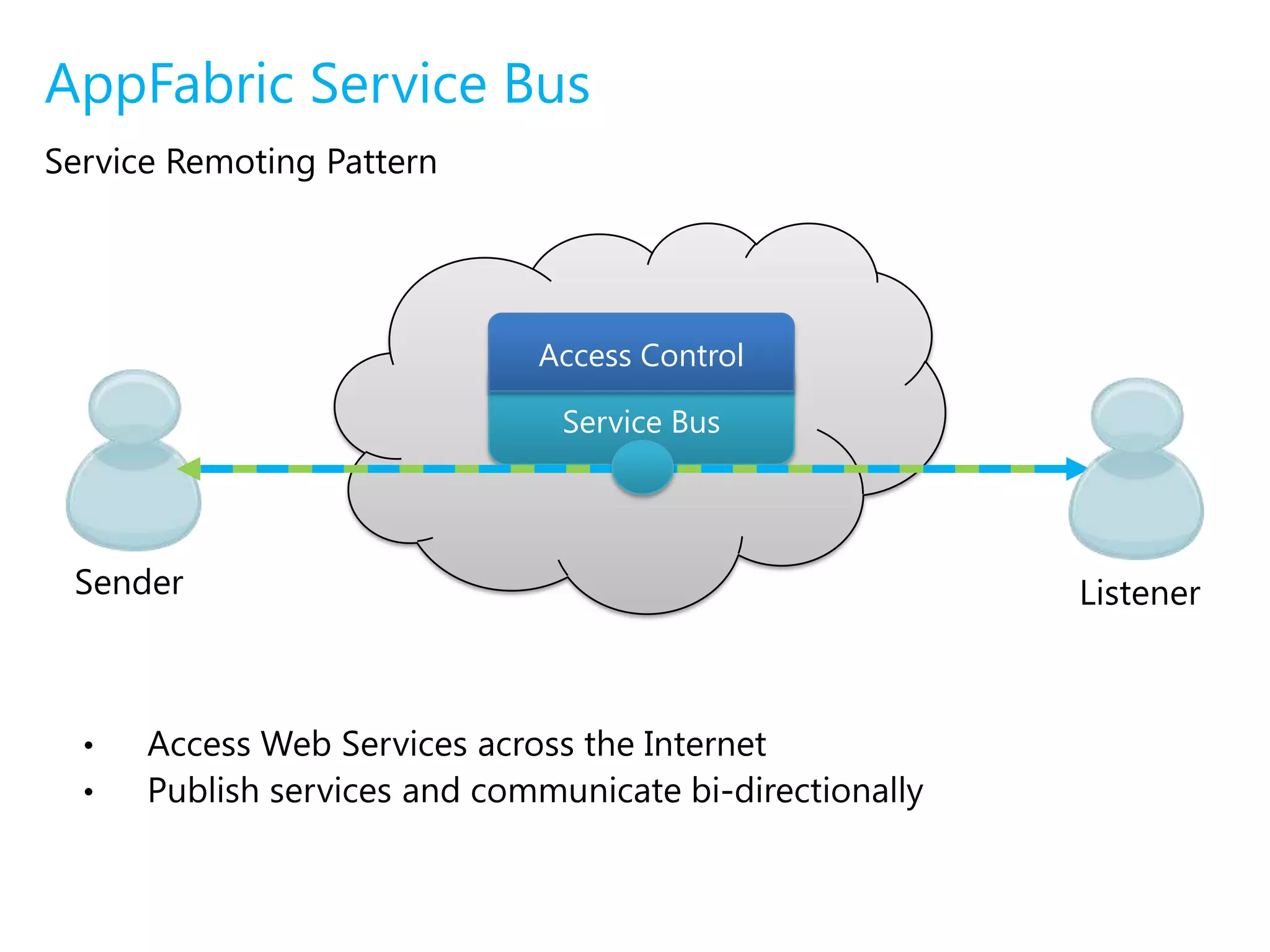

8. AppFabric Service BusService Remoting PatternAccess ControlService BusSenderListenerAccess Web Services across the Internet

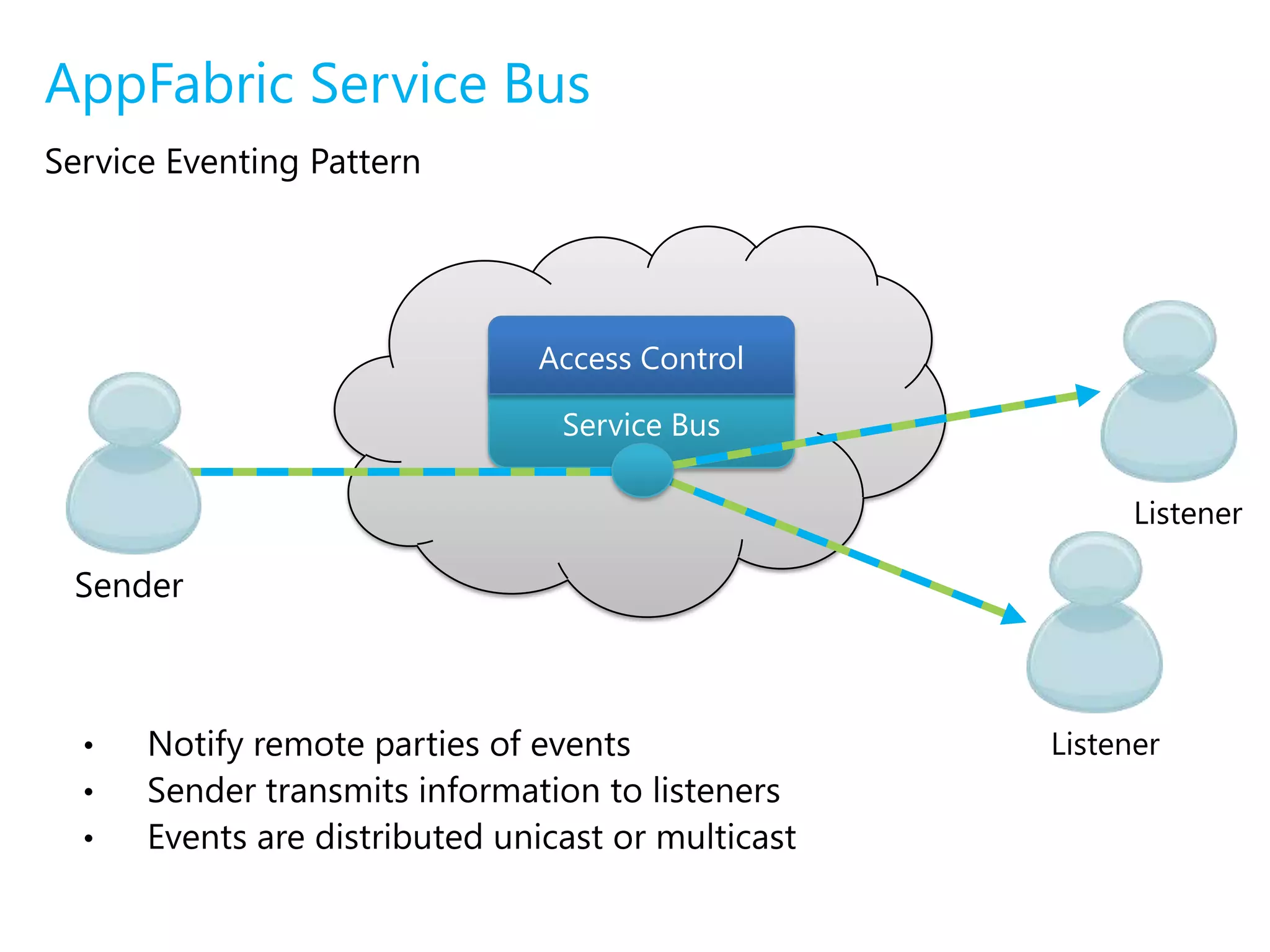

9. Publish services and communicate bi-directionallyAppFabric Service BusService Eventing PatternAccess ControlService BusListenerSenderNotify remote parties of events

10. Sender transmits information to listeners

11. Events are distributed unicast or multicastListener

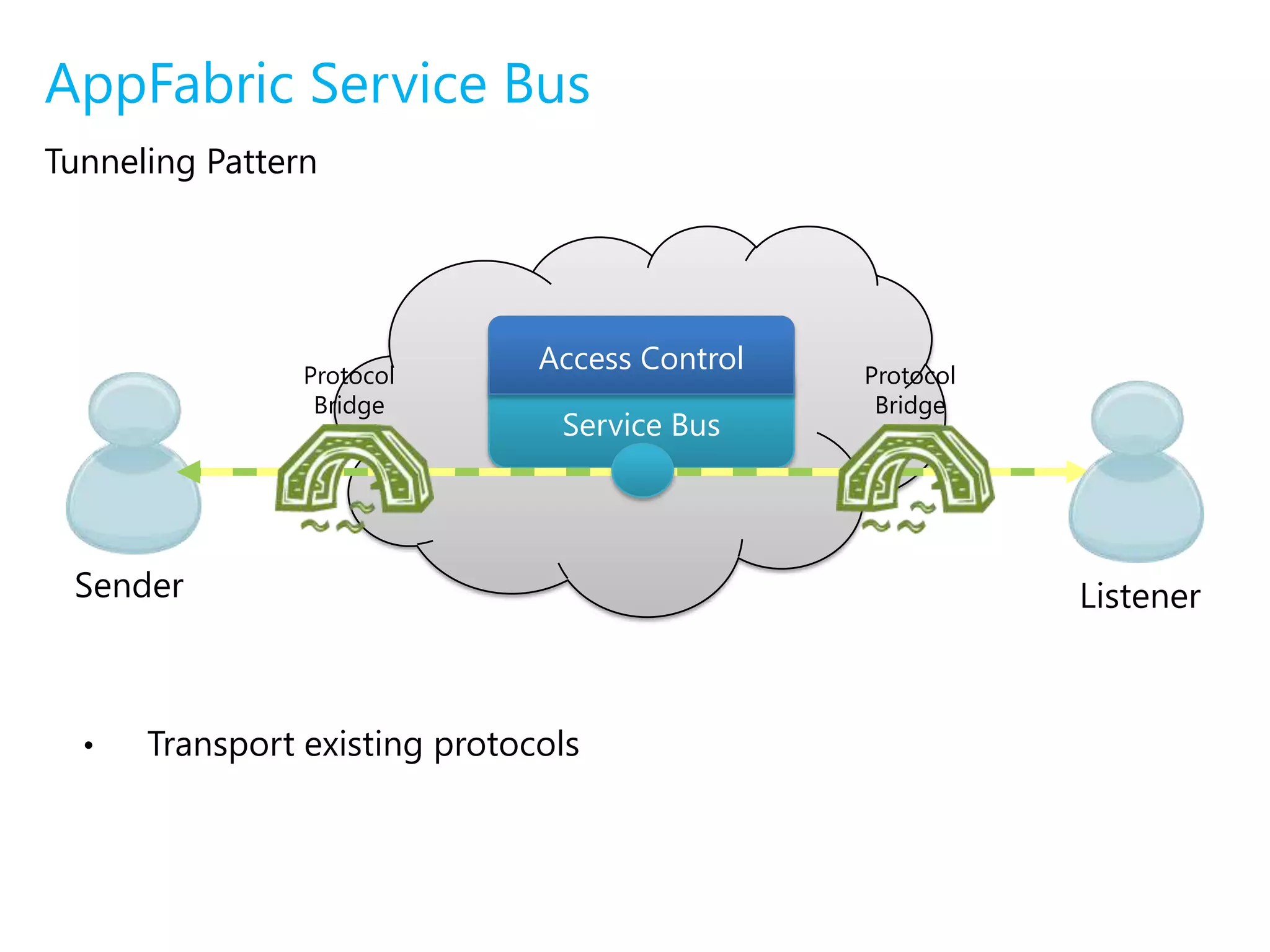

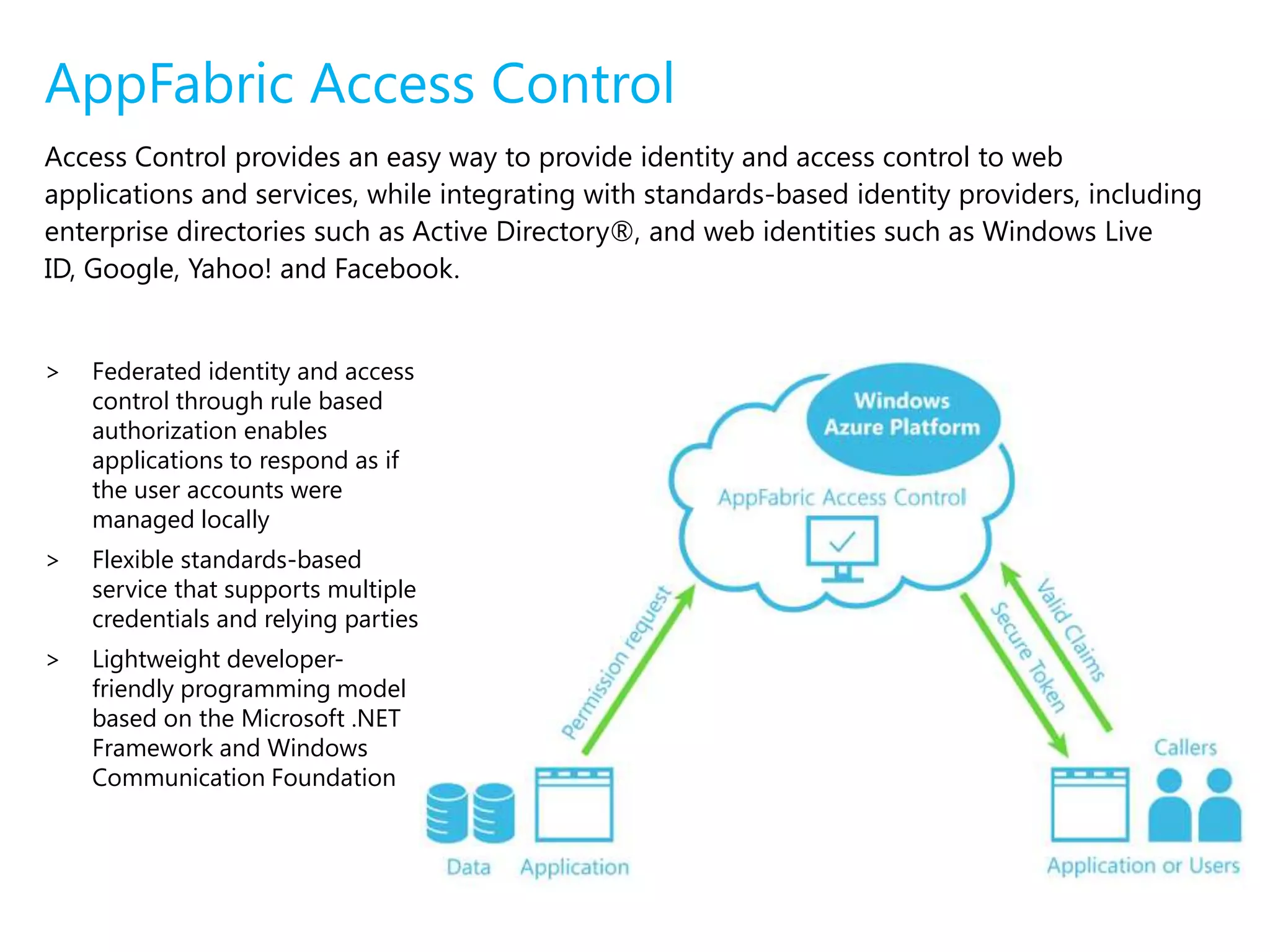

12. AppFabric Service BusTunneling PatternAccess ControlProtocol BridgeProtocol BridgeService BusSenderListenerTransport existing protocolsAppFabric Access ControlAccess Control provides an easy way to provide identity and access control to web applications and services, while integrating with standards-based identity providers, including enterprise directories such as Active Directory®, and web identities such as Windows Live ID, Google, Yahoo! and Facebook.Federated identity and access control through rule based authorization enables applications to respond as if the user accounts were managed locallyFlexible standards-based service that supports multiple credentials and relying partiesLightweight developer-friendly programming model based on the Microsoft .NET Framework and Windows Communication Foundation

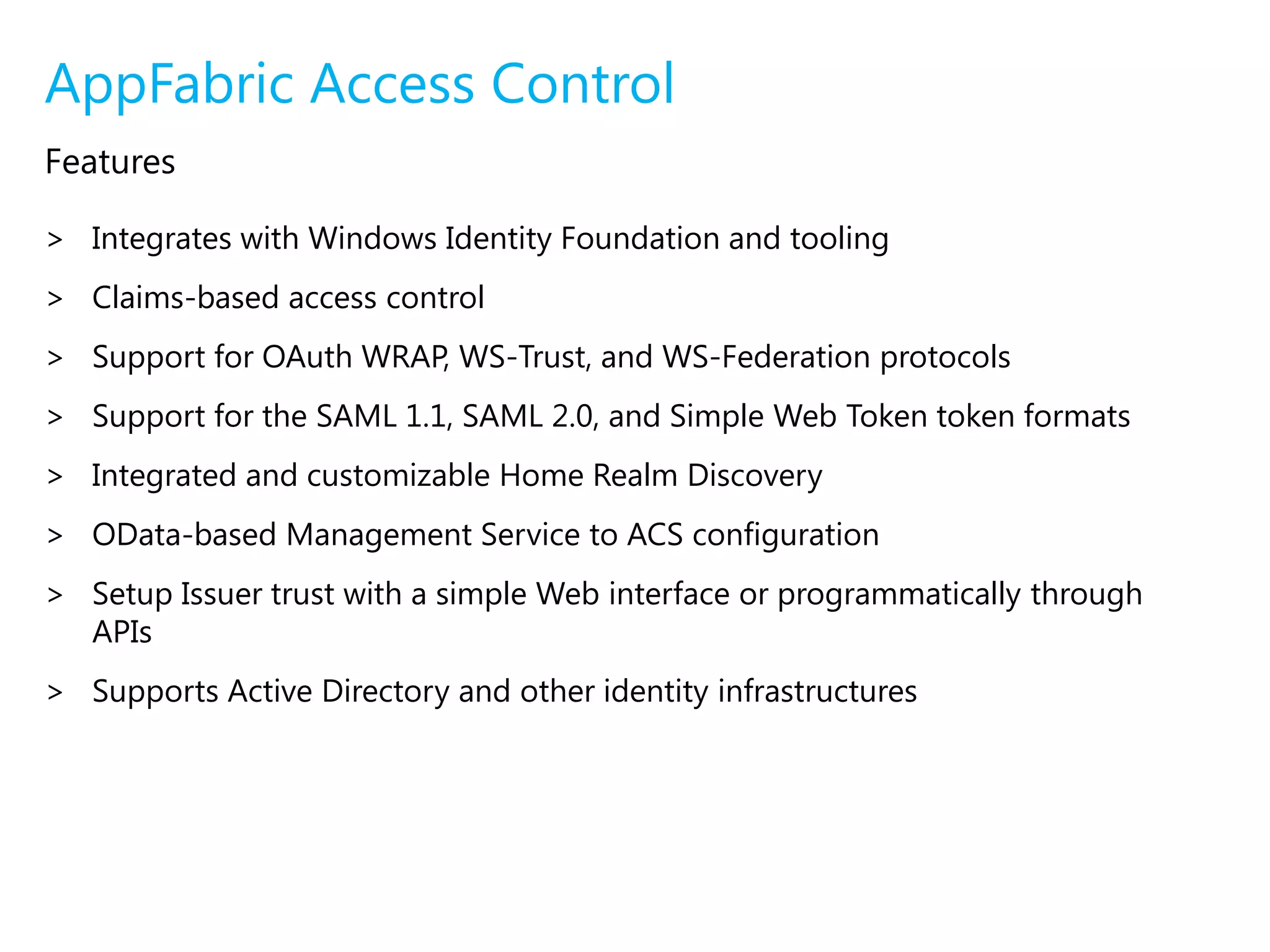

13. AppFabric Access ControlFeaturesIntegrates with Windows Identity Foundation and toolingClaims-based access controlSupport for OAuth WRAP, WS-Trust, and WS-Federation protocolsSupport for the SAML 1.1, SAML 2.0, and Simple Web Token token formatsIntegrated and customizable Home Realm DiscoveryOData-based Management Service to ACS configurationSetup Issuer trust with a simple Web interface or programmatically through APIs Supports Active Directory and other identity infrastructures

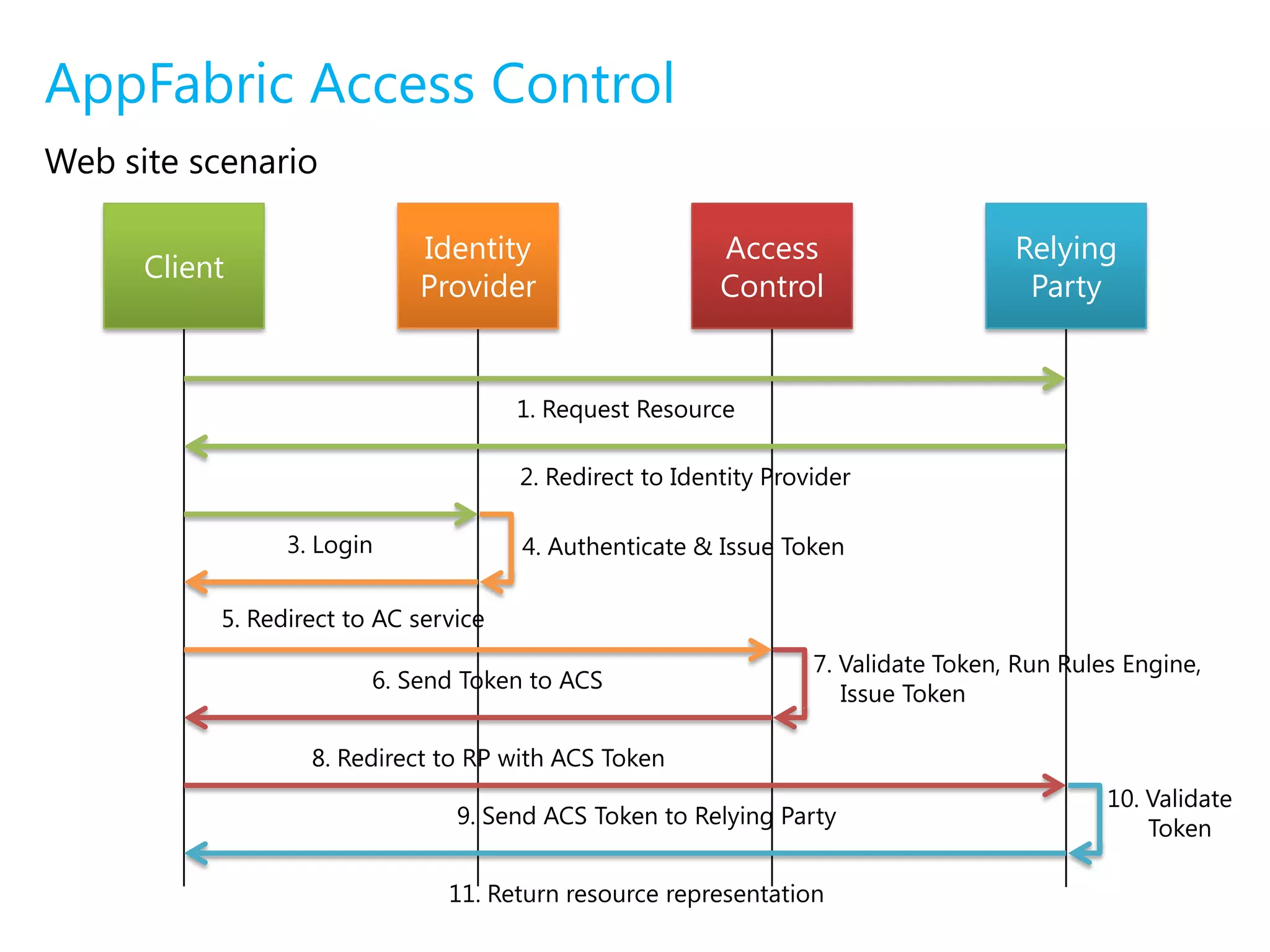

14. AppFabric Access ControlWeb site scenarioClientIdentity ProviderAccess ControlRelying Party1. Request Resource2. Redirect to Identity Provider3. Login4. Authenticate & Issue Token5. Redirect to AC service7. Validate Token, Run Rules Engine, Issue Token 6. Send Token to ACS8. Redirect to RP with ACS Token10. Validate Token9. Send ACS Token to Relying Party11. Return resource representation

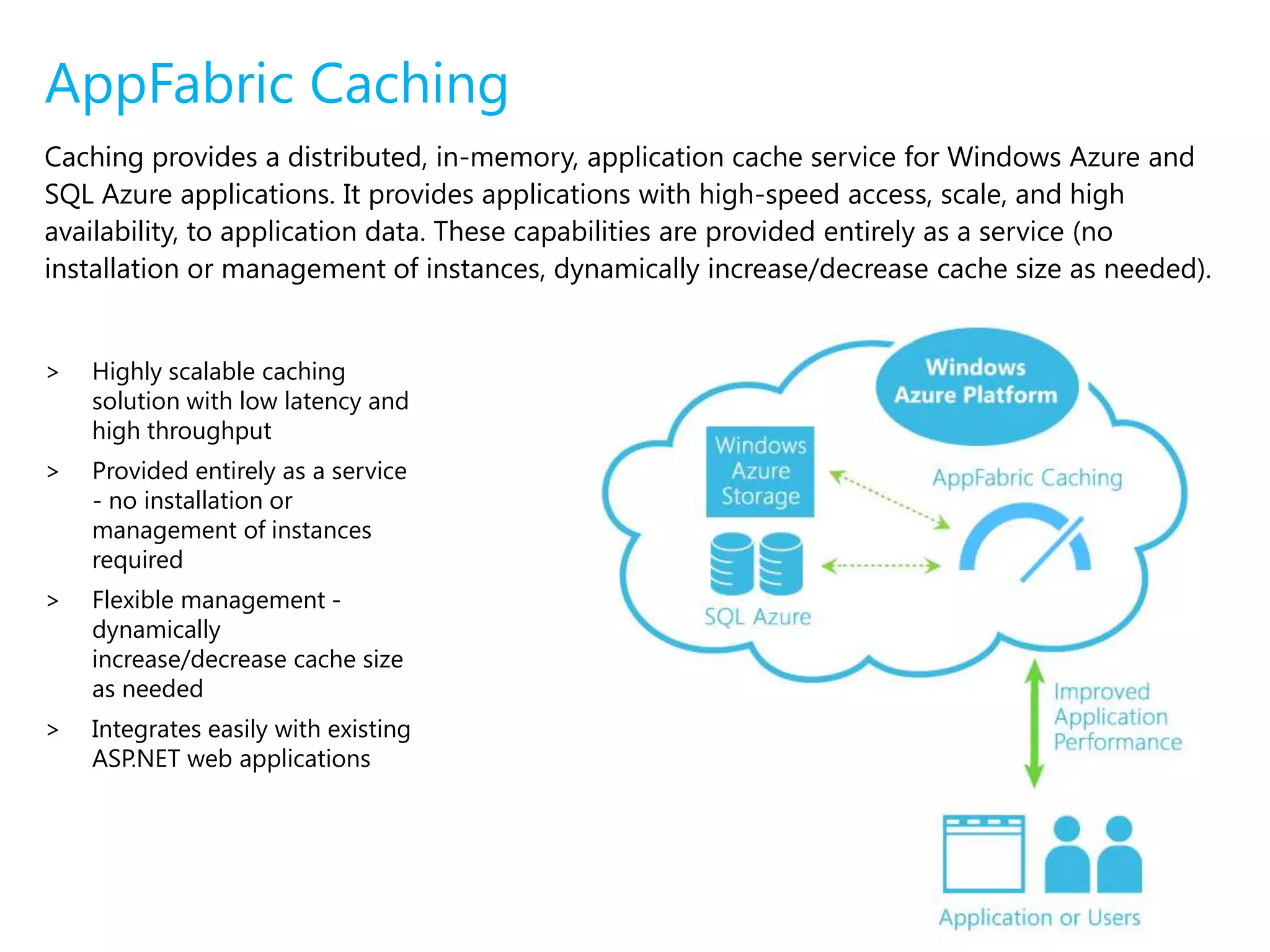

15. AppFabric CachingCaching provides a distributed, in-memory, application cache service for Windows Azure and SQL Azure applications. It provides applications with high-speed access, scale, and high availability, to application data. These capabilities are provided entirely as a service (no installation or management of instances, dynamically increase/decrease cache size as needed).Highly scalable caching solution with low latency and high throughputProvided entirely as a service - no installation or management of instances required Flexible management - dynamically increase/decrease cache size as neededIntegrates easily with existing ASP.NET web applications

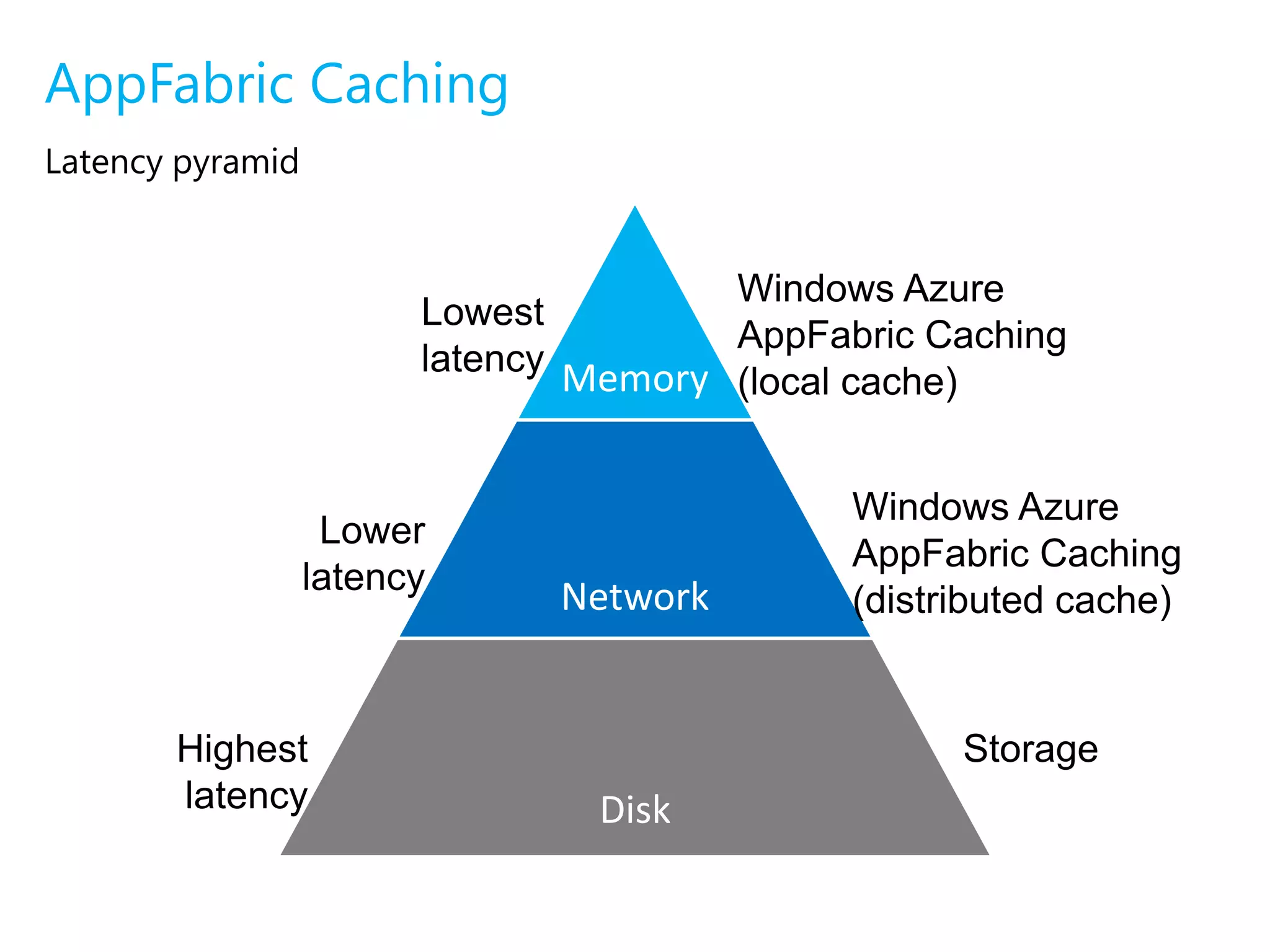

16. AppFabric CachingLatency pyramidMemoryWindows Azure AppFabric Caching (local cache)Lowest latencyNetworkWindows Azure AppFabric Caching (distributed cache)Lower latencyDiskStorageHighest latency

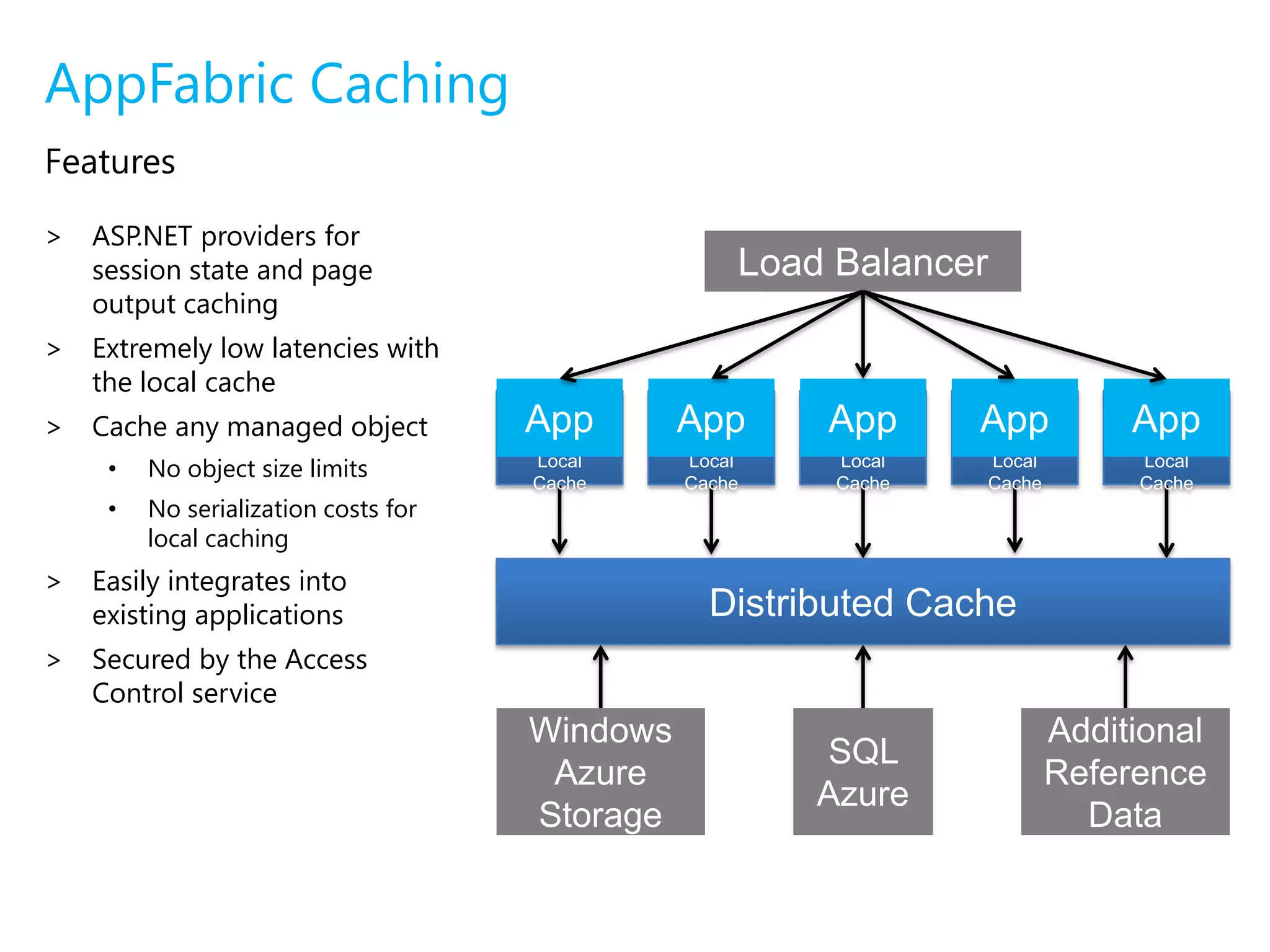

17. AppFabric CachingFeaturesASP.NET providers for session state and page output cachingExtremely low latencies with the local cacheCache any managed objectNo object size limitsNo serialization costs for local cachingEasily integrates into existing applicationsSecured by the Access Control serviceLoad BalancerAppAppAppAppAppLocal CacheLocal CacheLocal CacheLocal CacheLocal CacheDistributed CacheSQL AzureWindows Azure StorageAdditional Reference Data

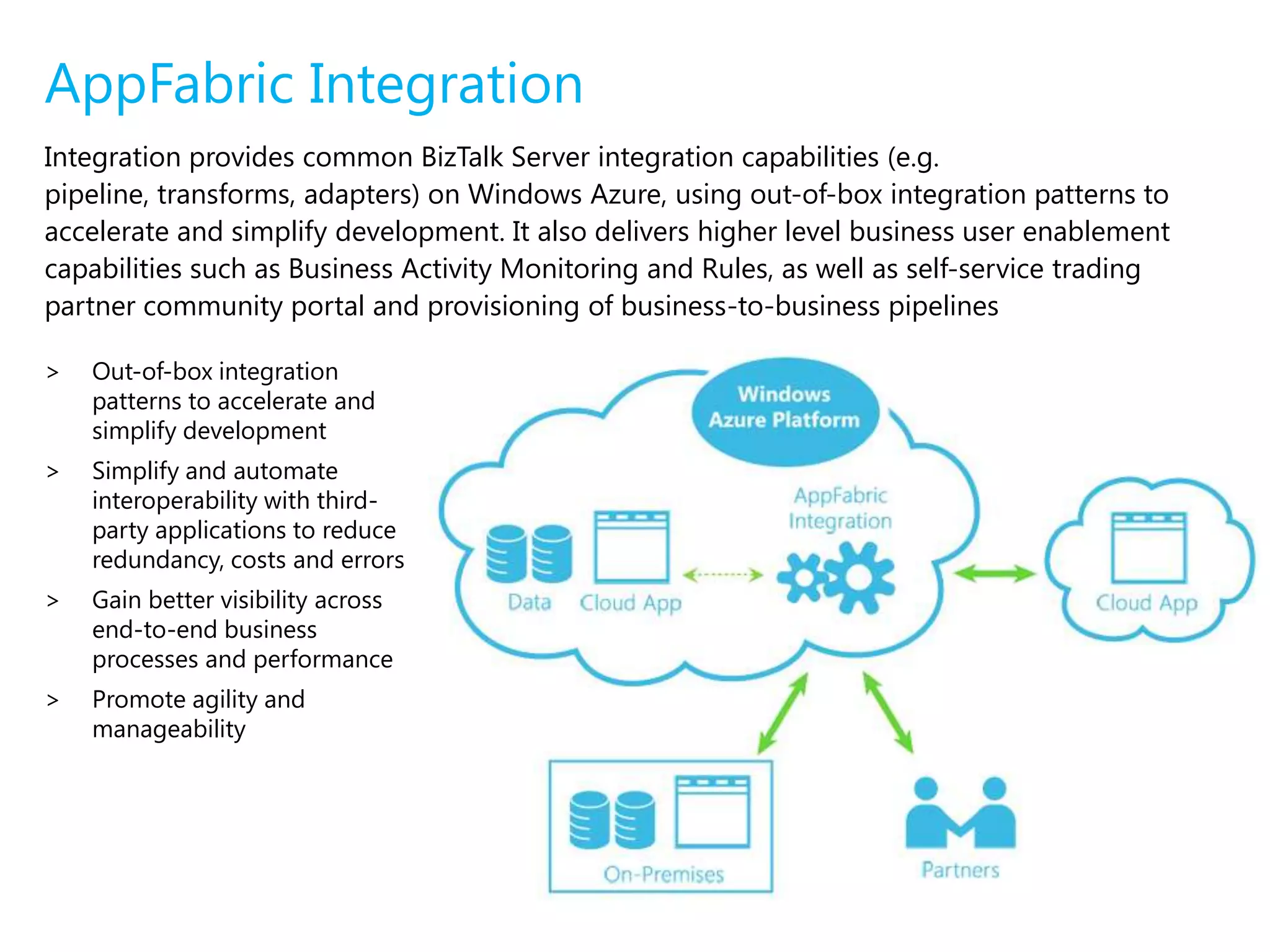

18. AppFabric IntegrationIntegration provides common BizTalk Server integration capabilities (e.g. pipeline, transforms, adapters) on Windows Azure, using out-of-box integration patterns to accelerate and simplify development. It also delivers higher level business user enablement capabilities such as Business Activity Monitoring and Rules, as well as self-service trading partner community portal and provisioning of business-to-business pipelinesOut-of-box integration patterns to accelerate and simplify development Simplify and automate interoperability with third-party applications to reduce redundancy, costs and errors Gain better visibility across end-to-end business processes and performance Promote agility and manageability

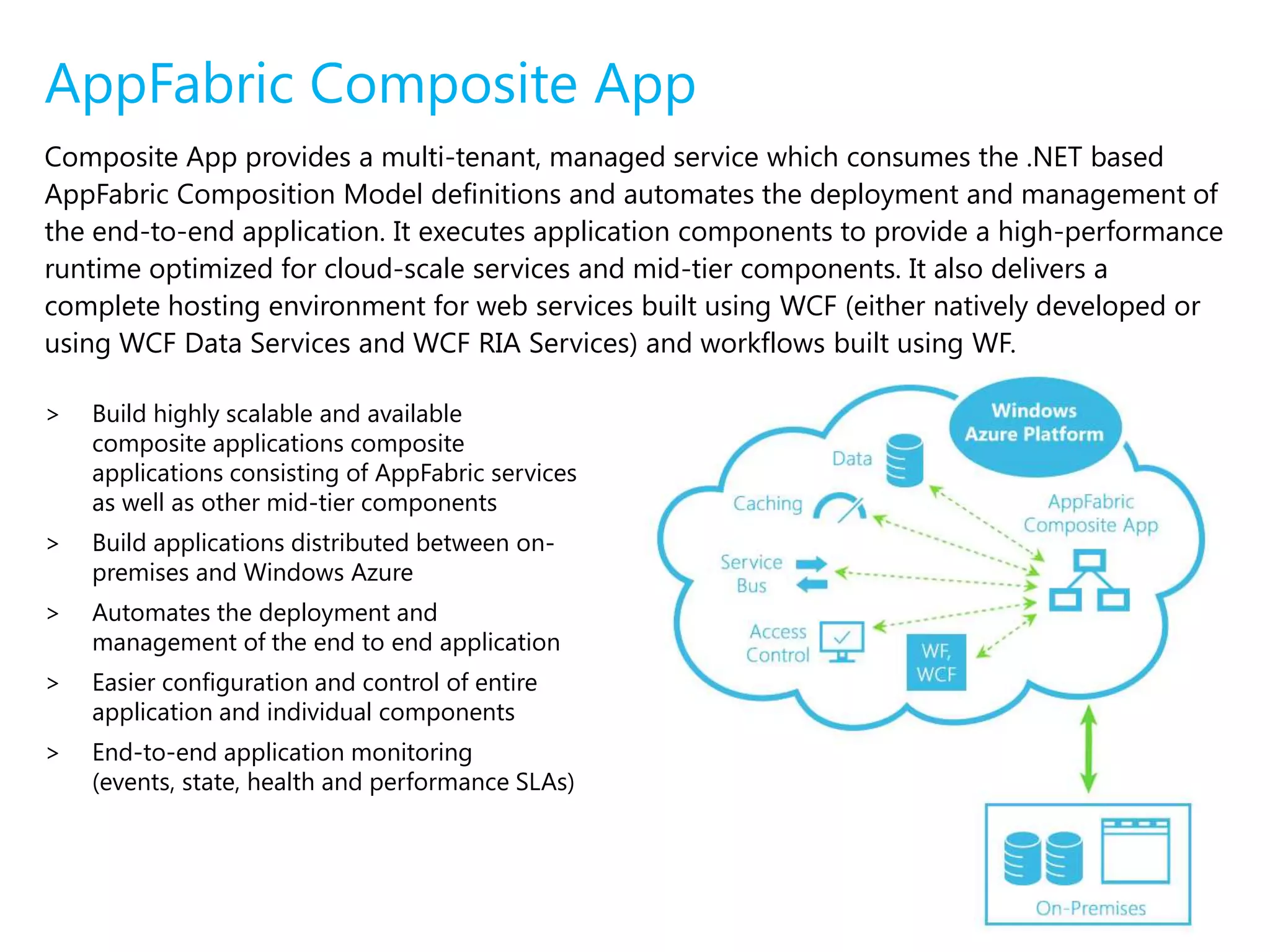

19. AppFabric Composite AppComposite App provides a multi-tenant, managed service which consumes the .NET based AppFabric Composition Model definitions and automates the deployment and management of the end-to-end application. It executes application components to provide a high-performance runtime optimized for cloud-scale services and mid-tier components. It also delivers a complete hosting environment for web services built using WCF (either natively developed or using WCF Data Services and WCF RIA Services) and workflows built using WF. Build highly scalable and available composite applications composite applications consisting of AppFabric services as well as other mid-tier componentsBuild applications distributed between on-premises and Windows AzureAutomates the deployment and management of the end to end applicationEasier configuration and control of entire application and individual componentsEnd-to-end application monitoring (events, state, health and performance SLAs)

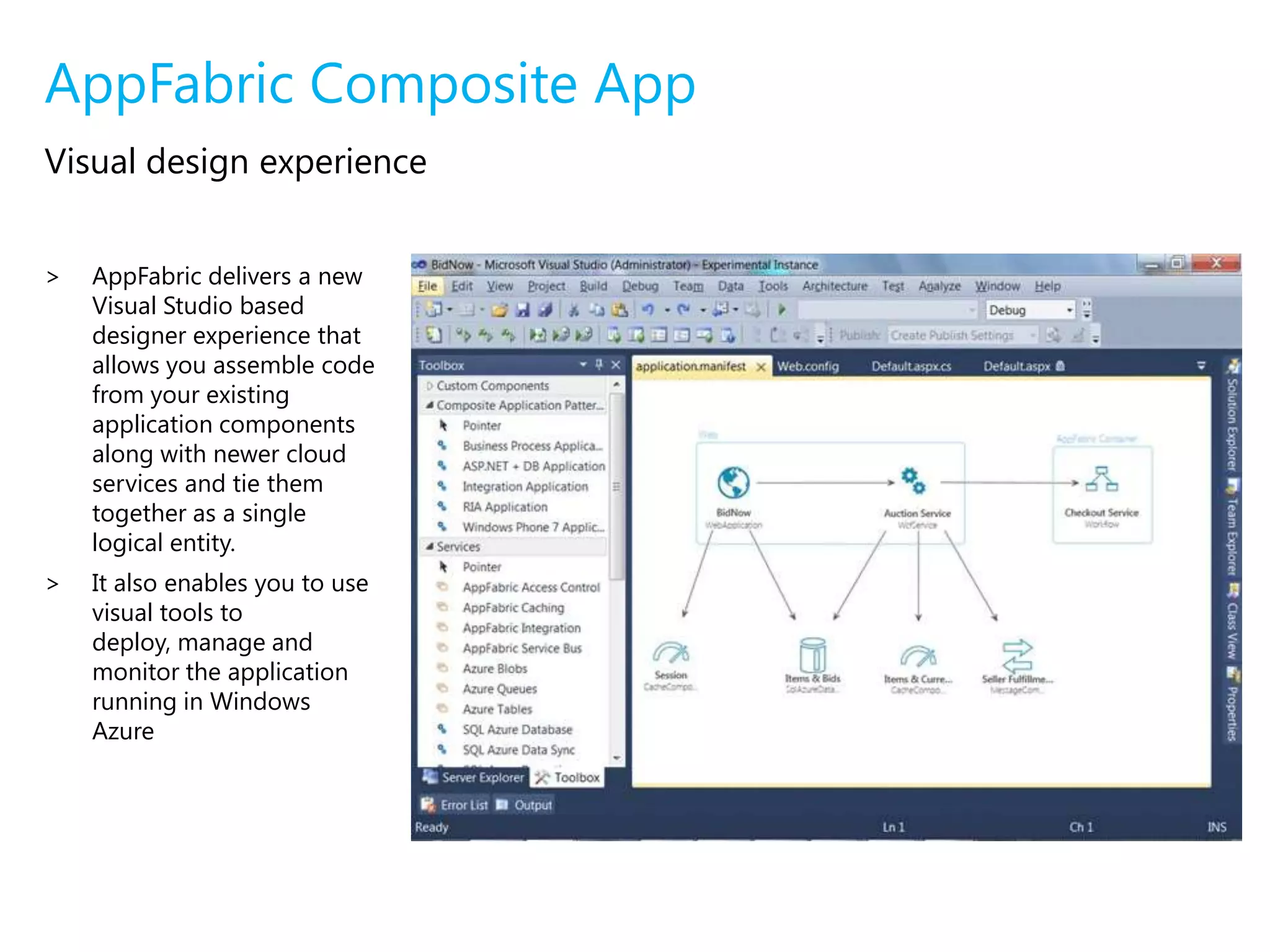

20. AppFabric Composite AppVisual design experienceAppFabric delivers a new Visual Studio based designer experience that allows you assemble code from your existing application components along with newer cloud services and tie them together as a single logical entity.It also enables you to use visual tools to deploy, manage and monitor the application running in Windows Azure

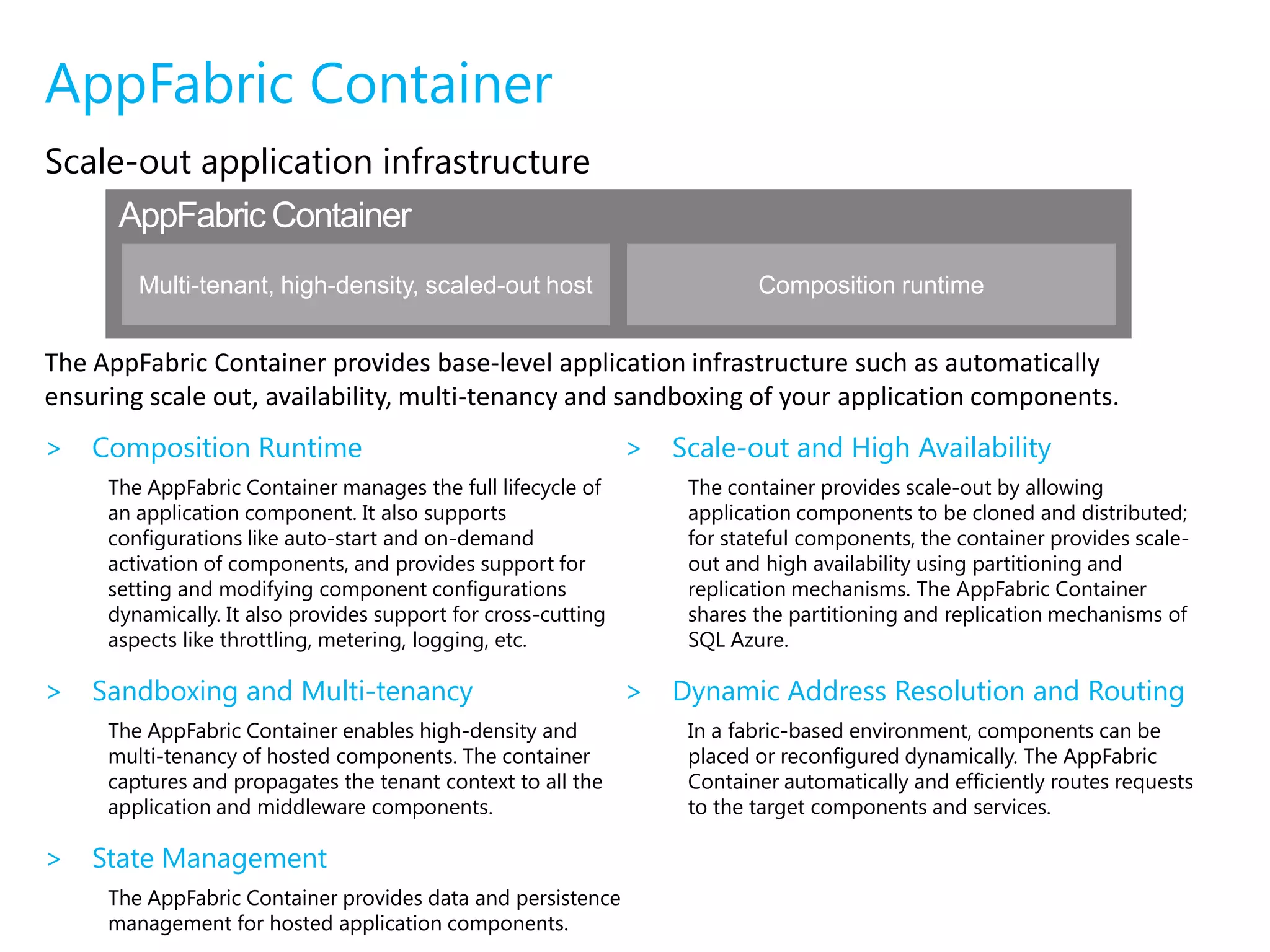

21. AppFabric ContainerScale-out application infrastructureThe AppFabric Container provides base-level application infrastructure such as automatically ensuring scale out, availability, multi-tenancy and sandboxing of your application components. Composition RuntimeThe AppFabric Container manages the full lifecycle of an application component. It also supports configurations like auto-start and on-demand activation of components, and provides support for setting and modifying component configurations dynamically. It also provides support for cross-cutting aspects like throttling, metering, logging, etc.Sandboxing and Multi-tenancyThe AppFabric Container enables high-density and multi-tenancy of hosted components. The container captures and propagates the tenant context to all the application and middleware components.State ManagementThe AppFabric Container provides data and persistence management for hosted application components. Scale-out and High AvailabilityThe container provides scale-out by allowing application components to be cloned and distributed; for stateful components, the container provides scale-out and high availability using partitioning and replication mechanisms. The AppFabric Container shares the partitioning and replication mechanisms of SQL Azure.Dynamic Address Resolution and RoutingIn a fabric-based environment, components can be placed or reconfigured dynamically. The AppFabric Container automatically and efficiently routes requests to the target components and services.AppFabric ContainerMulti-tenant, high-density, scaled-out hostComposition runtime

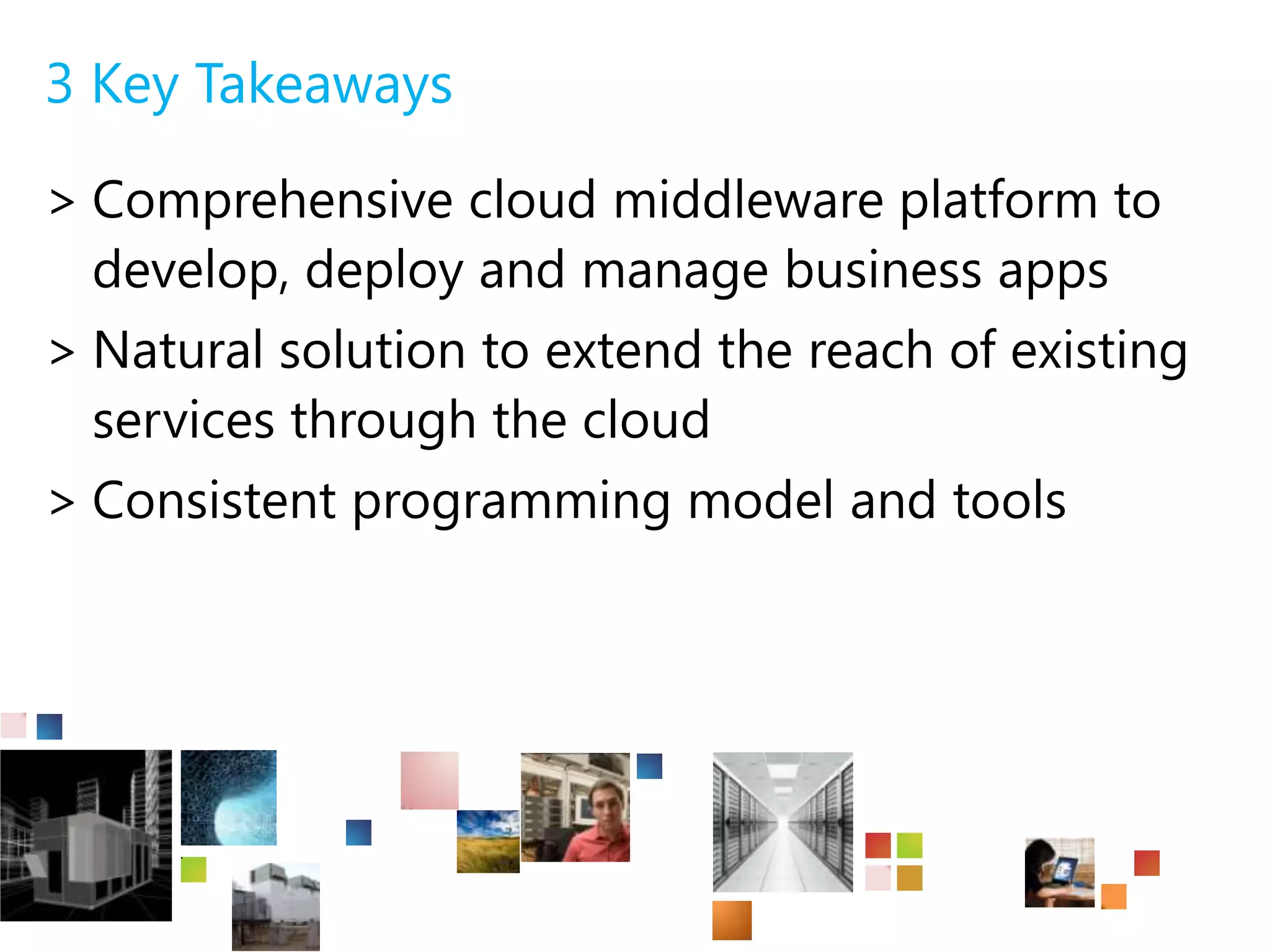

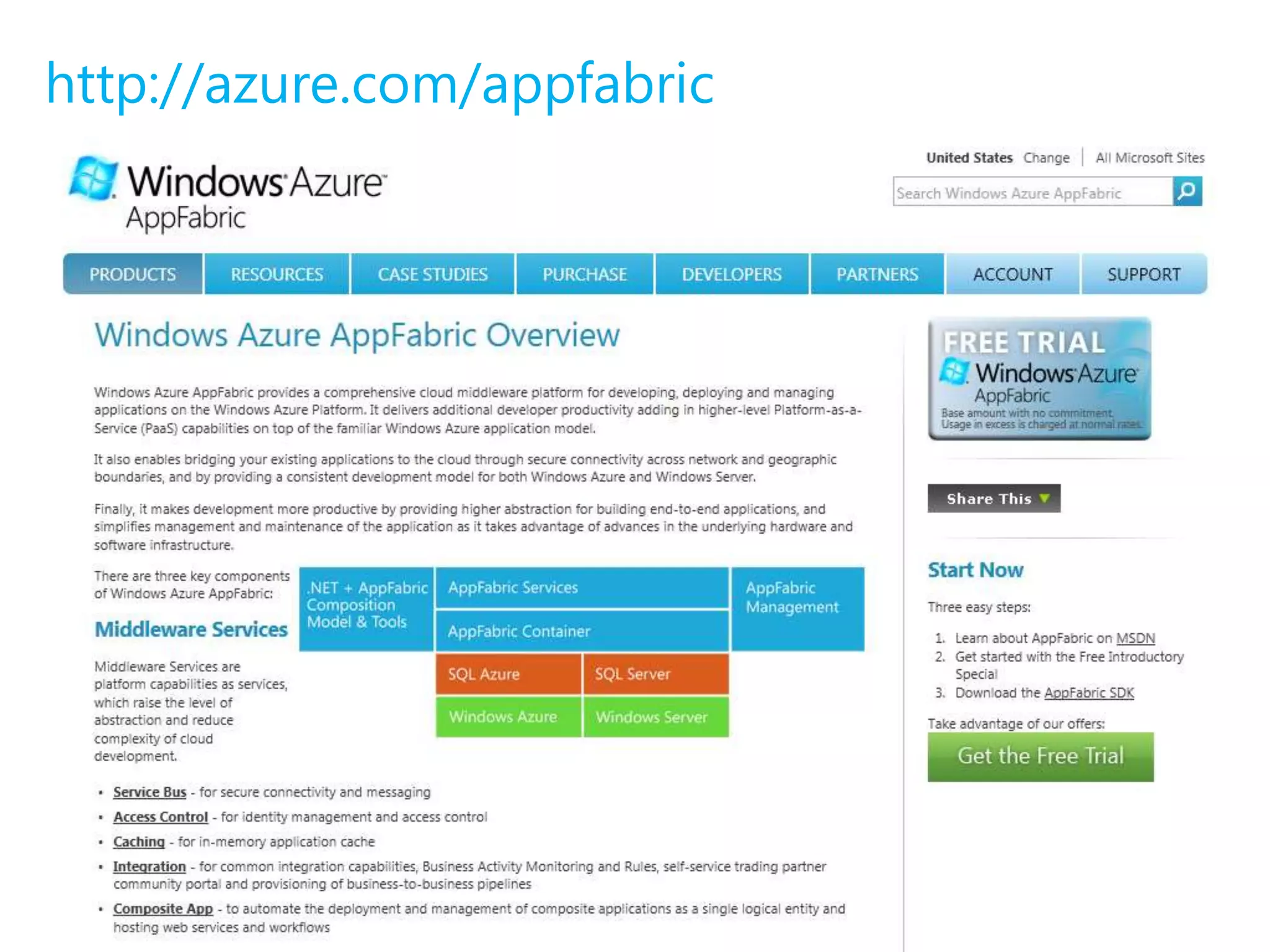

22. 3 Key TakeawaysComprehensive cloud middleware platform to develop, deploy and manage business appsNatural solution to extend the reach of existing services through the cloudConsistent programming model and tools
