1. OWIN & Katana
Fabian Vilers
@fvilers
http://www.linkedin.com/in/fvilers

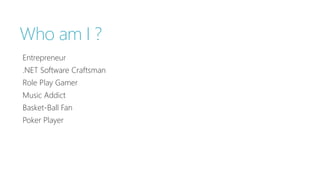

2. Who am I ?
Entrepreneur
.NET Software Craftsman
Role Play Gamer
Music Addict
Basket-Ball Fan
Poker Player

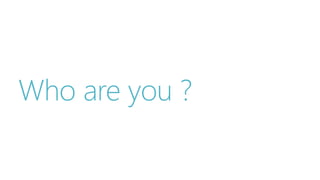

3. Who are you ?

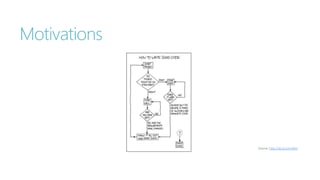

4. Motivations
Source: http://xkcd.com/844

5. Motivations
Challenges raised by the historical model
Classic ASP (1996)
ASP.NET (2002)
Evolutionary steps
ASP.NET MVC (2009) & ASP.NET Web API (2012)
The future
A nimble framework
Equally simple as starting with Node.js

6. Classic ASP

7. Classic ASP
Dynamic and data-driven
Server-side scripts
Abstraction of HTTP protocol and web server
Challenging as growing in size and complexity
Lack of structure
Duplication of code

8. ASP.NET

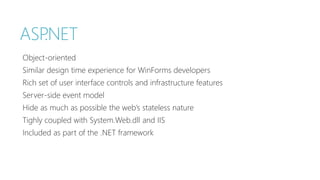

9. ASP.NET
Object-oriented
Similar design time experience for WinForms developers
Rich set of user interface controls and infrastructure features
Server-side event model
Hide as much as possible the web’s stateless nature
Tighly coupled with System.Web.dll and IIS
Included as part of the .NET framework

10. ASP.NET MVC

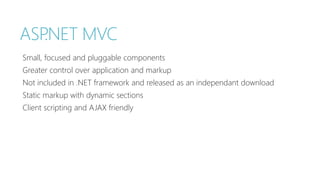

11. ASP.NET MVC
Small, focused and pluggable components
Greater control over application and markup
Not included in .NET framework and released as an independant download
Static markup with dynamic sections
Client scripting and AJAX friendly

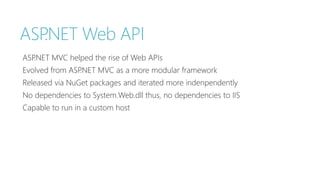

12. ASP.NET Web API
ASP.NET MVC helped the rise of Web APIs
Evolved from ASP.NET MVC as a more modular framework
Released via NuGet packages and iterated more indenpendently
No dependencies to System.Web.dll thus, no dependencies to IIS
Capable to run in a custom host

13. OWIN
Open Web Interface for .NET
Decouple server and application to create an abstraction
As few as possible dependencies on other framework types
New components could be more easily developed and consumed
Applications are more easily ported between hosts, plateforms and operating systems
Stimulate the open source ecosystem
Inspired by the benefits achieved by Rack (Ruby community)

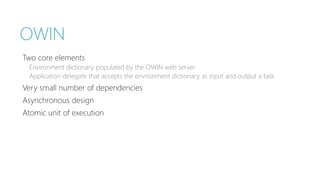

14. OWIN
Two core elements
Environment dictionary populated by the OWIN web server
Application delegate that accepts the environment dictionary as input and output a task
Very small number of dependencies
Asynchronous design
Atomic unit of execution

15. OWIN Pipeline
Host
•IIS
•OwinHost.exe
•Custom
Server
•System.Web
•HttpListener
•WebListener
Middleware
•Authentication
Middleware
•Logging
Application
Framework
•Web API
•SignalR
Application
•Your app

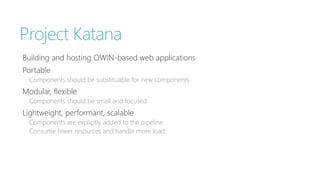

16. Project Katana
Building and hosting OWIN-based web applications
Portable
Components should be substituable for new components
Modular, flexible
Components should be small and focused
Lightweight, performant, scalable
Components are explicitly added to the pipeline
Consume fewer resources and handle more load

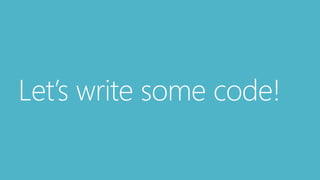

17. Let’s write some code!

18. Links
OWIN Specification: http://owin.org/spec/owin-1.0.0.html
Katana Project: http://katanaproject.codeplex.com
Code from the demo: https://github.com/fvilers/OWIN-Katana
