It presents a typical microprocessor and typical microcontroller.

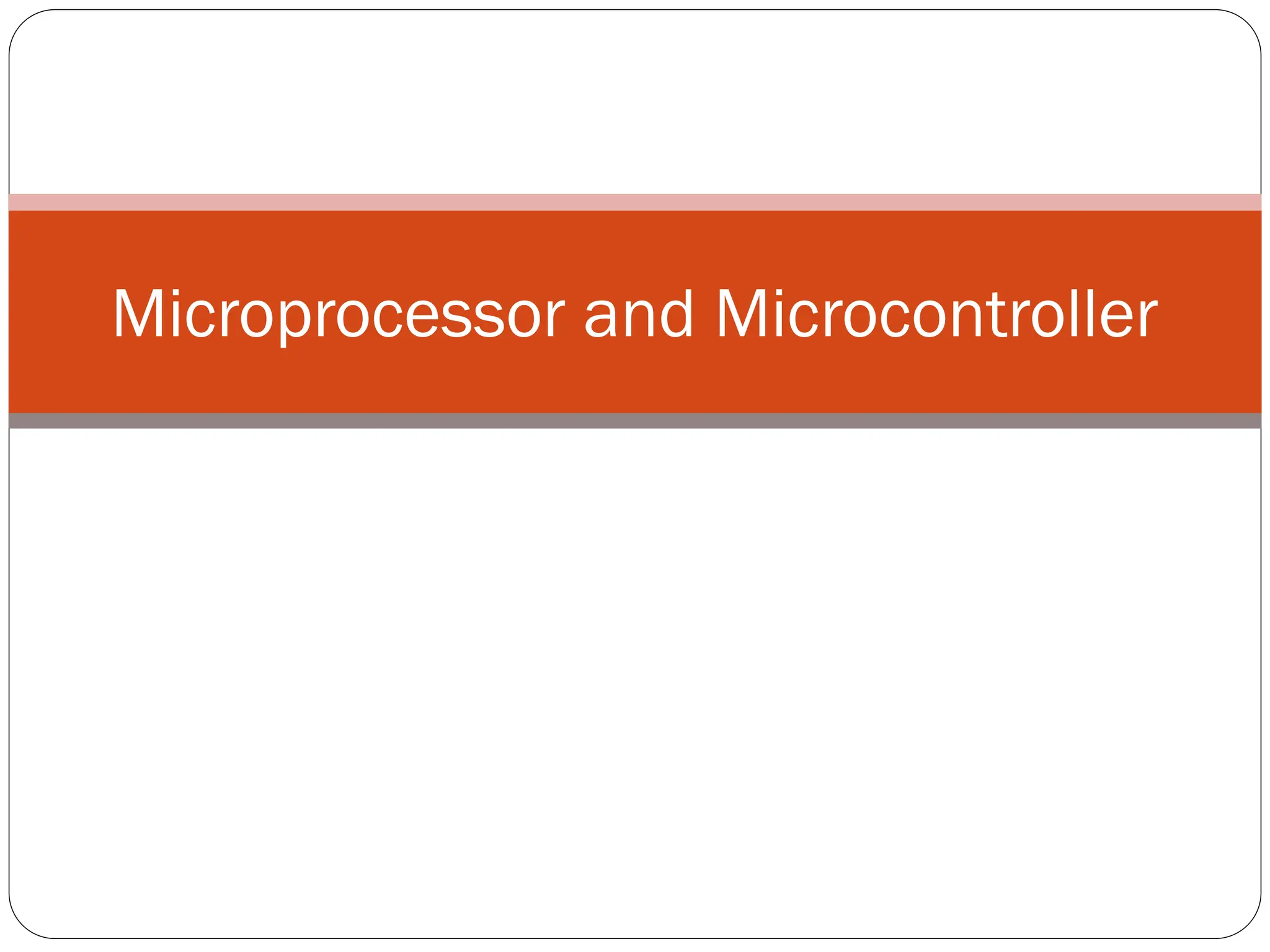

1. Microprocessor and Microcontroller

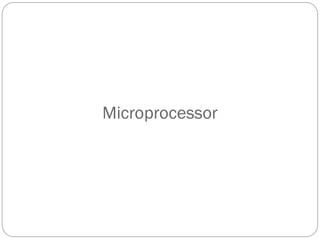

2. Microprocessor

3. Introduction

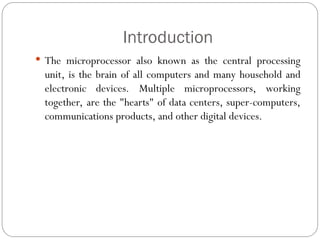

 The microprocessor also known as the central processing
unit, is the brain of all computers and many household and
electronic devices. Multiple microprocessors, working
together, are the "hearts" of data centers, super-computers,
communications products, and other digital devices.

4. History
 Fairchild Semiconductors (founded in 1957) invented the first IC
in 1959.
 In 1968, Robert Noyce, Gordan Moore, Andrew Grove
resigned from Fairchild Semiconductors.
 They founded their own company Intel (Integrated Electronics).
 The first microprocessor invented was of 4-bit, after that 8-
bit,16-bit,.32-bit & 64-bit are founded

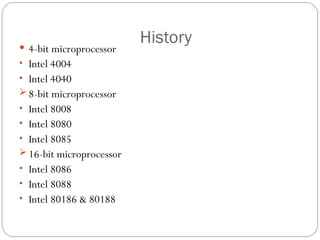

5. History
 4-bit microprocessor
• Intel 4004
• Intel 4040
 8-bit microprocessor
• Intel 8008
• Intel 8080
• Intel 8085
 16-bit microprocessor
• Intel 8086
• Intel 8088
• Intel 80186 & 80188

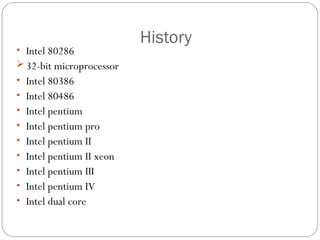

6. History
• Intel 80286
 32-bit microprocessor
• Intel 80386
• Intel 80486
• Intel pentium
• Intel pentium pro
• Intel pentium II
• Intel pentium II xeon
• Intel pentium III
• Intel pentium IV
• Intel dual core

7. History

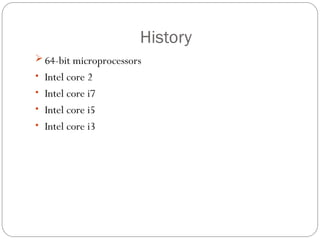

 64-bit microprocessors
• Intel core 2
• Intel core i7
• Intel core i5
• Intel core i3

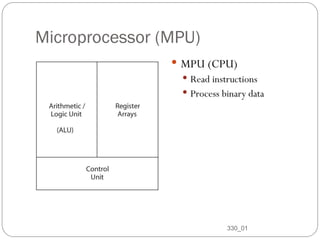

8. Microprocessor (MPU)
 MPU (CPU)
 Read instructions
 Process binary data
330_01
8

9. Memory
 Storage Device
 Addresses
 Registers
 Major Categories
 Read/Write Memory
(R/W)
 Read-only-Memory (ROM)
330_01
9
D7 D0

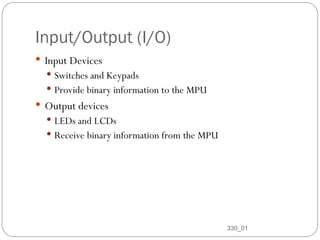

10. Input/Output (I/O)
 Input Devices
 Switches and Keypads
 Provide binary information to the MPU
 Output devices
 LEDs and LCDs
 Receive binary information from the MPU
330_01
10

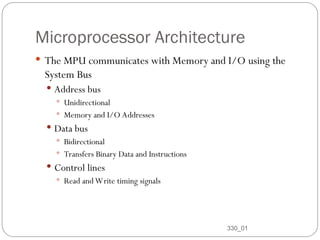

11. Microprocessor Architecture
 The MPU communicates with Memory and I/O using the
System Bus
 Address bus
 Unidirectional
 Memory and I/O Addresses
 Data bus
 Bidirectional
 Transfers Binary Data and Instructions
 Control lines
 Read and Write timing signals
330_01
11

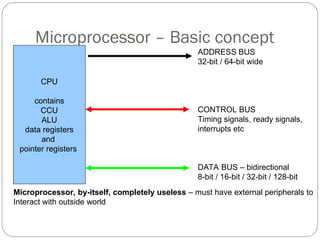

12. Microprocessor – Basic concept
CPU
contains
CCU
ALU
data registers
and
pointer registers
ADDRESS BUS
32-bit / 64-bit wide
CONTROL BUS
Timing signals, ready signals,
interrupts etc
DATA BUS – bidirectional
8-bit / 16-bit / 32-bit / 128-bit
Microprocessor, by-itself, completely useless – must have external peripherals to
Interact with outside world

13. Microcontroller

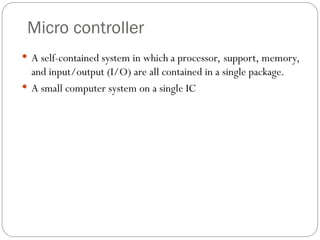

14. Micro controller
 A self-contained system in which a processor, support, memory,
and input/output (I/O) are all contained in a single package.
 A small computer system on a single IC
1
4

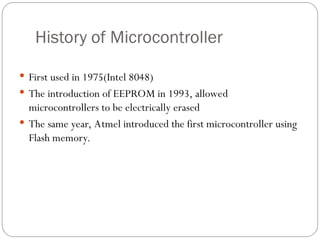

15. History of Microcontroller
 First used in 1975(Intel 8048)
 The introduction of EEPROM in 1993, allowed
microcontrollers to be electrically erased
 The same year, Atmel introduced the first microcontroller using
Flash memory.

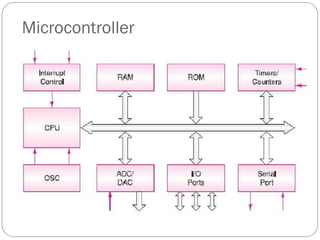

16. Microcontroller

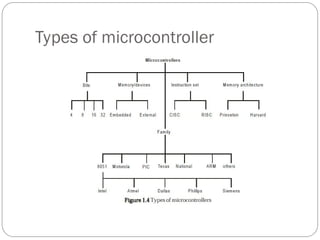

17. Types of microcontroller

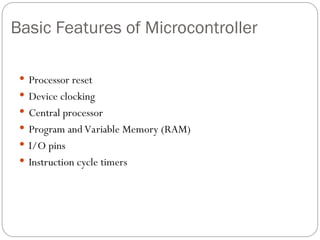

18. Basic Features of Microcontroller
 Processor reset
 Device clocking
 Central processor
 Program and Variable Memory (RAM)
 I/O pins
 Instruction cycle timers

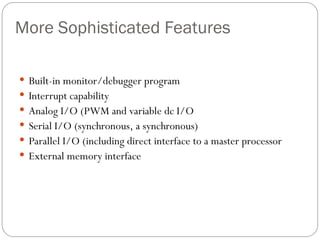

19. More Sophisticated Features
 Built-in monitor/debugger program
 Interrupt capability
 Analog I/O (PWM and variable dc I/O
 Serial I/O (synchronous, a synchronous)
 Parallel I/O (including direct interface to a master processor
 External memory interface

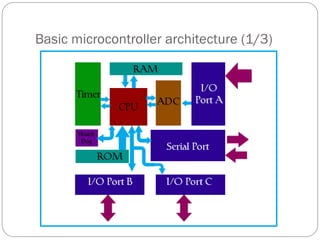

20. Basic microcontroller architecture (1/3)

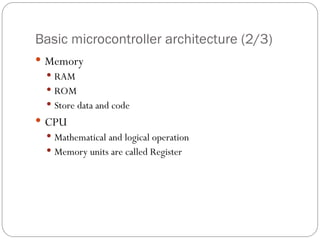

21. Basic microcontroller architecture (2/3)
 Memory
 RAM
 ROM
 Store data and code
 CPU
 Mathematical and logical operation
 Memory units are called Register

22. Basic microcontroller architecture (3/3)
• BUS
– Group of 8,16 or more wires
– Three type, address bus, data bus and control bus
• Input-output unit
– port A, port B, port C … …
– Input, output and bidirectional ports
• Serial communication
• Timer unit
• Watchdog
– Automatic reset to prevent stall
• Analog to Digital Converter (ADC)

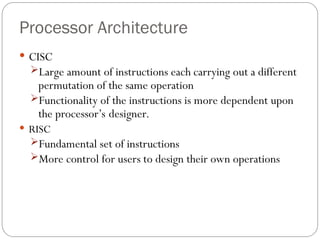

23. Processor Architecture
 CISC
Large amount of instructions each carrying out a different
permutation of the same operation
Functionality of the instructions is more dependent upon
the processor’s designer.
 RISC
Fundamental set of instructions
More control for users to design their own operations

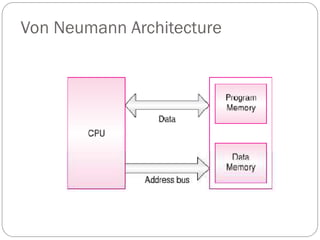

24. Von Neumann Architecture

25. Processor Architecture

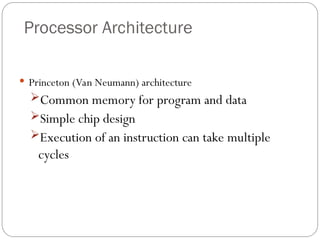

 Princeton (Van Neumann) architecture
Common memory for program and data
Simple chip design
Execution of an instruction can take multiple
cycles

26. Processor Architecture

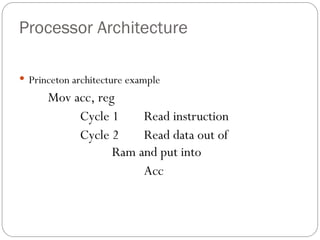

 Princeton architecture example
Mov acc, reg
Cycle 1 Read instruction
Cycle 2 Read data out of
Ram and put into
Acc

27. Processor Architecture
 Harvard architecture
Separate memory space program and data
Instructions are executed in one cycle
Easier timing of loops and delays

28. Harvard Architecture

29. Processor Architecture

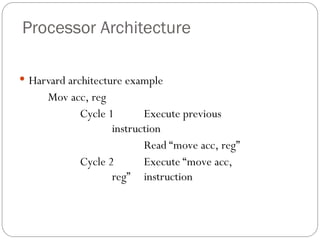

 Harvard architecture example
Mov acc, reg
Cycle 1 Execute previous
instruction
Read “move acc, reg”
Cycle 2 Execute “move acc,
reg” instruction

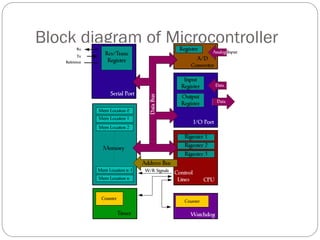

30. Block diagram of Microcontroller

31. Memory

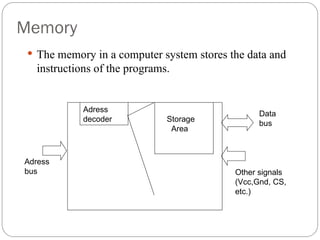

 The memory in a computer system stores the data and
instructions of the programs.
Adress
decoder Storage
Area
Adress
bus
Data
bus
Other signals
(Vcc,Gnd, CS,
etc.)

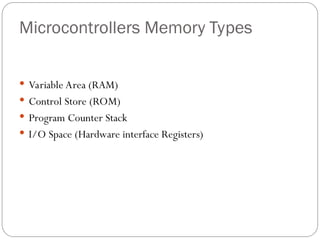

32. Microcontrollers Memory Types
 Variable Area (RAM)
 Control Store (ROM)
 Program Counter Stack
 I/O Space (Hardware interface Registers)

33. I/O Space
- Memory Mapped I/O Versus Programmed I/O
 Programmed I/O
Special instructions such as IN and OUT are used to transfer
data between a CPU register and an external device.
 Memory Mapped I/O
Standard instructions are used to transfer data between a CPU
register and an external device.
I/O ports appear as memory addresses.

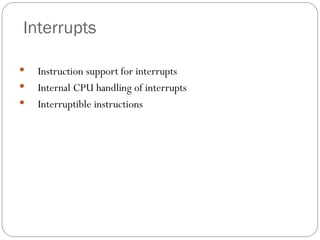

34. Interrupts
 Instruction support for interrupts
 Internal CPU handling of interrupts
 Interruptible instructions
36

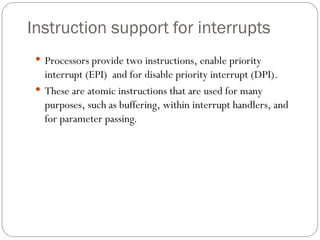

35. Instruction support for interrupts
 Processors provide two instructions, enable priority
interrupt (EPI) and for disable priority interrupt (DPI).
 These are atomic instructions that are used for many
purposes, such as buffering, within interrupt handlers, and
for parameter passing.

36. Internal CPU handling of interrupts
38
Step 1: finish the currently executing macroinstruction. Step 2: save the contents of the
program counter to the interrupt return location. Step 3: load the address held in the
interrupt handler location into the program counter. Resume the fetch and execute
sequence.
Single interrupt support

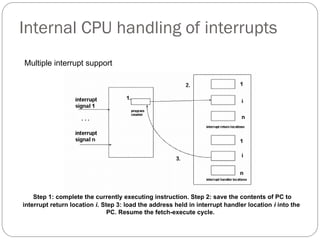

37. Internal CPU handling of interrupts
Step 1: complete the currently executing instruction. Step 2: save the contents of PC to
interrupt return location i. Step 3: load the address held in interrupt handler location i into the
PC. Resume the fetch-execute cycle.
Multiple interrupt support

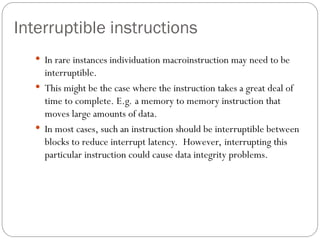

38. Interruptible instructions
 In rare instances individuation macroinstruction may need to be
interruptible.
 This might be the case where the instruction takes a great deal of
time to complete. E.g. a memory to memory instruction that
moves large amounts of data.
 In most cases, such an instruction should be interruptible between
blocks to reduce interrupt latency. However, interrupting this
particular instruction could cause data integrity problems.

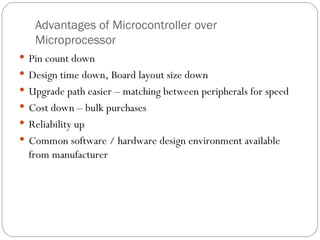

39. Advantages of Microcontroller over
Microprocessor
 Pin count down
 Design time down, Board layout size down
 Upgrade path easier – matching between peripherals for speed
 Cost down – bulk purchases
 Reliability up
 Common software / hardware design environment available
from manufacturer

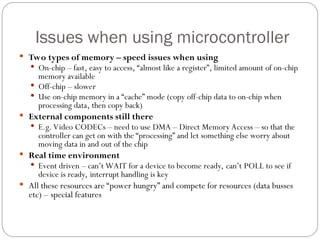

40. Issues when using microcontroller
 Two types of memory – speed issues when using
 On-chip – fast, easy to access, “almost like a register”, limited amount of on-chip
memory available
 Off-chip – slower
 Use on-chip memory in a “cache” mode (copy off-chip data to on-chip when
processing data, then copy back)
 External components still there
 E.g. Video CODECs – need to use DMA – Direct Memory Access – so that the
controller can get on with the “processing” and let something else worry about
moving data in and out of the chip
 Real time environment
 Event driven – can’t WAIT for a device to become ready, can’t POLL to see if
device is ready, interrupt handling is key
 All these resources are “power hungry” and compete for resources (data busses
etc) – special features

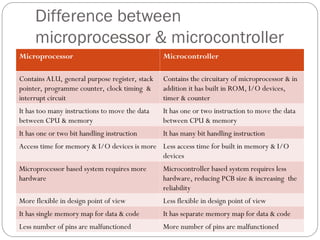

41. Difference between
microprocessor & microcontroller
Microprocessor Microcontroller
Contains ALU, general purpose register, stack
pointer, programme counter, clock timing &
interrupt circuit
Contains the circuitary of microprocessor & in
addition it has built in ROM, I/O devices,
timer & counter
It has too many instructions to move the data
between CPU & memory
It has one or two instruction to move the data
between CPU & memory
It has one or two bit handling instruction It has many bit handling instruction
Access time for memory & I/O devices is more Less access time for built in memory & I/O
devices
Microprocessor based system requires more
hardware
Microcontroller based system requires less
hardware, reducing PCB size & increasing the
reliability
More flexible in design point of view Less flexible in design point of view
It has single memory map for data & code It has separate memory map for data & code
Less number of pins are malfunctioned More number of pins are malfunctioned
