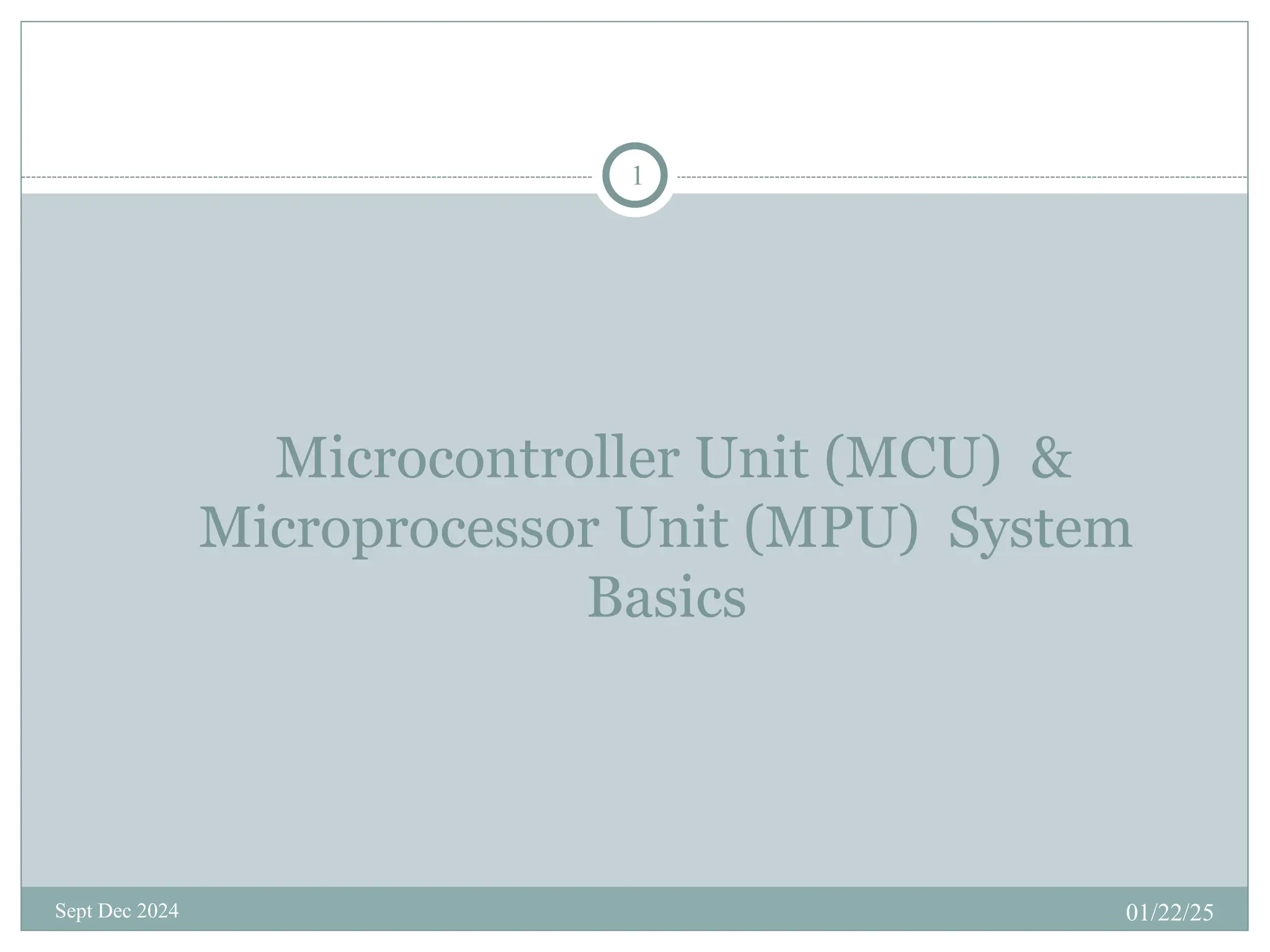

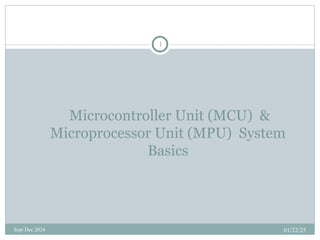

1. Microcontroller Unit (MCU) &
Microprocessor Unit (MPU) System
Basics
Sept Dec 2024
1
01/22/25

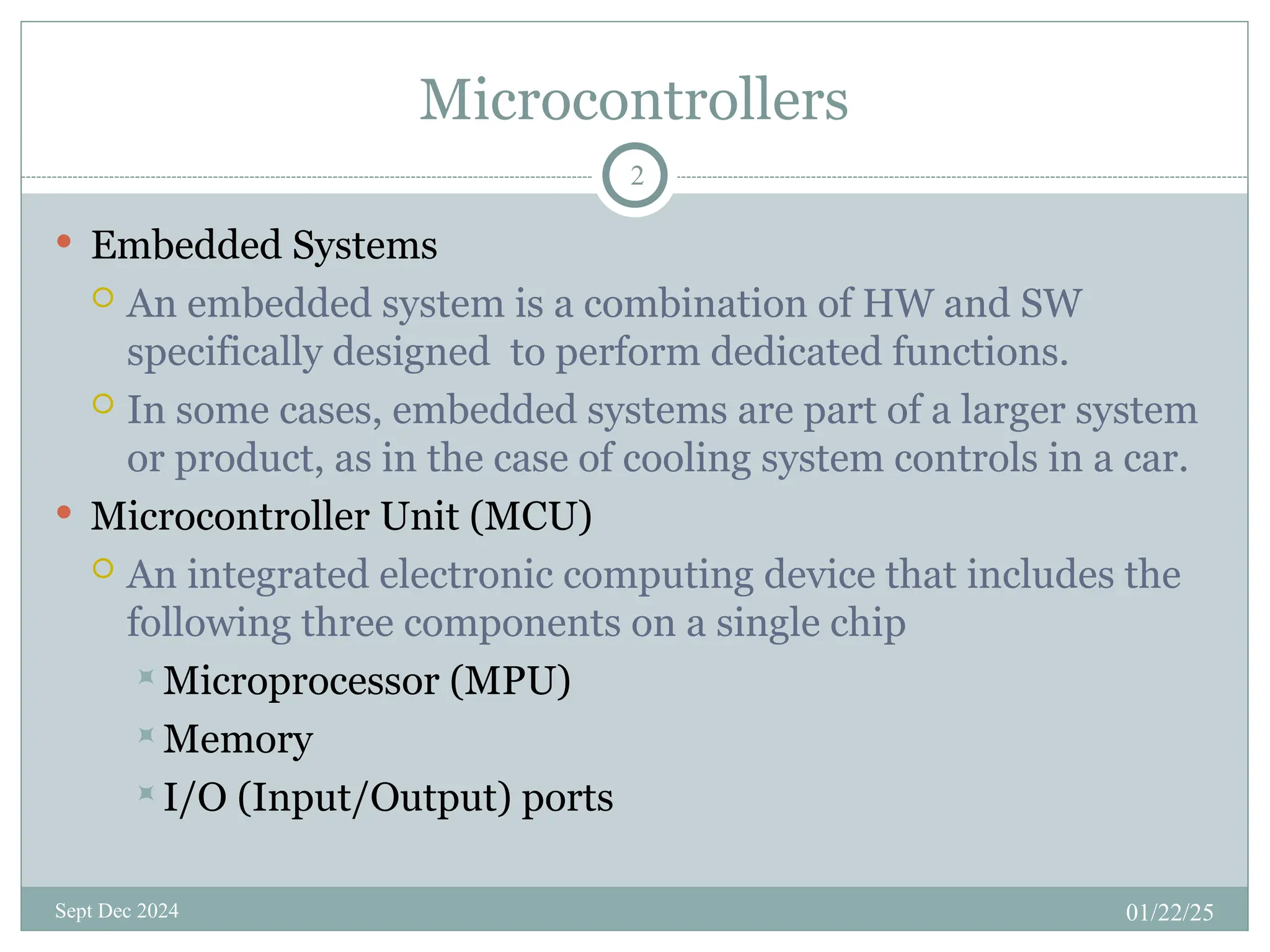

2. Microcontrollers
Sept Dec 2024
2
 Embedded Systems
 An embedded system is a combination of HW and SW
specifically designed to perform dedicated functions.
 In some cases, embedded systems are part of a larger system
or product, as in the case of cooling system controls in a car.
 Microcontroller Unit (MCU)
 An integrated electronic computing device that includes the
following three components on a single chip
Microprocessor (MPU)
Memory
I/O (Input/Output) ports
01/22/25

3. Microcontrollers
Sept Dec 2024
3
 Support Devices
 Timers
 A/D converter
 Serial I/O
 Common communication lines
 System Bus
01/22/25

4. Block Diagram
Sept Dec 2024
4
01/22/25

5. Microprocessor (MPU)
Sept Dec 2024
5
 MPU
 Read instructions
 Process binary data
01/22/25

6. Memory
Sept Dec 2024
6
 Storage Device
 Addresses
 Registers
 Major Categories
 Read/Write Memory
(R/W)
 Read-only-Memory
(ROM)
D7 D0
01/22/25

7. Input/Output Devices
Sept Dec 2024
7
 Input Devices
 Switches and Keypads
 Provide binary information to the MPU
 Output devices
 LEDs and LCDs
 Receive binary information from the MPU
01/22/25

8. Microprocessor Controlled System Layout
Sept Dec 2024
8
01/22/25

9. Cont.
Sept Dec 2024
9
 The MPU communicates with Memory and I/O
devices using the System Bus
 Address bus
 Unidirectional
 Memory and I/O Addresses
 Data bus
 Bidirectional
 Transfers Binary Data and Instructions
 Control lines
 Read and Write timing signals
01/22/25

10. Example
Sept Dec 2024
10
01/22/25

11. Example(detailed)
Sept Dec 2024
11
01/22/25

12. Software
Sept Dec 2024
12
 Machine Language
 Binary Instructions
 Difficult to decipher and write
 Error-prone(possible to replace a 0 with 1 by mistake)
 All programs converted into machine language for execution
Instruction Hex Mnemonic Description Processor
10000000 80 ADD B Add reg B to Acc Intel 8085
00101000 28 ADD A, R0 Add Reg R0 to Acc Intel 8051
00011011 1B ABA Add Acc A and B Motorola
6811
01/22/25

13. Cont.
Sept Dec 2024
13
 Characteristics of Assembly Language
 Machine instructions represented in mnemonics
 One-to-one correspondence
 Efficient execution and use of memory
 Machine-specific
01/22/25

14. Cont.
Sept Dec 2024
14
 Characteristics of High-Level Languages
 BASIC, C, and C++
 Written in statements of spoken languages
 Machine independent
 Easy to write and troubleshoot
 Larger memory and less efficient execution
01/22/25

15. Data Format using 8-bits (review)
Sept Dec 2024
15
 Unsigned Integers
 All eight bits represent the magnitude of a number
 Bit7 to Bit0
 Range 00H to FFH (010 to 25510)
01/22/25

16. Cont.
Sept Dec 2024
16
 Signed Integers
 2's Complement
 Bit 7 is sign bit
 Positive numbers: 00H to 7FH (010 to 12710)
 Negative numbers: 80H to FFH (-110 to -12810)
01/22/25

17. Cont.
Sept Dec 2024
17
 Binary Coded Decimal Numbers (BCD)
 8 bits of a number divided into groups of four
 Each group represents a decimal digit from 0 to 9
 AH through FH are invalid
 Example: 0010 0101BCD = 2510
01/22/25

18. Cont.
Sept Dec 2024
18
 American Standard Code for Information
Interchange (ASCII)
 Seven-bit alphanumeric code with 128 combinations (00H to
7FH)
 Represents English alphabet, decimal digits from 0 to 9,
symbols, and commands
01/22/25

19. Sept Dec 2024
19
 System hardware
 Discrete components
 Microprocessor, Memory, and I/O
 Components connected by buses
 Address, Data, and Control
 System software
 A group of programs that monitors the function of different
units in an entire system
01/22/25

20. MPU-Based Time
and Temperature System
Sept Dec 2024
20
01/22/25

21. MCU-Based Systems(Applications)
Sept Dec 2024
21
 Includes microprocessor, memory, I/O ports, and
support devices (such as timers) on a single
semiconductor chip
 Buses are generally not available to a system
designer
 I/O ports are generally multiplexed and can be
programmed to perform different functions
01/22/25

22. MCU-Based Time
and Temperature System
Sept Dec 2024
22
01/22/25
