1. Theory and Design
TECNOCRATS INFOETECH @ 9540854414
1

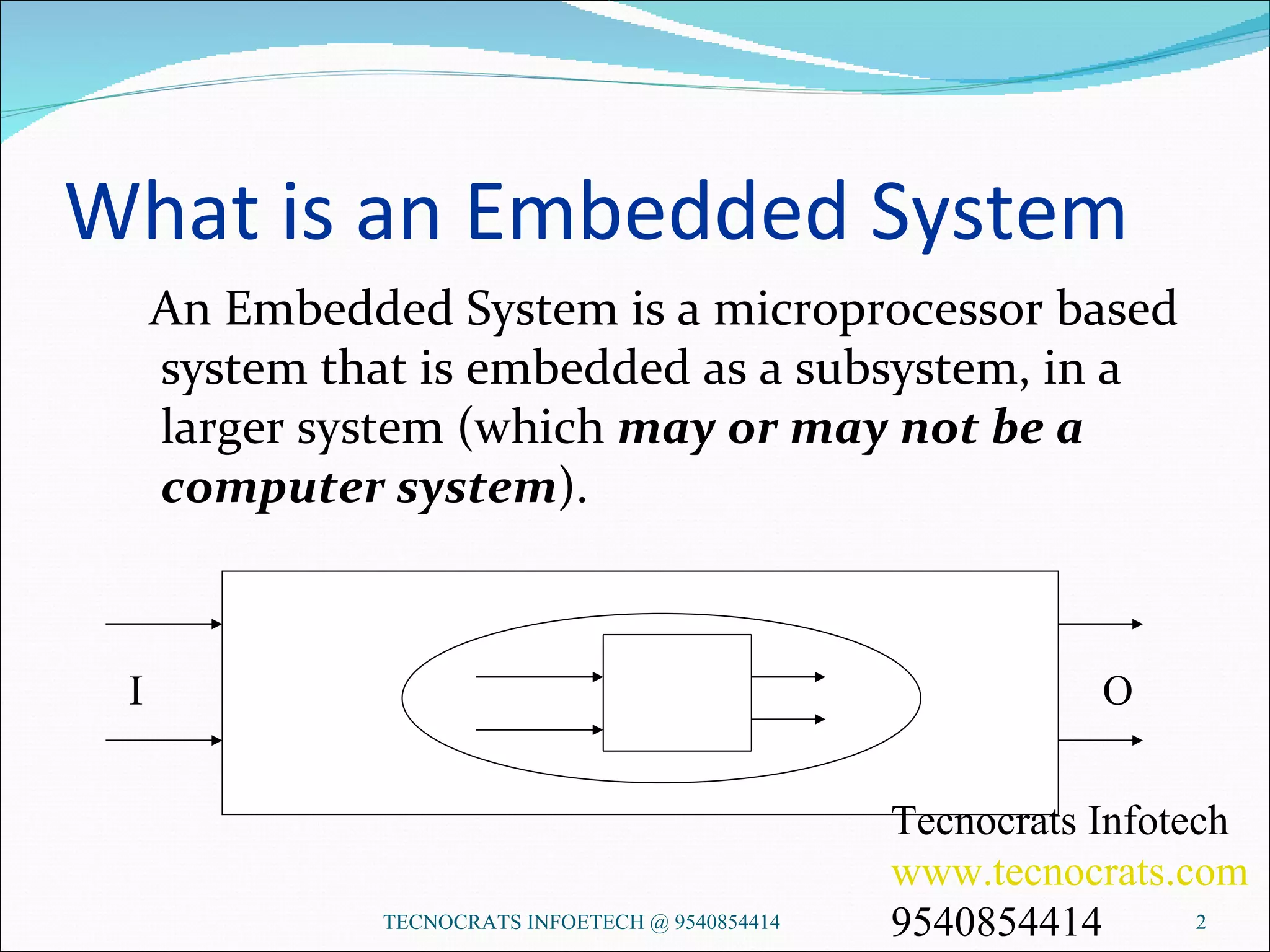

2. What is an Embedded System
An Embedded System is a microprocessor based
system that is embedded as a subsystem, in a
larger system (which may or may not be a
computer system).
I O
Tecnocrats Infotech
www.tecnocrats.com
TECNOCRATS INFOETECH @ 9540854414 9540854414 2

3. Application areas
 Automotive electronics
 Aircraft electronics
 Trains
 Telecommunication
TECNOCRATS INFOETECH @ 9540854414 3

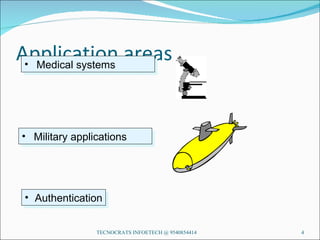

4. Application areas
• Medical systems
• Military applications
• Authentication
TECNOCRATS INFOETECH @ 9540854414 4

5. Essential Components
 Microprocessor
 Sensors
 Converters (A-D and D-A)
 Actuators
 Memory (On-chip and Off chip)
 Communication path with the interacting
environment
TECNOCRATS INFOETECH @ 9540854414 5

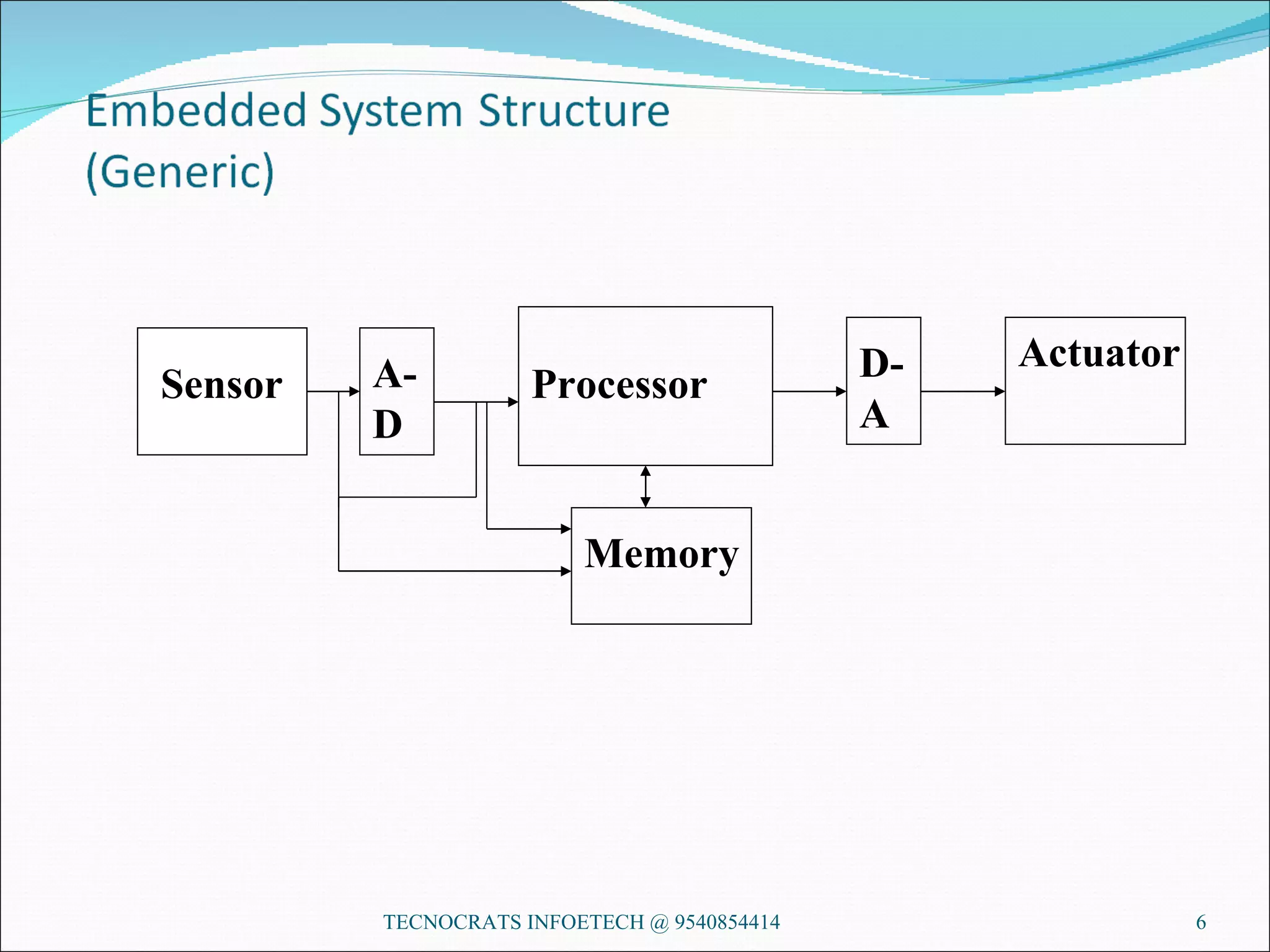

6. A- D- Actuator
Sensor Processor
D A
Memory
TECNOCRATS INFOETECH @ 9540854414 6

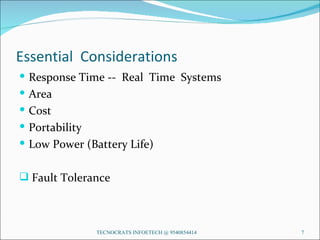

7. Essential Considerations
 Response Time -- Real Time Systems
 Area
 Cost
 Portability
 Low Power (Battery Life)
 Fault Tolerance
TECNOCRATS INFOETECH @ 9540854414 7

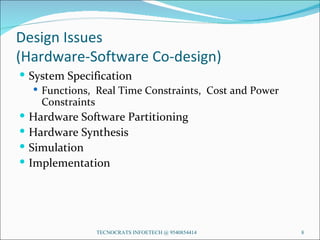

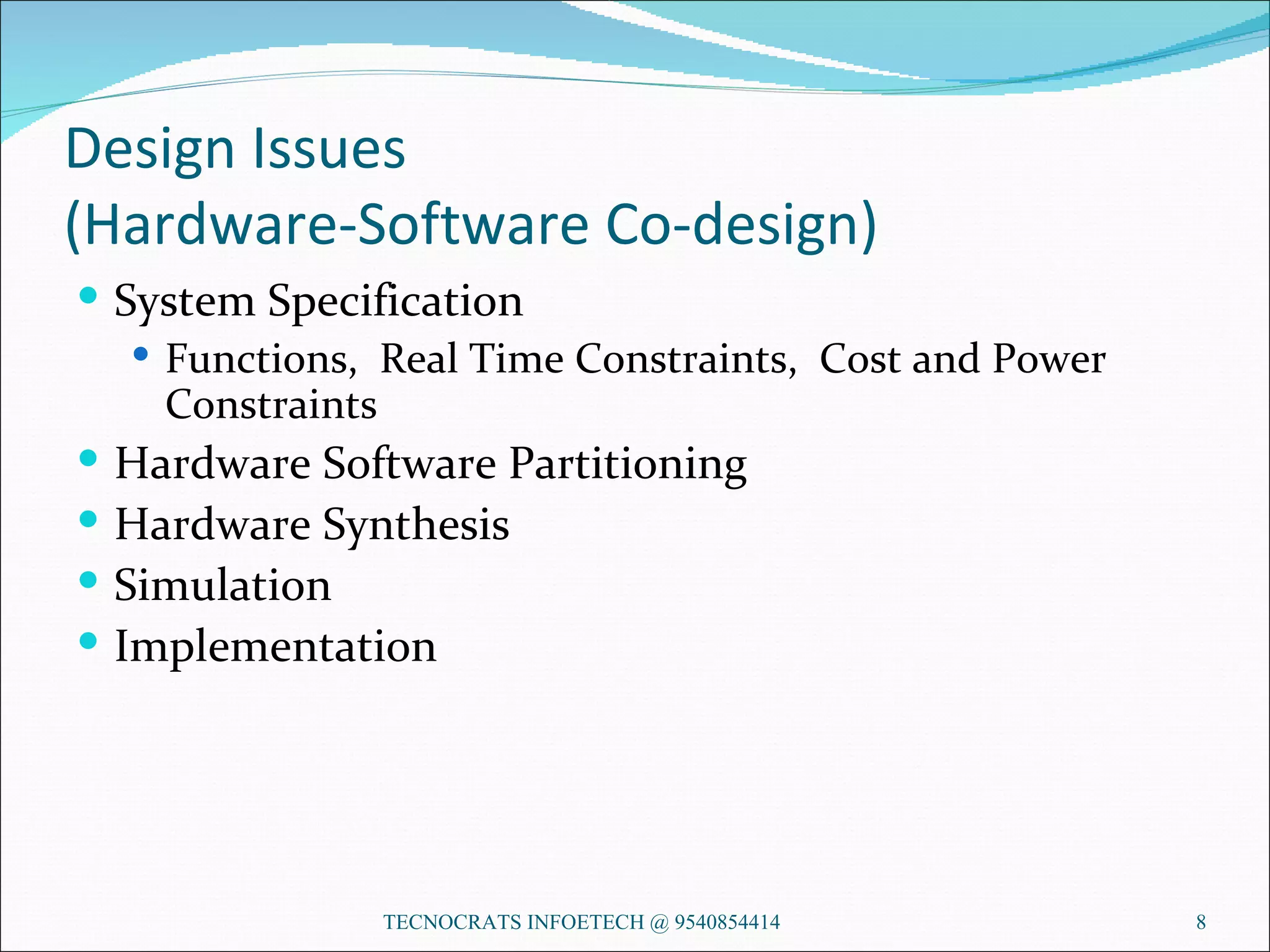

8. Design Issues
(Hardware-Software Co-design)
 System Specification
 Functions, Real Time Constraints, Cost and Power
Constraints
 Hardware Software Partitioning
 Hardware Synthesis
 Simulation
 Implementation
TECNOCRATS INFOETECH @ 9540854414 8

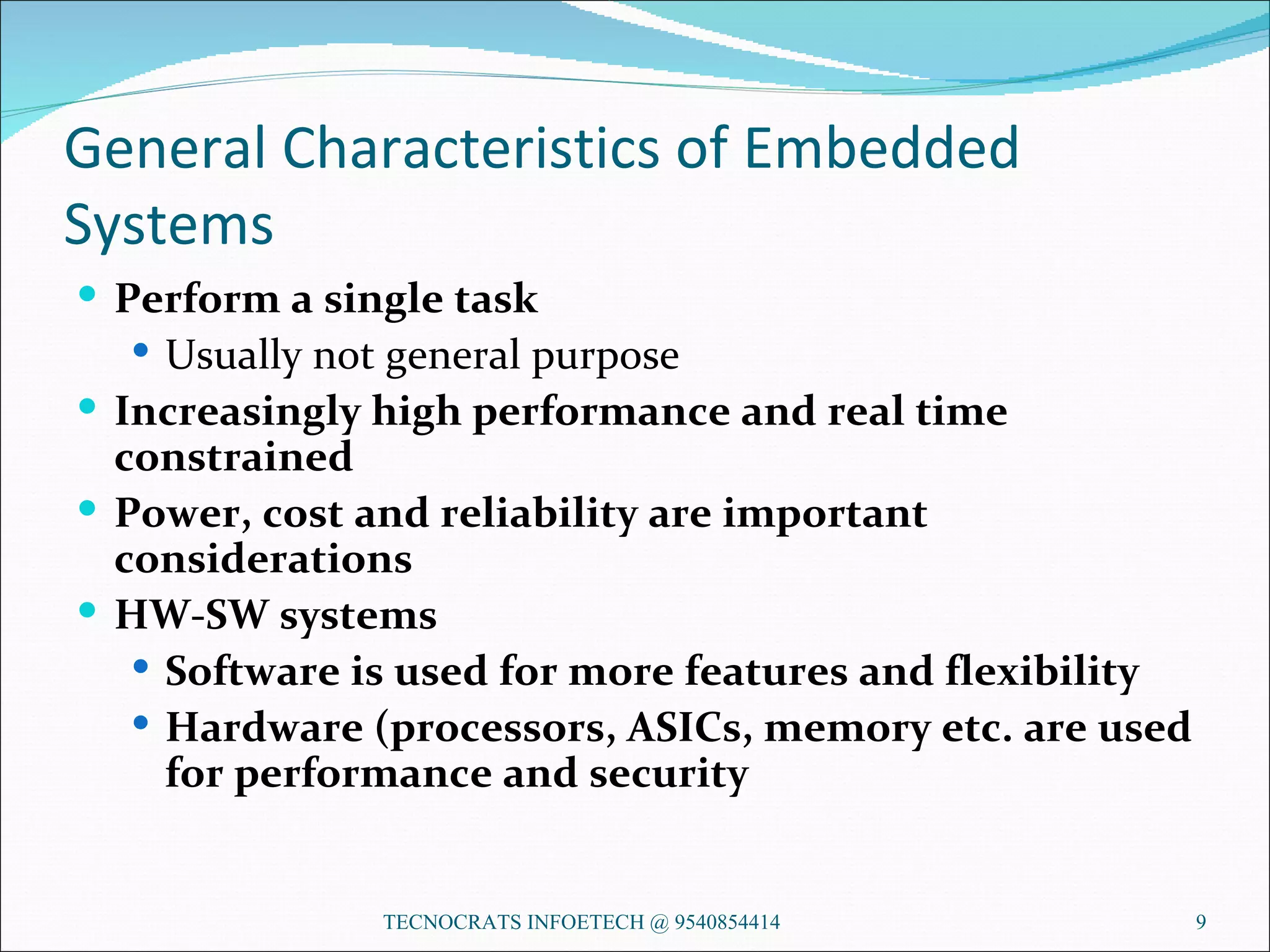

9. General Characteristics of Embedded
Systems
 Perform a single task
 Usually not general purpose
 Increasingly high performance and real time
constrained
 Power, cost and reliability are important
considerations
 HW-SW systems
 Software is used for more features and flexibility
 Hardware (processors, ASICs, memory etc. are used
for performance and security
TECNOCRATS INFOETECH @ 9540854414 9

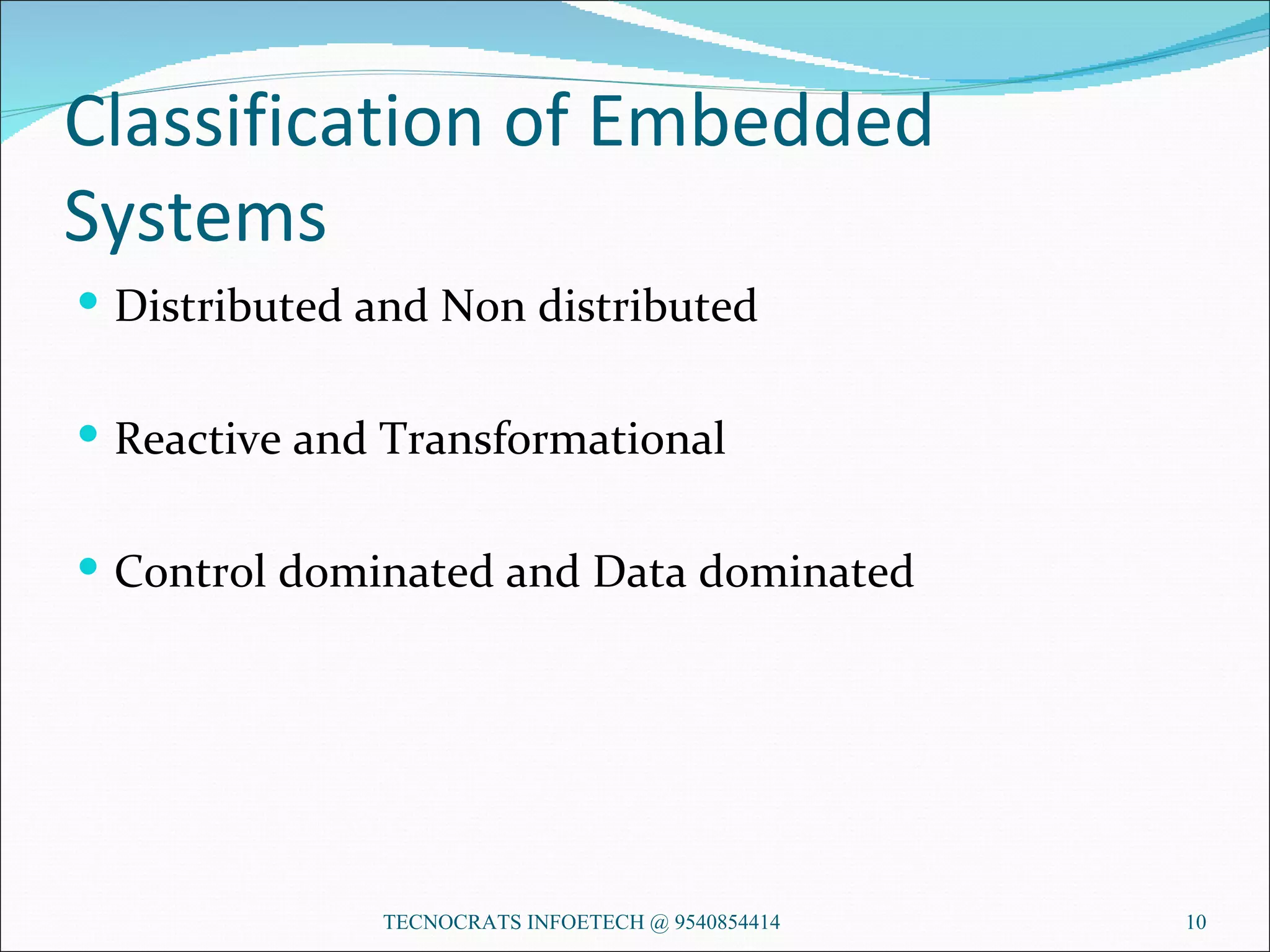

10. Classification of Embedded
Systems
 Distributed and Non distributed
 Reactive and Transformational
 Control dominated and Data dominated
TECNOCRATS INFOETECH @ 9540854414 10

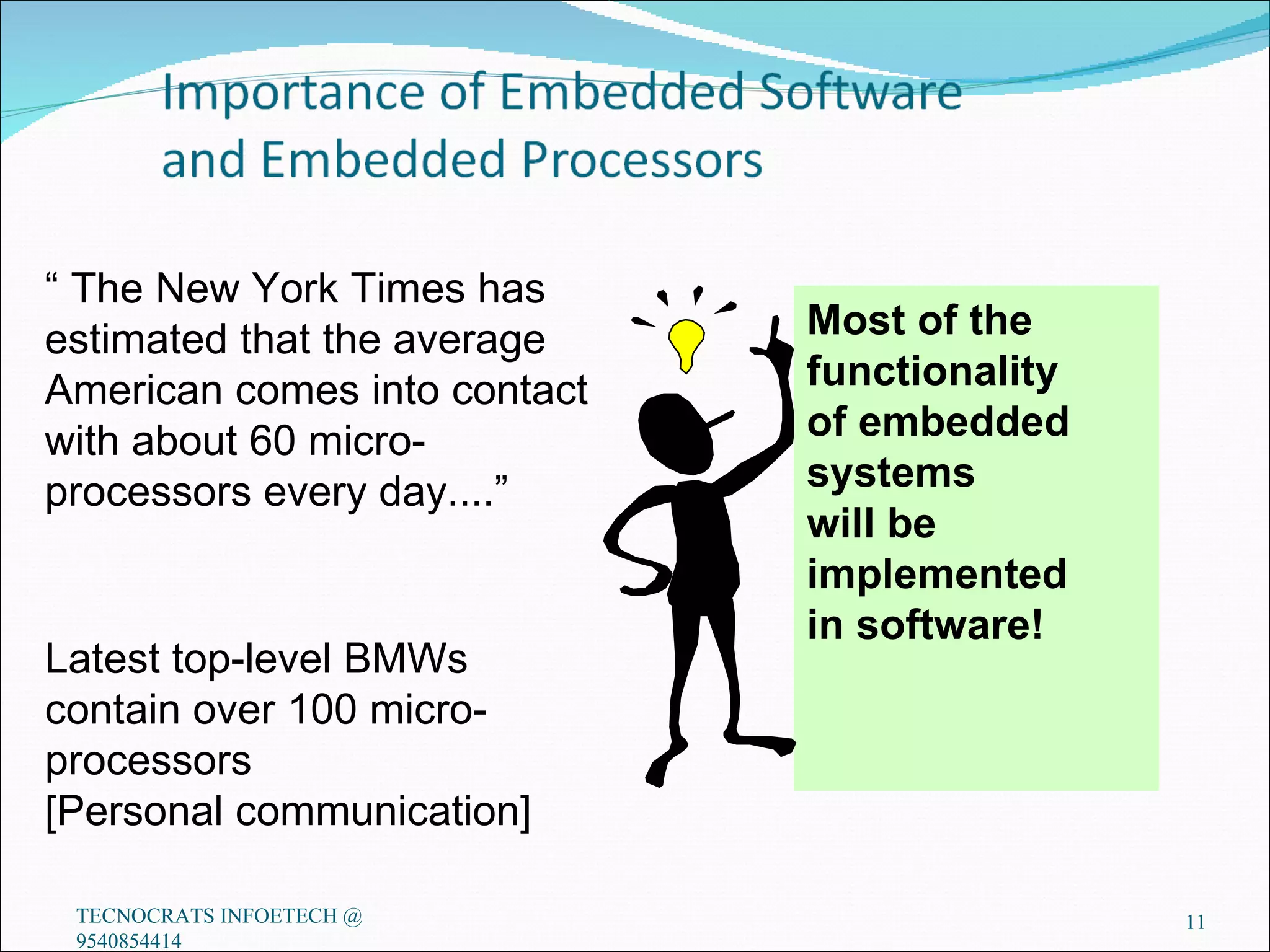

11. “ The New York Times has
estimated that the average Most of the
American comes into contact functionality
with about 60 micro- of embedded
processors every day....” systems
will be
implemented
in software!
Latest top-level BMWs
contain over 100 micro-
processors
[Personal communication]
TECNOCRATS INFOETECH @ 11
9540854414

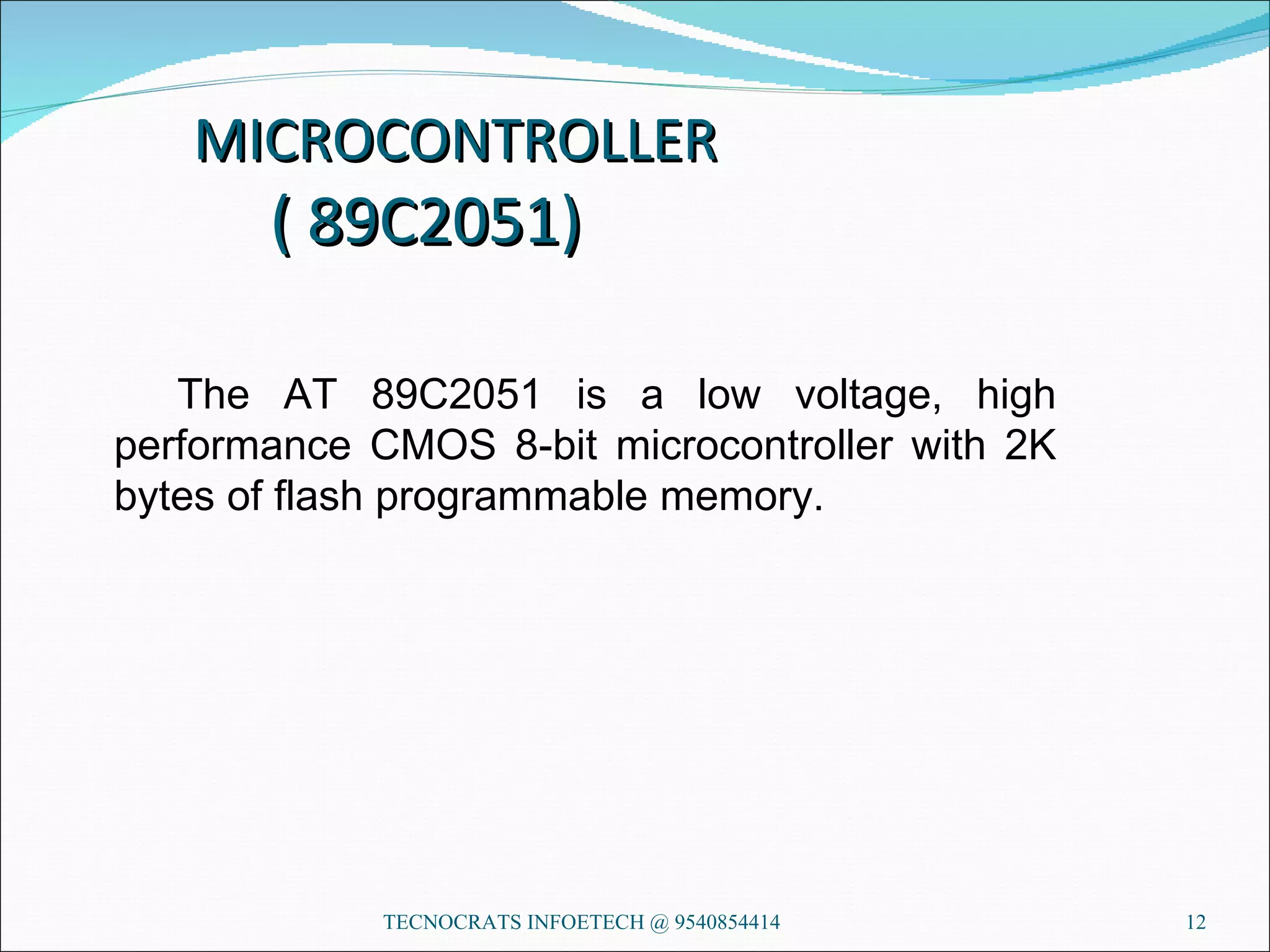

12. MICROCONTROLLER
( 89C2051)
The AT 89C2051 is a low voltage, high
performance CMOS 8-bit microcontroller with 2K
bytes of flash programmable memory.
TECNOCRATS INFOETECH @ 9540854414 12

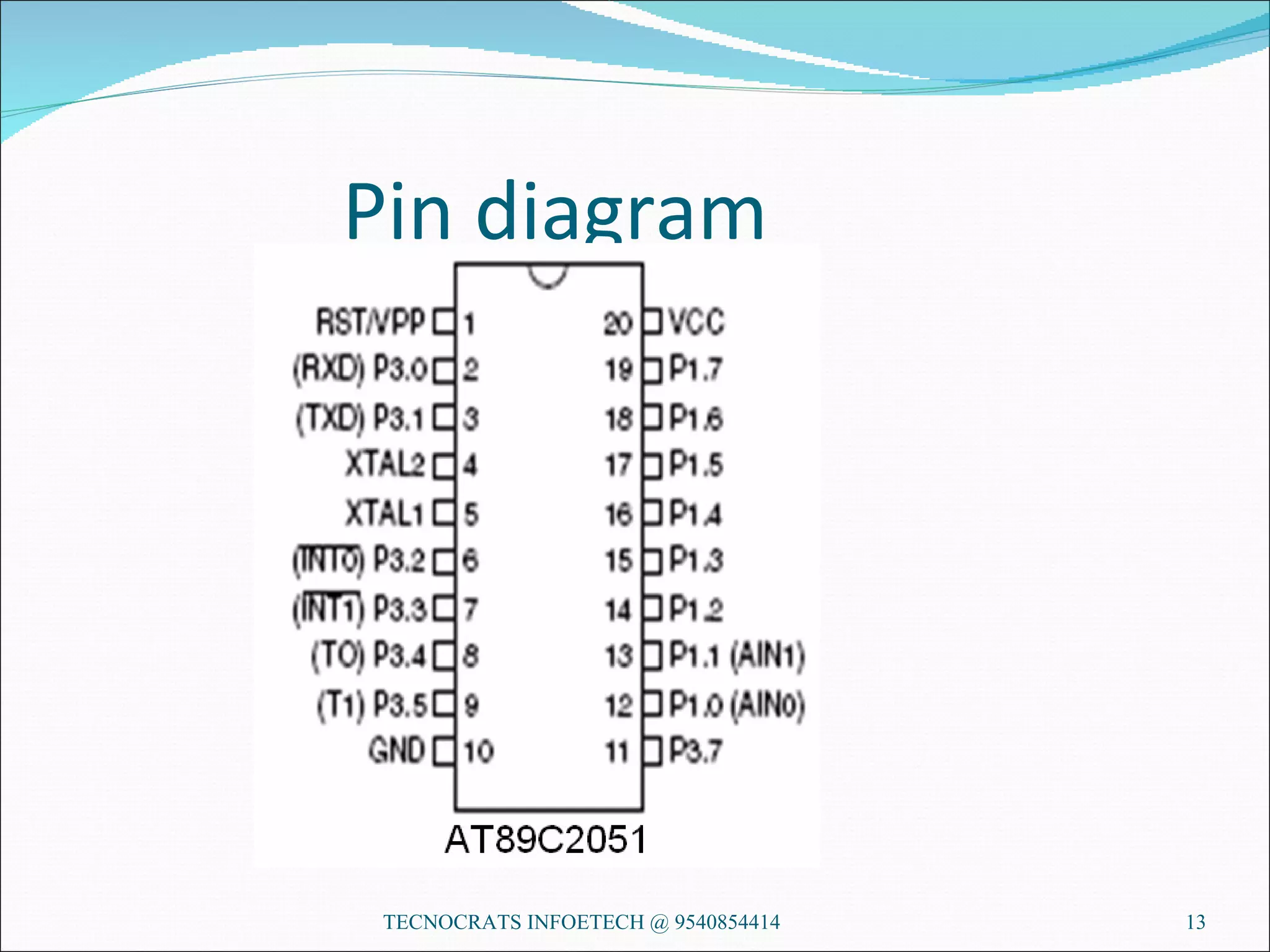

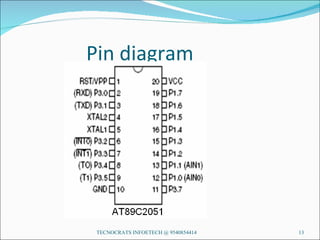

13. Pin diagram
TECNOCRATS INFOETECH @ 9540854414 13

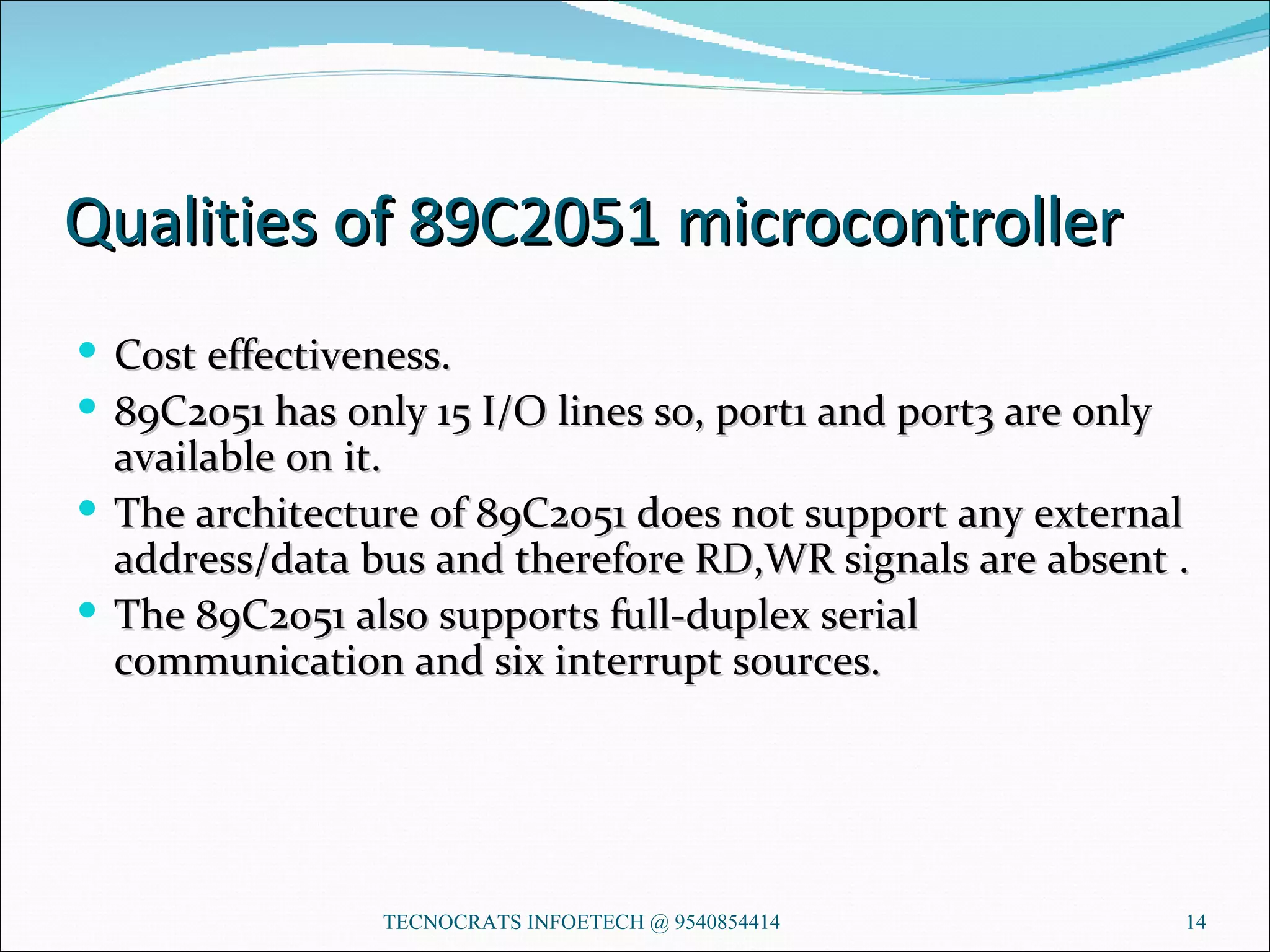

14. Qualities of 89C2051 microcontroller
 Cost effectiveness.
 89C2051 has only 15 I/O lines so, port1 and port3 are only
available on it.
 The architecture of 89C2051 does not support any external
address/data bus and therefore RD,WR signals are absent .
 The 89C2051 also supports full-duplex serial
communication and six interrupt sources.
TECNOCRATS INFOETECH @ 9540854414 14
