![How often does a TLB Miss occur?
Source:“Memory System Characterization of
Big Data Workloads”by Martin Dimitrov et all.- Intel Corp. [2013]
TLBMissesperthousandof
instructions
0
0.45
0.9
1.35
1.8
Hive Aggr C Hive join C NoSQL Index Sort NC WC NC
1.7
1.8
1.49
0.75
1.7
0.550.6
0.7
0.6
0.7
0.5
0.12
0.8
0.27
0.150.090.130.1
Instruction TLB miss per thousand of instructions Data TLB miss per thousand of instructions
c: compressed data
nc: uncompressed data](https://image.slidesharecdn.com/memorybigdatanosqlandvirtualization-150619071308-lva1-app6891/85/Memory-Big-Data-NoSQL-and-Virtualization-13-320.jpg)

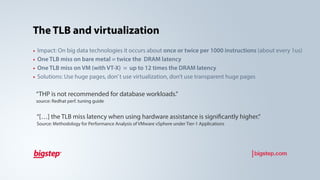

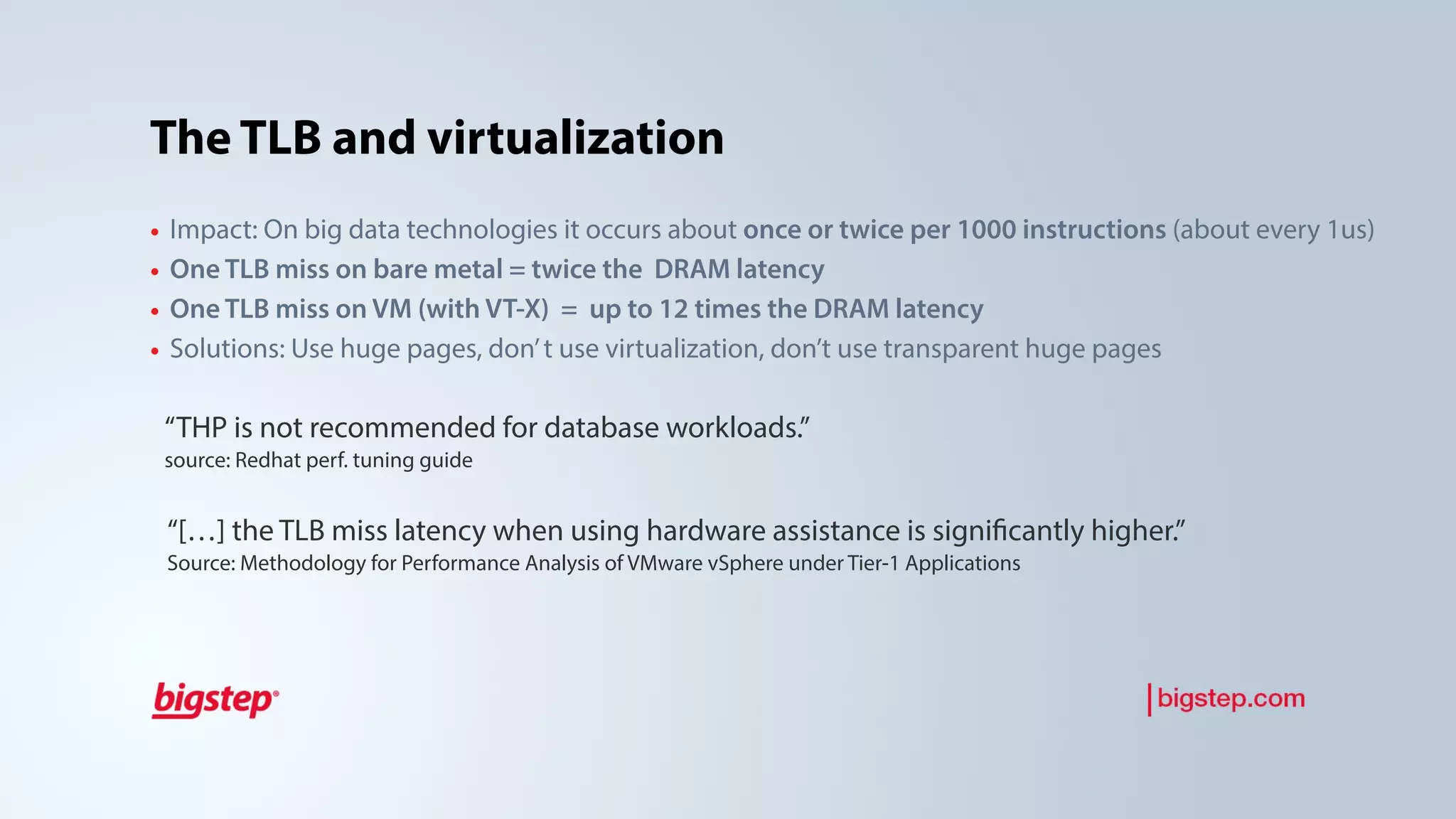

![The TLB and virtualization
• Impact: On big data technologies it occurs about once or twice per 1000 instructions (about every 1us)
• One TLB miss on bare metal = twice the DRAM latency
• One TLB miss on VM (with VT-X) = up to 12 times the DRAM latency
• Solutions: Use huge pages, don’t use virtualization, don’t use transparent huge pages
“THP is not recommended for database workloads.”
source: Redhat perf. tuning guide
“[…] the TLB miss latency when using hardware assistance is significantly higher.”
Source: Methodology for Performance Analysis of VMware vSphere under Tier-1 Applications](https://image.slidesharecdn.com/memorybigdatanosqlandvirtualization-150619071308-lva1-app6891/85/Memory-Big-Data-NoSQL-and-Virtualization-14-320.jpg)
Uploaded byBigstep
Memory, Big Data, NoSQL and Virtualization
The document discusses modern CPU architecture and memory management strategies, emphasizing the differences between traditional single-core systems and current multi-core setups with complex memory hierarchies. It highlights the impact of virtualization, especially TLB misses, on performance in big data workloads, and recommends avoiding virtualization and using techniques like huge pages for efficiency. Additionally, it advocates for bare metal cloud solutions and the use of containers over virtual machines for better application performance.
Memory, Big Data, NoSQL and Virtualization
- 1.

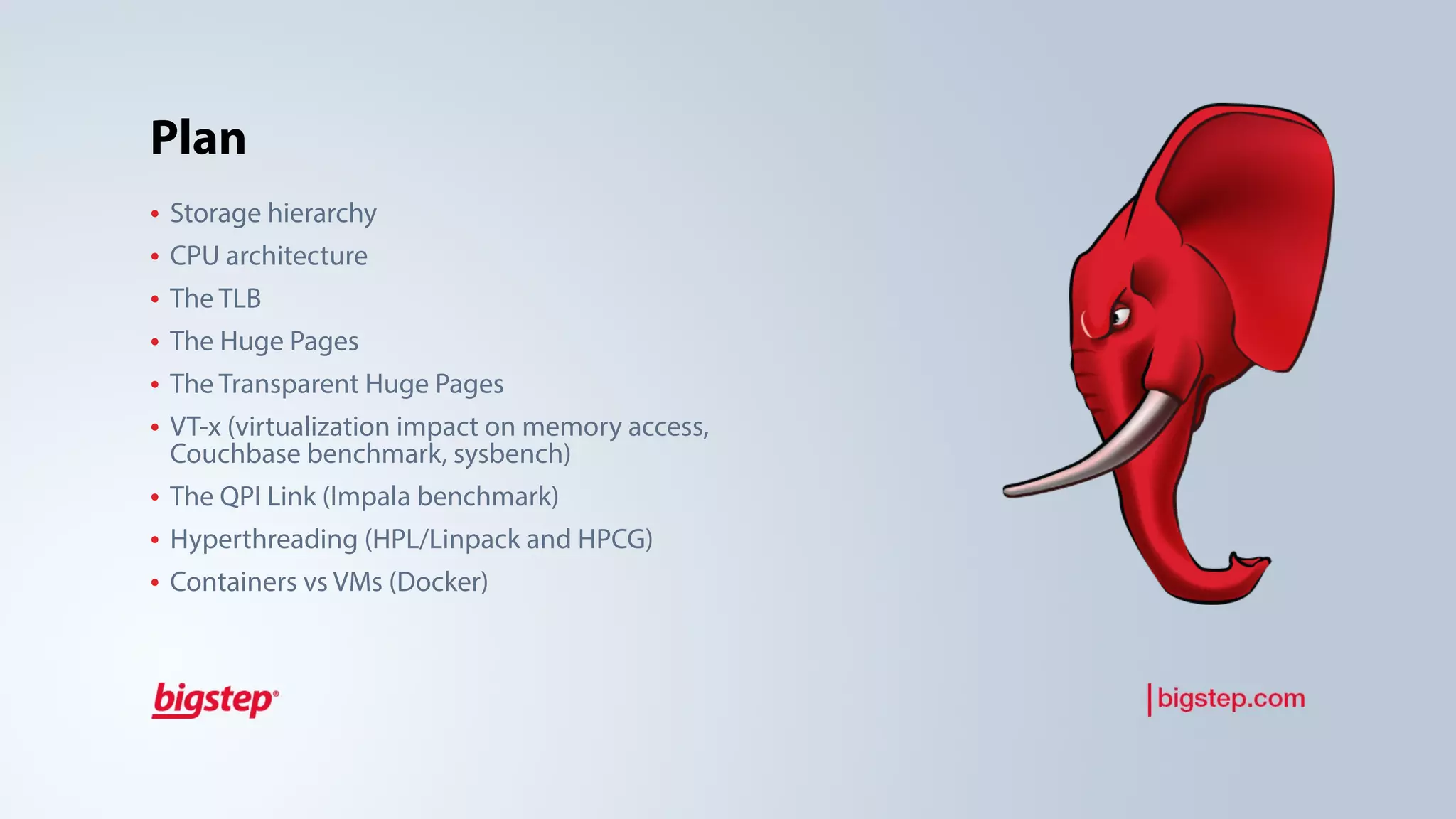

- 3. Plan • Storage hierarchy •CPU architecture • The TLB • The Huge Pages • The Transparent Huge Pages • VT-x (virtualization impact on memory access, Couchbase benchmark, sysbench) • The QPI Link (Impala benchmark) • Hyperthreading (HPL/Linpack and HPCG) • Containers vs VMs (Docker)

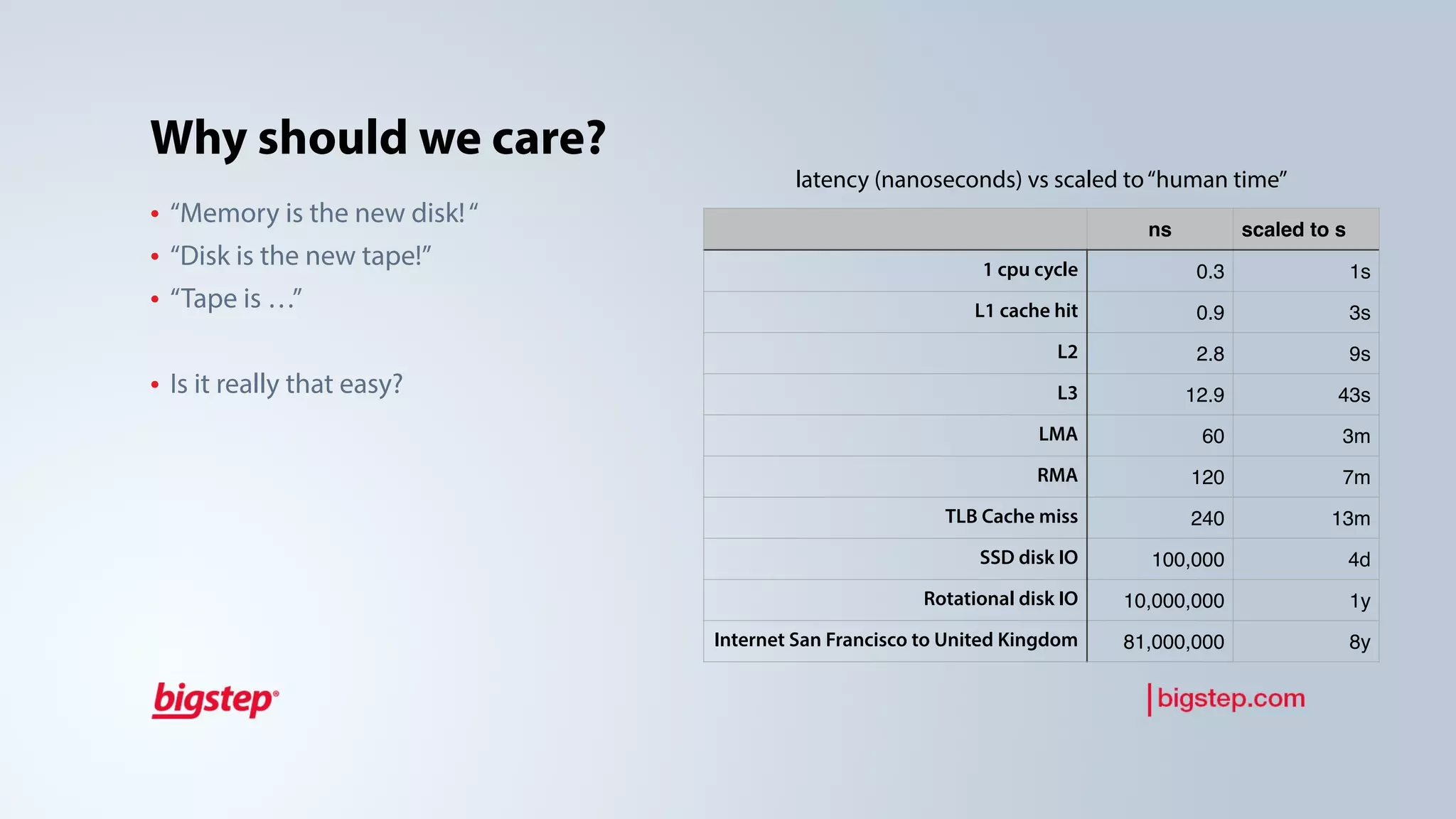

- 4. Why should wecare? • “Memory is the new disk!“ • “Disk is the new tape!” • “Tape is …” • Is it really that easy? latency (nanoseconds) vs scaled to“human time” ns scaled to s 1 cpu cycle 0.3 1s L1 cache hit 0.9 3s L2 2.8 9s L3 12.9 43s LMA 60 3m RMA 120 7m TLB Cache miss 240 13m SSD disk IO 100,000 4d Rotational disk IO 10,000,000 1y Internet San Francisco to United Kingdom 81,000,000 8y

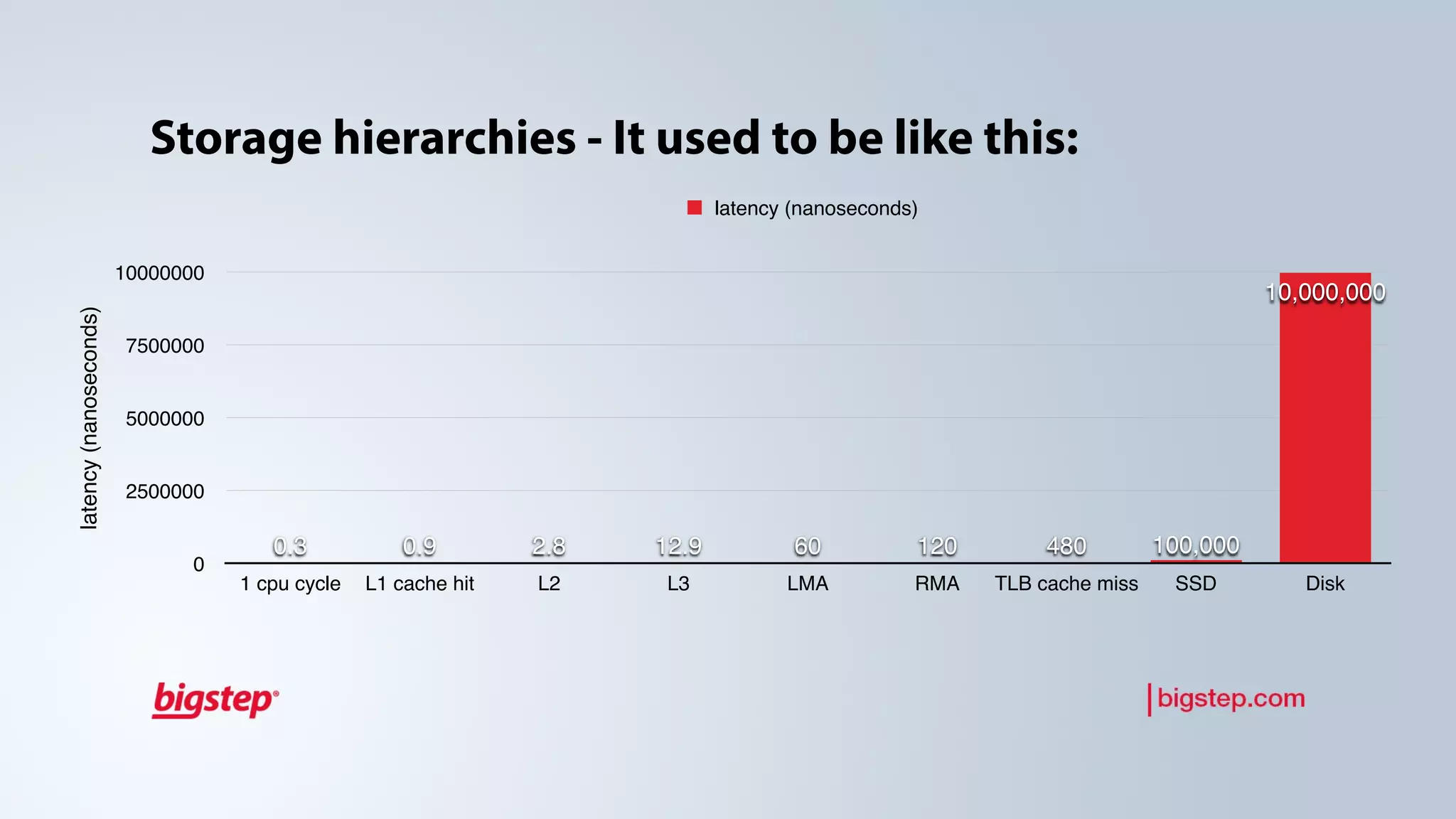

- 5. Storage hierarchies -It used to be like this: latency(nanoseconds) 0 2500000 5000000 7500000 10000000 1 cpu cycle L1 cache hit L2 L3 LMA RMA TLB cache miss SSD Disk 10,000,000 100,0004801206012.92.80.90.3 latency (nanoseconds)

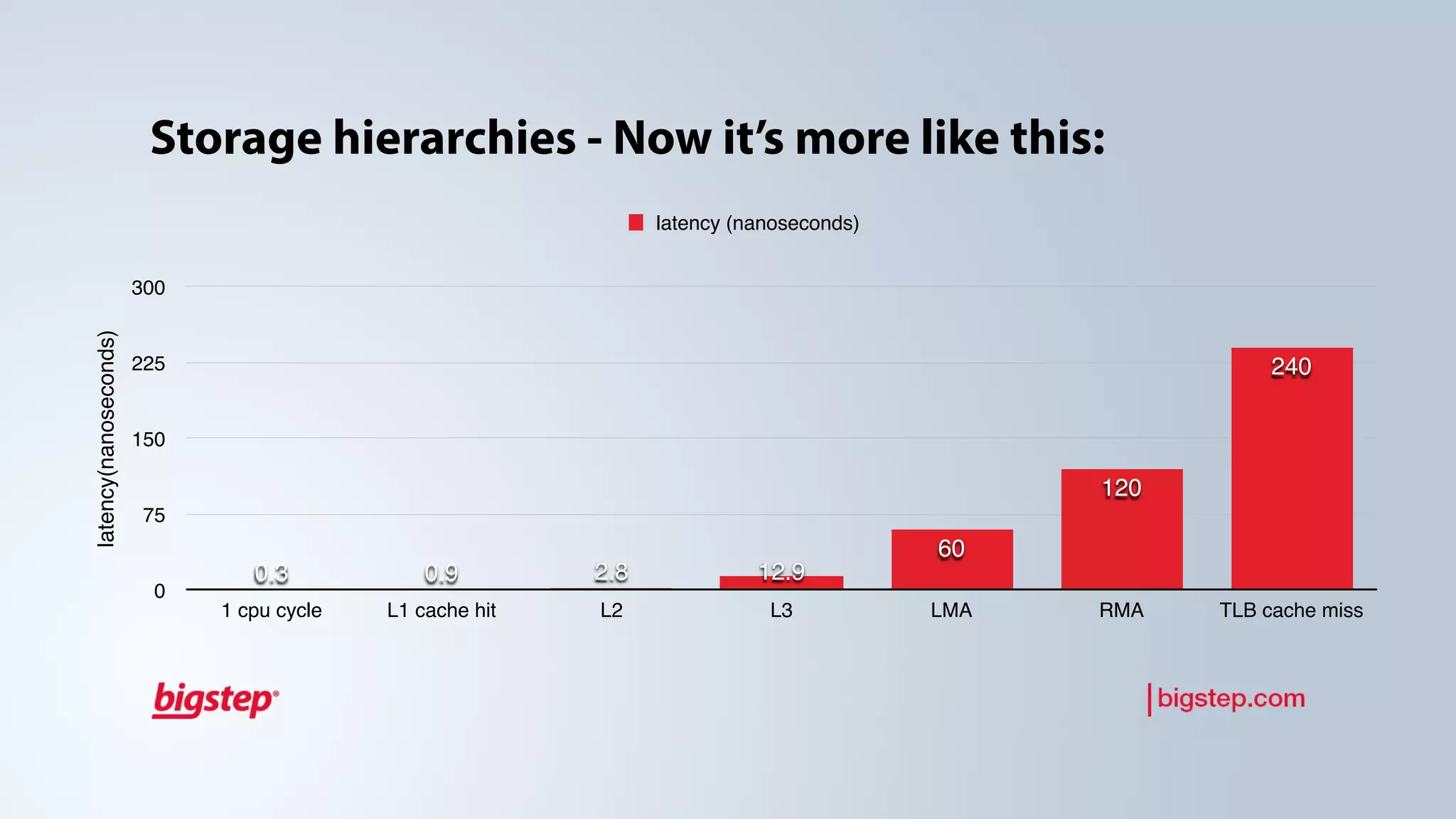

- 6. Storage hierarchies -Now it’s more like this: latency(nanoseconds) 0 75 150 225 300 1 cpu cycle L1 cache hit L2 L3 LMA RMA TLB cache miss 240 120 60 12.92.80.90.3 latency (nanoseconds)

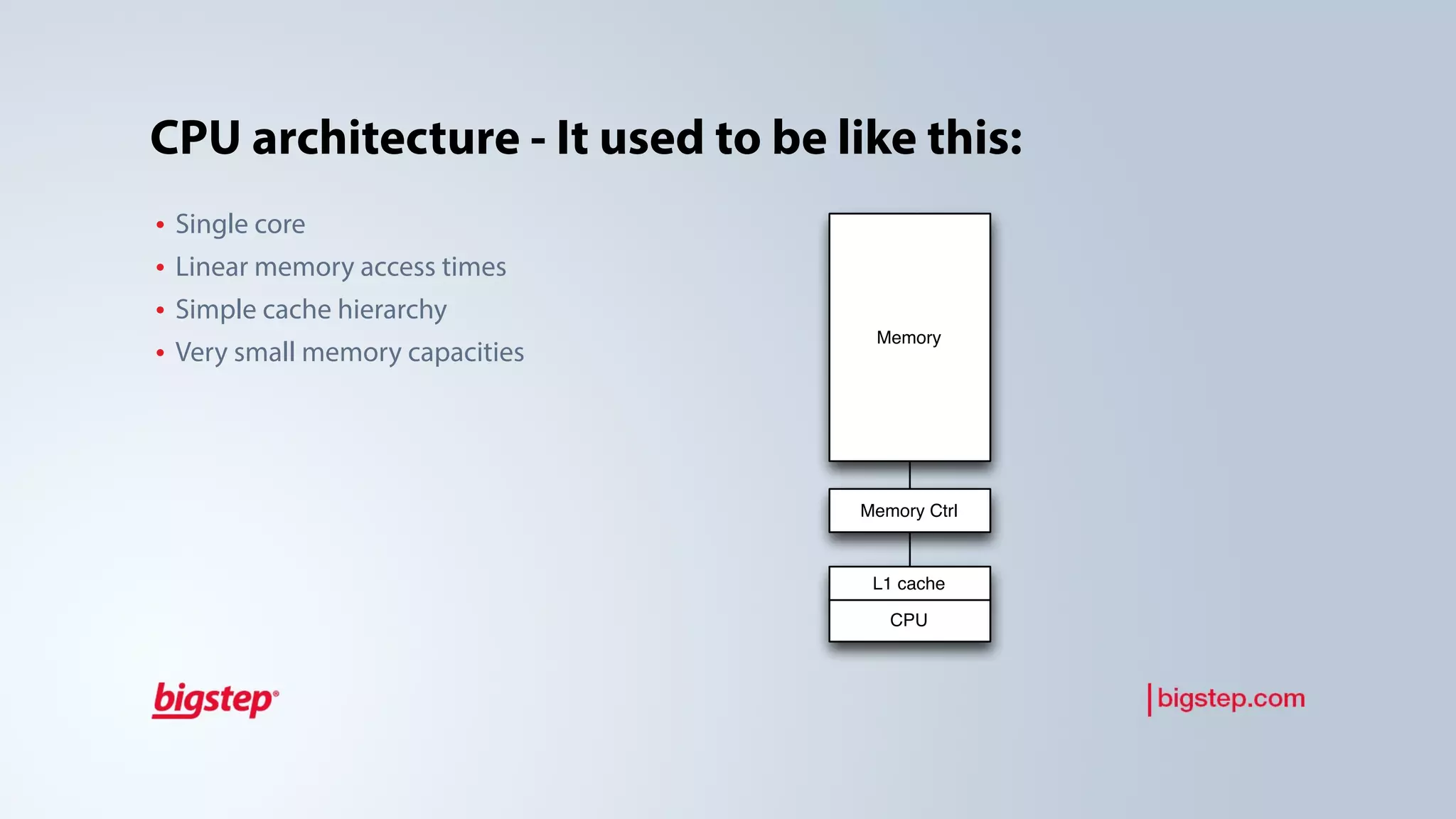

- 7. CPU architecture -It used to be like this: • Single core • Linear memory access times • Simple cache hierarchy • Very small memory capacities CPU Memory Memory Ctrl L1 cache

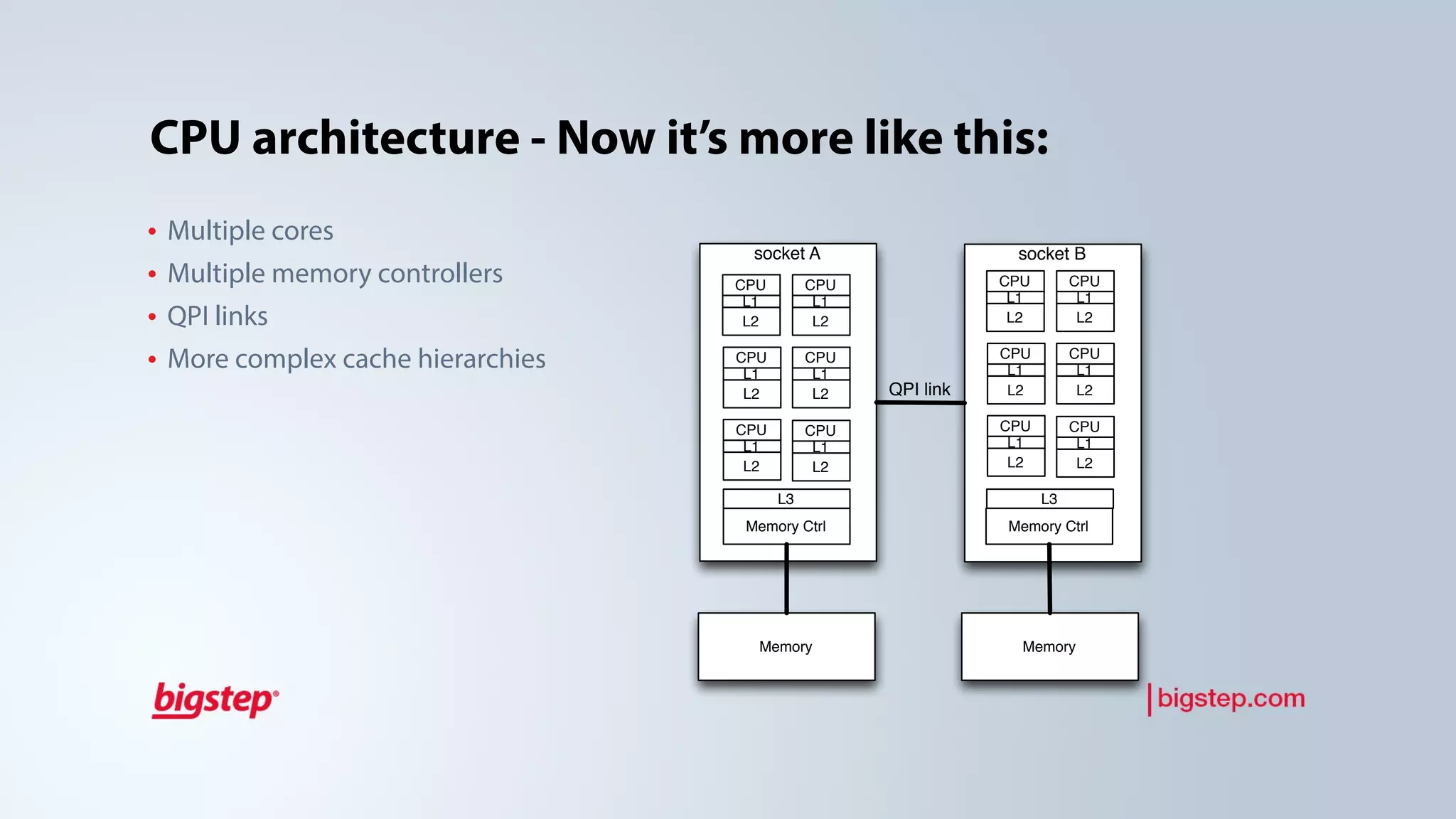

- 8. CPU architecture -Now it’s more like this: • Multiple cores • Multiple memory controllers • QPI links • More complex cache hierarchies socket A socket B Memory Ctrl Memory Memory L1 L2 CPU L1 L2 CPU L1 L2 CPU L1 L2 CPU L1 L2 CPU L1 L2 CPU L3 L3 L1 L2 CPU L1 L2 CPU L1 L2 CPU L1 L2 CPU L1 L2 CPU L1 L2 CPU Memory Ctrl QPI link

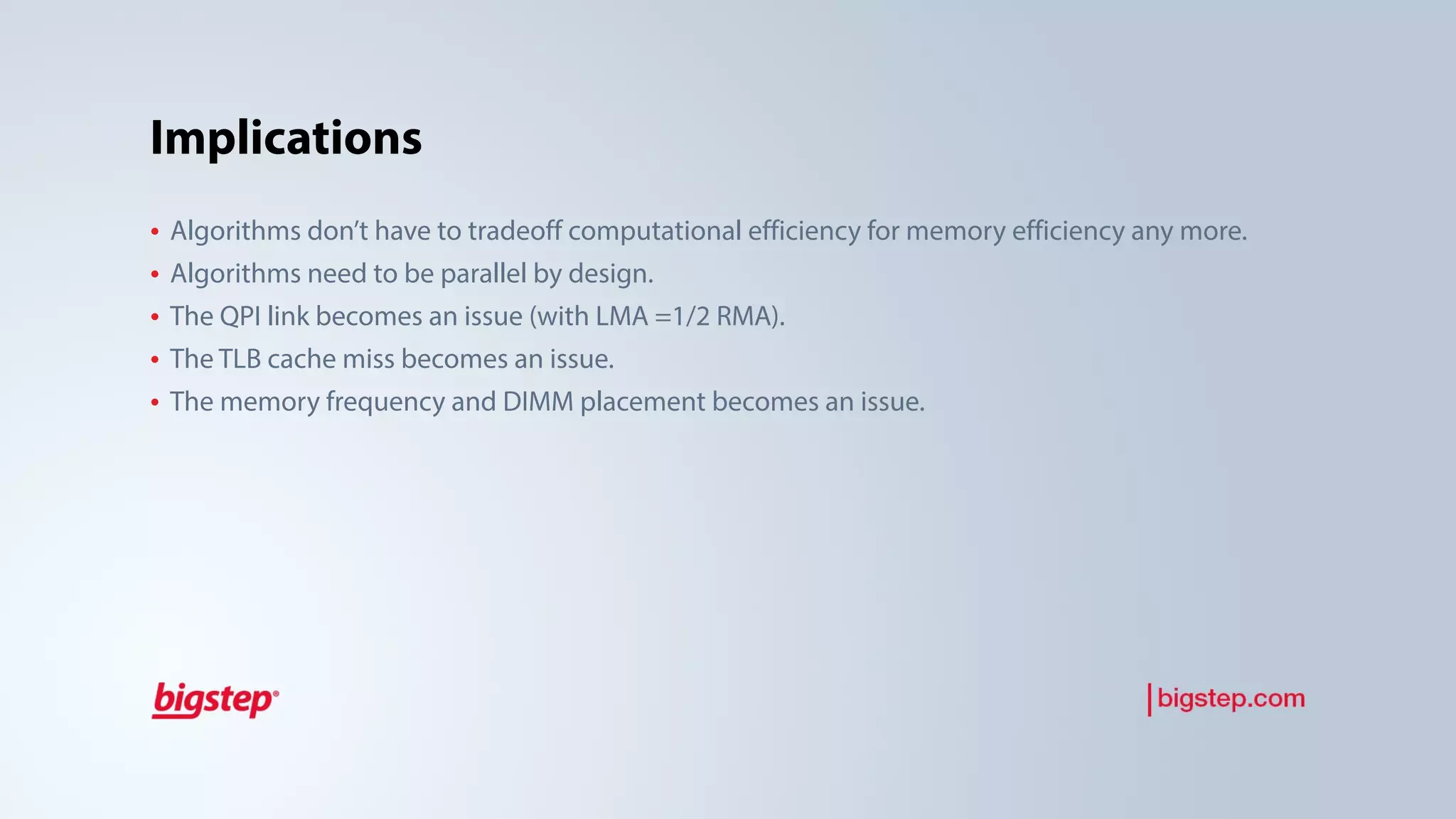

- 9. Implications • Algorithms don’thave to tradeoff computational efficiency for memory efficiency any more. • Algorithms need to be parallel by design. • The QPI link becomes an issue (with LMA =1/2 RMA). • The TLB cache miss becomes an issue. • The memory frequency and DIMM placement becomes an issue.

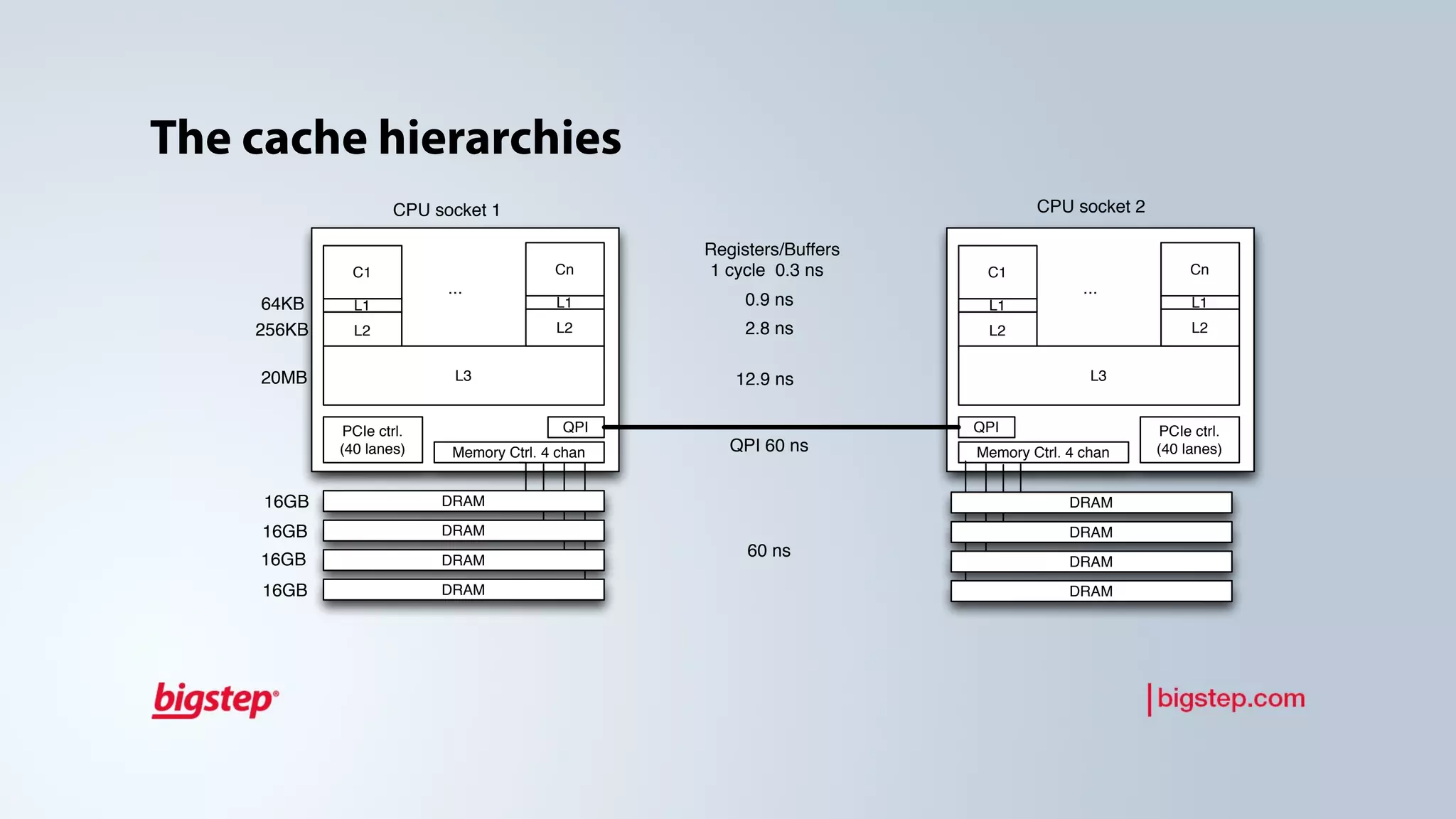

- 10. The cache hierarchies C1 L1 L2 L3 Cn L1 L2 ... QPI MemoryCtrl. 4 chan C1 L1 L2 L3 Cn L1 L2 ... QPI Memory Ctrl. 4 chan DRAM DRAM DRAM DRAM DRAM DRAM DRAM DRAM 1 cycle 0.3 ns Registers/Buffers 0.9 ns 2.8 ns 12.9 ns QPI 60 ns 60 ns 64KB 256KB 20MB 16GB 16GB 16GB 16GB PCIe ctrl. (40 lanes) PCIe ctrl. (40 lanes) CPU socket 1 CPU socket 2

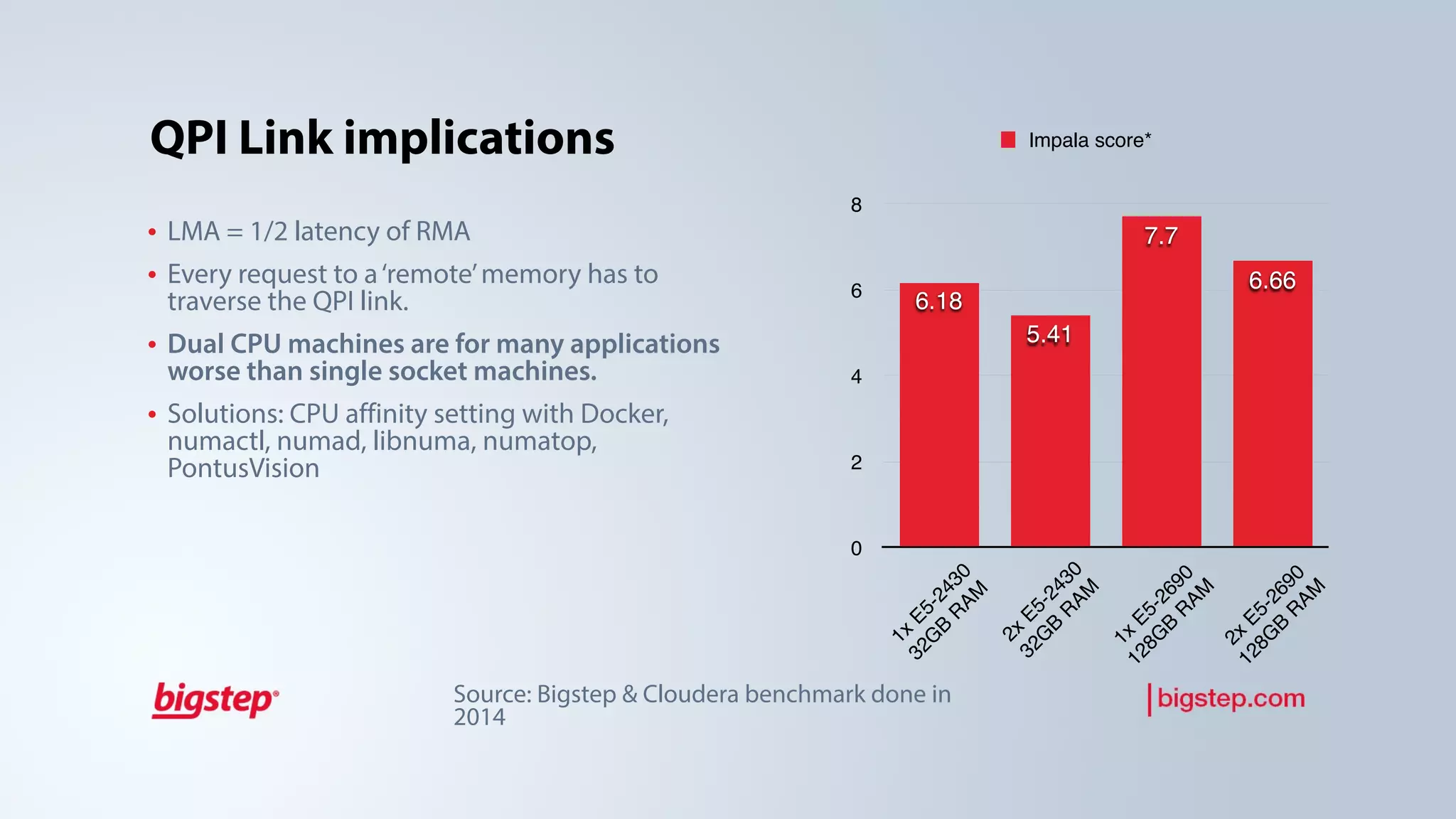

- 11. QPI Link implications •LMA = 1/2 latency of RMA • Every request to a‘remote’memory has to traverse the QPI link. • Dual CPU machines are for many applications worse than single socket machines. • Solutions: CPU affinity setting with Docker, numactl, numad, libnuma, numatop, PontusVision 0 2 4 6 8 1x E5-2430 32G B R AM 2x E5-2430 32G B R AM 1x E5-2690 128G B R AM 2x E5-2690 128G B R AM 6.66 7.7 5.41 6.18 Impala score* Source: Bigstep & Cloudera benchmark done in 2014

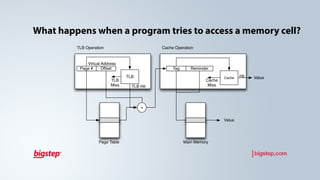

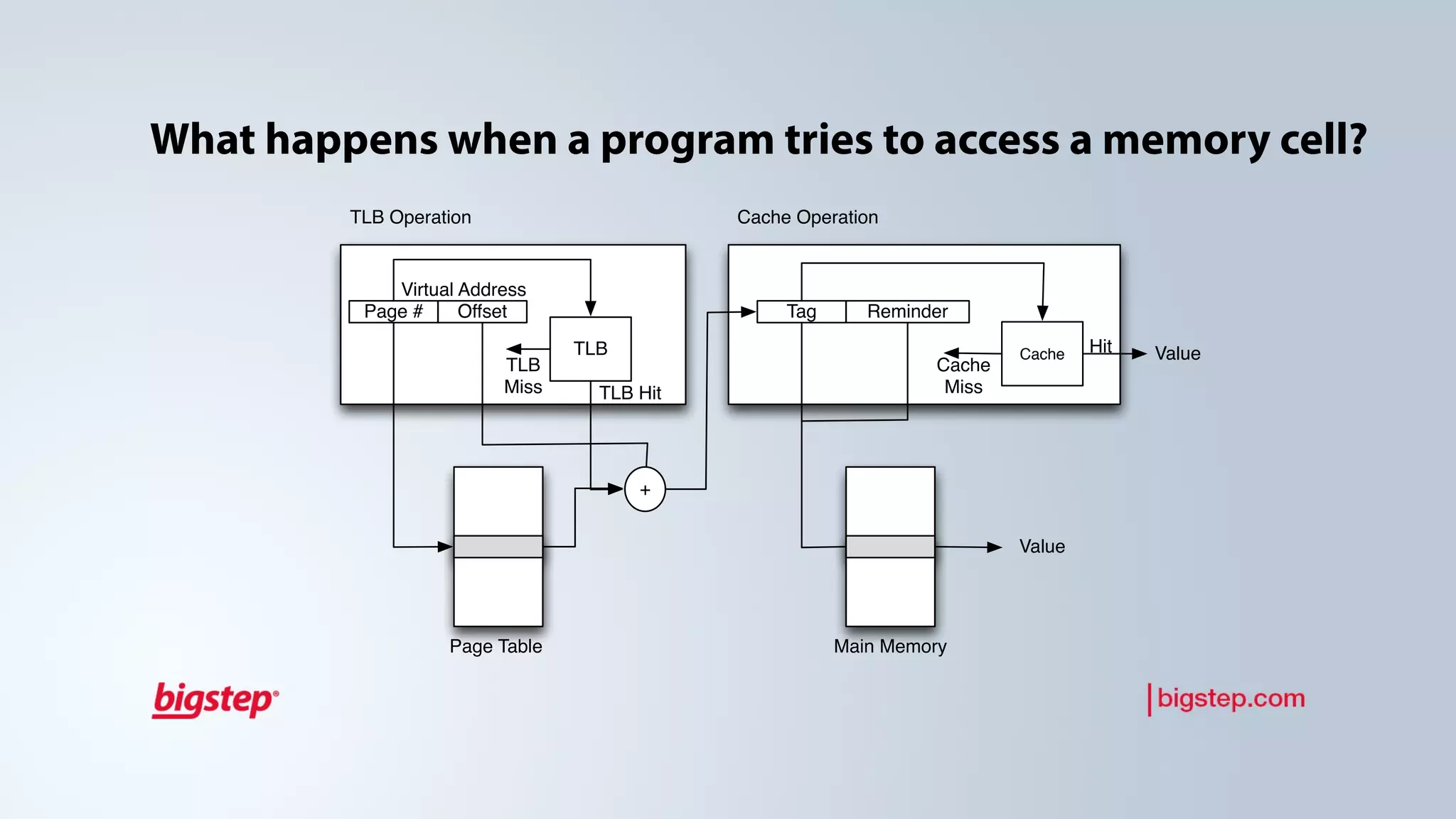

- 12. What happens whena program tries to access a memory cell? TLB Operation Page # Offset Virtual Address TLB Page Table + Tag Reminder Cache TLB Miss TLB Hit Main Memory Cache Operation Cache Miss ValueHit Value

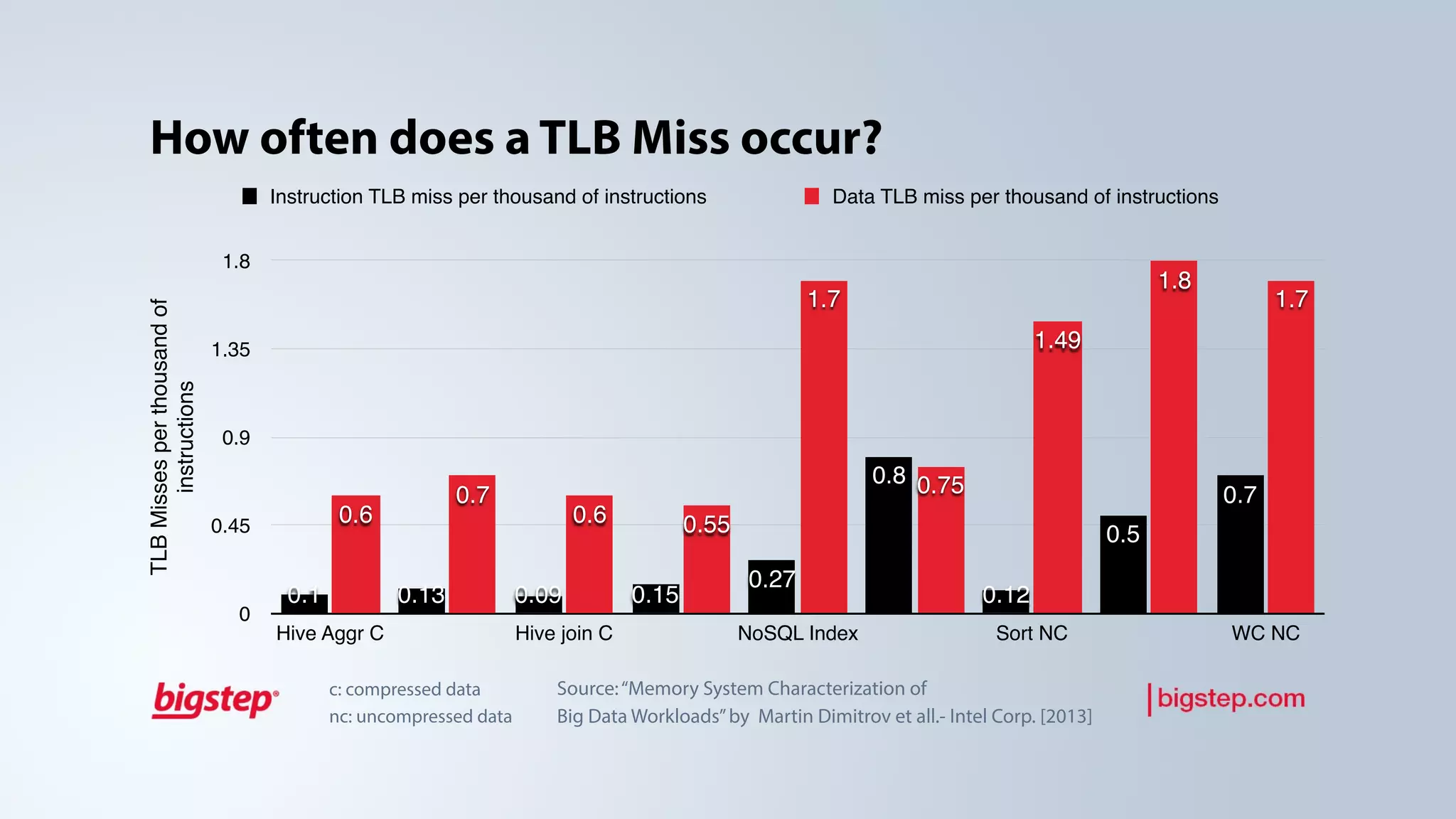

- 13. How often doesa TLB Miss occur? Source:“Memory System Characterization of Big Data Workloads”by Martin Dimitrov et all.- Intel Corp. [2013] TLBMissesperthousandof instructions 0 0.45 0.9 1.35 1.8 Hive Aggr C Hive join C NoSQL Index Sort NC WC NC 1.7 1.8 1.49 0.75 1.7 0.550.6 0.7 0.6 0.7 0.5 0.12 0.8 0.27 0.150.090.130.1 Instruction TLB miss per thousand of instructions Data TLB miss per thousand of instructions c: compressed data nc: uncompressed data
- 14. The TLB andvirtualization • Impact: On big data technologies it occurs about once or twice per 1000 instructions (about every 1us) • One TLB miss on bare metal = twice the DRAM latency • One TLB miss on VM (with VT-X) = up to 12 times the DRAM latency • Solutions: Use huge pages, don’t use virtualization, don’t use transparent huge pages “THP is not recommended for database workloads.” source: Redhat perf. tuning guide “[…] the TLB miss latency when using hardware assistance is significantly higher.” Source: Methodology for Performance Analysis of VMware vSphere under Tier-1 Applications

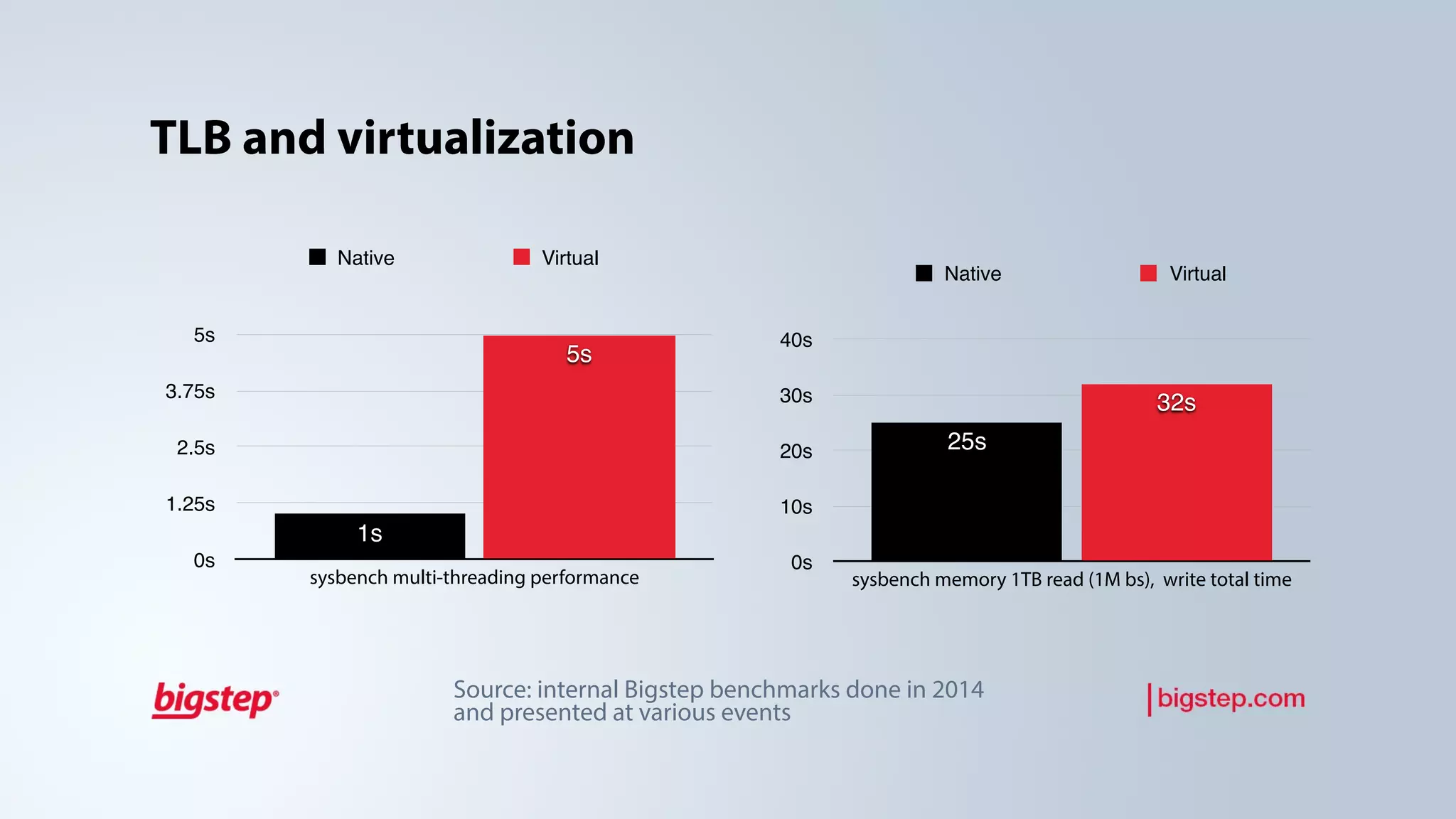

- 15. TLB and virtualization Source:internal Bigstep benchmarks done in 2014 and presented at various events 0s 1.25s 2.5s 3.75s 5s sysbench multi-threading performance 5s 1s Native Virtual 0s 10s 20s 30s 40s sysbench memory 1TB read (1M bs), write total time 32s 25s Native Virtual

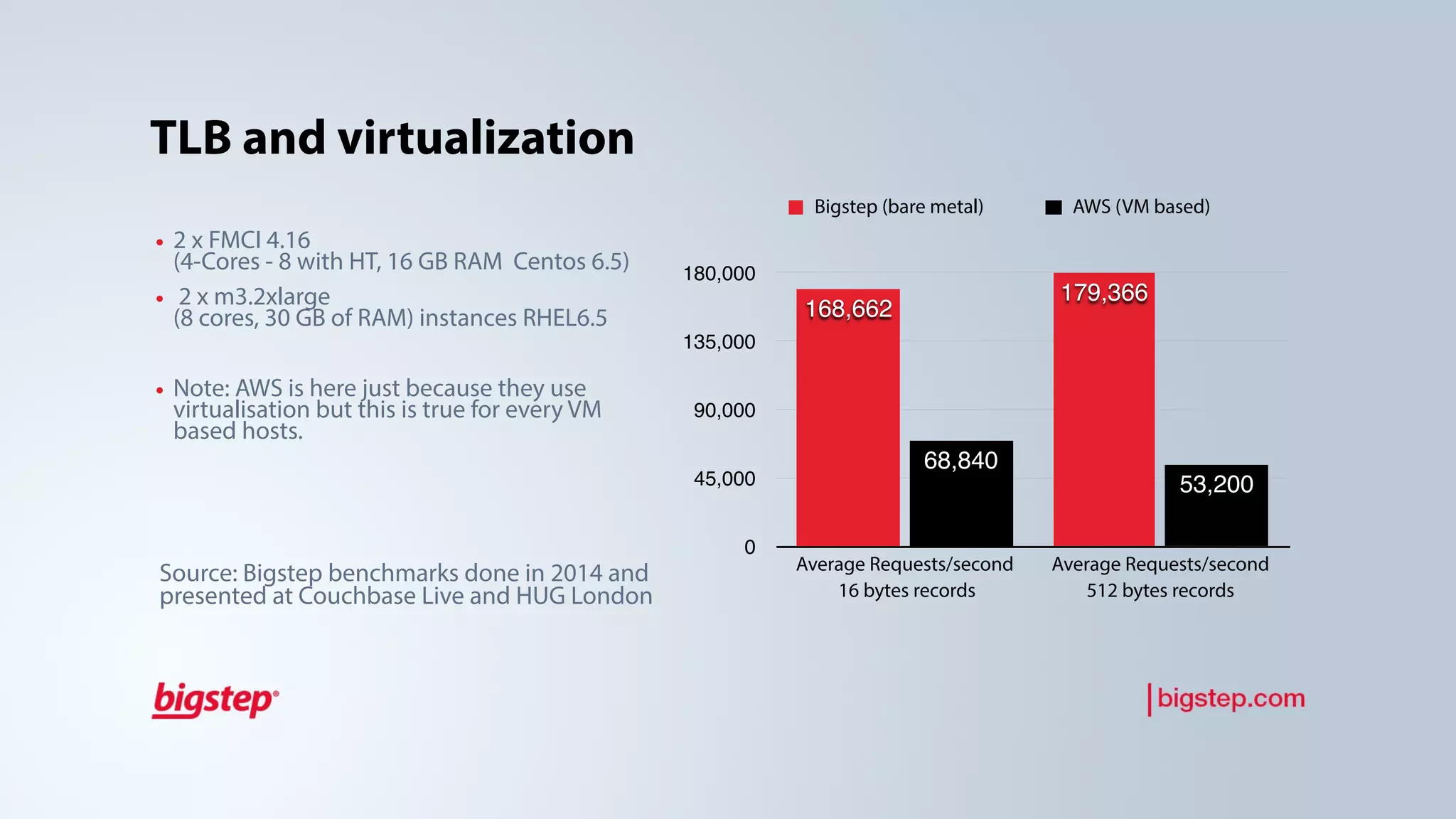

- 16. TLB and virtualization 0 45,000 90,000 135,000 180,000 AverageRequests/second 16 bytes records Average Requests/second 512 bytes records 53,200 68,840 179,366 168,662 Bigstep (bare metal) AWS (VM based) • 2 x FMCI 4.16 (4-Cores - 8 with HT, 16 GB RAM Centos 6.5) • 2 x m3.2xlarge (8 cores, 30 GB of RAM) instances RHEL6.5 • Note: AWS is here just because they use virtualisation but this is true for every VM based hosts. Source: Bigstep benchmarks done in 2014 and presented at Couchbase Live and HUG London

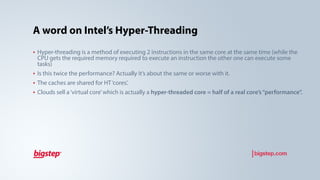

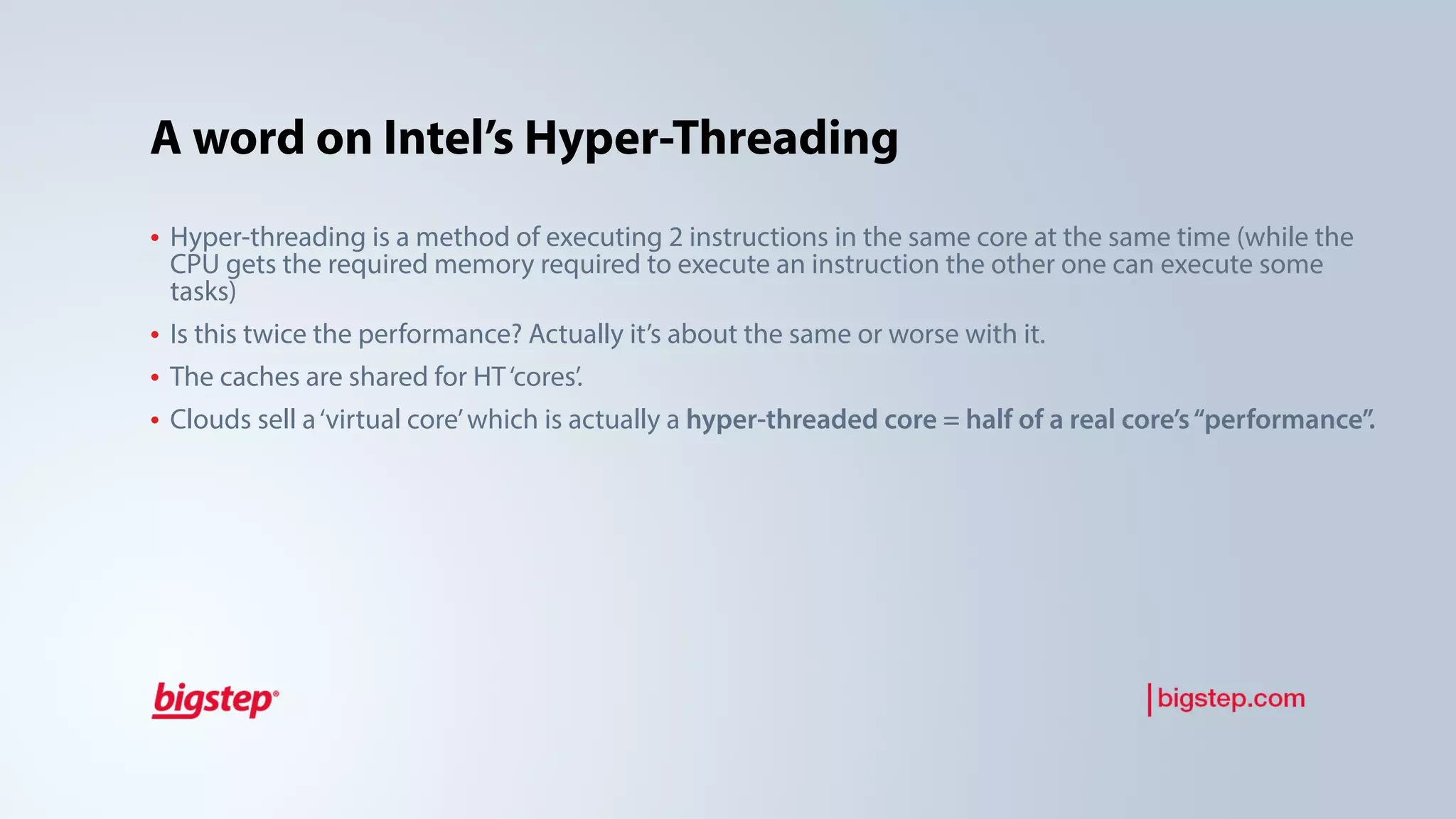

- 17. A word onIntel’s Hyper-Threading • Hyper-threading is a method of executing 2 instructions in the same core at the same time (while the CPU gets the required memory required to execute an instruction the other one can execute some tasks) • Is this twice the performance? Actually it’s about the same or worse with it. • The caches are shared for HT‘cores’. • Clouds sell a‘virtual core’which is actually a hyper-threaded core = half of a real core’s“performance”.

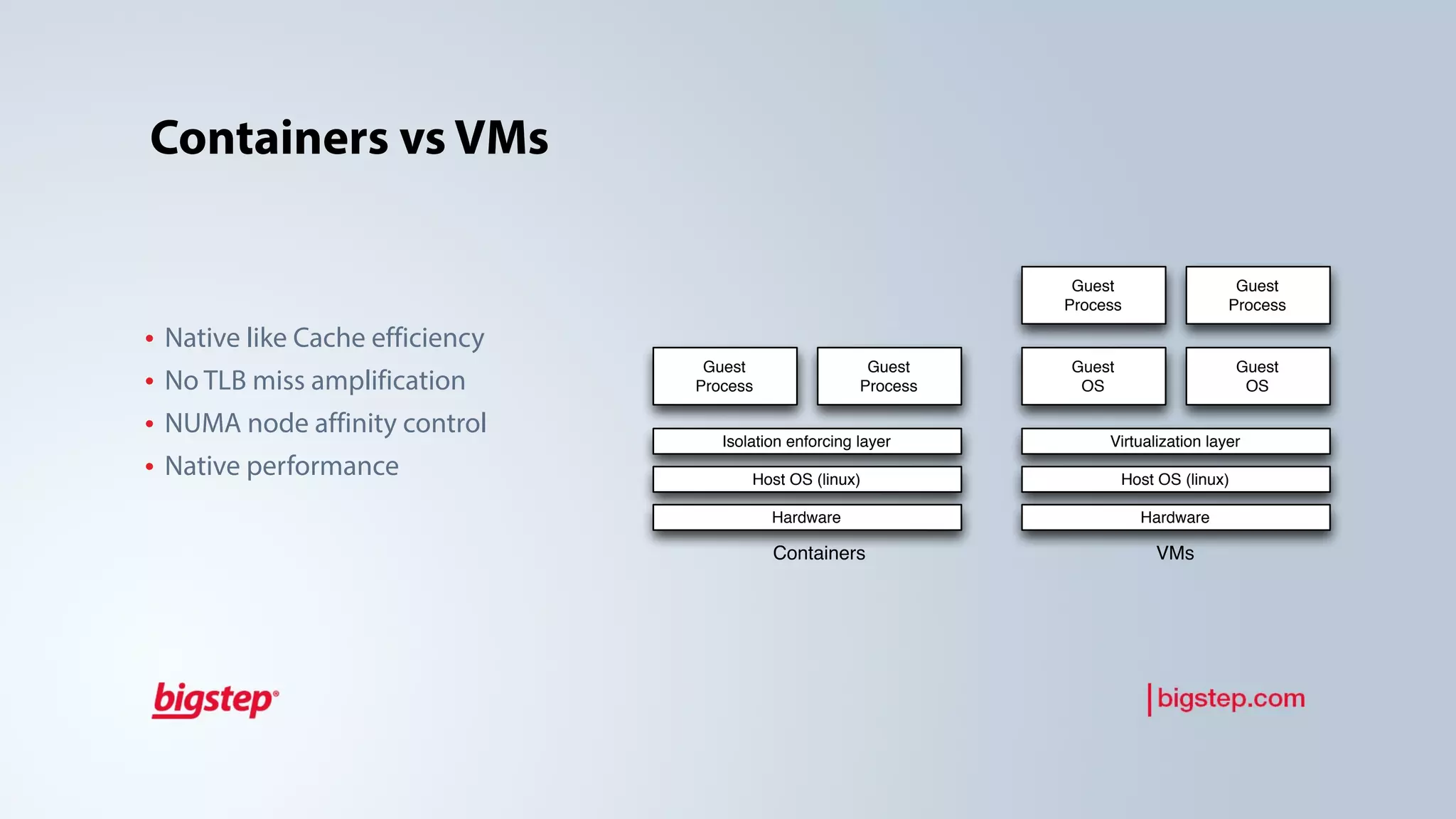

- 18. Containers vs VMs Guest Process Guest Process Isolationenforcing layer Host OS (linux) Hardware Guest OS Guest OS Virtualization layer Host OS (linux) Hardware Guest Process Guest Process Containers VMs • Native like Cache efficiency • No TLB miss amplification • NUMA node affinity control • Native performance

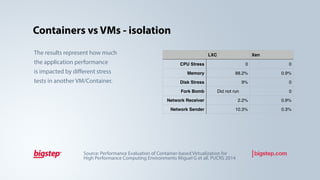

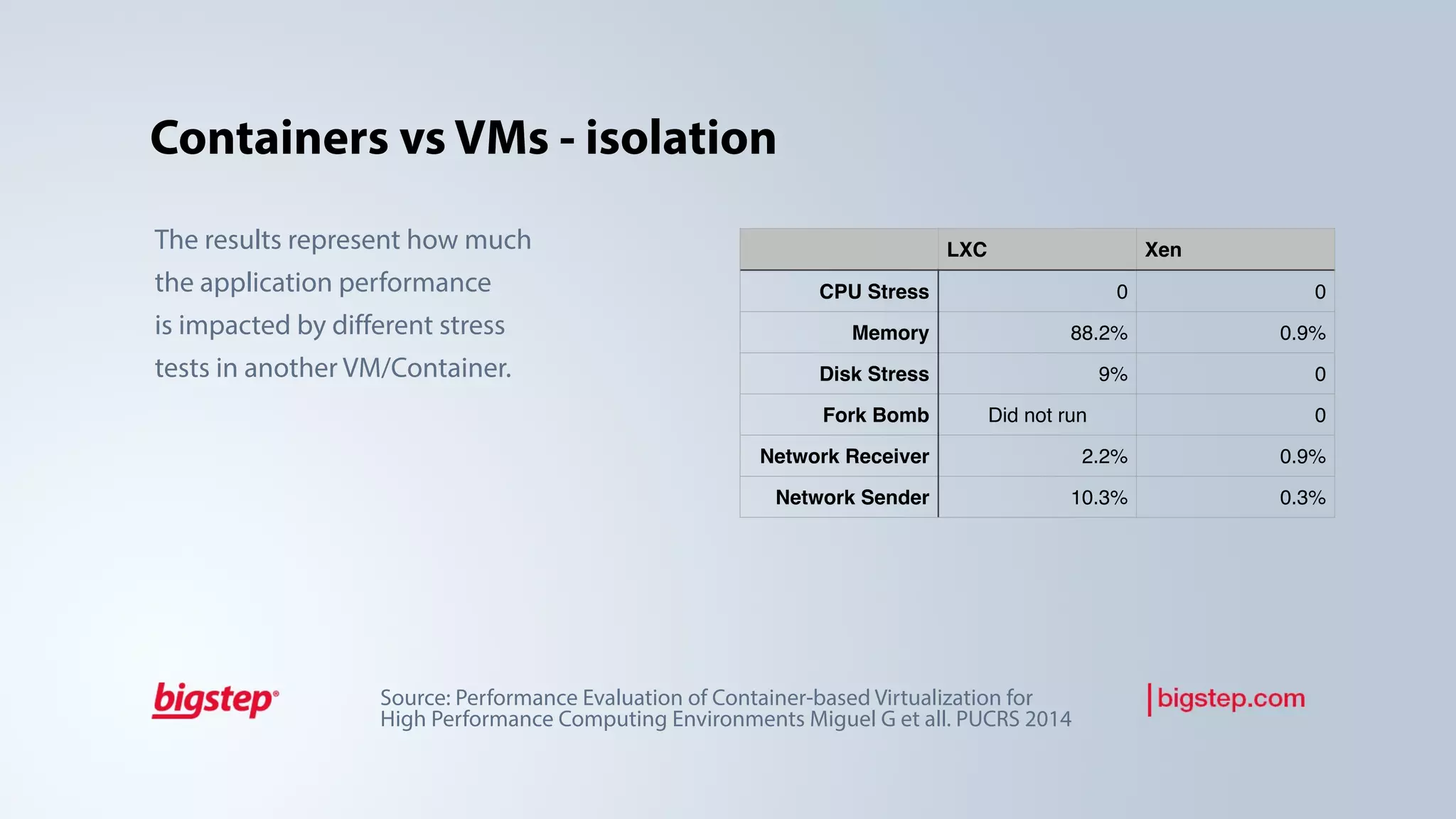

- 19. Containers vs VMs- isolation LXC Xen CPU Stress 0 0 Memory 88.2% 0.9% Disk Stress 9% 0 Fork Bomb Did not run 0 Network Receiver 2.2% 0.9% Network Sender 10.3% 0.3% Source: Performance Evaluation of Container-based Virtualization for High Performance Computing Environments Miguel G et all. PUCRS 2014 The results represent how much the application performance is impacted by different stress tests in another VM/Container.

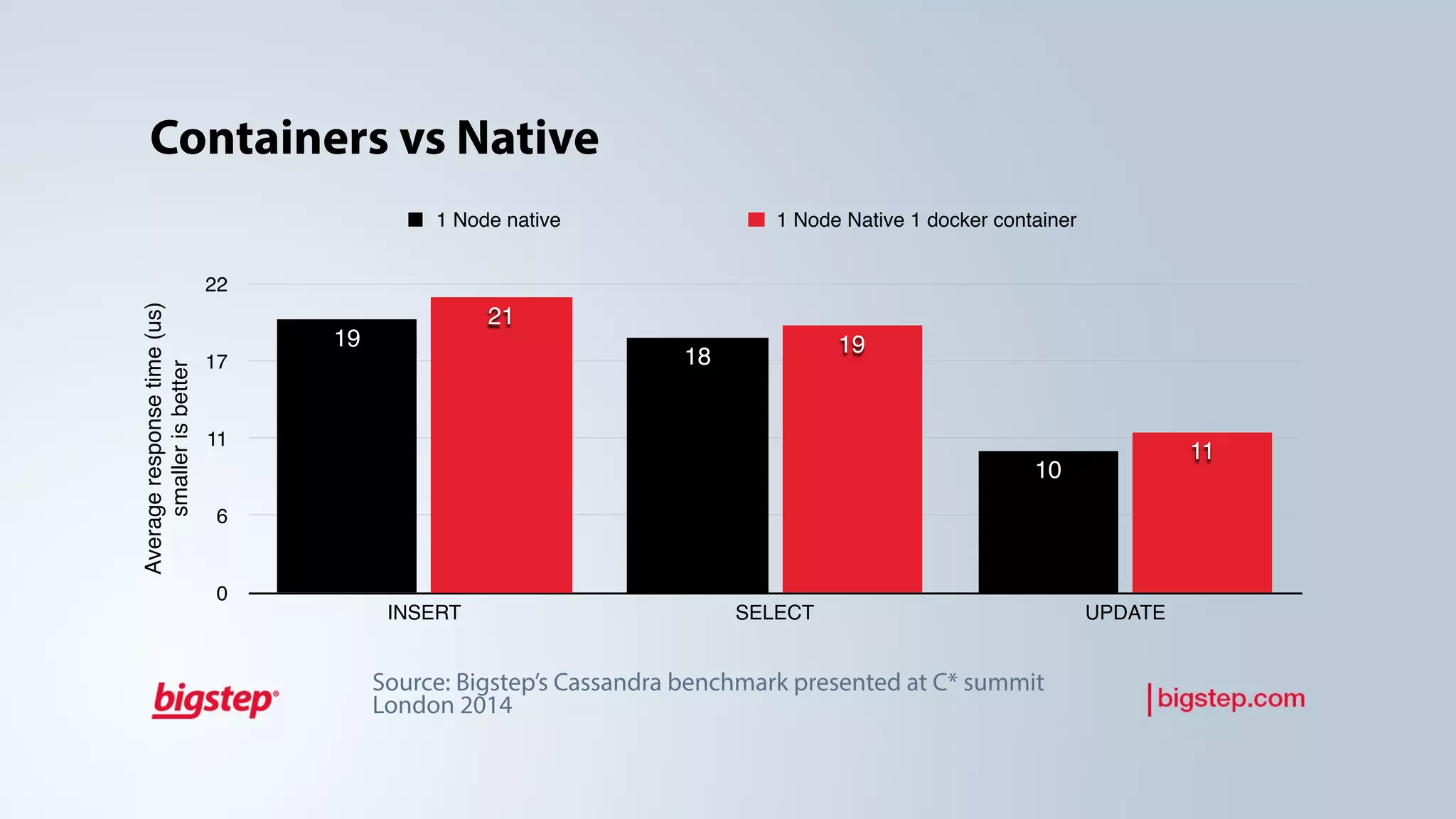

- 20. Containers vs NativeAverageresponsetime(us) smallerisbetter 0 6 11 17 22 INSERTSELECT UPDATE 11 19 21 10 18 19 1 Node native 1 Node Native 1 docker container Source: Bigstep’s Cassandra benchmark presented at C* summit London 2014

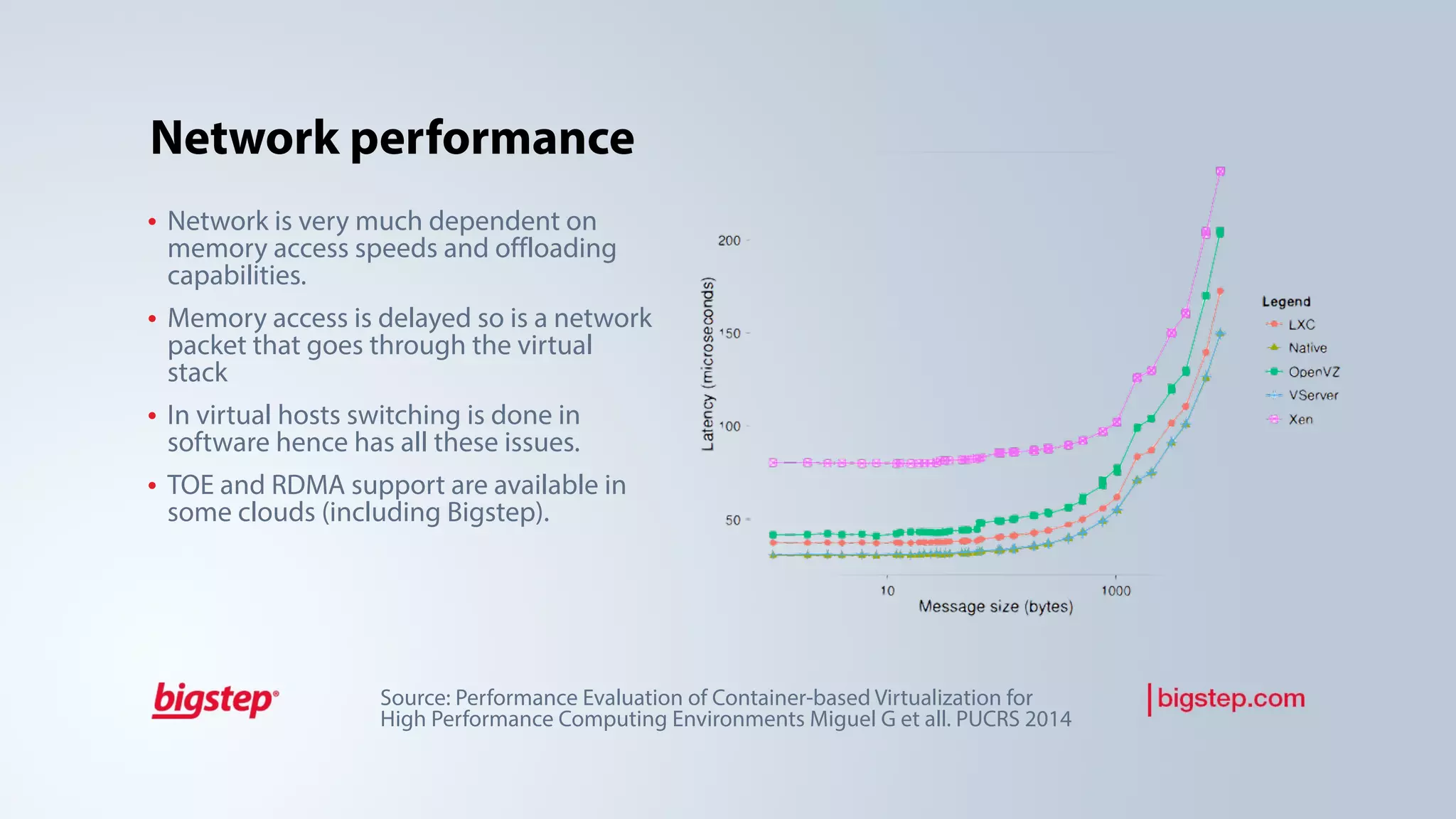

- 21. Network performance • Networkis very much dependent on memory access speeds and offloading capabilities. • Memory access is delayed so is a network packet that goes through the virtual stack • In virtual hosts switching is done in software hence has all these issues. • TOE and RDMA support are available in some clouds (including Bigstep). Source: Performance Evaluation of Container-based Virtualization for High Performance Computing Environments Miguel G et all. PUCRS 2014

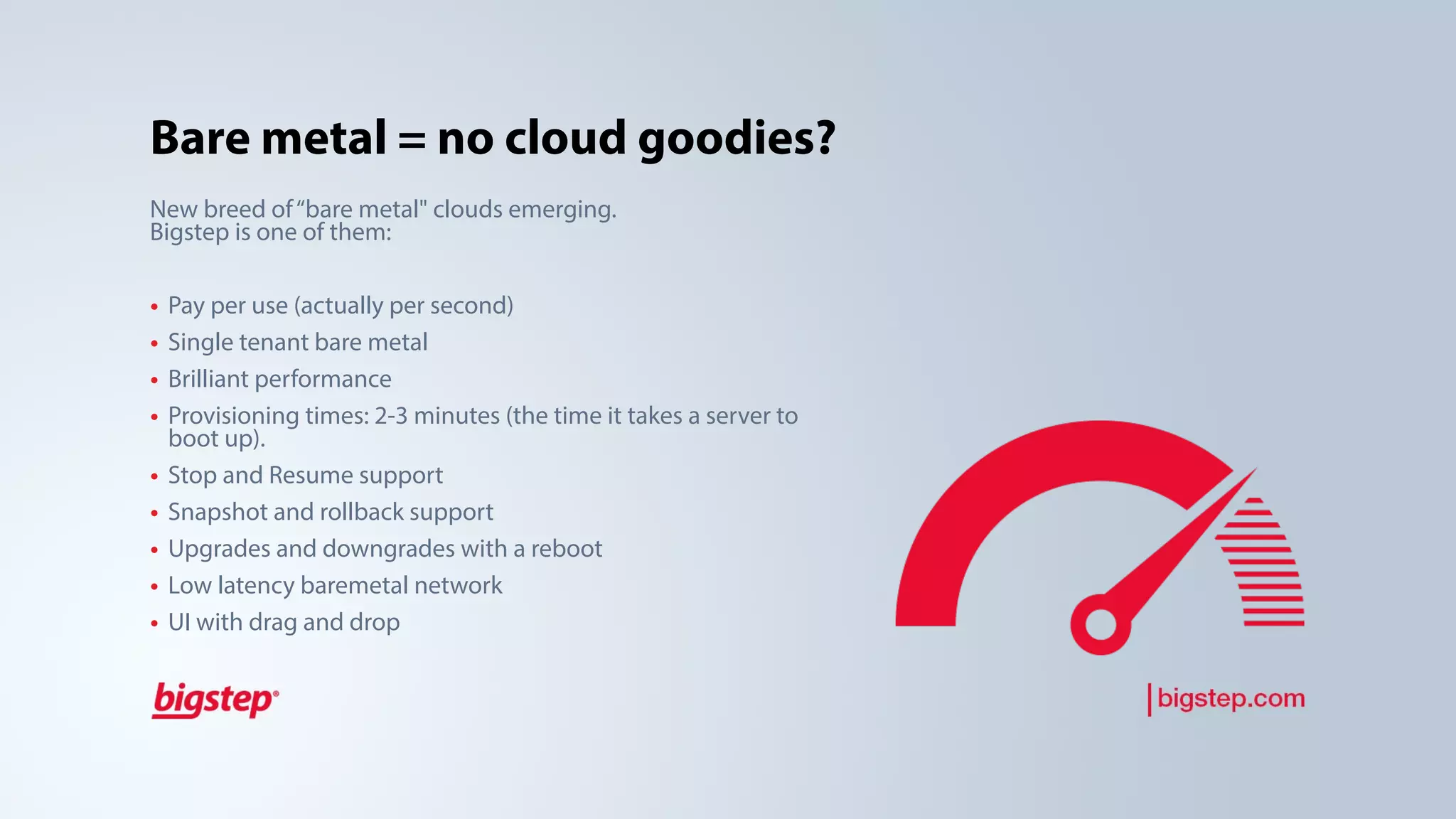

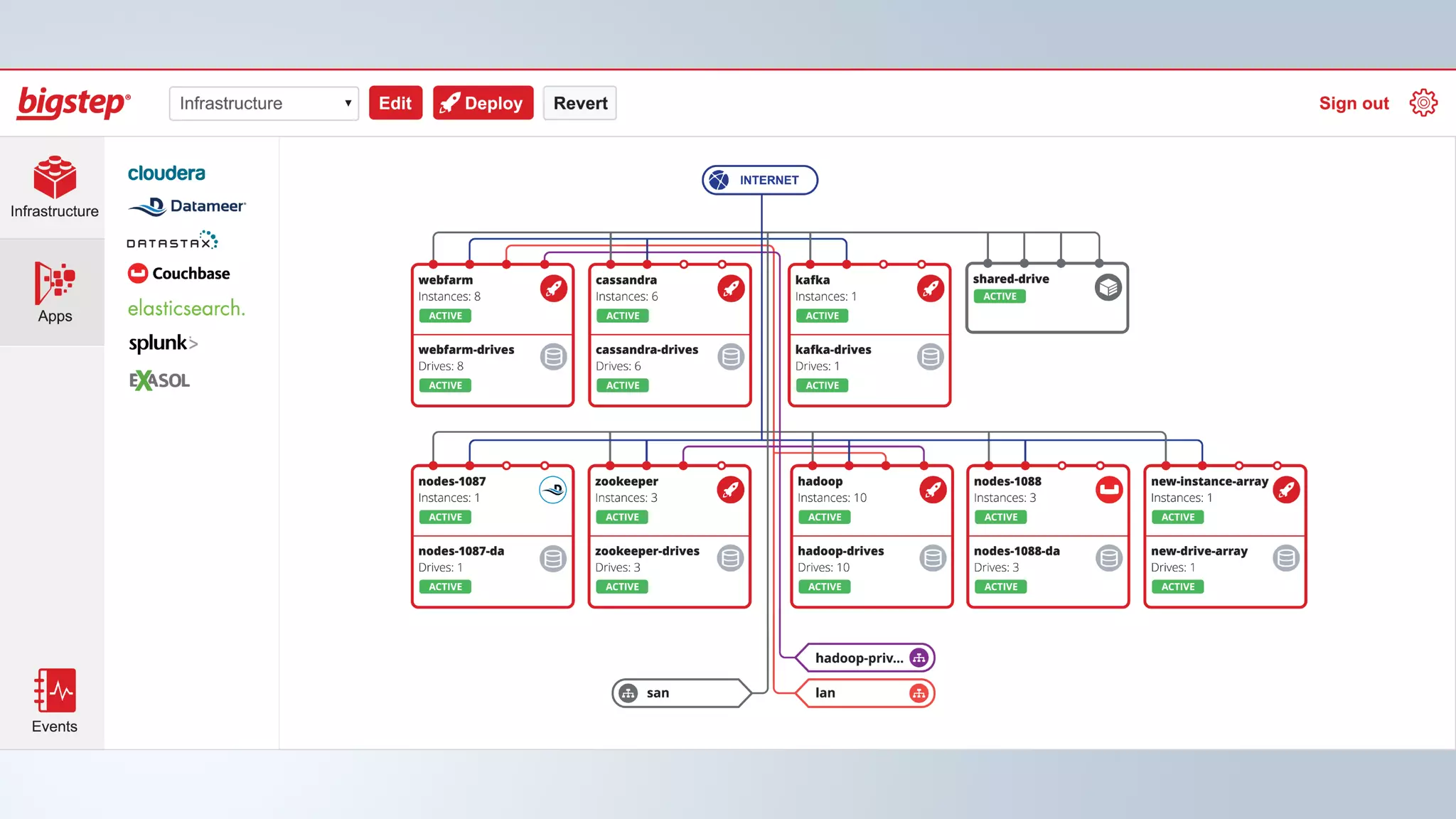

- 22. Bare metal =no cloud goodies? New breed of“bare metal" clouds emerging. Bigstep is one of them: • Pay per use (actually per second) • Single tenant bare metal • Brilliant performance • Provisioning times: 2-3 minutes (the time it takes a server to boot up). • Stop and Resume support • Snapshot and rollback support • Upgrades and downgrades with a reboot • Low latency baremetal network • UI with drag and drop

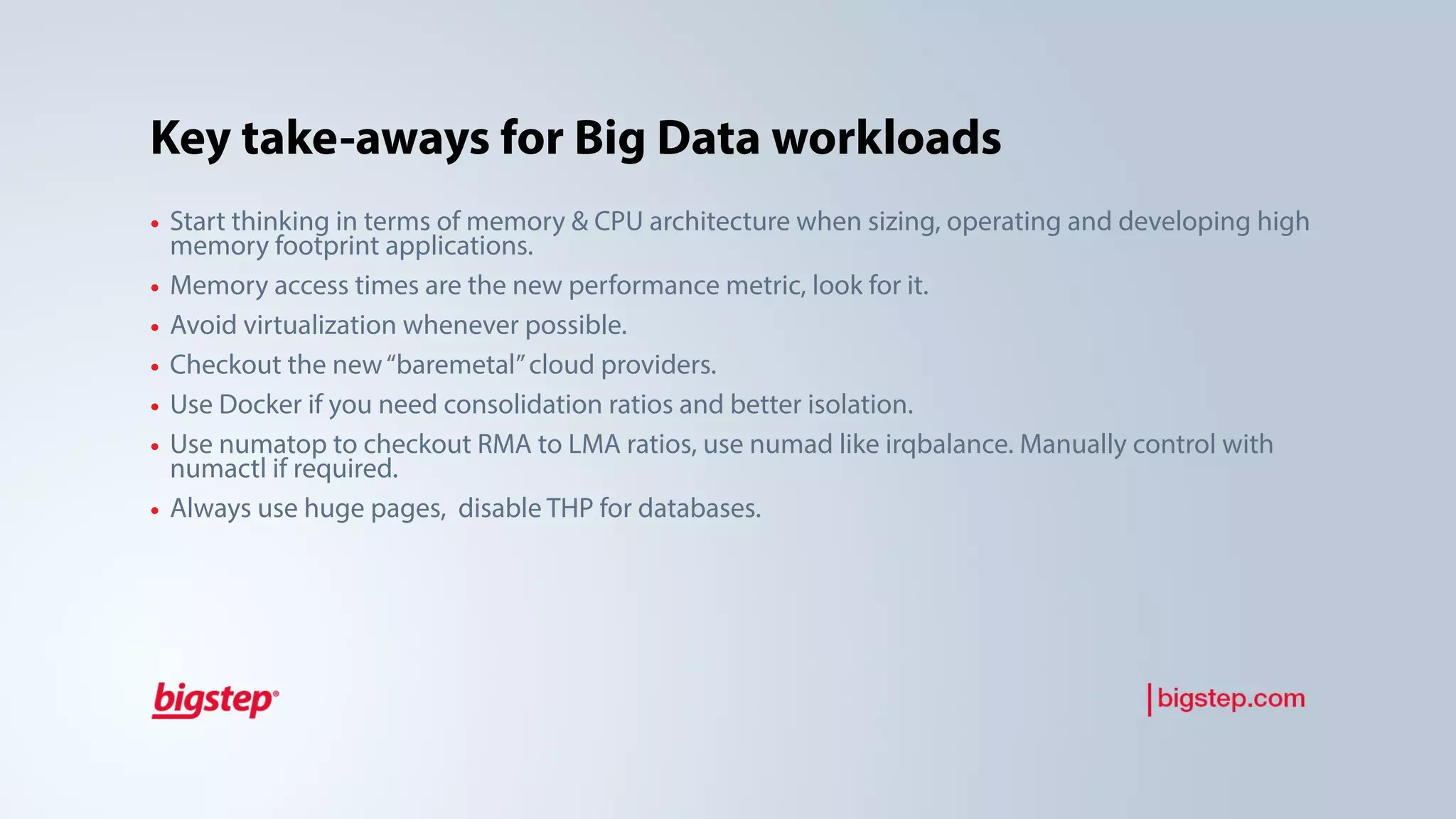

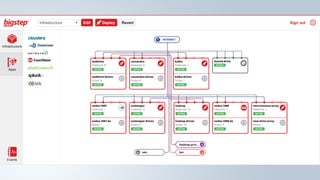

- 25. Key take-aways forBig Data workloads • Start thinking in terms of memory & CPU architecture when sizing, operating and developing high memory footprint applications. • Memory access times are the new performance metric, look for it. • Avoid virtualization whenever possible. • Checkout the new“baremetal”cloud providers. • Use Docker if you need consolidation ratios and better isolation. • Use numatop to checkout RMA to LMA ratios, use numad like irqbalance. Manually control with numactl if required. • Always use huge pages, disable THP for databases.
