1. MEETTHE
SELENIUM GRID

2. AS WEB DEVELOPER || QA
WE WANT
Speedometer by Jamie Dickinson
flow by AdamTerpenin
Responsive Design by Korawan.M
FAST PARALLEL MULTIPLE
BROWSERS / OS

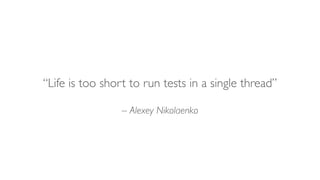

3. – Alexey Nikolaenko
“Life is too short to run tests in a single thread”

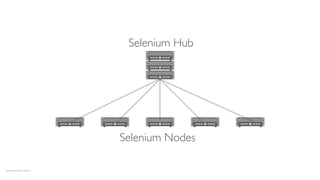

4. servers by Jaime Carrion
Selenium Nodes
Selenium Hub

5. SELENIUM HUB
• Entry point for tests
• Routes your commands to
proper Selenium Node
• Manages sessions
Selenium Hub

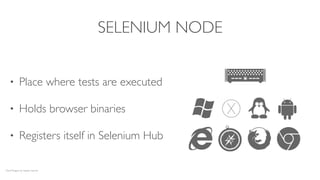

6. SELENIUM NODE
• Place where tests are executed
• Holds browser binaries
• Registers itself in Selenium Hub
Nerd Penguin by Hayden Kerrisk

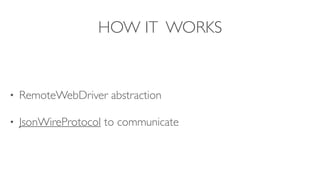

8. HOW IT WORKS
• RemoteWebDriver abstraction
• JsonWireProtocol to communicate

9. HOW IT WORKS
Nodes register on grid

10. HOW IT WORKS
User by Wilson Joseph from the Noun Project

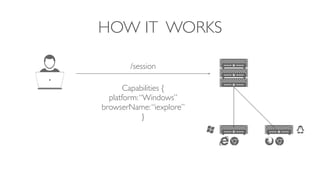

11. HOW IT WORKS
Capabilities {
platform:“Windows”
browserName:“iexplore”
}
/session

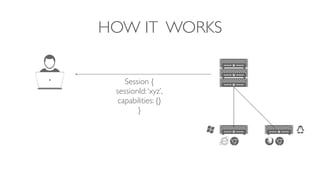

12. HOW IT WORKS
Session {
sessionId:‘xyz’,
capabilities: {}
}

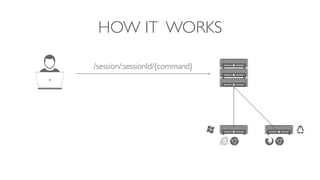

13. HOW IT WORKS
/session/:sessionId/{command}

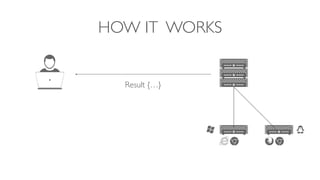

14. HOW IT WORKS
Result {…}

15. HOW IT WORKS
DELETE /session/:sessionId

16. OTHER OPTIONS?

17. SAUCE LABS
• Automated & Manual testing in browsers
• Supports over 500 browser / platform combinations
• On demand grid
• Reporting (video, screenshots, logs)
• No maintenance costs
• SSLTunnel for ‘security’ (Sauce Connect)

18. SAUCE LABS

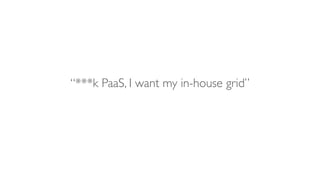

19. “***k PaaS, I want my in-house grid”

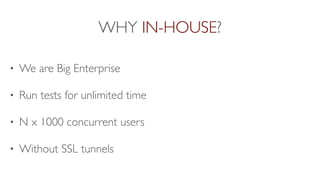

20. WHY IN-HOUSE?
• We are Big Enterprise
• Run tests for unlimited time
• N x 1000 concurrent users
• Without SSL tunnels

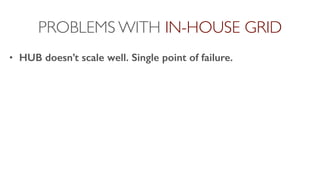

21. PROBLEMS WITH IN-HOUSE GRID
• HUB doesn’t scale well. Single point of failure.

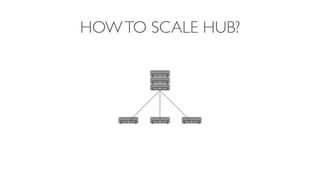

22. HOWTO SCALE HUB?

23. HOWTO SCALE HUB?
… …

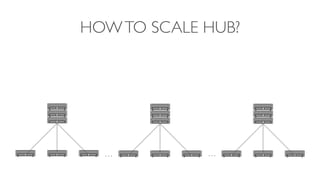

24. HOWTO SCALE HUB?
… …

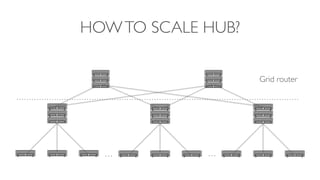

25. HOWTO SCALE HUB?
Grid router
… …

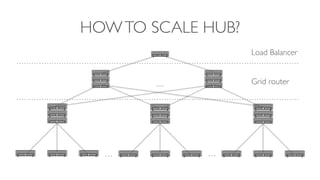

26. HOWTO SCALE HUB?
Grid router
… …
…
Load Balancer

27. SELENIUM GRID ROUTER
• Routes and proxies Selenium WedDriver requests to multiple
Selenium Hubs
• Access control & Quotas
• Developed and used byYandex
• https://github.com/seleniumkit/gridrouter

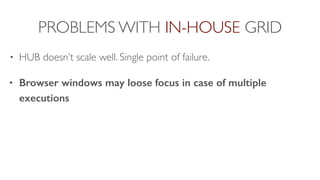

28. PROBLEMS WITH IN-HOUSE GRID
• HUB doesn’t scale well. Single point of failure.
• Browser windows may loose focus in case of multiple
executions

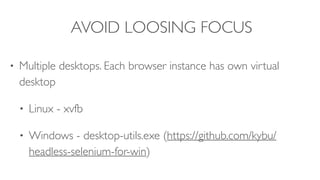

29. AVOID LOOSING FOCUS
• Multiple desktops. Each browser instance has own virtual
desktop
• Linux - xvfb
• Windows - desktop-utils.exe (https://github.com/kybu/
headless-selenium-for-win)

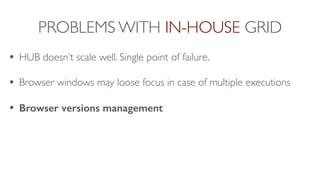

30. PROBLEMS WITH IN-HOUSE GRID
• HUB doesn’t scale well. Single point of failure.
• Browser windows may loose focus in case of multiple executions
• Browser versions management

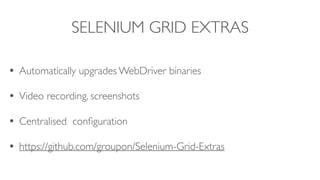

31. SELENIUM GRID EXTRAS
• Automatically upgrades WebDriver binaries
• Video recording, screenshots
• Centralised configuration
• https://github.com/groupon/Selenium-Grid-Extras

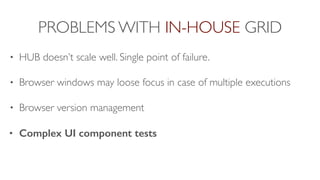

32. PROBLEMS WITH IN-HOUSE GRID
• HUB doesn’t scale well. Single point of failure.
• Browser windows may loose focus in case of multiple executions
• Browser version management
• Complex UI component tests

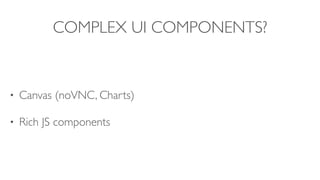

33. COMPLEX UI COMPONENTS?
• Canvas (noVNC, Charts)
• Rich JS components

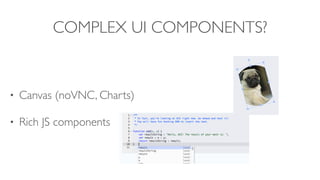

34. COMPLEX UI COMPONENTS?
• Canvas (noVNC, Charts)
• Rich JS components

35. SELENIUM GRID EXTENSIONS
by sterodium.io

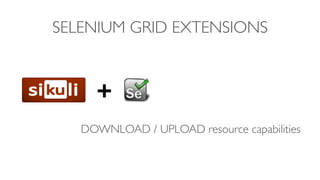

36. SELENIUM GRID EXTENSIONS
DOWNLOAD / UPLOAD resource capabilities

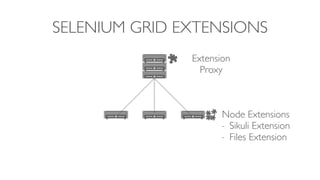

37. SELENIUM GRID EXTENSIONS
Extension
Proxy
Node Extensions
- Sikuli Extension
- Files Extension

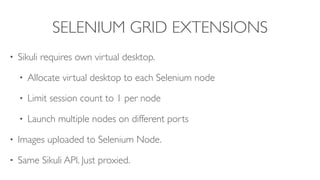

38. SELENIUM GRID EXTENSIONS
• Sikuli requires own virtual desktop.
• Allocate virtual desktop to each Selenium node
• Limit session count to 1 per node
• Launch multiple nodes on different ports
• Images uploaded to Selenium Node.
• Same Sikuli API. Just proxied.

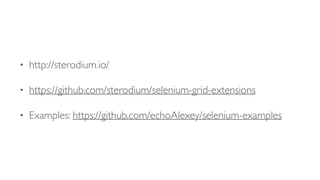

39. • http://sterodium.io/
• https://github.com/sterodium/selenium-grid-extensions
• Examples: https://github.com/echoAlexey/selenium-examples

44. Q/A

45. ABOUT ME
• Software Engineer @ NeuedaTechnologies
• Working on a set of tools forTest Automation.
• @echoAlexey
• alexey@tcherezov.com
