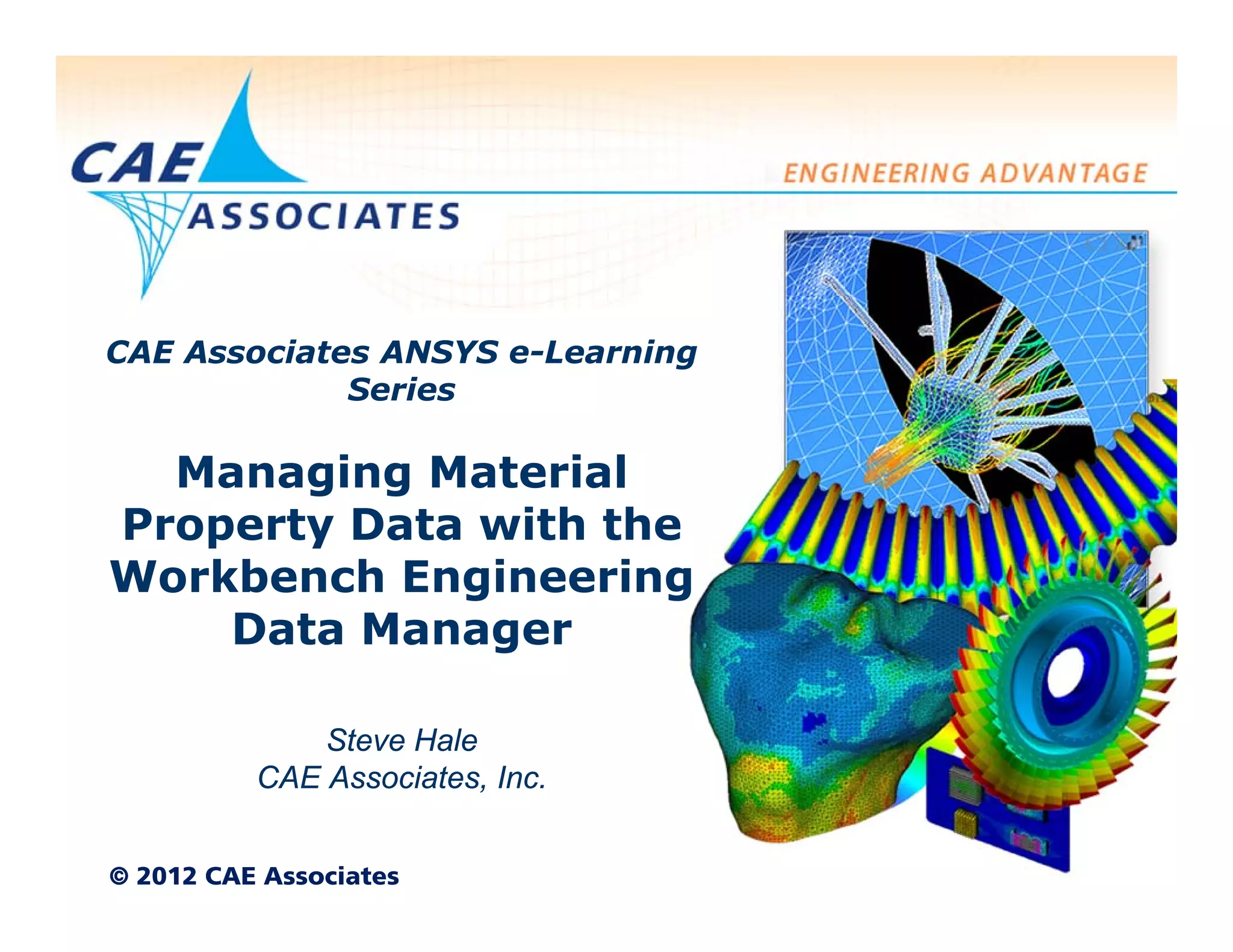

1. CAE Associates ANSYS e-Learning
Series
Managing Material
Property Data with theProperty Data with the
Workbench Engineering
Data Manager
Steve Hale
CAE Associates Inc
© 2012 CAE Associates
CAE Associates, Inc.

2. Introduction
 Objectives: Objectives:
— Provide an overview of the Engineering Data manager.
— Demonstrate the procedure for using the Engineering Data manager to enter,
store view organize and import material property datastore, view, organize, and import material property data.
 Why?
— To enter critical material property data.
— To organize and share material property data.
— Speed up the analysis process and improve work flow
Material Properties
2

3. Introduction
 What is the Engineering Data Manager? What is the Engineering Data Manager?
— It is a tool for defining, storing, and organizing material properties.
— Can use properties stored in material libraries.
P ti b d t lib i f i th W kb h j t— Properties can be saved to libraries for use in other Workbench projects.
• POLL
3

4. Demonstration
 Model: Fan and case thermal-structural analysis Model: Fan and case thermal-structural analysis
— Cyclically symmetric sector model
 Define different material properties for the fan/rotor and for the case
— Fan/rotor: Aluminum properties – temperature-dependent
— Case: Steel (Modified properties from an existing library)
4

5. Material Properties
 The Engineering Data application is native to the Workbench The Engineering Data application is native to the Workbench
environment.
— Engineering Data can be added as a standalone or as part of an Analysis
SystemSystem.
Standalone Component Included in Analysis System
5

6. Material Properties
 The Engineering Data display is controlled by two icons on the toolbar: The Engineering Data display is controlled by two icons on the toolbar:
 The Physics Filter toggles between displaying all The Physics Filter toggles between displaying all
materials/properties and displaying only materials/properties relevant to
the active analysis system.
 The Data Source/Project toggle controls the Engineering Data
Sources display.
Engineering Data Sources = Material Libraries— Engineering Data Sources = Material Libraries
— Can add library materials to the Project
Engineering Data Source
W kb h P j t
6
g g
(Material Library) Workbench Project

7. Material Properties
 The Engineering Data application in Data Source view: The Engineering Data application in Data Source view:
P t T bl
Data Sources
(material libraries)
T lb
Property Table
Toolbox
P t
Individual Materials
Property
Chart
Material Properties
7
Material Properties

8. Material Properties
 The Engineering Data Table:g g
— These are the materials that are available for use in the analysis.
Materials available for the current analysisMaterials available for the current analysis
8

9. Material Properties
 ANSYS supplies a number of material libraries shown above New user ANSYS supplies a number of material libraries shown above. New user
defined libraries may be added by entering a name and a location for the
library file.
 Materials can be added to the Favorites area from multiple data sources
making it a custom library available in every project.
9

10. Material Properties
 The Toolbox provides numerous material property definitions that can bep p p y
added to new or existing materials.
 To modify materials in existing libraries the library must first be unlocked To modify materials in existing libraries, the library must first be unlocked.
— Materials can be modified or added to the library.
— Materials from other libraries can be added.
10

11. Material Properties
 Other info: Other info:
— Material Property import is available with Inventor, ProEngineer and NX.
— Materials imported from CAD will appear in the “Engineering Data” item of the
l i tanalysis system.
11

12. Summary and Conclusions
 The Engineering Data Manager The Engineering Data Manager
provides a powerful tool for defining,
organizing, and storing material
properties.properties.
— A great variety of material models are
available in the Toolbox menu.
— Material data can be stored in librariesMaterial data can be stored in libraries
which can be accessed in any project.
— Properties can be temperature
dependent and will be plotted for
review.
— To use Materials in a project, materials
must be added to the Engineering
D t t blData table.
12

13. CAE Associates ANSYS e-Learning Series
 Next Webinar: Structural Element Selection Next Webinar: Structural Element Selection
— October 16th and 18th
— Peter Barrett
THANK YOU
13
