1. Enhancing
the
User
Interface
Using
Titanium
Modules
Sco8
Mason

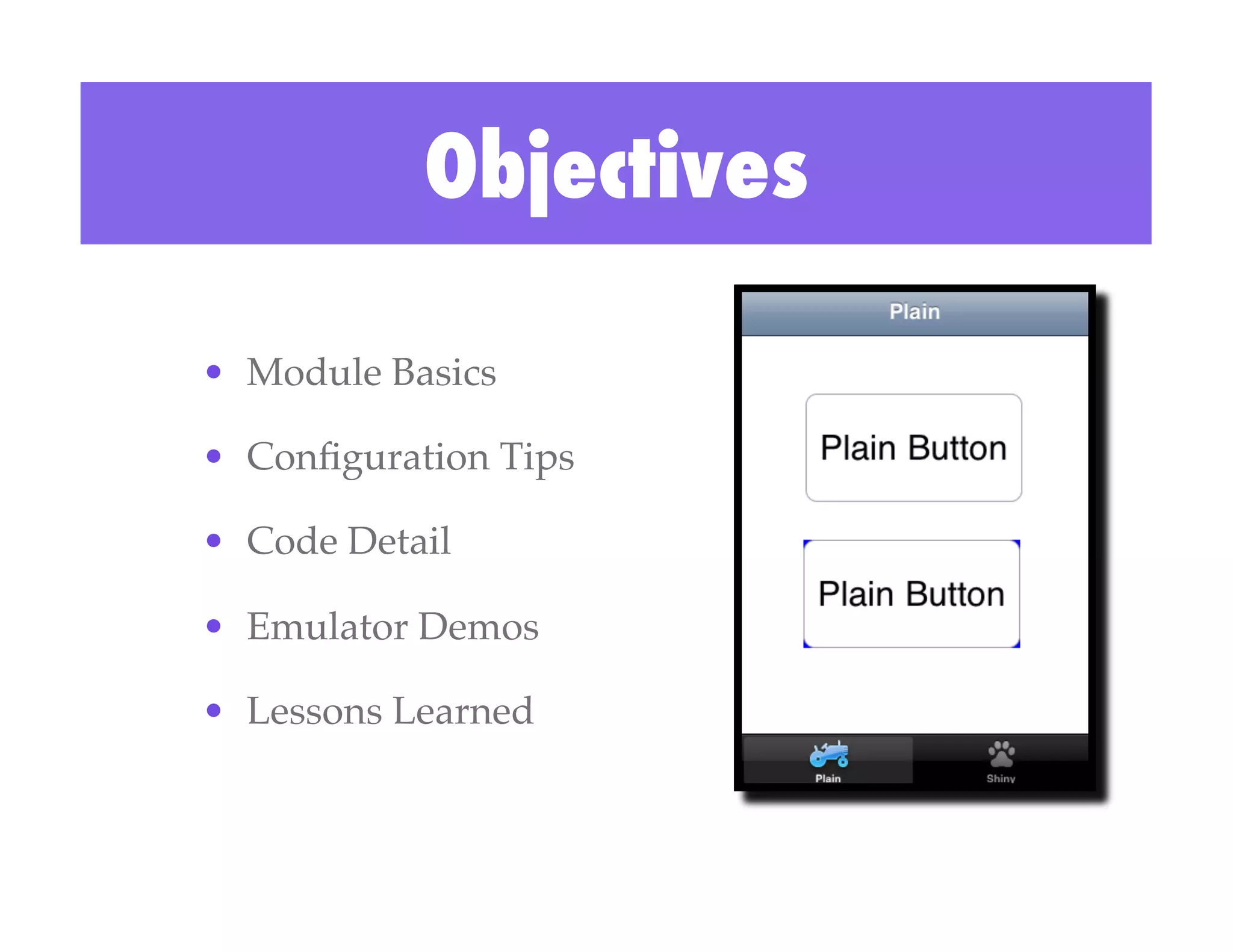

2. Objectives
• Module Basics!
• Configuration Tips!
• Code Detail!
• Emulator Demos!
• Lessons Learned!

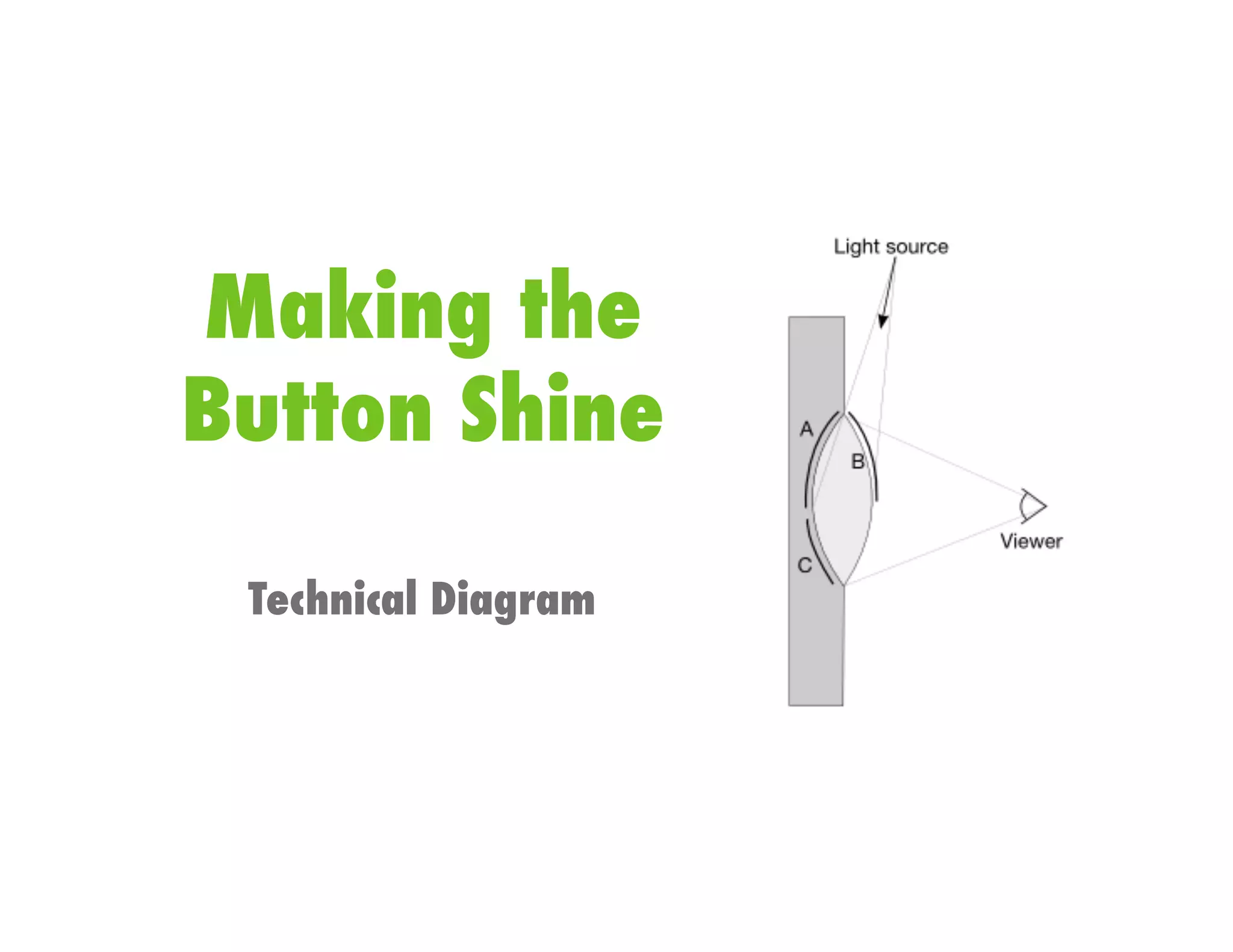

3. Making the
Button Shine
Technical Diagram

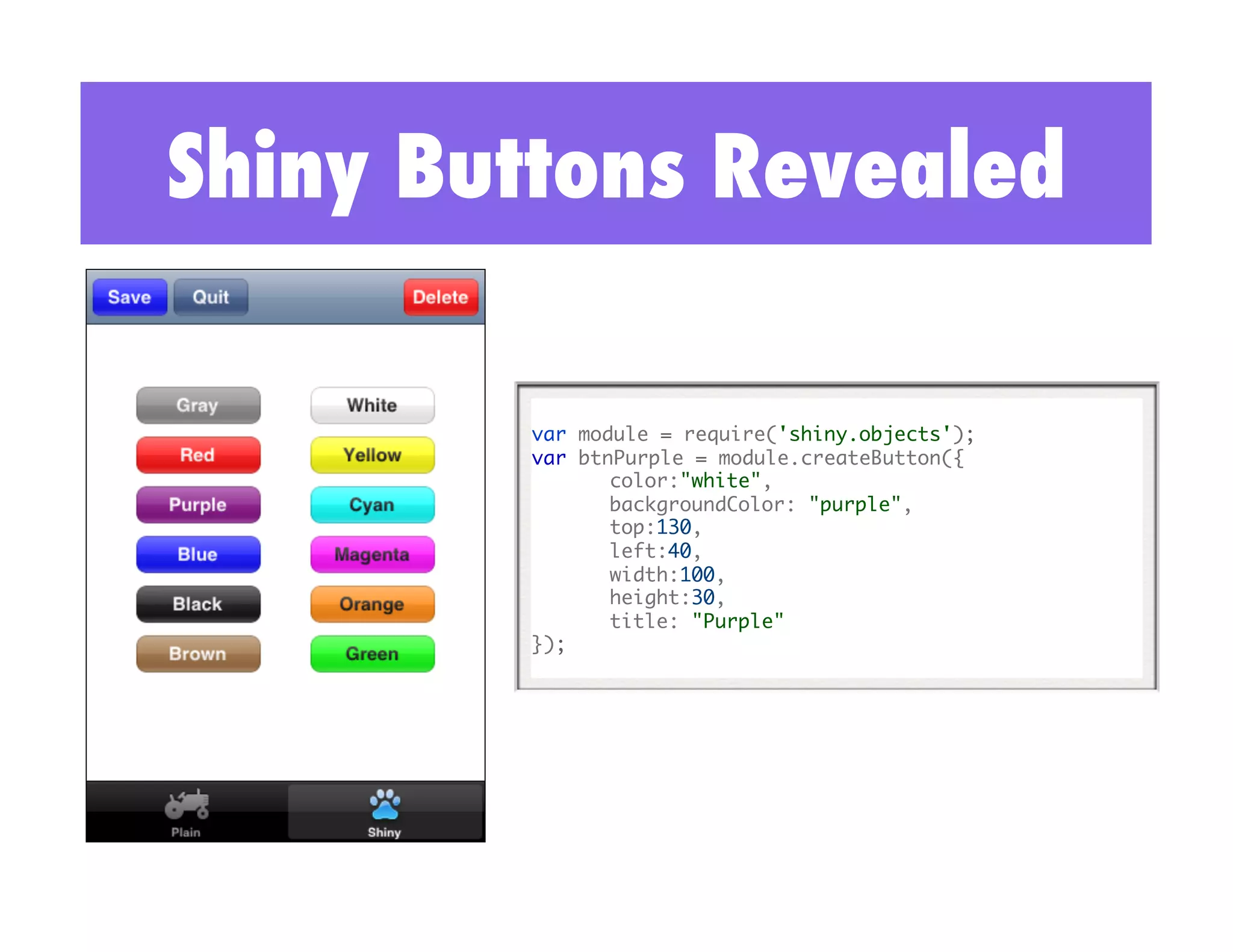

4. Shiny Buttons Revealed
var module = require('shiny.objects');
var btnPurple = module.createButton({
color:"white",
backgroundColor: "purple",
top:130,
left:40,
width:100,
height:30,
title: "Purple"
});

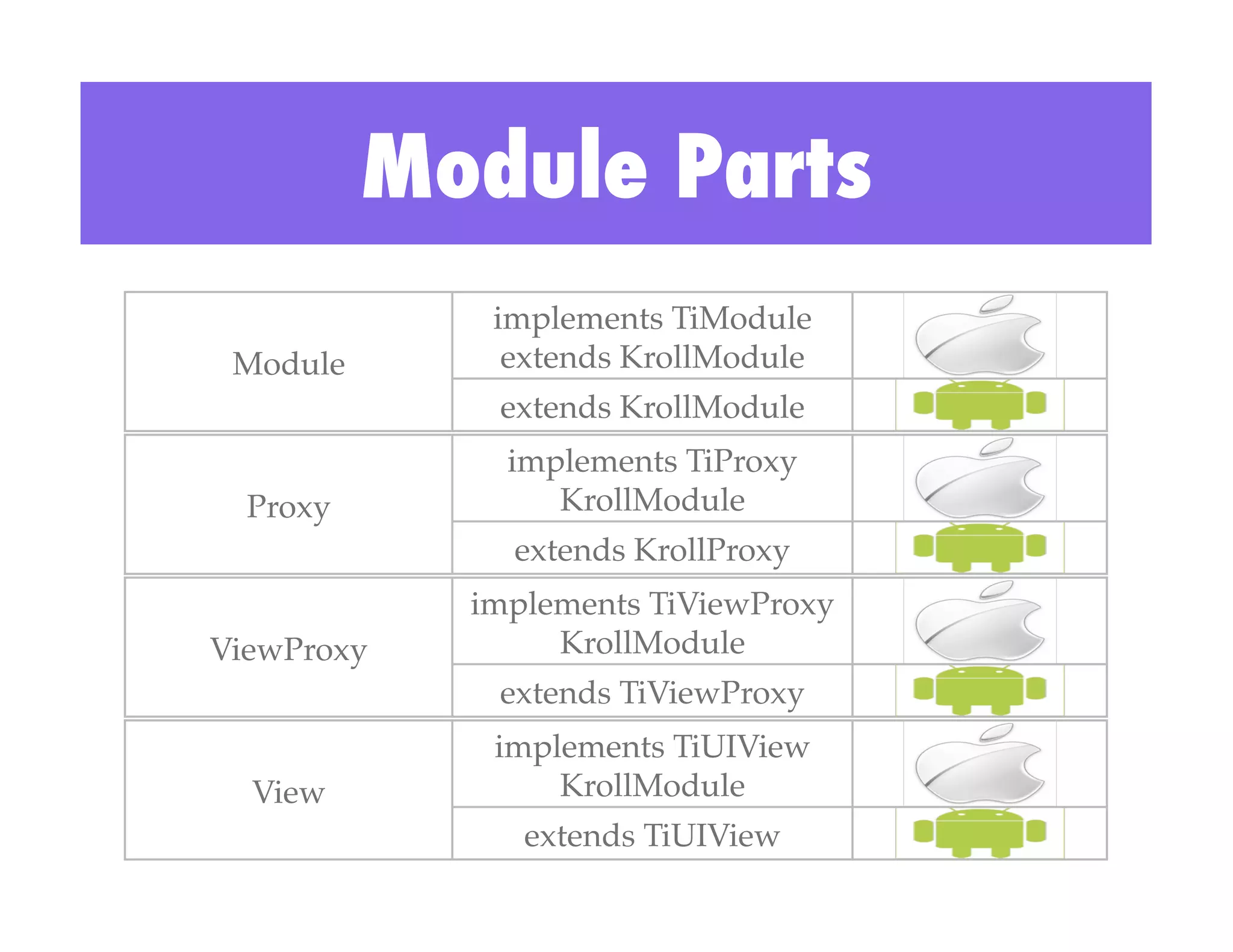

5. Module Parts
implements TiModule!
Module! extends KrollModule!
extends KrollModule!
implements TiProxy
Proxy! KrollModule!
extends KrollProxy!
implements TiViewProxy
ViewProxy! KrollModule!
extends TiViewProxy!
implements TiUIView
View! KrollModule!
extends TiUIView!

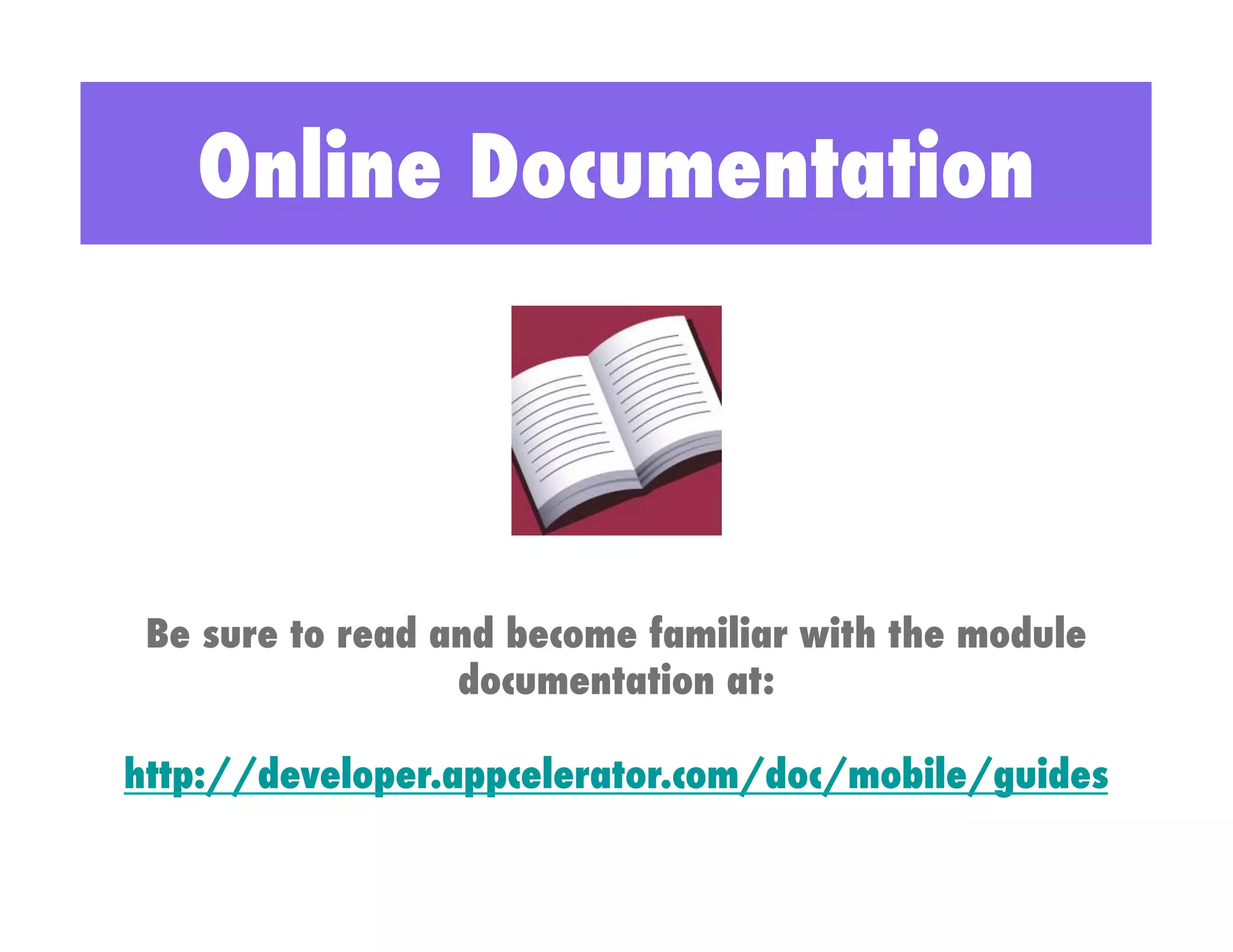

6. Online Documentation
Be sure to read and become familiar with the module
documentation at:
http://developer.appcelerator.com/doc/mobile/guides

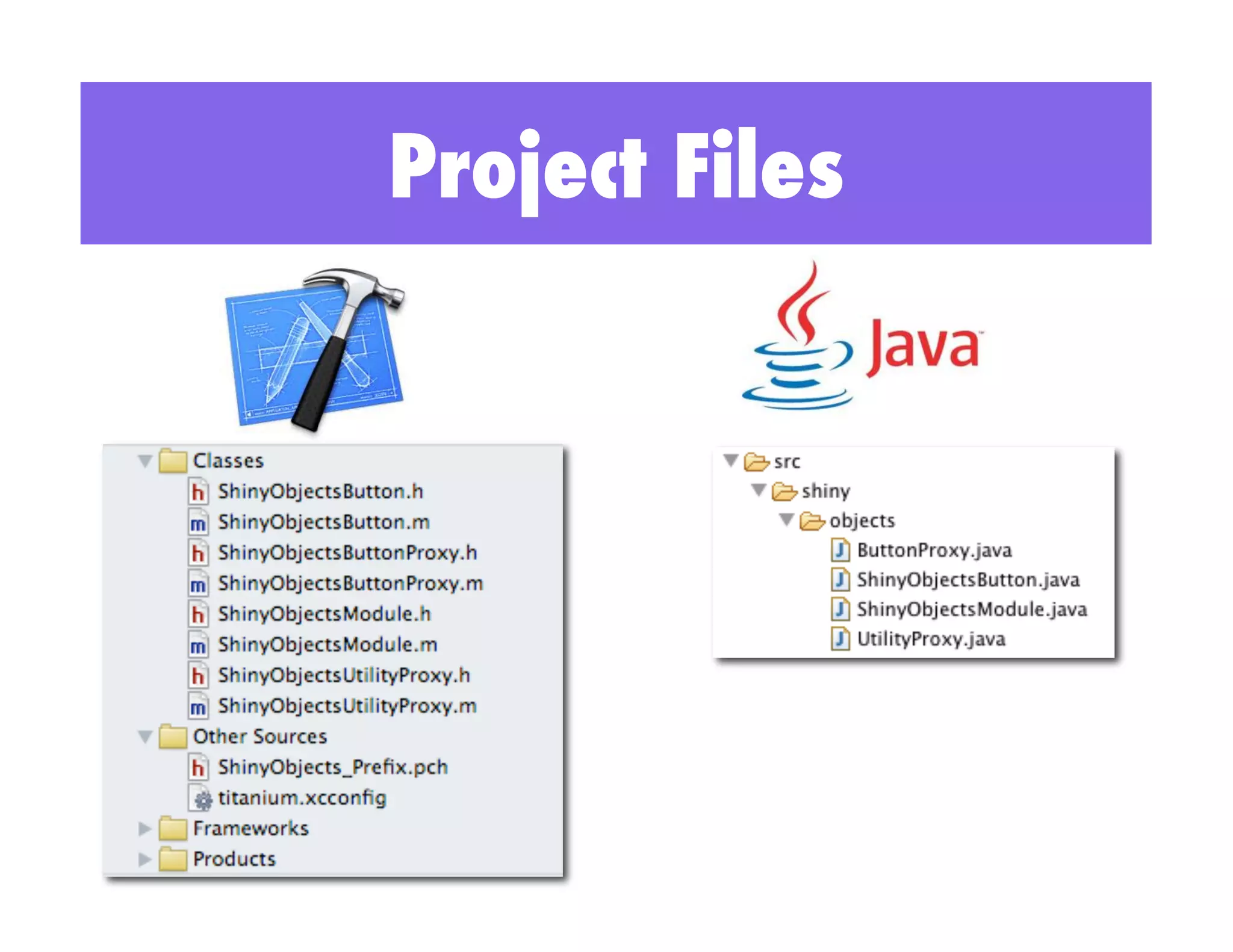

7. Project Files

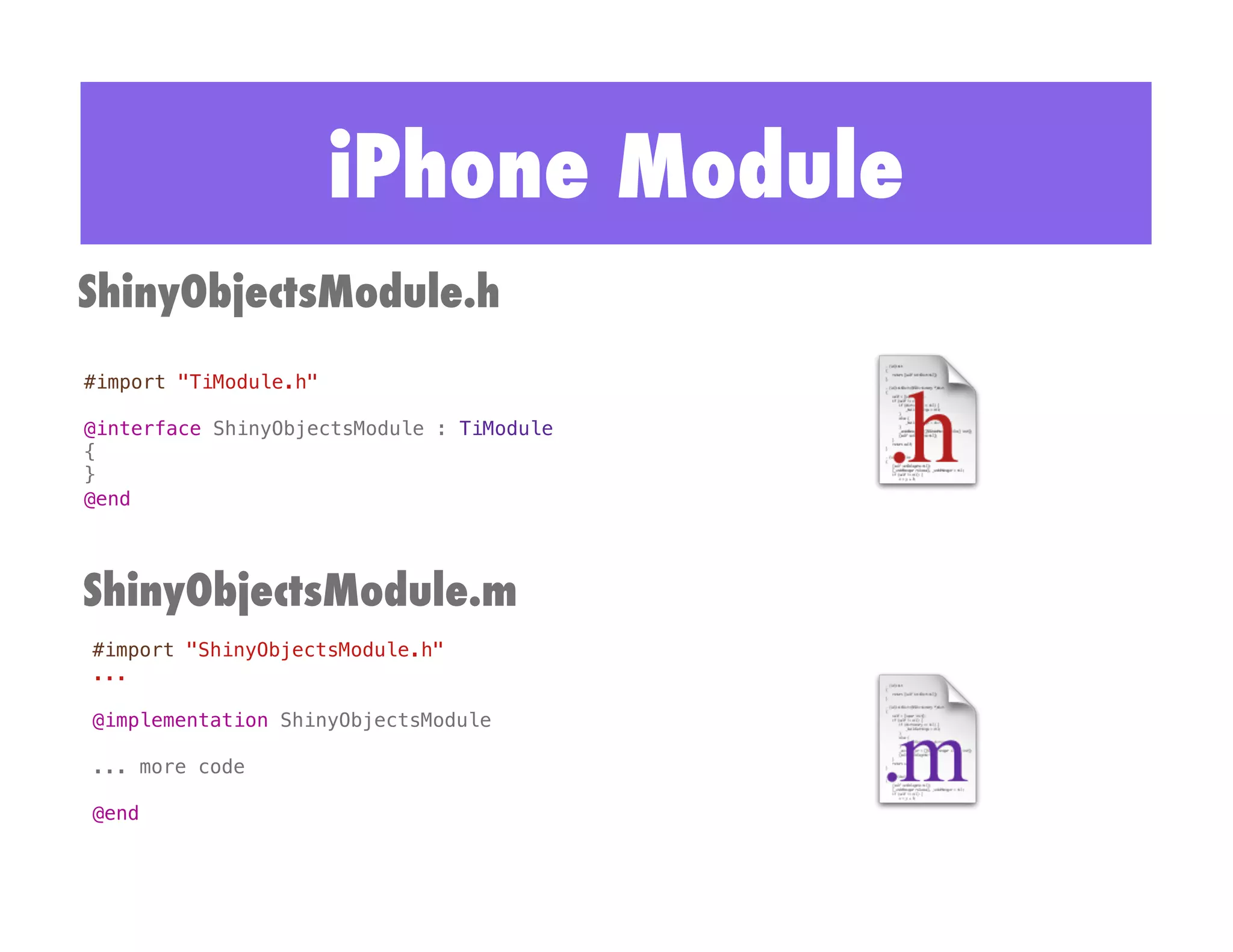

8. iPhone Module
ShinyObjectsModule.h
#import "TiModule.h"!
@interface ShinyObjectsModule : TiModule !
{!
}!
@end!
ShinyObjectsModule.m
#import "ShinyObjectsModule.h"!
...!
@implementation ShinyObjectsModule!
... more code!
@end!

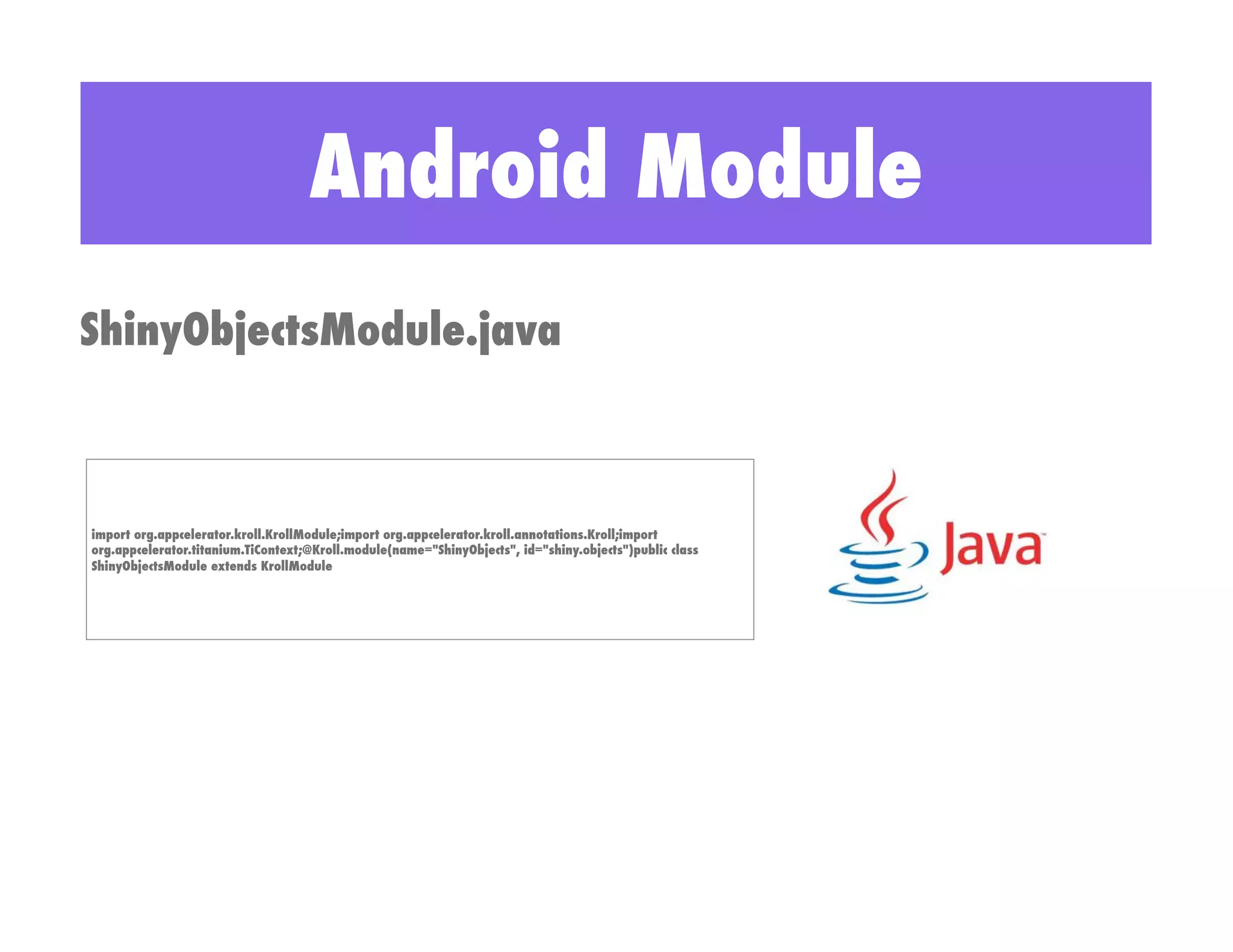

9. Android Module
ShinyObjectsModule.java
import org.appcelerator.kroll.KrollModule;import org.appcelerator.kroll.annotations.Kroll;import
org.appcelerator.titanium.TiContext;@Kroll.module(name="ShinyObjects", id="shiny.objects")public class
ShinyObjectsModule extends KrollModule

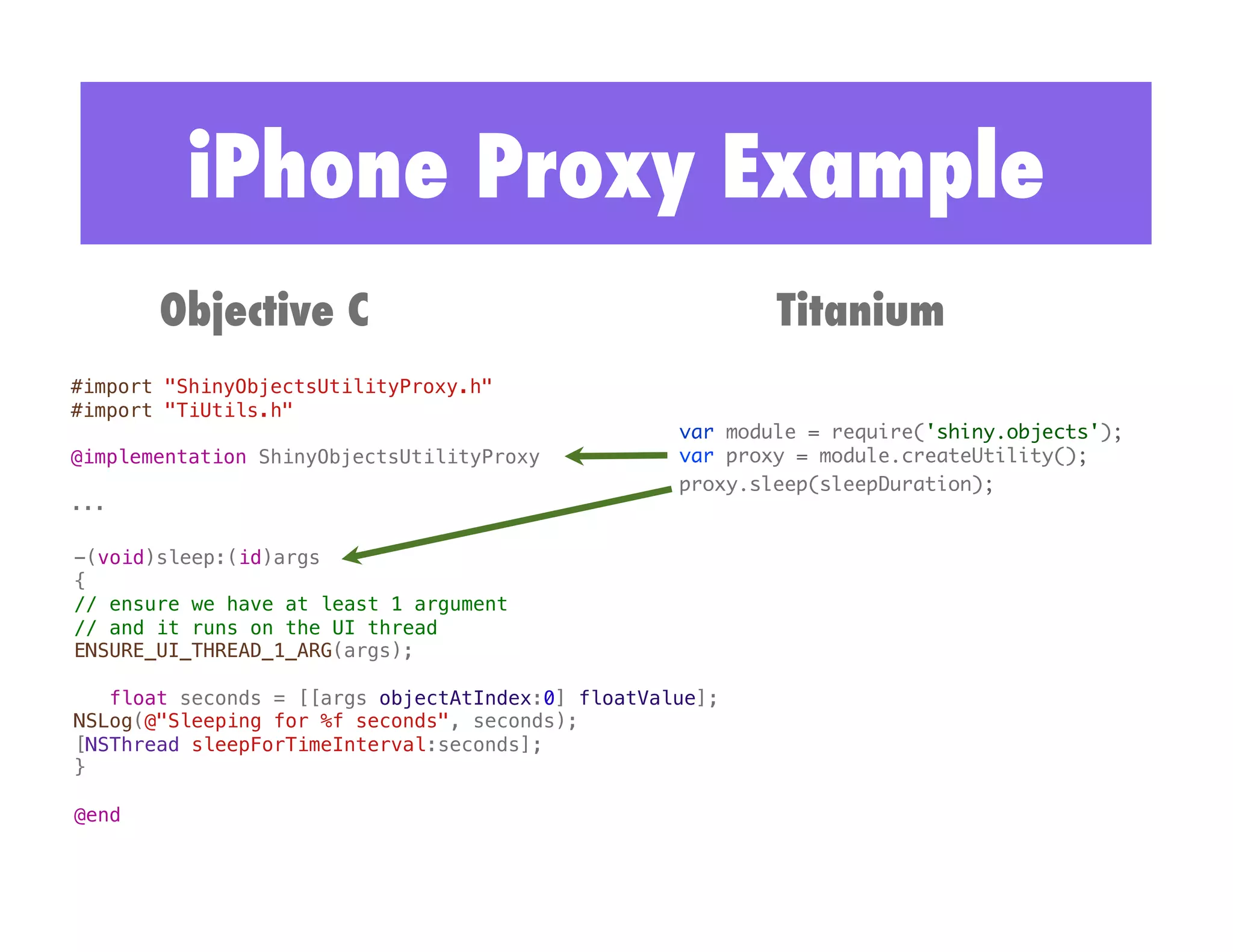

10. iPhone Proxy Example
Objective C Titanium
#import "ShinyObjectsUtilityProxy.h"!
#import "TiUtils.h"!
var module = require('shiny.objects');
@implementation ShinyObjectsUtilityProxy ! var proxy = module.createUtility();
proxy.sleep(sleepDuration);
...!
-(void)sleep:(id)args!
{!
// ensure we have at least 1 argument !
// and it runs on the UI thread!
ENSURE_UI_THREAD_1_ARG(args);!
float seconds = [[args objectAtIndex:0] floatValue];!
NSLog(@"Sleeping for %f seconds", seconds);!
[NSThread sleepForTimeInterval:seconds];!
}!
@end!

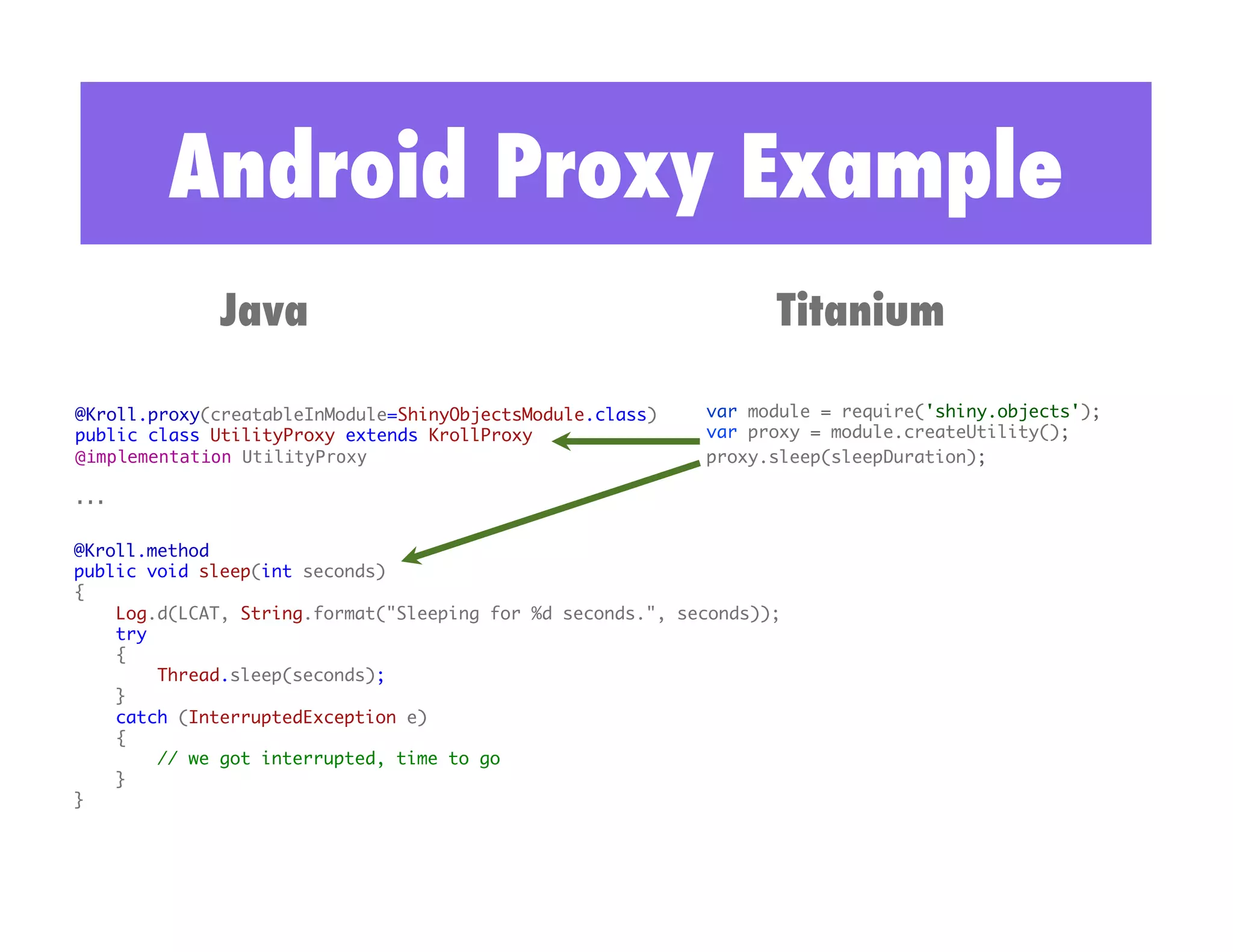

11. Android Proxy Example
Java Titanium
@Kroll.proxy(creatableInModule=ShinyObjectsModule.class) var module = require('shiny.objects');
public class UtilityProxy extends KrollProxy var proxy = module.createUtility();
@implementation UtilityProxy ! proxy.sleep(sleepDuration);
...!
@Kroll.method
public void sleep(int seconds)
{
Log.d(LCAT, String.format("Sleeping for %d seconds.", seconds));
try
{
Thread.sleep(seconds);
}
catch (InterruptedException e)
{
// we got interrupted, time to go
}
}

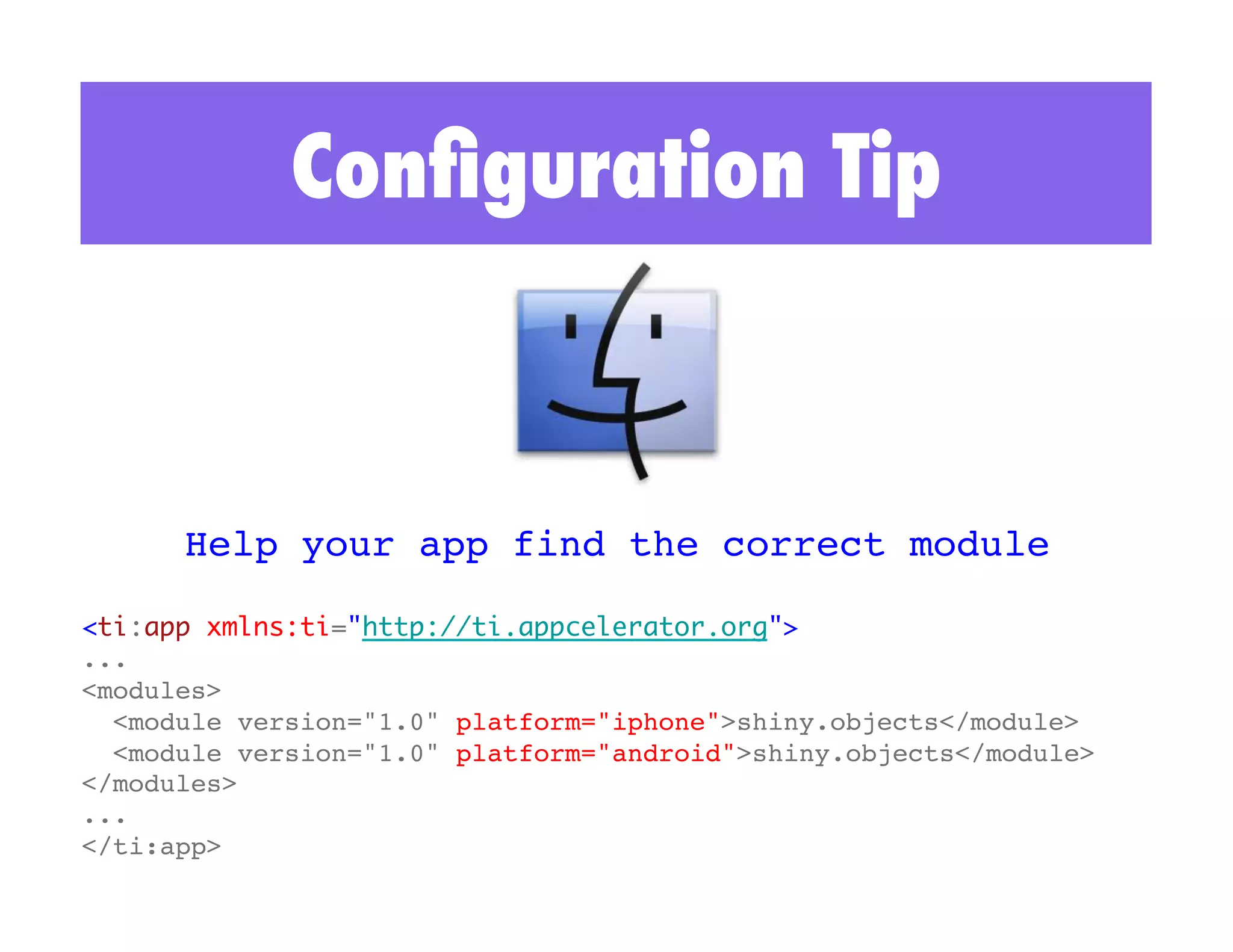

12. Configuration Tip
Help your app find the correct module!
<ti:app xmlns:ti="http://ti.appcelerator.org">
...!
<modules>!
<module version="1.0" platform="iphone">shiny.objects</module>!
<module version="1.0" platform="android">shiny.objects</module>!
</modules>!
...!
</ti:app>!

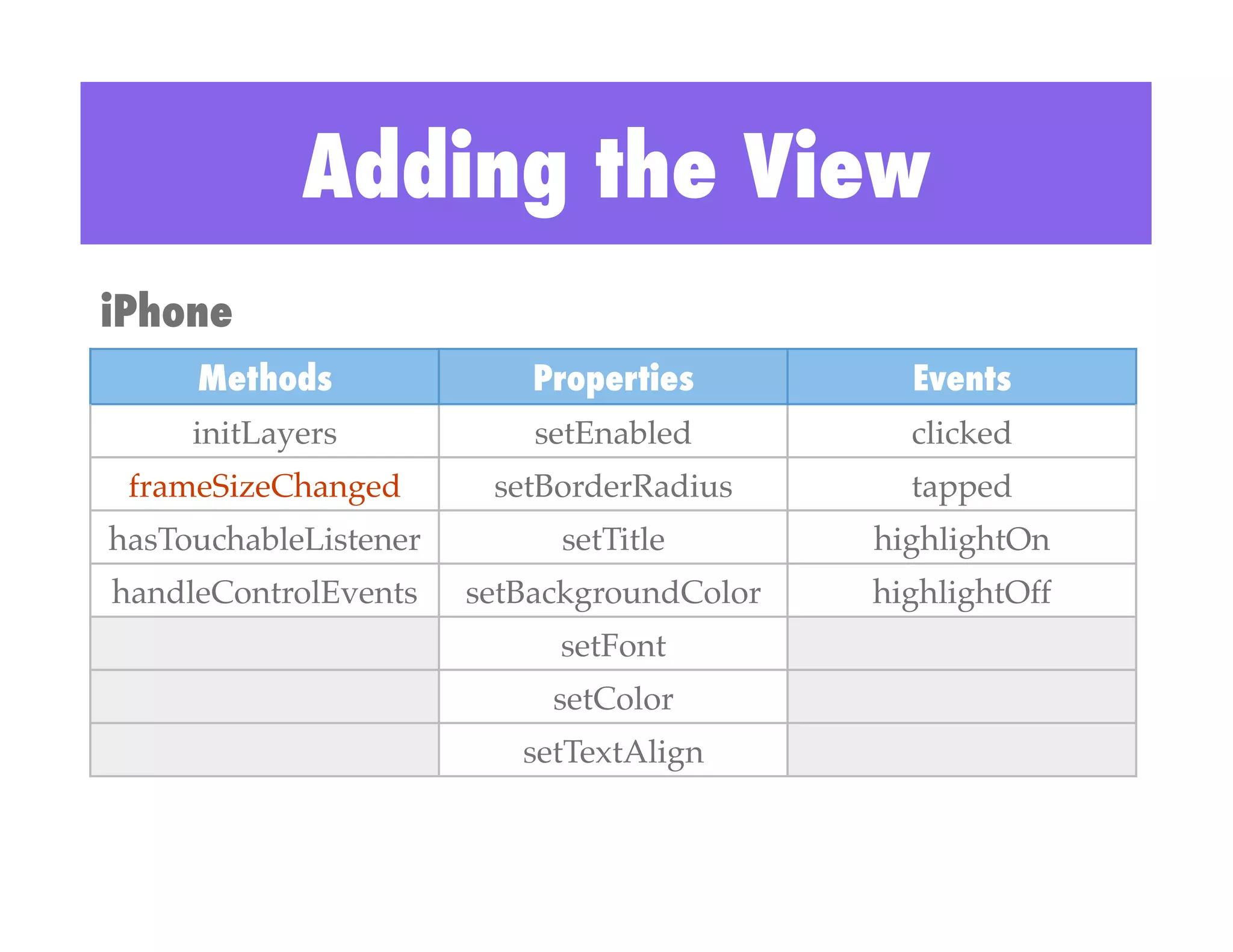

13. Adding the View
iPhone
Methods Properties Events
initLayers! setEnabled! clicked!
frameSizeChanged! setBorderRadius! tapped!
hasTouchableListener! setTitle! highlightOn!
handleControlEvents! setBackgroundColor! highlightOff!
setFont!
setColor!
setTextAlign!

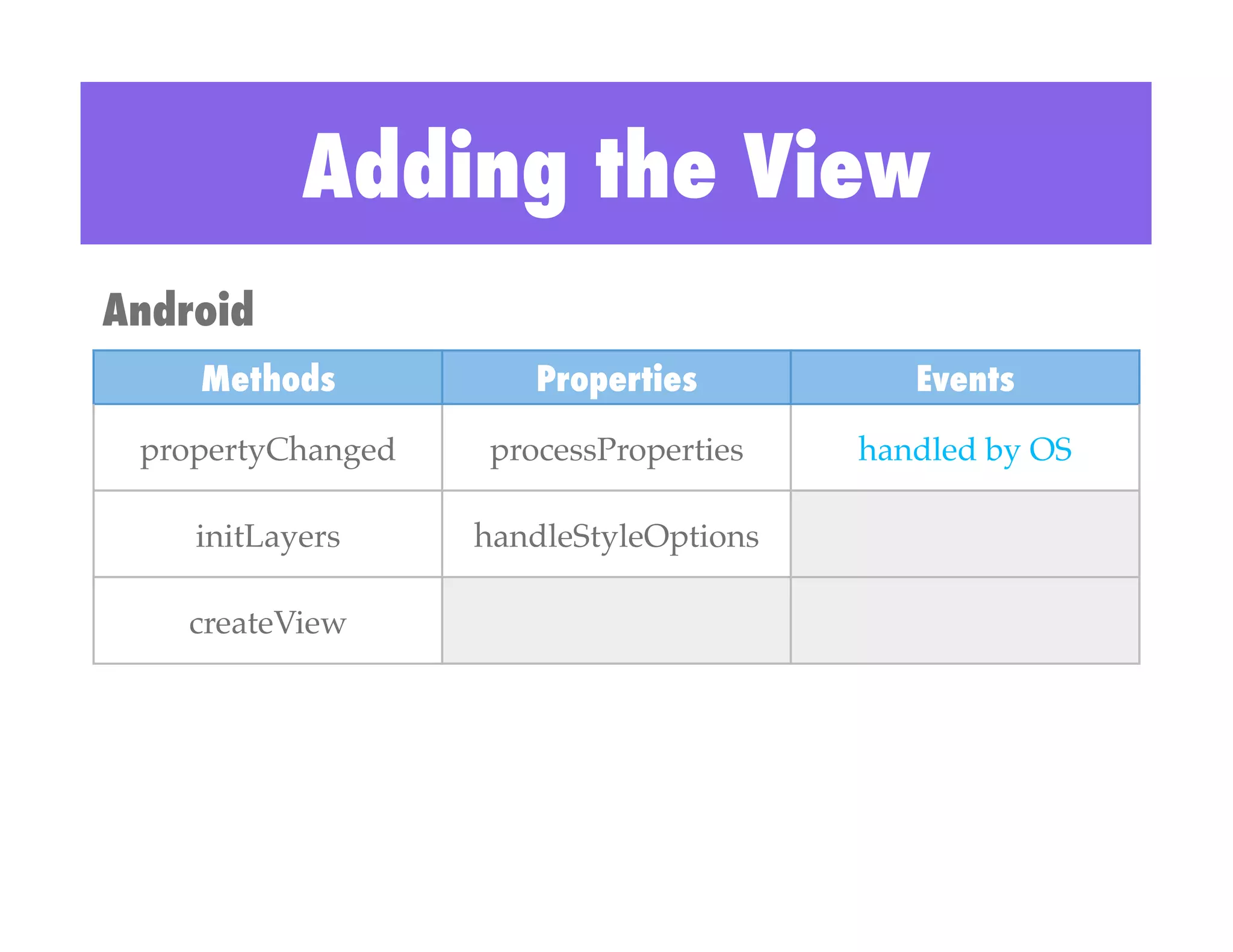

14. Adding the View
Android
Methods Properties Events
propertyChanged! processProperties! handled by OS!
initLayers! handleStyleOptions!
createView!

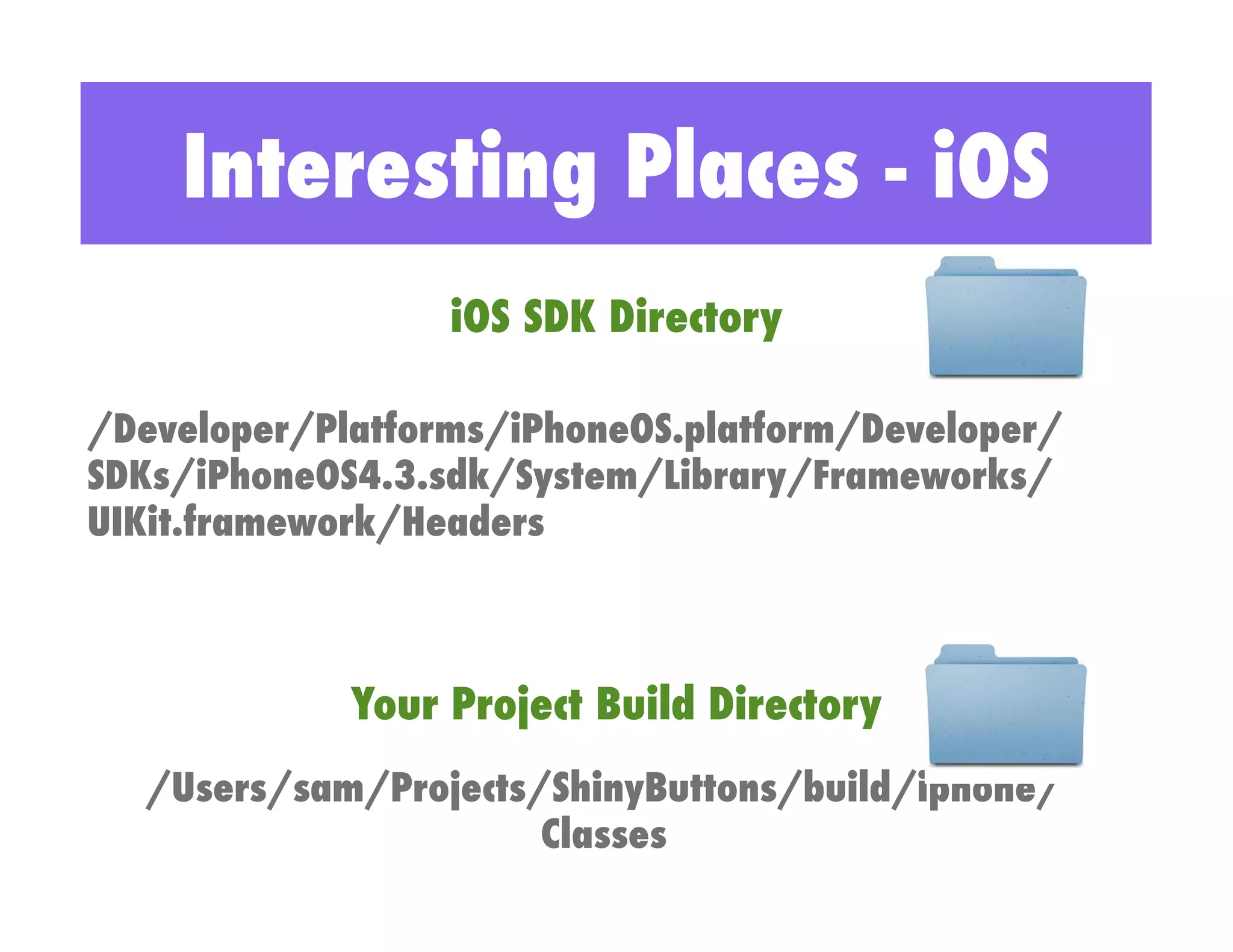

15. Interesting Places - iOS
iOS SDK Directory
/Developer/Platforms/iPhoneOS.platform/Developer/
SDKs/iPhoneOS4.3.sdk/System/Library/Frameworks/
UIKit.framework/Headers
Your Project Build Directory
/Users/sam/Projects/ShinyButtons/build/iphone/
Classes

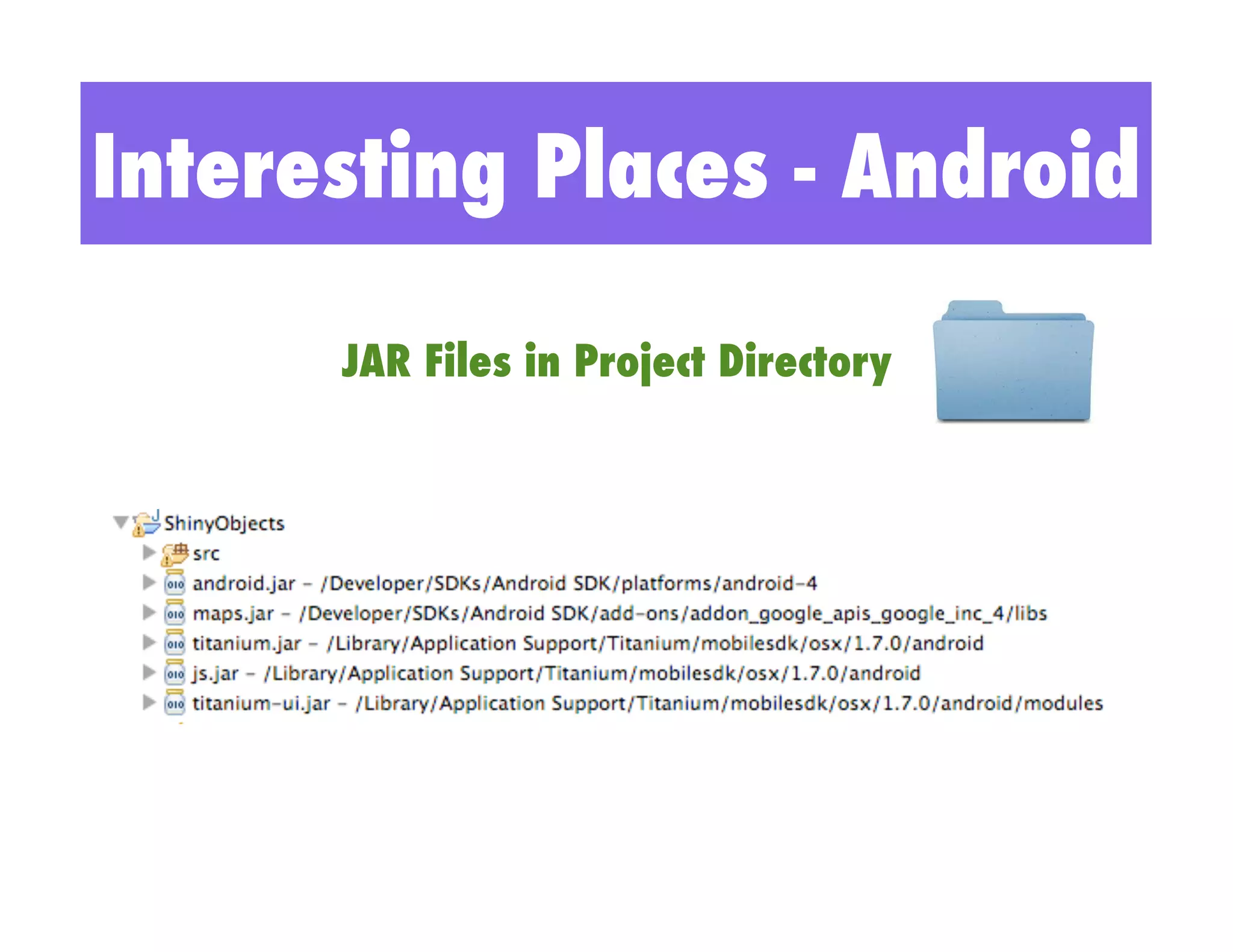

16. Interesting Places - Android
JAR Files in Project Directory

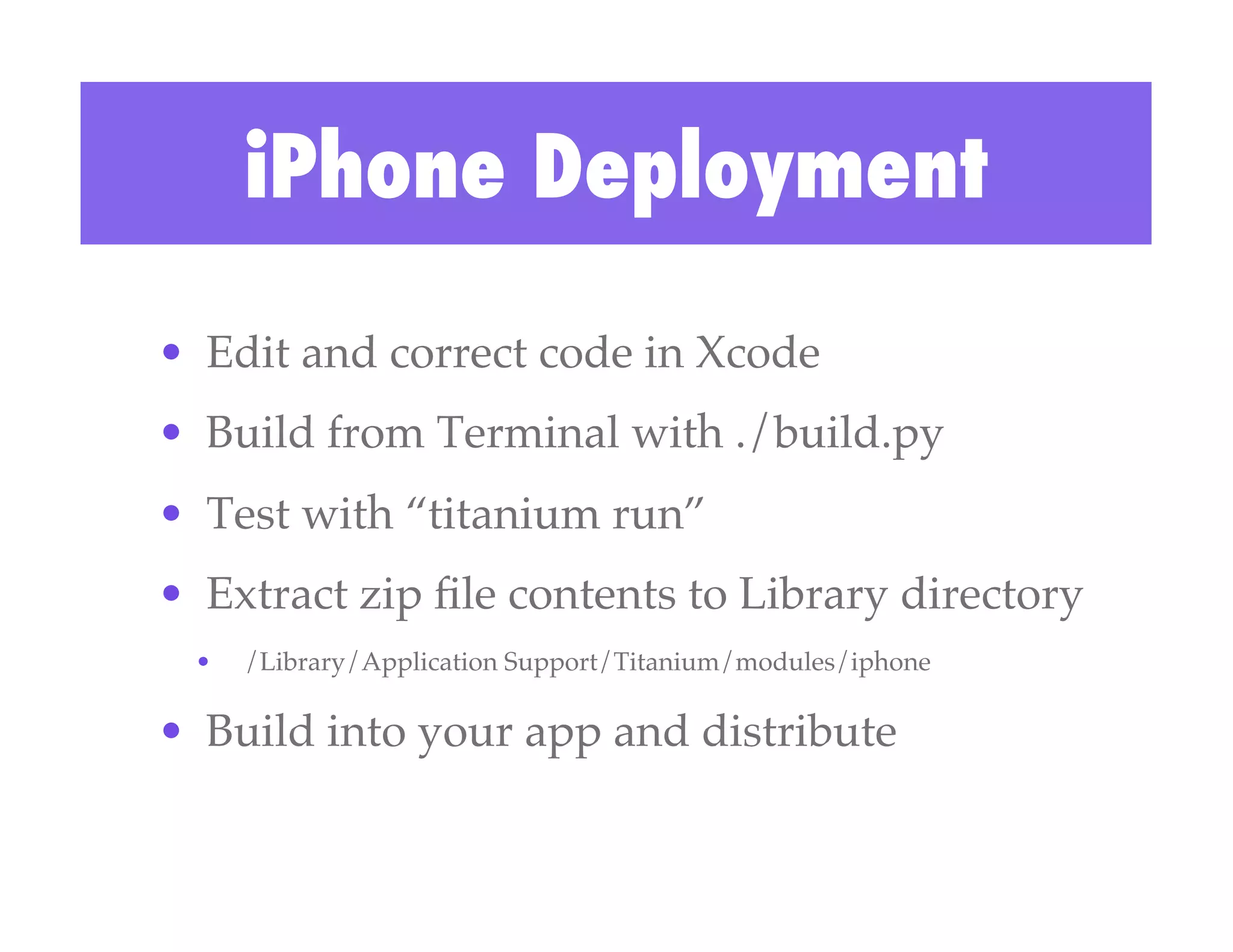

17. iPhone Deployment
• Edit and correct code in Xcode!
• Build from Terminal with ./build.py!
• Test with “titanium run”!
• Extract zip file contents to Library directory!
• /Library/Application Support/Titanium/modules/iphone!
• Build into your app and distribute!

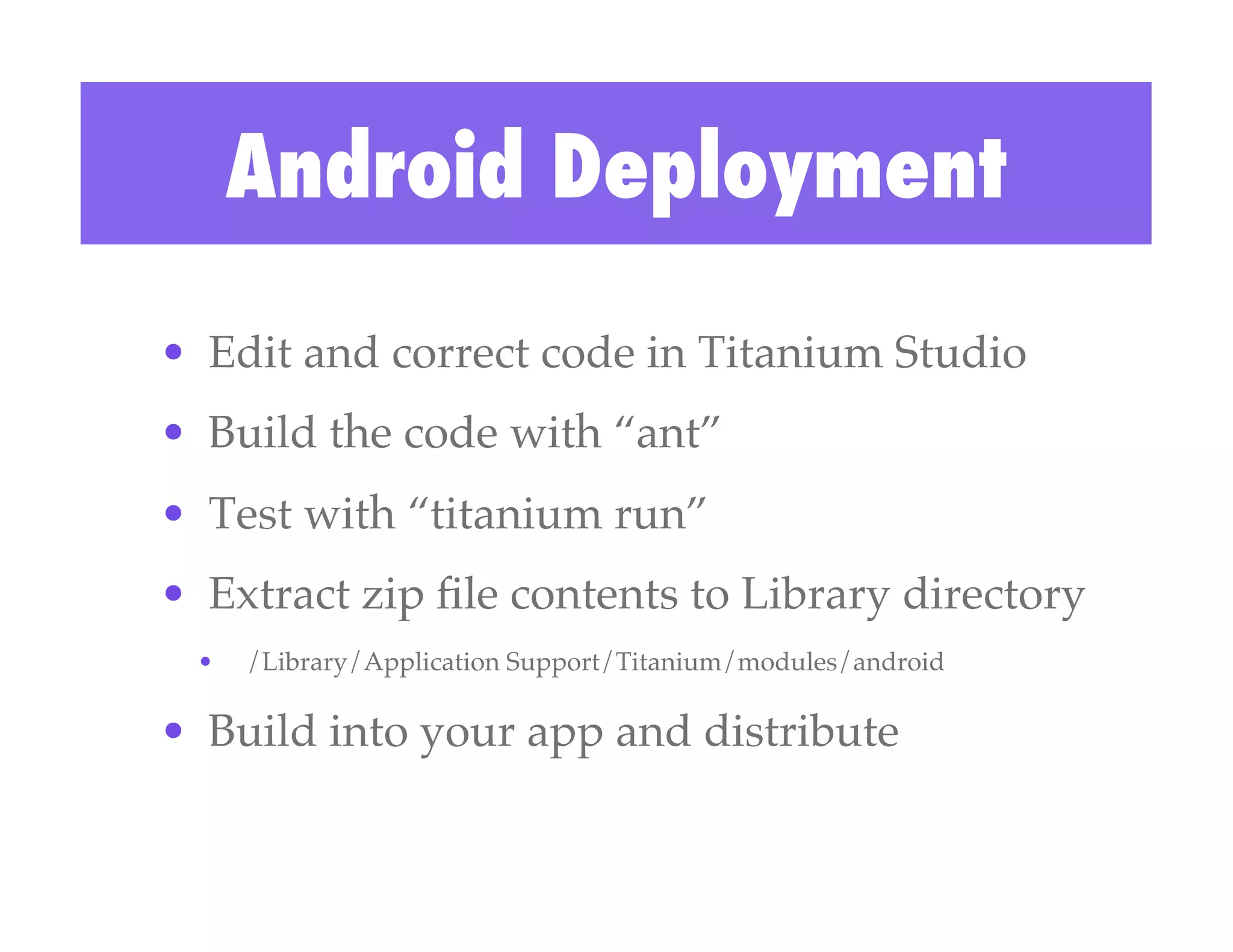

18. Android Deployment
• Edit and correct code in Titanium Studio!
• Build the code with “ant”!
• Test with “titanium run”!
• Extract zip file contents to Library directory!
• /Library/Application Support/Titanium/modules/android!
• Build into your app and distribute!

19. Emulator Demos

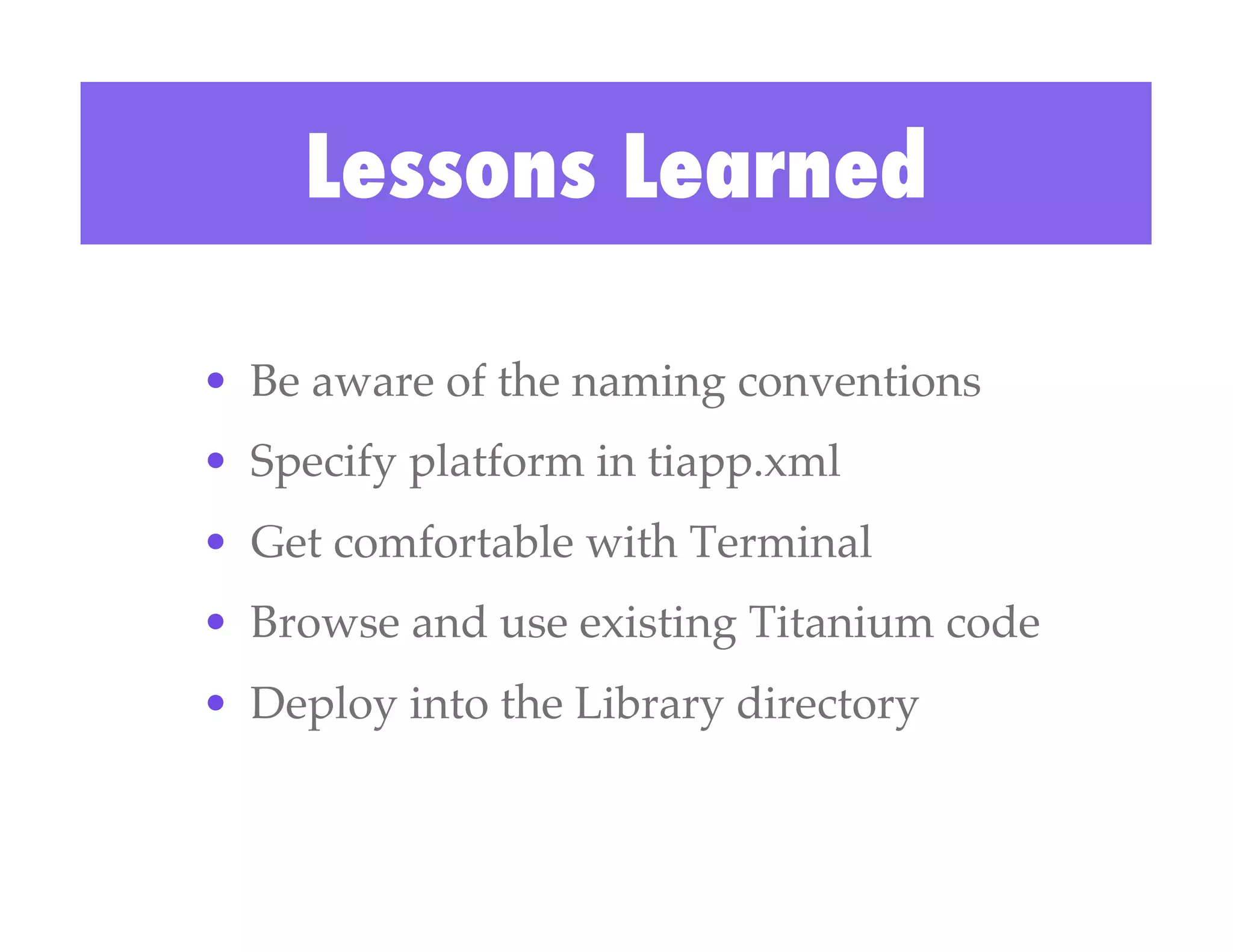

20. Lessons Learned
• Be aware of the naming conventions!
• Specify platform in tiapp.xml!
• Get comfortable with Terminal!
• Browse and use existing Titanium code!
• Deploy into the Library directory!

21. Questions
