ManageEngine's OpManager is a network, server, and virtualization monitoring software that helps organizations manage their IT infrastructure efficiently. It offers essential, enterprise, and large enterprise editions that can monitor between 2,000-50,000 devices. Key features include network, server, and virtualization monitoring, fault management, performance monitoring, and reporting. Installation involves downloading the software, configuring ports and services, and selecting a database. The software is then started and accessed via a web browser.

1. ManageEngine’s
OpManager
Presented by:-
Mr.Swapnil A.Raut
Softcell Technologies
ppt reserved

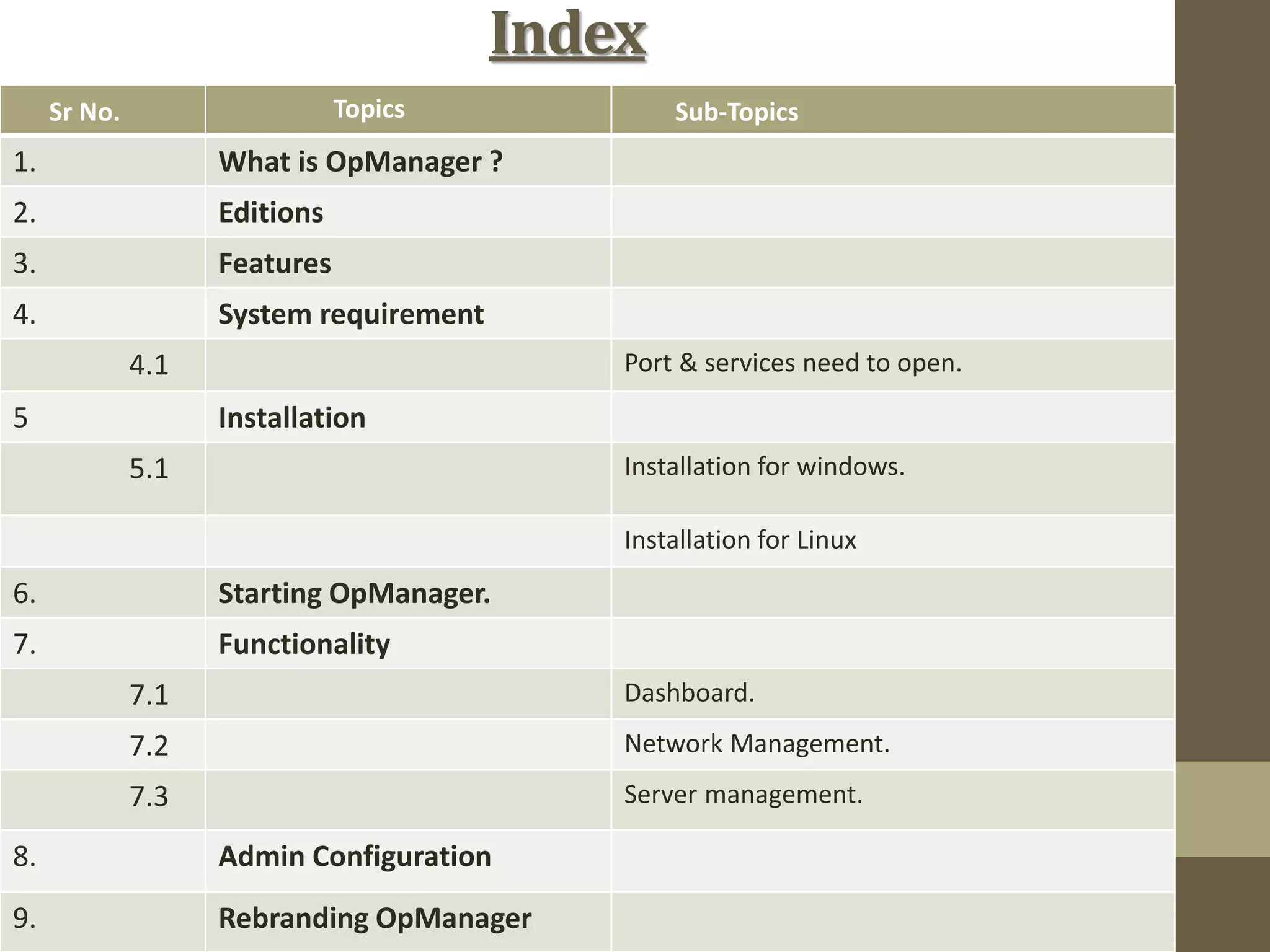

2. Index
Sr No. Topics Sub-Topics
1. What is OpManager ?
2. Editions
3. Features
4. System requirement
4.1 Port & services need to open.
5 Installation
5.1 Installation for windows.
Installation for Linux
6. Starting OpManager.
7. Functionality
7.1 Dashboard.
7.2 Network Management.
7.3 Server management.
8. Admin Configuration
9. Rebranding OpManager

3. 1. OpManager ?
• OpManager is a network, server, and virtualization monitoring
software(tool).
• That helps SMEs, large enterprises and service providers manage their data
centers and IT infrastructure efficiently and cost effectively.
• IT teams to setup a 24x7 monitoring system within hours of installation.

4. 2.Editions
Essential Enterprise Large Enterprise
Maximum devices
2,000
Maximum devices
5,000
Maximum devices
50,000
Interfaces
10K
Interfaces
100K
Interfaces
1000K
OpManager

5. 3.Features
• Network management.
• Data center management.
• Server management.
• Fault management.
• Applications and Services Monitoring.
• Performance Management.
• VMware/Hyper-V Monitoring.
• Do it yourself deployment.

6. 4. System requirements

7. 4.1 Port and services

8. 5.Insatllation
5.1 Installation for Window
Download OpManager Execute OpManager.exe Next(begin installation)
license agreement
OpManager editions
wizard
Install Opmanager
From WIN services
Path to add OpManager
Port number to run
web server
Tech support Registration
Verify installation details
Server mode(primary or
standalone)
Select Database
(MSSQL,MYSQL,PGSQL)
FINISH

9. 5.2. Installation for linux
Verification part Installation
Verify packages
(before installation)
Packages need to be installed to
load web client pages.
(XFree86,XFree86–libs,XFree86–base–
fonts,XFree86– xfs, fontconfig,freetype–
devel, compat– libstdc++,XFree86–
compat–libs, compat–libs)
Download Opmanager
for linux
Login as “root”
Executable permission for
downloaded file chmod a+x
OpManager.bin
Execute OpManager.bin
License agreement
Opmanager edition
wizard
Port for number for web
client
Verify and Finish
Finish

10. 6.Starting OpManager
Start Settings Control panel Administrative tool
servicesOpManagerstart
Log in “root”
Execute OpManagerServer.sh
( #OpManger /bin)
Start
Open web browser
(IE,Mozilla)
http://hostname:port
Ex:localhost:8080
User name &
P/w
Login
• On windows Machine
• On Linux Machine
• On Web client

11. 7.Functionality
7.1 Dashboard

12. 7.2 Network management
• Network device monitoring.
• Interface traffic monitoring.
• Security attacks.
• Network traffic analysis.

13. 7.3 Server management
• Vmware ,Hyper-v & Xen.
• Capacity planning .
• Physical server monitoring .
172..26.1.195
172..26.1.195

14. 7.4 Visualization
• L2 topology maps.
• Business view.
• Rack view .
• 3D visualization.

15. 7.5 Fault Management
• Multilevel threshold .
• Instant notification.
• Workflow automation

16. 7.6 Reports

17. 8. Admin configuration

18. 9. Rebranding OpManager
