1. This document describes an experiment on setting up a star topology network in Cisco Packet Tracer. 2. The objectives are to setup a star topology with a switch and connect computers to the switch with cables. 3. IP addresses are assigned to 6 computers connected to the switch as 192.10.20.1, 192.10.20.2, 192.10.20.3, 192.10.20.4, 192.10.20.5, and 192.10.20.6.

1. ````````````––
Pranab Bandhu Nath
Senioe Lecturer,
Department of CSE
City University, Dhaka.
Name : Md Ashikur Rahman
ID : 1925102528
Batch : 51
th
Semester : Summer 2021
Program : B.Sc. in CSE
Submitted By :
CITY UNIVERSITY
Faculty of Science and Engineering
Department of Computer Science & Engineering
CSE 318 Computer Networks lab, Summer2021
Submitted To:
Course Code: CSE 318
Course Title: Computer Networks lab
Experiment NO: 02
Experiment Name: Star Topology

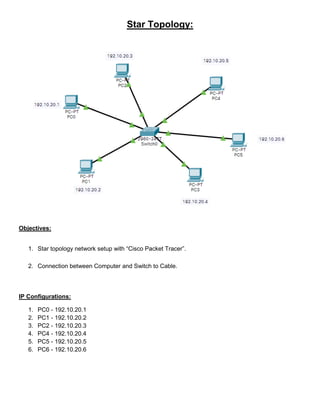

2. Star Topology:
Objectives:
1. Star topology network setup with “Cisco Packet Tracer”.
2. Connection between Computer and Switch to Cable.
IP Configurations:
1. PC0 - 192.10.20.1
2. PC1 - 192.10.20.2
3. PC2 - 192.10.20.3
4. PC4 - 192.10.20.4
5. PC5 - 192.10.20.5
6. PC6 - 192.10.20.6
