1. Introduction to Data-Oriented Design

2. So what is this Data-Oriented Design?

3. It’s about on shifting focus to how data is read and written

4. Why should we care?

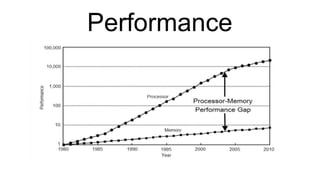

5. Performance

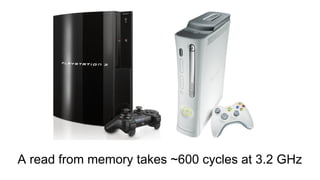

6. A read from memory takes ~600 cycles at 3.2 GHz

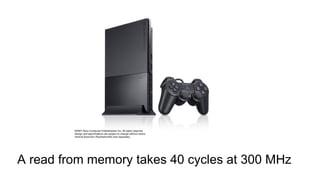

7. A read from memory takes 40 cycles at 300 MHz

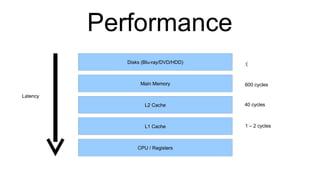

8. Performance Disks (Blu-ray/DVD/HDD) Main Memory L2 Cache L1 Cache CPU / Registers Latency :( 600 cycles 40 cycles 1 – 2 cycles

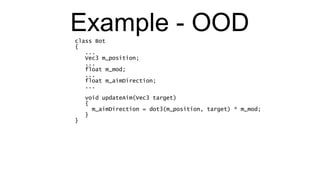

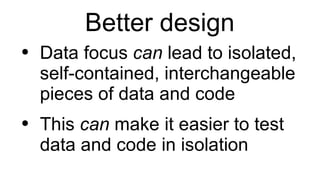

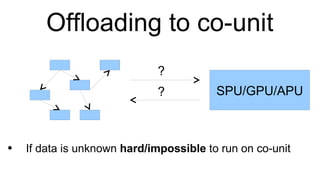

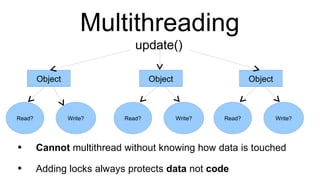

12. Example - OOD class Bot { ... Vec3 m_position; ... float m_mod; ... float m_aimDirection; ... void updateAim(Vec3 target) { m_aimDirection = dot3(m_position, target) * m_mod; } }

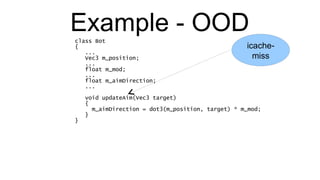

13. Example - OOD class Bot { ... Vec3 m_position; ... float m_mod; ... float m_aimDirection; ... void updateAim(Vec3 target) { m_aimDirection = dot3(m_position, target) * m_mod; } } icache-miss

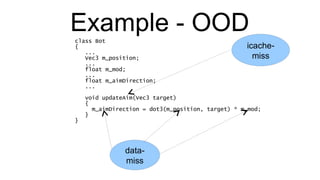

14. Example - OOD class Bot { ... Vec3 m_position; ... float m_mod; ... float m_aimDirection; ... void updateAim(Vec3 target) { m_aimDirection = dot3(m_position, target) * m_mod; } } icache-miss data-miss

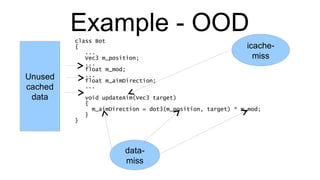

15. Example - OOD class Bot { ... Vec3 m_position; ... float m_mod; ... float m_aimDirection; ... void updateAim(Vec3 target) { m_aimDirection = dot3(m_position, target) * m_mod; } } icache-miss data-miss Unused cached data

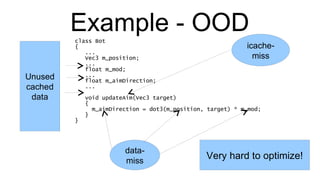

16. Example - OOD class Bot { ... Vec3 m_position; ... float m_mod; ... float m_aimDirection; ... void updateAim(Vec3 target) { m_aimDirection = dot3(m_position, target) * m_mod; } } icache-miss data-miss Unused cached data Very hard to optimize!

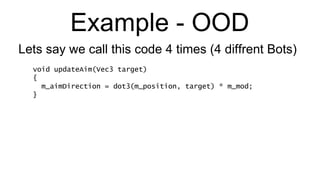

17. Example - OOD void updateAim(Vec3 target) { m_aimDirection = dot3(m_position, target) * m_mod; } Lets say we call this code 4 times (4 diffrent Bots)

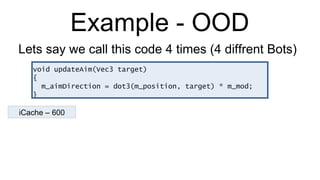

18. Example - OOD void updateAim(Vec3 target) { m_aimDirection = dot3(m_position, target) * m_mod; } Lets say we call this code 4 times (4 diffrent Bots) iCache – 600

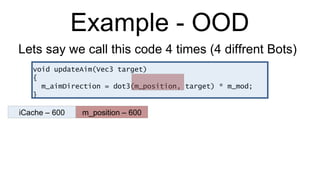

19. Example - OOD void updateAim(Vec3 target) { m_aimDirection = dot3(m_position, target) * m_mod; } Lets say we call this code 4 times (4 diffrent Bots) iCache – 600 m_position – 600

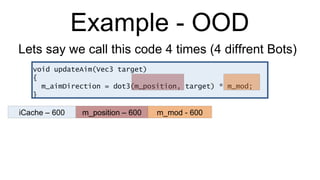

20. Example - OOD void updateAim(Vec3 target) { m_aimDirection = dot3(m_position, target) * m_mod; } Lets say we call this code 4 times (4 diffrent Bots) iCache – 600 m_position – 600 m_mod - 600

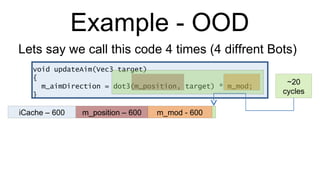

21. Example - OOD void updateAim(Vec3 target) { m_aimDirection = dot3(m_position, target) * m_mod; } Lets say we call this code 4 times (4 diffrent Bots) iCache – 600 m_position – 600 m_mod - 600 ~20 cycles

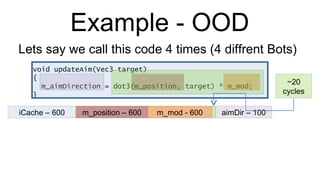

22. Example - OOD void updateAim(Vec3 target) { m_aimDirection = dot3(m_position, target) * m_mod; } Lets say we call this code 4 times (4 diffrent Bots) iCache – 600 m_position – 600 m_mod - 600 aimDir – 100 ~20 cycles

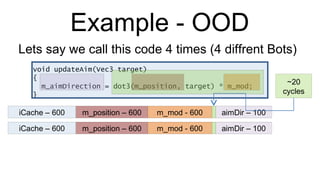

23. Example - OOD void updateAim(Vec3 target) { m_aimDirection = dot3(m_position, target) * m_mod; } Lets say we call this code 4 times (4 diffrent Bots) iCache – 600 m_position – 600 m_mod - 600 aimDir – 100 ~20 cycles iCache – 600 m_position – 600 m_mod - 600 aimDir – 100

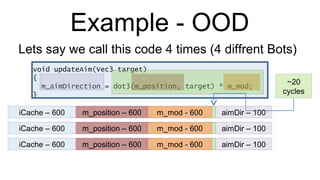

24. Example - OOD void updateAim(Vec3 target) { m_aimDirection = dot3(m_position, target) * m_mod; } Lets say we call this code 4 times (4 diffrent Bots) iCache – 600 m_position – 600 m_mod - 600 aimDir – 100 ~20 cycles iCache – 600 m_position – 600 m_mod - 600 aimDir – 100 iCache – 600 m_position – 600 m_mod - 600 aimDir – 100

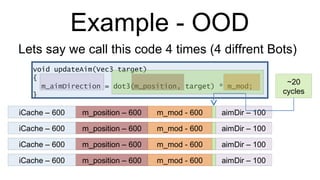

25. Example - OOD void updateAim(Vec3 target) { m_aimDirection = dot3(m_position, target) * m_mod; } Lets say we call this code 4 times (4 diffrent Bots) iCache – 600 m_position – 600 m_mod - 600 aimDir – 100 ~20 cycles iCache – 600 m_position – 600 m_mod - 600 aimDir – 100 iCache – 600 m_position – 600 m_mod - 600 aimDir – 100 iCache – 600 m_position – 600 m_mod - 600 aimDir – 100

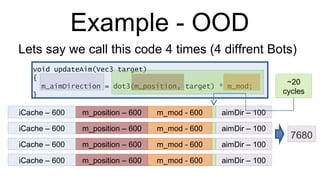

26. Example - OOD void updateAim(Vec3 target) { m_aimDirection = dot3(m_position, target) * m_mod; } Lets say we call this code 4 times (4 diffrent Bots) iCache – 600 m_position – 600 m_mod - 600 aimDir – 100 ~20 cycles iCache – 600 m_position – 600 m_mod - 600 aimDir – 100 iCache – 600 m_position – 600 m_mod - 600 aimDir – 100 iCache – 600 m_position – 600 m_mod - 600 aimDir – 100 7680

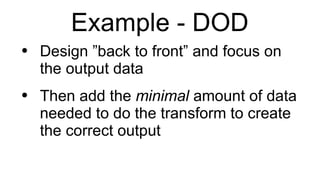

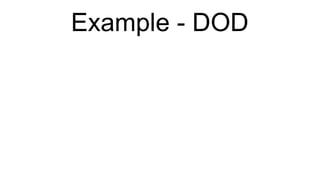

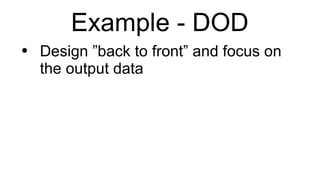

27. Example - DOD

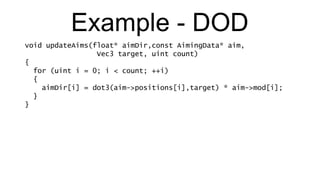

30. Example - DOD void updateAims(float* aimDir,const AimingData* aim, Vec3 target, uint count) { for (uint i = 0; i < count; ++i) { aimDir[i] = dot3(aim->positions[i],target) * aim->mod[i]; } }

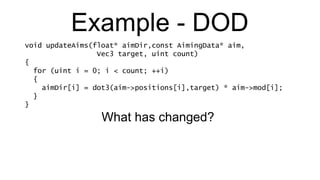

31. Example - DOD void updateAims(float* aimDir,const AimingData* aim, Vec3 target, uint count) { for (uint i = 0; i < count; ++i) { aimDir[i] = dot3(aim->positions[i],target) * aim->mod[i]; } } What has changed?

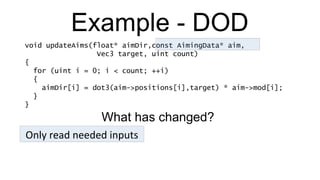

32. Example - DOD void updateAims(float* aimDir,const AimingData* aim, Vec3 target, uint count) { for (uint i = 0; i < count; ++i) { aimDir[i] = dot3(aim->positions[i],target) * aim->mod[i]; } } Only read needed inputs What has changed?

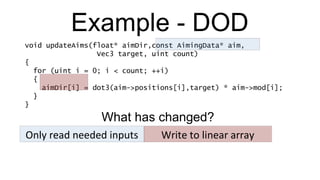

33. Example - DOD void updateAims(float* aimDir,const AimingData* aim, Vec3 target, uint count) { for (uint i = 0; i < count; ++i) { aimDir[i] = dot3(aim->positions[i],target) * aim->mod[i]; } } Only read needed inputs Write to linear array What has changed?

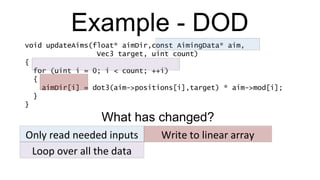

34. Example - DOD void updateAims(float* aimDir,const AimingData* aim, Vec3 target, uint count) { for (uint i = 0; i < count; ++i) { aimDir[i] = dot3(aim->positions[i],target) * aim->mod[i]; } } Only read needed inputs Write to linear array Loop over all the data What has changed?

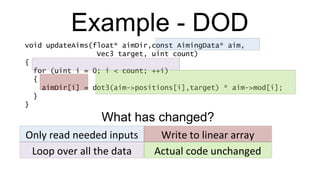

35. Example - DOD void updateAims(float* aimDir,const AimingData* aim, Vec3 target, uint count) { for (uint i = 0; i < count; ++i) { aimDir[i] = dot3(aim->positions[i],target) * aim->mod[i]; } } Only read needed inputs Write to linear array Loop over all the data Actual code unchanged What has changed?

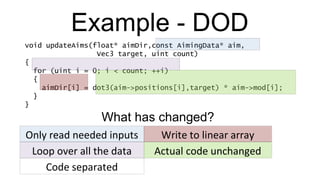

36. Example - DOD void updateAims(float* aimDir,const AimingData* aim, Vec3 target, uint count) { for (uint i = 0; i < count; ++i) { aimDir[i] = dot3(aim->positions[i],target) * aim->mod[i]; } } Only read needed inputs Write to linear array Loop over all the data Actual code unchanged What has changed? Code separated

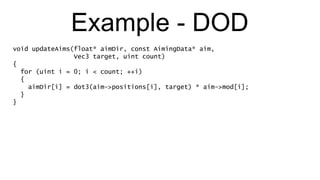

37. Example - DOD void updateAims(float* aimDir, const AimingData* aim, Vec3 target, uint count) { for (uint i = 0; i < count; ++i) { aimDir[i] = dot3(aim->positions[i], target) * aim->mod[i]; } }

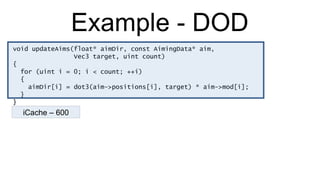

38. Example - DOD void updateAims(float* aimDir, const AimingData* aim, Vec3 target, uint count) { for (uint i = 0; i < count; ++i) { aimDir[i] = dot3(aim->positions[i], target) * aim->mod[i]; } } iCache – 600

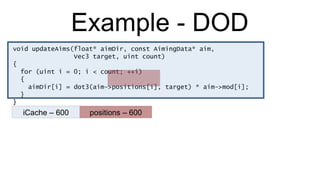

39. Example - DOD void updateAims(float* aimDir, const AimingData* aim, Vec3 target, uint count) { for (uint i = 0; i < count; ++i) { aimDir[i] = dot3(aim->positions[i], target) * aim->mod[i]; } } iCache – 600 positions – 600

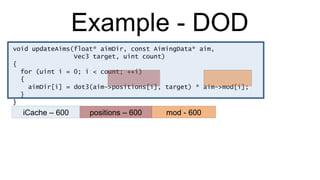

40. Example - DOD void updateAims(float* aimDir, const AimingData* aim, Vec3 target, uint count) { for (uint i = 0; i < count; ++i) { aimDir[i] = dot3(aim->positions[i], target) * aim->mod[i]; } } iCache – 600 positions – 600 mod - 600

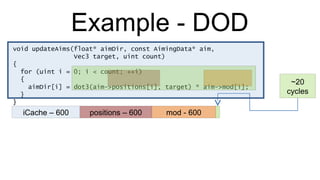

41. Example - DOD void updateAims(float* aimDir, const AimingData* aim, Vec3 target, uint count) { for (uint i = 0; i < count; ++i) { aimDir[i] = dot3(aim->positions[i], target) * aim->mod[i]; } } iCache – 600 positions – 600 mod - 600 ~20 cycles

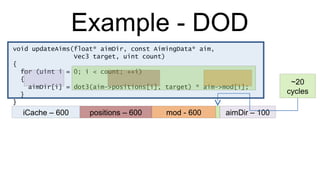

42. Example - DOD void updateAims(float* aimDir, const AimingData* aim, Vec3 target, uint count) { for (uint i = 0; i < count; ++i) { aimDir[i] = dot3(aim->positions[i], target) * aim->mod[i]; } } iCache – 600 positions – 600 mod - 600 aimDir – 100 ~20 cycles

43. Example - DOD void updateAims(float* aimDir, const AimingData* aim, Vec3 target, uint count) { for (uint i = 0; i < count; ++i) { aimDir[i] = dot3(aim->positions[i], target) * aim->mod[i]; } } iCache – 600 positions – 600 mod - 600 aimDir – 100 ~20 cycles

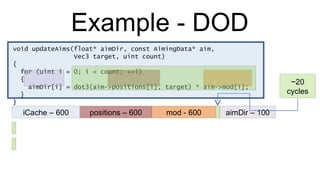

44. Example - DOD void updateAims(float* aimDir, const AimingData* aim, Vec3 target, uint count) { for (uint i = 0; i < count; ++i) { aimDir[i] = dot3(aim->positions[i], target) * aim->mod[i]; } } iCache – 600 positions – 600 mod - 600 aimDir – 100 ~20 cycles

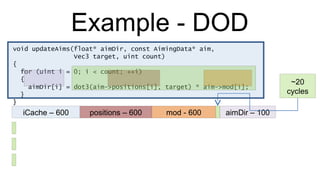

45. Example - DOD void updateAims(float* aimDir, const AimingData* aim, Vec3 target, uint count) { for (uint i = 0; i < count; ++i) { aimDir[i] = dot3(aim->positions[i], target) * aim->mod[i]; } } iCache – 600 positions – 600 mod - 600 aimDir – 100 ~20 cycles

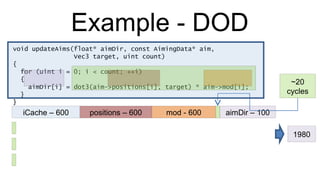

46. Example - DOD void updateAims(float* aimDir, const AimingData* aim, Vec3 target, uint count) { for (uint i = 0; i < count; ++i) { aimDir[i] = dot3(aim->positions[i], target) * aim->mod[i]; } } iCache – 600 positions – 600 mod - 600 aimDir – 100 ~20 cycles 1980

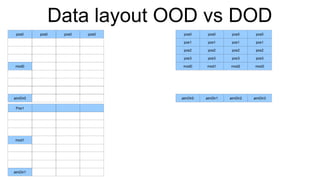

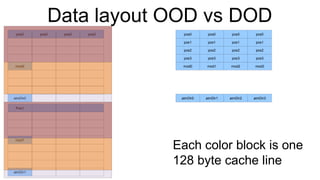

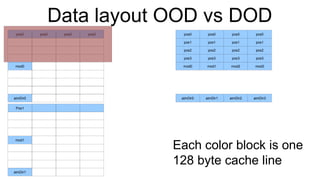

47. Data layout OOD vs DOD pos0 mod0 aimDir0 pos0 Pos1 mod1 aimDir1 pos0 pos0 pos0 pos1 pos1 pos1 pos1 pos2 pos2 pos2 pos2 pos3 pos3 pos3 pos3 mod0 mod1 mod2 mod3 aimDir0 aimDir1 aimDir2 aimDir3 pos0 pos0 pos0

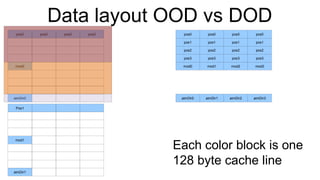

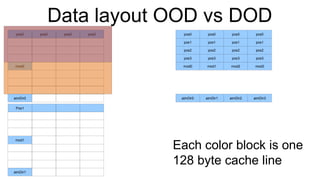

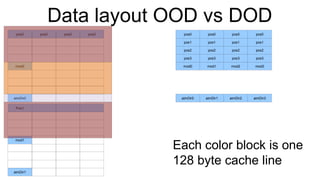

48. Data layout OOD vs DOD pos0 mod0 aimDir0 pos0 Pos1 mod1 aimDir1 pos0 pos0 pos0 pos1 pos1 pos1 pos1 pos2 pos2 pos2 pos2 pos3 pos3 pos3 pos3 mod0 mod1 mod2 mod3 aimDir0 aimDir1 aimDir2 aimDir3 pos0 pos0 pos0 Each color block is one 128 byte cache line

49. Data layout OOD vs DOD pos0 mod0 aimDir0 pos0 Pos1 mod1 aimDir1 pos0 pos0 pos0 pos1 pos1 pos1 pos1 pos2 pos2 pos2 pos2 pos3 pos3 pos3 pos3 mod0 mod1 mod2 mod3 aimDir0 aimDir1 aimDir2 aimDir3 pos0 pos0 pos0 Each color block is one 128 byte cache line

50. Data layout OOD vs DOD pos0 mod0 aimDir0 pos0 Pos1 mod1 aimDir1 pos0 pos0 pos0 pos1 pos1 pos1 pos1 pos2 pos2 pos2 pos2 pos3 pos3 pos3 pos3 mod0 mod1 mod2 mod3 aimDir0 aimDir1 aimDir2 aimDir3 pos0 pos0 pos0 Each color block is one 128 byte cache line

51. Data layout OOD vs DOD pos0 mod0 aimDir0 pos0 Pos1 mod1 aimDir1 pos0 pos0 pos0 pos1 pos1 pos1 pos1 pos2 pos2 pos2 pos2 pos3 pos3 pos3 pos3 mod0 mod1 mod2 mod3 aimDir0 aimDir1 aimDir2 aimDir3 pos0 pos0 pos0 Each color block is one 128 byte cache line

52. Data layout OOD vs DOD pos0 mod0 aimDir0 pos0 Pos1 mod1 aimDir1 pos0 pos0 pos0 pos1 pos1 pos1 pos1 pos2 pos2 pos2 pos2 pos3 pos3 pos3 pos3 mod0 mod1 mod2 mod3 aimDir0 aimDir1 aimDir2 aimDir3 pos0 pos0 pos0 Each color block is one 128 byte cache line

53. Data layout OOD vs DOD pos0 mod0 aimDir0 pos0 Pos1 mod1 aimDir1 pos0 pos0 pos0 pos1 pos1 pos1 pos1 pos2 pos2 pos2 pos2 pos3 pos3 pos3 pos3 mod0 mod1 mod2 mod3 aimDir0 aimDir1 aimDir2 aimDir3 pos0 pos0 pos0 Each color block is one 128 byte cache line

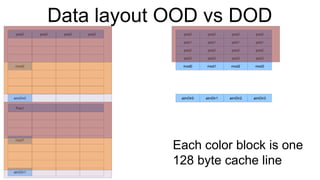

54. Data layout OOD vs DOD pos0 mod0 aimDir0 pos0 Pos1 mod1 aimDir1 pos0 pos0 pos0 pos1 pos1 pos1 pos1 pos2 pos2 pos2 pos2 pos3 pos3 pos3 pos3 mod0 mod1 mod2 mod3 aimDir0 aimDir1 aimDir2 aimDir3 pos0 pos0 pos0 Each color block is one 128 byte cache line

55. Data layout OOD vs DOD pos0 mod0 aimDir0 pos0 Pos1 mod1 aimDir1 pos0 pos0 pos0 pos1 pos1 pos1 pos1 pos2 pos2 pos2 pos2 pos3 pos3 pos3 pos3 mod0 mod1 mod2 mod3 aimDir0 aimDir1 aimDir2 aimDir3 pos0 pos0 pos0 Each color block is one 128 byte cache line

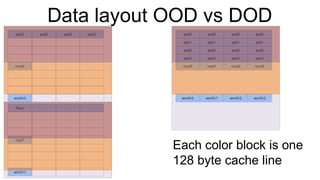

56. Data layout OOD vs DOD pos0 mod0 aimDir0 pos0 Pos1 mod1 aimDir1 pos0 pos0 pos0 pos1 pos1 pos1 pos1 pos2 pos2 pos2 pos2 pos3 pos3 pos3 pos3 mod0 mod1 mod2 mod3 aimDir0 aimDir1 aimDir2 aimDir3 pos0 pos0 pos0 Each color block is one 128 byte cache line

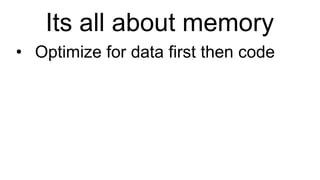

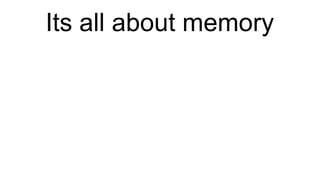

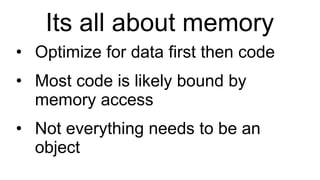

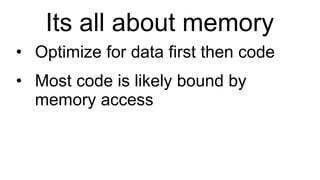

57. Its all about memory

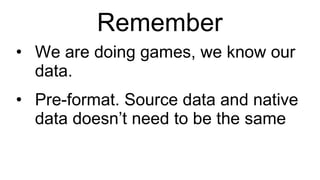

61. Remember

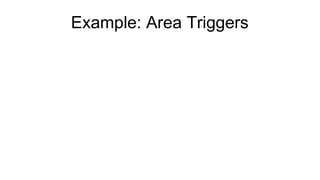

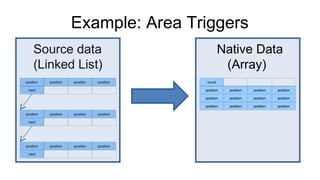

64. Example: Area Triggers

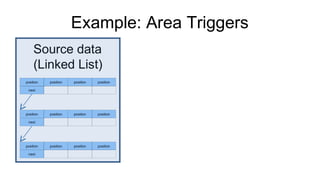

65. Example: Area Triggers position position position position next position position position position next position position position position next Source data (Linked List)

66. Example: Area Triggers position position position position next position position position position next position position position position next Source data (Linked List) Native Data (Array) position position position position position position position position position position position position position position count

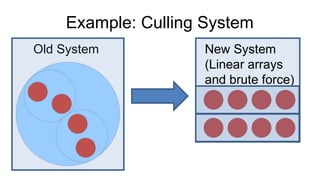

67. Example: Culling System

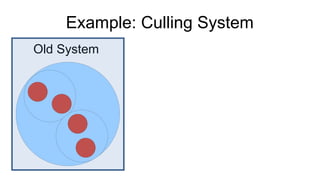

68. Example: Culling System Old System

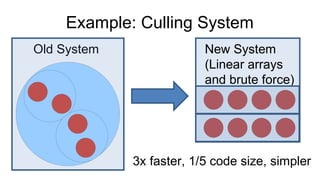

69. Example: Culling System Old System New System (Linear arrays and brute force)

70. Example: Culling System Old System New System (Linear arrays and brute force) 3x faster, 1/5 code size, simpler

71. Data Oriented Design Delivers:

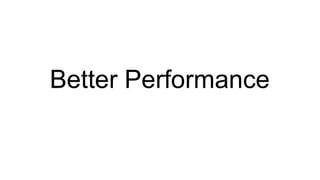

72. Better Performance

73. Often simpler code

74. More parallelizable code

75. Questions?
