ソフトウェアエンジニアのための「機械学習理論」入門・ハンズオン演習ガイド
1. 1
Copyright (C) 2015 National Institute of Informatics, All rights reserved.
Introduction to Machine Learning Theory
for Software Engineers
ソフトウェアエンジニアのための
「機械学習理論」入門
ハンズオン演習ガイド
中井悦司 / Etsuji Nakai
Senior Solution Architect
and Cloud Evangelist
Red Hat K.K.
ver1.7 2015/09/01
2. Copyright (C) 2015 National Institute of Informatics, All rights reserved.
2
ソフトウェアエンジニアのための「機械学習理論」入門

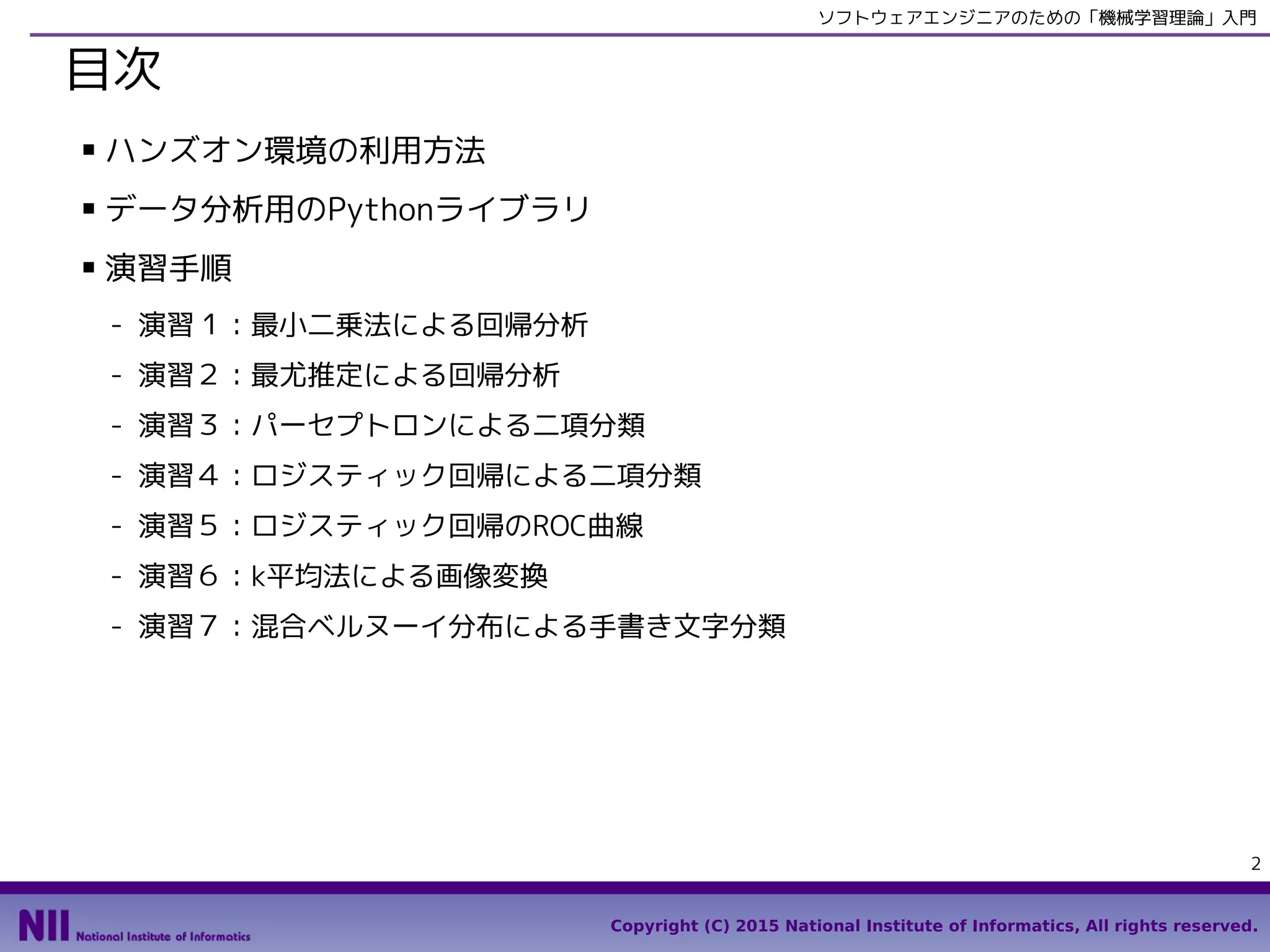

目次
■ ハンズオン環境の利用方法
■ データ分析用のPythonライブラリ
■ 演習手順
- 演習1:最小二乗法による回帰分析
- 演習2:最尤推定による回帰分析

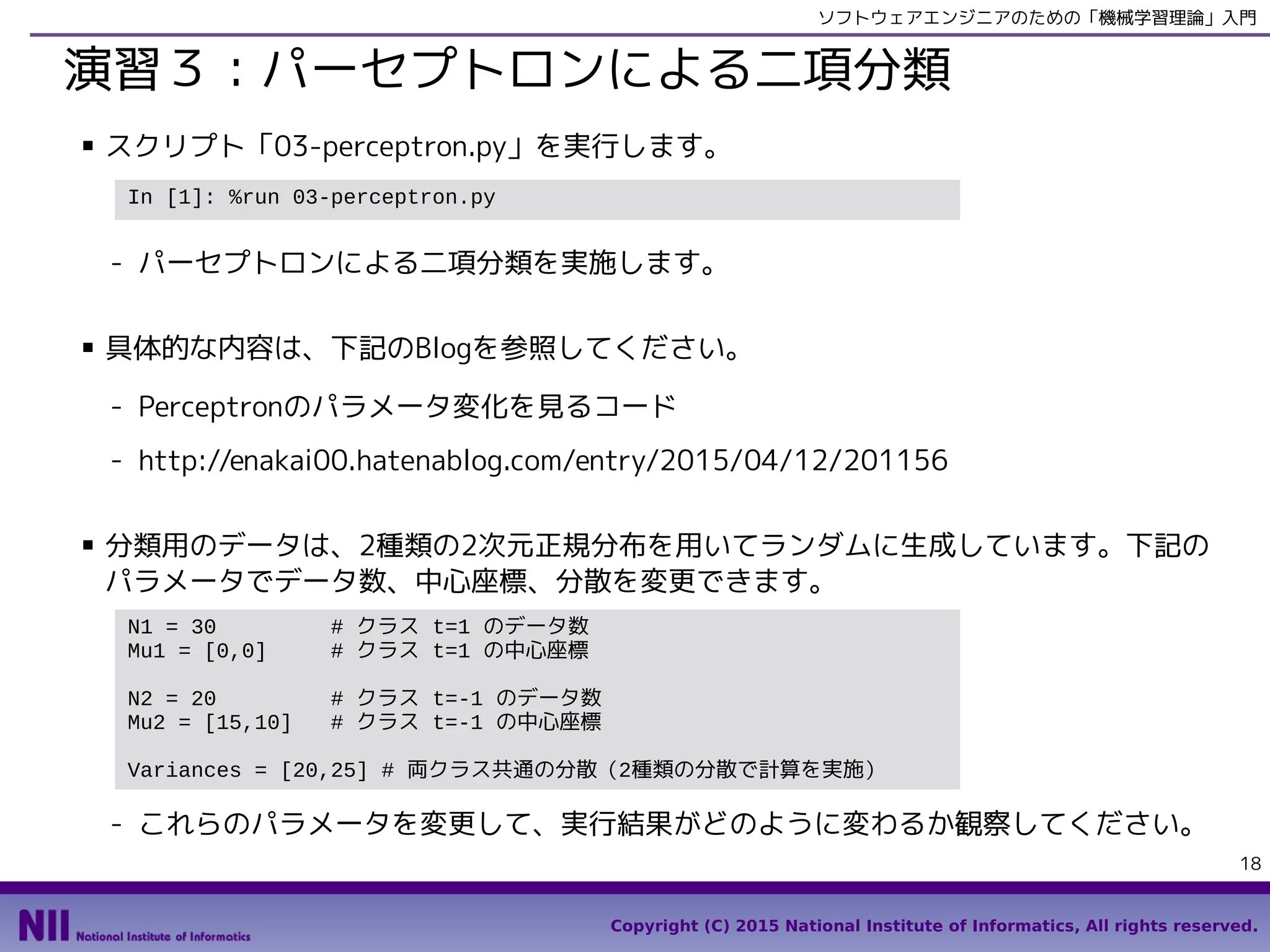

- 演習3:パーセプトロンによる二項分類

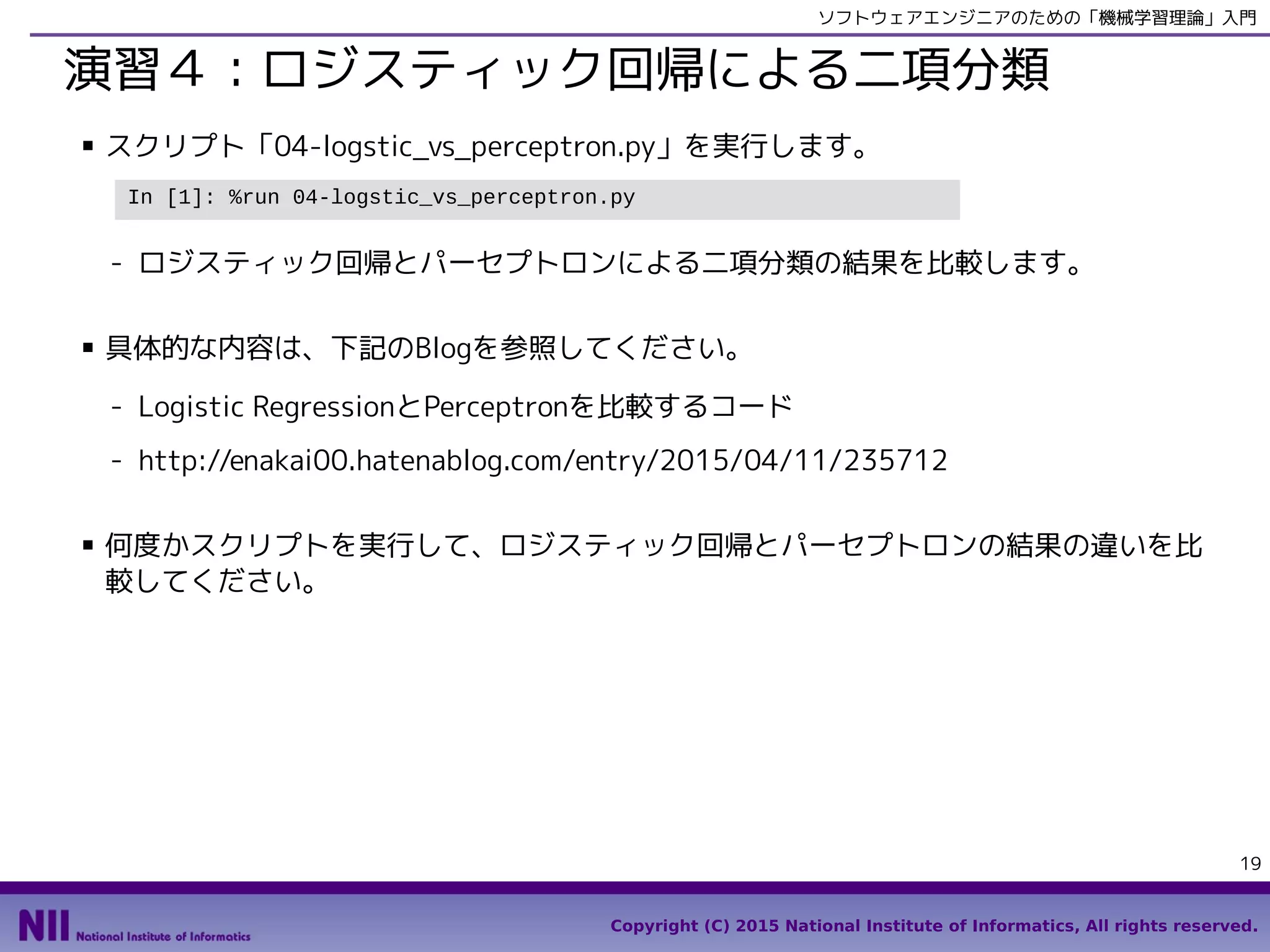

- 演習4:ロジスティック回帰による二項分類

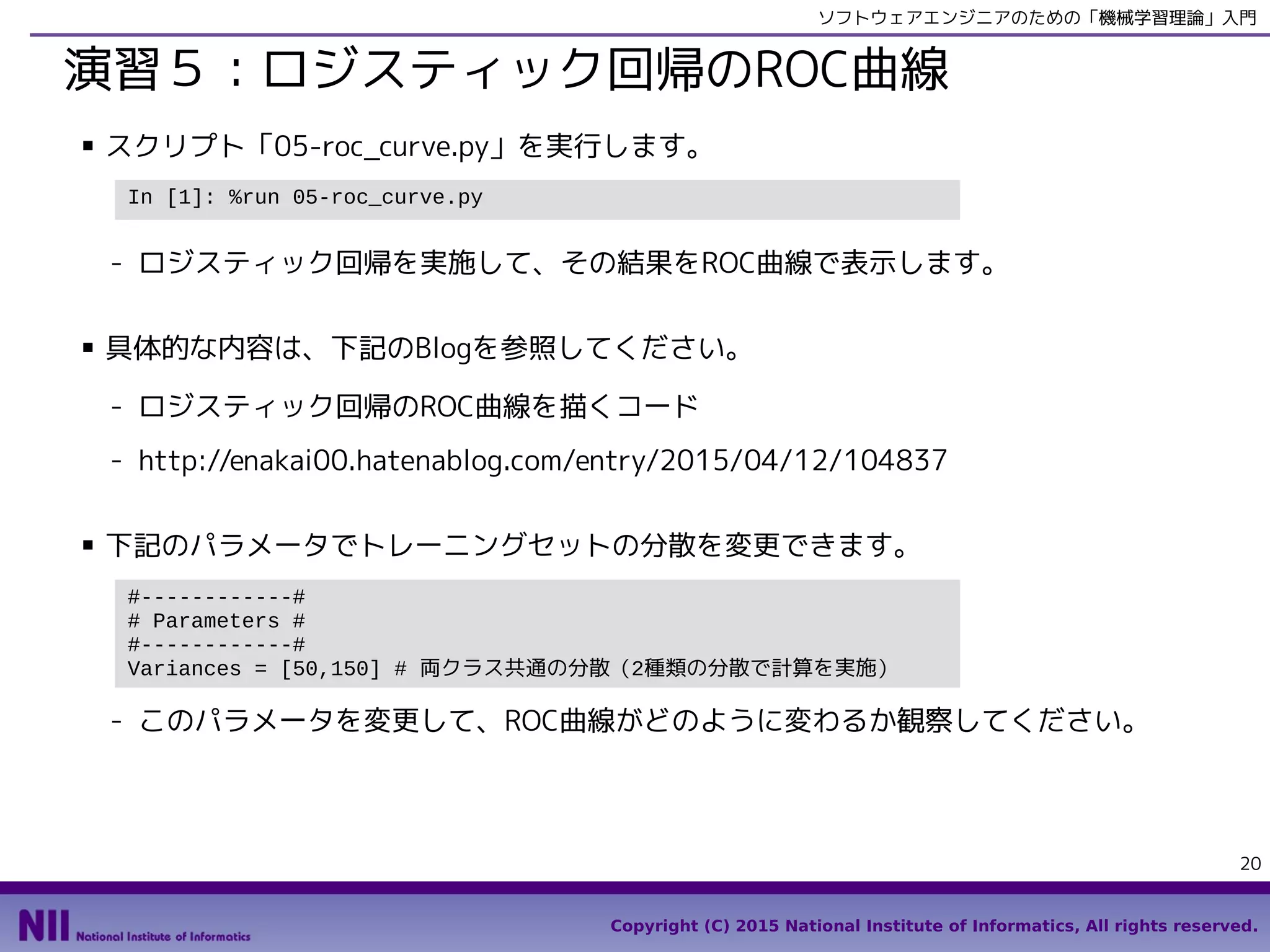

- 演習5:ロジスティック回帰のROC曲線

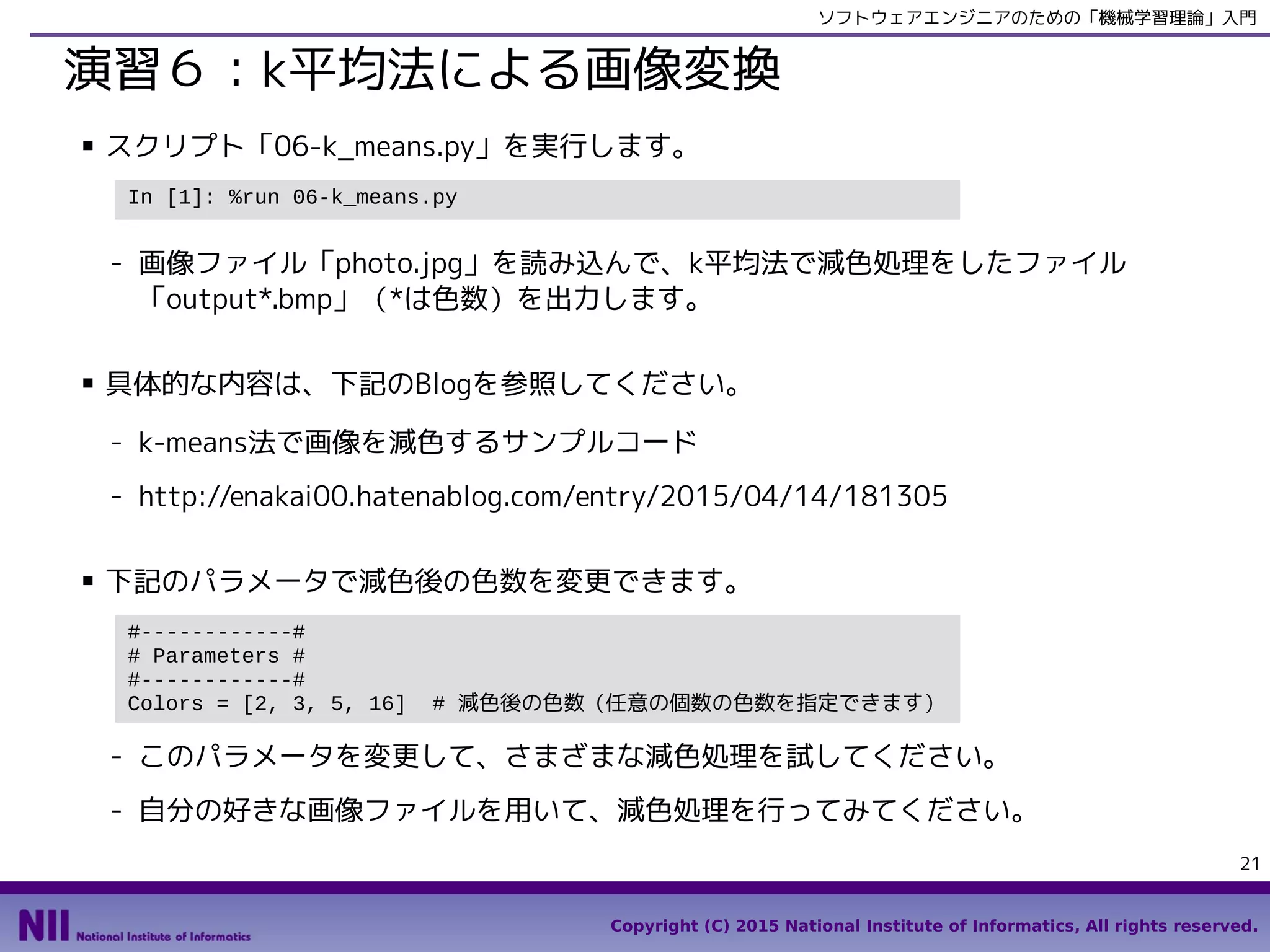

- 演習6:k平均法による画像変換

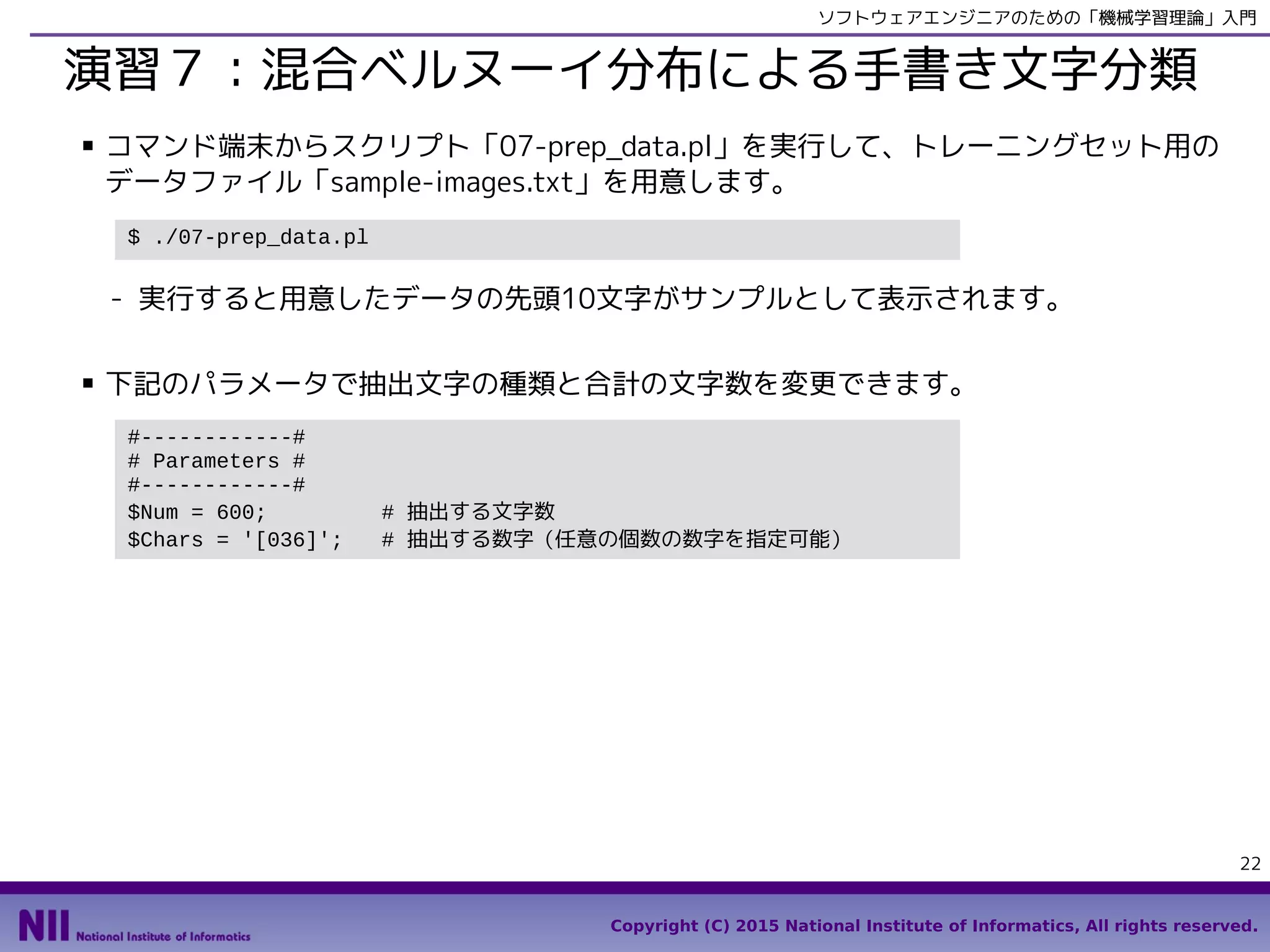

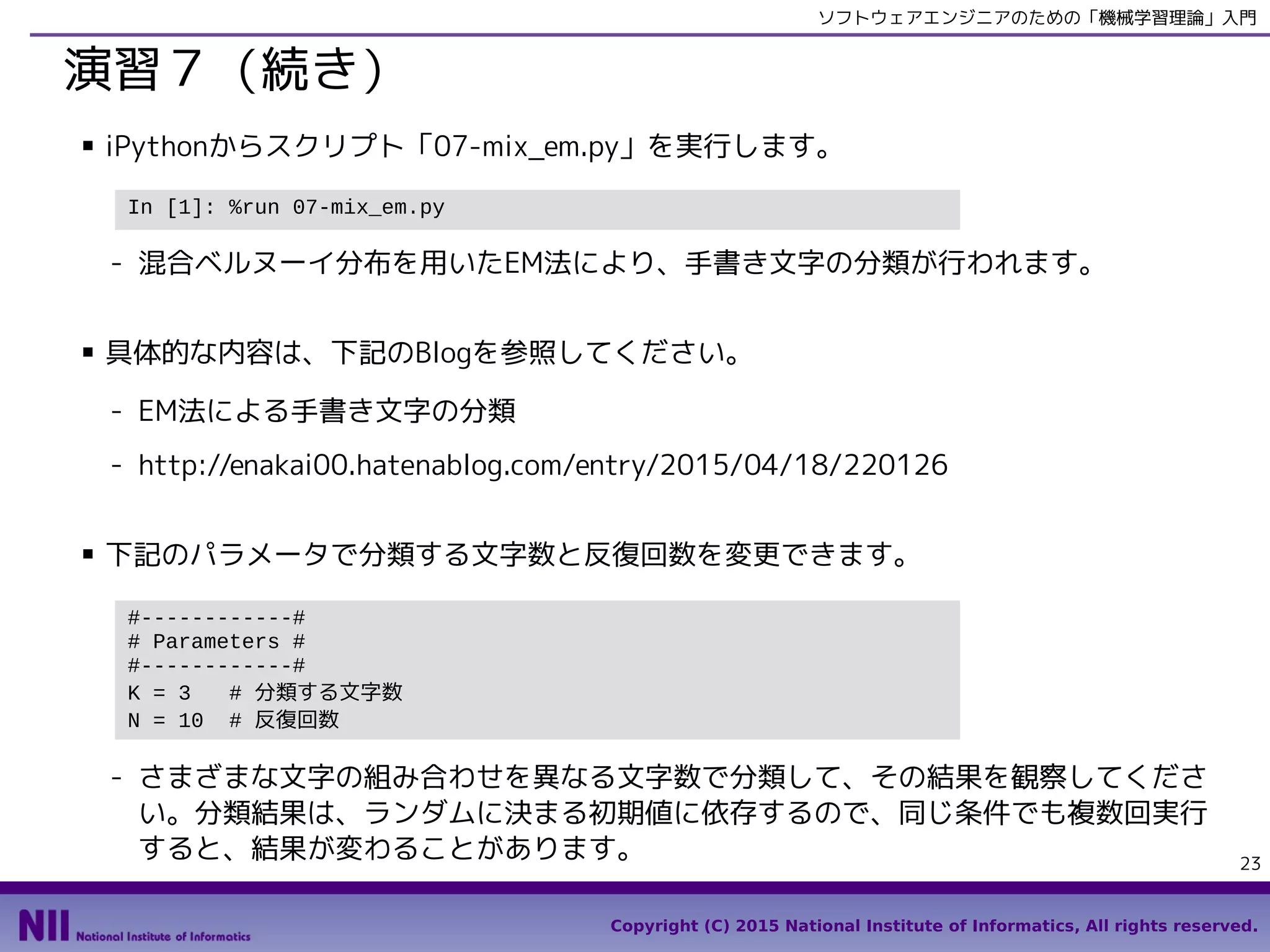

- 演習7:混合ベルヌーイ分布による手書き文字分類
3. Copyright (C) 2015 National Institute of Informatics, All rights reserved.
3
ソフトウェアエンジニアのための「機械学習理論」入門

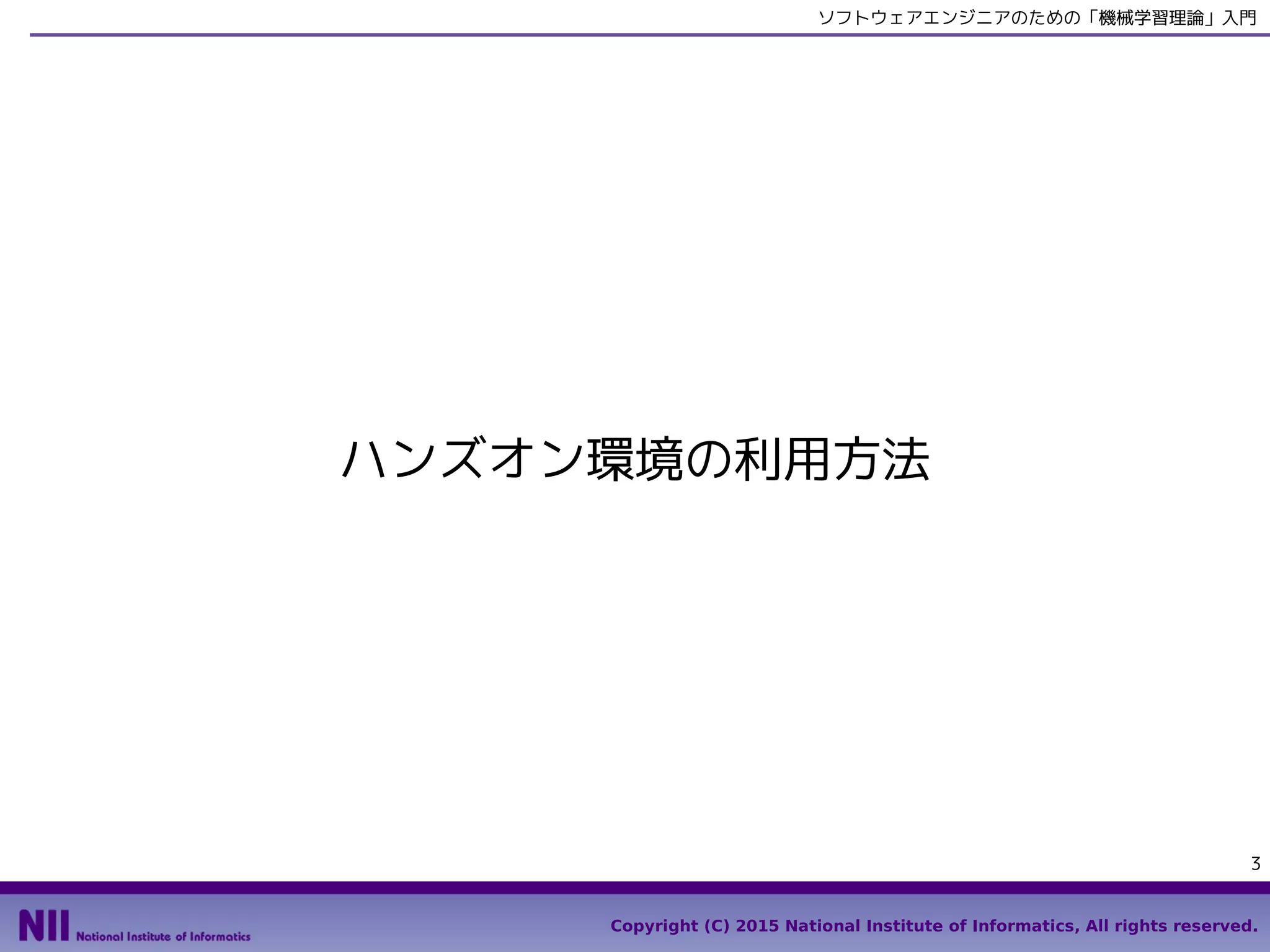

ハンズオン環境の利用方法
4. Copyright (C) 2015 National Institute of Informatics, All rights reserved.
4
ソフトウェアエンジニアのための「機械学習理論」入門

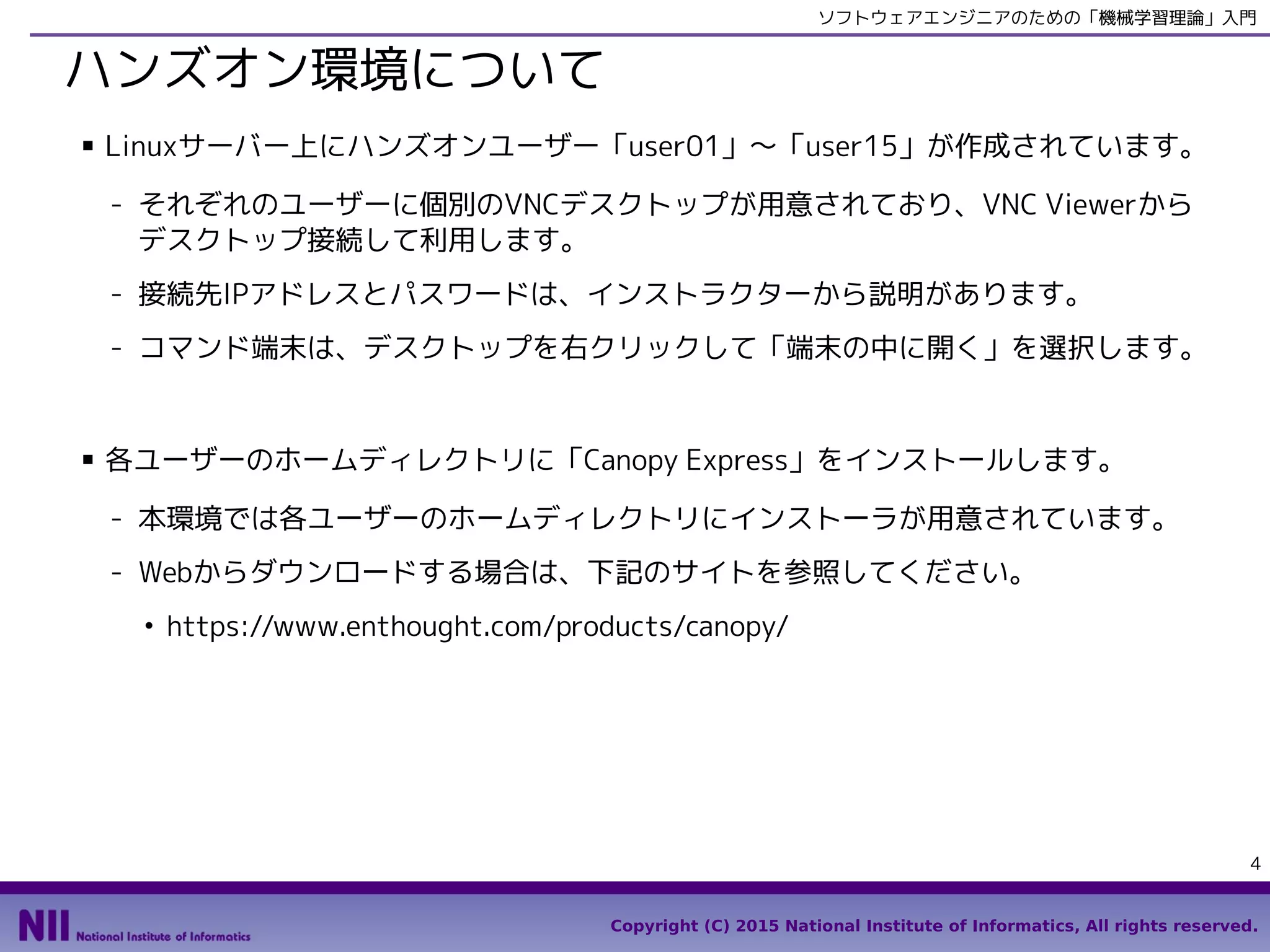

ハンズオン環境について
■ Linux(CentOS6)がインストールされたサーバー上にハンズオンユーザー「user01」
〜「user15」が作成されています。
- それぞれのユーザーに個別のVNCデスクトップが用意されており、VNC Viewerから
デスクトップ接続して利用します。
- 接続先IPアドレスとパスワードは、インストラクターから説明があります。
- コマンド端末は、画面左上の「アプリケーション」メニューから「システムツール」
→「端末」を選択します。
■ 各ユーザーのホームディレクトリに「Canopy Express」をインストールします。
- 本環境では各ユーザーのホームディレクトリにインストーラが用意されています。
- Webからダウンロードする場合は、下記のサイトを参照してください。
●
https://www.enthought.com/products/canopy/
5. Copyright (C) 2015 National Institute of Informatics, All rights reserved.
5
ソフトウェアエンジニアのための「機械学習理論」入門
Canopy Expressのインストールと初期設定
■ ホームディレクトリにあるインストーラを実行します。
$ cd
$ bash canopy-1.5.4-rh5-64.sh
Welcome to the Canopy 1.5.4 installer!
To continue the installation, you must review and approve the license term
agreement.
Press Enter to continue
>>>
...(中略)...
Do you approve the license terms? [yes|no]
[no] >>> yes
Canopy will be installed to this location:
/home/user01/Canopy
* Press Enter to accept this location
* Press CTRL-C to abort
* or specify an alternate location. Please ensure that your location
contains only ASCII letters, numbers, and the following punctuation
chars: '.', '_', '-'
[/home/user01/Canopy] >>>
...(中略)...
Thank you for installing Canopy!
[Enter]を押すとライセンスが表示されるので
スペースキーで読み進めます。
「yes」を入力
[Enter]を押す
6. Copyright (C) 2015 National Institute of Informatics, All rights reserved.
6
ソフトウェアエンジニアのための「機械学習理論」入門

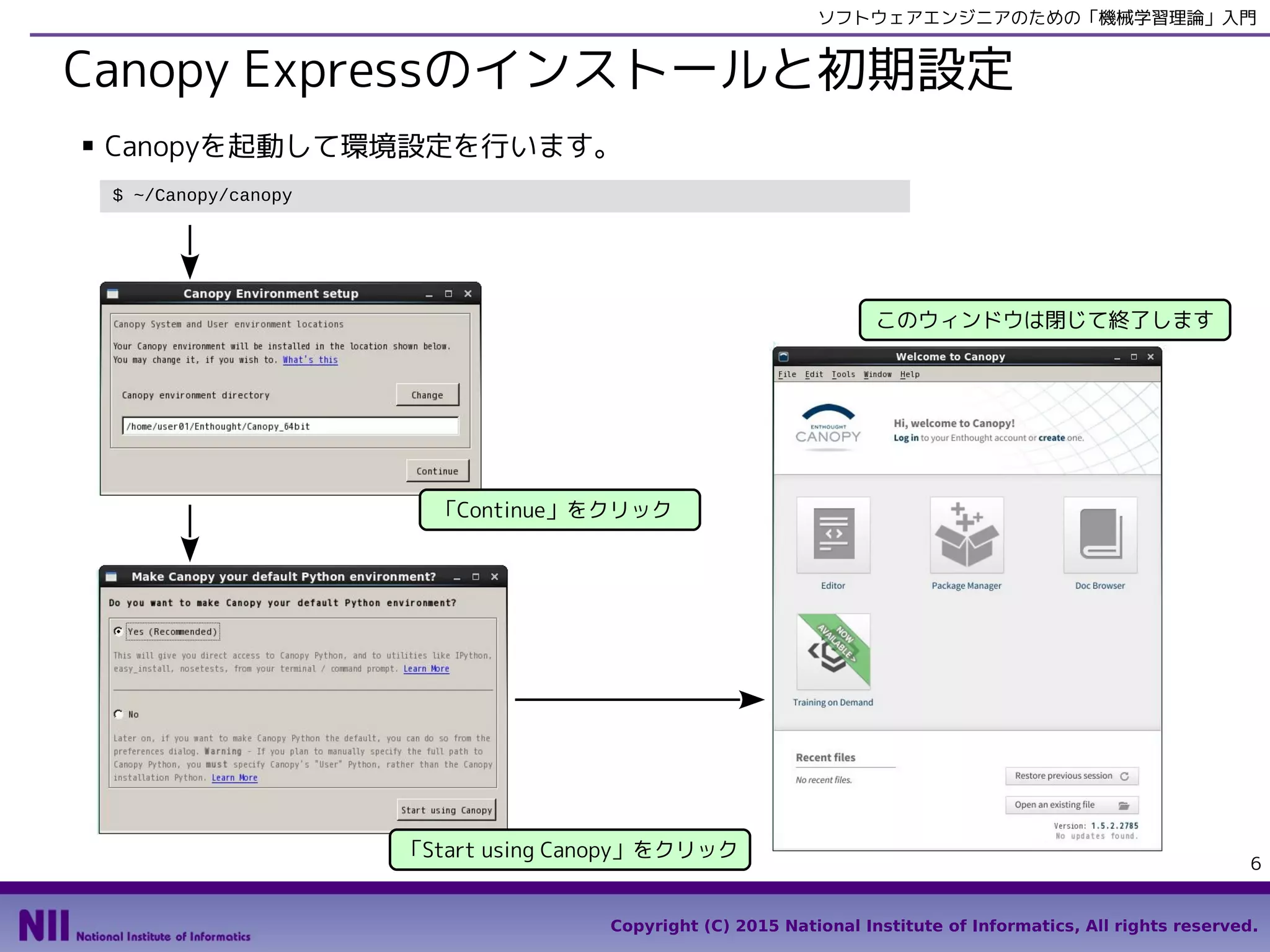

Canopy Expressのインストールと初期設定
■ Canopyを起動して環境設定を行います。
$ ~/Canopy/canopy
「Continue」をクリック
「Start using Canopy」をクリック
このウィンドウは閉じて終了します
7. Copyright (C) 2015 National Institute of Informatics, All rights reserved.
7
ソフトウェアエンジニアのための「機械学習理論」入門

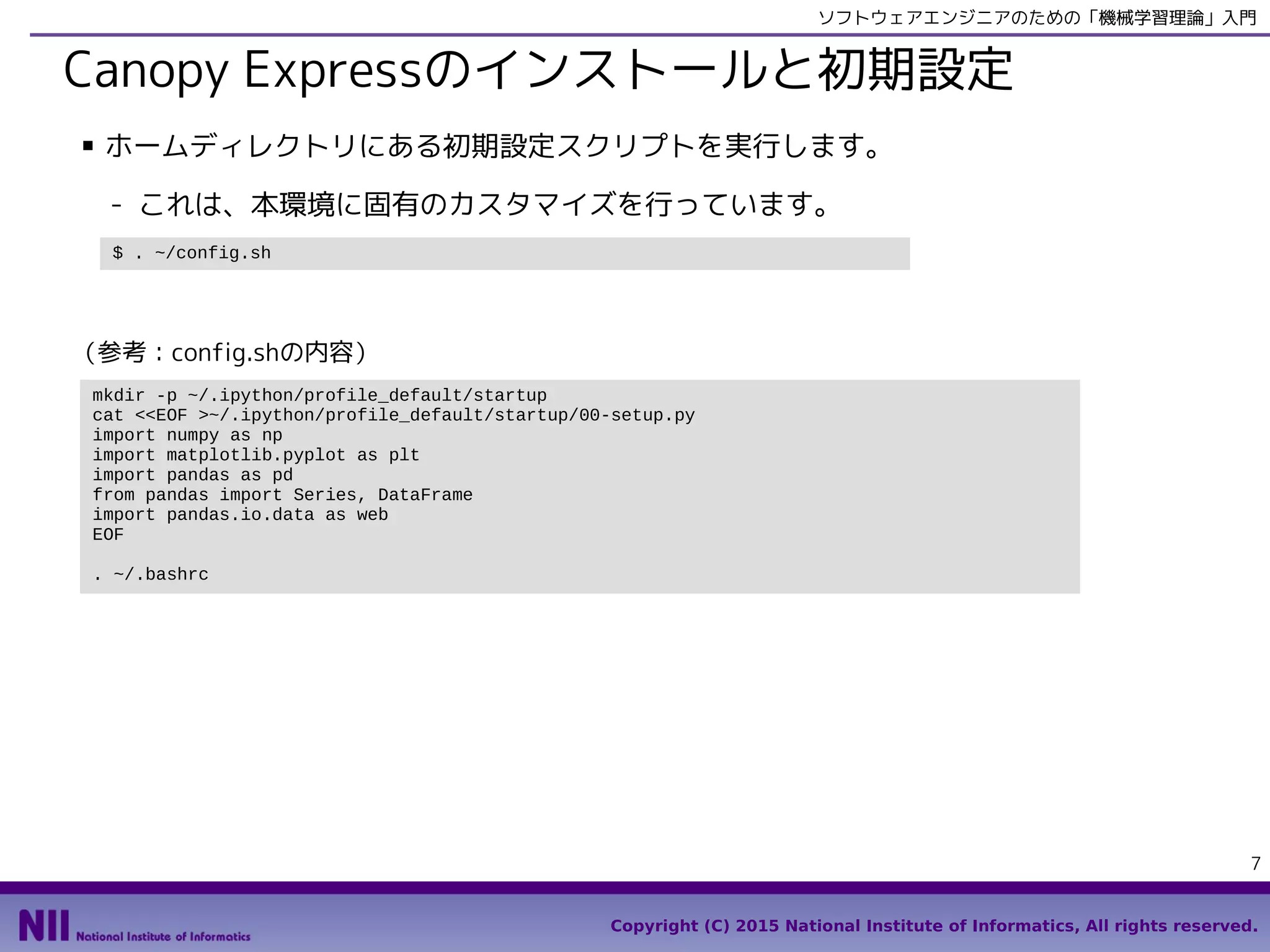

Canopy Expressのインストールと初期設定
■ サンプルコードをダウンロードして、カスタマイズスクリプトを実行します。
- これは、本環境に固有のカスタマイズを行っています。
mkdir -p ~/.ipython/profile_default/startup
cat <<EOF >~/.ipython/profile_default/startup/00-setup.py
import numpy as np
import matplotlib.pyplot as plt
import pandas as pd
from pandas import Series, DataFrame
EOF
echo "alias ipython='ipython --pylab'" >> ~/.bashrc
. ~/.bashrc
echo Done.
$ cd
$ wget https://github.com/enakai00/ml4se/raw/master/ml4se.zip
$ unzip ml4se.zip
$ . ml4se/config_centos.sh
(参考:config_centos.shの内容)
8. Copyright (C) 2015 National Institute of Informatics, All rights reserved.
8
ソフトウェアエンジニアのための「機械学習理論」入門

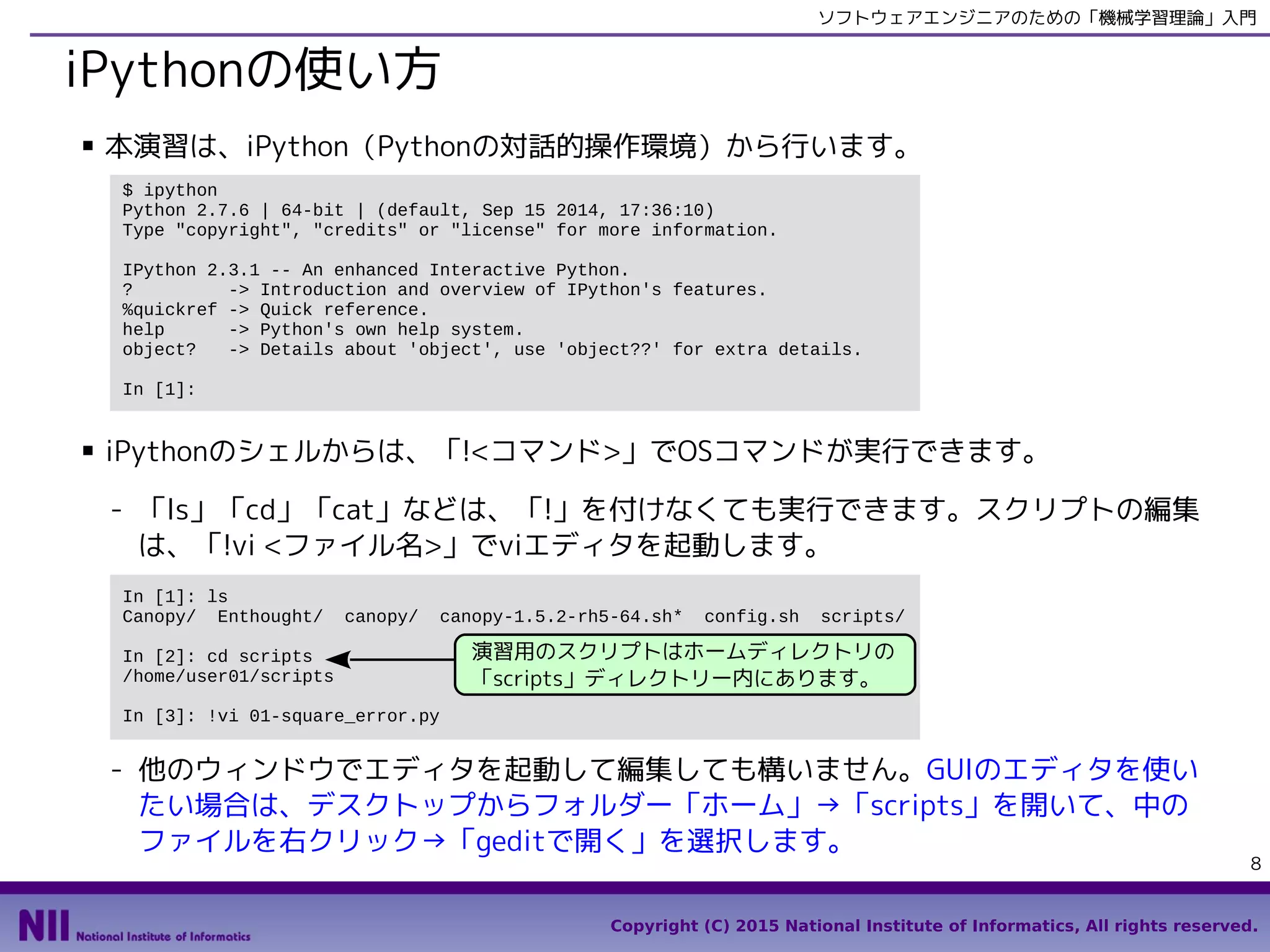

IPythonの使い方
■ 本演習は、IPython(Pythonの対話的操作環境)から行います。
■ IPythonのシェルからは、「!<コマンド>」でOSコマンドが実行できます。
- 「ls」「cd」「cat」などは、「!」を付けなくても実行できます。スクリプトの編集
は、「!vi <ファイル名>」でviエディタを起動します。
- 他のウィンドウでエディタを起動して編集しても構いません。GUIのエディタを使い
たい場合は、デスクトップからフォルダー「ホーム」→「ml4se」→「scripts」を
開いて、中のファイルを右クリック→「geditで開く」を選択します。
$ ipython
Python 2.7.6 | 64-bit | (default, Sep 15 2014, 17:36:10)
Type "copyright", "credits" or "license" for more information.
IPython 2.3.1 -- An enhanced Interactive Python.
? -> Introduction and overview of IPython's features.
%quickref -> Quick reference.
help -> Python's own help system.
object? -> Details about 'object', use 'object??' for extra details.
In [1]:
In [1]: ls ml4se
LICENSE README.md config_centos.sh config_mac.sh config_win.bat scripts/
In [2]: cd ~/ml4se/scripts
/home/user01/ml4se/scripts
In [3]: !vi 01-square_error.py
演習用のスクリプトはホームディレクトリの
「ml4se/scripts」ディレクトリー内にあります。
9. Copyright (C) 2015 National Institute of Informatics, All rights reserved.

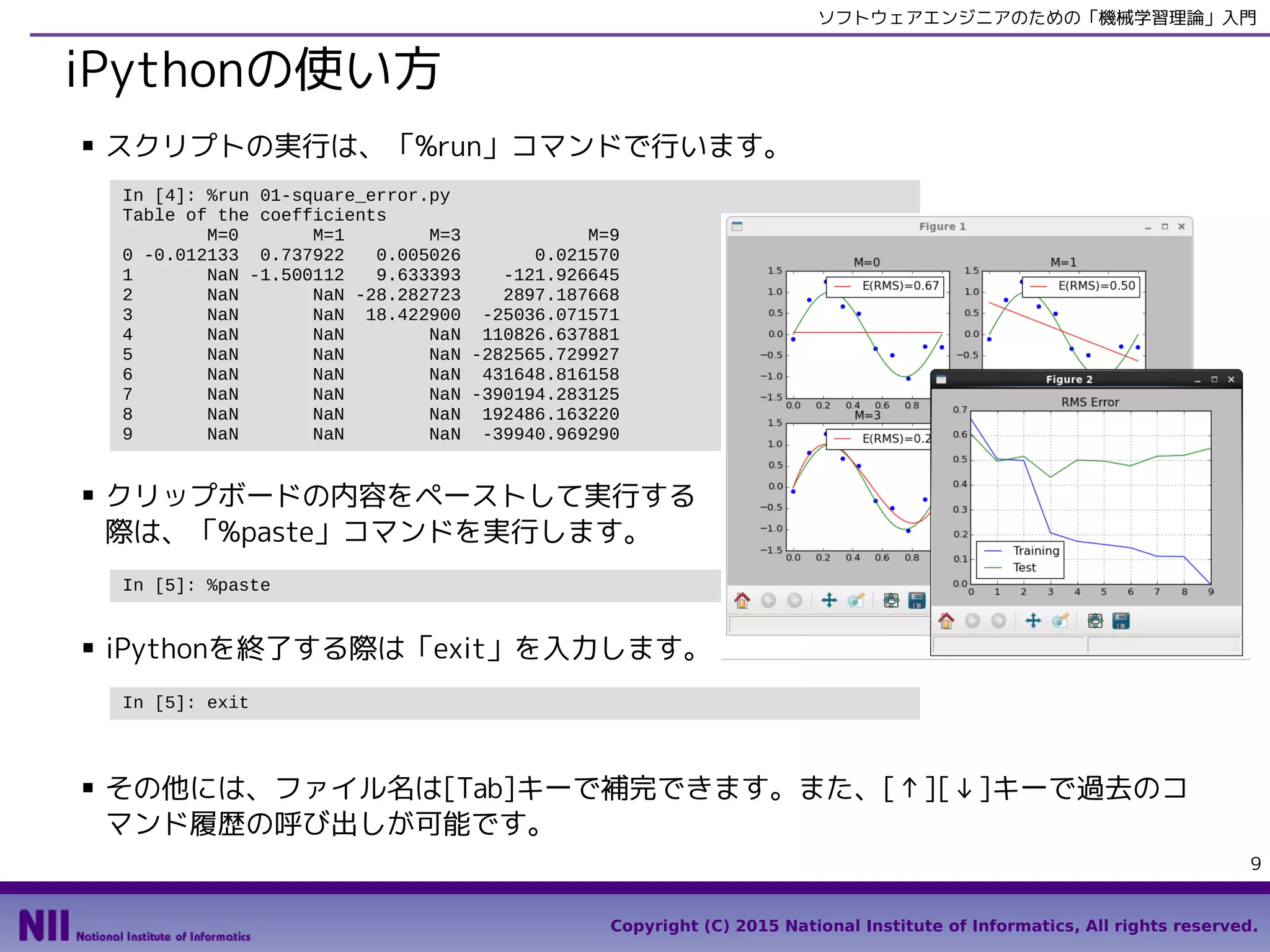

9
ソフトウェアエンジニアのための「機械学習理論」入門
IPythonの使い方
■ スクリプトの実行は、「%run」コマンドで行います。
■ その他には、ファイル名は [Tab] キーで補完できます。また、[↑][↓] キーで過去の
コマンド履歴の呼び出しが可能です。
In [4]: %run 01-square_error.py
Table of the coefficients
M=0 M=1 M=3 M=9
0 -0.012133 0.737922 0.005026 0.021570
1 NaN -1.500112 9.633393 -121.926645
2 NaN NaN -28.282723 2897.187668
3 NaN NaN 18.422900 -25036.071571
4 NaN NaN NaN 110826.637881
5 NaN NaN NaN -282565.729927
6 NaN NaN NaN 431648.816158
7 NaN NaN NaN -390194.283125
8 NaN NaN NaN 192486.163220
9 NaN NaN NaN -39940.969290
In [5]: exit
In [5]: %paste
■ クリップボードの内容をペーストして実行する
際は、「%paste」コマンドを実行します。
■ IPythonを終了する際は「exit」を入力します。
10. Copyright (C) 2015 National Institute of Informatics, All rights reserved.
10
ソフトウェアエンジニアのための「機械学習理論」入門

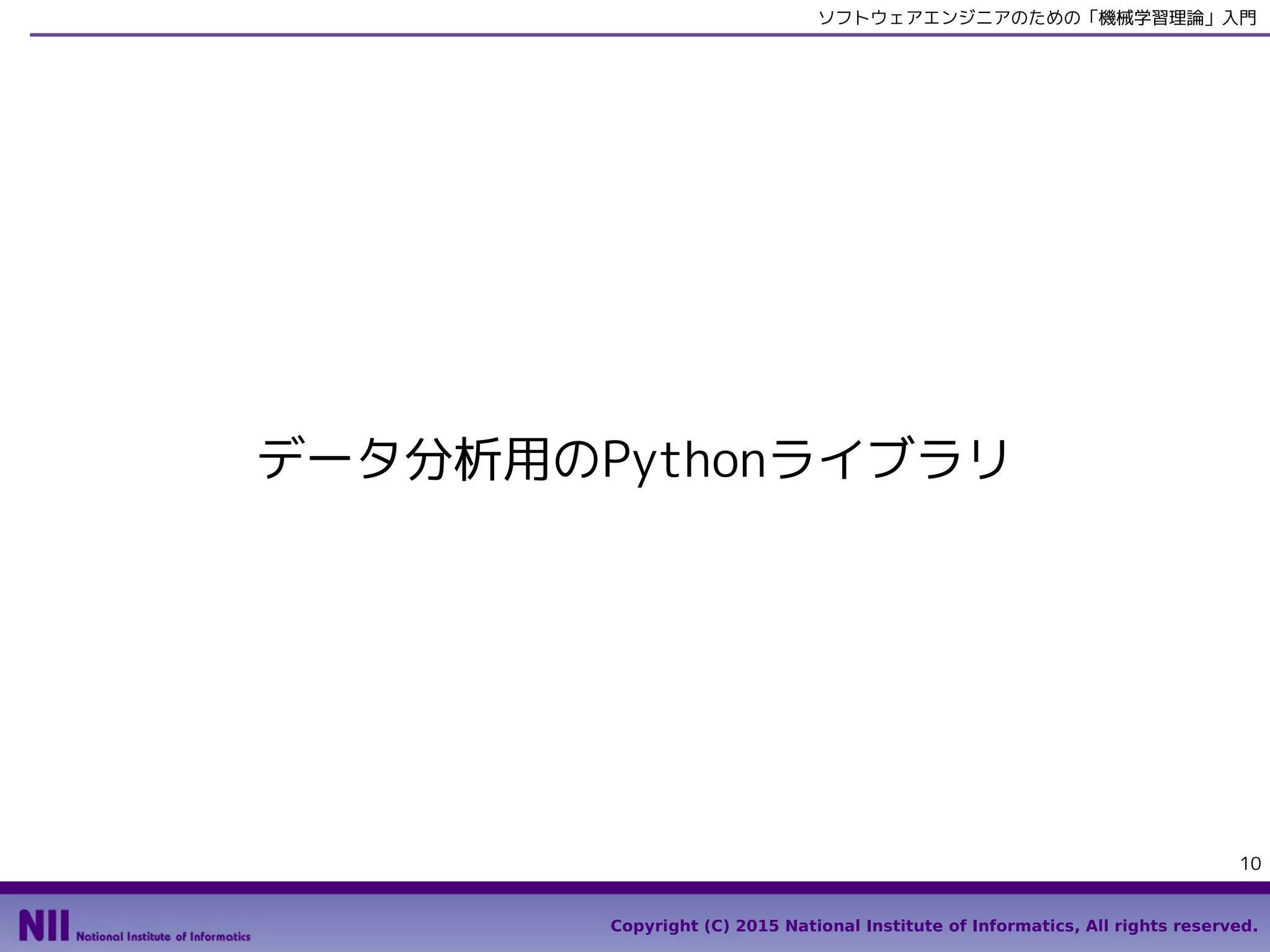

データ分析用のPythonライブラリ
11. Copyright (C) 2015 National Institute of Informatics, All rights reserved.
11
ソフトウェアエンジニアのための「機械学習理論」入門

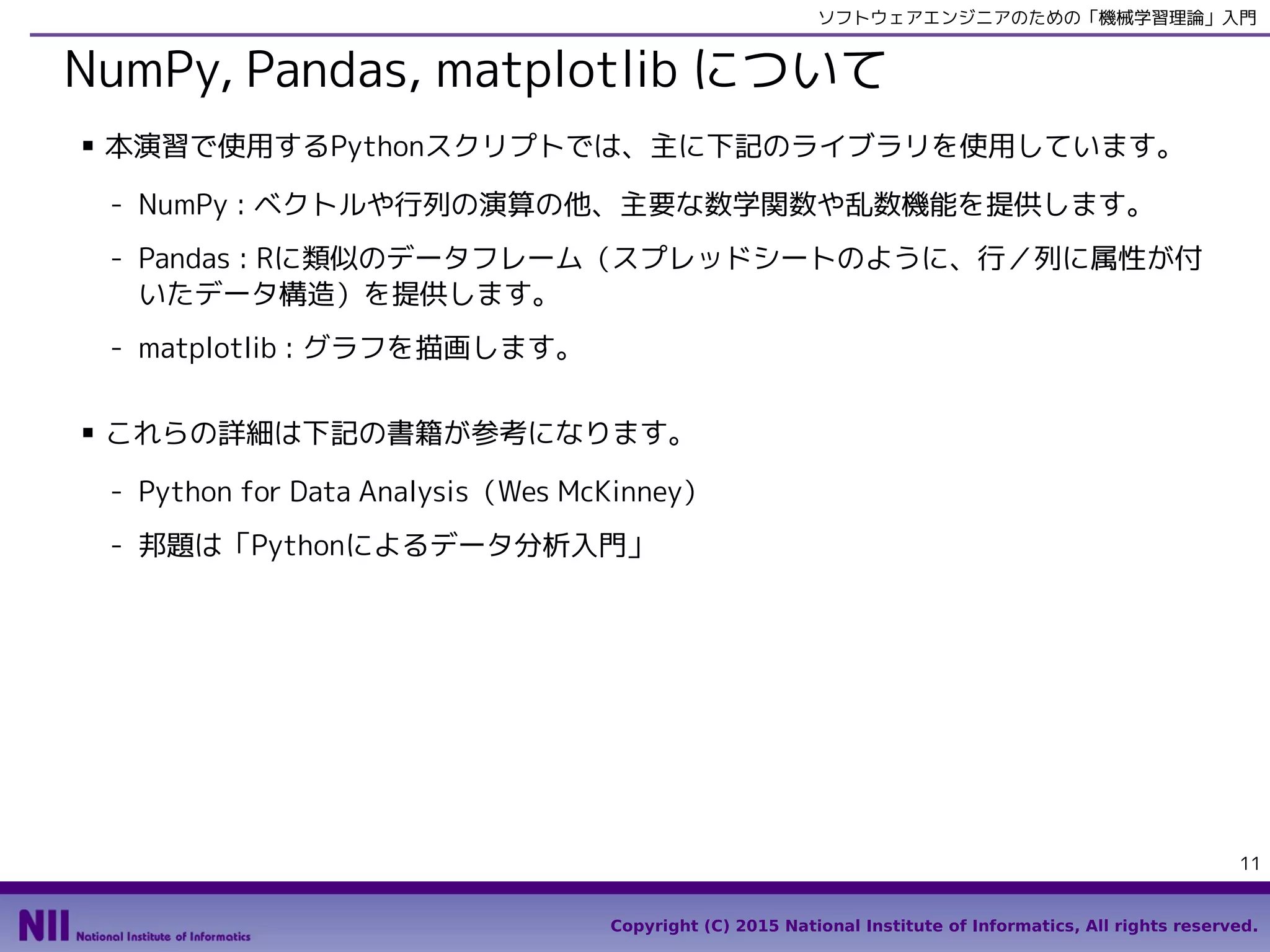

NumPy, pandas, matplotlib について
■ 本演習で使用するPythonスクリプトでは、主に下記のライブラリを使用しています。
- NumPy : ベクトルや行列の演算の他、主要な数学関数や乱数機能を提供します。
- pandas : Rに類似のデータフレーム(スプレッドシートのように、行/列に属性が付
いたデータ構造)を提供します。
- matplotlib : グラフを描画します。
■ これらの詳細は下記の書籍が参考になります。
- Python for Data Analysis(Wes McKinney)
- 邦題は「Pythonによるデータ分析入門」
12. Copyright (C) 2015 National Institute of Informatics, All rights reserved.
12
ソフトウェアエンジニアのための「機械学習理論」入門

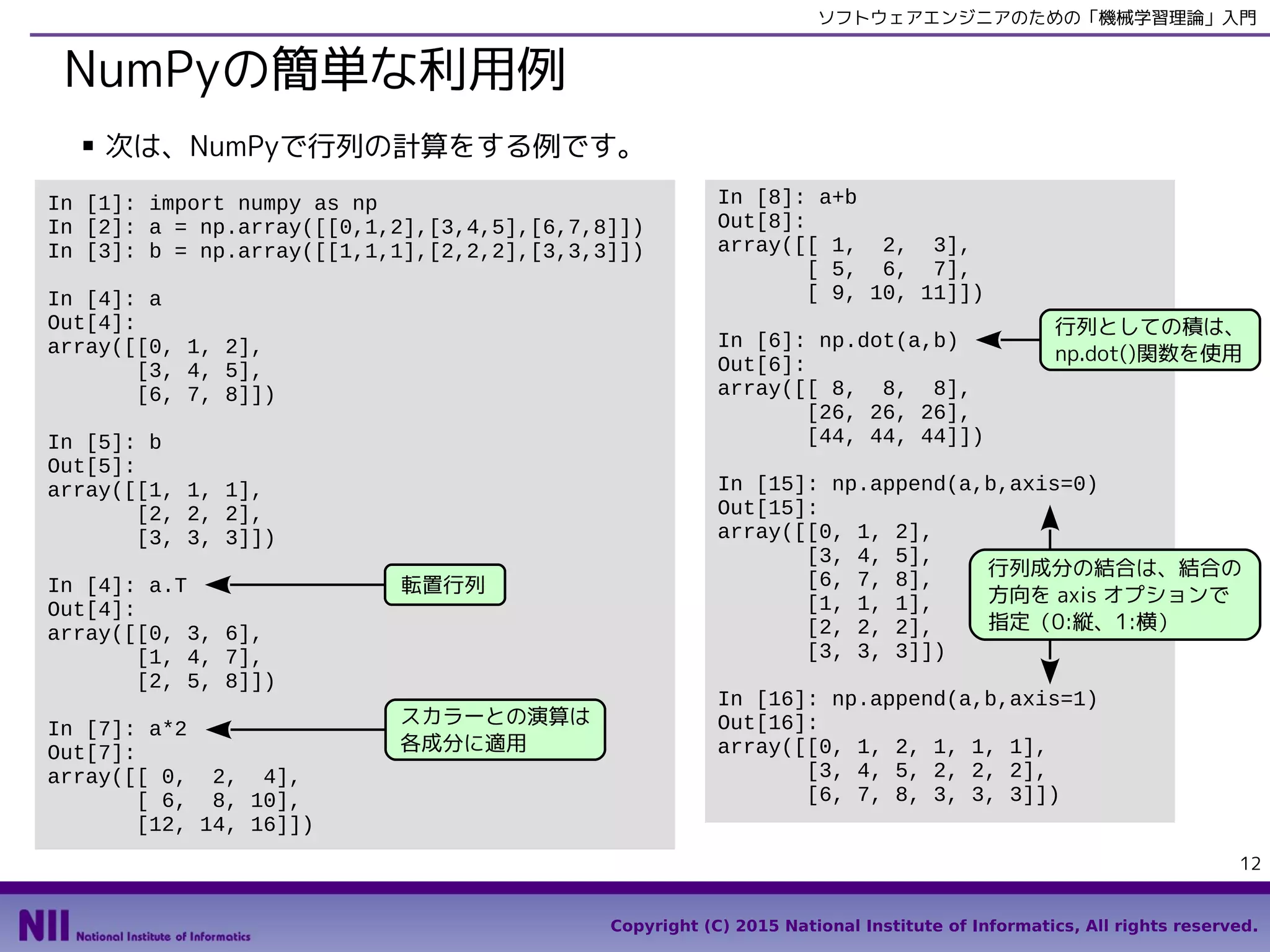

NumPyの簡単な利用例
In [1]: import numpy as np
In [2]: a = np.array([[0,1,2],[3,4,5],[6,7,8]])
In [3]: b = np.array([[1,1,1],[2,2,2],[3,3,3]])
In [4]: a
Out[4]:
array([[0, 1, 2],
[3, 4, 5],
[6, 7, 8]])
In [5]: b
Out[5]:
array([[1, 1, 1],
[2, 2, 2],
[3, 3, 3]])
In [4]: a.T
Out[4]:
array([[0, 3, 6],
[1, 4, 7],
[2, 5, 8]])
In [7]: a*2
Out[7]:
array([[ 0, 2, 4],
[ 6, 8, 10],
[12, 14, 16]])
In [8]: a+b
Out[8]:
array([[ 1, 2, 3],
[ 5, 6, 7],
[ 9, 10, 11]])
In [6]: np.dot(a,b)
Out[6]:
array([[ 8, 8, 8],
[26, 26, 26],
[44, 44, 44]])
In [15]: np.append(a,b,axis=0)
Out[15]:
array([[0, 1, 2],
[3, 4, 5],
[6, 7, 8],
[1, 1, 1],
[2, 2, 2],
[3, 3, 3]])
In [16]: np.append(a,b,axis=1)
Out[16]:
array([[0, 1, 2, 1, 1, 1],
[3, 4, 5, 2, 2, 2],
[6, 7, 8, 3, 3, 3]])
■ 次は、NumPyで行列の計算をする例です。
転置行列
スカラーとの演算は
各成分に適用
行列としての積は、
np.dot()関数を使用
行列成分の結合は、結合の
方向を axis オプションで
指定(0:縦、1:横)
13. Copyright (C) 2015 National Institute of Informatics, All rights reserved.
13
ソフトウェアエンジニアのための「機械学習理論」入門
In [1]: df = DataFrame([[0,1],[2,3],[4,5]], columns=('x','y'))
In [2]: df
Out[2]:
x y
0 0 1
1 2 3
2 4 5
In [3]: df['x']
Out[3]:
0 0
1 2
2 4
Name: x, dtype: int64
In [4]: df.x
Out[4]:
0 0
1 2
2 4
Name: x, dtype: int64
In [5]: df[0:2]
Out[5]:
x y
0 0 1
1 2 3

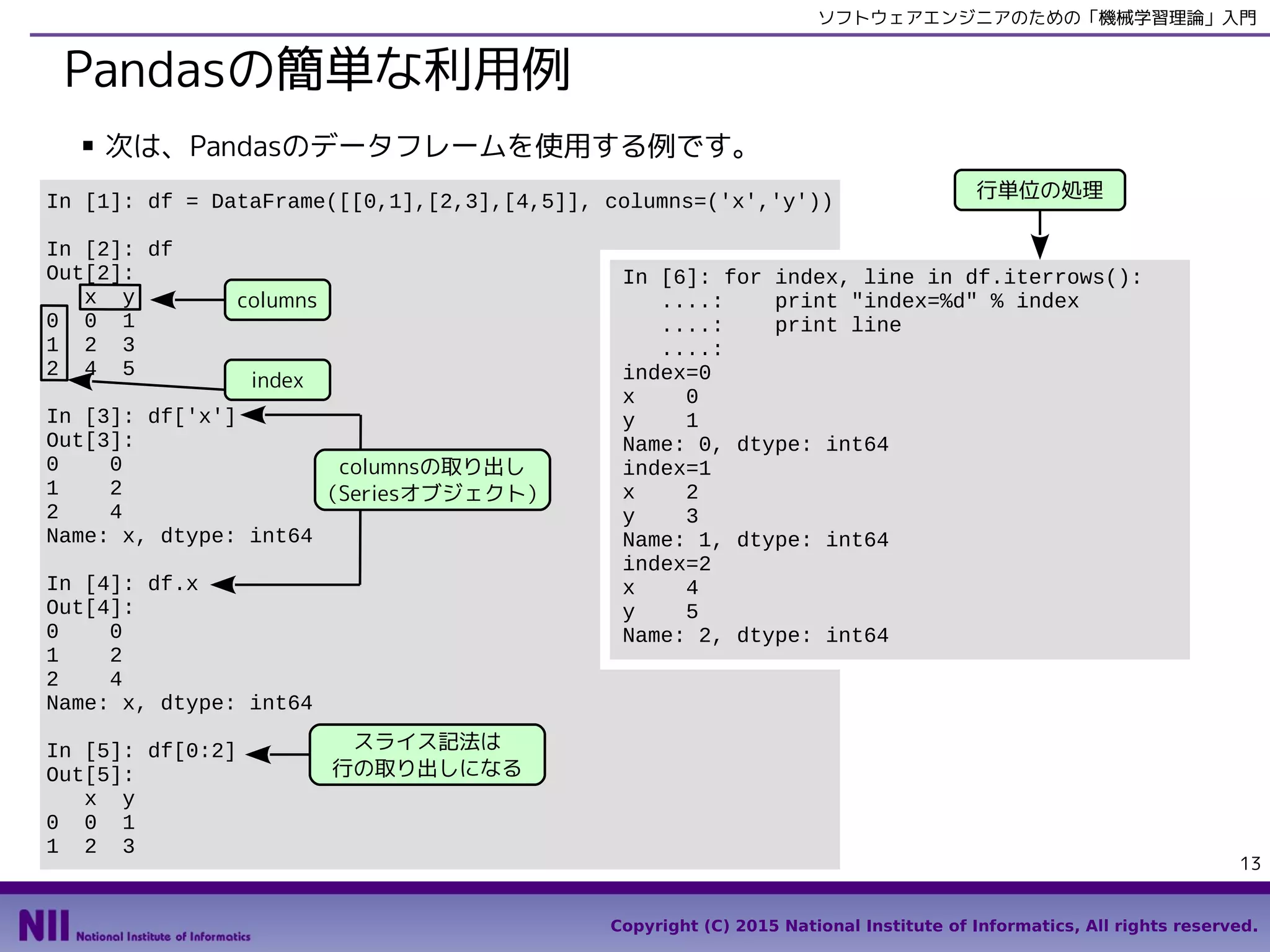

pandasの簡単な利用例
■ 次は、pandasのデータフレームを使用する例です。
columns
index
columnsの取り出し
(Seriesオブジェクト)
スライス記法は
行の取り出しになる
In [6]: for index, line in df.iterrows():
....: print "index=%d" % index
....: print line
....:
index=0
x 0
y 1
Name: 0, dtype: int64
index=1
x 2
y 3
Name: 1, dtype: int64
index=2
x 4
y 5
Name: 2, dtype: int64
行単位の処理
14. Copyright (C) 2015 National Institute of Informatics, All rights reserved.
14
ソフトウェアエンジニアのための「機械学習理論」入門

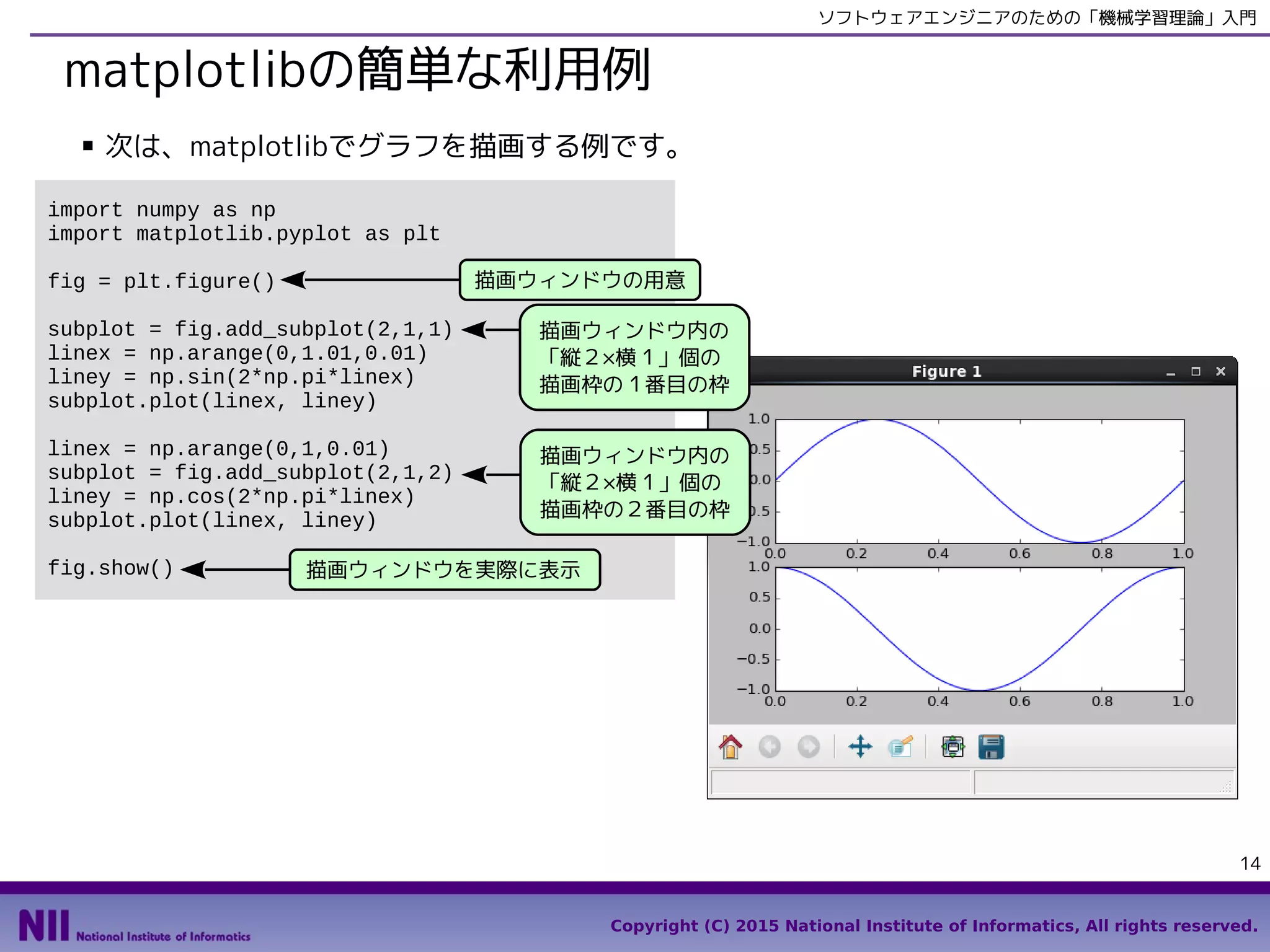

matplotlibの簡単な利用例
■ 次は、matplotlibでグラフを描画する例です。
import numpy as np
import matplotlib.pyplot as plt
fig = plt.figure()
subplot = fig.add_subplot(2,1,1)
linex = np.arange(0,1.01,0.01)
liney = np.sin(2*np.pi*linex)
subplot.plot(linex, liney)
linex = np.arange(0,1,0.01)
subplot = fig.add_subplot(2,1,2)
liney = np.cos(2*np.pi*linex)
subplot.plot(linex, liney)
fig.show()
描画ウィンドウの用意
描画ウィンドウ内の
「縦2×横1」個の
描画枠の1番目の枠
描画ウィンドウ内の
「縦2×横1」個の
描画枠の2番目の枠
描画ウィンドウを実際に表示
15. Copyright (C) 2015 National Institute of Informatics, All rights reserved.
15
ソフトウェアエンジニアのための「機械学習理論」入門

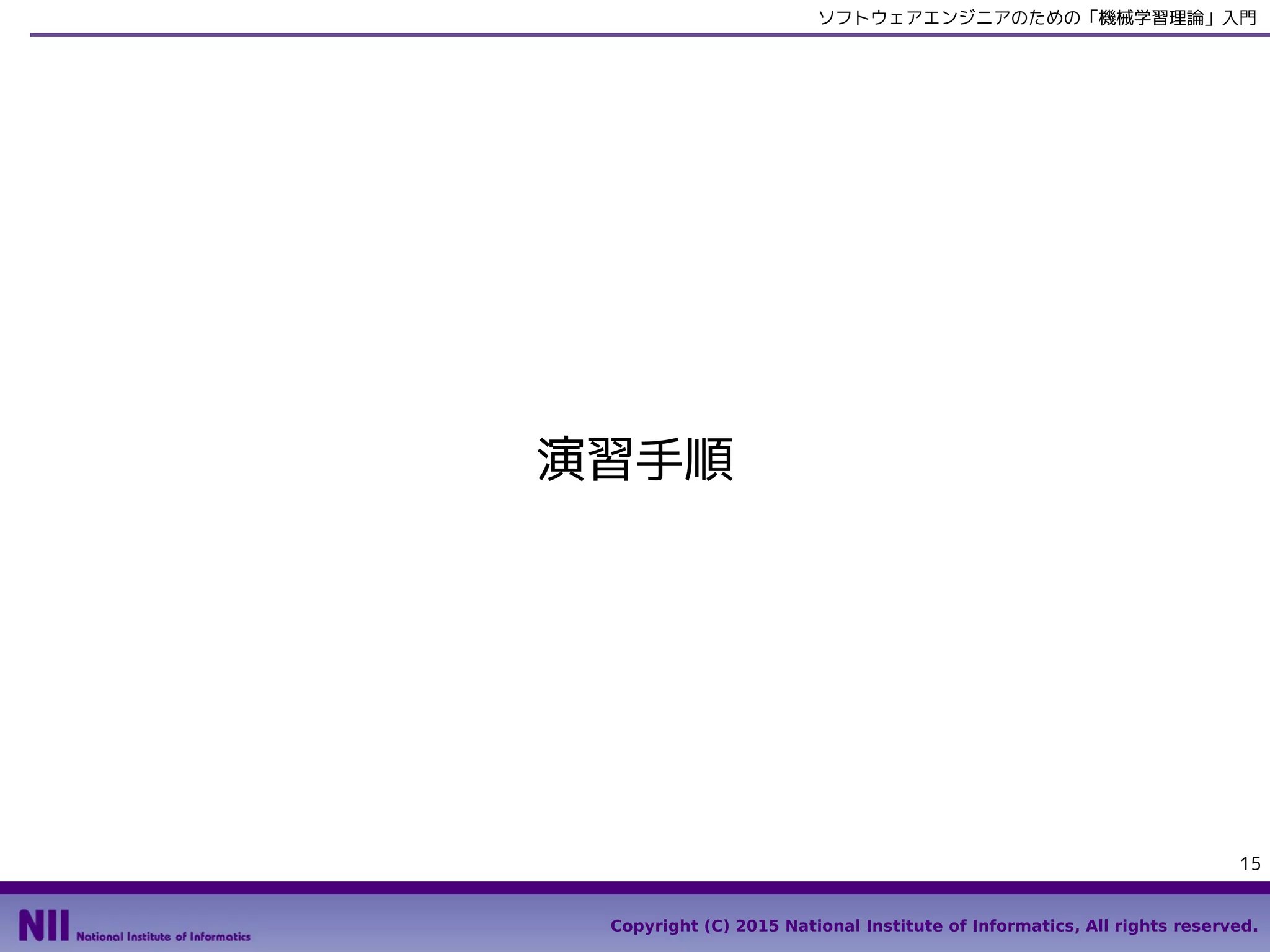

演習手順
16. Copyright (C) 2015 National Institute of Informatics, All rights reserved.
16
ソフトウェアエンジニアのための「機械学習理論」入門
演習1:最小二乗法による回帰分析
■ スクリプト「02-square_error.py」を実行します。
- 最小二乗法による回帰分析を実施します。
■ 具体的な内容は、下記のBlogを参照してください。
- PRML 第1章の多項式フィッティングの例を再現
- http://enakai00.hatenablog.com/entry/2015/04/05/002239
■ スクリプトの下記の値を変えると、データ数(x軸上の観測点の数)を変更できます。
- データ数によって結果がどのように変わるか観察してください。
In [1]: %run 02-square_error.py
#------------#
# Parameters #
#------------#
N=10 # サンプルを取得する位置 x の個数
17. Copyright (C) 2015 National Institute of Informatics, All rights reserved.
17
ソフトウェアエンジニアのための「機械学習理論」入門
演習2:最尤推定による回帰分析
■ スクリプト「03-maximum_likelihood.py」「03-ml_gauss.py」を実行します。
- 最尤推定による回帰分析と最大ログ尤度の計算、および、最尤推定による正規分布
の推定を行います。
■ 具体的な内容は、下記のBlogを参照してください。
- PRML 第1章の「最尤推定によるパラメータフィッティング」の解説
- http://enakai00.hatenablog.com/entry/2015/04/05/220817
■ 「03-loglikelihood.py」の下記の値を変えると、データ数を変更できます。
- データ数によって結果がどのように変わるか観察してください。
■ 「03-ml_gauss.py」を何度か実行して、得られたサンプルによって推定がどのように
変わるか観察してください。
In [1]: %run 03-maximum_likelihood.py
In [2]: %run 03-ml_gauss.py
#------------#
# Parameters #
#------------#
N=10 # サンプルを取得する位置 x の個数
