This document discusses machine learning and artificial intelligence. It defines machine learning as using algorithms to learn from data without being explicitly programmed, while artificial intelligence is defined as machines exhibiting human-like intelligence. The document discusses typical uses of each and differences between them. It also covers machine learning misconceptions, when models learn and should be retrained, common pitfalls, and potential healthcare applications of machine learning techniques. Polls are included to gauge audience experience with and perspectives on machine learning.

1. © 2016 Health Catalyst
Proprietary and Confidential
Machine Learning
Misconceptions
May 3rd, 2017

2. © 2016 Health Catalyst
Proprietary and Confidential
Data Science Team
2
Levi Thatcher, PhD
Director of Data Science
Mike Mastanduno, PhD
Data Scientist
Taylor Miller, PharmD
Data Scientist
Taylor Larsen, MS
Data Science Engineer

3. © 2016 Health Catalyst
Proprietary and Confidential

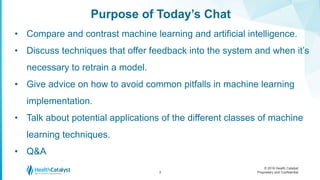

Purpose of Today’s Chat
3
• Compare and contrast machine learning and artificial intelligence.
• Discuss techniques that offer feedback into the system and when it’s
necessary to retrain a model.
• Give advice on how to avoid common pitfalls in machine learning
implementation.
• Talk about potential applications of the different classes of machine
learning techniques.
• Q&A

4. © 2016 Health Catalyst
Proprietary and Confidential

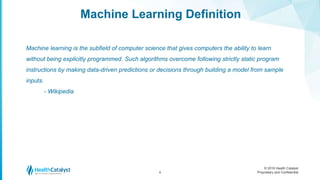

Machine Learning Definition
4
Machine learning is the subfield of computer science that gives computers the ability to learn
without being explicitly programmed. Such algorithms overcome following strictly static program
instructions by making data-driven predictions or decisions through building a model from sample
inputs.
- Wikipedia

5. © 2016 Health Catalyst
Proprietary and Confidential

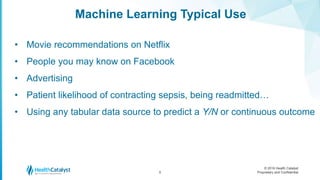

Machine Learning Typical Use
5
• Movie recommendations on Netflix
• People you may know on Facebook
• Advertising
• Patient likelihood of contracting sepsis, being readmitted…
• Using any tabular data source to predict a Y/N or continuous outcome

6. © 2016 Health Catalyst
Proprietary and Confidential

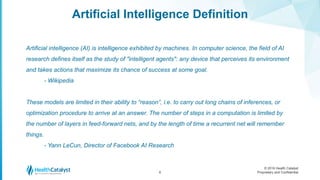

Artificial Intelligence Definition
6
Artificial intelligence (AI) is intelligence exhibited by machines. In computer science, the field of AI
research defines itself as the study of "intelligent agents": any device that perceives its environment
and takes actions that maximize its chance of success at some goal.
- Wikipedia
These models are limited in their ability to “reason”, i.e. to carry out long chains of inferences, or
optimization procedure to arrive at an answer. The number of steps in a computation is limited by
the number of layers in feed-forward nets, and by the length of time a recurrent net will remember
things.
- Yann LeCun, Director of Facebook AI Research

7. © 2016 Health Catalyst
Proprietary and Confidential

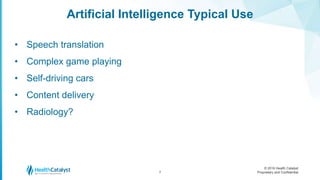

Artificial Intelligence Typical Use
7
• Speech translation
• Complex game playing
• Self-driving cars
• Content delivery
• Radiology?

8. © 2016 Health Catalyst
Proprietary and Confidential
Difference Between ML and AI
8
• It’s fuzzy
• Learning from data? No, not really.
• Continuous learning from data? No, not really.
• AI feels more complicated.
• AI should be able to learn a skill and generalize it to
another entirely different thing.
• Many AI ideas get rebranded as ML as time goes on and
we understand them.

9. © 2016 Health Catalyst
Proprietary and Confidential

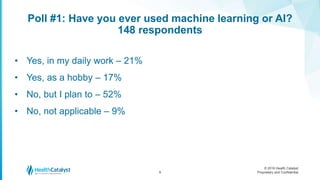

Poll #1: Have you ever used machine learning or AI?
148 respondents
9
• Yes, in my daily work – 21%
• Yes, as a hobby – 17%
• No, but I plan to – 52%
• No, not applicable – 9%

10. © 2016 Health Catalyst
Proprietary and Confidential
How is machine learning used?
10

11. © 2016 Health Catalyst
Proprietary and Confidential

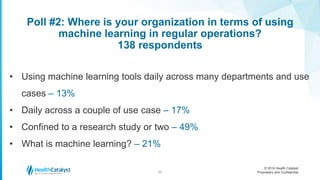

Poll #2: Where is your organization in terms of using
machine learning in regular operations?
138 respondents
11
• Using machine learning tools daily across many departments and use
cases – 13%
• Daily across a couple of use case – 17%
• Confined to a research study or two – 49%
• What is machine learning? – 21%

12. © 2016 Health Catalyst
Proprietary and Confidential

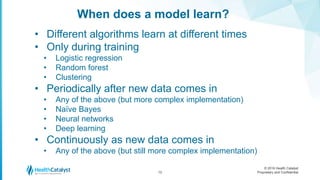

When does a model learn?
12
• Different algorithms learn at different times
• Only during training
• Logistic regression
• Random forest
• Clustering
• Periodically after new data comes in
• Any of the above (but more complex implementation)
• Naïve Bayes
• Neural networks
• Deep learning
• Continuously as new data comes in
• Any of the above (but still more complex implementation)

13. © 2016 Health Catalyst
Proprietary and Confidential

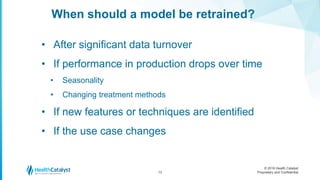

When should a model be retrained?
13
• After significant data turnover
• If performance in production drops over time
• Seasonality
• Changing treatment methods
• If new features or techniques are identified
• If the use case changes

14. © 2016 Health Catalyst
Proprietary and Confidential

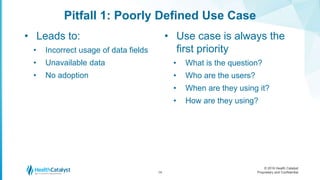

Pitfall 1: Poorly Defined Use Case
• Leads to:
• Incorrect usage of data fields
• Unavailable data
• No adoption
• Use case is always the
first priority
• What is the question?
• Who are the users?
• When are they using it?
• How are they using?
14

15. © 2016 Health Catalyst
Proprietary and Confidential

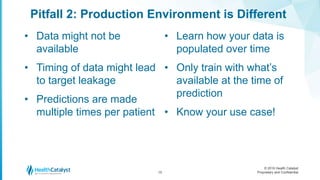

Pitfall 2: Production Environment is Different
15
• Data might not be
available
• Timing of data might lead
to target leakage
• Predictions are made
multiple times per patient
• Learn how your data is
populated over time
• Only train with what’s
available at the time of
prediction
• Know your use case!

16. © 2016 Health Catalyst
Proprietary and Confidential
Pitfall 3: Bad Performance Metrics
16
• 99% accurate, but didn’t
find any sick people
• Imbalanced classes
• Performance changing
over time
• AUC or Precision-Recall
• Sampling methods
during model training
• Monitor correct
performance metric over
time
• Know your use case!

17. © 2016 Health Catalyst
Proprietary and Confidential

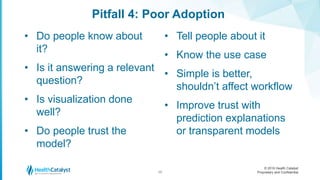

Pitfall 4: Poor Adoption
17
• Do people know about
it?
• Is it answering a relevant
question?
• Is visualization done
well?
• Do people trust the
model?
• Tell people about it
• Know the use case
• Simple is better,
shouldn’t affect workflow
• Improve trust with
prediction explanations
or transparent models

18. © 2016 Health Catalyst
Proprietary and Confidential

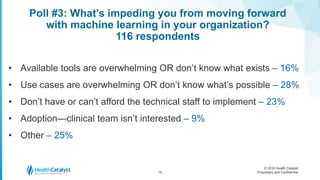

Poll #3: What’s impeding you from moving forward
with machine learning in your organization?
116 respondents
18
• Available tools are overwhelming OR don’t know what exists – 16%
• Use cases are overwhelming OR don’t know what’s possible – 28%
• Don’t have or can’t afford the technical staff to implement – 23%
• Adoption—clinical team isn’t interested – 9%
• Other – 25%

19. © 2016 Health Catalyst
Proprietary and Confidential

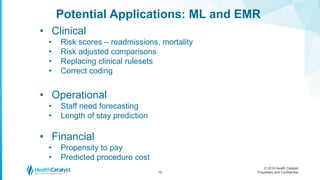

Potential Applications: ML and EMR
19
• Clinical
• Risk scores – readmissions, mortality
• Risk adjusted comparisons
• Replacing clinical rulesets
• Correct coding
• Operational
• Staff need forecasting
• Length of stay prediction
• Financial
• Propensity to pay
• Predicted procedure cost

20. © 2016 Health Catalyst
Proprietary and Confidential

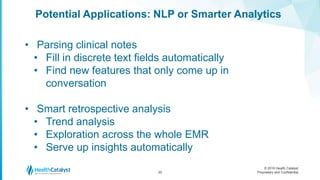

Potential Applications: NLP or Smarter Analytics
20
• Parsing clinical notes
• Fill in discrete text fields automatically
• Find new features that only come up in
conversation
• Smart retrospective analysis
• Trend analysis
• Exploration across the whole EMR
• Serve up insights automatically

21. © 2016 Health Catalyst
Proprietary and Confidential
Potential Applications: Image Processing
21
• Diagnostics of pre-segmented suspicious
regions
• Automatic segmentation of tissue types
• Diagnosis of or staging of screening images
• Diagnosis or staging of pathology slides

22. © 2016 Health Catalyst
Proprietary and Confidential

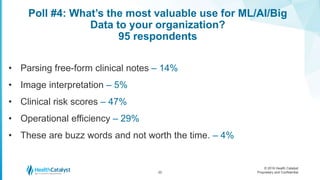

Poll #4: What’s the most valuable use for ML/AI/Big
Data to your organization?
95 respondents
22
• Parsing free-form clinical notes – 14%
• Image interpretation – 5%
• Clinical risk scores – 47%
• Operational efficiency – 29%
• These are buzz words and not worth the time. – 4%

23. © 2016 Health Catalyst
Proprietary and Confidential

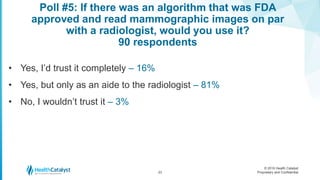

Poll #5: If there was an algorithm that was FDA
approved and read mammographic images on par
with a radiologist, would you use it?
90 respondents
23
• Yes, I’d trust it completely – 16%
• Yes, but only as an aide to the radiologist – 81%
• No, I wouldn’t trust it – 3%

24. © 2016 Health Catalyst
Proprietary and Confidential

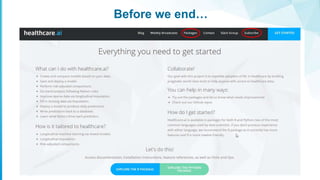

Before we end…
24

25. © 2016 Health Catalyst
Proprietary and Confidential
Questions?
25
