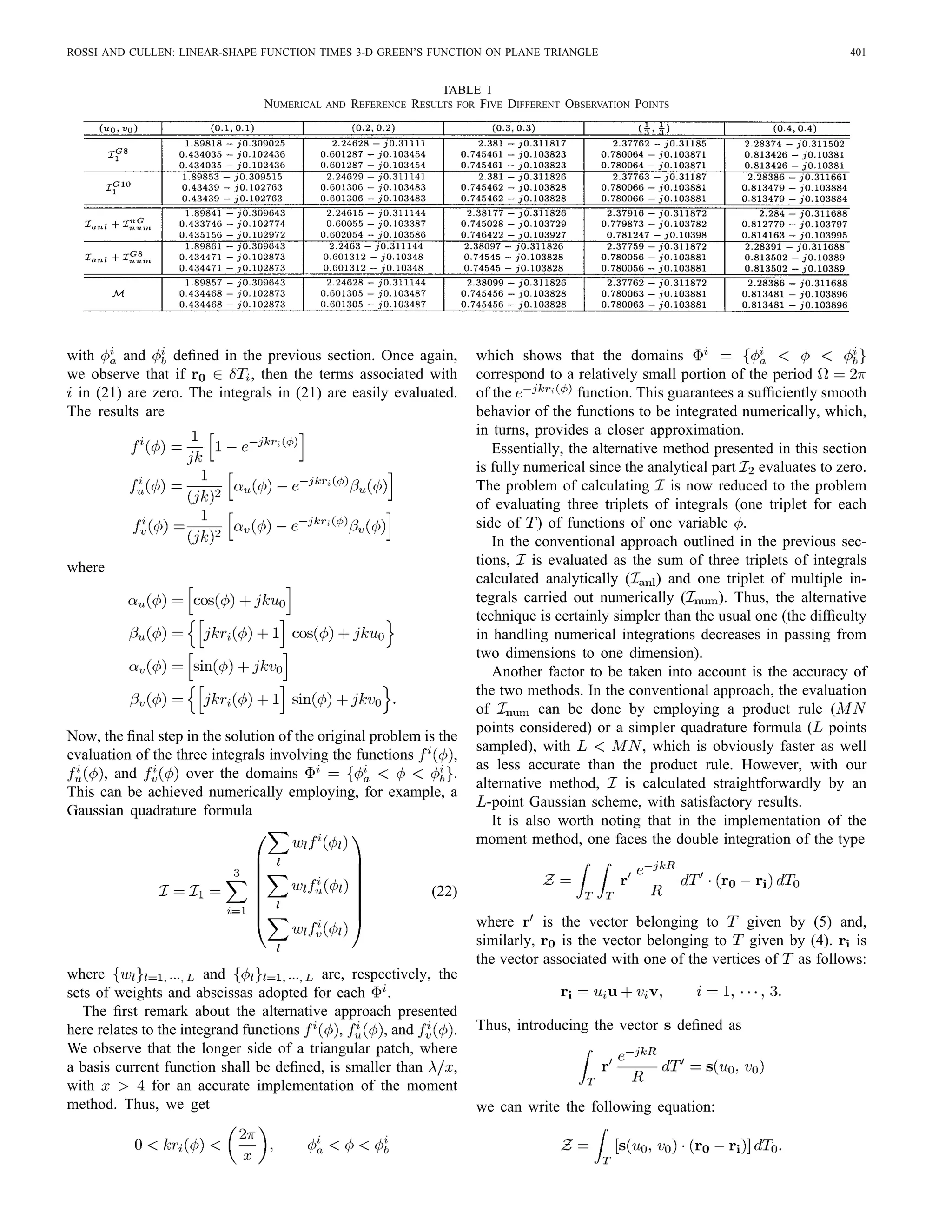

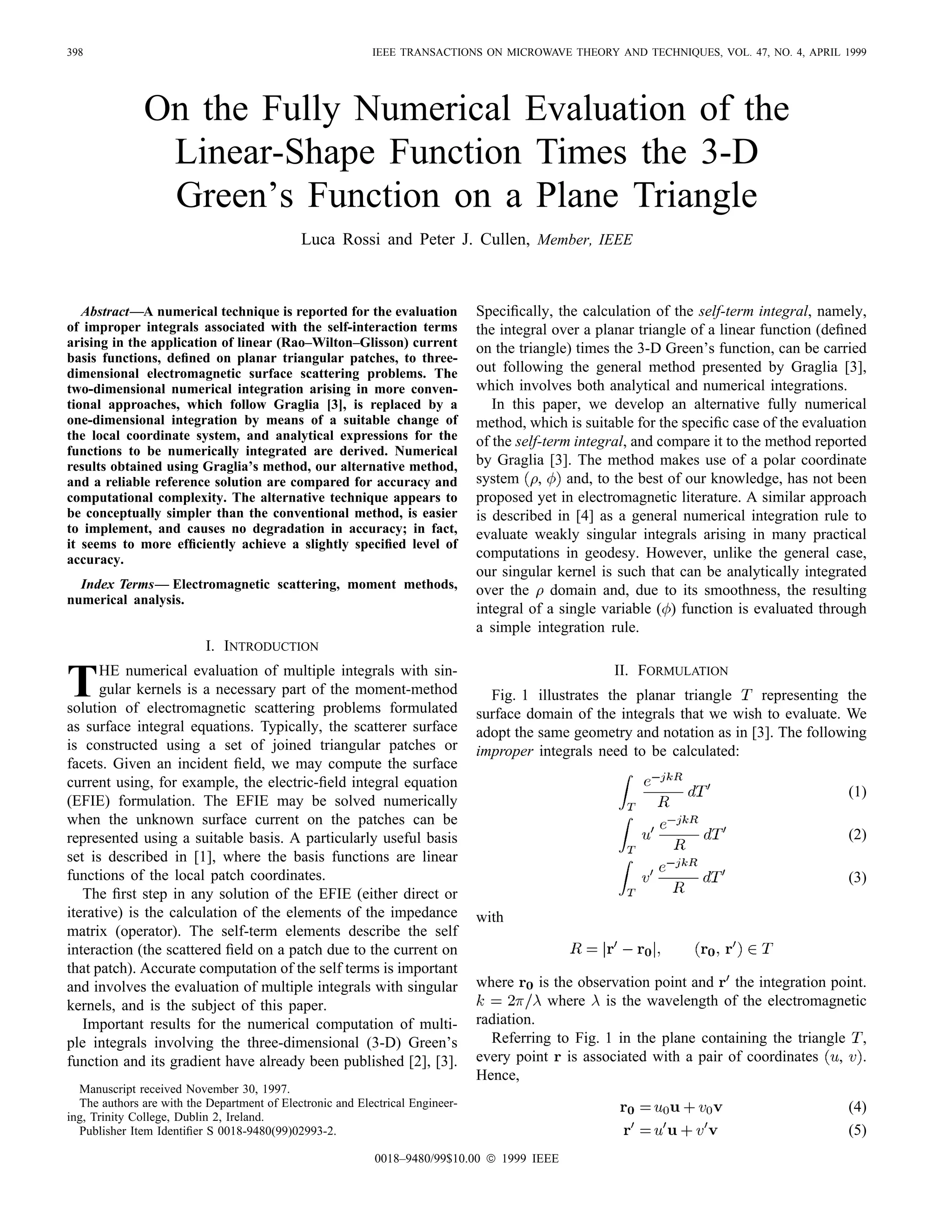

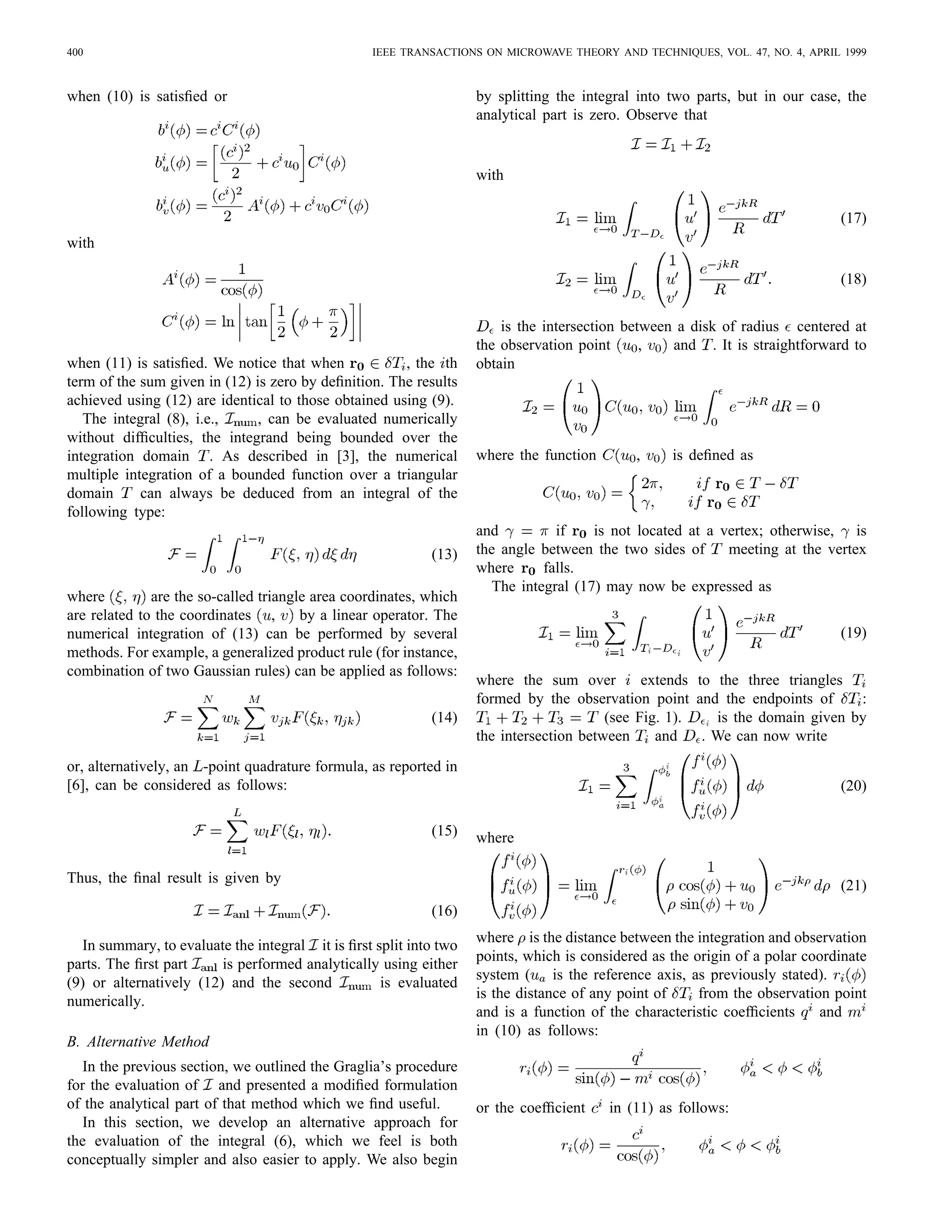

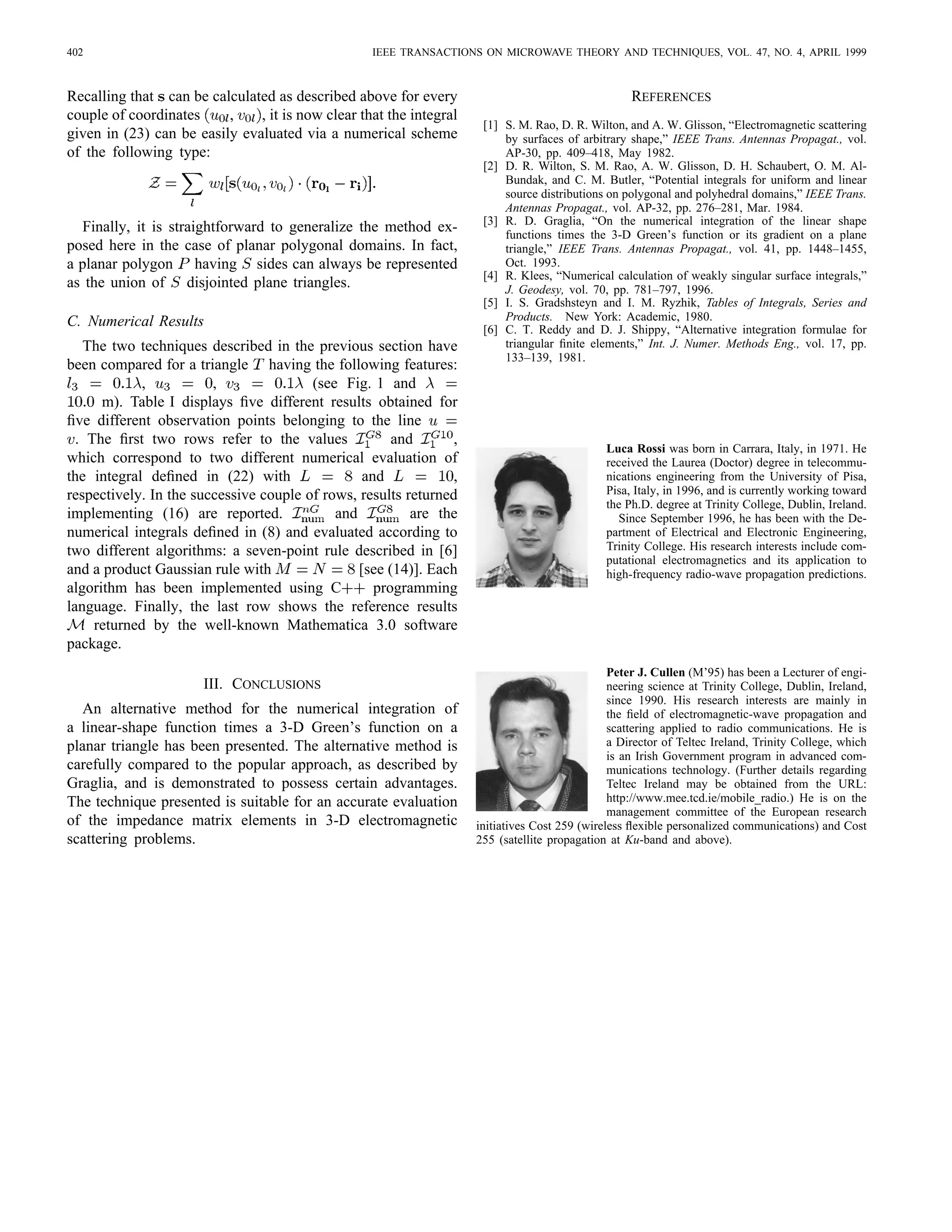

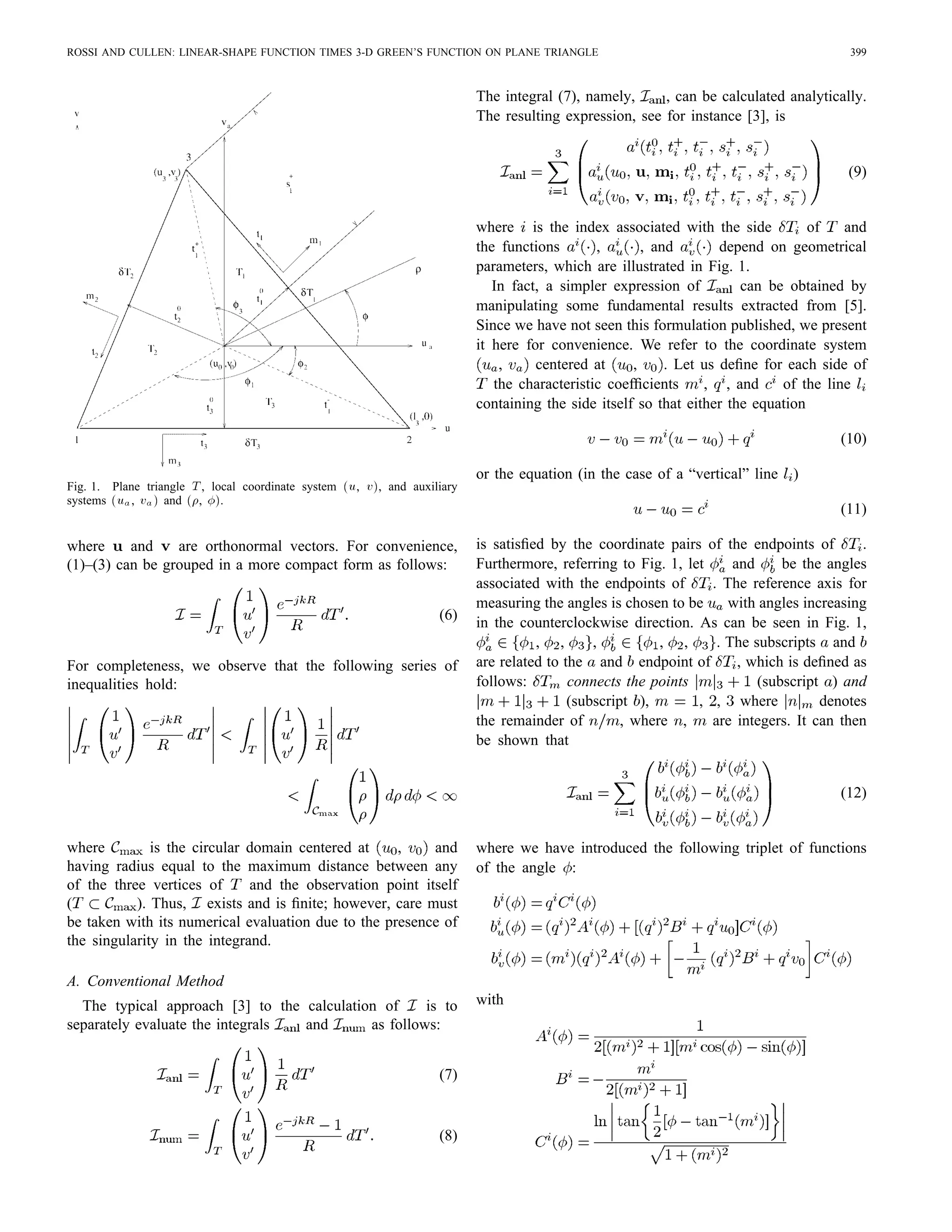

This document presents two numerical methods for evaluating integrals involving the linear-shape function times the 3D Green's function on a plane triangle. The conventional method splits the integral into an analytical and numerical part, while the alternative method proposed evaluates the integral fully numerically. Numerical results show the alternative method is conceptually simpler, easier to implement, and achieves similar or better accuracy compared to the conventional method.
