This document describes a simple UART loopback design using VHDL. It instantiates a UART component and connects its transmit and receive pins in a loopback configuration. On each clock cycle, any data received by the UART component is retransmitted back to its transmit pin. The design synchronizes the data transfer between the UART component ports using handshake signals and control logic.

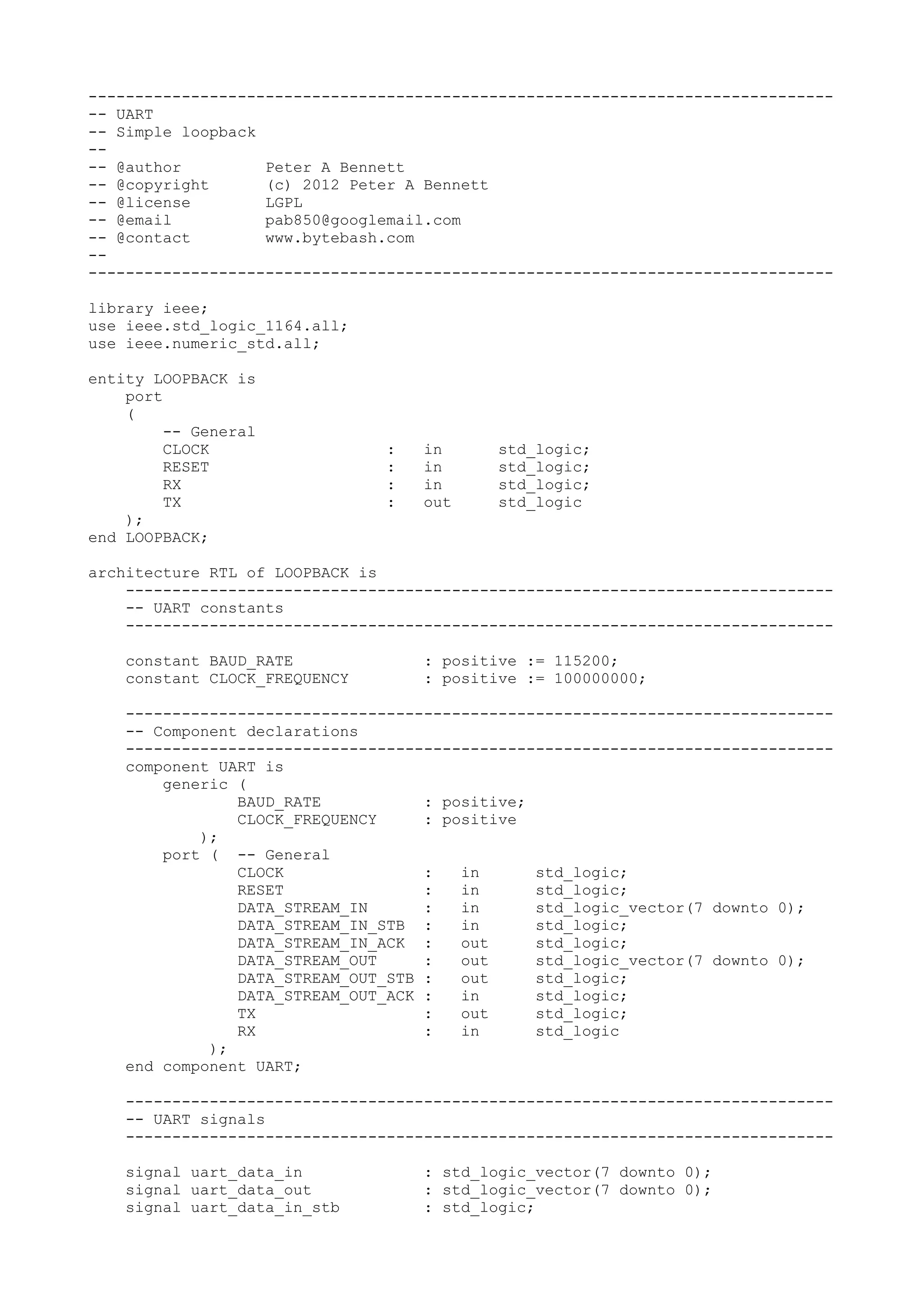

1. --------------------------------------------------------------------------------
-- UART
-- Simple loopback
--
-- @author Peter A Bennett
-- @copyright (c) 2012 Peter A Bennett
-- @license LGPL
-- @email pab850@googlemail.com
-- @contact www.bytebash.com
--
--------------------------------------------------------------------------------
library ieee;
use ieee.std_logic_1164.all;
use ieee.numeric_std.all;
entity LOOPBACK is
port
(
-- General
CLOCK : in std_logic;
RESET : in std_logic;
RX : in std_logic;
TX : out std_logic
);
end LOOPBACK;
architecture RTL of LOOPBACK is
----------------------------------------------------------------------------
-- UART constants
----------------------------------------------------------------------------
constant BAUD_RATE : positive := 115200;
constant CLOCK_FREQUENCY : positive := 100000000;
----------------------------------------------------------------------------
-- Component declarations
----------------------------------------------------------------------------
component UART is
generic (
BAUD_RATE : positive;
CLOCK_FREQUENCY : positive
);
port ( -- General
CLOCK : in std_logic;
RESET : in std_logic;
DATA_STREAM_IN : in std_logic_vector(7 downto 0);
DATA_STREAM_IN_STB : in std_logic;
DATA_STREAM_IN_ACK : out std_logic;
DATA_STREAM_OUT : out std_logic_vector(7 downto 0);
DATA_STREAM_OUT_STB : out std_logic;
DATA_STREAM_OUT_ACK : in std_logic;
TX : out std_logic;
RX : in std_logic
);
end component UART;
----------------------------------------------------------------------------
-- UART signals
----------------------------------------------------------------------------
signal uart_data_in : std_logic_vector(7 downto 0);
signal uart_data_out : std_logic_vector(7 downto 0);
signal uart_data_in_stb : std_logic;

2. signal uart_data_in_ack : std_logic;
signal uart_data_out_stb : std_logic;
signal uart_data_out_ack : std_logic;
begin
----------------------------------------------------------------------------
-- UART instantiation
----------------------------------------------------------------------------
UART_inst1 : UART
generic map (
BAUD_RATE => BAUD_RATE,
CLOCK_FREQUENCY => CLOCK_FREQUENCY
)
port map (
-- General
CLOCK => CLOCK,
RESET => RESET,
DATA_STREAM_IN => uart_data_in,
DATA_STREAM_IN_STB => uart_data_in_stb,
DATA_STREAM_IN_ACK => uart_data_in_ack,
DATA_STREAM_OUT => uart_data_out,
DATA_STREAM_OUT_STB => uart_data_out_stb,
DATA_STREAM_OUT_ACK => uart_data_out_ack,
TX => TX,
RX => RX
);
----------------------------------------------------------------------------
-- Simple loopback, retransmit any received data
----------------------------------------------------------------------------
UART_LOOPBACK : process (CLOCK)
begin
if rising_edge(CLOCK) then
if RESET = '1' then
uart_data_in_stb <= '0';
uart_data_out_ack <= '0';
uart_data_in <= (others => '0');
else
-- Acknowledge data receive strobes and set up a transmission
-- request
uart_data_out_ack <= '0';
if uart_data_out_stb = '1' then
uart_data_out_ack <= '1';
uart_data_in_stb <= '1';
uart_data_in <= uart_data_out;
end if;
-- Clear transmission request strobe upon acknowledge.
if uart_data_in_ack = '1' then
uart_data_in_stb <= '0';
end if;
end if;
end if;
end process;
end RTL;
