1. Adding the “where”
Microsoft MIX:10 TM
March 16, 2010

3. What am I going to talk about?
‣ What is a “place”?
‣ How do users expect to use “where” information?
‣ Where do you actually get “location” from?
‣ What is doing?

4. Location =
Context + Relevancy

5. Location = Relevancy + Context
‣ Transforming the “What’s happening?” to
“What’s happening here?”
‣ 140 characters is our limit
‣ We wanted metadata
‣ People want to talk about places

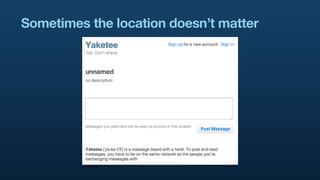

12. Sometimes the location doesn’t matter

13. What is a “place”?

14. A place is: coordinates
‣ 36o5’19.176”N, 115o10’36.084”
‣

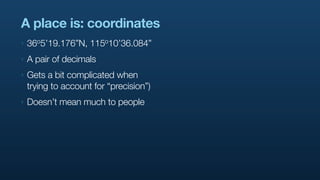

15. A place is: coordinates
‣ 36o5’19.176”N, 115o10’36.084”
‣ A pair of decimals
‣ Gets a bit complicated when
trying to account for “precision”)
‣ Doesn’t mean much to people

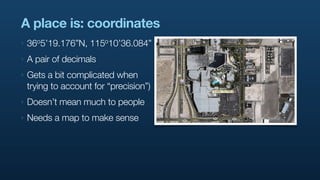

16. A place is: coordinates
‣ 36o5’19.176”N, 115o10’36.084”
‣ A pair of decimals
‣ Gets a bit complicated when
trying to account for “precision”)
‣ Doesn’t mean much to people
‣ Needs a map to make sense

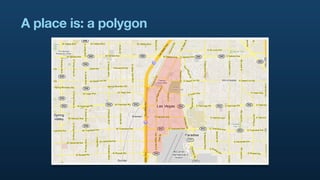

17. A place is: a polygon

18. A place is: a name

19. A place is: a name
‣ 3950 Las Vegas Boulevard South, Las Vegas, Nevada, USA

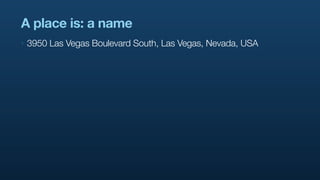

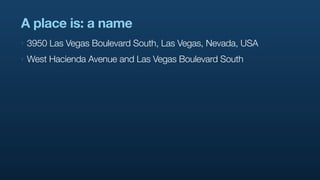

20. A place is: a name
‣ 3950 Las Vegas Boulevard South, Las Vegas, Nevada, USA
‣ West Hacienda Avenue and Las Vegas Boulevard South

21. A place is: a name
‣ 3950 Las Vegas Boulevard South, Las Vegas, Nevada, USA
‣ West Hacienda Avenue and Las Vegas Boulevard South
‣ “The Strip” / Las Vegas / Nevada

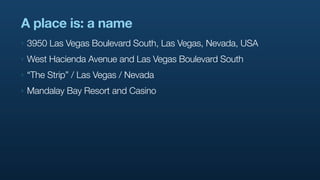

22. A place is: a name
‣ 3950 Las Vegas Boulevard South, Las Vegas, Nevada, USA
‣ West Hacienda Avenue and Las Vegas Boulevard South
‣ “The Strip” / Las Vegas / Nevada
‣ Mandalay Bay Resort and Casino

23. A place is: a name
‣ 3950 Las Vegas Boulevard South, Las Vegas, Nevada, USA
‣ West Hacienda Avenue and Las Vegas Boulevard South
‣ “The Strip” / Las Vegas / Nevada
‣ Mandalay Bay Resort and Casino
‣ WOEID 2436704 / Twitter ID 5c2b5e46ab891f07

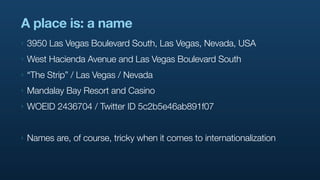

24. A place is: a name
‣ 3950 Las Vegas Boulevard South, Las Vegas, Nevada, USA
‣ West Hacienda Avenue and Las Vegas Boulevard South
‣ “The Strip” / Las Vegas / Nevada
‣ Mandalay Bay Resort and Casino
‣ WOEID 2436704 / Twitter ID 5c2b5e46ab891f07
‣ Names are, of course, tricky when it comes to internationalization

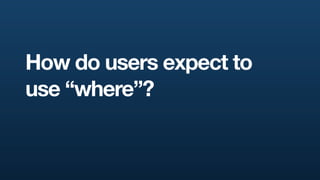

25. How do users expect to
use “where”?

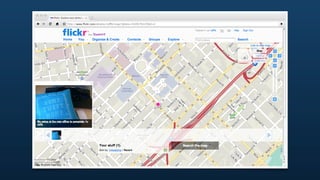

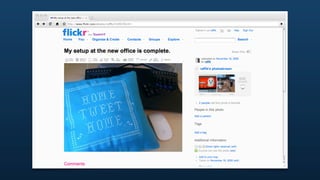

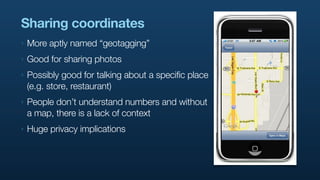

26. Sharing coordinates
‣ More aptly named “geotagging”
‣ Good for sharing photos
‣ Possibly good for talking about a specific place
(e.g. store, restaurant)
‣ People don’t understand numbers and without
a map, there is a lack of context
‣ Huge privacy implications

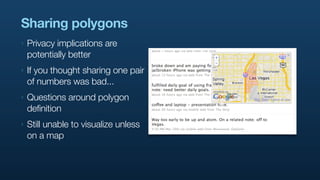

27. Sharing polygons
‣ Privacy implications are
potentially better
‣ If you thought sharing one pair
of numbers was bad...
‣ Questions around polygon
definition
‣ Still unable to visualize unless
on a map

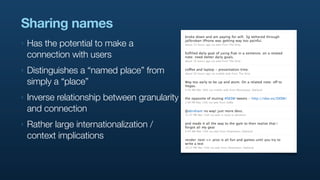

28. Sharing names
‣ Has the potential to make a
connection with users
‣ Distinguishes a “named place” from
simply a “place”
‣ Inverse relationship between granularity
and connection
‣ Rather large internationalization /
context implications

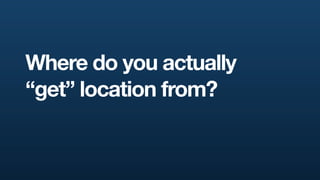

29. Where do you actually
“get” location from?

30. Triangulation

31. Triangulation: cellular
‣ 200m to 1km accuracy
‣ Measuring signal strength to cell towers with known locations
‣ If can only see one cellular tower, then fallback to cellular tower
identification - better than nothing, but really inaccurate
‣ Requires cellular modem, software, and lookups

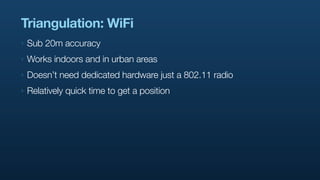

32. Triangulation: WiFi
‣ Sub 20m accuracy
‣ Works indoors and in urban areas
‣ Doesn’t need dedicated hardware just a 802.11 radio
‣ Relatively quick time to get a position

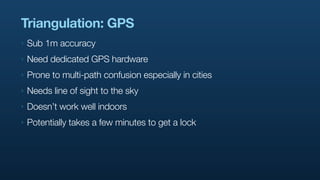

33. Triangulation: GPS
‣ Sub 1m accuracy
‣ Need dedicated GPS hardware
‣ Prone to multi-path confusion especially in cities
‣ Needs line of sight to the sky
‣ Doesn’t work well indoors
‣ Potentially takes a few minutes to get a lock

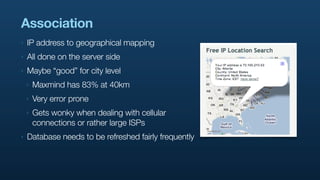

34. Association
‣ IP address to geographical mapping
‣ All done on the server side
‣ Maybe “good” for city level
‣ Maxmind has 83% at 40km
‣ Very error prone
‣ Gets wonky when dealing with cellular
connections or rather large ISPs
‣ Database needs to be refreshed fairly frequently

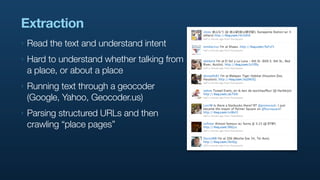

35. Extraction
‣ Read the text and understand intent
‣ Hard to understand whether talking from
a place, or about a place
‣ Running text through a geocoder
(Google, Yahoo, Geocoder.us)
‣ Parsing structured URLs and then
crawling “place pages”

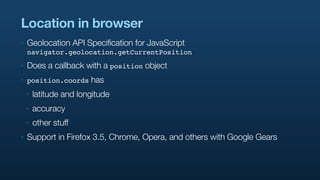

36. Location in browser
‣ Geolocation API Specification for JavaScript
navigator.geolocation.getCurrentPosition
‣ Does a callback with a position object
‣ position.coords has
‣ latitude and longitude
‣ accuracy
‣ other stuff
‣ Support in Firefox 3.5, Chrome, Opera, and others with Google Gears

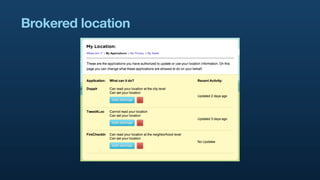

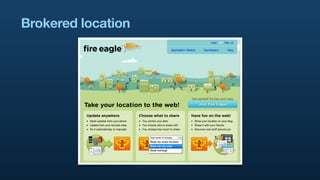

37. Brokered location

38. Brokered location

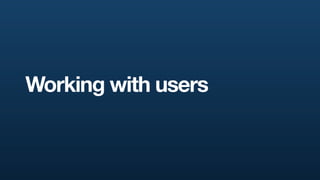

39. Working with users

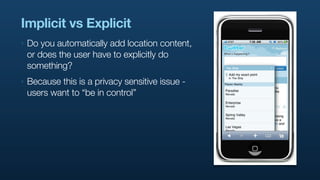

40. Implicit vs Explicit
‣ Do you automatically add location content,
or does the user have to explicitly do
something?
‣ Because this is a privacy sensitive issue -
users want to “be in control”

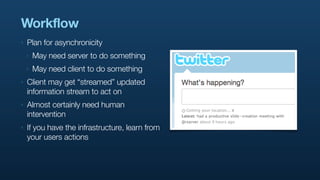

41. Workflow
‣ Plan for asynchronicity
‣ May need server to do something
‣ May need client to do something
‣ Client may get “streamed” updated
information stream to act on
‣ Almost certainly need human
intervention
‣ If you have the infrastructure, learn from
your users actions

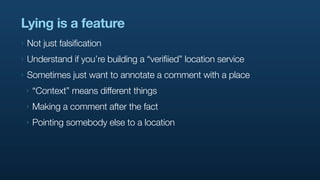

42. Lying is a feature
‣ Not just falsification
‣ Understand if you’re building a “verifiied” location service
‣ Sometimes just want to annotate a comment with a place
‣ “Context” means different things
‣ Making a comment after the fact
‣ Pointing somebody else to a location

43. Privacy
‣ Give the user control
‣ For Twitter, you had to explicitly opt
into the feature
‣ We also provide the ability to purge
location information
‣ Communicate to the user what’s
happening both in the client and
the server
‣ Can somebody else tag your house?

44. “What’s happening here?”

45. Original attempts
Adding it to the tweet
‣ Use myloc.me, et. al. to add text to the tweet
‣ Localizes mobile phone and puts location “in band”
‣ Takes from 140 characters
Setting profile level locations
‣ Set the user/location of a Twitter user
‣ There is an API for that!
‣ Not on a per-tweet basis and not designed for high frequency updates

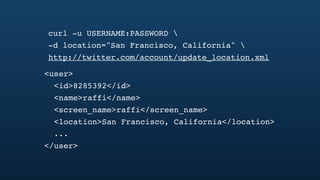

46. curl -u USERNAME:PASSWORD
-d location="San Francisco, California"
http://twitter.com/account/update_location.xml
<user>
<id>8285392</id>
<name>raffi</name>
<screen_name>raffi</screen_name>
<location>San Francisco, California</location>
...
</user>

47. Geotagging API

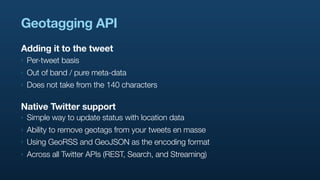

48. Geotagging API
Adding it to the tweet
‣ Per-tweet basis
‣ Out of band / pure meta-data
‣ Does not take from the 140 characters
Native Twitter support
‣ Simple way to update status with location data
‣ Ability to remove geotags from your tweets en masse
‣ Using GeoRSS and GeoJSON as the encoding format
‣ Across all Twitter APIs (REST, Search, and Streaming)

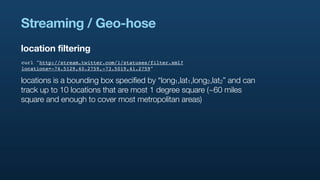

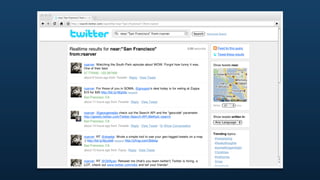

54. Streaming / Geo-hose
location filtering
curl "http://stream.twitter.com/1/statuses/filter.xml?
locations=-74.5129,40.2759,-73.5019,41.2759"
locations is a bounding box specified by “long1,lat1,long2,lat2” and can
track up to 10 locations that are most 1 degree square (~60 miles
square and enough to cover most metropolitan areas)

55. Trends API

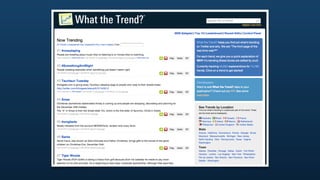

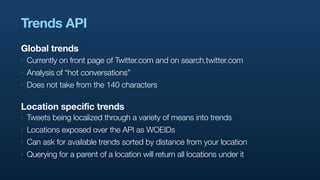

57. Trends API

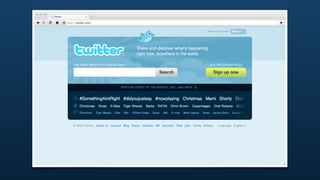

Global trends
‣ Currently on front page of Twitter.com and on search.twitter.com
‣ Analysis of “hot conversations”
‣ Does not take from the 140 characters

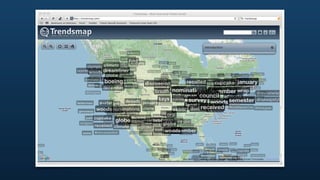

Location specific trends
‣ Tweets being localized through a variety of means into trends
‣ Locations exposed over the API as WOEIDs
‣ Can ask for available trends sorted by distance from your location
‣ Querying for a parent of a location will return all locations under it

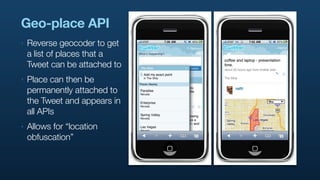

59. Geo-place API
‣ Reverse geocoder to get
a list of places that a
Tweet can be attached to
‣ Place can then be
permanently attached to
the Tweet and appears in
all APIs
‣ Allows for “location
obfuscation”

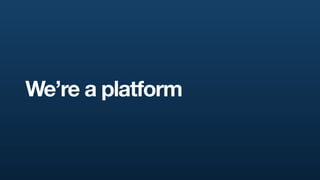

60. We’re a platform

61. Questions? Follow me at
twitter.com/raffi
TM
