1. Linking Media and Data using
Apache Marmotta
Keynote at LIME 2014 Workshop
Sebastian Schaffert and Thomas Kurz

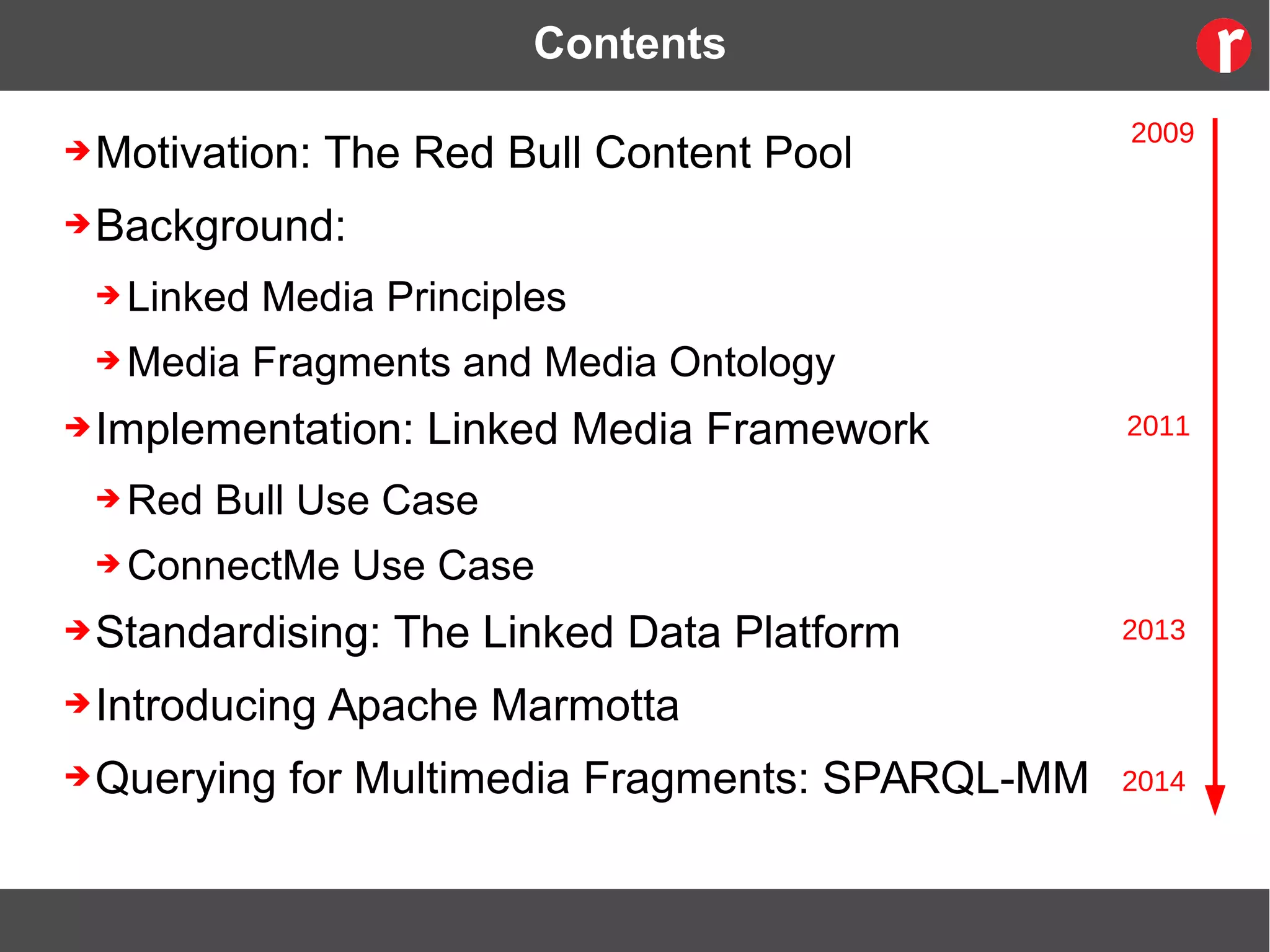

2. Contents
➔Motivation: The Red Bull Content Pool
➔Background:
➔ Linked Media Principles
➔ Media Fragments and Media Ontology
➔Implementation: Linked Media Framework
➔ Red Bull Use Case
➔ ConnectMe Use Case
➔Standardising: The Linked Data Platform
➔Introducing Apache Marmotta
➔Querying for Multimedia Fragments: SPARQL-MM
2009
2011
2013
2014

3. Motivation: The Red Bull Content Pool

4. Linked Media (2009)
Linked Media = Linked People + Linked Content + Linked Data

5. Motivation: The Red Bull Content Pool
➔ online archive containing video and image material related to
extreme sports events organised by Red Bull
➔ business-to-business portal where journalists can get material for
further broadcasting (mostly for free)
➔ material comes with metadata in the form of tables in word
documents:
➔ interview transcriptions (with time interval start/end second)
➔ scene descriptions (with time interval start/end second)
➔ music cue sheets (copyright information about background
music tracks)

6. Motivation: The Red Bull Content Pool (2009)

7. Motivation: The Red Bull Content Pool
➔Problems:
➔ videos consist of series of scenes with many different
persons
➔ scanning through a video to find a particular scene is a
huge amount of work
➔ metadata is valuable but not really exploited for searching
videos and while playing videos

8. Can we help Markus?
Name: Markus
Occupation: sports journalist
Company: RegioTV Pinzgau
Objective: create report about cliff diving
Requires: videos, background info, contacts
How can we help Markus?
 efficient and precise search in the Red Bull Content Pool
 compact and relevant display of background information
 contacts (e.g. website,email) of athletes, other journalists, etc.
fast and successful creation of the report

9. Background: Linked Media Principles

10. Linked Media Principles (2009)
➔ Linked Data is „read-only“
i.e. focus was on publication of big datasets, not the interaction
with data
 a system for managing media assets needs to be capable of
updating resources and their metadata
➔ Linked Data is „data-only“
i.e. a resource is represented either as RDF metadata for
machines or as HTML tables for humans, but in all cases it is
metadata and not content
 a system for managing media assets needs to be capable of
managing both media content and metadata about that content

11. Linked Media Principles (2009)
➔ extend Linked Data for updates using REST principles (HTTP):
➔ GET: returns a resource (as in Linked Data)
➔ POST: creates a new resource and uploads content or metadata
➔ PUT: updates content or metadata of a resource
➔ DELETE: removes a resource and all associated information
➔ extend Linked Data for arbitrary media formats using MIME:
➔ controlled by Accept: (in case of GET) and Content-Type: (in case of
PUT/POST) HTTP headers
➔ header value: MIME type (e.g. text/turtle or image/jpeg) and type of
relationship (e.g. rel=content or rel=meta)
➔ accessing a resource with GET or PUT redirects to the actual
representation specified by MIME type and relationship

12. Linked Media Principles (2009)
➔ Example 1: Retrieve HTML table representation of resource metadata
➔ Example 2: Retrieve HTML content of resource
➔ Example 3: Update resource metadata
GET http://data.redlink.io/resource/1234
Accept: text/html; rel=meta
GET http://data.redlink.io/resource/1234
Accept: text/html; rel=content
PUT http://data.redlink.io/resource/1234
Content­Type: text/turtle; rel=meta
<http://data.redlink.io/resource/1234>
mm:hasFragment <http://data.redlink.io/resource/1234#t=0,10>

13. Background:
Media Fragments URI &
Ontology for Media Resources

14. Media Fragments URI
➔ media content currently treated as „black box binary content“
➔ interaction only via plugin or special browser support
➔ linking to a subsequence of a video not possible
➔ Media Fragments URI: use the „fragment“ part of a URI to
encode temporal and spatial subsequences
➔ Examples:
Identify the sequence from second 3 to second 10 of the video:
http://data.redlink.io/resource/cliff_diving.ogg#t=3,10
Identify the spatial box 320x240 at x=160 and y=120 of the video
http://data.redlink.io/resource/cliff_diving.ogg#xywh=160,120,320,240

15. Ontology for Media Resources
➔ common data model for representing video metadata:
➔ identification
➔ creation (hasCreator, hasPublisher, ...)
➔ content description (hasLanguage, hasGenre, hasKeyword,...)
➔ rights and distribution (hasPermissions, hasTargetAudience, ...)
➔ technical properties (hasCompression, hasFormat, ...)
➔ fragments (hasFragment, hasChapter, ...)
➔ mapping tables from the most popular video metadata formats to
the Ontology for Media Resources (EXIF, MPEG-7, TV-Anytime,
YouTube, ID3)

16. Combining Media Fragments and Media Ontology
➔ use Media Fragment URIs to uniquely identify fragments of
media content
➔ browser compatibility
➔ Linked Data compatibility
➔ use Ontology for Media Resources to describe these fragments
➔ RDF compatibility
➔ rich description graph with SPARQL querying

17. Combining Media Fragments and Media Ontology
@prefix ma: <http://www.w3.org/ns/ma­ont#> .
@prefix rdfs: <http://www.w3.org/2000/01/rdf­schema#> .
@prefix foaf: <http://xmlns.com/foaf/0.1/> .
@prefix dct: <http://purl.org/dc/terms/> .
<http://example.org/v1> a ma:MediaResource;
rdfs:label "A sports video";
ma:locator <http://my.videos.org/v1.mp4>;
ma:hasFragment <http://example.org/v1#fragment1>;
ma:hasFragment <http://example.org/v1#fragment2>.
<http://example.org/v1#fragment1> ma:locator
<http://my.videos.org/v1.mp4#xywh=percent:26,20,22,80&t=194,198>;
dct:subject <http://example.org/person/Connor_Macfarlane>.
<http://example.org/v1#fragment2> ma:locator
<http://my.videos.org/v1.mp4#xywh=percent:71,0,29,100&t=193,198>;
dct:subject <http://example.org/person/Lewis_Jones>.
<http://example.org/person/Connor_Macfarlane>
foaf:name "Connor Macfarlane".
<http://example.org/person/Lewis_Jones> foaf:name "Lewis Jones".

18. Combining Media Fragments and Media Ontology

19. Implementation:
The Linked Media Framework

20. Behind the Scenes: Linked Media Framework
 Linked Data Server with updates and uniform management of content and
metadata => particularly well-suited for multimedia content and metadata!
 Linked Media Principles for resource-centric access to content and
metadata
 SPARQL Query and SPARQL Update 1.1 for structural updating and
querying
 Modules for Reasoning, Semantic Search, Linked Data Caching, Versioning,
and Social Media
 Specialised on Linked Media and Linked Enterprise Content
Code, Installer, Screencasts and more:
http://code.google.com/p/lmf/

21. Linked Media Framework (Architecture)

22. LMF Semantic Search
 Facetted Search over Content and Metadata with SOLR compatible API
 RDF Path Language for configurable Metadata Indexing
 Multiple Cores with different configurations to adapt to different search
requirements

23. LMF Reasoning
 Rule-based reasoning over triples in the LMF triple store to represent implicit
knowledge
 Reason maintenance allows to describe justifications for inferences
 adapted version of sKWRL rule language:
 more efficient implementation,
 improved reason maintenance

24. LMF Linked Data Caching
 transparently retrieves linked resources from the Linked Data cloud when needed
(e.g. LD Path or SPARQL query)
 powerful component for integrating with other information systems exposing their
data as Linked Media or Linked Data
 adapters for services offering their data in proprietary formats (e.g. YouTube, Vimeo,
…)

25. LMF Classification and Sentiment Analysis
 support for statistical text classification, allows to train different classifiers with sample
texts for arbitrary categories
 suggest most likely category for a text according to similarity with training data
 analyse text for positive or negative sentiment (German and English)
25

26. LMF Social Media Integration
 allows linking to social media resources, e.g. Facebook or Google accounts, videos,
interests
 allows authentication and data import from selected social media services
(Facebook, YouTube, generic RSS)

27. LMF Versioning
 keeps history of updates in the Linked Media Framework
 provides information for trust and provenance
of data, e.g. annotations added to the system

28. Use Case:
Red Bull Semantic Search Prototype

29. Media Fragment Search

30. Spatial and Temporal Fragments

31. Use Case:
LIME Media Player (ConnectMe Project)

32. LIME Player: Interaction with Fragments

33. Standardisation:
The Linked Data Platform

34. Linked Data Platform: Introduction
➔ recommendation draft of the LDP working group at W3C
➔ support for „read/write Linked Data“
➔ support for RDF and non-RDF resources
➔ can be used as an alternative for Linked Media Principles
➔ advantage of standardisation and wide adoption
➔ considerably more complex standard and protocol
➔ URL: http://www.w3.org/TR/ldp/

35. Linked Data Platform: Concepts
➔ access and interaction according to REST webservice principles
➔ GET: returns description of a resource
➔ POST: creates a new resource
➔ PUT: replaces the description of a resource
➔ DELETE: removes the description of a resource
➔ Linked Data Platform Resources (LDP-R)
➔ RDF resources (LDP-RS): RDF description of a resource
➔ non-RDF resources (LDP-NR): arbitrary (media) content
➔ Linked Data Platform Containers (LDP-C)
➔ collection of LDP resources, e.g. „students“, „professors“, „lectures“
➔ basic container (LDP-BC): simple collection of resources with common URI prefix
➔ direct container (LDP-DC): collection with explicit membership (as triple)
➔ indirect container (LDP-IC): collection with implicit membership (based on content)

36. LDP Basic Containers (LDP-BC)
➔ collection of LDP resources
➔ identification via common URI prefix, e.g.
http://example.com/container1/a
http://example.com/container1/b
➔ can contain both RDF and non-RDF resources at the same time
➔ container is itself an RDF resource
➔ description as RDF:
@base <http://example.com/container1/>
@prefix dcterms: <http://purl.org/dc/terms/>.
@prefix ldp: <http://www.w3.org/ns/ldp#>.
<>
a ldp:BasicContainer;
dcterms:title "A very simple container";
ldp:contains <a>, <b>, <c>.

37. Introducing Apache Marmotta

38. Apache Marmotta
➔ a simplification of the Linked Media Framework taking core
components:
➔ Linked Data Server with SPARQL 1.1
➔ Linked Data Cache
➔ Versioning, Reasoning
➔ no search, no content analysis
➔ reference implementation of the Linked Data Platform and
participation in W3C working group
➔ highly modular and extensible to build custom Linked Data
applications (both client and server)
http://marmotta.apache.org

39. Apache Marmotta: Architecture

40. Querying Multimedia Fragments

41. SPARQL-MM: Introduction
➔ extension of SPARQL with specific multimedia functions and
relations, implemented in Apache Marmotta
RelationFunction Aggregation Function
Spatial mm:rightBeside mm:spatialIntersection
mm:spatialOverlaps mm:spatialBoundingBox
… …
Temporal mm:after mm:temporalIntersection
mm:temoralOverlaps mm:temporalIntermediate
… …
Combined mm:overlaps mm:boundingBox
mm:contains mm:intersection
A list of all functions can be found at:
https://github.com/tkurz/sparql-mm/blob/master/sparql-mm/functions.md

42. SPARQL-MM: A sample query
Give me the spatio-temporal snippet that shows Lewis Jones
right beside Connor Macfarlane.
PREFIX foaf: <http://xmlns.com/foaf/0.1/>
PREFIX mm: <http://linkedmultimedia.org/sparql­mm/functions#>
PREFIX ma: <http://www.w3.org/ns/ma­ont#>
PREFIX dct: <http://purl.org/dc/terms/>
SELECT (mm:boundingBox(?l1,?l2) AS ?two_guys) WHERE {
?f1 ma:locator ?l1; dct:subject ?p1.
?p1 foaf:name "Lewis Jones".
?f2 ma:locator ?l2; dct:subject ?p2.
?p2 foaf:name "Connor Macfarlane".
FILTER mm:rightBeside(?l1,?l2)
FILTER mm:temporalOverlaps(?l1,?l2)
}

43. SPARQL-MM: A sample query
mm:boundingBox(?l1,?l2)

44. SPARQL-MM: Demo
DEMO!

45. Conclusions

46. Conclusions
➔ semantic media asset management requires management and
interaction with both content and metadata
➔ Linked Media Principles (2009) were a first approach to extend
Linked Data with support for semantic media asset
management
➔ Linked Data Platform (W3C working draft) supersedes Linked
Media Principles, as it covers the same aspects and more
➔ semantic media asset management requires specific media
access and querying
➔ Media Fragments URI (W3C) to identify media fragments
➔ Ontology for Media Resources (W3C) to describe media
fragments
➔ SPARQL-MM to query media fragment descriptions

47. Thanks for your Attention!
Dr. Sebastian Schaffert
Chief Technology Officer
Redlink GmbH
sebastian.schaffert@redlink.co
