From Document Web to a Web of Linked Data Dr.  S ö ren Auer AKSW, Institut f ü r Informatik

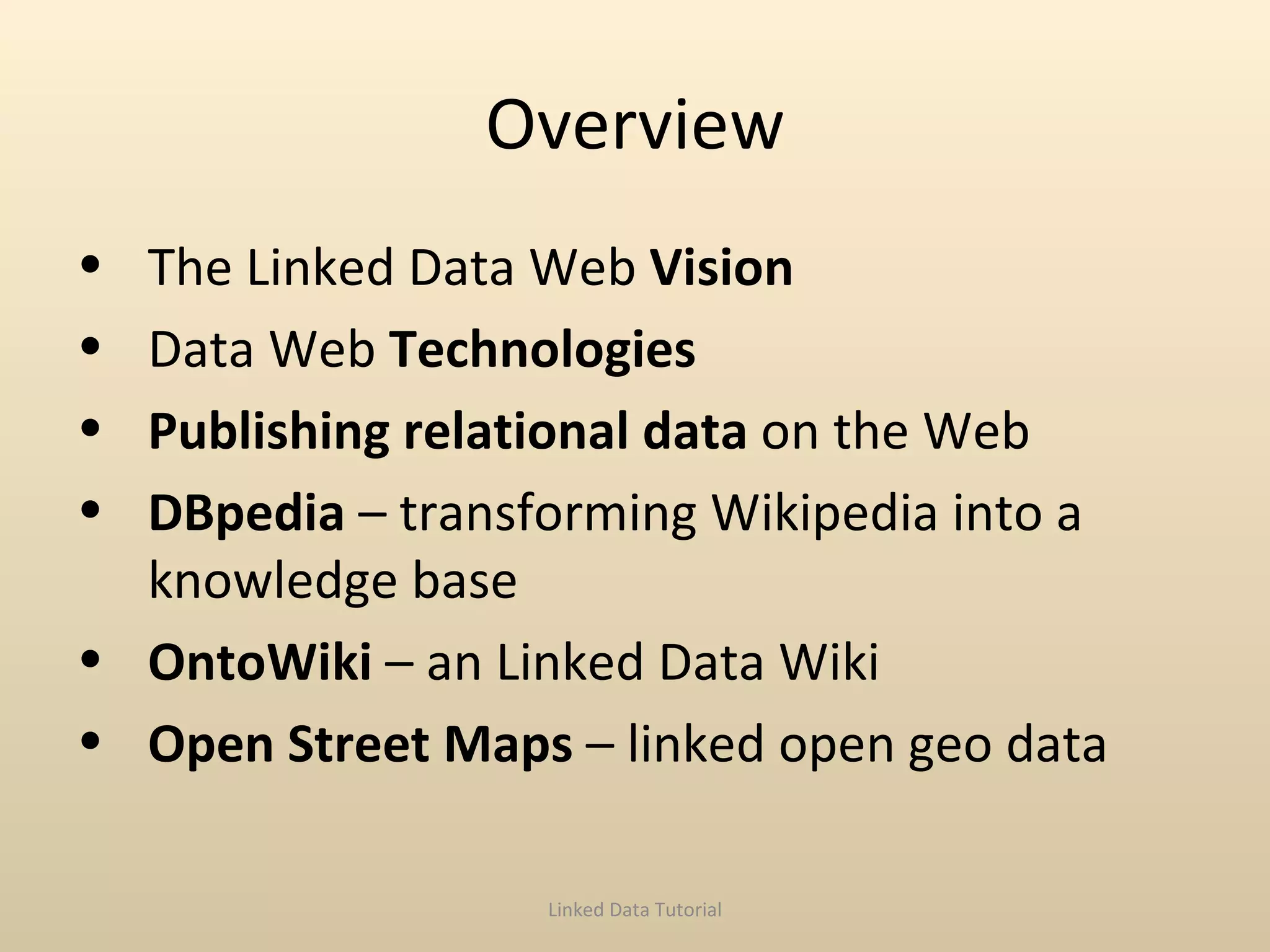

Overview The Linked Data Web  Vision Data Web  Technologies Publishing relational data  on the Web DBpedia  – transforming Wikipedia into a knowledge base OntoWiki  – an Linked Data Wiki Open Street Maps  – linked open geo data Linked Data Tutorial

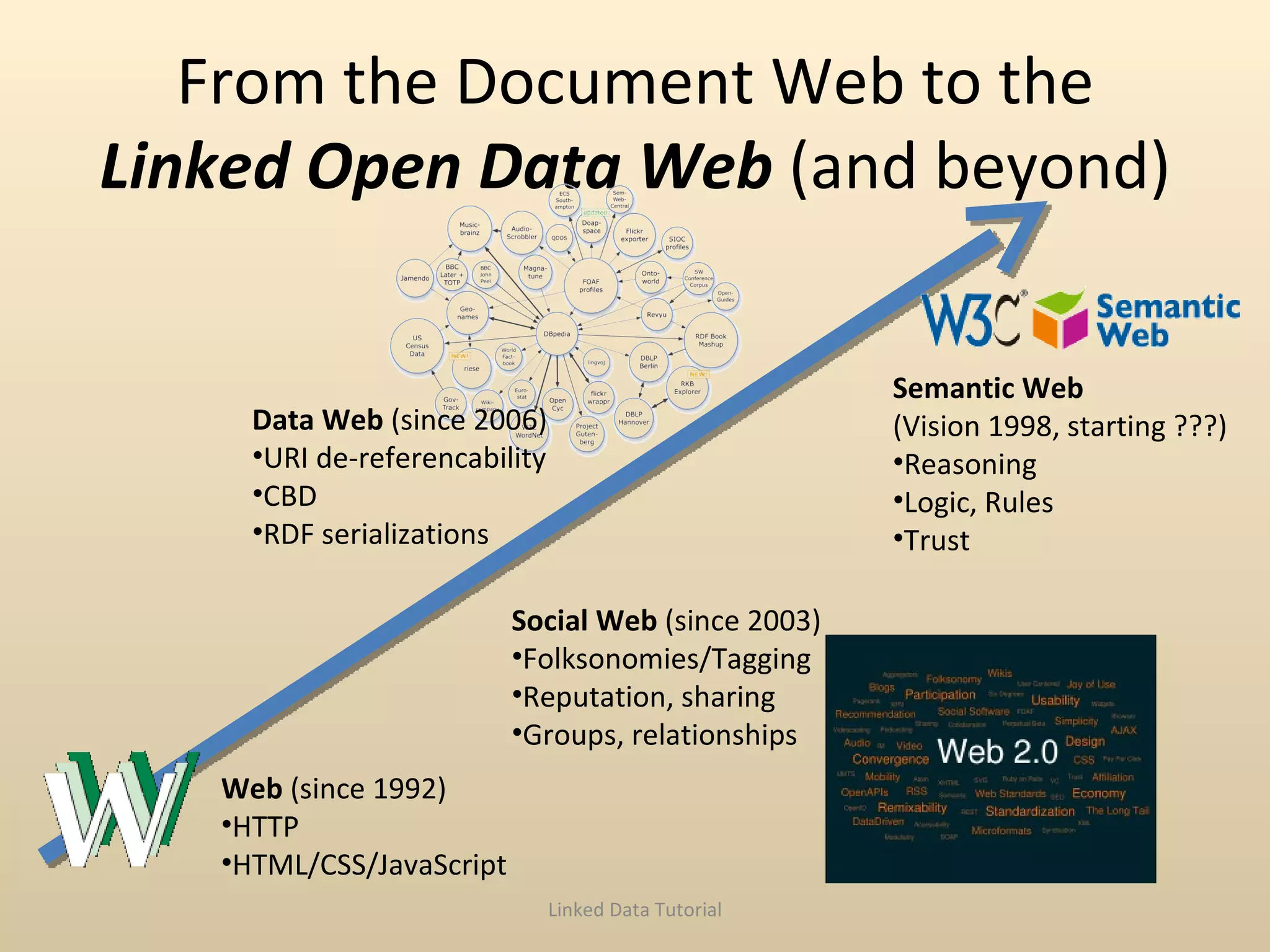

From the Document Web to the Linked Open Data Web  (and beyond) Linked Data Tutorial Web  (since 1992) HTTP HTML/CSS/JavaScript Semantic Web (Vision 1998, starting ???) Reasoning Logic, Rules Trust Social Web  (since 2003) Folksonomies/Tagging Reputation, sharing Groups, relationships Data Web  (since 2006) URI de-referencability CBD RDF serializations

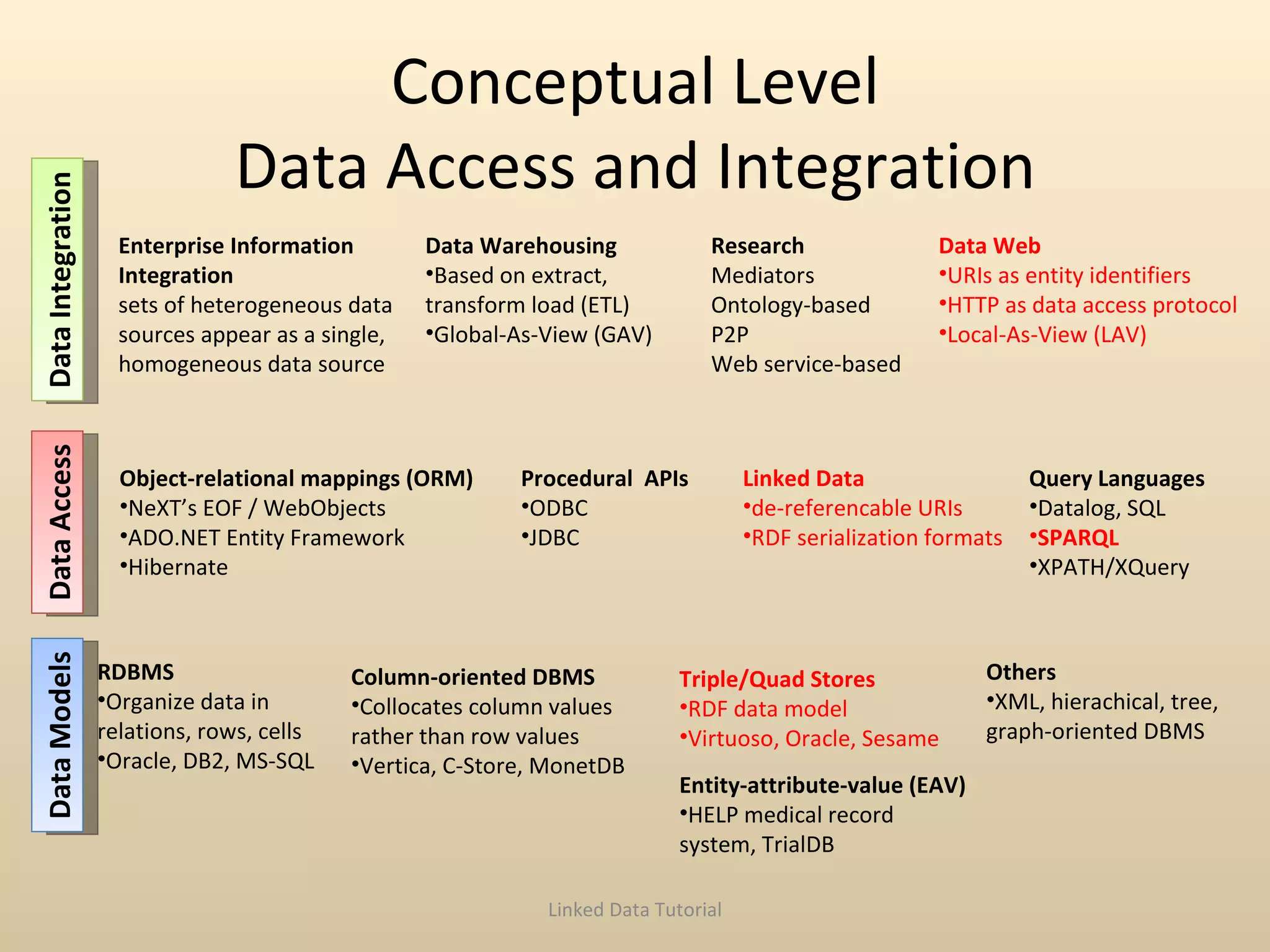

Conceptual Level Data Access and Integration Linked Data Tutorial Object-relational mappings (ORM) NeXT’s EOF / WebObjects ADO.NET Entity Framework Hibernate Entity-attribute-value (EAV) HELP medical record system, TrialDB Column-oriented DBMS Collocates column values rather than row values Vertica, C-Store, MonetDB Data Web URIs as entity identifiers HTTP as data access protocol Local-As-View (LAV) RDBMS Organize data in relations, rows, cells Oracle, DB2, MS-SQL Triple/Quad Stores RDF data model Virtuoso, Oracle, Sesame Data Models Others XML, hierachical, tree, graph-oriented DBMS Procedural  APIs ODBC JDBC Data Access Query Languages Datalog, SQL SPARQL XPATH/XQuery Data Integration Linked Data de-referencable URIs RDF serialization formats Enterprise Information Integration sets of heterogeneous data sources appear as a single, homogeneous data source Data Warehousing Based on extract, transform load (ETL) Global-As-View (GAV) Research Mediators Ontology-based P2P Web service-based

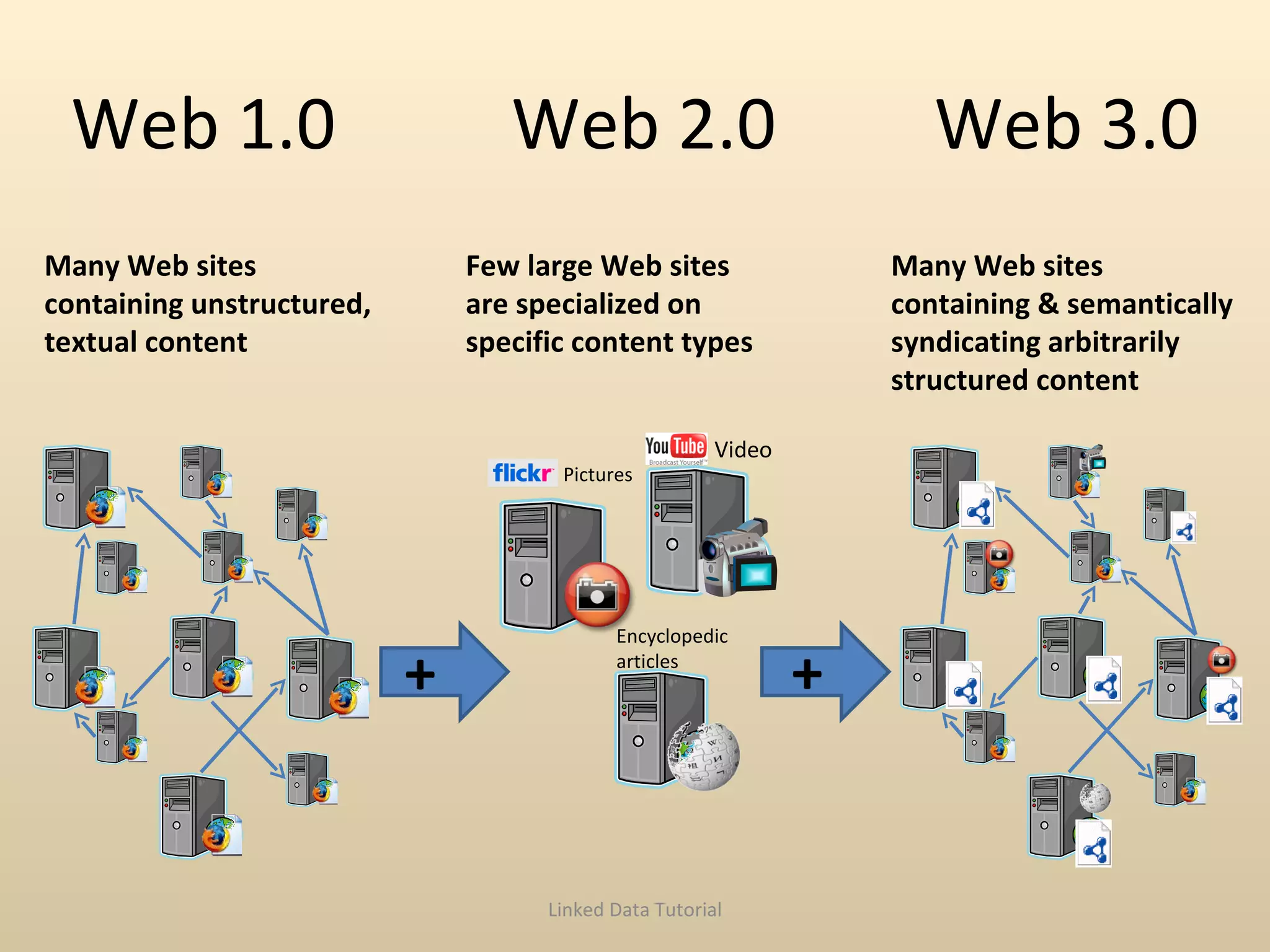

Web 1.0  Web 2.0  Web 3.0 Many Web sites containing unstructured, textual content Few large Web sites are specialized on specific content types Many Web sites containing & semantically syndicating arbitrarily structured content Pictures Video Encyclopedic articles + + Linked Data Tutorial
The Long Tail of Information Domains Pictures News Video Recipes Calendar Currently supported structured content types SemWeb supported structured content Gene sequences Itinerary of King George Talent management Popularity Not or insufficiently supported  content types The  Long Tail  by Chris Anderson ( Wired , Oct.  ´ 04) adopted to information domains … … Requirements- Engineering … … Special interest communities Linked Data Tutorial

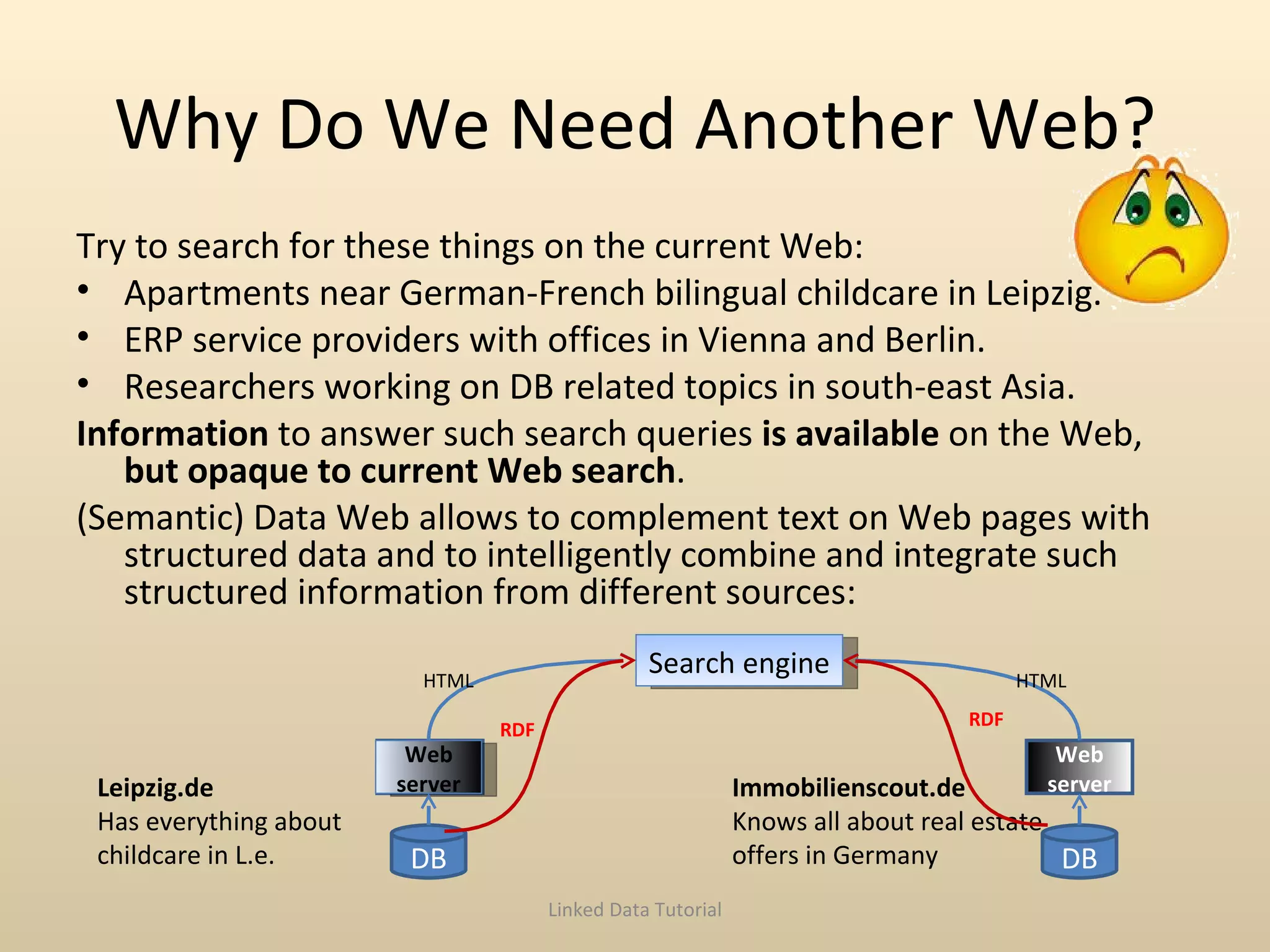

Why Do We Need Another Web? Try to search for these things on the current Web: Apartments near German-French bilingual childcare in Leipzig. ERP service providers with offices in Vienna and Berlin. Researchers working on DB related topics in south-east Asia. Information  to answer such search queries  is available  on the Web,  but opaque to current Web search . (Semantic) Data Web allows to complement text on Web pages with structured data and to intelligently combine and integrate such structured information from different sources: Web server Web server Linked Data Tutorial Leipzig.de Has everything about childcare in L.e. Immobilienscout.de Knows all about real estate offers in Germany DB Web server DB Web server Search engine HTML HTML RDF RDF

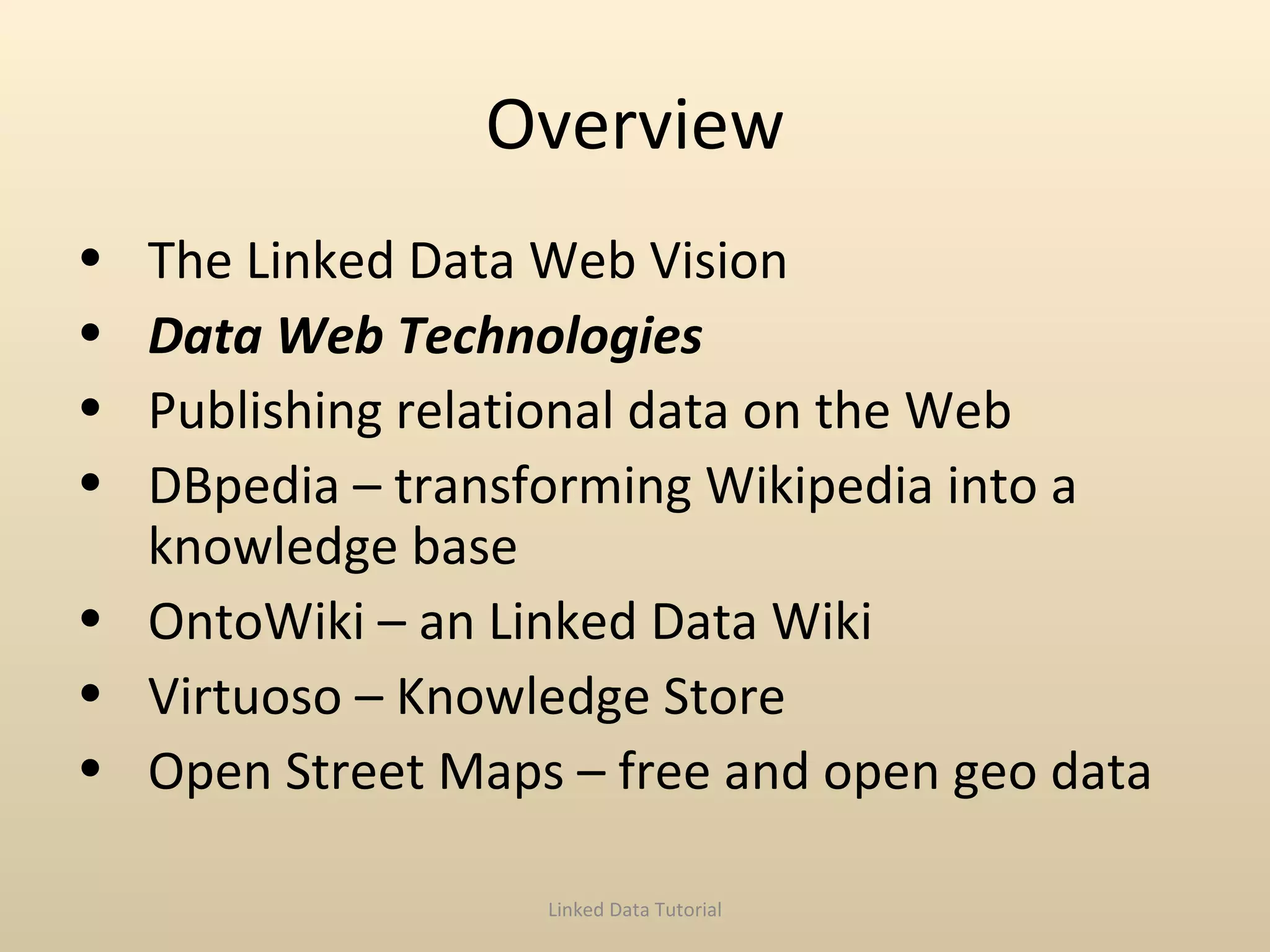

Overview The Linked Data Web Vision Data Web Technologies Publishing relational data on the Web DBpedia – transforming Wikipedia into a knowledge base OntoWiki – an Linked Data Wiki Virtuoso – Knowledge Store Open Street Maps – free and open geo data Linked Data Tutorial

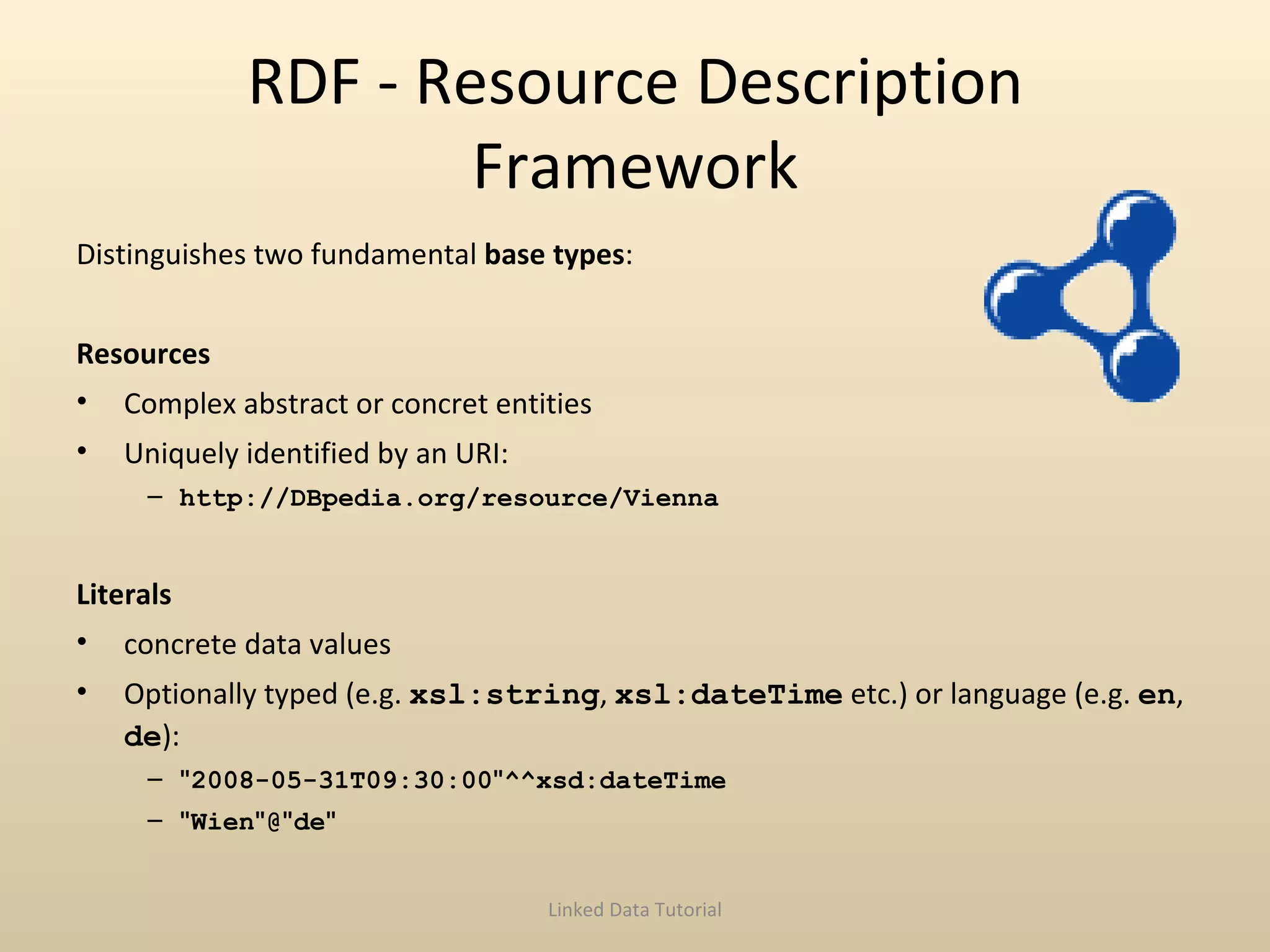

RDF - Resource Description Framework Distinguishes two fundamental  base types : Resources Complex abstract or concret entities Uniquely identified by an URI: http://DBpedia.org/resource/Vienna Literals concrete data values Optionally typed (e.g.  xsl:string ,  xsl:dateTime  etc.) or language (e.g.  en ,  de ): " 2008-05-31T09:30:00 " ^^xsd:dateTime " Wien " @ " de " Linked Data Tutorial

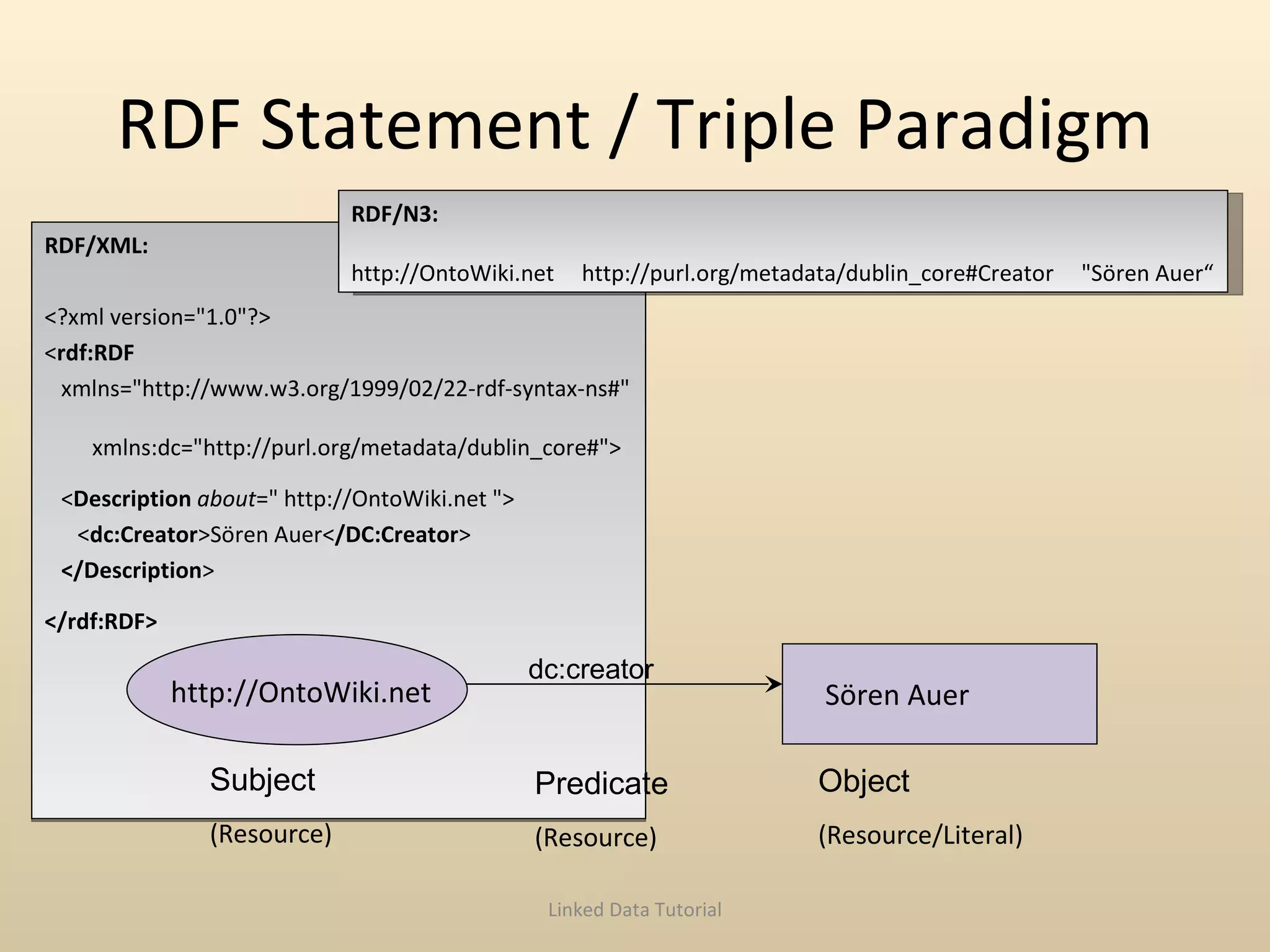

RDF Statement / Triple Paradigm RDF/XML: <?xml version=&quot;1.0&quot;?> < rdf:RDF xmlns=&quot;http://www.w3.org/1999/02/22-rdf-syntax-ns#&quot;   xmlns:dc=&quot;http://purl.org/metadata/dublin_core#&quot;> < Description   about =&quot; http://OntoWiki.net &quot;> < dc:Creator >Sö ren Auer < /DC:Creator > </Description > </rdf:RDF> Linked Data Tutorial http://OntoWiki.net Sö ren Auer dc:creator Subject (Resource) Predicate (Resource) Object (Resource/Literal) RDF/N3: http://OntoWiki.net  http://purl.org/metadata/dublin_core#Creator  &quot;Sö ren Auer “

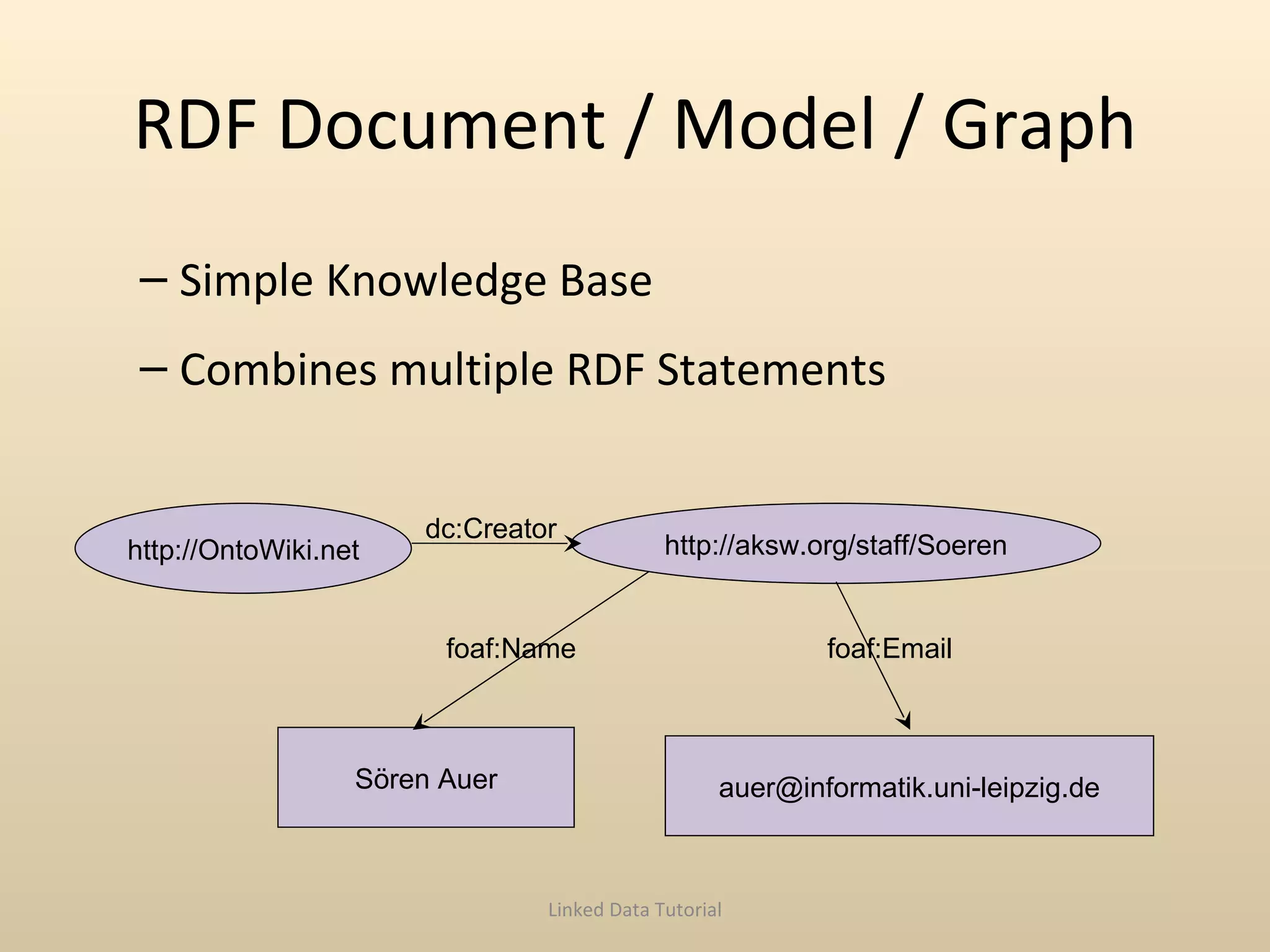

RDF Document / Model / Graph Simple Knowledge Base Combines multiple RDF Statements Linked Data Tutorial [email_address] http://OntoWiki.net http://aksw.org/staff/Soeren dc:Creator Sö ren Auer foaf:Email foaf:Name
RDF Serialization <?xml version=&quot;1.0&quot;?> < rdf:RDF xmlns=&quot;http://www.w3.org/1999/02/22-rdf-syntax-ns#&quot; xmlns:dc=&quot;http://purl.org/metadata/dublin_core#&quot;> < rdf:Description  about=&quot;http://OntoWiki.net&quot;> <dc:Creator> < rdf:Description>   < rdf:Description  about=&quot;http://aksw.org/staff/Soeren&quot;> <dc:Name>Sö ren Auer </dc:Name> <dc:Email>auer@informatik.uni-leipzig.de</dc:Email> < /rdf:Description > </dc:Creator> < /rdf:Description > < /rdf:RDF > Linked Data Tutorial http://OntoWiki.net  http://purl.org/metadata/dublin_core#Creator  http://aksw.org/staff/Soeren http://aksw.org/staff/Soeren  http://purl.org/metadata/dublin_core#Name  &quot;Sö ren Auer &quot; http://aksw.org/staff/Soeren  http://purl.org/metadata/dublin_core#Email  [email_address] [email_address] http://OntoWiki.net http://aksw.org/staff/Soeren Creator Sö ren Auer Email Name

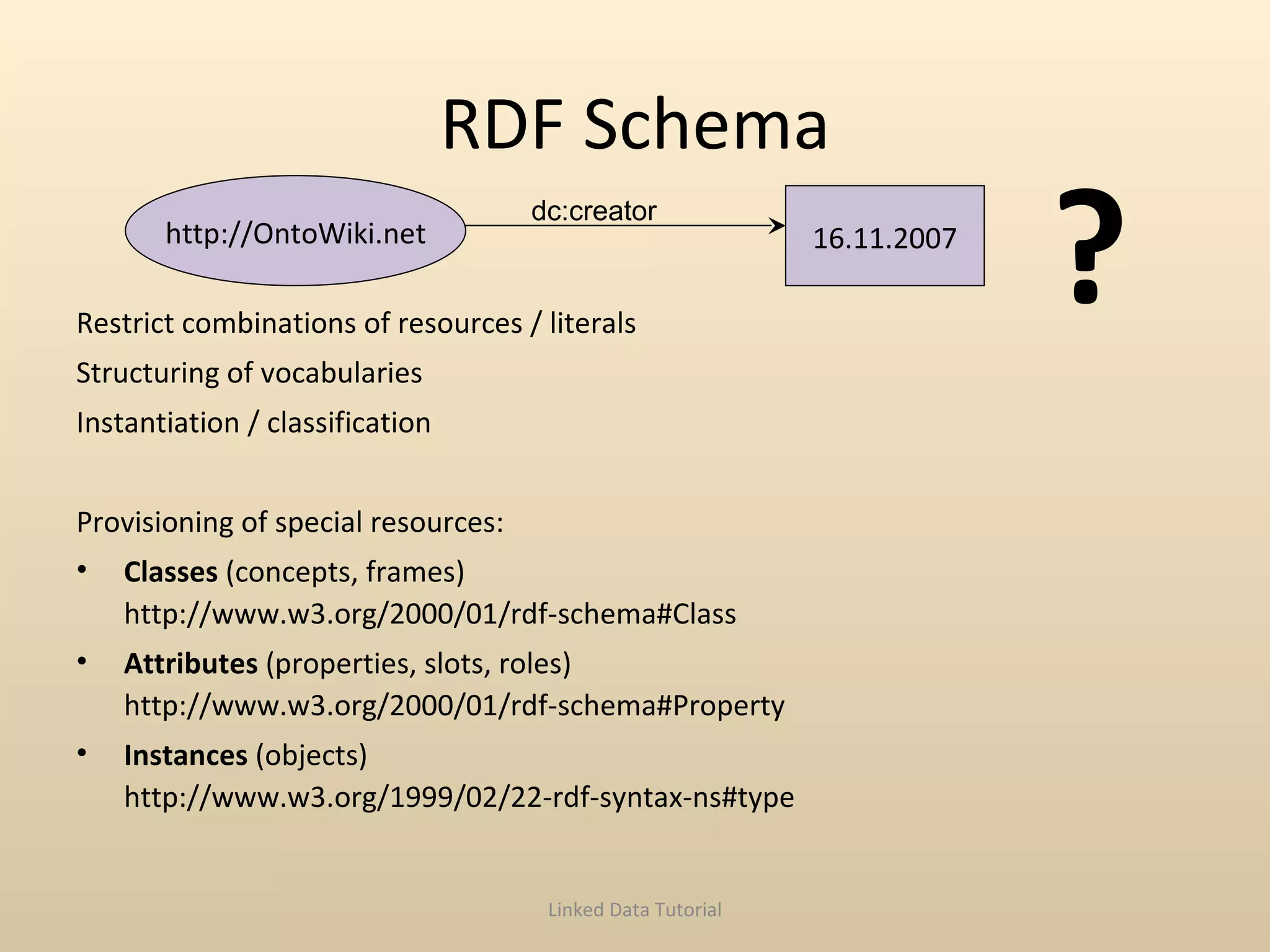

RDF Schema Restrict combinations of resources / literals Structuring of vocabularies Instantiation / classification Provisioning of special resources: Classes  (concepts, frames) http://www.w3.org/2000/01/rdf-schema#Class Attributes  (properties, slots, roles) http://www.w3.org/2000/01/rdf-schema#Property Instances  (objects) http://www.w3.org/1999/02/22-rdf-syntax-ns#type Linked Data Tutorial http://OntoWiki.net 16.11.2007 dc:creator ?
RDF-S Class & Property Hierarchies Beer rdf:type rdfs:Class BottomFermentedBeer rdfs:subClassOf Beer Bock rdfs:subClassOf BottomFermentedBeer Lager rdfs:subClassOf BottomFermentedBeer Pilsner rdfs:subClassOf BottomFermentedBeer Linked Data Tutorial hasContent rdf:type rdfs:Property hasAlcoholicContent rdfs:subPropertyOf Beer hasOriginalWortContent  rdfs:subClassOf BottomFermentedBeer
RDF-S Properties …  are defined and used independently from classes Domain: Association with one or multiple classes Range: defines values the property can assume Instances of a certain class literals typed with a certain XML schema data type Linked Data Tutorial hasAlcoholicContent rdf:type owl:DatatypeProperty hasAlcoholicContent rdf:type owl:FunctionalProperty hasAlcoholicContent rdfs:domain Beer hasAlcoholicContent rdfs:range xsd:float hasAlcoholicContent rdfs:subPropertyOf hasContent  brews rdf:type owl:ObjectProperty brews rdfs:domain  Brewery brews rdfs:range Beer
RDF-S Instances Are associated to one (or multiple) class(es) : Linked Data Tutorial Boddingtons rdf:type Ale Grafentrunk rdf:type Bock Hoegaarden rdf:type White Jever rdf:type Pilsner
Semantic Web Layer Cake Linked Data Tutorial
Linked Data - Paradigm Use URIs as names for things Use HTTP URIs so that people can look up those names. When someone looks up a URI, provide useful information. Include links to other URIs. so that they can discover more things.
Linked Data – Publishing RDF De-referenceable RDF-URIs, e.g.: http://dbpedia.org/resource/Busan Different HTTP response depending on HTTP-Accept-Header Linked Data Tutorial
Benefits of using the RDF Data Model in the Linked Data Context Clients can look up every URI in an RDF graph over the Web to retrieve additional information. Information from different sources merges naturally. The data model enables you to set RDF links between data from different sources. The data model allows you to represent information that is expressed using different schemata in a single model. Combined with schema languages such as RDF-S or OWL, the data model allows you to use as much or as little structure as you need, meaning that you can represent tightly structured data as well as semi-structured data. Linked Data Tutorial
Linking Open Data (LOD) Cloud Linked Data Tutorial
Data Web Moving Targets Base technologies (RDF, SPARQL, HTTP etc.) are developed, standardized and ready to use Big issues: Scalability User interfaces Search engines Business models (Reasoning) Linked Data Tutorial
Data Web Business Models Advertisement (page view) based businesses will probably not be first movers   Large Web companies will probably not be first movers   Data Web should  focus on fragmented markets with many players which require widest distribution of information , e.g. realtors, online shops, transportation service providers, public information, geo data etc. Linked Data Tutorial
Overview The Linked Data Web Vision Data Web Technologies Publishing relational data on the Web DBpedia – transforming Wikipedia into a knowledge base OntoWiki – an Linked Data Wiki Open Street Maps – free and open geo data Linked Data Tutorial

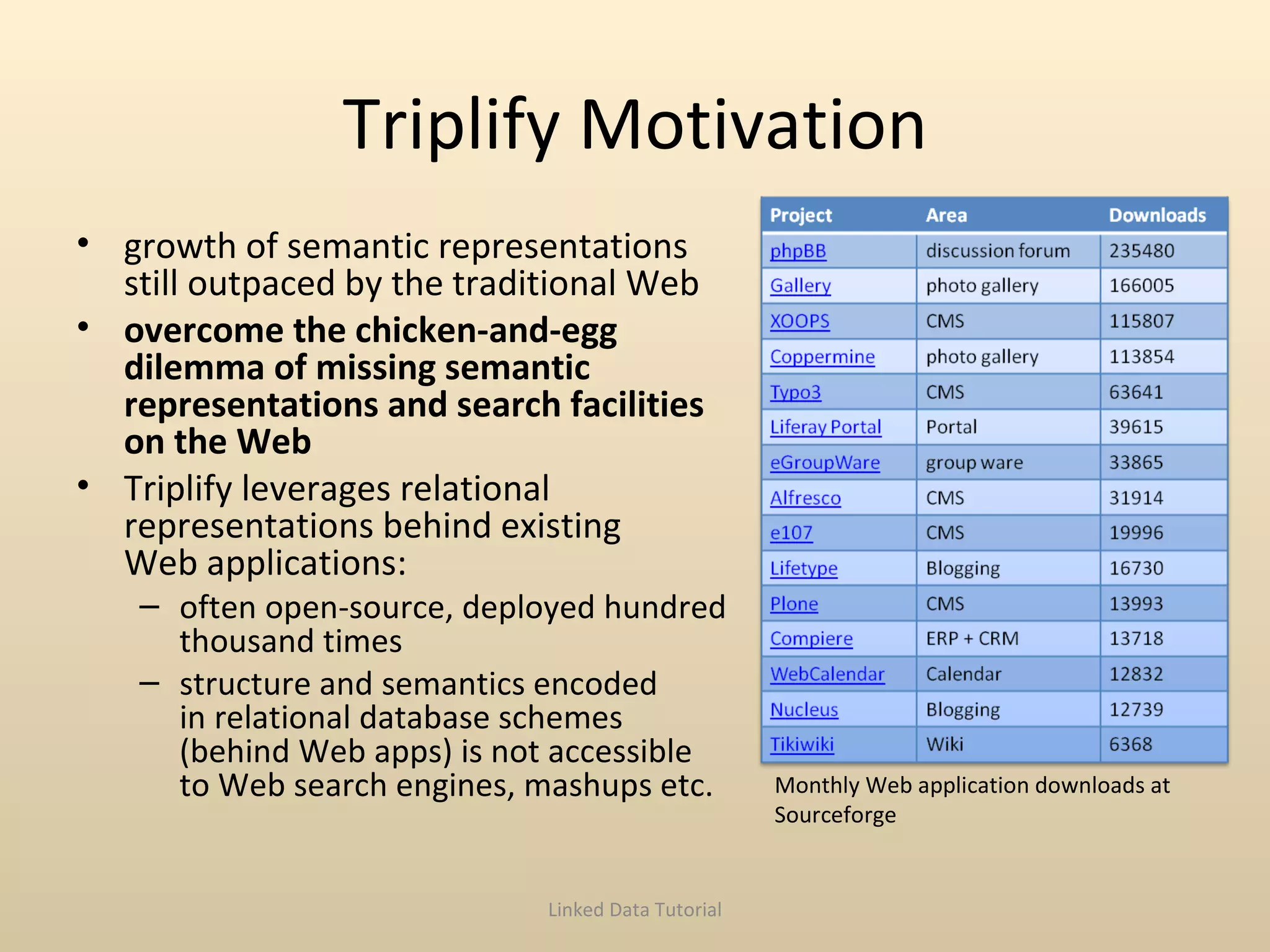

Triplify Motivation growth of semantic representations still outpaced by the traditional Web overcome the chicken-and-egg dilemma of missing semantic representations and search facilities on the Web Triplify leverages relational representations behind existing Web applications: often open-source, deployed hundred thousand times structure and semantics encoded in relational database schemes (behind Web apps) is not accessible to Web search engines, mashups etc. Linked Data Tutorial Monthly Web application downloads at Sourceforge

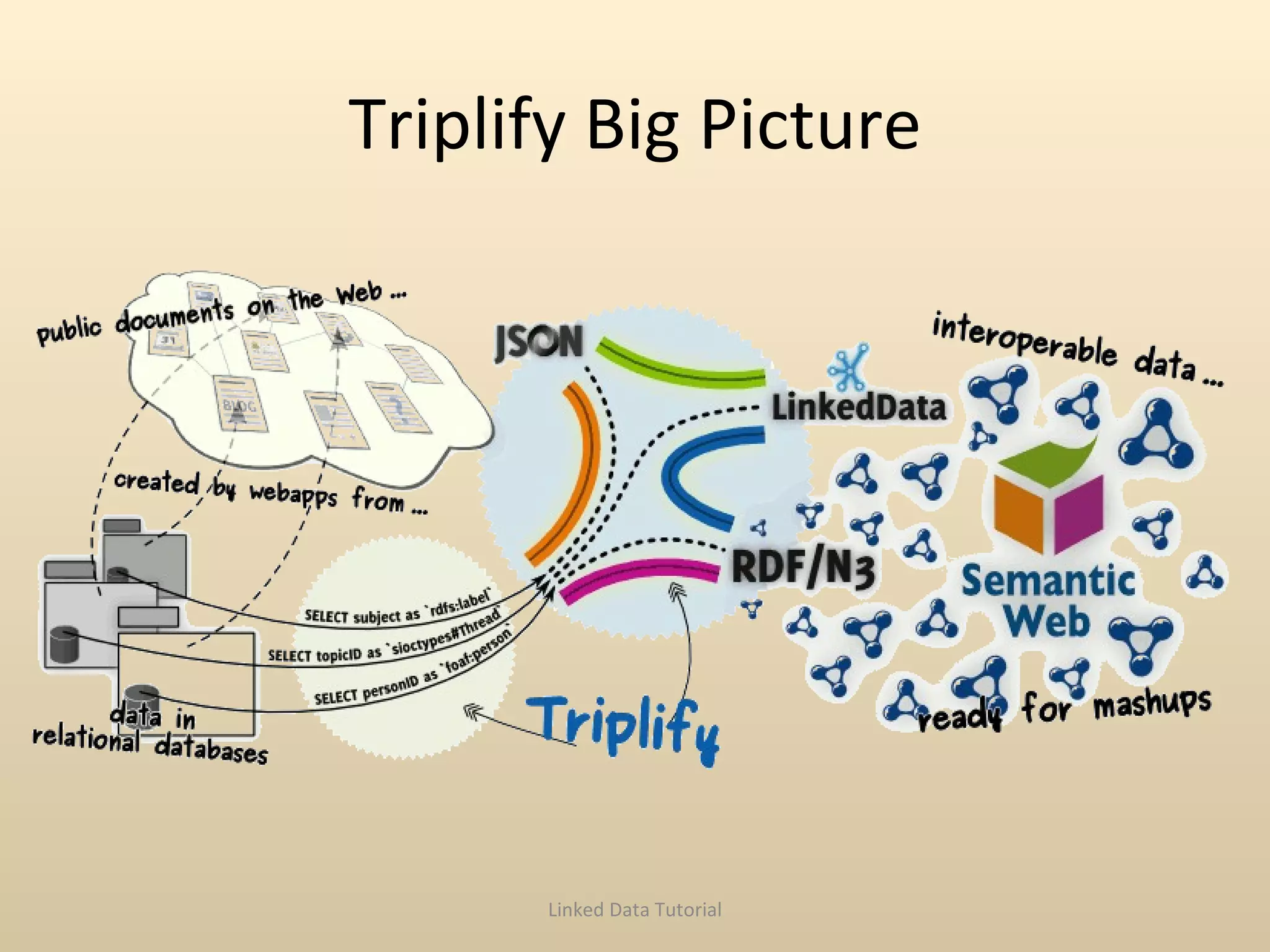

Triplify Big Picture Linked Data Tutorial
Triplify Approach: Simplicity Expose semantics as simple as possible No (new) mapping languages Few lines of code – easy to plug-in Simple, reusable configurations Available for most popular Web app languages PHP (ready), Ruby/Python under development Works with most popular Web app DBs MySQL (extensively tested), PHP-PDO DBs (SQLite, Oracle, DB2, MS SQL, PostgreSQL etc.) should work, not needed for Virtuoso   Triplify exposes RDF/Ntriples, LinkedData and RDF/JSON Linked Data Tutorial

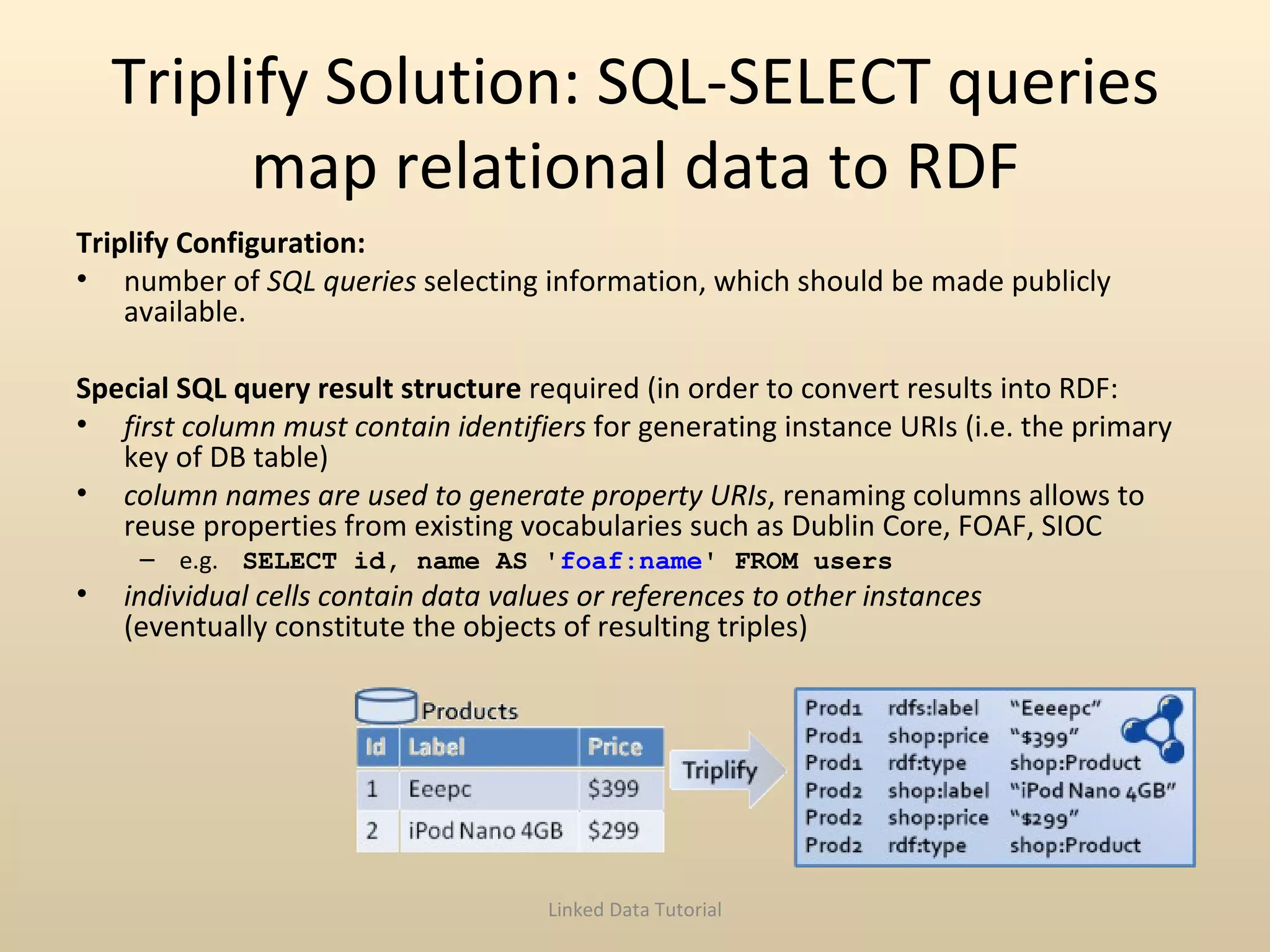

Triplify Solution: SQL-SELECT queries map relational data to RDF Triplify Configuration: number of  SQL queries  selecting information, which should be made publicly available. Special SQL query result structure  required (in order to convert results into RDF: first column must contain identifiers  for generating instance URIs (i.e. the primary key of DB table)  column names are used to generate property URIs , renaming columns allows to reuse properties from existing vocabularies such as Dublin Core, FOAF, SIOC e.g.  SELECT id, name AS ' foaf:name ' FROM users  individual cells contain data values or references to other instances (eventually constitute the objects of resulting triples) Linked Data Tutorial

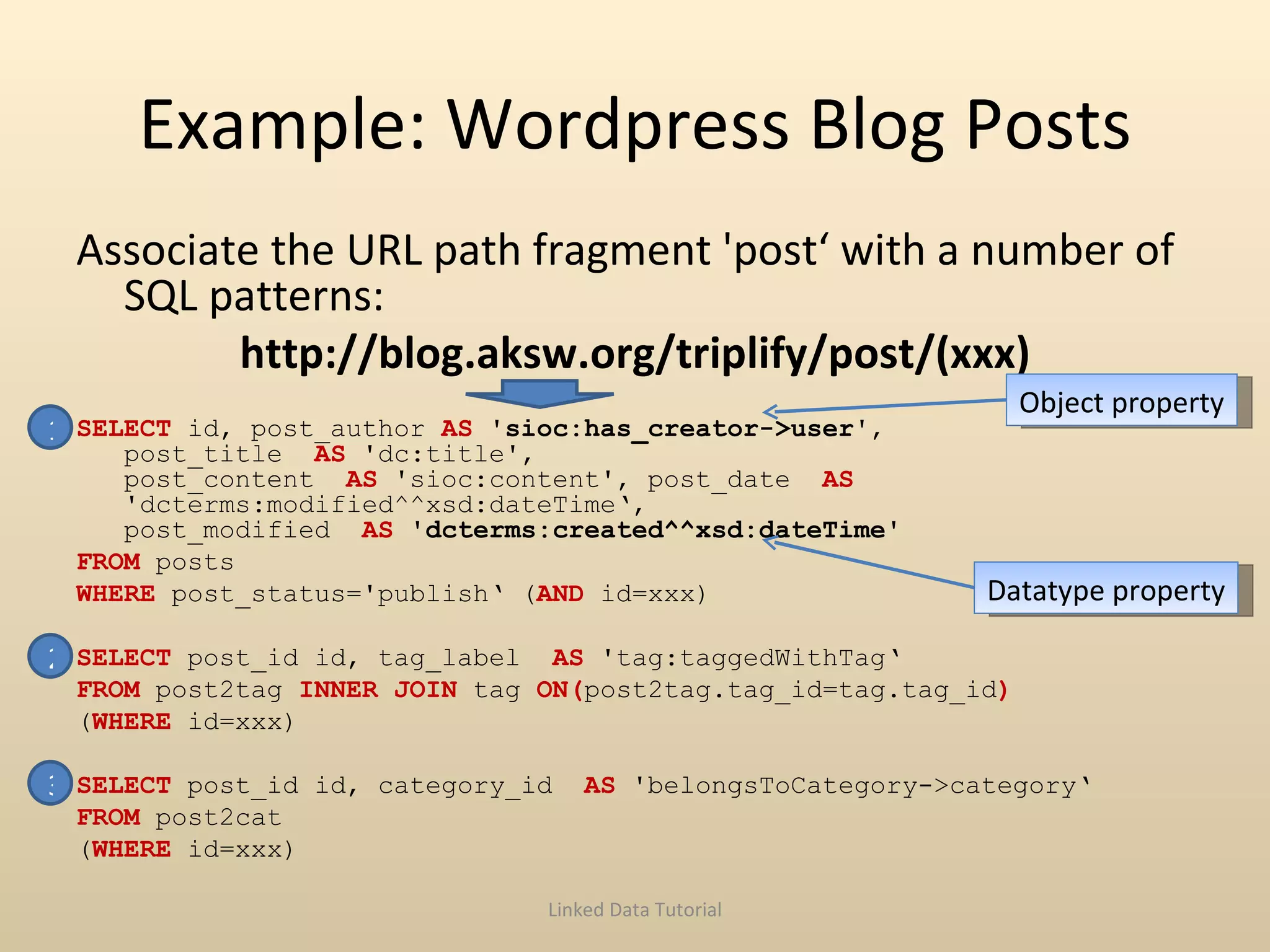

Example: Wordpress Blog Posts Associate the URL path fragment 'post‘ with a number of SQL patterns: http://blog.aksw.org/triplify/post/(xxx) SELECT  id, post_author  AS  'sioc:has_creator->user' , post_title   AS  'dc:title', post_content   AS  'sioc:content', post_date   AS  'dcterms:modified^^xsd:dateTime‘, post_modified   AS  'dcterms:created^^xsd:dateTime' FROM  posts WHERE  post_status='publish‘ ( AND  id=xxx) SELECT  post_id id, tag_label   AS  'tag:taggedWithTag‘ FROM  post2tag  INNER JOIN  tag  ON( post2tag.tag_id=tag.tag_id ) ( WHERE  id=xxx) SELECT  post_id id, category_id   AS  'belongsToCategory->category‘ FROM  post2cat ( WHERE  id=xxx) Linked Data Tutorial Object property Datatype property 1 2 3
RDF Conversion Linked Data Tutorial http://blog.aksw.org/triplify/post/1 sioc:has_creator http://blog.aksw.org/triplify/user/5 http://blog.aksw.org/triplify/post/1 dc:title “New DBpedia release” http://blog.aksw.org/triplify/post/1 sioc:content “Today we released …” http://blog.aksw.org/triplify/post/1 dcterms:modified “20081020T1635”^^xsd:dateTime http://blog.aksw.org/triplify/post/1 dcterms:created “20081020T1635”^^xsd:dateTime http://blog.aksw.org/triplify/post/1 tag:taggedWithTag “DBpedia” http://blog.aksw.org/triplify/post/1 tag:taggedWithTag “Release” http://blog.aksw.org/triplify/post/1 belongsToCategory  http://blog.aksw.org/triplify/category/34 1 2 3 http://blog.aksw.org/triplify/post/1 id post_author post_title post_content post_date post_modified 1 5 New DBpedia release Today we released … 200810201635 200810201635 id tag:taggedWithTag 1 DBpedia 1 Release .. id belogsToCategory 1 34 …

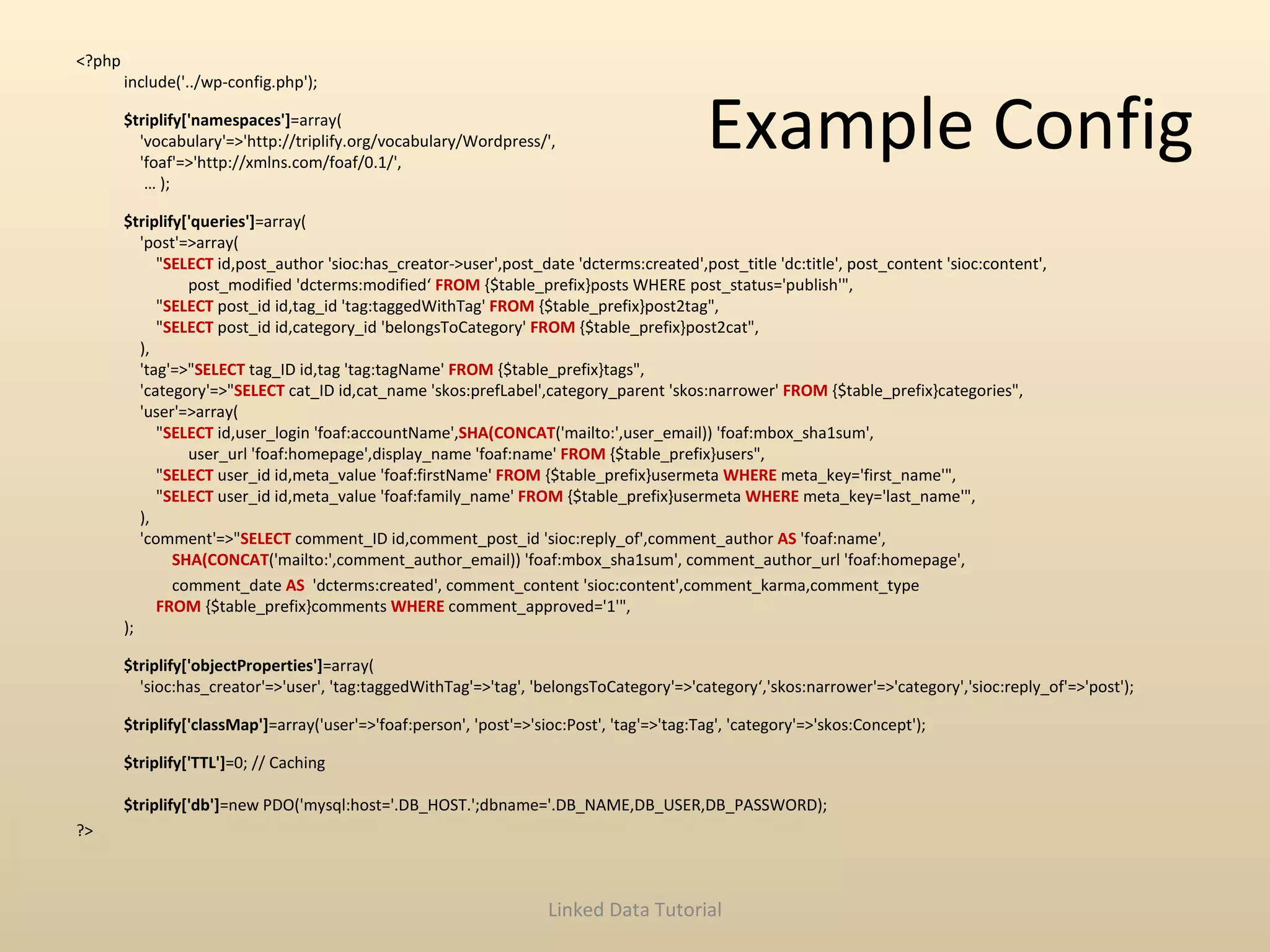

Example Config <?php include('../wp-config.php'); $triplify['namespaces'] =array(     'vocabulary'=>'http://triplify.org/vocabulary/Wordpress/',     'foaf'=>'http://xmlns.com/foaf/0.1/',   … ); $triplify['queries'] =array(     'post'=>array(         &quot; SELECT  id,post_author 'sioc:has_creator->user',post_date 'dcterms:created',post_title 'dc:title', post_content 'sioc:content',                 post_modified 'dcterms:modified‘  FROM  {$table_prefix}posts WHERE post_status='publish'&quot;,         &quot; SELECT  post_id id,tag_id 'tag:taggedWithTag'  FROM  {$table_prefix}post2tag&quot;,         &quot; SELECT  post_id id,category_id 'belongsToCategory'  FROM  {$table_prefix}post2cat&quot;,     ),     'tag'=>&quot; SELECT  tag_ID id,tag 'tag:tagName'  FROM  {$table_prefix}tags&quot;,     'category'=>&quot; SELECT  cat_ID id,cat_name 'skos:prefLabel',category_parent 'skos:narrower'  FROM  {$table_prefix}categories&quot;,     'user'=>array(         &quot; SELECT  id,user_login 'foaf:accountName', SHA(CONCAT ('mailto:',user_email)) 'foaf:mbox_sha1sum',                 user_url 'foaf:homepage',display_name 'foaf:name'  FROM  {$table_prefix}users&quot;,         &quot; SELECT  user_id id,meta_value 'foaf:firstName'  FROM  {$table_prefix}usermeta  WHERE  meta_key='first_name'&quot;,         &quot; SELECT  user_id id,meta_value 'foaf:family_name'  FROM  {$table_prefix}usermeta  WHERE  meta_key='last_name'&quot;,     ),     'comment'=>&quot; SELECT  comment_ID id,comment_post_id 'sioc:reply_of',comment_author  AS  'foaf:name',              SHA(CONCAT ('mailto:',comment_author_email)) 'foaf:mbox_sha1sum', comment_author_url 'foaf:homepage',   comment_date  AS   'dcterms:created', comment_content 'sioc:content',comment_karma,comment_type          FROM  {$table_prefix}comments  WHERE  comment_approved='1'&quot;, ); $triplify['objectProperties'] =array(     'sioc:has_creator'=>'user', 'tag:taggedWithTag'=>'tag', 'belongsToCategory'=>'category‘,'skos:narrower'=>'category','sioc:reply_of'=>'post'); $triplify['classMap'] =array('user'=>'foaf:person', 'post'=>'sioc:Post', 'tag'=>'tag:Tag', 'category'=>'skos:Concept'); $triplify['TTL'] =0; // Caching $triplify['db'] =new PDO('mysql:host='.DB_HOST.';dbname='.DB_NAME,DB_USER,DB_PASSWORD); ?>  Linked Data Tutorial
Triplify Temporal Extension Problem:  How do next generation search engines know something changed on the Data Web? Different solutions: Try to crawl always everything : currently deployed on the Web Ping a central update notification service:  PingTheSemanticWeb.com – will probably not scale if the Data Web gets really deployed Each linked data endpoint publishes an update log: Triplify Update Logs Linked Data Tutorial

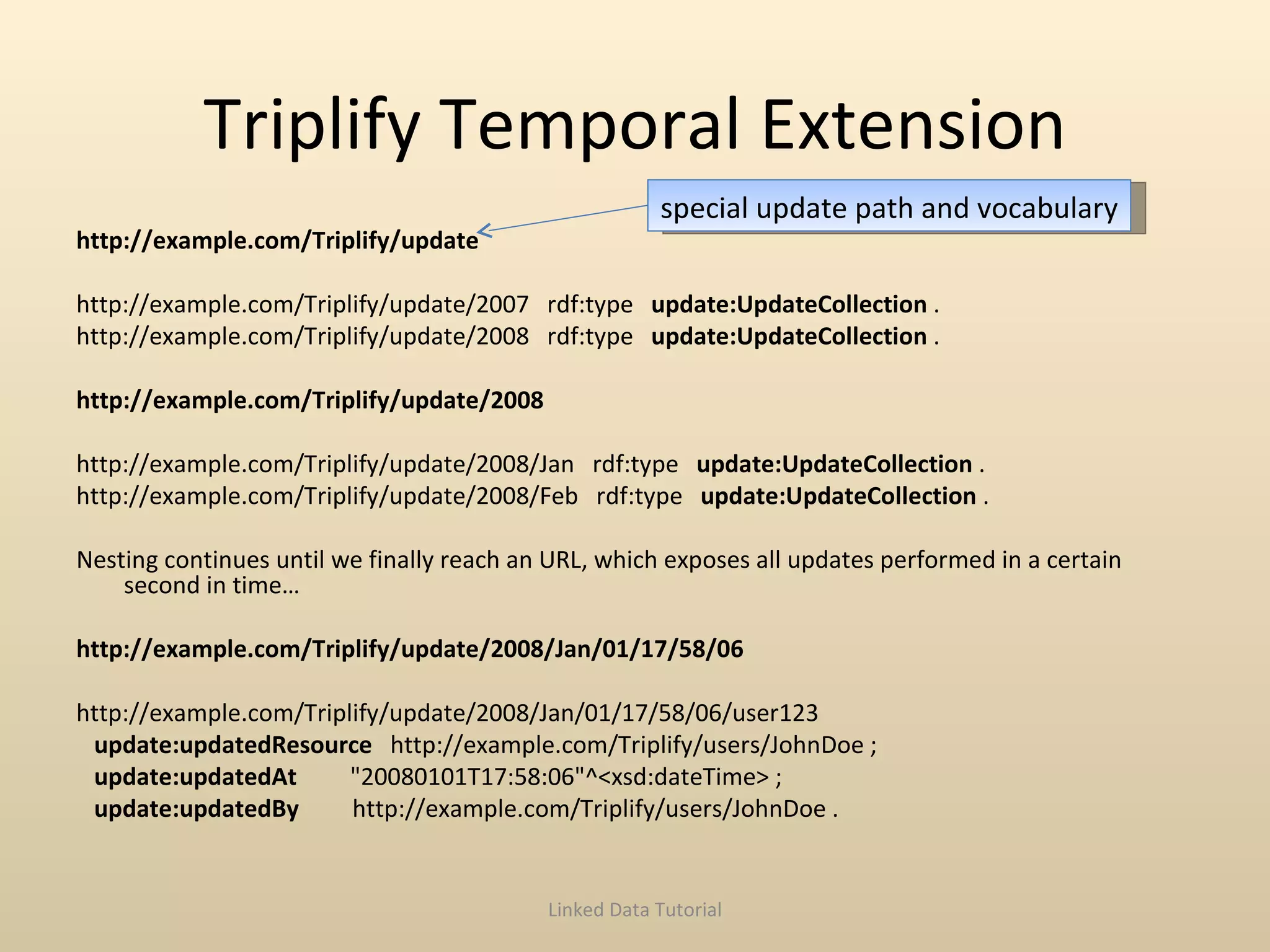

Triplify Temporal Extension http://example.com/Triplify/update http://example.com/Triplify/update/2007  rdf:type  update:UpdateCollection  . http://example.com/Triplify/update/2008  rdf:type  update:UpdateCollection  . http://example.com/Triplify/update/2008 http://example.com/Triplify/update/2008/Jan  rdf:type  update:UpdateCollection  . http://example.com/Triplify/update/2008/Feb  rdf:type  update:UpdateCollection  . Nesting continues until we finally reach an URL, which exposes all updates performed in a certain second in time… http://example.com/Triplify/update/2008/Jan/01/17/58/06 http://example.com/Triplify/update/2008/Jan/01/17/58/06/user123 update:updatedResource   http://example.com/Triplify/users/JohnDoe ; update:updatedAt   &quot;20080101T17:58:06&quot;^<xsd:dateTime> ; update:updatedBy   http://example.com/Triplify/users/JohnDoe . Linked Data Tutorial special update path and vocabulary

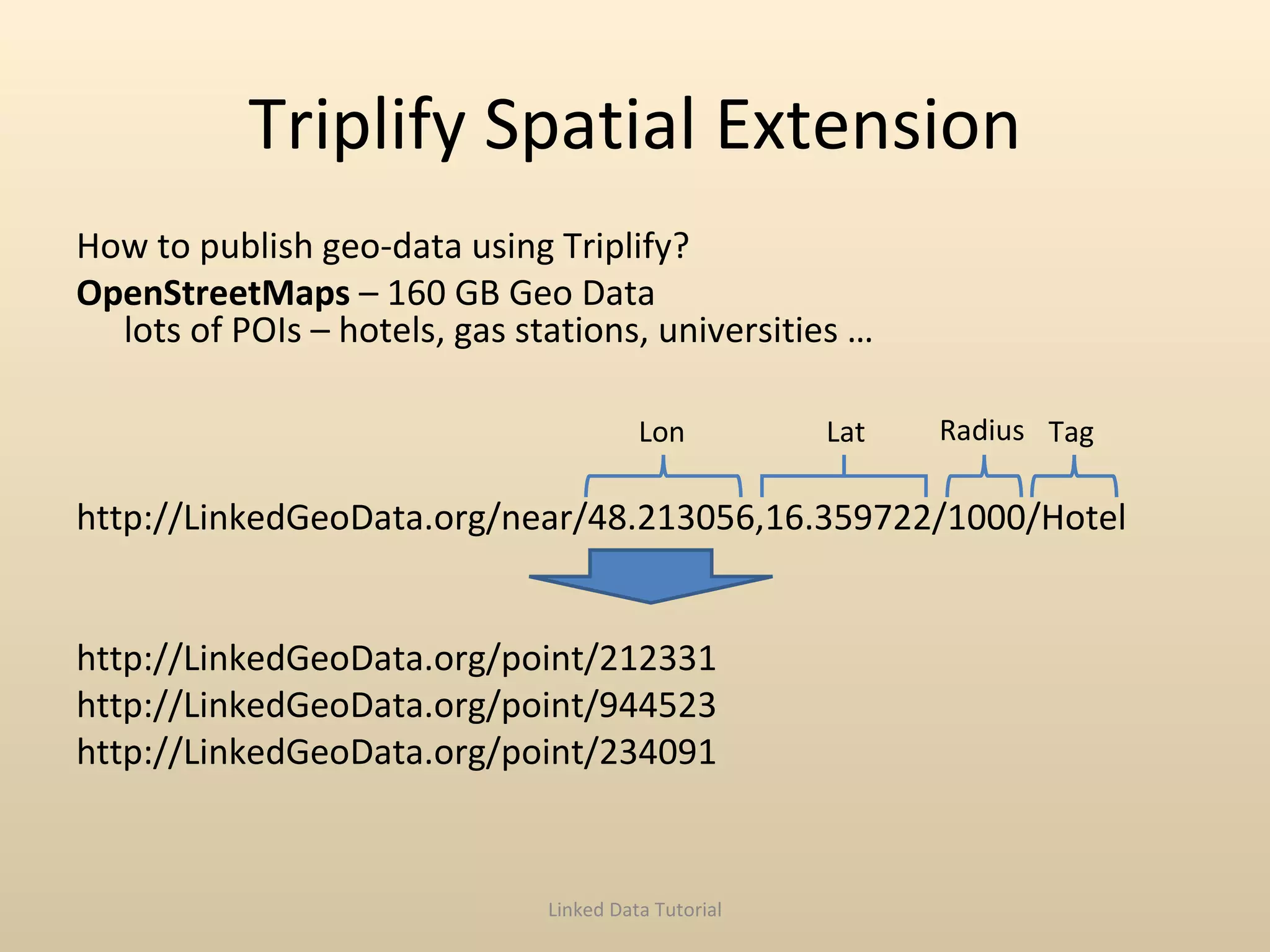

Triplify Spatial Extension How to publish geo-data using Triplify? OpenStreetMaps  – 160 GB Geo Data lots of POIs – hotels, gas stations, universities … http://LinkedGeoData.org/near/48.213056,16.359722/1000/Hotel http://LinkedGeoData.org/point/212331 http://LinkedGeoData.org/point/944523 http://LinkedGeoData.org/point/234091 Linked Data Tutorial Lon Lat Radius Tag

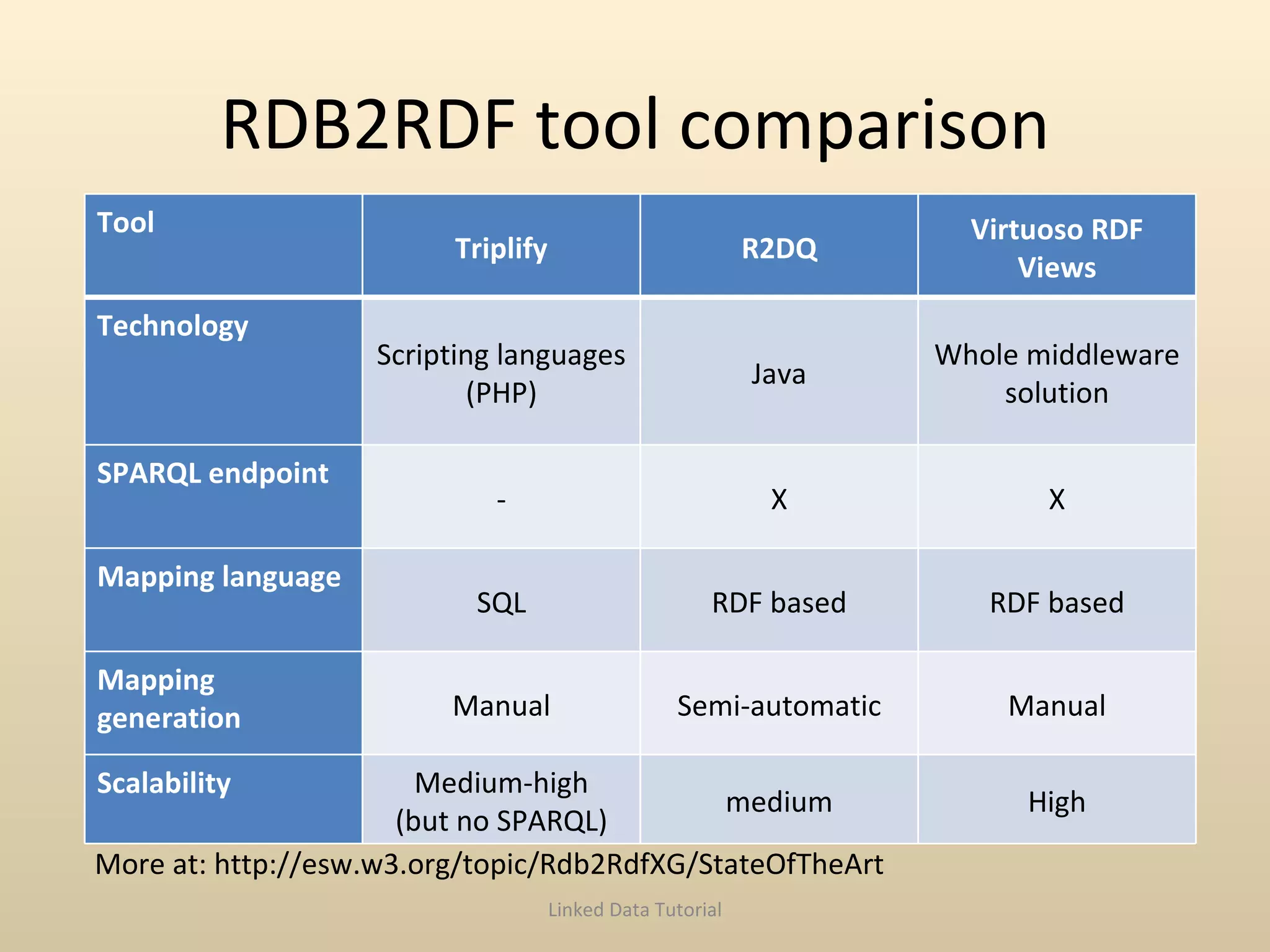

RDB2RDF tool comparison Linked Data Tutorial More at: http://esw.w3.org/topic/Rdb2RdfXG/StateOfTheArt Tool Triplify R2DQ Virtuoso RDF Views Technology Scripting languages (PHP) Java Whole middleware solution SPARQL endpoint - X X Mapping language SQL RDF based RDF based Mapping generation Manual Semi-automatic Manual Scalability Medium-high (but no SPARQL) medium High

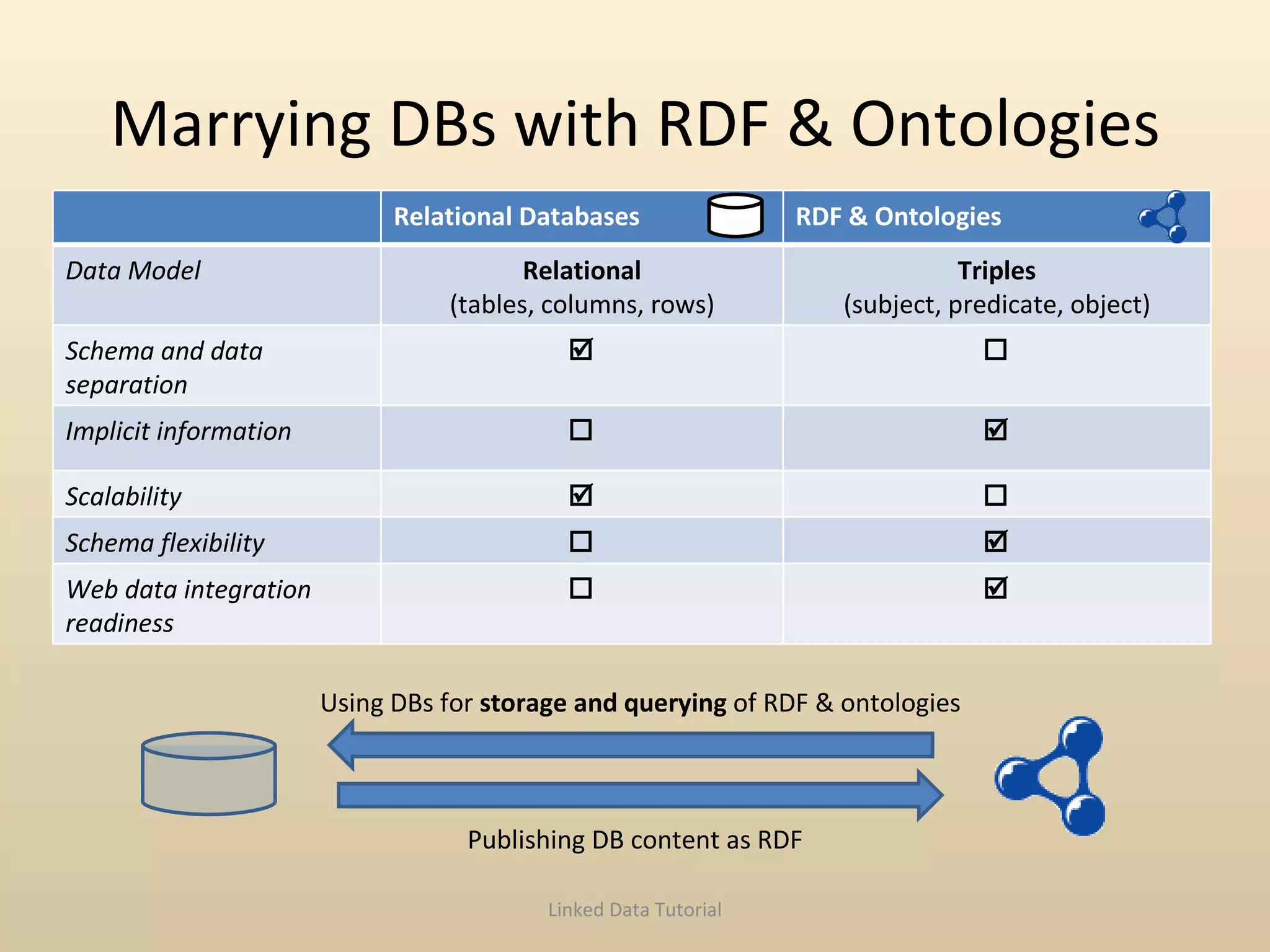

Marrying DBs with RDF & Ontologies Using DBs for  storage and querying  of RDF & ontologies Linked Data Tutorial Publishing DB content as RDF Relational Databases RDF & Ontologies Data Model Relational (tables, columns, rows) Triples (subject, predicate, object) Schema and data separation   Implicit information   Scalability   Schema flexibility   Web data integration readiness  

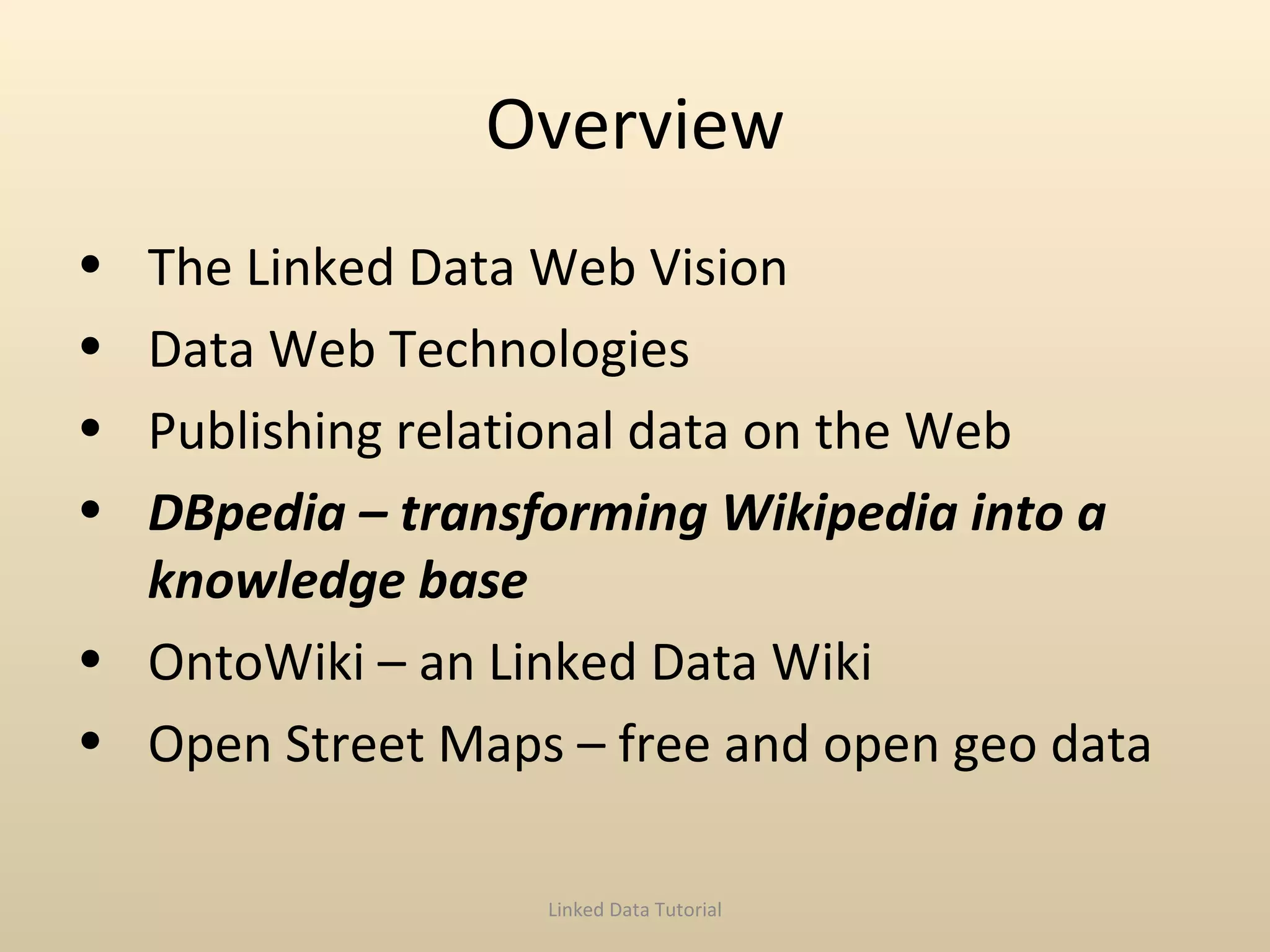

Overview The Linked Data Web Vision Data Web Technologies Publishing relational data on the Web DBpedia – transforming Wikipedia into a knowledge base OntoWiki – an Linked Data Wiki Open Street Maps – free and open geo data Linked Data Tutorial

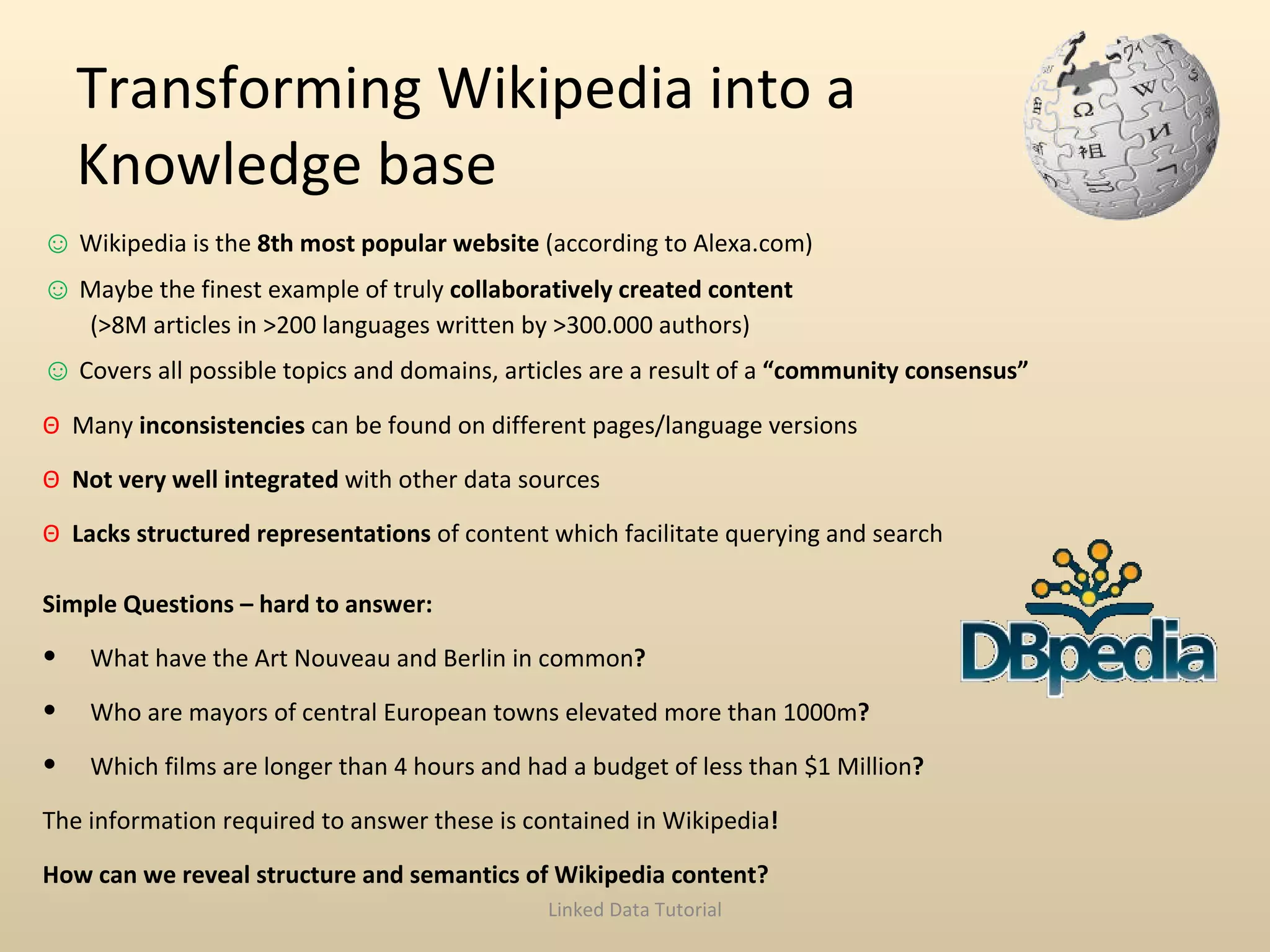

Transforming Wikipedia into a Knowledge base ☺   Wikipedia is the  8th most popular website  (according to Alexa.com) ☺   Maybe the finest example of truly  collaboratively created content (>8M articles in >200 languages written by >300.000 authors) ☺   Covers all possible topics and domains, articles are a result of a  “community consensus” Θ   Many  inconsistencies  can be found on different pages/language versions Θ  Not very well integrated  with other data sources Θ  Lacks structured representations  of content which facilitate querying and search Simple Questions – hard to answer: What have the Art Nouveau and Berlin in common ? Who are mayors of central European towns elevated more than 1000m ? Which films are longer than 4 hours and had a budget of less than $1 Million ? The information required to answer these is contained in Wikipedia ! How can we reveal structure and semantics of Wikipedia content? Linked Data Tutorial
Structure in Wikipedia Title Abstract Infoboxes Geo-coordinates Categories Images Links other language versions other Wikipedia pages To the Web Redirects Disambiguations Linked Data Tutorial
Infobox templates {{Infobox Korean settlement | title  = Busan Metropolitan City | img  = Busan.jpg | imgcaption  = A view of the [[Geumjeong]] district in Busan | hangul  =  부산 광역시 ... | area_km2  = 763.46 | pop  = 3635389 | popyear  = 2006 | mayor  = Hur Nam-sik | divs  = 15 wards (Gu), 1 county (Gun) | region  = [[Yeongnam]] | dialect  = [[Gyeongsang]] }} http://dbpedia.org/resource/Busan dbp:Busan  dbpp:title  ″Busan Metropolitan City″ dbp:Busan  dbpp:hangul  ″ 부산 광역시 ″ @Hang dbp:Busan  dbpp:area_km2 ″763.46“^xsd:float dbp:Busan  dbpp:pop  ″3635389“^xsd:int dbp:Busan  dbpp:region  dbp:Yeongnam dbp:Busan  dbpp:dialect  dbp:Gyeongsang ... Wikitext-Syntax RDF representation Linked Data Tutorial
Class Hierarchy 200k people (70k athletes, 65k artists, 18k office holders) 193k places (100k areas, 40k cities, 10k rivers) 187k works (71k music albums, 24k singles, 31k films, 15k books) 87k species 70k organisations (20k educational institutions, 18k companies, 12k radio stations) 22k buildings (8k airports, 5k stations, 2k stadiums, 1k bridges) 12k planets And more… (events, diseases, proteins, drugs, aircrafts, automobiles, ships, astronaut, architect, scientists)
Extraction results Extraction algorithm with the English Wikipedia content ( http://dumps.wikimedia.org/enwiki ) <1h needed  to extract templates and convert them to RDF (>2M English Wikipedia articles, >10GB raw data) roughly 30M facts  extracted from infobox templates alone Sample checks reveal: ~ 90% accuracy , 9% redundant information, 1% erroneous multi-domain ontology  covering a large body of domains extraction results and source code of the extraction algorithm  available at  http://dbpedia.org Linked Data Tutorial Dataset (en) Triples Articles 7.6M Abstracts 2.1M External Links 3.2M Categories 7.3M Infoboxes 29.3M Persons 560k Yago Classes 2M Wordnet Classes 338k Geo-coordinates 450k Mapping to Flickr, DBLP, Eurostat, CIA-Factbook, Musicbrainz, Project Gutenberg, US Census, … 100k Mapping to OpenCyc 45k

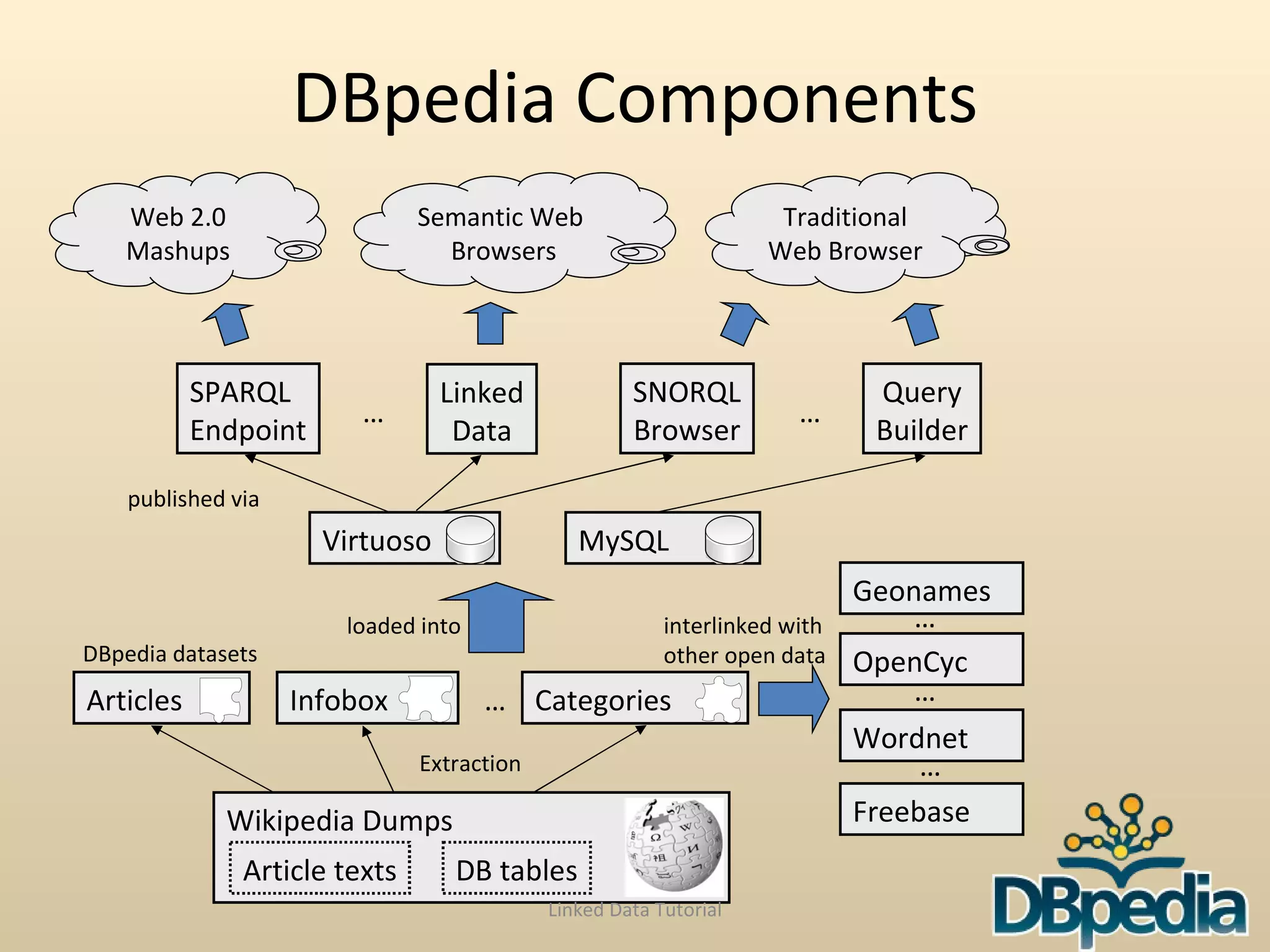

DBpedia Components Wikipedia Dumps Article texts DB tables Infobox Articles Categories … DBpedia datasets SPARQL Endpoint Query Builder SNORQL Browser Traditional Web Browser Web 2.0 Mashups Virtuoso MySQL Extraction loaded into published via … Linked Data … Semantic Web  Browsers OpenCyc Wordnet Freebase Geonames … … … interlinked with other open data Linked Data Tutorial

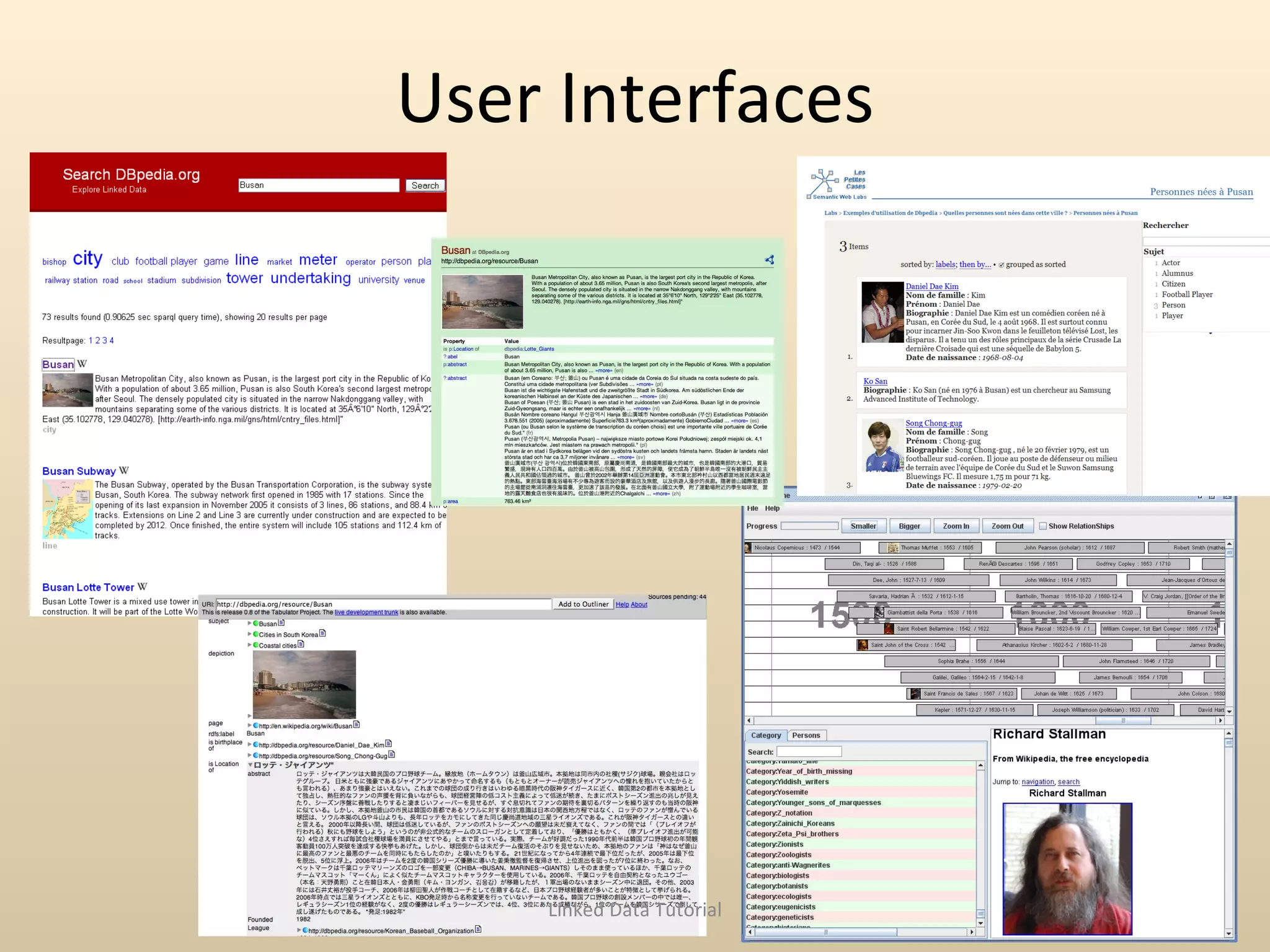

User Interfaces Linked Data Tutorial

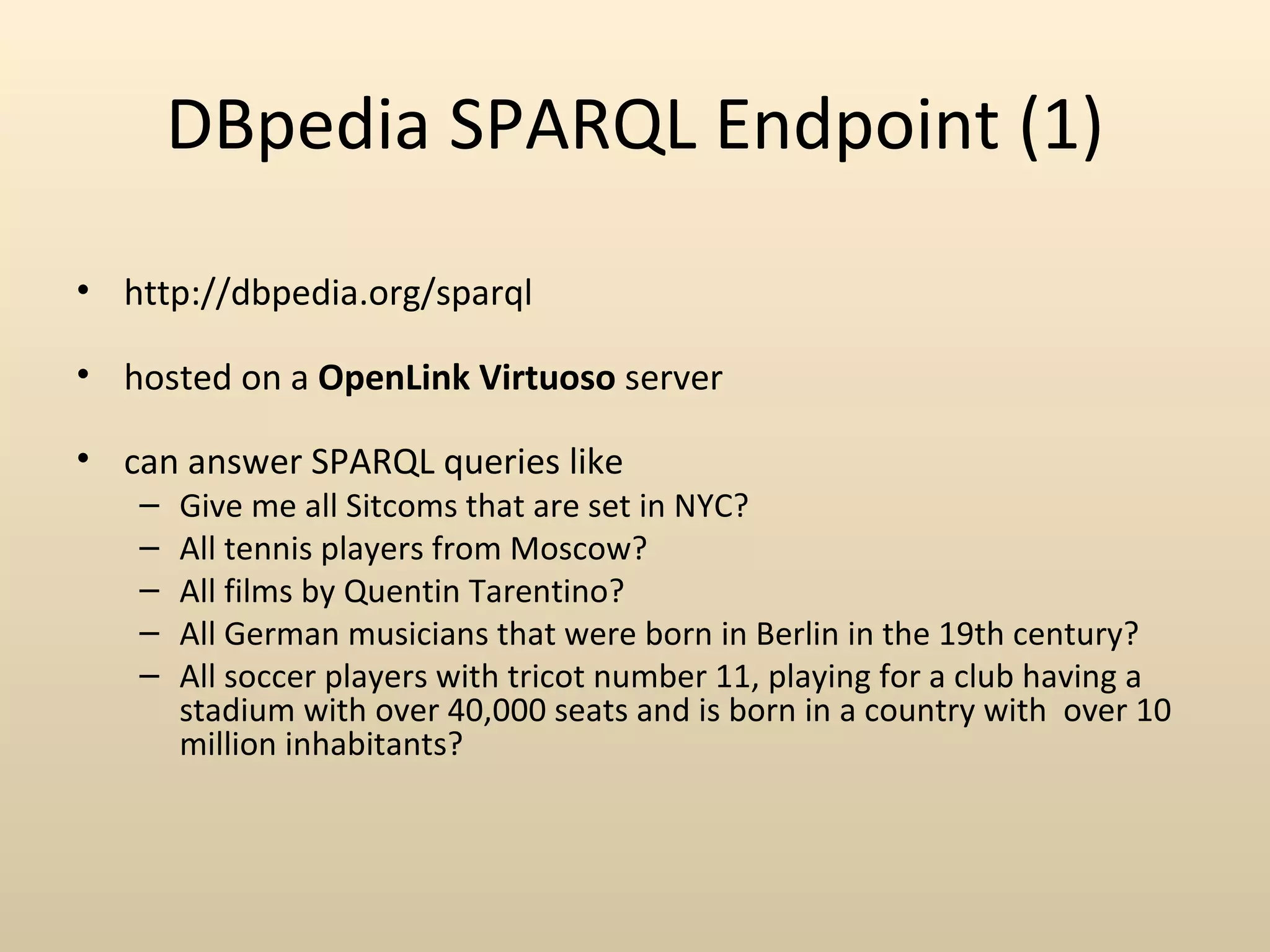

DBpedia SPARQL Endpoint (1) http://dbpedia.org/sparql   hosted on a  OpenLink Virtuoso  server  can answer SPARQL queries like Give me all Sitcoms that are set in NYC?  All tennis players from Moscow?  All films by Quentin Tarentino?  All German musicians that were born in Berlin in the 19th century?   All soccer players with tricot number 11, playing for a club having a stadium with over 40,000 seats and is born in a country with  over 10 million inhabitants?

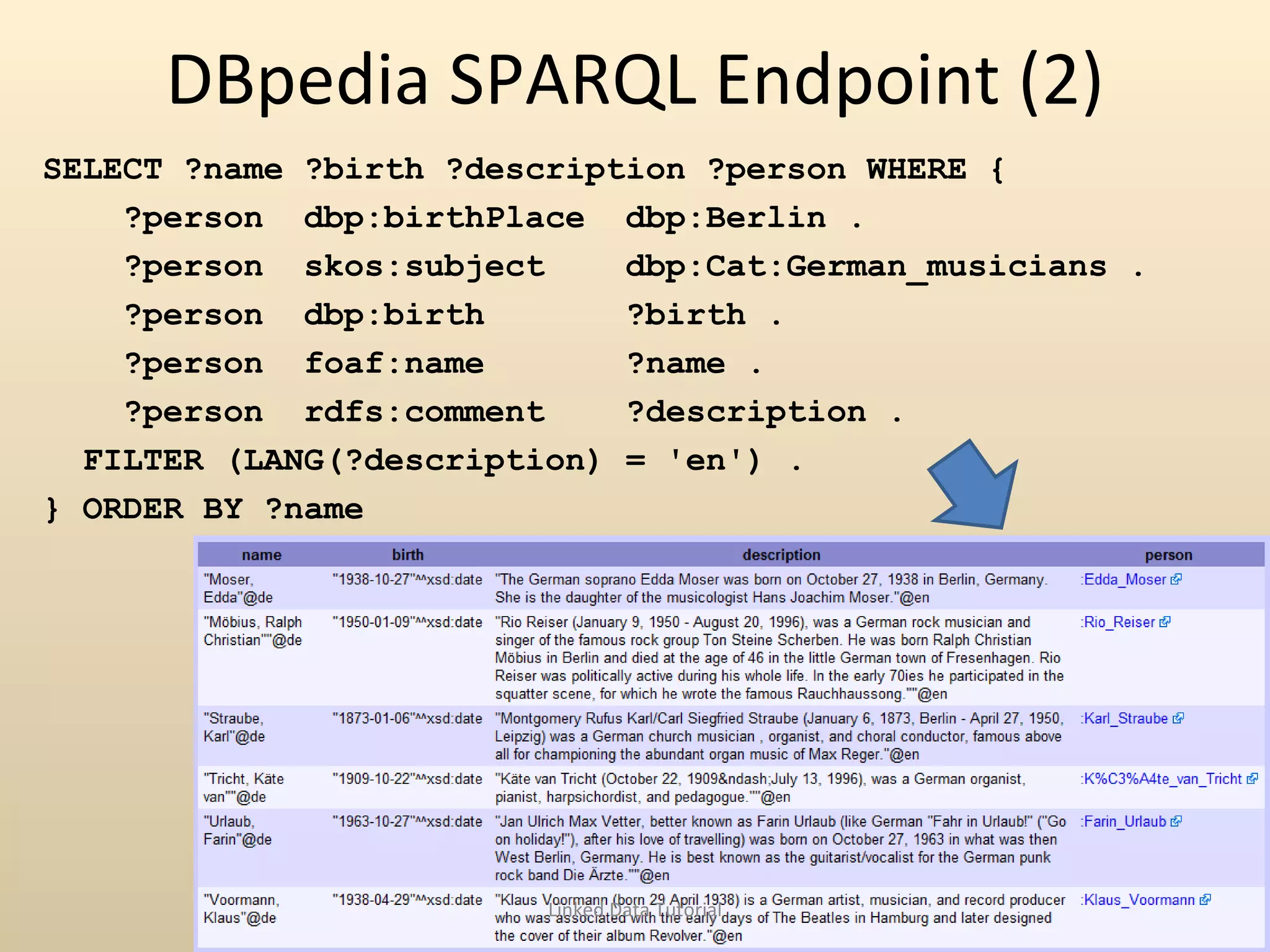

DBpedia SPARQL Endpoint (2) SELECT ?name ?birth ?description ?person WHERE { ?person  dbp:birthPlace  dbp:Berlin . ?person  skos:subject  dbp:Cat:German_musicians . ?person  dbp:birth  ?birth . ?person  foaf:name  ?name . ?person  rdfs:comment  ?description . FILTER (LANG(?description) = 'en') . } ORDER BY ?name Linked Data Tutorial
Overview The Linked Data Web Vision Data Web Technologies Publishing relational data on the Web DBpedia – transforming Wikipedia into a knowledge base OntoWiki – an Linked Data Wiki Virtuoso – Knowledge Store Open Street Maps – free and open geo data Linked Data Tutorial
OntoWiki Semantic Wiki Differences Similarities Architecture Use Cases Linked Data Tutorial

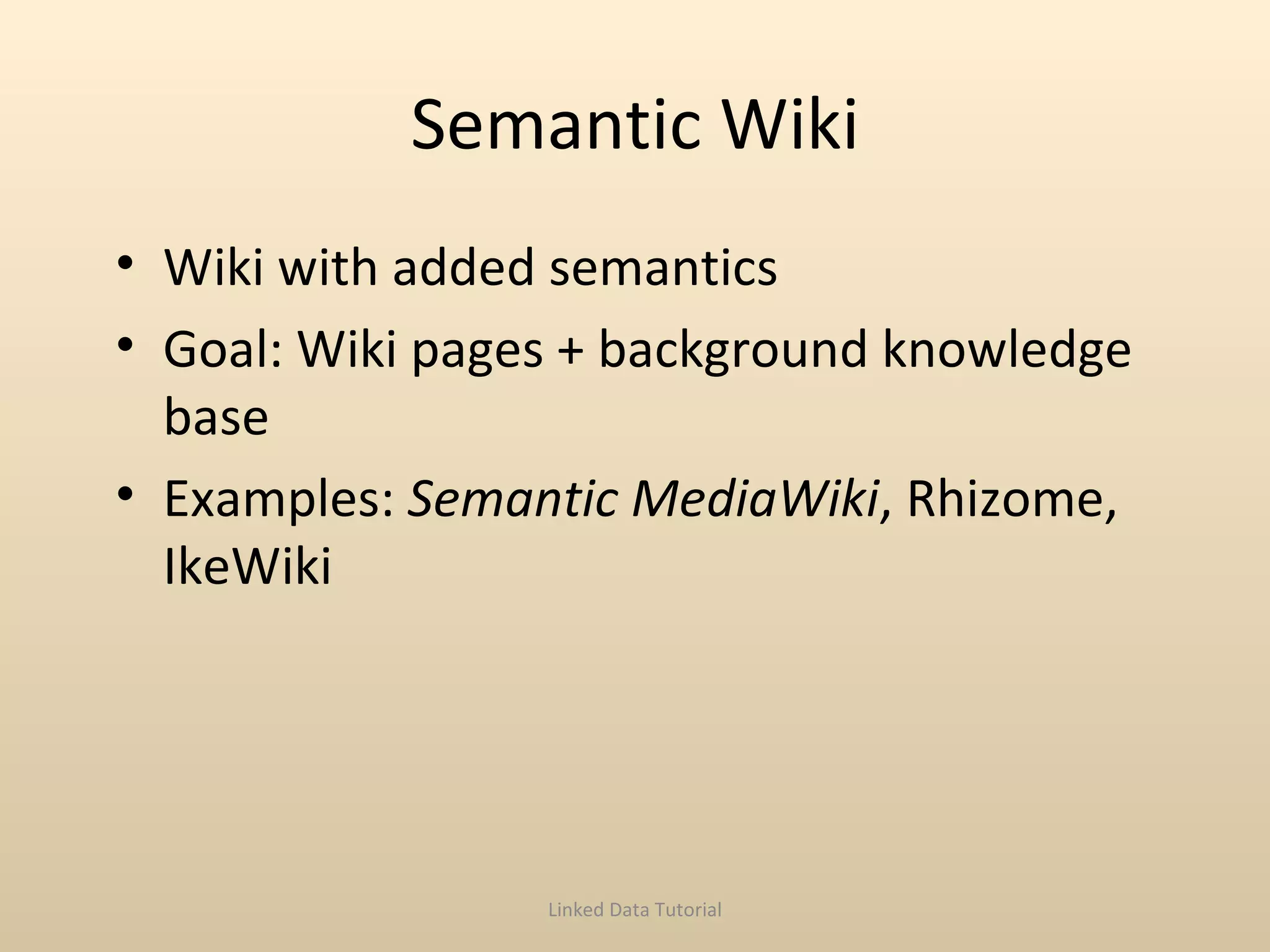

Semantic Wiki Wiki with added semantics Goal: Wiki pages + background knowledge base Examples:  Semantic MediaWiki , Rhizome, IkeWiki Linked Data Tutorial

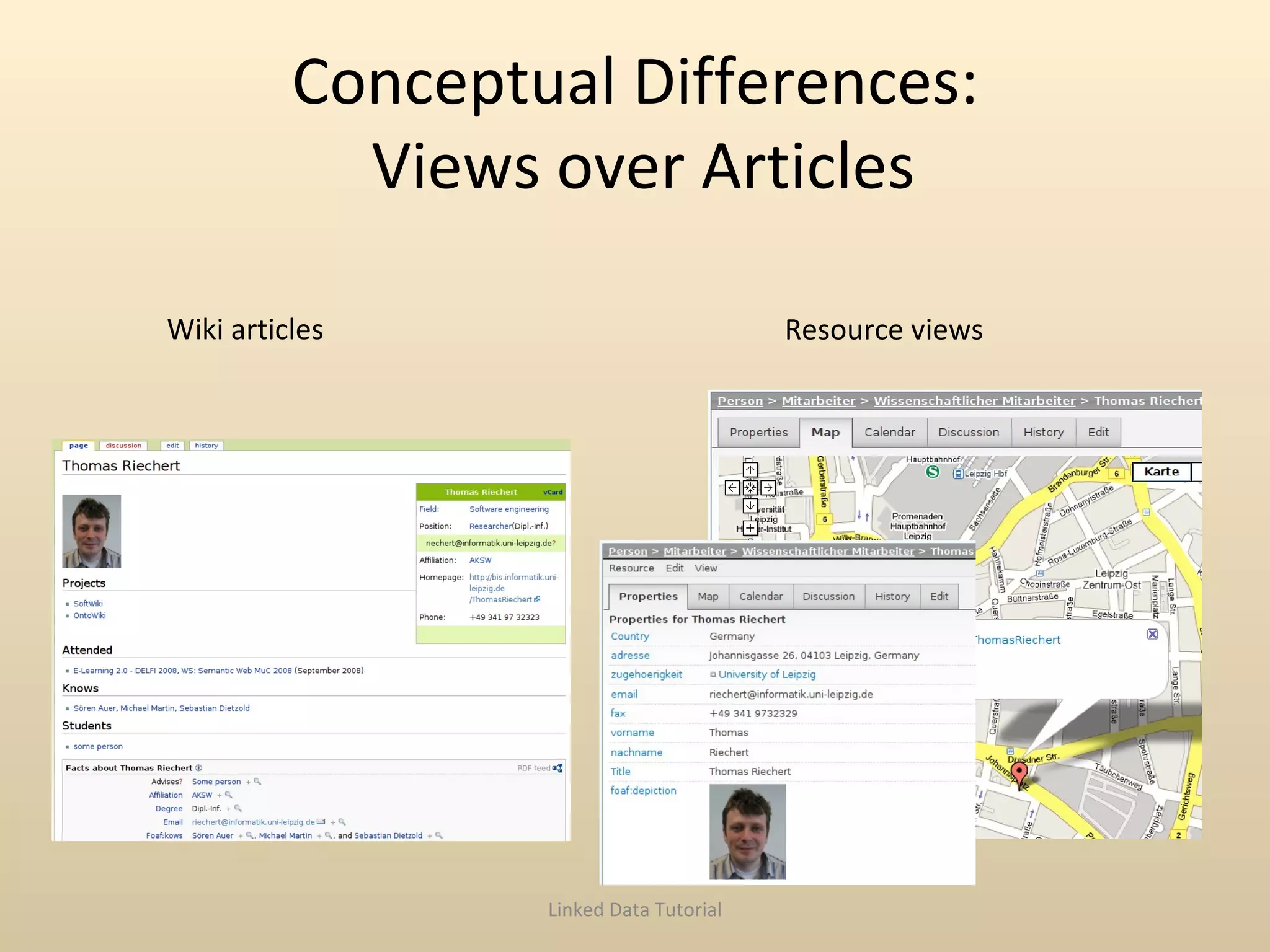

Conceptual Differences:  Views over Articles Wiki articles Linked Data Tutorial Resource views
Conceptual Differences: Forms over Code Wiki code Linked Data Tutorial Forms

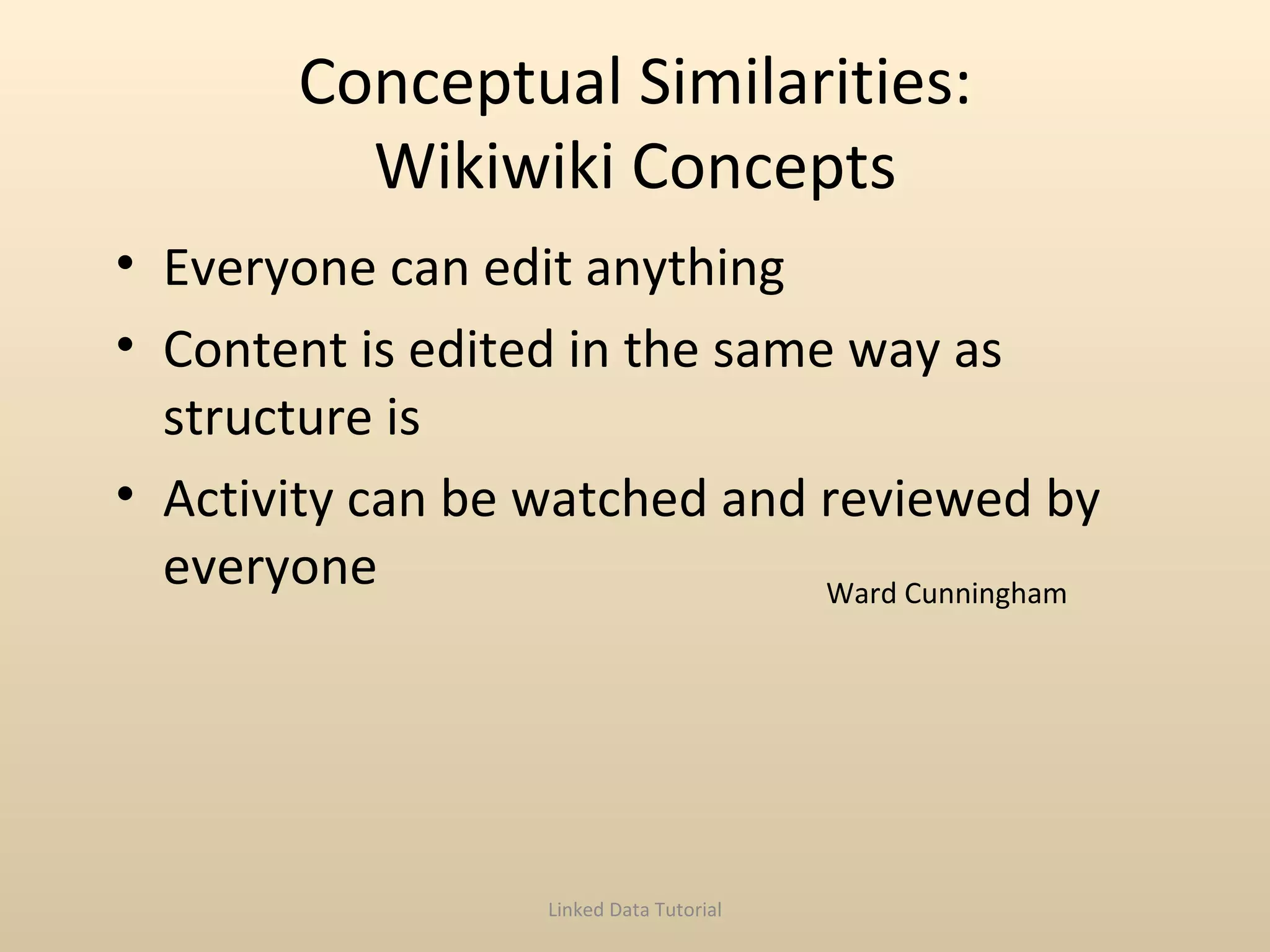

Conceptual Similarities: Wikiwiki Concepts Everyone can edit anything Content is edited in the same way as structure is Activity can be watched and reviewed by everyone Ward Cunningham Linked Data Tutorial
Versioning Everything can be undone Philosophy: make it easy to correct mistakes Linked Data Tutorial

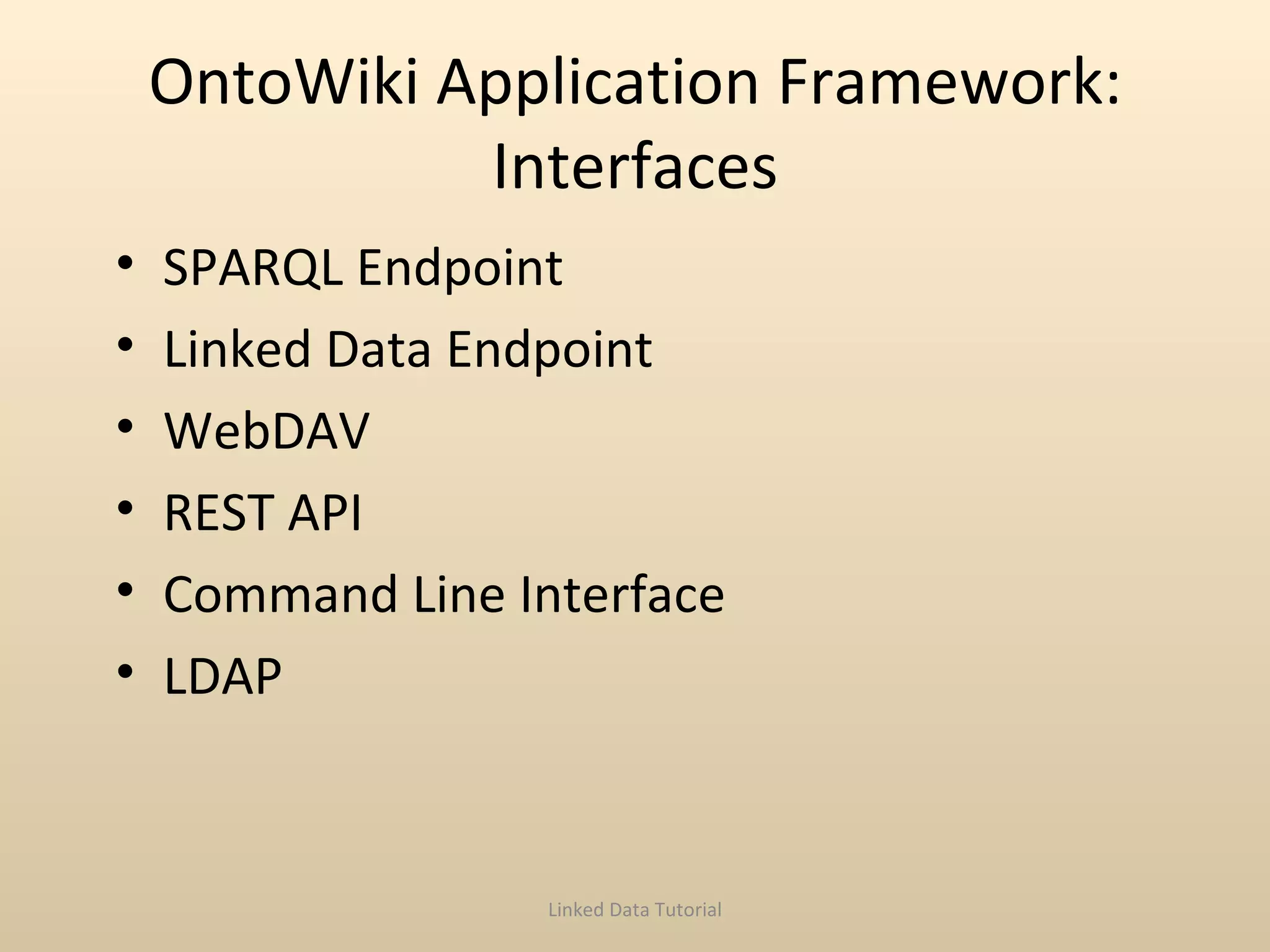

OntoWiki Application Framework: Interfaces SPARQL Endpoint Linked Data Endpoint WebDAV REST API Command Line Interface LDAP Linked Data Tutorial

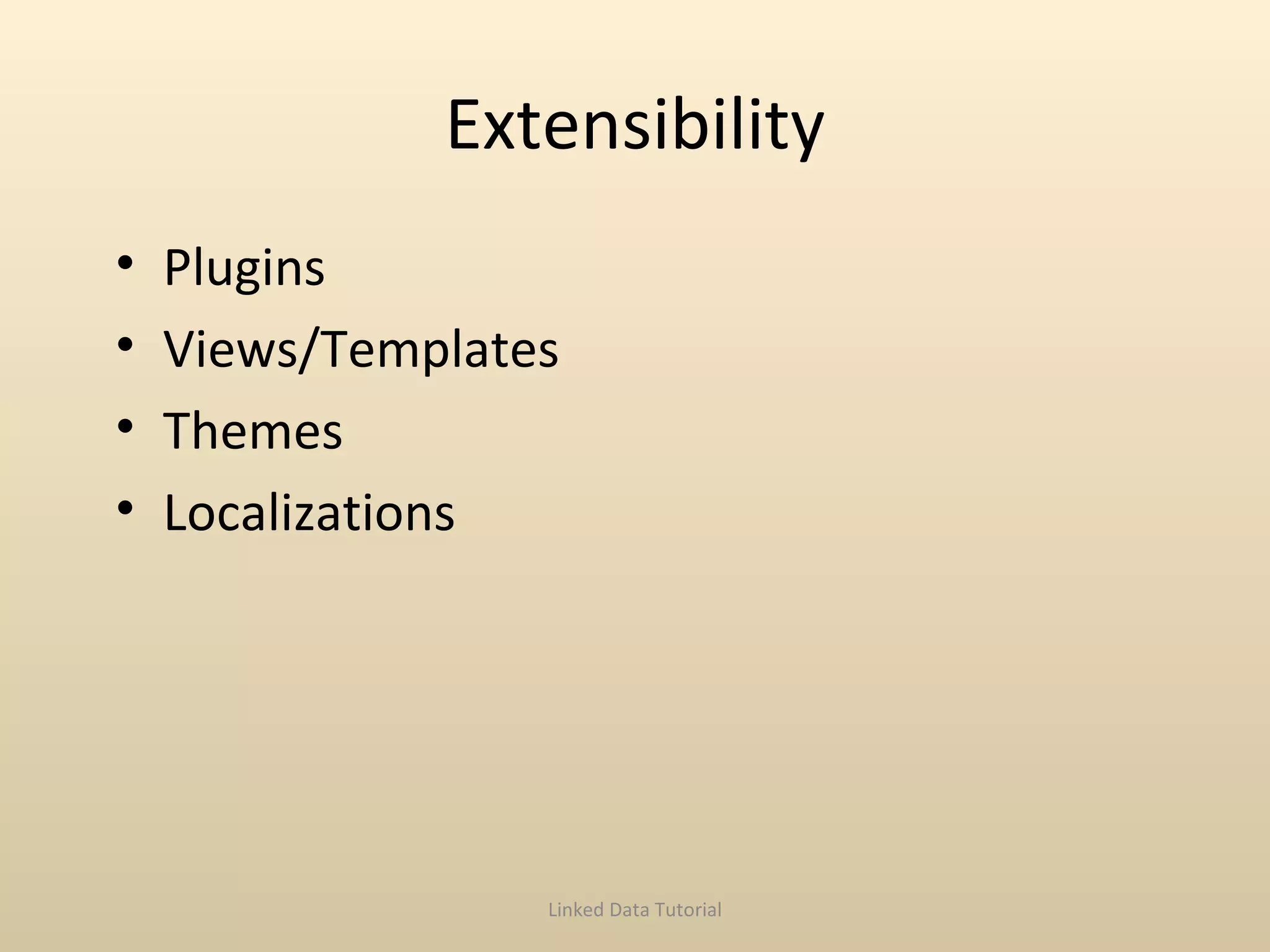

Extensibility Plugins Views/Templates Themes Localizations Linked Data Tutorial

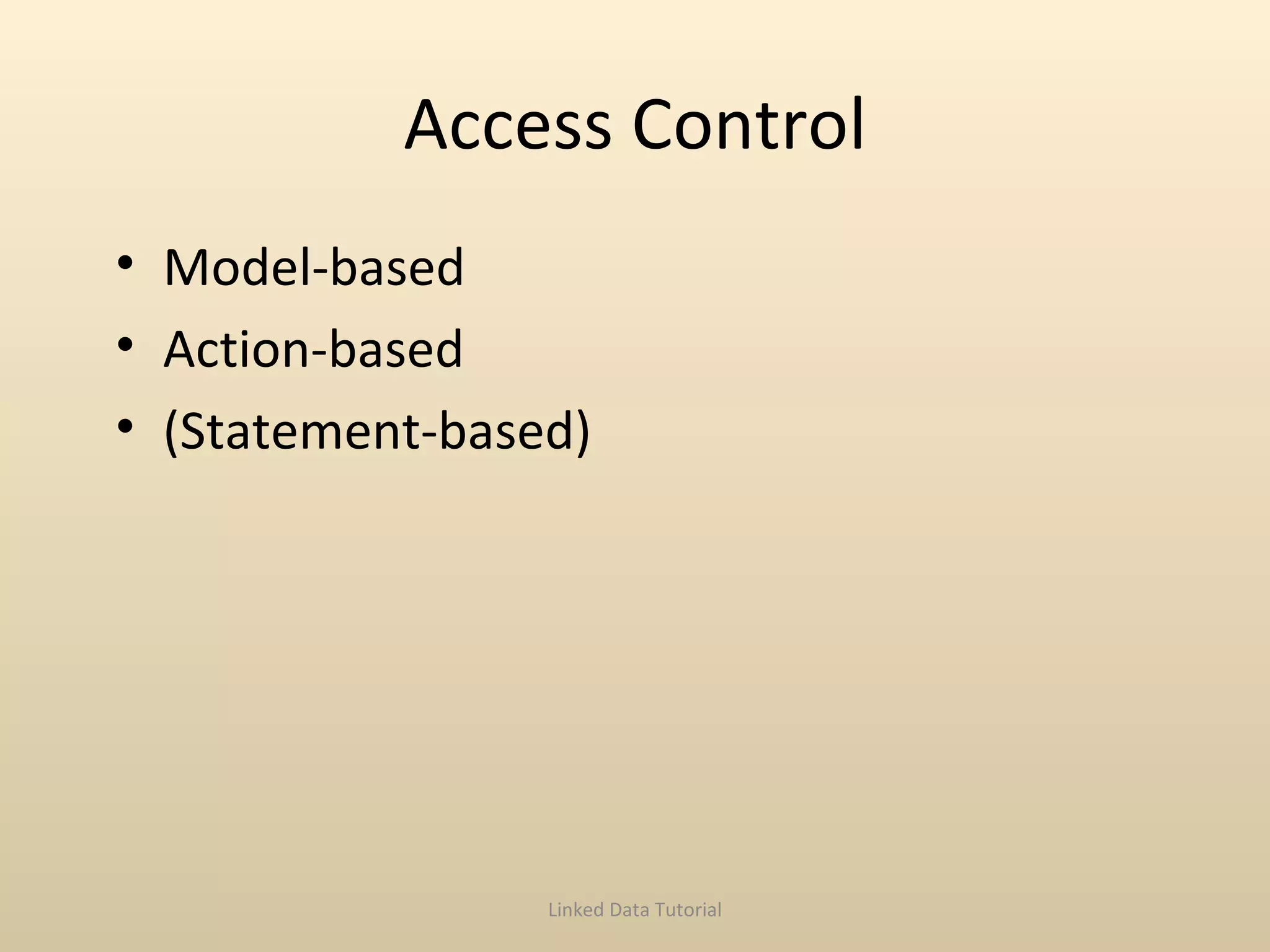

Access Control Model-based Action-based (Statement-based) Linked Data Tutorial
Other Features Facet-based browsing Inline editing Auto-adaptive user interface Resource auto-suggestion SPARQL Query Editor Linked Data Tutorial

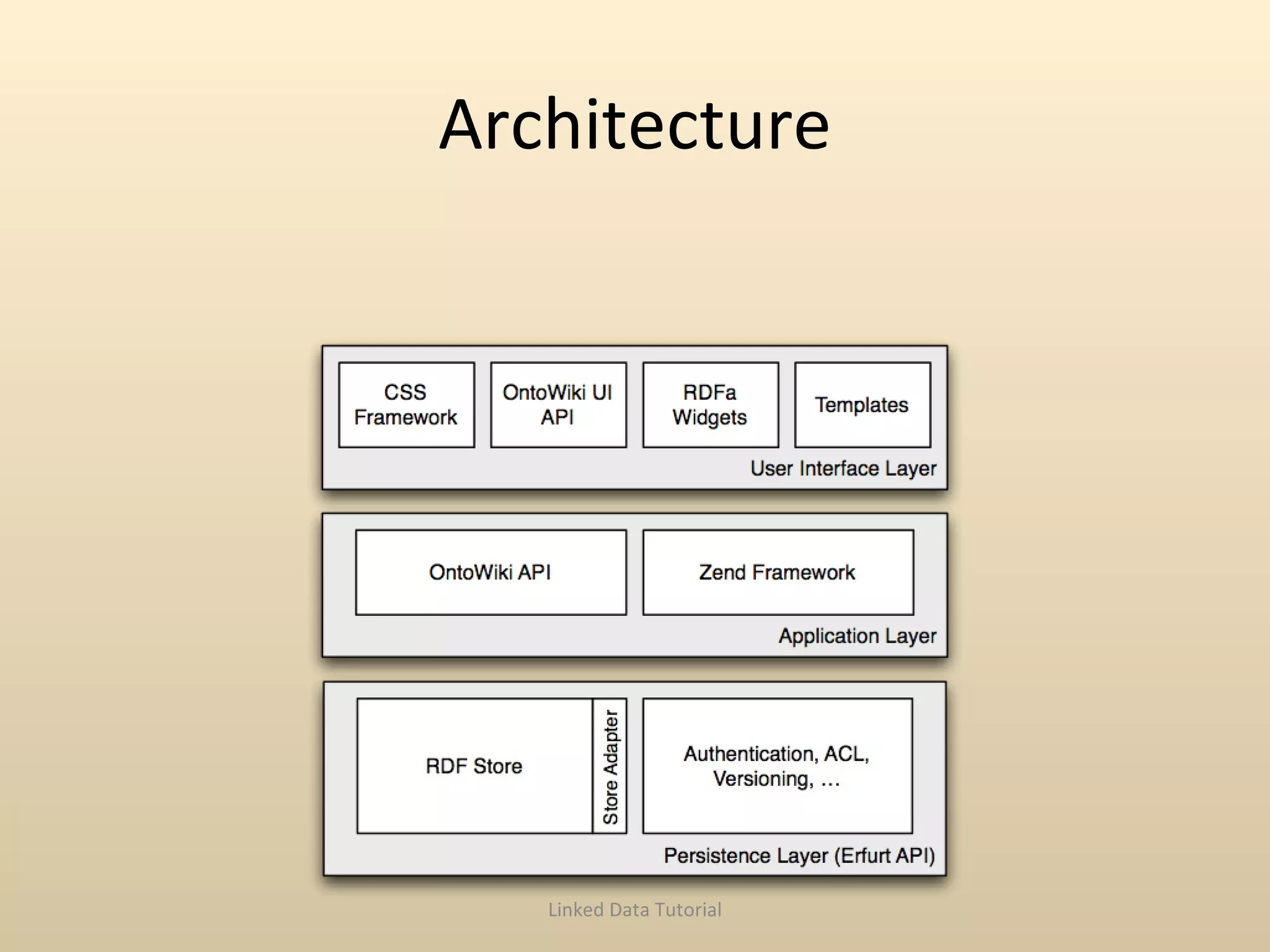

Architecture Linked Data Tutorial
Vision Generic data wiki for RDF models no data model mismatch (structured vs. unstructured) Application framework for: Knowledge-intensive applications Agile processes Distributed user groups Linked Data Tutorial

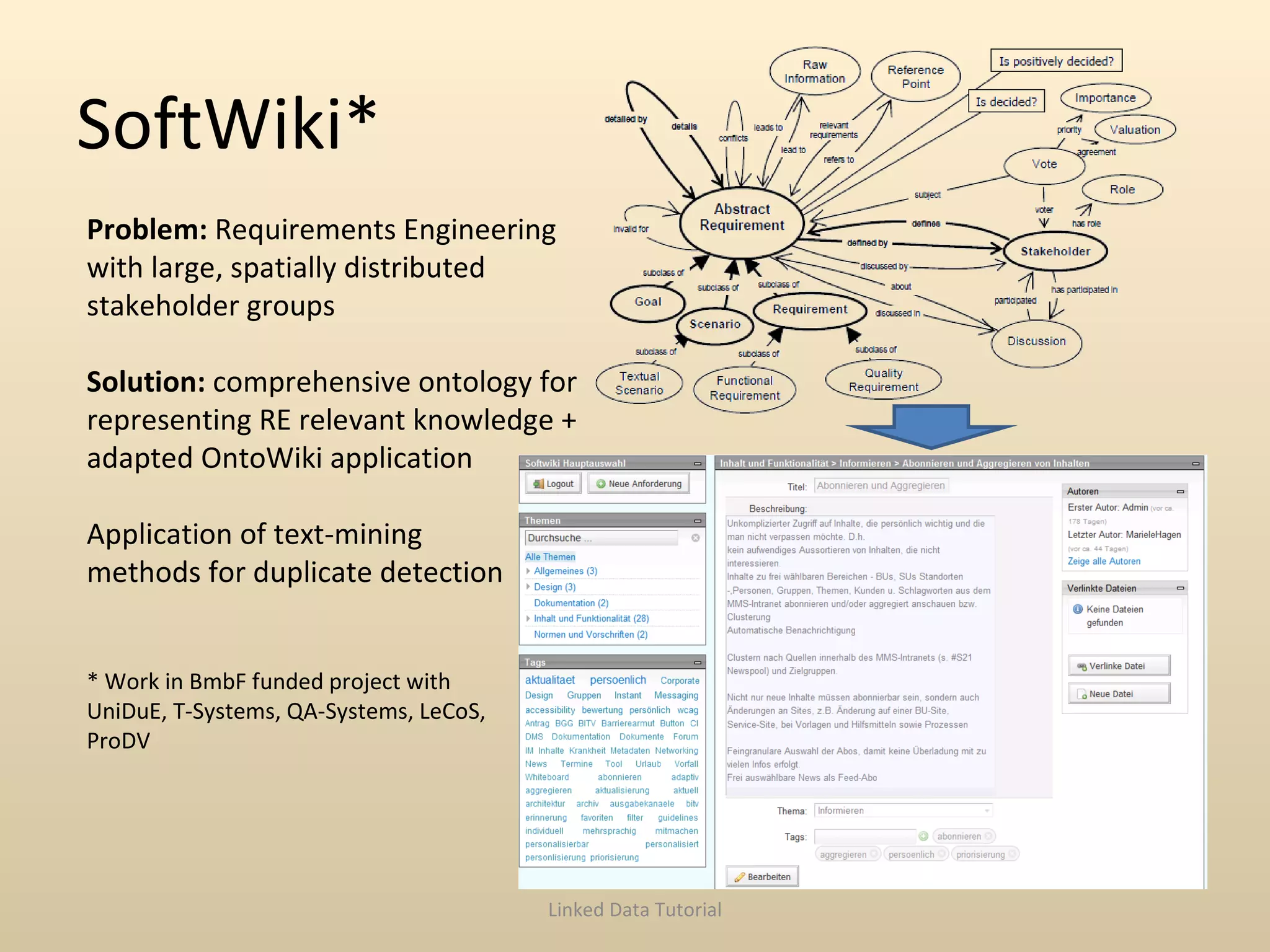

SoftWiki* Linked Data Tutorial Problem:  Requirements Engineering with large, spatially distributed stakeholder groups Solution:  comprehensive ontology for representing RE relevant knowledge + adapted OntoWiki application Application of text-mining methods for duplicate detection * Work in BmbF funded project with  UniDuE, T-Systems, QA-Systems, LeCoS, ProDV
Linked Data Tutorial

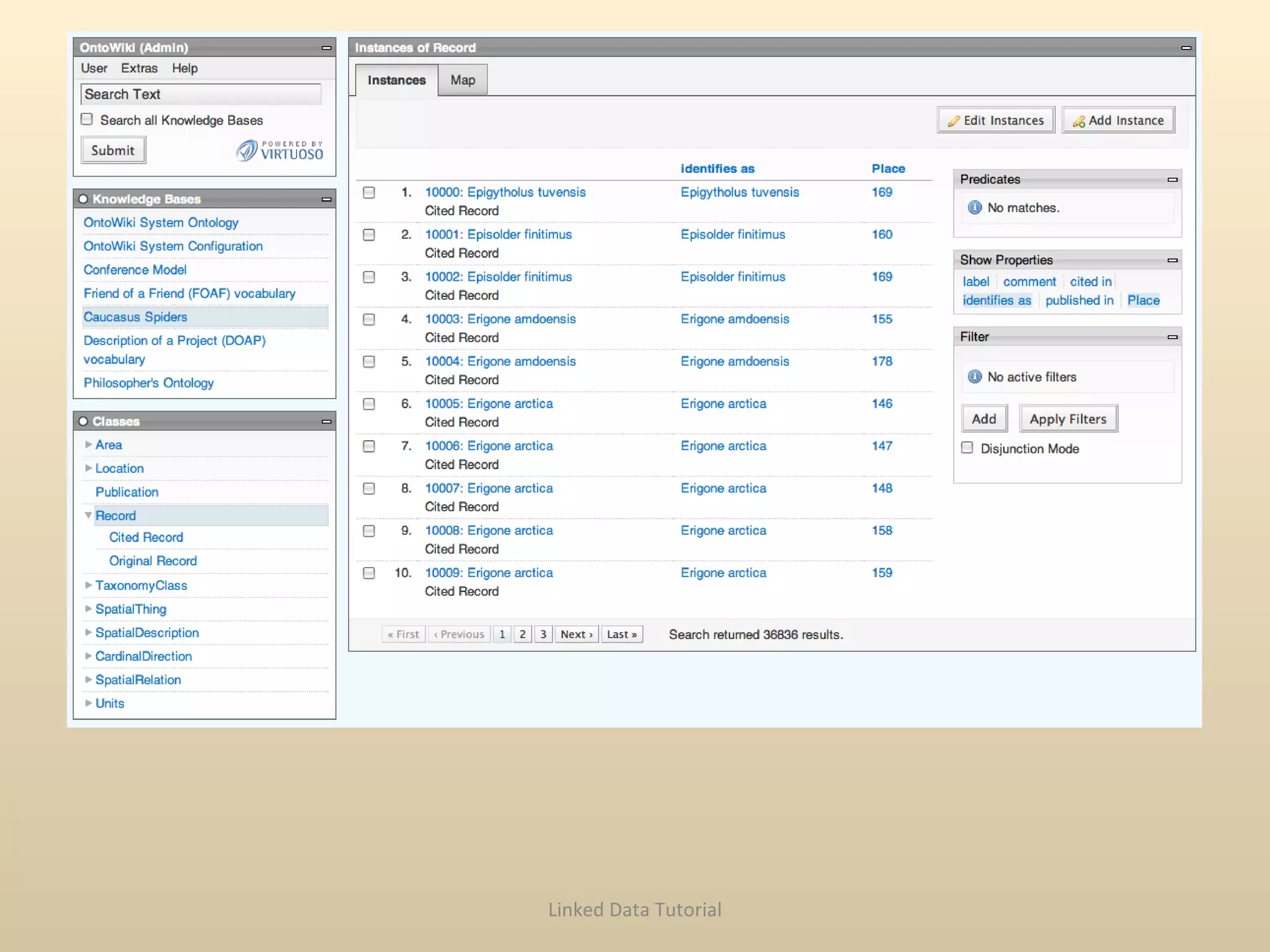

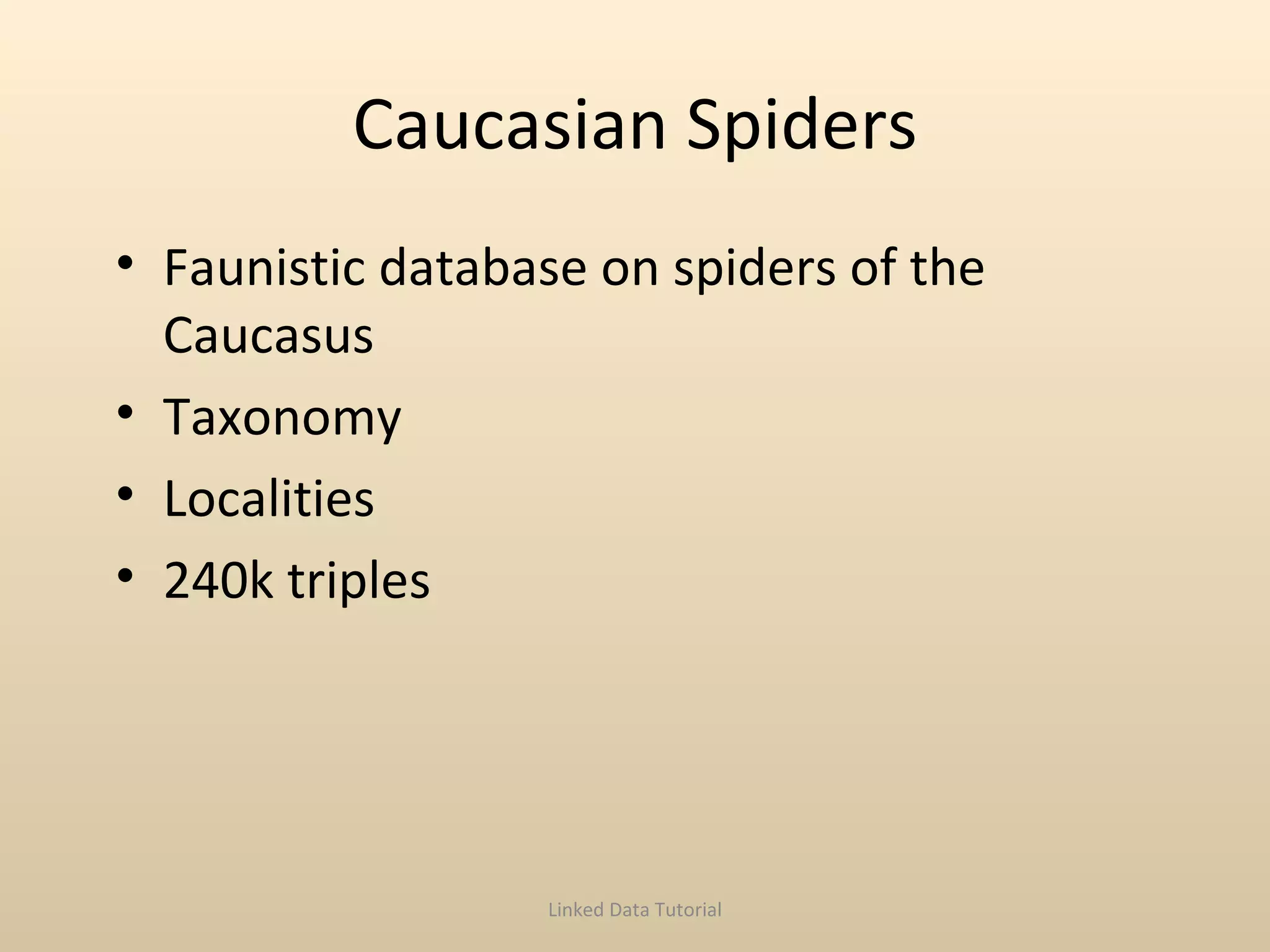

Caucasian Spiders Faunistic database on spiders of the Caucasus Taxonomy Localities 240k triples Linked Data Tutorial
Linked Data Tutorial

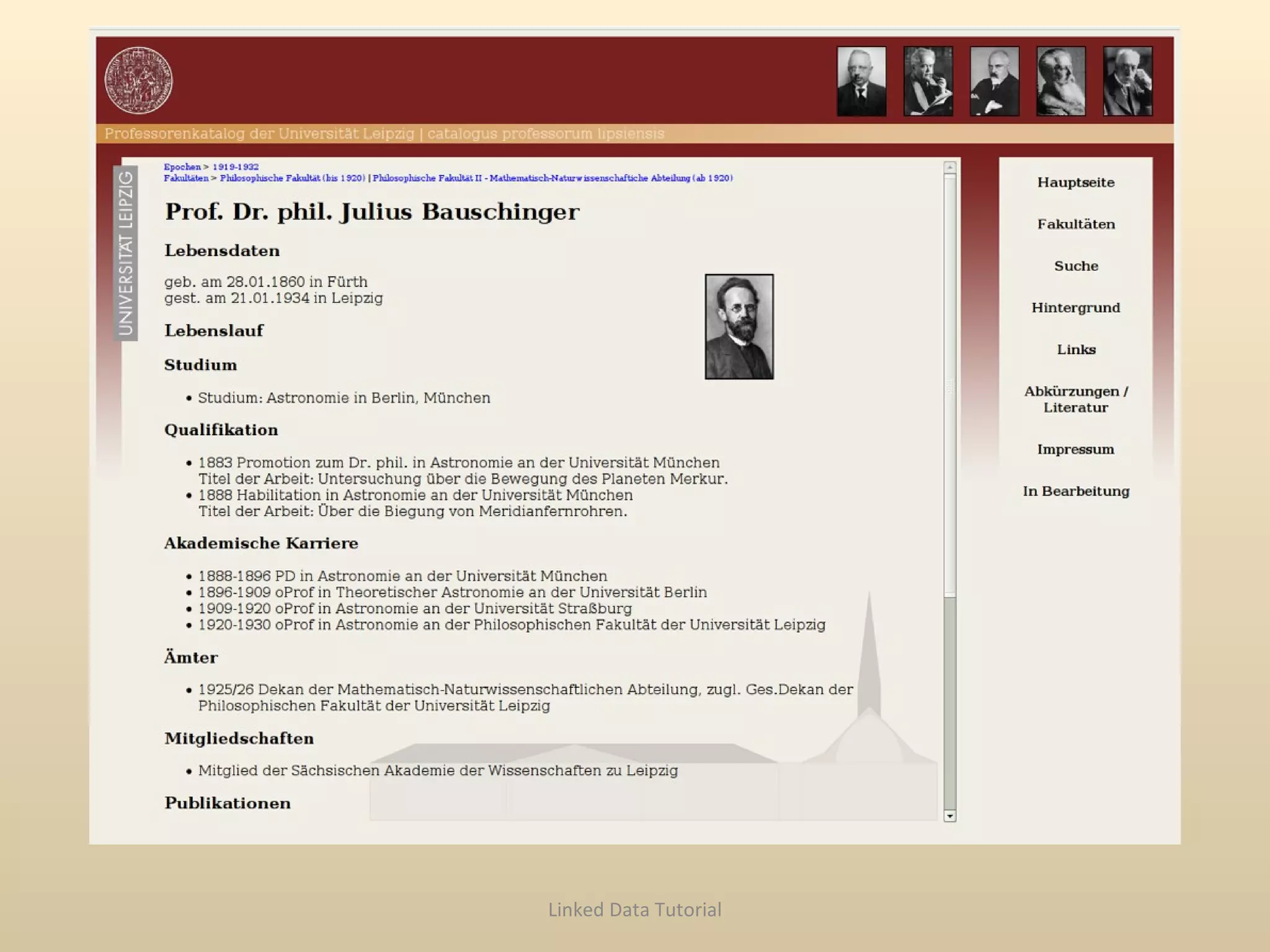

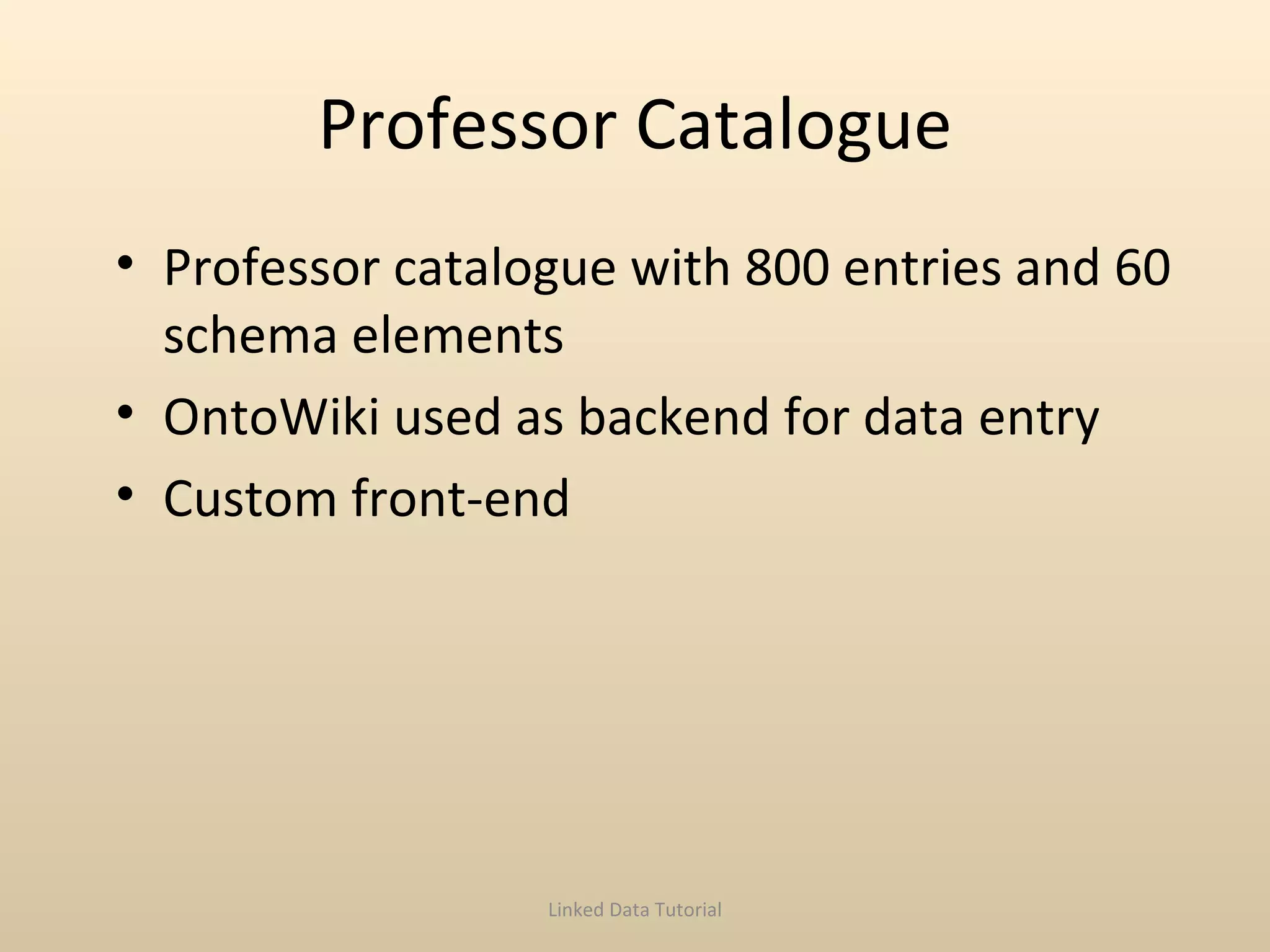

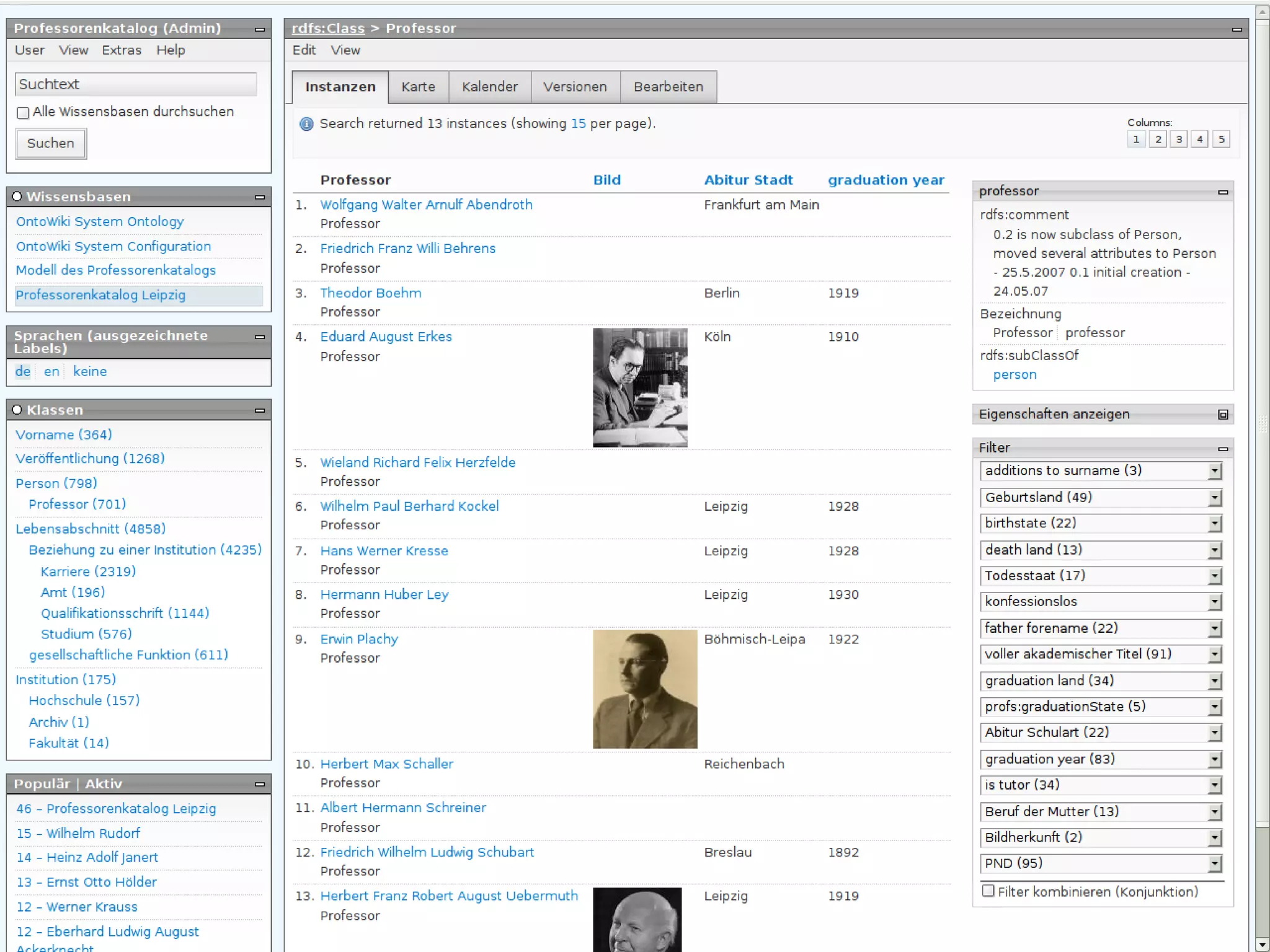

Professor Catalogue Professor catalogue with 800 entries and 60 schema elements OntoWiki used as backend for data entry Custom front-end Linked Data Tutorial
Linked Data Tutorial
Linked Data Tutorial

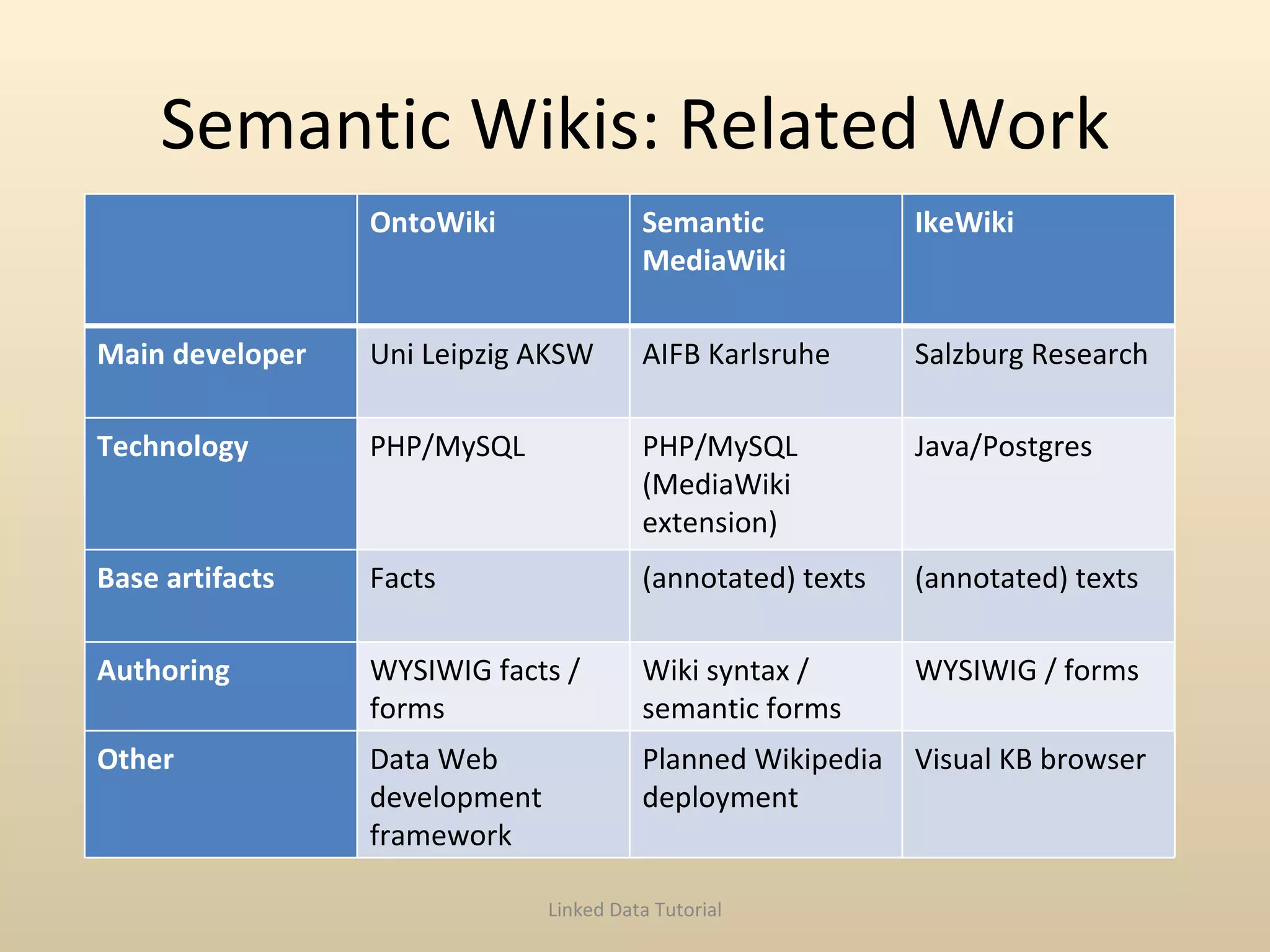

Semantic Wikis: Related Work Linked Data Tutorial OntoWiki Semantic MediaWiki  IkeWiki  Main developer Uni Leipzig AKSW AIFB Karlsruhe Salzburg Research Technology PHP/MySQL PHP/MySQL (MediaWiki extension) Java/Postgres Base artifacts Facts (annotated) texts (annotated) texts Authoring WYSIWIG facts / forms Wiki syntax / semantic forms WYSIWIG / forms Other Data Web development framework Planned Wikipedia deployment Visual KB browser

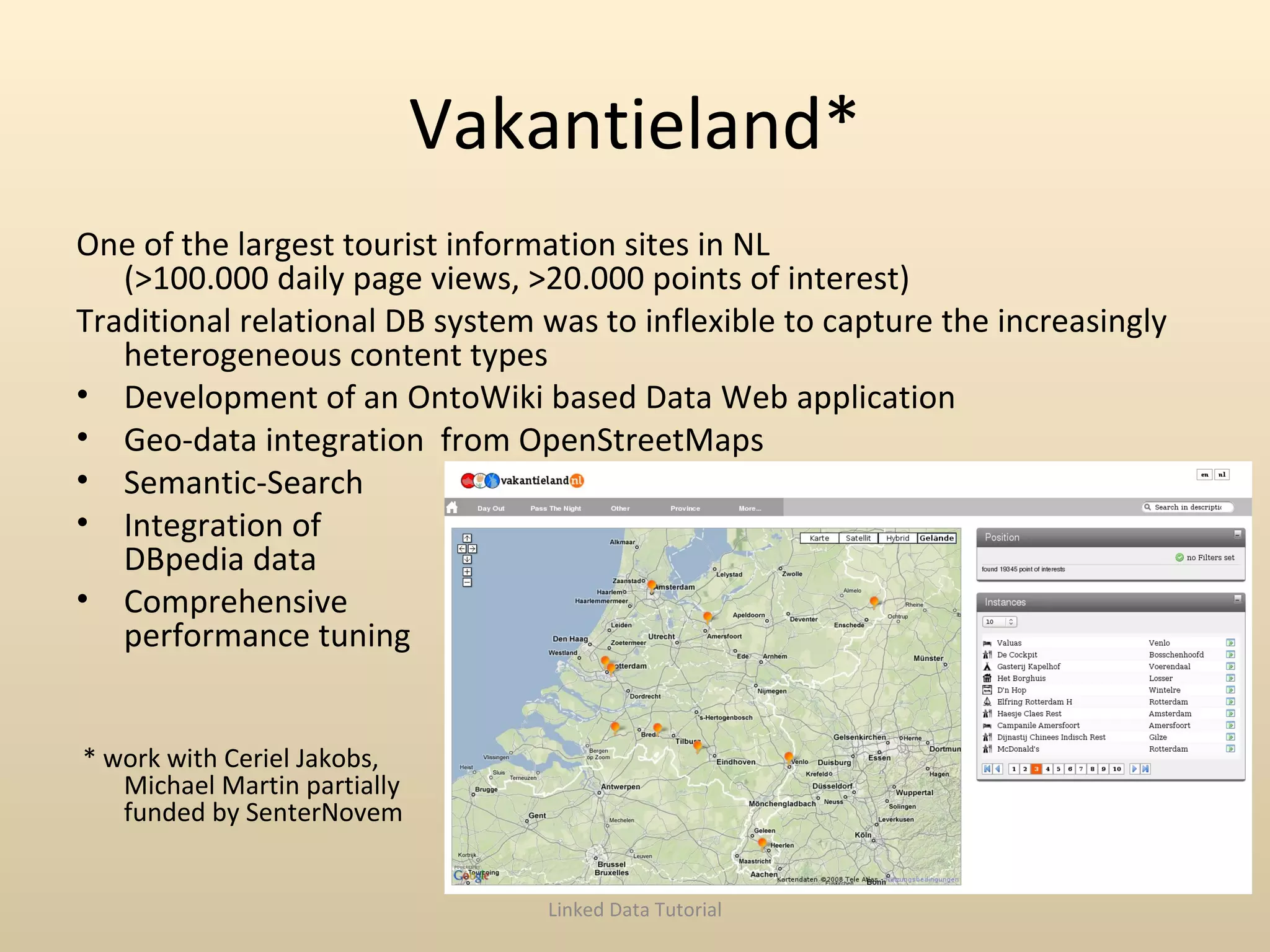

Vakantieland* One of the largest tourist information sites in NL (>100.000 daily page views, >20.000 points of interest) Traditional relational DB system was to inflexible to capture the increasingly heterogeneous content types Development of an OntoWiki based Data Web application Geo-data integration  from OpenStreetMaps Semantic-Search Integration of DBpedia data Comprehensive performance tuning * work with Ceriel Jakobs, Michael Martin partially funded by SenterNovem Linked Data Tutorial
Overview The Linked Data Web Vision Data Web Technologies Publishing relational data on the Web DBpedia – transforming Wikipedia into a knowledge base OntoWiki – an Linked Data Wiki Open Street Maps – linked open geo data Linked Data Tutorial

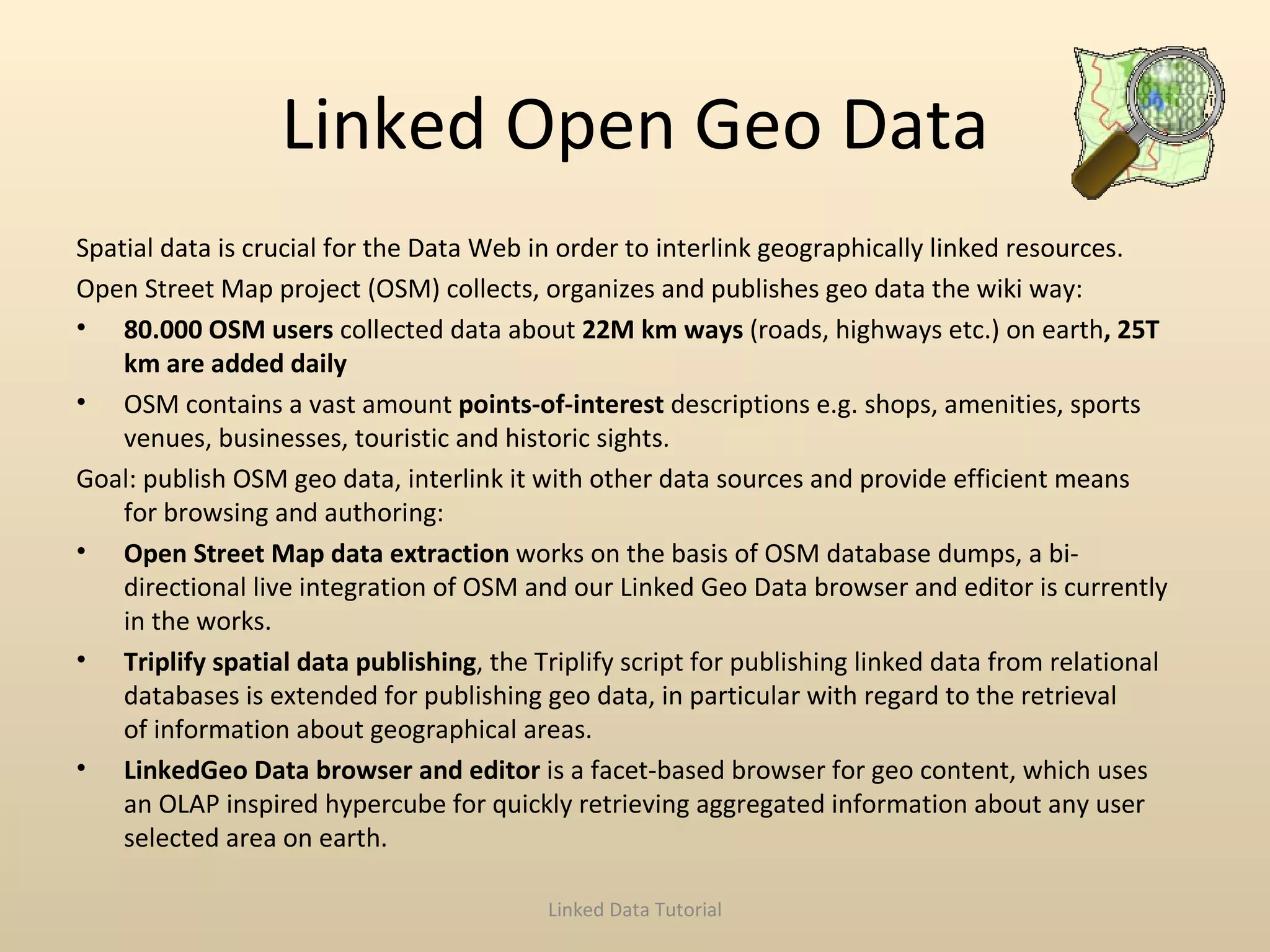

Linked Open Geo Data Spatial data is crucial for the Data Web in order to interlink geographically linked resources. Open Street Map project (OSM) collects, organizes and publishes geo data the wiki way: 80.000 OSM users  collected data about  22M km ways  (roads, highways etc.) on earth , 25T km are added daily OSM contains a vast amount  points-of-interest  descriptions e.g. shops, amenities, sports venues, businesses, touristic and historic sights. Goal: publish OSM geo data, interlink it with other data sources and provide efficient means for browsing and authoring: Open Street Map data extraction  works on the basis of OSM database dumps, a bi-directional live integration of OSM and our Linked Geo Data browser and editor is currently in the works.  Triplify spatial data publishing , the Triplify script for publishing linked data from relational databases is extended for publishing geo data, in particular with regard to the retrieval of information about geographical areas.  LinkedGeo Data browser and editor  is a facet-based browser for geo content, which uses an OLAP inspired hypercube for quickly retrieving aggregated information about any user selected area on earth. Linked Data Tutorial

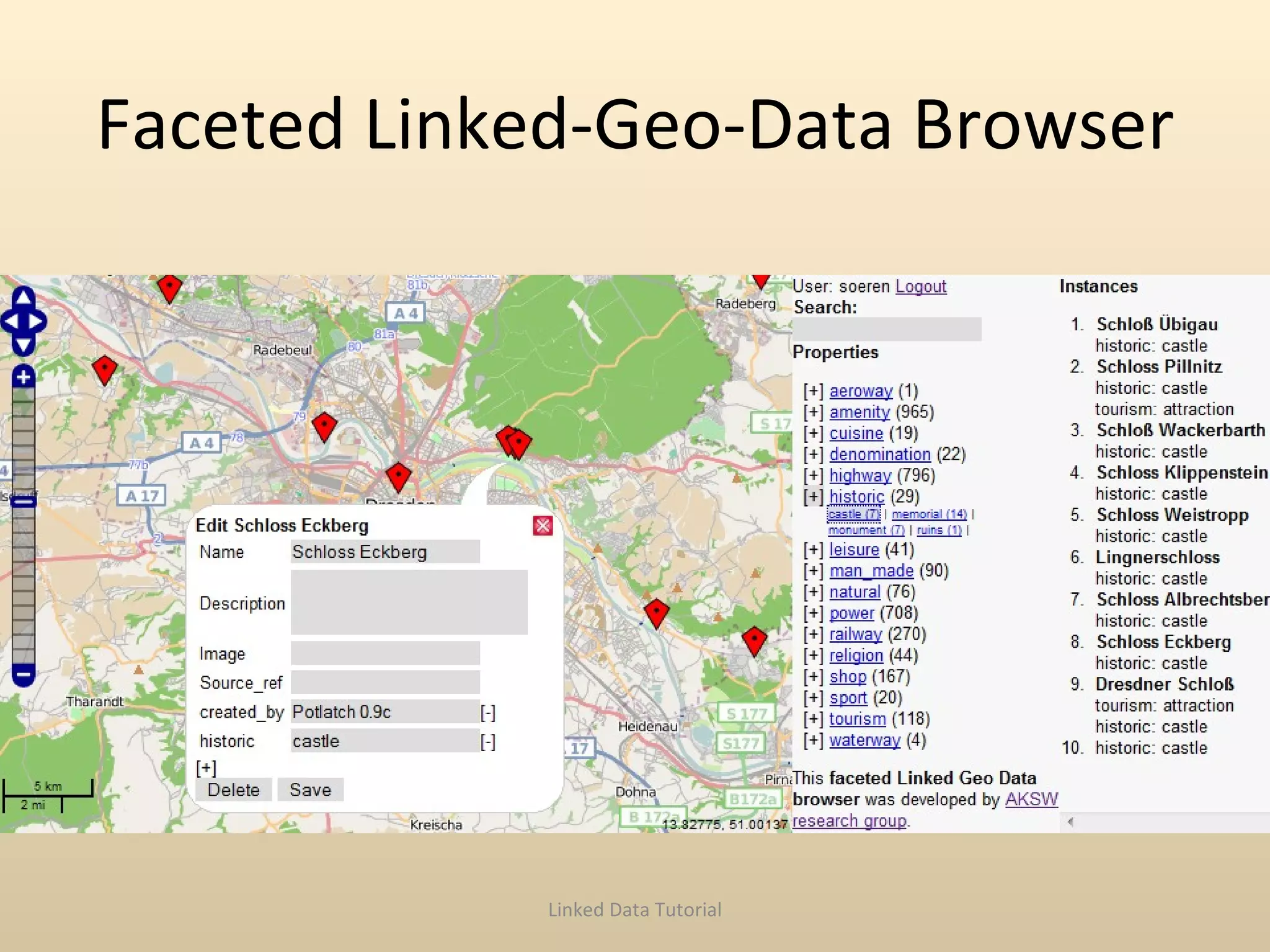

Faceted Linked-Geo-Data Browser Linked Data Tutorial
AKSW Linked Data Web Building Blocks DBpedia “ Semantification” of Wikipedia Linked Data Tutorial Triplify “ Semantification” of (small) Web Applications OntoWiki Collaborative creation of explicit knowledge via Semantic Wikis OWLDB Extending DBs for ontology handling / revealing implicit information Vakantieland Building Data Web applications SoftWiki Distributed, stakeholder driven Requirements Engineering Foundations Marrying databases with RDF and ontologies Tools Applications Bringing the Data Web to end users RDF Query Subsumption & View Maintenance Scaling database backed Triple Stores xOperator Combining Instant Messaging with the Data Web OpenResearch.org A semantic Wiki for the sciences … DL-Learner Machine Learning for Ontologies
Thanks! Dr.  S ö ren Auer [email_address] Research group Agile Knowledge Engineering & Semantic Web (AKSW):  http://aksw.org http://Triplify.org http://DBpedia.org http://OntoWiki.net http://OpenResearch.org http://aksw.org/projects/xOperator DL-Learner.org Cofundos.org Linked Data Tutorial
