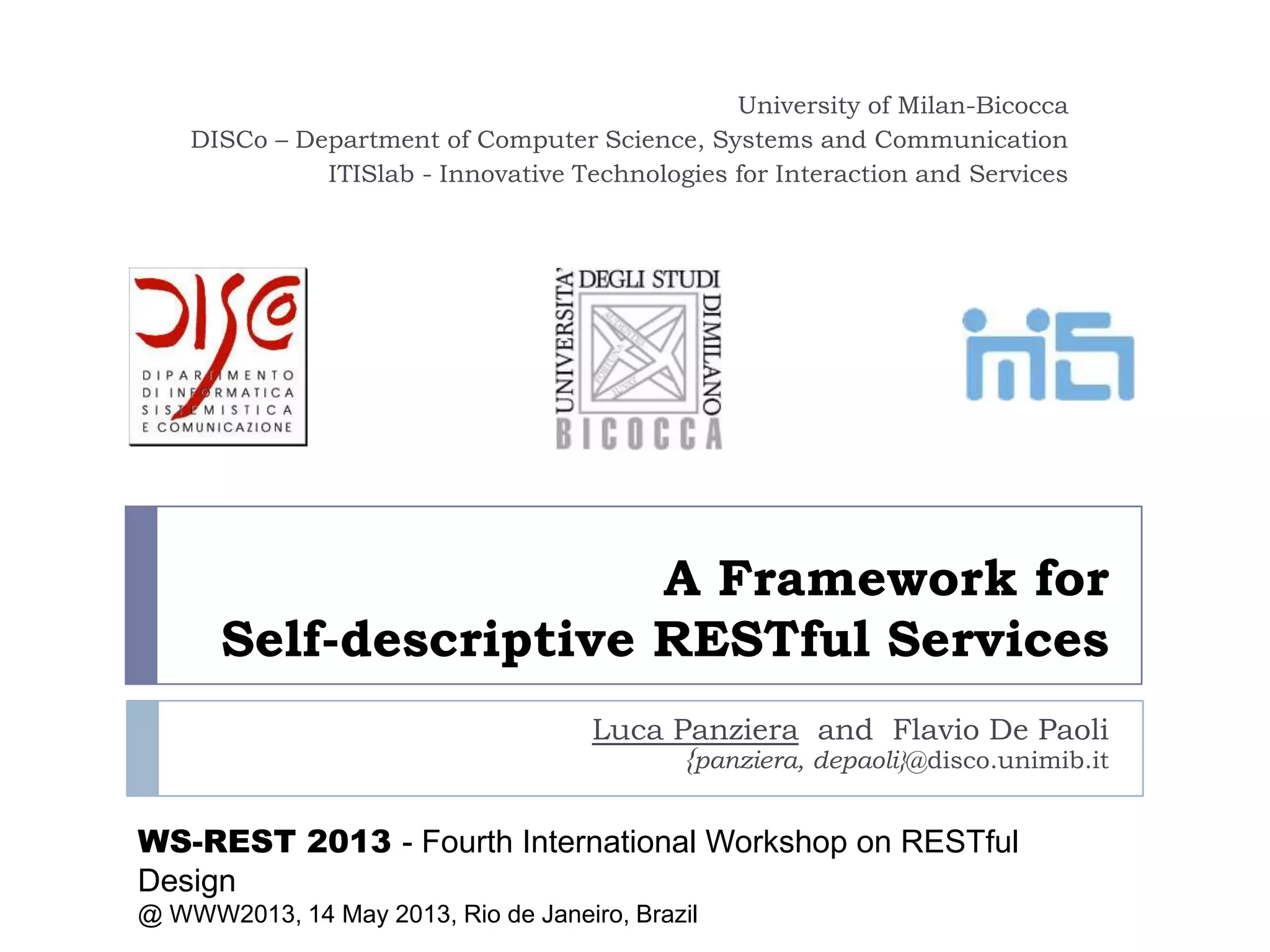

A Framework for
Self-descriptive RESTful Services
Luca Panziera and Flavio De Paoli
{panziera, depaoli}@disco.unimib.it
University of Milan-Bicocca
DISCo – Department of Computer Science, Systems and Communication
ITISlab - Innovative Technologies for Interaction and Services
WS-REST 2013 - Fourth International Workshop on RESTful
Design
@ WWW2013, 14 May 2013, Rio de Janeiro, Brazil
Service descriptions
 Descriptions allow for service discovery
 Automatic discovery require service descriptions
according to a common model
 Several (semantic) models and languages have
been proposed to describe services:
 WSDL 2.0
 WADL
 MicroWSMO
 hRESTS
 SA-REST
 etc.
 Very few descriptions are actually available on the
Web
No one is a de facto standard
Web APIs
 Most of the existing services provide Web APIs:
 Use of HTTP to tunnel procedure calls
 Unknown semantics of both operations and exchanged
data
Real service descriptions
 Most services are RESTful services/Web APIs
 Real information about services is available through:
 Provider documentation
 Web API repositories (e.g., ProgrammableWeb)
 Performance monitoring services
(e.g., API-status, Watchmouse)
 Social media (wikis, blogs, forums, Q&A sites)
 Information is available in:
 HTML, PDF, … (natural language)
 XML
 JSON
Heterogeneous unstructured descriptions
Current discovery practice
I need a music repository with
data under a free license
Result
s
“music repository with data under a free license”
WHAT?!
Ineffective Discovery!
Goal: Description as a Service (DaaS)
 RESTful descriptions for self-descriptive services
 Descriptions as resources
 Enabling effective discovery by humans and machines
 The approach
 Definition of techniques for delivering self-descriptive
services by extracting and publishing descriptions from
heterogeneous Web sources.
 Development of Web-based tools
 Definition of best practices for description management
Discovery
Engine
A new scenario
I need a music repository with
data under a free licenseRequest:
Tags: “music
repository”
Data License: “Free”
Self-descriptive services by extracting
information from the Web
Discovery engines retrive
self-descriptions as resources
Discovery of additional
information
Discogs:
Tags:
“music repository
discography”
Data License:
“Creative Commons”
REST in a nutshell
 Principles
 Identification of resources (URIs)
 Manipulation of resources through representations
(HTTP Methods)
 Self-descriptive messages (Internet Media Types)
 HATEOAS (Hyperlinks)
 Advantages
 Data format and model independence
 Support for discovery of resources
 More “lightweight” compared to SOAP
 Compliancy to the nature of the Web
Problems to support discovery
 REST Limits:
 Data format and model independence
 Discovery engines require descriptions according to a common
model
 Lack of de facto standards for implementing HATEOAS
 Then, for discovery of service information as resources
 Web Document Limits
 Heterogeneous data formats and models
 Lack of a shared vocabulary for service properties
 E.g., functionalities, licensing, QoS, service rating, usage
fees, etc.
The Solution: Definition of best practices for DaaS
BP1: Information modelling
 RESTful services need to be described according to
a shared and formal model that species functional
and non-functional properties.
 The definition of a sound model for representing
service properties is fundamental manipulate
descriptions exploiting the same syntax and
semantics.
 Functional properties (FPs) define functionalities provided
by a service
 Non-functional properties (NFPs) define service
characteristics that are not strictly related to the
functionality
 E.g., licensing , QoS, usage fees, etc.
Implementing BP1: PCM-lite
 Lightweight Policy-Centered Meta-model
 Features:
 Simple and Lightweight model
 Data Format independece
 Expressiveness
 Specification of advanced operators
 Numeric intervals
 Set theory operators
 Specification of units of
measuraments
BP2: Semantic data model
 Data that describes service properties need to be
represented according to RDF.
 Semantic Web standards enable:
 Advanced evaluations (e.g., subsubtion, semantic equivalence)
 To address homonymy and synonymy of terms
 Adoption of domain ontologies as vocabularies
Domain ontology
Implementing BP2
user:data_license
pcm-lite:hasValue
license:Free_license .
discogs:data_license
pcm-lite:hasValue
license:Creative_Commons .
Free_license
Creative_Common
s
GPLApache
is-ais-a is-a
Match!!!
BP3: Common vocabulary
 Property values should represent concepts that are
linked to concepts available on the Linking Open
Data Cloud.
 Linking open data cloud refers to general-purpose
ontologies to represent a vast portion of human
knowledge
 Prevention of ambiguity, synonymy and
homonymy, and thus facilitating evaluations by
automatic tools
user:data_license
pcm-lite:hasValue
dbpedia:Free_license .
discogs:data_license
pcm-lite:hasValue
dbpedia:Creative_Commons .
BP4: Human interpretability
 A natural language description, or label, must be
associated with each service property.
 Pure RDF documents, without natural language
descriptions, reduce human readability
discogs:policy rdfs:comment “This document describes DISCOGS RESTful APIs”.
discogs:policy pcm-lite:hasProperty discogs:tags .
discogs:policy pcm-lite:hasProperty discogs:data_license .
discogs:tags rdfs:comment
“It reppresents a set of tags that summarize service functionalities” .
discogs:tags pcm-lite:hasValue dbpedia:Music .
discogs:tags pcm-lite:hasValue dbpedia:Respository .
discogs:tags pcm-lite:hasValue dbpedia:Discography .
discogs:tags rdfs:comment “The service data is under creative commons license” .
discogs:data_license pcm-lite:hasValue dbpedia:Creative_Commons .
BP5: RESTful descriptions
 Services must provide descriptions as aggregations
of properties published as RESTful resources.
 HATEOAS is implemented trough links according to
Linked Data
@prefix discogs: <http://api.discogs.com/policy>
discogs:policy rdfs:comment “This document describes DISCOGS RESTful APIs”.
discogs:policy pcm-lite:hasProperty discogs:tags .
discogs:policy pcm-lite:hasProperty discogs:data_license .
http://api.discogs.com/policy
discogs:tags pcm-lite:hasValue dbpedia:Music .
discogs:tags pcm-lite:hasValue dbpedia:Respository .
discogs:tags pcm-lite:hasValue dbpedia:Discography .
http://api.discogs.com/tags
discogs:data_license pcm-lite:hasValue dbpedia:Creative_Commons .
http://api.discogs.com/data_license
A PCM-lite policy for the Foo service (1)
 The policy:
@prefix : <https://api.Foo.com/>
@prefix pl : <http://pcm.disco.unimib.it/pcm.lite/>
...
:fooPolicy rdf:type pl:policy.
:fooPolicy rdfs:comment ”Foo is a REST API for ... ."@en.
:fooPolicy rdfs:label "FooRESTAPI"@en.
 resources of the service
:fooPolicy pl:hasProperty :resource1.
:foopolicy pl:hasProperty :resource2.
...
 non-functional properties
:fooPolicy pl:hasProperty :datalicense.
:fooPolicy pl:hasProperty :responsetime.
...
A PCM-lite policy for the Foo service (2)
 A functional property as a resource: resource1
...
@prefix dbpedia : <http://dbpedia.org/resource/>
...
pl:hasValue rdf:type pl:hasRelation.
pl:hasMethod rdf:type pl:hasRelation.
...
:resource1 rdf:type pl:property.
:resource1 rdfs:comment “The 20 most recent mentions
(tweets containing a users's @screen_name)
for the authenticating user."@en.
:resource1 pl:hasValue :statuses/mentions_timeline.
:resource1 pl:hasMethod dbpedia:HTTPGET.
...
A PCM-lite policy for the Foo service (3)
 A non functional property as a resource: response
time
...
@prefix dbpedia:<http://dbpedia.org/resource/>
...
:responsetime rdf:type pl:property.
:responsetime rdfs:label "Service response time"@en.
:responsetime pl:hasOperator dbpedia:Less_than.
:responsetime pl:hasValue "0.153”.
:responsetime pl:hasUnit dbpedia:Second.
...
Making available real information as
RESTful resoureces
 Self-description wrapper
 An additional module
to service business logic
 Modelled as a RESTful
service
 Messages of the main
interface are forwared
to the wrapper
Discogs
discogs:license
pcm-lite:hasValue
dbpedia:
Creative_Commons .
Process of property value extraction
 The approach is based on:
 Source-to-policy templates (S2PTs)
 Named entity recongnition (NER)
S2PT:
discogs:tags
discogs:licens
e
ProgrammableWeb
document
<pw:tags>
</pw:tags>
<pw:license>
</pw:license>
“Under creative commons license”
Dbpedia Spotlight
(Named entity recognizer)
