eigen value, Eigen Vectors

1. LINEAR
TRANSFORMATION
Dr A K Tiwari Director CTI Jabalpur ashokktiwari@gmail.com

2. • A linear equation is an equation that has one or more variables
having degree one.
• Matrix multiplication method and gaussian elimination method are
two methods to solve linear equations using matrices.
Dr A K Tiwari Director CTI Jabalpur ashokktiwari@gmail.com
Ax=b

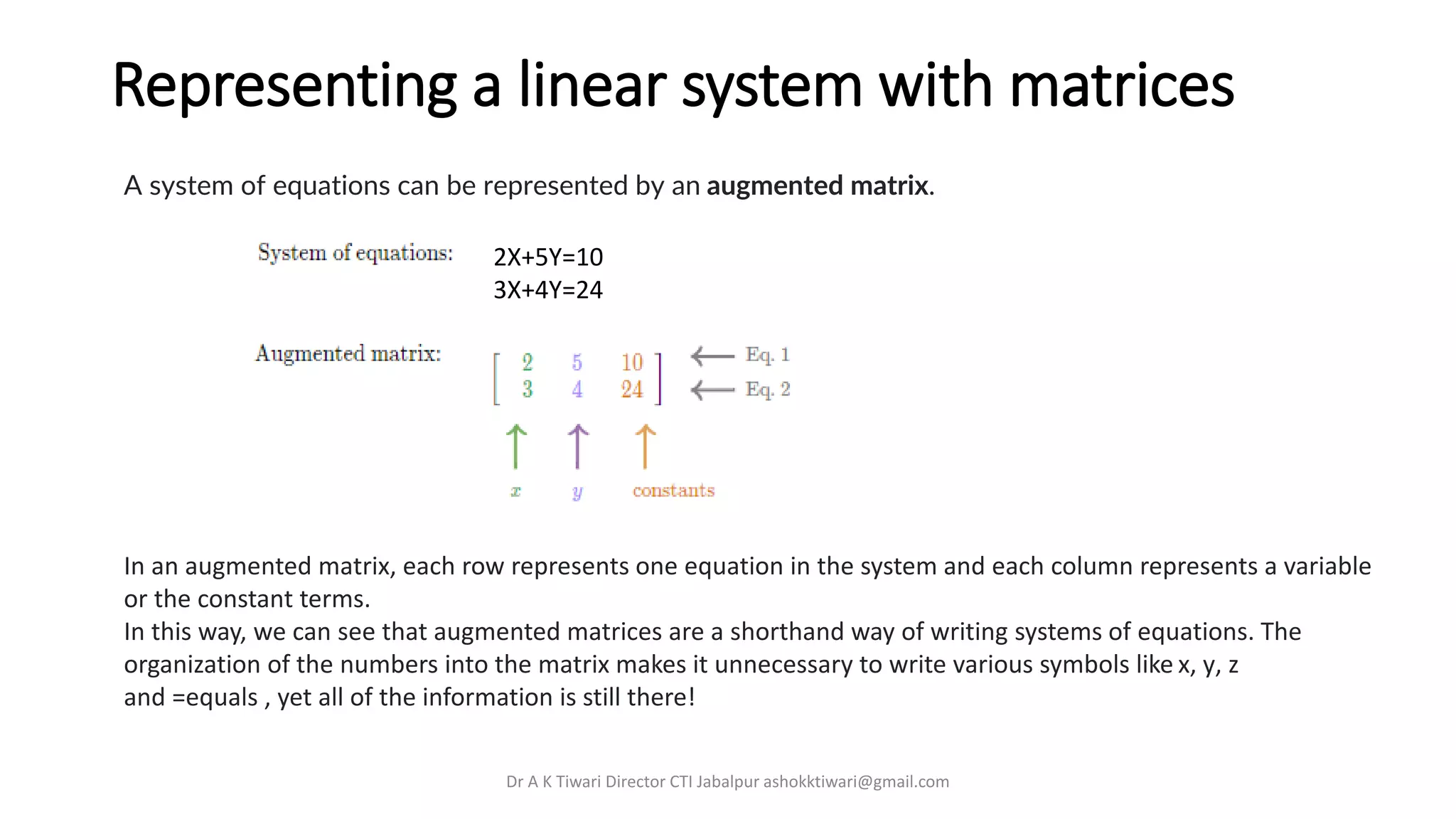

3. Representing a linear system with matrices
A system of equations can be represented by an augmented matrix.
In an augmented matrix, each row represents one equation in the system and each column represents a variable
or the constant terms.
In this way, we can see that augmented matrices are a shorthand way of writing systems of equations. The
organization of the numbers into the matrix makes it unnecessary to write various symbols like x, y, z
and =equals , yet all of the information is still there!
Dr A K Tiwari Director CTI Jabalpur ashokktiwari@gmail.com
2X+5Y=10
3X+4Y=24

4. Which system is represented by the augmented matrix?
Dr A K Tiwari Director CTI Jabalpur ashokktiwari@gmail.com

5. LINEAR SYSTEM
• Homogeneity: A system is said to be homogeneous, if we multiply
input with some constant A then the output will also be multiplied by
the same value of constant (i.e. A).
• Additivity: Suppose we have a system S and we are giving the input to
this system as a1 for the first time and we are getting the output as b1
corresponding to input a1. On the second time we are giving input a2
and correspond to this we are getting the output as b2.
• Now suppose this time we are giving input as a summation of the
previous inputs (i.e. a1 + a2) and corresponding to this input suppose
we are getting the output as (b1 + b2) then we can say that system S is
following the property of additivity.
S
Dr A K Tiwari Director CTI Jabalpur ashokktiwari@gmail.com

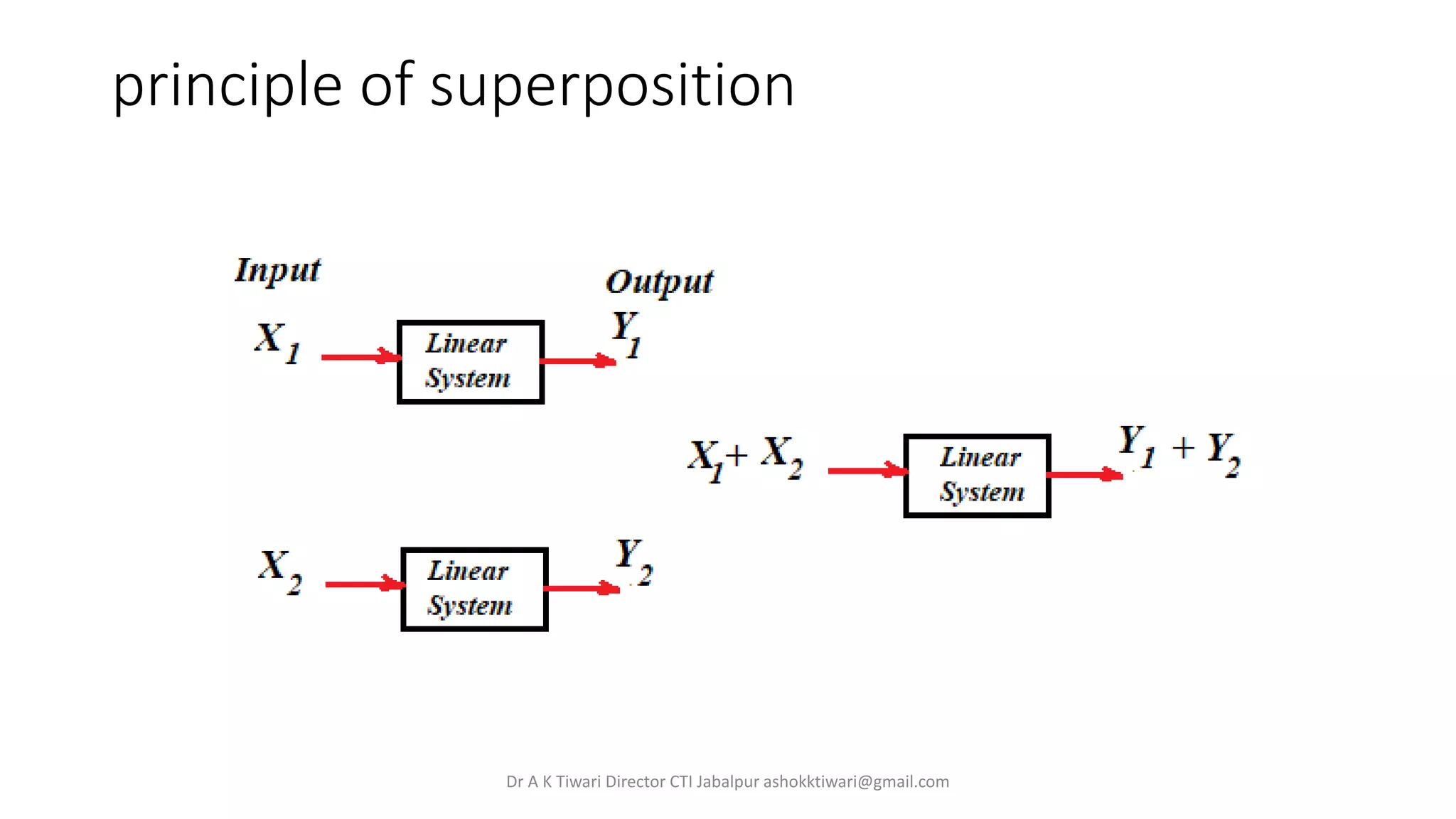

6. principle of superposition
Dr A K Tiwari Director CTI Jabalpur ashokktiwari@gmail.com

7. Dr A K Tiwari Director CTI Jabalpur ashokktiwari@gmail.com

8. 1.A matrix is a rectangular array of numbers while a vector is a mathematical quantity that
has magnitude and direction.
2.A vector and a matrix are both represented by a letter with a vector typed in boldface with
an arrow above it to distinguish it from real numbers while a matrix is typed in an upper-
case letter.
3.Vectors are used in geometry to simplify certain 3D problems while matrices are key tools
used in linear algebra.
4.A vector is an array of numbers with a single index while a matrix is an array of numbers
with two indices.
5.While a vector is used to represent magnitude and direction, a matrix is used to represent
linear transformations and keep track of coefficients in linear equations.
P = xi + yj + zk.
Dr A K Tiwari Director CTI Jabalpur ashokktiwari@gmail.com

9. Vectors are a collection of components which are
related to a set of basis vectors
basis vectors x^ and y^ for the basis vectors along
the x−axis and y−axis respectively.
vectors as points in space, assuming the tail is always at the
origin and the head is at the specified point.
Vector as column matrices
Dr A K Tiwari Director CTI Jabalpur ashokktiwari@gmail.com

10. THIS MATRIX HAS 3 VECTORS
Dr A K Tiwari Director CTI Jabalpur ashokktiwari@gmail.com
Can we multiply matrix and vector ?

11. Linear Transformation
When we multiply a matrix by a vector, this is what we called as Linear Transformation.
Dr A K Tiwari Director CTI Jabalpur ashokktiwari@gmail.com

12. Rotate
Stretch
Compress
Dr A K Tiwari Director CTI Jabalpur ashokktiwari@gmail.com

13. Representing two dimensional linear transforms
with matrices
Dr A K Tiwari Director CTI Jabalpur ashokktiwari@gmail.com

14. Representing three dimensional linear transforms with matrices
Dr A K Tiwari Director CTI Jabalpur ashokktiwari@gmail.com

15. Representing two dimensional linear transforms
with matrices
Dr A K Tiwari Director CTI Jabalpur ashokktiwari@gmail.com

16. Dr A K Tiwari Director CTI Jabalpur ashokktiwari@gmail.com

17. Dr A K Tiwari Director CTI Jabalpur ashokktiwari@gmail.com

18. (eigen- meaning own, belonging to oneself, in
German)
• The eigenvectors are the directions in which the matrix acts solely as a scaling transformation, and
the eigenvalues are the corresponding scale factors.
• eigenvectors of a matrix are those direction in the space that after the matrix operating on them,
they supply the same direction with some coefficient of proportionality between "old" and "new"
direction that are eigenvalues.
• The eigen functions represent stationary states of the system i.e. the system can achieve that state
under certain conditions and eigenvalues represent the value of that property of the system in that
stationary state.
• the eigenvectors are the special directions where the linear operator A simply acts through scaling.
• Each Eigenvalue has a set of eigenvectors.
• Eigenvalues and eigenvectors are linearly dependent
Dr A K Tiwari Director CTI Jabalpur ashokktiwari@gmail.com

19. Eigenvalue =2 , eigenvector P = 2
2
Same direction
Dr A K Tiwari Director CTI Jabalpur ashokktiwari@gmail.com
EXPAND 2 times

20. EXAMPLE
Dr A K Tiwari Director CTI Jabalpur ashokktiwari@gmail.com
