1. Lightweight Developer Provisioning with Gradle
Mario-Leander Reimer
Chief Technologist, QAware GmbH
Gradle Summit 2016

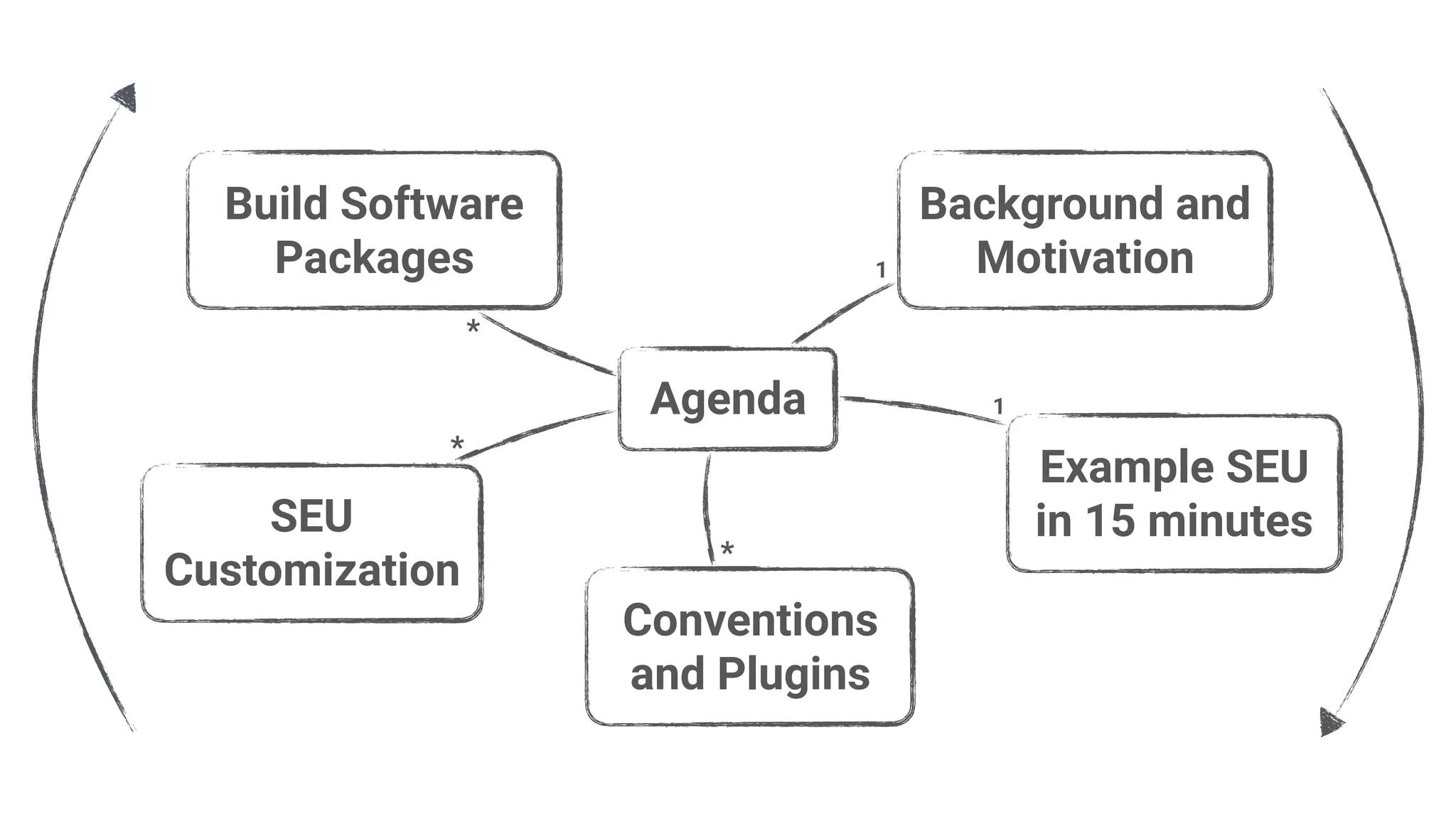

2. Agenda
Example SEU
in 15 minutes
Background and
Motivation
Build Software
Packages
Conventions
and Plugins
SEU
Customization
1
*
*
*
1

3. SEU-as-code
3
Software Entwicklung-Umgebung
German acronym;
software development environment
programmed using
source code

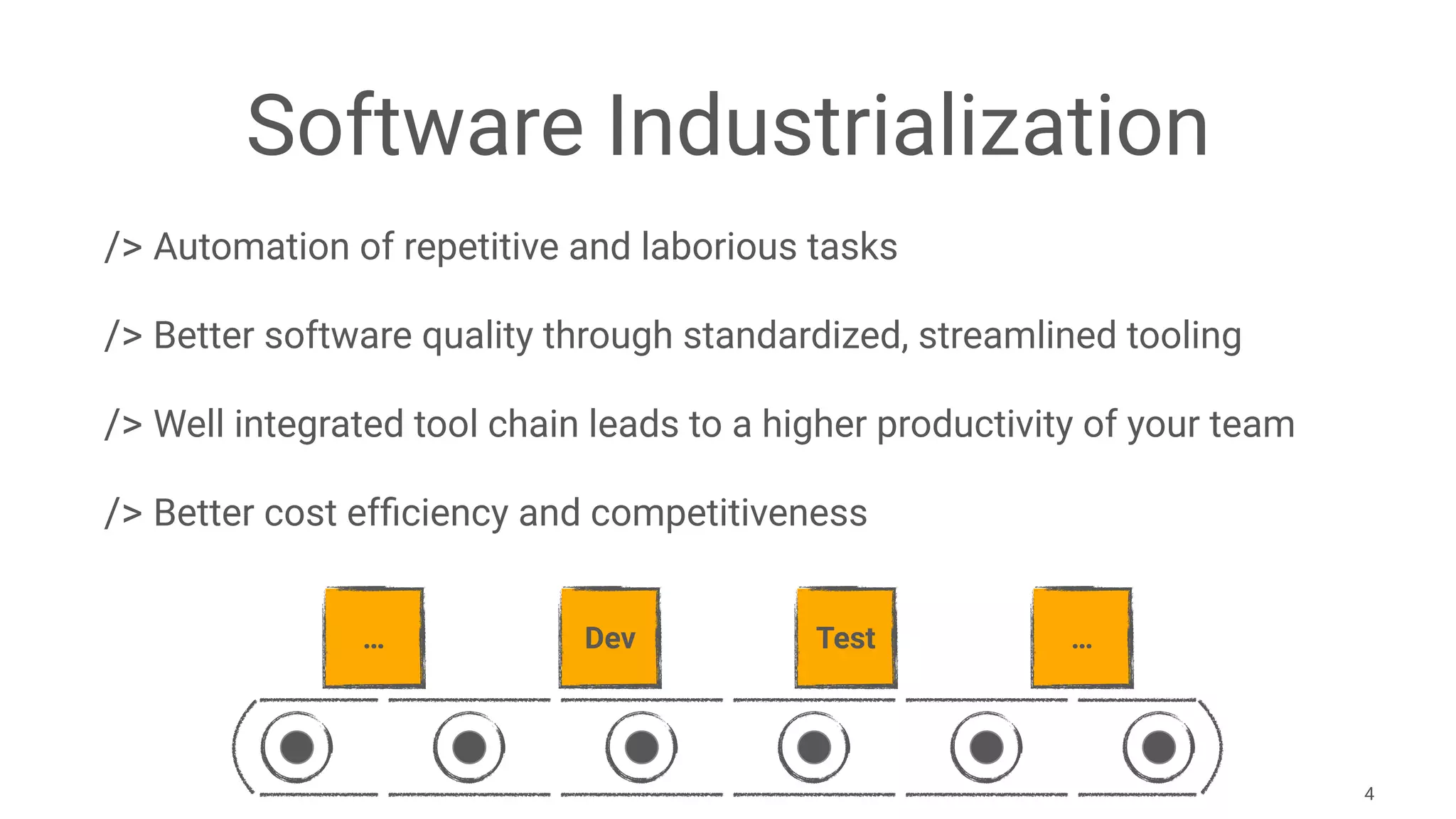

4. Software Industrialization
/> Automation of repetitive and laborious tasks
/> Better software quality through standardized, streamlined tooling
/> Well integrated tool chain leads to a higher productivity of your team
/> Better cost efficiency and competitiveness
4
… Dev Test …

5. The Ideal.

6. The Reality.

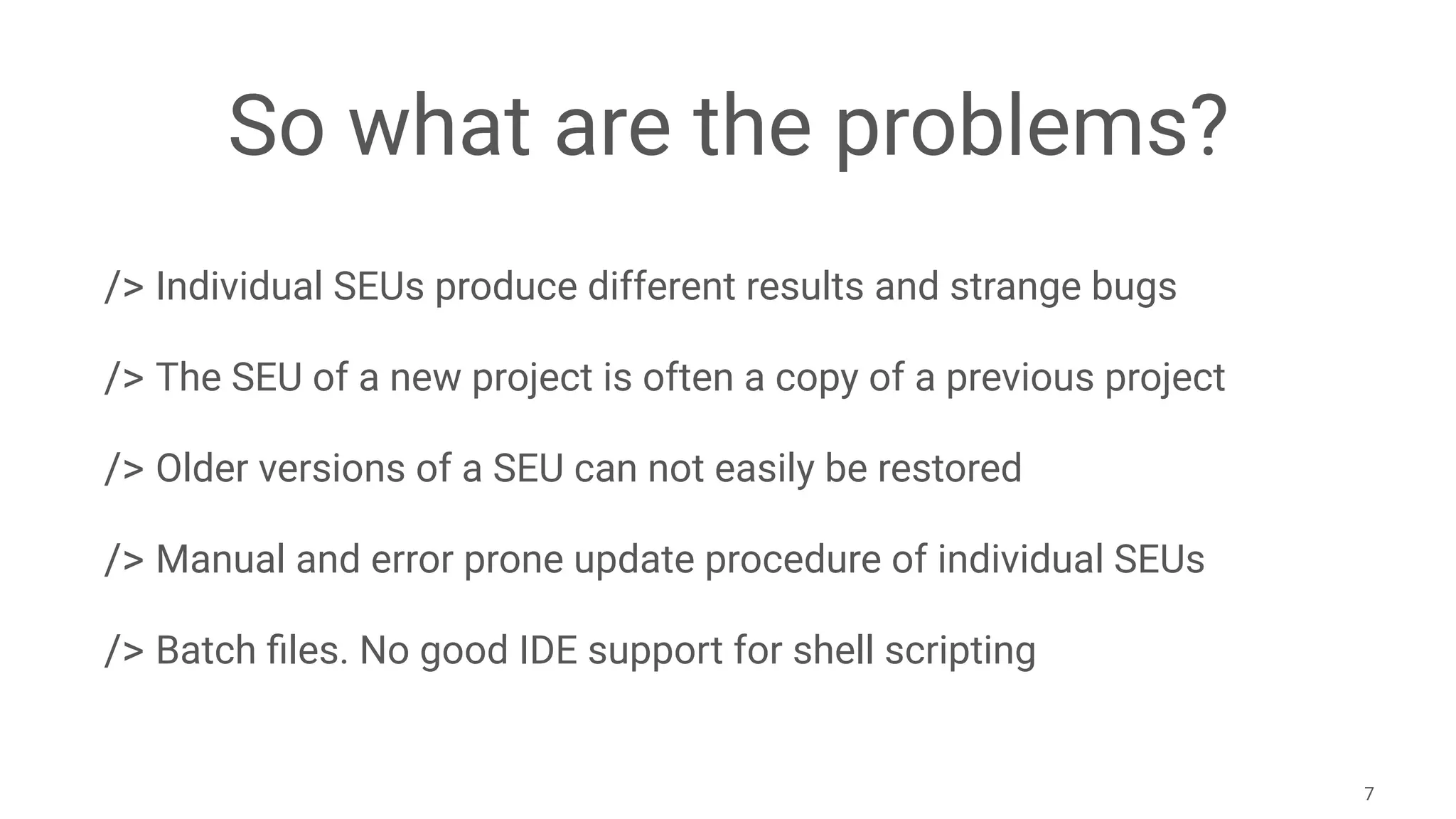

7. So what are the problems?
/> Individual SEUs produce different results and strange bugs
/> The SEU of a new project is often a copy of a previous project
/> Older versions of a SEU can not easily be restored
/> Manual and error prone update procedure of individual SEUs
/> Batch files. No good IDE support for shell scripting
7

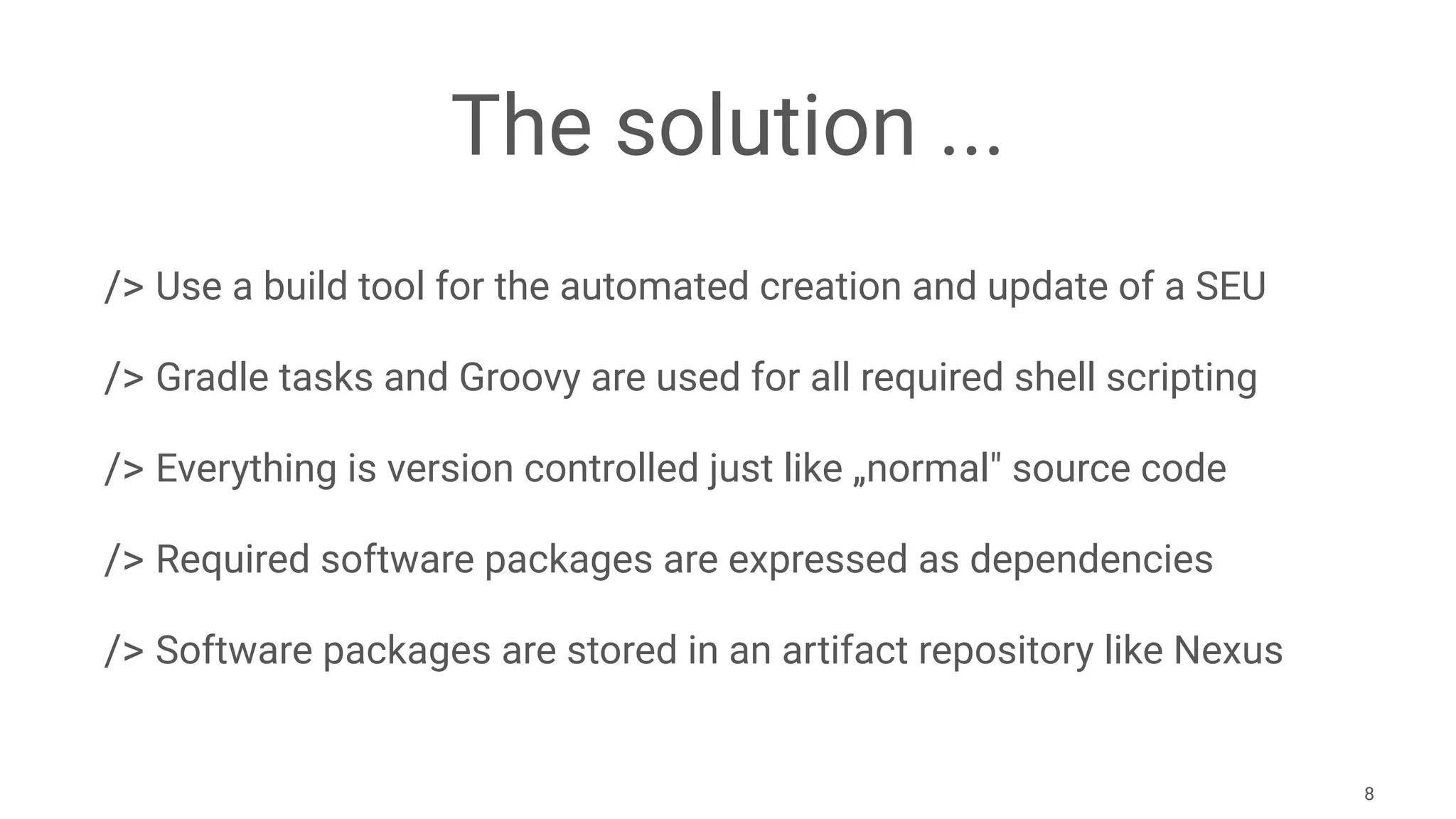

8. The solution ...
/> Use a build tool for the automated creation and update of a SEU
/> Gradle tasks and Groovy are used for all required shell scripting
/> Everything is version controlled just like „normal" source code
/> Required software packages are expressed as dependencies
/> Software packages are stored in an artifact repository like Nexus
8

9. D E M O

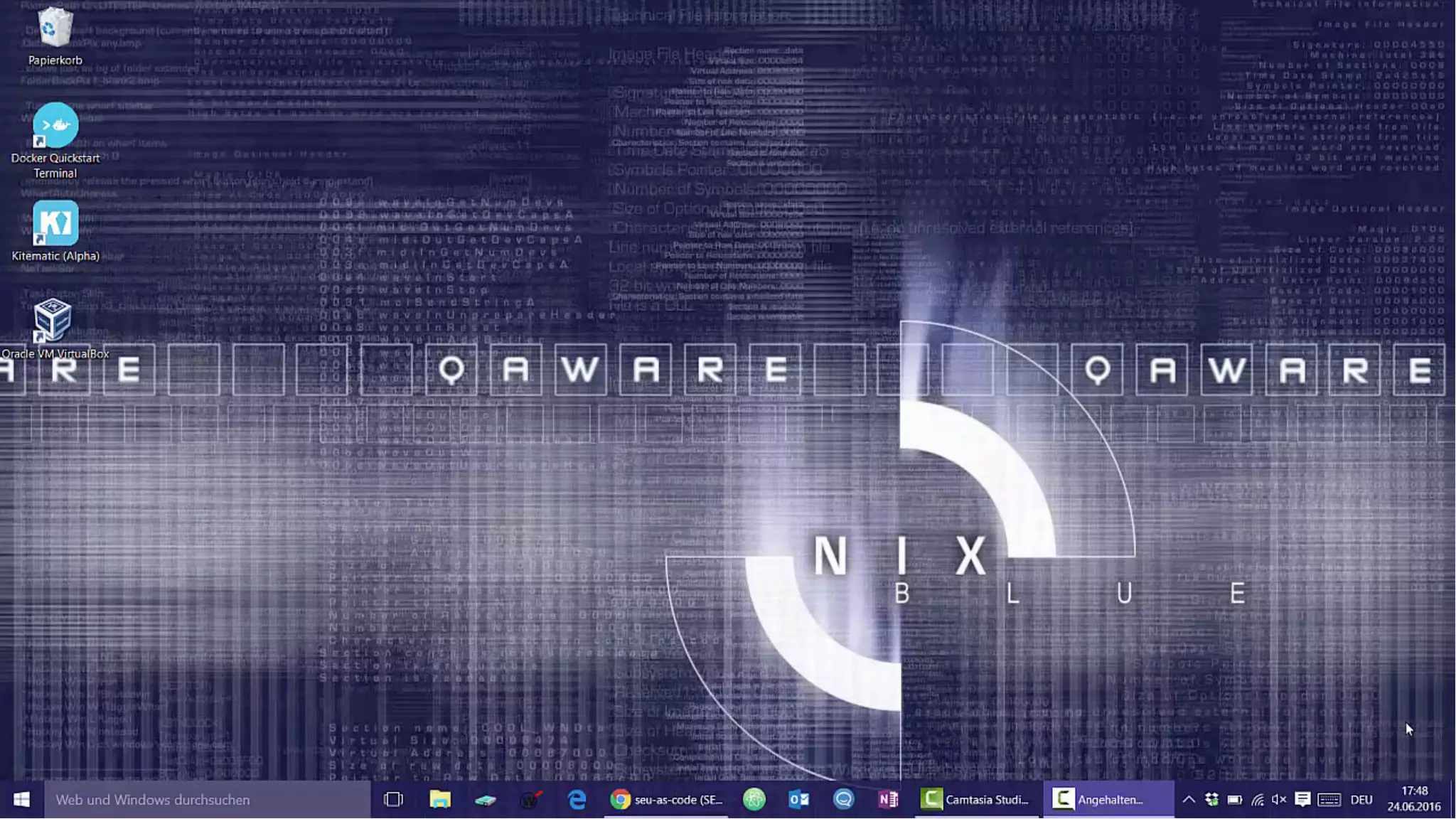

10. 10

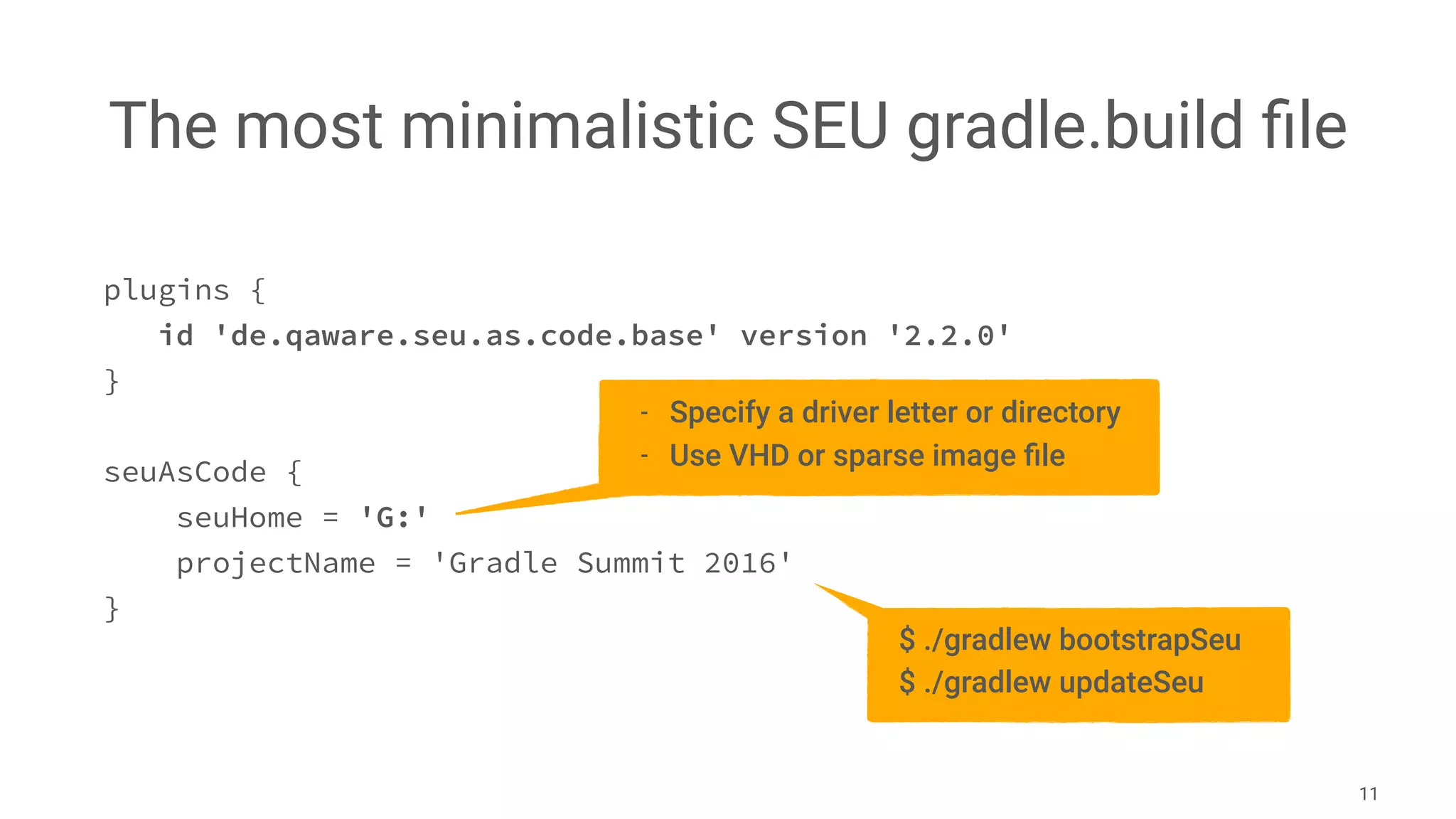

11. The most minimalistic SEU gradle.build file
11
plugins {
id 'de.qaware.seu.as.code.base' version '2.2.0'
}
seuAsCode {
seuHome = 'G:'
projectName = 'Gradle Summit 2016'
}
- Specify a driver letter or directory
- Use VHD or sparse image file
$ ./gradlew bootstrapSeu
$ ./gradlew updateSeu

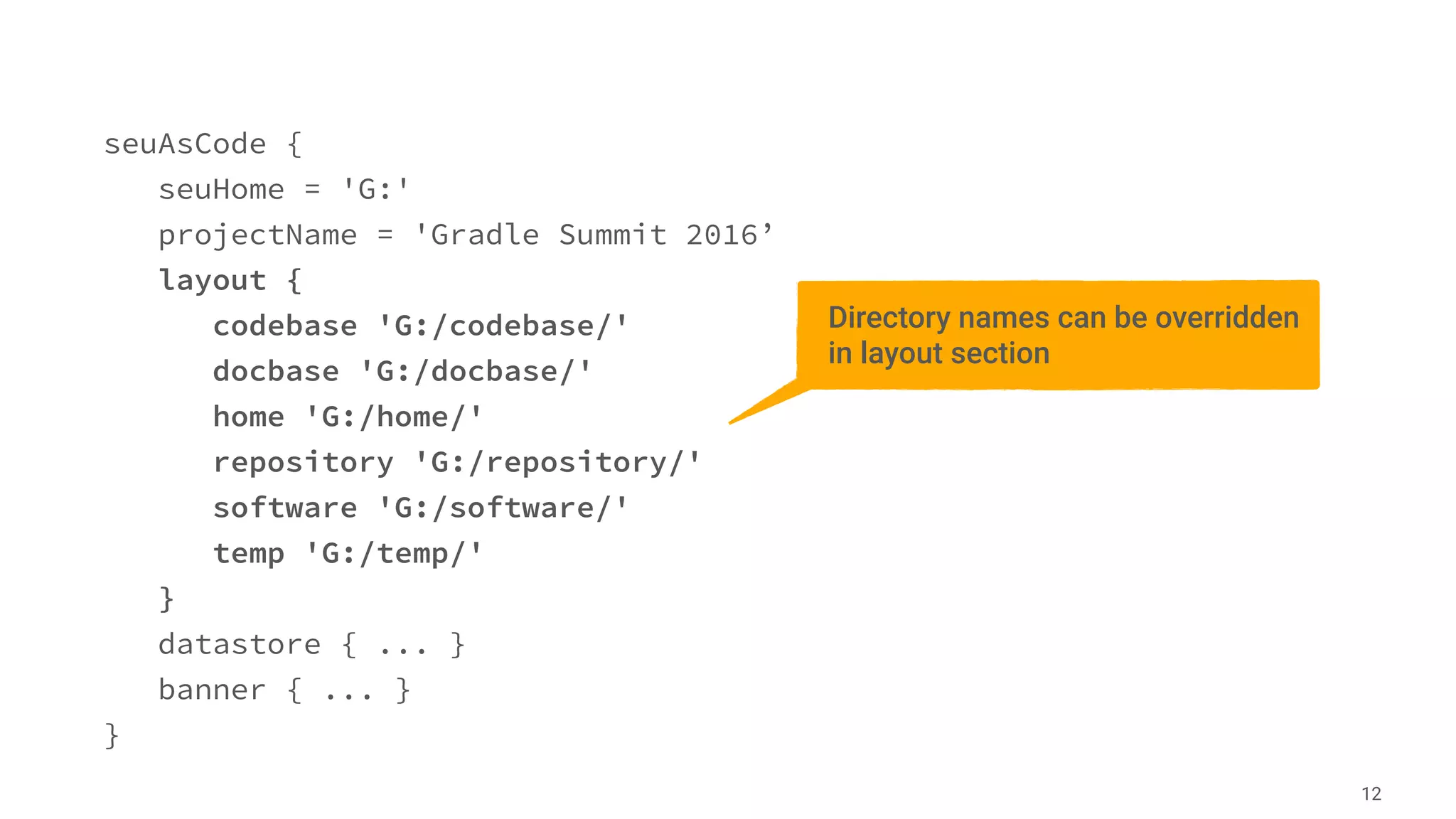

12. seuAsCode {
seuHome = 'G:'
projectName = 'Gradle Summit 2016’
layout {
codebase 'G:/codebase/'
docbase 'G:/docbase/'
home 'G:/home/'
repository 'G:/repository/'
software 'G:/software/'
temp 'G:/temp/'
}
datastore { ... }
banner { ... }
}
12
Directory names can be overridden
in layout section

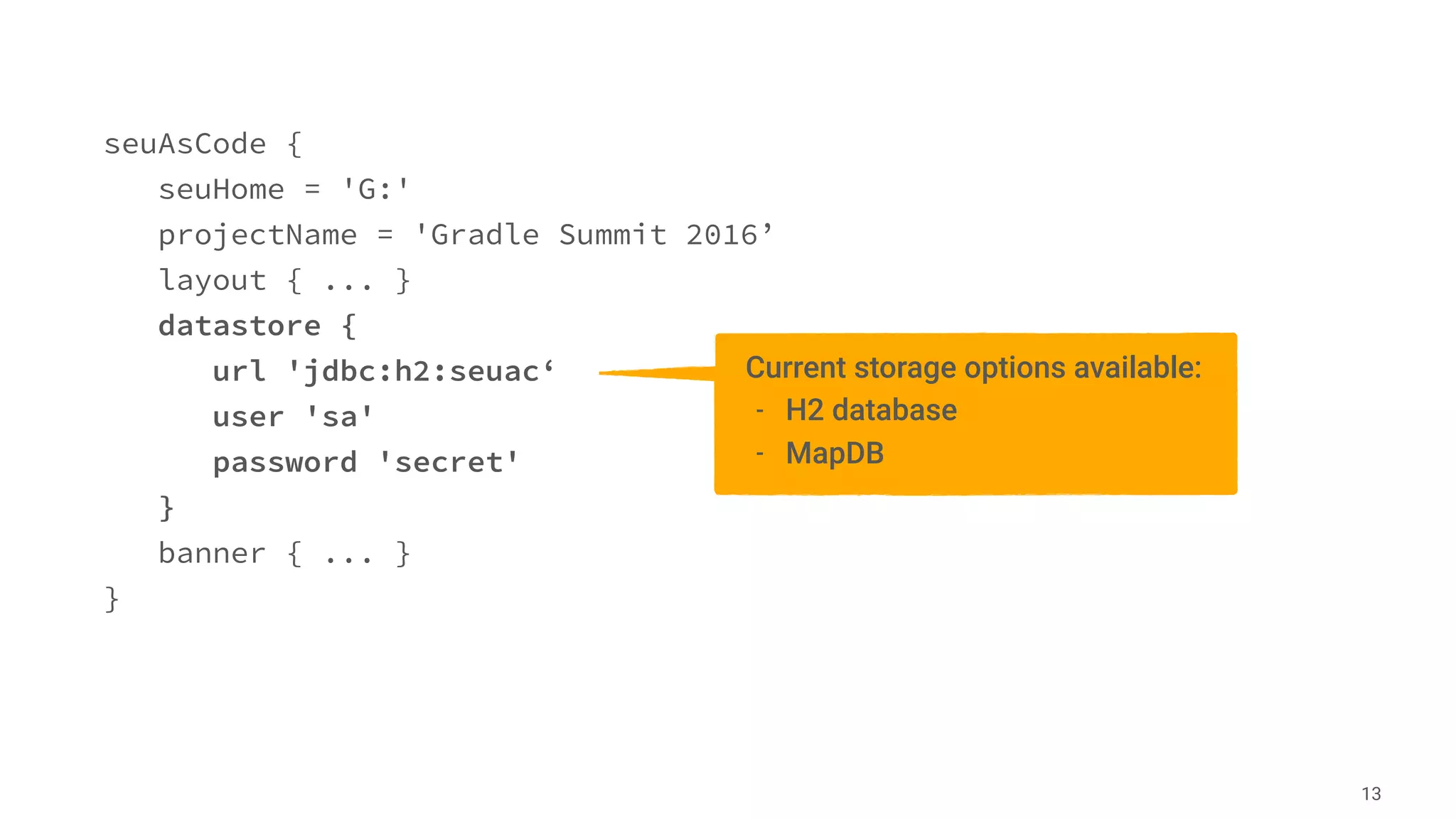

13. seuAsCode {
seuHome = 'G:'
projectName = 'Gradle Summit 2016’
layout { ... }
datastore {
url 'jdbc:h2:seuac‘
user 'sa'
password 'secret'
}
banner { ... }
}
13
Current storage options available:
- H2 database
- MapDB

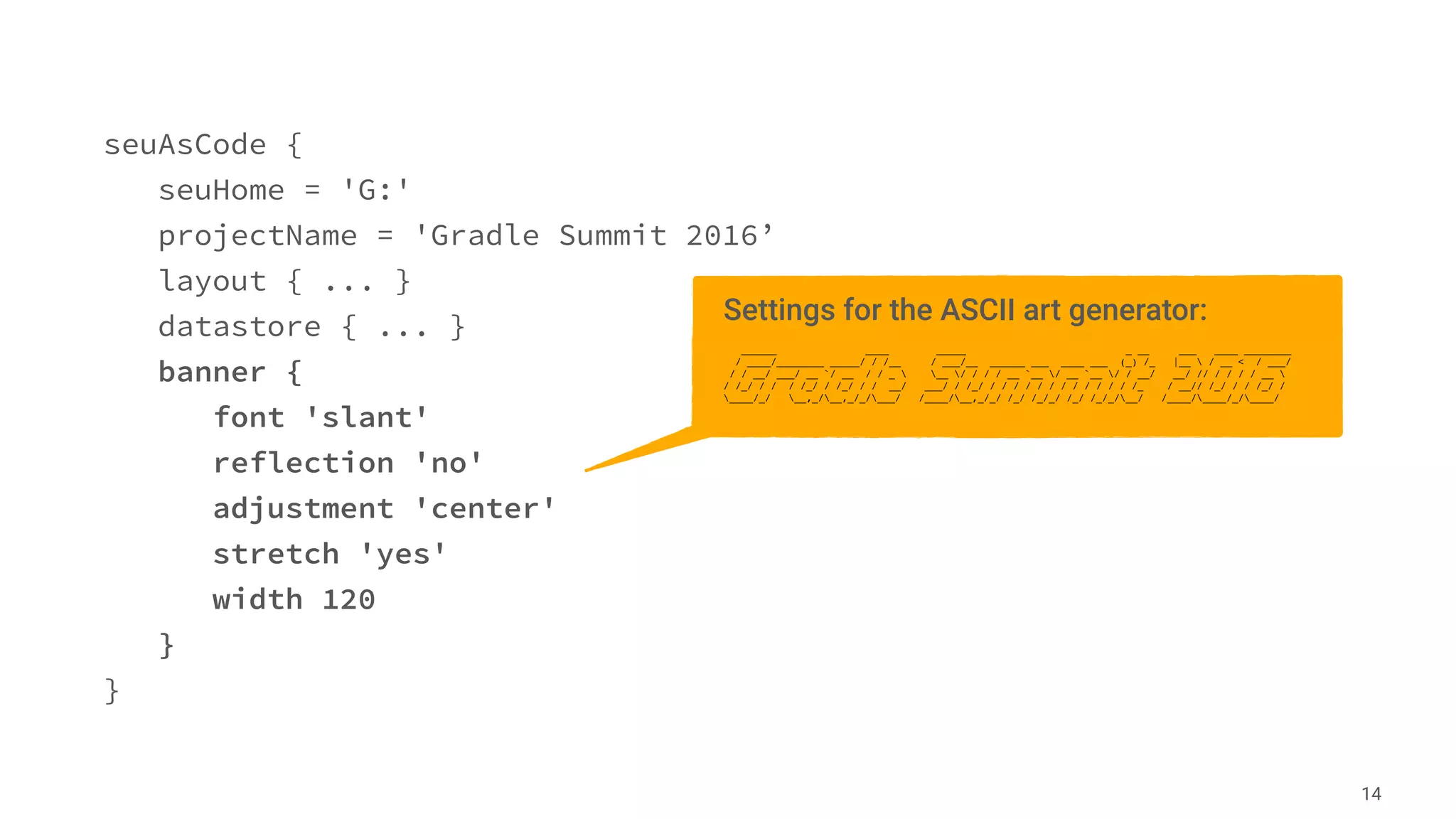

14. seuAsCode {
seuHome = 'G:'
projectName = 'Gradle Summit 2016’
layout { ... }
datastore { ... }
banner {
font 'slant'
reflection 'no'
adjustment 'center'
stretch 'yes'
width 120
}
}
14
Settings for the ASCII art generator:
______ ____ _____ _ __ ___ ____ ________
/ ____/________ _____/ / /__ / ___/__ ______ ___ ____ ___ (_) /_ |__ / __ < / ___/
/ / __/ ___/ __ `/ __ / / _ __ / / / / __ `__ / __ `__ / / __/ __/ // / / / / __
/ /_/ / / / /_/ / /_/ / / __/ ___/ / /_/ / / / / / / / / / / / / /_ / __// /_/ / / /_/ /
____/_/ __,_/__,_/_/___/ /____/__,_/_/ /_/ /_/_/ /_/ /_/_/__/ /____/____/_/____/

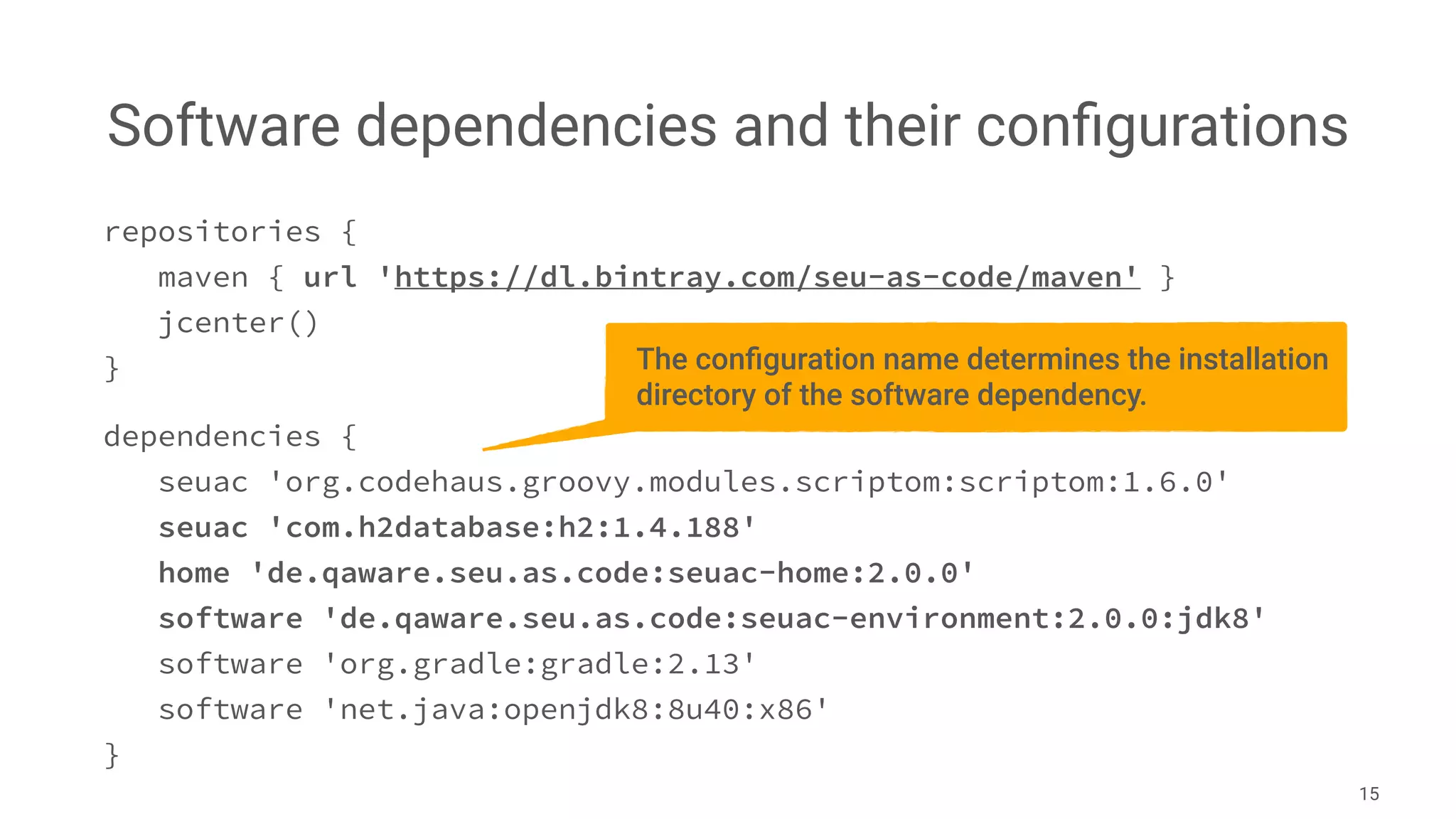

15. Software dependencies and their configurations
15
repositories {
maven { url 'https://dl.bintray.com/seu-as-code/maven' }
jcenter()
}
dependencies {
seuac 'org.codehaus.groovy.modules.scriptom:scriptom:1.6.0'
seuac 'com.h2database:h2:1.4.188'
home 'de.qaware.seu.as.code:seuac-home:2.0.0'
software 'de.qaware.seu.as.code:seuac-environment:2.0.0:jdk8'
software 'org.gradle:gradle:2.13'
software 'net.java:openjdk8:8u40:x86'
}
The configuration name determines the installation
directory of the software dependency.

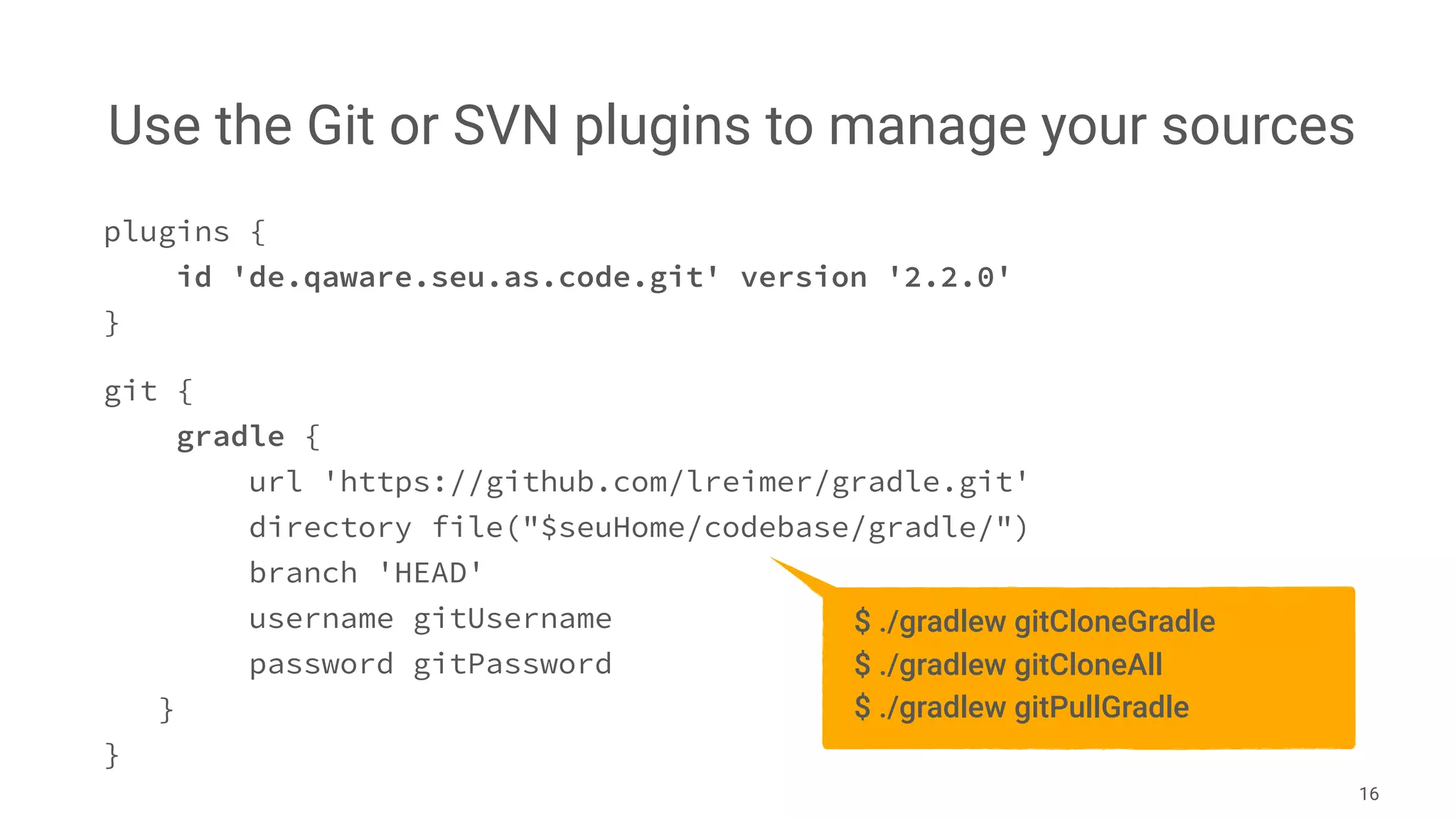

16. Use the Git or SVN plugins to manage your sources
16
plugins {
id 'de.qaware.seu.as.code.git' version '2.2.0'
}
git {
gradle {
url 'https://github.com/lreimer/gradle.git'
directory file("$seuHome/codebase/gradle/")
branch 'HEAD'
username gitUsername
password gitPassword
}
}
$ ./gradlew gitCloneGradle
$ ./gradlew gitCloneAll
$ ./gradlew gitPullGradle

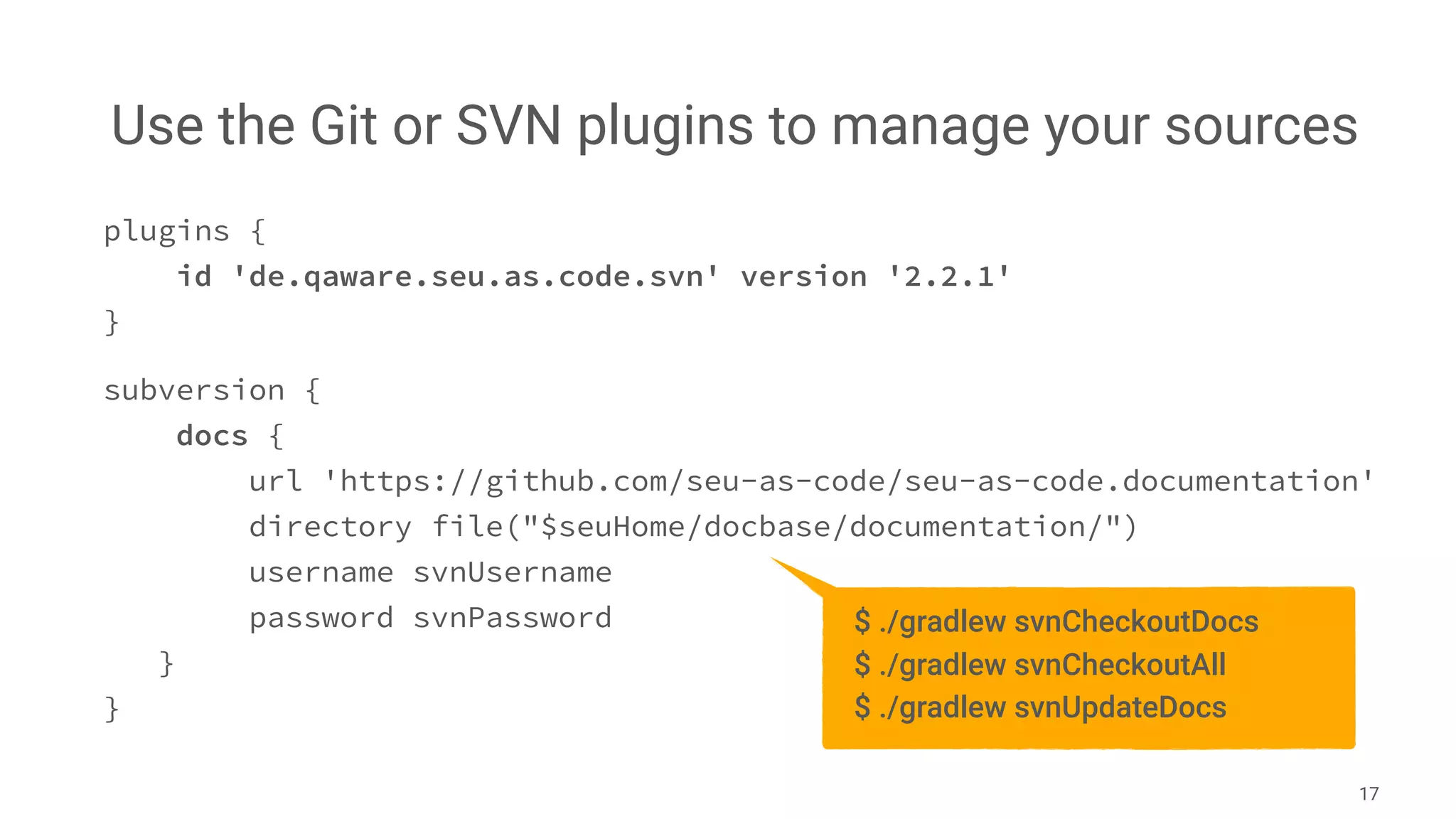

17. Use the Git or SVN plugins to manage your sources
17
plugins {
id 'de.qaware.seu.as.code.svn' version '2.2.1'
}
subversion {
docs {
url 'https://github.com/seu-as-code/seu-as-code.documentation'
directory file("$seuHome/docbase/documentation/")
username svnUsername
password svnPassword
}
}
$ ./gradlew svnCheckoutDocs
$ ./gradlew svnCheckoutAll
$ ./gradlew svnUpdateDocs

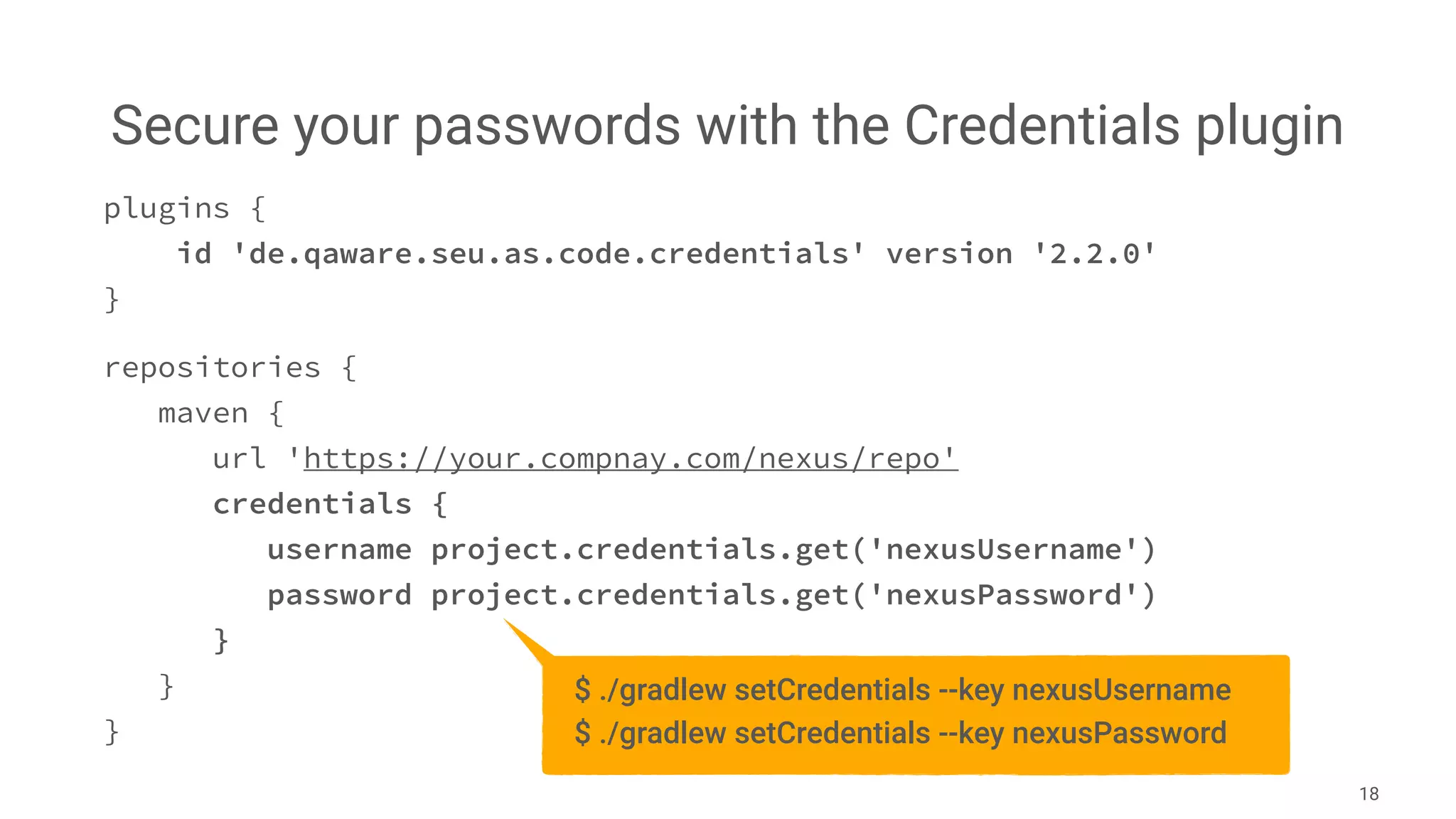

18. Secure your passwords with the Credentials plugin
18
plugins {
id 'de.qaware.seu.as.code.credentials' version '2.2.0'
}
repositories {
maven {
url 'https://your.compnay.com/nexus/repo'
credentials {
username project.credentials.get('nexusUsername')
password project.credentials.get('nexusPassword')
}
}
}
$ ./gradlew setCredentials --key nexusUsername
$ ./gradlew setCredentials --key nexusPassword

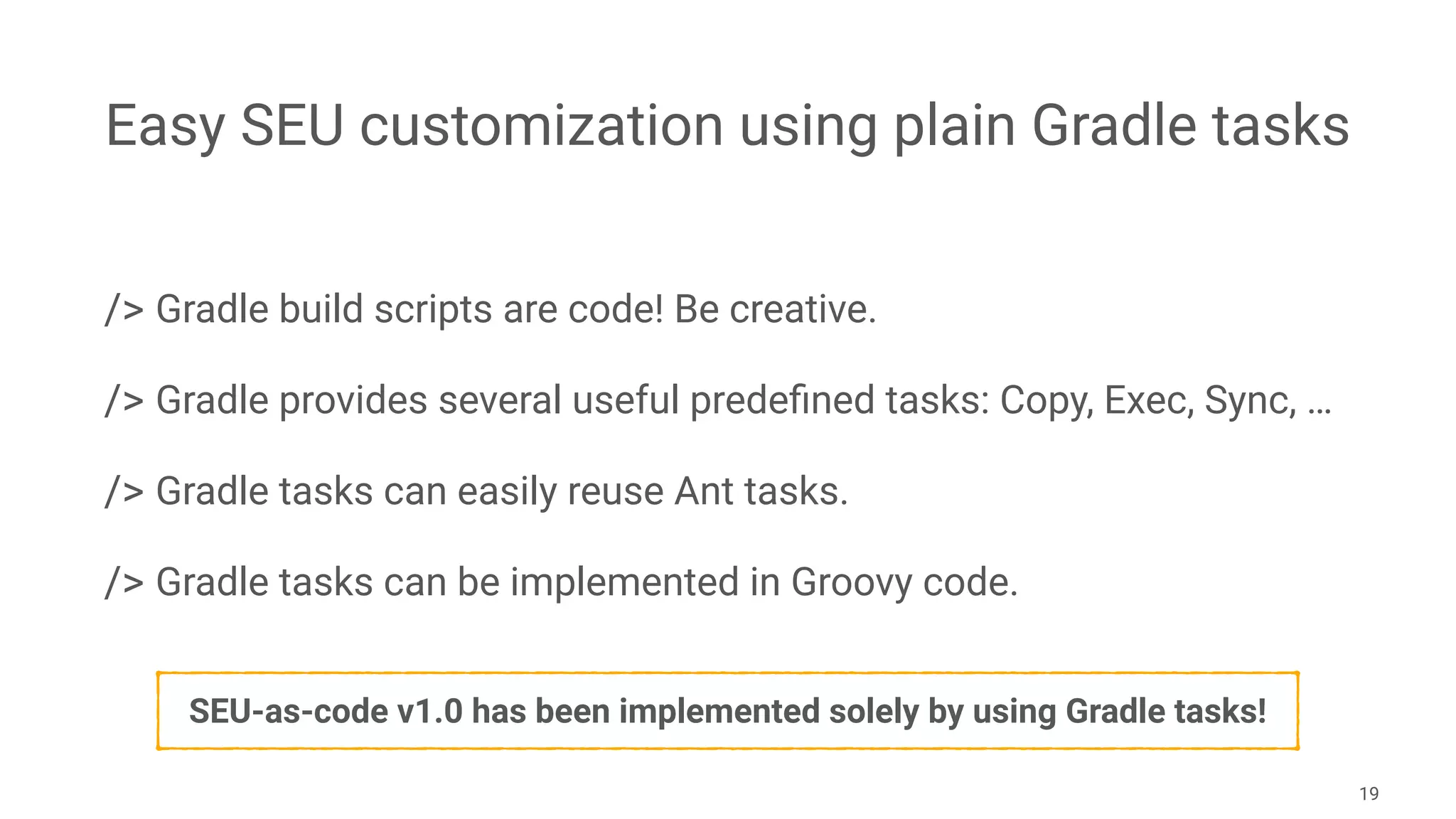

19. Easy SEU customization using plain Gradle tasks
/> Gradle build scripts are code! Be creative.
/> Gradle provides several useful predefined tasks: Copy, Exec, Sync, …
/> Gradle tasks can easily reuse Ant tasks.
/> Gradle tasks can be implemented in Groovy code.
19
SEU-as-code v1.0 has been implemented solely by using Gradle tasks!

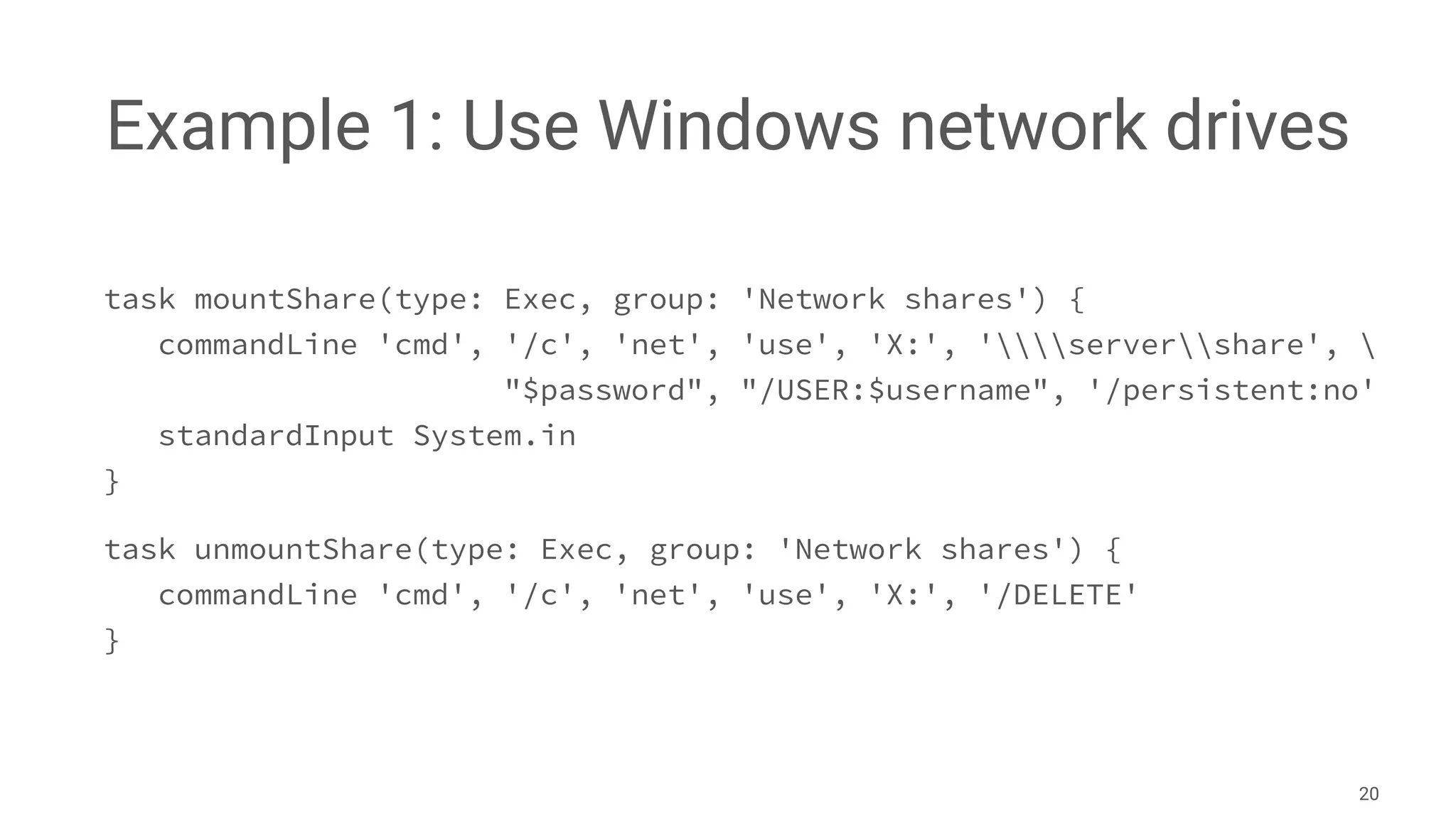

20. Example 1: Use Windows network drives
task mountShare(type: Exec, group: 'Network shares') {
commandLine 'cmd', '/c', 'net', 'use', 'X:', 'servershare',
"$password", "/USER:$username", '/persistent:no'
standardInput System.in
}
task unmountShare(type: Exec, group: 'Network shares') {
commandLine 'cmd', '/c', 'net', 'use', 'X:', '/DELETE'
}
20

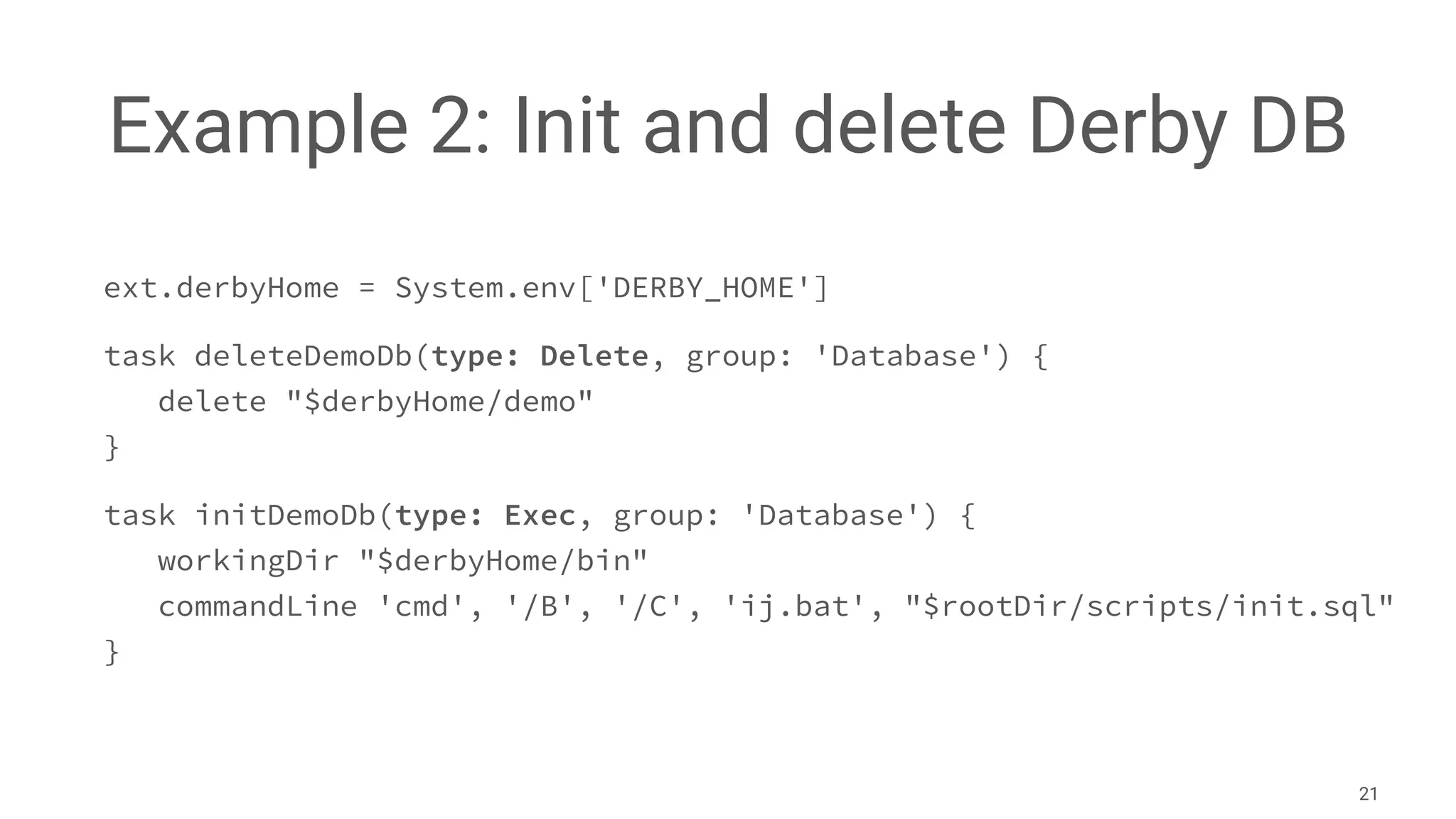

21. Example 2: Init and delete Derby DB
ext.derbyHome = System.env['DERBY_HOME']
task deleteDemoDb(type: Delete, group: 'Database') {
delete "$derbyHome/demo"
}
task initDemoDb(type: Exec, group: 'Database') {
workingDir "$derbyHome/bin"
commandLine 'cmd', '/B', '/C', 'ij.bat', "$rootDir/scripts/init.sql"
}
21

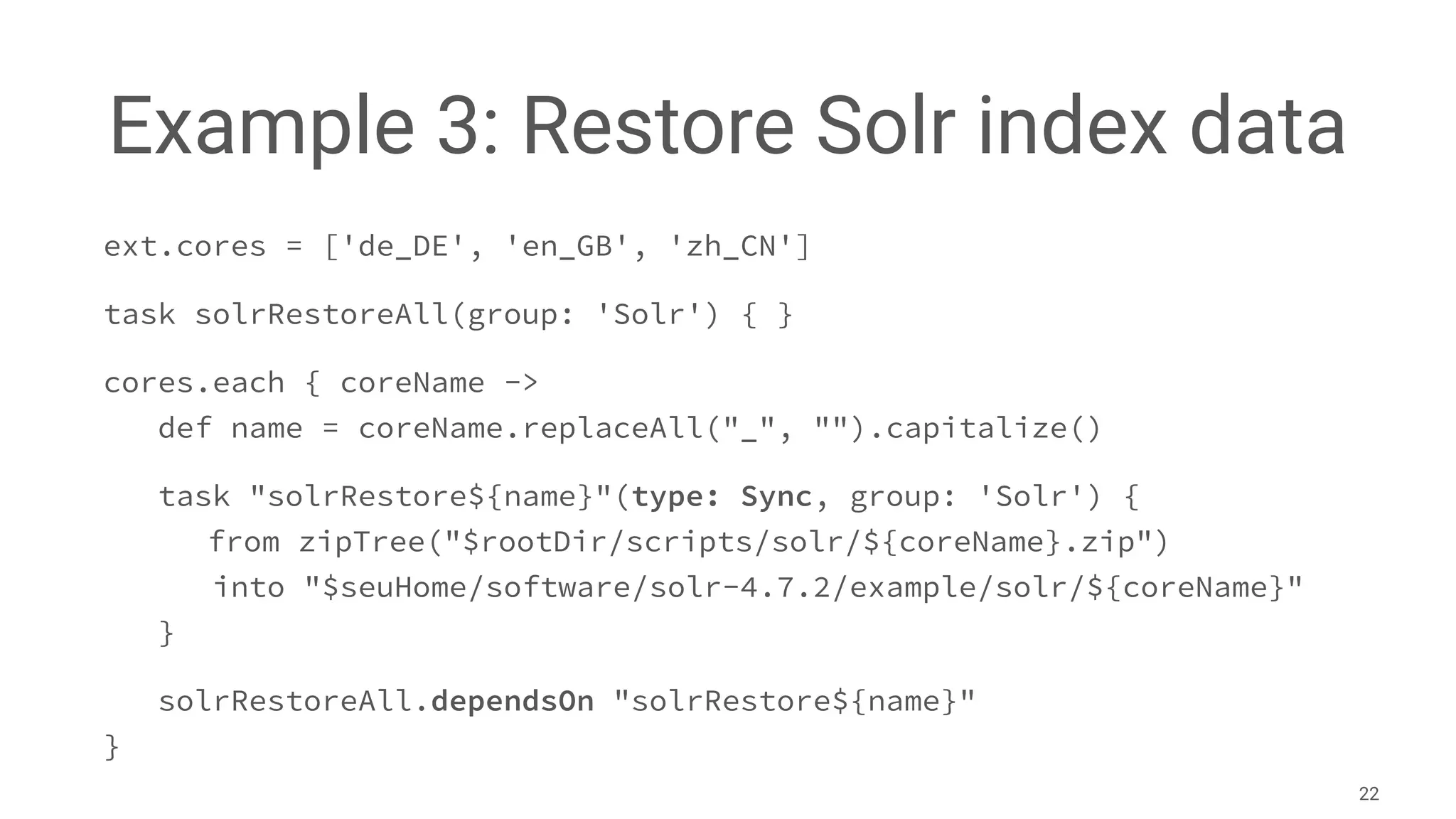

22. Example 3: Restore Solr index data
ext.cores = ['de_DE', 'en_GB', 'zh_CN']
task solrRestoreAll(group: 'Solr') { }
cores.each { coreName ->
def name = coreName.replaceAll("_", "").capitalize()
task "solrRestore${name}"(type: Sync, group: 'Solr') {
from zipTree("$rootDir/scripts/solr/${coreName}.zip")
into "$seuHome/software/solr-4.7.2/example/solr/${coreName}"
}
solrRestoreAll.dependsOn "solrRestore${name}"
}
22

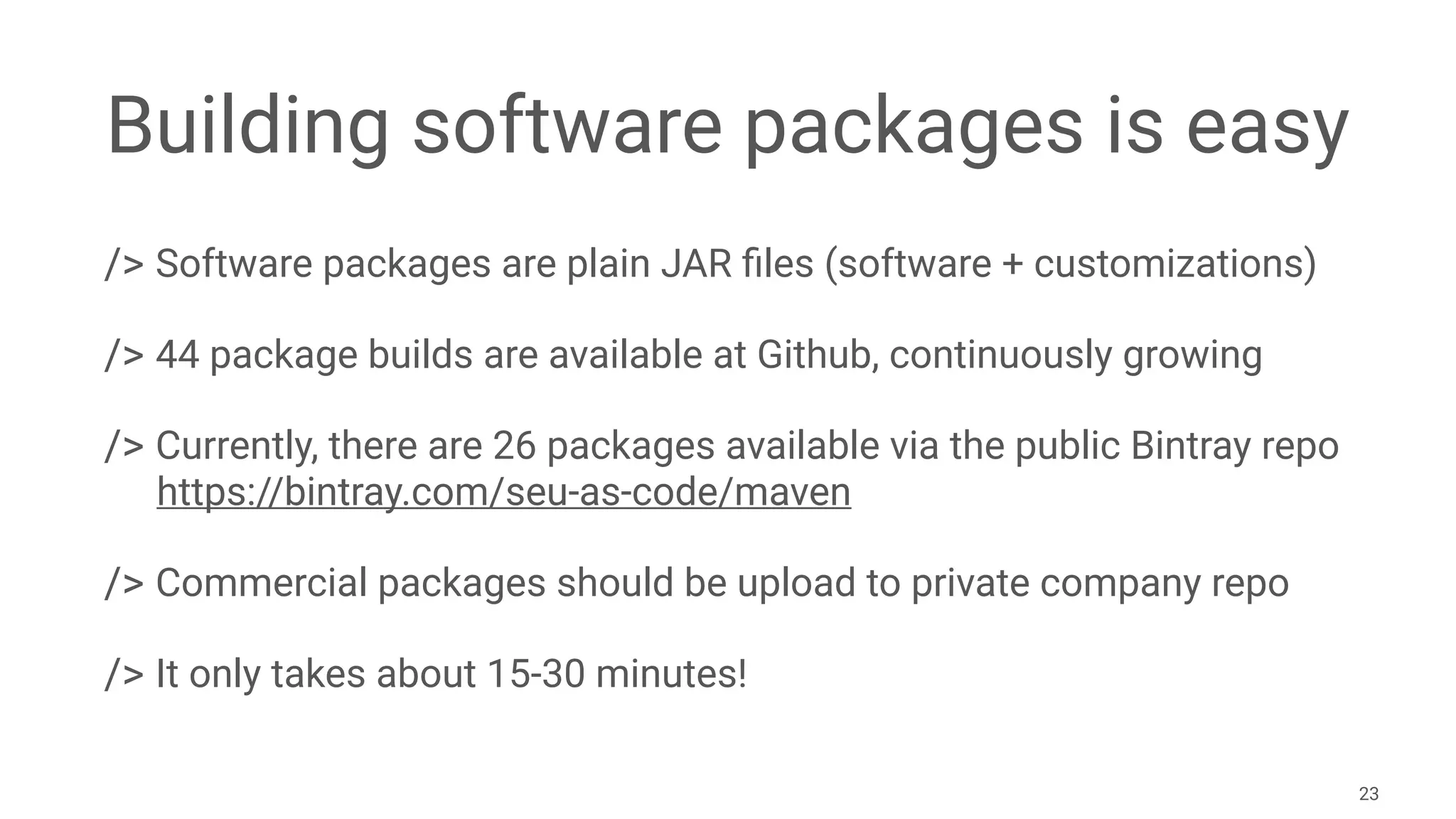

23. Building software packages is easy
/> Software packages are plain JAR files (software + customizations)
/> 44 package builds are available at Github, continuously growing
/> Currently, there are 26 packages available via the public Bintray repo
https://bintray.com/seu-as-code/maven
/> Commercial packages should be upload to private company repo
/> It only takes about 15-30 minutes!
23

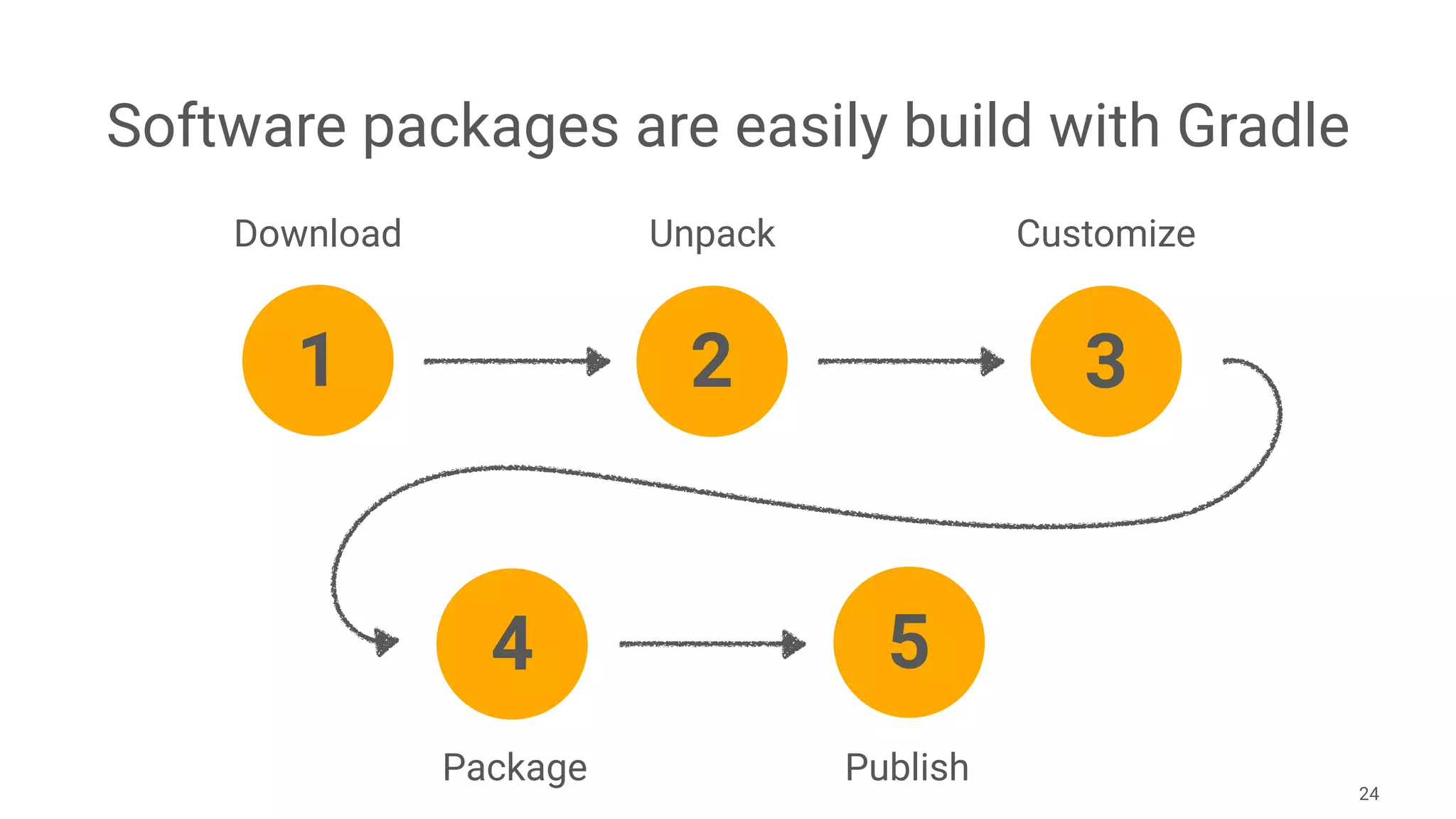

24. Software packages are easily build with Gradle
24
1
Download Unpack Customize
Package Publish
2 3
4 5

25. L E T ’ S B U I L D A
G R A D L E P A C K A G E

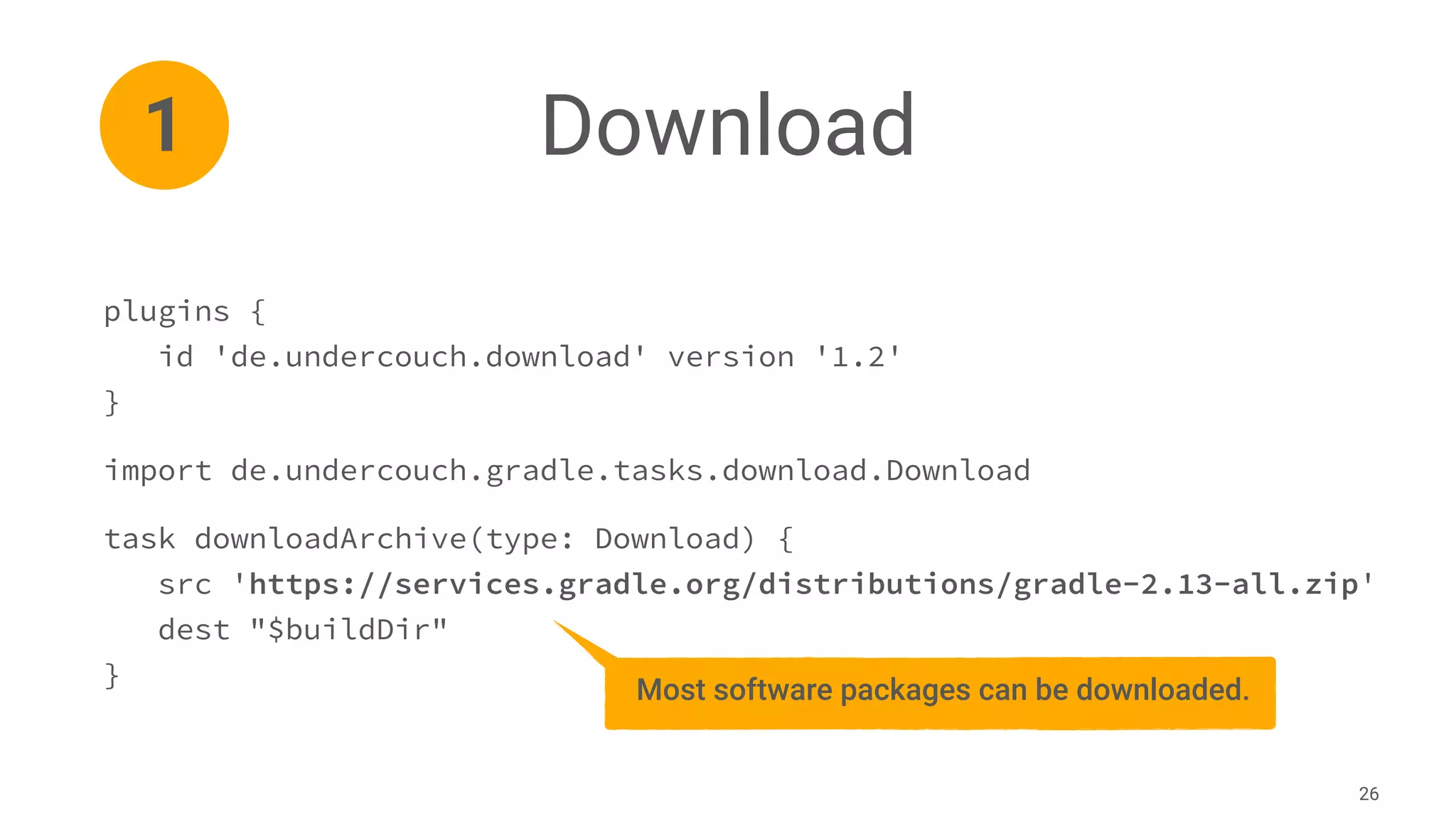

26. Download
26
plugins {
id 'de.undercouch.download' version '1.2'
}
import de.undercouch.gradle.tasks.download.Download
task downloadArchive(type: Download) {
src 'https://services.gradle.org/distributions/gradle-2.13-all.zip'
dest "$buildDir"
}
1
Most software packages can be downloaded.

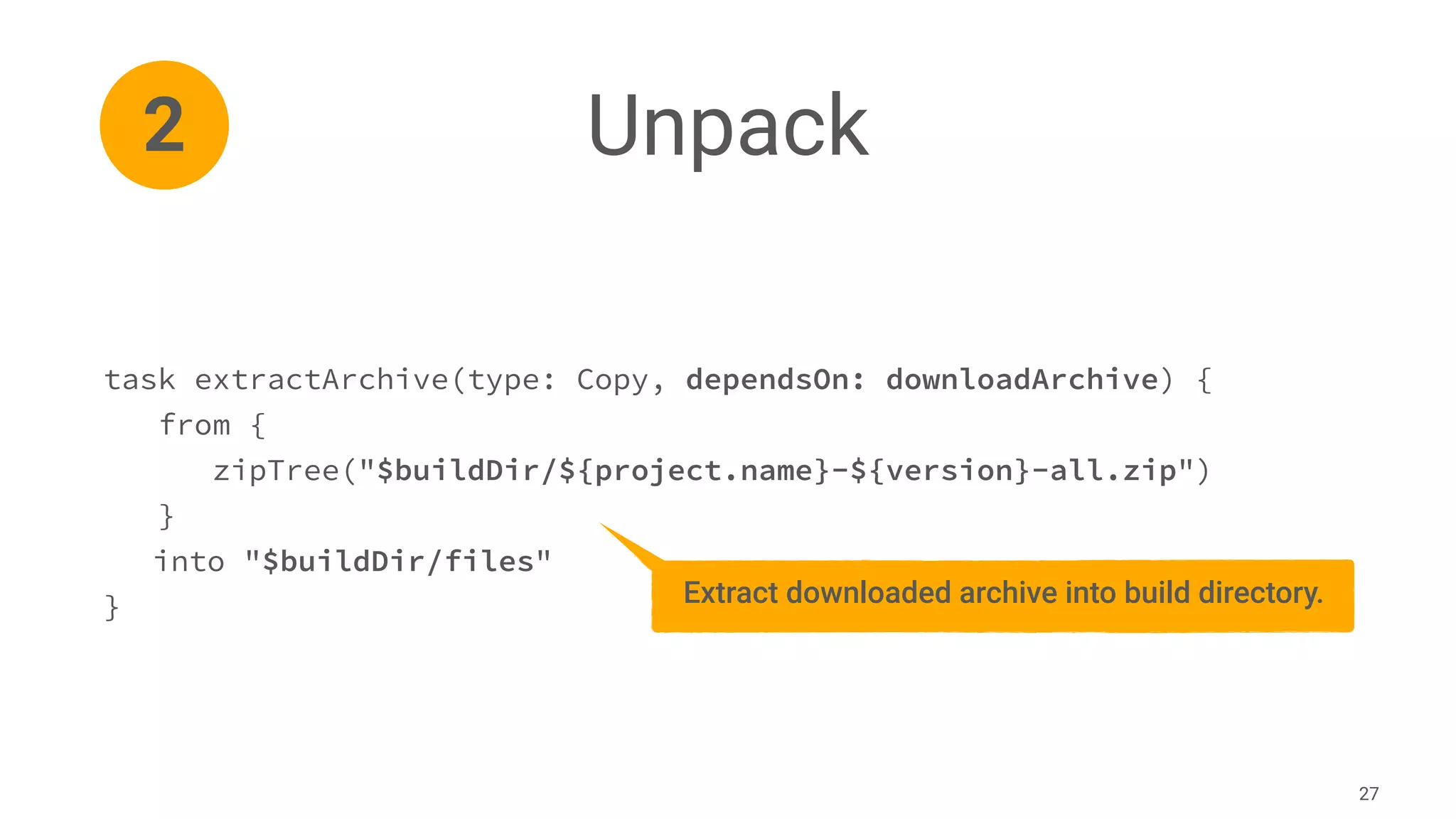

27. Unpack
27
task extractArchive(type: Copy, dependsOn: downloadArchive) {
from {
zipTree("$buildDir/${project.name}-${version}-all.zip")
}
into "$buildDir/files"
}
2
Extract downloaded archive into build directory.

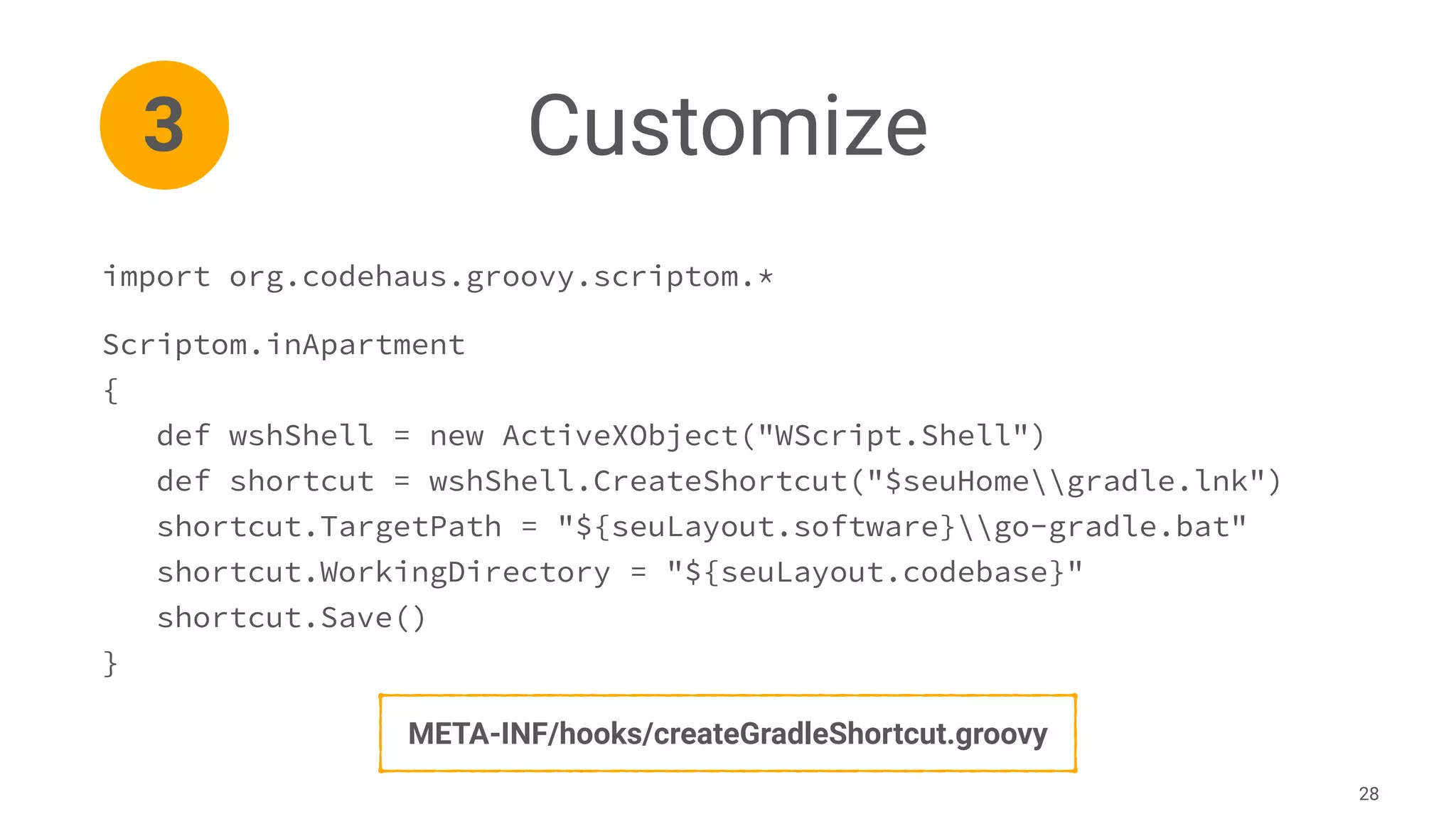

28. Customize
28
import org.codehaus.groovy.scriptom.*
Scriptom.inApartment
{
def wshShell = new ActiveXObject("WScript.Shell")
def shortcut = wshShell.CreateShortcut("$seuHomegradle.lnk")
shortcut.TargetPath = "${seuLayout.software}go-gradle.bat"
shortcut.WorkingDirectory = "${seuLayout.codebase}"
shortcut.Save()
}
3
META-INF/hooks/createGradleShortcut.groovy

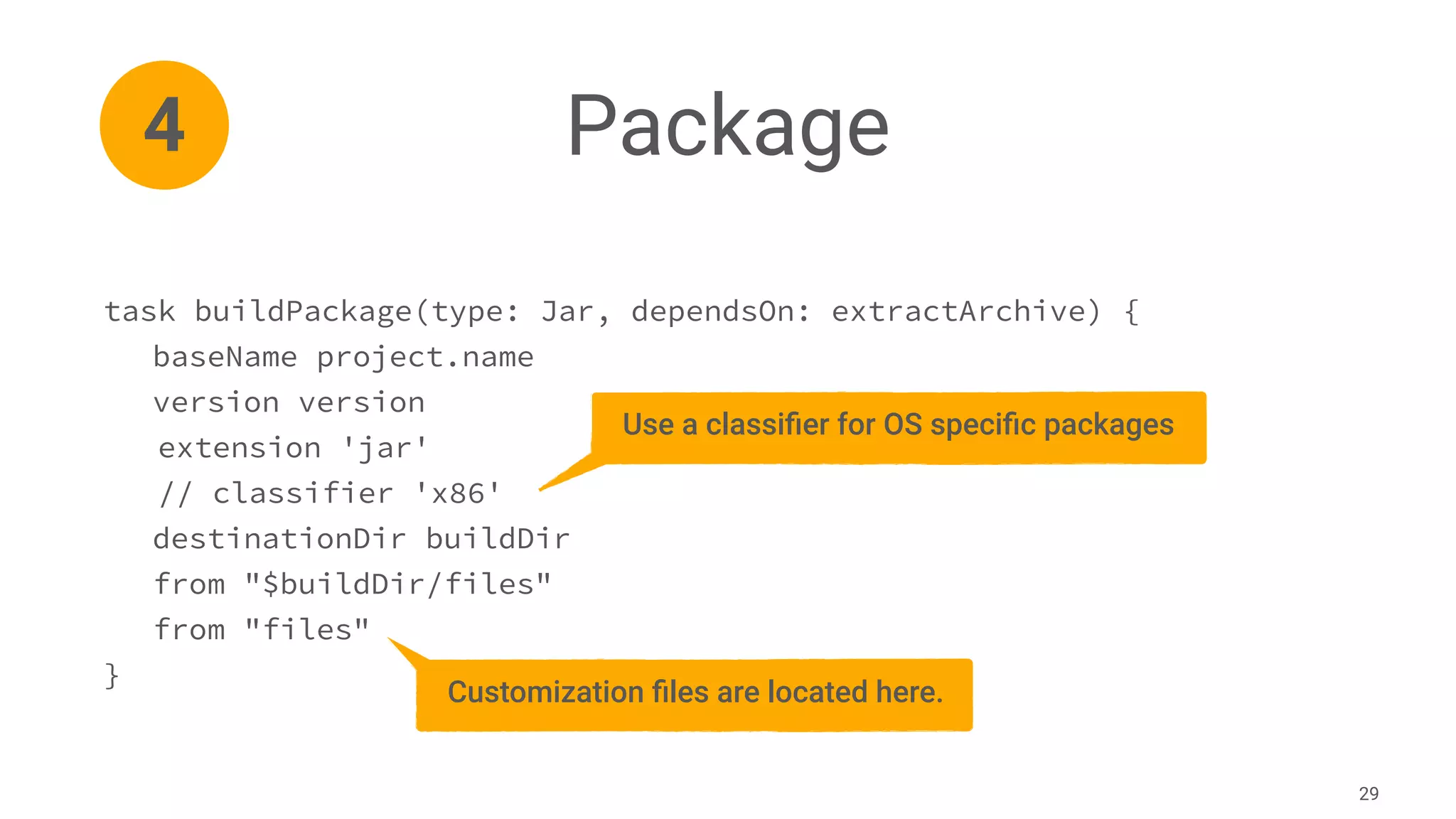

29. Package
29
4
task buildPackage(type: Jar, dependsOn: extractArchive) {
baseName project.name
version version
extension 'jar'
// classifier 'x86'
destinationDir buildDir
from "$buildDir/files"
from "files"
}
Use a classifier for OS specific packages
Customization files are located here.

30. Publish
30
publishing {
publications {
gradle(MavenPublication) {
artifact "${buildDir}/${project.name}-${version}.jar"
}
}
repositories {
maven {
url = project.nexusUrl // -PnexusUrl=...
credentials {
username = project.nexusUsername // -PnexusUsername=...
password = project.nexusPassword // -PnexusPassword=...
}
}
}
5
Enter your company artifact repository here.

31. W H A T ’ S N E X T ?

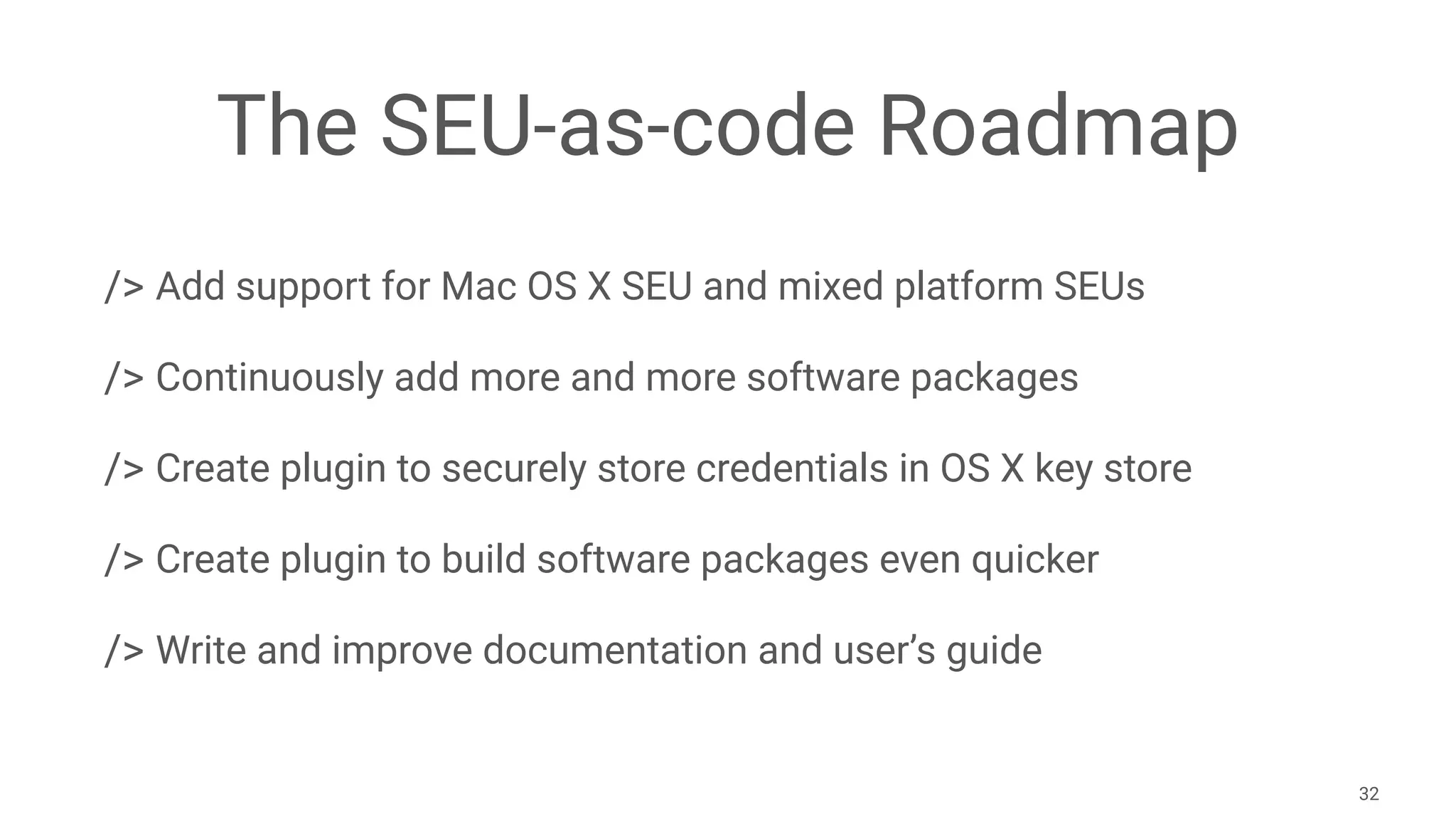

32. The SEU-as-code Roadmap
/> Add support for Mac OS X SEU and mixed platform SEUs
/> Continuously add more and more software packages
/> Create plugin to securely store credentials in OS X key store
/> Create plugin to build software packages even quicker
/> Write and improve documentation and user’s guide
32

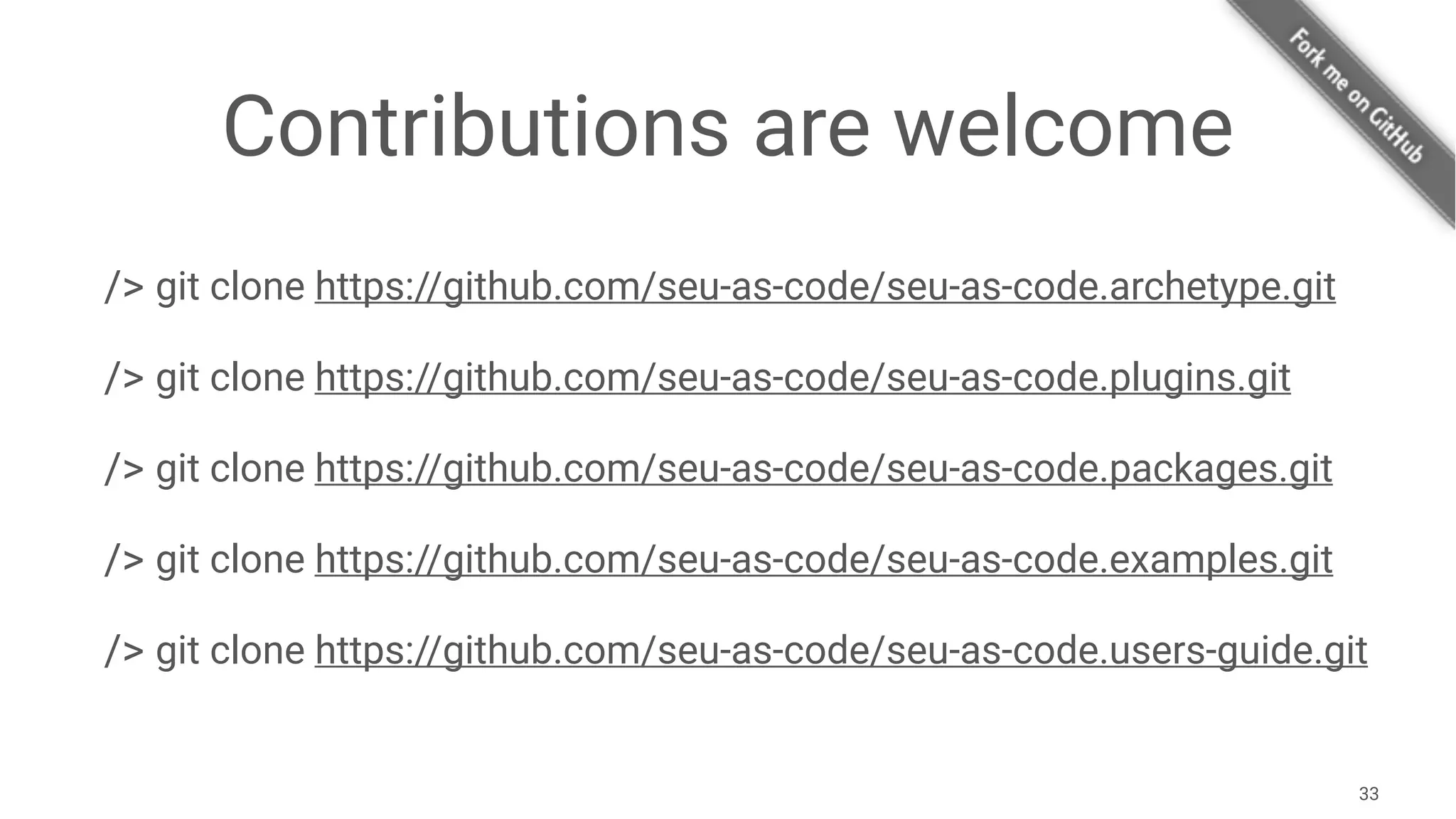

33. Contributions are welcome
/> git clone https://github.com/seu-as-code/seu-as-code.archetype.git
/> git clone https://github.com/seu-as-code/seu-as-code.plugins.git
/> git clone https://github.com/seu-as-code/seu-as-code.packages.git
/> git clone https://github.com/seu-as-code/seu-as-code.examples.git
/> git clone https://github.com/seu-as-code/seu-as-code.users-guide.git
33

34. Mario-Leander Reimer
Chief Technologist, QAware GmbH
mario-leander.reimer@qaware.de
https://seu-as-code.io
https://slideshare.net/MarioLeanderReimer/
https://speakerdeck.com/lreimer/
https://twitter.com/leanderreimer/
&

35. Learn more at www.gradle.org
