qaware.de
Down the Ivory Tower
towards Agile Architecture
Mario-Leander Reimer
mario-leander.reimer@qaware.de
@LeanderReimer
2
Mario-Leander Reimer
Managing Director | CTO
@LeanderReimer
#cloudnativenerd #qaware
#gernperDude
1st commandment
Thou shalt not use other
databases than Oracle!
6
QAware
7
QAware
The Wild Agile West
QAware | 8
Architecture in Agile Projects
1st commandment
Thou shalt sprint 2 weeks,
no less or more!
10
QAware

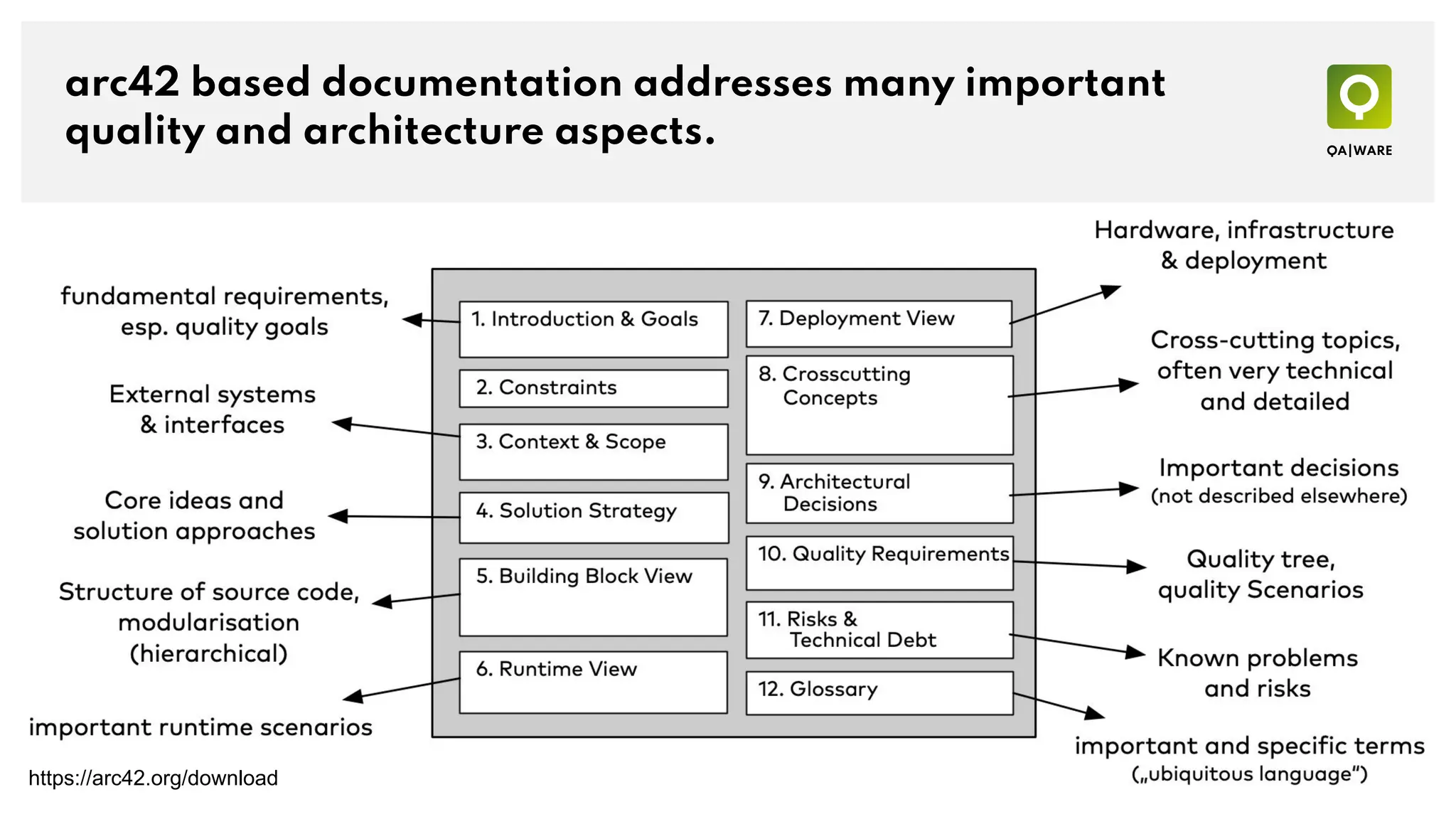

https://arc42.org/download
arc42 based documentation addresses many important
quality and architecture aspects.

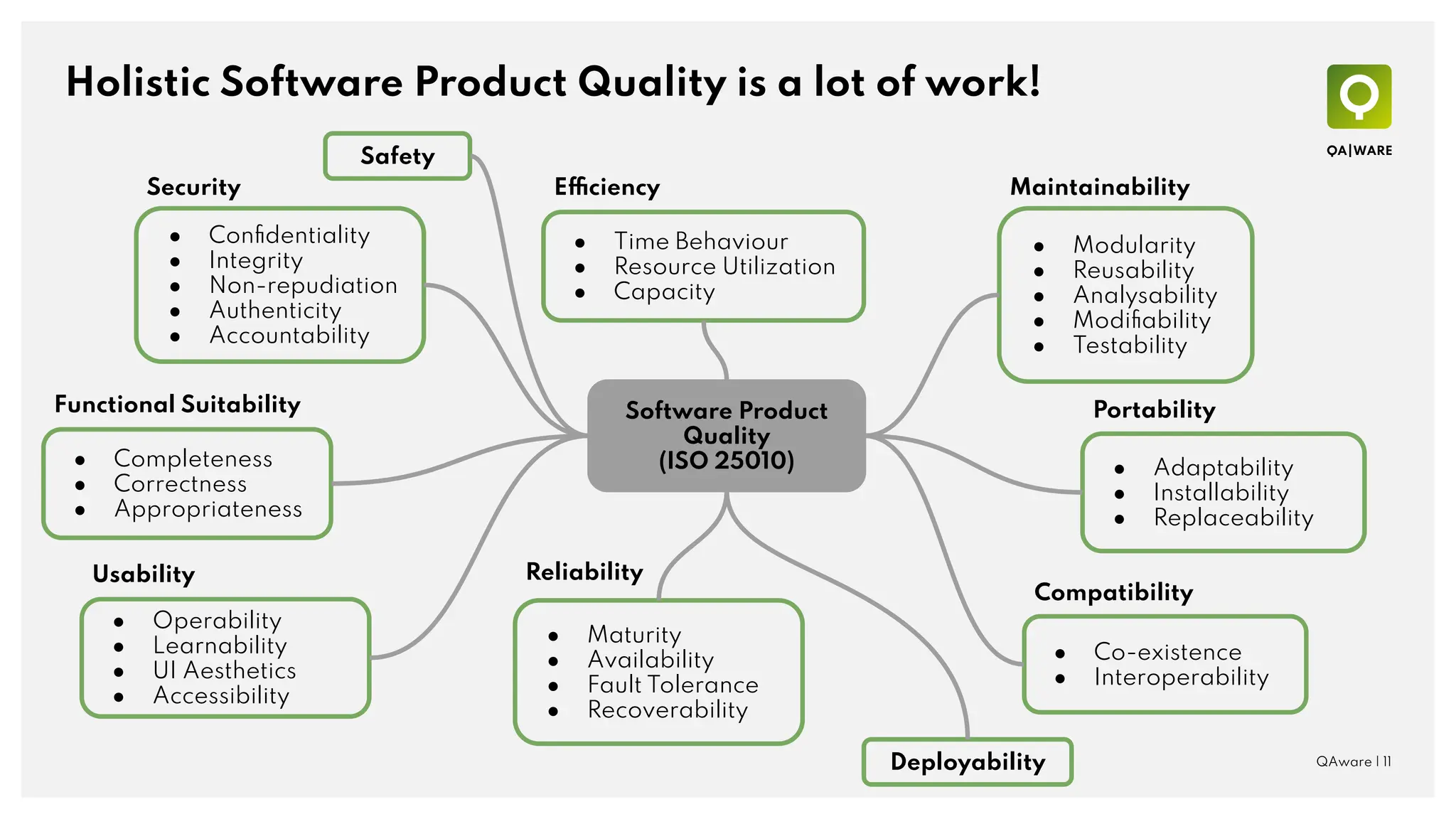

Holistic Software Product Quality is a lot of work!
QAware | 11
Software Product
Quality
(ISO 25010)
● Modularity
● Reusability
● Analysability
● Modifiability
● Testability
Maintainability
● Confidentiality
● Integrity
● Non-repudiation
● Authenticity
● Accountability
Security
● Adaptability
● Installability
● Replaceability
Portability
● Co-existence
● Interoperability
Compatibility
● Maturity
● Availability
● Fault Tolerance
● Recoverability
Reliability
● Time Behaviour
● Resource Utilization
● Capacity
Efficiency
● Completeness
● Correctness
● Appropriateness
Functional Suitability
● Operability
● Learnability
● UI Aesthetics
● Accessibility
Usability
Safety
Deployability

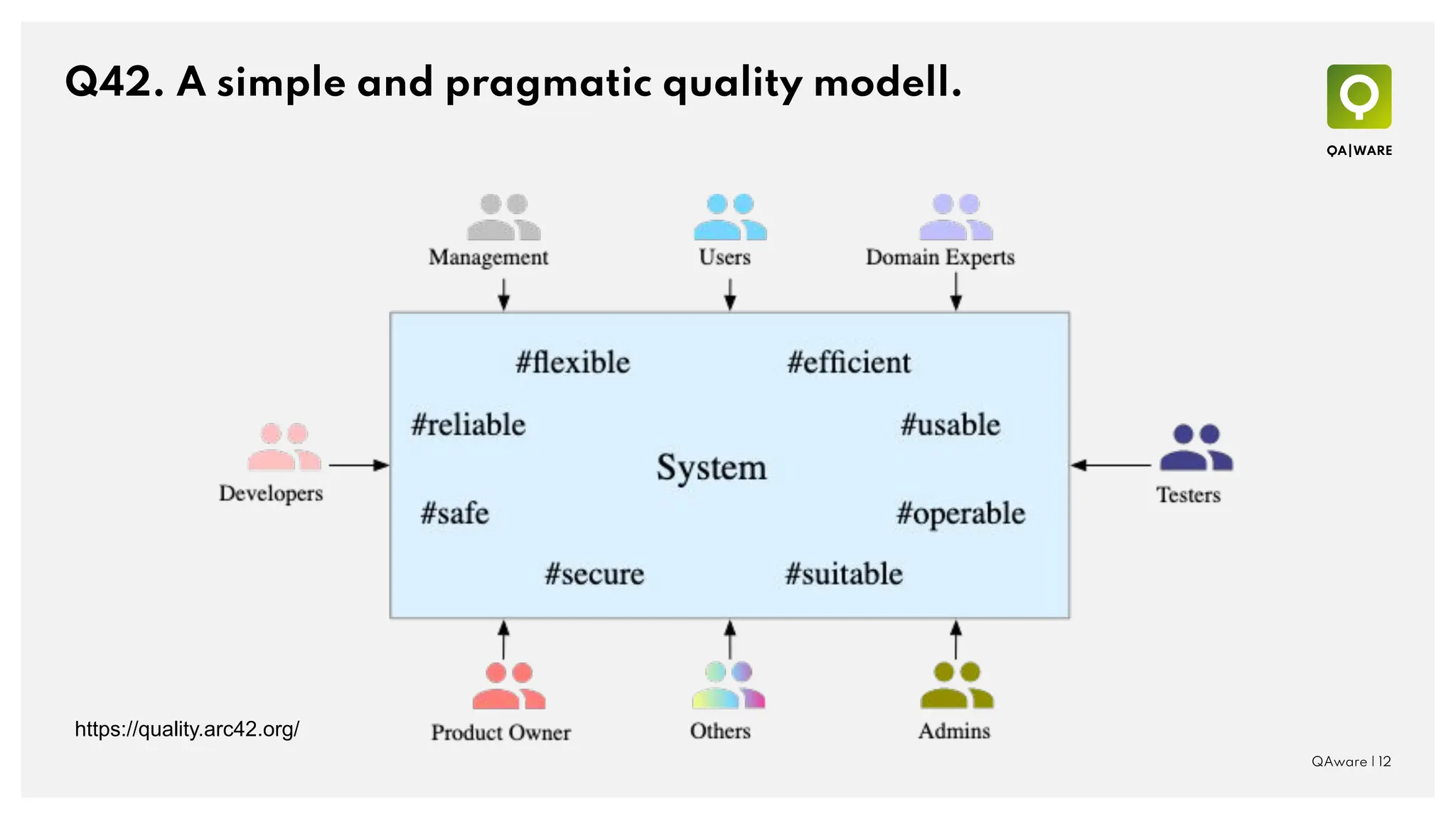

Q42. A simple and pragmatic quality modell.
QAware | 12
https://quality.arc42.org/

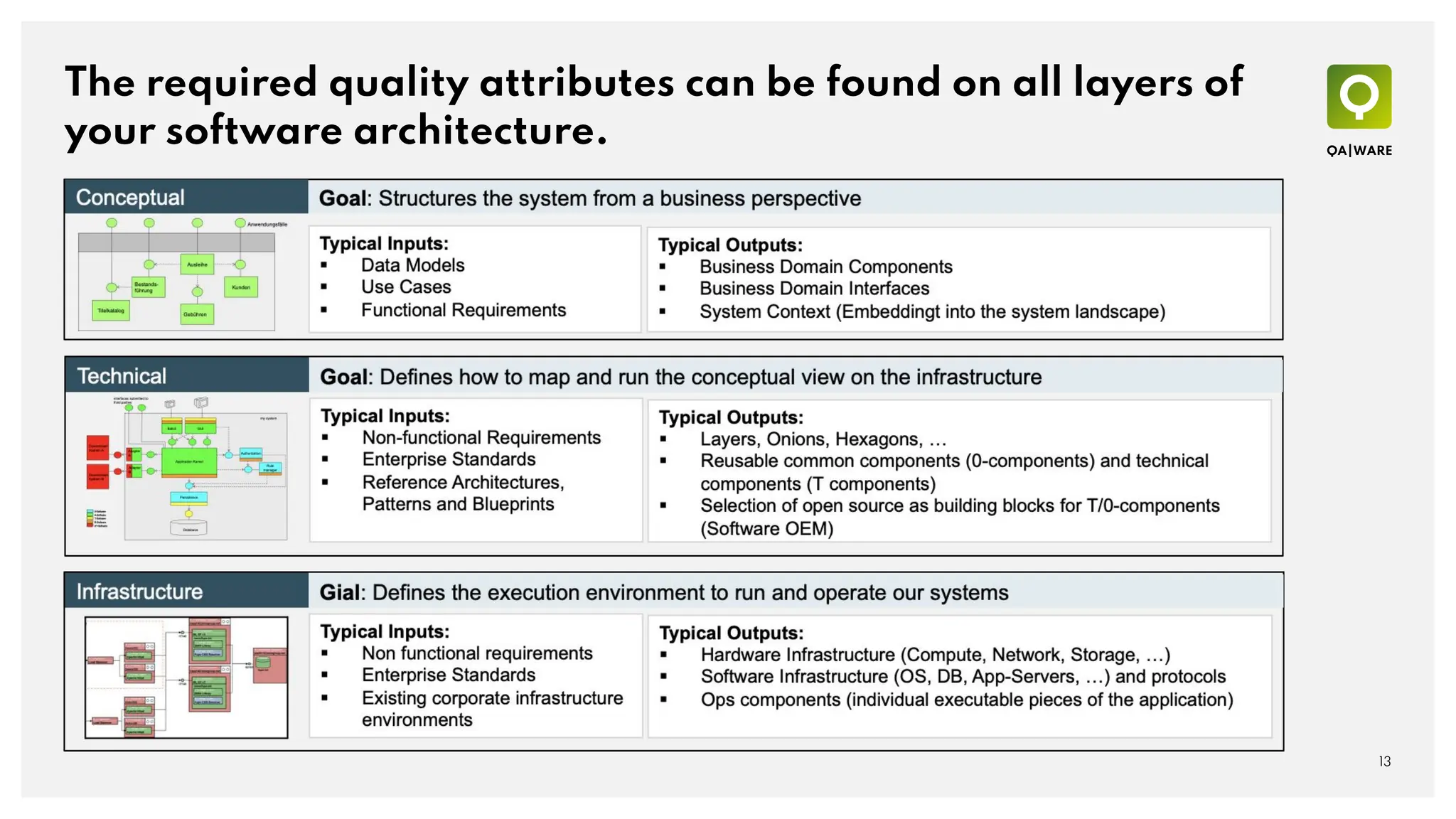

The required quality attributes can be found on all layers of
your software architecture.
13
14
QAware
Architecture
Diagrams

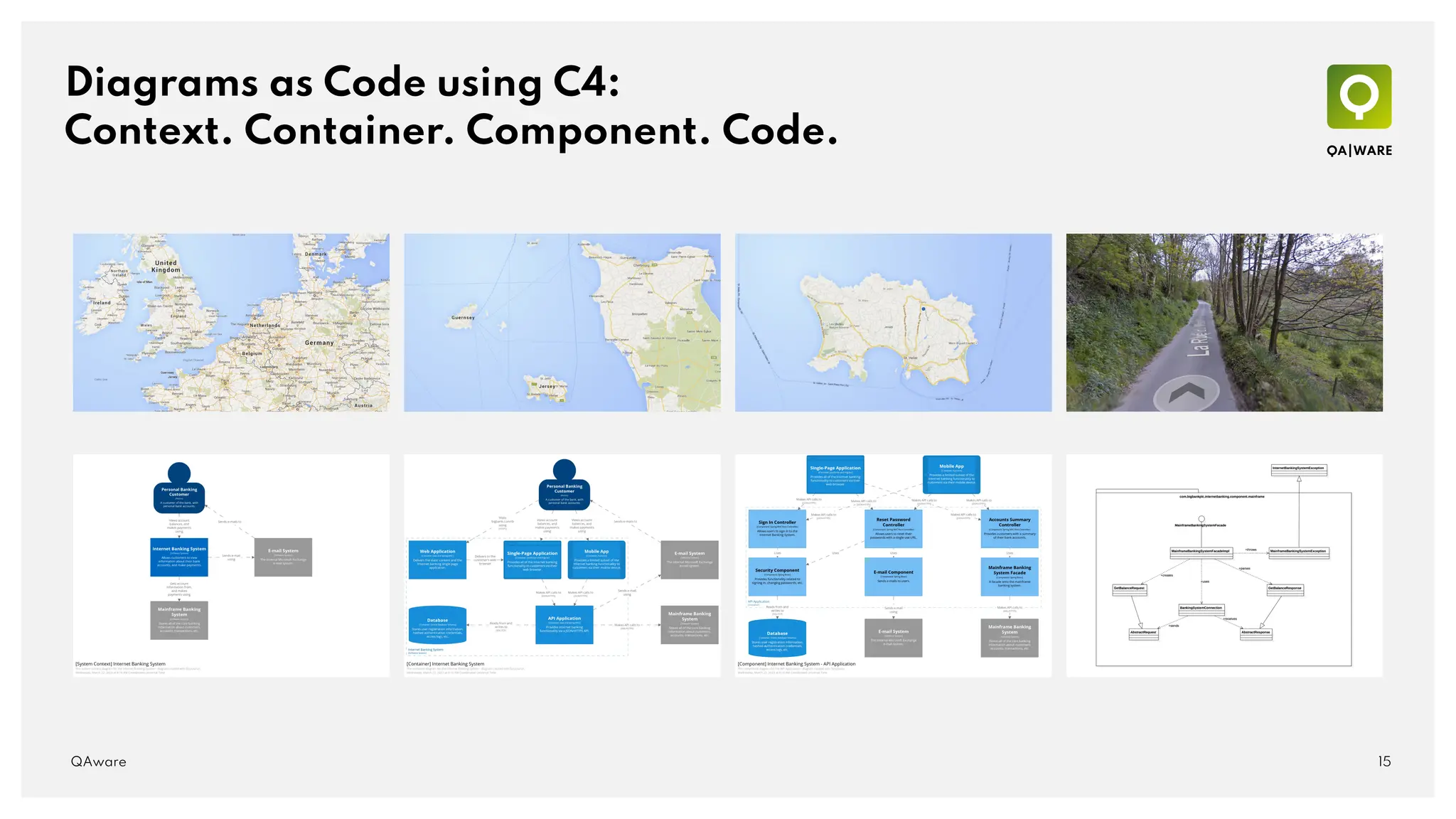

Diagrams as Code using C4:
Context. Container. Component. Code.
15
QAware
16
Decisions

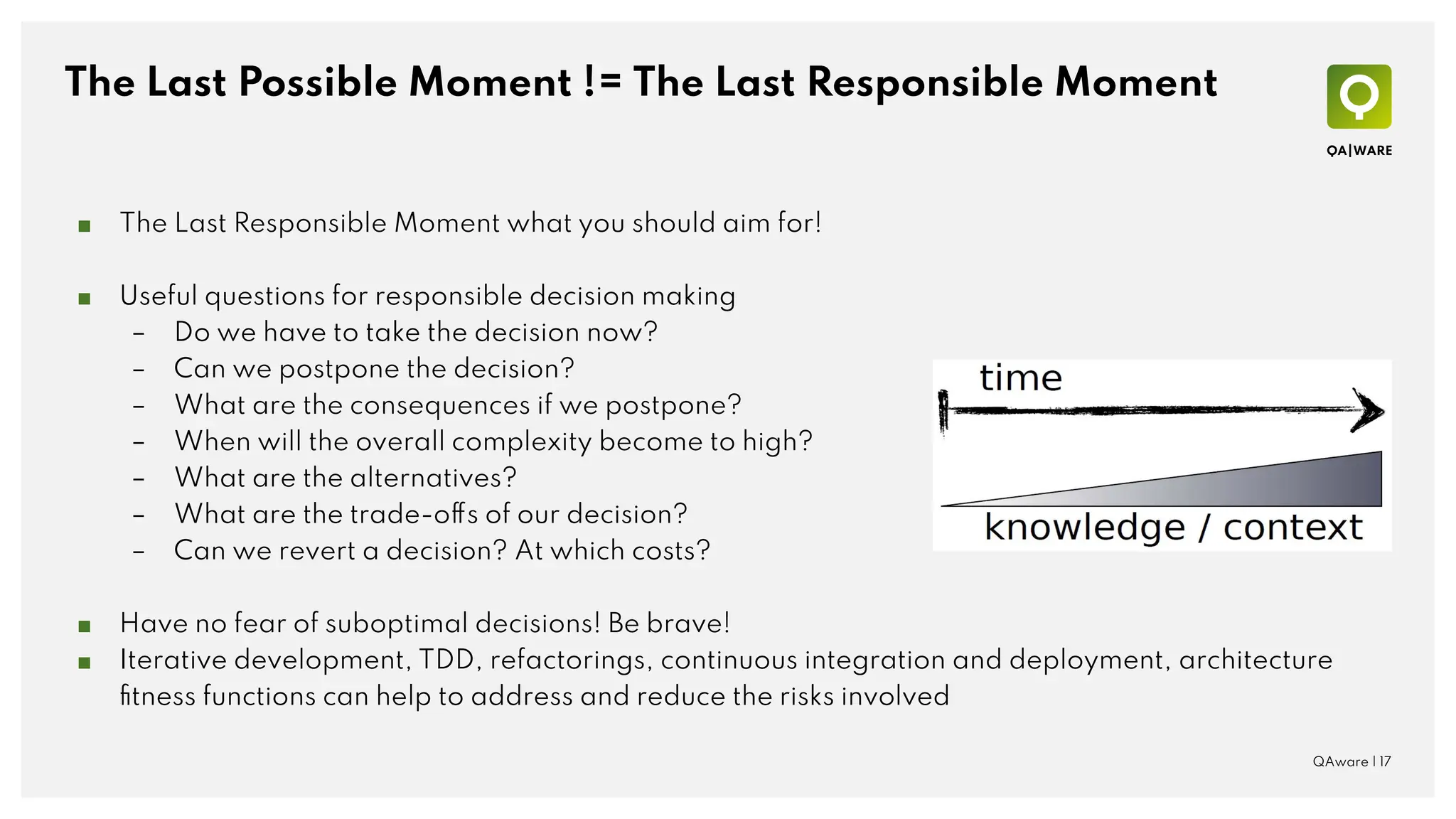

The Last Possible Moment != The Last Responsible Moment
QAware | 17
■ The Last Responsible Moment what you should aim for!
■ Useful questions for responsible decision making
– Do we have to take the decision now?
– Can we postpone the decision?
– What are the consequences if we postpone?
– When will the overall complexity become to high?
– What are the alternatives?
– What are the trade-offs of our decision?
– Can we revert a decision? At which costs?
■ Have no fear of suboptimal decisions! Be brave!
■ Iterative development, TDD, refactorings, continuous integration and deployment, architecture
fitness functions can help to address and reduce the risks involved

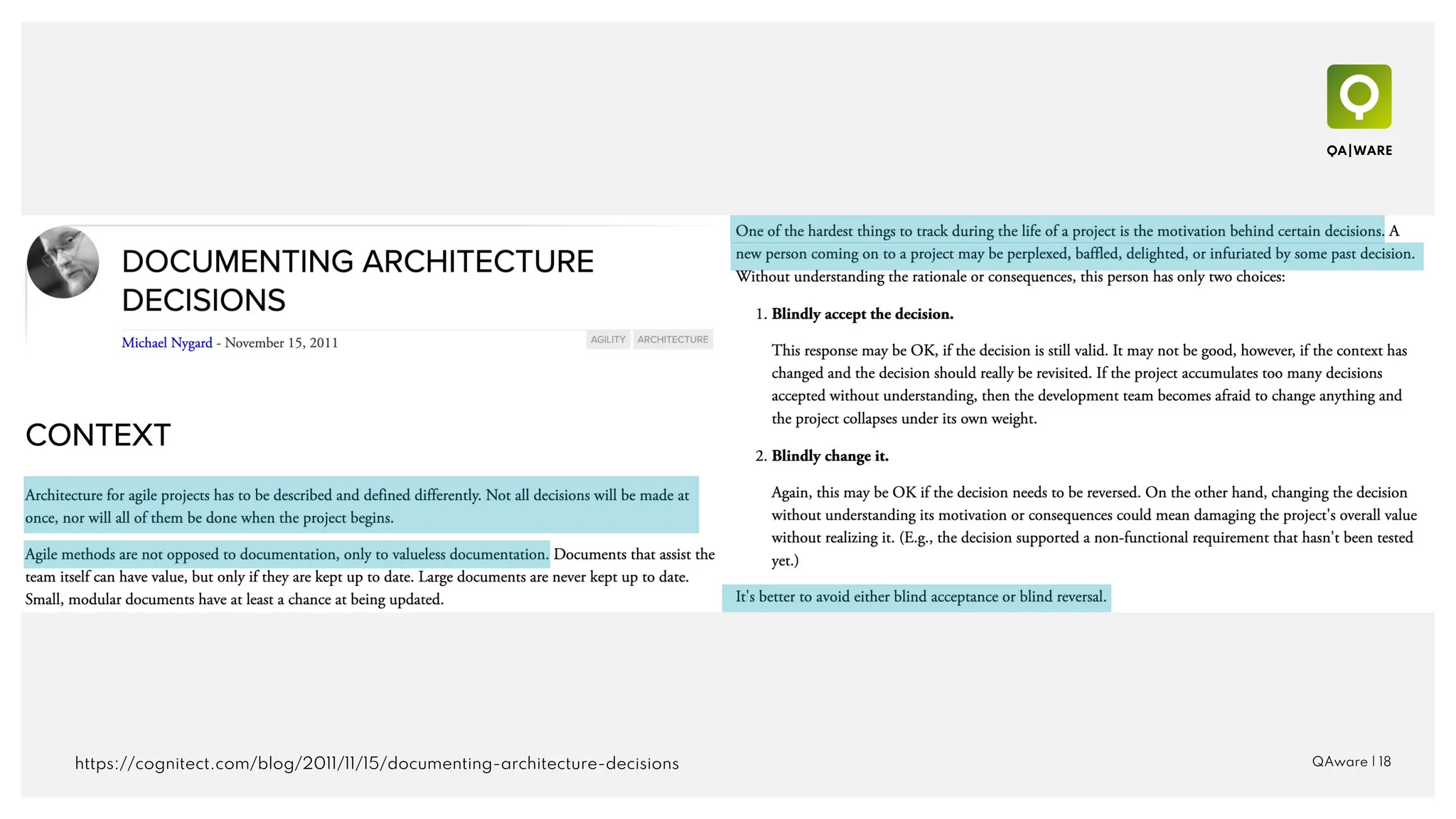

QAware | 18
https://cognitect.com/blog/2011/11/15/documenting-architecture-decisions

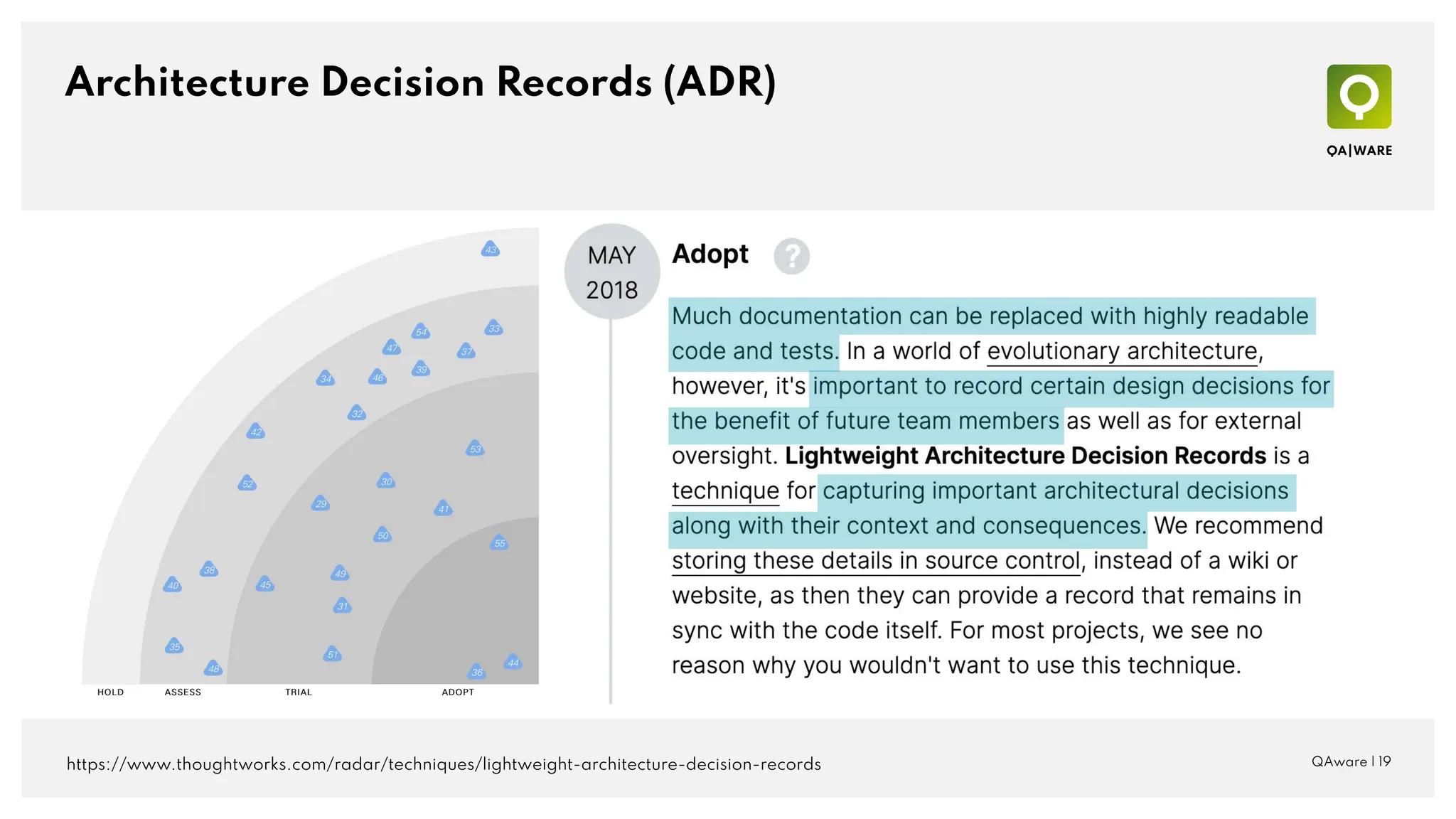

Architecture Decision Records (ADR)
QAware | 19
https://www.thoughtworks.com/radar/techniques/lightweight-architecture-decision-records

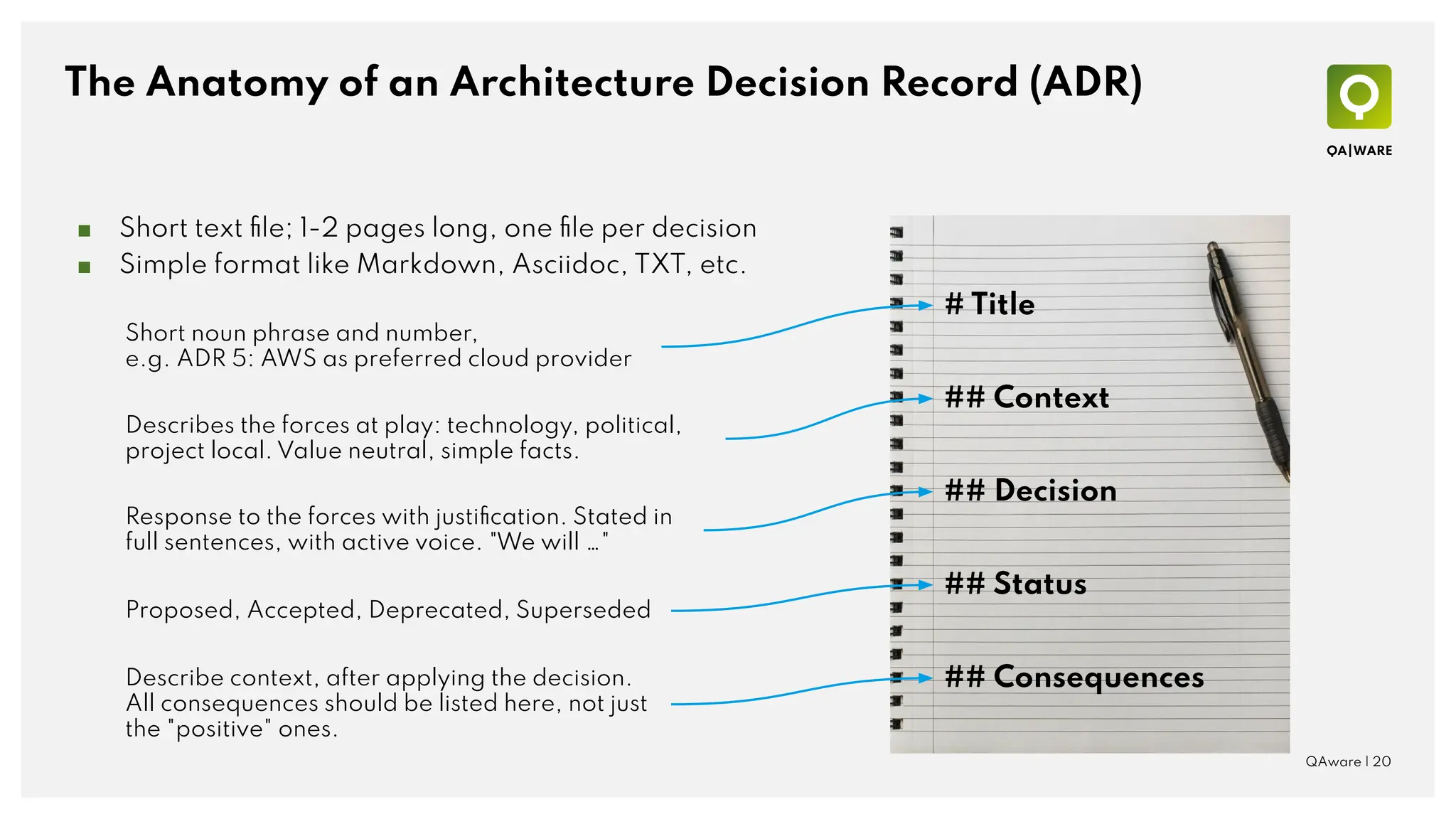

The Anatomy of an Architecture Decision Record (ADR)
QAware | 20
# Title
## Context
## Decision
## Status
## Consequences
■ Short text file; 1-2 pages long, one file per decision
■ Simple format like Markdown, Asciidoc, TXT, etc.
Short noun phrase and number,
e.g. ADR 5: AWS as preferred cloud provider
Proposed, Accepted, Deprecated, Superseded
Describes the forces at play: technology, political,
project local. Value neutral, simple facts.
Response to the forces with justification. Stated in
full sentences, with active voice. "We will …"
Describe context, after applying the decision.
All consequences should be listed here, not just
the "positive" ones.

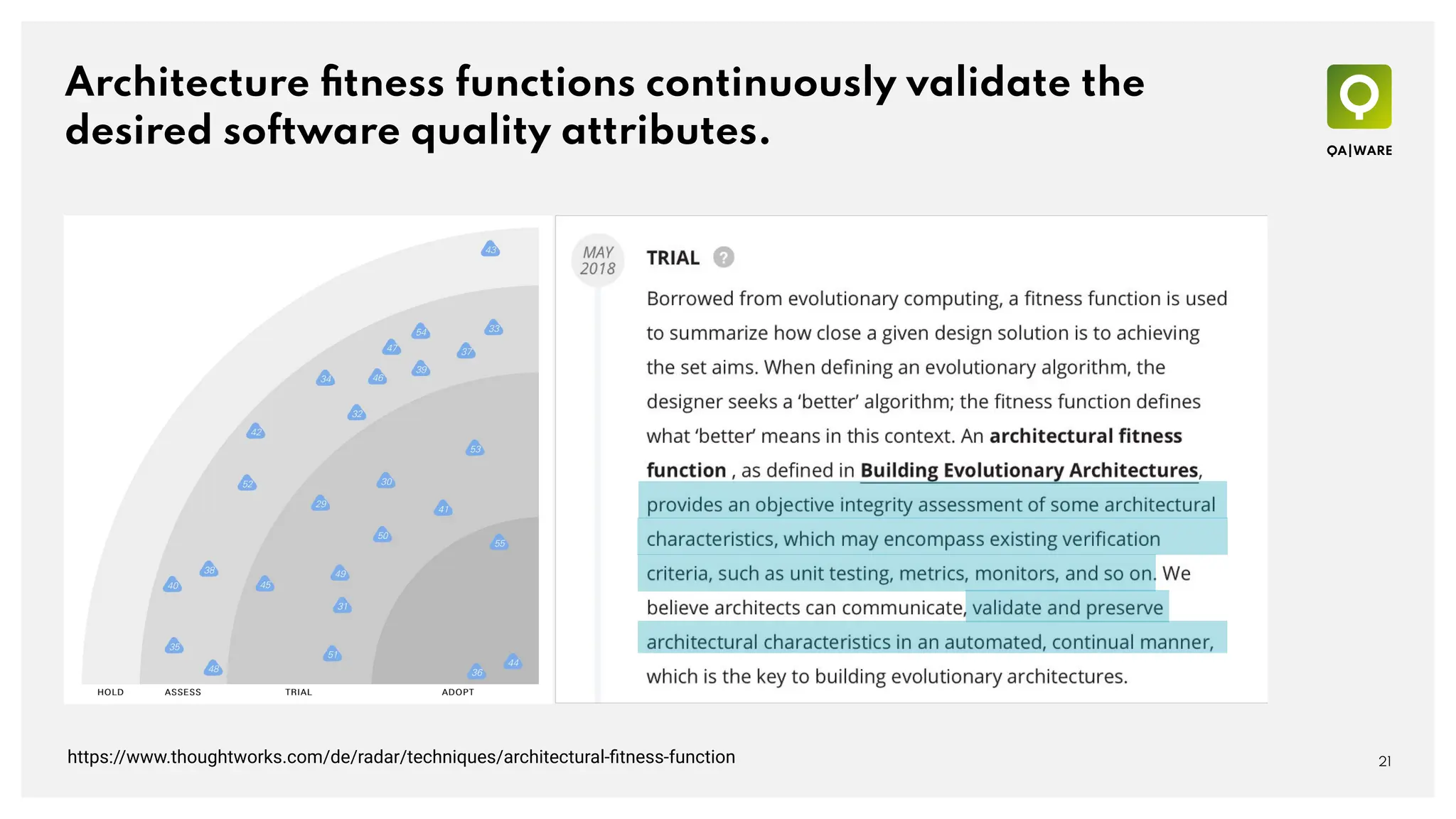

Architecture fitness functions continuously validate the
desired software quality attributes.
21
https://www.thoughtworks.com/de/radar/techniques/architectural-fitness-function

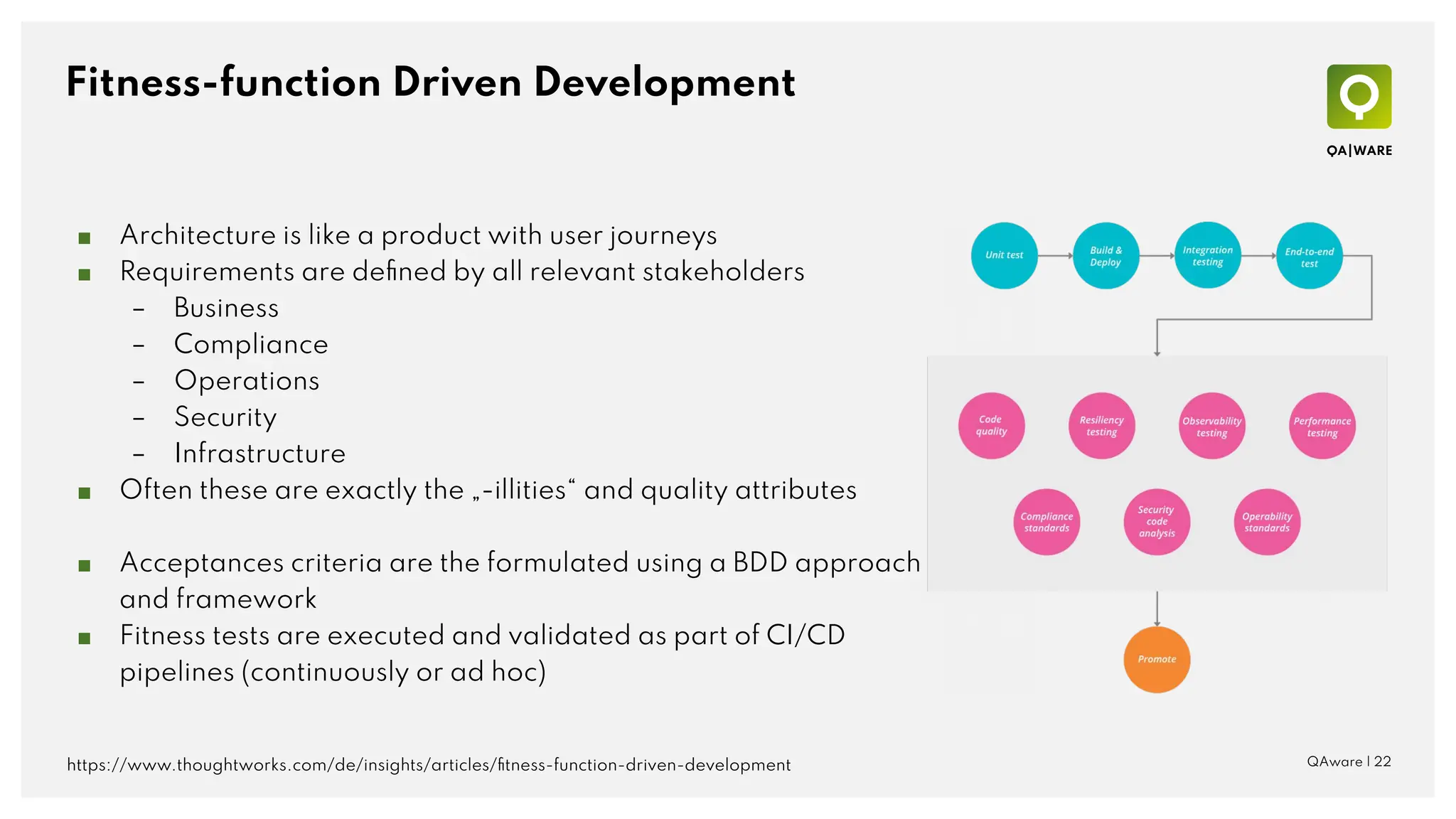

Fitness-function Driven Development
QAware | 22
■ Architecture is like a product with user journeys
■ Requirements are defined by all relevant stakeholders
– Business
– Compliance
– Operations
– Security
– Infrastructure
■ Often these are exactly the „-illities“ and quality attributes
■ Acceptances criteria are the formulated using a BDD approach
and framework
■ Fitness tests are executed and validated as part of CI/CD
pipelines (continuously or ad hoc)
https://www.thoughtworks.com/de/insights/articles/fitness-function-driven-development

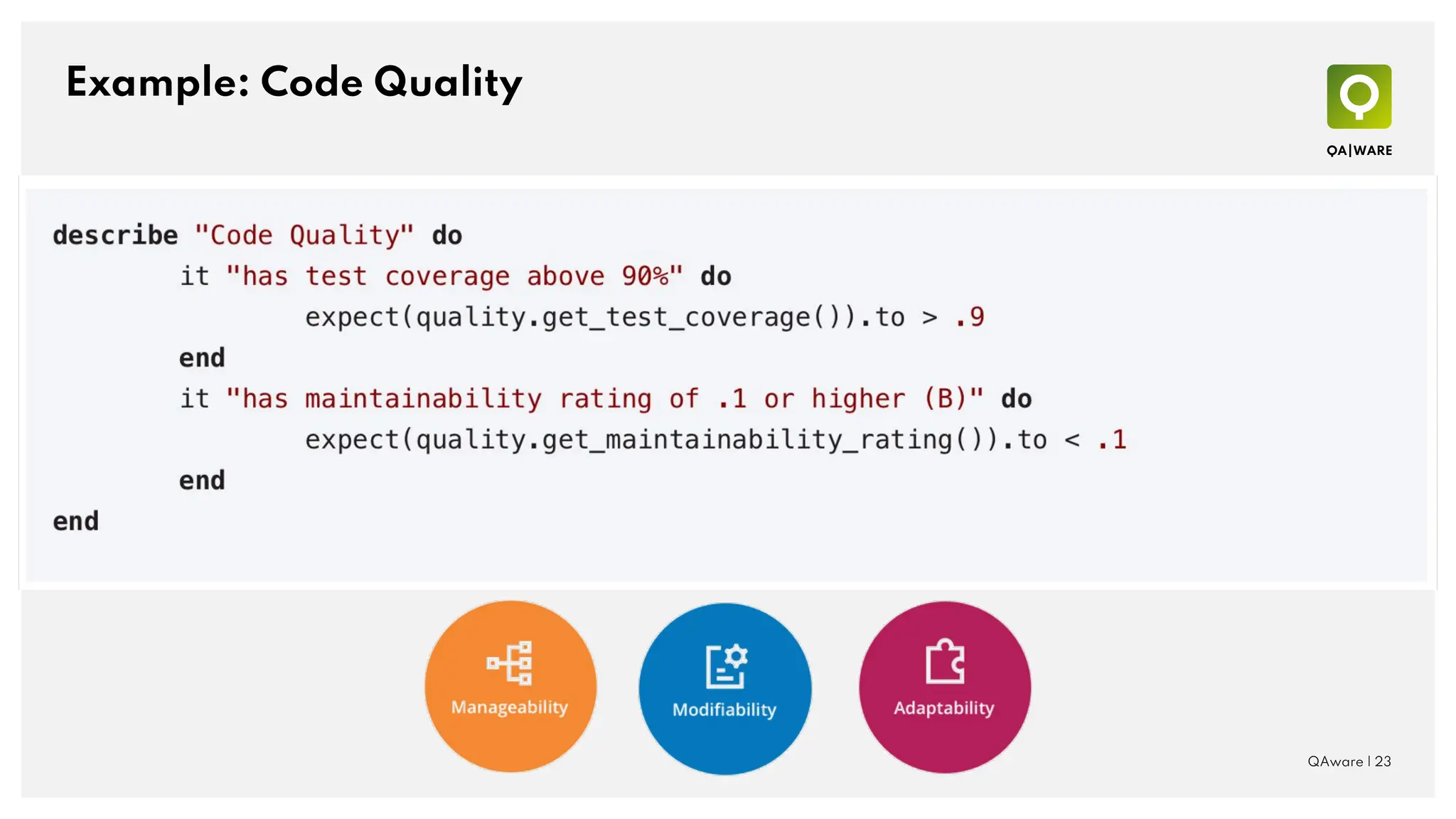

Example: Code Quality
QAware | 23

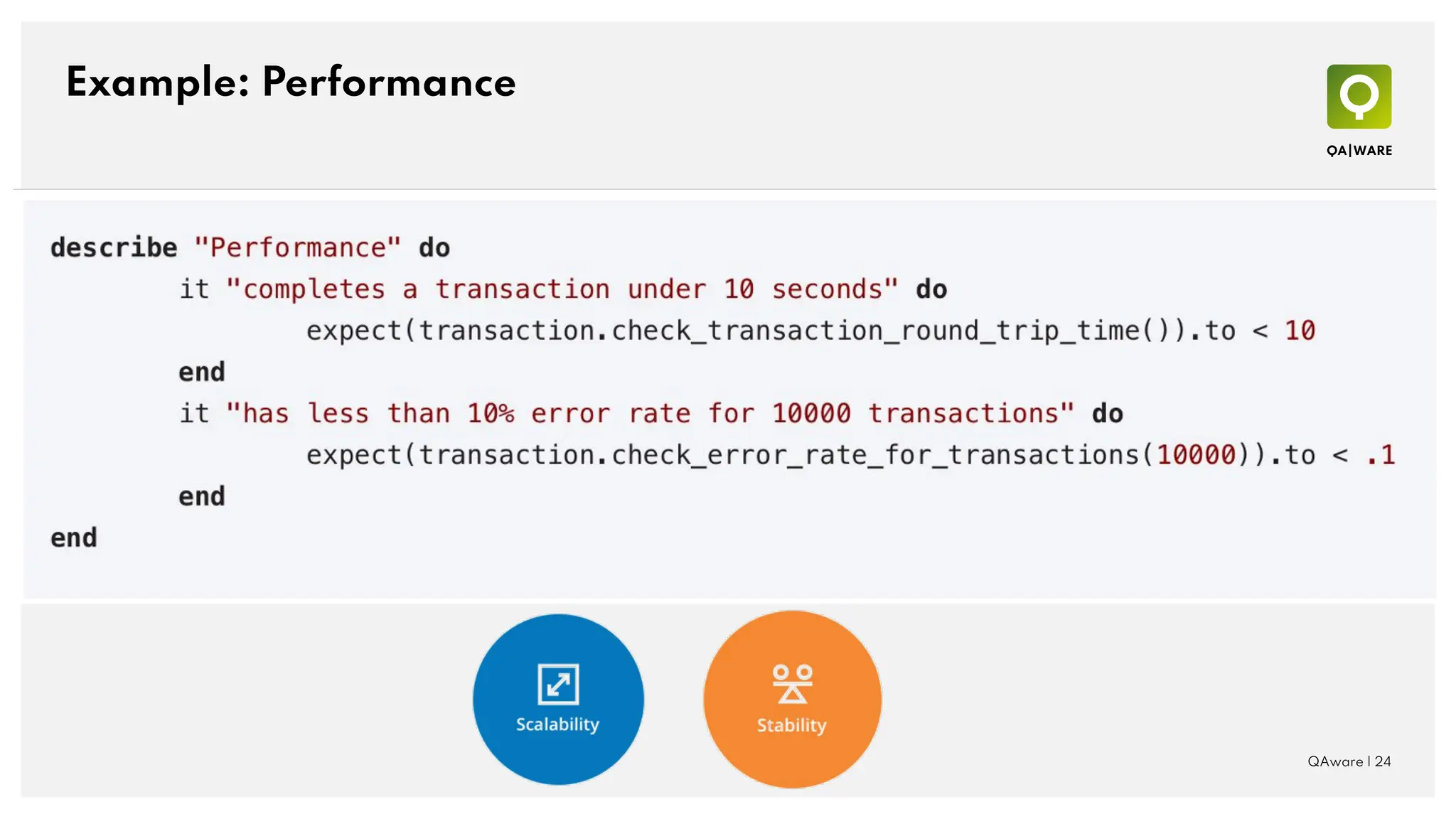

Example: Performance
QAware | 24

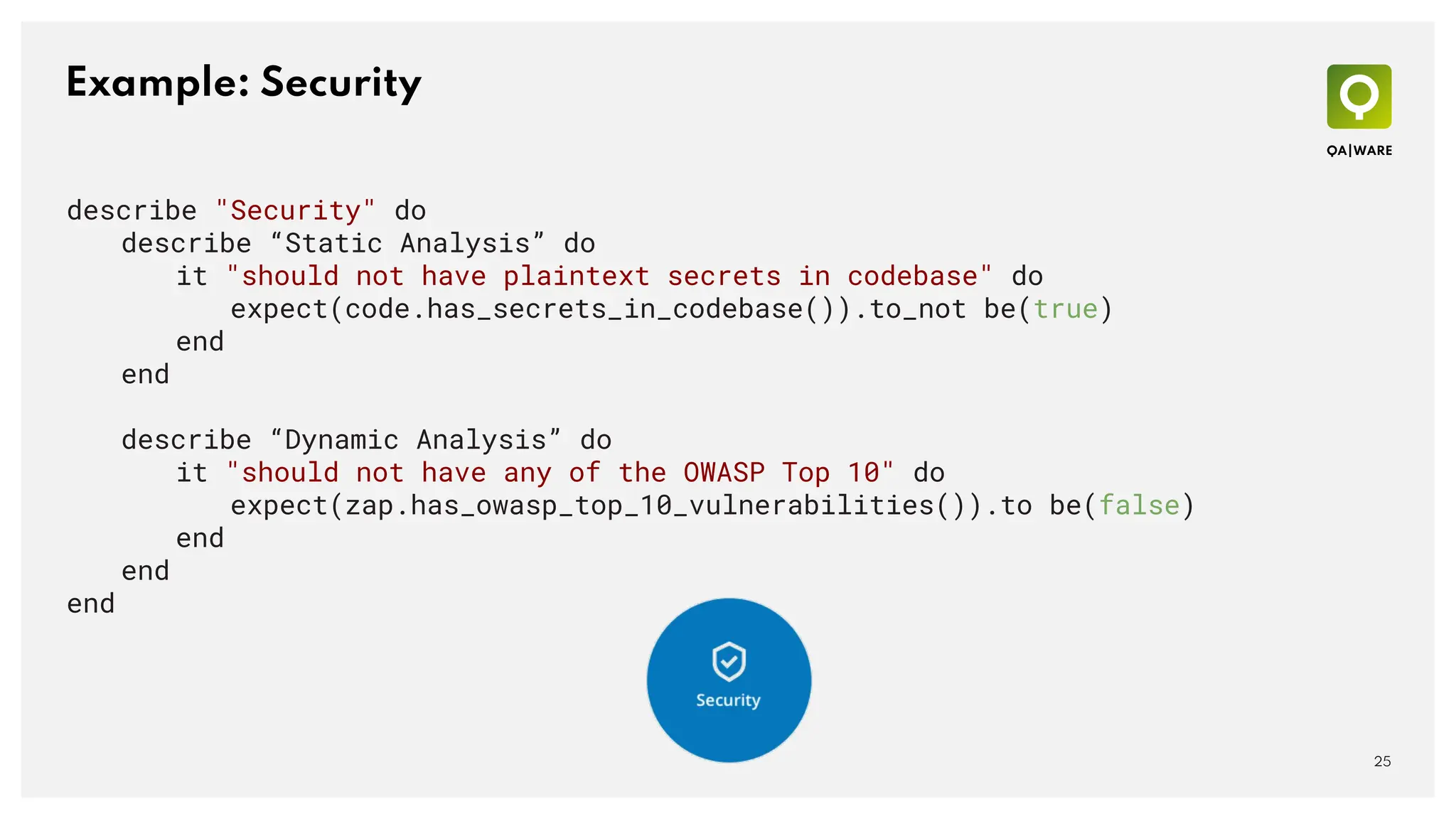

Example: Security
25
describe "Security" do
describe “Static Analysis” do
it "should not have plaintext secrets in codebase" do
expect(code.has_secrets_in_codebase()).to_not be(true)
end
end
describe “Dynamic Analysis” do
it "should not have any of the OWASP Top 10" do
expect(zap.has_owasp_top_10_vulnerabilities()).to be(false)
end
end
end

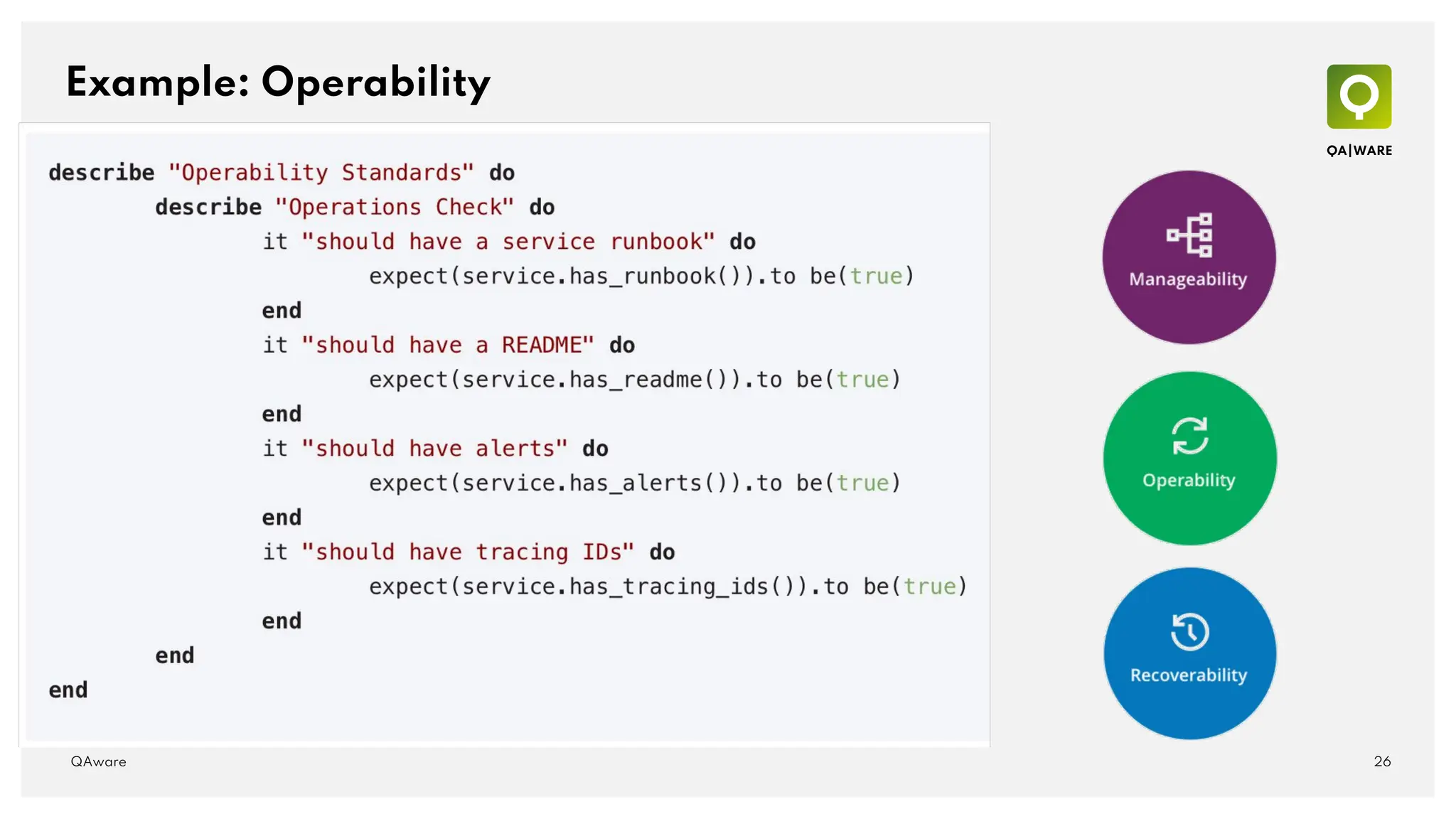

Example: Operability
26
QAware
27
QAware
+

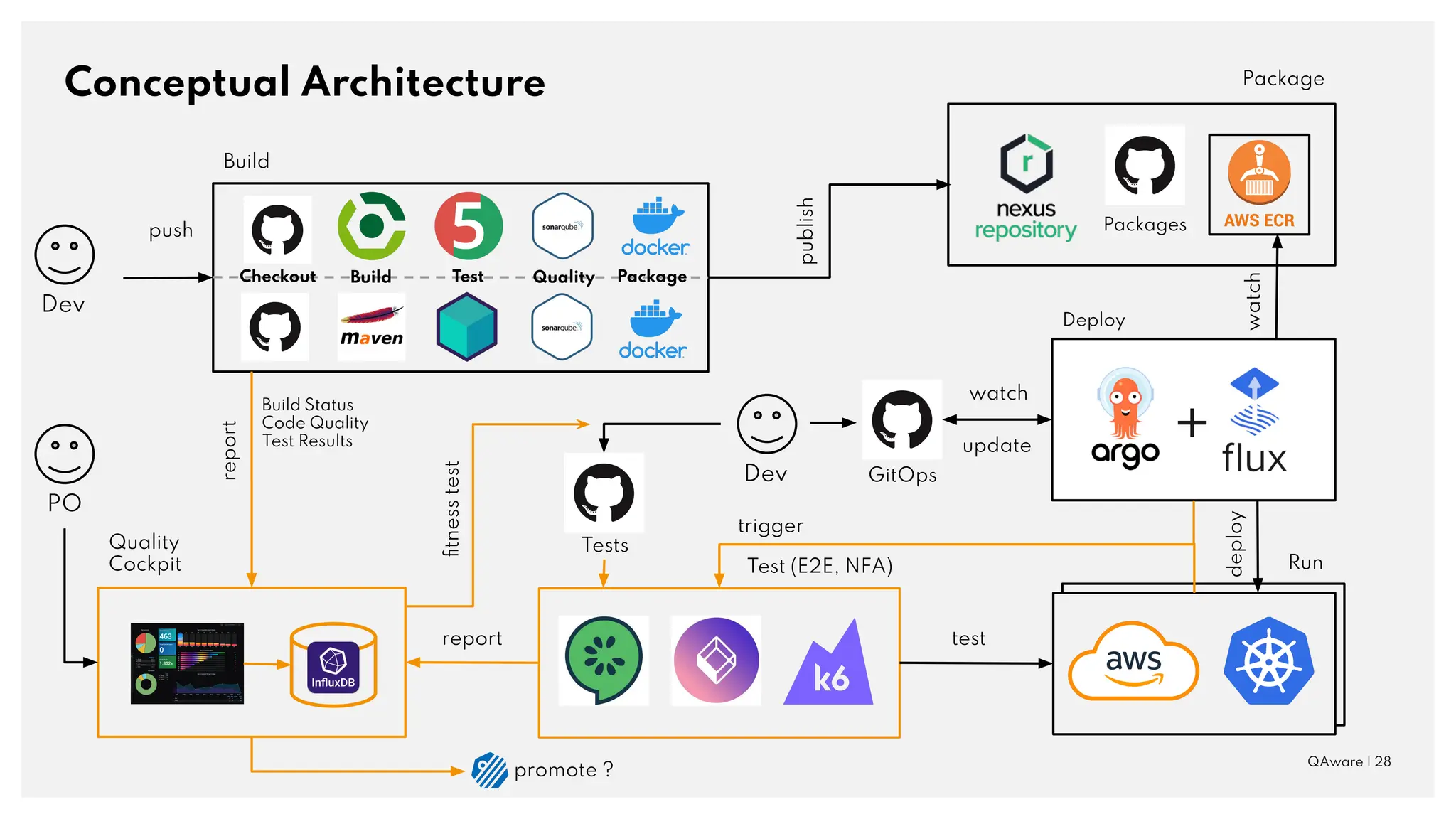

Conceptual Architecture
QAware | 28
Packages
Package
publish
update
Run
deploy
watch
Deploy
watch
Dev GitOps
Build
push
Checkout Build Test Quality Package
Dev
Test (E2E, NFA)
trigger
test
Tests
Quality
Cockpit
report
PO
report
Build Status
Code Quality
Test Results
fitness
test
promote ?

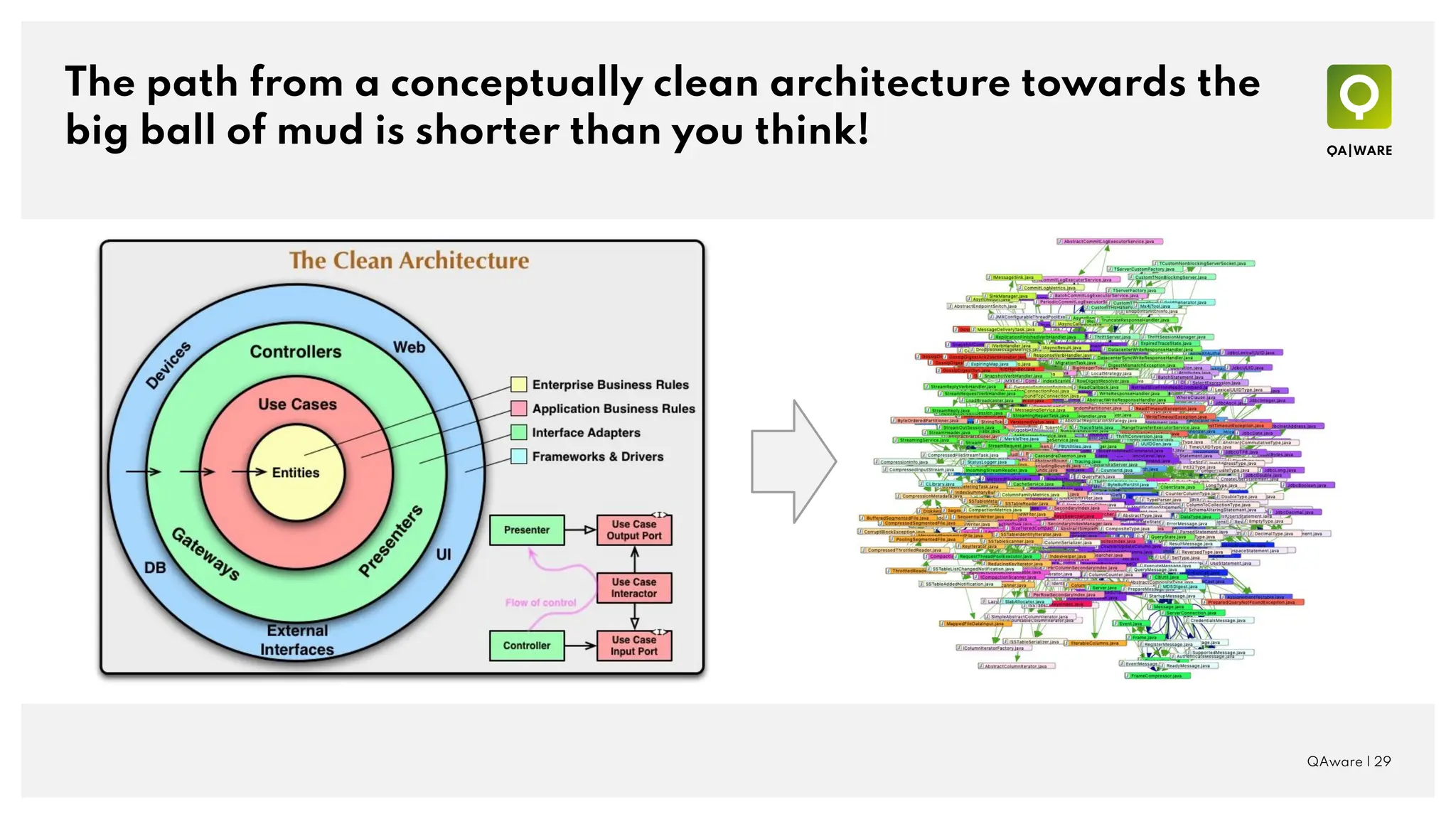

The path from a conceptually clean architecture towards the
big ball of mud is shorter than you think!
QAware | 29

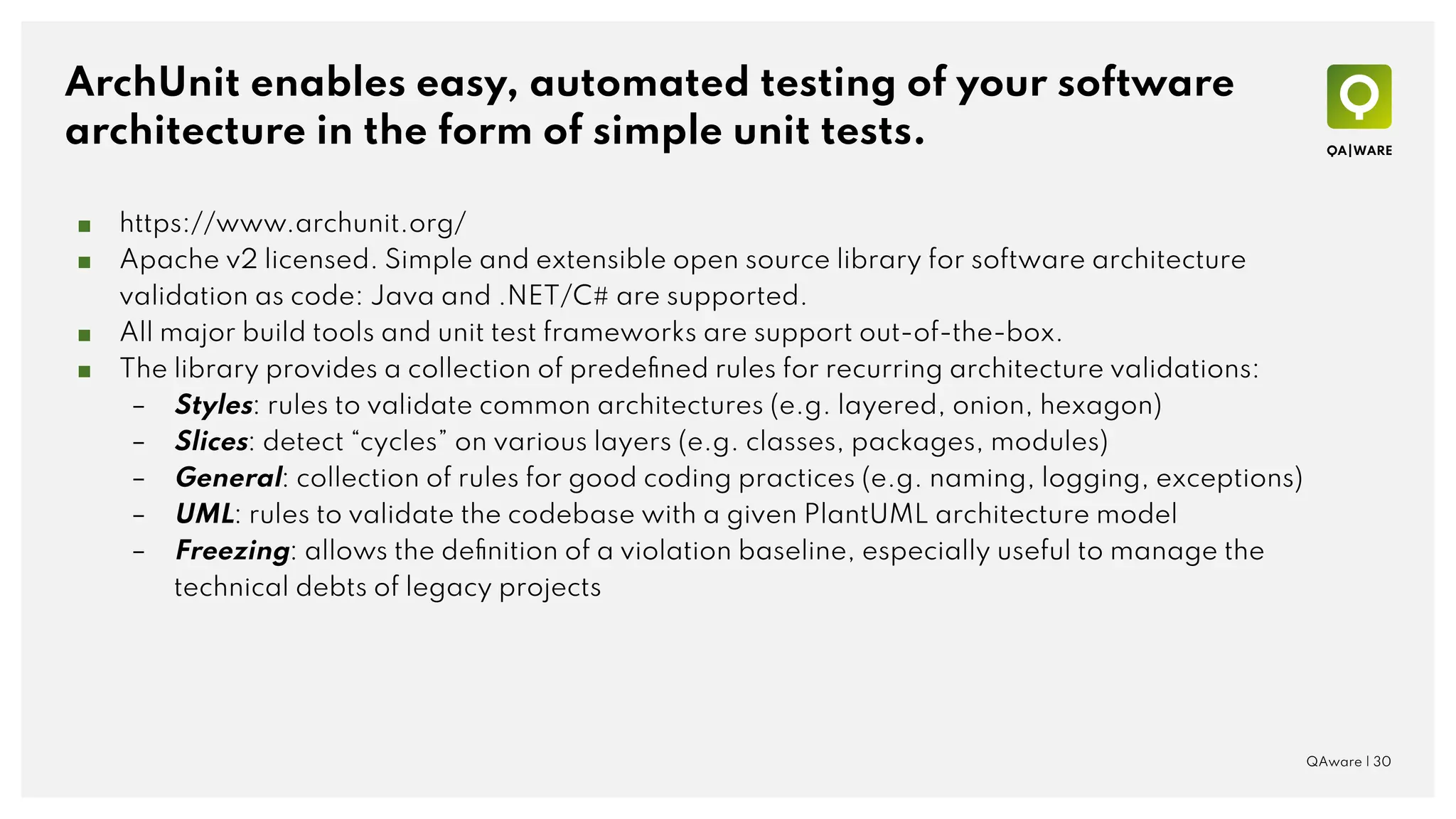

ArchUnit enables easy, automated testing of your software
architecture in the form of simple unit tests.
■ https://www.archunit.org/
■ Apache v2 licensed. Simple and extensible open source library for software architecture
validation as code: Java and .NET/C# are supported.
■ All major build tools and unit test frameworks are support out-of-the-box.
■ The library provides a collection of predefined rules for recurring architecture validations:
– Styles: rules to validate common architectures (e.g. layered, onion, hexagon)
– Slices: detect “cycles” on various layers (e.g. classes, packages, modules)
– General: collection of rules for good coding practices (e.g. naming, logging, exceptions)
– UML: rules to validate the codebase with a given PlantUML architecture model
– Freezing: allows the definition of a violation baseline, especially useful to manage the
technical debts of legacy projects
QAware | 30

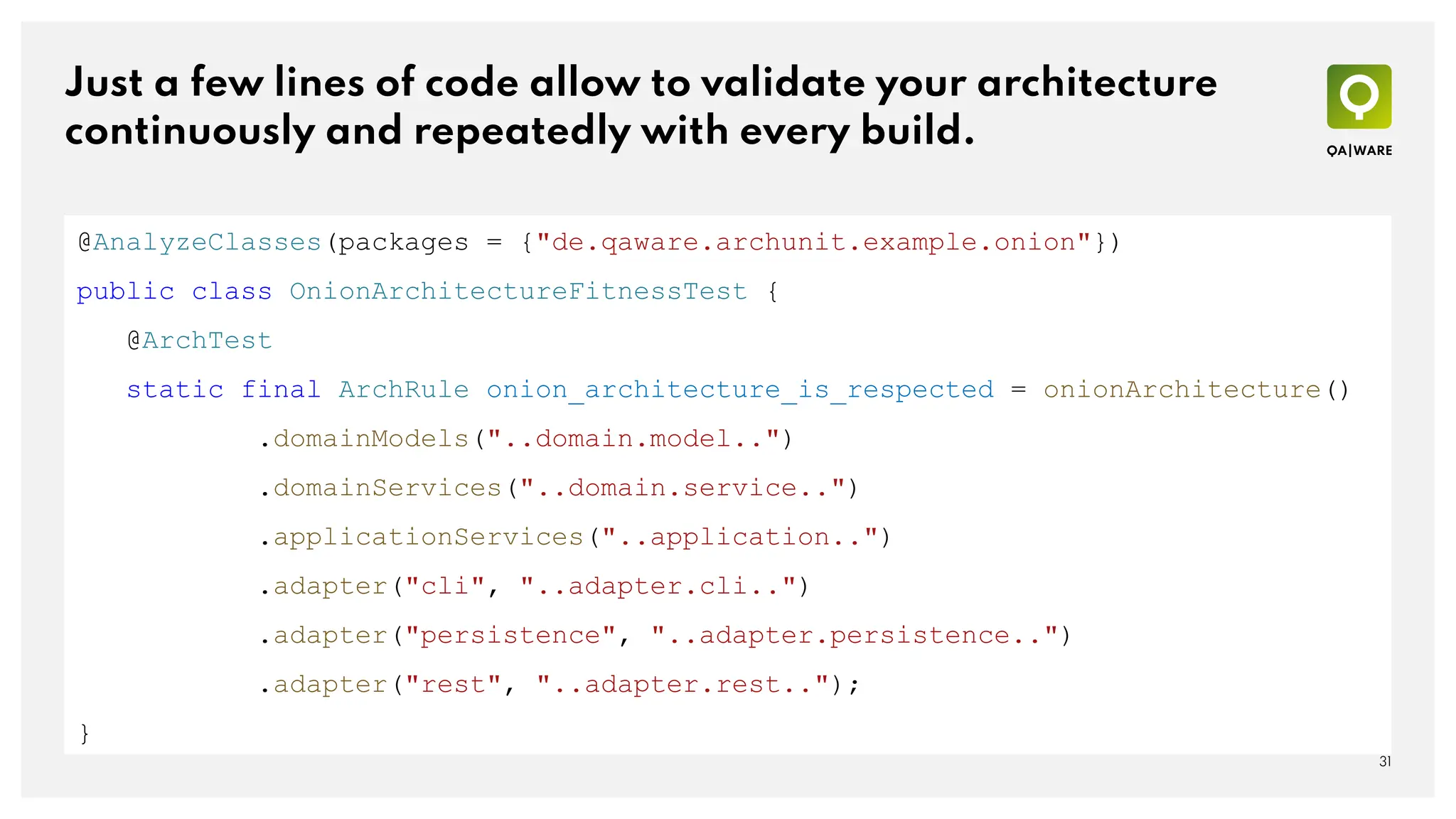

Just a few lines of code allow to validate your architecture
continuously and repeatedly with every build.
31
@AnalyzeClasses(packages = {"de.qaware.archunit.example.onion"})
public class OnionArchitectureFitnessTest {
@ArchTest
static final ArchRule onion_architecture_is_respected = onionArchitecture()
.domainModels("..domain.model..")
.domainServices("..domain.service..")
.applicationServices("..application..")
.adapter("cli", "..adapter.cli..")
.adapter("persistence", "..adapter.persistence..")
.adapter("rest", "..adapter.rest..");
}
QAware | 32
Where wood is chopped,
splinters must fall!

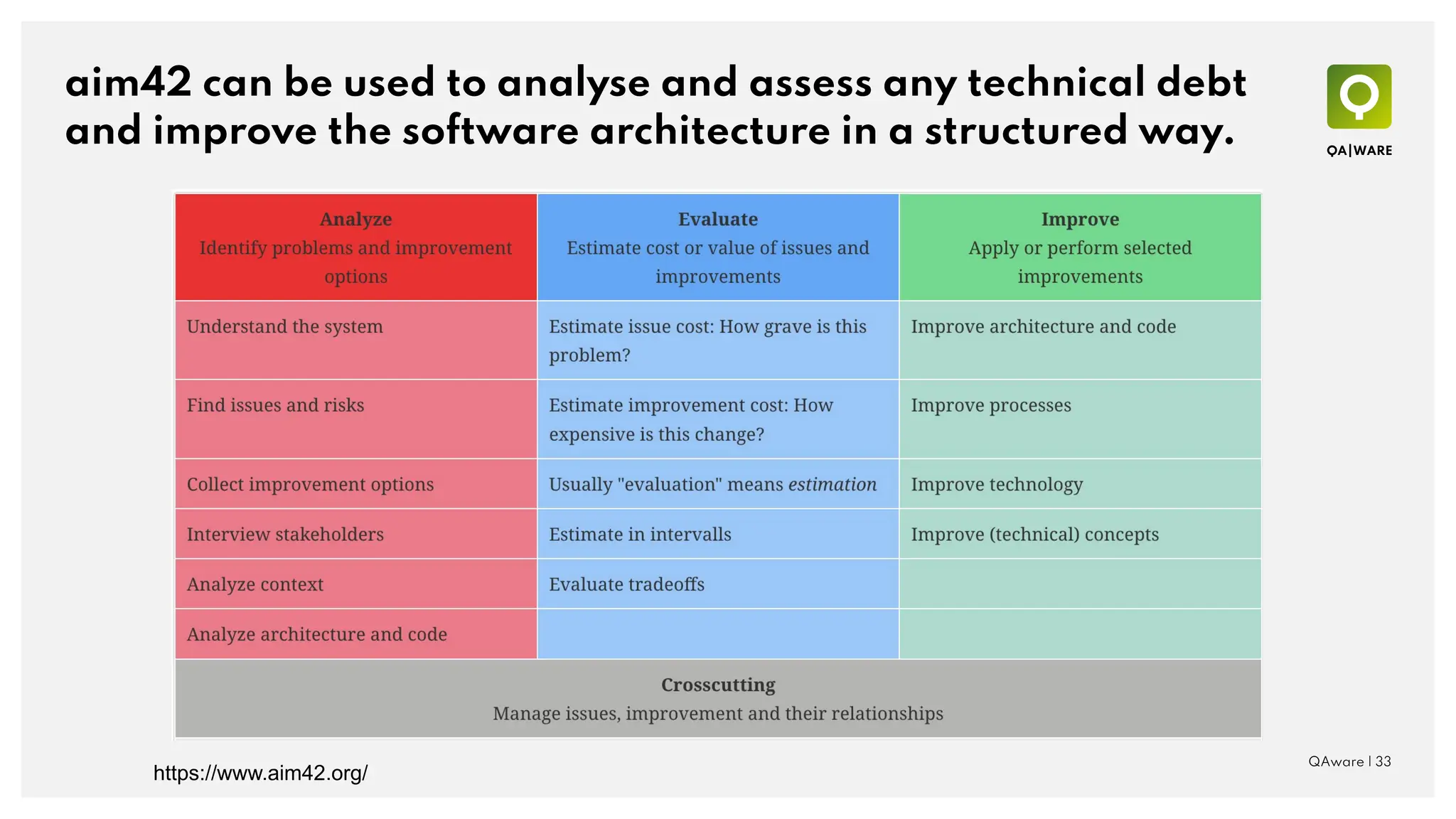

aim42 can be used to analyse and assess any technical debt
and improve the software architecture in a structured way.
QAware | 33
https://www.aim42.org/

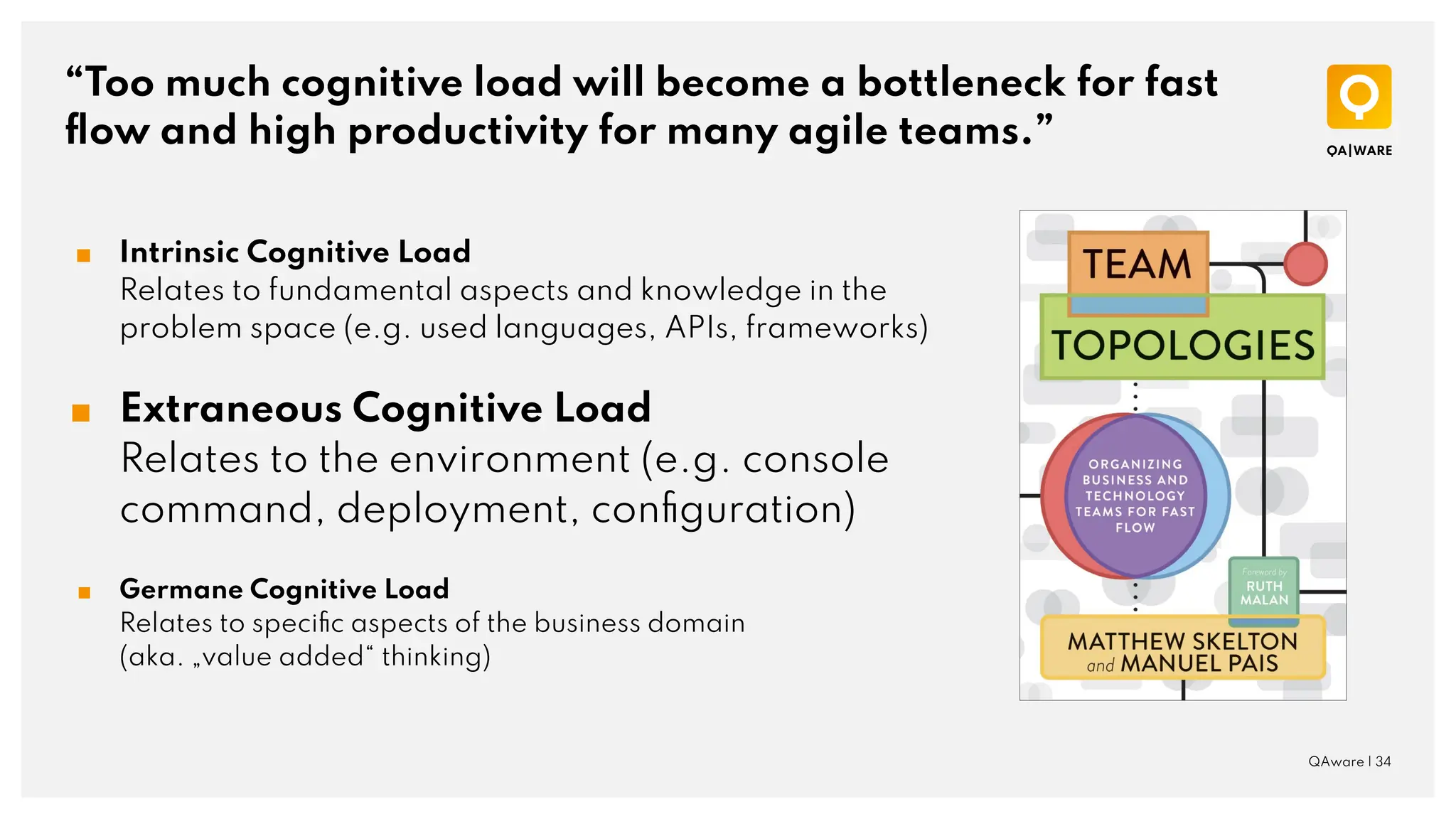

“Too much cognitive load will become a bottleneck for fast
flow and high productivity for many agile teams.”
QAware | 34
■ Intrinsic Cognitive Load
Relates to fundamental aspects and knowledge in the
problem space (e.g. used languages, APIs, frameworks)
■ Extraneous Cognitive Load
Relates to the environment (e.g. console
command, deployment, configuration)
■ Germane Cognitive Load
Relates to specific aspects of the business domain
(aka. „value added“ thinking)

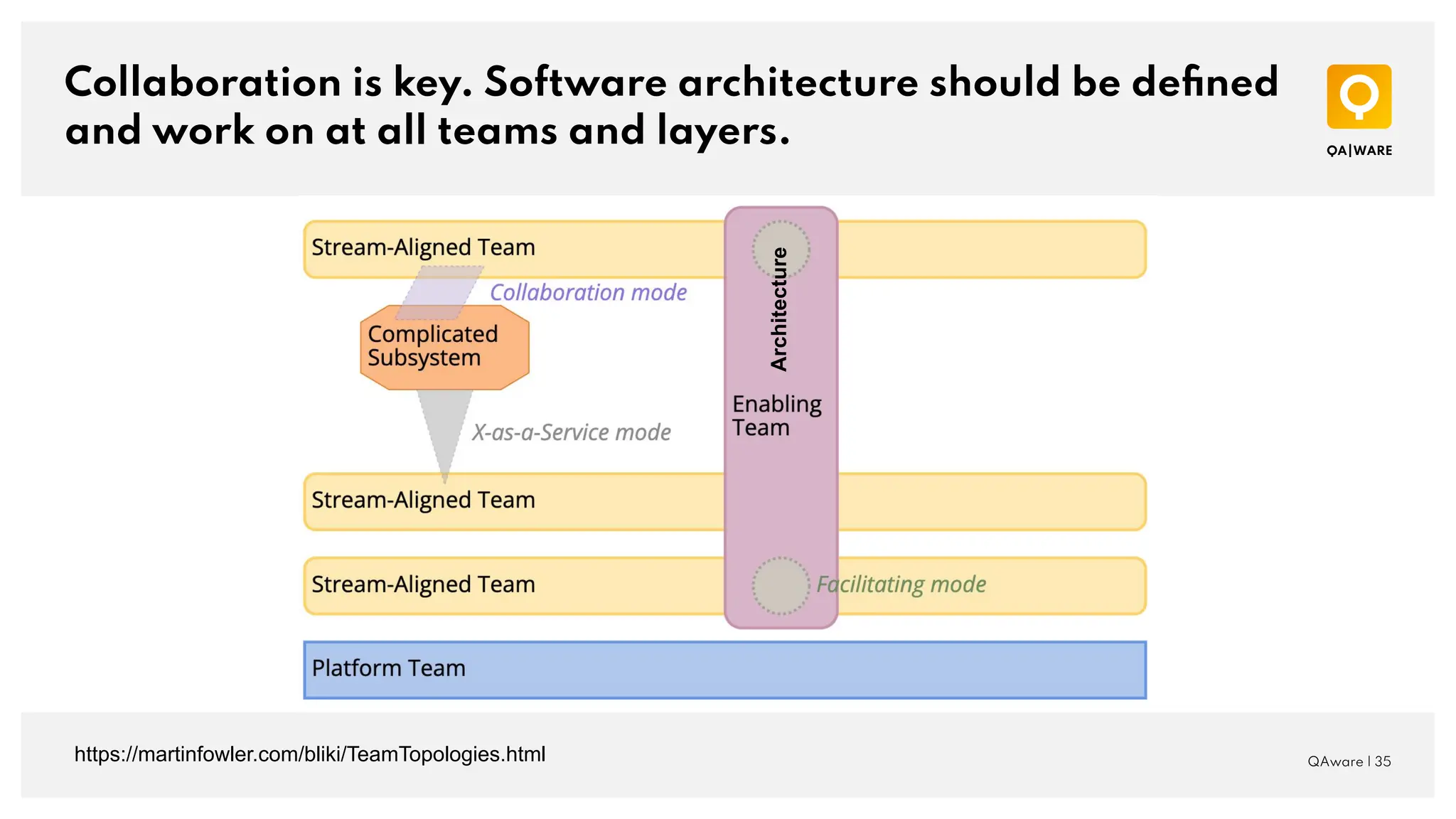

Collaboration is key. Software architecture should be defined
and work on at all teams and layers.
QAware | 35
https://martinfowler.com/bliki/TeamTopologies.html
Architecture
Beyond Agile Architecture.
My personal book list for inspirations and new approaches.
36
QAware
qaware.de
QAware GmbH
Aschauer Straße 32
81549 München
Tel. +49 89 232315-0
info@qaware.de
twitter.com/qaware
linkedin.com/company/qaware-gmbh
xing.com/companies/qawaregmbh
slideshare.net/qaware
github.com/qaware

More Related Content

Similar to Down the Ivory Tower towards Agile Architecture

Slide DevSecOps Microservices
Slide DevSecOps Microservices Slide DevSecOps Microservices
Slide DevSecOps Microservices Hendri Karisma

Clean Infrastructure as Code
Clean Infrastructure as Code Clean Infrastructure as Code
Clean Infrastructure as Code QAware GmbH

VMworld 2014: The Software-Defined Datacenter, VMs, and Containers
VMworld 2014: The Software-Defined Datacenter, VMs, and ContainersVMworld 2014: The Software-Defined Datacenter, VMs, and Containers
VMworld 2014: The Software-Defined Datacenter, VMs, and ContainersVMworld

Infrastructure as Code Maturity Model v1
Infrastructure as Code Maturity Model v1Infrastructure as Code Maturity Model v1
Infrastructure as Code Maturity Model v1Gary Stafford

AWS Certified DevOps Engineer: What it is and how to get certified
AWS Certified DevOps Engineer: What it is and how to get certifiedAWS Certified DevOps Engineer: What it is and how to get certified
AWS Certified DevOps Engineer: What it is and how to get certifiedInfosec

K8s-native Infrastructure as Code: einfach, deklarativ, produktiv
 K8s-native Infrastructure as Code: einfach, deklarativ, produktiv K8s-native Infrastructure as Code: einfach, deklarativ, produktiv
K8s-native Infrastructure as Code: einfach, deklarativ, produktivQAware GmbH

Software Development : Jeremy Gleason Iscope Digital
Software Development : Jeremy Gleason Iscope DigitalSoftware Development : Jeremy Gleason Iscope Digital
Software Development : Jeremy Gleason Iscope DigitalIscope Digital

agile with scrum methodology
agile with scrum methodology agile with scrum methodology
agile with scrum methodology rahul reddy

Continuous Deployment into the Unknown with Artifactory, Bintray, Docker and ...
Continuous Deployment into the Unknown with Artifactory, Bintray, Docker and ...Continuous Deployment into the Unknown with Artifactory, Bintray, Docker and ...
Continuous Deployment into the Unknown with Artifactory, Bintray, Docker and ...Gilad Garon

Winning Governance Strategies for the Technology Disruptions of our Time
Winning Governance Strategies for the Technology Disruptions of our TimeWinning Governance Strategies for the Technology Disruptions of our Time
Winning Governance Strategies for the Technology Disruptions of our TimeCloudHesive

Devtest Orchestration for SDN & NFV
Devtest Orchestration for SDN & NFVDevtest Orchestration for SDN & NFV
Devtest Orchestration for SDN & NFVAlex Henthorn-Iwane

Using AWS Well Architectured Framework for Software Architecture Evaluations ...
Using AWS Well Architectured Framework for Software Architecture Evaluations ...Using AWS Well Architectured Framework for Software Architecture Evaluations ...
Using AWS Well Architectured Framework for Software Architecture Evaluations ...Alexandr Savchenko

Stay productive while slicing up the monolith
Stay productive while slicing up the monolithStay productive while slicing up the monolith
Stay productive while slicing up the monolithMarkus Eisele

How (and why) to roll your own Docker SaaS
How (and why) to roll your own Docker SaaSHow (and why) to roll your own Docker SaaS
How (and why) to roll your own Docker SaaSRyan Crawford

Stay productive while slicing up the monolith
Stay productive while slicing up the monolithStay productive while slicing up the monolith
Stay productive while slicing up the monolithMarkus Eisele

Continuous Integration with Amazon ECS and Docker
Continuous Integration with Amazon ECS and DockerContinuous Integration with Amazon ECS and Docker
Continuous Integration with Amazon ECS and DockerAmazon Web Services

A curtain-raiser to the container world Docker & Kubernetes
A curtain-raiser to the container world Docker & KubernetesA curtain-raiser to the container world Docker & Kubernetes
A curtain-raiser to the container world Docker & KuberneteszekeLabs Technologies


Similar to Down the Ivory Tower towards Agile Architecture (20)

Slide DevSecOps Microservices
Slide DevSecOps Microservices Slide DevSecOps Microservices
Slide DevSecOps Microservices

Clean Infrastructure as Code
Clean Infrastructure as Code Clean Infrastructure as Code
Clean Infrastructure as Code

VMworld 2014: The Software-Defined Datacenter, VMs, and Containers
VMworld 2014: The Software-Defined Datacenter, VMs, and ContainersVMworld 2014: The Software-Defined Datacenter, VMs, and Containers
VMworld 2014: The Software-Defined Datacenter, VMs, and Containers

Infrastructure as Code Maturity Model v1
Infrastructure as Code Maturity Model v1Infrastructure as Code Maturity Model v1
Infrastructure as Code Maturity Model v1

Elastic-Engineering
Elastic-EngineeringElastic-Engineering
Elastic-Engineering

AWS Certified DevOps Engineer: What it is and how to get certified
AWS Certified DevOps Engineer: What it is and how to get certifiedAWS Certified DevOps Engineer: What it is and how to get certified
AWS Certified DevOps Engineer: What it is and how to get certified

K8s-native Infrastructure as Code: einfach, deklarativ, produktiv
 K8s-native Infrastructure as Code: einfach, deklarativ, produktiv K8s-native Infrastructure as Code: einfach, deklarativ, produktiv
K8s-native Infrastructure as Code: einfach, deklarativ, produktiv

Software Development : Jeremy Gleason Iscope Digital
Software Development : Jeremy Gleason Iscope DigitalSoftware Development : Jeremy Gleason Iscope Digital
Software Development : Jeremy Gleason Iscope Digital

agile with scrum methodology
agile with scrum methodology agile with scrum methodology
agile with scrum methodology

Continuous Deployment into the Unknown with Artifactory, Bintray, Docker and ...
Continuous Deployment into the Unknown with Artifactory, Bintray, Docker and ...Continuous Deployment into the Unknown with Artifactory, Bintray, Docker and ...
Continuous Deployment into the Unknown with Artifactory, Bintray, Docker and ...

Winning Governance Strategies for the Technology Disruptions of our Time
Winning Governance Strategies for the Technology Disruptions of our TimeWinning Governance Strategies for the Technology Disruptions of our Time
Winning Governance Strategies for the Technology Disruptions of our Time

Cloud Native Application Development
Cloud Native Application DevelopmentCloud Native Application Development
Cloud Native Application Development

Devtest Orchestration for SDN & NFV
Devtest Orchestration for SDN & NFVDevtest Orchestration for SDN & NFV
Devtest Orchestration for SDN & NFV

Using AWS Well Architectured Framework for Software Architecture Evaluations ...
Using AWS Well Architectured Framework for Software Architecture Evaluations ...Using AWS Well Architectured Framework for Software Architecture Evaluations ...
Using AWS Well Architectured Framework for Software Architecture Evaluations ...

Power of Azure Devops
Power of Azure DevopsPower of Azure Devops
Power of Azure Devops

Stay productive while slicing up the monolith
Stay productive while slicing up the monolithStay productive while slicing up the monolith
Stay productive while slicing up the monolith

How (and why) to roll your own Docker SaaS
How (and why) to roll your own Docker SaaSHow (and why) to roll your own Docker SaaS
How (and why) to roll your own Docker SaaS

Stay productive while slicing up the monolith
Stay productive while slicing up the monolithStay productive while slicing up the monolith
Stay productive while slicing up the monolith

Continuous Integration with Amazon ECS and Docker
Continuous Integration with Amazon ECS and DockerContinuous Integration with Amazon ECS and Docker
Continuous Integration with Amazon ECS and Docker

A curtain-raiser to the container world Docker & Kubernetes
A curtain-raiser to the container world Docker & KubernetesA curtain-raiser to the container world Docker & Kubernetes
A curtain-raiser to the container world Docker & Kubernetes


More from QAware GmbH

50 Shades of K8s Autoscaling #JavaLand24.pdf
50 Shades of K8s Autoscaling #JavaLand24.pdf50 Shades of K8s Autoscaling #JavaLand24.pdf
50 Shades of K8s Autoscaling #JavaLand24.pdfQAware GmbH

Make Agile Great - PM-Erfahrungen aus zwei virtuellen internationalen SAFe-Pr...
Make Agile Great - PM-Erfahrungen aus zwei virtuellen internationalen SAFe-Pr...Make Agile Great - PM-Erfahrungen aus zwei virtuellen internationalen SAFe-Pr...
Make Agile Great - PM-Erfahrungen aus zwei virtuellen internationalen SAFe-Pr...QAware GmbH

Fully-managed Cloud-native Databases: The path to indefinite scale @ CNN Mainz
Fully-managed Cloud-native Databases: The path to indefinite scale @ CNN MainzFully-managed Cloud-native Databases: The path to indefinite scale @ CNN Mainz
Fully-managed Cloud-native Databases: The path to indefinite scale @ CNN MainzQAware GmbH

"Mixed" Scrum-Teams – Die richtige Mischung macht's!
"Mixed" Scrum-Teams – Die richtige Mischung macht's!"Mixed" Scrum-Teams – Die richtige Mischung macht's!
"Mixed" Scrum-Teams – Die richtige Mischung macht's!QAware GmbH

Make Developers Fly: Principles for Platform Engineering
Make Developers Fly: Principles for Platform EngineeringMake Developers Fly: Principles for Platform Engineering
Make Developers Fly: Principles for Platform EngineeringQAware GmbH

Der Tod der Testpyramide? – Frontend-Testing mit Playwright
Der Tod der Testpyramide? – Frontend-Testing mit PlaywrightDer Tod der Testpyramide? – Frontend-Testing mit Playwright
Der Tod der Testpyramide? – Frontend-Testing mit PlaywrightQAware GmbH

Was kommt nach den SPAs
Was kommt nach den SPAsWas kommt nach den SPAs
Was kommt nach den SPAsQAware GmbH

Cloud Migration mit KI: der Turbo
Cloud Migration mit KI: der Turbo Cloud Migration mit KI: der Turbo
Cloud Migration mit KI: der Turbo QAware GmbH

Migration von stark regulierten Anwendungen in die Cloud: Dem Teufel die See...
 Migration von stark regulierten Anwendungen in die Cloud: Dem Teufel die See... Migration von stark regulierten Anwendungen in die Cloud: Dem Teufel die See...
Migration von stark regulierten Anwendungen in die Cloud: Dem Teufel die See...QAware GmbH

Aus blau wird grün! Ansätze und Technologien für nachhaltige Kubernetes-Cluster
Aus blau wird grün! Ansätze und Technologien für nachhaltige Kubernetes-Cluster Aus blau wird grün! Ansätze und Technologien für nachhaltige Kubernetes-Cluster
Aus blau wird grün! Ansätze und Technologien für nachhaltige Kubernetes-Cluster QAware GmbH

Endlich gute API Tests. Boldly Testing APIs Where No One Has Tested Before.
Endlich gute API Tests. Boldly Testing APIs Where No One Has Tested Before.Endlich gute API Tests. Boldly Testing APIs Where No One Has Tested Before.
Endlich gute API Tests. Boldly Testing APIs Where No One Has Tested Before.QAware GmbH

Kubernetes with Cilium in AWS - Experience Report!
Kubernetes with Cilium in AWS - Experience Report!Kubernetes with Cilium in AWS - Experience Report!
Kubernetes with Cilium in AWS - Experience Report!QAware GmbH

50 Shades of K8s Autoscaling
50 Shades of K8s Autoscaling50 Shades of K8s Autoscaling
50 Shades of K8s AutoscalingQAware GmbH

Kontinuierliche Sicherheitstests für APIs mit Testkube und OWASP ZAP
Kontinuierliche Sicherheitstests für APIs mit Testkube und OWASP ZAPKontinuierliche Sicherheitstests für APIs mit Testkube und OWASP ZAP
Kontinuierliche Sicherheitstests für APIs mit Testkube und OWASP ZAPQAware GmbH

Service Mesh Pain & Gain. Experiences from a client project.
Service Mesh Pain & Gain. Experiences from a client project.Service Mesh Pain & Gain. Experiences from a client project.
Service Mesh Pain & Gain. Experiences from a client project.QAware GmbH

50 Shades of K8s Autoscaling
50 Shades of K8s Autoscaling50 Shades of K8s Autoscaling
50 Shades of K8s AutoscalingQAware GmbH

Blue turns green! Approaches and technologies for sustainable K8s clusters.
Blue turns green! Approaches and technologies for sustainable K8s clusters.Blue turns green! Approaches and technologies for sustainable K8s clusters.
Blue turns green! Approaches and technologies for sustainable K8s clusters.QAware GmbH

Per Anhalter zu Cloud Nativen API Gateways
Per Anhalter zu Cloud Nativen API GatewaysPer Anhalter zu Cloud Nativen API Gateways
Per Anhalter zu Cloud Nativen API GatewaysQAware GmbH

Aus blau wird grün! Ansätze und Technologien für nachhaltige Kubernetes-Cluster
Aus blau wird grün! Ansätze und Technologien für nachhaltige Kubernetes-Cluster Aus blau wird grün! Ansätze und Technologien für nachhaltige Kubernetes-Cluster
Aus blau wird grün! Ansätze und Technologien für nachhaltige Kubernetes-Cluster QAware GmbH

How to speed up Spring Integration Tests
How to speed up Spring Integration TestsHow to speed up Spring Integration Tests
How to speed up Spring Integration TestsQAware GmbH


More from QAware GmbH (20)

50 Shades of K8s Autoscaling #JavaLand24.pdf
50 Shades of K8s Autoscaling #JavaLand24.pdf50 Shades of K8s Autoscaling #JavaLand24.pdf
50 Shades of K8s Autoscaling #JavaLand24.pdf

Make Agile Great - PM-Erfahrungen aus zwei virtuellen internationalen SAFe-Pr...
Make Agile Great - PM-Erfahrungen aus zwei virtuellen internationalen SAFe-Pr...Make Agile Great - PM-Erfahrungen aus zwei virtuellen internationalen SAFe-Pr...
Make Agile Great - PM-Erfahrungen aus zwei virtuellen internationalen SAFe-Pr...

Fully-managed Cloud-native Databases: The path to indefinite scale @ CNN Mainz
Fully-managed Cloud-native Databases: The path to indefinite scale @ CNN MainzFully-managed Cloud-native Databases: The path to indefinite scale @ CNN Mainz
Fully-managed Cloud-native Databases: The path to indefinite scale @ CNN Mainz

"Mixed" Scrum-Teams – Die richtige Mischung macht's!
"Mixed" Scrum-Teams – Die richtige Mischung macht's!"Mixed" Scrum-Teams – Die richtige Mischung macht's!
"Mixed" Scrum-Teams – Die richtige Mischung macht's!

Make Developers Fly: Principles for Platform Engineering
Make Developers Fly: Principles for Platform EngineeringMake Developers Fly: Principles for Platform Engineering
Make Developers Fly: Principles for Platform Engineering

Der Tod der Testpyramide? – Frontend-Testing mit Playwright
Der Tod der Testpyramide? – Frontend-Testing mit PlaywrightDer Tod der Testpyramide? – Frontend-Testing mit Playwright
Der Tod der Testpyramide? – Frontend-Testing mit Playwright

Was kommt nach den SPAs
Was kommt nach den SPAsWas kommt nach den SPAs
Was kommt nach den SPAs

Cloud Migration mit KI: der Turbo
Cloud Migration mit KI: der Turbo Cloud Migration mit KI: der Turbo
Cloud Migration mit KI: der Turbo

Migration von stark regulierten Anwendungen in die Cloud: Dem Teufel die See...
 Migration von stark regulierten Anwendungen in die Cloud: Dem Teufel die See... Migration von stark regulierten Anwendungen in die Cloud: Dem Teufel die See...
Migration von stark regulierten Anwendungen in die Cloud: Dem Teufel die See...

Aus blau wird grün! Ansätze und Technologien für nachhaltige Kubernetes-Cluster
Aus blau wird grün! Ansätze und Technologien für nachhaltige Kubernetes-Cluster Aus blau wird grün! Ansätze und Technologien für nachhaltige Kubernetes-Cluster
Aus blau wird grün! Ansätze und Technologien für nachhaltige Kubernetes-Cluster

Endlich gute API Tests. Boldly Testing APIs Where No One Has Tested Before.
Endlich gute API Tests. Boldly Testing APIs Where No One Has Tested Before.Endlich gute API Tests. Boldly Testing APIs Where No One Has Tested Before.
Endlich gute API Tests. Boldly Testing APIs Where No One Has Tested Before.

Kubernetes with Cilium in AWS - Experience Report!
Kubernetes with Cilium in AWS - Experience Report!Kubernetes with Cilium in AWS - Experience Report!
Kubernetes with Cilium in AWS - Experience Report!

50 Shades of K8s Autoscaling
50 Shades of K8s Autoscaling50 Shades of K8s Autoscaling
50 Shades of K8s Autoscaling

Kontinuierliche Sicherheitstests für APIs mit Testkube und OWASP ZAP
Kontinuierliche Sicherheitstests für APIs mit Testkube und OWASP ZAPKontinuierliche Sicherheitstests für APIs mit Testkube und OWASP ZAP
Kontinuierliche Sicherheitstests für APIs mit Testkube und OWASP ZAP

Service Mesh Pain & Gain. Experiences from a client project.
Service Mesh Pain & Gain. Experiences from a client project.Service Mesh Pain & Gain. Experiences from a client project.
Service Mesh Pain & Gain. Experiences from a client project.

50 Shades of K8s Autoscaling
50 Shades of K8s Autoscaling50 Shades of K8s Autoscaling
50 Shades of K8s Autoscaling

Blue turns green! Approaches and technologies for sustainable K8s clusters.
Blue turns green! Approaches and technologies for sustainable K8s clusters.Blue turns green! Approaches and technologies for sustainable K8s clusters.
Blue turns green! Approaches and technologies for sustainable K8s clusters.

Per Anhalter zu Cloud Nativen API Gateways
Per Anhalter zu Cloud Nativen API GatewaysPer Anhalter zu Cloud Nativen API Gateways
Per Anhalter zu Cloud Nativen API Gateways

Aus blau wird grün! Ansätze und Technologien für nachhaltige Kubernetes-Cluster
Aus blau wird grün! Ansätze und Technologien für nachhaltige Kubernetes-Cluster Aus blau wird grün! Ansätze und Technologien für nachhaltige Kubernetes-Cluster
Aus blau wird grün! Ansätze und Technologien für nachhaltige Kubernetes-Cluster

How to speed up Spring Integration Tests
How to speed up Spring Integration TestsHow to speed up Spring Integration Tests
How to speed up Spring Integration Tests


Recently uploaded

Exploring Selenium_Appium Frameworks for Seamless Integration with HeadSpin.pdf
Exploring Selenium_Appium Frameworks for Seamless Integration with HeadSpin.pdfExploring Selenium_Appium Frameworks for Seamless Integration with HeadSpin.pdf
Exploring Selenium_Appium Frameworks for Seamless Integration with HeadSpin.pdfkalichargn70th171

Real-time Tracking and Monitoring with Cargo Cloud Solutions.pptx
Real-time Tracking and Monitoring with Cargo Cloud Solutions.pptxReal-time Tracking and Monitoring with Cargo Cloud Solutions.pptx
Real-time Tracking and Monitoring with Cargo Cloud Solutions.pptxRTS corp

CRM Contender Series: HubSpot vs. Salesforce
CRM Contender Series: HubSpot vs. SalesforceCRM Contender Series: HubSpot vs. Salesforce
CRM Contender Series: HubSpot vs. SalesforceBrainSell Technologies

SuccessFactors 1H 2024 Release - Sneak-Peek by Deloitte Germany
SuccessFactors 1H 2024 Release - Sneak-Peek by Deloitte GermanySuccessFactors 1H 2024 Release - Sneak-Peek by Deloitte Germany
SuccessFactors 1H 2024 Release - Sneak-Peek by Deloitte GermanyChristoph Pohl

Post Quantum Cryptography – The Impact on Identity
Post Quantum Cryptography – The Impact on IdentityPost Quantum Cryptography – The Impact on Identity
Post Quantum Cryptography – The Impact on Identityteam-WIBU

What is Advanced Excel and what are some best practices for designing and cre...
What is Advanced Excel and what are some best practices for designing and cre...What is Advanced Excel and what are some best practices for designing and cre...
What is Advanced Excel and what are some best practices for designing and cre...Technogeeks

Salesforce Implementation Services PPT By ABSYZ
Salesforce Implementation Services PPT By ABSYZSalesforce Implementation Services PPT By ABSYZ
Salesforce Implementation Services PPT By ABSYZABSYZ Inc

Simplifying Microservices & Apps - The art of effortless development - Meetup...
Simplifying Microservices & Apps - The art of effortless development - Meetup...Simplifying Microservices & Apps - The art of effortless development - Meetup...
Simplifying Microservices & Apps - The art of effortless development - Meetup...Rob Geurden

Tech Tuesday - Mastering Time Management Unlock the Power of OnePlan's Timesh...
Tech Tuesday - Mastering Time Management Unlock the Power of OnePlan's Timesh...Tech Tuesday - Mastering Time Management Unlock the Power of OnePlan's Timesh...
Tech Tuesday - Mastering Time Management Unlock the Power of OnePlan's Timesh...OnePlan Solutions

Large Language Models for Test Case Evolution and Repair
Large Language Models for Test Case Evolution and RepairLarge Language Models for Test Case Evolution and Repair
Large Language Models for Test Case Evolution and RepairLionel Briand

Odoo 14 - eLearning Module In Odoo 14 Enterprise
Odoo 14 - eLearning Module In Odoo 14 EnterpriseOdoo 14 - eLearning Module In Odoo 14 Enterprise
Odoo 14 - eLearning Module In Odoo 14 Enterprisepreethippts

Leveraging AI for Mobile App Testing on Real Devices | Applitools + Kobiton
Leveraging AI for Mobile App Testing on Real Devices | Applitools + KobitonLeveraging AI for Mobile App Testing on Real Devices | Applitools + Kobiton
Leveraging AI for Mobile App Testing on Real Devices | Applitools + KobitonApplitools

Strategies for using alternative queries to mitigate zero results
Strategies for using alternative queries to mitigate zero resultsStrategies for using alternative queries to mitigate zero results
Strategies for using alternative queries to mitigate zero resultsJean Silva

How to submit a standout Adobe Champion Application
How to submit a standout Adobe Champion ApplicationHow to submit a standout Adobe Champion Application
How to submit a standout Adobe Champion ApplicationBradBedford3

SensoDat: Simulation-based Sensor Dataset of Self-driving Cars
SensoDat: Simulation-based Sensor Dataset of Self-driving CarsSensoDat: Simulation-based Sensor Dataset of Self-driving Cars
SensoDat: Simulation-based Sensor Dataset of Self-driving CarsChristian Birchler

Global Identity Enrolment and Verification Pro Solution - Cizo Technology Ser...
Global Identity Enrolment and Verification Pro Solution - Cizo Technology Ser...Global Identity Enrolment and Verification Pro Solution - Cizo Technology Ser...
Global Identity Enrolment and Verification Pro Solution - Cizo Technology Ser...Cizo Technology Services

Machine Learning Software Engineering Patterns and Their Engineering
Machine Learning Software Engineering Patterns and Their EngineeringMachine Learning Software Engineering Patterns and Their Engineering
Machine Learning Software Engineering Patterns and Their EngineeringHironori Washizaki

Sending Calendar Invites on SES and Calendarsnack.pdf
Sending Calendar Invites on SES and Calendarsnack.pdfSending Calendar Invites on SES and Calendarsnack.pdf
Sending Calendar Invites on SES and Calendarsnack.pdf31events.com

Comparing Linux OS Image Update Models - EOSS 2024.pdf
Comparing Linux OS Image Update Models - EOSS 2024.pdfComparing Linux OS Image Update Models - EOSS 2024.pdf
Comparing Linux OS Image Update Models - EOSS 2024.pdfDrew Moseley

SpotFlow: Tracking Method Calls and States at Runtime
SpotFlow: Tracking Method Calls and States at RuntimeSpotFlow: Tracking Method Calls and States at Runtime
SpotFlow: Tracking Method Calls and States at Runtimeandrehoraa


Recently uploaded (20)

Exploring Selenium_Appium Frameworks for Seamless Integration with HeadSpin.pdf
Exploring Selenium_Appium Frameworks for Seamless Integration with HeadSpin.pdfExploring Selenium_Appium Frameworks for Seamless Integration with HeadSpin.pdf
Exploring Selenium_Appium Frameworks for Seamless Integration with HeadSpin.pdf

Real-time Tracking and Monitoring with Cargo Cloud Solutions.pptx
Real-time Tracking and Monitoring with Cargo Cloud Solutions.pptxReal-time Tracking and Monitoring with Cargo Cloud Solutions.pptx
Real-time Tracking and Monitoring with Cargo Cloud Solutions.pptx

CRM Contender Series: HubSpot vs. Salesforce
CRM Contender Series: HubSpot vs. SalesforceCRM Contender Series: HubSpot vs. Salesforce
CRM Contender Series: HubSpot vs. Salesforce

SuccessFactors 1H 2024 Release - Sneak-Peek by Deloitte Germany
SuccessFactors 1H 2024 Release - Sneak-Peek by Deloitte GermanySuccessFactors 1H 2024 Release - Sneak-Peek by Deloitte Germany
SuccessFactors 1H 2024 Release - Sneak-Peek by Deloitte Germany

Post Quantum Cryptography – The Impact on Identity
Post Quantum Cryptography – The Impact on IdentityPost Quantum Cryptography – The Impact on Identity
Post Quantum Cryptography – The Impact on Identity

What is Advanced Excel and what are some best practices for designing and cre...
What is Advanced Excel and what are some best practices for designing and cre...What is Advanced Excel and what are some best practices for designing and cre...
What is Advanced Excel and what are some best practices for designing and cre...

Salesforce Implementation Services PPT By ABSYZ
Salesforce Implementation Services PPT By ABSYZSalesforce Implementation Services PPT By ABSYZ
Salesforce Implementation Services PPT By ABSYZ

Simplifying Microservices & Apps - The art of effortless development - Meetup...
Simplifying Microservices & Apps - The art of effortless development - Meetup...Simplifying Microservices & Apps - The art of effortless development - Meetup...
Simplifying Microservices & Apps - The art of effortless development - Meetup...

Tech Tuesday - Mastering Time Management Unlock the Power of OnePlan's Timesh...
Tech Tuesday - Mastering Time Management Unlock the Power of OnePlan's Timesh...Tech Tuesday - Mastering Time Management Unlock the Power of OnePlan's Timesh...
Tech Tuesday - Mastering Time Management Unlock the Power of OnePlan's Timesh...

Large Language Models for Test Case Evolution and Repair
Large Language Models for Test Case Evolution and RepairLarge Language Models for Test Case Evolution and Repair
Large Language Models for Test Case Evolution and Repair

Odoo 14 - eLearning Module In Odoo 14 Enterprise
Odoo 14 - eLearning Module In Odoo 14 EnterpriseOdoo 14 - eLearning Module In Odoo 14 Enterprise
Odoo 14 - eLearning Module In Odoo 14 Enterprise

Leveraging AI for Mobile App Testing on Real Devices | Applitools + Kobiton
Leveraging AI for Mobile App Testing on Real Devices | Applitools + KobitonLeveraging AI for Mobile App Testing on Real Devices | Applitools + Kobiton
Leveraging AI for Mobile App Testing on Real Devices | Applitools + Kobiton

Strategies for using alternative queries to mitigate zero results
Strategies for using alternative queries to mitigate zero resultsStrategies for using alternative queries to mitigate zero results
Strategies for using alternative queries to mitigate zero results

How to submit a standout Adobe Champion Application
How to submit a standout Adobe Champion ApplicationHow to submit a standout Adobe Champion Application
How to submit a standout Adobe Champion Application

SensoDat: Simulation-based Sensor Dataset of Self-driving Cars
SensoDat: Simulation-based Sensor Dataset of Self-driving CarsSensoDat: Simulation-based Sensor Dataset of Self-driving Cars
SensoDat: Simulation-based Sensor Dataset of Self-driving Cars

Global Identity Enrolment and Verification Pro Solution - Cizo Technology Ser...
Global Identity Enrolment and Verification Pro Solution - Cizo Technology Ser...Global Identity Enrolment and Verification Pro Solution - Cizo Technology Ser...
Global Identity Enrolment and Verification Pro Solution - Cizo Technology Ser...

Machine Learning Software Engineering Patterns and Their Engineering
Machine Learning Software Engineering Patterns and Their EngineeringMachine Learning Software Engineering Patterns and Their Engineering
Machine Learning Software Engineering Patterns and Their Engineering

Sending Calendar Invites on SES and Calendarsnack.pdf
Sending Calendar Invites on SES and Calendarsnack.pdfSending Calendar Invites on SES and Calendarsnack.pdf
Sending Calendar Invites on SES and Calendarsnack.pdf

Comparing Linux OS Image Update Models - EOSS 2024.pdf
Comparing Linux OS Image Update Models - EOSS 2024.pdfComparing Linux OS Image Update Models - EOSS 2024.pdf
Comparing Linux OS Image Update Models - EOSS 2024.pdf

SpotFlow: Tracking Method Calls and States at Runtime
SpotFlow: Tracking Method Calls and States at RuntimeSpotFlow: Tracking Method Calls and States at Runtime
SpotFlow: Tracking Method Calls and States at Runtime


Down the Ivory Tower towards Agile Architecture

  • 1. qaware.de Down the Ivory Tower towards Agile Architecture Mario-Leander Reimer mario-leander.reimer@qaware.de @LeanderReimer
  • 2. 2 Mario-Leander Reimer Managing Director | CTO @LeanderReimer #cloudnativenerd #qaware #gernperDude
  • 3.
  • 4. 1st commandment Thou shalt not use other databases than Oracle!
  • 5.
  • 8. QAware | 8 Architecture in Agile Projects
  • 9. 1st commandment Thou shalt sprint 2 weeks, no less or more!
  • 10. 10 QAware https://arc42.org/download arc42 based documentation addresses many important quality and architecture aspects.
  • 11. Holistic Software Product Quality is a lot of work! QAware | 11 Software Product Quality (ISO 25010) ● Modularity ● Reusability ● Analysability ● Modifiability ● Testability Maintainability ● Confidentiality ● Integrity ● Non-repudiation ● Authenticity ● Accountability Security ● Adaptability ● Installability ● Replaceability Portability ● Co-existence ● Interoperability Compatibility ● Maturity ● Availability ● Fault Tolerance ● Recoverability Reliability ● Time Behaviour ● Resource Utilization ● Capacity Efficiency ● Completeness ● Correctness ● Appropriateness Functional Suitability ● Operability ● Learnability ● UI Aesthetics ● Accessibility Usability Safety Deployability
  • 12. Q42. A simple and pragmatic quality modell. QAware | 12 https://quality.arc42.org/
  • 13. The required quality attributes can be found on all layers of your software architecture. 13
  • 15. Diagrams as Code using C4: Context. Container. Component. Code. 15 QAware
  • 17. The Last Possible Moment != The Last Responsible Moment QAware | 17 ■ The Last Responsible Moment what you should aim for! ■ Useful questions for responsible decision making – Do we have to take the decision now? – Can we postpone the decision? – What are the consequences if we postpone? – When will the overall complexity become to high? – What are the alternatives? – What are the trade-offs of our decision? – Can we revert a decision? At which costs? ■ Have no fear of suboptimal decisions! Be brave! ■ Iterative development, TDD, refactorings, continuous integration and deployment, architecture fitness functions can help to address and reduce the risks involved
  • 19. Architecture Decision Records (ADR) QAware | 19 https://www.thoughtworks.com/radar/techniques/lightweight-architecture-decision-records
  • 20. The Anatomy of an Architecture Decision Record (ADR) QAware | 20 # Title ## Context ## Decision ## Status ## Consequences ■ Short text file; 1-2 pages long, one file per decision ■ Simple format like Markdown, Asciidoc, TXT, etc. Short noun phrase and number, e.g. ADR 5: AWS as preferred cloud provider Proposed, Accepted, Deprecated, Superseded Describes the forces at play: technology, political, project local. Value neutral, simple facts. Response to the forces with justification. Stated in full sentences, with active voice. "We will …" Describe context, after applying the decision. All consequences should be listed here, not just the "positive" ones.
  • 21. Architecture fitness functions continuously validate the desired software quality attributes. 21 https://www.thoughtworks.com/de/radar/techniques/architectural-fitness-function
  • 22. Fitness-function Driven Development QAware | 22 ■ Architecture is like a product with user journeys ■ Requirements are defined by all relevant stakeholders – Business – Compliance – Operations – Security – Infrastructure ■ Often these are exactly the „-illities“ and quality attributes ■ Acceptances criteria are the formulated using a BDD approach and framework ■ Fitness tests are executed and validated as part of CI/CD pipelines (continuously or ad hoc) https://www.thoughtworks.com/de/insights/articles/fitness-function-driven-development
  • 25. Example: Security 25 describe "Security" do describe “Static Analysis” do it "should not have plaintext secrets in codebase" do expect(code.has_secrets_in_codebase()).to_not be(true) end end describe “Dynamic Analysis” do it "should not have any of the OWASP Top 10" do expect(zap.has_owasp_top_10_vulnerabilities()).to be(false) end end end
  • 28. Conceptual Architecture QAware | 28 Packages Package publish update Run deploy watch Deploy watch Dev GitOps Build push Checkout Build Test Quality Package Dev Test (E2E, NFA) trigger test Tests Quality Cockpit report PO report Build Status Code Quality Test Results fitness test promote ?
  • 29. The path from a conceptually clean architecture towards the big ball of mud is shorter than you think! QAware | 29
  • 30. ArchUnit enables easy, automated testing of your software architecture in the form of simple unit tests. ■ https://www.archunit.org/ ■ Apache v2 licensed. Simple and extensible open source library for software architecture validation as code: Java and .NET/C# are supported. ■ All major build tools and unit test frameworks are support out-of-the-box. ■ The library provides a collection of predefined rules for recurring architecture validations: – Styles: rules to validate common architectures (e.g. layered, onion, hexagon) – Slices: detect “cycles” on various layers (e.g. classes, packages, modules) – General: collection of rules for good coding practices (e.g. naming, logging, exceptions) – UML: rules to validate the codebase with a given PlantUML architecture model – Freezing: allows the definition of a violation baseline, especially useful to manage the technical debts of legacy projects QAware | 30
  • 31. Just a few lines of code allow to validate your architecture continuously and repeatedly with every build. 31 @AnalyzeClasses(packages = {"de.qaware.archunit.example.onion"}) public class OnionArchitectureFitnessTest { @ArchTest static final ArchRule onion_architecture_is_respected = onionArchitecture() .domainModels("..domain.model..") .domainServices("..domain.service..") .applicationServices("..application..") .adapter("cli", "..adapter.cli..") .adapter("persistence", "..adapter.persistence..") .adapter("rest", "..adapter.rest.."); }
  • 32. QAware | 32 Where wood is chopped, splinters must fall!
  • 33. aim42 can be used to analyse and assess any technical debt and improve the software architecture in a structured way. QAware | 33 https://www.aim42.org/
  • 34. “Too much cognitive load will become a bottleneck for fast flow and high productivity for many agile teams.” QAware | 34 ■ Intrinsic Cognitive Load Relates to fundamental aspects and knowledge in the problem space (e.g. used languages, APIs, frameworks) ■ Extraneous Cognitive Load Relates to the environment (e.g. console command, deployment, configuration) ■ Germane Cognitive Load Relates to specific aspects of the business domain (aka. „value added“ thinking)
  • 35. Collaboration is key. Software architecture should be defined and work on at all teams and layers. QAware | 35 https://martinfowler.com/bliki/TeamTopologies.html Architecture
  • 36. Beyond Agile Architecture. My personal book list for inspirations and new approaches. 36 QAware
  • 37. qaware.de QAware GmbH Aschauer Straße 32 81549 München Tel. +49 89 232315-0 info@qaware.de twitter.com/qaware linkedin.com/company/qaware-gmbh xing.com/companies/qawaregmbh slideshare.net/qaware github.com/qaware
