1. 1
Gradle Up!
René Winkelmeyer
midpoints GmbH

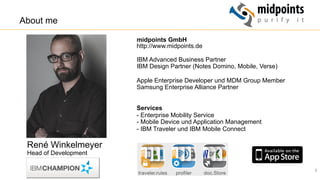

2. 2
René Winkelmeyer
Head of Development
midpoints GmbH
http://www.midpoints.de
IBM Advanced Business Partner
IBM Design Partner (Notes Domino, Mobile, Verse)
Apple Enterprise Developer und MDM Group Member
Samsung Enterprise Alliance Partner
Services
- Enterprise Mobility Service
- Mobile Device und Application Management
- IBM Traveler und IBM Mobile Connect
About me

3. 3
• Skype
muenzpraeger
• Twitter
muenzpraeger
• LinkedIn
muenzpraeger
• Slideshare
muenzpraeger
• Web
https://blog.winkelmeyer.com
http://www.midpoints.de
• Mail
mail@winkelmeyer.com
rene.winkelmeyer@midpoints.de
OpenNTF
• File Navigator
• Generic NSF View Widget for IBM Connections
About me
René Winkelmeyer
Head of Development

4. 4

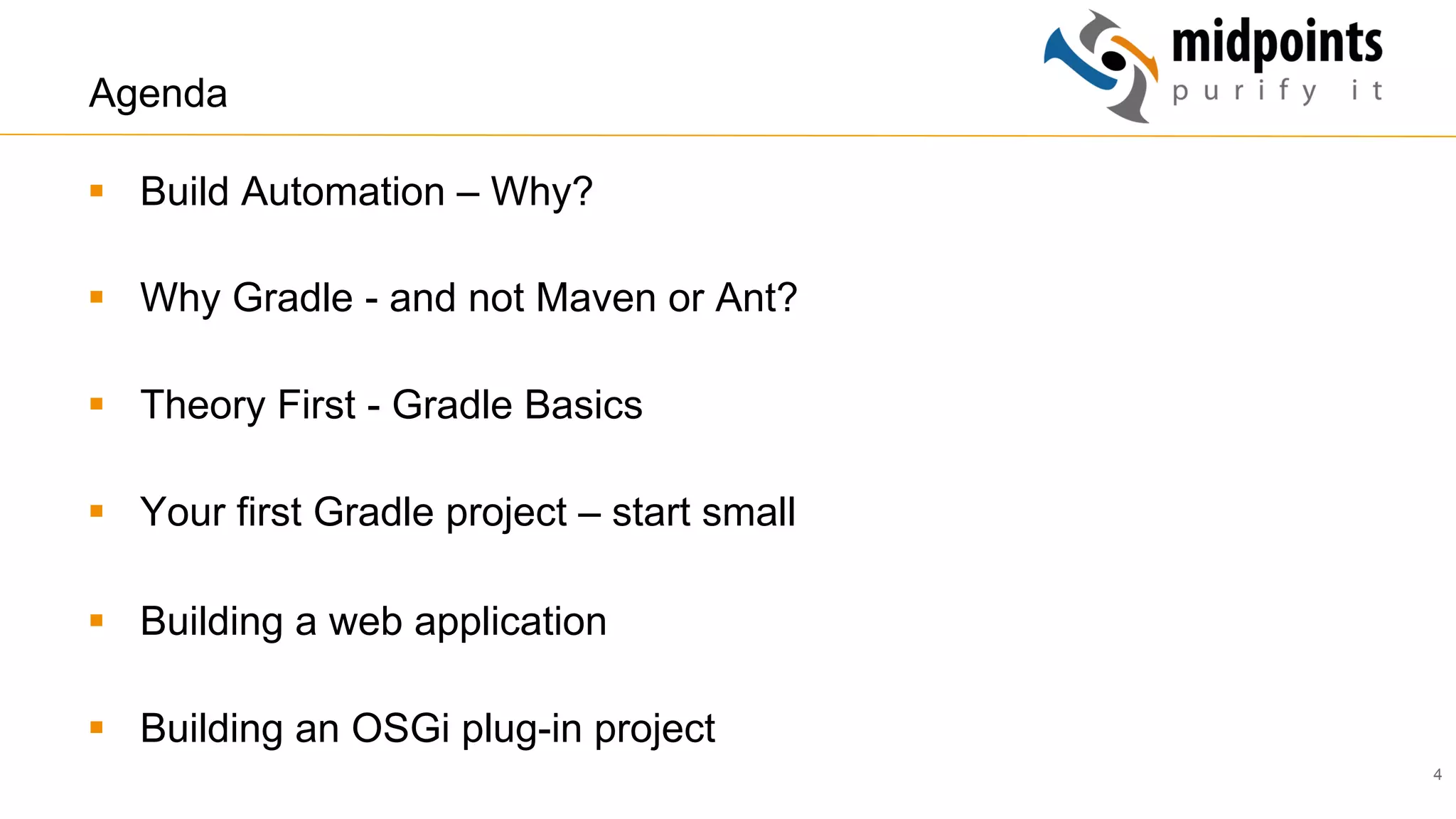

Agenda
§ Build Automation – Why?
§ Why Gradle - and not Maven or Ant?
§ Theory First - Gradle Basics
§ Your first Gradle project – start small
§ Building a web application
§ Building an OSGi plug-in project

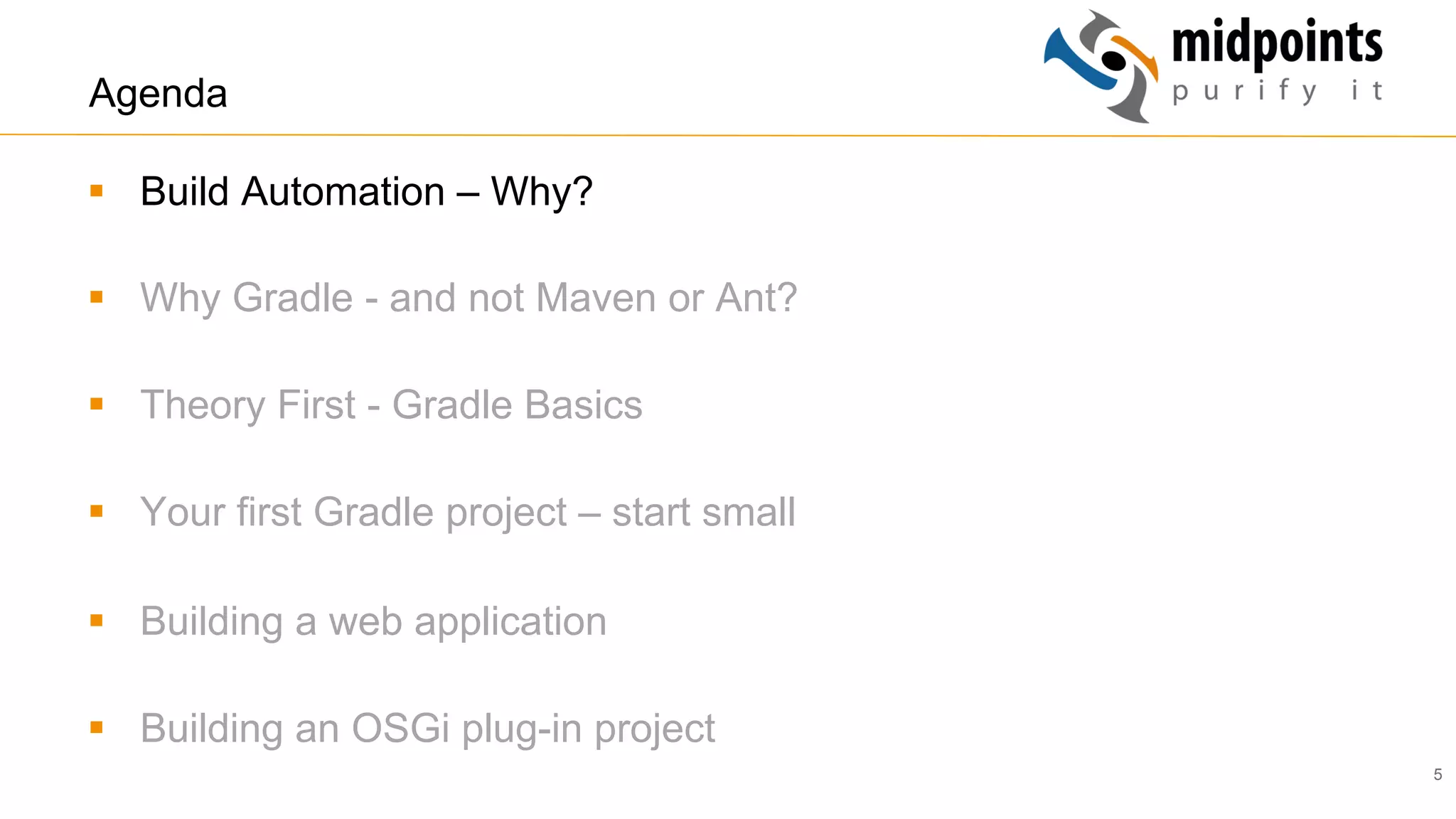

5. 5
Agenda
§ Build Automation – Why?
§ Why Gradle - and not Maven or Ant?
§ Theory First - Gradle Basics
§ Your first Gradle project – start small
§ Building a web application
§ Building an OSGi plug-in project

6. 6

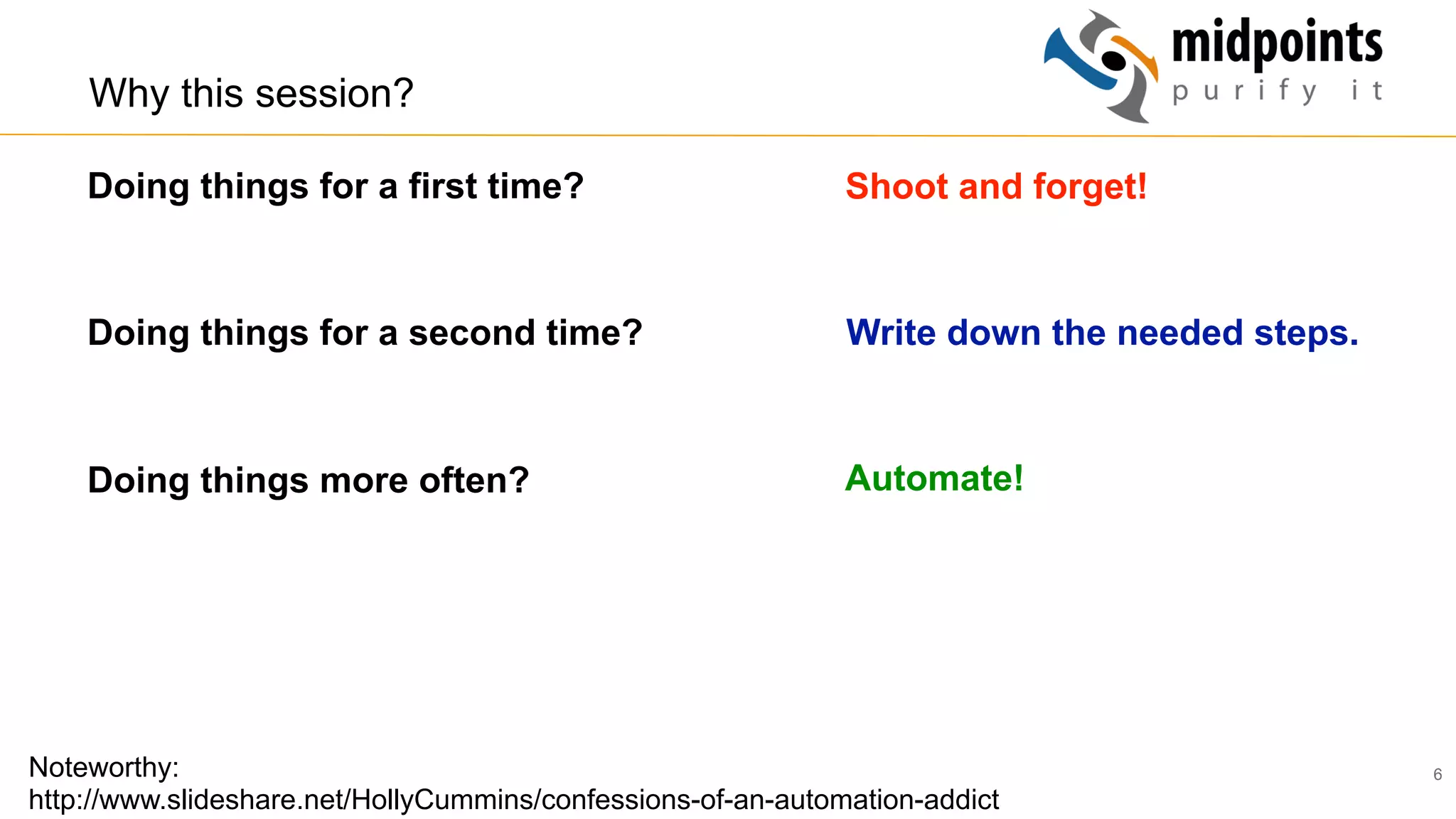

Why this session?
Doing things for a first time?
Doing things for a second time?
Doing things more often?
Noteworthy:
http://www.slideshare.net/HollyCummins/confessions-of-an-automation-addict
Shoot and forget!
Write down the needed steps.
Automate!

7. 7

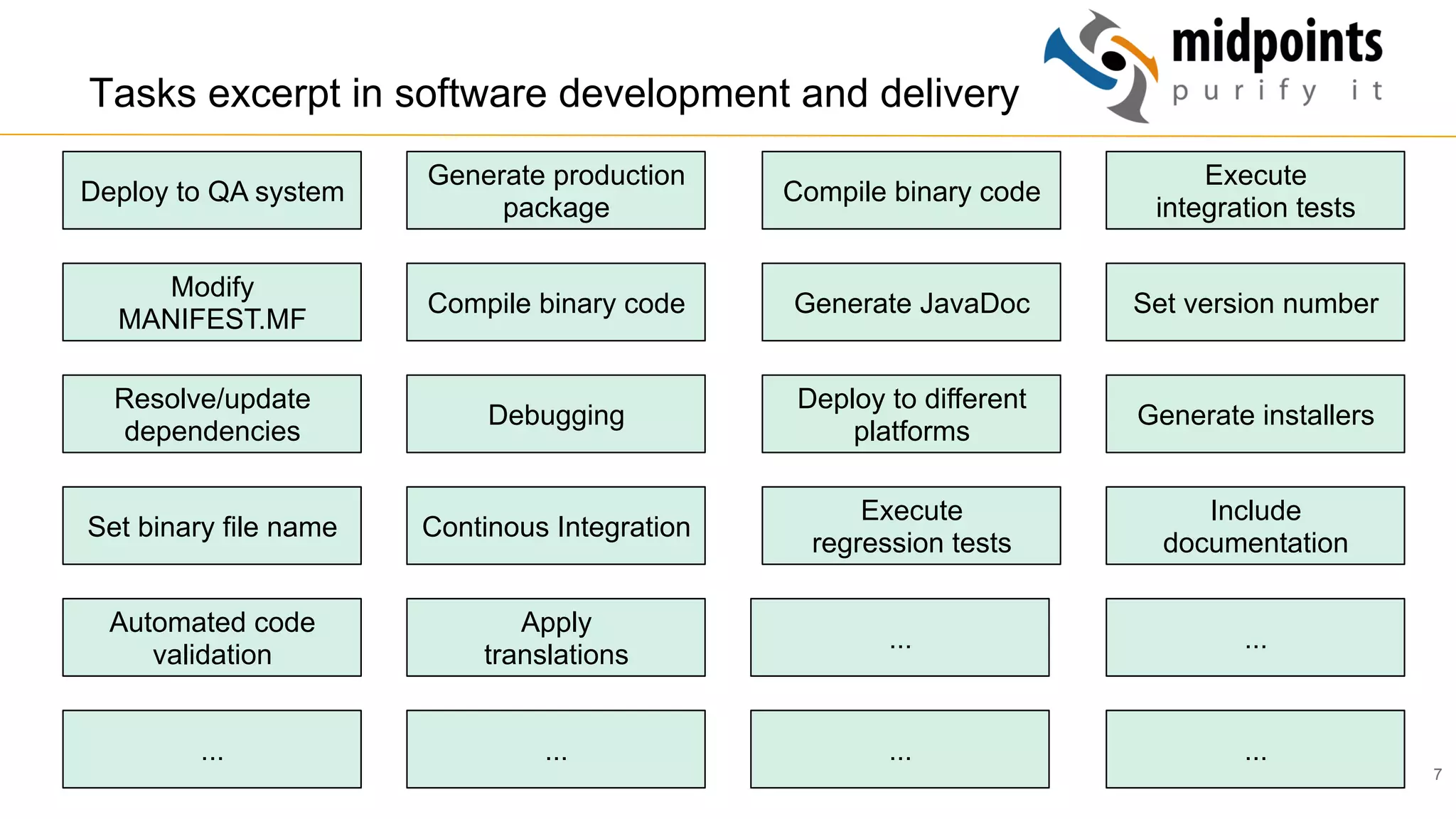

Tasks excerpt in software development and delivery
Compile binary code Set version number
Execute
integration tests
Generate JavaDoc
Resolve/update
dependencies
Modify
MANIFEST.MF
Deploy to QA system
Generate production
package
Compile binary code
Automated code
validation
Set binary file name
...
Debugging
Continous Integration
Deploy to different
platforms
Generate installers
Execute
regression tests
Include
documentation
Apply
translations
...
... ...
...
...

8. 8

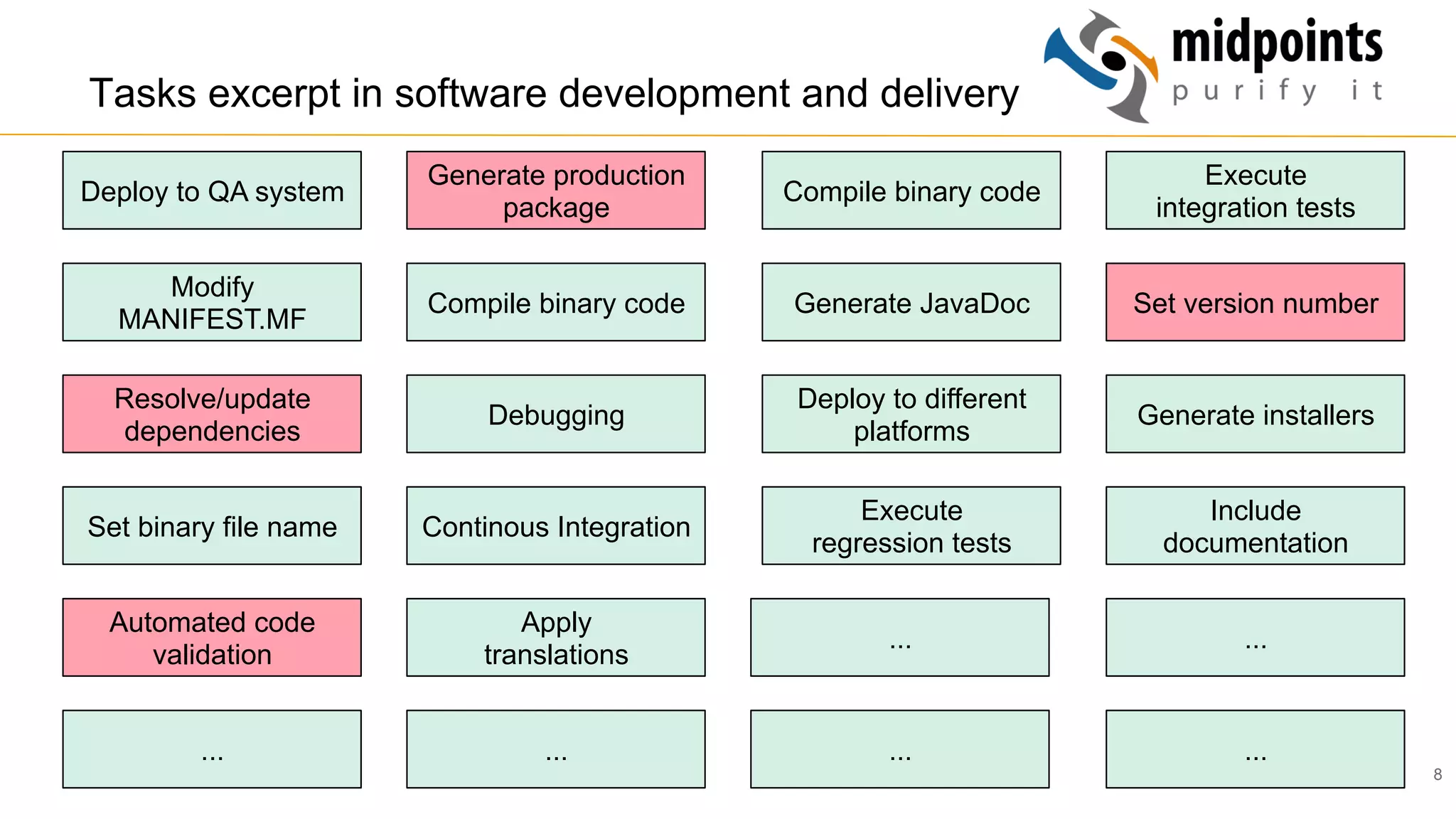

Tasks excerpt in software development and delivery
Compile binary code Set version number
Execute
integration tests
Generate JavaDoc
Resolve/update
dependencies
Modify
MANIFEST.MF
Deploy to QA system
Generate production
package
Compile binary code
Automated code
validation
Set binary file name
...
Debugging
Continous Integration
Deploy to different
platforms
Generate installers
Execute
regression tests
Include
documentation
Apply
translations
...
... ...
...
...

9. 9

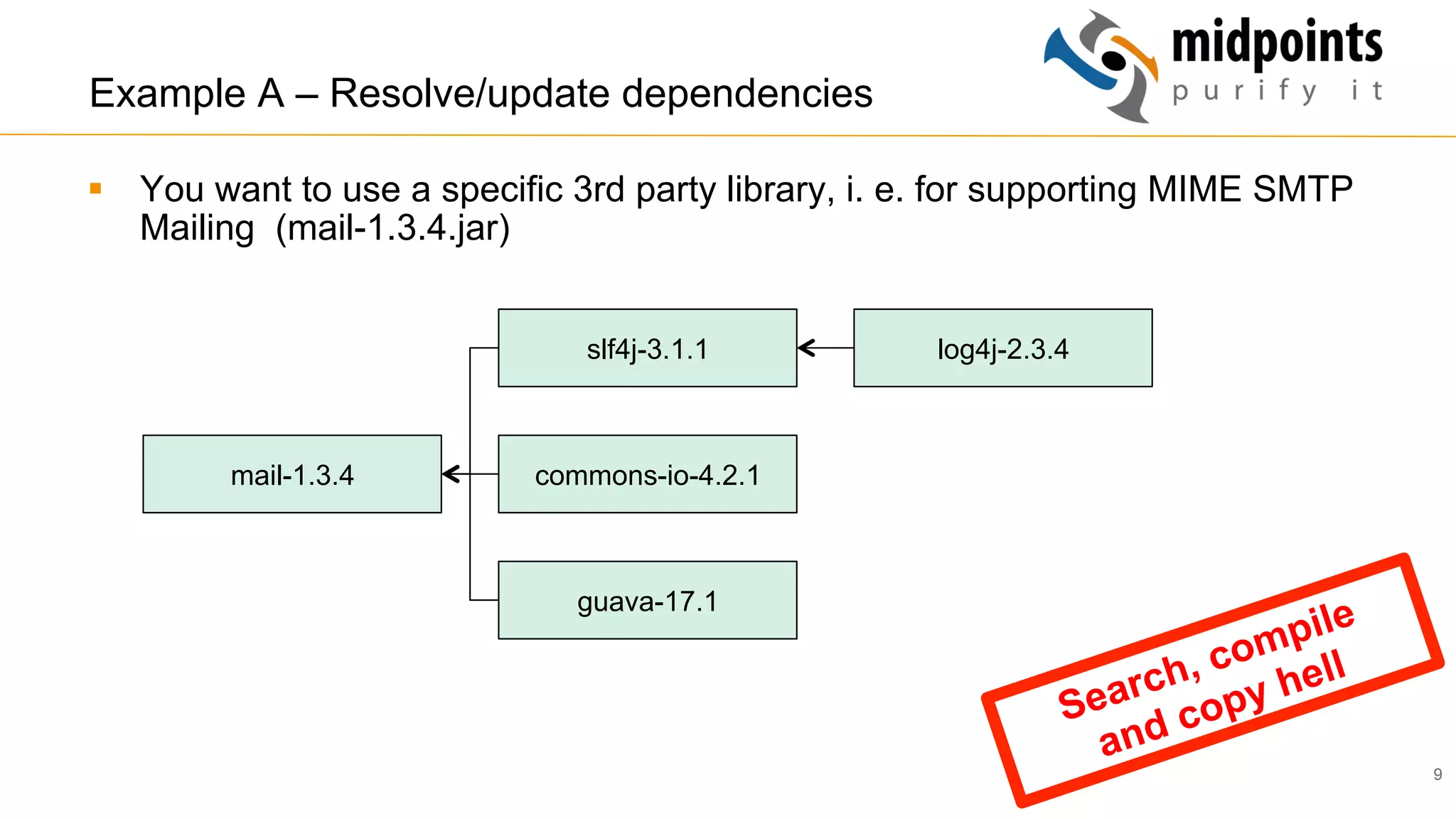

Example A – Resolve/update dependencies
§ You want to use a specific 3rd party library, i. e. for supporting MIME SMTP
Mailing (mail-1.3.4.jar)
Search, compile
and copy hell
mail-1.3.4
slf4j-3.1.1
commons-io-4.2.1
guava-17.1
log4j-2.3.4

10. 10

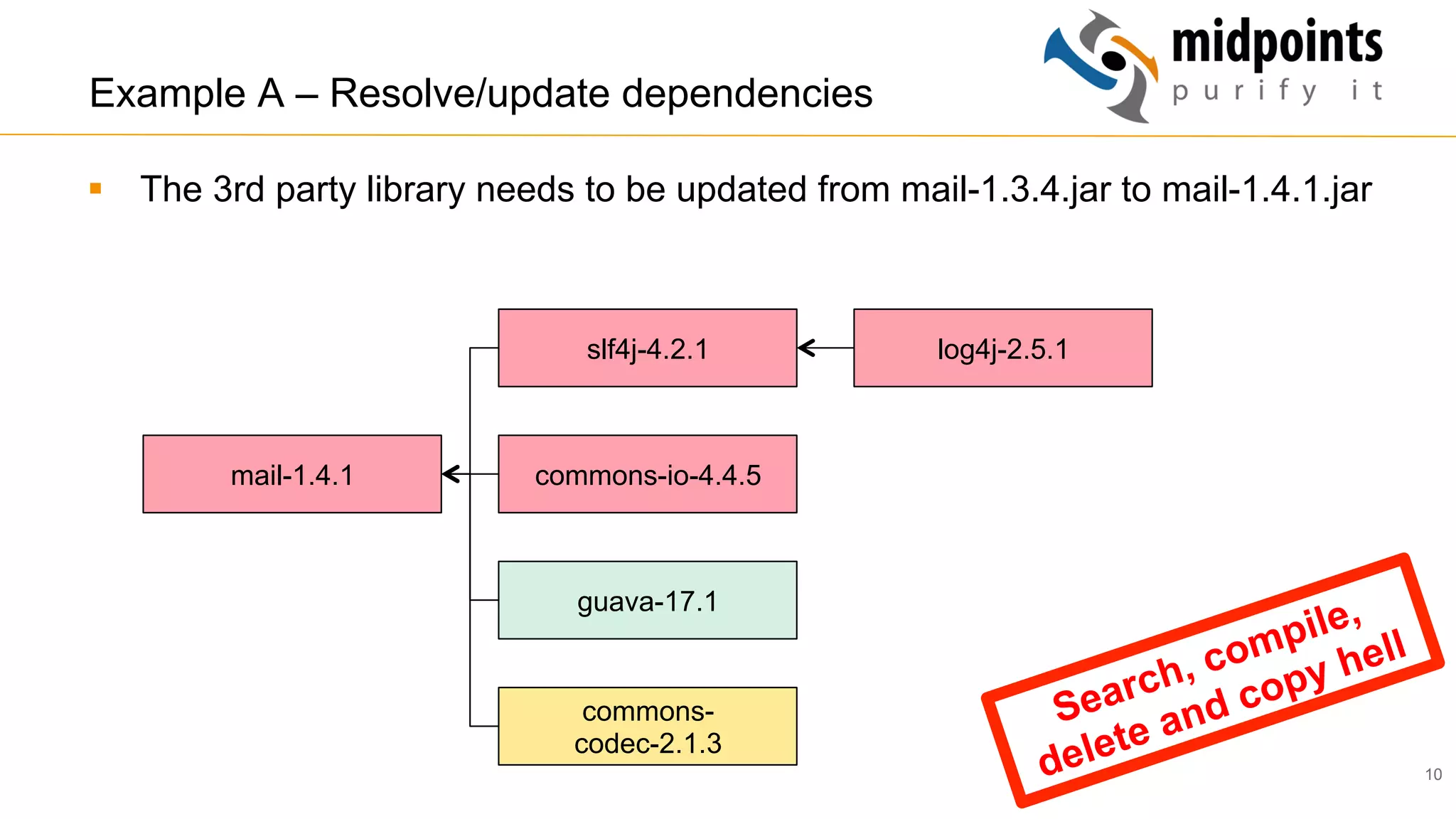

Example A – Resolve/update dependencies
§ The 3rd party library needs to be updated from mail-1.3.4.jar to mail-1.4.1.jar
Search, compile,
delete and copy hell
mail-1.4.1
slf4j-4.2.1 log4j-2.5.1
commons-io-4.4.5
guava-17.1
commons-
codec-2.1.3

11. 11

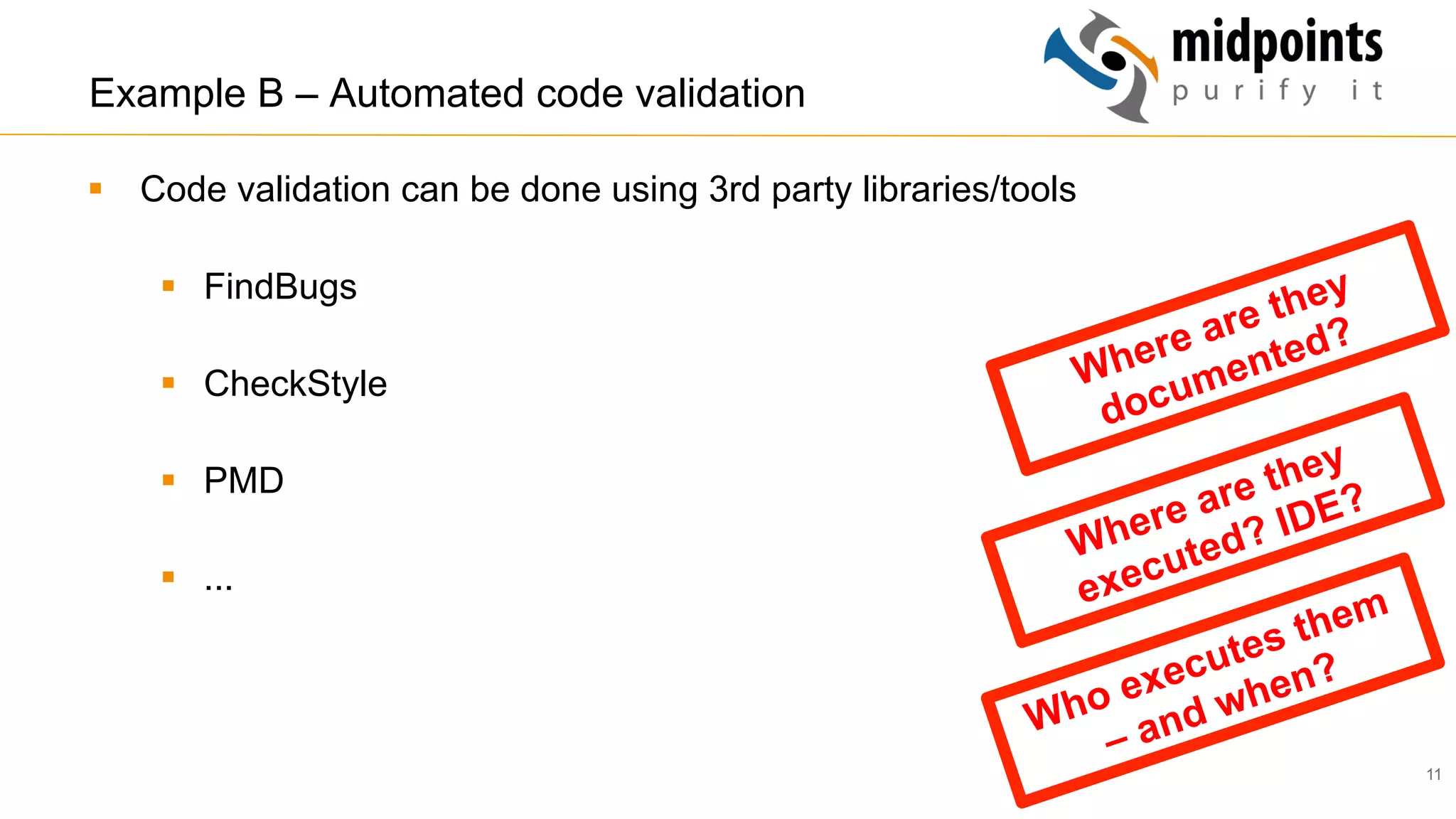

Example B – Automated code validation
§ Code validation can be done using 3rd party libraries/tools
§ FindBugs
§ CheckStyle
§ PMD
§ ...
Who executes them
– and when?
Where are they
executed? IDE?
Where are they
documented?

12. 12

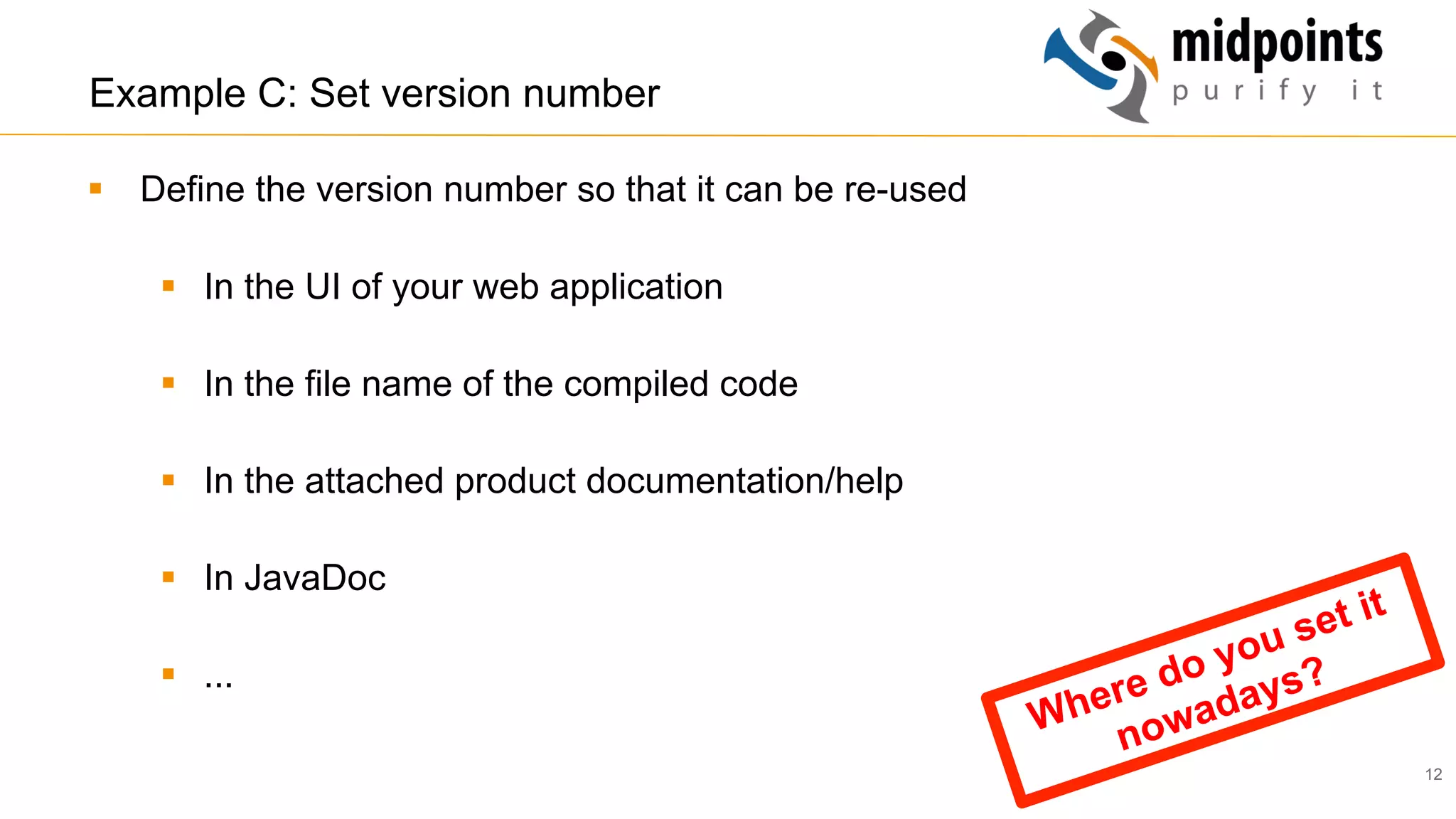

Example C: Set version number
§ Define the version number so that it can be re-used
§ In the UI of your web application
§ In the file name of the compiled code
§ In the attached product documentation/help
§ In JavaDoc
§ ...
Where do you set it
nowadays?

13. 13

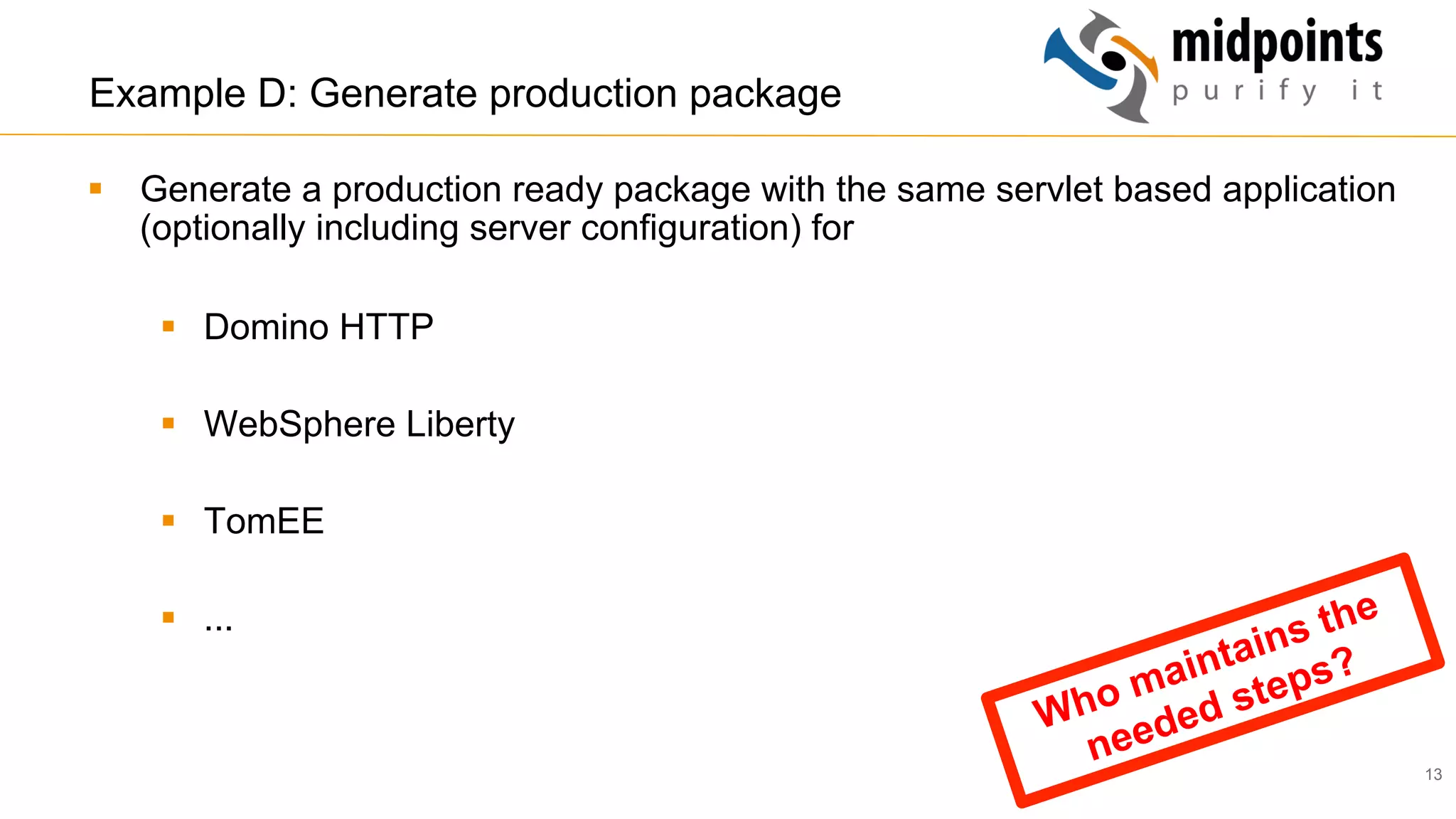

Example D: Generate production package
§ Generate a production ready package with the same servlet based application
(optionally including server configuration) for
§ Domino HTTP
§ WebSphere Liberty
§ TomEE
§ ...
Who maintains the
needed steps?

14. 14
Build automation – some PROs
§ Frees YOU from the hassle of repeating tasks
§ Makes SURE that you can concentrate on the essential part – coding
§ Helps to enforce STANDARDS across multiple developers and/or projects
§ Eases the MAINTAINABILITY of your applications
§ And much more!

15. 15

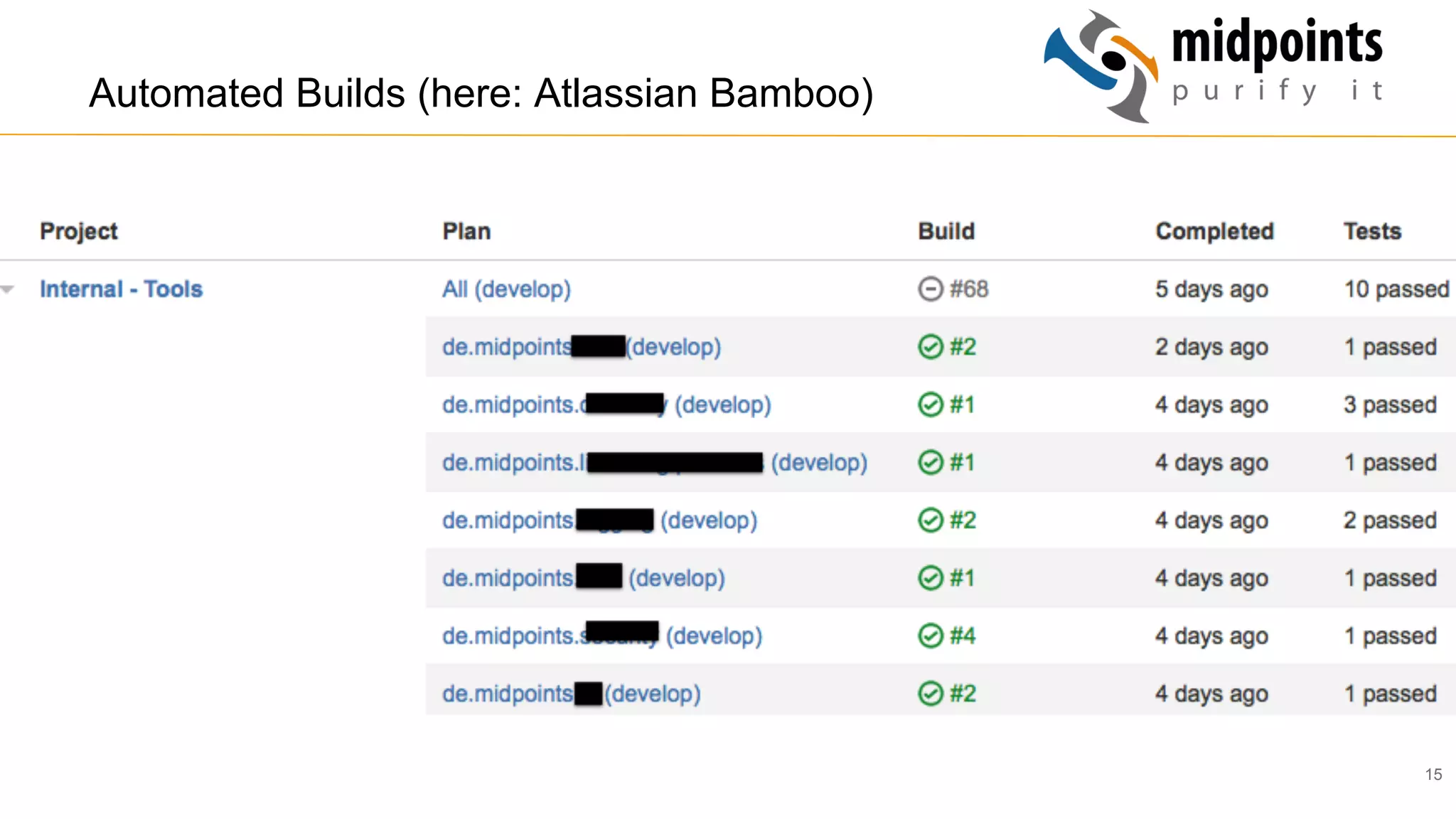

Automated Builds (here: Atlassian Bamboo)

16. 16

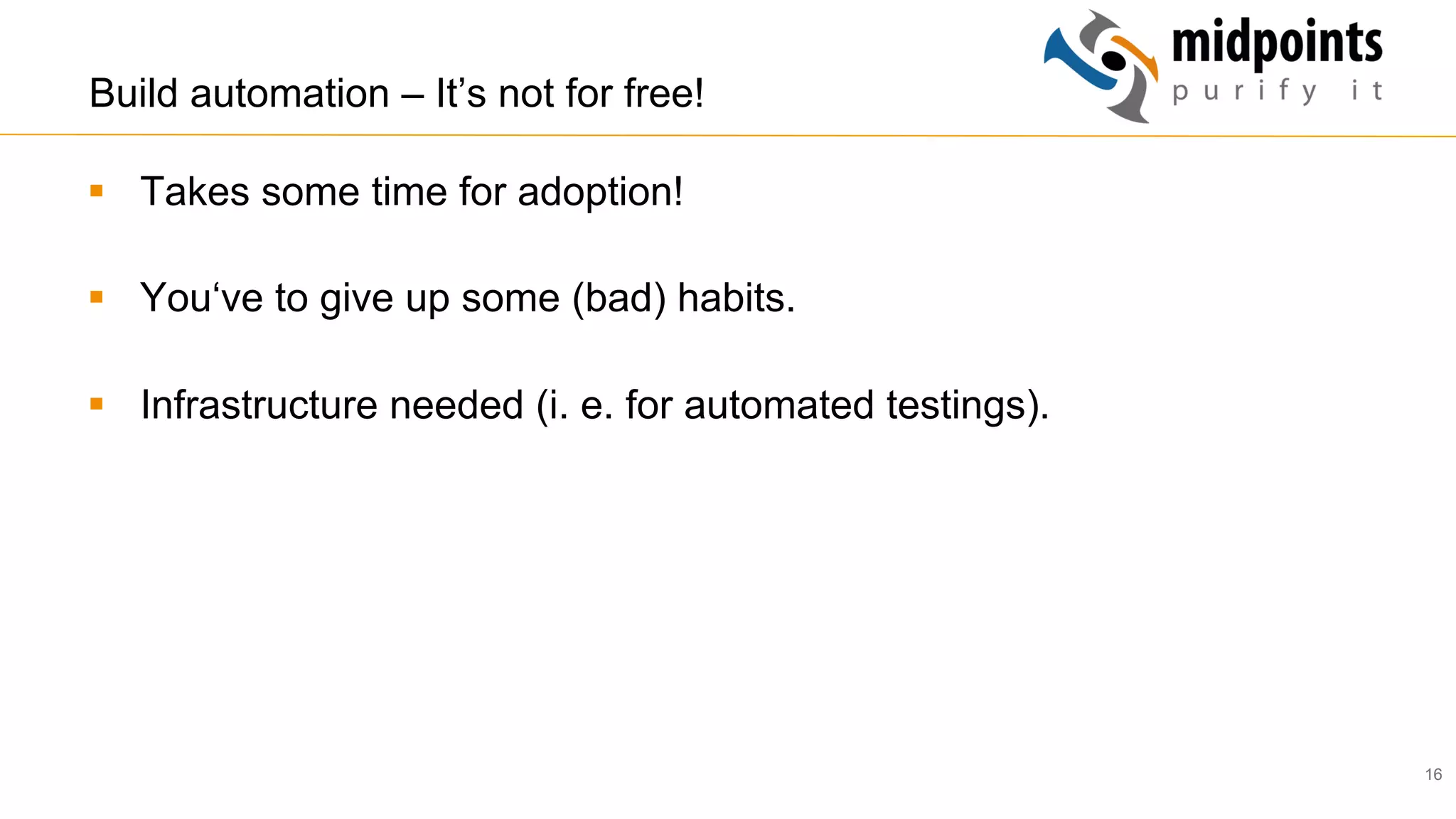

Build automation – It’s not for free!
§ Takes some time for adoption!
§ You‘ve to give up some (bad) habits.
§ Infrastructure needed (i. e. for automated testings).

17. 17

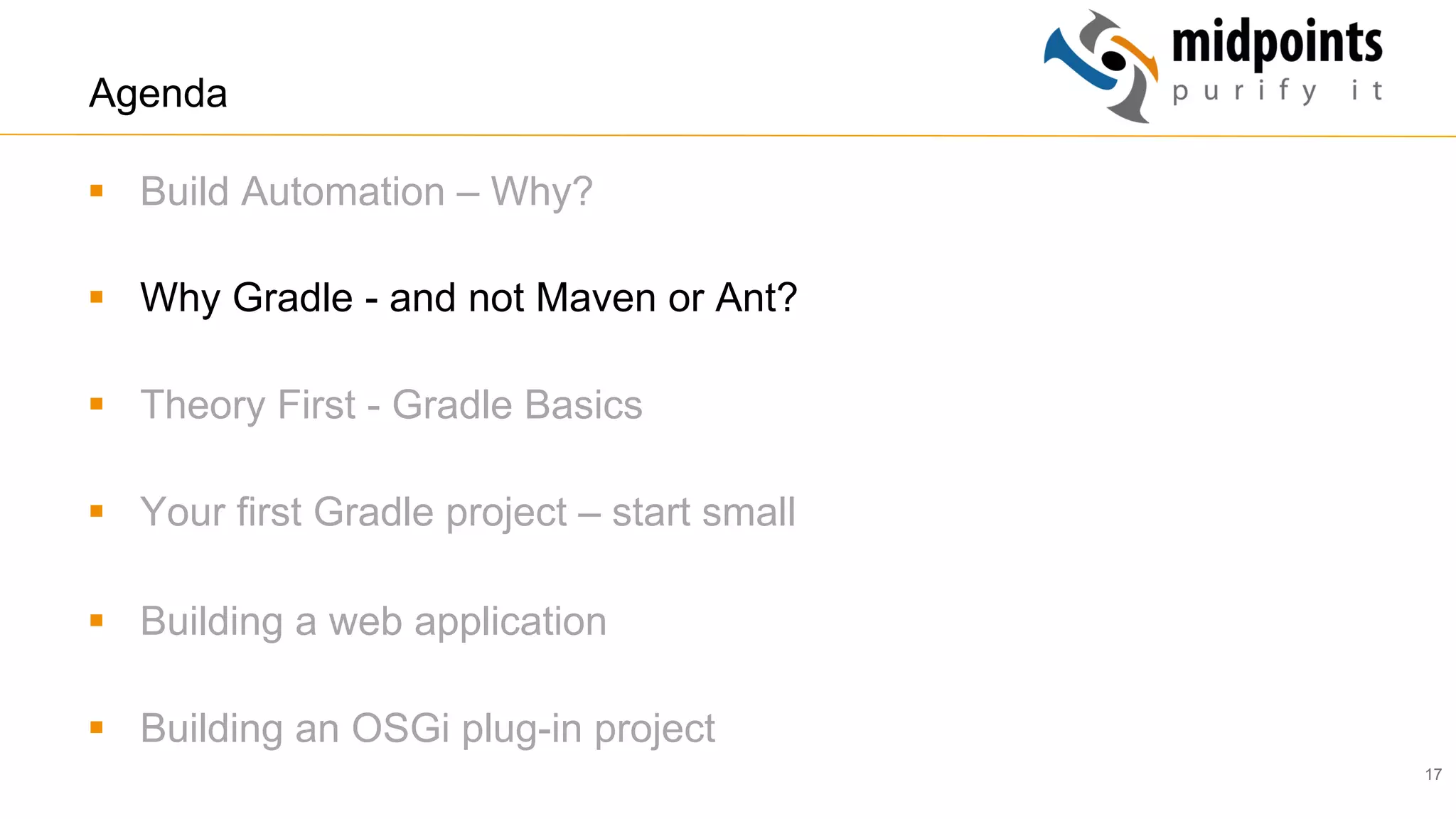

Agenda
§ Build Automation – Why?
§ Why Gradle - and not Maven or Ant?
§ Theory First - Gradle Basics
§ Your first Gradle project – start small
§ Building a web application
§ Building an OSGi plug-in project

18. 18

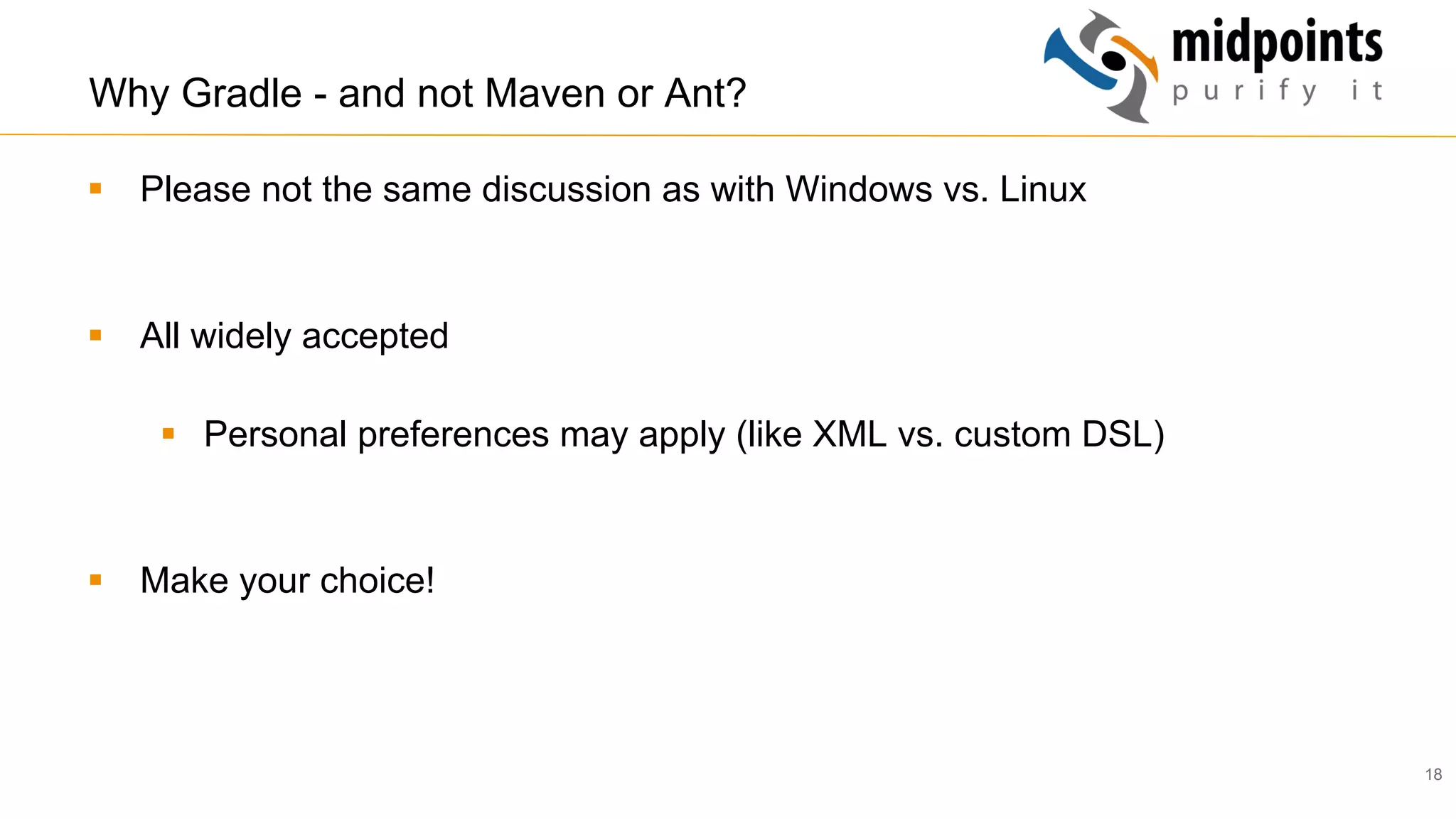

Why Gradle - and not Maven or Ant?
§ Please not the same discussion as with Windows vs. Linux
§ All widely accepted
§ Personal preferences may apply (like XML vs. custom DSL)
§ Make your choice!

19. 19
Why Gradle - and not Maven or Ant?
Source:
http://zeroturnaround.com/rebellabs/java-build-tools-part-2-a-decision-makers-comparison-of-maven-gradle-and-
ant-ivy/

20. 20
Why Gradle - and not Maven or Ant?
convention-over-configuration
vs.
configuration-over-convention

21. 21
Example configuration (Maven vs. Gradle)
§ Comparing a simple build configuration for code testing purposes
§ Use JUnit and Hamcrest
§ Apply CheckStyle, FindBugs and PMD
Source:
http://technologyconversations.com/2014/06/18/build-tools/
Code:
https://github.com/vfarcic/JavaBuildTools

22. 22

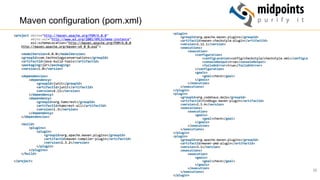

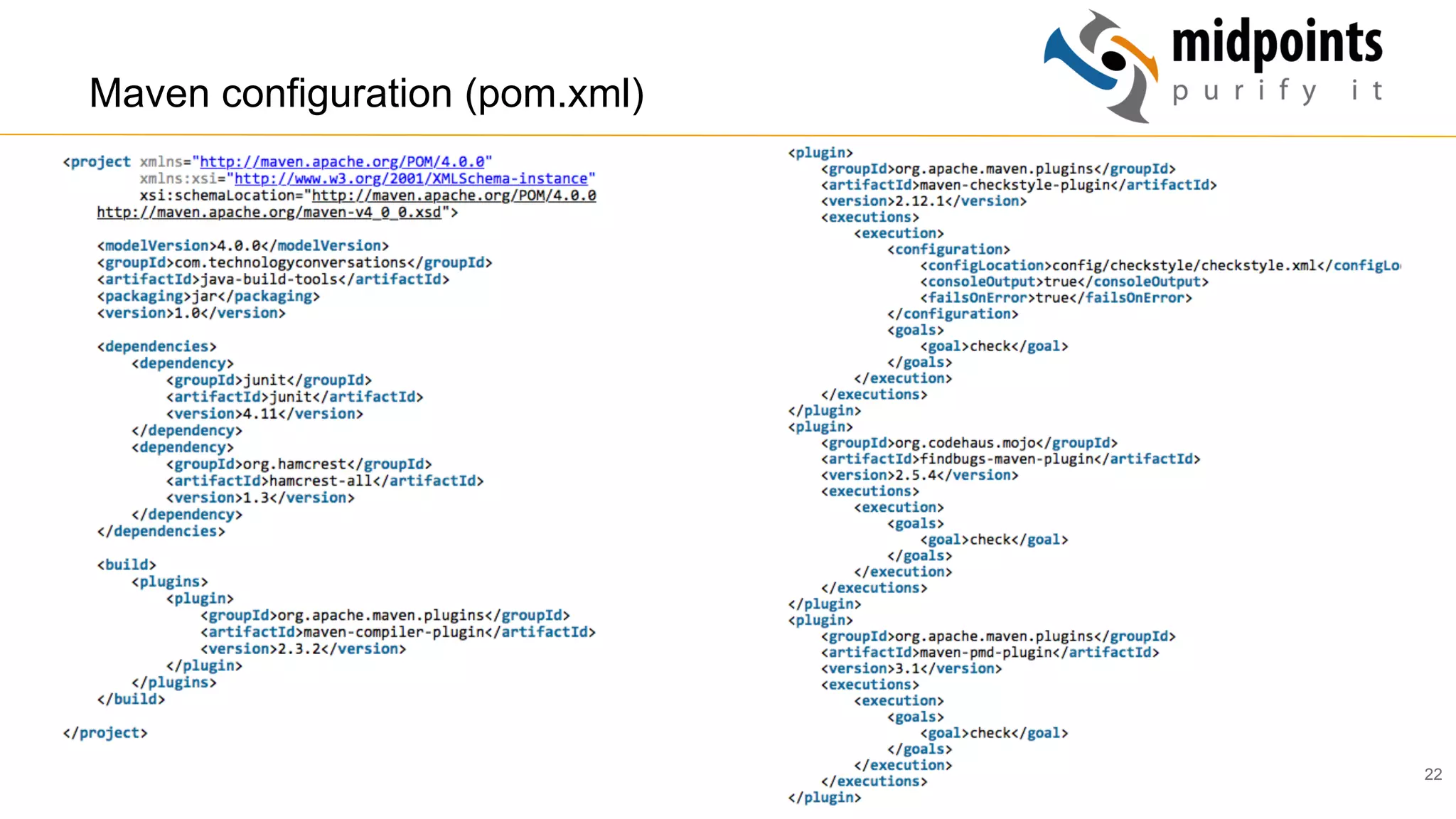

Maven configuration (pom.xml)

23. 23
Gradle configuration (build.gradle)

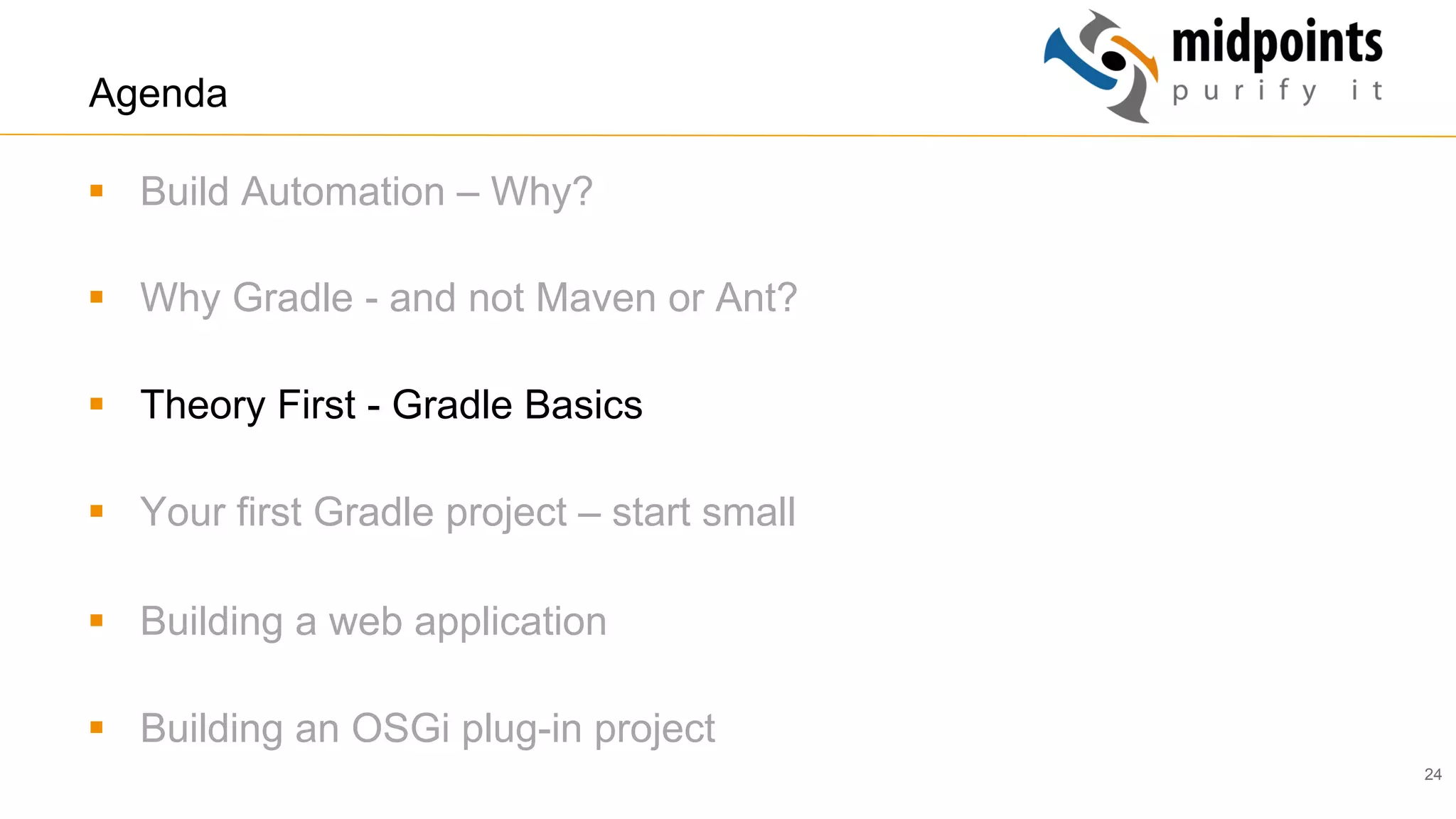

24. 24
Agenda
§ Build Automation – Why?
§ Why Gradle - and not Maven or Ant?
§ Theory First - Gradle Basics
§ Your first Gradle project – start small
§ Building a web application
§ Building an OSGi plug-in project

25. 25
Basics – General
§ Gradle is built on top of Groovy – you „configure“ in code!
§ You don‘t have to learn Groovy in the first place when using Gradle.
§ https://en.wikipedia.org/wiki/Groovy_(programming_language)
§ Build scripts are using a custom DSL (Domain Specific Language)
§ https://docs.gradle.org/current/dsl/index.html

26. 26

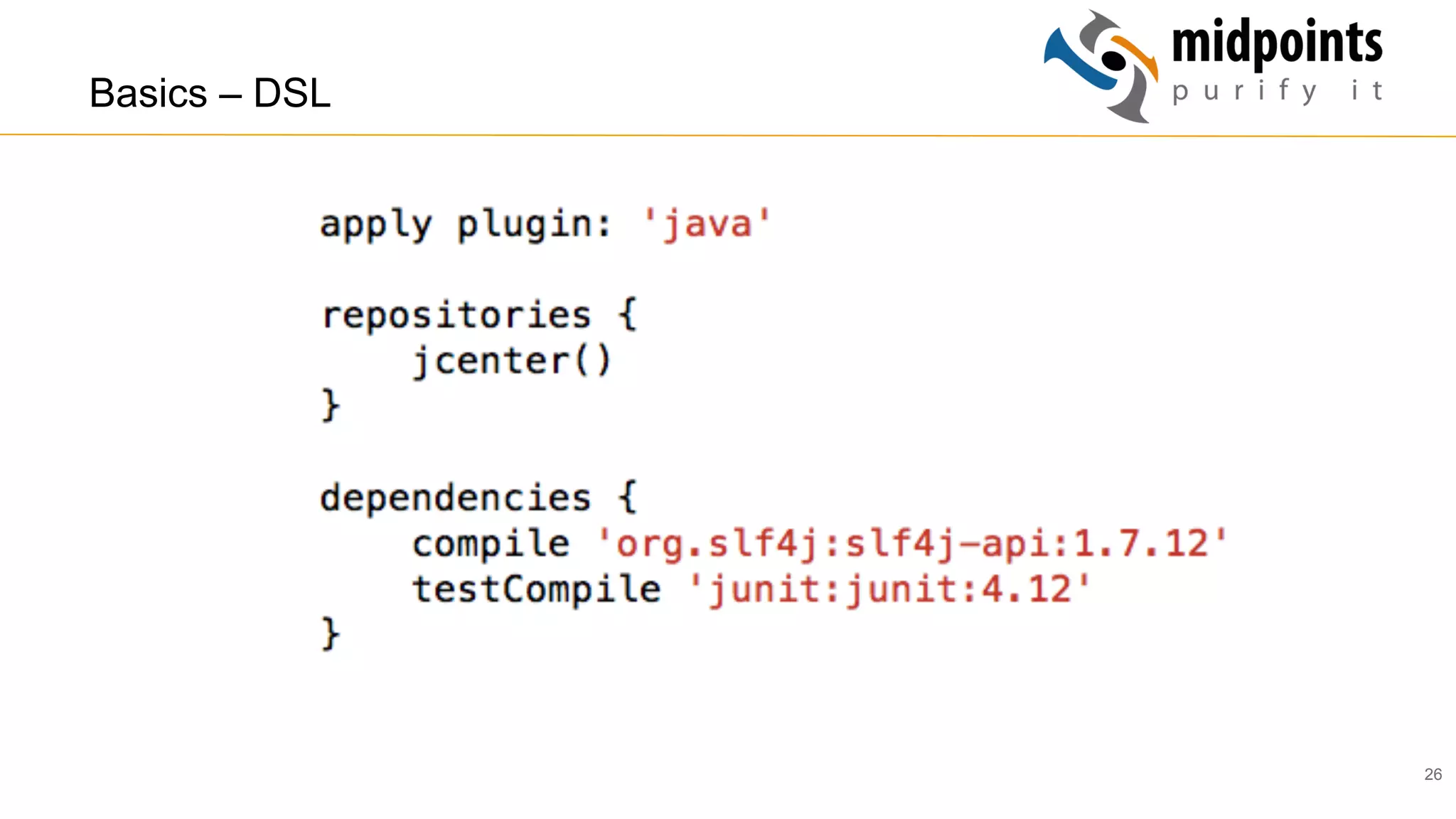

Basics – DSL

27. 27

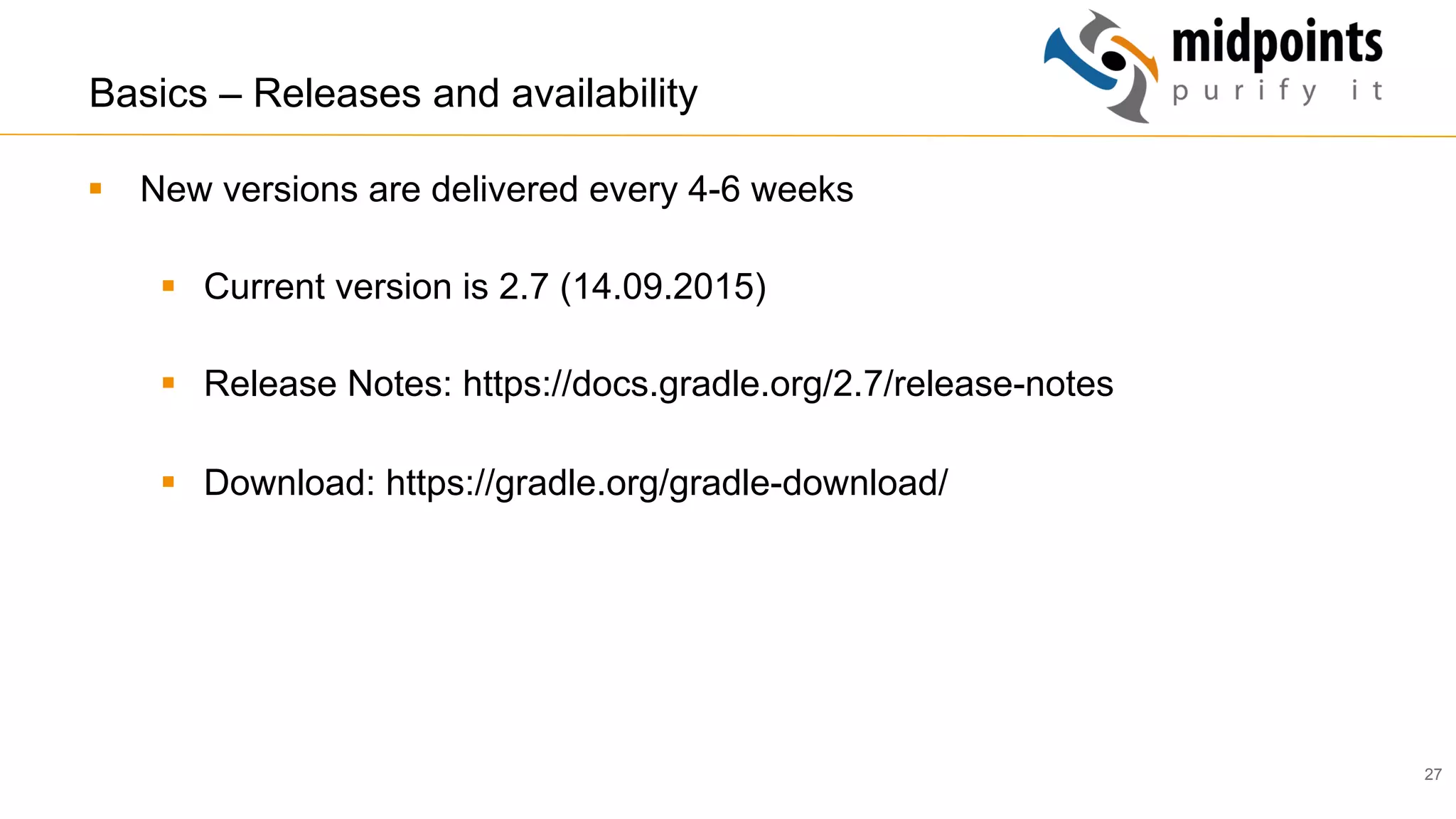

Basics – Releases and availability
§ New versions are delivered every 4-6 weeks
§ Current version is 2.7 (14.09.2015)
§ Release Notes: https://docs.gradle.org/2.7/release-notes
§ Download: https://gradle.org/gradle-download/

28. 28

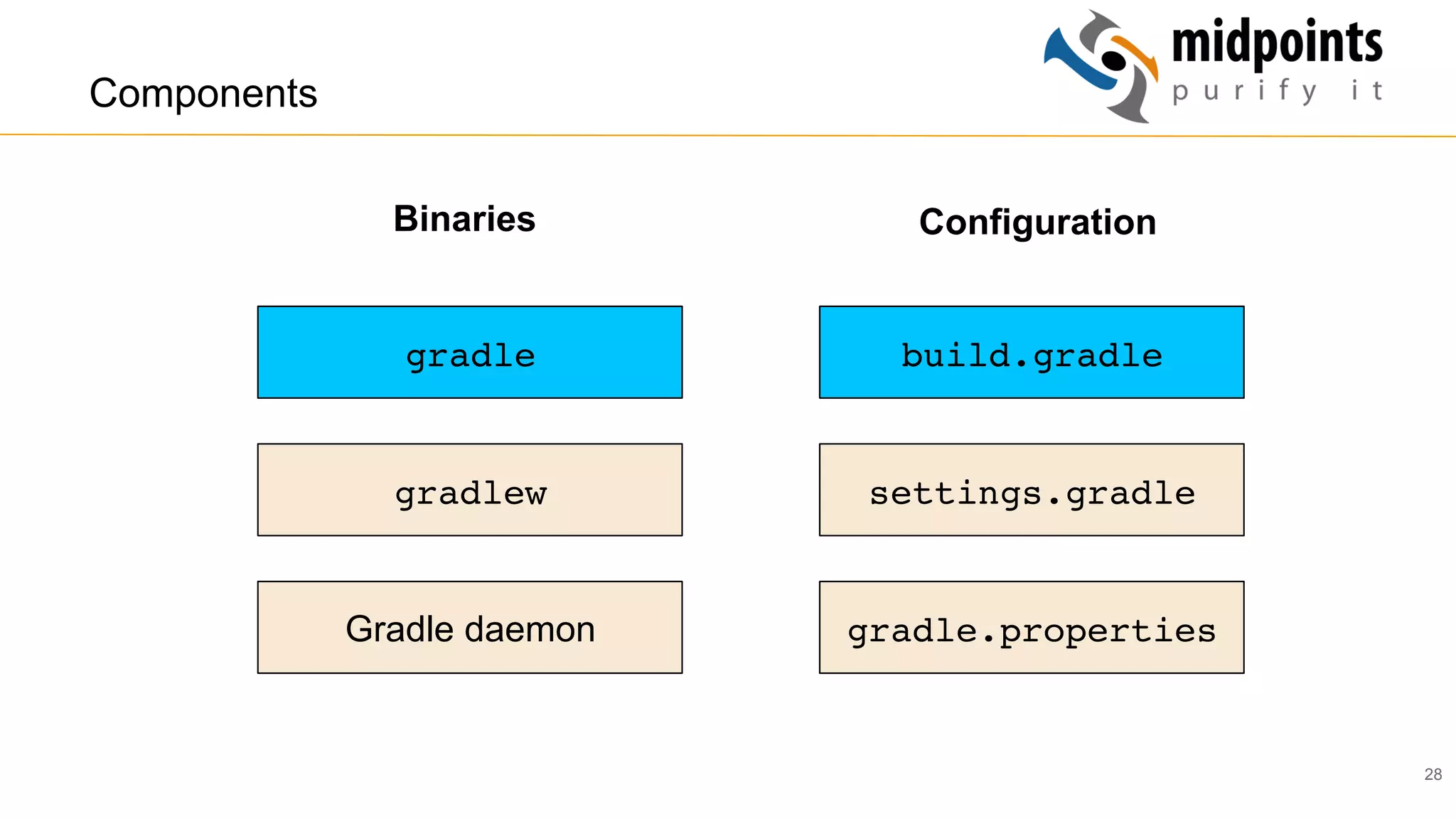

Components
gradle
gradlew
Gradle daemon
build.gradle
settings.gradle
gradle.properties
Binaries Configuration

29. 29

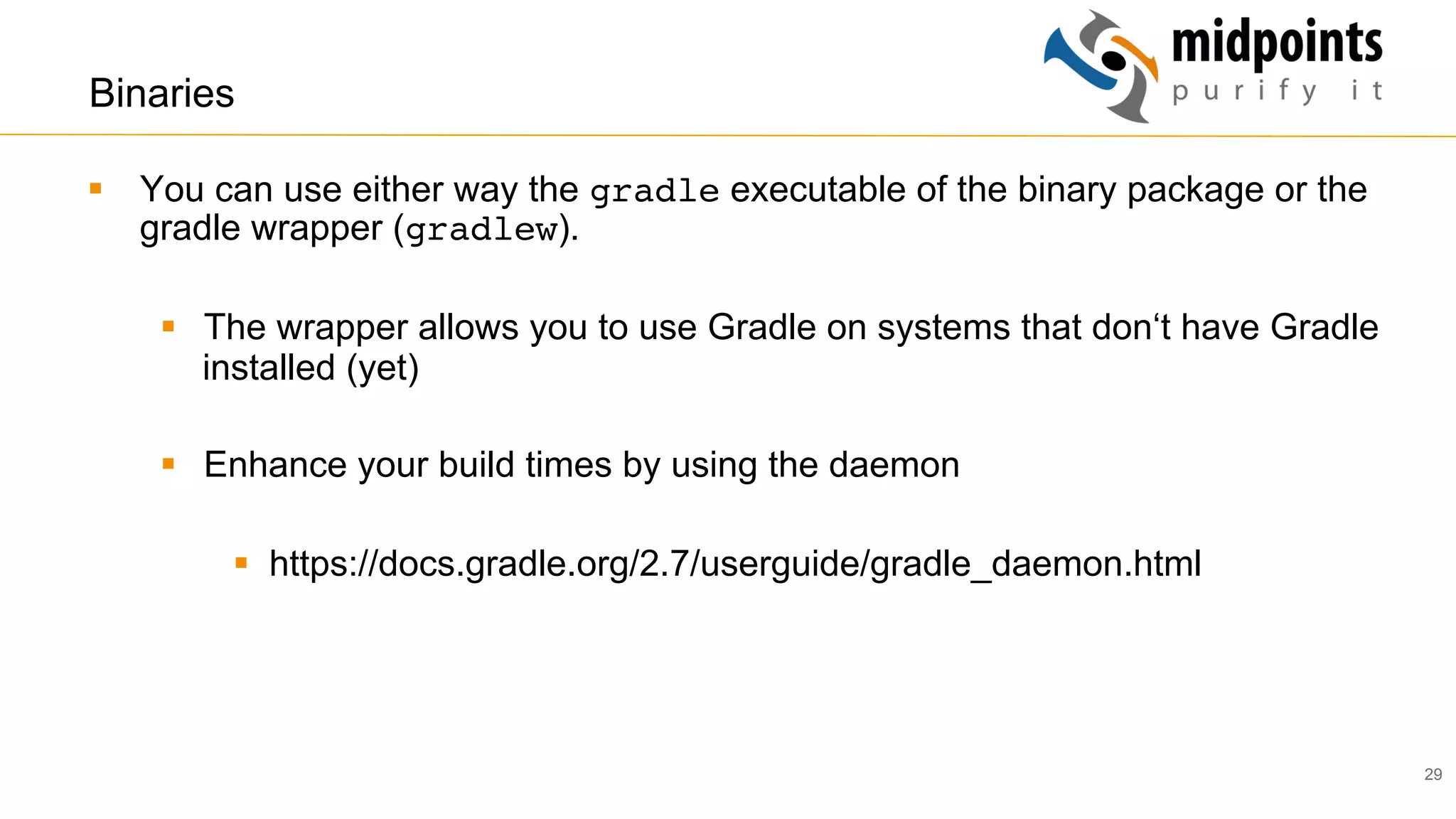

Binaries
§ You can use either way the gradle executable of the binary package or the
gradle wrapper (gradlew).
§ The wrapper allows you to use Gradle on systems that don‘t have Gradle
installed (yet)
§ Enhance your build times by using the daemon
§ https://docs.gradle.org/2.7/userguide/gradle_daemon.html

30. 30
Configuration – Global
§ Custom global properties can be set via a gradle.properties file
§ Project build dir
§ Users gradle home dir (i. e. ~/.gradle/ on *nix systems)
§ Via System properties
§ Define proxy settings, passwords for remote repository access and much
more
§ https://docs.gradle.org/current/userguide/build_environment.html

31. 31

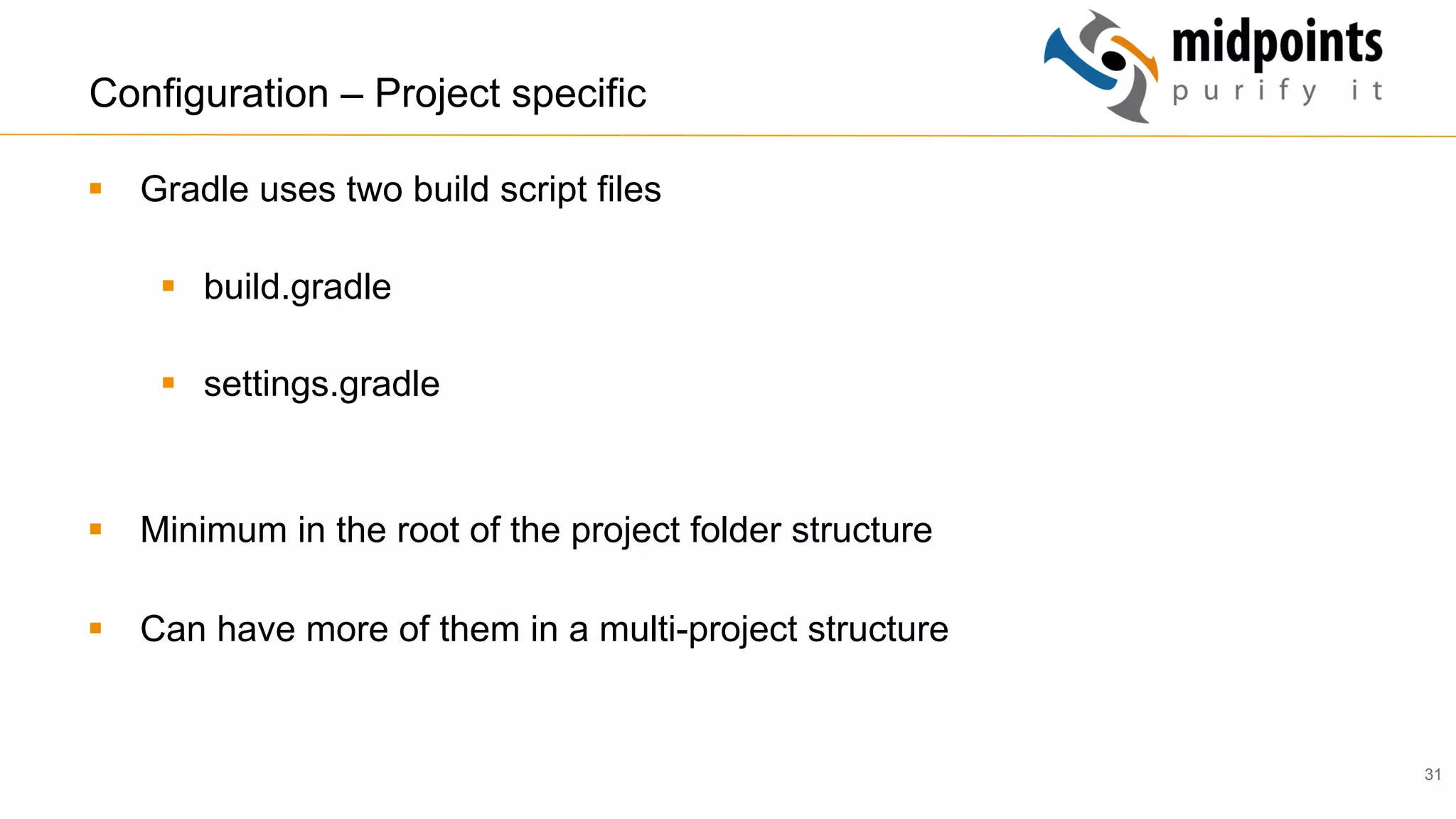

Configuration – Project specific
§ Gradle uses two build script files
§ build.gradle
§ settings.gradle
§ Minimum in the root of the project folder structure
§ Can have more of them in a multi-project structure

32. 32

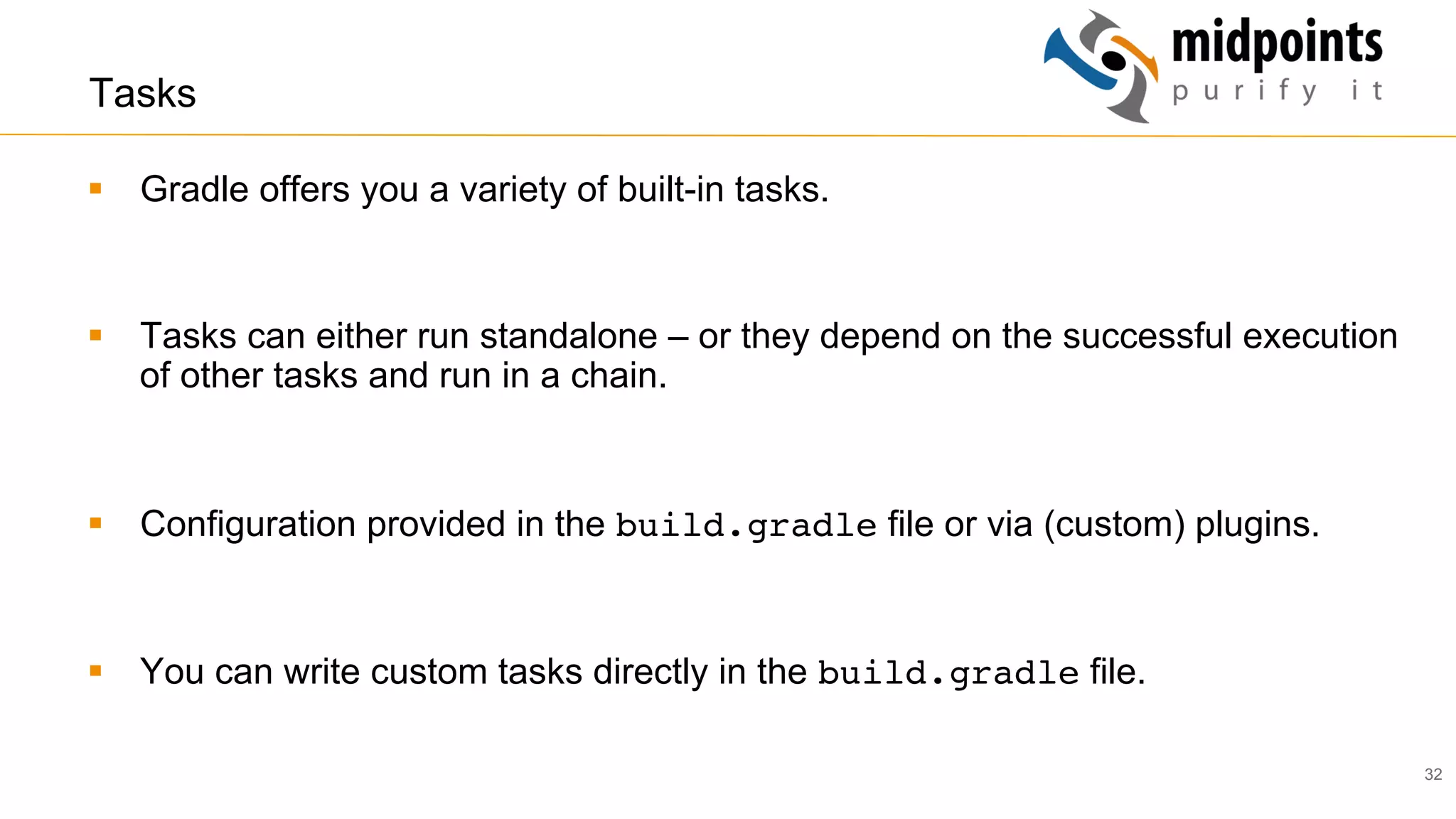

Tasks
§ Gradle offers you a variety of built-in tasks.
§ Tasks can either run standalone – or they depend on the successful execution
of other tasks and run in a chain.
§ Configuration provided in the build.gradle file or via (custom) plugins.
§ You can write custom tasks directly in the build.gradle file.

33. 33

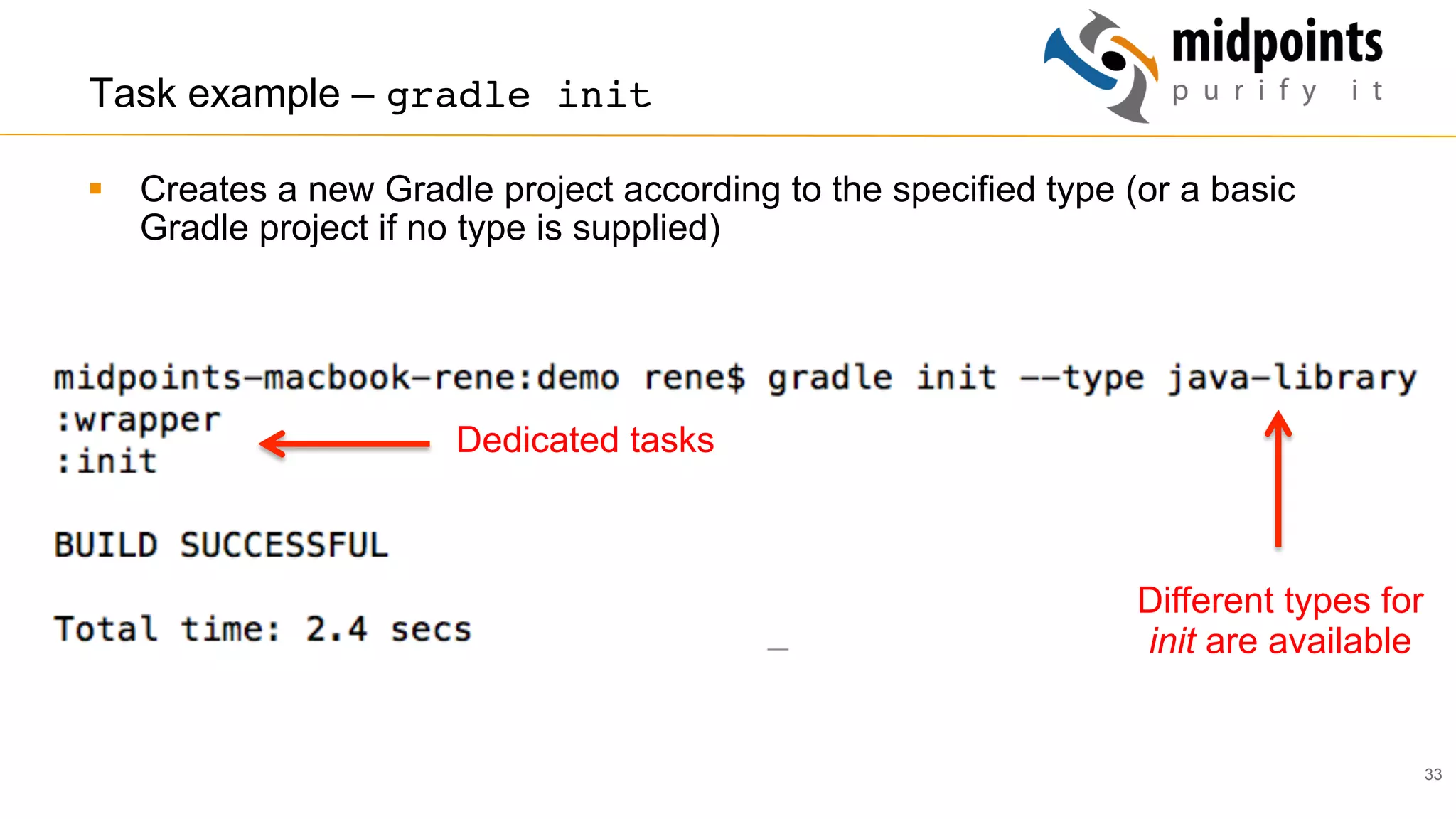

Task example – gradle init
§ Creates a new Gradle project according to the specified type (or a basic
Gradle project if no type is supplied)
Dedicated tasks
Different types for
init are available

34. 34

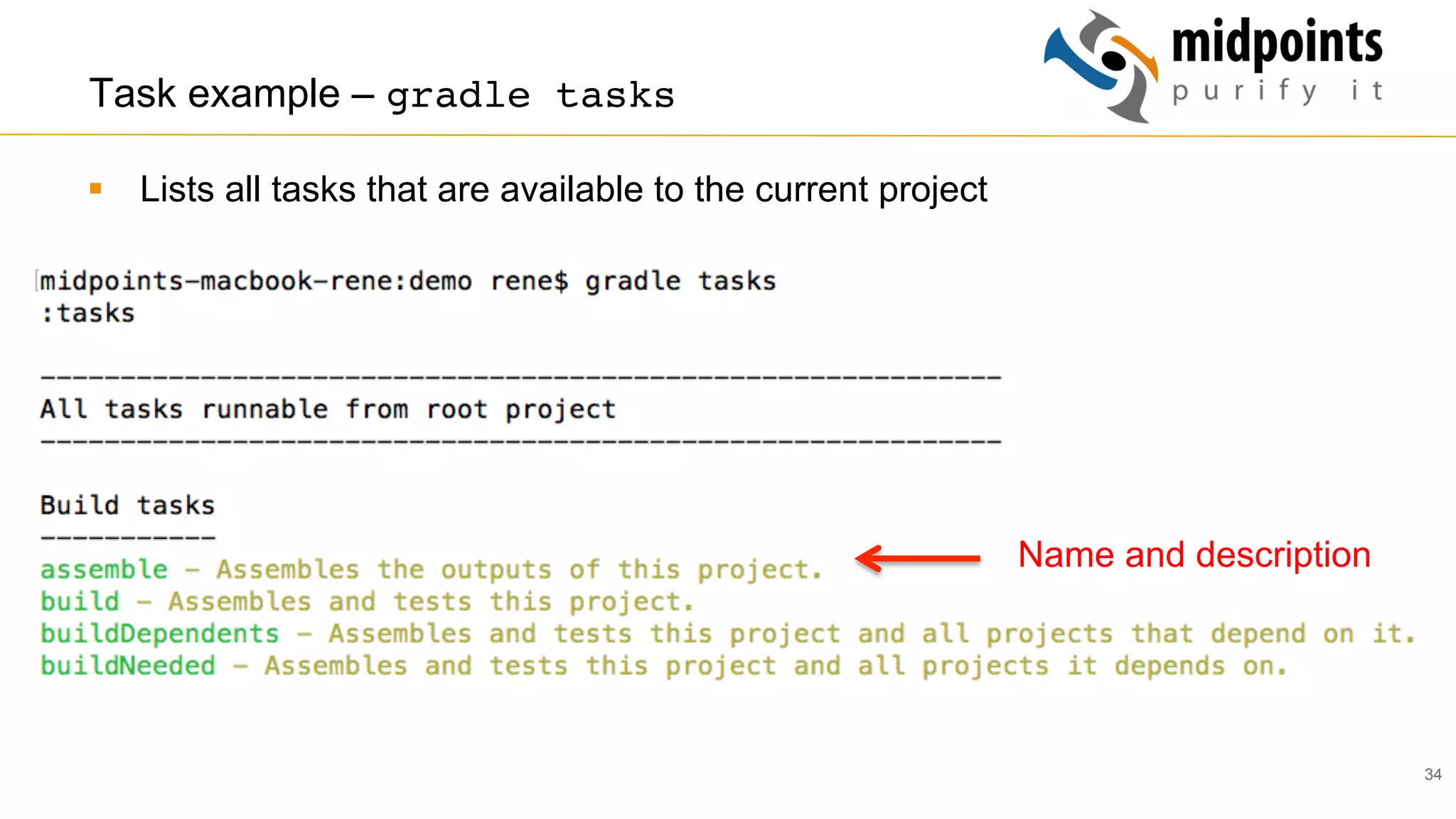

Task example – gradle tasks
§ Lists all tasks that are available to the current project
Name and description

35. 35

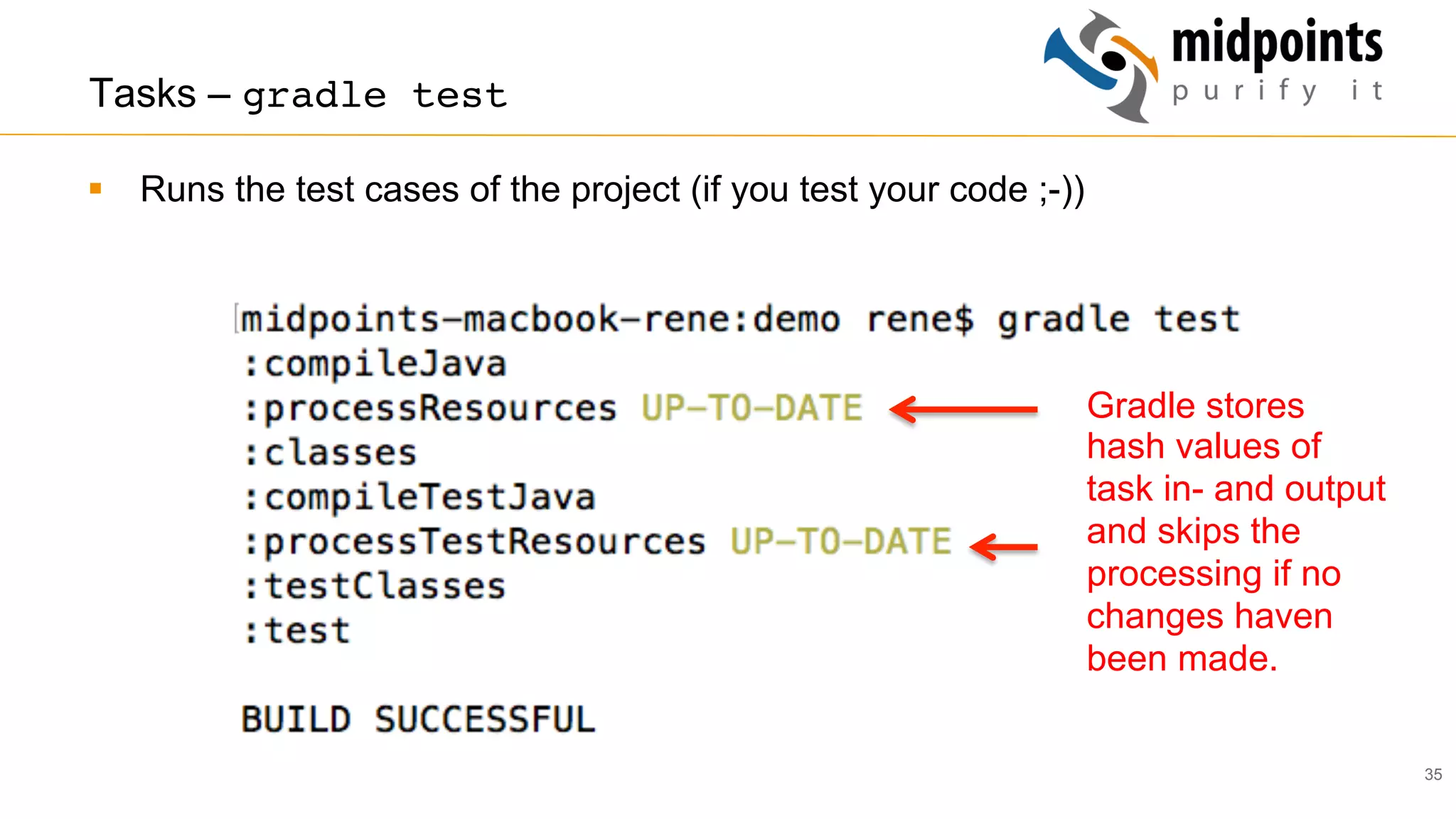

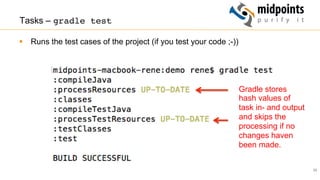

Tasks – gradle test
§ Runs the test cases of the project (if you test your code ;-))
Gradle stores
hash values of
task in- and output
and skips the
processing if no
changes haven
been made.

36. 36

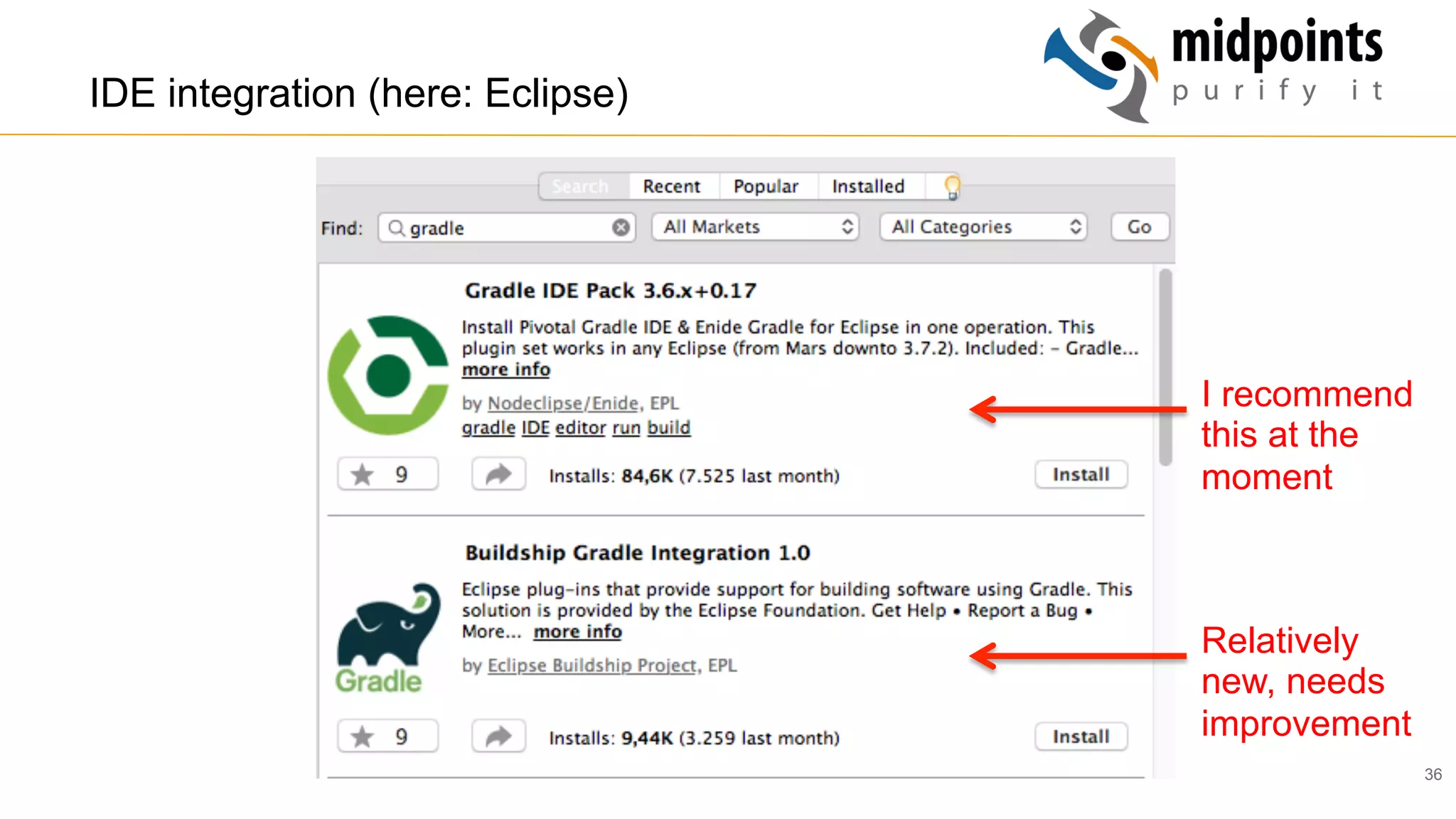

IDE integration (here: Eclipse)
I recommend
this at the
moment
Relatively
new, needs
improvement

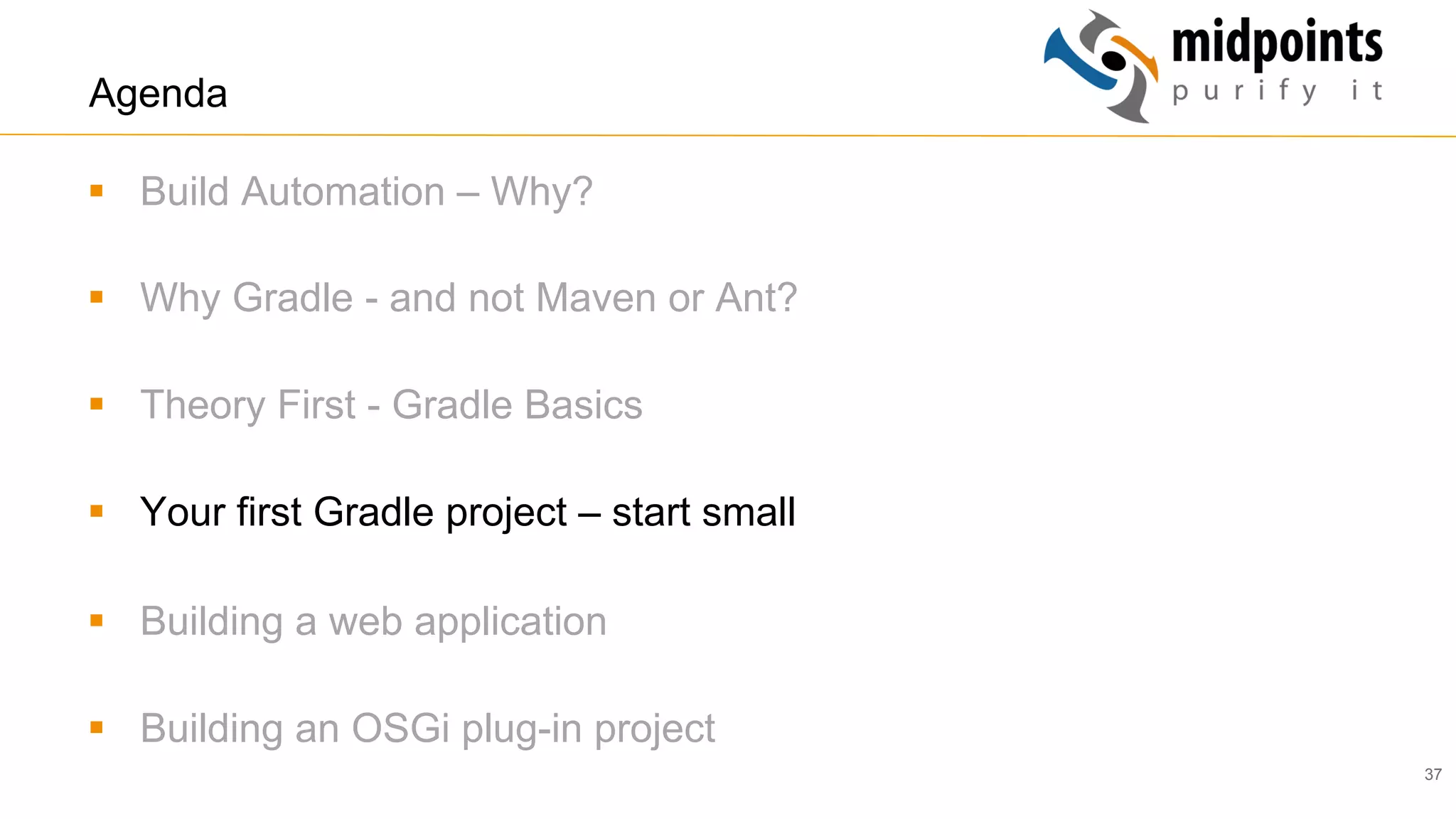

37. 37
Agenda
§ Build Automation – Why?
§ Why Gradle - and not Maven or Ant?
§ Theory First - Gradle Basics
§ Your first Gradle project – start small
§ Building a web application
§ Building an OSGi plug-in project

38. 38

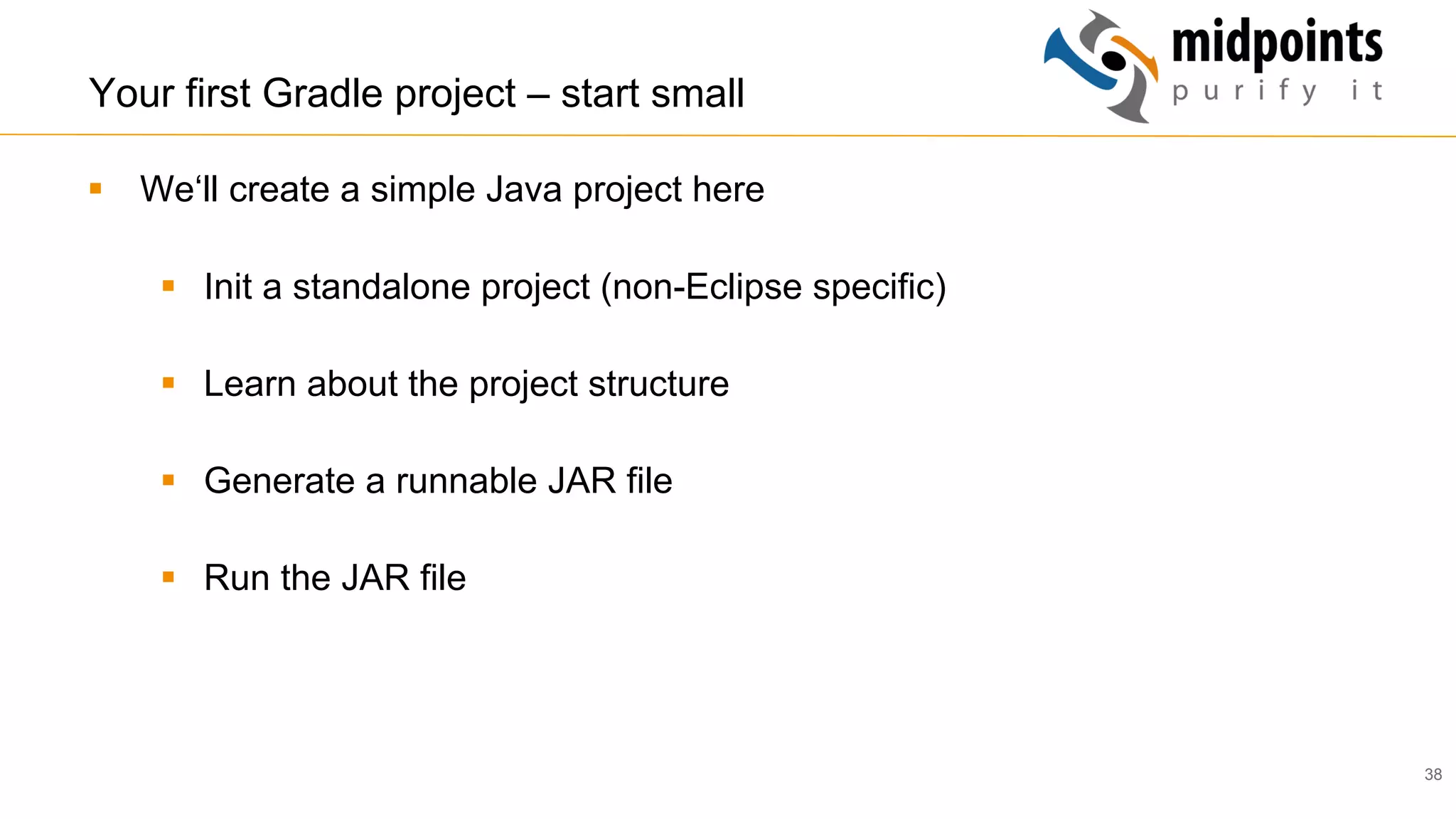

Your first Gradle project – start small
§ We‘ll create a simple Java project here
§ Init a standalone project (non-Eclipse specific)
§ Learn about the project structure
§ Generate a runnable JAR file
§ Run the JAR file

39. 39
Init the project

40. 40

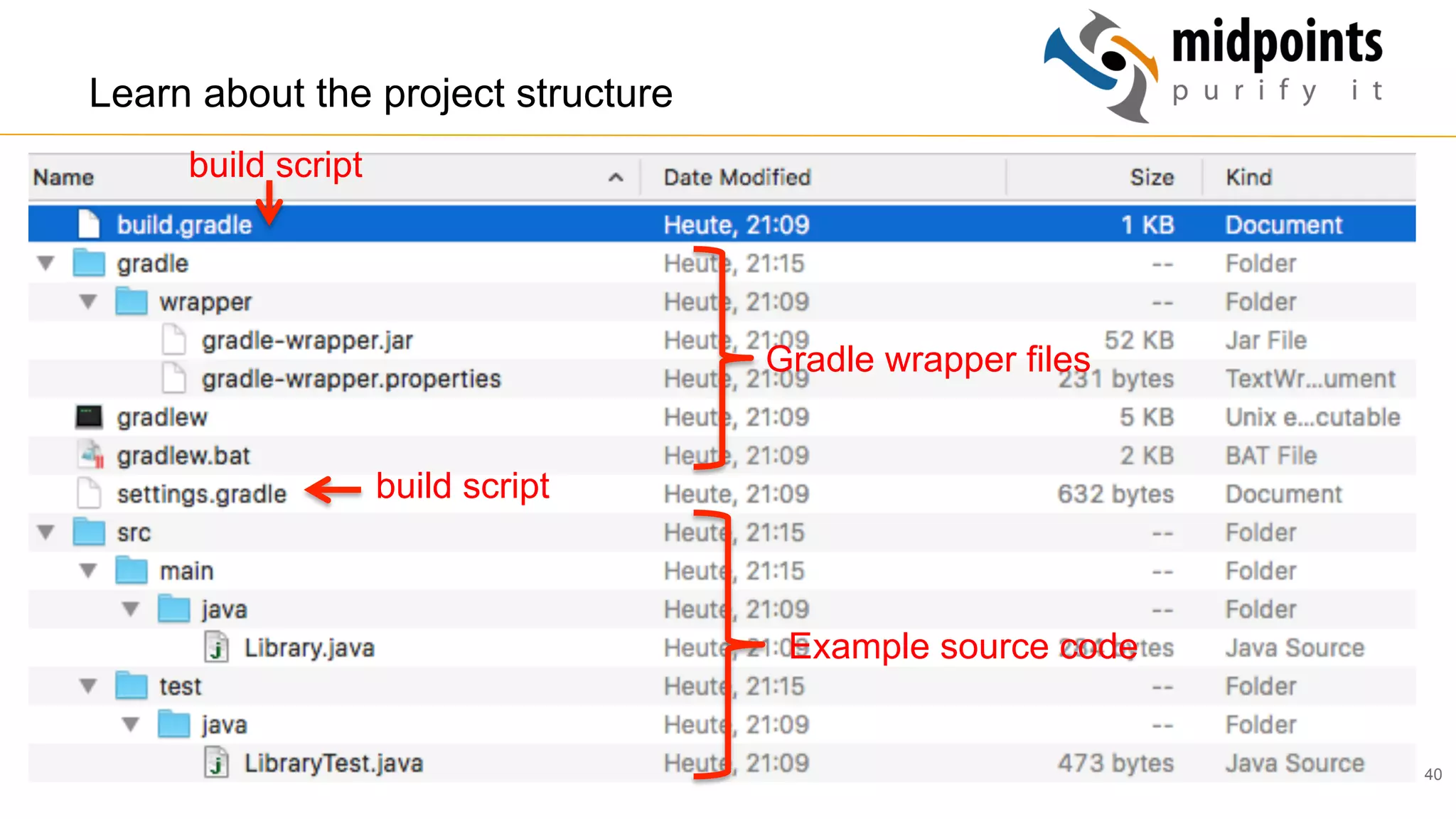

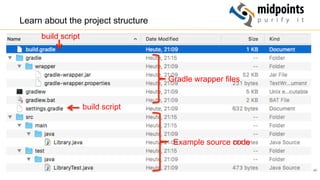

Learn about the project structure
build script
build script
Gradle wrapper files
Example source code

41. 41

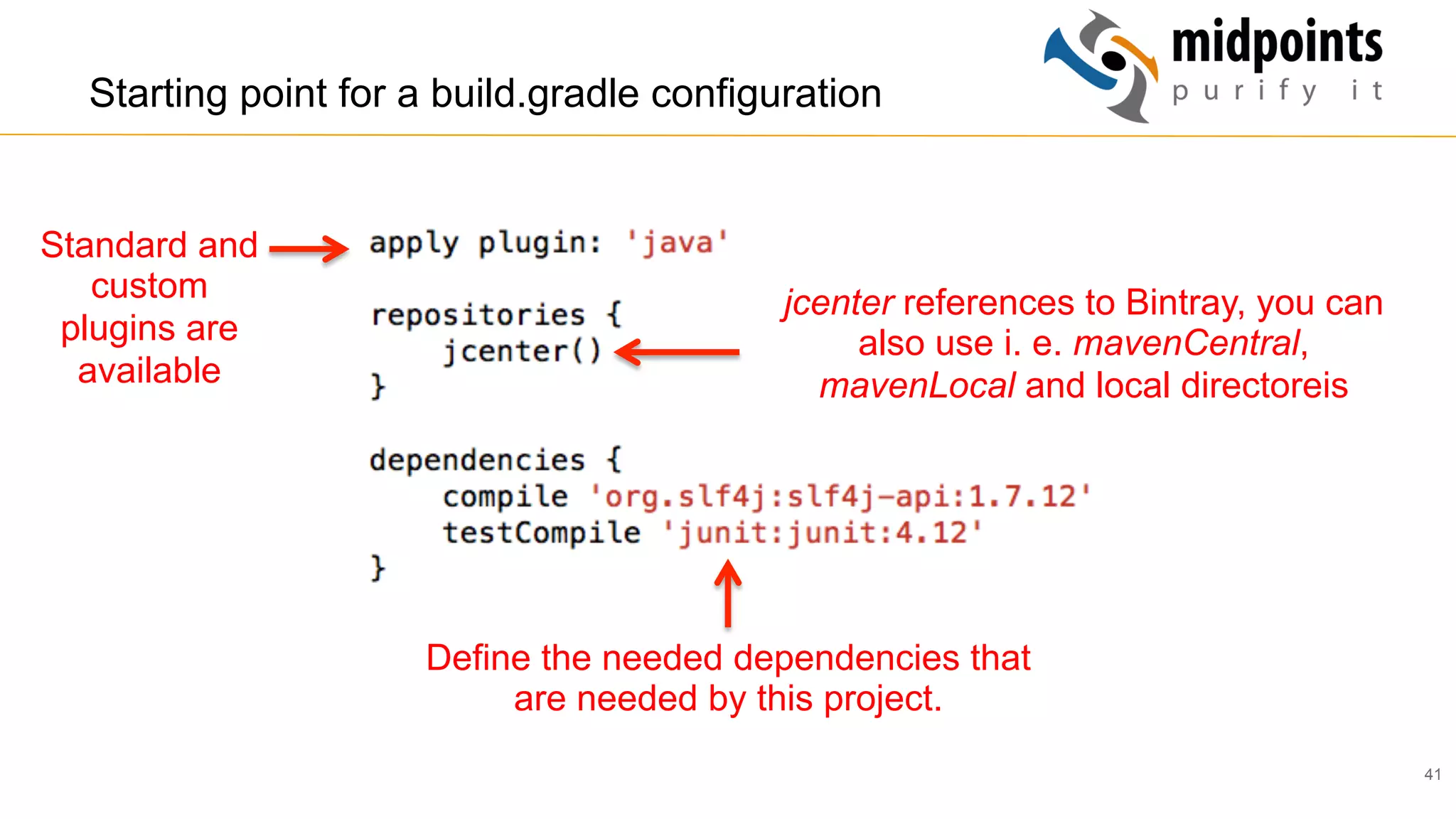

Starting point for a build.gradle configuration
Standard and
custom
plugins are
available
jcenter references to Bintray, you can
also use i. e. mavenCentral,
mavenLocal and local directoreis
Define the needed dependencies that
are needed by this project.

42. 42
Assemble the JAR file
Gradle detects unavailable
dependencies and downloads them
automatically.

43. 43

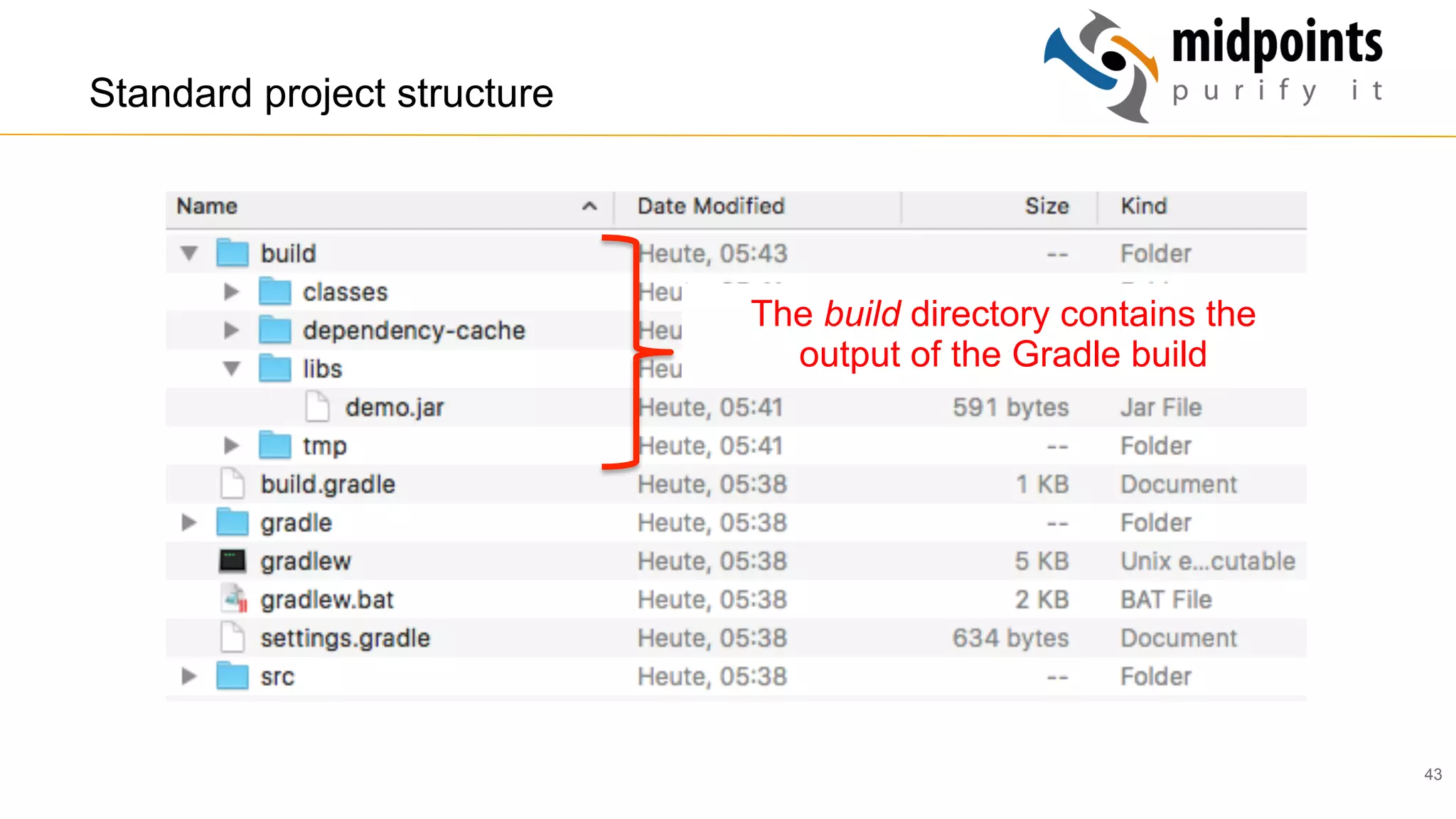

Standard project structure
The build directory contains the
output of the Gradle build

44. 44

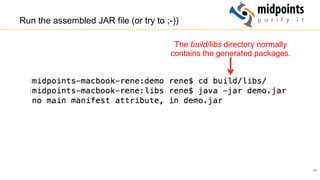

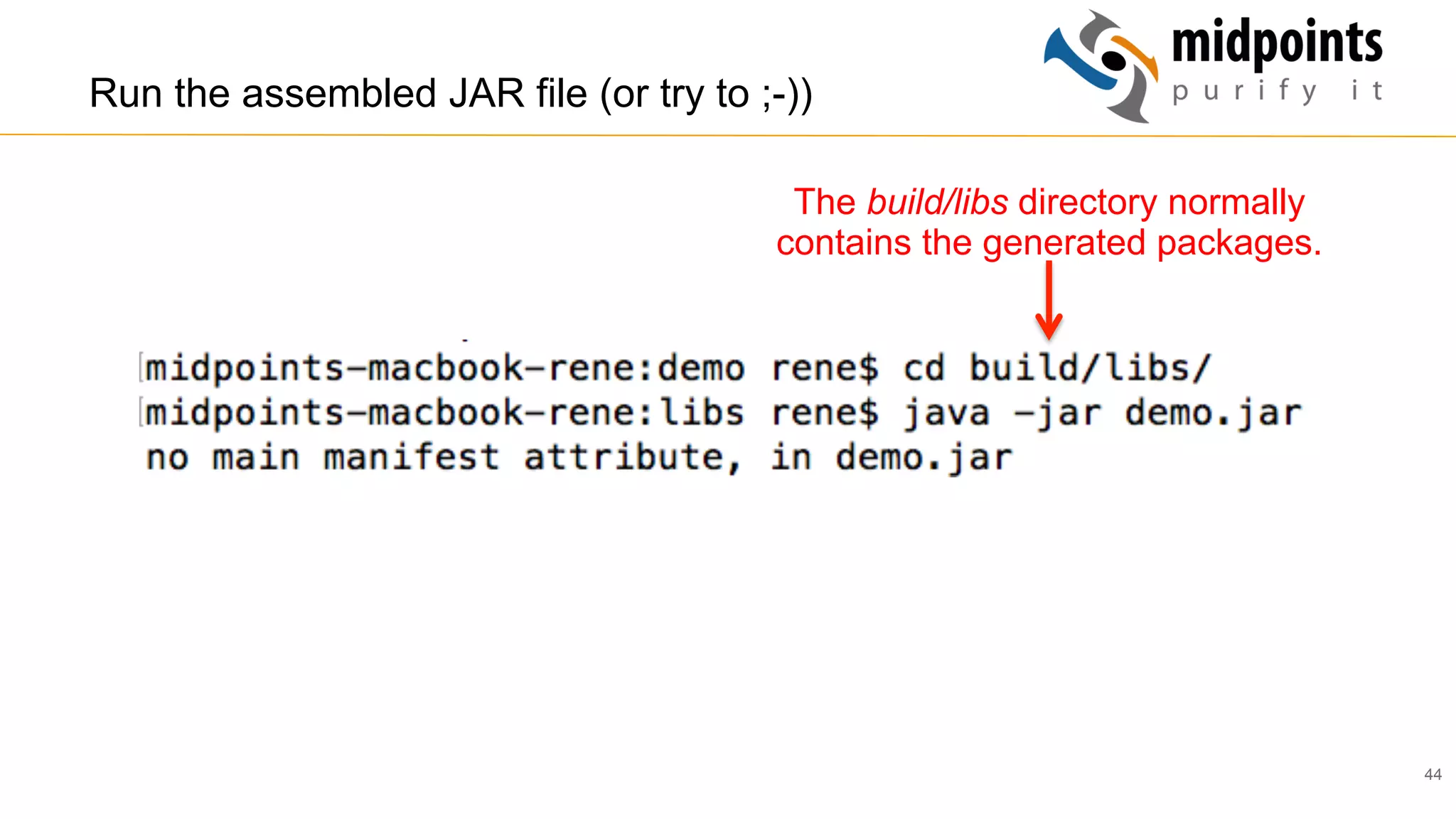

Run the assembled JAR file (or try to ;-))
The build/libs directory normally
contains the generated packages.

45. 45
Add your first additional plugin
Adding the „application“
plugin for getting a
runnable JAR file
New property that tells
the „application“ plugin
the name of the main
class.

46. 46

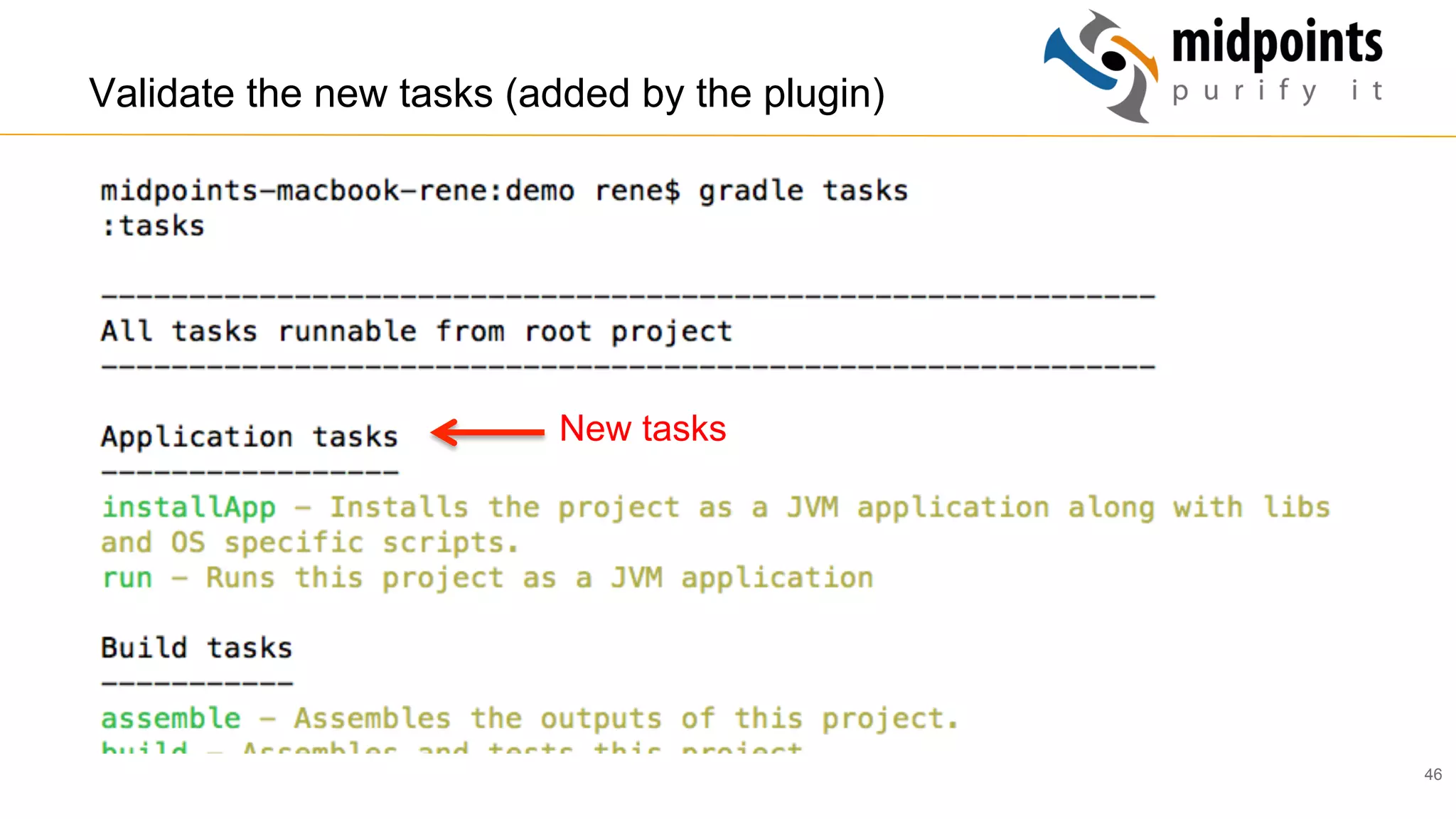

Validate the new tasks (added by the plugin)
New tasks

47. 47
Run the JAR file
Output of the sample code

48. 48

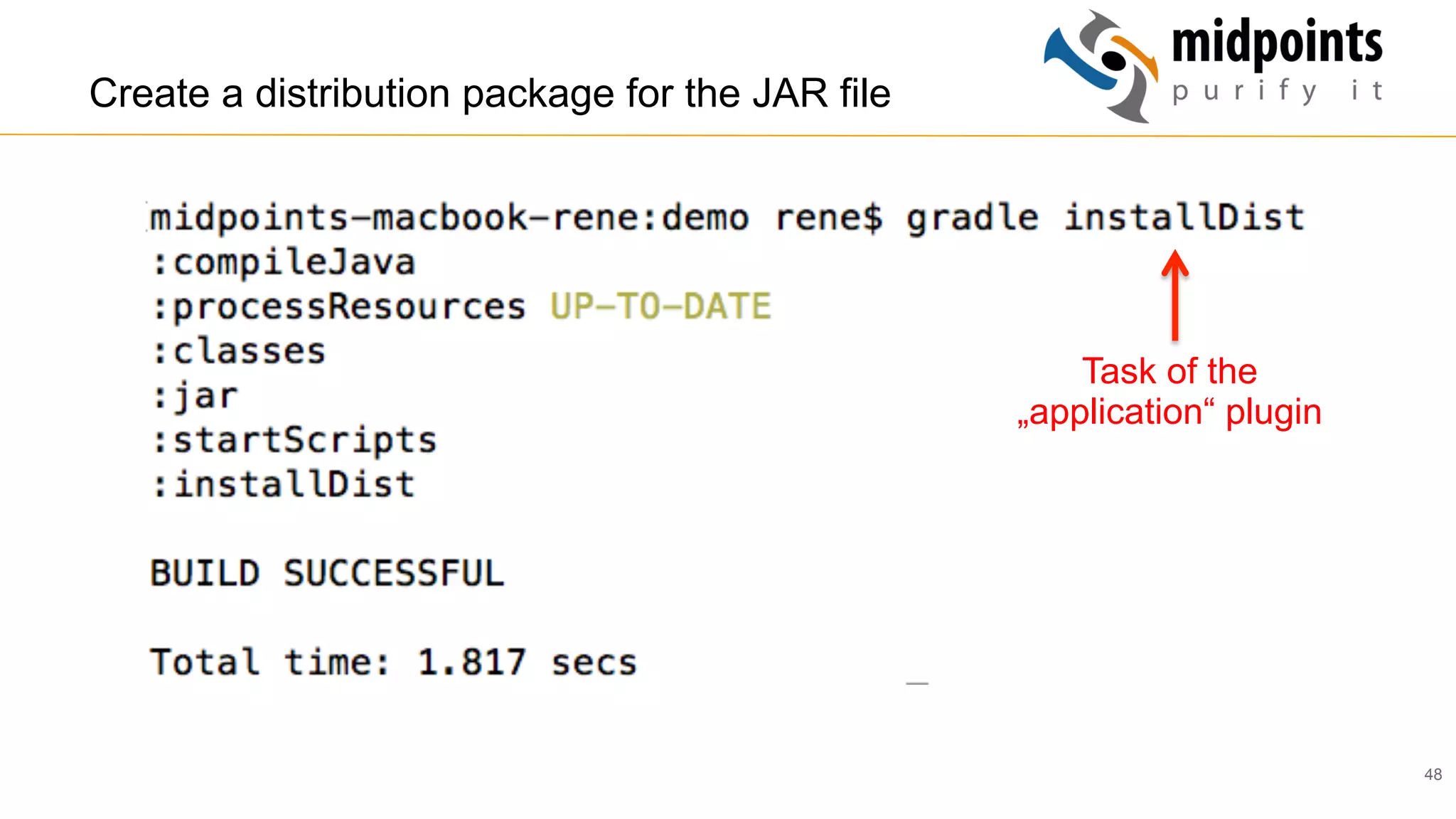

Create a distribution package for the JAR file
Task of the
„application“ plugin

49. 49
Validate the distribution package
installDist generates the fully
runnable distribution package

50. 50

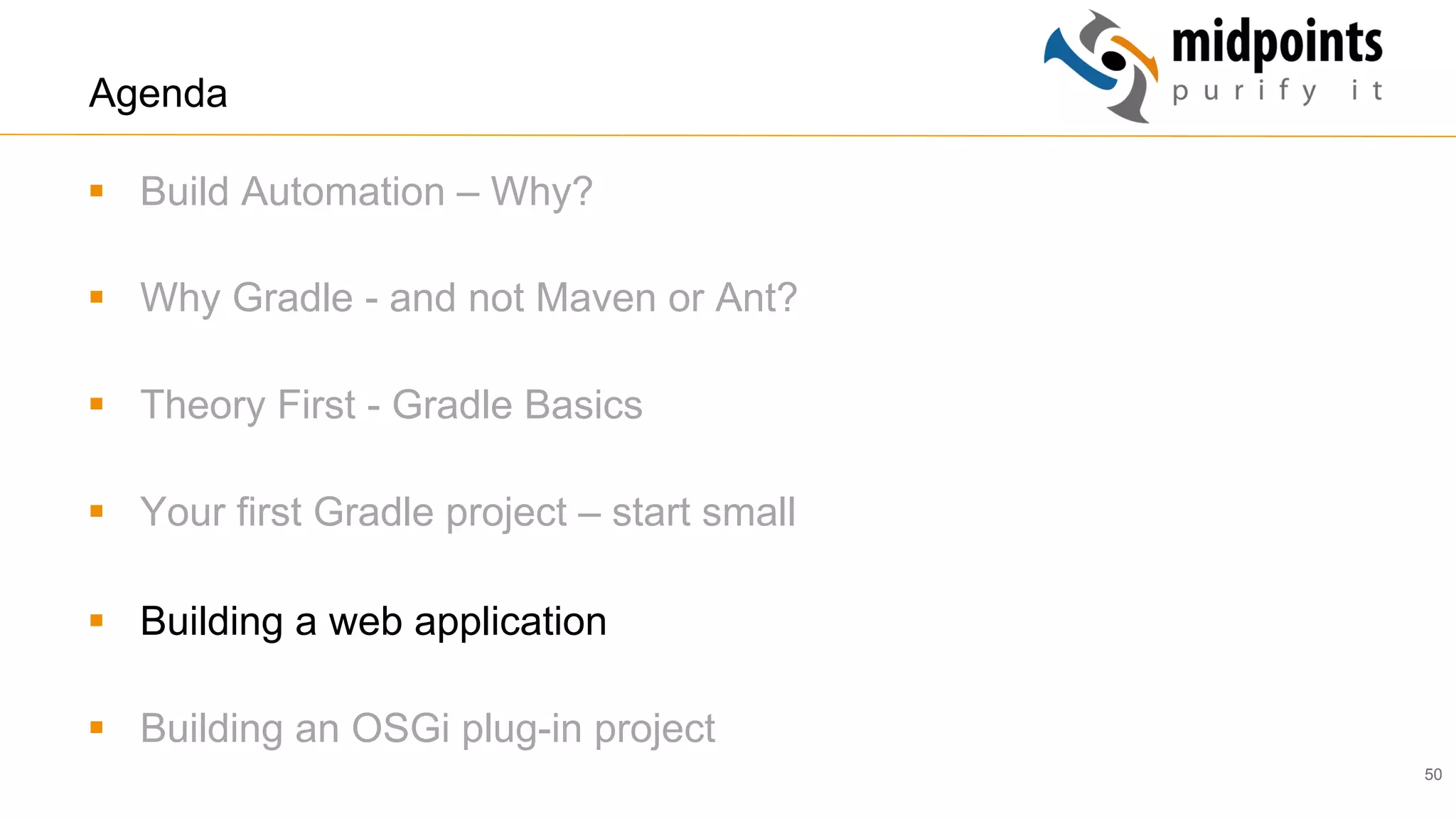

Agenda
§ Build Automation – Why?
§ Why Gradle - and not Maven or Ant?
§ Theory First - Gradle Basics
§ Your first Gradle project – start small
§ Building a web application
§ Building an OSGi plug-in project

51. 51

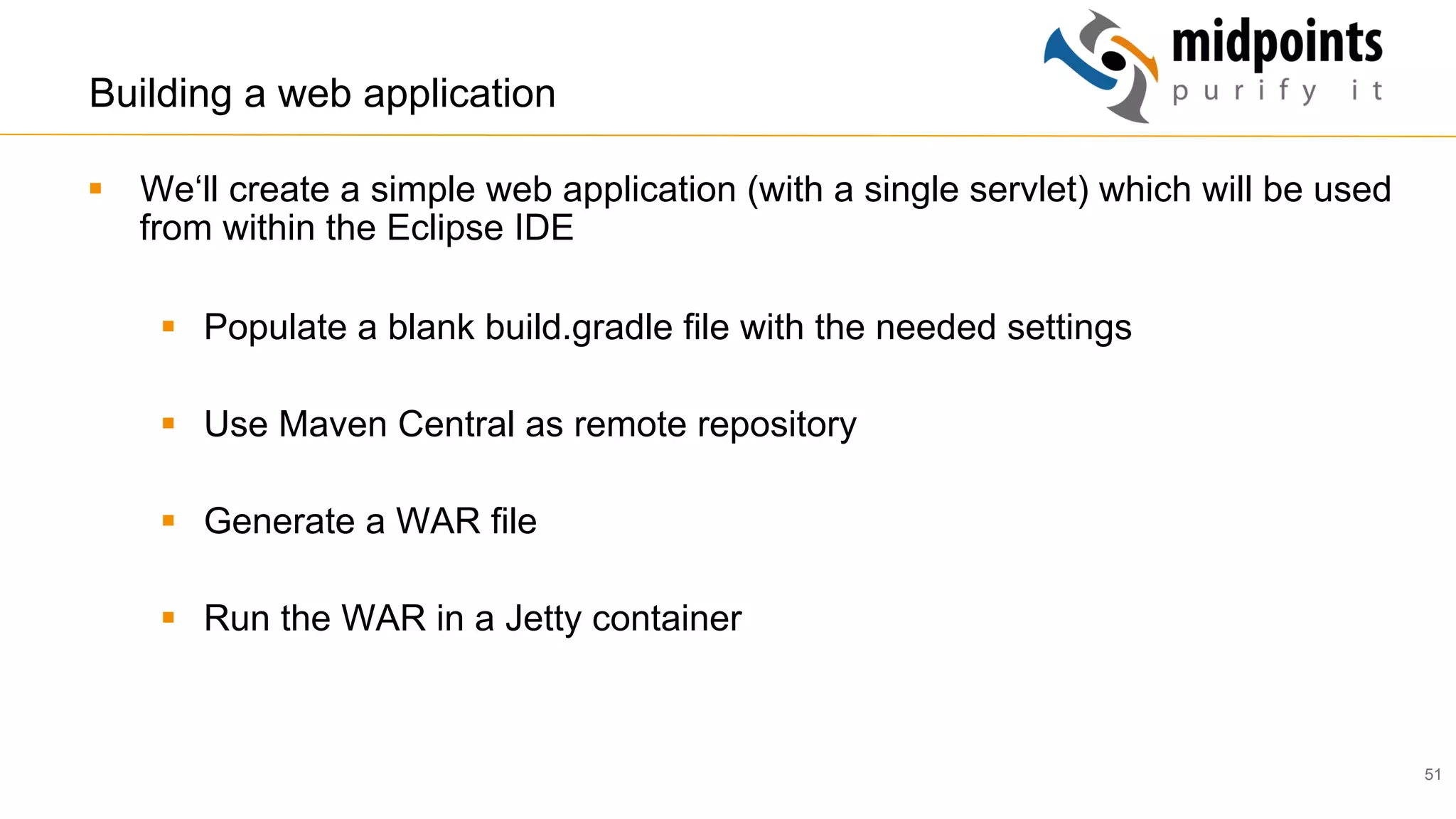

Building a web application
§ We‘ll create a simple web application (with a single servlet) which will be used
from within the Eclipse IDE
§ Populate a blank build.gradle file with the needed settings
§ Use Maven Central as remote repository
§ Generate a WAR file
§ Run the WAR in a Jetty container

52. 52
Populate new build.gradle file
Code generation
should respect Java 8
Plugins that
help with
Eclipse
integration
Adds tasks
for WAR files

53. 53

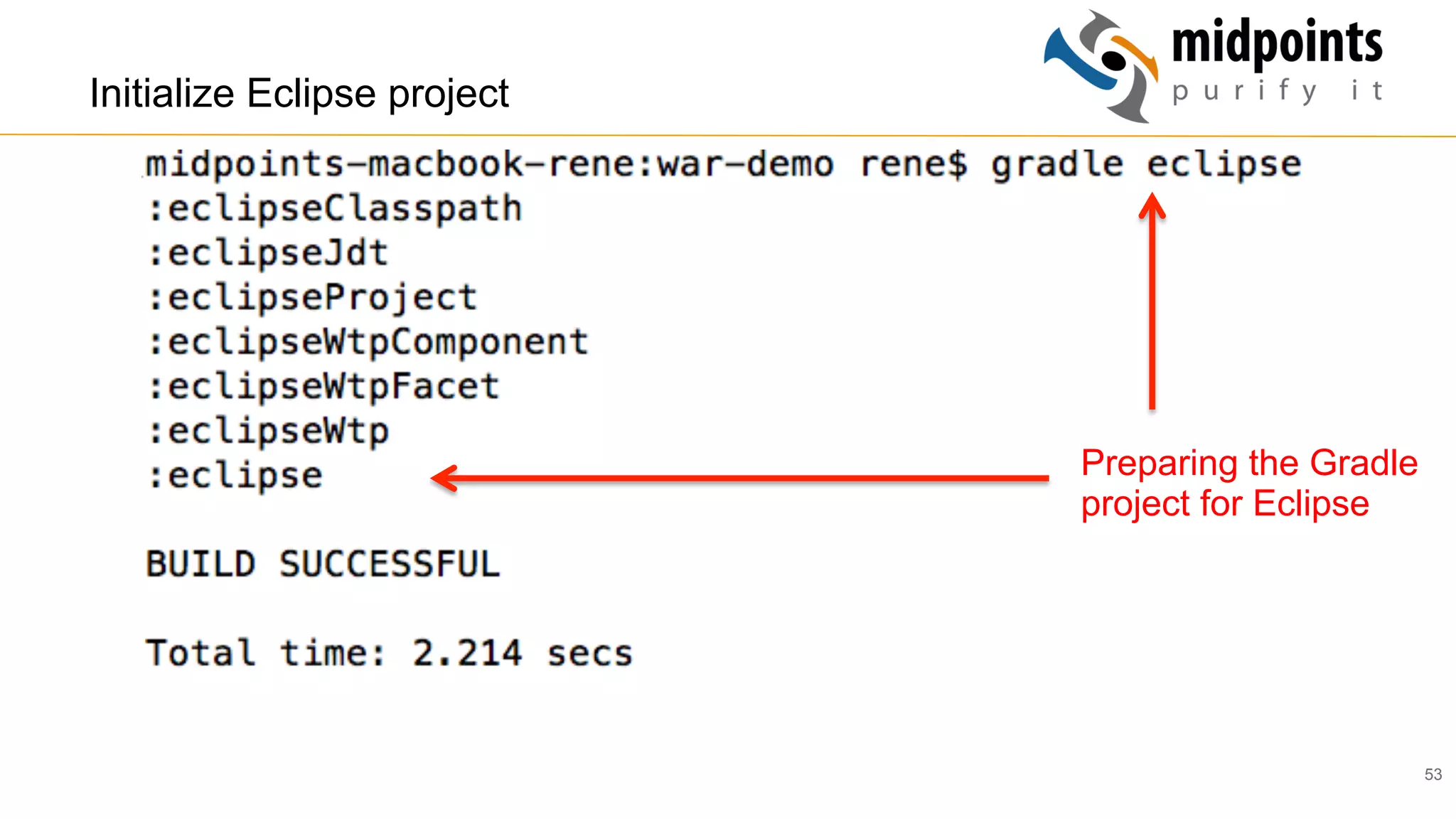

Initialize Eclipse project
Preparing the Gradle
project for Eclipse

54. 54

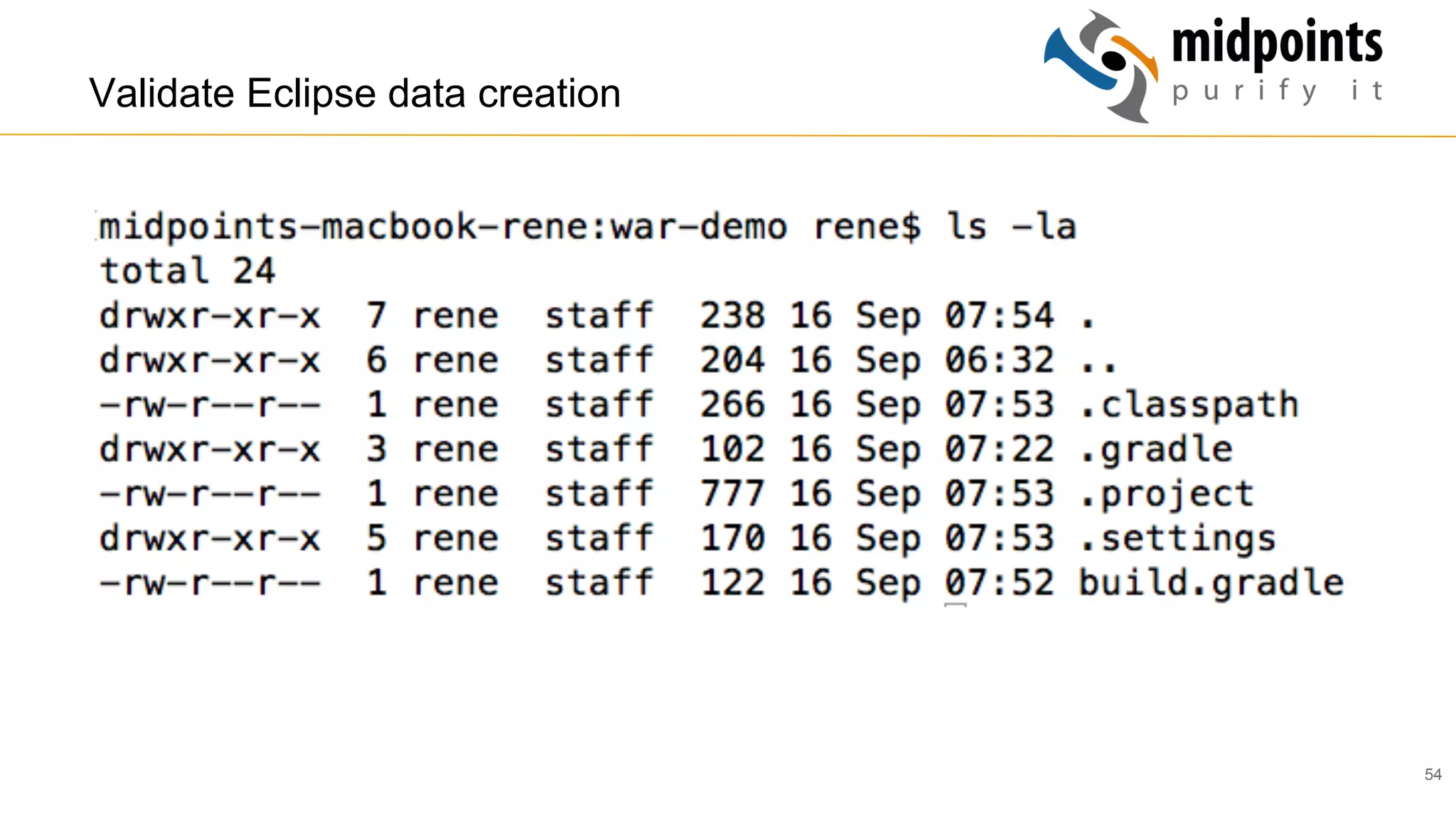

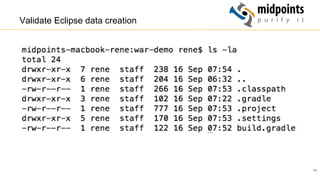

Validate Eclipse data creation

55. 55

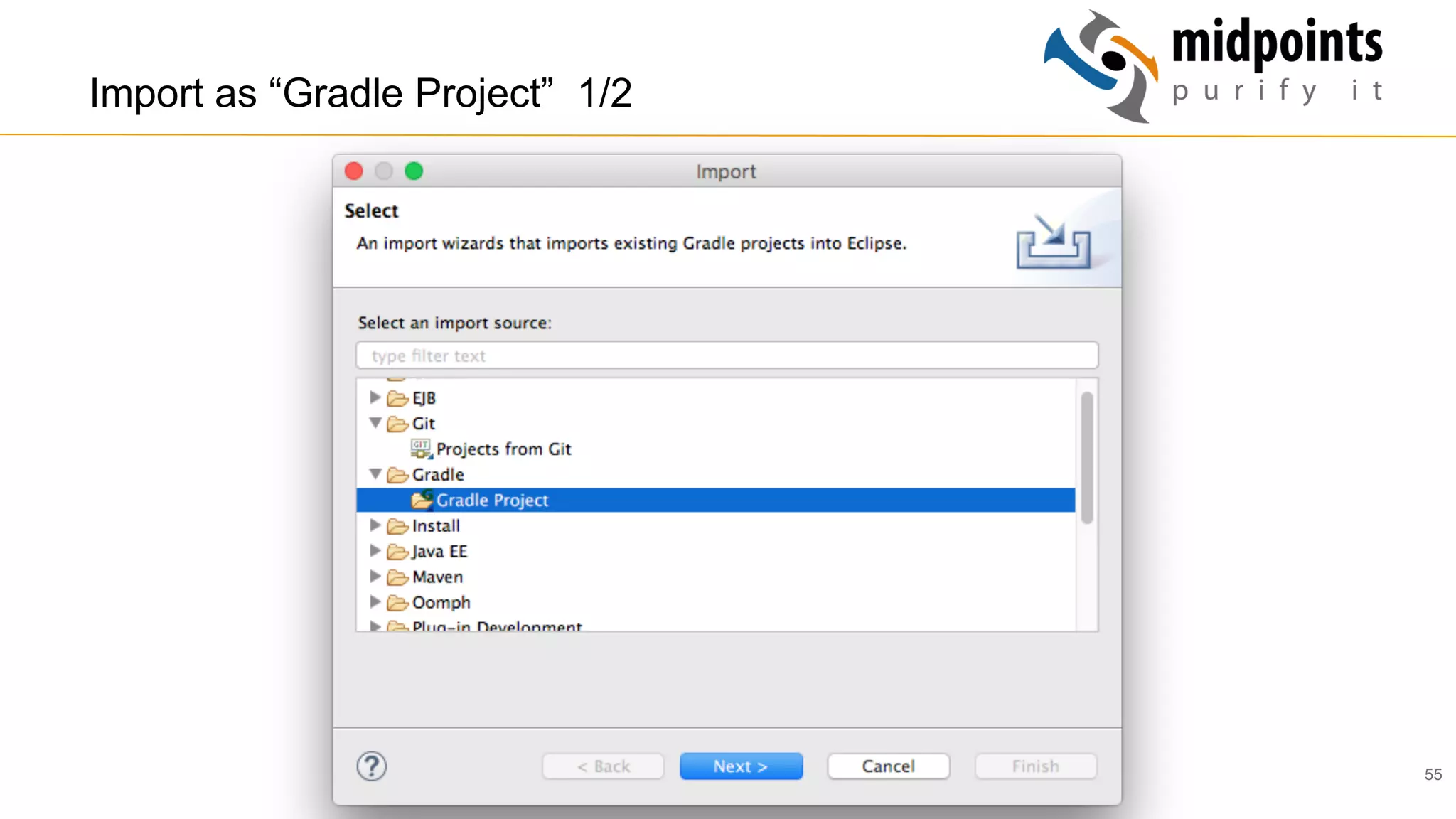

Import as “Gradle Project” 1/2

56. 56

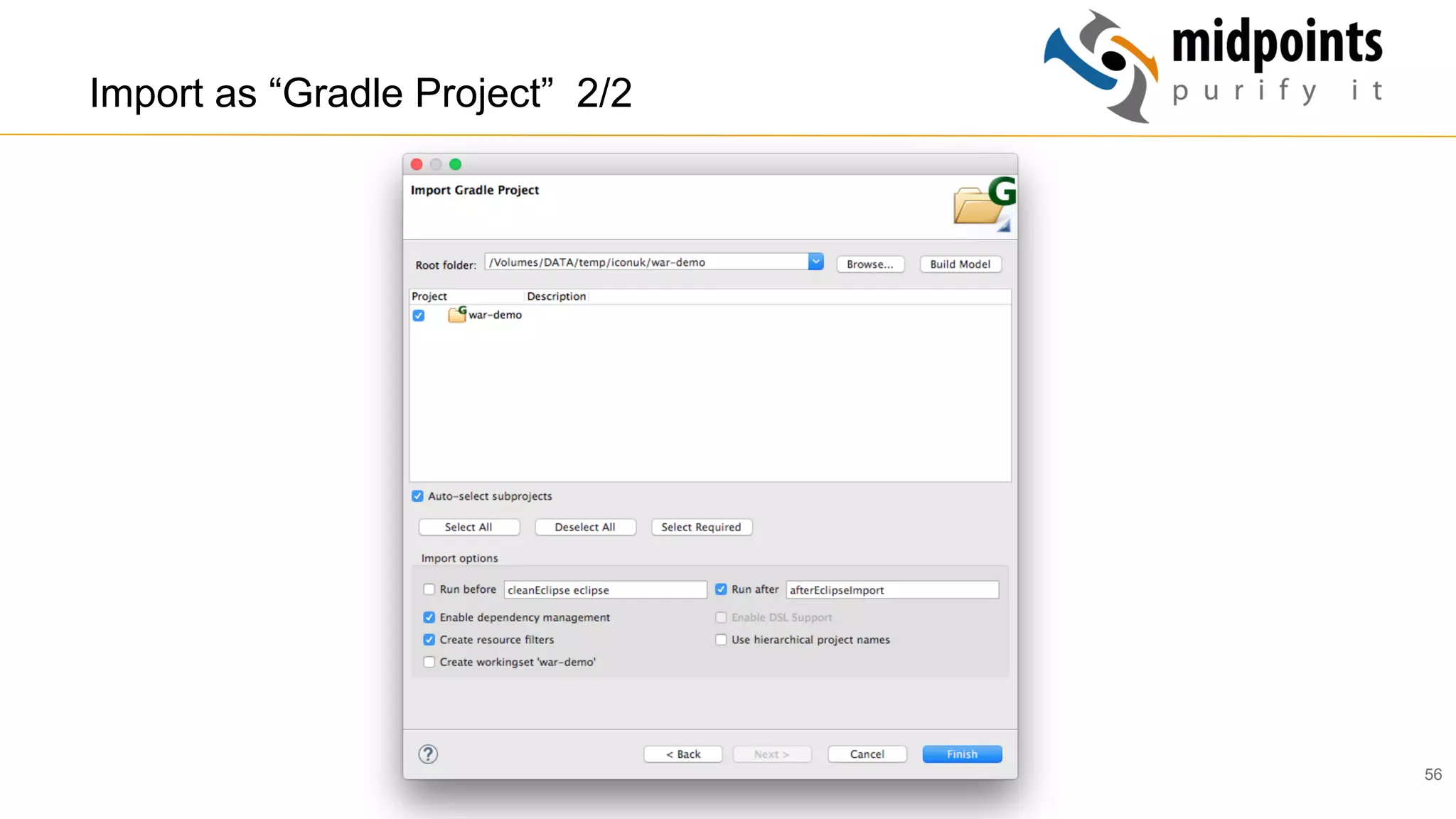

Import as “Gradle Project” 2/2

57. 57

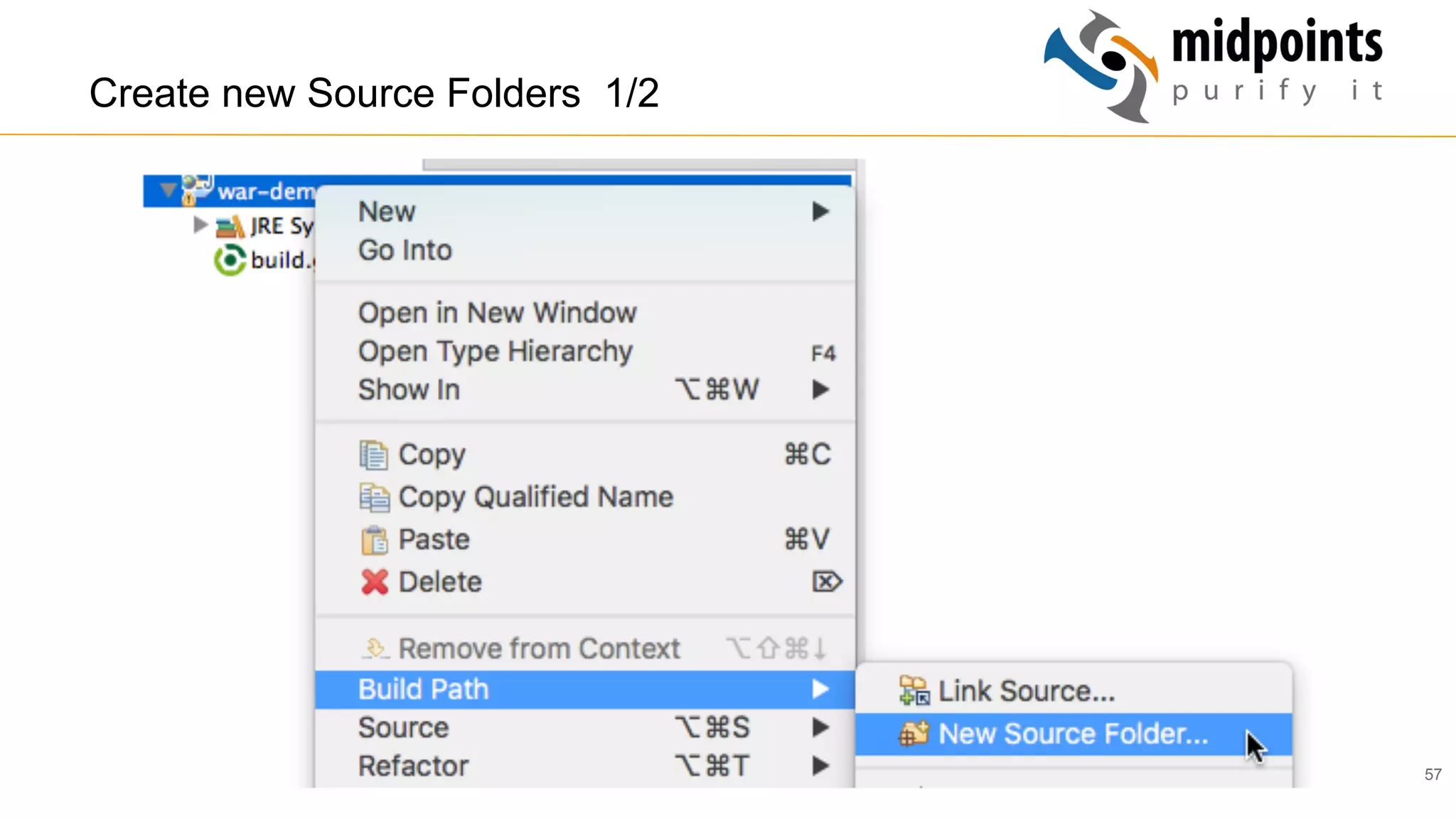

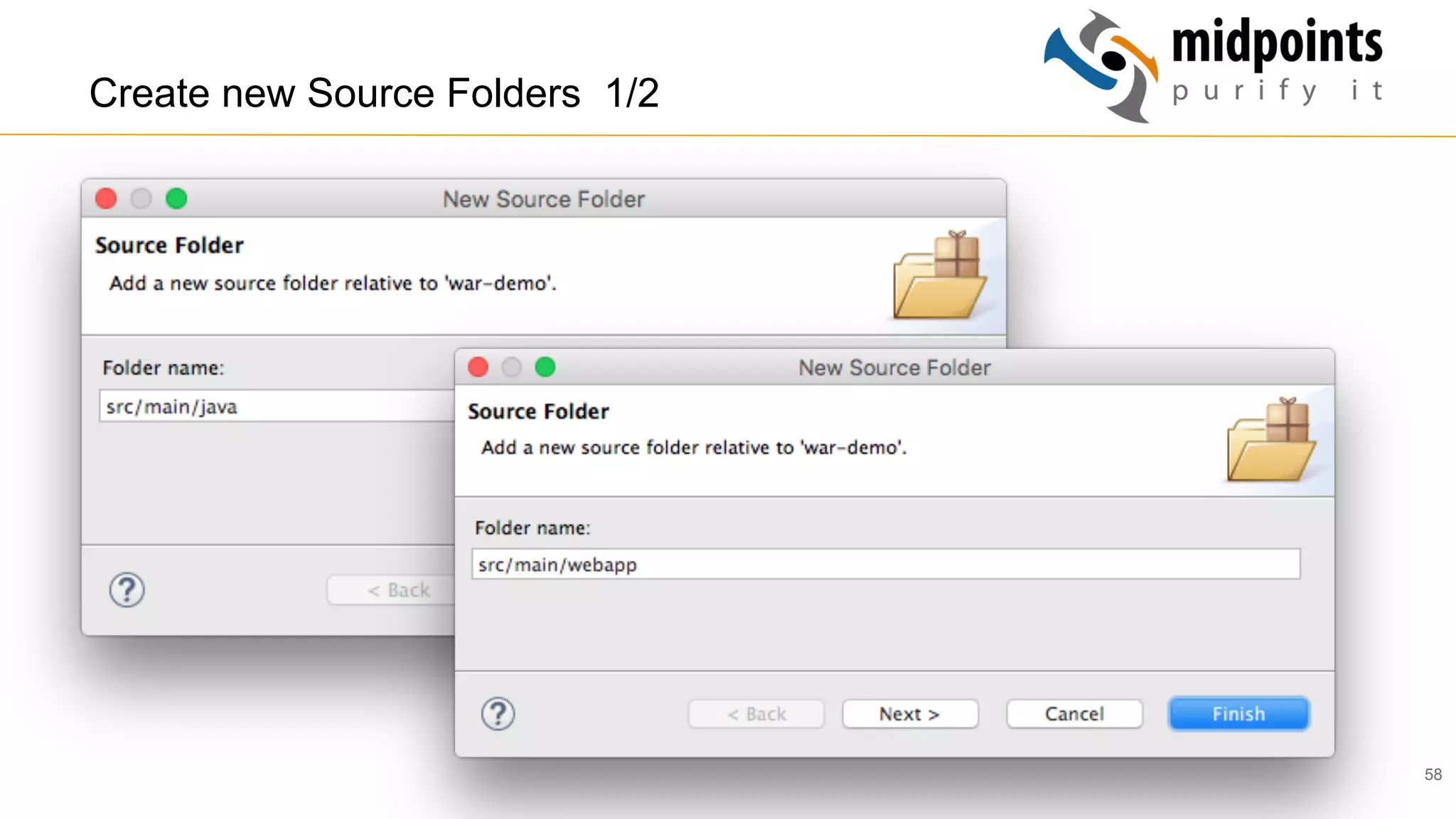

Create new Source Folders 1/2

58. 58
Create new Source Folders 1/2

59. 59
Create a simple servlet (or try to ;-))
HttpServlet isn‘t
available

60. 60

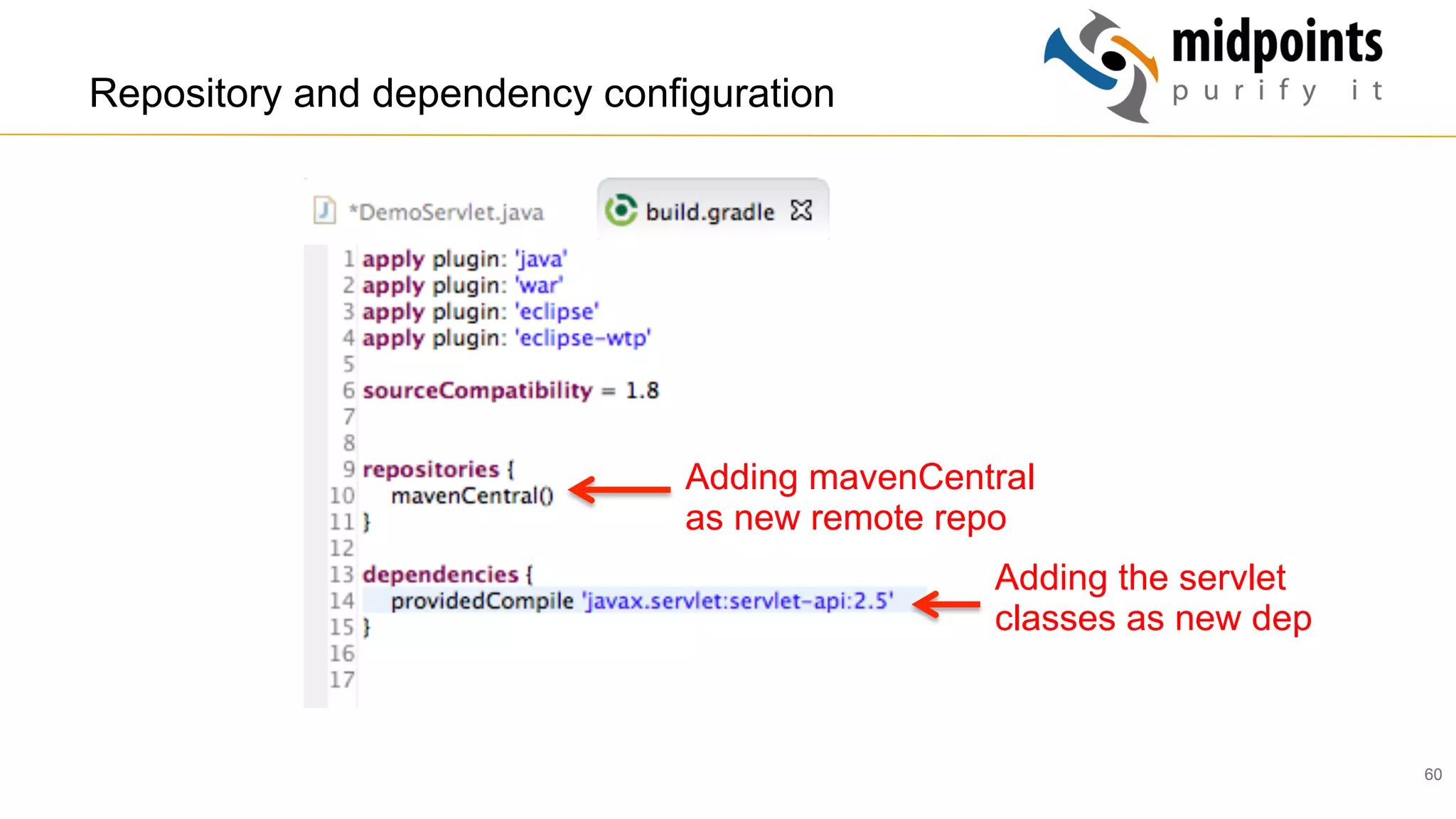

Repository and dependency configuration
Adding mavenCentral
as new remote repo
Adding the servlet
classes as new dep

61. 61

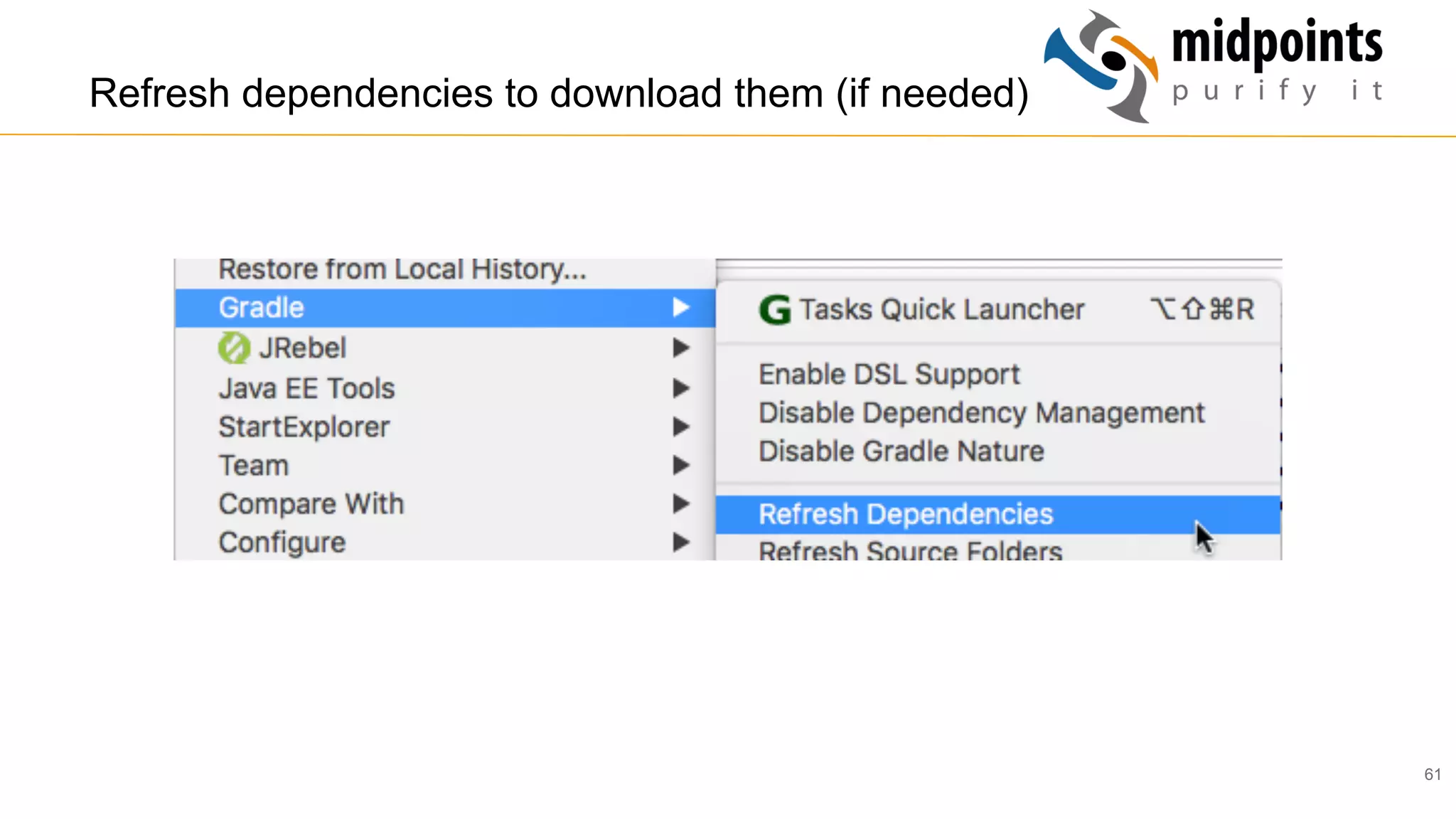

Refresh dependencies to download them (if needed)

62. 62

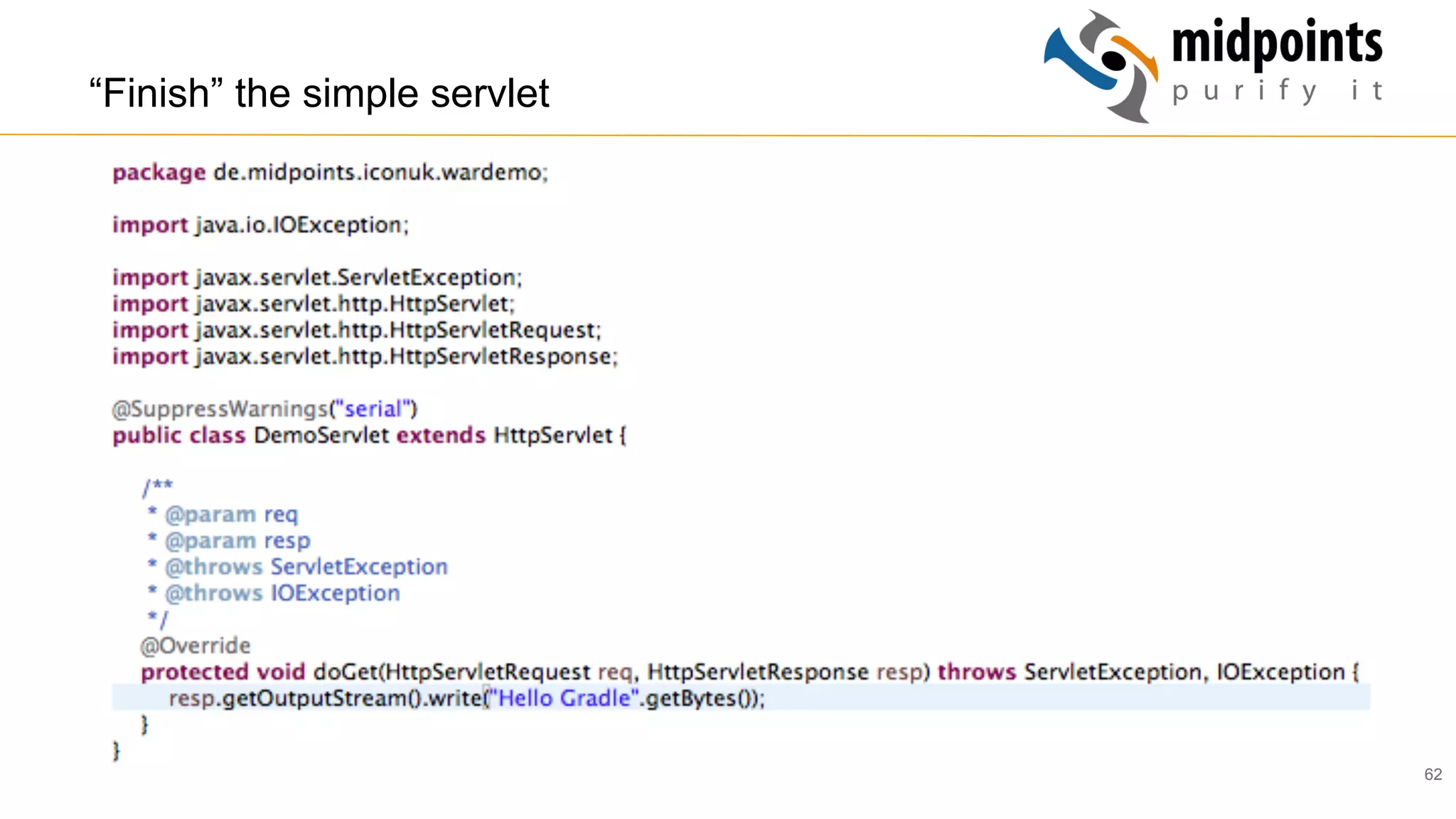

“Finish” the simple servlet

63. 63

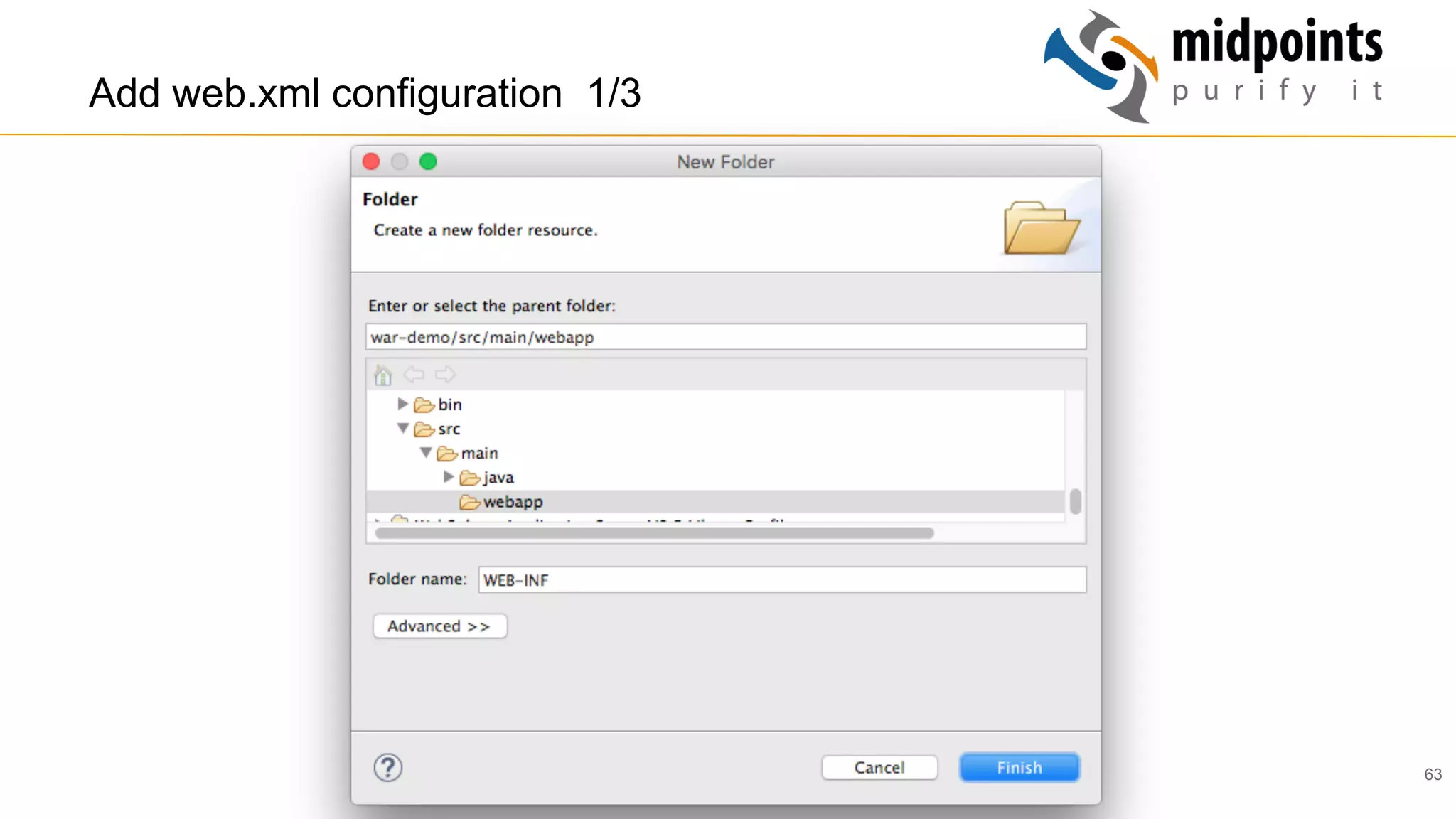

Add web.xml configuration 1/3

64. 64

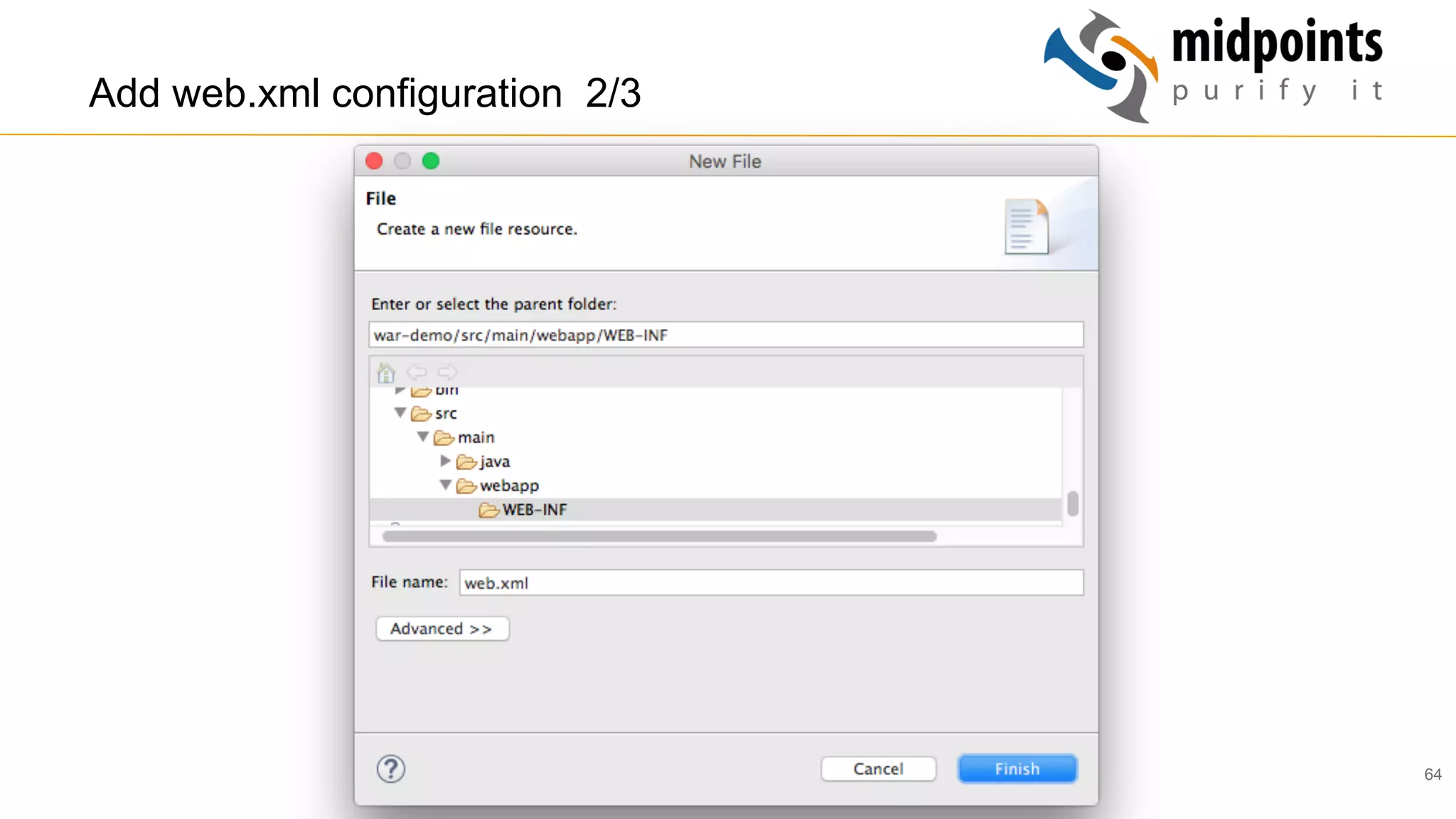

Add web.xml configuration 2/3

65. 65

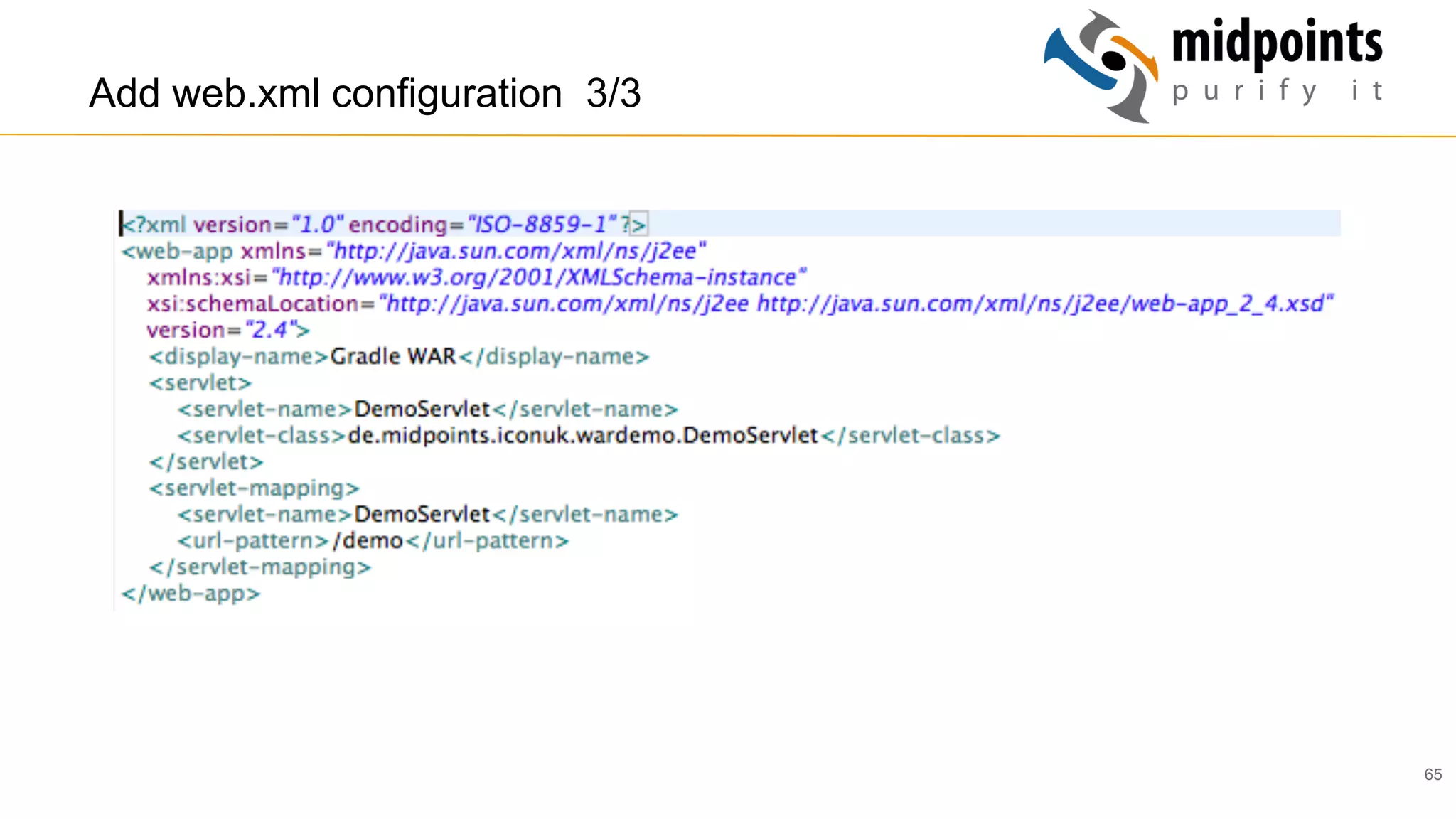

Add web.xml configuration 3/3

66. 66

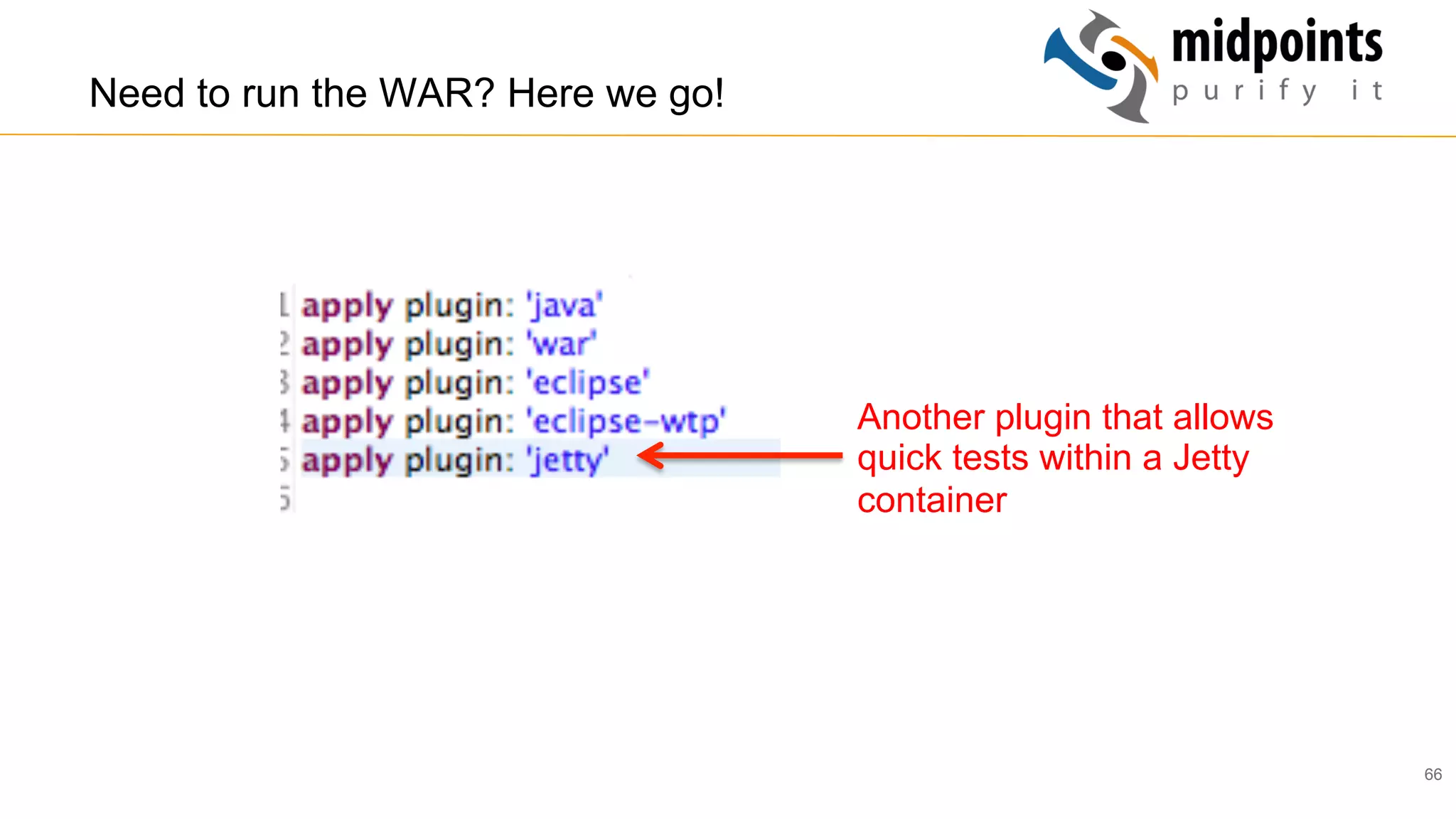

Need to run the WAR? Here we go!
Another plugin that allows
quick tests within a Jetty
container

67. 67

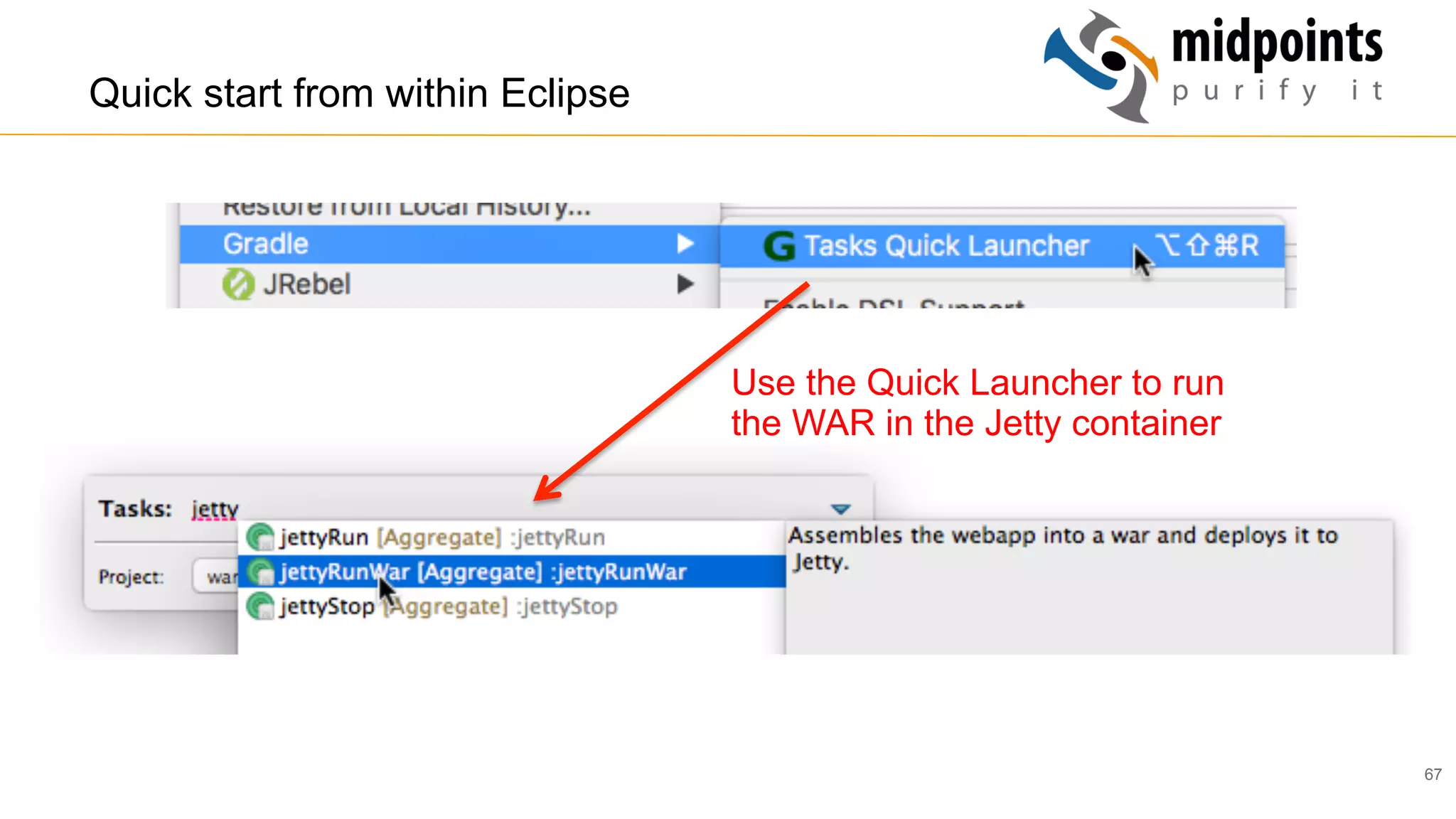

Quick start from within Eclipse
Use the Quick Launcher to run
the WAR in the Jetty container

68. 68
Using WebSphere Liberty? Lets ci.gradle help you!
https://github.com/WASdev/ci.gradle

69. 69

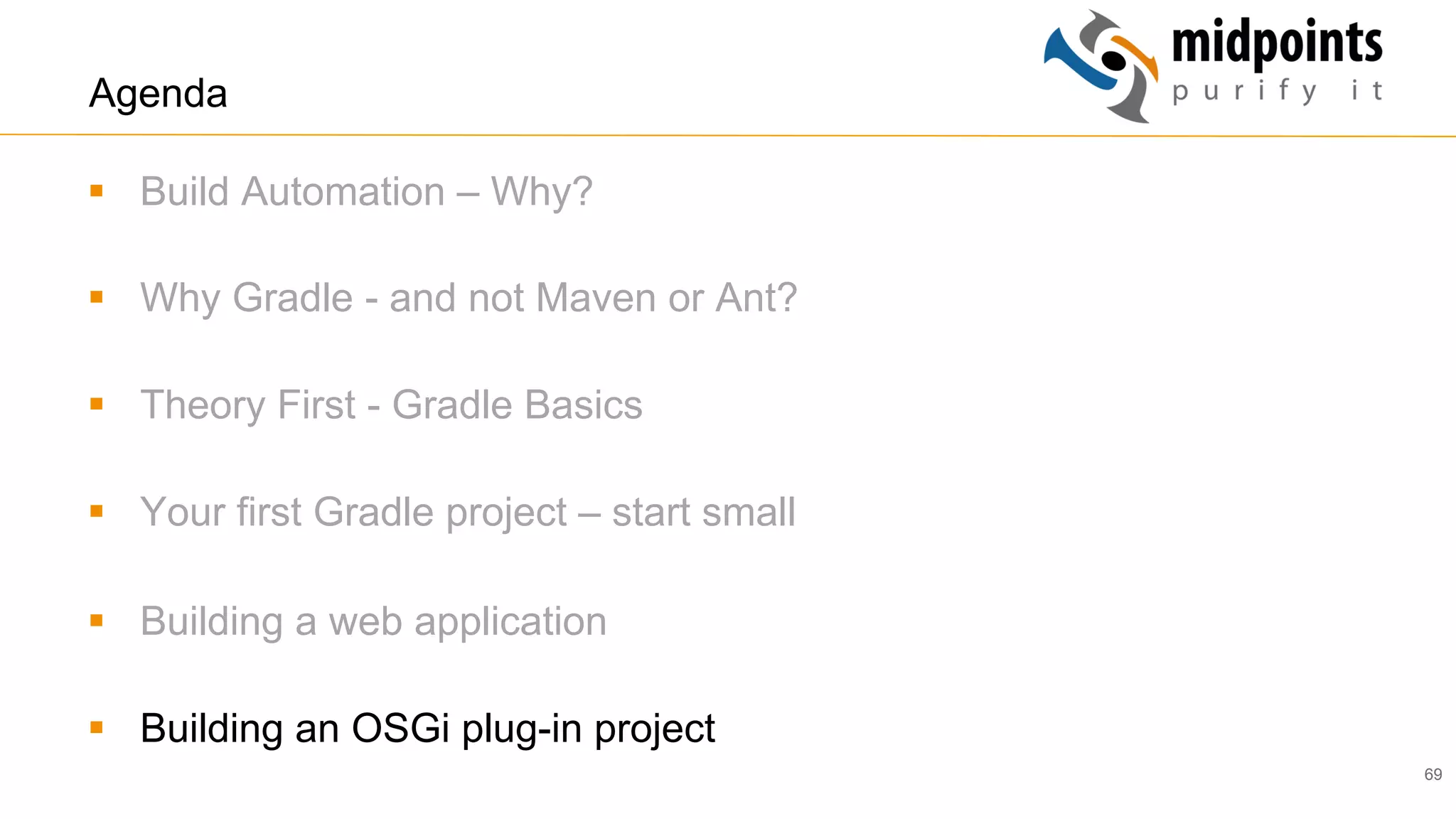

Agenda
§ Build Automation – Why?
§ Why Gradle - and not Maven or Ant?
§ Theory First - Gradle Basics
§ Your first Gradle project – start small
§ Building a web application
§ Building an OSGi plug-in project

70. 70

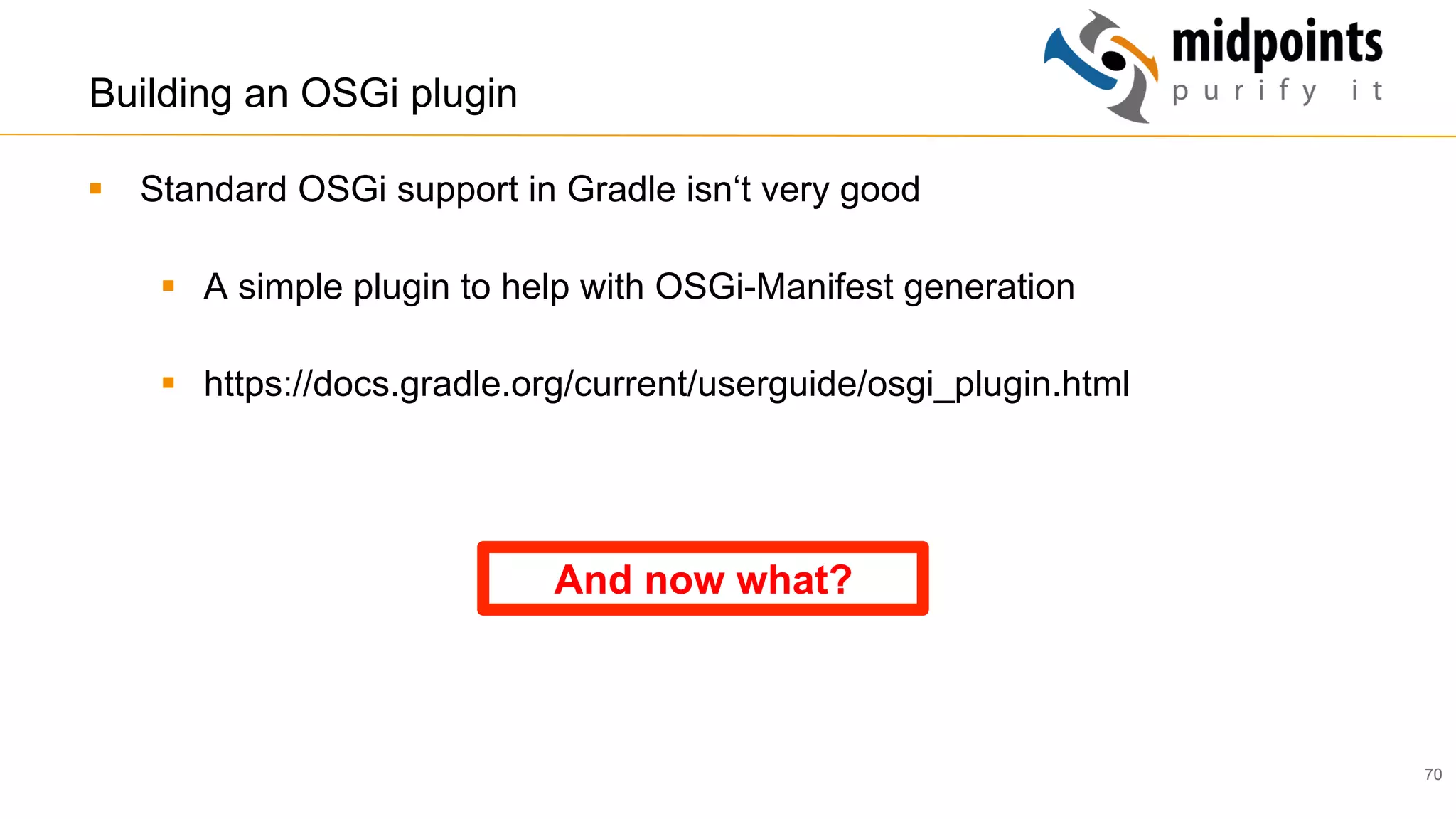

Building an OSGi plugin
§ Standard OSGi support in Gradle isn‘t very good
§ A simple plugin to help with OSGi-Manifest generation
§ https://docs.gradle.org/current/userguide/osgi_plugin.html
And now what?

71. 71

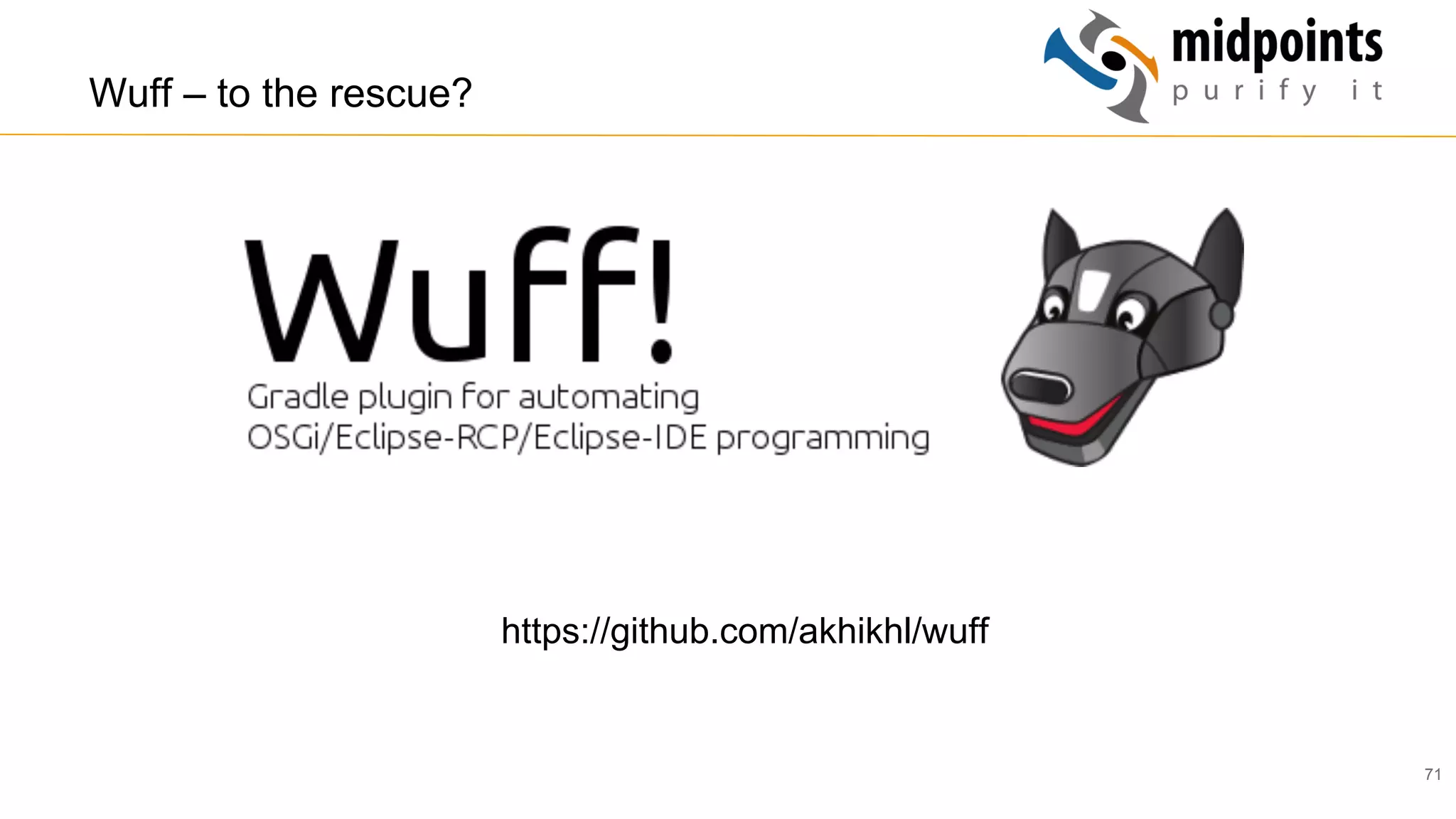

Wuff – to the rescue?
https://github.com/akhikhl/wuff

72. 72

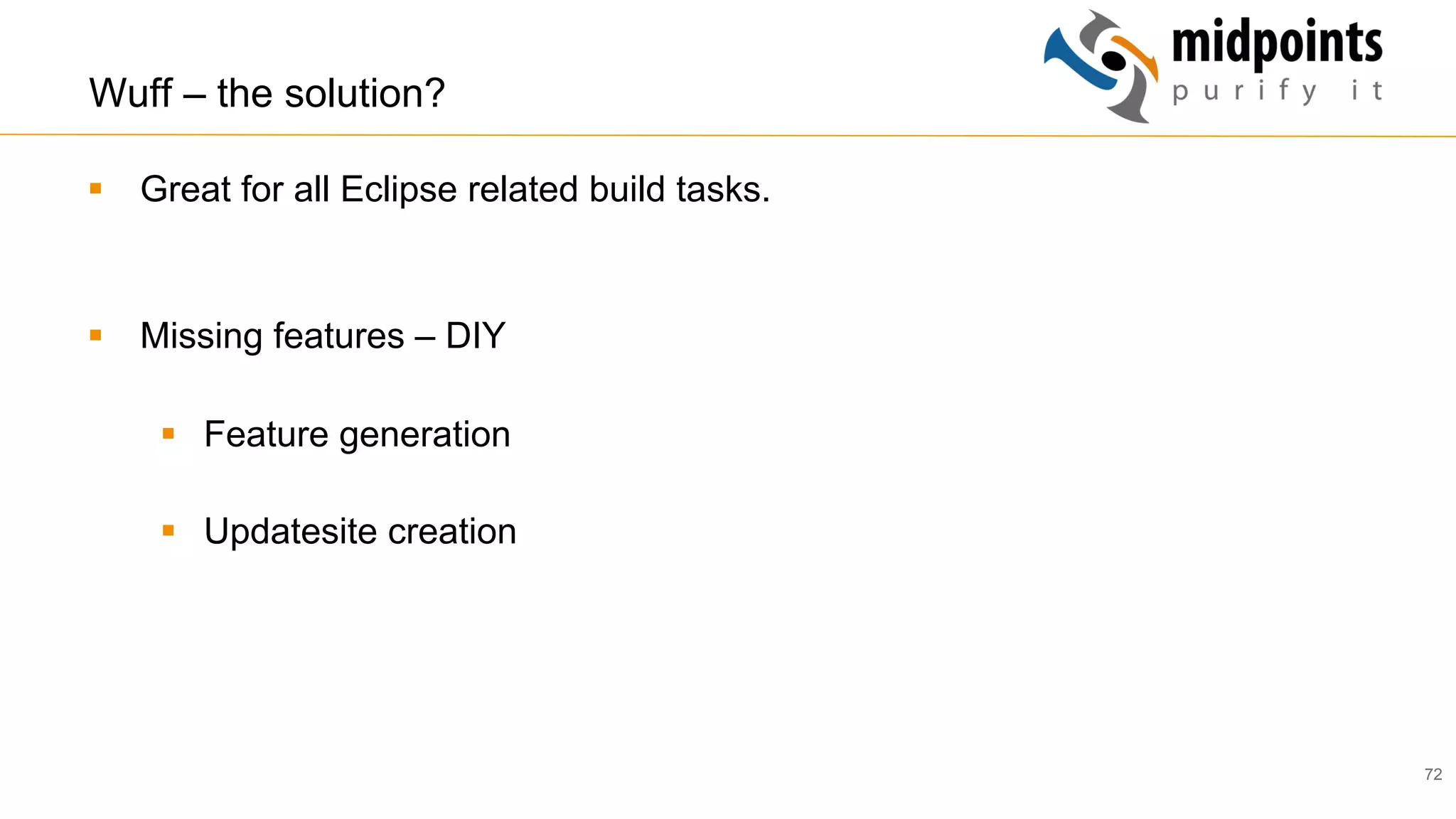

Wuff – the solution?
§ Great for all Eclipse related build tasks.
§ Missing features – DIY
§ Feature generation
§ Updatesite creation

73. 73
Wuff – additional considerations (for Domino)

74. 74
Wuff – find the custom build here
§ https://github.com/petarov/wuff
Thanks to Petar, he did some of the dirty work

75. 75
Thank you!
