Li-Fi uses visible light communication technology to transmit data wirelessly using light. It provides higher speeds and greater capacity than Wi-Fi. Li-Fi transmits data through LED bulbs by varying the intensity of light faster than what the human eye can detect. This allows transmitting digital signals through the illumination. Li-Fi offers solutions to issues with Wi-Fi like limited spectrum, security concerns, and availability. Products like Li-1st and Li-Flame have been developed providing speeds up to 10Mbps. Applications of Li-Fi include use in aircrafts, underwater environments, traffic management systems, and more.

1. 1

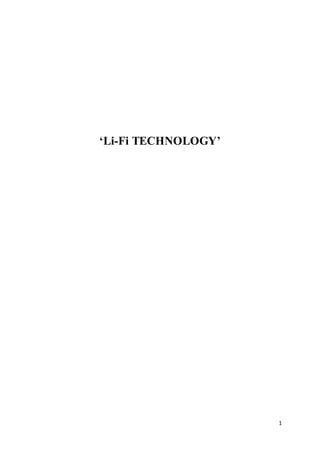

‘Li-Fi TECHNOLOGY’

2. 2

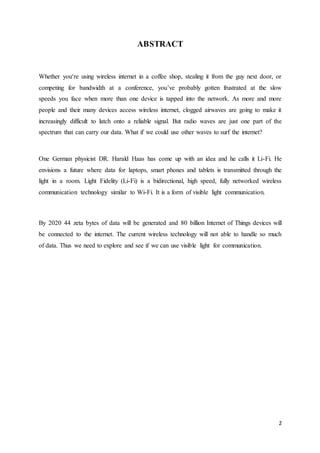

ABSTRACT
Whether you‘re using wireless internet in a coffee shop, stealing it from the guy next door, or
competing for bandwidth at a conference, you’ve probably gotten frustrated at the slow
speeds you face when more than one device is tapped into the network. As more and more
people and their many devices access wireless internet, clogged airwaves are going to make it
increasingly difficult to latch onto a reliable signal. But radio waves are just one part of the
spectrum that can carry our data. What if we could use other waves to surf the internet?
One German physicist DR. Harald Haas has come up with an idea and he calls it Li-Fi. He
envisions a future where data for laptops, smart phones and tablets is transmitted through the
light in a room. Light Fidelity (Li-Fi) is a bidirectional, high speed, fully networked wireless
communication technology similar to Wi-Fi. It is a form of visible light communication.
By 2020 44 zeta bytes of data will be generated and 80 billion Internet of Things devices will
be connected to the internet. The current wireless technology will not able to handle so much
of data. Thus we need to explore and see if we can use visible light for communication.

3. 3
CONTENTS
1. Wi-Fi 8
2. Need For Li-Fi 11
3. History Of Li-Fi 14
4. Working Of Li-Fi 15
5. Li-Fi Products 18
6. Solar Li-Fi 22
7. Applications Of Li-Fi 24
8. Limitations Of Li-Fi 28
9. Conclusion 29
References
Appendix

4. 4

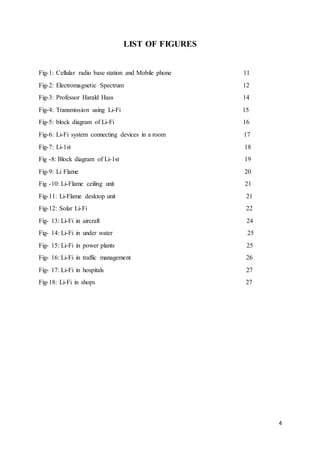

LIST OF FIGURES
Fig-1: Cellular radio base station and Mobile phone 11
Fig-2: Electromagnetic Spectrum 12
Fig-3: Professor Harald Hass 14
Fig-4: Transmission using Li-Fi 15
Fig-5: block diagram of Li-Fi 16
Fig-6: Li-Fi system connecting devices in a room 17
Fig-7: Li-1st 18
Fig -8: Block diagram of Li-1st 19
Fig-9: Li Flame 20
Fig -10: Li-Flame ceiling unit 21
Fig-11: Li-Flame desktop unit 21
Fig-12: Solar Li-Fi 22
Fig- 13: Li-Fi in aircraft 24
Fig- 14: Li-Fi in under water 25
Fig- 15: Li-Fi in power plants 25
Fig- 16: Li-Fi in traffic management 26
Fig- 17: Li-Fi in hospitals 27
Fig-18: Li-Fi in shops 27

5. 5

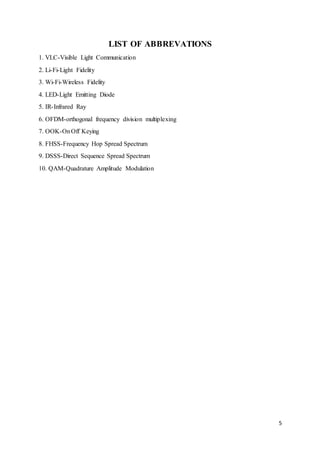

LIST OF ABBREVATIONS
1. VLC-Visible Light Communication
2. Li-Fi-Light Fidelity
3. Wi-Fi-Wireless Fidelity
4. LED-Light Emitting Diode
5. IR-Infrared Ray
6. OFDM-orthogonal frequency division multiplexing
7. OOK-OnOff Keying
8. FHSS-Frequency Hop Spread Spectrum
9. DSSS-Direct Sequence Spread Spectrum
10. QAM-Quadrature Amplitude Modulation

6. 6

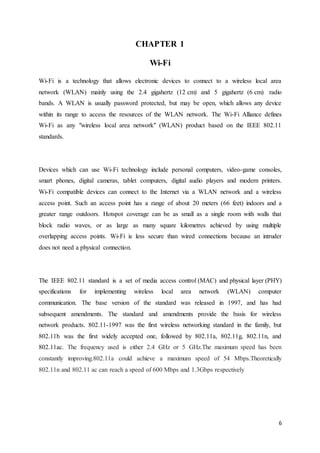

CHAPTER 1
Wi-Fi
Wi-Fi is a technology that allows electronic devices to connect to a wireless local area
network (WLAN) mainly using the 2.4 gigahertz (12 cm) and 5 gigahertz (6 cm) radio
bands. A WLAN is usually password protected, but may be open, which allows any device
within its range to access the resources of the WLAN network. The Wi-Fi Alliance defines
Wi-Fi as any "wireless local area network" (WLAN) product based on the IEEE 802.11
standards.
Devices which can use Wi-Fi technology include personal computers, video-game consoles,
smart phones, digital cameras, tablet computers, digital audio players and modern printers.
Wi-Fi compatible devices can connect to the Internet via a WLAN network and a wireless
access point. Such an access point has a range of about 20 meters (66 feet) indoors and a
greater range outdoors. Hotspot coverage can be as small as a single room with walls that
block radio waves, or as large as many square kilometres achieved by using multiple
overlapping access points. Wi-Fi is less secure than wired connections because an intruder
does not need a physical connection.
The IEEE 802.11 standard is a set of media access control (MAC) and physical layer (PHY)
specifications for implementing wireless local area network (WLAN) computer
communication. The base version of the standard was released in 1997, and has had
subsequent amendments. The standard and amendments provide the basis for wireless
network products. 802.11-1997 was the first wireless networking standard in the family, but
802.11b was the first widely accepted one, followed by 802.11a, 802.11g, 802.11n, and
802.11ac. The frequency used is either 2.4 GHz or 5 GHz.The maximum speed has been
constantly improving.802.11a could achieve a maximum speed of 54 Mbps.Theoretically
802.11n and 802.11 ac can reach a speed of 600 Mbps and 1.3Gbps respectively

7. 7

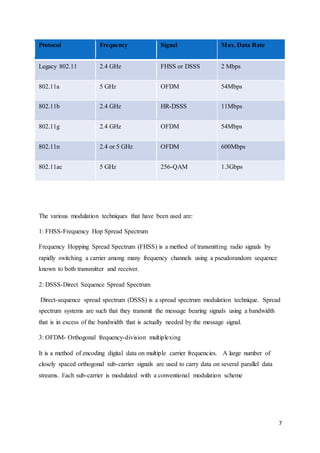

Protocol Frequency Signal Max. Data Rate
Legacy 802.11 2.4 GHz FHSS or DSSS 2 Mbps
802.11a 5 GHz OFDM 54Mbps
802.11b 2.4 GHz HR-DSSS 11Mbps
802.11g 2.4 GHz OFDM 54Mbps
802.11n 2.4 or 5 GHz OFDM 600Mbps
802.11ac 5 GHz 256-QAM 1.3Gbps
The various modulation techniques that have been used are:
1: FHSS-Frequency Hop Spread Spectrum
Frequency Hopping Spread Spectrum (FHSS) is a method of transmitting radio signals by
rapidly switching a carrier among many frequency channels using a pseudorandom sequence
known to both transmitter and receiver.
2: DSSS-Direct Sequence Spread Spectrum
Direct-sequence spread spectrum (DSSS) is a spread spectrum modulation technique. Spread
spectrum systems are such that they transmit the message bearing signals using a bandwidth
that is in excess of the bandwidth that is actually needed by the message signal.
3: OFDM- Orthogonal frequency-division multiplexing
It is a method of encoding digital data on multiple carrier frequencies. A large number of
closely spaced orthogonal sub-carrier signals are used to carry data on several parallel data
streams. Each sub-carrier is modulated with a conventional modulation scheme

8. 8

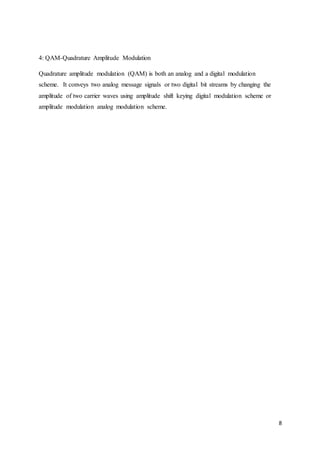

4: QAM-Quadrature Amplitude Modulation
Quadrature amplitude modulation (QAM) is both an analog and a digital modulation
scheme. It conveys two analog message signals or two digital bit streams by changing the
amplitude of two carrier waves using amplitude shift keying digital modulation scheme or
amplitude modulation analog modulation scheme.

9. 9

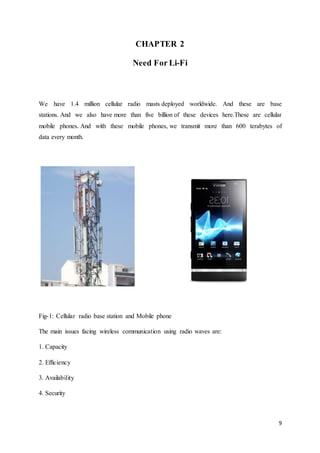

CHAPTER 2
Need For Li-Fi
We have 1.4 million cellular radio masts deployed worldwide. And these are base
stations. And we also have more than five billion of these devices here.These are cellular
mobile phones. And with these mobile phones, we transmit more than 600 terabytes of
data every month.
Fig-1: Cellular radio base station and Mobile phone
The main issues facing wireless communication using radio waves are:
1. Capacity
2. Efficiency
3. Availability
4. Security

10. 10
The radio waves are limited. They are scarce; they are expensive; and we only have a certain
range of it.Thus capacity is an issue. 1.4 million cellular radio masts, or base
stations, consume a lot of energy.
Most of the energy is not used to transmit the radio waves; it is used to cool the base stations.
Then the efficiency of such a base station is only at about five per cent. We have to switch off
our mobile phones in aircrafts. In petro chemical plants radio waves cannot be used. Radio
waves are not available everywhere. Security is another issue. These radio waves penetrate
through walls. They can be intercepted, and somebody can make use of your network if he
has bad intentions.
Fig-2: Electromagnetic Spectrum
Thus it is clear that although wireless communication using radio waves is very useful there
are some issues with it.Radio waves are just one part of the electromagnetic spectrum. Let us
see if we can use other waves for communication. Gamma rays are harmful and we cannot
use them. X-rays can be used in hospitals but not much beyond that. Ultra violet rays are
dangerous for human body. Infra- red rays can be used only in low power applications due to

11. 11

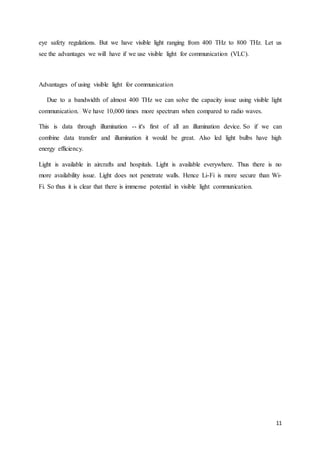

eye safety regulations. But we have visible light ranging from 400 THz to 800 THz. Let us
see the advantages we will have if we use visible light for communication (VLC).
Advantages of using visible light for communication
Due to a bandwidth of almost 400 THz we can solve the capacity issue using visible light
communication. We have 10,000 times more spectrum when compared to radio waves.
This is data through illumination -- it's first of all an illumination device. So if we can
combine data transfer and illumination it would be great. Also led light bulbs have high
energy efficiency.
Light is available in aircrafts and hospitals. Light is available everywhere. Thus there is no
more availability issue. Light does not penetrate walls. Hence Li-Fi is more secure than Wi-
Fi. So thus it is clear that there is immense potential in visible light communication.

12. 12

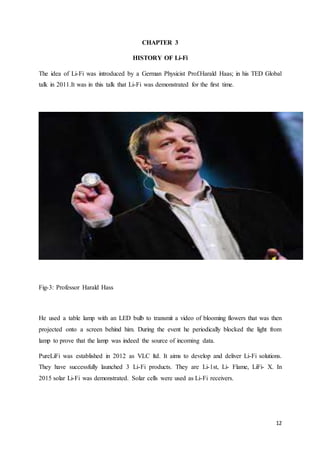

CHAPTER 3
HISTORY OF Li-Fi
The idea of Li-Fi was introduced by a German Physicist Prof.Harald Haas; in his TED Global
talk in 2011.It was in this talk that Li-Fi was demonstrated for the first time.
Fig-3: Professor Harald Hass
He used a table lamp with an LED bulb to transmit a video of blooming flowers that was then
projected onto a screen behind him. During the event he periodically blocked the light from
lamp to prove that the lamp was indeed the source of incoming data.
PureLiFi was established in 2012 as VLC ltd. It aims to develop and deliver Li-Fi solutions.
They have successfully launched 3 Li-Fi products. They are Li-1st, Li- Flame, LiFi- X. In
2015 solar Li-Fi was demonstrated. Solar cells were used as Li-Fi receivers.

13. 13

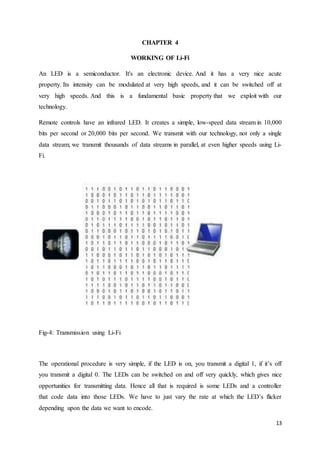

CHAPTER 4
WORKING OF Li-Fi
An LED is a semiconductor. It's an electronic device. And it has a very nice acute
property. Its intensity can be modulated at very high speeds, and it can be switched off at
very high speeds. And this is a fundamental basic property that we exploit with our
technology.
Remote controls have an infrared LED. It creates a simple, low-speed data stream in 10,000
bits per second or 20,000 bits per second. We transmit with our technology, not only a single
data stream; we transmit thousands of data streams in parallel, at even higher speeds using Li-
Fi.
Fig-4: Transmission using Li-Fi
The operational procedure is very simple, if the LED is on, you transmit a digital 1, if it’s off
you transmit a digital 0. The LEDs can be switched on and off very quickly, which gives nice
opportunities for transmitting data. Hence all that is required is some LEDs and a controller
that code data into those LEDs. We have to just vary the rate at which the LED’s flicker
depending upon the data we want to encode.

14. 14

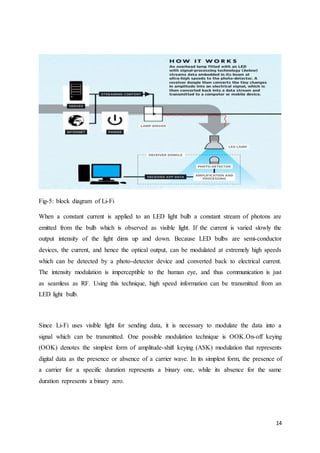

Fig-5: block diagram of Li-Fi
When a constant current is applied to an LED light bulb a constant stream of photons are
emitted from the bulb which is observed as visible light. If the current is varied slowly the
output intensity of the light dims up and down. Because LED bulbs are semi-conductor
devices, the current, and hence the optical output, can be modulated at extremely high speeds
which can be detected by a photo-detector device and converted back to electrical current.
The intensity modulation is imperceptible to the human eye, and thus communication is just
as seamless as RF. Using this technique, high speed information can be transmitted from an
LED light bulb.
Since Li-Fi uses visible light for sending data, it is necessary to modulate the data into a
signal which can be transmitted. One possible modulation technique is OOK.On-off keying
(OOK) denotes the simplest form of amplitude-shift keying (ASK) modulation that represents
digital data as the presence or absence of a carrier wave. In its simplest form, the presence of
a carrier for a specific duration represents a binary one, while its absence for the same
duration represents a binary zero.

15. 15

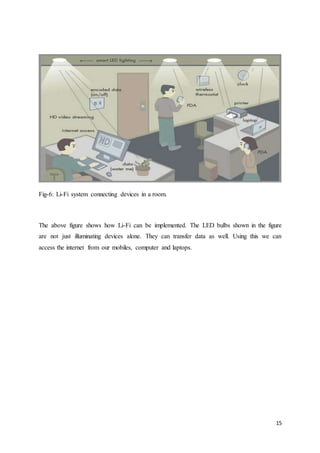

Fig-6: Li-Fi system connecting devices in a room.
The above figure shows how Li-Fi can be implemented. The LED bulbs shown in the figure
are not just illuminating devices alone. They can transfer data as well. Using this we can
access the internet from our mobiles, computer and laptops.

16. 16

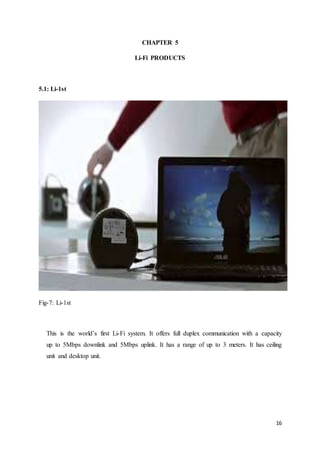

CHAPTER 5
Li-Fi PRODUCTS
5.1: Li-1st
Fig-7: Li-1st
This is the world’s first Li-Fi system. It offers full duplex communication with a capacity
up to 5Mbps downlink and 5Mbps uplink. It has a range of up to 3 meters. It has ceiling
unit and desktop unit.

17. 17

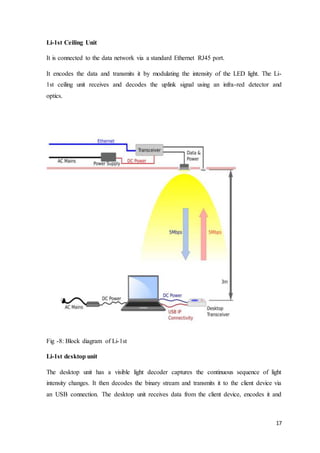

Li-1st Ceiling Unit
It is connected to the data network via a standard Ethernet RJ45 port.
It encodes the data and transmits it by modulating the intensity of the LED light. The Li-
1st ceiling unit receives and decodes the uplink signal using an infra-red detector and
optics.
Fig -8: Block diagram of Li-1st
Li-1st desktop unit
The desktop unit has a visible light decoder captures the continuous sequence of light
intensity changes. It then decodes the binary stream and transmits it to the client device via
an USB connection. The desktop unit receives data from the client device, encodes it and

18. 18
transmits it to the ceiling unit using an infra-red emitter. The receiver is very sensitive. It
can operate even using reflected light.
5.2: Li-Flame
The Li-Flame is the world’s first high-speed wireless network solution using VLC. There
are multiple APs (access point) throughout an indoor space allow users to move from one
AP to the next AP.There is no interruption in its high-speed data stream.

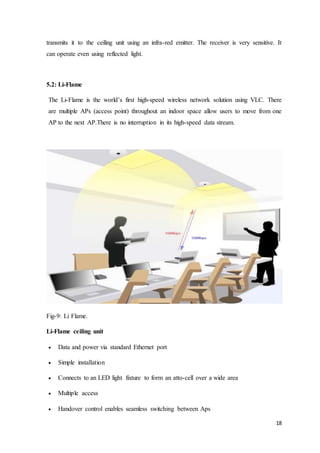

Fig-9: Li Flame.
Li-Flame ceiling unit
 Data and power via standard Ethernet port
 Simple installation
 Connects to an LED light fixture to form an atto-cell over a wide area
 Multiple access
 Handover control enables seamless switching between Aps

19. 19

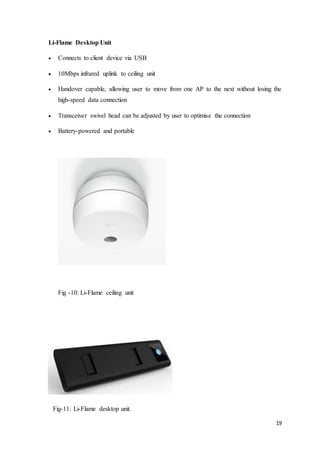

Li-Flame Desktop Unit
 Connects to client device via USB
 10Mbps infrared uplink to ceiling unit
 Handover capable, allowing user to move from one AP to the next without losing the
high-speed data connection
 Transceiver swivel head can be adjusted by user to optimise the connection
 Battery-powered and portable
Fig -10: Li-Flame ceiling unit
Fig-11: Li-Flame desktop unit.

20. 20

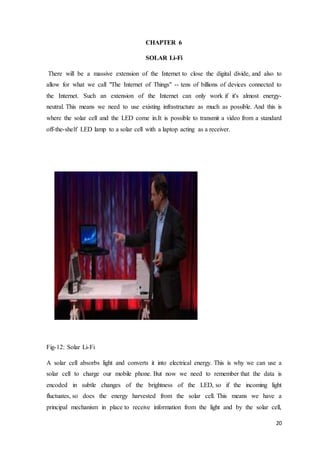

CHAPTER 6
SOLAR Li-Fi
There will be a massive extension of the Internet to close the digital divide, and also to
allow for what we call "The Internet of Things" -- tens of billions of devices connected to
the Internet. Such an extension of the Internet can only work if it's almost energy-
neutral. This means we need to use existing infrastructure as much as possible. And this is
where the solar cell and the LED come in.It is possible to transmit a video from a standard
off-the-shelf LED lamp to a solar cell with a laptop acting as a receiver.
Fig-12: Solar Li-Fi
A solar cell absorbs light and converts it into electrical energy. This is why we can use a
solar cell to charge our mobile phone. But now we need to remember that the data is
encoded in subtle changes of the brightness of the LED, so if the incoming light
fluctuates, so does the energy harvested from the solar cell. This means we have a
principal mechanism in place to receive information from the light and by the solar cell,

21. 21

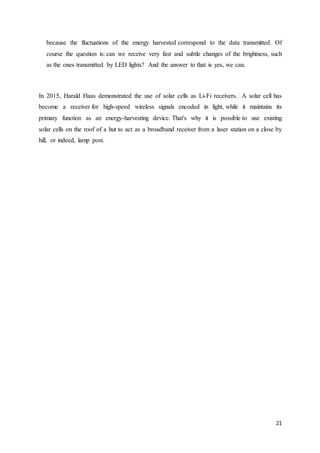

because the fluctuations of the energy harvested correspond to the data transmitted. Of
course the question is: can we receive very fast and subtle changes of the brightness, such
as the ones transmitted by LED lights? And the answer to that is yes, we can.
In 2015, Harald Haas demonstrated the use of solar cells as Li-Fi receivers. A solar cell has
become a receiver for high-speed wireless signals encoded in light, while it maintains its
primary function as an energy-harvesting device. That's why it is possible to use existing
solar cells on the roof of a hut to act as a broadband receiver from a laser station on a close by
hill, or indeed, lamp post.

22. 22

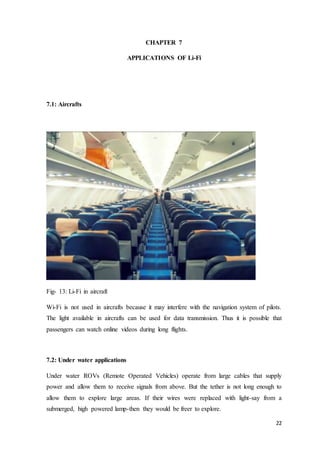

CHAPTER 7
APPLICATIONS OF Li-Fi
7.1: Aircrafts
Fig- 13: Li-Fi in aircraft
Wi-Fi is not used in aircrafts because it may interfere with the navigation system of pilots.
The light available in aircrafts can be used for data transmission. Thus it is possible that
passengers can watch online videos during long flights.
7.2: Under water applications
Under water ROVs (Remote Operated Vehicles) operate from large cables that supply
power and allow them to receive signals from above. But the tether is not long enough to
allow them to explore large areas. If their wires were replaced with light-say from a
submerged, high powered lamp-then they would be freer to explore.

23. 23

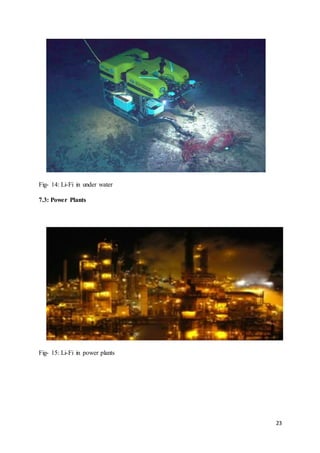

Fig- 14: Li-Fi in under water
7.3: Power Plants
Fig- 15: Li-Fi in power plants

24. 24

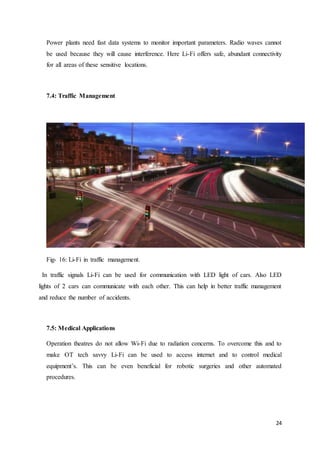

Power plants need fast data systems to monitor important parameters. Radio waves cannot
be used because they will cause interference. Here Li-Fi offers safe, abundant connectivity
for all areas of these sensitive locations.
7.4: Traffic Management
Fig- 16: Li-Fi in traffic management.
In traffic signals Li-Fi can be used for communication with LED light of cars. Also LED
lights of 2 cars can communicate with each other. This can help in better traffic management
and reduce the number of accidents.
7.5: Medical Applications
Operation theatres do not allow Wi-Fi due to radiation concerns. To overcome this and to
make OT tech savvy Li-Fi can be used to access internet and to control medical
equipment’s. This can be even beneficial for robotic surgeries and other automated
procedures.

25. 25

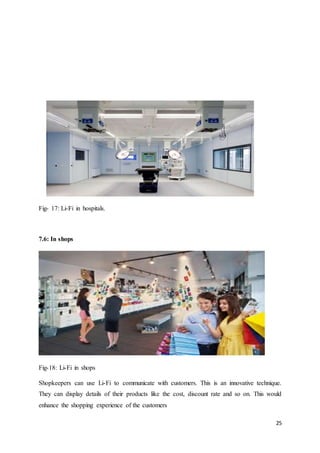

Fig- 17: Li-Fi in hospitals.
7.6: In shops
Fig-18: Li-Fi in shops
Shopkeepers can use Li-Fi to communicate with customers. This is an innovative technique.
They can display details of their products like the cost, discount rate and so on. This would
enhance the shopping experience of the customers

26. 26

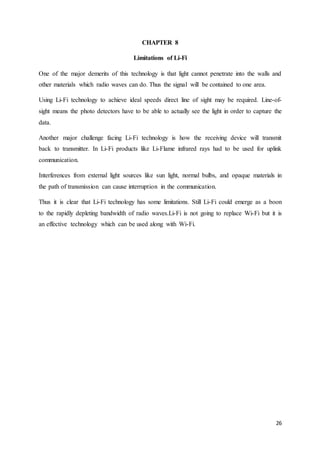

CHAPTER 8
Limitations of Li-Fi
One of the major demerits of this technology is that light cannot penetrate into the walls and
other materials which radio waves can do. Thus the signal will be contained to one area.
Using Li-Fi technology to achieve ideal speeds direct line of sight may be required. Line-of-
sight means the photo detectors have to be able to actually see the light in order to capture the
data.
Another major challenge facing Li-Fi technology is how the receiving device will transmit
back to transmitter. In Li-Fi products like Li-Flame infrared rays had to be used for uplink
communication.
Interferences from external light sources like sun light, normal bulbs, and opaque materials in
the path of transmission can cause interruption in the communication.
Thus it is clear that Li-Fi technology has some limitations. Still Li-Fi could emerge as a boon
to the rapidly depleting bandwidth of radio waves.Li-Fi is not going to replace Wi-Fi but it is
an effective technology which can be used along with Wi-Fi.

27. 27
CHAPTER 9
CONCLUSION
Li-Fi has great potential in the field of wireless data transmission. It has the ability to
revolutionise wireless communication in the future.
Using Li-Fi we aim to combine two basic functionalities-illumination and wireless data
transmission. This could solve the four essential problems that face us in wireless
communication these days.
Every light source has the potential to be a hub for data transmission. In the future data for
laptops, smartphones could be transmitted through the light in the room.
Thus Li-Fi has the potential to lead us to a cleaner, greener and maybe just a brighter future.

28. 28

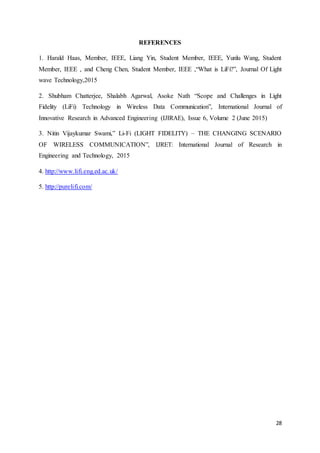

REFERENCES
1. Harald Haas, Member, IEEE, Liang Yin, Student Member, IEEE, Yunlu Wang, Student
Member, IEEE , and Cheng Chen, Student Member, IEEE ,“What is LiFi?”, Journal Of Light
wave Technology,2015
2. Shubham Chatterjee, Shalabh Agarwal, Asoke Nath “Scope and Challenges in Light
Fidelity (LiFi) Technology in Wireless Data Communication”, International Journal of
Innovative Research in Advanced Engineering (IJIRAE), Issue 6, Volume 2 (June 2015)
3. Nitin Vijaykumar Swami,” Li-Fi (LIGHT FIDELITY) – THE CHANGING SCENARIO
OF WIRELESS COMMUNICATION”, IJRET: International Journal of Research in
Engineering and Technology, 2015
4. http://www.lifi.eng.ed.ac.uk/
5. http://purelifi.com/

29. 29
