The Large Hadron Collider (LHC) and ATLAS detector: - The LHC is a large particle accelerator that collides beams of protons around a 4.3km ring to study particle physics. - ATLAS is one of the main detectors at the LHC, measuring 46m long and weighing 7,000 tonnes. - The LHC and ATLAS involve thousands of physicists from 34 countries and will collect 1 petabyte of collision data per year over 10 years of operation to study rare particles like the top quark.
More Related Content
![Black Holes [Krunal Saija]](https://cdn.slidesharecdn.com/ss_thumbnails/blackholes-krunalsaija-141029123229-conversion-gate01-thumbnail.jpg?width=640&height=640&fit=bounds)
LHC for Students

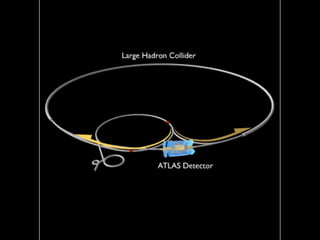

- 1. The LHC andATLAS Akira Shibata Queen Mary, University of London
- 2. The LHC andATLAS Akira Shibata Queen Mary, University of London

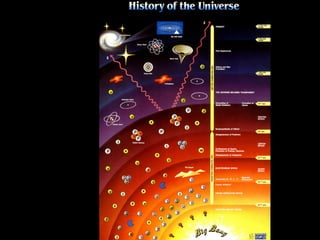

- 5.
- 6.

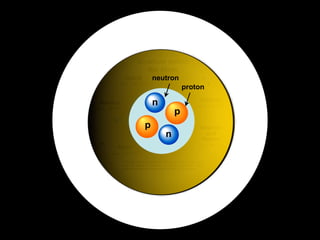

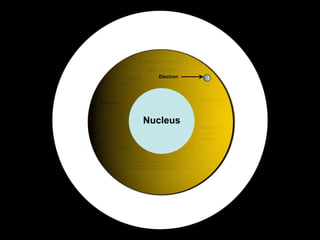

- 7. neutron Electron proton n p Atom? Nucleus p n

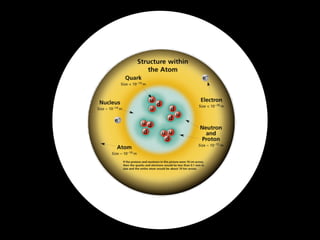

- 8. neutron Electron proton n p Atom? Nucleus p n

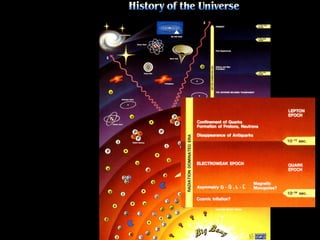

- 12.

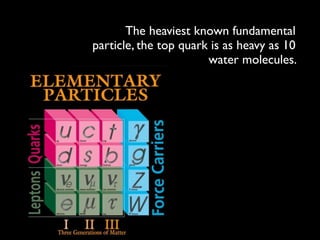

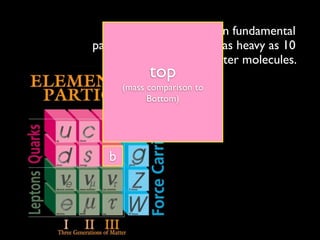

- 13. The heaviest knownfundamental particle, the top quark is as heavy as 10 water molecules.
- 14. The heaviest knownfundamental particle, the top quark is as heavy as 10 water molecules. b
- 15. The heaviest knownfundamental particle, the top quark is as heavy as 10 water molecules. top (mass comparison to Bottom) b
- 16. The heaviest knownfundamental particle, the top quark is as heavy as 10 water molecules. top (mass comparison to Bottom) b W
- 17. We need alot of energy in a very high concentration to produce them, and need to observe their decay products precisely.
- 18. We need alot of energy in a very high concentration to produce them, and need to observe their decay products precisely.
- 19. We need alot of energy in a very high concentration to produce them, and need to observe their decay products precisely.
- 20. We need alot of energy in a very high concentration to produce them, and need to observe their decay products precisely.
- 21. We need alot of energy in a very high concentration to produce them, and need to observe their decay products precisely.
- 22. We need alot of energy in a very high concentration to produce them, and need to observe their decay products precisely.
- 23. We need alot of energy in a very high concentration to produce them, and need to observe their decay products precisely.
- 24. We need alot of energy in a very high concentration to produce them, and need to observe their decay products precisely.

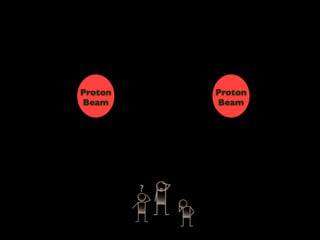

- 25. Proton Proton Beam Beam

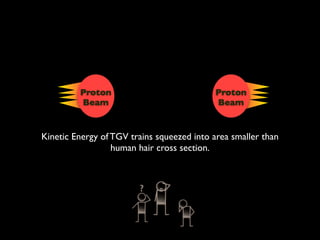

- 26. Proton Proton Beam Beam Kinetic Energy of TGV trains squeezed into area smaller than human hair cross section.

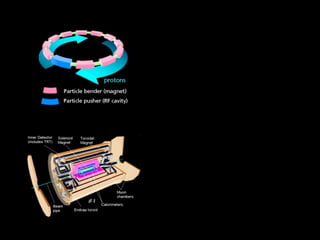

- 29.
- 30.

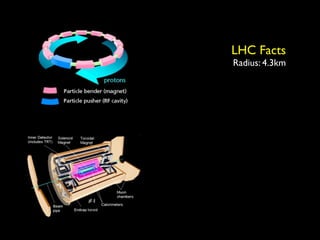

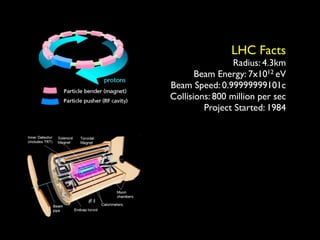

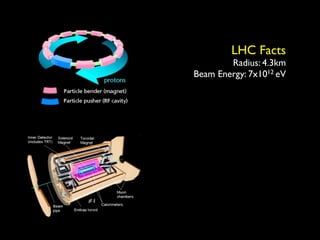

- 31. LHC Facts Radius: 4.3km Beam Energy: 7x1012 eV

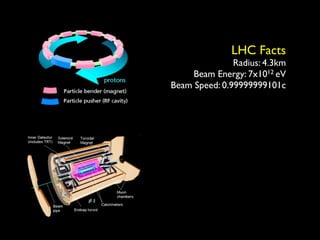

- 32. LHC Facts Radius: 4.3km Beam Energy: 7x1012 eV Beam Speed: 0.99999999101c

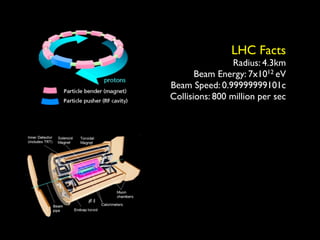

- 33. LHC Facts Radius: 4.3km Beam Energy: 7x1012 eV Beam Speed: 0.99999999101c Collisions: 800 million per sec
- 34. LHC Facts Radius: 4.3km Beam Energy: 7x1012 eV Beam Speed: 0.99999999101c Collisions: 800 million per sec Project Started: 1984

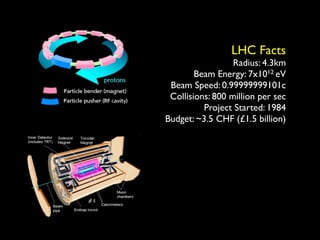

- 35. LHC Facts Radius: 4.3km Beam Energy: 7x1012 eV Beam Speed: 0.99999999101c Collisions: 800 million per sec Project Started: 1984 Budget: ~3.5 CHF (£1.5 billion)

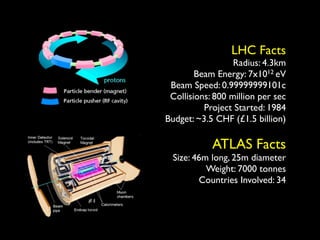

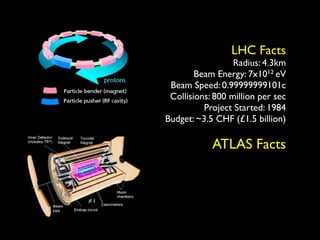

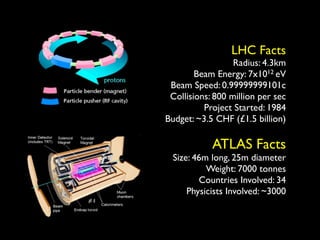

- 36. LHC Facts Radius: 4.3km Beam Energy: 7x1012 eV Beam Speed: 0.99999999101c Collisions: 800 million per sec Project Started: 1984 Budget: ~3.5 CHF (£1.5 billion) ATLAS Facts
- 37. LHC Facts Radius: 4.3km Beam Energy: 7x1012 eV Beam Speed: 0.99999999101c Collisions: 800 million per sec Project Started: 1984 Budget: ~3.5 CHF (£1.5 billion) ATLAS Facts Size: 46m long, 25m diameter
- 38. LHC Facts Radius: 4.3km Beam Energy: 7x1012 eV Beam Speed: 0.99999999101c Collisions: 800 million per sec Project Started: 1984 Budget: ~3.5 CHF (£1.5 billion) ATLAS Facts Size: 46m long, 25m diameter Weight: 7000 tonnes
- 39. LHC Facts Radius: 4.3km Beam Energy: 7x1012 eV Beam Speed: 0.99999999101c Collisions: 800 million per sec Project Started: 1984 Budget: ~3.5 CHF (£1.5 billion) ATLAS Facts Size: 46m long, 25m diameter Weight: 7000 tonnes Countries Involved: 34
- 40. LHC Facts Radius: 4.3km Beam Energy: 7x1012 eV Beam Speed: 0.99999999101c Collisions: 800 million per sec Project Started: 1984 Budget: ~3.5 CHF (£1.5 billion) ATLAS Facts Size: 46m long, 25m diameter Weight: 7000 tonnes Countries Involved: 34 Physicists Involved: ~3000
- 41. Top quarks areproduced VERY rarely So we need to look at many collisions.
- 42. Top quarks areproduced VERY rarely So we need to look at many collisions.
- 43. Top quarks areproduced VERY rarely So we need to look at many collisions.
- 44. Top quarks areproduced VERY rarely So we need to look at many collisions.
- 45.

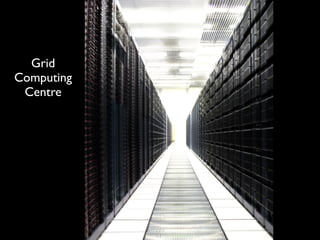

- 46.

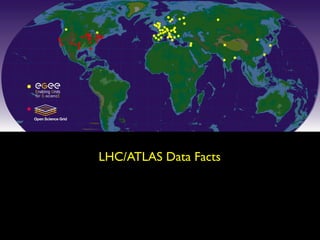

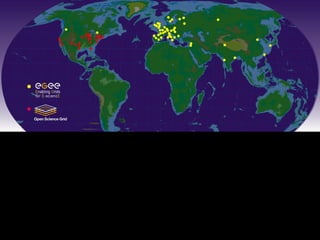

- 48.

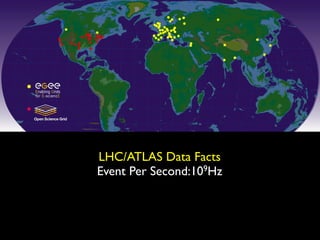

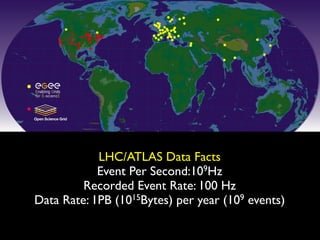

- 49. LHC/ATLAS Data Facts EventPer Second:109Hz

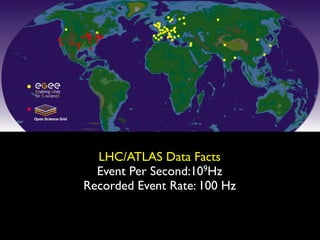

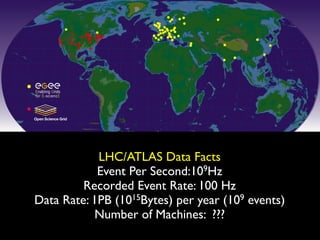

- 50. LHC/ATLAS Data Facts Event Per Second:109Hz Recorded Event Rate: 100 Hz
- 51. LHC/ATLAS Data Facts Event Per Second:109Hz Recorded Event Rate: 100 Hz Data Rate: 1PB (1015Bytes) per year (109 events)
- 52. LHC/ATLAS Data Facts Event Per Second:109Hz Recorded Event Rate: 100 Hz Data Rate: 1PB (1015Bytes) per year (109 events) Number of Machines: ???

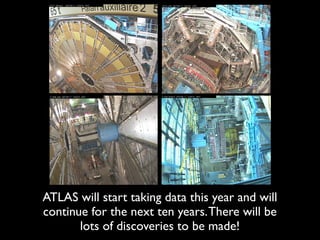

- 53. ATLAS will starttaking data this year and will continue for the next ten years. There will be lots of discoveries to be made!
- 54. ATLAS will starttaking data this year and will continue for the next ten years. There will be lots of discoveries to be made!

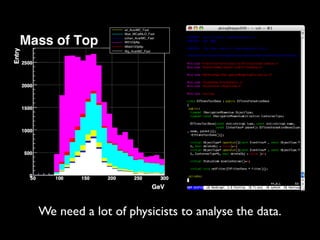

- 55. We need alot of physicists to analyse the data.
