LED Video Walls

 Leading LED Display manufacturer for the last 20 years supplying displays
to Indian Railways, Exchanges, Corporate, etc
 Product options range from stadium perimeter screens & replay screens
to transparent LED video wall and scrolling tickers for stock data
 100% weather-proof rugged modules which are safe against environment
abuses
 We only use grade I matched LEDs of CREE/NICHIA/EPISTAR/SILAN/OPTO
make
 Truly international quality LED displays with local design, sales & support
Introduction

Products
SMD Outdoor – P10, P12, P16
Indoor - P4, P5, P6, P7.6, P8, P10

Oval Outdoor – P10, P12, P16, P18,
P20, P25, P31.25
Curtain – P16, P18, P20, P25, P31.25,
P50, P62.5

 Perimeter Wall
 Choice of cabinets – fixed, hanging, stadium perimeter
 All options available in single color, three color, true color, real and virtual
pixels

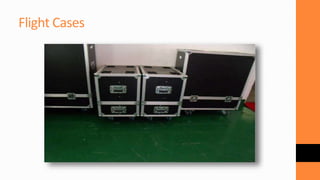

 System Components – flight case, video processor, etc
Products
IndoorSMDVideoWalls

Item Specifications
Pitch (mm) 6
Pixel Configuration SMD 3 in 1
Module resolution 160 * 128
Cabinet size (mm) 960 * 768
Cabinet weight( kg/m^2) 48
Resolution (pixel/m^2) 27777
Avg. Power Consumption (W/m^2) 500
Max Power Consumption (W/m^2) 1000
Refresh Rate (Hz) 300/2400
Brightness (cd/m²) >2000
Viewing angle (H*V) 140°* 140°
Number of colours 16 bit
Datasheet - Indoor 6P

Outdoor LED Video Walls
P12
P16
P20
P25
P31.5

Item Specifications
Pitch (mm) 16
Pixel Configuration 2R1G1B
Module resolution 160 * 128
Cabinet size (mm) 960 * 768
Cabinet weight( kg/m^2) 48
Resolution (pixel/m^2) 3906
Avg. Power Consumption (W/m^2) 500
Max Power Consumption (W/m^2) 1000
Refresh Rate (Hz) 300/2400
Brightness (cd/m²) >6000
Viewing angle (H*V) 60°* 120°
Number of colours 16 bit
LED chip size 13 mil
Sample Datasheet - Outdoor 16P

LED Curtain- 50 mm from 1.5 km

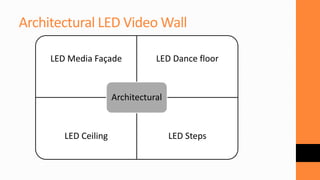

Architectural LED Video Wall
LED Media Façade LED Dance floor
LED Ceiling LED Steps
Architectural

 Full outdoor IP-65
video walls on full
color, 3 color and
single color
available
 Software to update
score , show replay
etc. provide along
with the display
 Interface –cat5 /RJ
46/ Rs. 232/ Rs.
465
 Available in matrix,
oval and SMD LED
LED Scoreboards

 Single color,3 color, true color, indoor and outdoor LED display available customized
to any size
 Manage displays from central location
 Option to update content through SMS
 Hindi, English and regional language supported
 Interface: RS 232/RS 485
 Auto announcement solution with LED synchronization
GPS/GPRS Based LED Displays

GPRS/GSM+GPS based bus displays
 Matrix display with auto announcement for inside bus implantation
 Oval displays (5mm,7.62, 10 mm) for bus shelter and outdoor visibility
 Weather proof (IP 65/56)

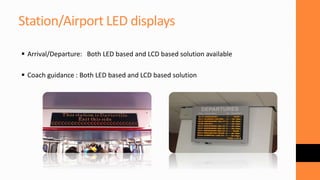

Station/Airport LED displays
 Arrival/Departure: Both LED based and LCD based solution available
 Coach guidance : Both LED based and LCD based solution

Front Installation Displays
Allrightsreserved©Apex
Infovending,2011

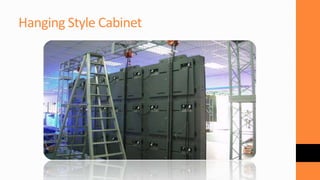

Hanging Style Cabinet
Case back view Case left view
 Designed for LED rental business

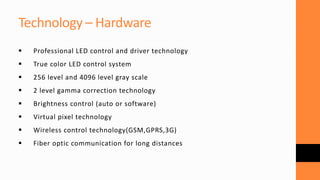

Technology – Hardware
 Professional LED control and driver technology
 True color LED control system
 256 level and 4096 level gray scale
 2 level gamma correction technology
 Brightness control (auto or software)
 Virtual pixel technology
 Wireless control technology(GSM,GPRS,3G)
 Fiber optic communication for long distances

Technology – Software Features
 Remote management - Control your screen from anywhere with any net
enabled device
 Schedule to play any of the following content types in any part of the
screen:
 Video: wmv,avi,mpg,mpeg,mov,mp4,3gp,3gpp,asf
 Flash: swf,flv
 Image: jpg, jpeg, png, bmp, gif
 PowerPoint: ppt, pps, pptx, ppsx
 Other: live TV (cable television), RSS feeds, Web Pages, Embedded
HTML

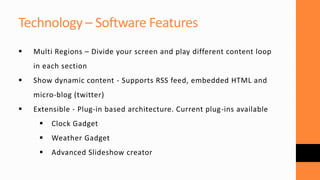

Technology – Software Features
 Multi Regions – Divide your screen and play different content loop
in each section
 Show dynamic content - Supports RSS feed, embedded HTML and
micro-blog (twitter)
 Extensible - Plug-in based architecture. Current plug-ins available
 Clock Gadget
 Weather Gadget
 Advanced Slideshow creator

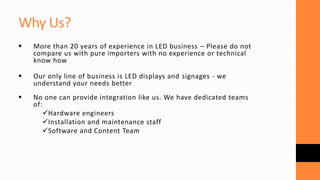

 More than 20 years of experience in LED business – Please do not
compare us with pure importers with no experience or technical
know how
 Our only line of business is LED displays and signages - we
understand your needs better
 No one can provide integration like us. We have dedicated teams
of:
Hardware engineers
Installation and maintenance staff
Software and Content Team
Why Us?

 We partner with the best in industry not only in India but also in China,
Taiwan and Japan
 We brew our own coffee
We are not an import export company or agents for Chinese
company
 We procure components and make our own LED Displays
Why Us?

 Bombay Stock Exchange chose Xtreme Media to install four giant LED video
walls & 126 ft long ticker along with Digital Signage Software on their
iconic building on Dalal Street. We were chosen amongst companies from
India, China, Germany and Japan after technical and financial evaluations
 Our valued customers in the financial industry include BSE, NSE, MCX, FT,
SBI Capital Market, Reliance Money &ICICI Direct among others
 Indian Railways, MSRTC, RSRTC, etc are some of our customers in the
public space
 Corporate clients include Mahindra & Mahindra, Reliance Petroleum,
Reliance ADA, Bharat Petroleum, Asian Paints, Tata Asset Management etc
 Empanelled vendors for data feed of BSE -
http://www.bseindia.com/about/Newvendordetails.asp
Our Clients

Visit us
B-21, Shri Ram Ind. Estate,
G.D. Ambekar Marg,
Opp. Wadala Udyog Bhavan,
Wadala, Mumbai. 400 031 India
Mail : info@xtreme-media.in Telephone : (22) 2412 0398 / 99
www.xtreme-media.in
